1. Hacking with HHVM
Sara Golemon
pollita@php.net
Mar 5, 2014

2. 1 A quick recap
2 PHP is WebScale
3 Sure it’s fast but…
4 Extending HHVM

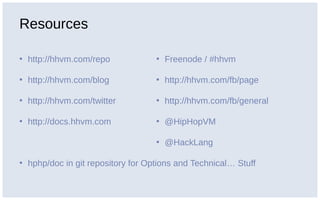

5 Conclusion / Resources
Agenda

3. A quick recap
“What is HHVM?”

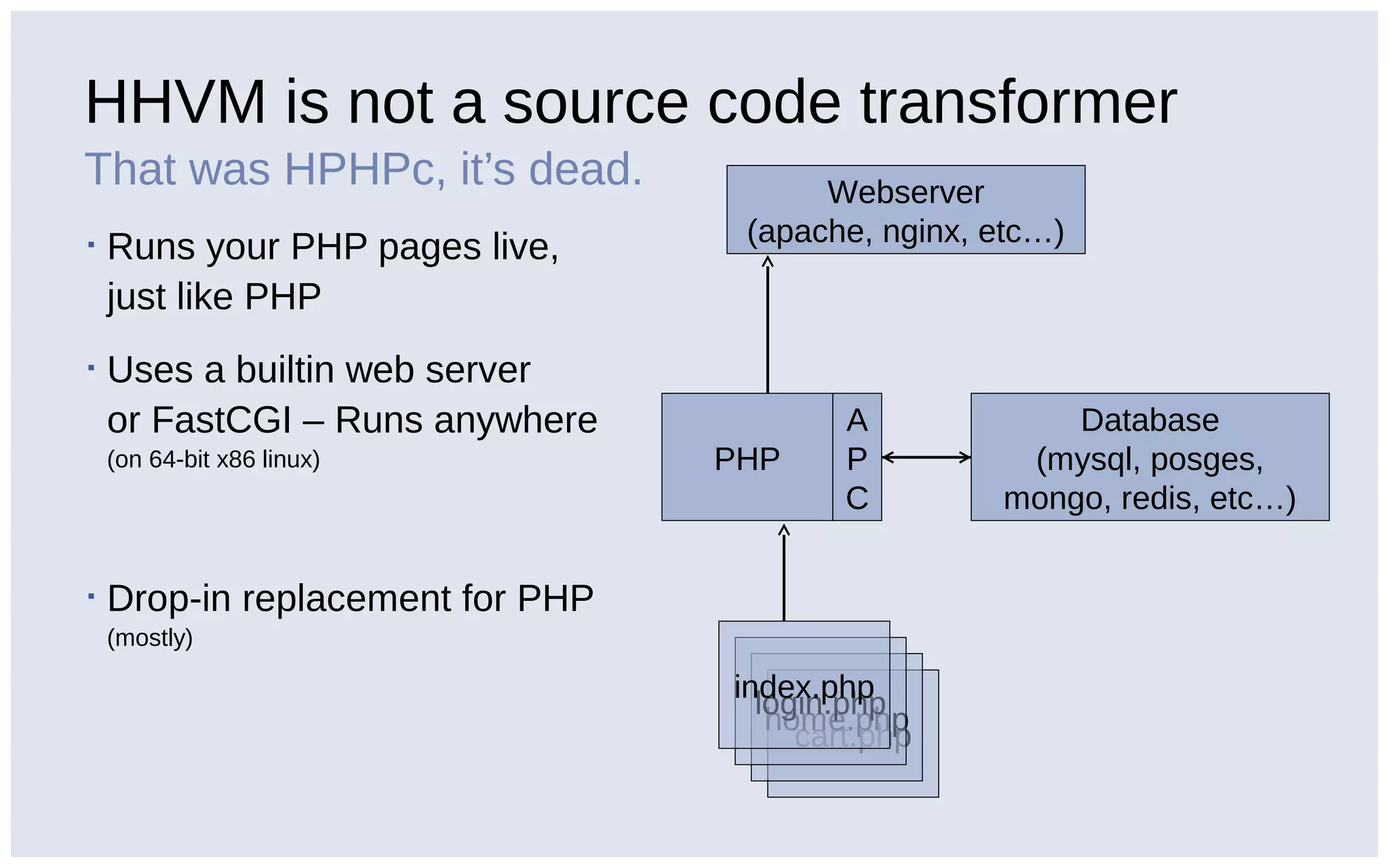

4. HHVM is not a source code transformer
That was HPHPc, it’s dead.
▪ Runs your PHP pages live,
just like PHP
▪ Uses a builtin web server
or FastCGI – Runs anywhere
(on 64-bit x86 linux)
▪ Drop-in replacement for PHP
(mostly)
Webserver
(apache, nginx, etc…)
Database
(mysql, posges,
mongo, redis, etc…)
cart.php
home.phplogin.php
index.php
PHP
A
P
C

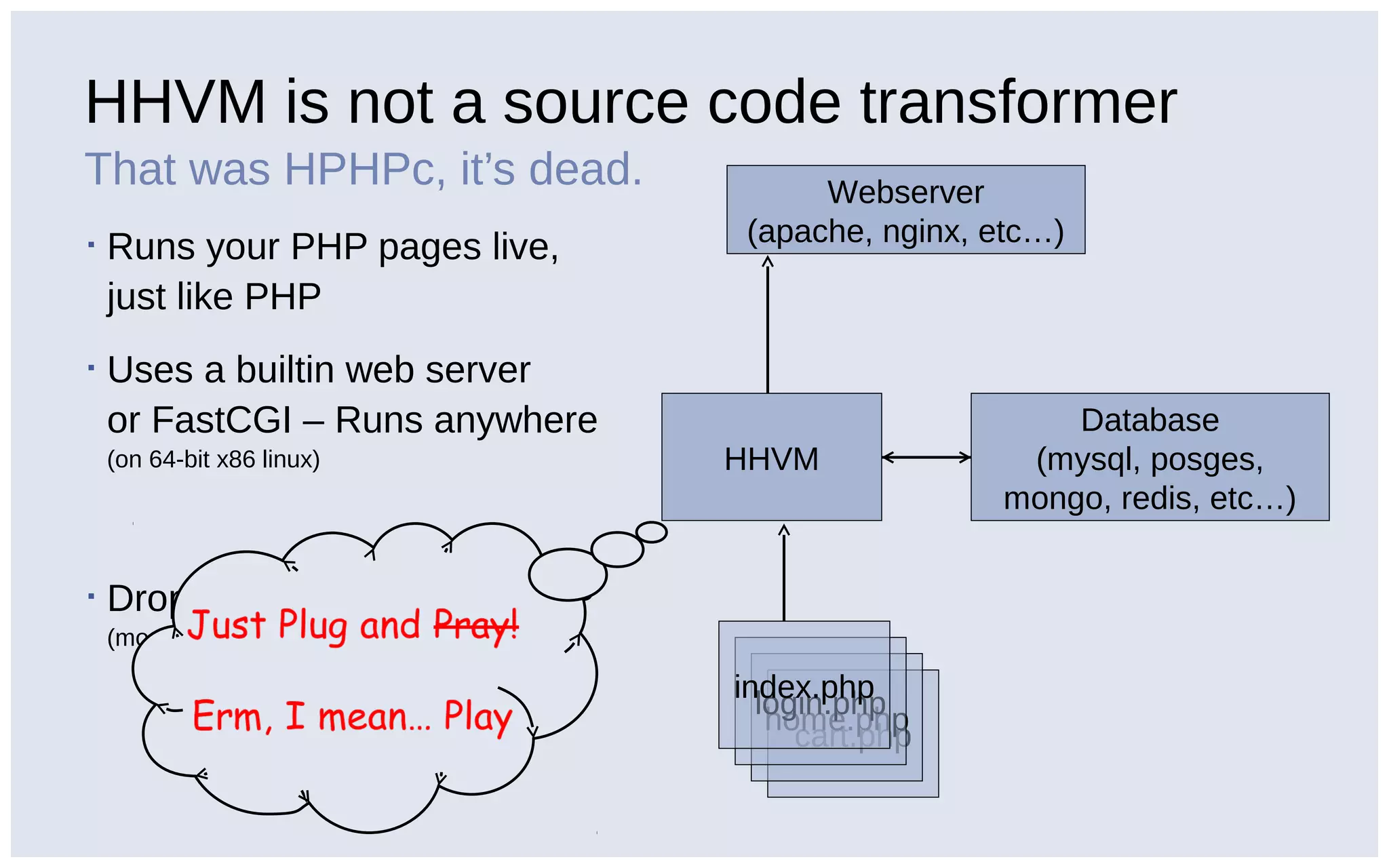

5. HHVM is not a source code transformer
That was HPHPc, it’s dead.
▪ Runs your PHP pages live,
just like PHP
▪ Uses a builtin web server
or FastCGI – Runs anywhere
(on 64-bit x86 linux)
▪ Drop-in replacement for PHP
(mostly)
Webserver
(apache, nginx, etc…)
Database
(mysql, posges,
mongo, redis, etc…)
cart.php
home.phplogin.php
index.php
HHVM

6. HHVM supports (most) PHP syntax
Tracking HEAD
▪ Pending: Splat (5.6)
(Variadics work already)
And some of its own
▪ Scalar type hint
(and much much more)
▪ Async co-routines
▪ Generics
▪ Collections (smart arrays)
▪ XHP (Integrated XHTML)
▪ User Attributes

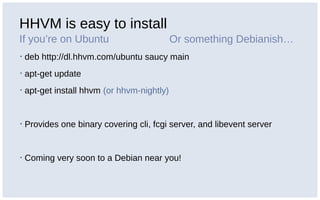

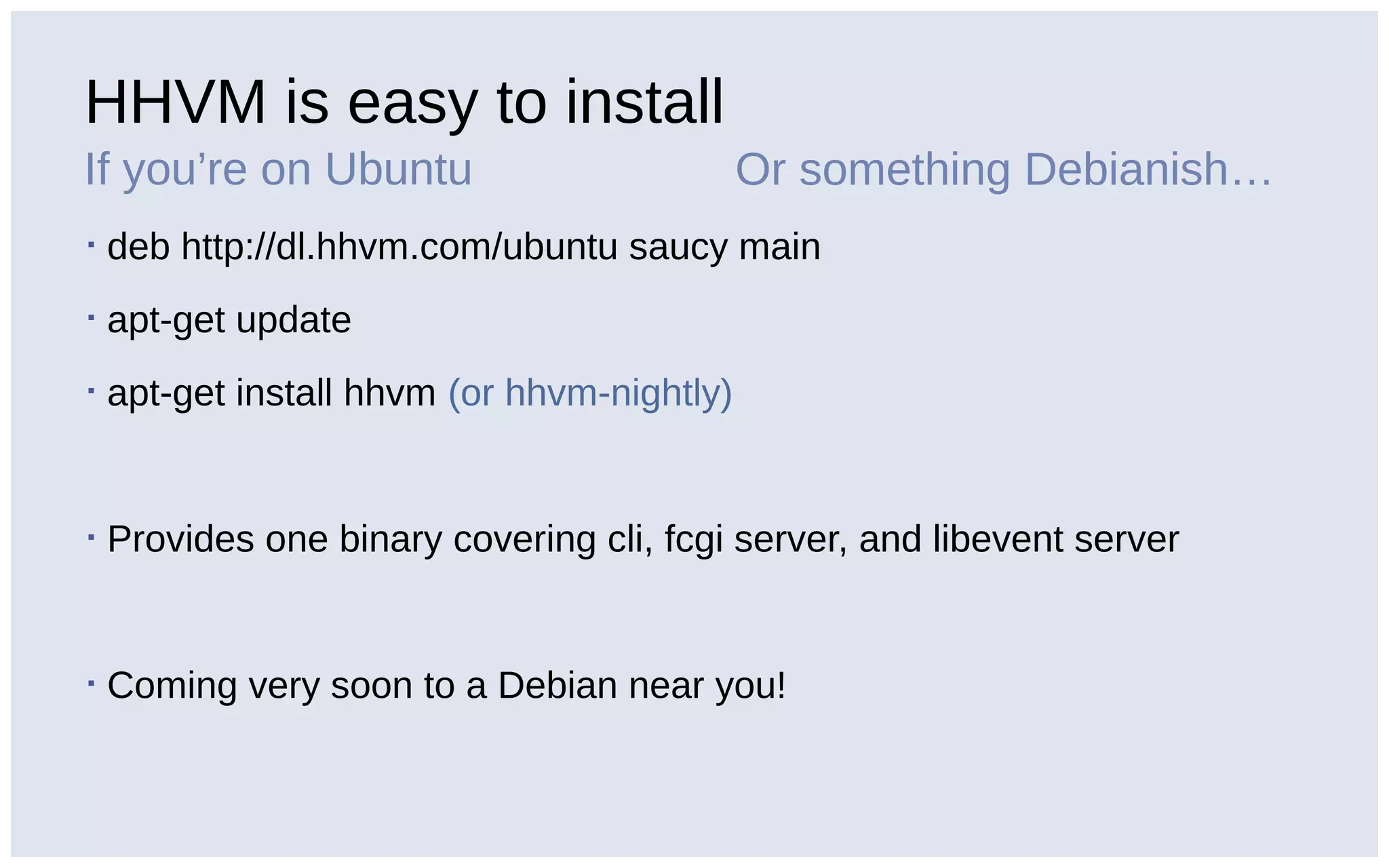

7. HHVM is easy to install
If you’re on Ubuntu
▪ deb http://dl.hhvm.com/ubuntu saucy main
▪ apt-get update
▪ apt-get install hhvm (or hhvm-nightly)
▪ Provides one binary covering cli, fcgi server, and libevent server
▪ Coming very soon to a Debian near you!
Or something Debianish…

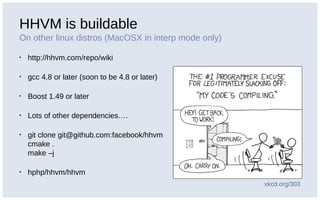

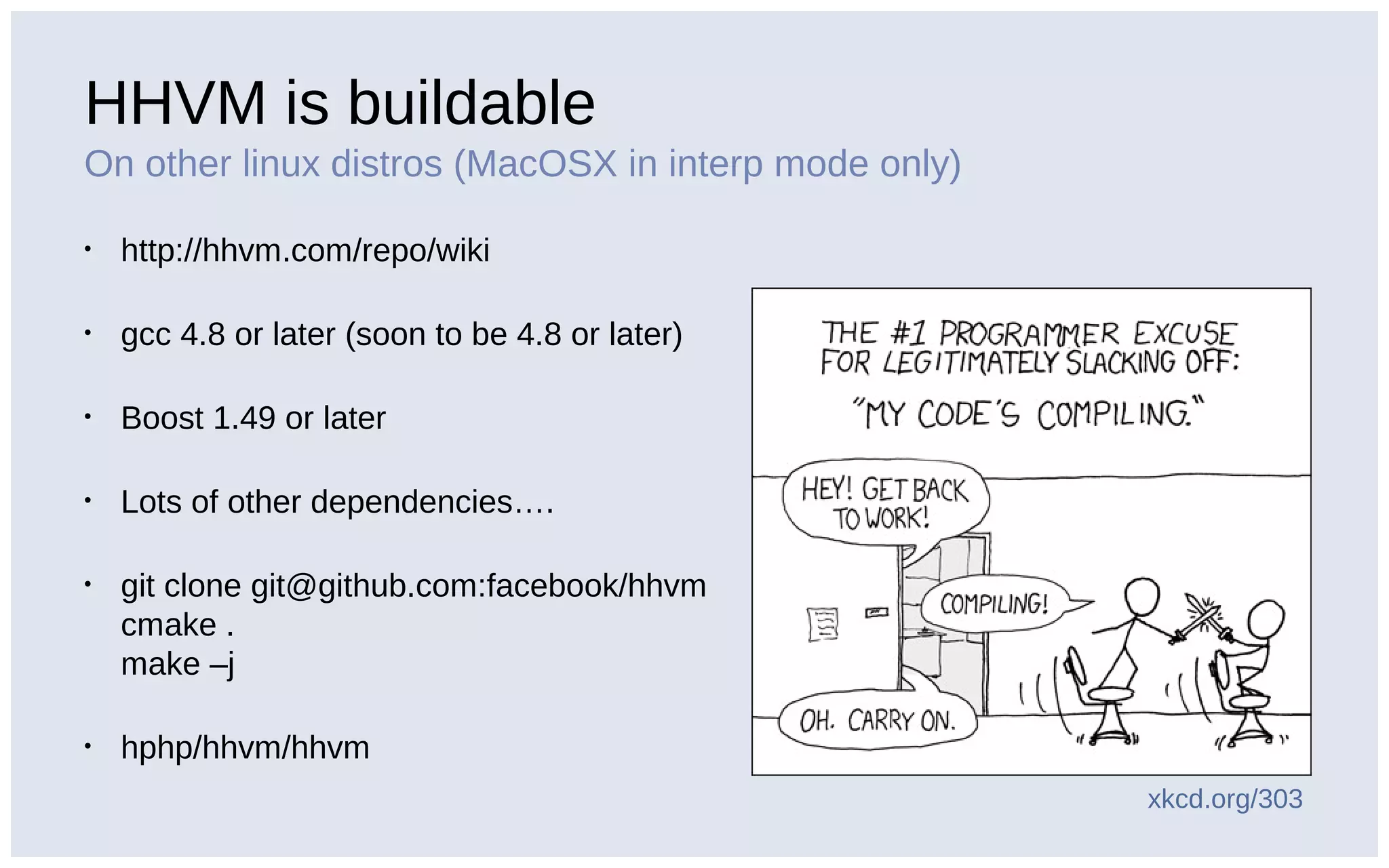

8. HHVM is buildable
On other linux distros (MacOSX in interp mode only)
• http://hhvm.com/repo/wiki
• gcc 4.8 or later (soon to be 4.8 or later)
• Boost 1.49 or later
• Lots of other dependencies….
• git clone git@github.com:facebook/hhvm
cmake .
make –j
• hphp/hhvm/hhvm
xkcd.org/303

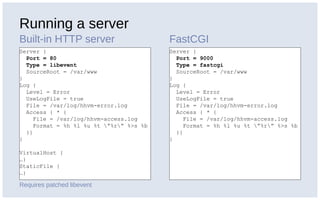

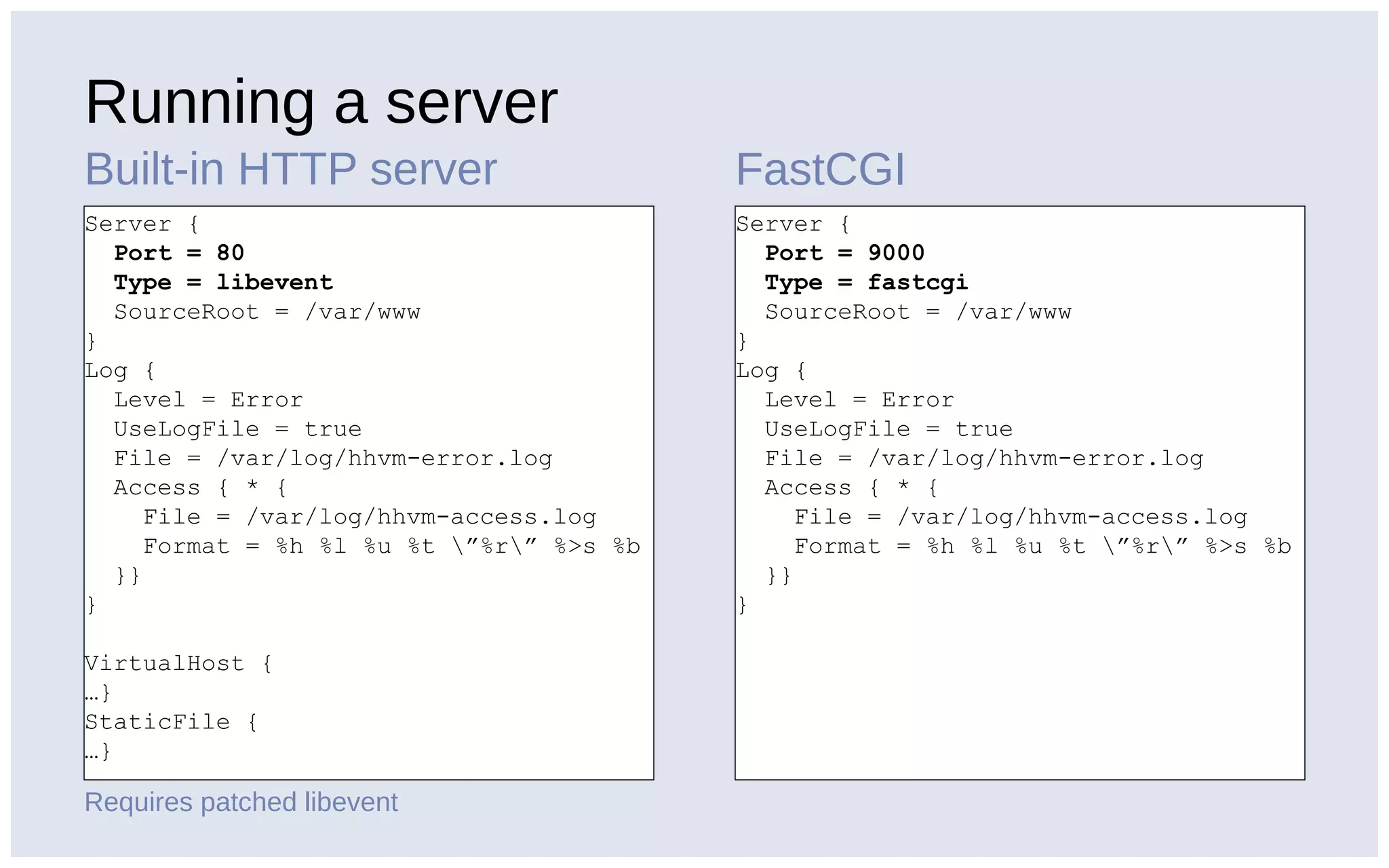

9. Running a server
Built-in HTTP server FastCGI
Server {
Port = 80
Type = libevent
SourceRoot = /var/www
}
Log {
Level = Error
UseLogFile = true
File = /var/log/hhvm-error.log
Access { * {
File = /var/log/hhvm-access.log
Format = %h %l %u %t ”%r” %>s %b
}}
}
VirtualHost {
…}
StaticFile {
…}
Server {
Port = 9000
Type = fastcgi
SourceRoot = /var/www
}
Log {
Level = Error
UseLogFile = true
File = /var/log/hhvm-error.log
Access { * {
File = /var/log/hhvm-access.log
Format = %h %l %u %t ”%r” %>s %b
}}
}
Requires patched libevent

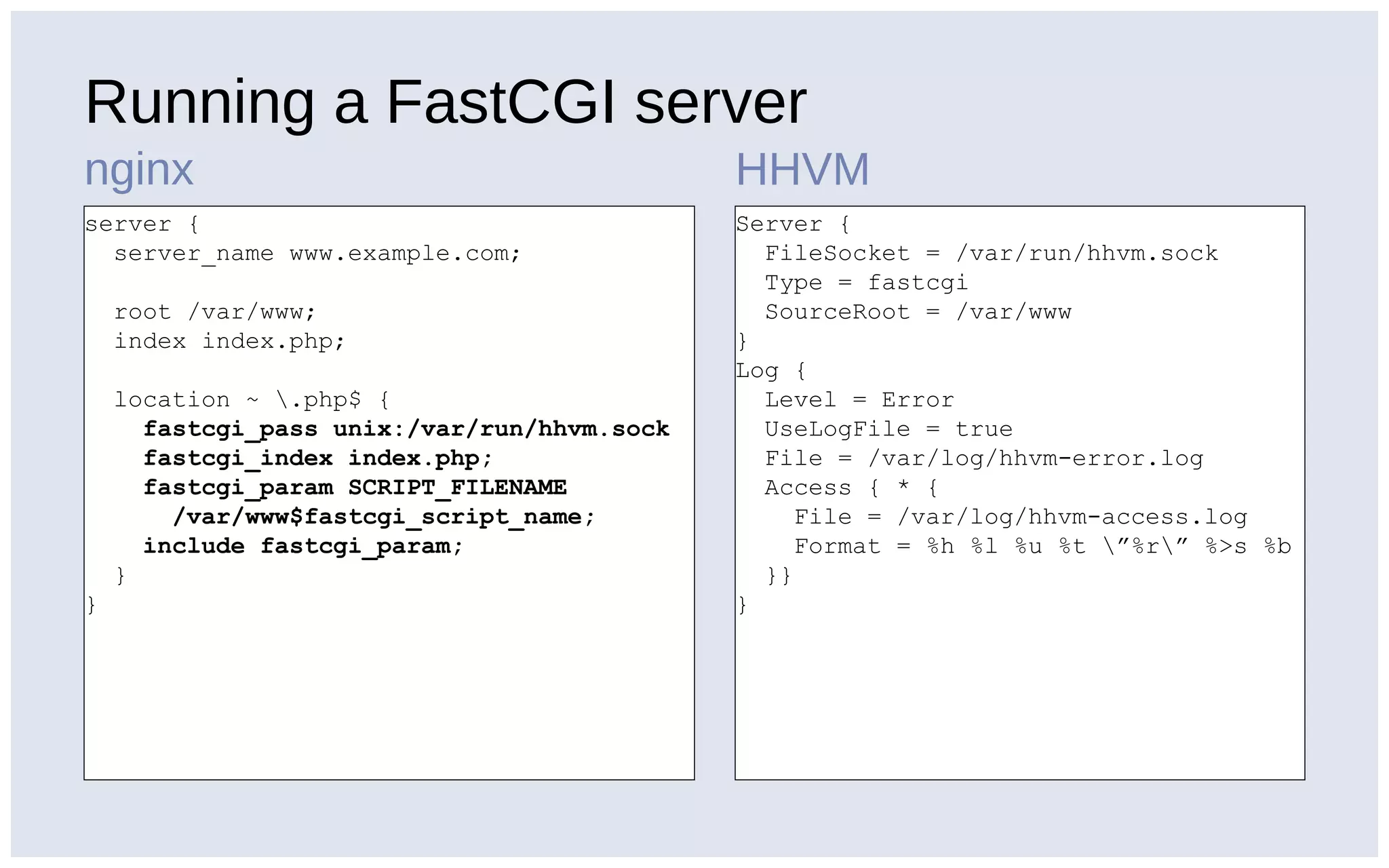

10. Running a FastCGI server
nginx HHVM
server {
server_name www.example.com;
root /var/www;
index index.php;
location ~ .php$ {
fastcgi_pass unix:/var/run/hhvm.sock
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME
/var/www$fastcgi_script_name;
include fastcgi_param;
}
}
Server {
FileSocket = /var/run/hhvm.sock
Type = fastcgi
SourceRoot = /var/www
}
Log {
Level = Error
UseLogFile = true
File = /var/log/hhvm-error.log
Access { * {
File = /var/log/hhvm-access.log
Format = %h %l %u %t ”%r” %>s %b
}}
}

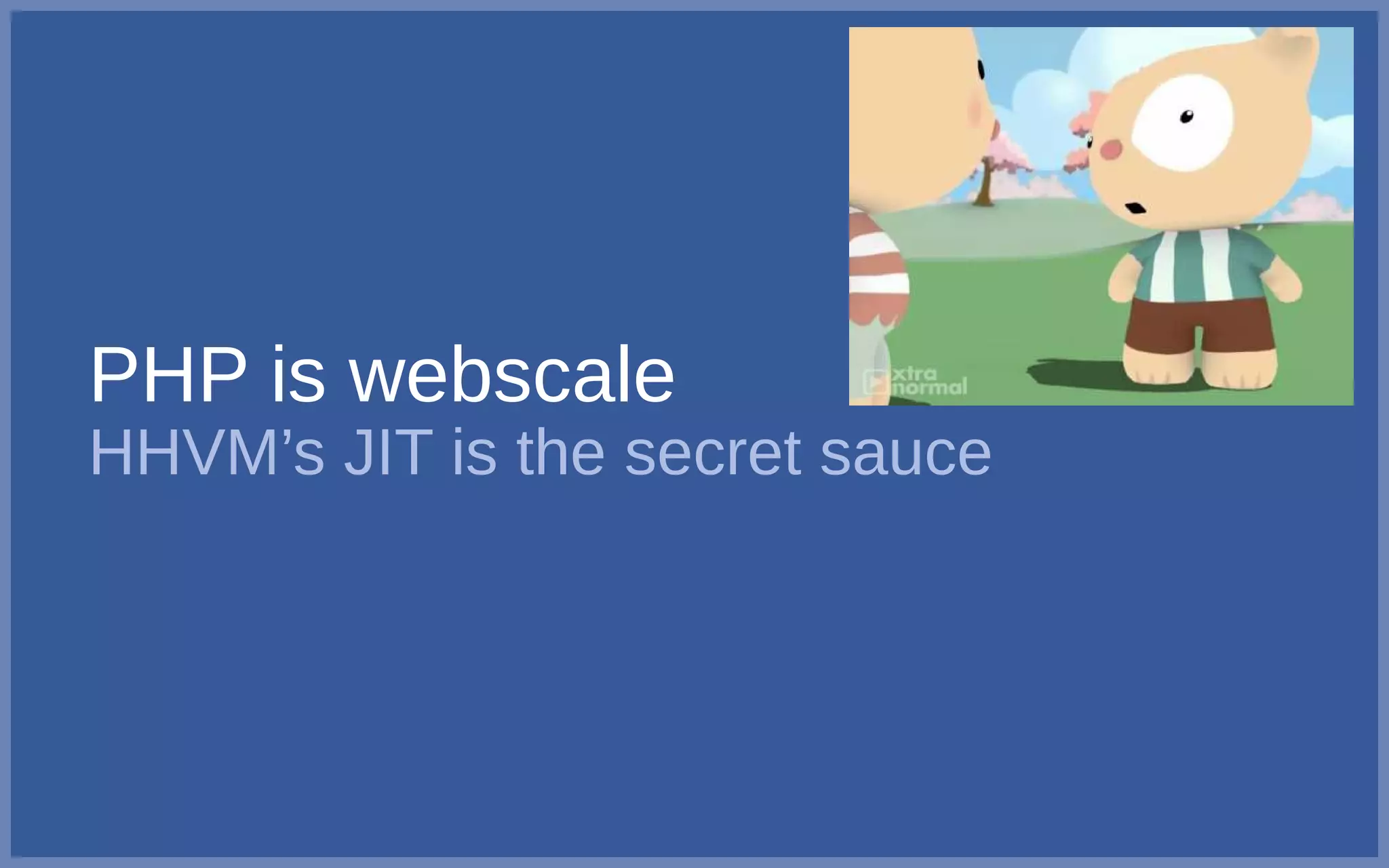

11. PHP is webscale
HHVM’s JIT is the secret sauce

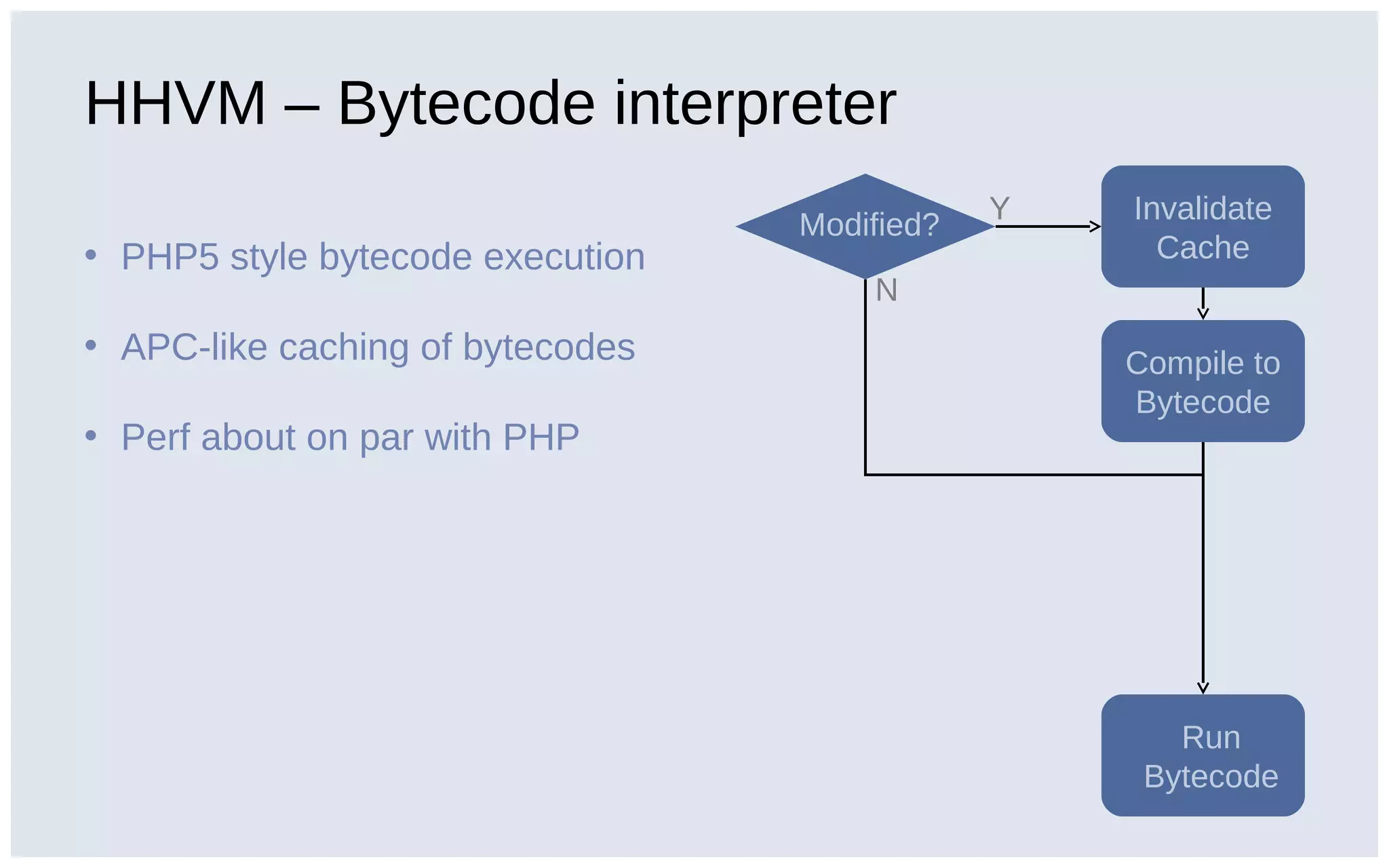

12. HHVM – Bytecode interpreter
• PHP5 style bytecode execution
• APC-like caching of bytecodes
• Perf about on par with PHP
Modified?
Invalidate
Cache
Compile to
Bytecode
Run
Bytecode
Y
N

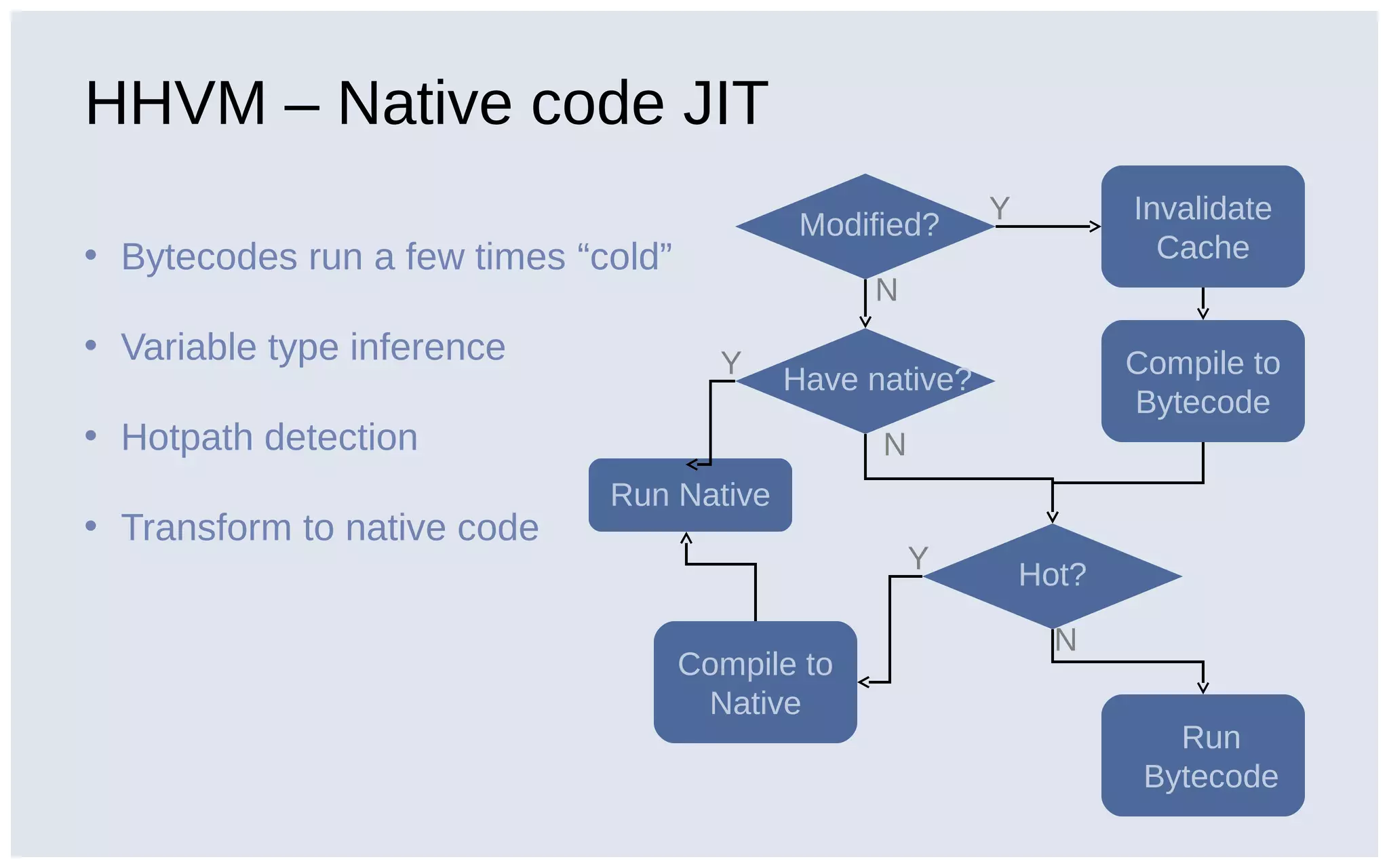

13. HHVM – Native code JIT
• Bytecodes run a few times “cold”
• Variable type inference
• Hotpath detection
• Transform to native code
Modified?
Invalidate
Cache
Compile to
Bytecode
Have native?
Run Native
Hot?
Run
Bytecode
Compile to
Native
Y
Y
Y
N
N
N

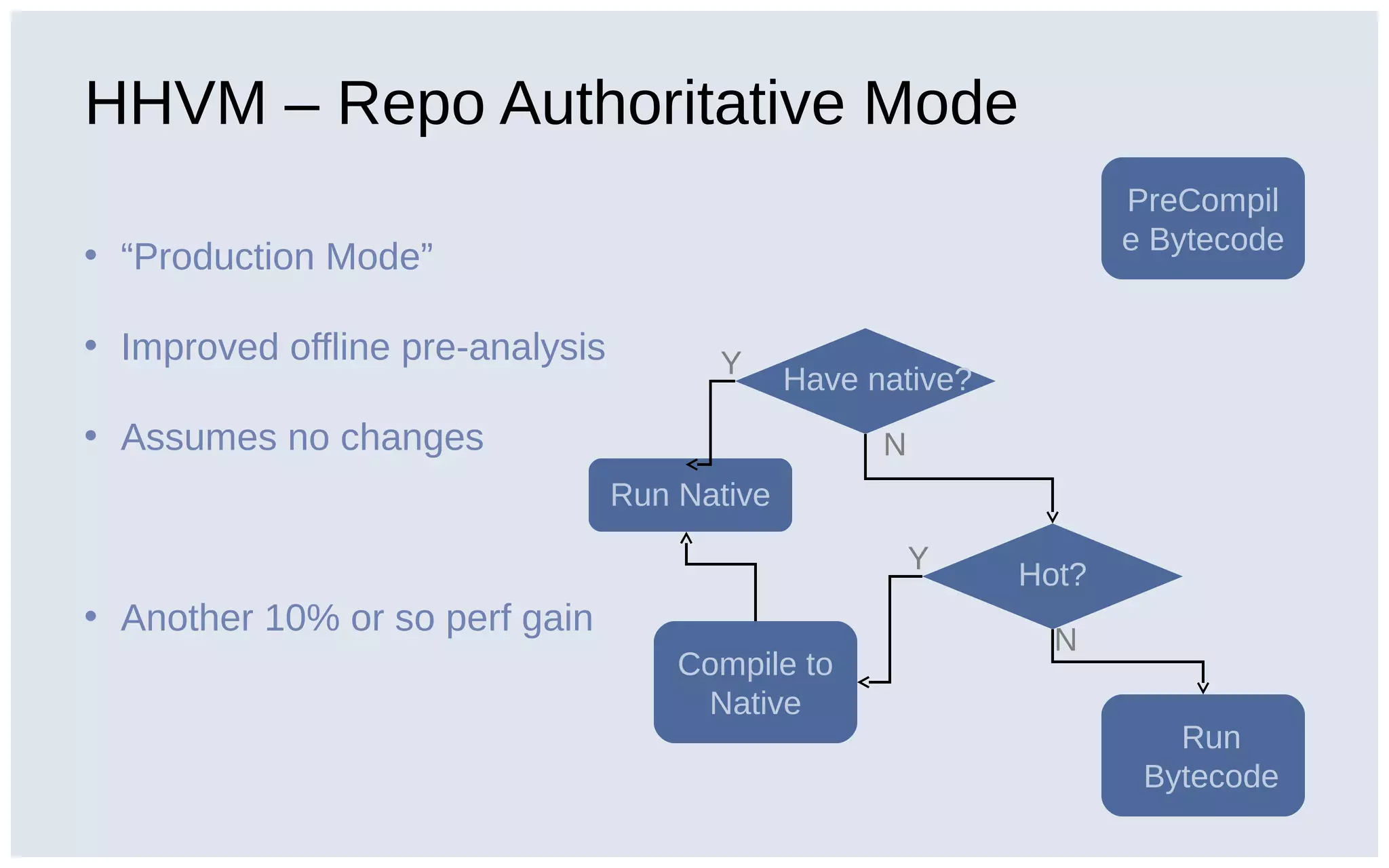

14. HHVM – Repo Authoritative Mode
• “Production Mode”
• Improved offline pre-analysis
• Assumes no changes
• Another 10% or so perf gain
PreCompil
e Bytecode
Have native?
Run Native
Hot?
Run
Bytecode
Compile to
Native
Y
Y
N
N

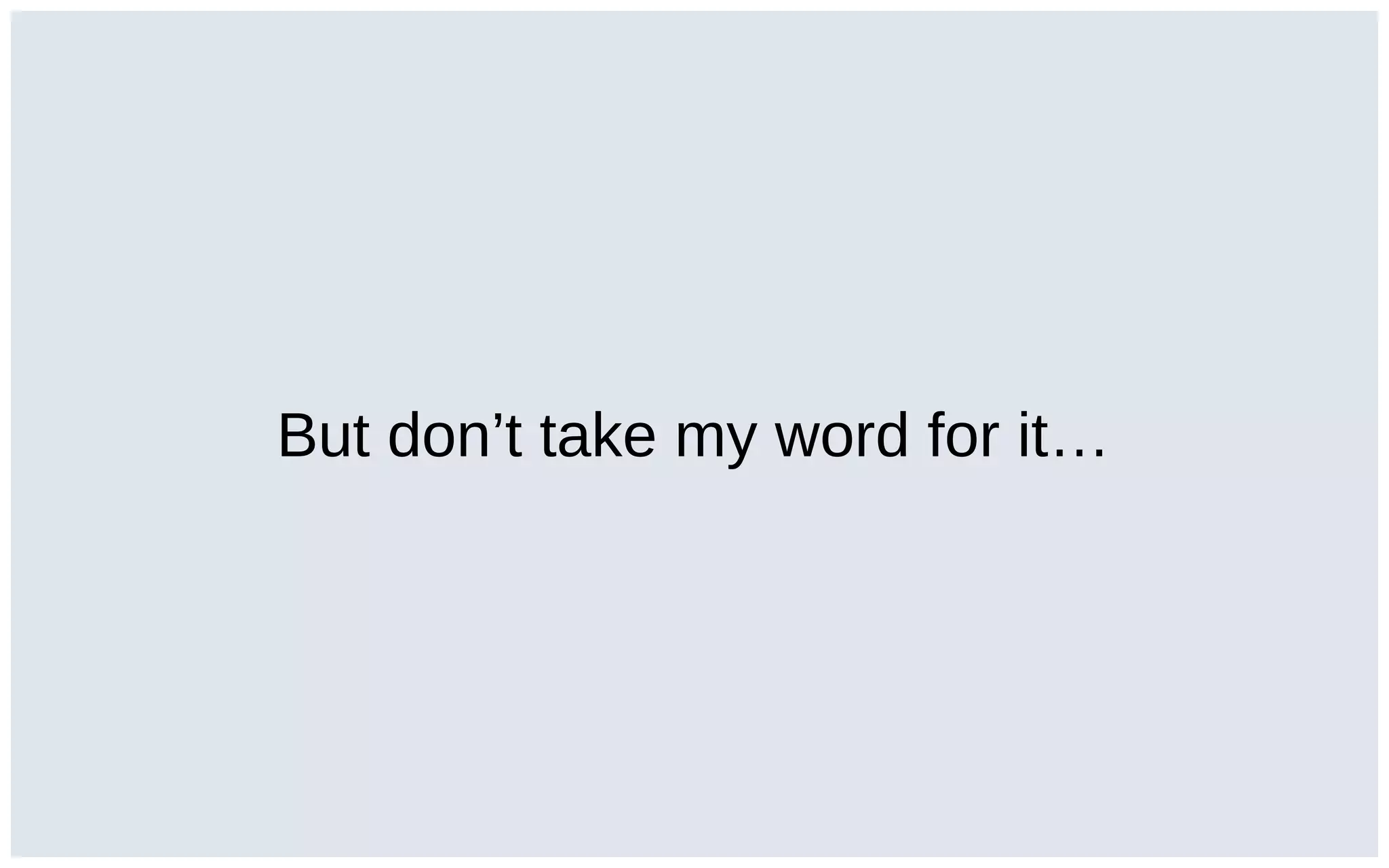

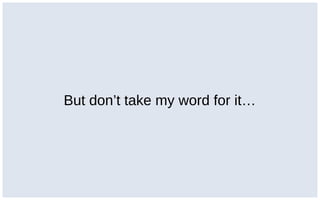

15. But don’t take my word for it…

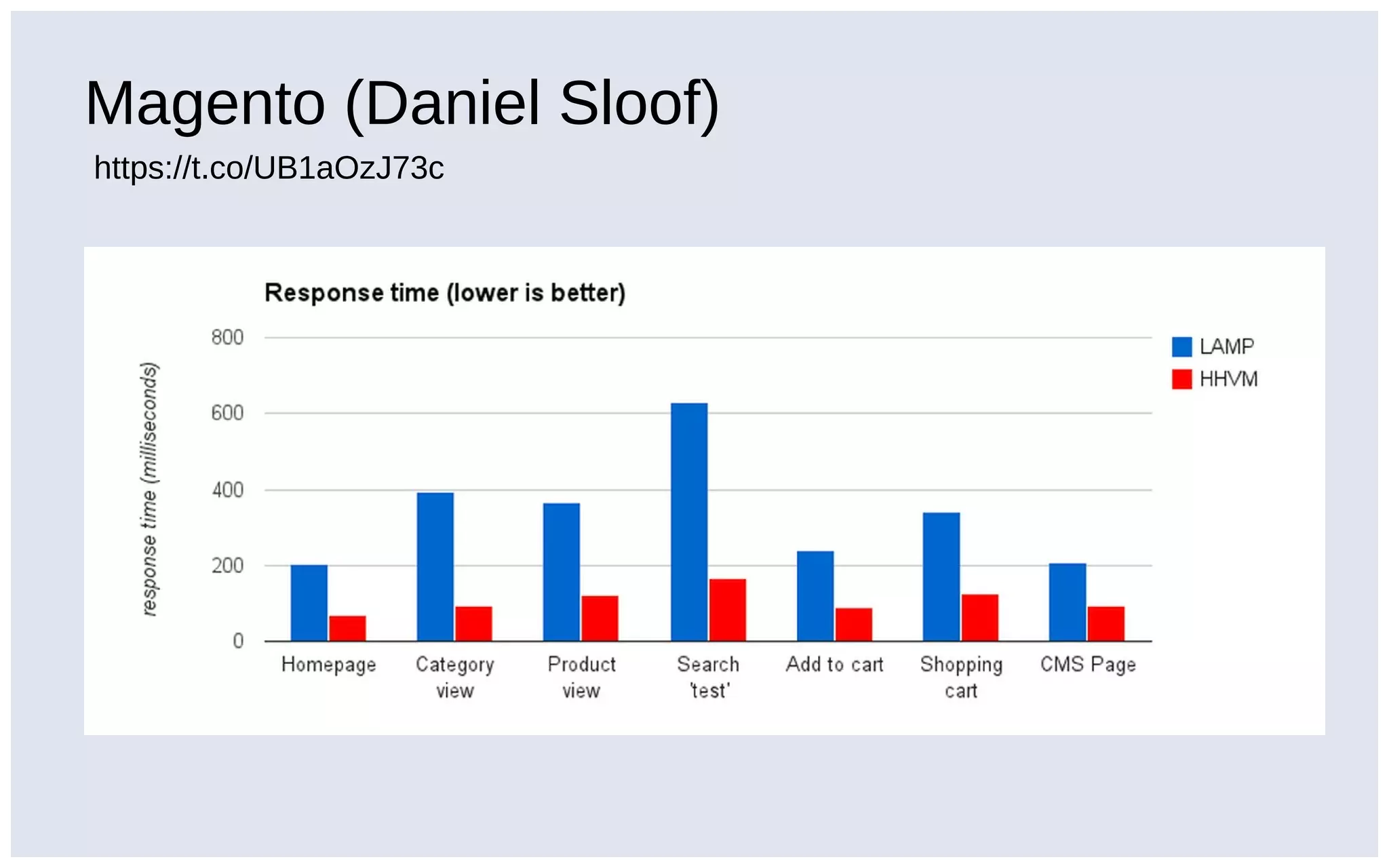

16. Magento (Daniel Sloof)
https://t.co/UB1aOzJ73c

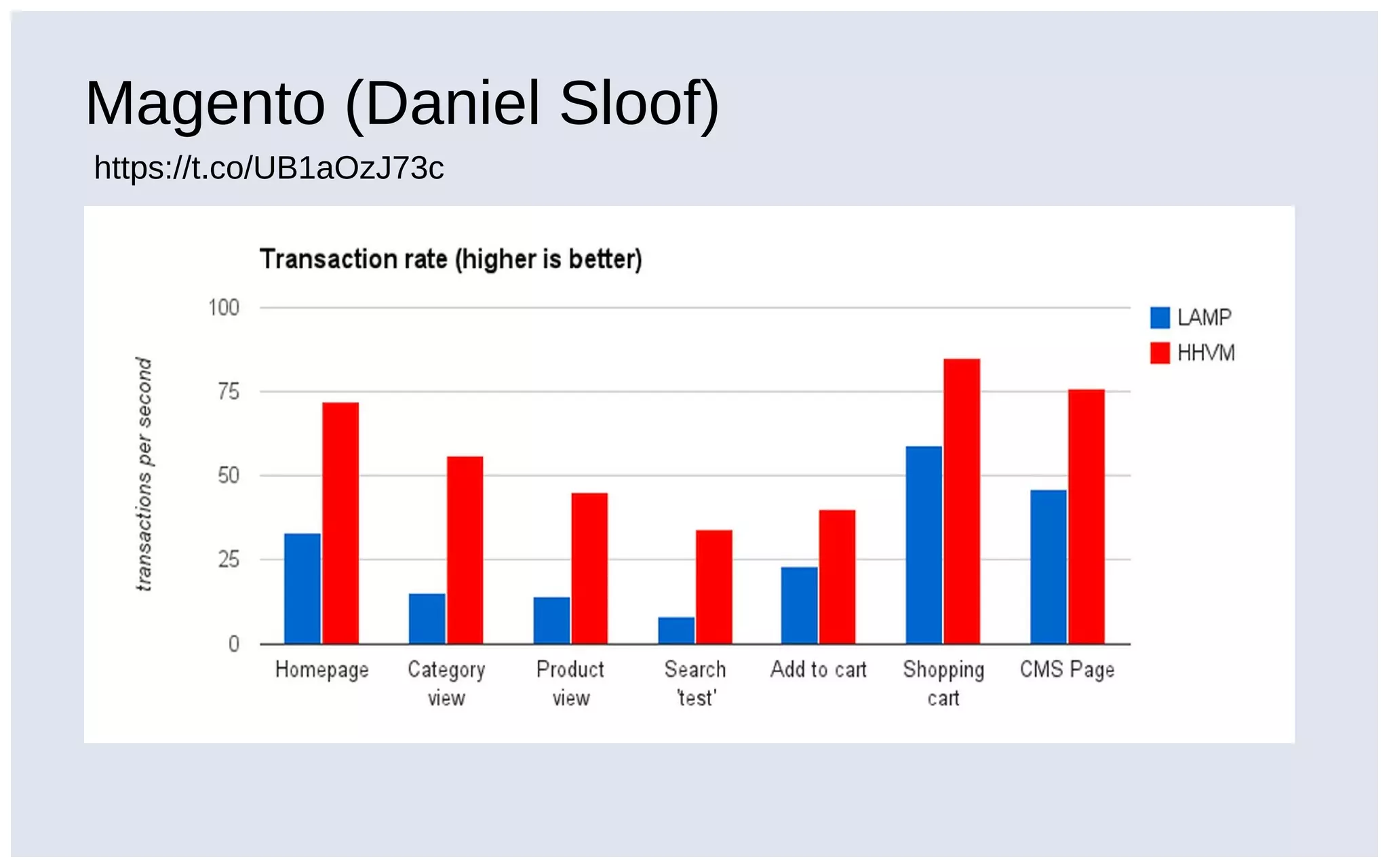

17. Magento (Daniel Sloof)
https://t.co/UB1aOzJ73c

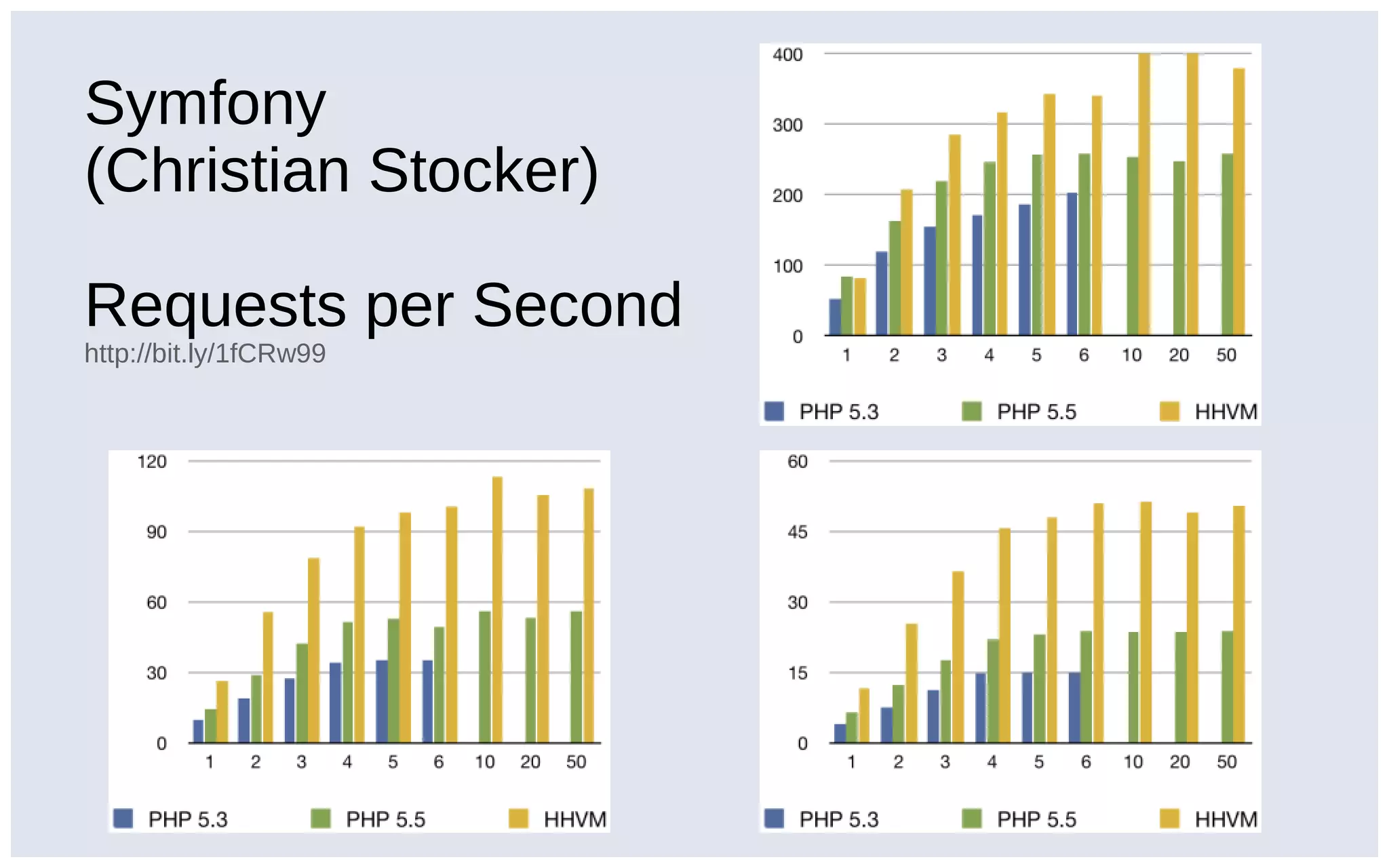

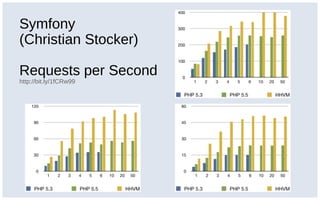

18. Symfony
(Christian Stocker)
Requests per Second
http://bit.ly/1fCRw99

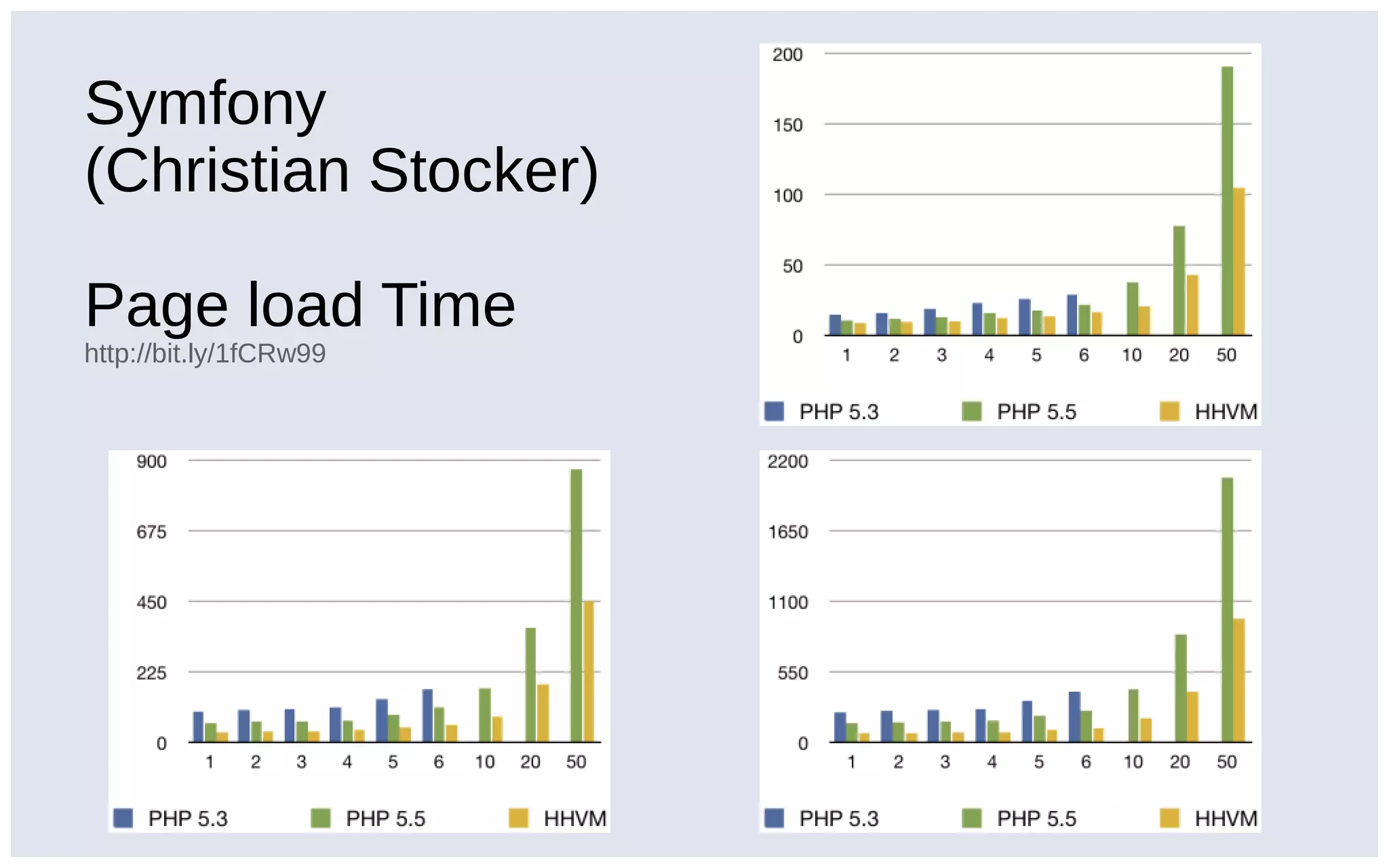

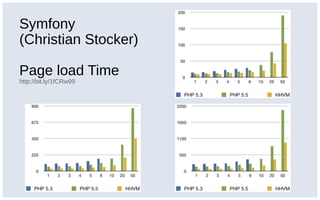

19. Symfony
(Christian Stocker)
Page load Time
http://bit.ly/1fCRw99

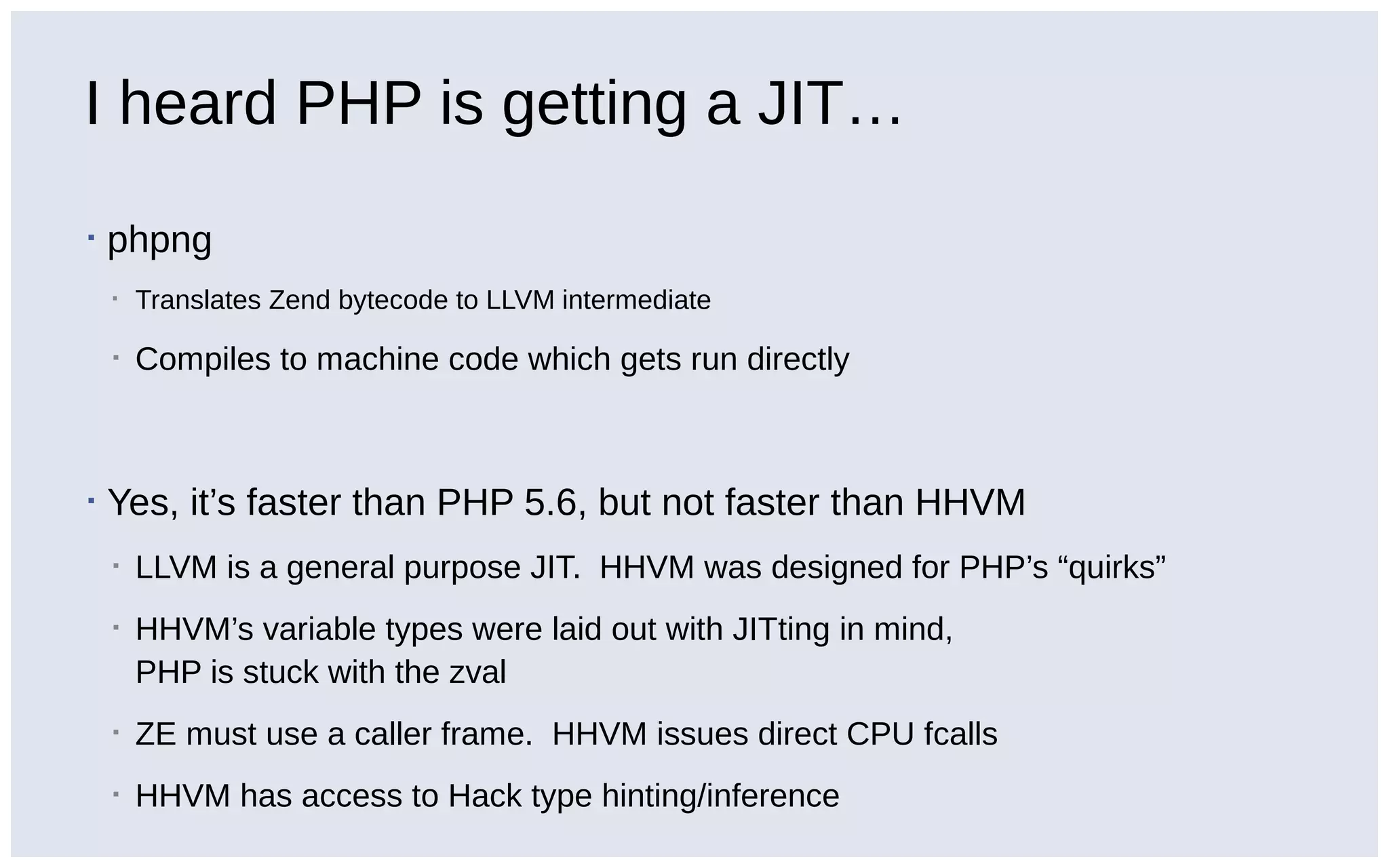

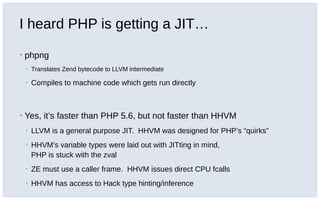

20. I heard PHP is getting a JIT…
▪ phpng
▪ Translates Zend bytecode to LLVM intermediate
▪ Compiles to machine code which gets run directly
▪ Yes, it’s faster than PHP 5.6, but not faster than HHVM
▪ LLVM is a general purpose JIT. HHVM was designed for PHP’s “quirks”
▪ HHVM’s variable types were laid out with JITting in mind,
PHP is stuck with the zval
▪ ZE must use a caller frame. HHVM issues direct CPU fcalls
▪ HHVM has access to Hack type hinting/inference

21. Sure it’s fast
But what else can it do?

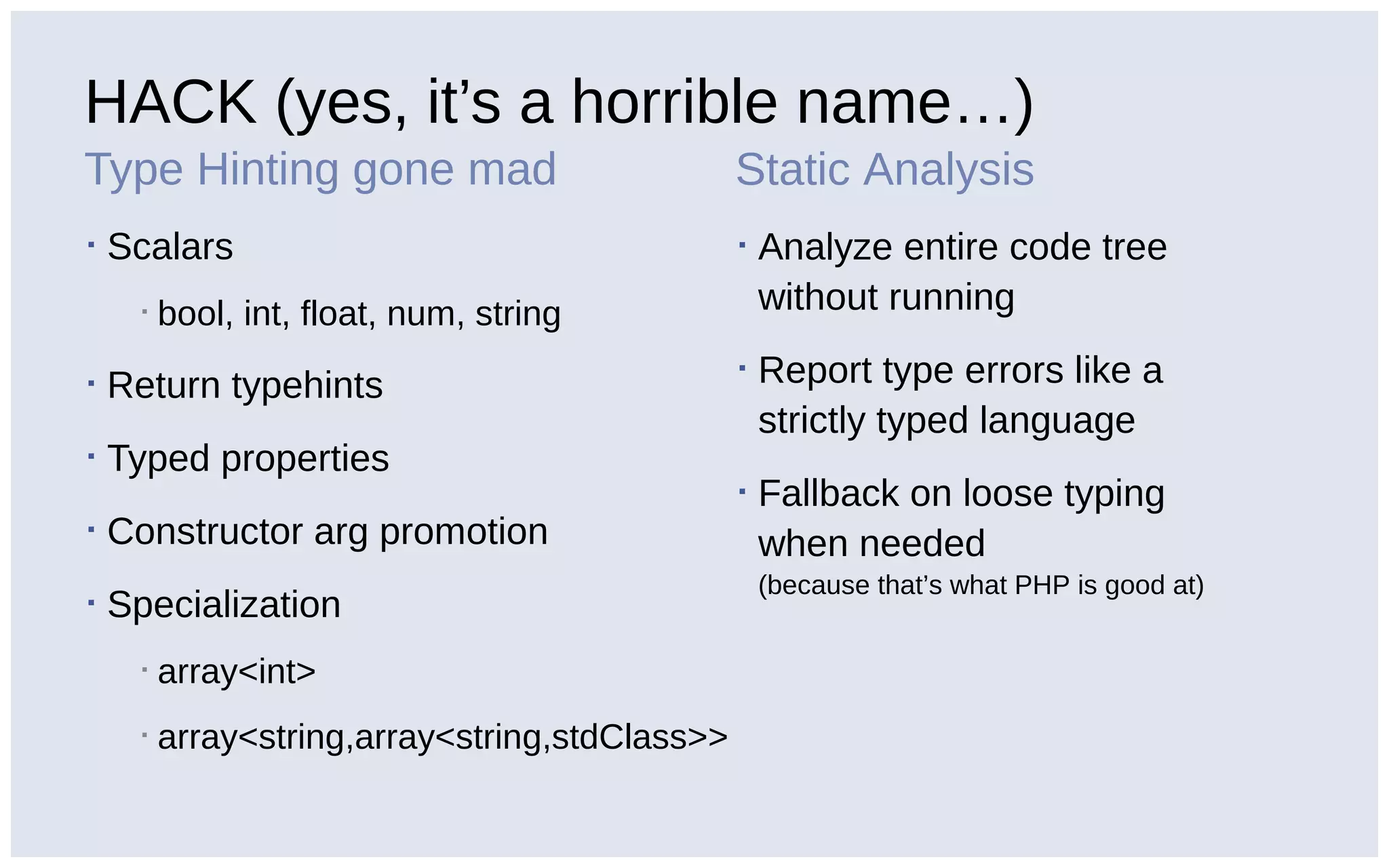

22. HACK (yes, it’s a horrible name…)
Type Hinting gone mad
▪ Scalars
▪ bool, int, float, num, string
▪ Return typehints
▪ Typed properties
▪ Constructor arg promotion
▪ Specialization
▪ array<int>
▪ array<string,array<string,stdClass>>
Static Analysis
▪ Analyze entire code tree
without running
▪ Report type errors like a
strictly typed language
▪ Fallback on loose typing
when needed
(because that’s what PHP is good at)

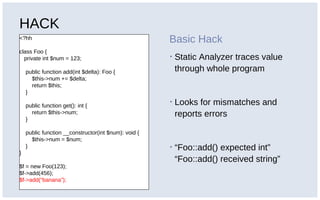

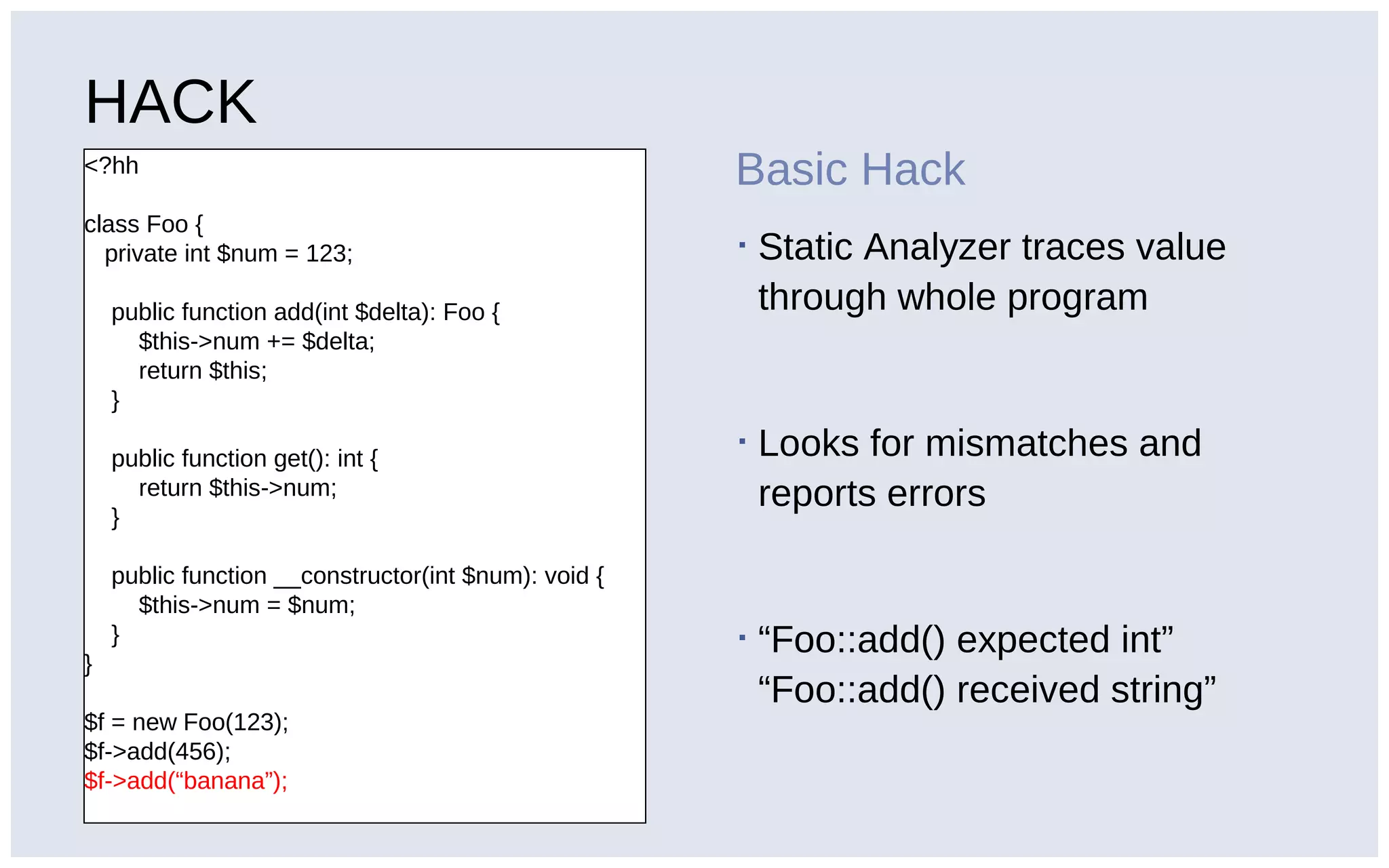

23. HACK
<?hh
class Foo {
private int $num = 123;
public function add(int $delta): Foo {
$this->num += $delta;
return $this;
}
public function get(): int {
return $this->num;
}
public function __constructor(int $num): void {
$this->num = $num;
}
}
$f = new Foo(123);
$f->add(456);
$f->add(“banana”);
Basic Hack
▪ Static Analyzer traces value
through whole program
▪ Looks for mismatches and
reports errors
▪ “Foo::add() expected int”
“Foo::add() received string”

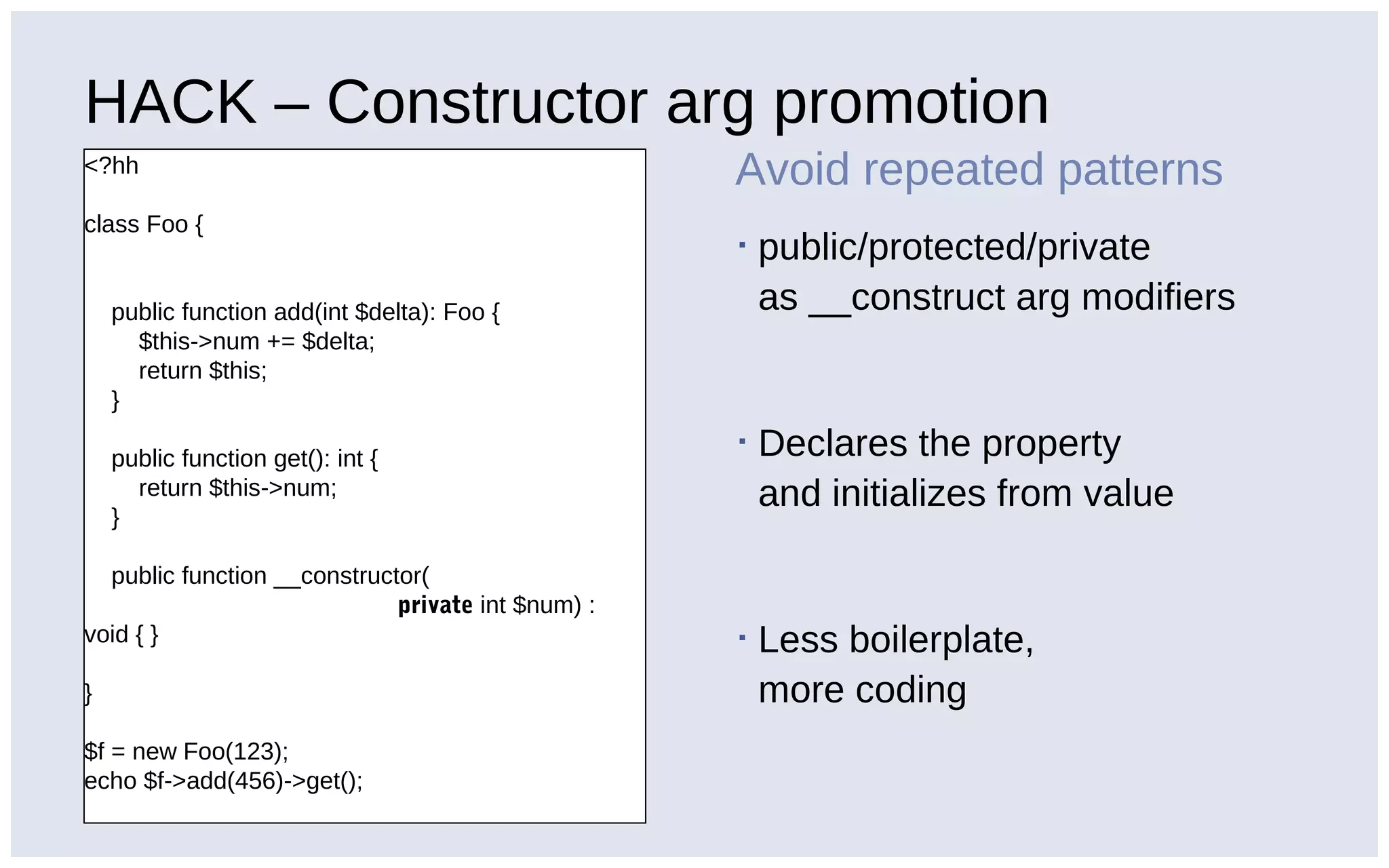

24. HACK – Constructor arg promotion
<?hh
class Foo {
public function add(int $delta): Foo {
$this->num += $delta;
return $this;
}
public function get(): int {
return $this->num;
}
public function __constructor(
private int $num) :
void { }
}
$f = new Foo(123);
echo $f->add(456)->get();
Avoid repeated patterns
▪ public/protected/private
as __construct arg modifiers
▪ Declares the property
and initializes from value
▪ Less boilerplate,
more coding

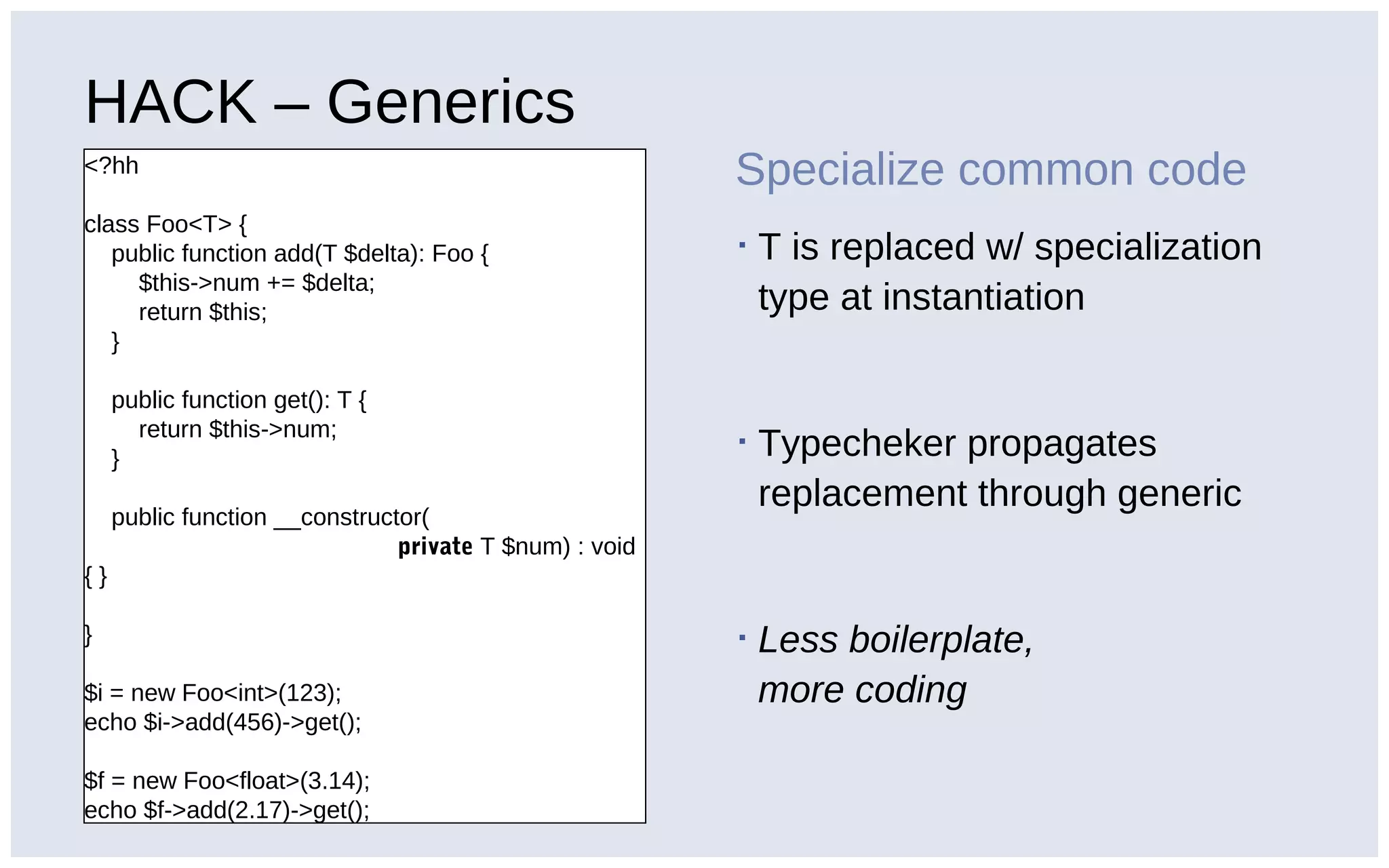

25. HACK – Generics
<?hh
class Foo<T> {
public function add(T $delta): Foo {
$this->num += $delta;
return $this;
}
public function get(): T {
return $this->num;
}
public function __constructor(
private T $num) : void
{ }
}
$i = new Foo<int>(123);
echo $i->add(456)->get();
$f = new Foo<float>(3.14);
echo $f->add(2.17)->get();
Specialize common code
▪ T is replaced w/ specialization
type at instantiation
▪ Typecheker propagates
replacement through generic
▪ Less boilerplate,
more coding

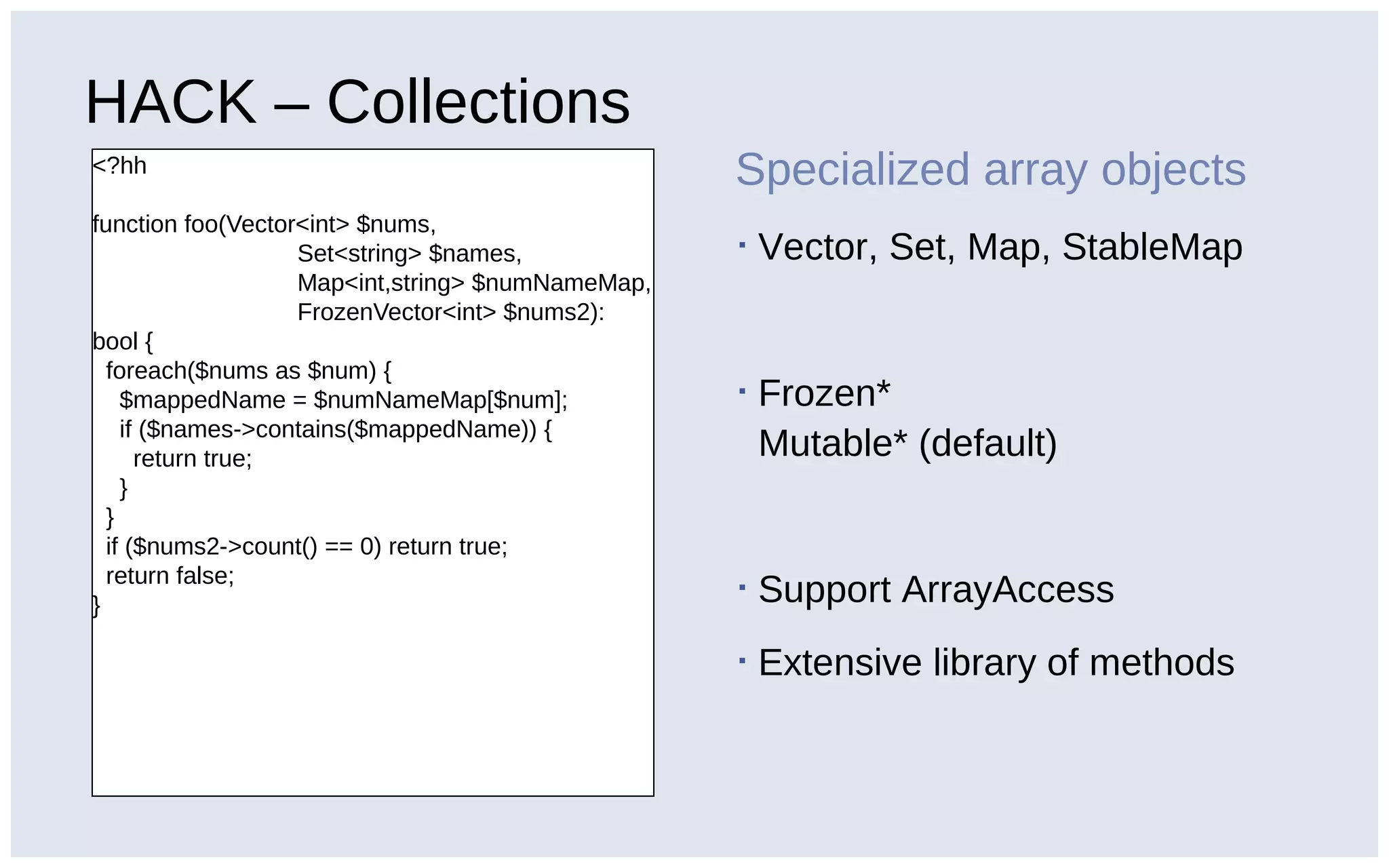

26. HACK – Collections
<?hh
function foo(Vector<int> $nums,
Set<string> $names,
Map<int,string> $numNameMap,
FrozenVector<int> $nums2):
bool {
foreach($nums as $num) {
$mappedName = $numNameMap[$num];
if ($names->contains($mappedName)) {
return true;
}
}
if ($nums2->count() == 0) return true;
return false;
}
Specialized array objects
▪ Vector, Set, Map, StableMap
▪ Frozen*
Mutable* (default)
▪ Support ArrayAccess
▪ Extensive library of methods

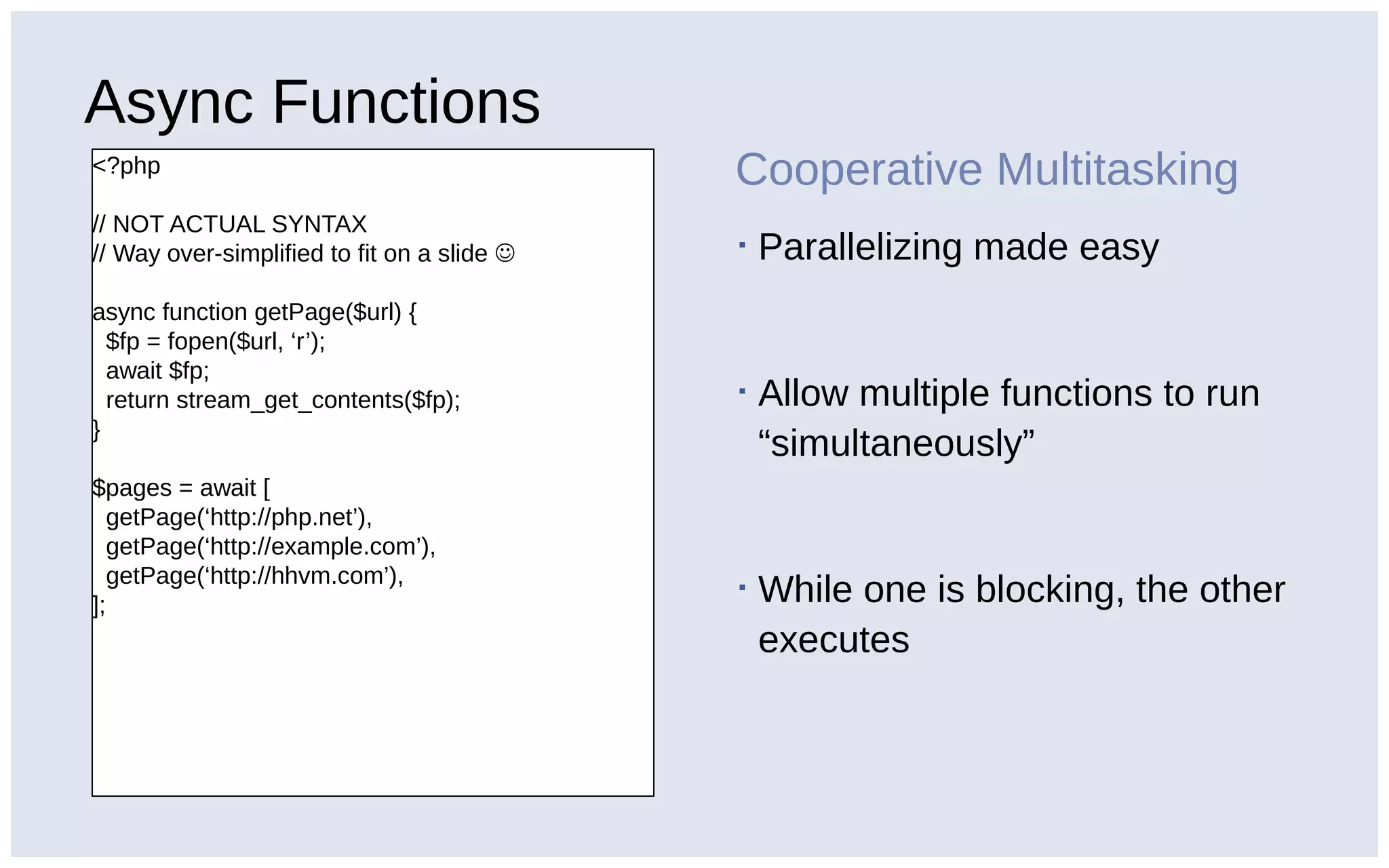

27. Async Functions
<?php
// NOT ACTUAL SYNTAX
// Way over-simplified to fit on a slide 
async function getPage($url) {
$fp = fopen($url, ‘r’);
await $fp;
return stream_get_contents($fp);
}
$pages = await [
getPage(‘http://php.net’),
getPage(‘http://example.com’),
getPage(‘http://hhvm.com’),
];
Cooperative Multitasking
▪ Parallelizing made easy
▪ Allow multiple functions to run
“simultaneously”
▪ While one is blocking, the other
executes

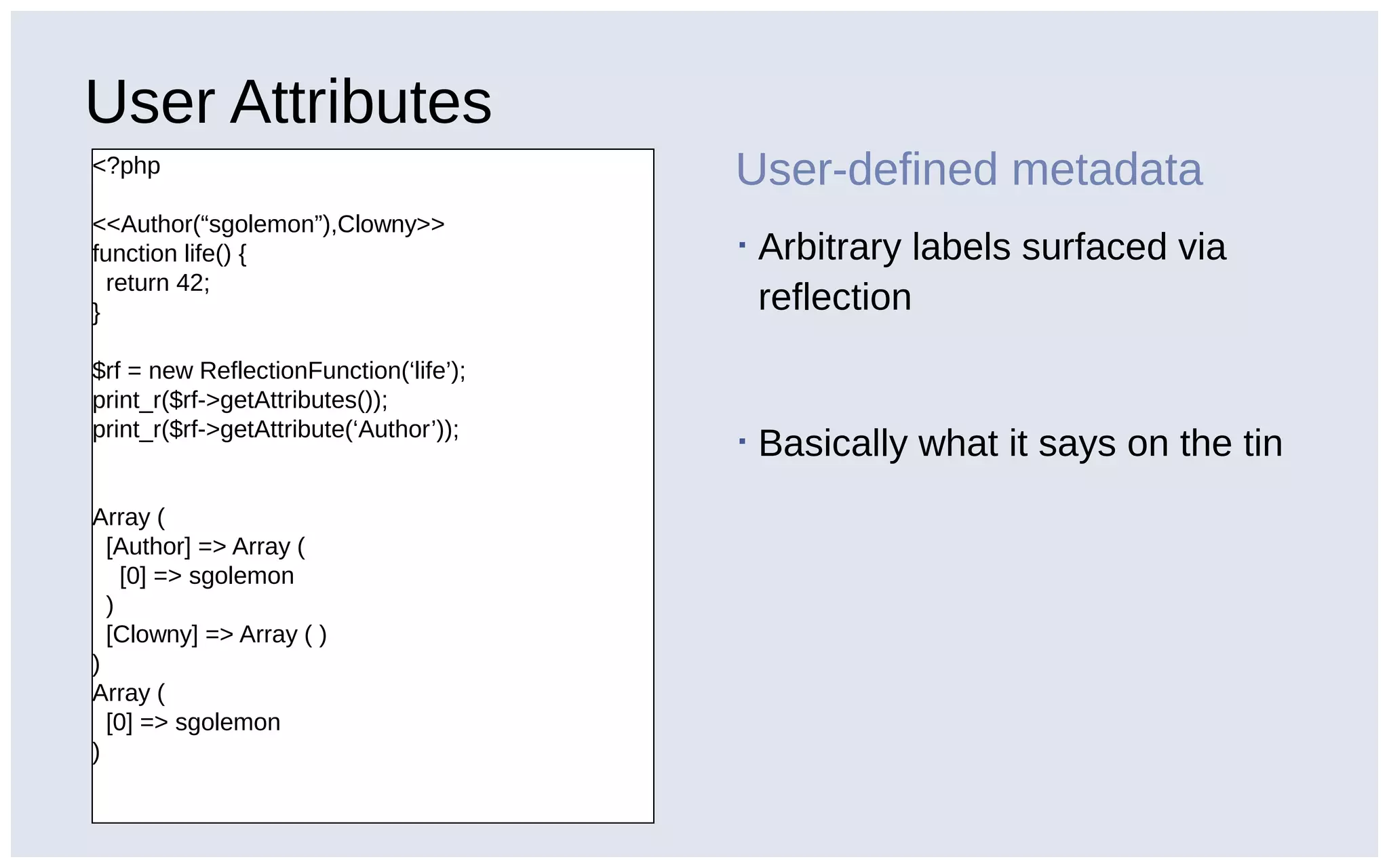

28. User Attributes
<?php
<<Author(“sgolemon”),Clowny>>
function life() {
return 42;
}
$rf = new ReflectionFunction(‘life’);
print_r($rf->getAttributes());
print_r($rf->getAttribute(‘Author’));
Array (
[Author] => Array (
[0] => sgolemon
)
[Clowny] => Array ( )
)
Array (
[0] => sgolemon
)
User-defined metadata
▪ Arbitrary labels surfaced via
reflection
▪ Basically what it says on the tin

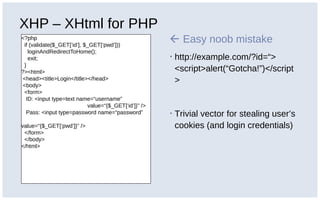

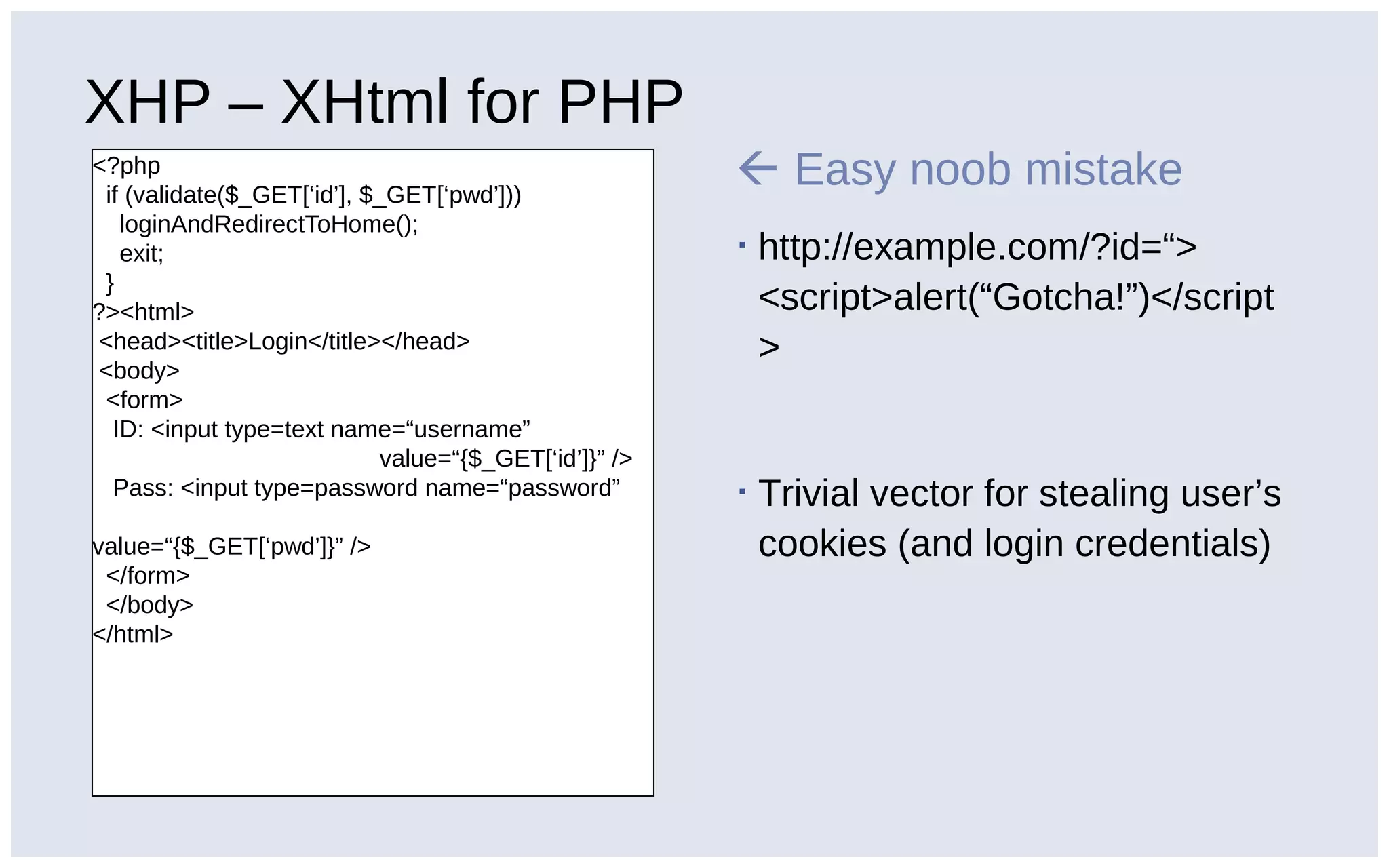

29. XHP – XHtml for PHP
<?php
if (validate($_GET[‘id’], $_GET[‘pwd’]))
loginAndRedirectToHome();
exit;
}
?><html>
<head><title>Login</title></head>
<body>
<form>
ID: <input type=text name=“username”
value=“{$_GET[‘id’]}” />
Pass: <input type=password name=“password”
value=“{$_GET[‘pwd’]}” />
</form>
</body>
</html>
 Easy noob mistake
▪ http://example.com/?id=“>
<script>alert(“Gotcha!”)</script
>
▪ Trivial vector for stealing user’s
cookies (and login credentials)

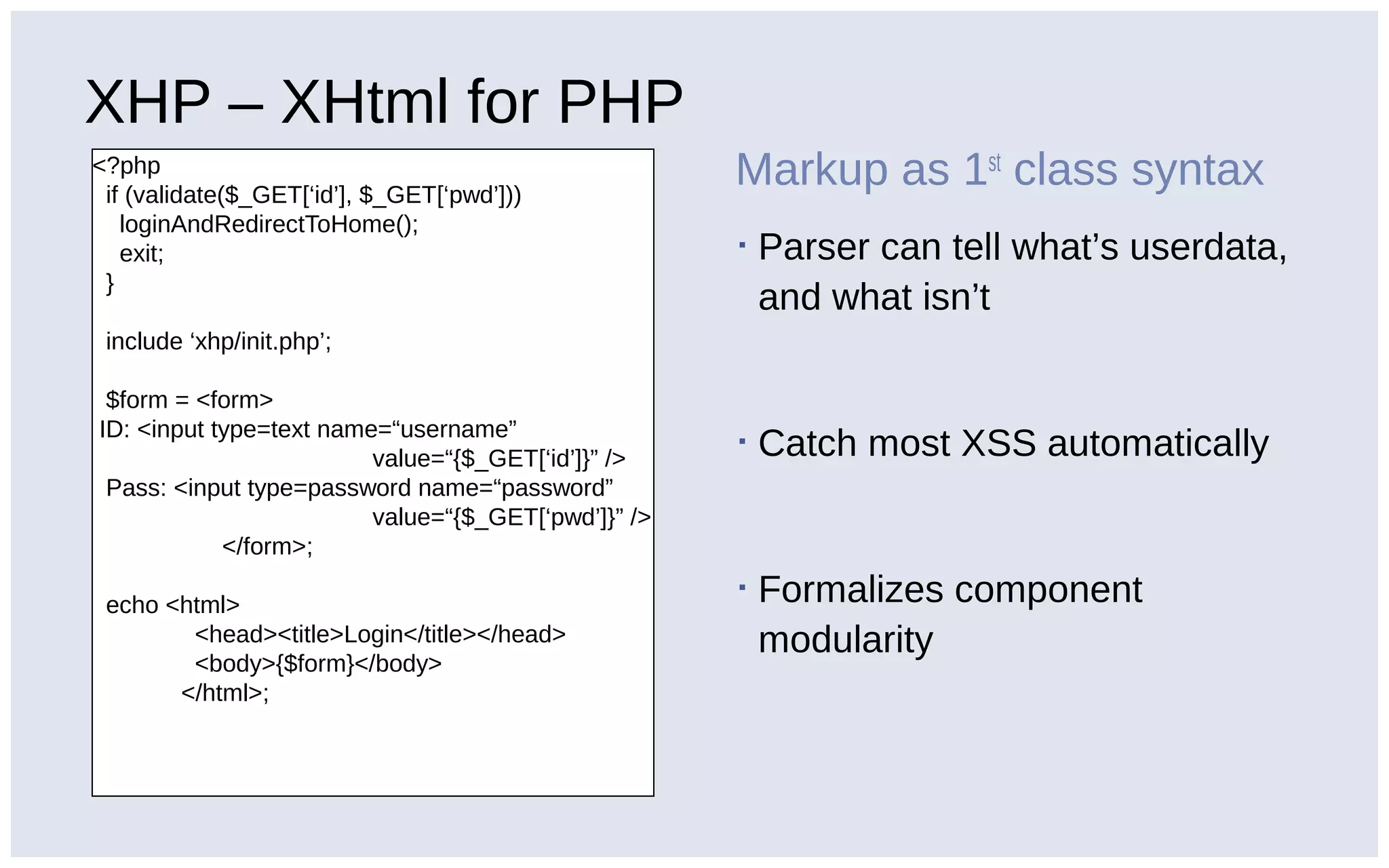

30. XHP – XHtml for PHP
<?php
if (validate($_GET[‘id’], $_GET[‘pwd’]))
loginAndRedirectToHome();
exit;
}
include ‘xhp/init.php’;
$form = <form>
ID: <input type=text name=“username”
value=“{$_GET[‘id’]}” />
Pass: <input type=password name=“password”
value=“{$_GET[‘pwd’]}” />
</form>;
echo <html>
<head><title>Login</title></head>
<body>{$form}</body>
</html>;
Markup as 1st
class syntax
▪ Parser can tell what’s userdata,
and what isn’t
▪ Catch most XSS automatically
▪ Formalizes component
modularity

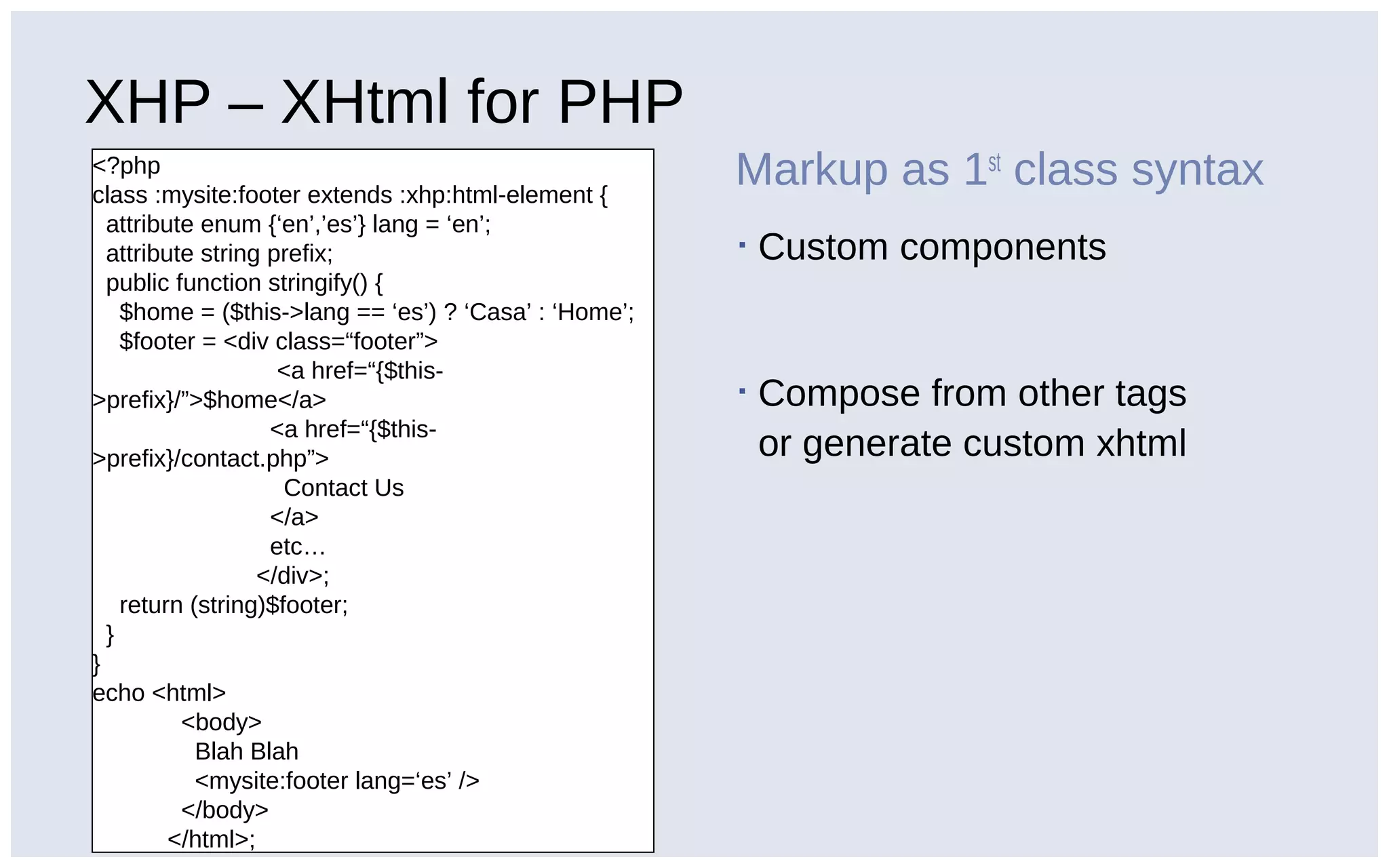

31. XHP – XHtml for PHP
<?php
class :mysite:footer extends :xhp:html-element {
attribute enum {‘en’,’es’} lang = ‘en’;
attribute string prefix;
public function stringify() {
$home = ($this->lang == ‘es’) ? ‘Casa’ : ‘Home’;
$footer = <div class=“footer”>
<a href=“{$this-
>prefix}/”>$home</a>
<a href=“{$this-
>prefix}/contact.php”>
Contact Us
</a>
etc…
</div>;
return (string)$footer;
}
}
echo <html>
<body>
Blah Blah
<mysite:footer lang=‘es’ />
</body>
</html>;
Markup as 1st
class syntax
▪ Custom components
▪ Compose from other tags
or generate custom xhtml

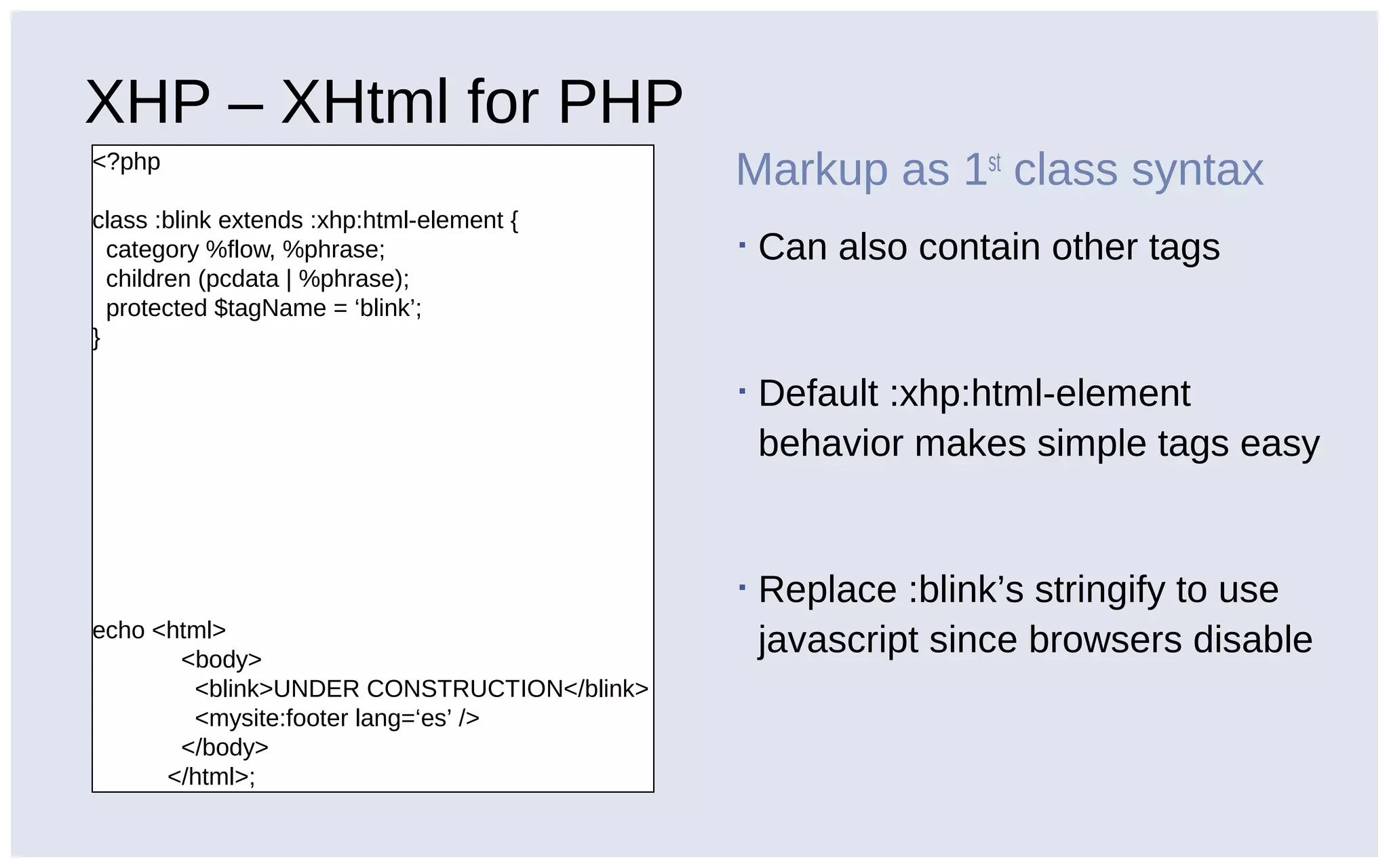

32. XHP – XHtml for PHP
<?php
class :blink extends :xhp:html-element {
category %flow, %phrase;
children (pcdata | %phrase);
protected $tagName = ‘blink’;
}
echo <html>
<body>
<blink>UNDER CONSTRUCTION</blink>
<mysite:footer lang=‘es’ />
</body>
</html>;
Markup as 1st
class syntax
▪ Can also contain other tags
▪ Default :xhp:html-element
behavior makes simple tags easy
▪ Replace :blink’s stringify to use
javascript since browsers disable

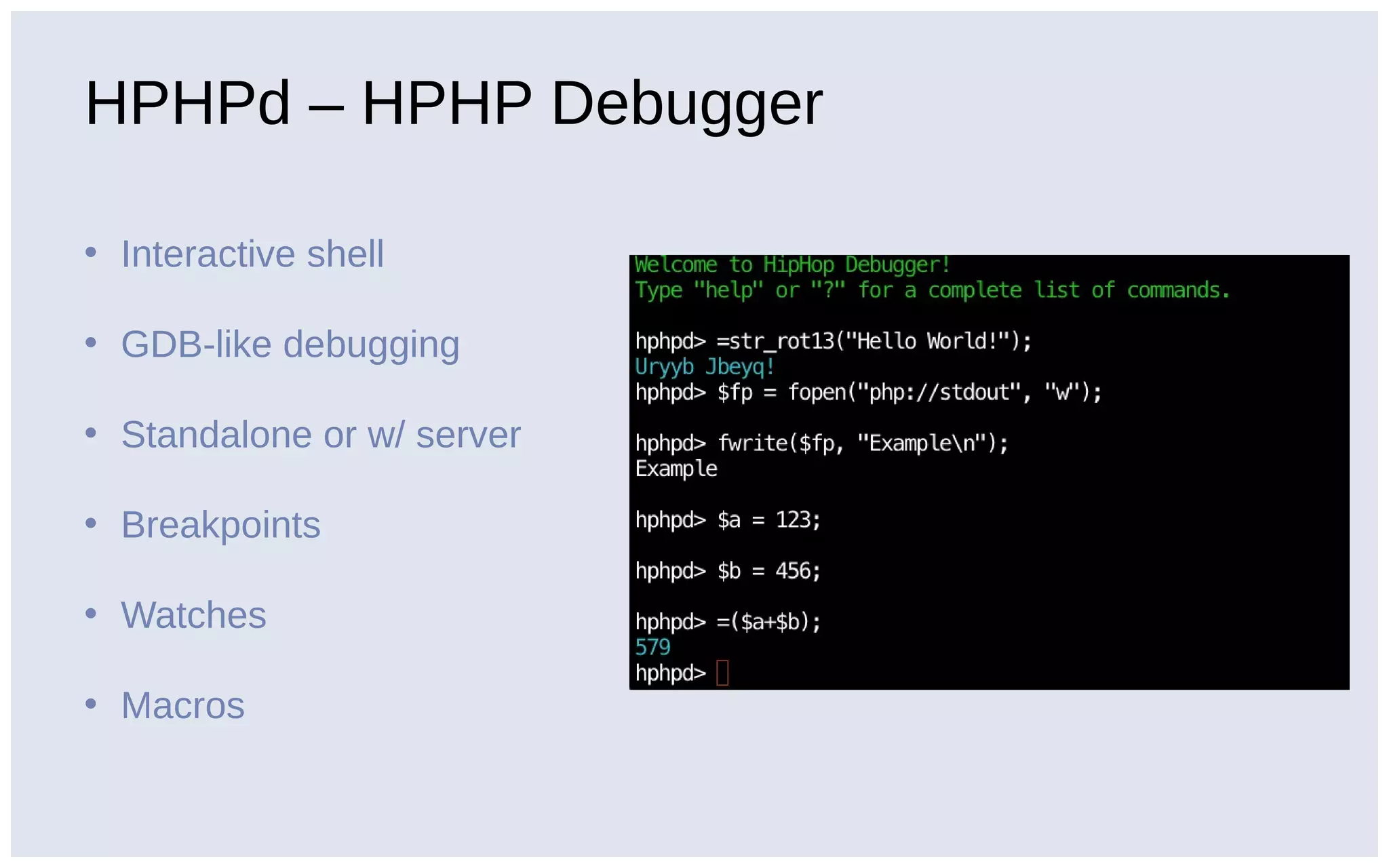

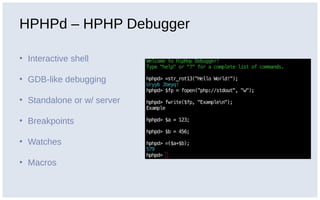

33. HPHPd – HPHP Debugger
• Interactive shell
• GDB-like debugging
• Standalone or w/ server
• Breakpoints
• Watches
• Macros

34. Extending HHVM
You *can* do that in PHP

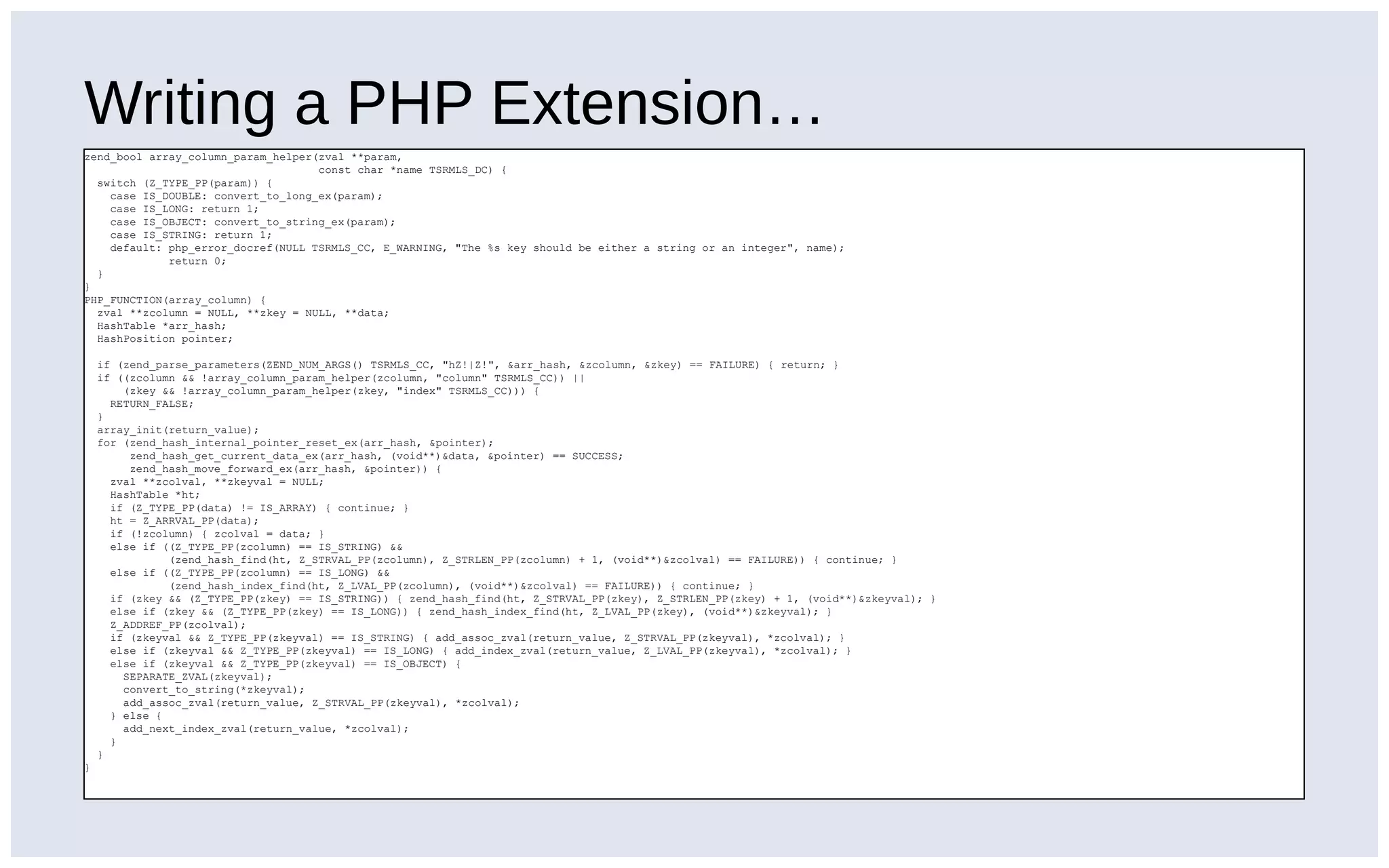

35. Writing a PHP Extension…
zend_bool array_column_param_helper(zval **param,
const char *name TSRMLS_DC) {
switch (Z_TYPE_PP(param)) {
case IS_DOUBLE: convert_to_long_ex(param);
case IS_LONG: return 1;
case IS_OBJECT: convert_to_string_ex(param);
case IS_STRING: return 1;
default: php_error_docref(NULL TSRMLS_CC, E_WARNING, "The %s key should be either a string or an integer", name);
return 0;
}
}
PHP_FUNCTION(array_column) {
zval **zcolumn = NULL, **zkey = NULL, **data;
HashTable *arr_hash;
HashPosition pointer;
if (zend_parse_parameters(ZEND_NUM_ARGS() TSRMLS_CC, "hZ!|Z!", &arr_hash, &zcolumn, &zkey) == FAILURE) { return; }
if ((zcolumn && !array_column_param_helper(zcolumn, "column" TSRMLS_CC)) ||
(zkey && !array_column_param_helper(zkey, "index" TSRMLS_CC))) {
RETURN_FALSE;
}
array_init(return_value);
for (zend_hash_internal_pointer_reset_ex(arr_hash, &pointer);
zend_hash_get_current_data_ex(arr_hash, (void**)&data, &pointer) == SUCCESS;
zend_hash_move_forward_ex(arr_hash, &pointer)) {
zval **zcolval, **zkeyval = NULL;
HashTable *ht;
if (Z_TYPE_PP(data) != IS_ARRAY) { continue; }
ht = Z_ARRVAL_PP(data);
if (!zcolumn) { zcolval = data; }
else if ((Z_TYPE_PP(zcolumn) == IS_STRING) &&
(zend_hash_find(ht, Z_STRVAL_PP(zcolumn), Z_STRLEN_PP(zcolumn) + 1, (void**)&zcolval) == FAILURE)) { continue; }
else if ((Z_TYPE_PP(zcolumn) == IS_LONG) &&
(zend_hash_index_find(ht, Z_LVAL_PP(zcolumn), (void**)&zcolval) == FAILURE)) { continue; }
if (zkey && (Z_TYPE_PP(zkey) == IS_STRING)) { zend_hash_find(ht, Z_STRVAL_PP(zkey), Z_STRLEN_PP(zkey) + 1, (void**)&zkeyval); }
else if (zkey && (Z_TYPE_PP(zkey) == IS_LONG)) { zend_hash_index_find(ht, Z_LVAL_PP(zkey), (void**)&zkeyval); }
Z_ADDREF_PP(zcolval);
if (zkeyval && Z_TYPE_PP(zkeyval) == IS_STRING) { add_assoc_zval(return_value, Z_STRVAL_PP(zkeyval), *zcolval); }
else if (zkeyval && Z_TYPE_PP(zkeyval) == IS_LONG) { add_index_zval(return_value, Z_LVAL_PP(zkeyval), *zcolval); }
else if (zkeyval && Z_TYPE_PP(zkeyval) == IS_OBJECT) {
SEPARATE_ZVAL(zkeyval);
convert_to_string(*zkeyval);
add_assoc_zval(return_value, Z_STRVAL_PP(zkeyval), *zcolval);
} else {
add_next_index_zval(return_value, *zcolval);
}
}
}

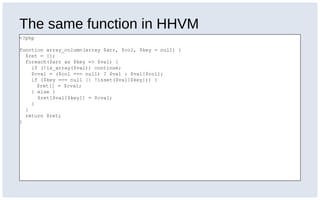

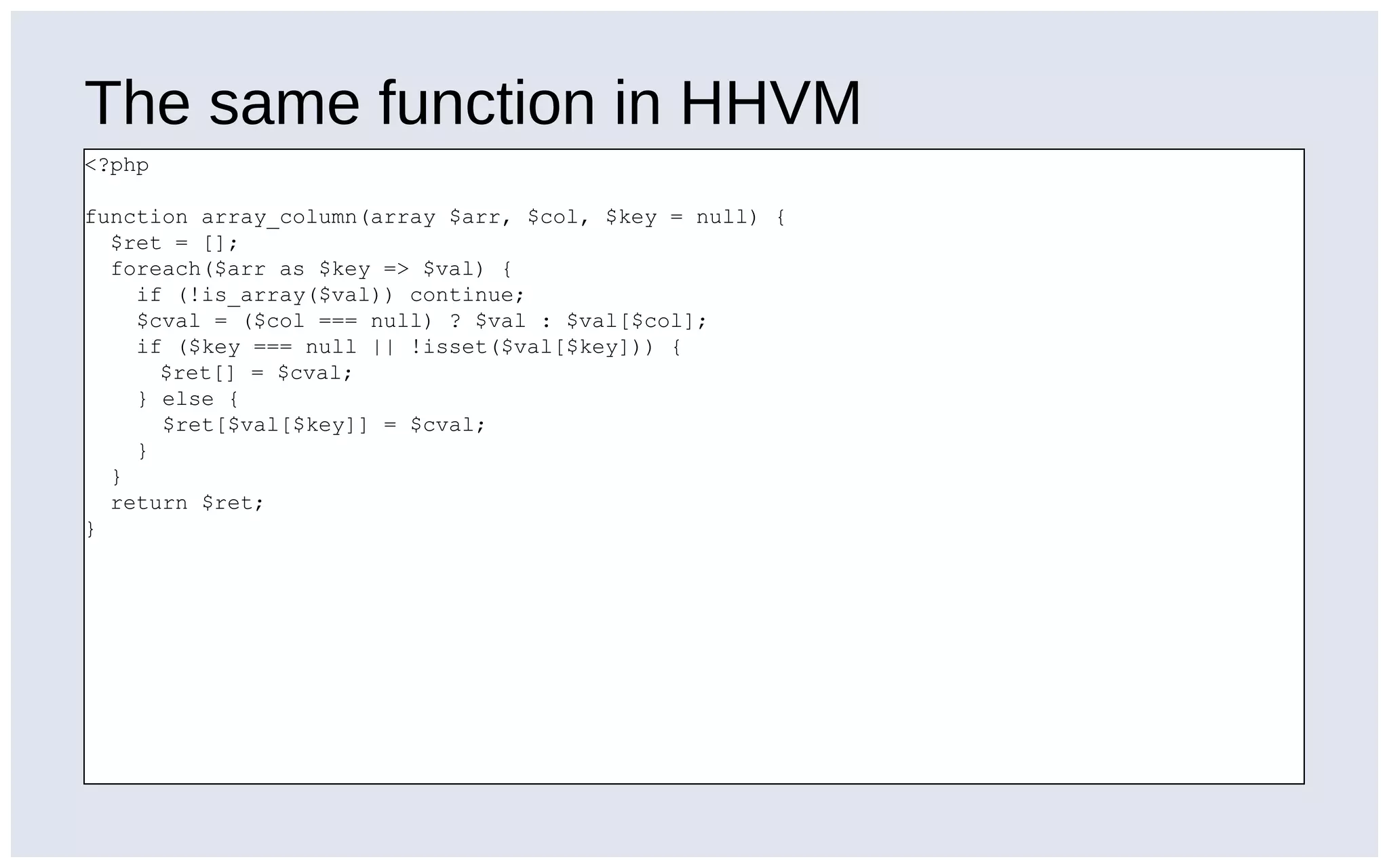

36. The same function in HHVM
<?php
function array_column(array $arr, $col, $key = null) {
$ret = [];
foreach($arr as $key => $val) {
if (!is_array($val)) continue;
$cval = ($col === null) ? $val : $val[$col];
if ($key === null || !isset($val[$key])) {
$ret[] = $cval;
} else {
$ret[$val[$key]] = $cval;
}
}
return $ret;
}

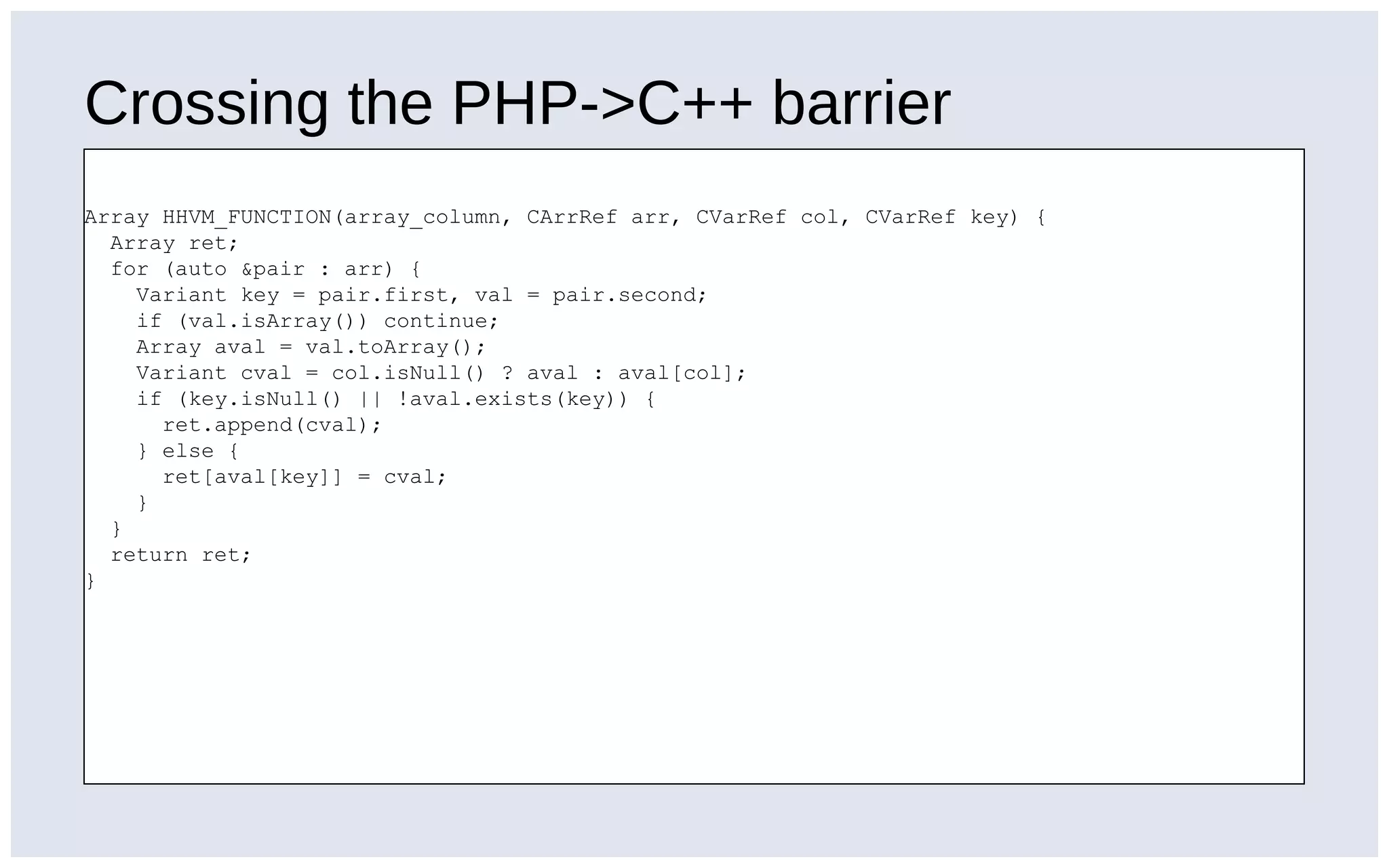

37. Crossing the PHP->C++ barrier
Array HHVM_FUNCTION(array_column, CArrRef arr, CVarRef col, CVarRef key) {
Array ret;
for (auto &pair : arr) {
Variant key = pair.first, val = pair.second;
if (val.isArray()) continue;
Array aval = val.toArray();
Variant cval = col.isNull() ? aval : aval[col];
if (key.isNull() || !aval.exists(key)) {
ret.append(cval);
} else {
ret[aval[key]] = cval;
}
}
return ret;
}

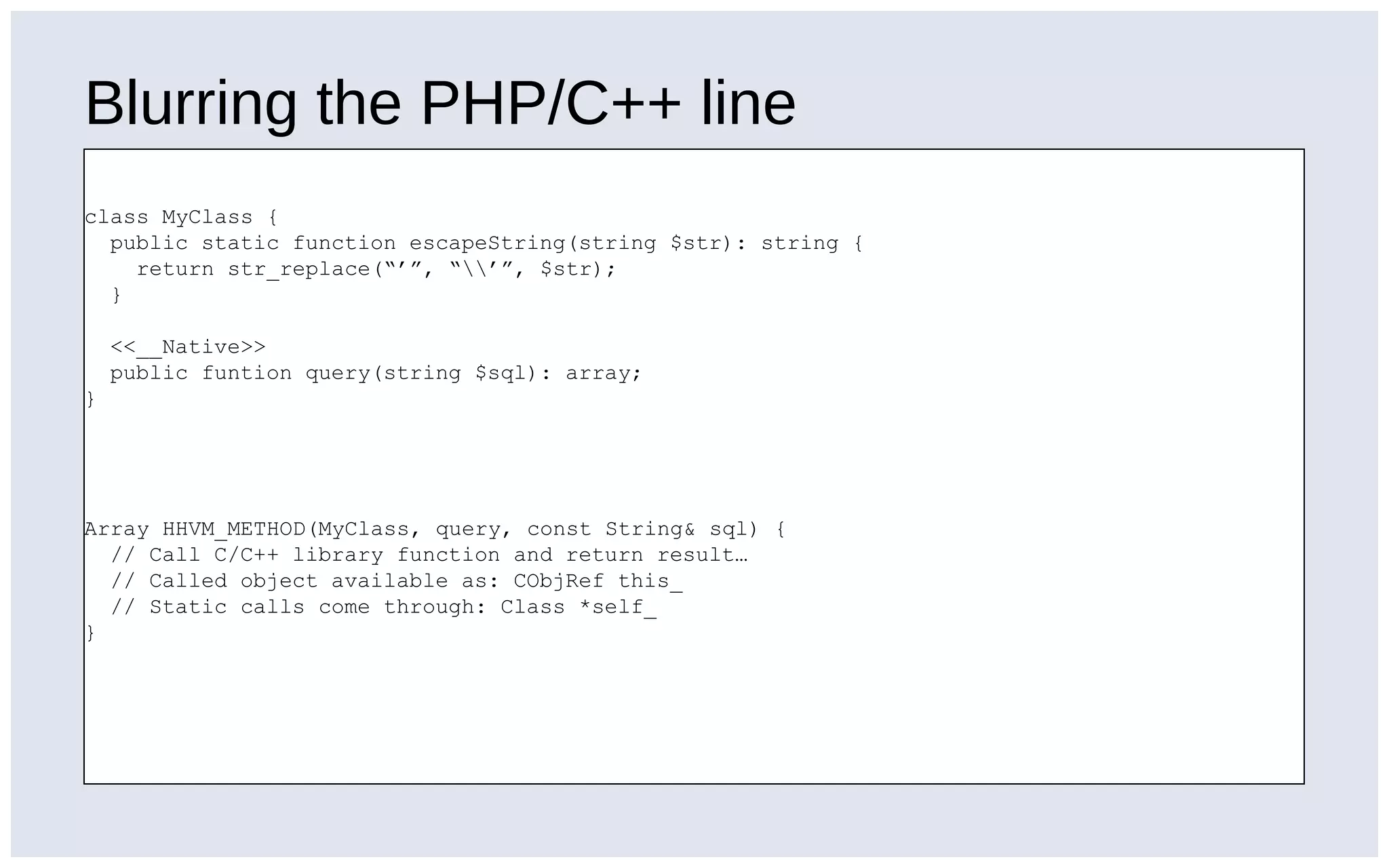

38. Blurring the PHP/C++ line
class MyClass {
public static function escapeString(string $str): string {
return str_replace(“’”, “’”, $str);
}
<<__Native>>
public funtion query(string $sql): array;
}
Array HHVM_METHOD(MyClass, query, const String& sql) {
// Call C/C++ library function and return result…
// Called object available as: CObjRef this_
// Static calls come through: Class *self_
}

39. Questions
?

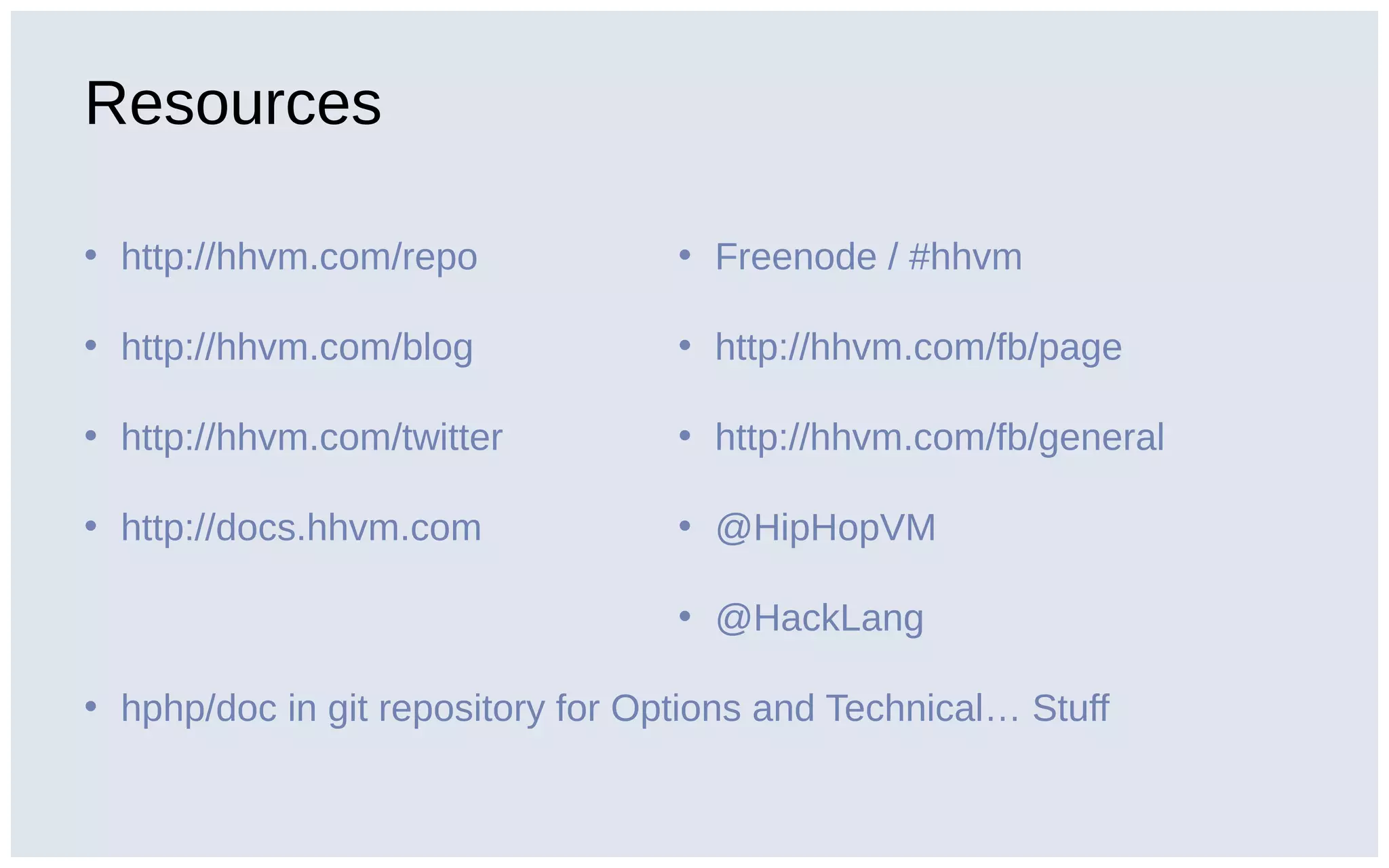

40. Resources
• http://hhvm.com/repo
• http://hhvm.com/blog
• http://hhvm.com/twitter
• http://docs.hhvm.com
• hphp/doc in git repository for Options and Technical… Stuff
• Freenode / #hhvm
• http://hhvm.com/fb/page
• http://hhvm.com/fb/general
• @HipHopVM
• @HackLang
