This document discusses Zend Thread Safety (ZTS) in PHP. It explains that ZTS provides a layer that abstracts thread libraries and makes PHP core and extensions thread-safe when running in a threaded environment. It does this by using thread-local storage to maintain separate data for each thread. Extensions must be compiled with ZTS to store their global data in this thread-local storage so it is properly separated for each thread. ZTS slows down PHP startup but is important for running PHP on threaded web servers or using threaded extensions. In most cases, PHP applications do not need to be run in a threaded environment.

1. and threads
Zend Thread Safety

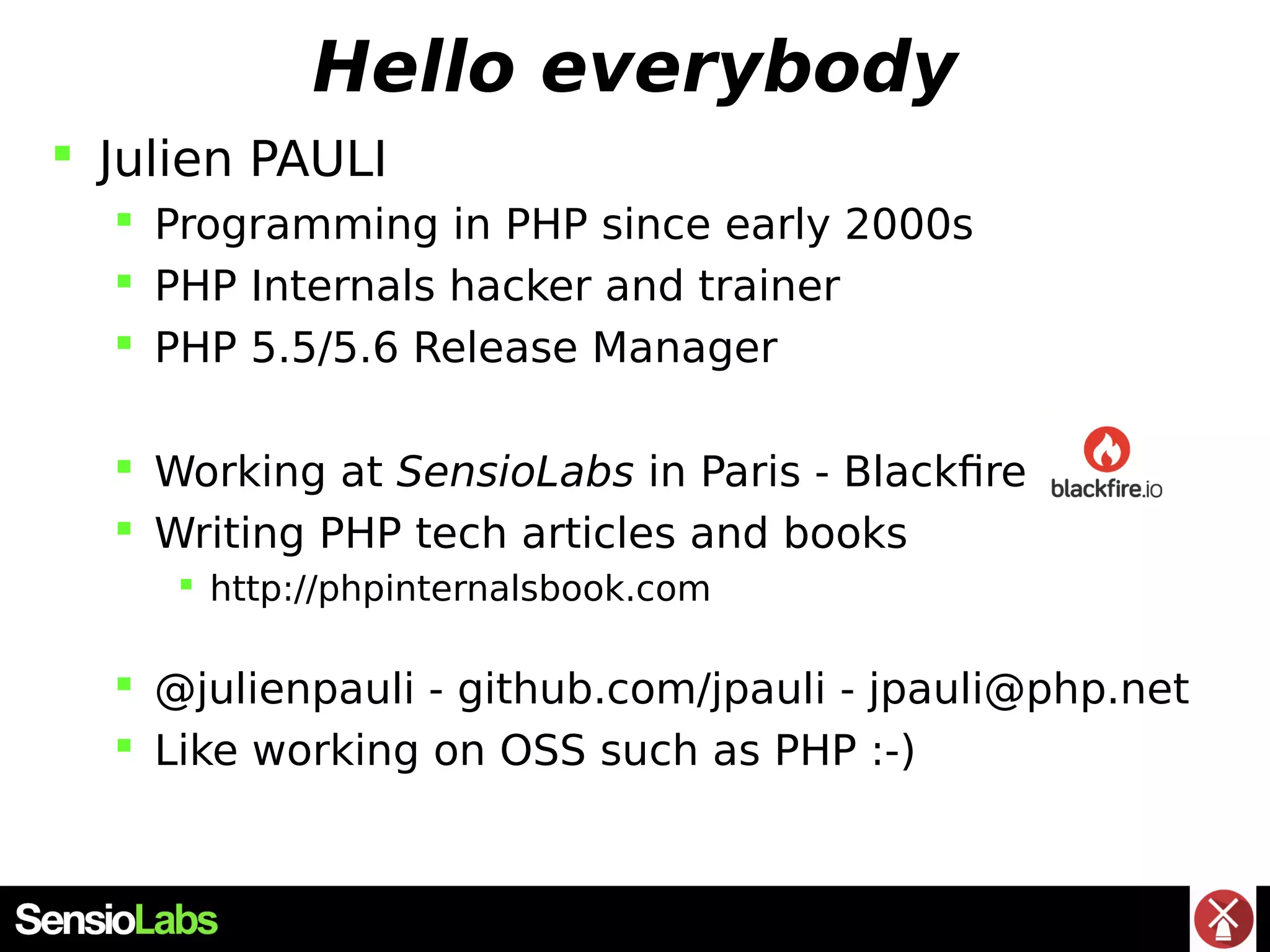

2. Hello everybody
 Julien PAULI
 Programming in PHP since early 2000s
 PHP Internals hacker and trainer
 PHP 5.5/5.6 Release Manager
 Working at SensioLabs in Paris - Blackfire
 Writing PHP tech articles and books
 http://phpinternalsbook.com
 @julienpauli - github.com/jpauli - jpauli@php.net
 Like working on OSS such as PHP :-)

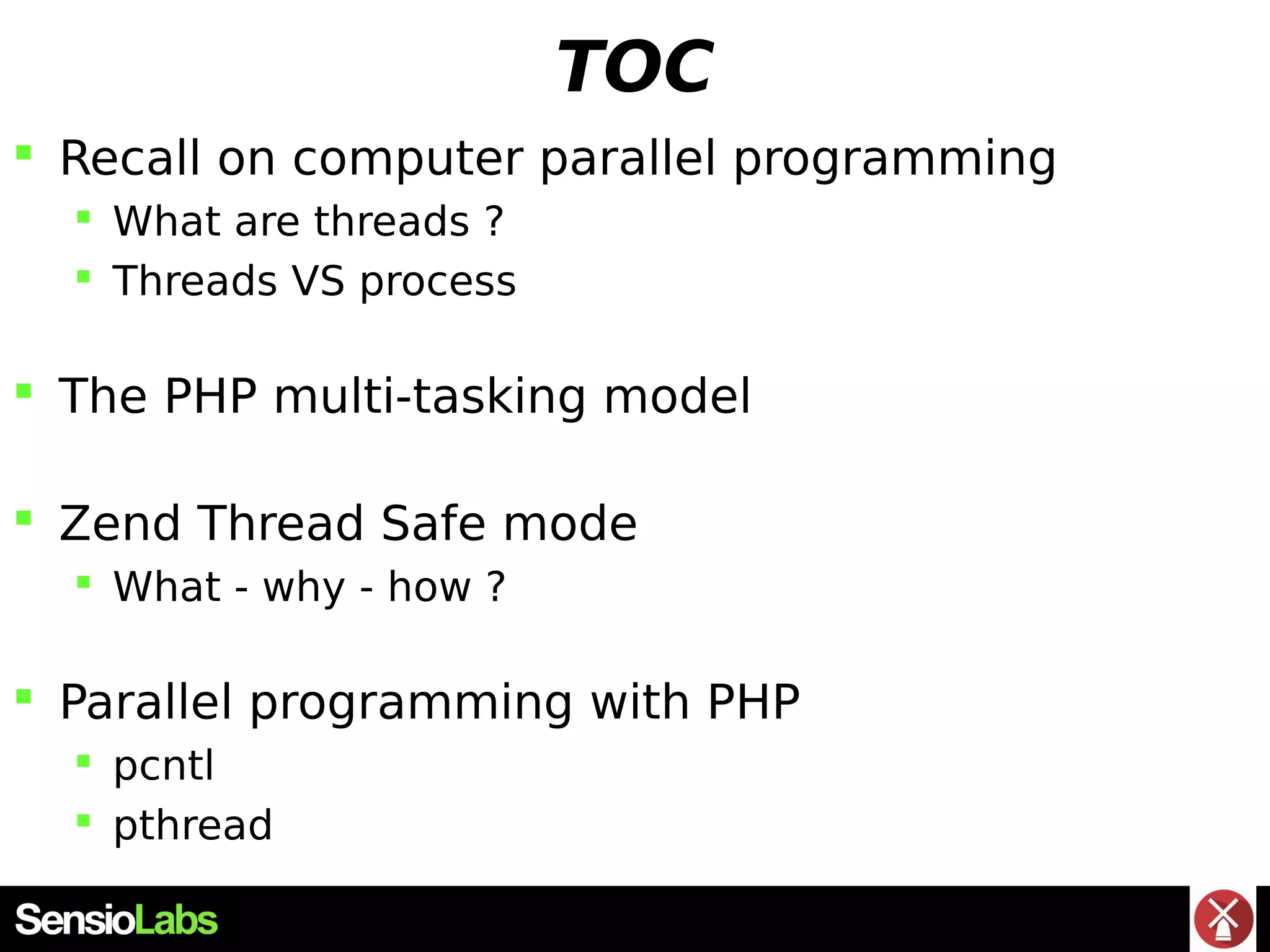

3. TOC
 Recall on computer parallel programming
 What are threads ?
 Threads VS process
 The PHP multi-tasking model
 Zend Thread Safe mode
 What - why - how ?
 Parallel programming with PHP
 pcntl
 pthread

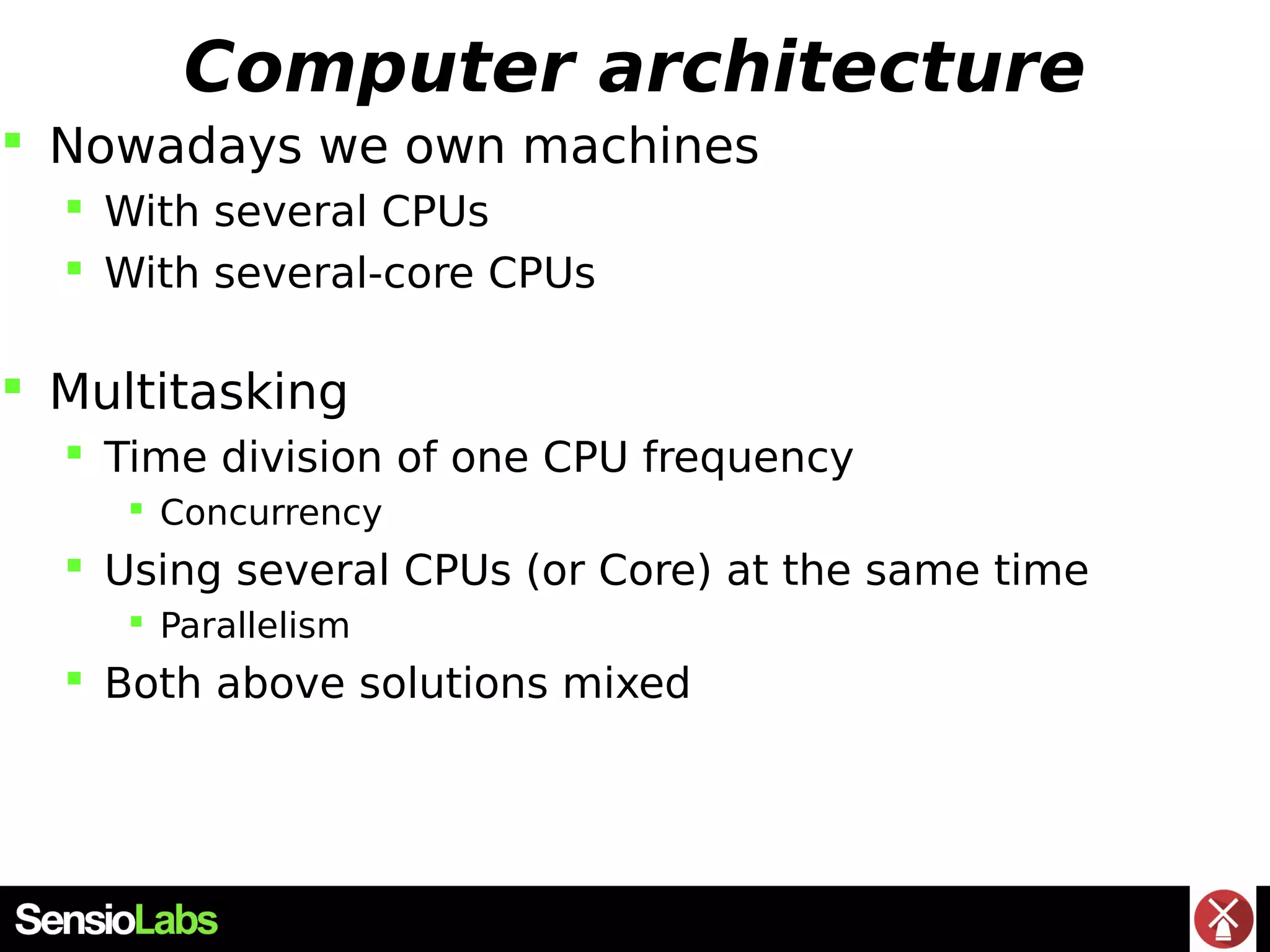

4. Computer architecture
 Nowadays we own machines
 With several CPUs
 With several-core CPUs
 Multitasking
 Time division of one CPU frequency
 Concurrency
 Using several CPUs (or Core) at the same time
 Parallelism
 Both above solutions mixed

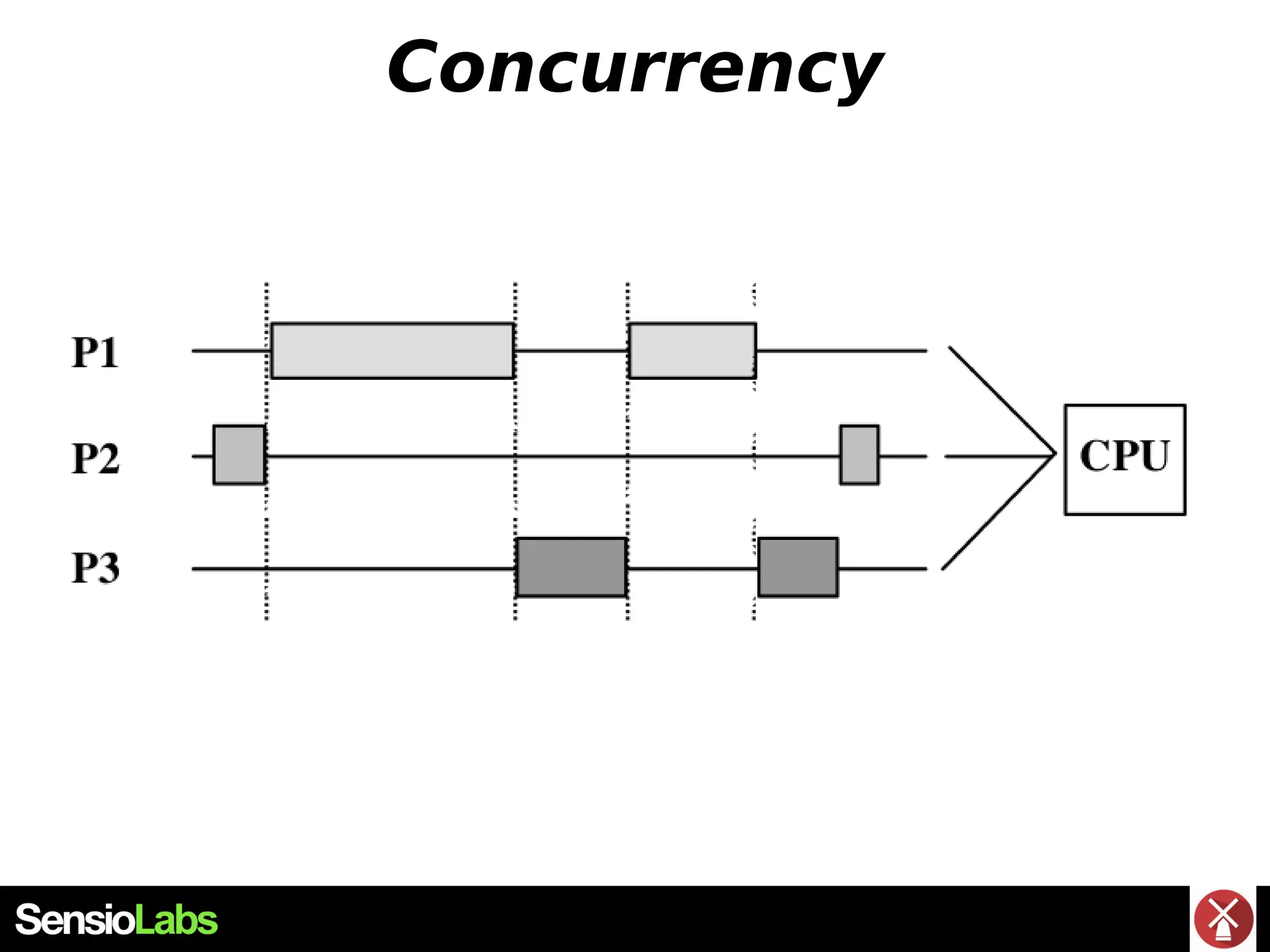

5. Concurrency

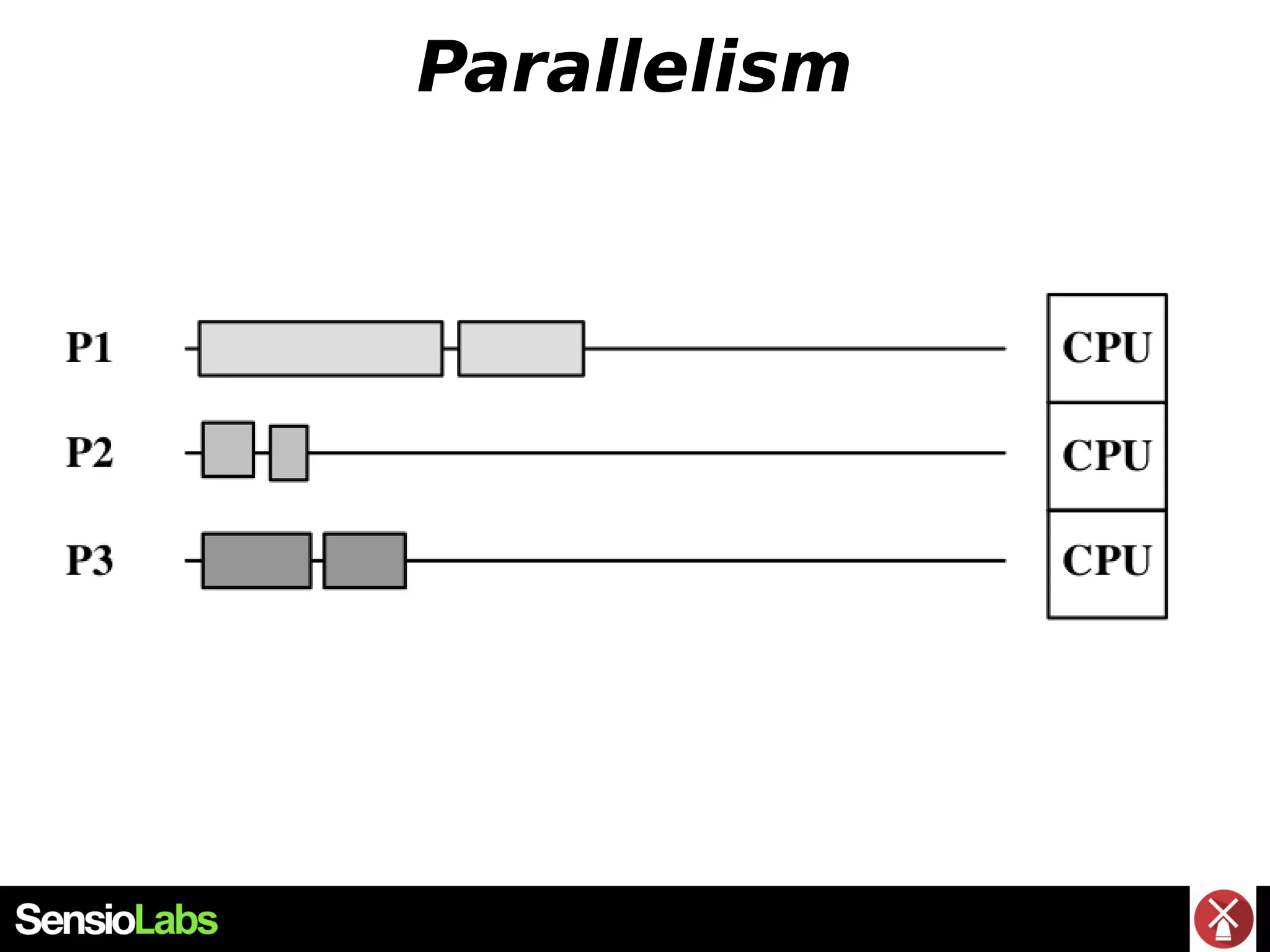

6. Parallelism

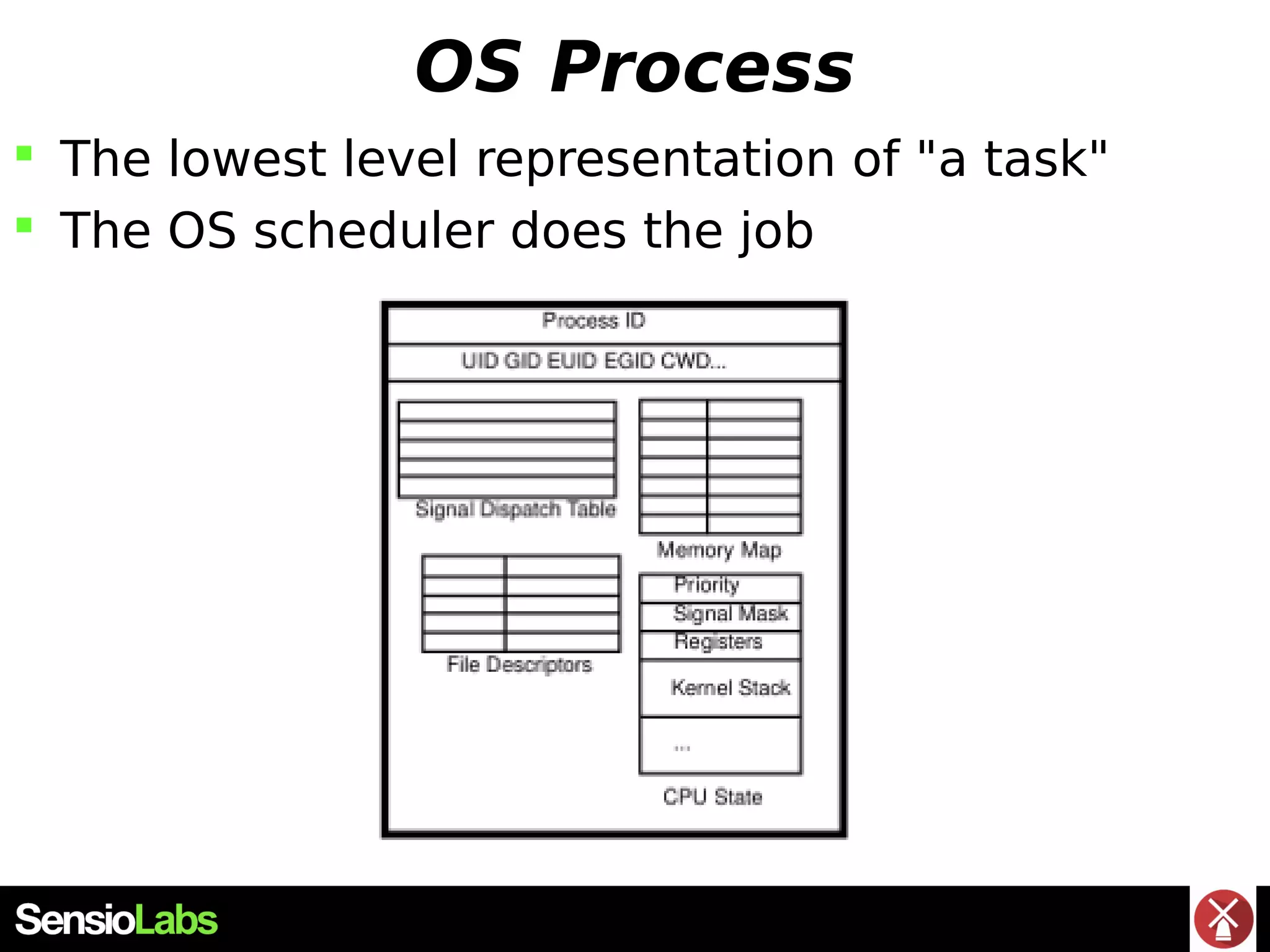

7. OS Process
 The lowest level representation of "a task"
 The OS scheduler does the job

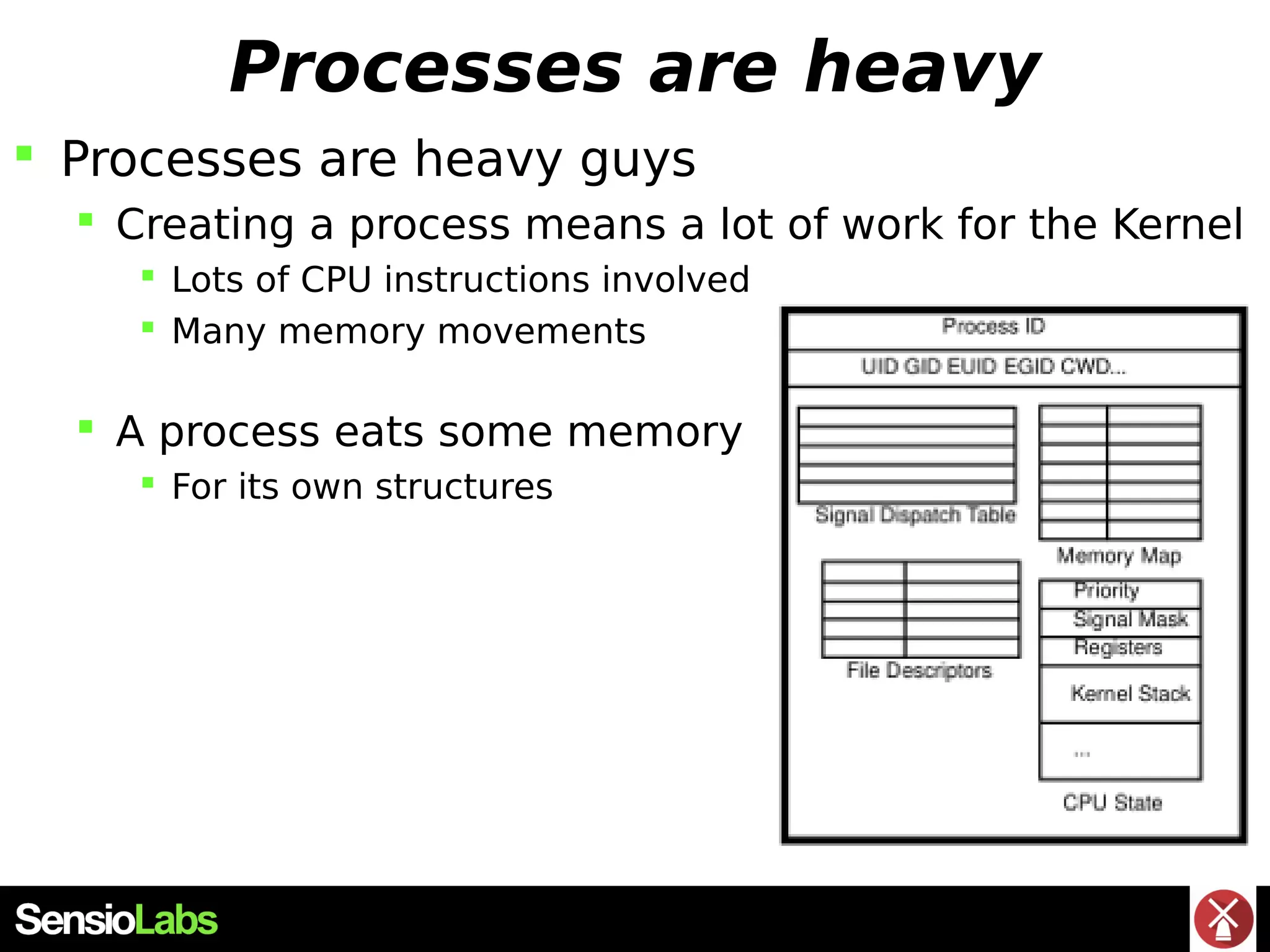

8. Processes are heavy
 Processes are heavy guys
 Creating a process means a lot of work for the Kernel
 Lots of CPU instructions involved
 Many memory movements
 A process eats some memory
 For its own structures

9. Threads

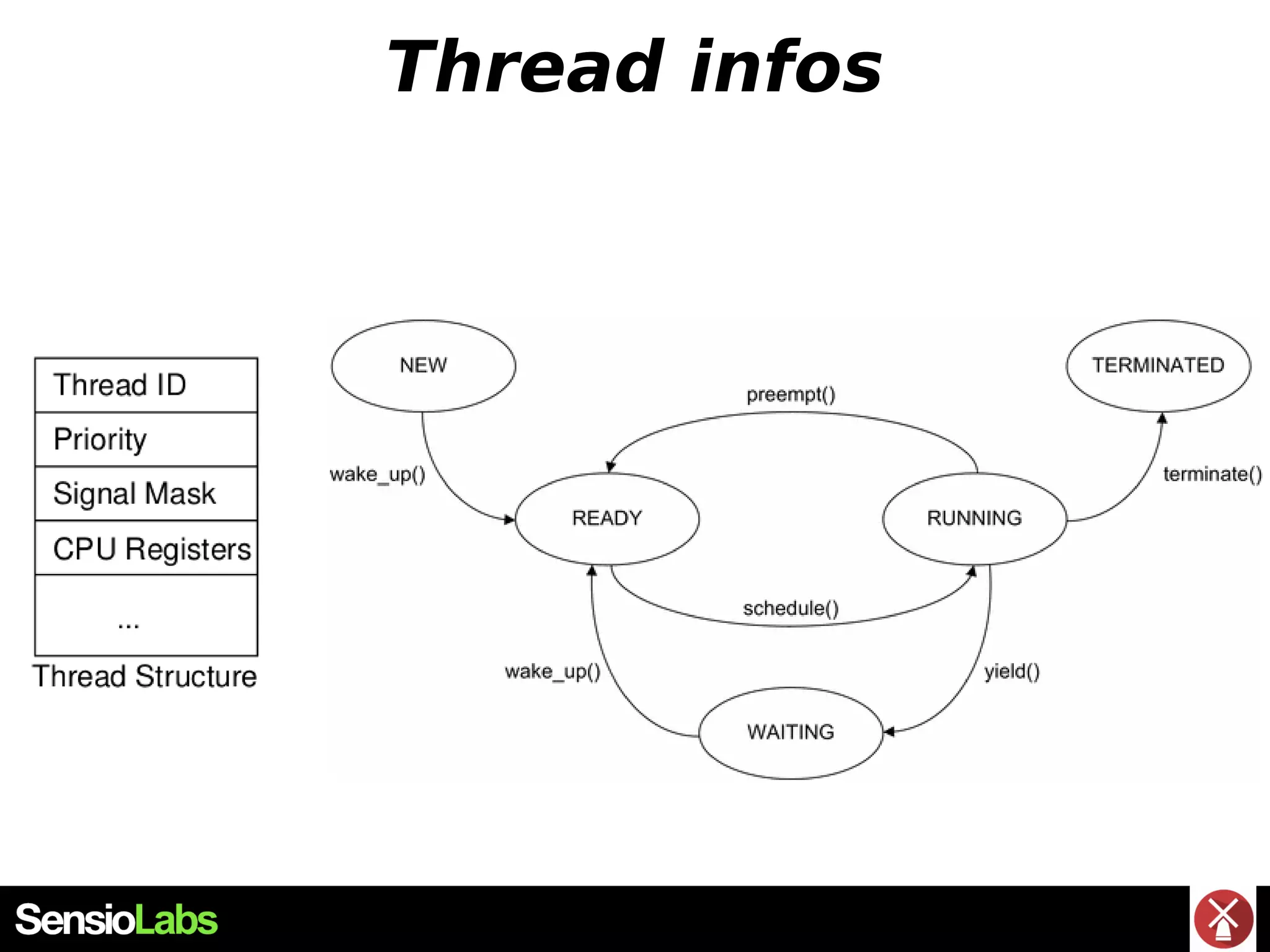

10. Thread infos

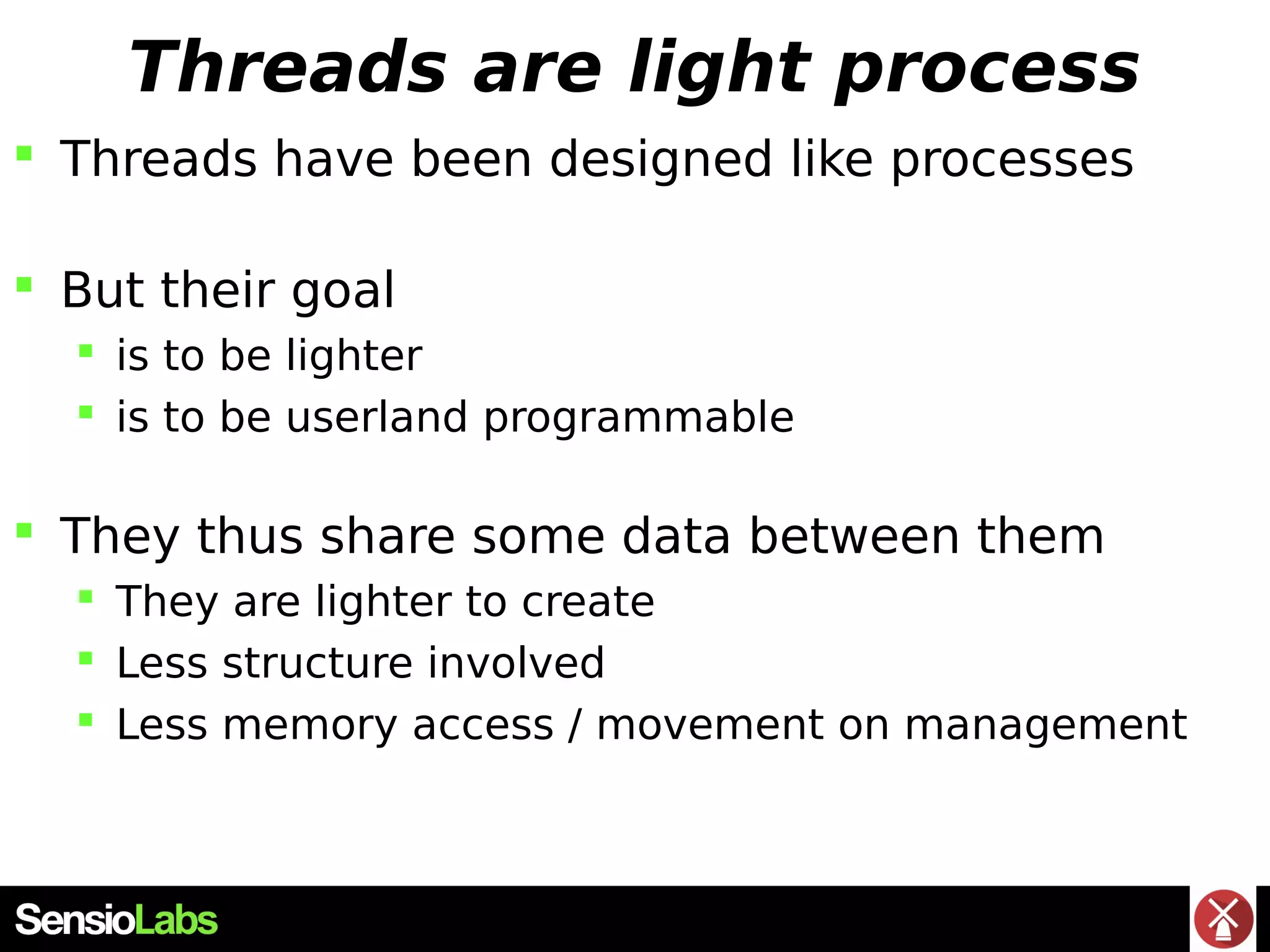

11. Threads are light process
 Threads have been designed like processes
 But their goal
 is to be lighter
 is to be userland programmable
 They thus share some data between them
 They are lighter to create
 Less structure involved
 Less memory access / movement on management

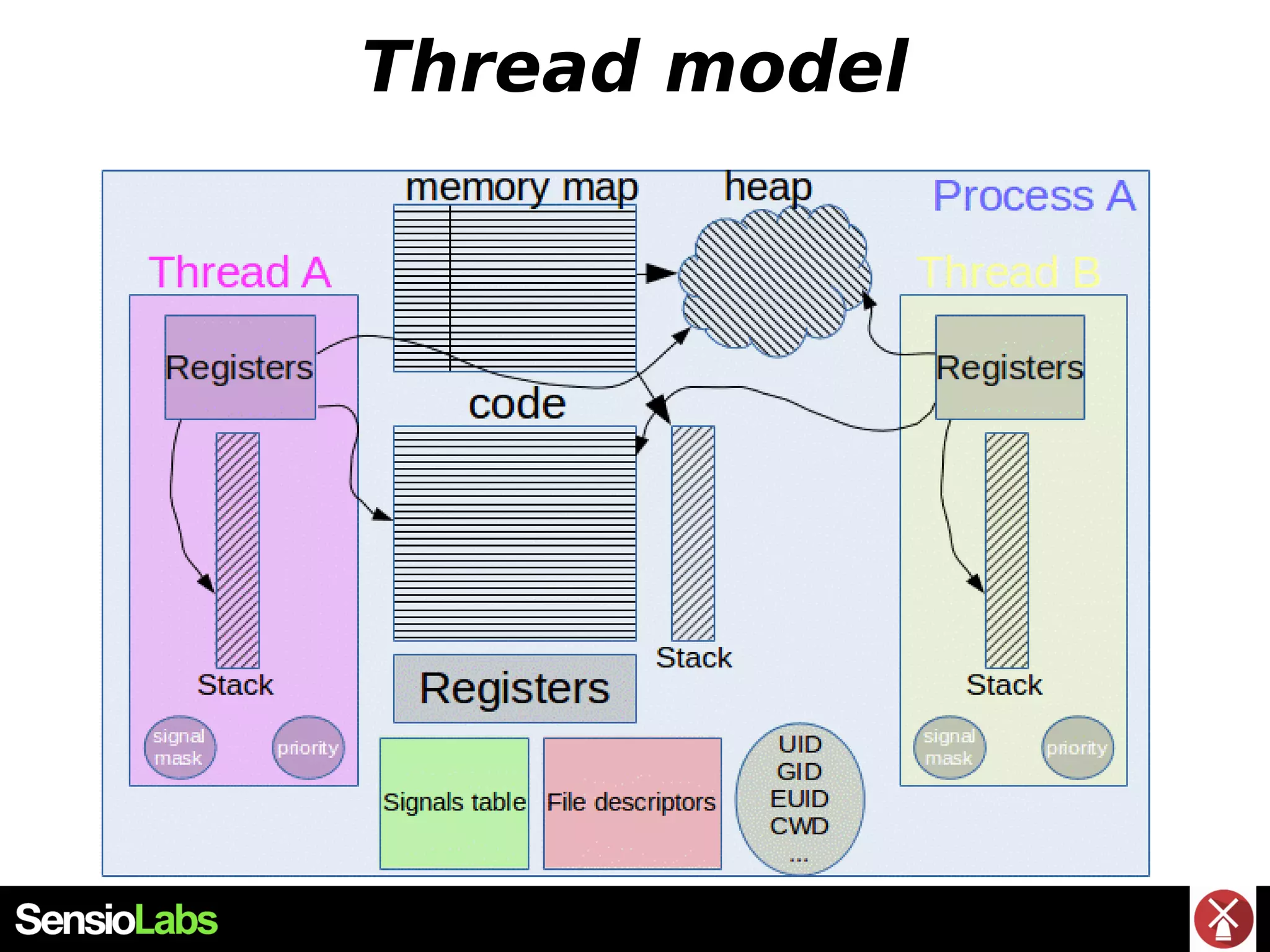

12. Thread model

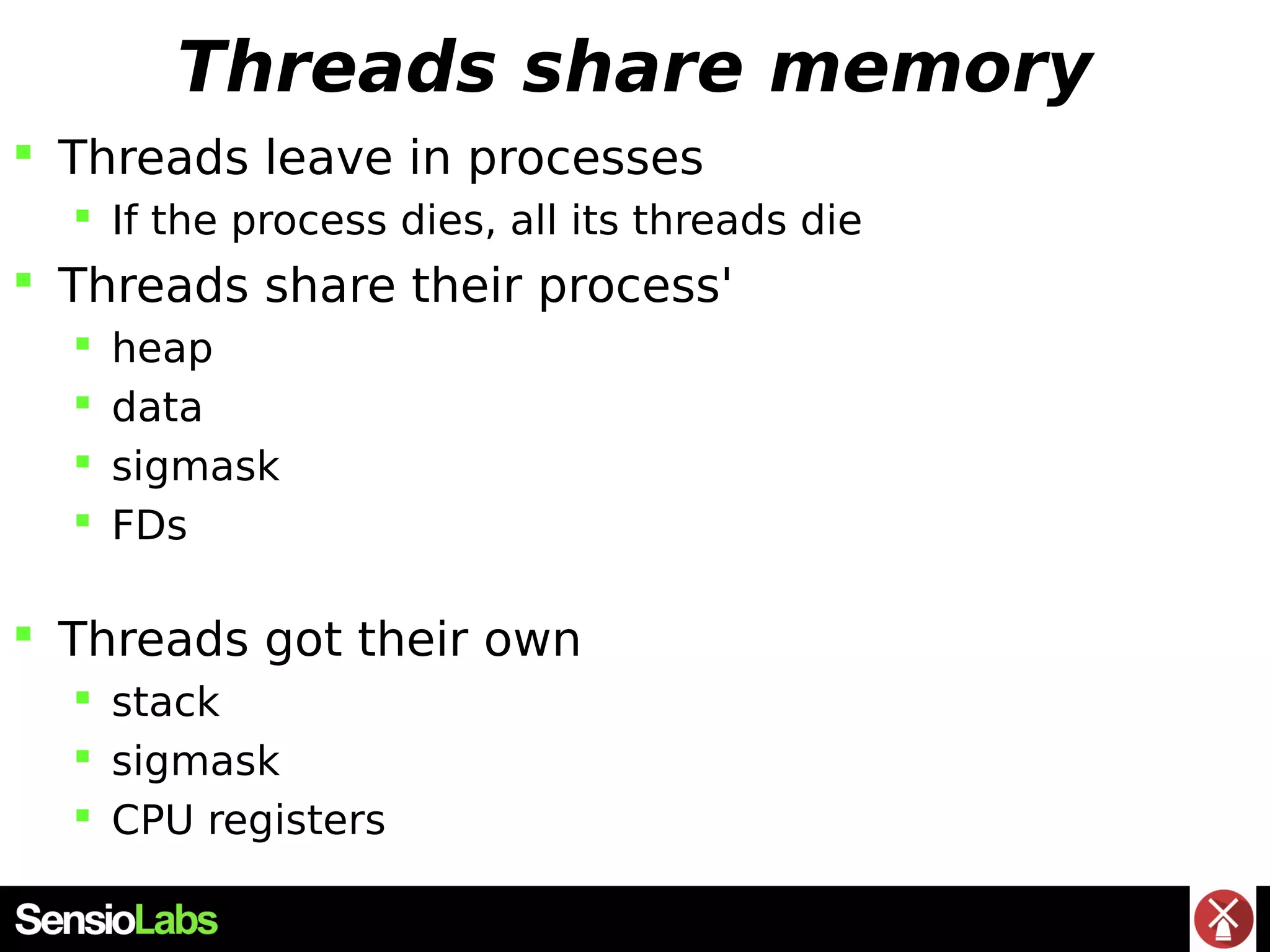

13. Threads share memory
 Threads leave in processes
 If the process dies, all its threads die
 Threads share their process'
 heap
 data
 sigmask
 FDs
 Threads got their own
 stack
 sigmask
 CPU registers

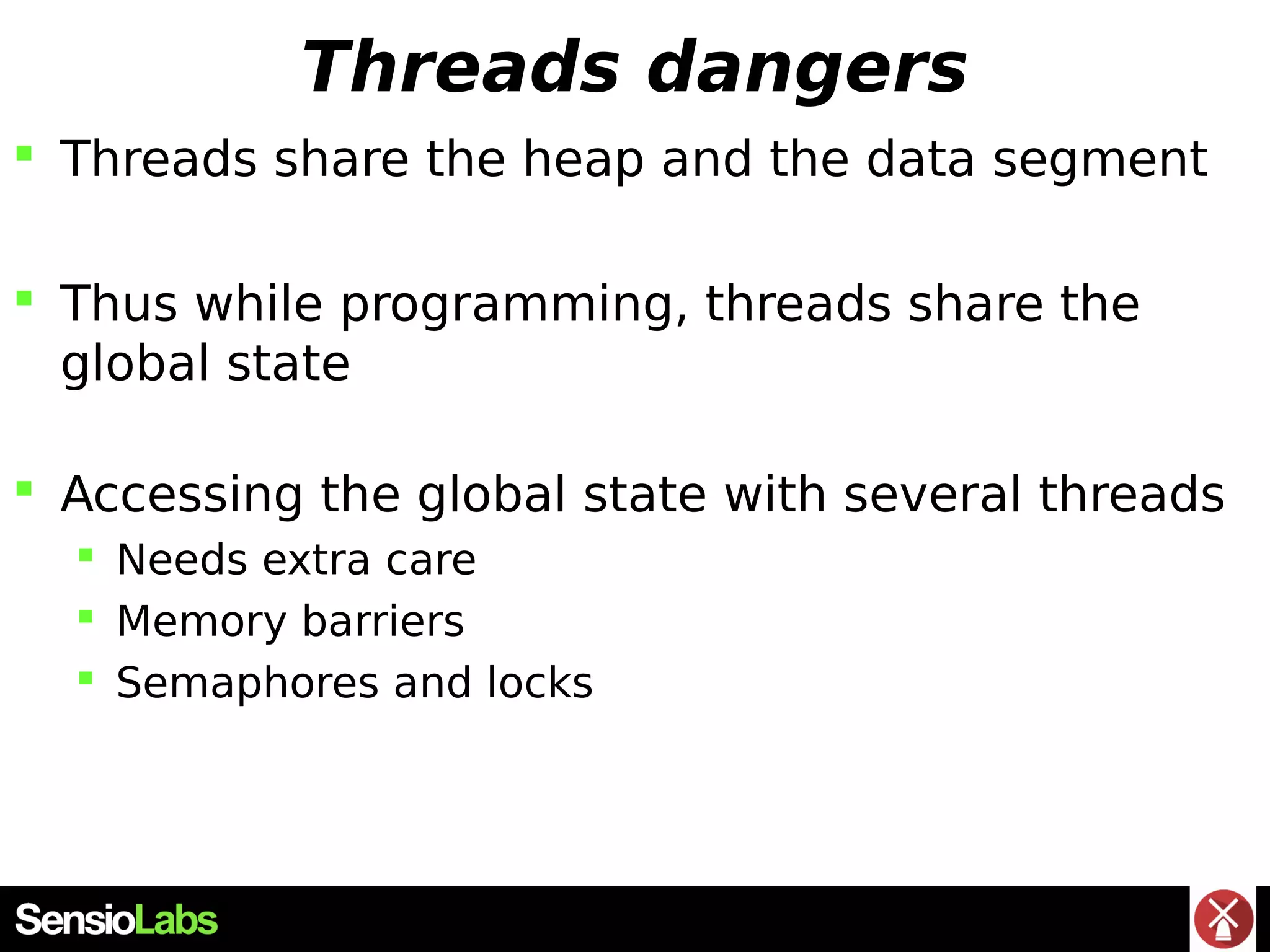

14. Threads dangers
 Threads share the heap and the data segment
 Thus while programming, threads share the
global state
 Accessing the global state with several threads
 Needs extra care
 Memory barriers
 Semaphores and locks

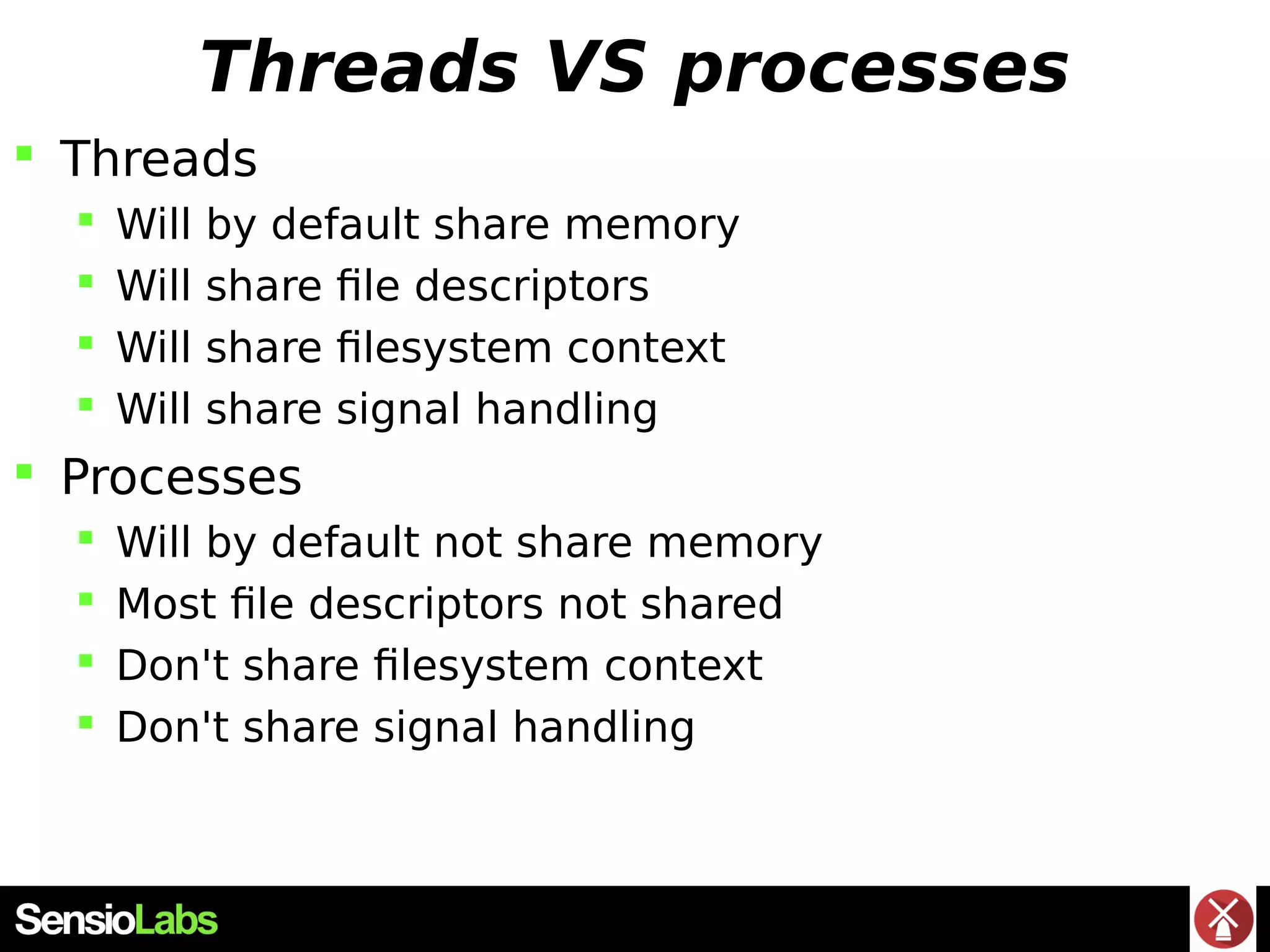

15. Threads VS processes
 Threads
 Will by default share memory
 Will share file descriptors
 Will share filesystem context
 Will share signal handling
 Processes
 Will by default not share memory
 Most file descriptors not shared
 Don't share filesystem context
 Don't share signal handling

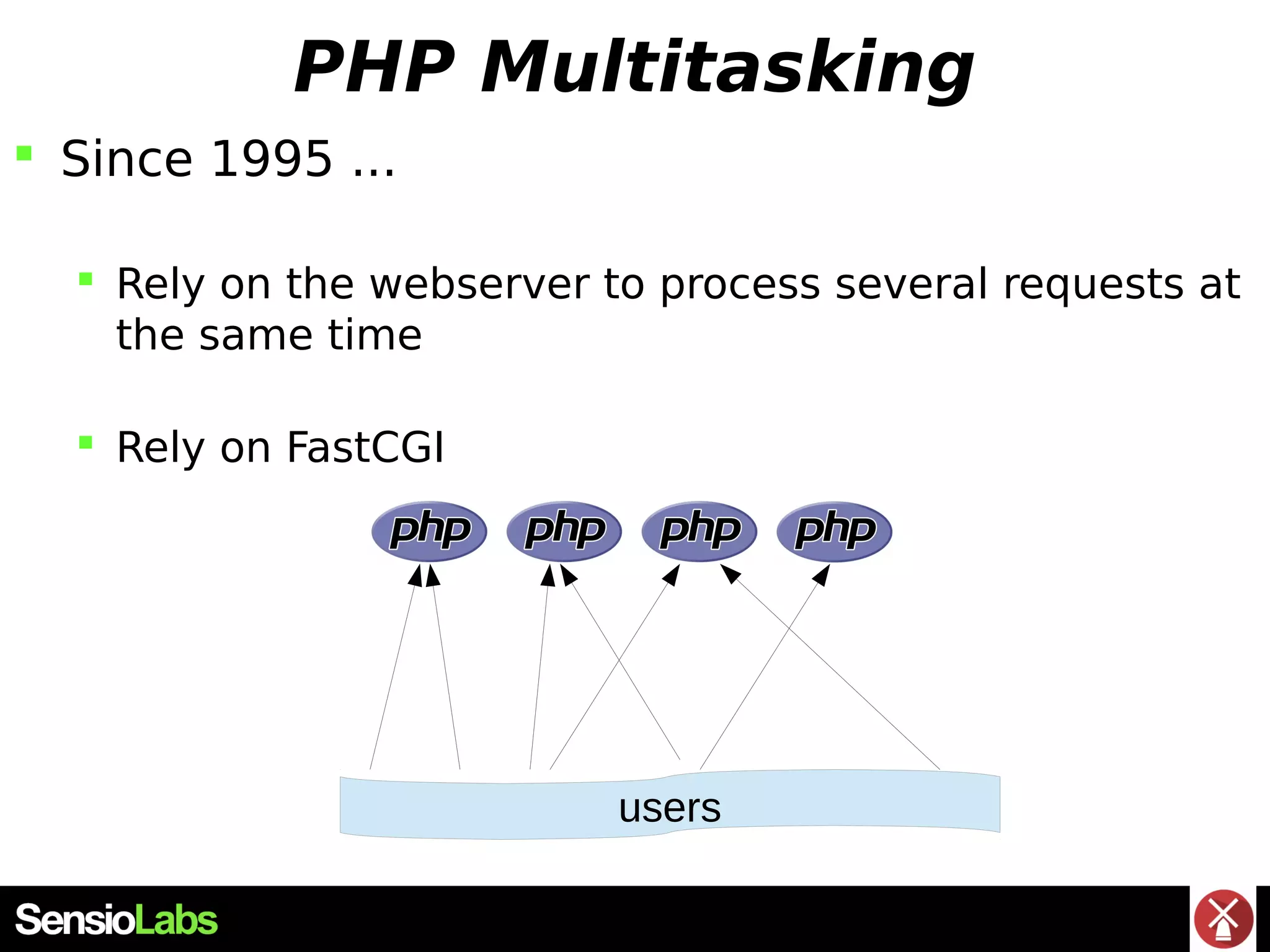

16. PHP Multitasking
 Since 1995 ...
 Rely on the webserver to process several requests at
the same time
 Rely on FastCGI
users

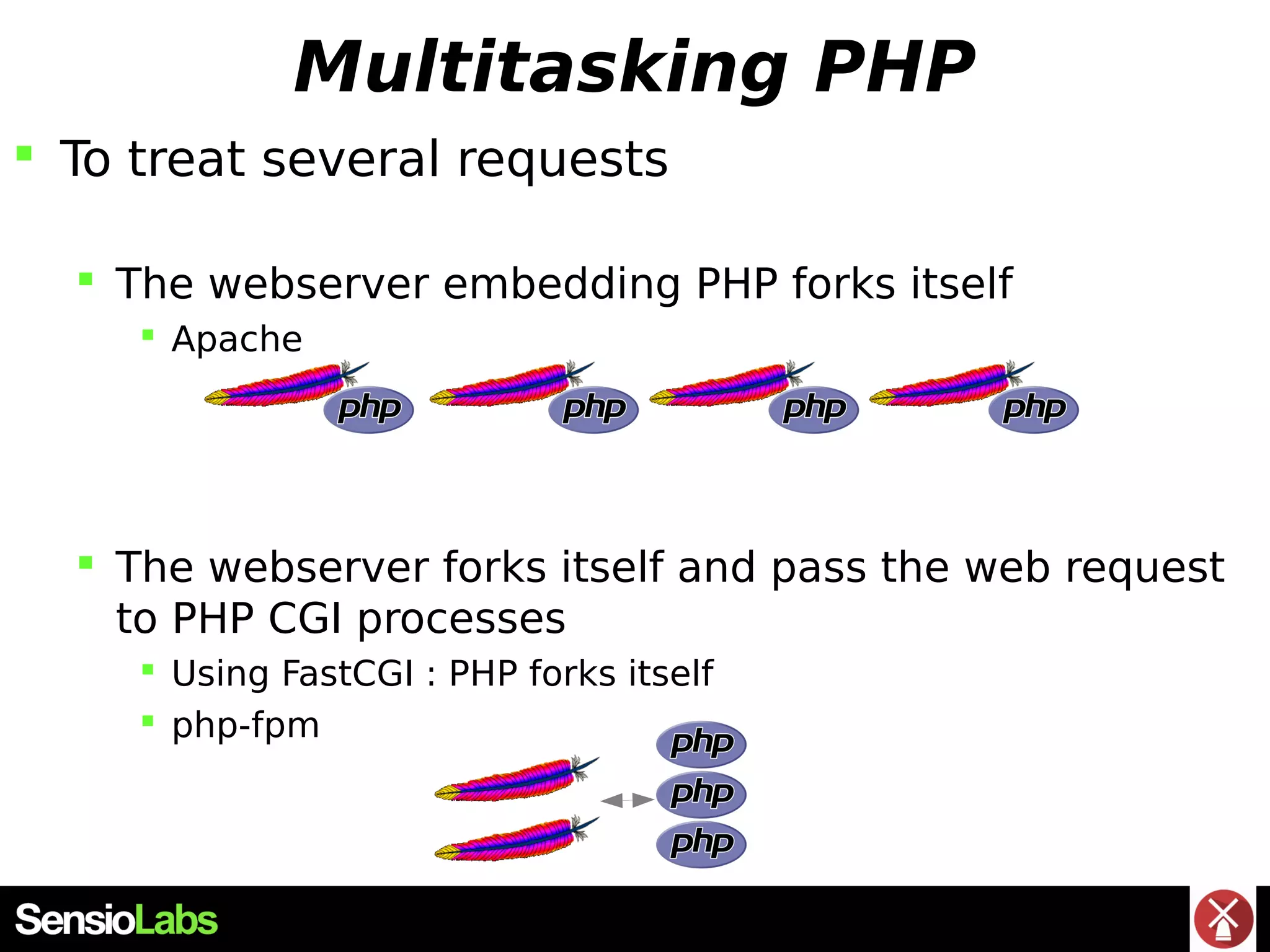

17. Multitasking PHP
 To treat several requests
 The webserver embedding PHP forks itself
 Apache
 The webserver forks itself and pass the web request
to PHP CGI processes
 Using FastCGI : PHP forks itself
 php-fpm

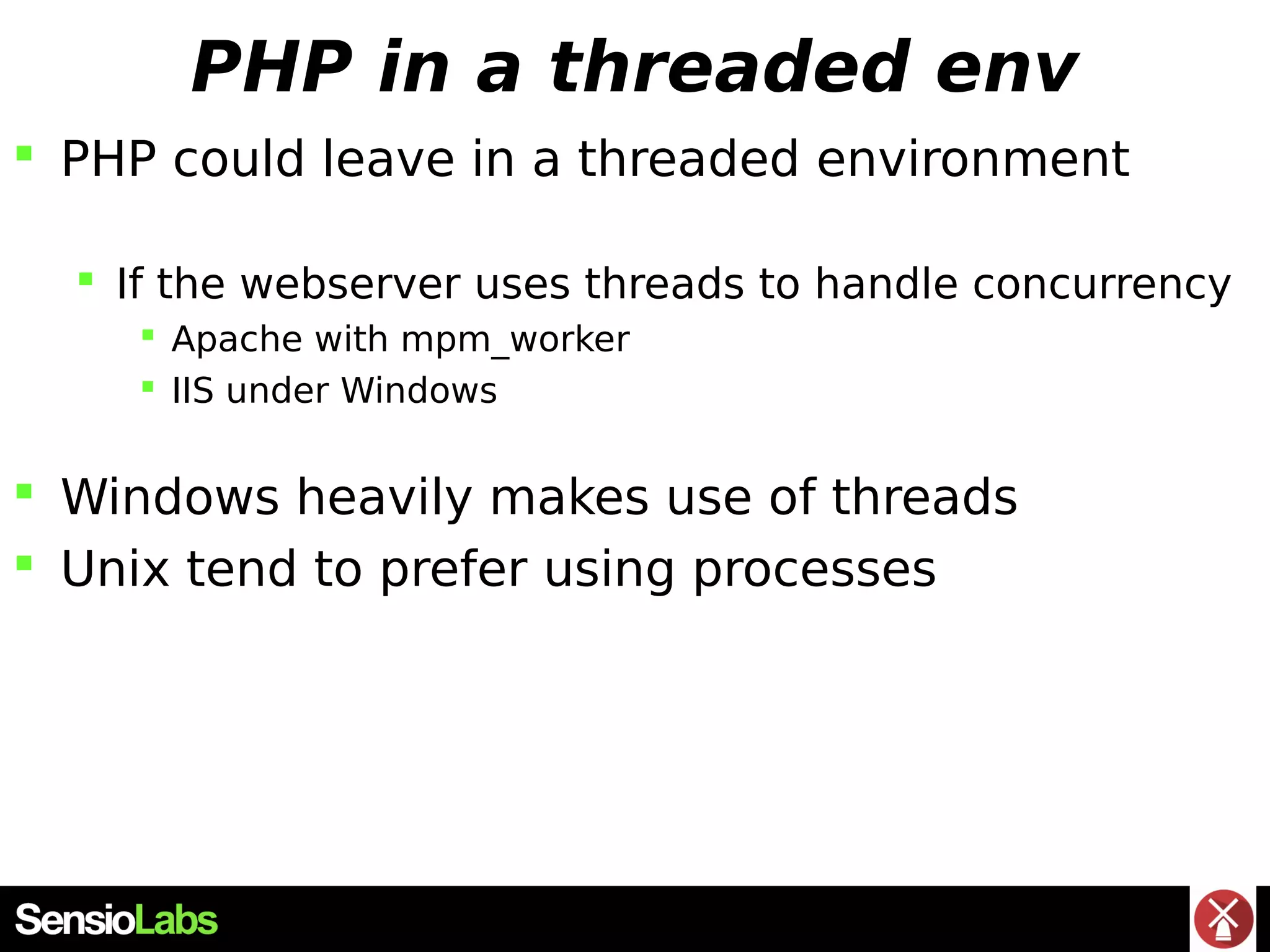

18. PHP in a threaded env
 PHP could leave in a threaded environment
 If the webserver uses threads to handle concurrency
 Apache with mpm_worker
 IIS under Windows
 Windows heavily makes use of threads
 Unix tend to prefer using processes

19. ZTS

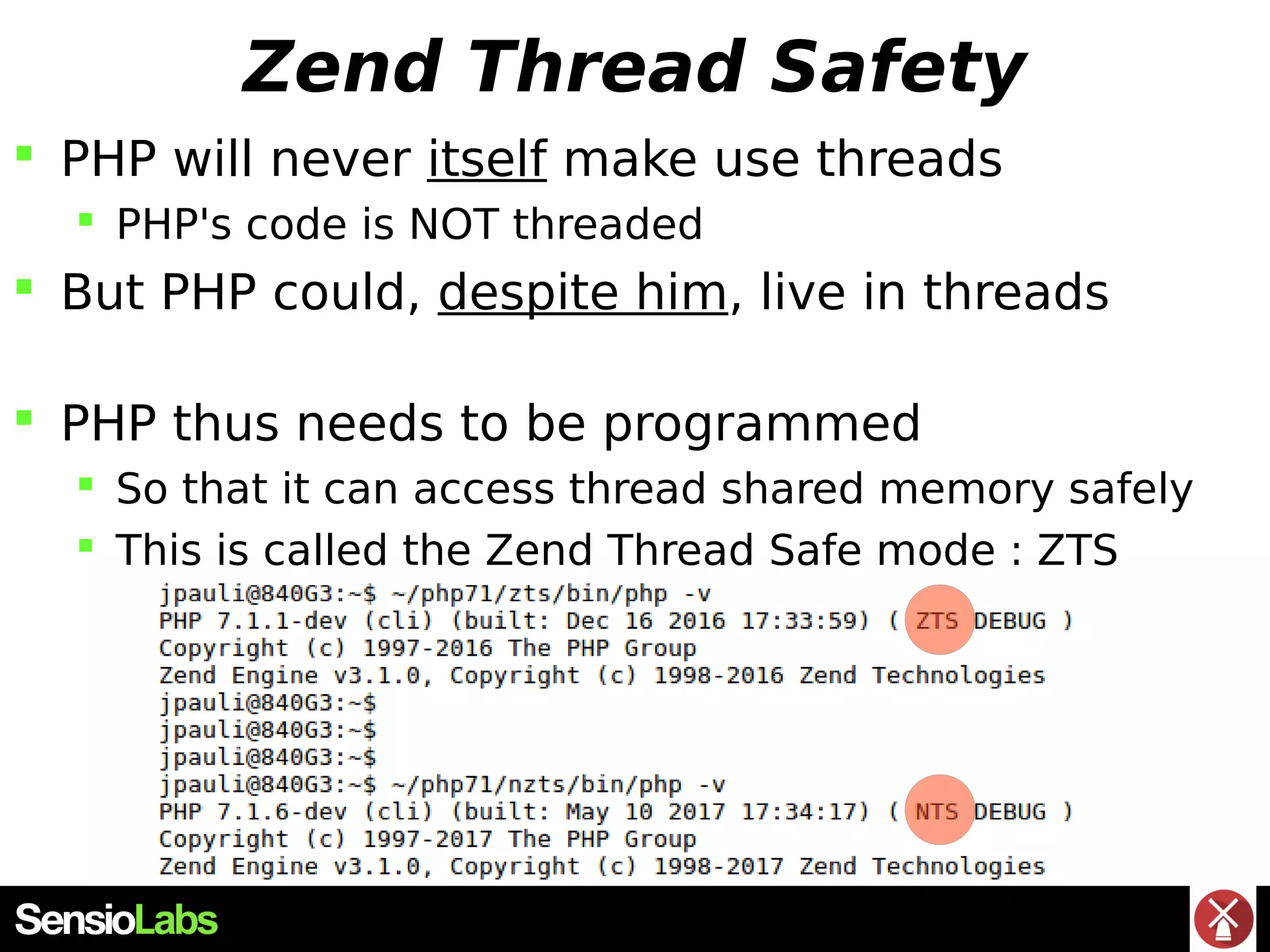

20. Zend Thread Safety
 PHP will never itself make use threads
 PHP's code is NOT threaded
 But PHP could, despite him, live in threads
 PHP thus needs to be programmed
 So that it can access thread shared memory safely
 This is called the Zend Thread Safe mode : ZTS

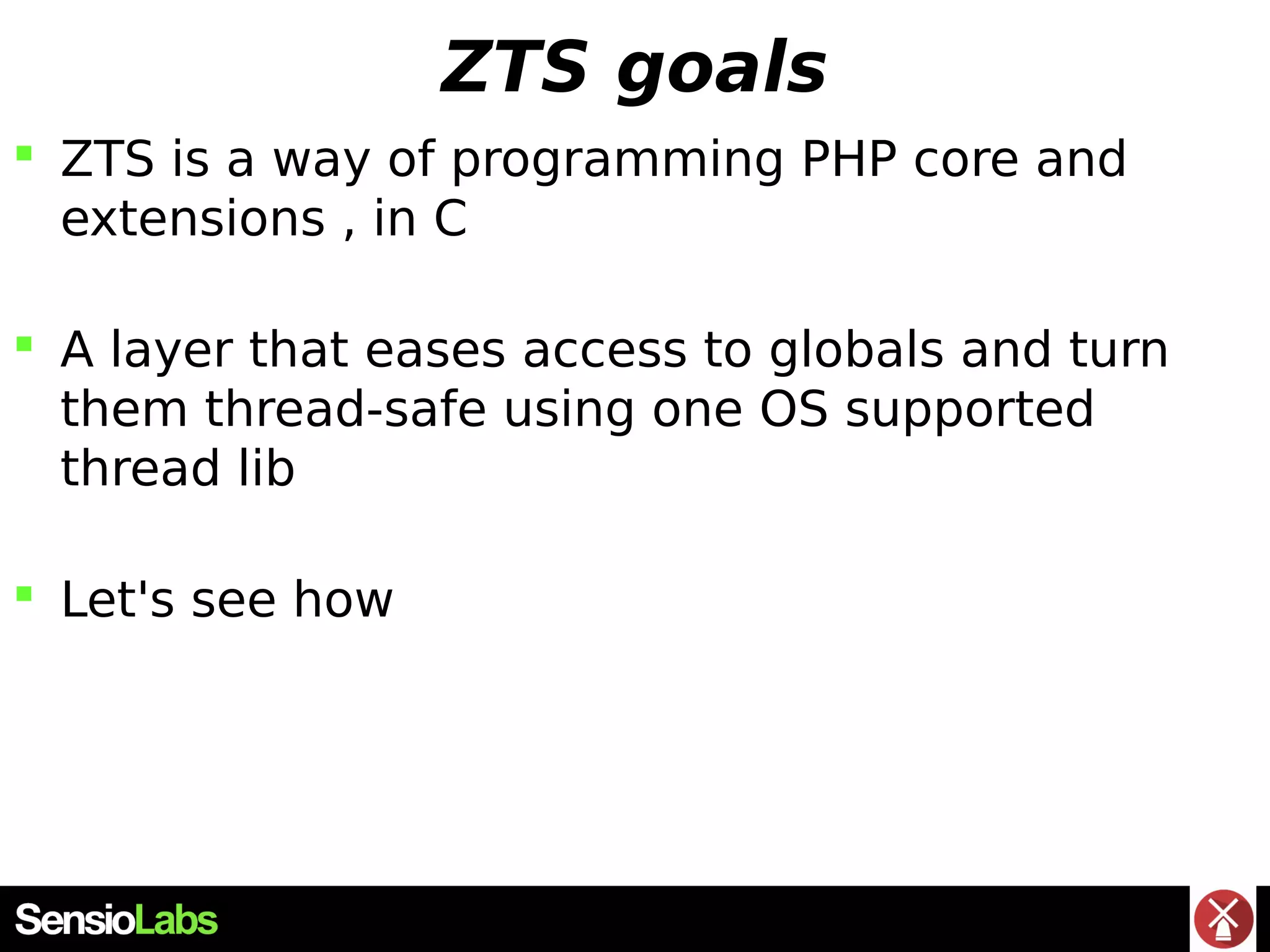

21. ZTS goals
 ZTS is a way of programming PHP core and
extensions , in C
 A layer that eases access to globals and turn
them thread-safe using one OS supported
thread lib
 Let's see how

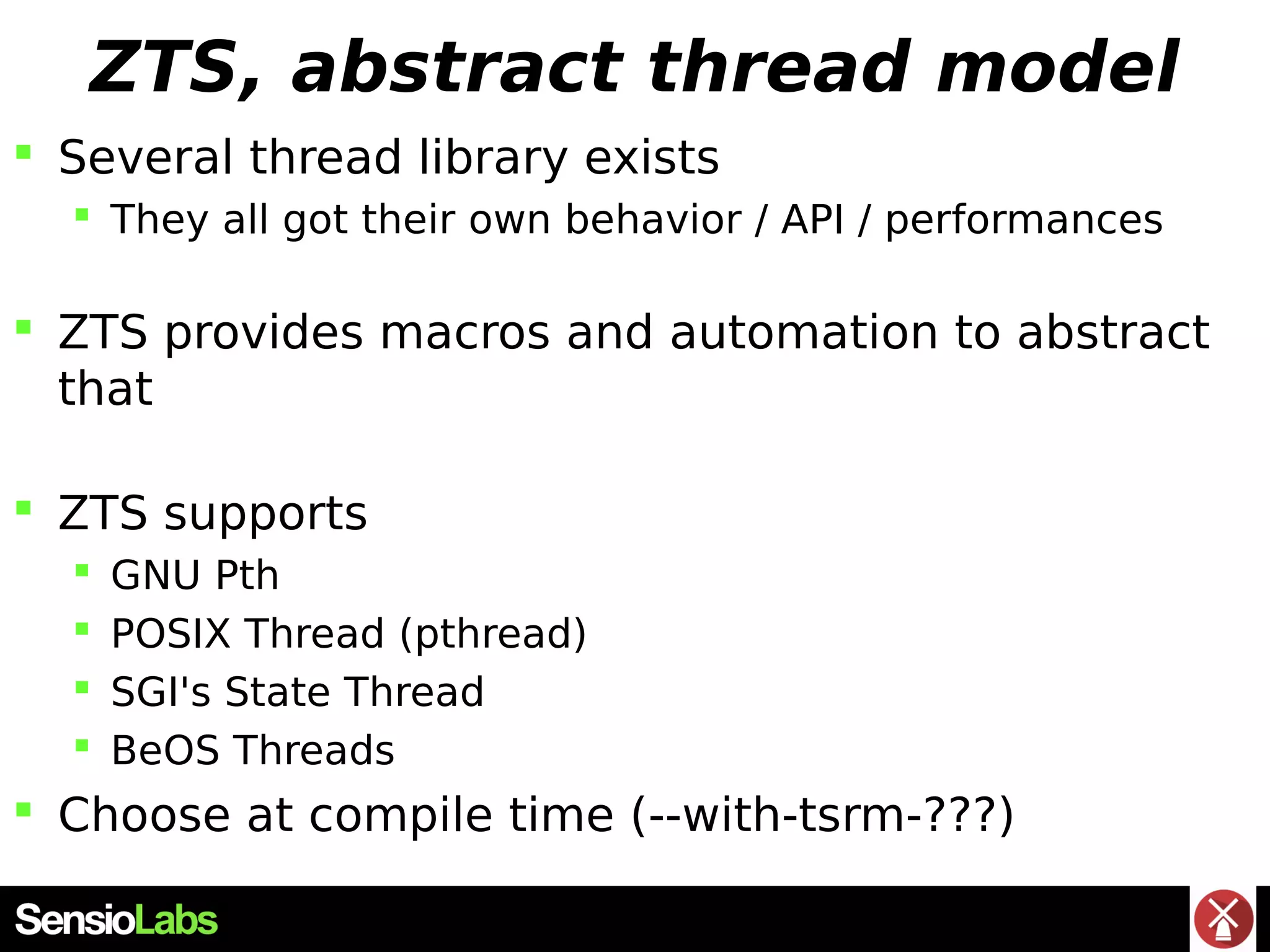

22. ZTS, abstract thread model
 Several thread library exists
 They all got their own behavior / API / performances
 ZTS provides macros and automation to abstract
that
 ZTS supports
 GNU Pth
 POSIX Thread (pthread)
 SGI's State Thread
 BeOS Threads
 Choose at compile time (--with-tsrm-???)

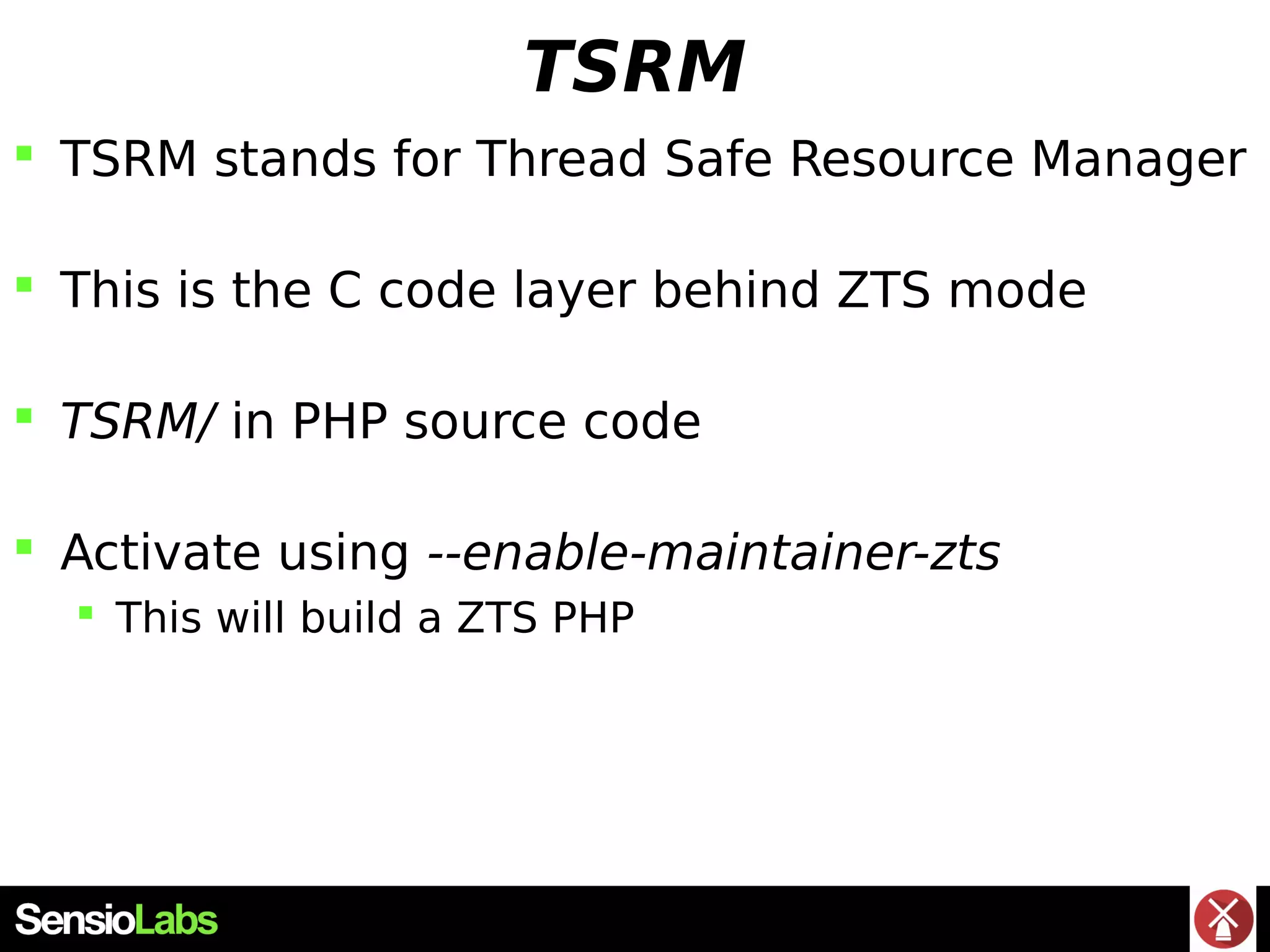

23. TSRM
 TSRM stands for Thread Safe Resource Manager
 This is the C code layer behind ZTS mode
 TSRM/ in PHP source code
 Activate using --enable-maintainer-zts
 This will build a ZTS PHP

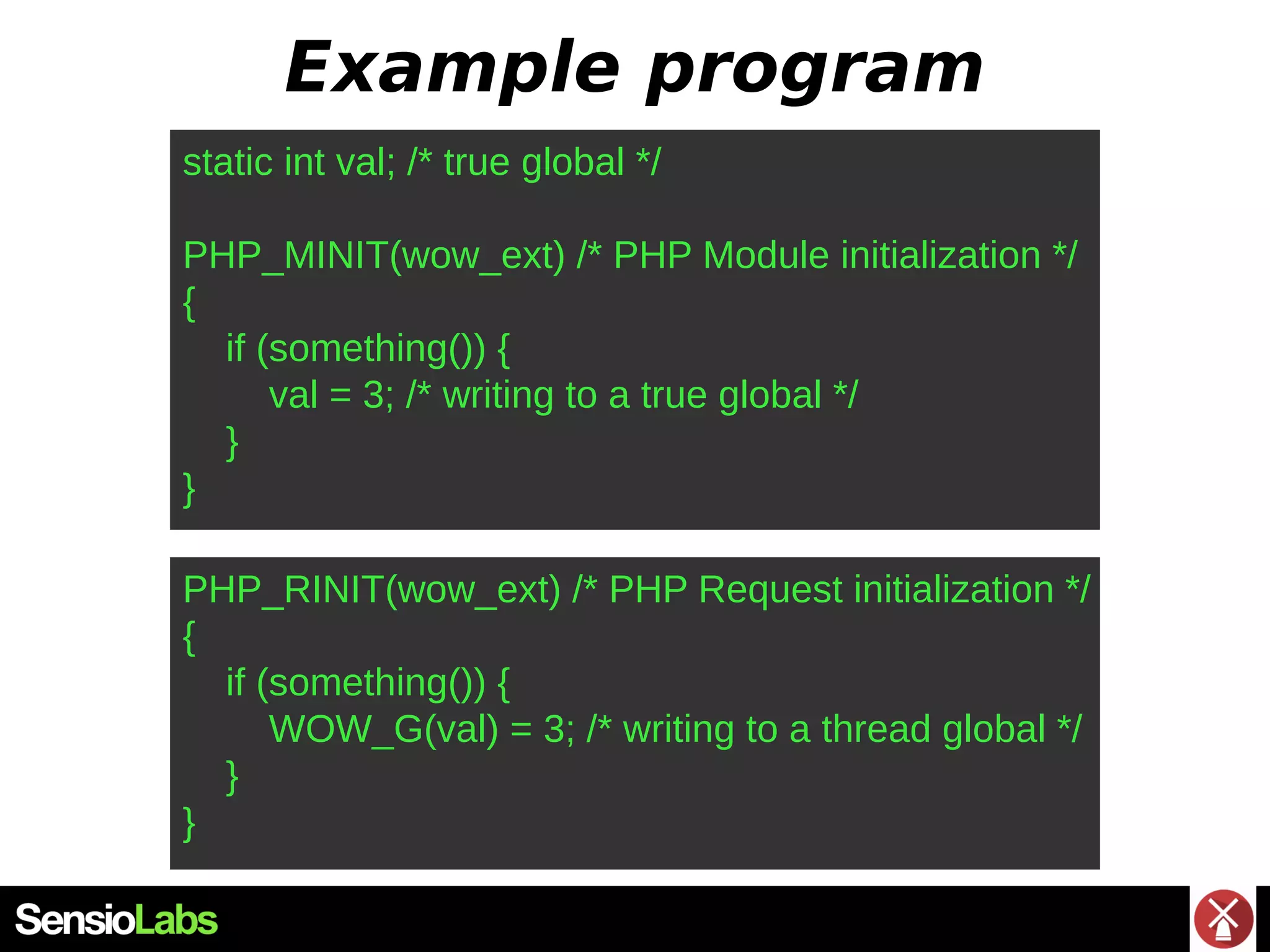

24. Example program
static int val; /* true global */
PHP_MINIT(wow_ext) /* PHP Module initialization */
{
if (something()) {
val = 3; /* writing to a true global */
}
}
PHP_RINIT(wow_ext) /* PHP Request initialization */
{
if (something()) {
WOW_G(val) = 3; /* writing to a thread global */
}
}

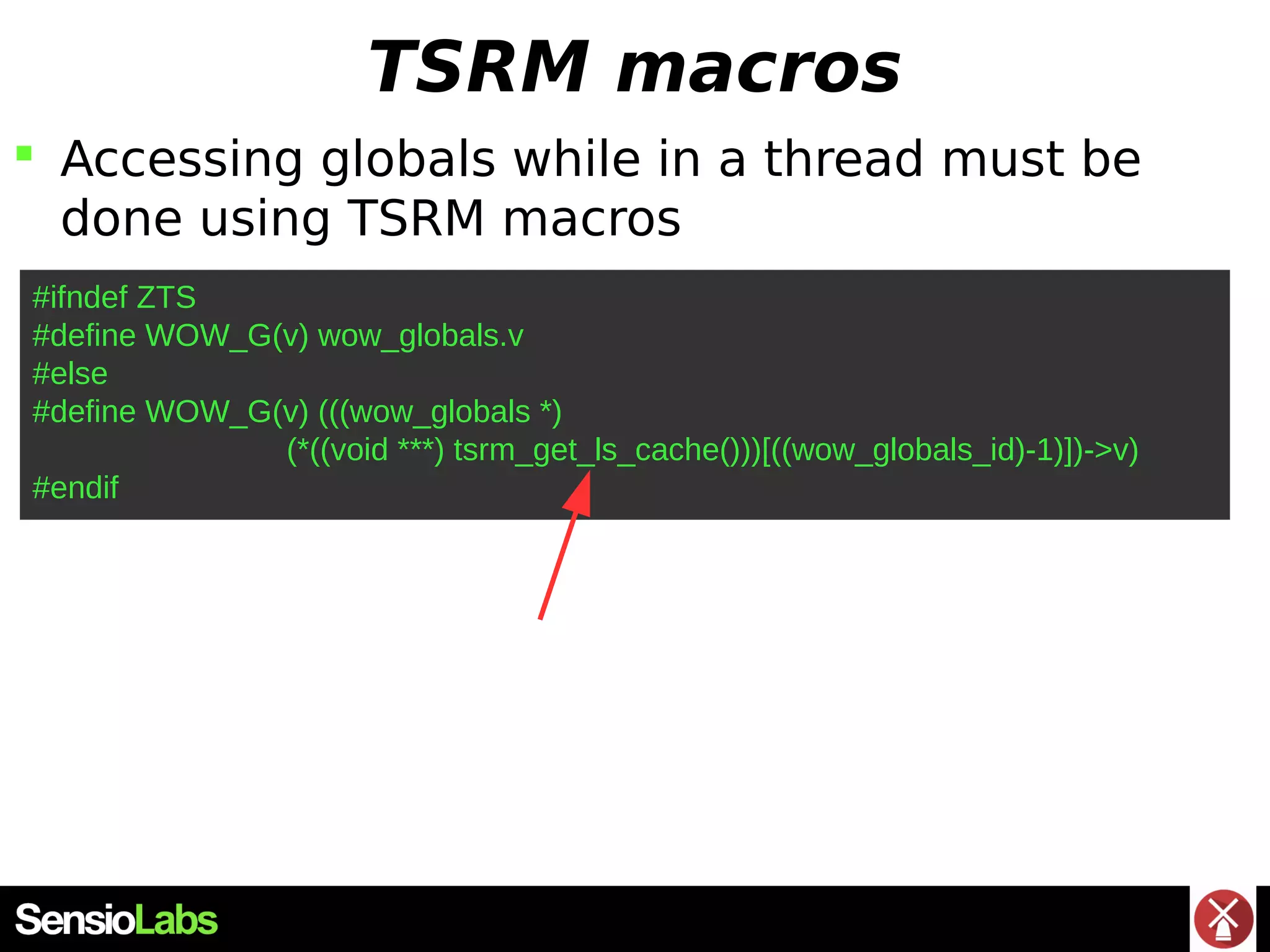

25. TSRM macros
 Accessing globals while in a thread must be
done using TSRM macros
#ifndef ZTS
#define WOW_G(v) wow_globals.v
#else
#define WOW_G(v) (((wow_globals *)
(*((void ***) tsrm_get_ls_cache()))[((wow_globals_id)-1)])->v)
#endif

26. How all this stuff work ?

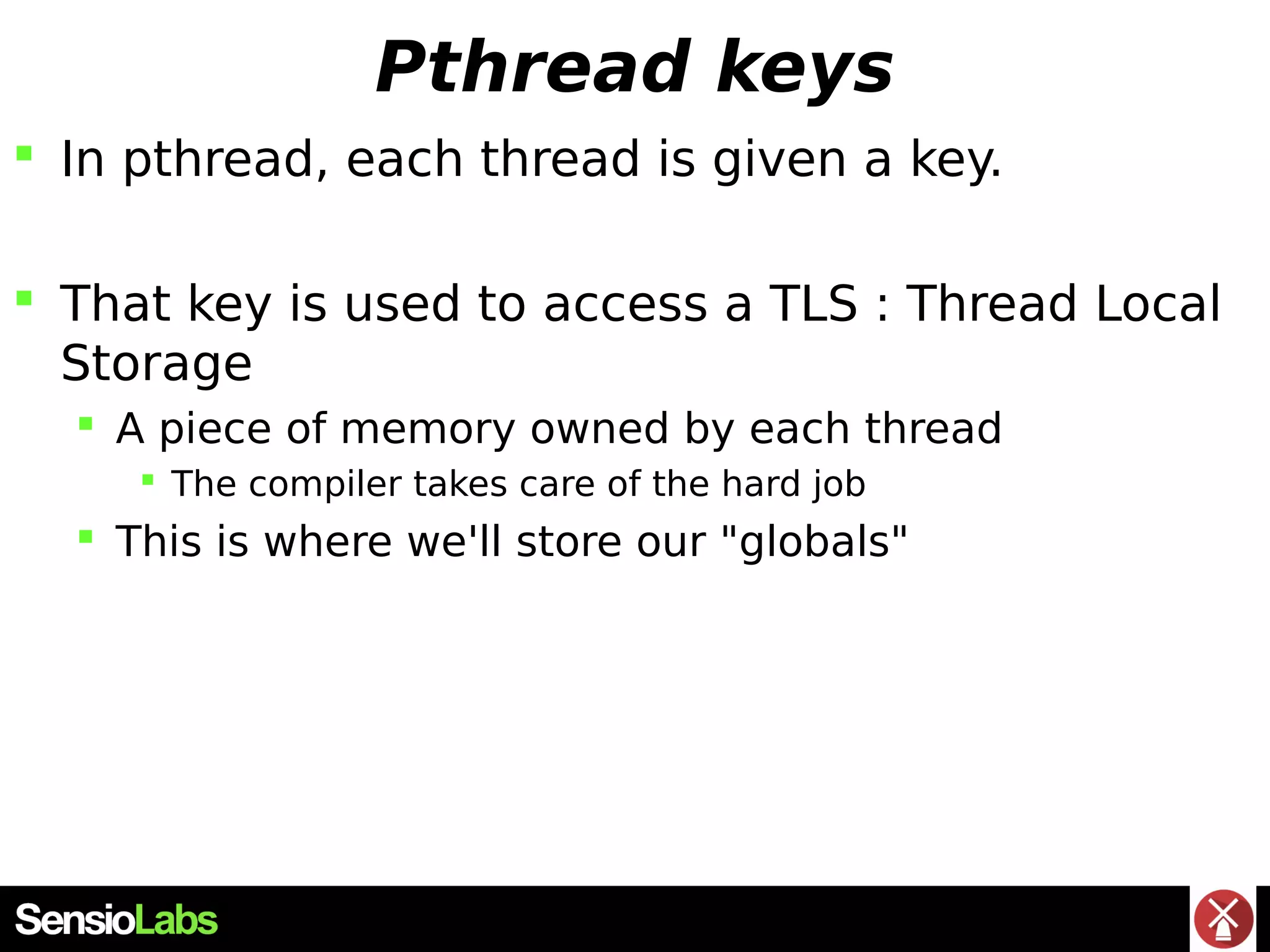

27. Pthread keys
 In pthread, each thread is given a key.
 That key is used to access a TLS : Thread Local
Storage
 A piece of memory owned by each thread
 The compiler takes care of the hard job
 This is where we'll store our "globals"

28. Extensions compilation
 At compilation, each extension declares
 a pointer to some TLS space
 __thread is used
 An id (integer) which will retain this extension
specific storage
BF_DECLARE_ZEND_GLOBALS
ts_rsrc_id blackfire_globals_id; __thread void *_tsrm_ls_cache = ((void *)0);;

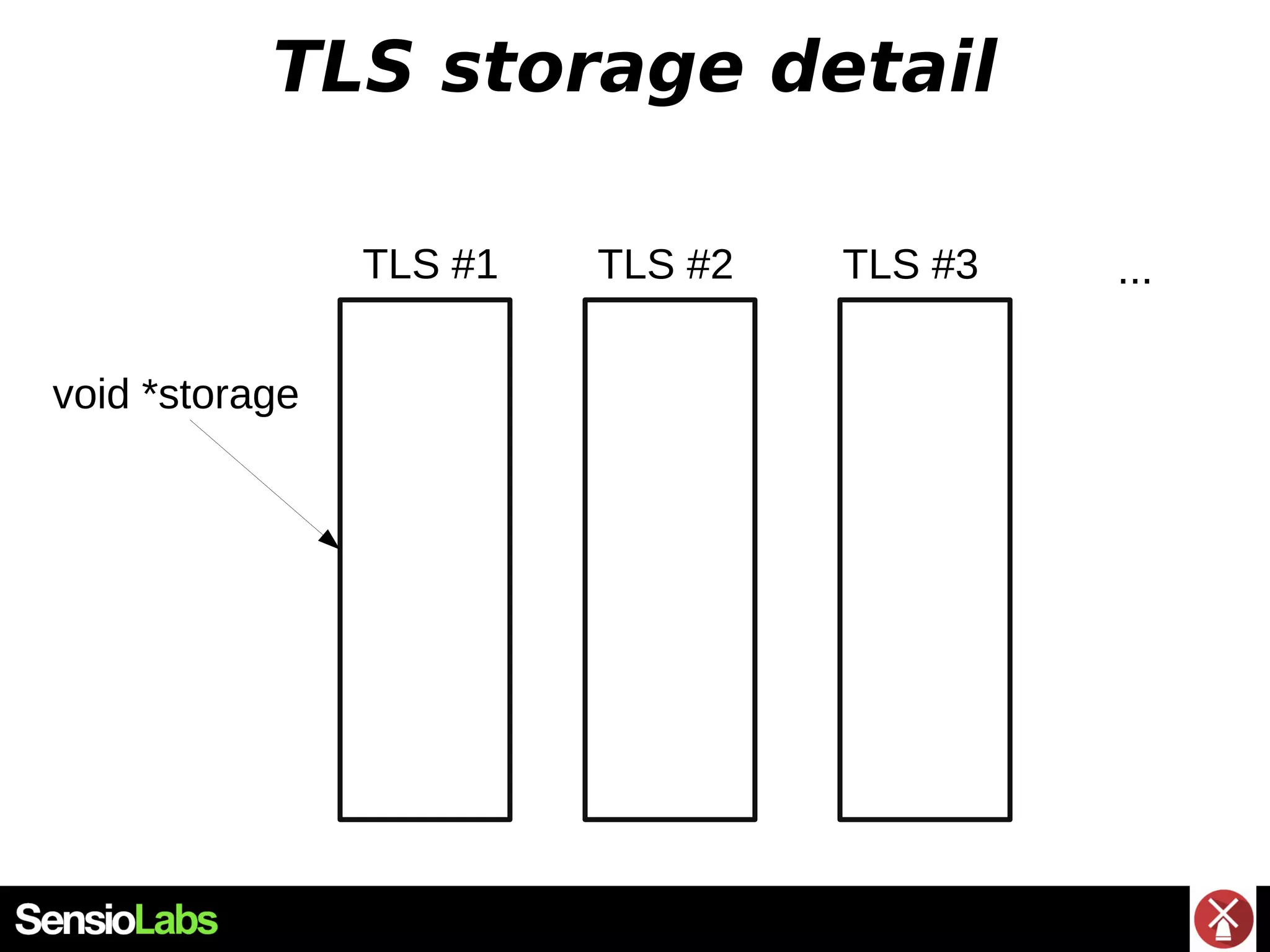

29. TLS storage detail
TLS #1 TLS #2 TLS #3 ...
void *storage

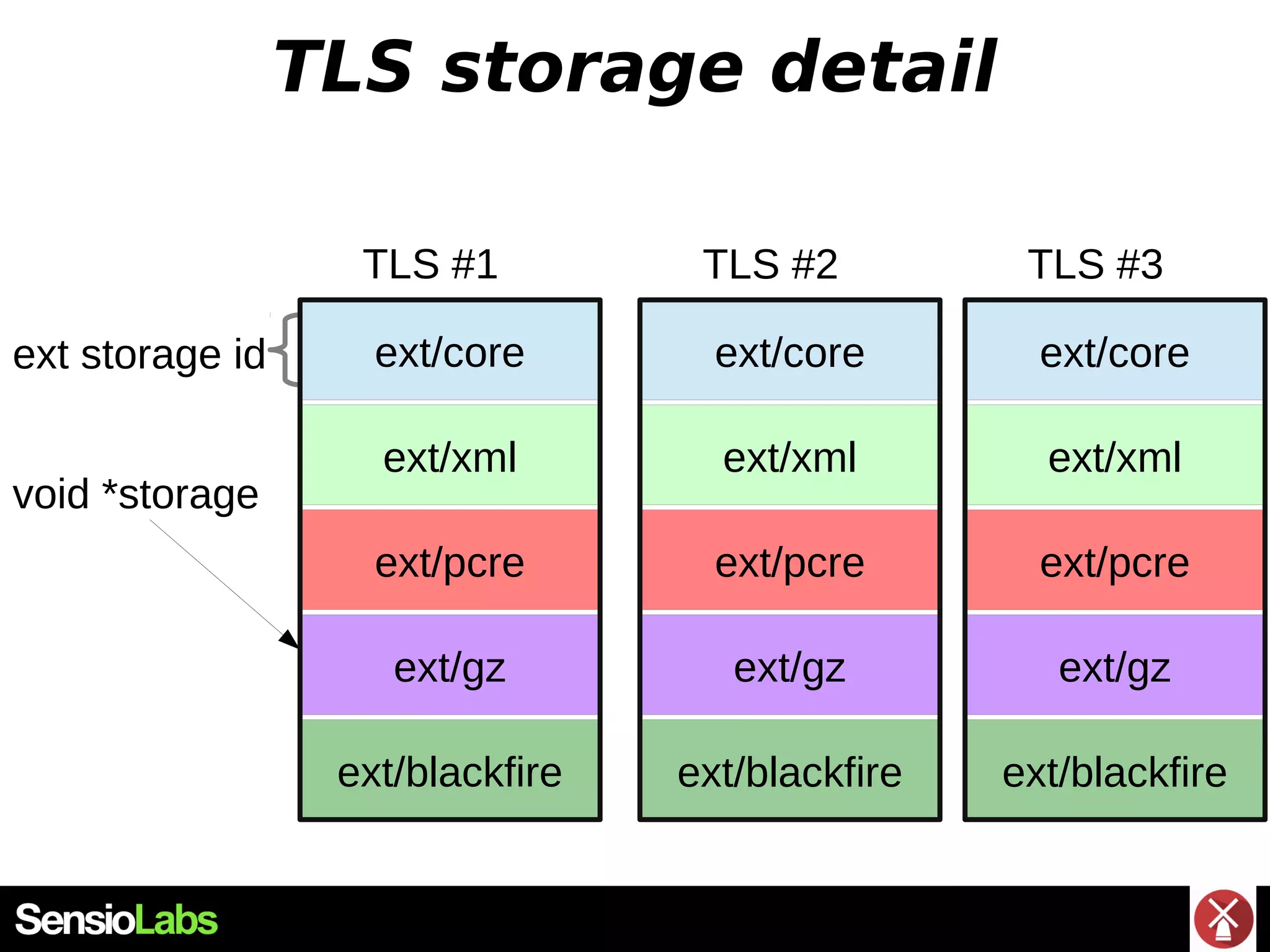

30. TLS storage detail
TLS #1
ext storage id ext/core
ext/xml
ext/pcre
ext/gz
ext/blackfire
TLS #2
ext/core
ext/xml
ext/pcre
ext/gz
ext/blackfire
TLS #3
ext/core
ext/xml
ext/pcre
ext/gz
ext/blackfire
void *storage

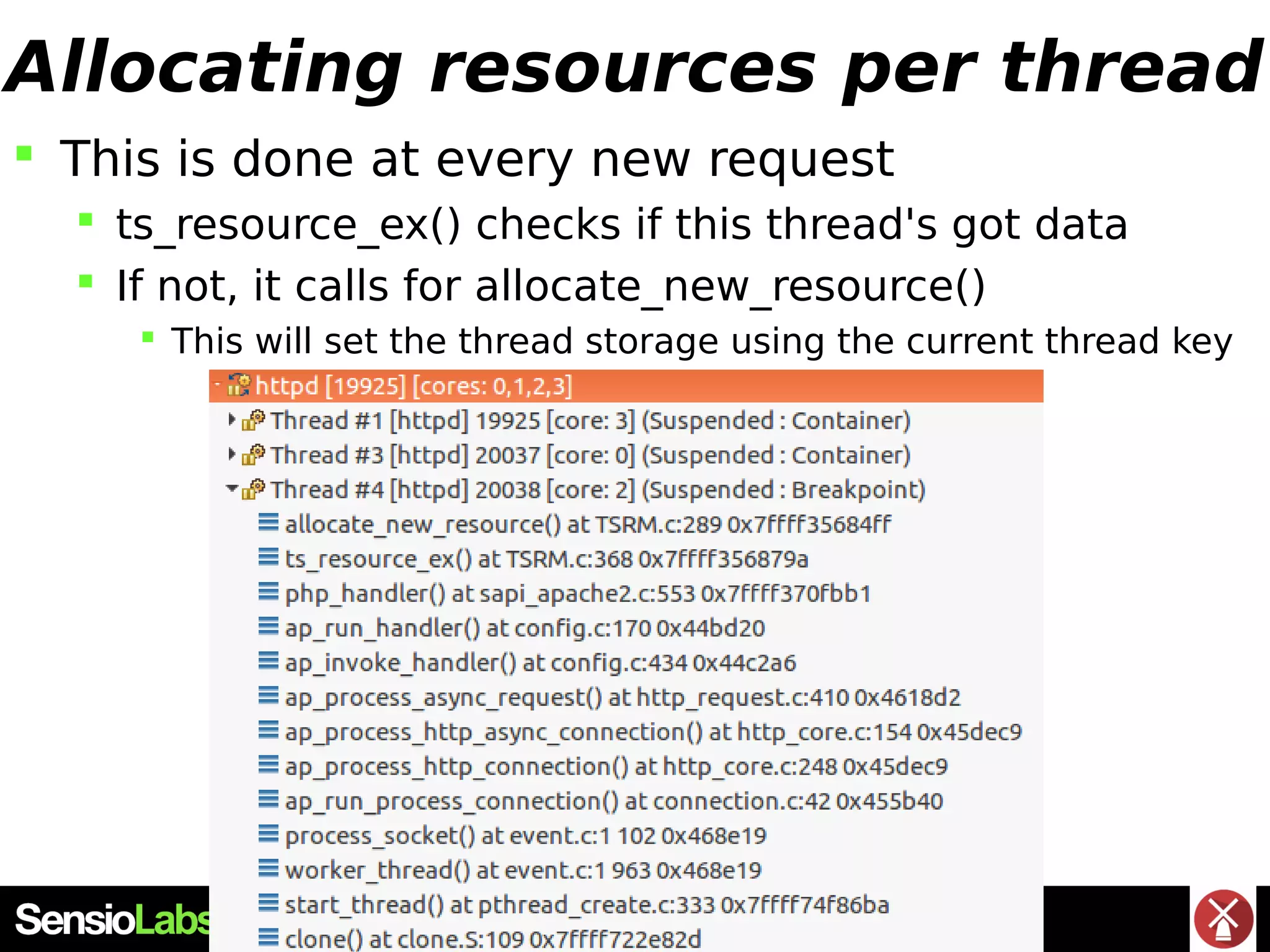

31. Allocating resources per thread
 This is done at every new request
 ts_resource_ex() checks if this thread's got data
 If not, it calls for allocate_new_resource()
 This will set the thread storage using the current thread key

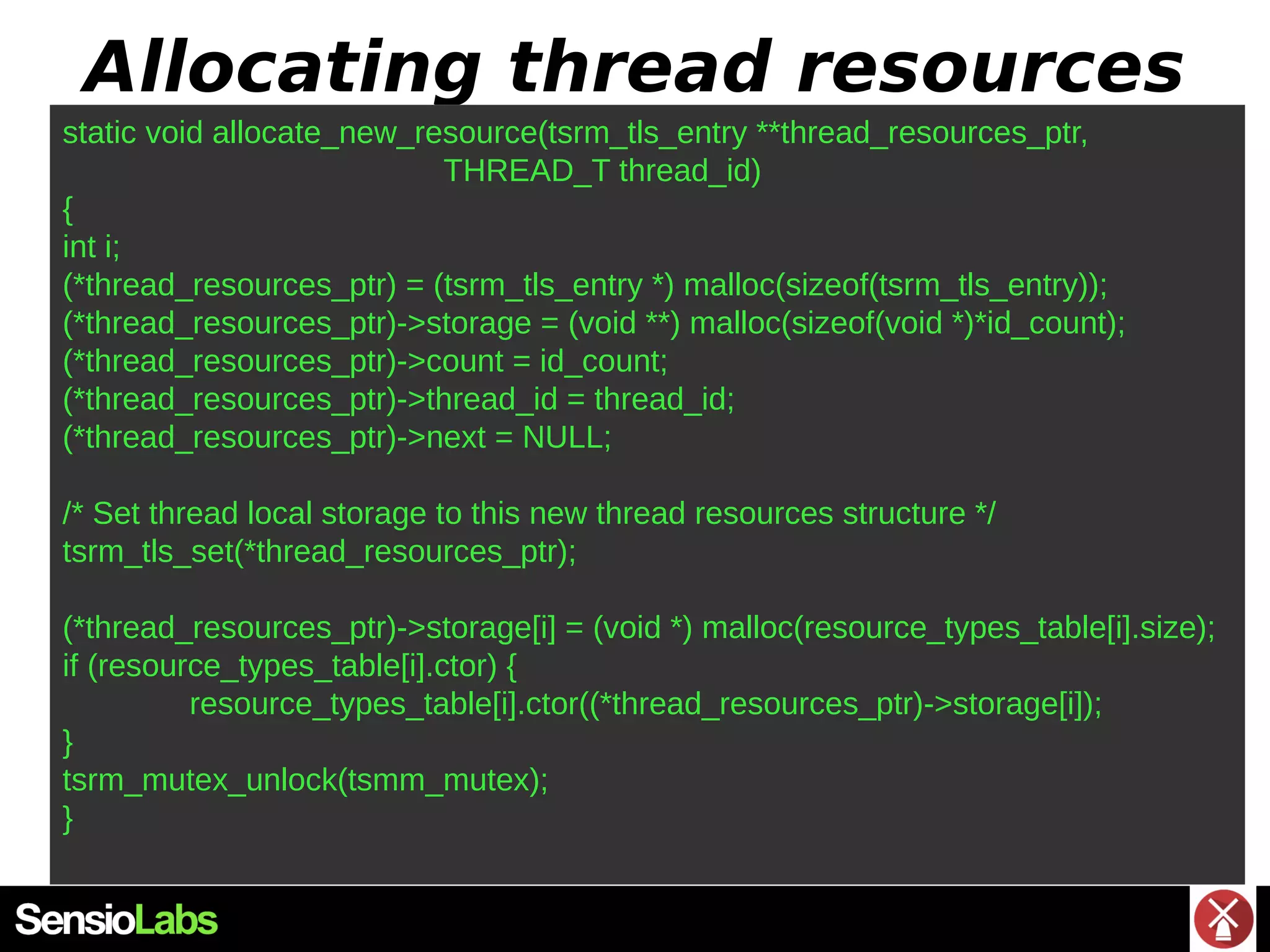

32. Allocating thread resources
static void allocate_new_resource(tsrm_tls_entry **thread_resources_ptr,
THREAD_T thread_id)
{
int i;
(*thread_resources_ptr) = (tsrm_tls_entry *) malloc(sizeof(tsrm_tls_entry));
(*thread_resources_ptr)->storage = (void **) malloc(sizeof(void *)*id_count);
(*thread_resources_ptr)->count = id_count;
(*thread_resources_ptr)->thread_id = thread_id;
(*thread_resources_ptr)->next = NULL;
/* Set thread local storage to this new thread resources structure */
tsrm_tls_set(*thread_resources_ptr);
(*thread_resources_ptr)->storage[i] = (void *) malloc(resource_types_table[i].size);
if (resource_types_table[i].ctor) {
resource_types_table[i].ctor((*thread_resources_ptr)->storage[i]);
}
tsrm_mutex_unlock(tsmm_mutex);
}

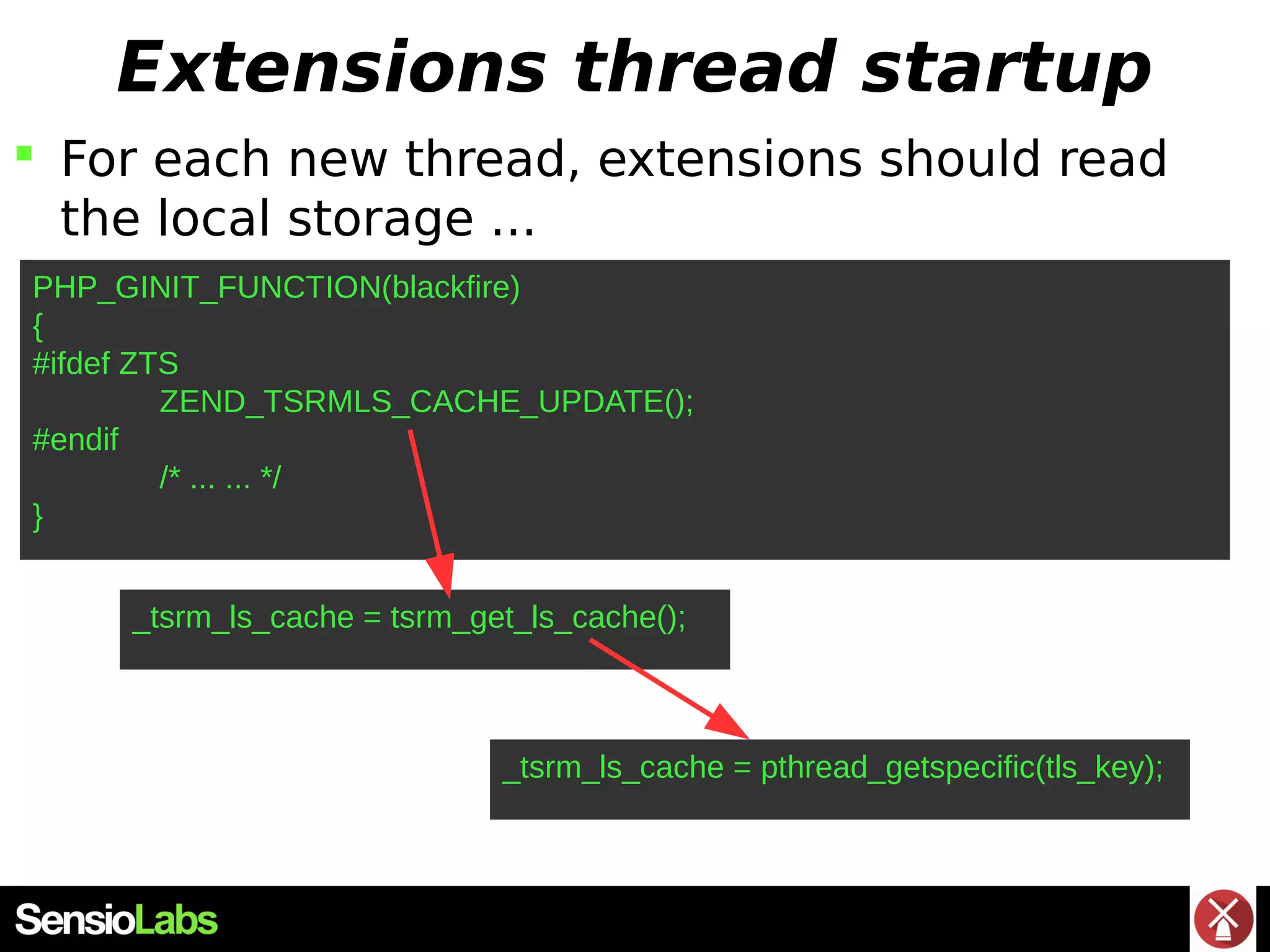

33. Extensions thread startup
 For each new thread, extensions should read
the local storage ...
PHP_GINIT_FUNCTION(blackfire)
{
#ifdef ZTS
ZEND_TSRMLS_CACHE_UPDATE();
#endif
/* ... ... */
}
_tsrm_ls_cache = tsrm_get_ls_cache();
_tsrm_ls_cache = pthread_getspecific(tls_key);

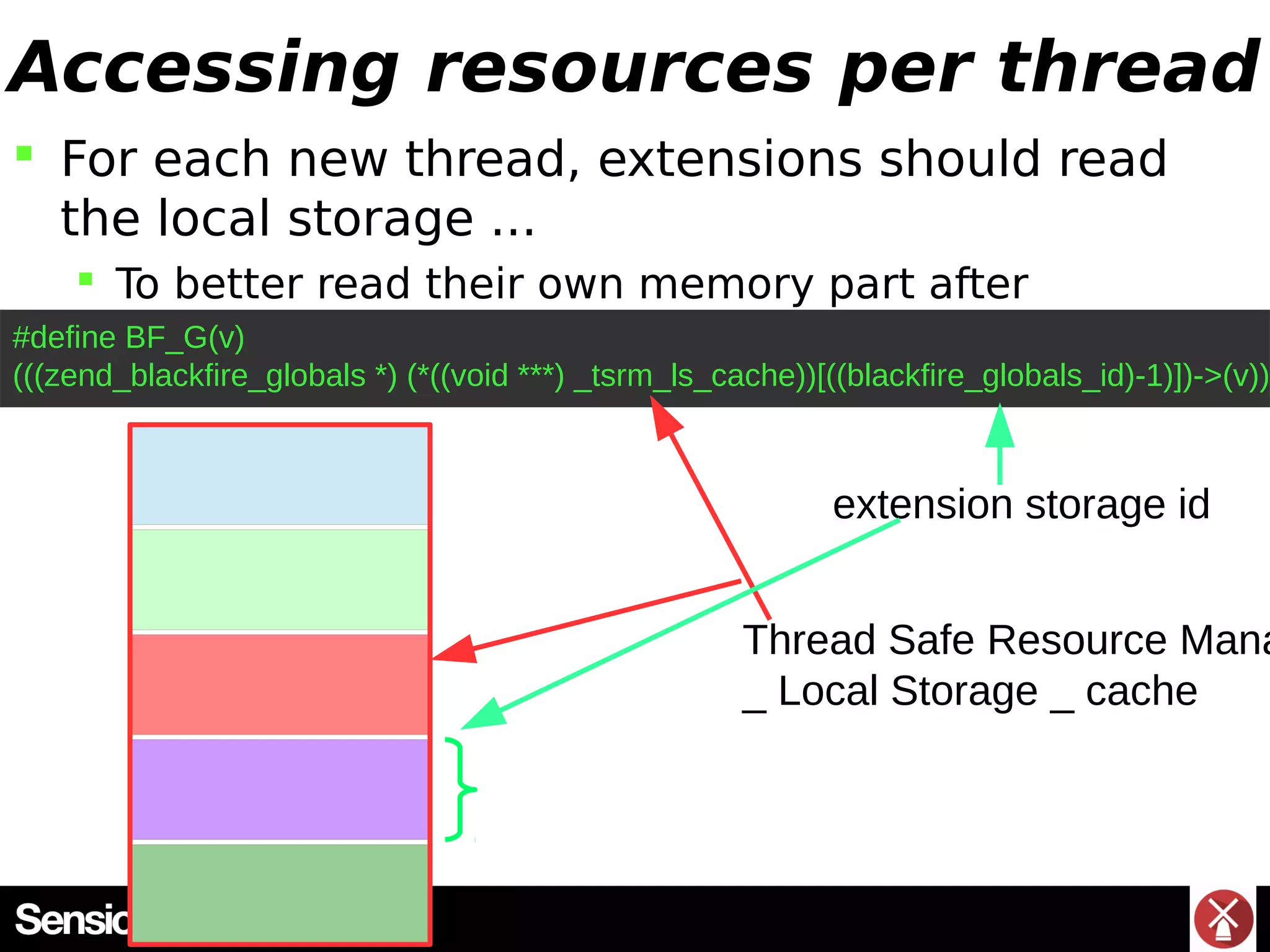

34. Accessing resources per thread
 For each new thread, extensions should read
the local storage ...
 To better read their own memory part after
#define BF_G(v)
(((zend_blackfire_globals *) (*((void ***) _tsrm_ls_cache))[((blackfire_globals_id)-1)])->(v))
Thread Safe Resource Mana
_ Local Storage _ cache
extension storage id

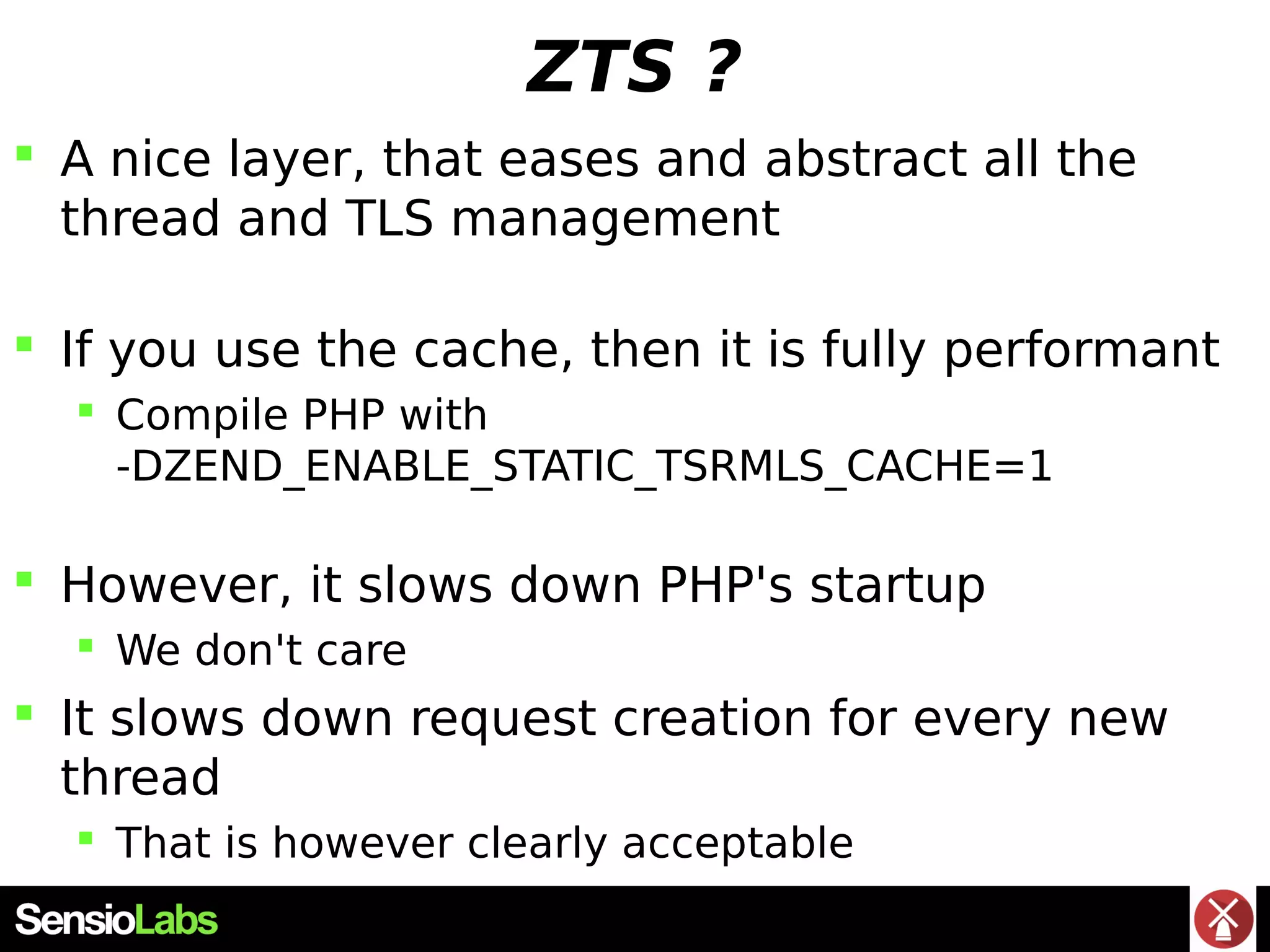

35. ZTS ?
 A nice layer, that eases and abstract all the
thread and TLS management
 If you use the cache, then it is fully performant
 Compile PHP with
-DZEND_ENABLE_STATIC_TSRMLS_CACHE=1
 However, it slows down PHP's startup
 We don't care
 It slows down request creation for every new
thread
 That is however clearly acceptable

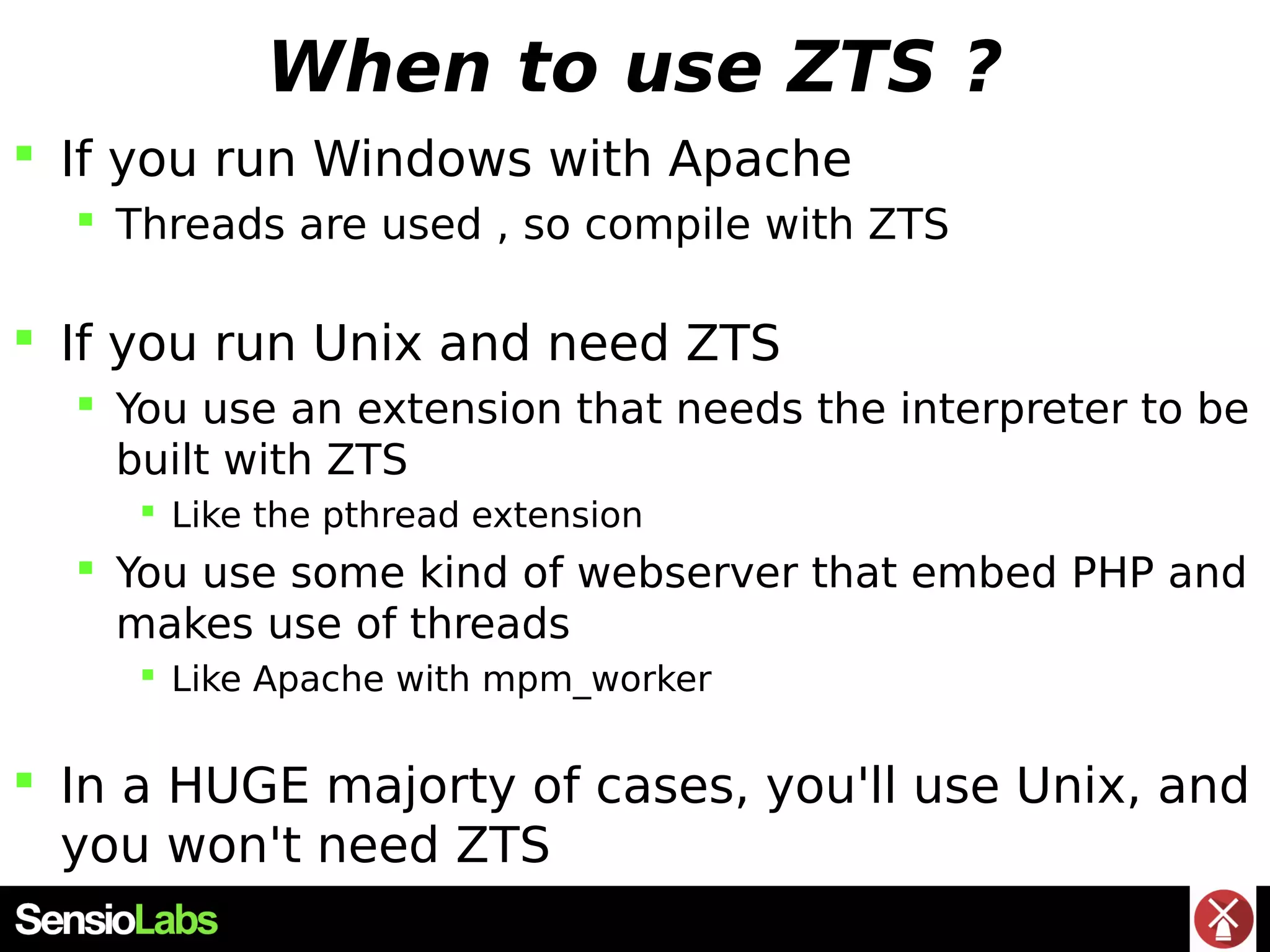

36. When to use ZTS ?
 If you run Windows with Apache
 Threads are used , so compile with ZTS
 If you run Unix and need ZTS
 You use an extension that needs the interpreter to be
built with ZTS
 Like the pthread extension
 You use some kind of webserver that embed PHP and
makes use of threads
 Like Apache with mpm_worker
 In a HUGE majorty of cases, you'll use Unix, and
you won't need ZTS

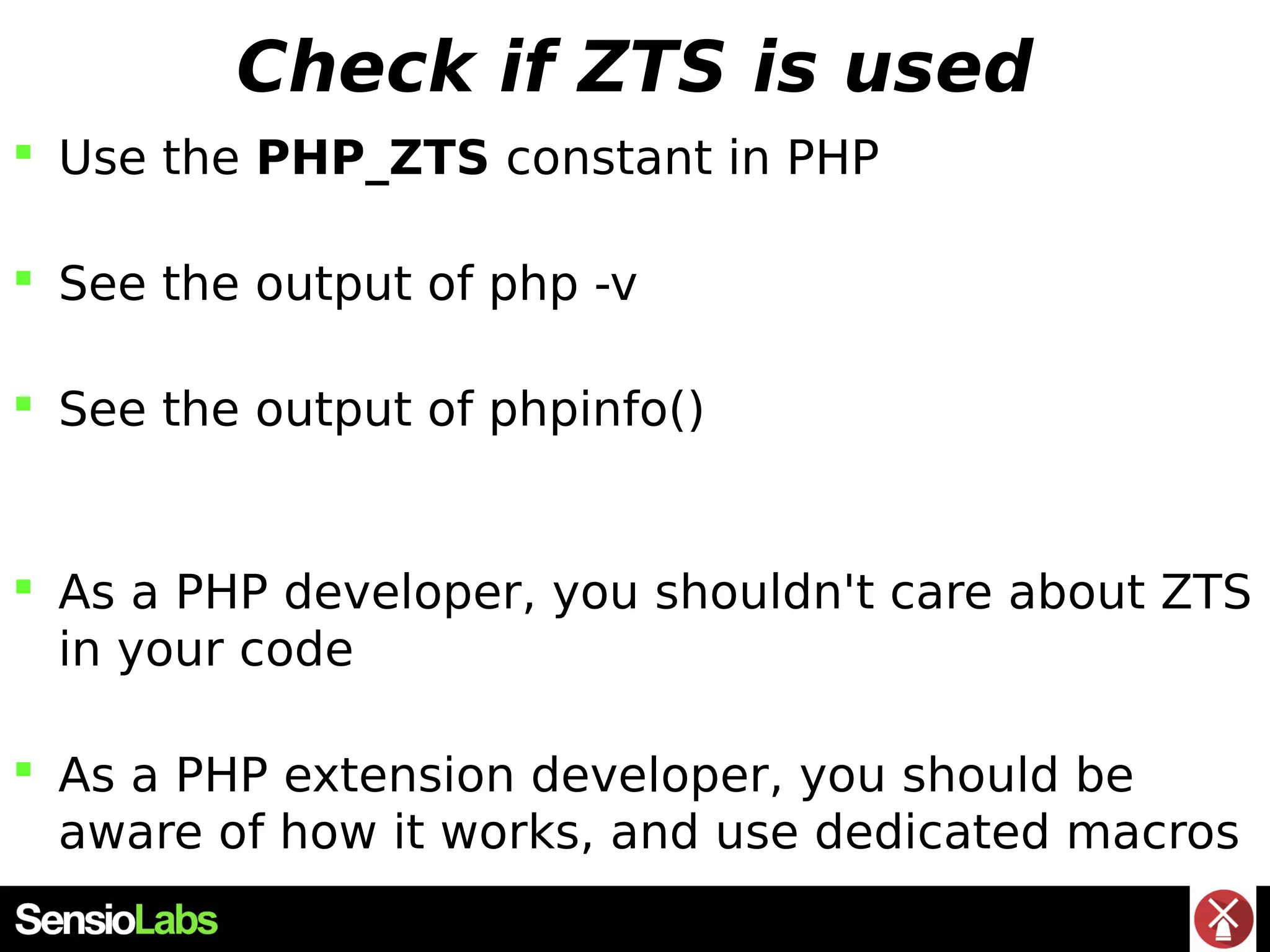

37. Check if ZTS is used
 Use the PHP_ZTS constant in PHP
 See the output of php -v
 See the output of phpinfo()
 As a PHP developer, you shouldn't care about ZTS
in your code
 As a PHP extension developer, you should be
aware of how it works, and use dedicated macros

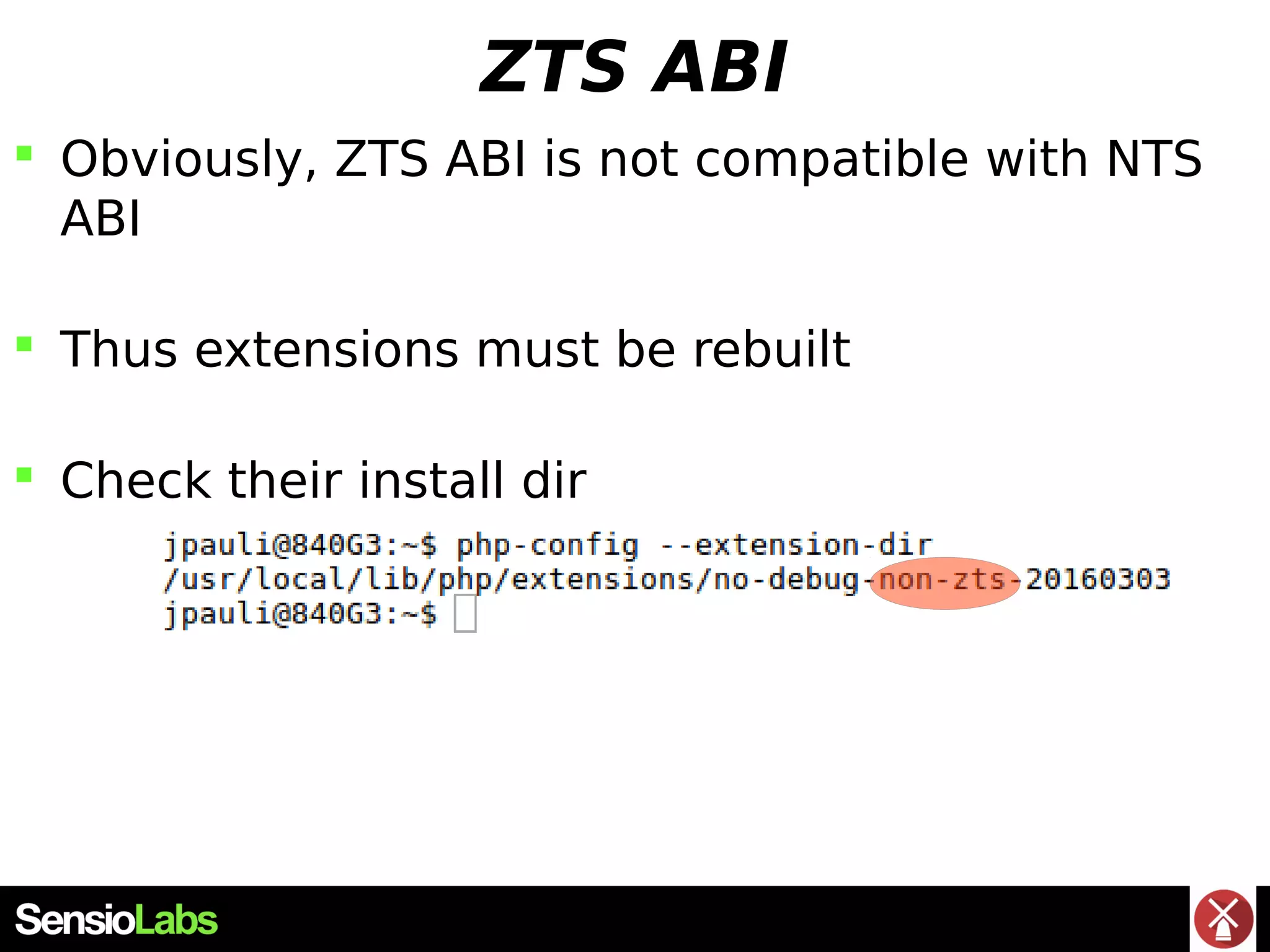

38. ZTS ABI
 Obviously, ZTS ABI is not compatible with NTS
ABI
 Thus extensions must be rebuilt
 Check their install dir

39. Using threads in PHP Land
 This is possible
 You need ext/pthread for that
 http://php.net/manual/fr/book.pthreads.php
 http://pthreads.org/
 This is experimental
 You must really be used to thread programming
to use ext/pthread

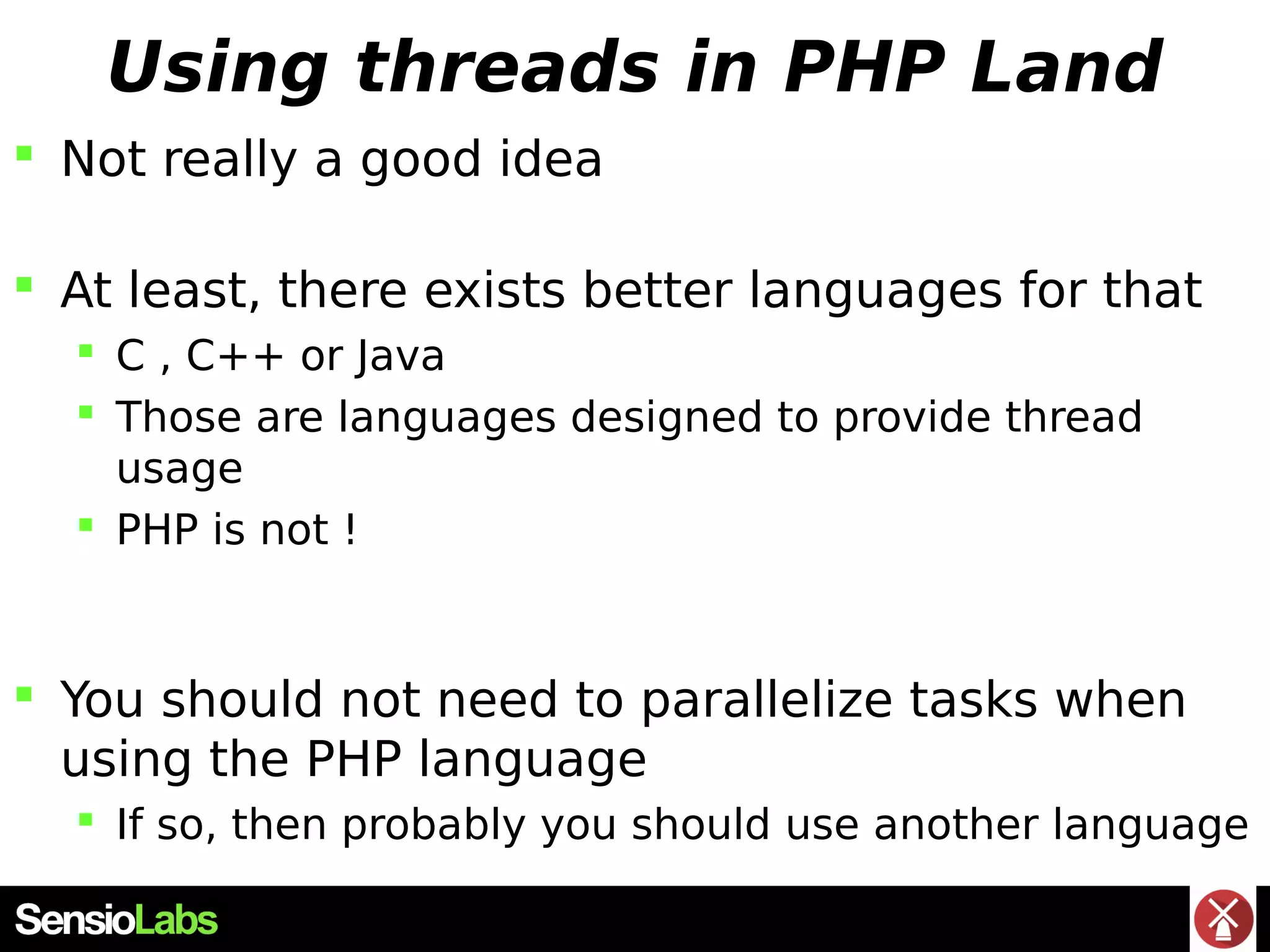

40. Using threads in PHP Land
 Not really a good idea
 At least, there exists better languages for that
 C , C++ or Java
 Those are languages designed to provide thread
usage
 PHP is not !
 You should not need to parallelize tasks when
using the PHP language
 If so, then probably you should use another language

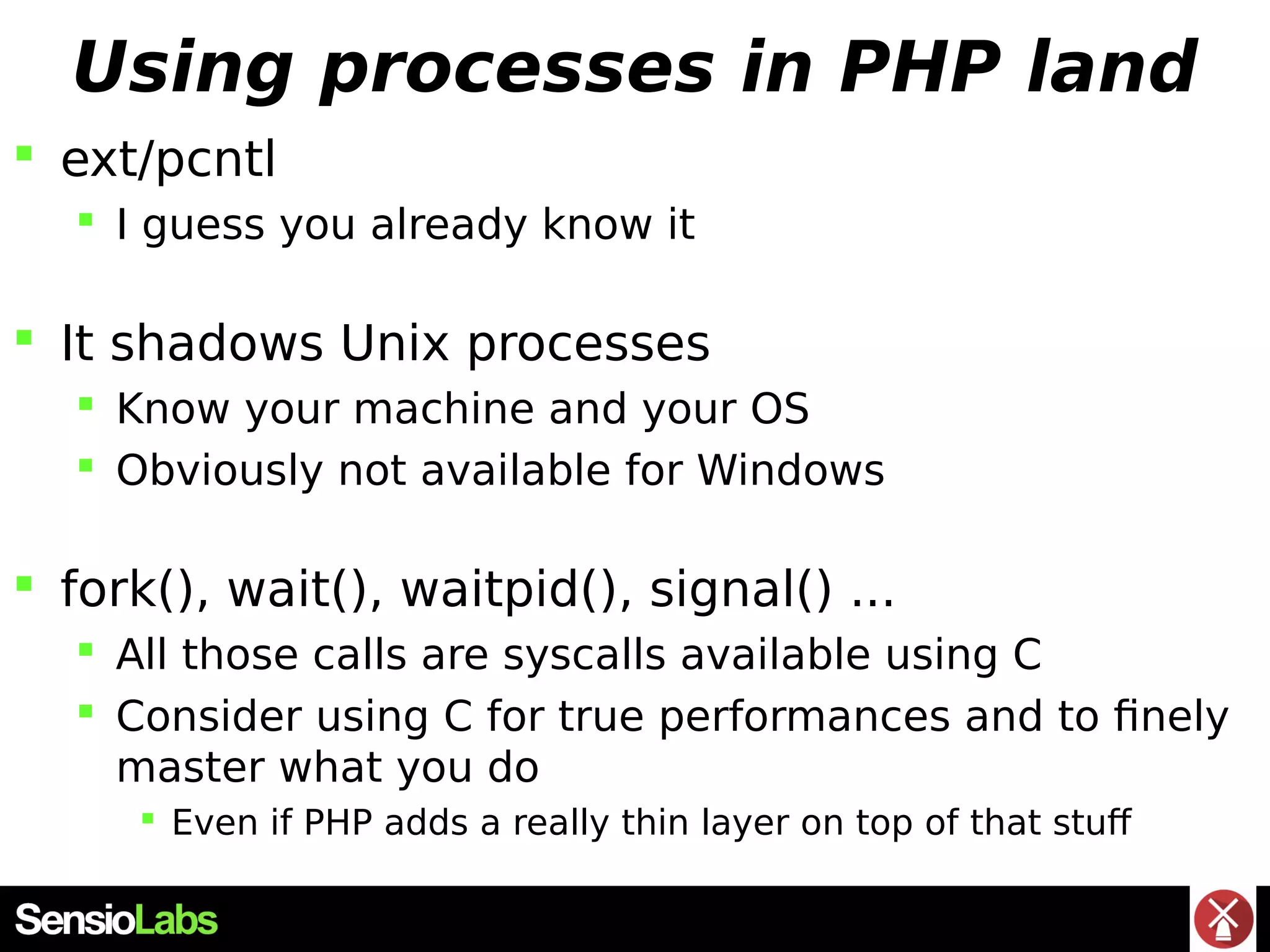

41. Using processes in PHP land
 ext/pcntl
 I guess you already know it
 It shadows Unix processes
 Know your machine and your OS
 Obviously not available for Windows
 fork(), wait(), waitpid(), signal() ...
 All those calls are syscalls available using C
 Consider using C for true performances and to finely
master what you do
 Even if PHP adds a really thin layer on top of that stuf

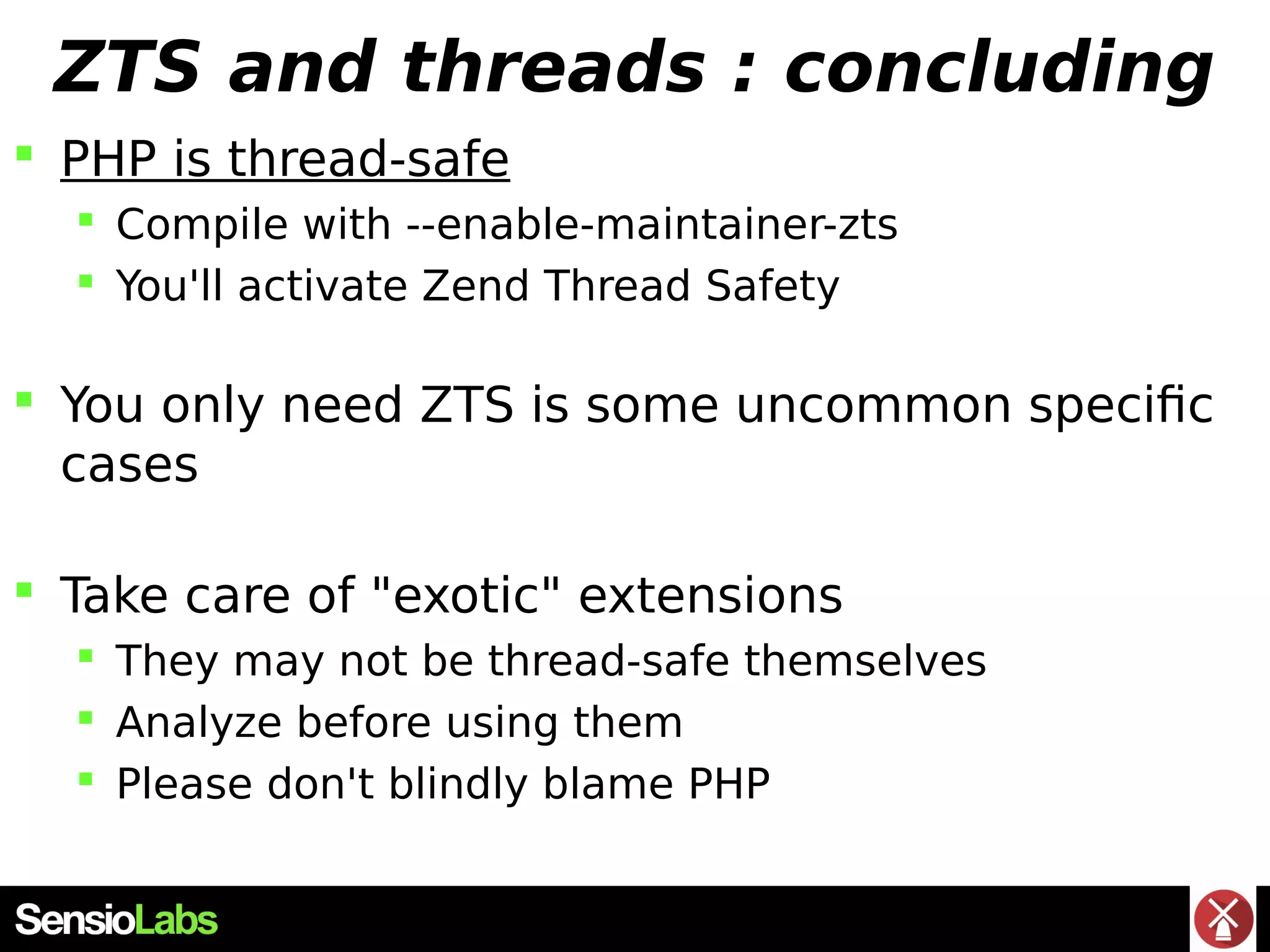

42. ZTS and threads : concluding
 PHP is thread-safe
 Compile with --enable-maintainer-zts
 You'll activate Zend Thread Safety
 You only need ZTS is some uncommon specific
cases
 Take care of "exotic" extensions
 They may not be thread-safe themselves
 Analyze before using them
 Please don't blindly blame PHP

43. Thank you for listening
