1. Understanding objects
PHP 5 objects internal design

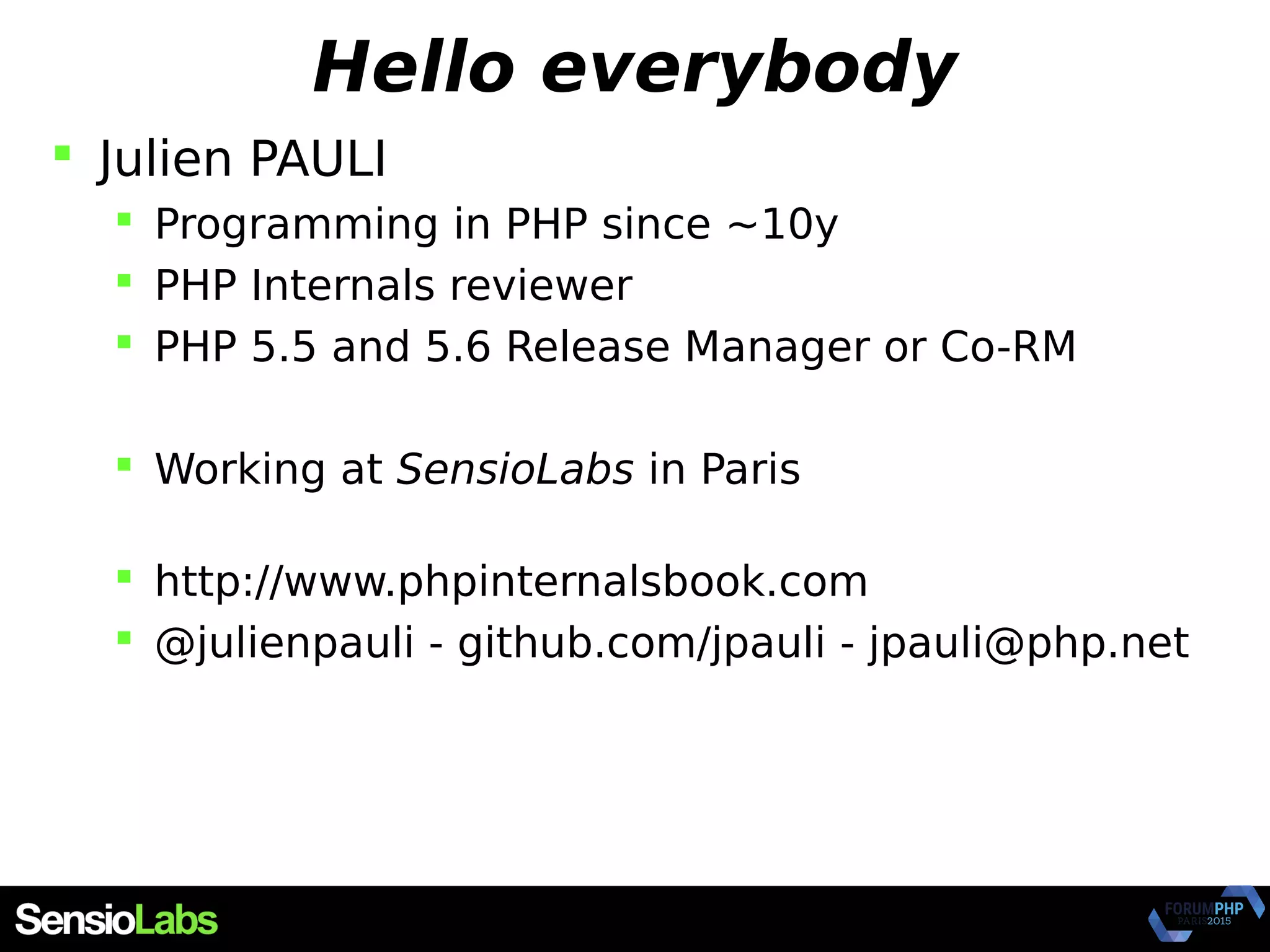

2. Hello everybody
 Julien PAULI
 Programming in PHP since ~10y
 PHP Internals reviewer
 PHP 5.5 and 5.6 Release Manager or Co-RM
 Working at SensioLabs in Paris
 http://www.phpinternalsbook.com
 @julienpauli - github.com/jpauli - jpauli@php.net

3. What we'll cover together
 Covering PHP 5 only
 Quick recall on zvals
 Object structures internally
 zend_object_value
 zend_class_entry
 zend_object_handlers
 zend_object_store
 PHP objects lifecycle
 Creating and destroying an object
 Memory management & garbage collection

4. Zvals

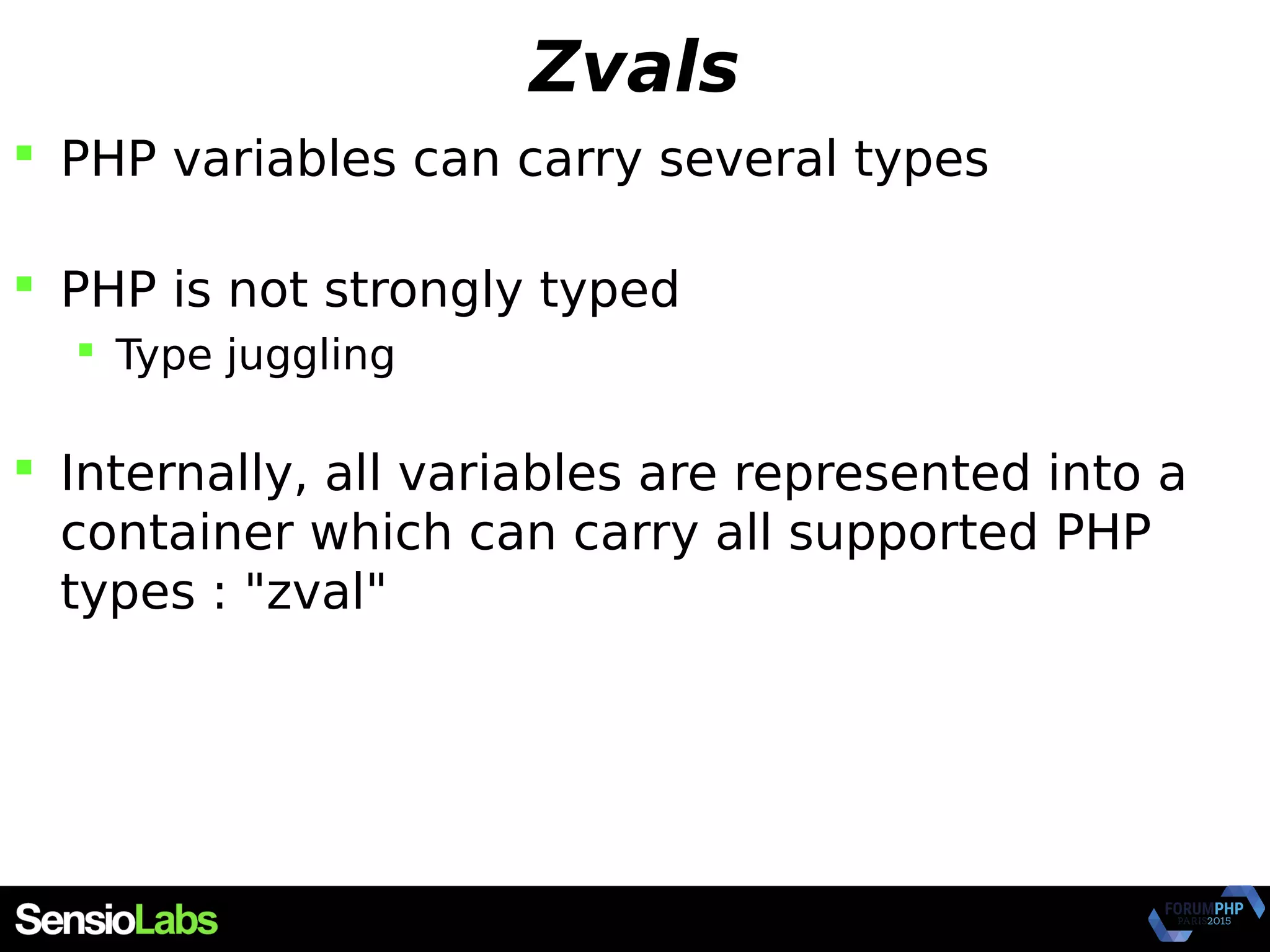

5. Zvals
 PHP variables can carry several types
 PHP is not strongly typed
 Type juggling
 Internally, all variables are represented into a
container which can carry all supported PHP
types : "zval"

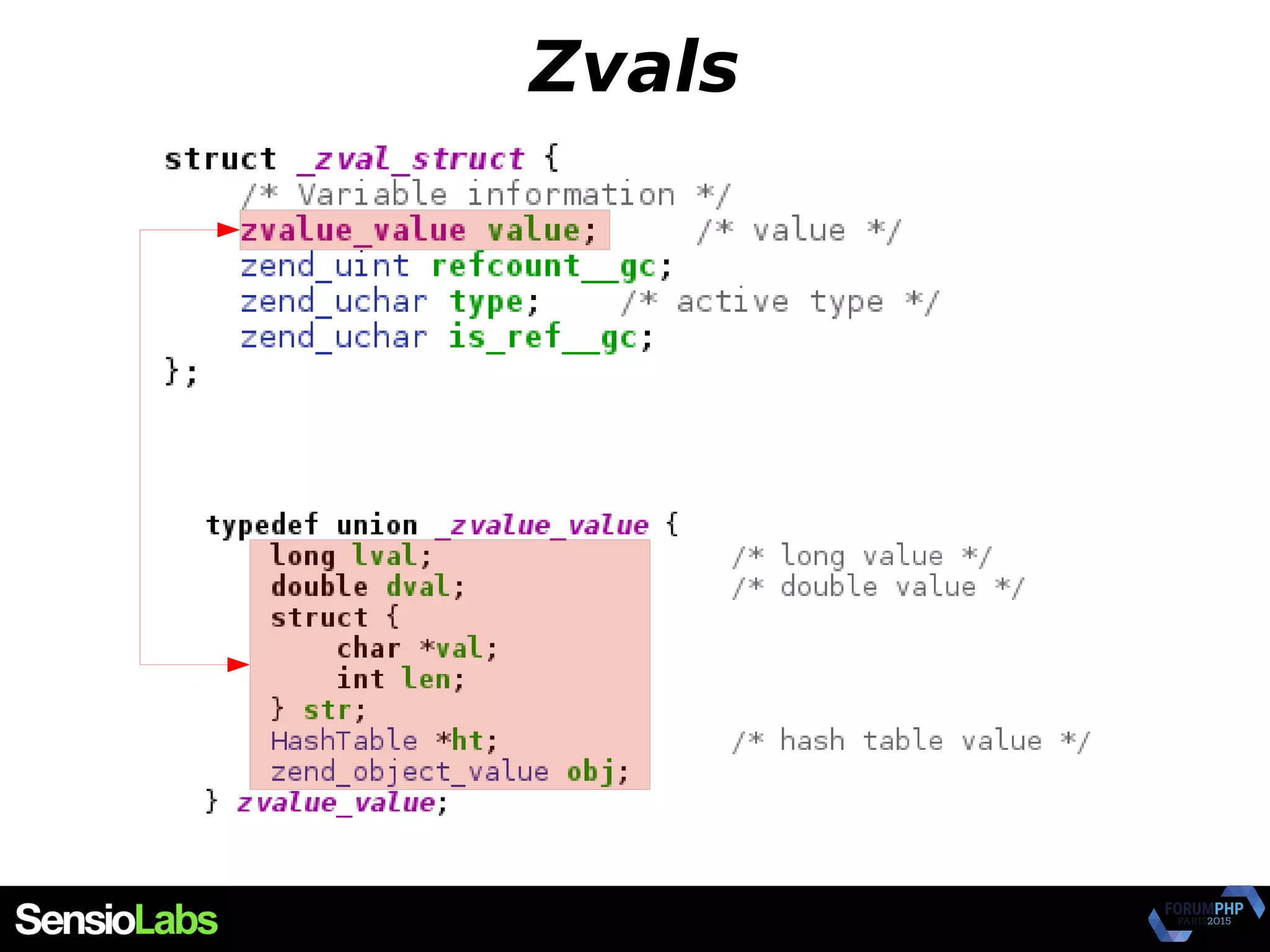

6. Zvals

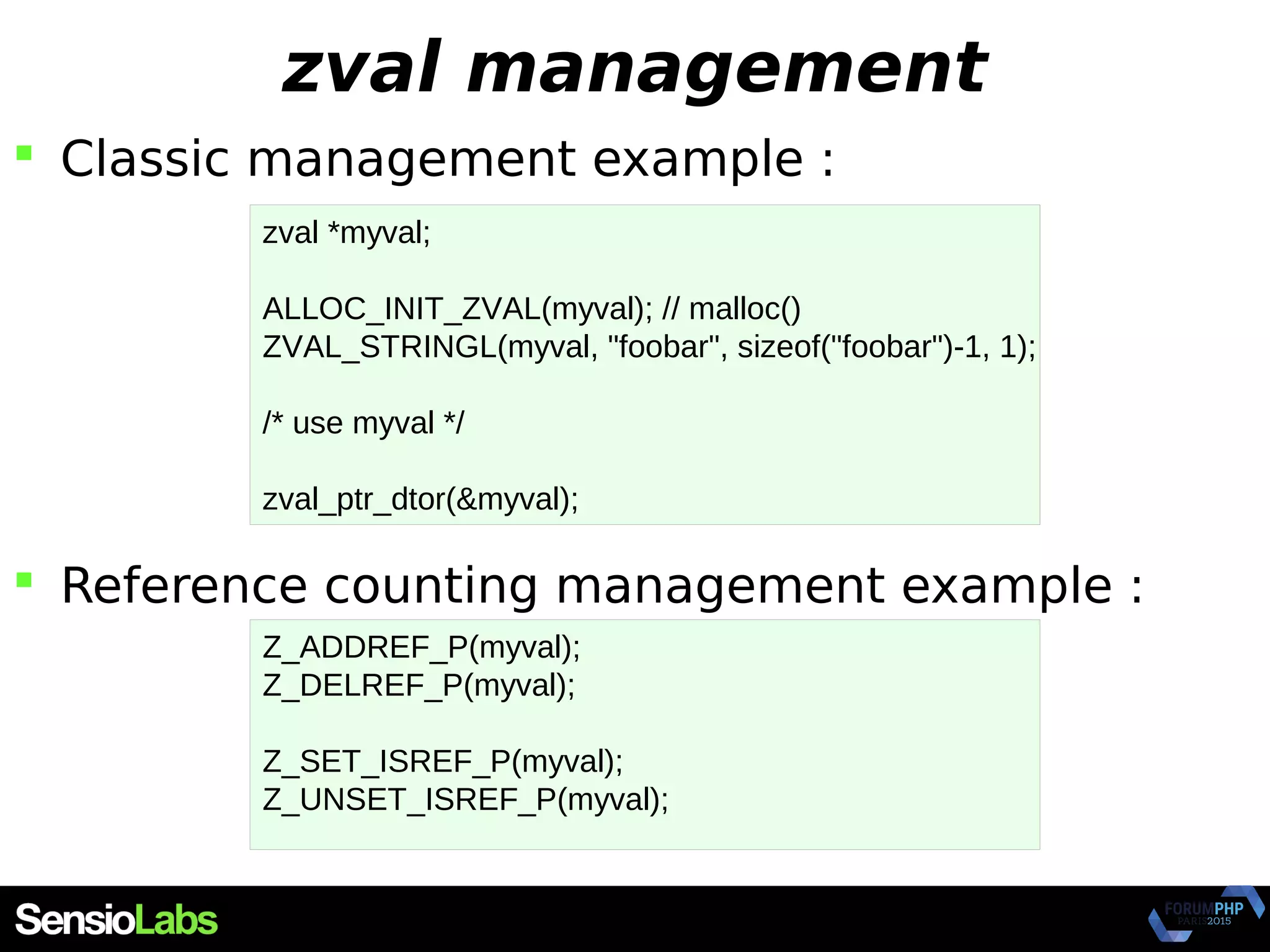

7. zval management
 Classic management example :
 Reference counting management example :
zval *myval;
ALLOC_INIT_ZVAL(myval); // malloc()
ZVAL_STRINGL(myval, "foobar", sizeof("foobar")-1, 1);
/* use myval */
zval_ptr_dtor(&myval);
Z_ADDREF_P(myval);
Z_DELREF_P(myval);
Z_SET_ISREF_P(myval);
Z_UNSET_ISREF_P(myval);

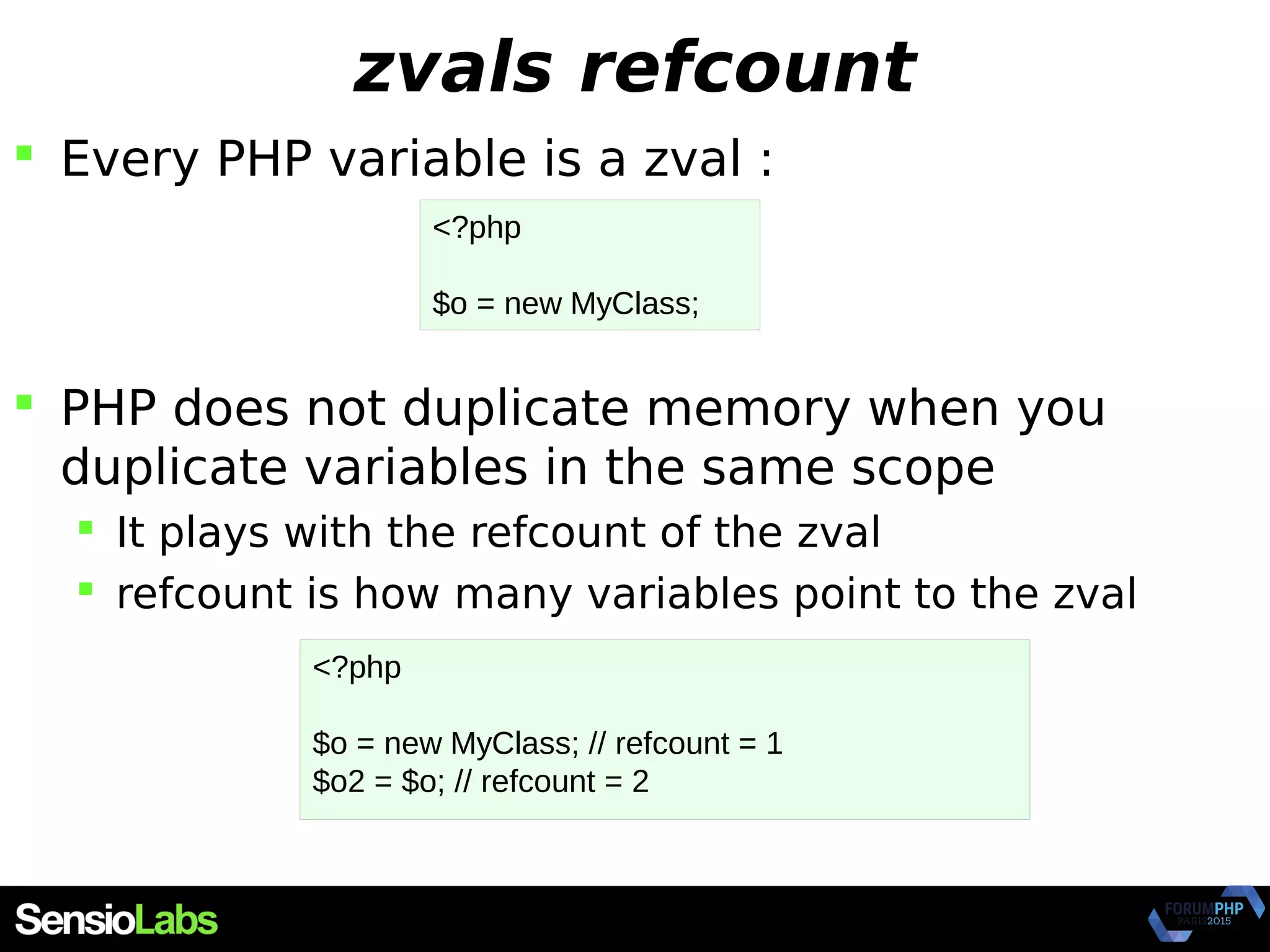

8. zvals refcount
 Every PHP variable is a zval :
 PHP does not duplicate memory when you
duplicate variables in the same scope
 It plays with the refcount of the zval
 refcount is how many variables point to the zval
<?php
$o = new MyClass;
<?php
$o = new MyClass; // refcount = 1
$o2 = $o; // refcount = 2

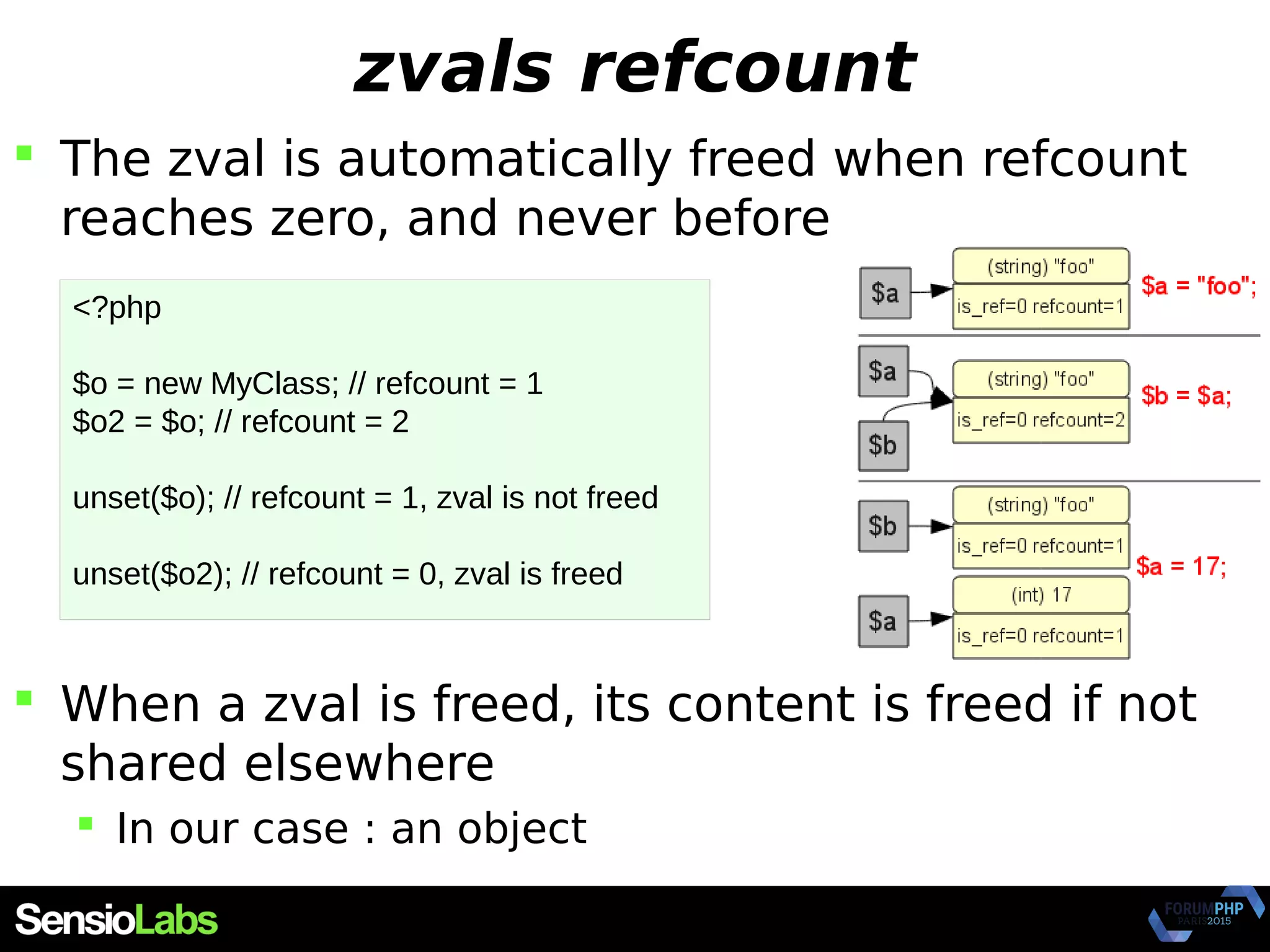

9. zvals refcount
 The zval is automatically freed when refcount
reaches zero, and never before
 When a zval is freed, its content is freed if not
shared elsewhere
 In our case : an object
<?php
$o = new MyClass; // refcount = 1
$o2 = $o; // refcount = 2
unset($o); // refcount = 1, zval is not freed
unset($o2); // refcount = 0, zval is freed

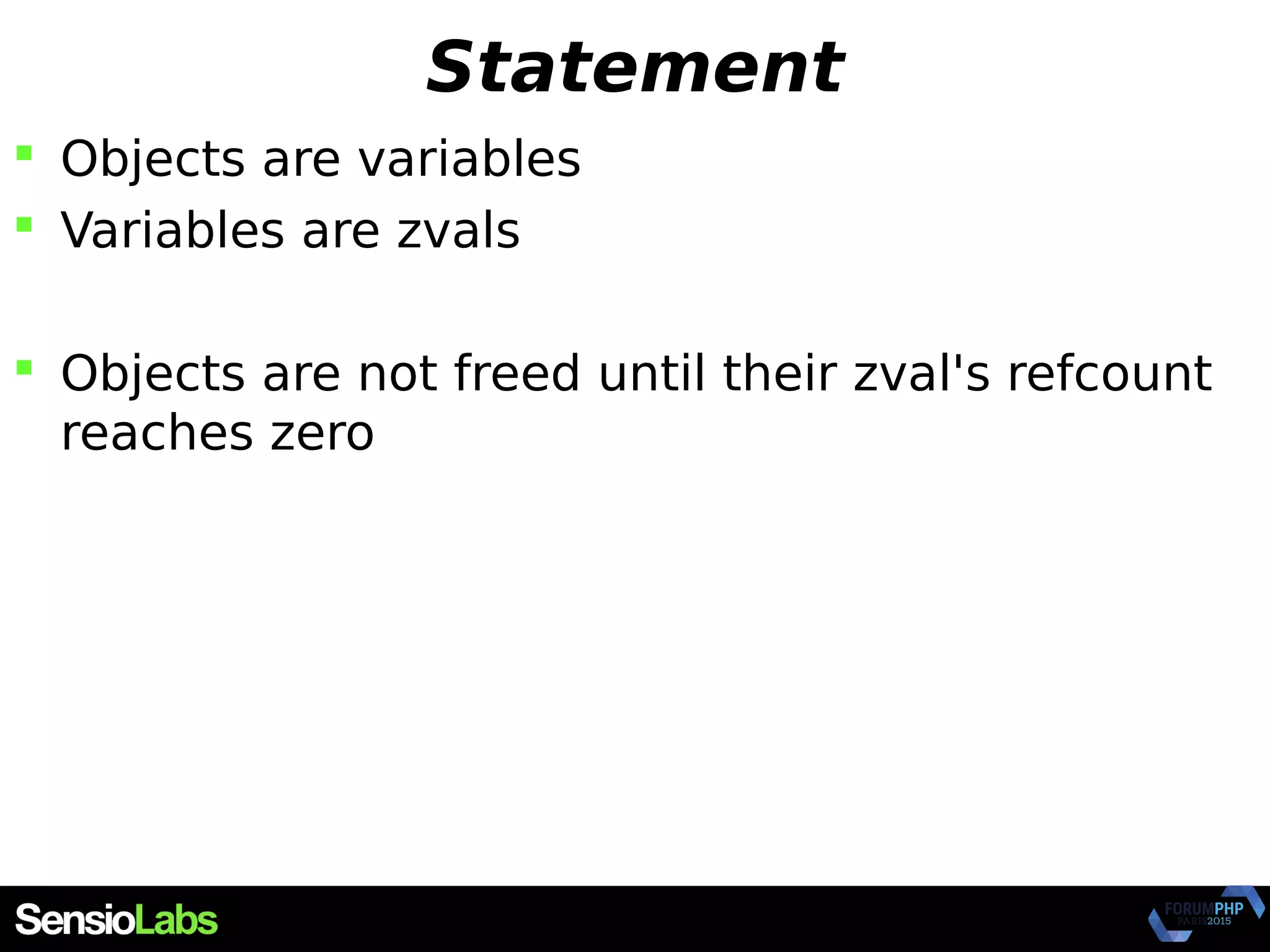

10. Statement
 Objects are variables
 Variables are zvals
 Objects are not freed until their zval's refcount
reaches zero

11. PHP objects

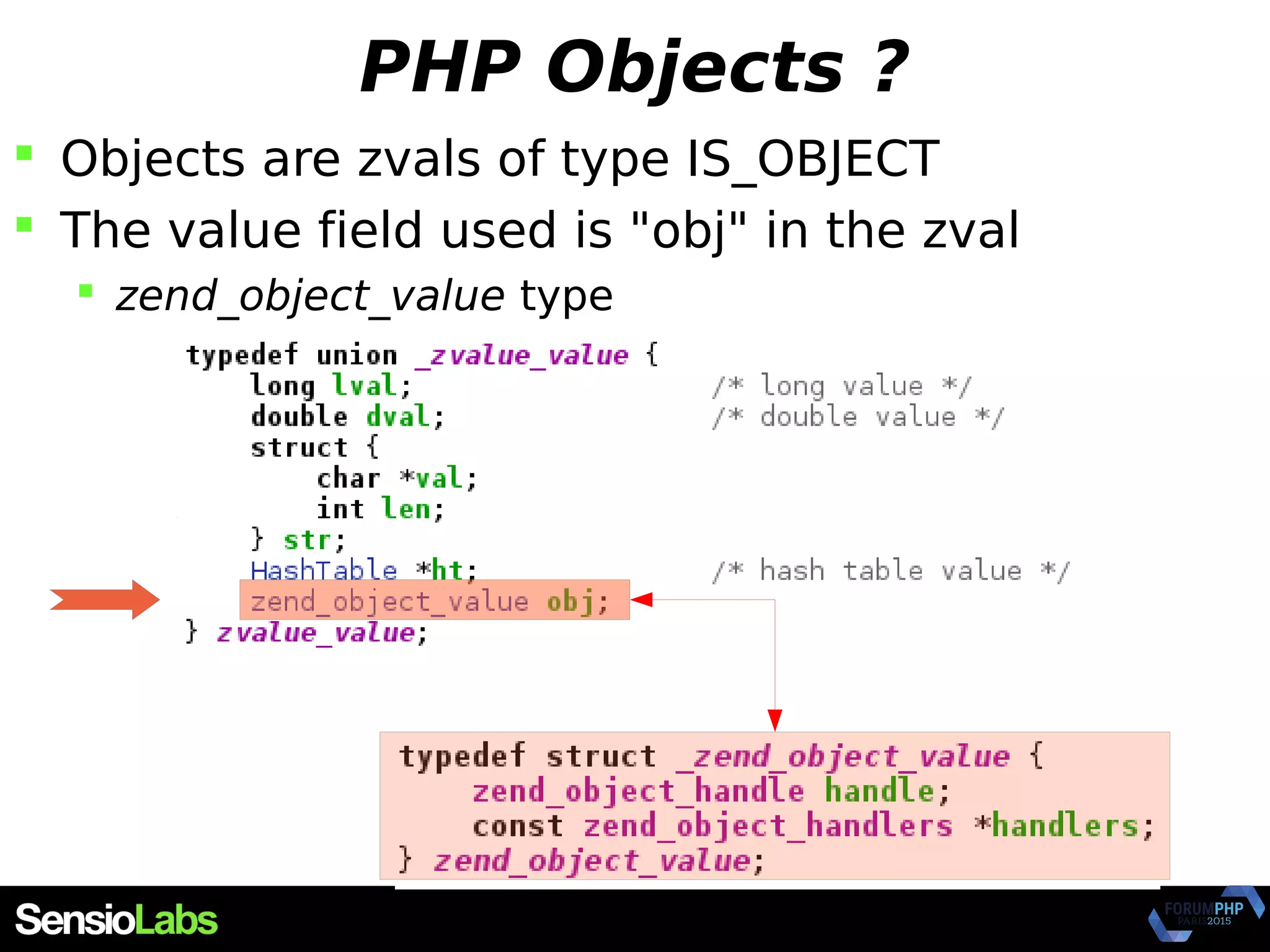

12. PHP Objects ?
 Objects are zvals of type IS_OBJECT
 The value field used is "obj" in the zval
 zend_object_value type

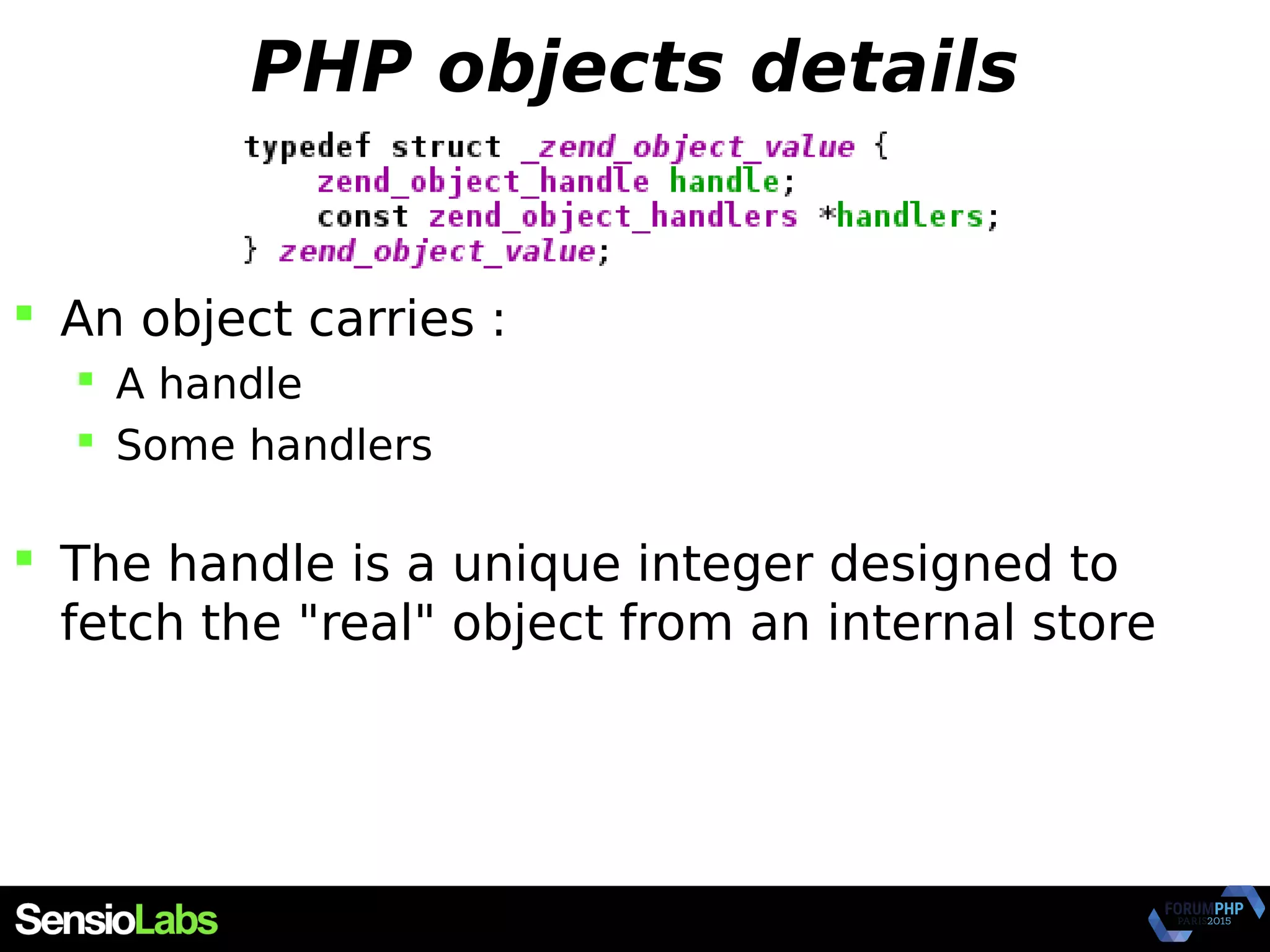

13. PHP objects details
 An object carries :
 A handle
 Some handlers
 The handle is a unique integer designed to
fetch the "real" object from an internal store

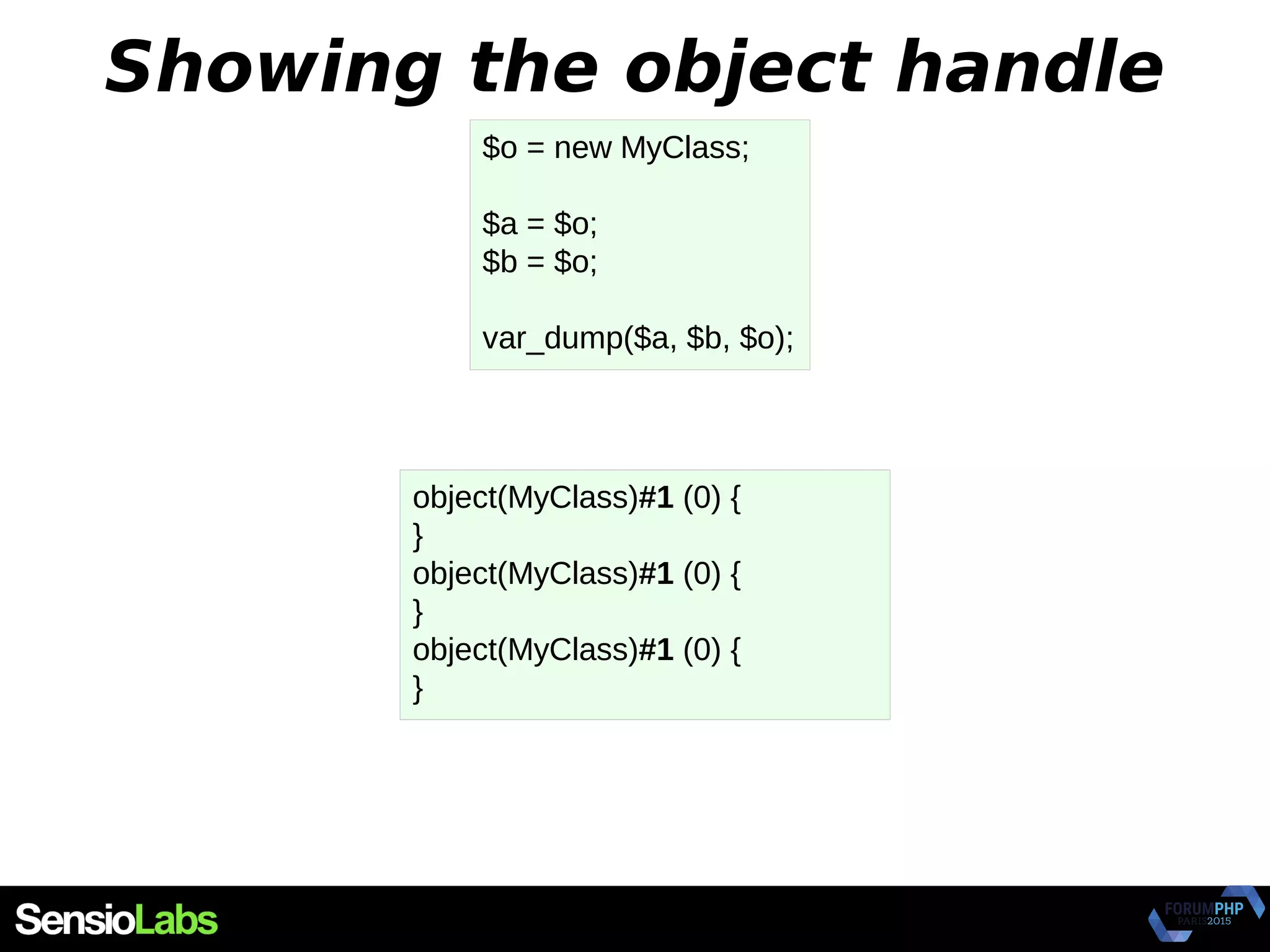

14. Showing the object handle
$o = new MyClass;
$a = $o;
$b = $o;
var_dump($a, $b, $o);
object(MyClass)#1 (0) {
}
object(MyClass)#1 (0) {
}
object(MyClass)#1 (0) {
}

15. Objects ARE NOT references

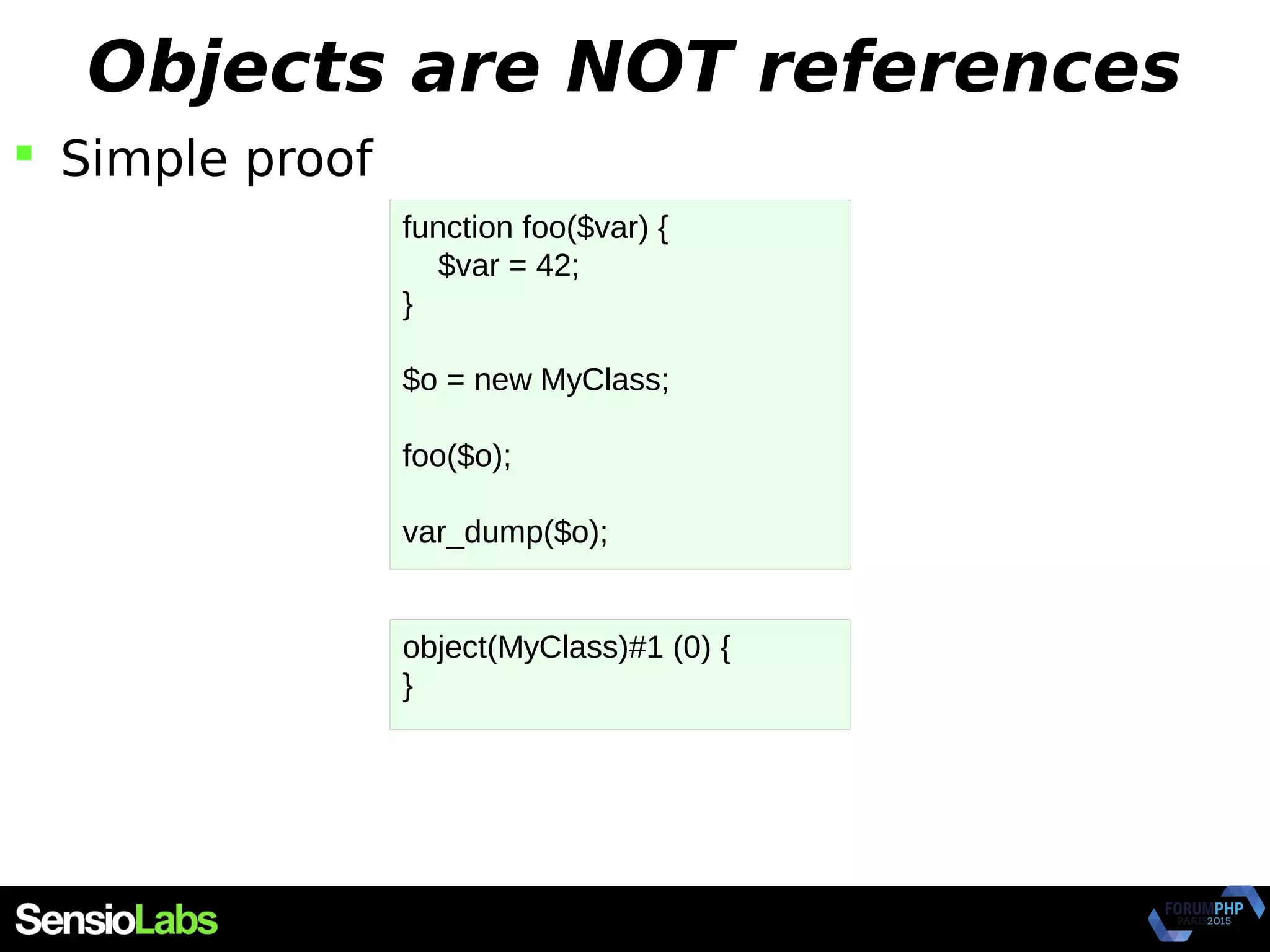

16. Objects are NOT references
 Simple proof
function foo($var) {
$var = 42;
}
$o = new MyClass;
foo($o);
var_dump($o);
object(MyClass)#1 (0) {
}

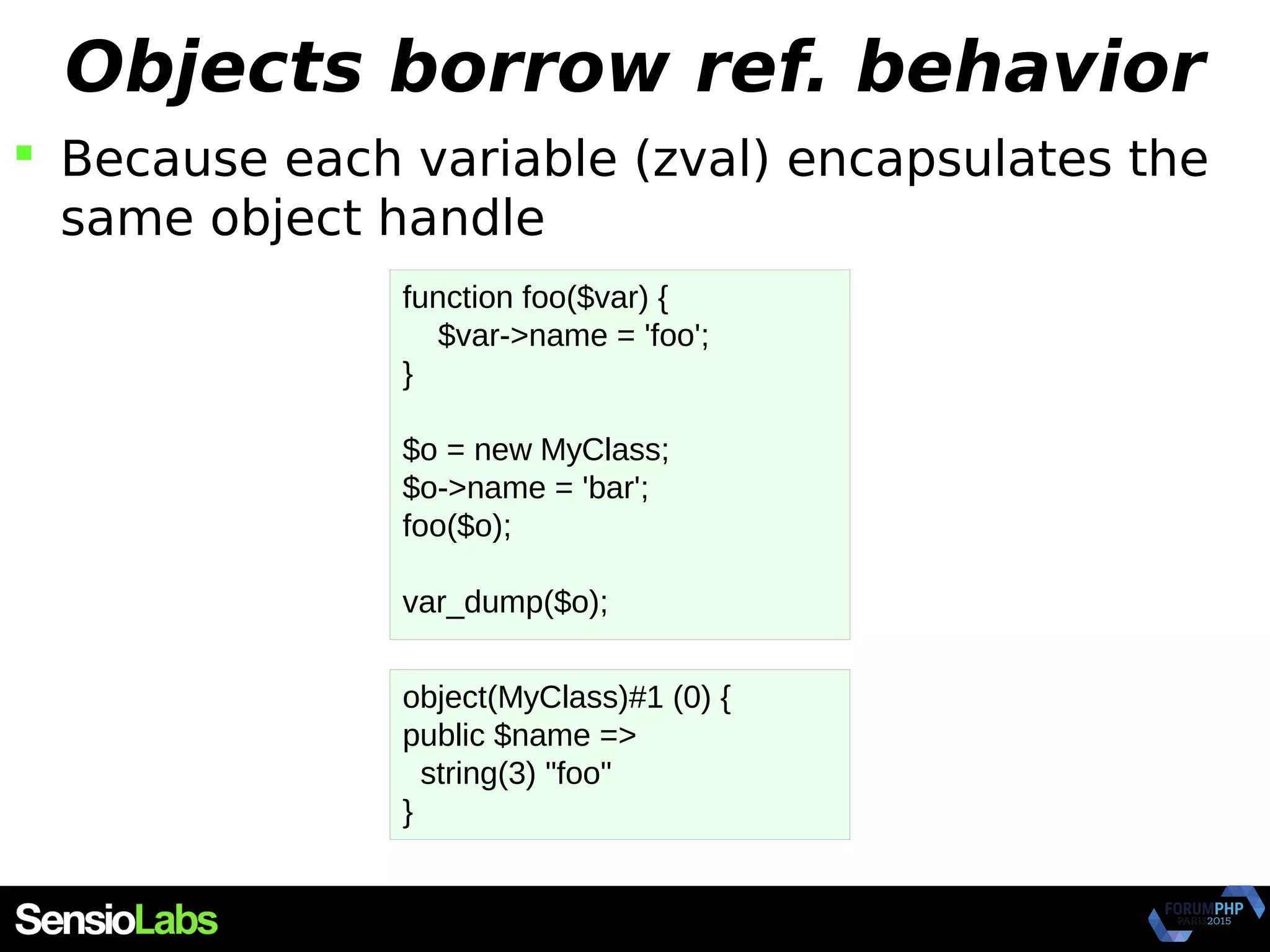

17. Objects borrow ref. behavior
 Because each variable (zval) encapsulates the
same object handle
function foo($var) {
$var->name = 'foo';
}
$o = new MyClass;
$o->name = 'bar';
foo($o);
var_dump($o);
object(MyClass)#1 (0) {
public $name =>
string(3) "foo"
}

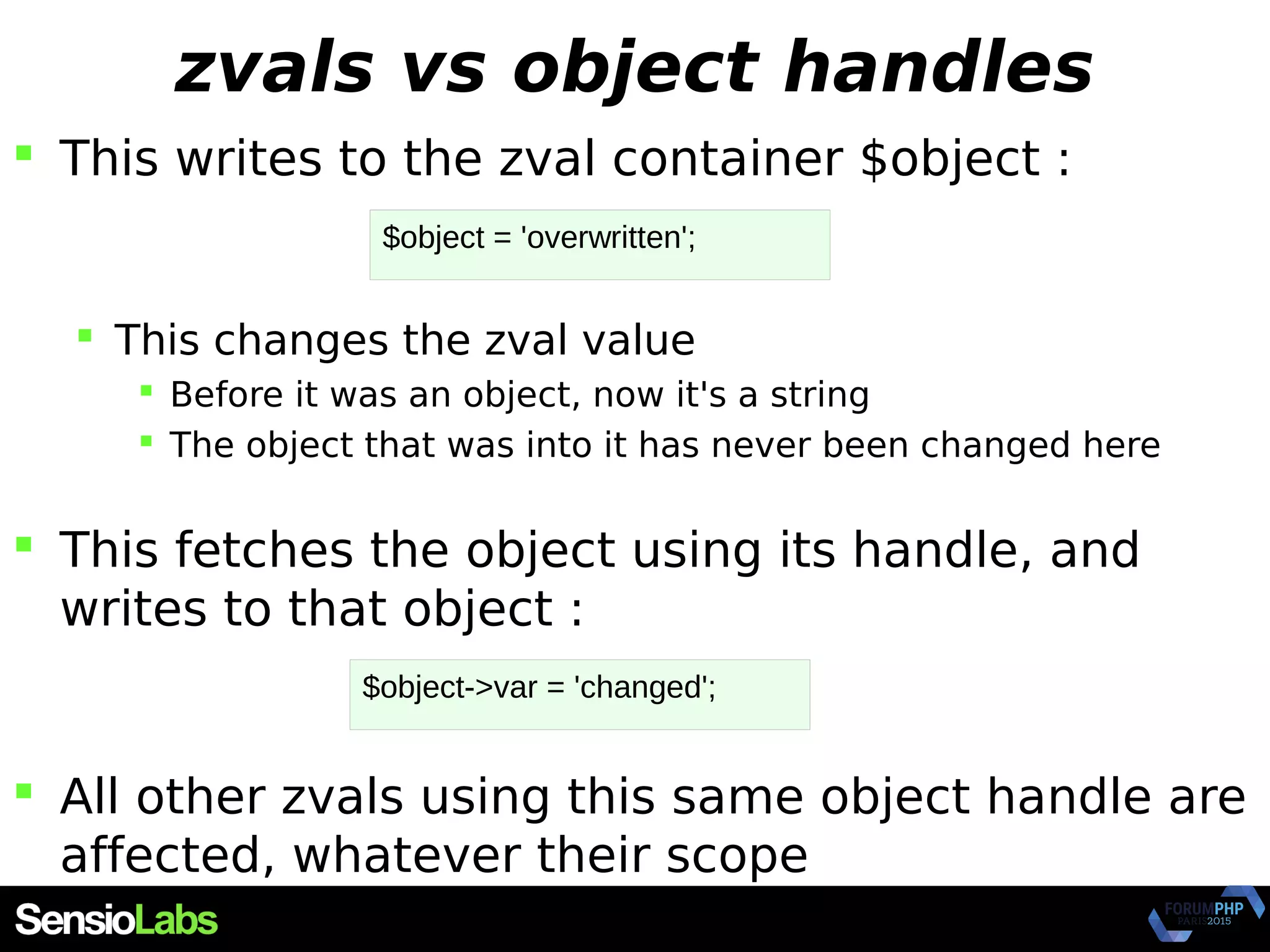

18. zvals vs object handles
 This writes to the zval container $object :
 This changes the zval value
 Before it was an object, now it's a string
 The object that was into it has never been changed here
 This fetches the object using its handle, and
writes to that object :
 All other zvals using this same object handle are
affected, whatever their scope
$object = 'overwritten';
$object->var = 'changed';

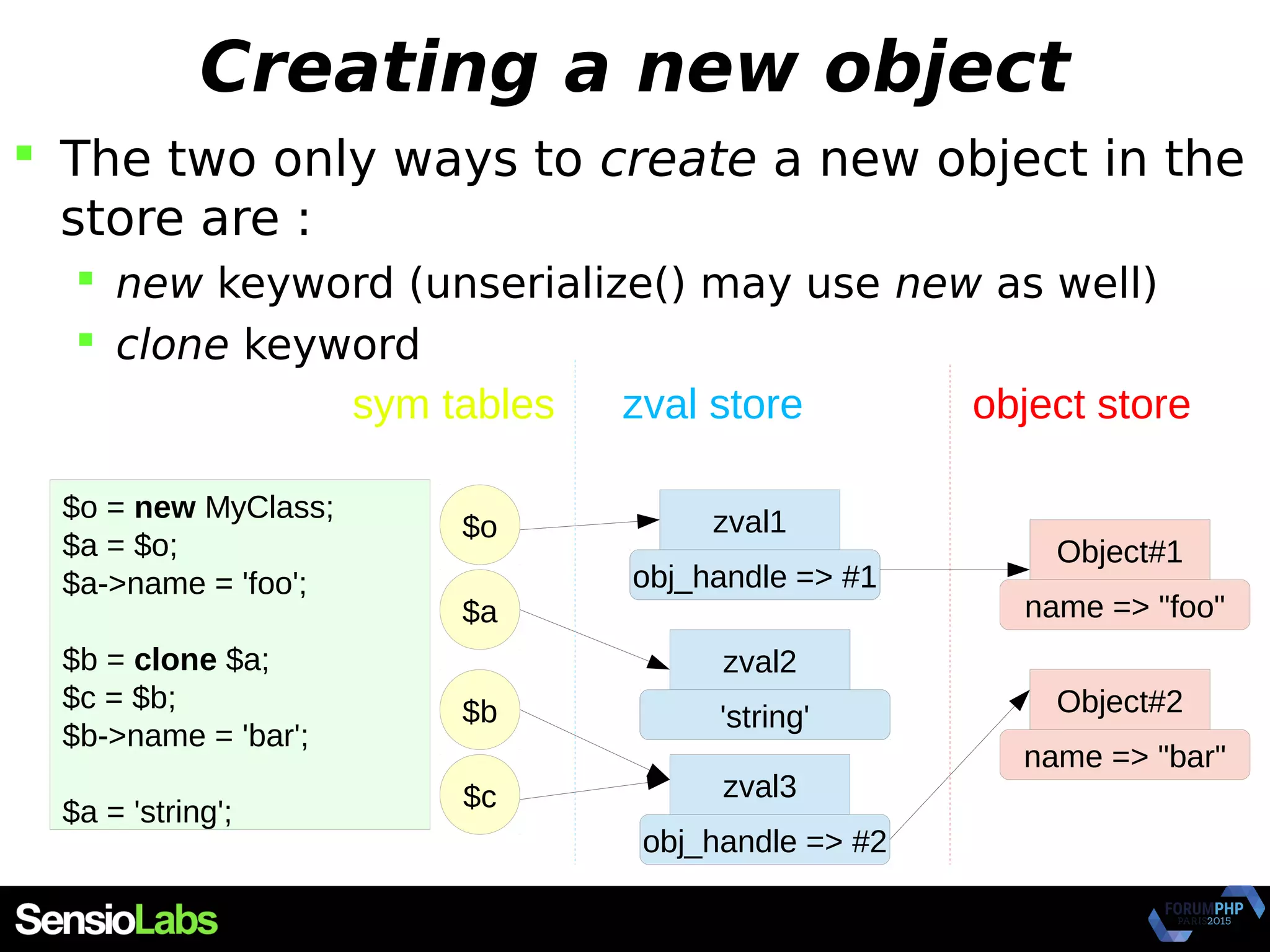

19. Creating a new object
 The two only ways to create a new object in the
store are :
 new keyword (unserialize() may use new as well)
 clone keyword
$o = new MyClass;
$a = $o;
$a->name = 'foo';
$b = clone $a;
$c = $b;
$b->name = 'bar';
$a = 'string';
Object#1
name => "foo"
Object#1
name => "bar"
zval1
obj_handle => #1
Object#1
name => "bar"
zval2
'string'$b
$o
object storezval storesym tables
$a
$c zval3
obj_handle => #2
Object#2
name => "bar"

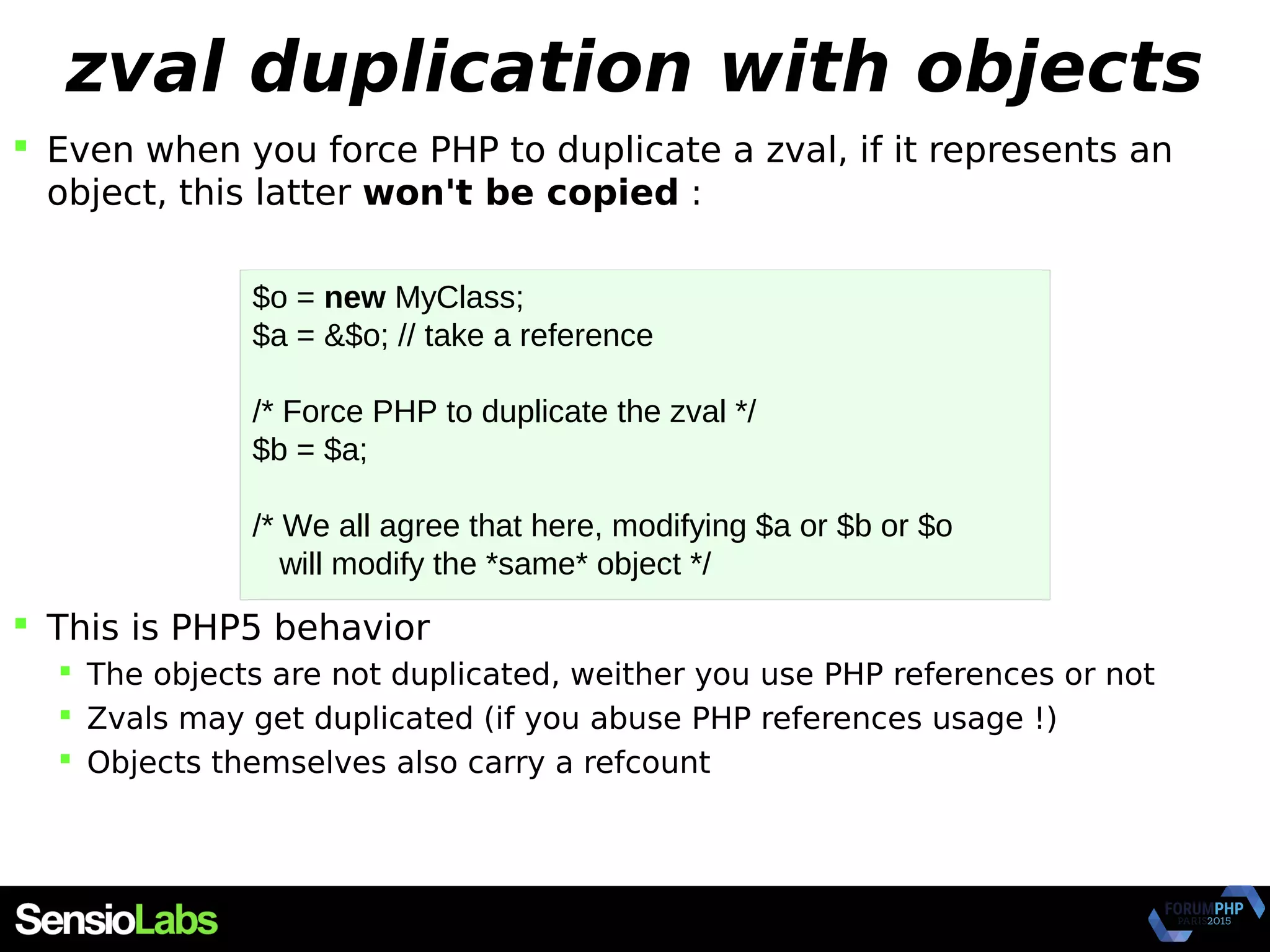

20. zval duplication with objects
 Even when you force PHP to duplicate a zval, if it represents an
object, this latter won't be copied :
 This is PHP5 behavior
 The objects are not duplicated, weither you use PHP references or not
 Zvals may get duplicated (if you abuse PHP references usage !)
 Objects themselves also carry a refcount
$o = new MyClass;
$a = &$o; // take a reference
/* Force PHP to duplicate the zval */
$b = $a;
/* We all agree that here, modifying $a or $b or $o
will modify the *same* object */

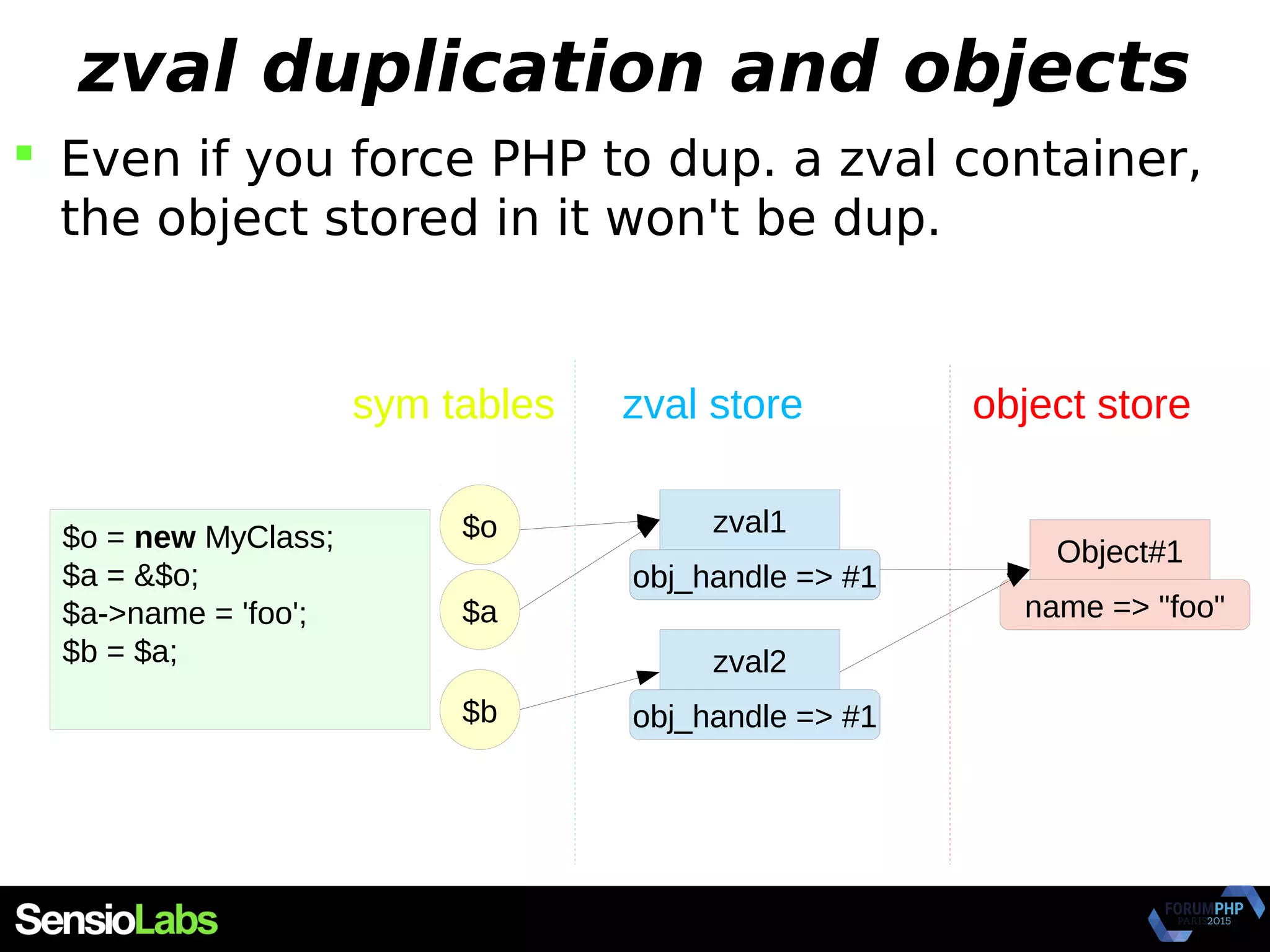

21. zval duplication and objects
 Even if you force PHP to dup. a zval container,
the object stored in it won't be dup.
$o = new MyClass;
$a = &$o;
$a->name = 'foo';
$b = $a;
Object#1
name => "foo"
Object#1
name => "bar"
zval1
obj_handle => #1
$b
$o
object storezval storesym tables
$a
zval2
obj_handle => #1

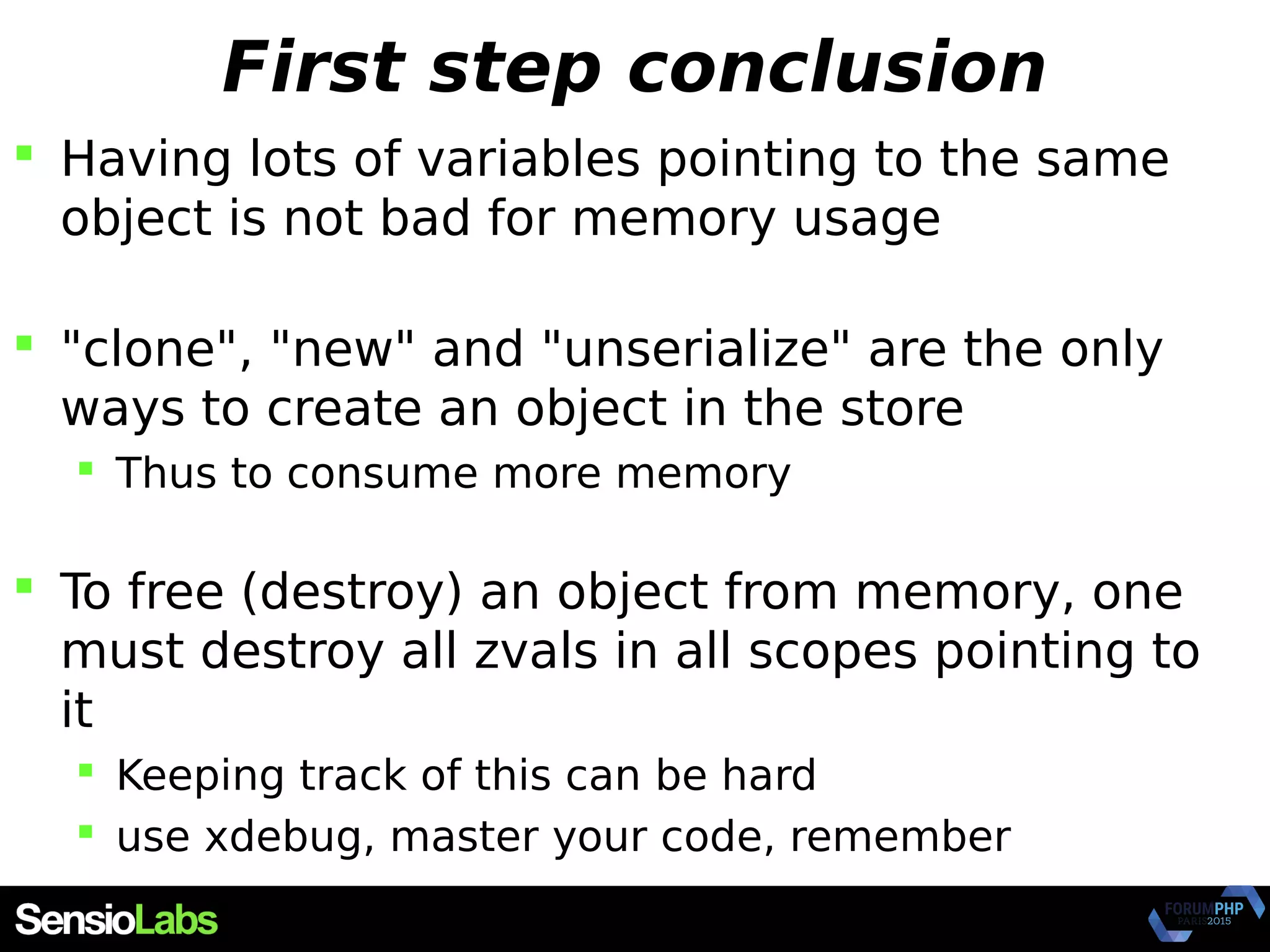

22. First step conclusion
 Having lots of variables pointing to the same
object is not bad for memory usage
 "clone", "new" and "unserialize" are the only
ways to create an object in the store
 Thus to consume more memory
 To free (destroy) an object from memory, one
must destroy all zvals in all scopes pointing to
it
 Keeping track of this can be hard
 use xdebug, master your code, remember

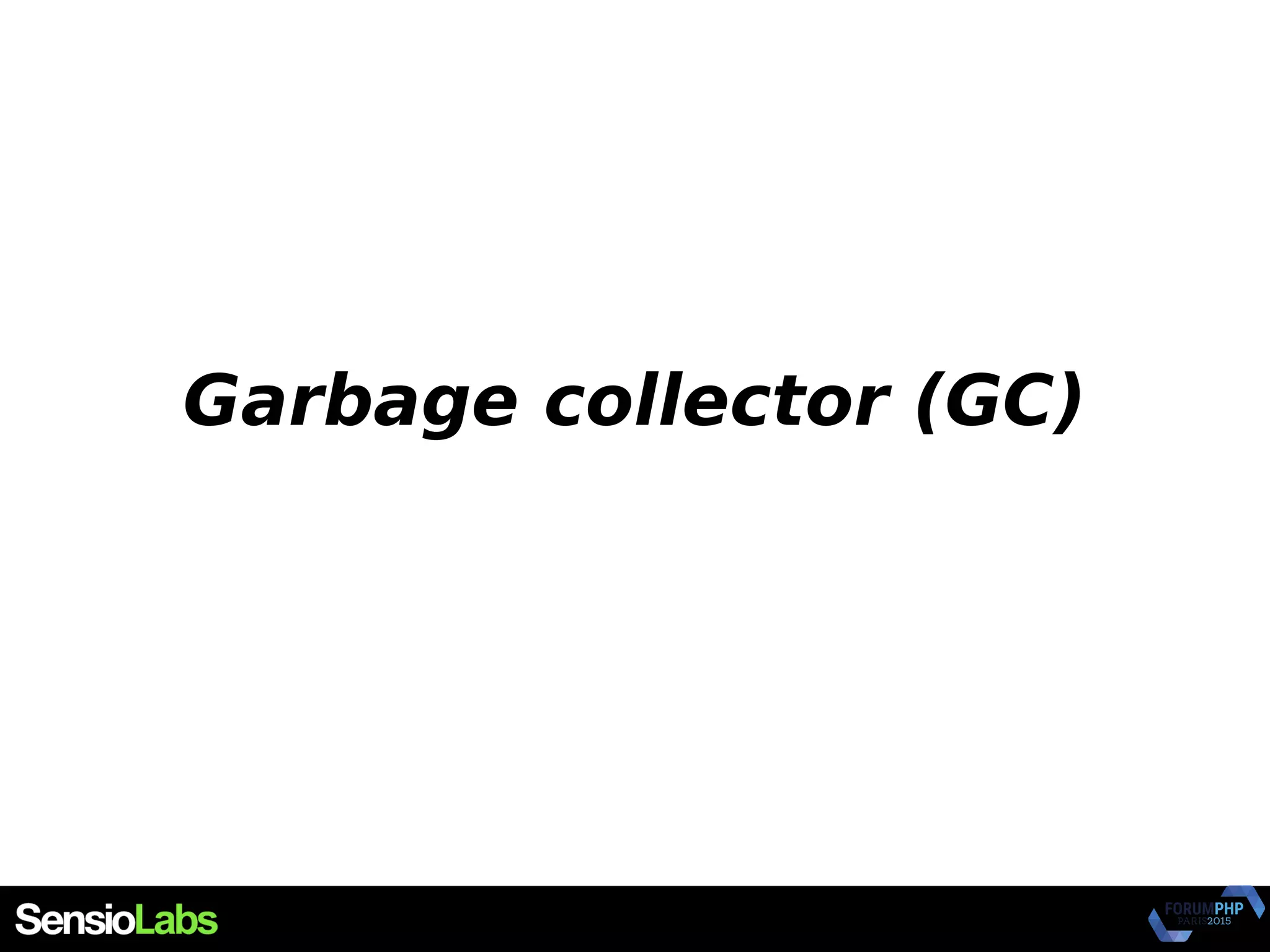

23. Garbage collector (GC)

24. Circular references GC

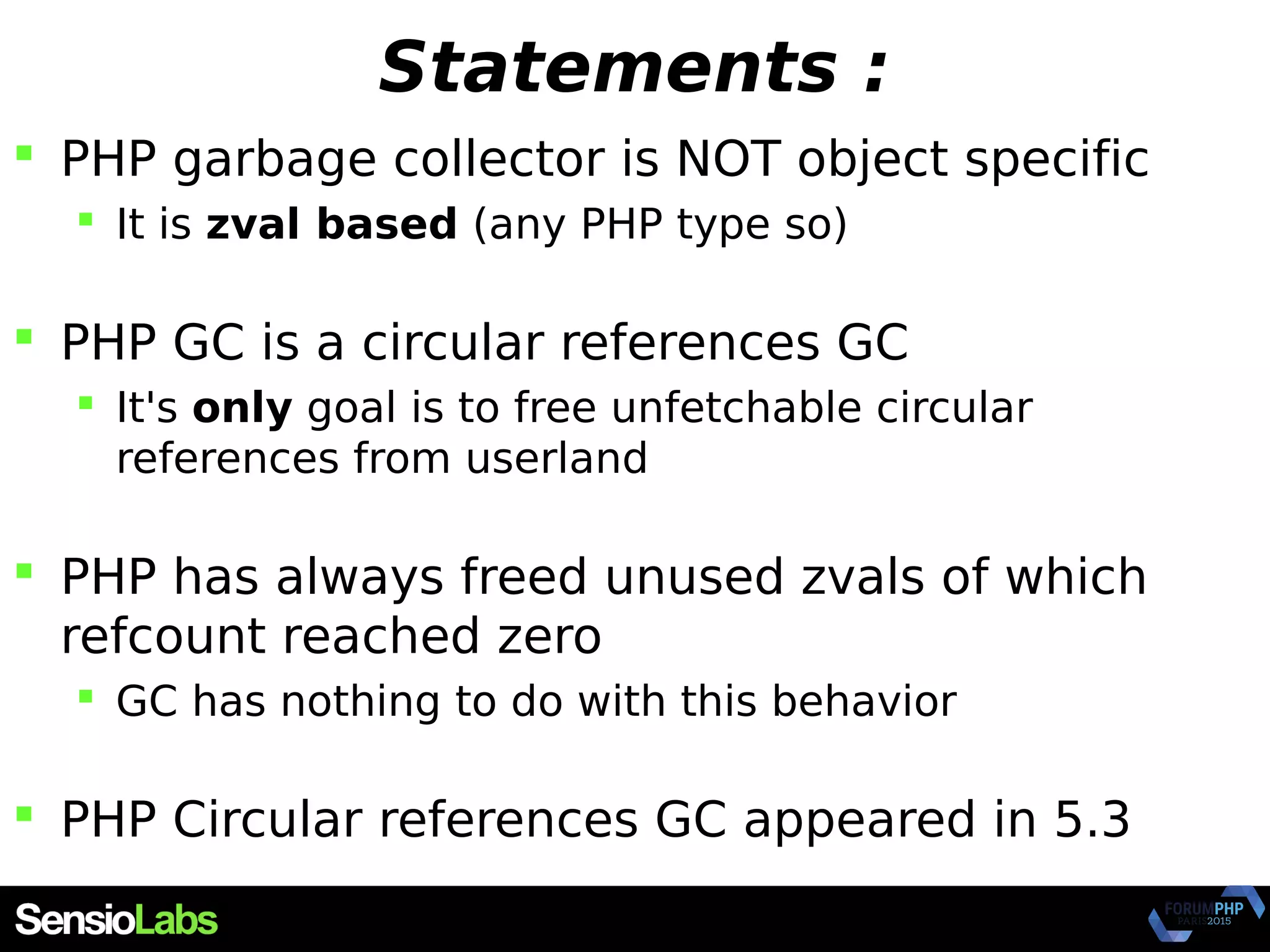

25. Statements :
 PHP garbage collector is NOT object specific
 It is zval based (any PHP type so)
 PHP GC is a circular references GC
 It's only goal is to free unfetchable circular
references from userland
 PHP has always freed unused zvals of which
refcount reached zero
 GC has nothing to do with this behavior
 PHP Circular references GC appeared in 5.3

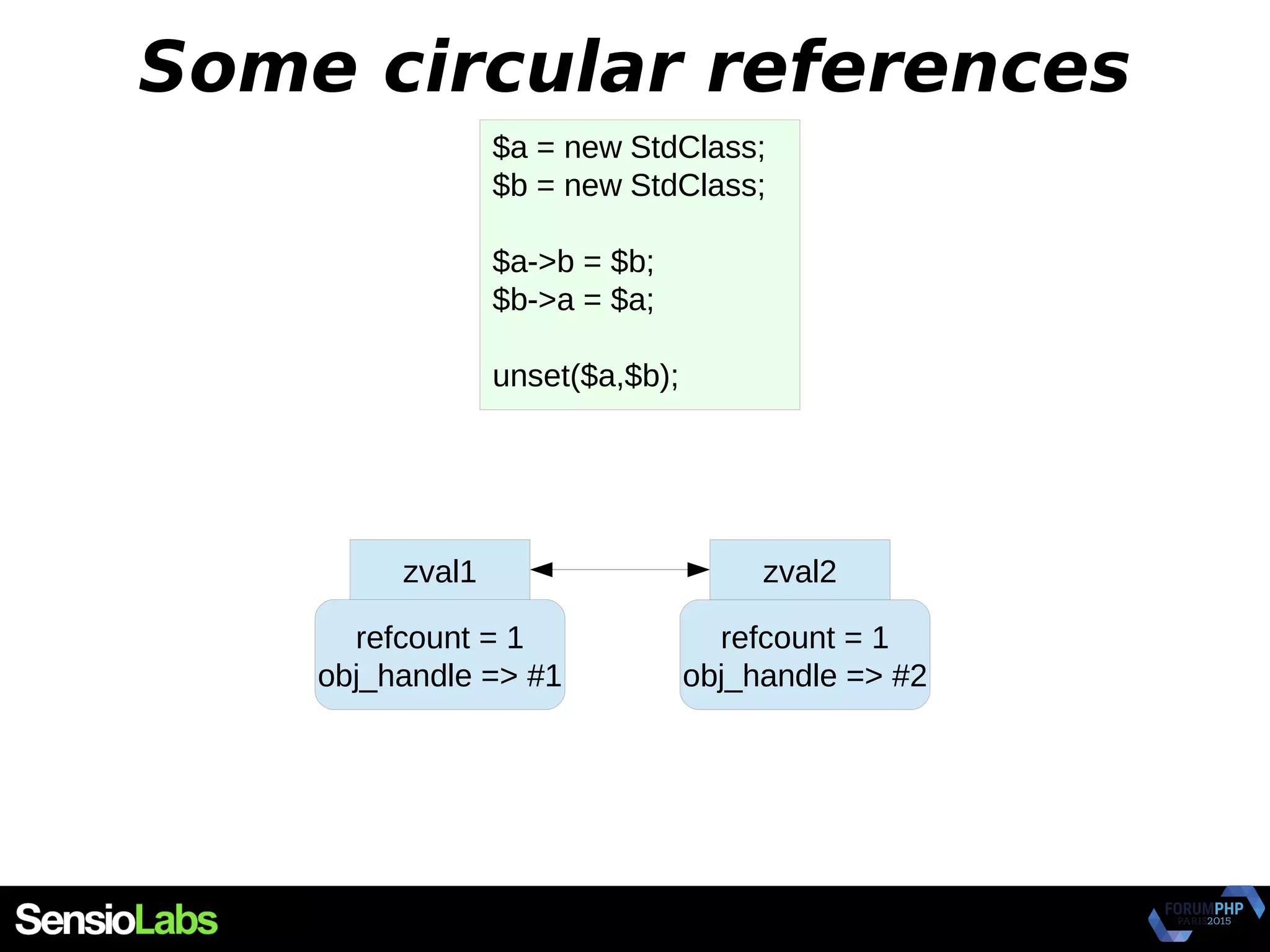

26. Some circular references
$a = new StdClass;
$b = new StdClass;
$a->b = $b;
$b->a = $a;
unset($a,$b);
zval1 zval2
refcount = 1
obj_handle => #2
refcount = 1
obj_handle => #1

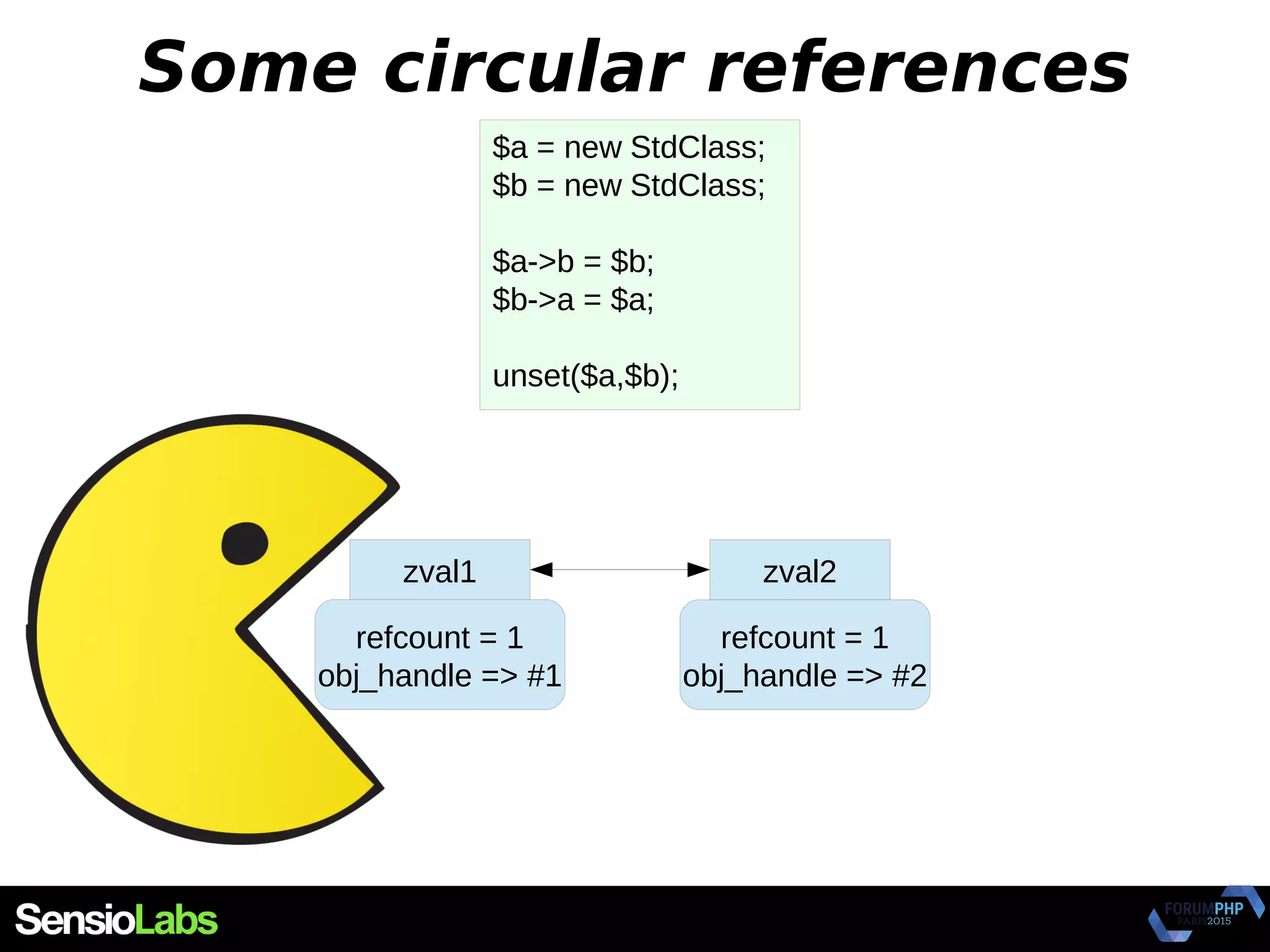

27. Some circular references
$a = new StdClass;
$b = new StdClass;
$a->b = $b;
$b->a = $a;
unset($a,$b);
zval1 zval2
refcount = 1
obj_handle => #2
refcount = 1
obj_handle => #1

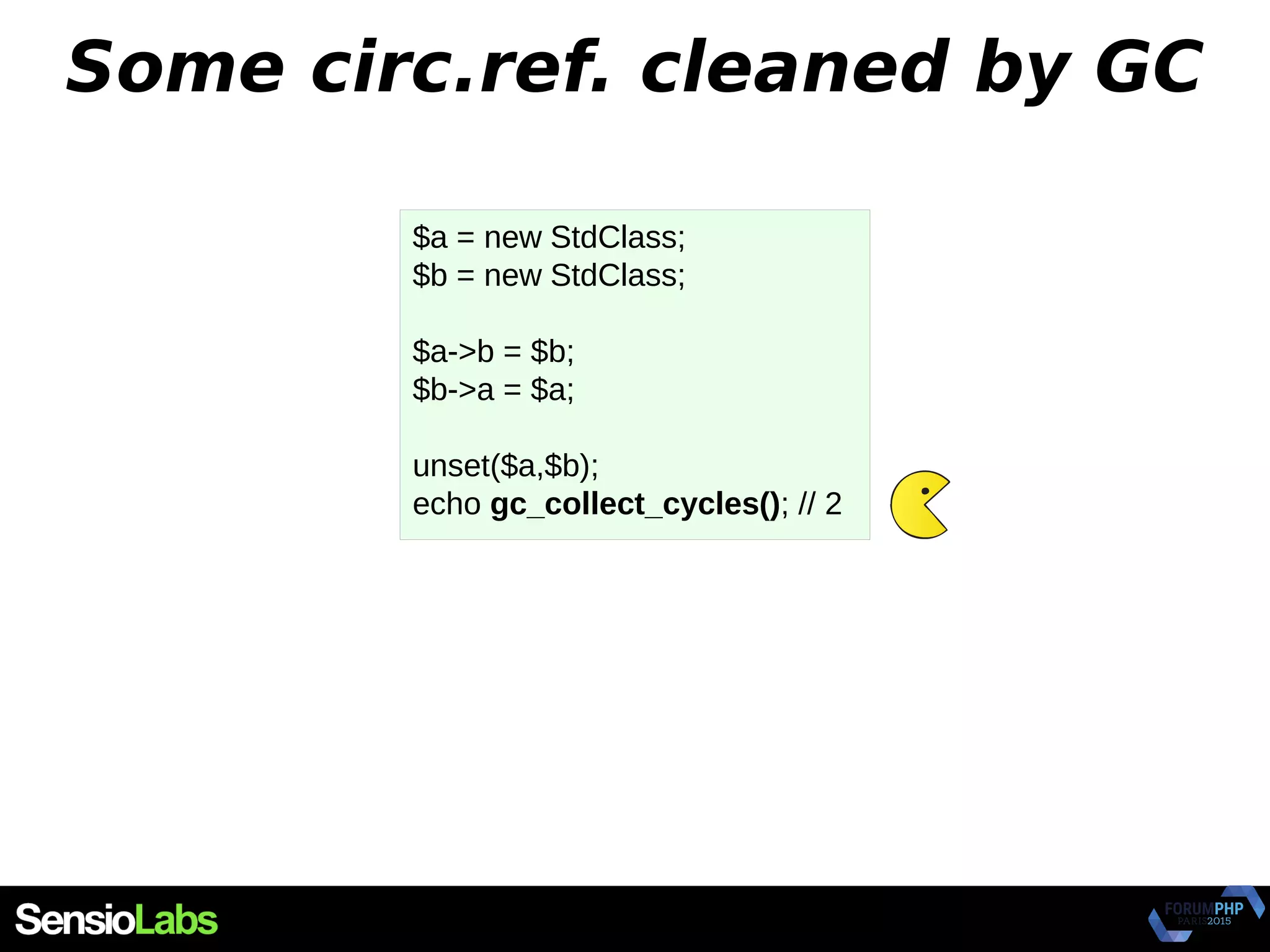

28. Some circ.ref. cleaned by GC
$a = new StdClass;
$b = new StdClass;
$a->b = $b;
$b->a = $a;
unset($a,$b);
echo gc_collect_cycles(); // 2

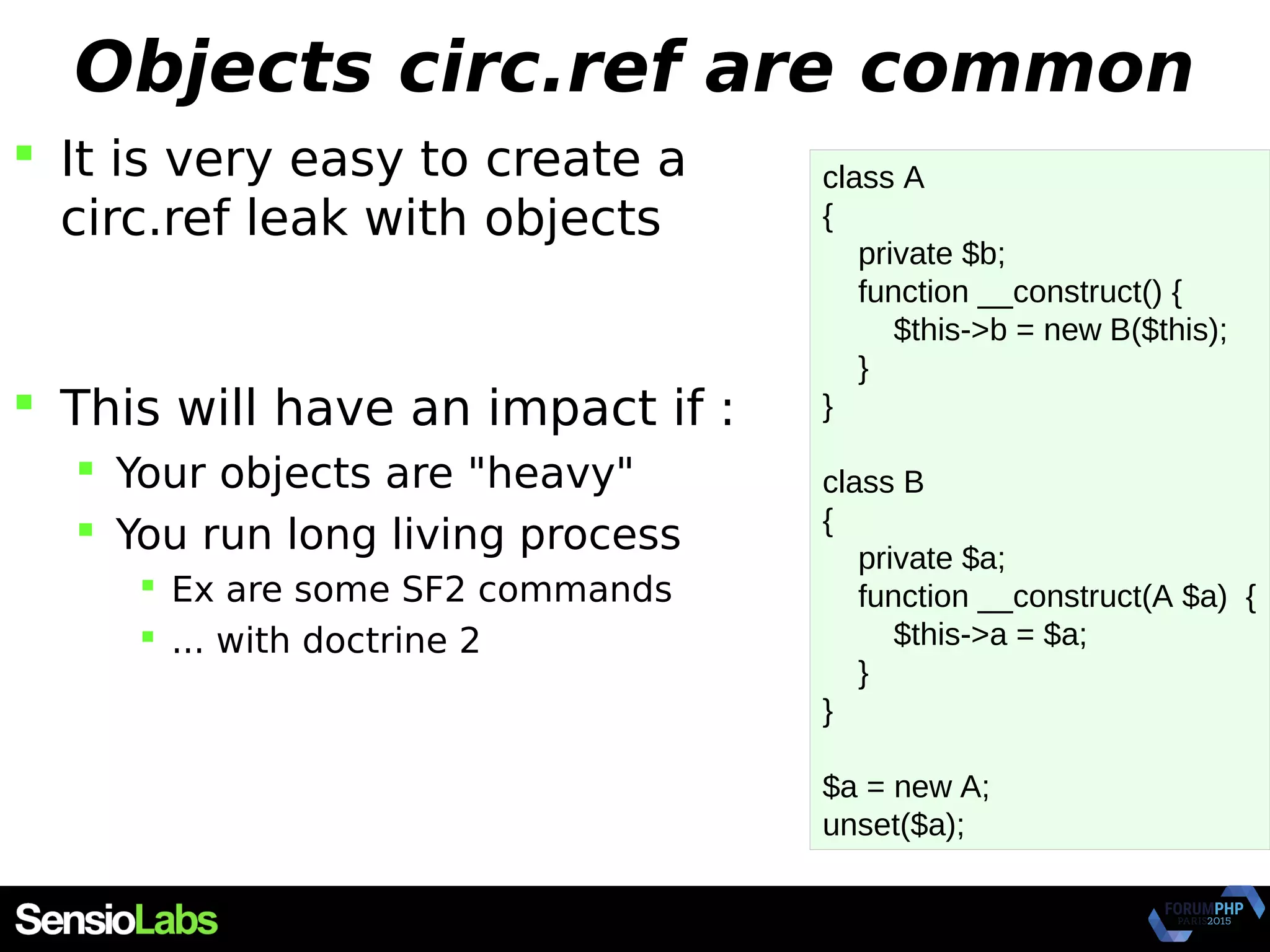

29. Objects circ.ref are common
 It is very easy to create a
circ.ref leak with objects
 This will have an impact if :
 Your objects are "heavy"
 You run long living process
 Ex are some SF2 commands
 ... with doctrine 2
class A
{
private $b;
function __construct() {
$this->b = new B($this);
}
}
class B
{
private $a;
function __construct(A $a) {
$this->a = $a;
}
}
$a = new A;
unset($a);

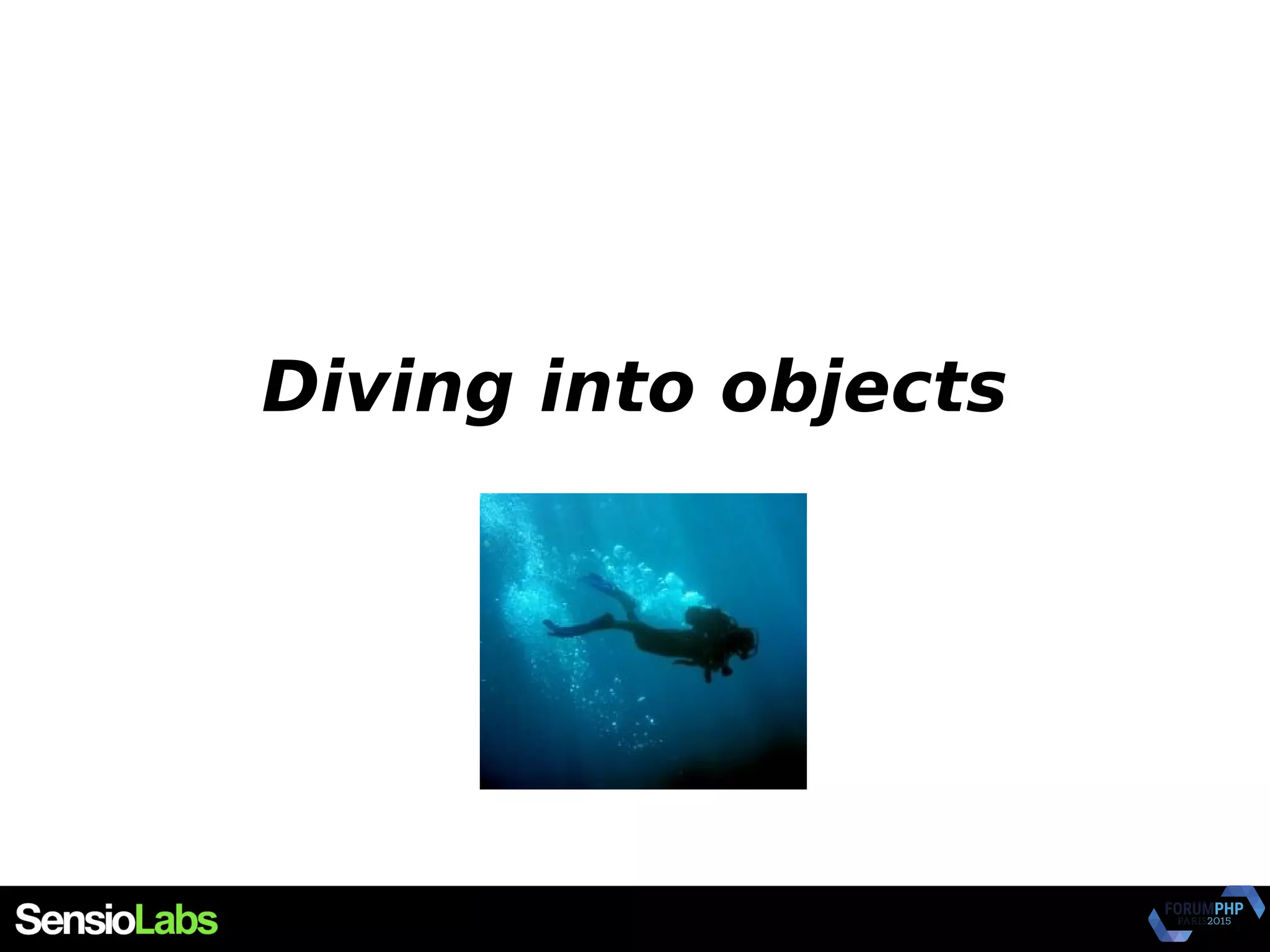

30. Diving into objects

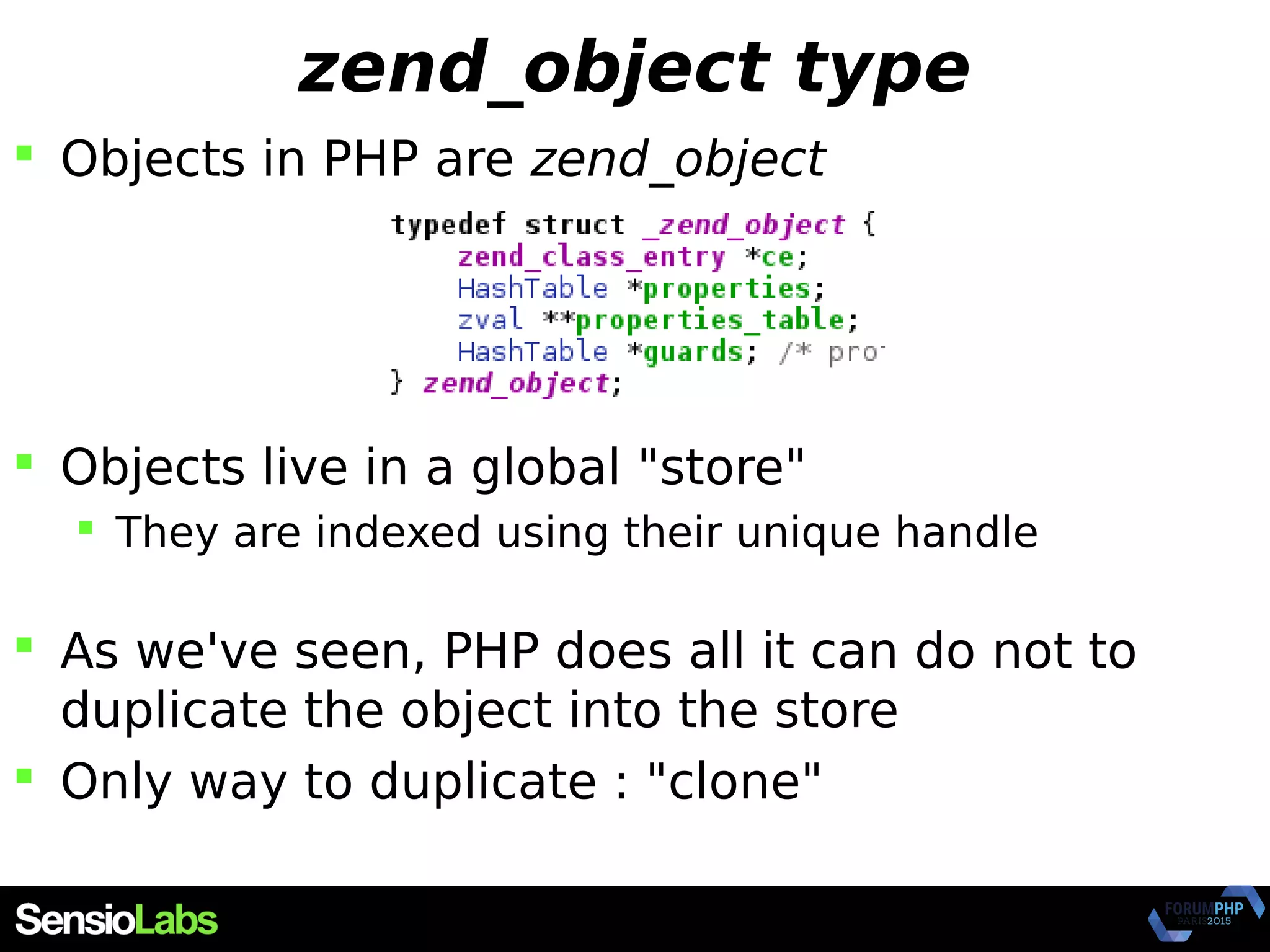

31. zend_object type
 Objects in PHP are zend_object
 Objects live in a global "store"
 They are indexed using their unique handle
 As we've seen, PHP does all it can do not to
duplicate the object into the store
 Only way to duplicate : "clone"

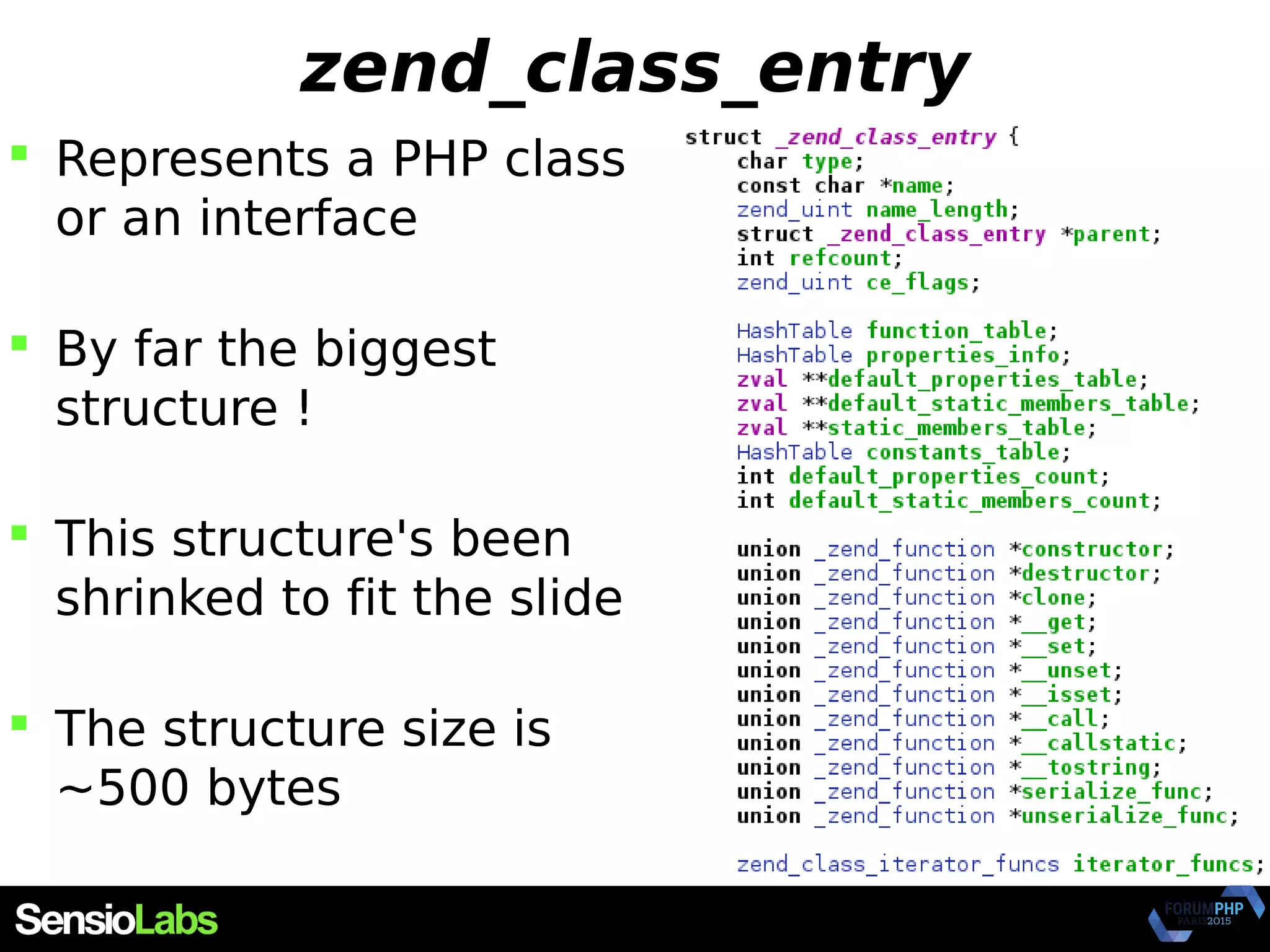

32. zend_class_entry
 Represents a PHP class
or an interface
 By far the biggest
structure !
 This structure's been
shrinked to fit the slide
 The structure size is
~500 bytes

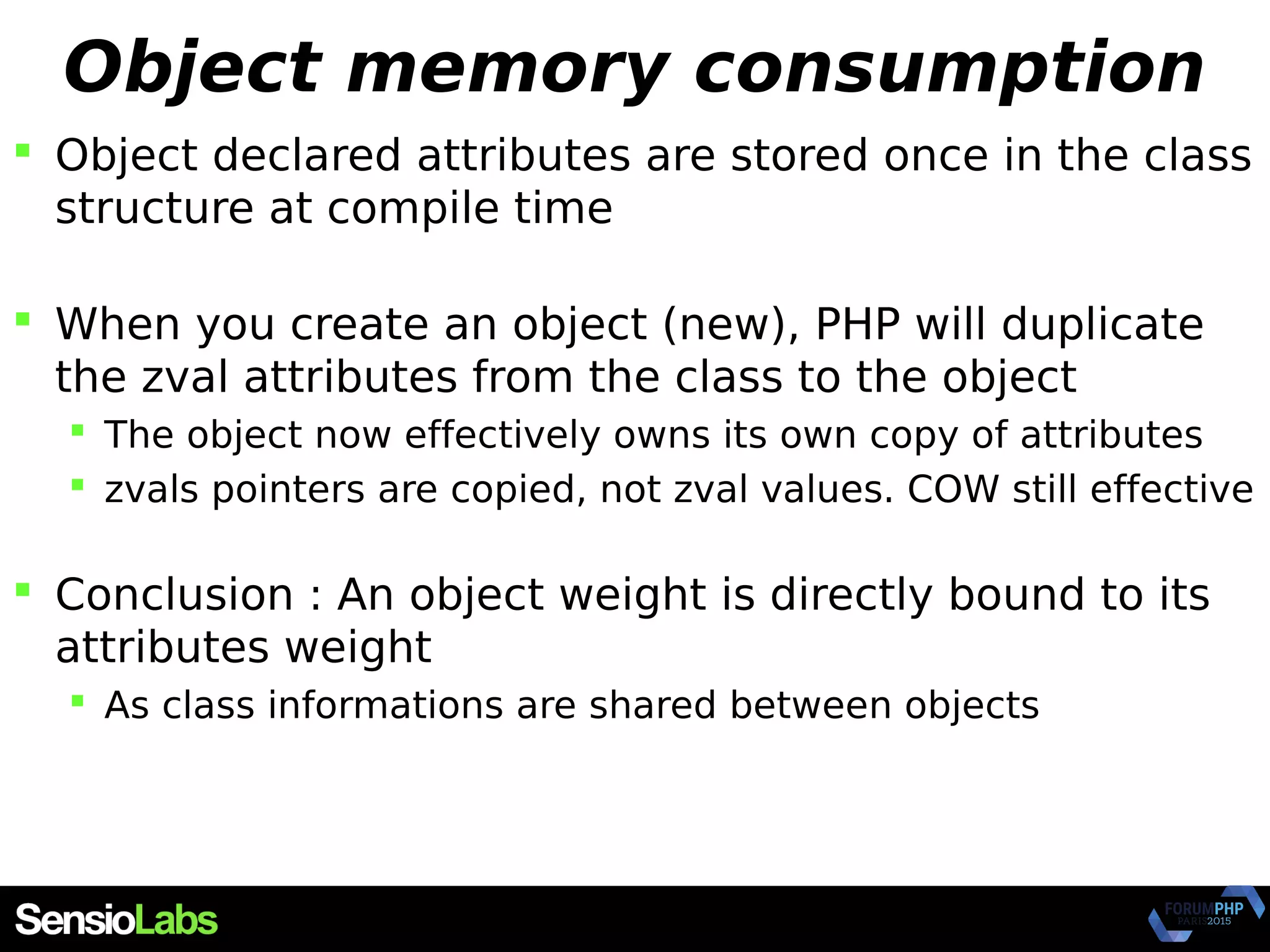

33. Object memory consumption
 Object declared attributes are stored once in the class
structure at compile time
 When you create an object (new), PHP will duplicate
the zval attributes from the class to the object
 The object now effectively owns its own copy of attributes
 zvals pointers are copied, not zval values. COW still effective
 Conclusion : An object weight is directly bound to its
attributes weight
 As class informations are shared between objects

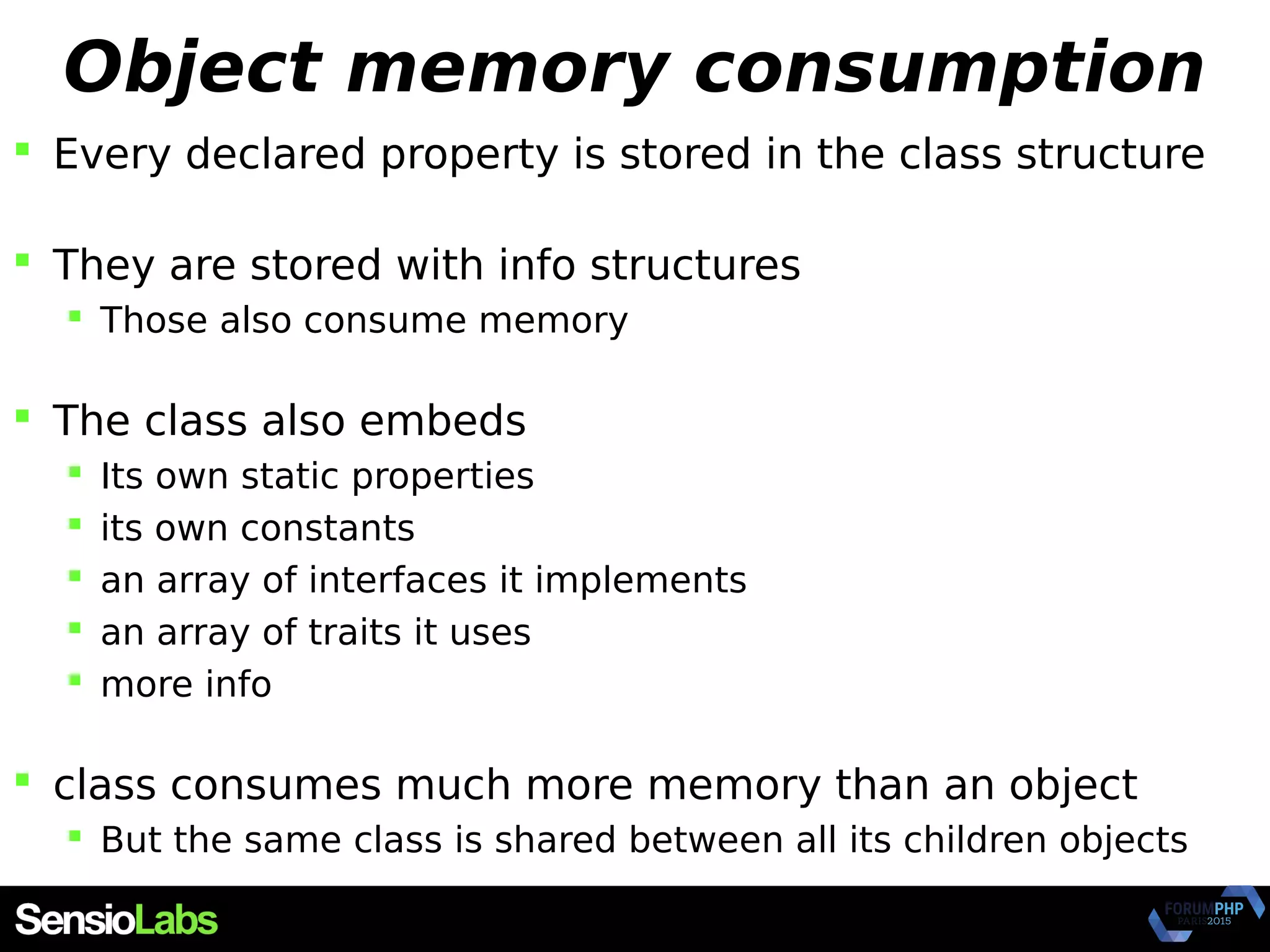

34. Object memory consumption
 Every declared property is stored in the class structure
 They are stored with info structures
 Those also consume memory
 The class also embeds
 Its own static properties
 its own constants
 an array of interfaces it implements
 an array of traits it uses
 more info
 class consumes much more memory than an object
 But the same class is shared between all its children objects

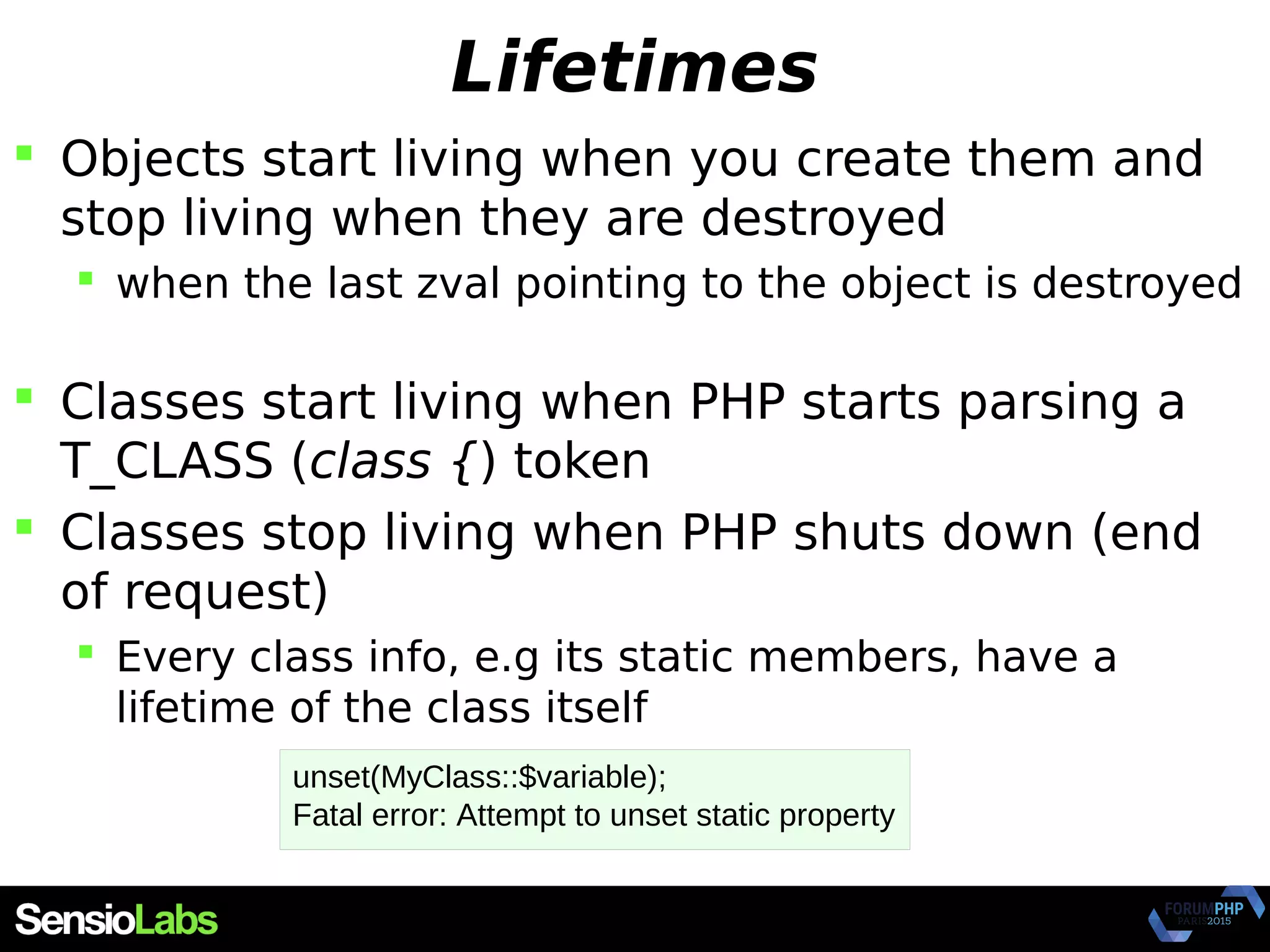

35. Lifetimes
 Objects start living when you create them and
stop living when they are destroyed
 when the last zval pointing to the object is destroyed
 Classes start living when PHP starts parsing a
T_CLASS (class {) token
 Classes stop living when PHP shuts down (end
of request)
 Every class info, e.g its static members, have a
lifetime of the class itself
unset(MyClass::$variable);
Fatal error: Attempt to unset static property

36. Object handlers

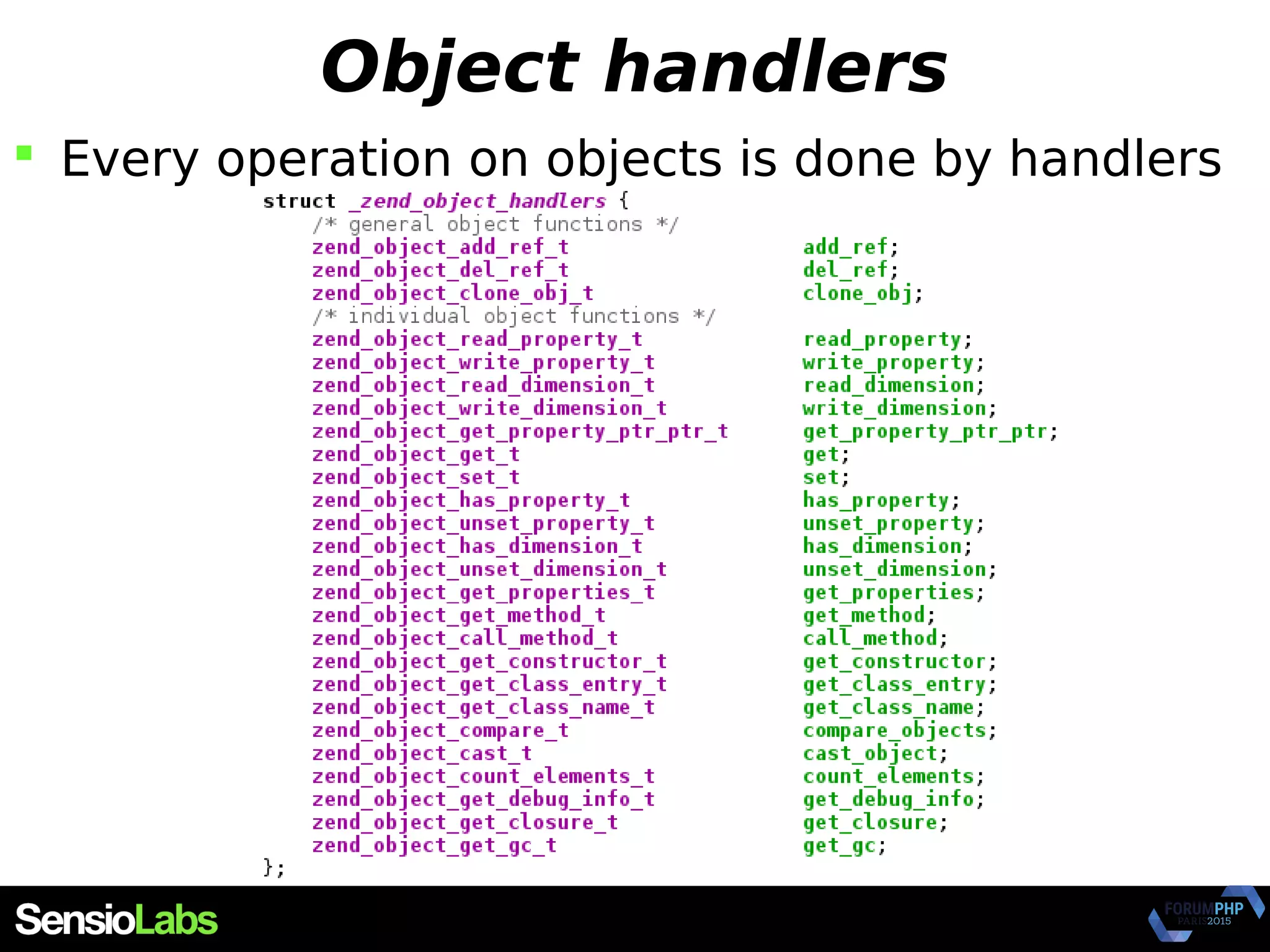

37. Object handlers
 Every operation on objects is done by handlers

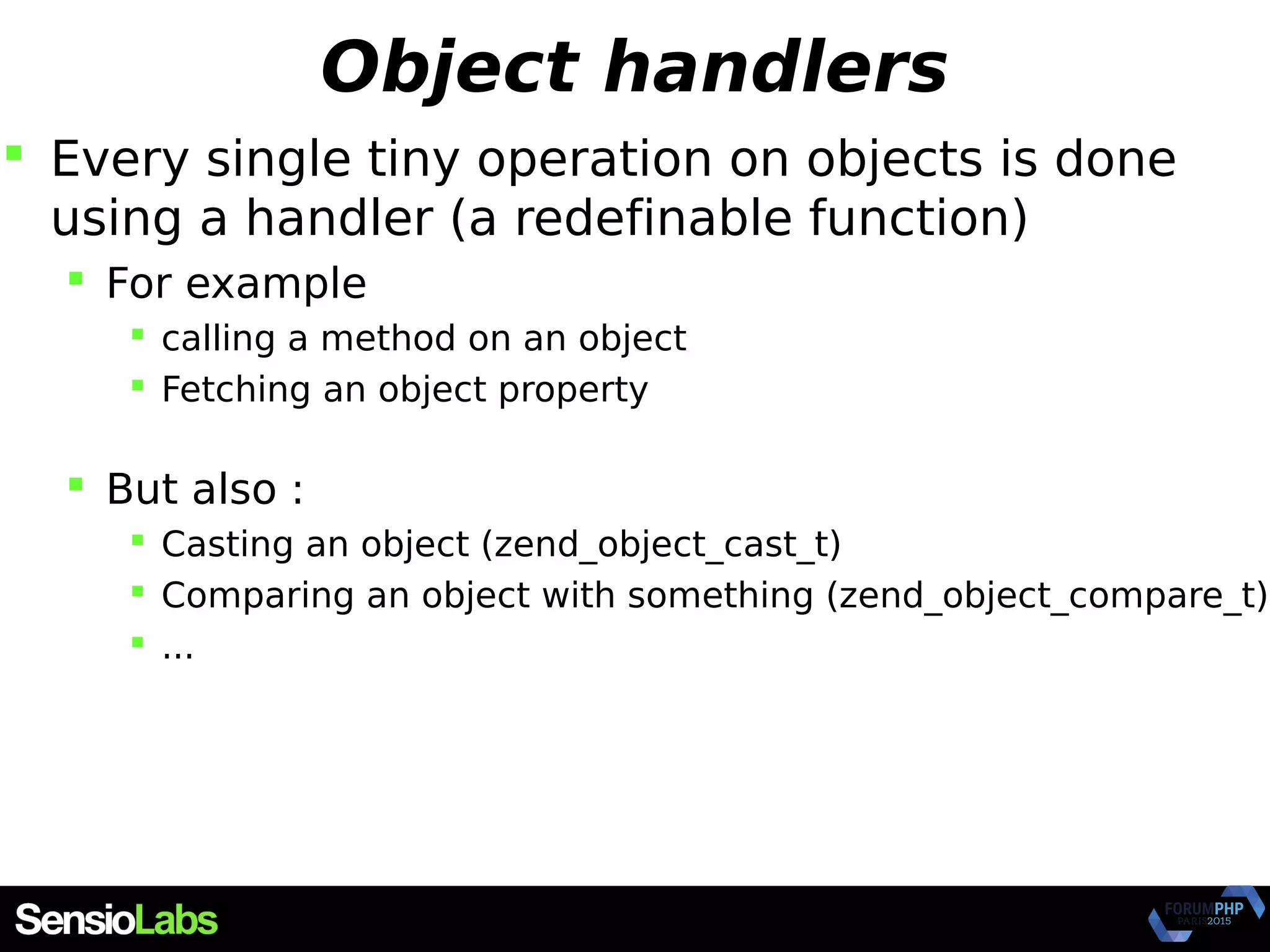

38. Object handlers
 Every single tiny operation on objects is done
using a handler (a redefinable function)
 For example
 calling a method on an object
 Fetching an object property
 But also :
 Casting an object (zend_object_cast_t)
 Comparing an object with something (zend_object_compare_t)
 ...

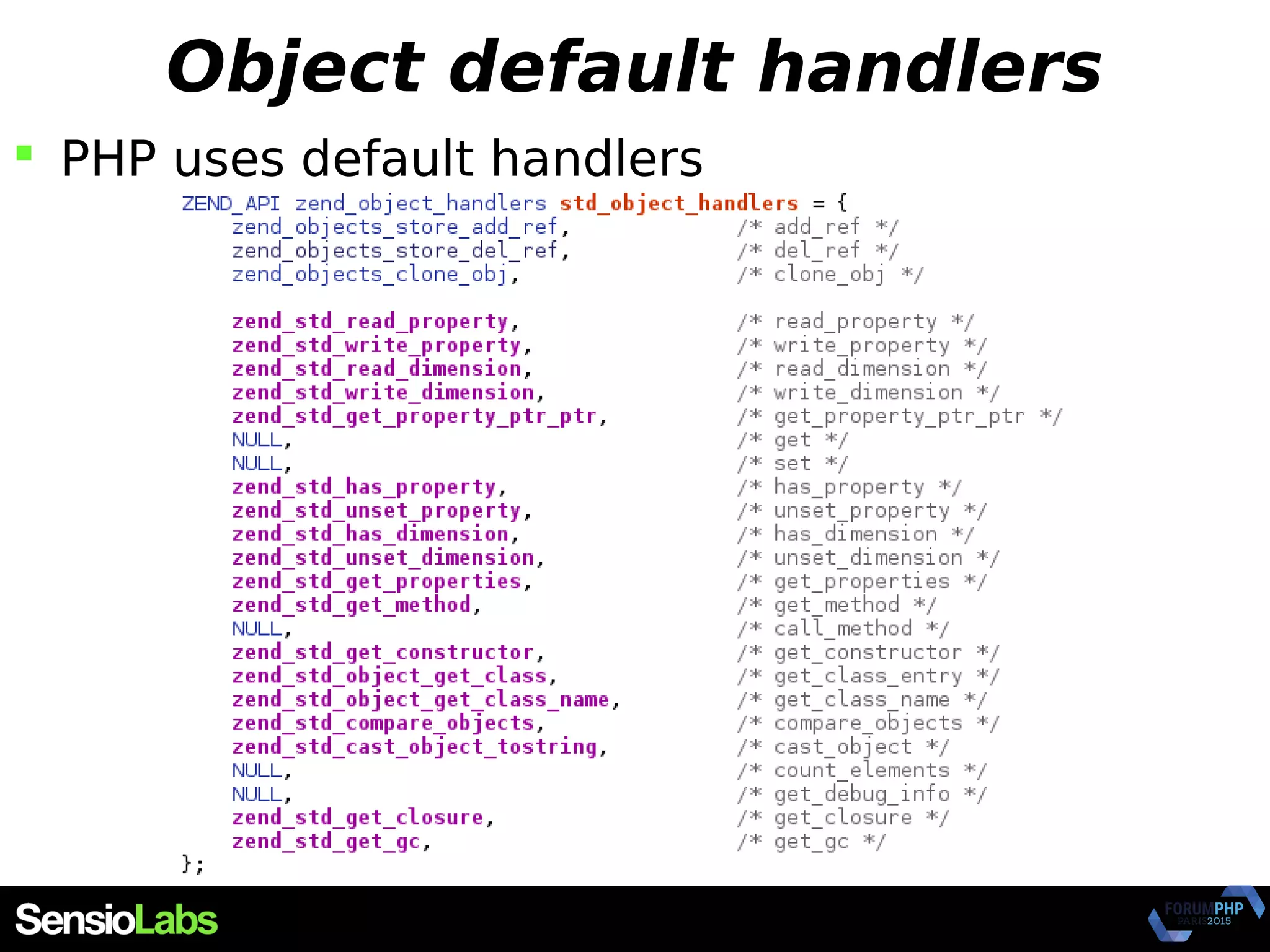

39. Object default handlers
 PHP uses default handlers

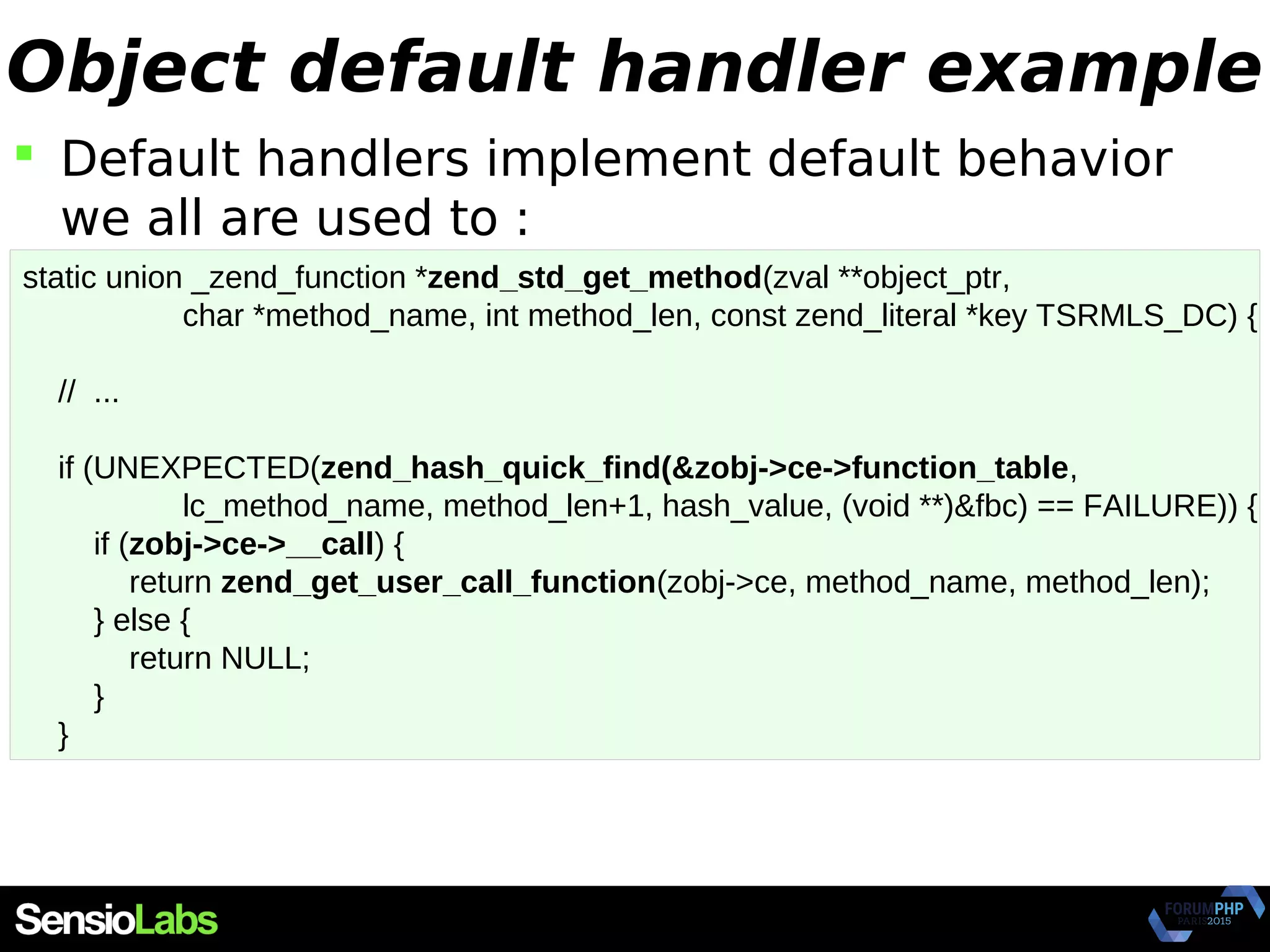

40. Object default handler example
 Default handlers implement default behavior
we all are used to :
static union _zend_function *zend_std_get_method(zval **object_ptr,
char *method_name, int method_len, const zend_literal *key TSRMLS_DC) {
// ...
if (UNEXPECTED(zend_hash_quick_find(&zobj->ce->function_table,
lc_method_name, method_len+1, hash_value, (void **)&fbc) == FAILURE)) {
if (zobj->ce->__call) {
return zend_get_user_call_function(zobj->ce, method_name, method_len);
} else {
return NULL;
}
}

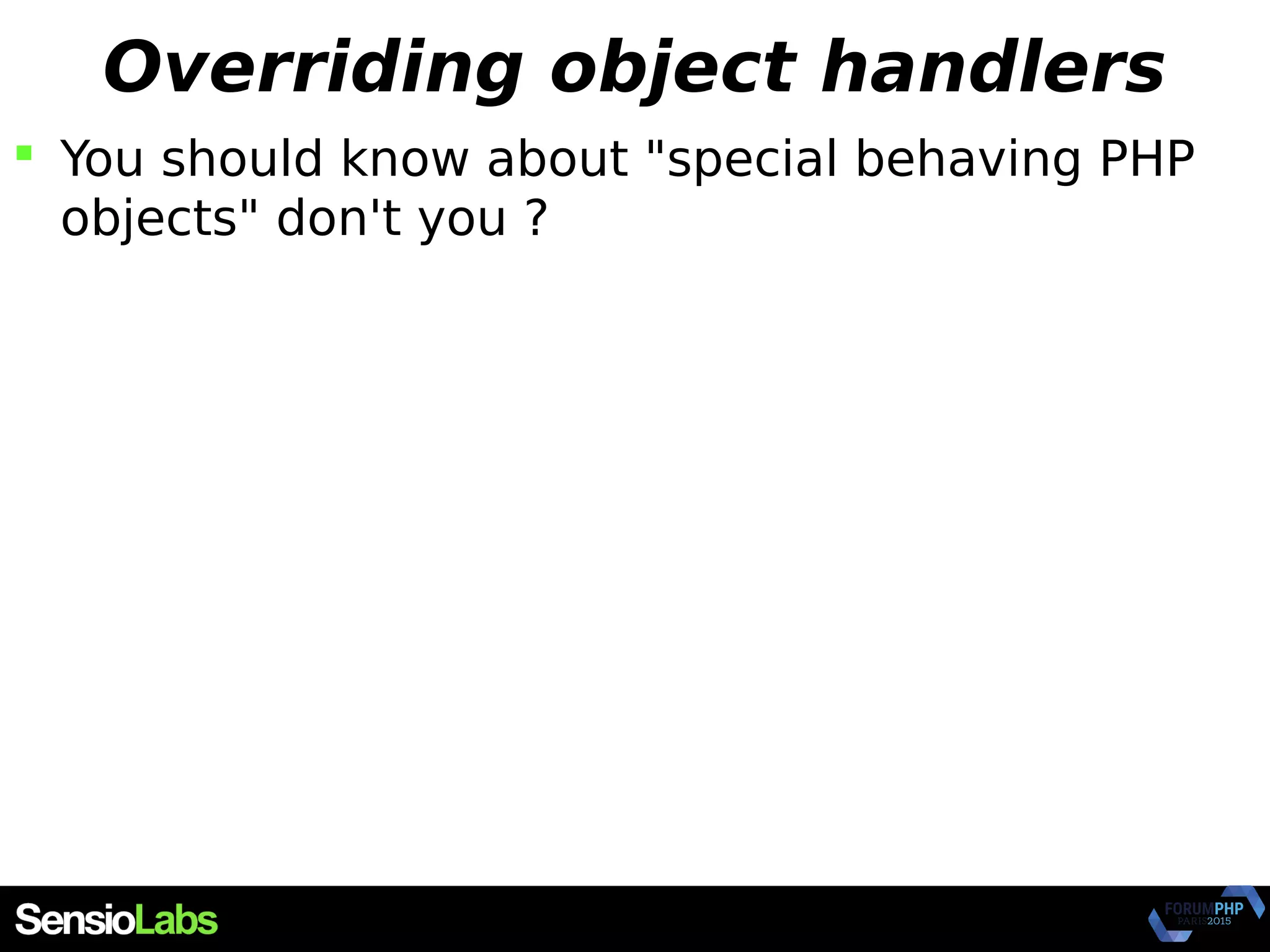

41. Overriding object handlers
 You should know about "special behaving PHP
objects" don't you ?

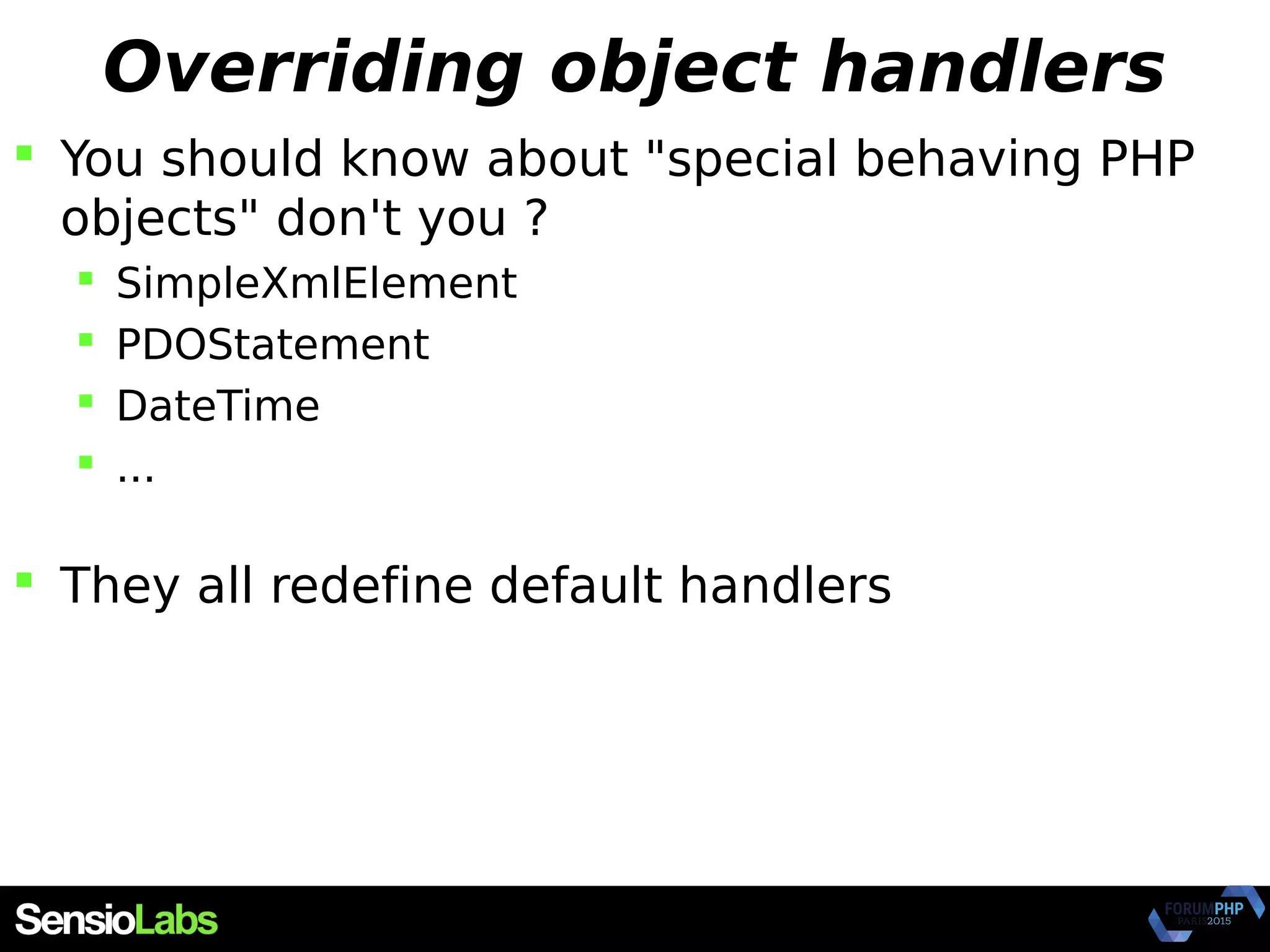

42. Overriding object handlers
 You should know about "special behaving PHP
objects" don't you ?
 SimpleXmlElement
 PDOStatement
 DateTime
 ...
 They all redefine default handlers

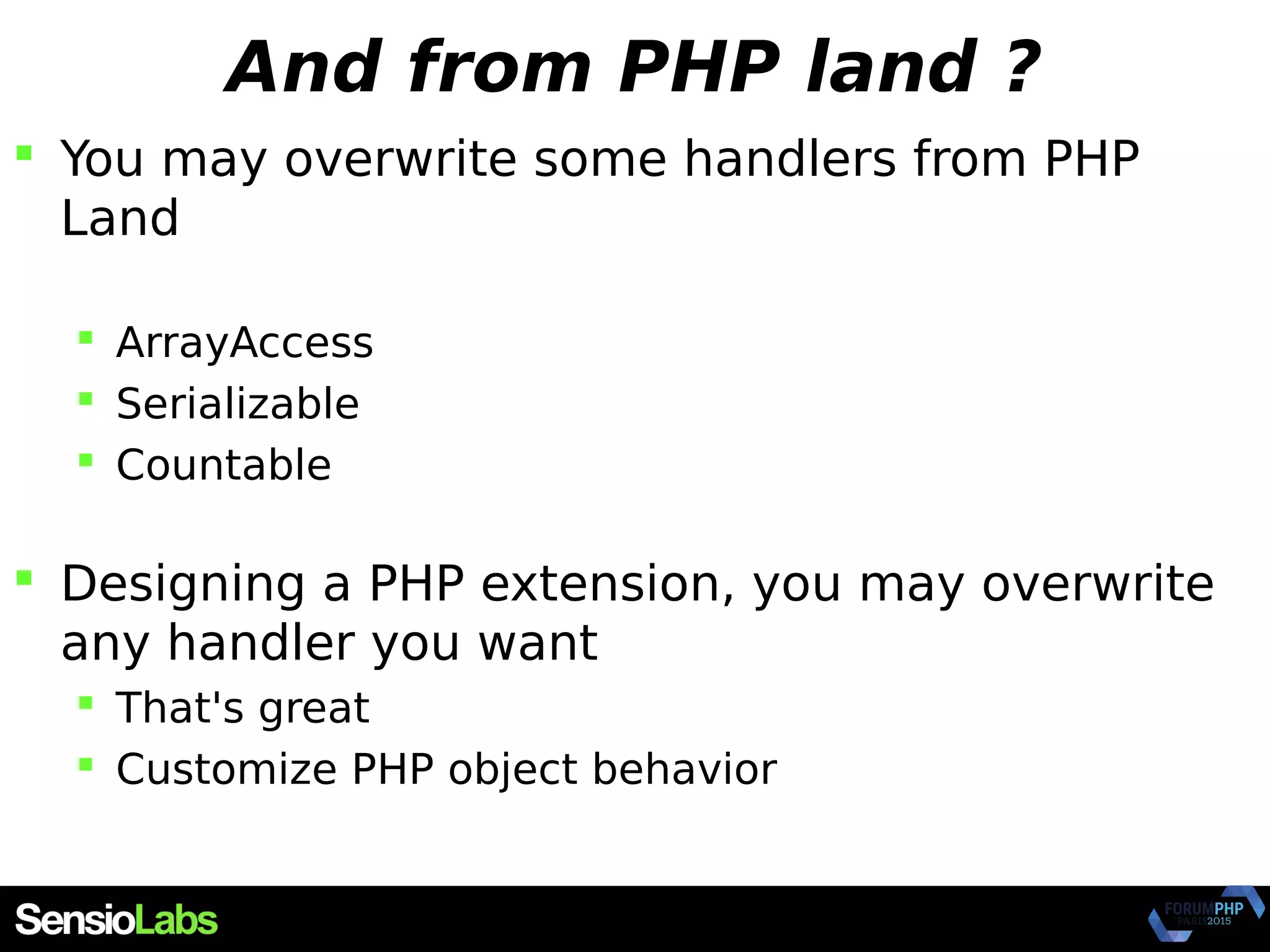

43. And from PHP land ?
 You may overwrite some handlers from PHP
Land
 ArrayAccess
 Serializable
 Countable
 Designing a PHP extension, you may overwrite
any handler you want
 That's great
 Customize PHP object behavior

44. PHP OOP gotchas

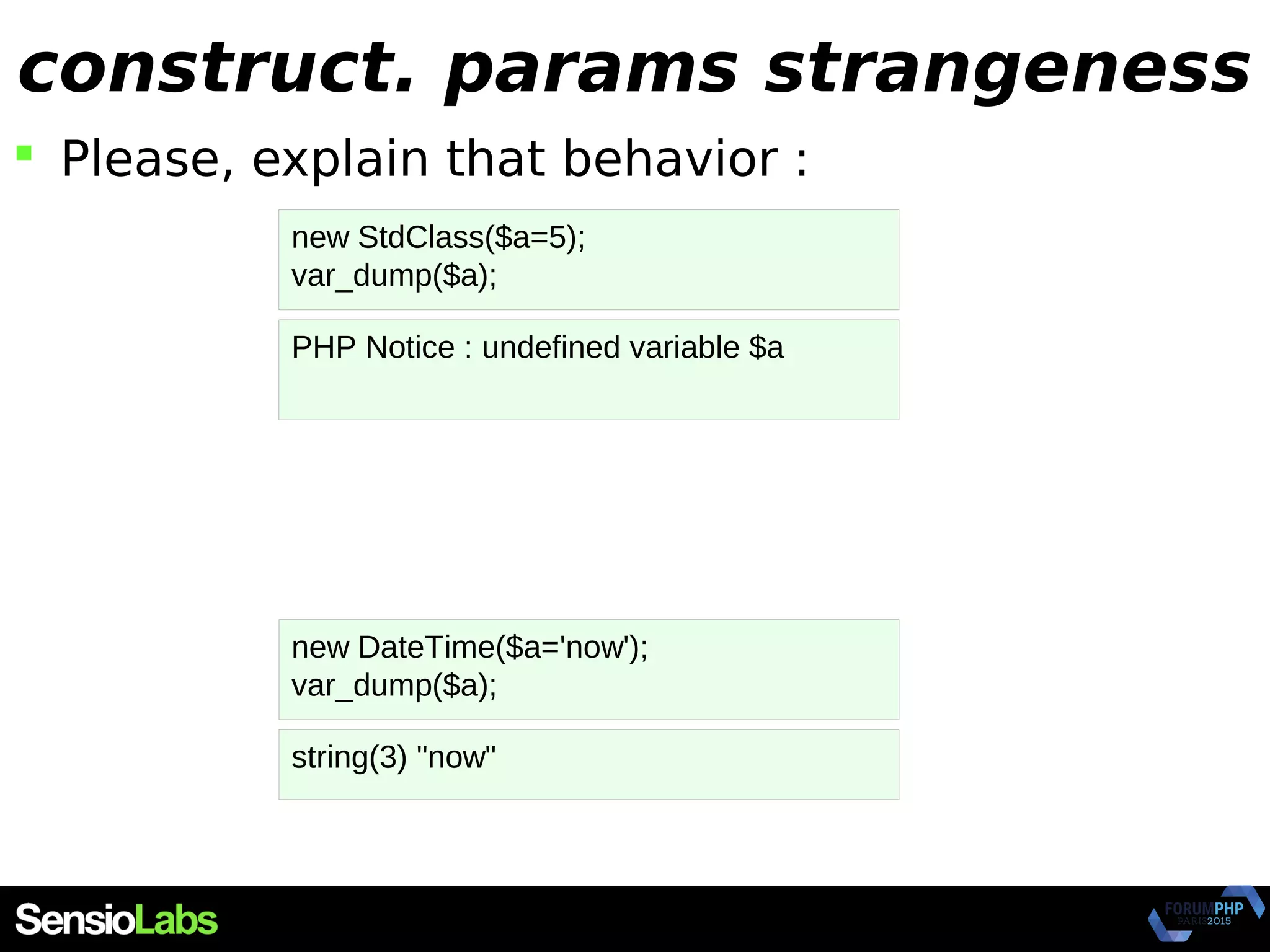

45. construct. params strangeness
 Please, explain that behavior :
new StdClass($a=5);
var_dump($a);
PHP Notice : undefined variable $a
new DateTime($a='now');
var_dump($a);
string(3) "now"

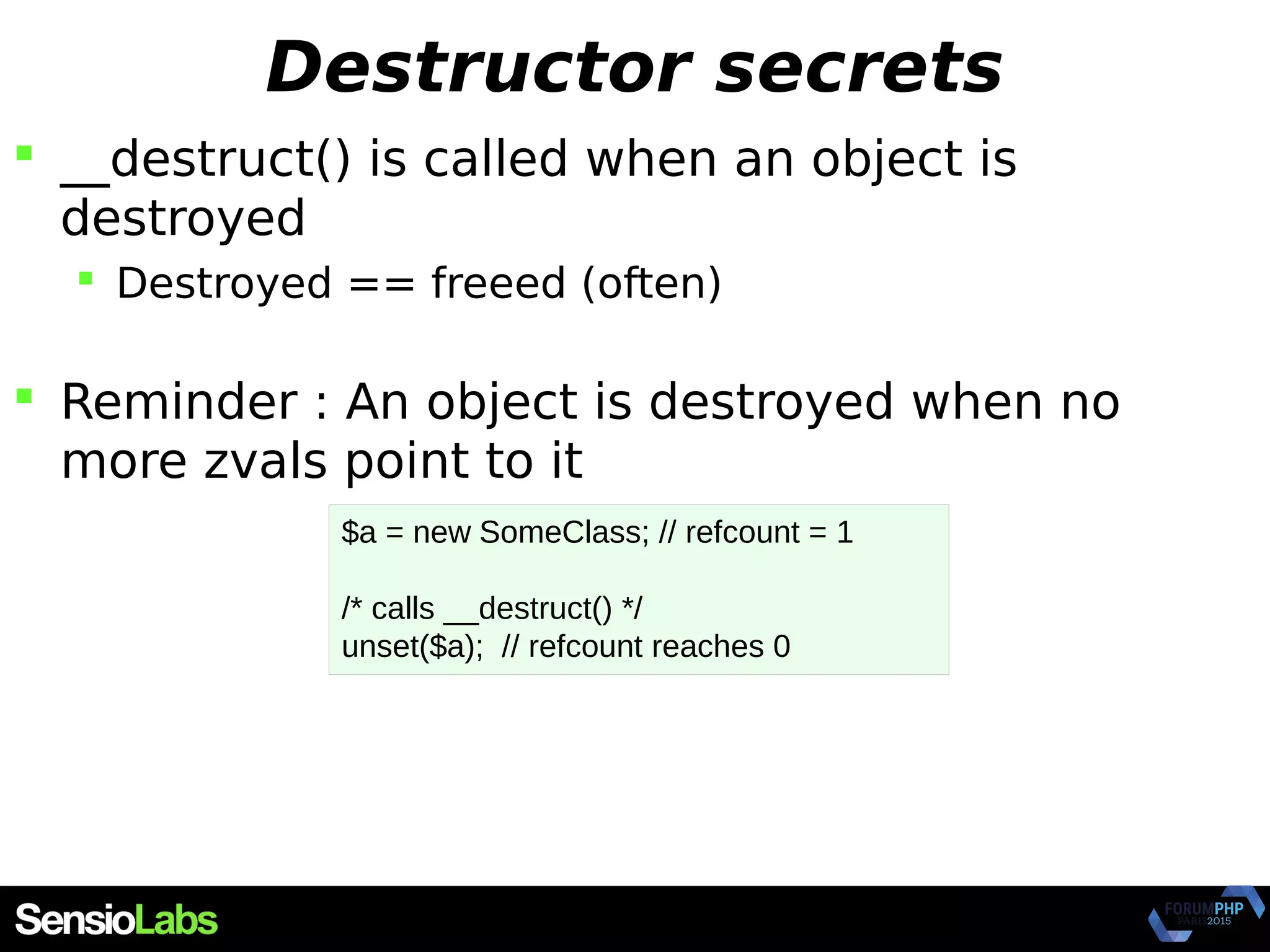

46. Destructor secrets
 __destruct() is called when an object is
destroyed
 Destroyed == freeed (often)
 Reminder : An object is destroyed when no
more zvals point to it
$a = new SomeClass; // refcount = 1
/* calls __destruct() */
unset($a); // refcount reaches 0

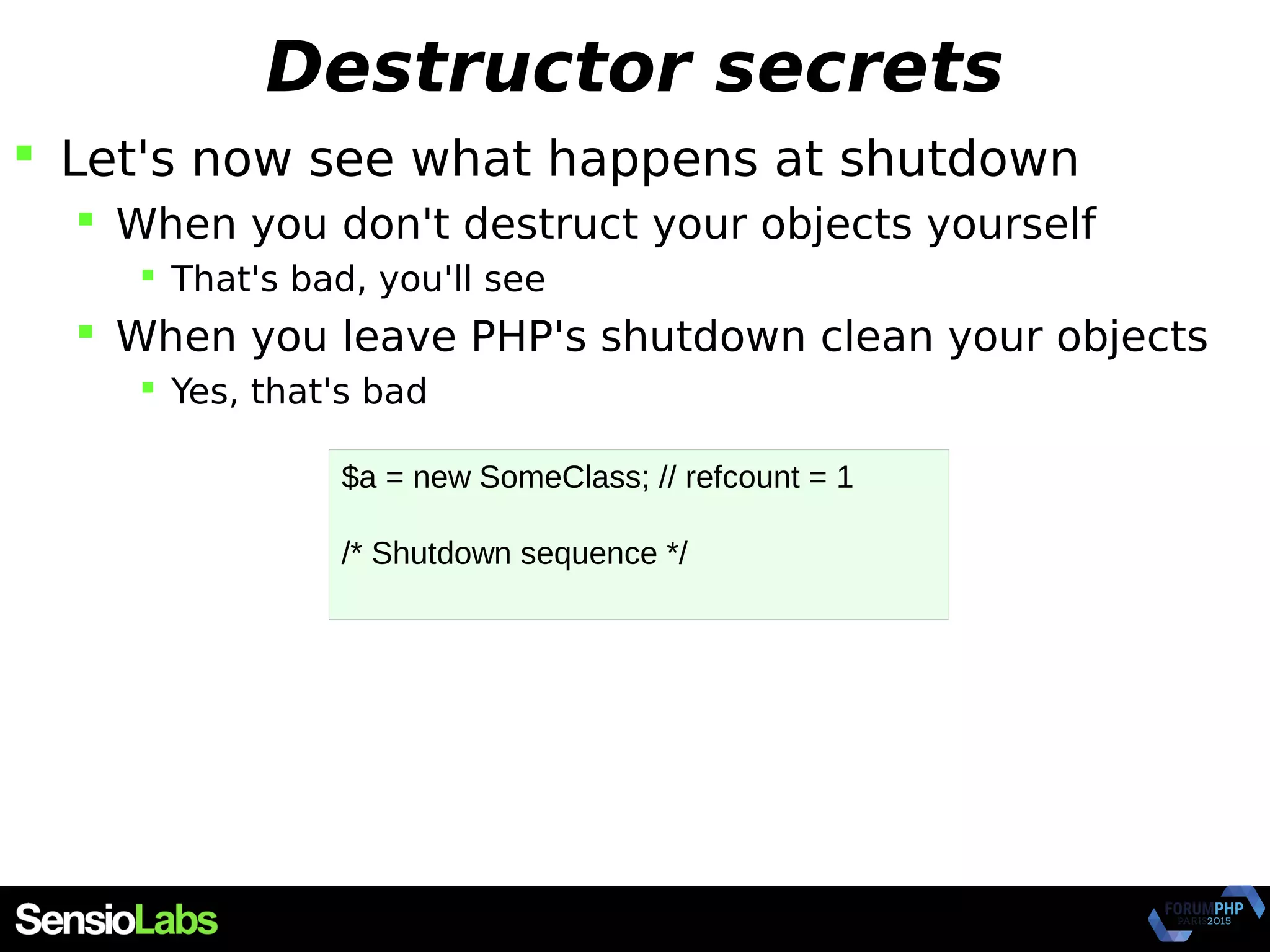

47. Destructor secrets
 Let's now see what happens at shutdown
 When you don't destruct your objects yourself
 That's bad, you'll see
 When you leave PHP's shutdown clean your objects
 Yes, that's bad
$a = new SomeClass; // refcount = 1
/* Shutdown sequence */

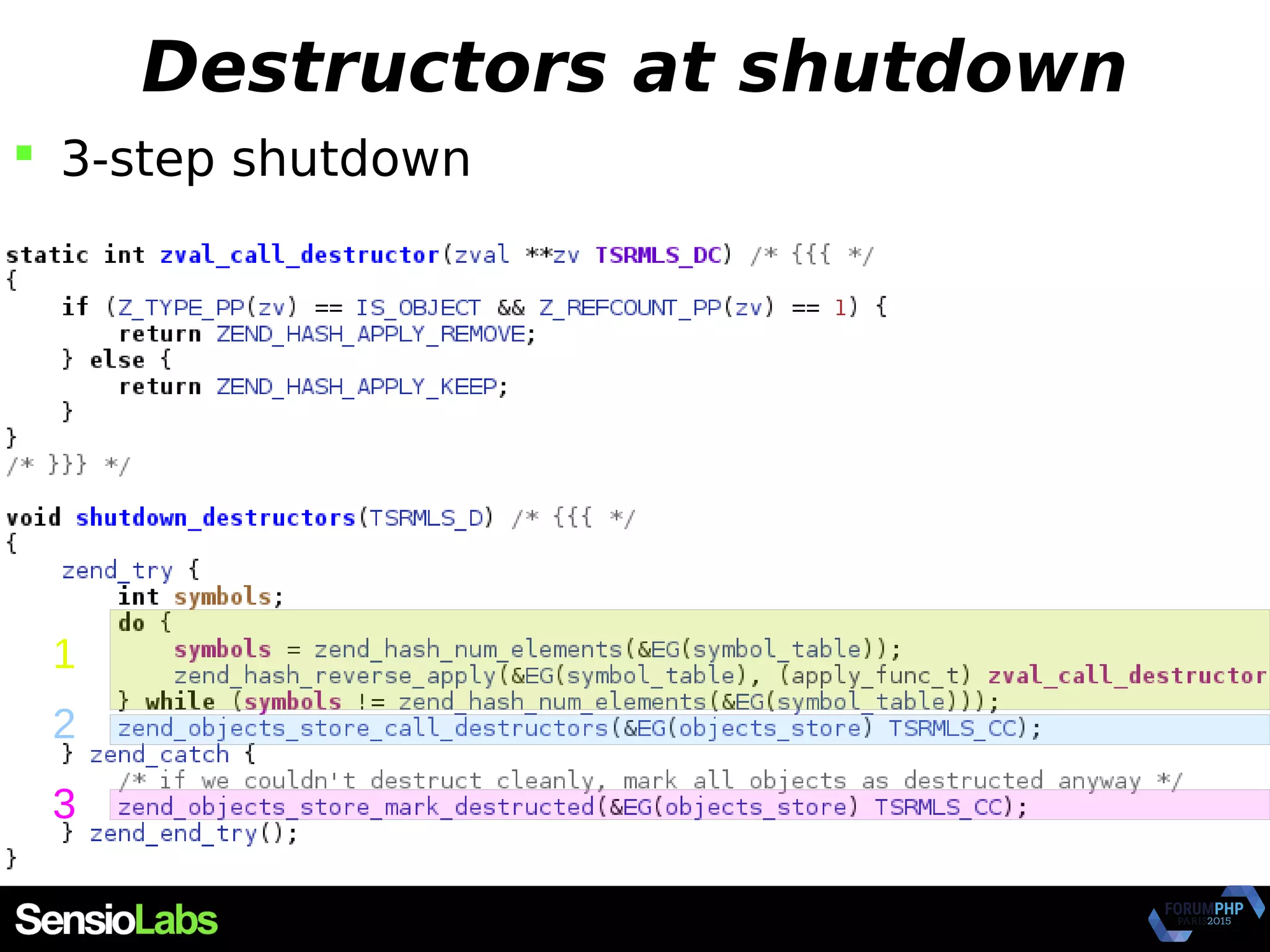

48. Destructors at shutdown
 3-step shutdown
1
2
3

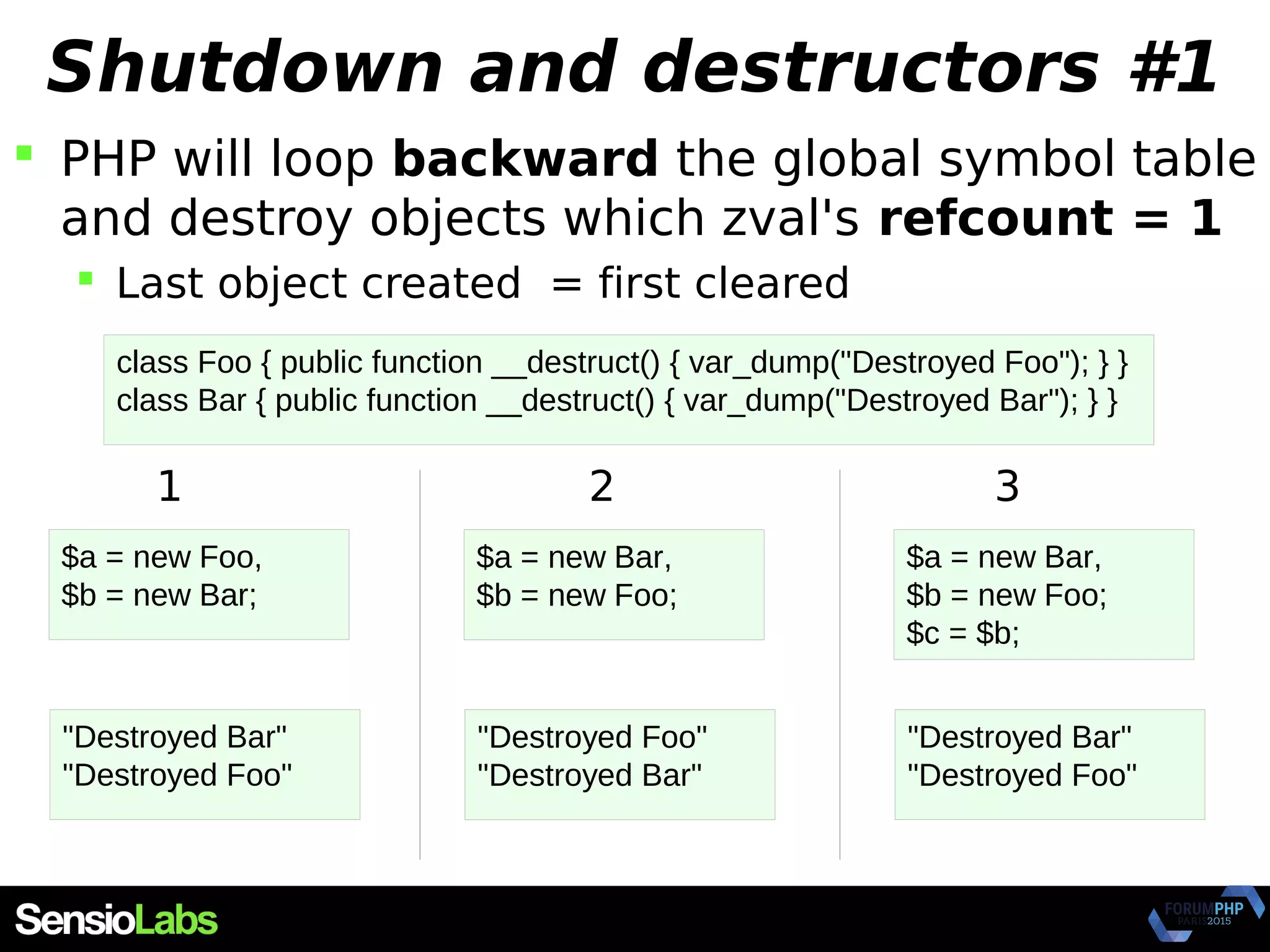

49. Shutdown and destructors #1
 PHP will loop backward the global symbol table
and destroy objects which zval's refcount = 1
 Last object created = first cleared
1 2 3
class Foo { public function __destruct() { var_dump("Destroyed Foo"); } }
class Bar { public function __destruct() { var_dump("Destroyed Bar"); } }
$a = new Foo,
$b = new Bar;
$a = new Bar,
$b = new Foo;
"Destroyed Bar"
"Destroyed Foo"
"Destroyed Foo"
"Destroyed Bar"
$a = new Bar,
$b = new Foo;
$c = $b;
"Destroyed Bar"
"Destroyed Foo"

50. Shutdown and destructors #2
 Then (for objects where refcount > 1) PHP will
loop forward the object store and destroy all
objects
 In order of their creation so (forward)
$a = new Foo;
$a2 = $a;
$b = new Bar;
$b2 = $b;
"Destroyed Foo"
"Destroyed Bar"

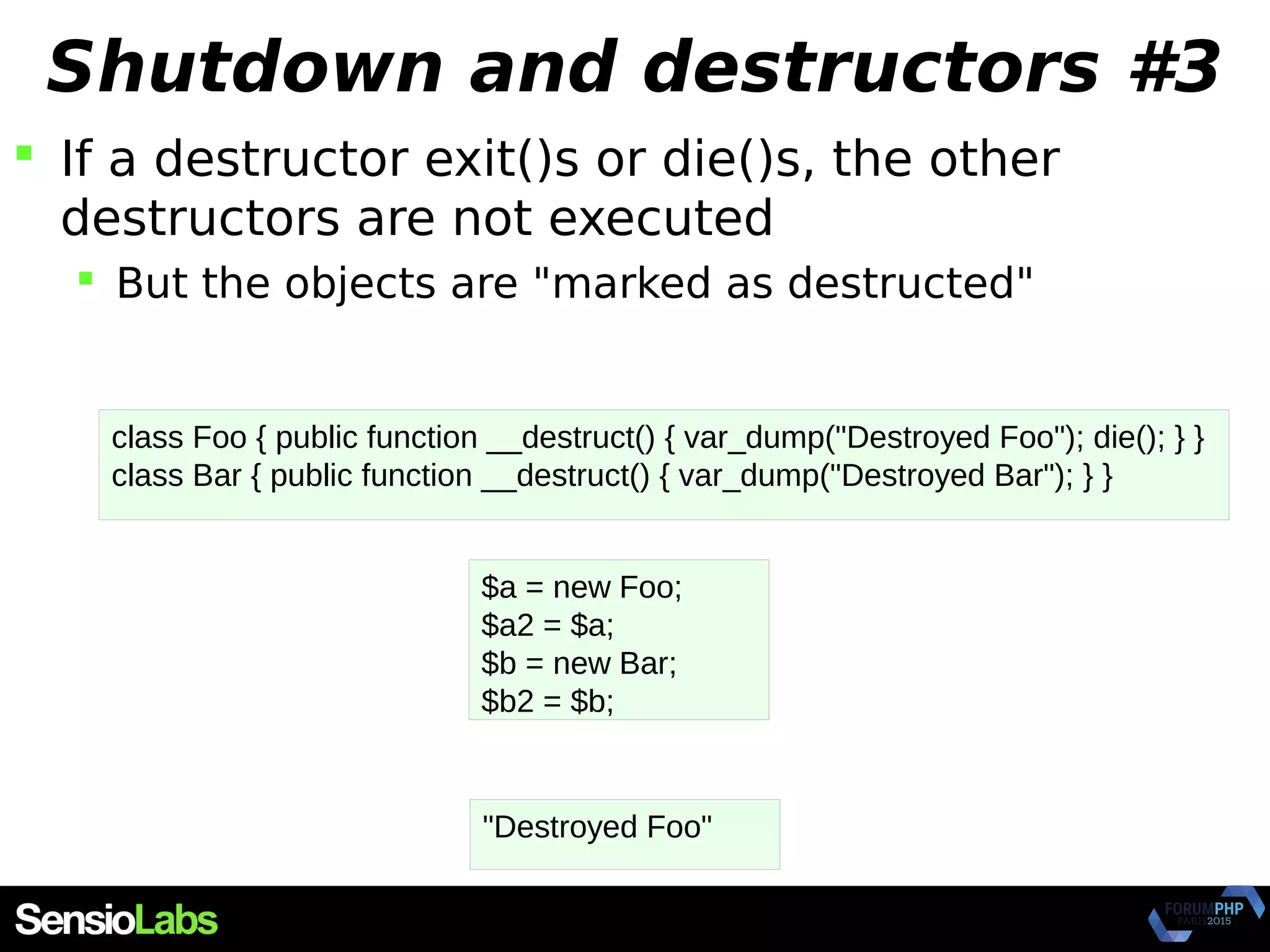

51. Shutdown and destructors #3
 If a destructor exit()s or die()s, the other
destructors are not executed
 But the objects are "marked as destructed"
$a = new Foo;
$a2 = $a;
$b = new Bar;
$b2 = $b;
"Destroyed Foo"
class Foo { public function __destruct() { var_dump("Destroyed Foo"); die(); } }
class Bar { public function __destruct() { var_dump("Destroyed Bar"); } }

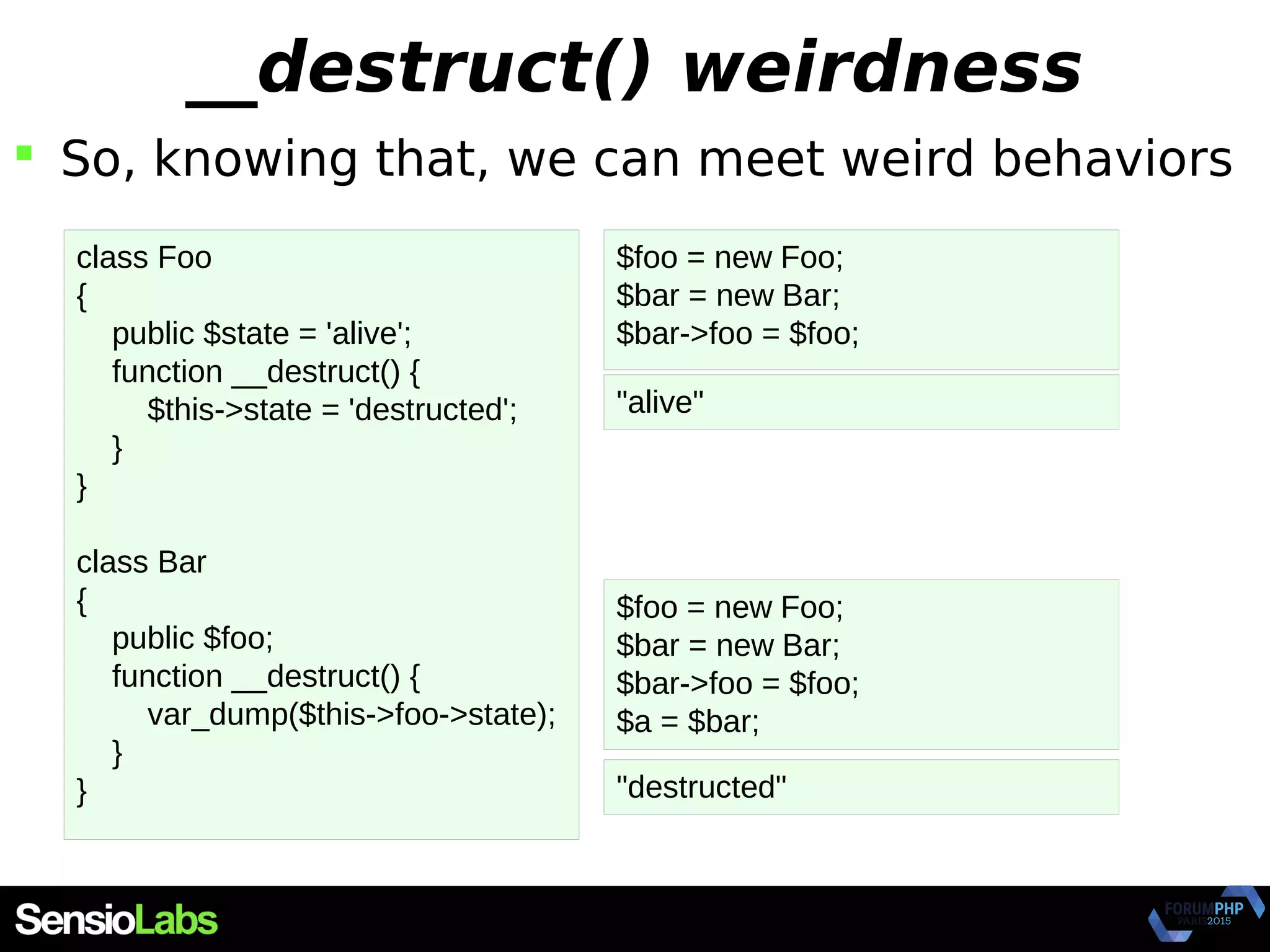

52. __destruct() weirdness
 So, knowing that, we can meet weird behaviors
class Foo
{
public $state = 'alive';
function __destruct() {
$this->state = 'destructed';
}
}
class Bar
{
public $foo;
function __destruct() {
var_dump($this->foo->state);
}
}
$foo = new Foo;
$bar = new Bar;
$bar->foo = $foo;
$foo = new Foo;
$bar = new Bar;
$bar->foo = $foo;
$a = $bar;
"alive"
"destructed"

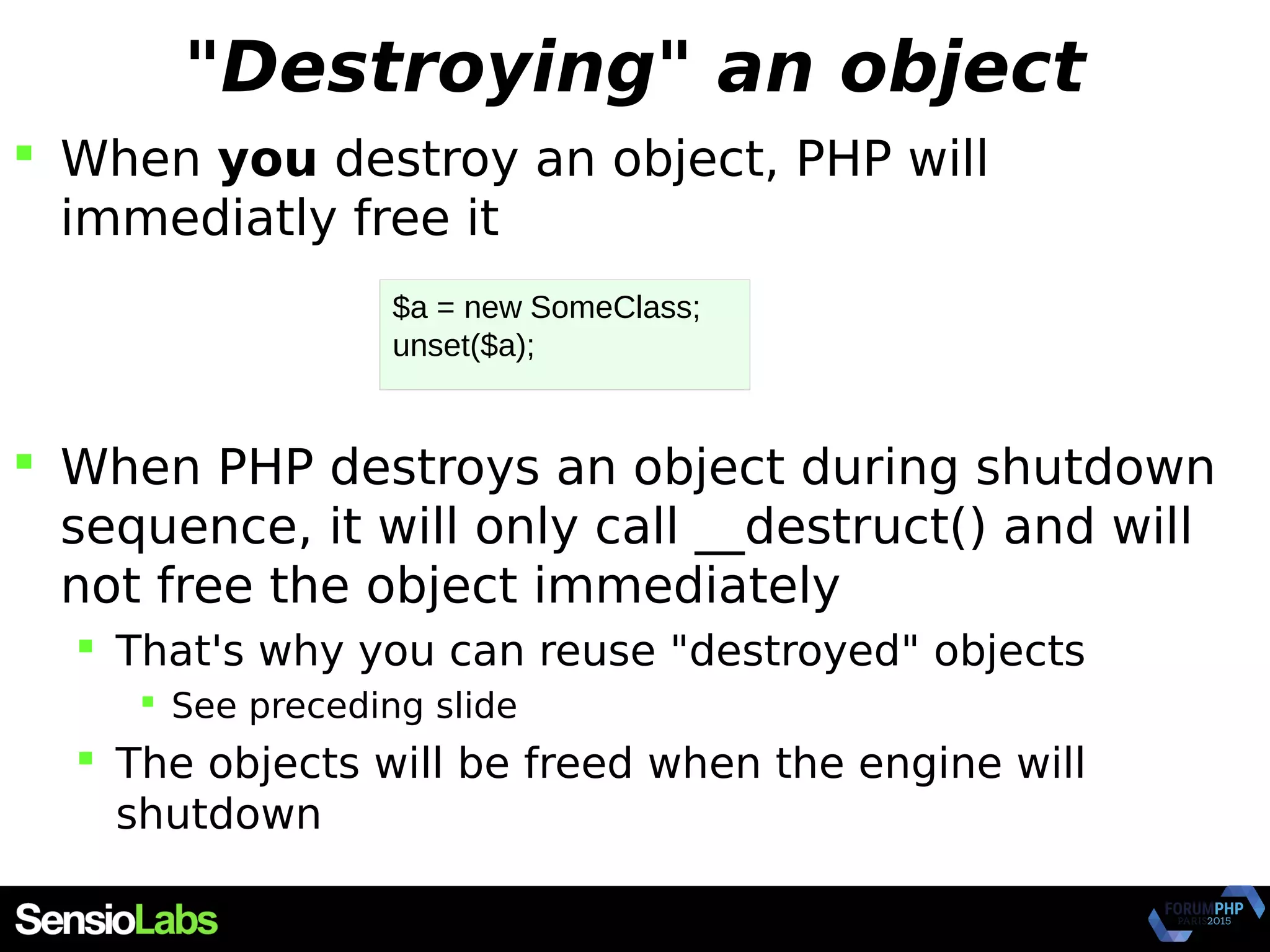

53. "Destroying" an object
 When you destroy an object, PHP will
immediatly free it
 When PHP destroys an object during shutdown
sequence, it will only call __destruct() and will
not free the object immediately
 That's why you can reuse "destroyed" objects
 See preceding slide
 The objects will be freed when the engine will
shutdown
$a = new SomeClass;
unset($a);

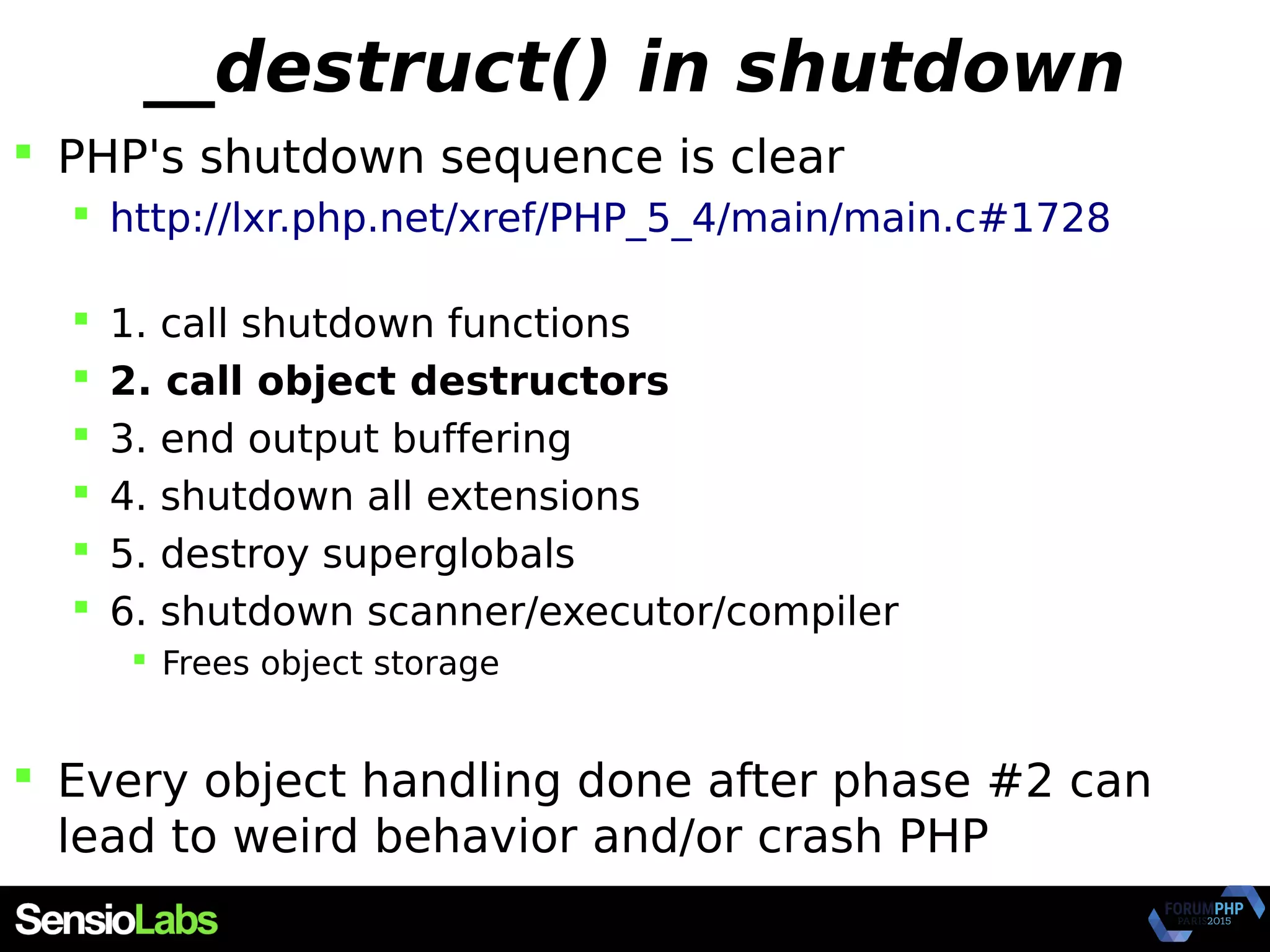

54. __destruct() in shutdown
 PHP's shutdown sequence is clear
 http://lxr.php.net/xref/PHP_5_4/main/main.c#1728
 1. call shutdown functions
 2. call object destructors
 3. end output buffering
 4. shutdown all extensions
 5. destroy superglobals
 6. shutdown scanner/executor/compiler
 Frees object storage
 Every object handling done after phase #2 can
lead to weird behavior and/or crash PHP

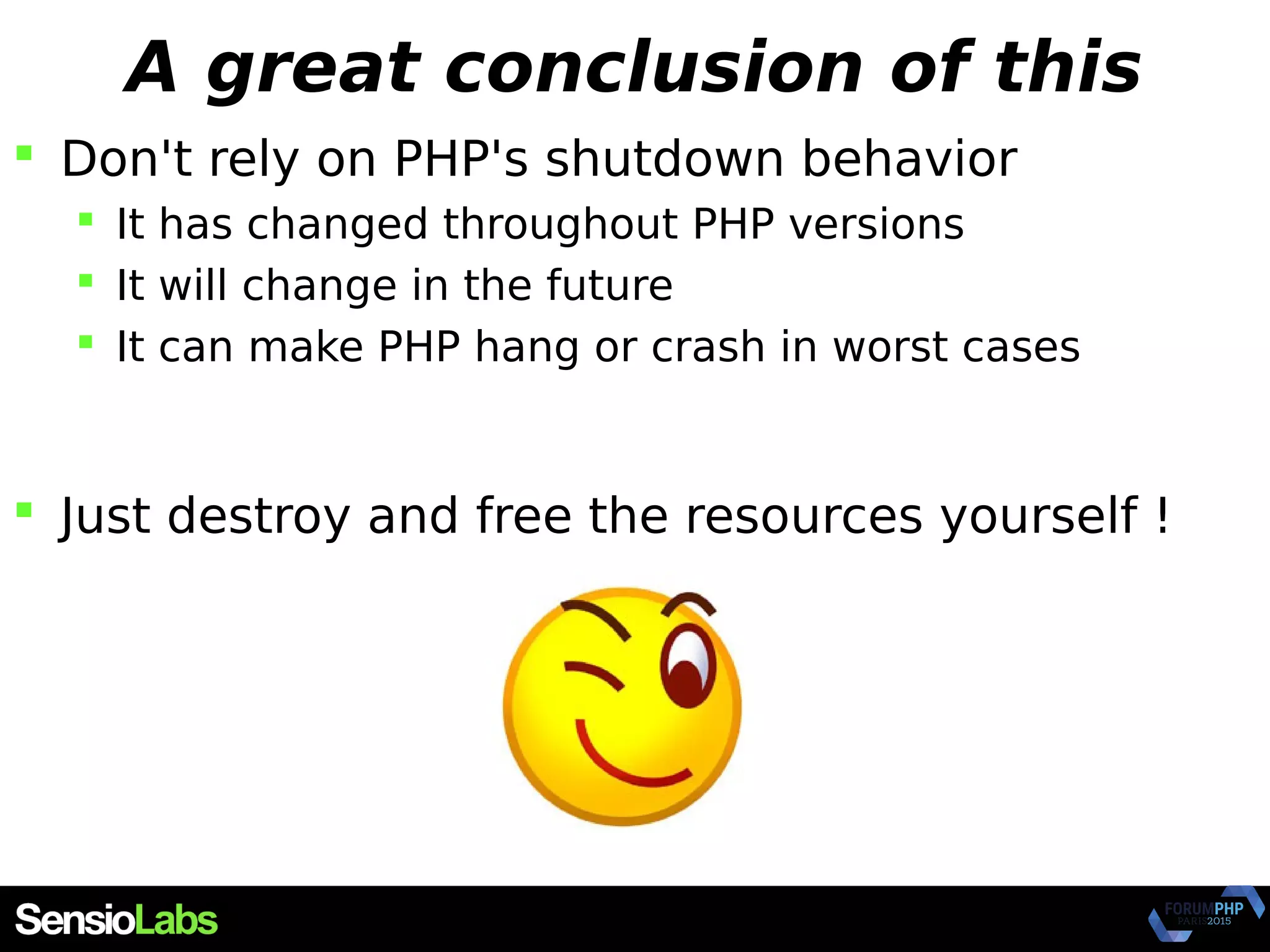

55. A great conclusion of this
 Don't rely on PHP's shutdown behavior
 It has changed throughout PHP versions
 It will change in the future
 It can make PHP hang or crash in worst cases
 Just destroy and free the resources yourself !

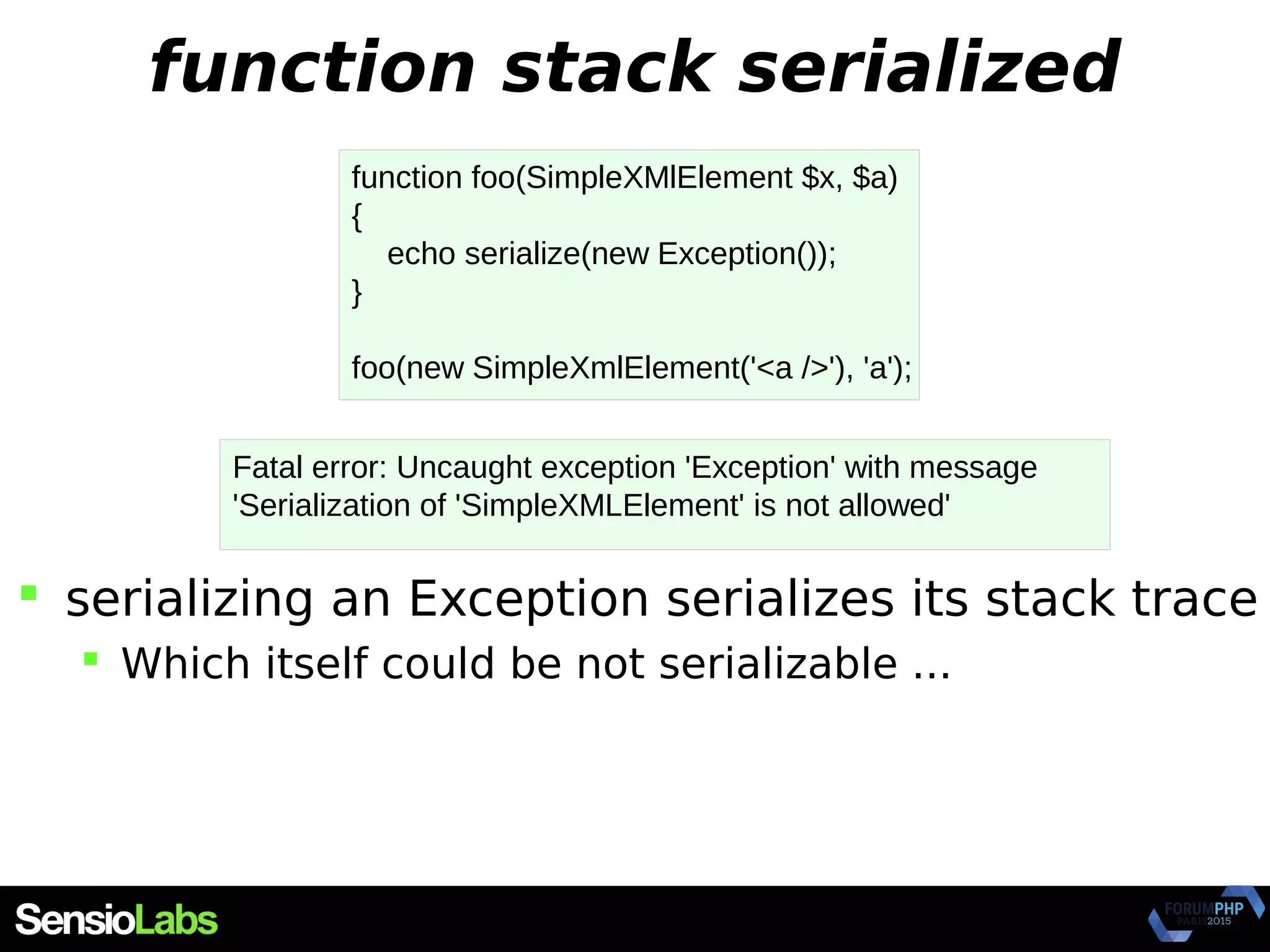

56. function stack serialized
 serializing an Exception serializes its stack trace
 Which itself could be not serializable ...
function foo(SimpleXMlElement $x, $a)
{
echo serialize(new Exception());
}
foo(new SimpleXmlElement('<a />'), 'a');
Fatal error: Uncaught exception 'Exception' with message
'Serialization of 'SimpleXMLElement' is not allowed'

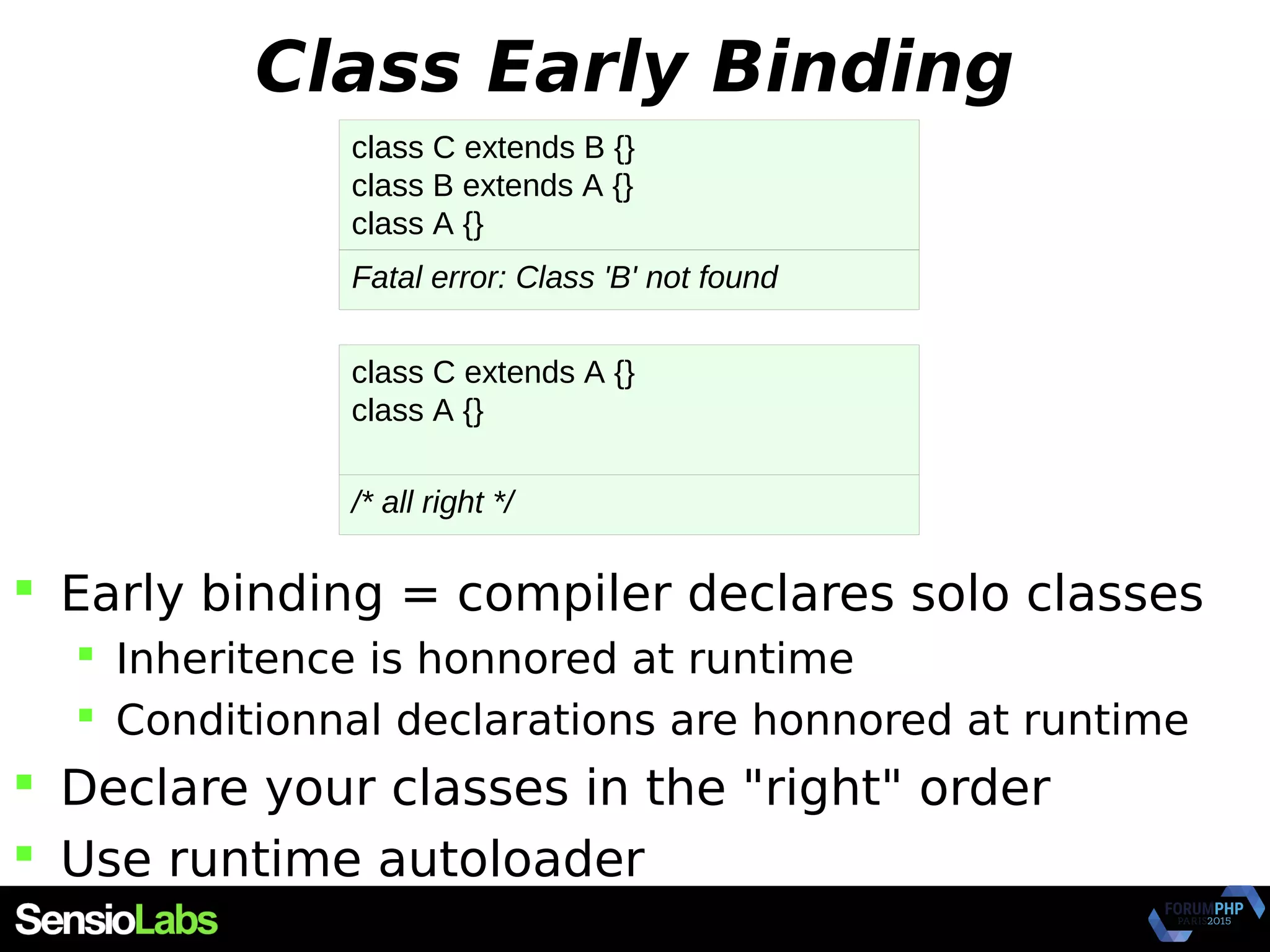

57. Class Early Binding
 Early binding = compiler declares solo classes
 Inheritence is honnored at runtime
 Conditionnal declarations are honnored at runtime
 Declare your classes in the "right" order
 Use runtime autoloader
class C extends B {}
class B extends A {}
class A {}
Fatal error: Class 'B' not found
class C extends A {}
class A {}
/* all right */

58. Thank you for listening
