1. Deploying Cinder in Production
Avishay Traeger, PhD
Shimshon Zimmerman

2. Copyright 2015

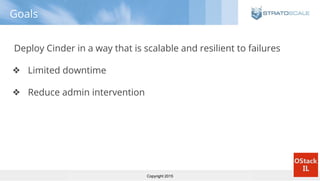

Goals
Deploy Cinder in a way that is scalable and resilient to failures
❖ Limited downtime
❖ Reduce admin intervention

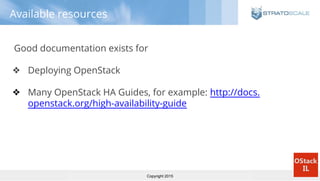

3. Copyright 2015
Available resources
Good documentation exists for
❖ Deploying OpenStack
❖ Many OpenStack HA Guides, for example: http://docs.
openstack.org/high-availability-guide

4. Copyright 2015
What we’ll cover today
❖ What is Cinder?
❖ How is it designed?
❖ What issues in Cinder impact deploying with HA?
❖ How can I best deploy Cinder today?
❖ HA Cinder - live demo
❖ Cinder and Neutron spun off of Nova
➢ Similar architectures
➢ Some lessons from Cinder may be generalized

5. Copyright 2015

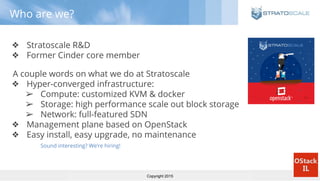

Who are we?
❖ Stratoscale R&D
❖ Former Cinder core member
A couple words on what we do at Stratoscale
❖ Hyper-converged infrastructure:
➢ Compute: customized KVM & docker
➢ Storage: high performance scale out block storage
➢ Network: full-featured SDN
❖ Management plane based on OpenStack
❖ Easy install, easy upgrade, no maintenance
Sound interesting? We’re hiring!

6. Copyright 2015
What is Cinder?
❖ Abstraction that enables uniform management of block storage
➢ Exposes northbound API (e.g., create, list, delete volumes
and snapshots)
➢ Storage “drivers” implement southbound API
❖ Enables connections between Nova and storage

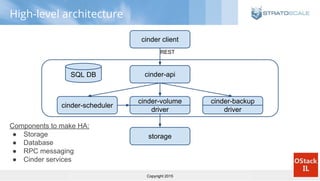

7. Copyright 2015
High-level architecture
cinder client
cinder-api
cinder-volume
driver
cinder-scheduler
cinder-backup
driver
storage
REST
SQL DB
Components to make HA:
● Storage
● Database
● RPC messaging
● Cinder services

8. Copyright 2015
HA storage
❖ Almost all storage supported by Cinder is HA
❖ These may not be - by default they use local disks (SPOF)
➢ LVM: Sets up an iSCSI target over LVM on device
➢ NFS: Sets up an NFS server on a file system
❖ Must make sure you have redundant network paths from
compute to the storage

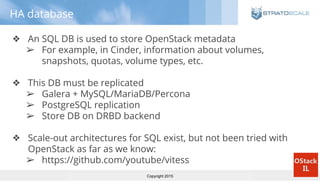

9. Copyright 2015
HA database
❖ An SQL DB is used to store OpenStack metadata
➢ For example, in Cinder, information about volumes,
snapshots, quotas, volume types, etc.
❖ This DB must be replicated
➢ Galera + MySQL/MariaDB/Percona
➢ PostgreSQL replication
➢ Store DB on DRBD backend
❖ Scale-out architectures for SQL exist, but not been tried with
OpenStack as far as we know:
➢ https://github.com/youtube/vitess

10. Copyright 2015

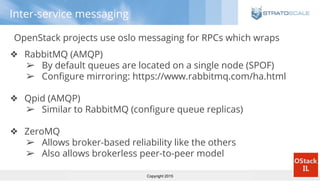

Inter-service messaging
OpenStack projects use oslo messaging for RPCs which wraps
❖ RabbitMQ (AMQP)
➢ By default queues are located on a single node (SPOF)
➢ Configure mirroring: https://www.rabbitmq.com/ha.html
❖ Qpid (AMQP)
➢ Similar to RabbitMQ (configure queue replicas)
❖ ZeroMQ
➢ Allows broker-based reliability like the others
➢ Also allows brokerless peer-to-peer model

11. Copyright 2015

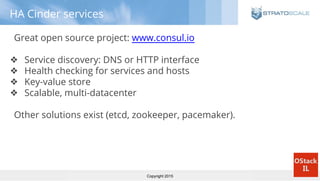

HA Cinder services
Great open source project: www.consul.io
❖ Service discovery: DNS or HTTP interface
❖ Health checking for services and hosts
❖ Key-value store
❖ Scalable, multi-datacenter
Other solutions exist (etcd, zookeeper, pacemaker).

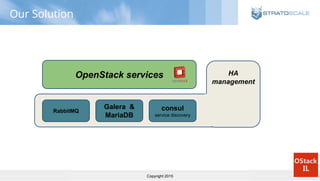

12. Copyright 2015
HA
management
Our Solution
OpenStack services
RabbitMQ
Galera &
MariaDB
consul
service discovery

13. Copyright 2015
Command flow example 1: create
cinder-api:
create DB
record
call cinder-
scheduler
(RPC)
scheduler
chooses
backend
call cinder-
volume
(RPC)
cinder-
volume
works
driver
creates
volume on
storage
DB update
→available

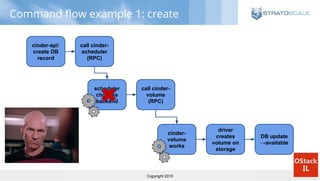

14. Copyright 2015
Command flow example 1: create
cinder-api:
create DB
record
call cinder-
scheduler
(RPC)
scheduler
chooses
backend
call cinder-
volume
(RPC)
cinder-
volume
works
driver
creates
volume on
storage
DB update
→available

15. Copyright 2015
Command flow example 1: create
cinder-api:
create DB
record
call cinder-
scheduler
(RPC)
scheduler
chooses
backend
call cinder-
volume
(RPC)
cinder-
volume
works
driver
creates
volume on
storage
DB update
→available

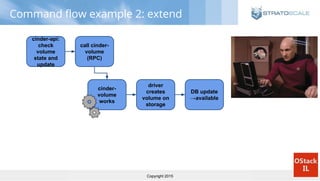

16. Copyright 2015
Command flow example 2: extend
cinder-api:
check
volume
state and
update
call cinder-
volume
(RPC)
cinder-
volume
works
driver
creates
volume on
storage
DB update
→available

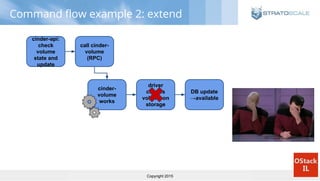

17. Copyright 2015
Command flow example 2: extend
cinder-api:
check
volume
state and
update
call cinder-
volume
(RPC)
cinder-
volume
works
driver
creates
volume on
storage
DB update
→available

18. Copyright 2015

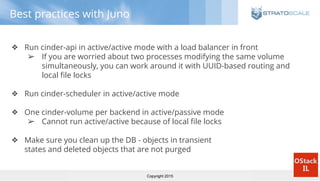

Best practices with Juno
❖ Run cinder-api in active/active mode with a load balancer in front
➢ If you are worried about two processes modifying the same volume
simultaneously, you can work around it with UUID-based routing and
local file locks
❖ Run cinder-scheduler in active/active mode
❖ One cinder-volume per backend in active/passive mode
➢ Cannot run active/active because of local file locks
❖ Make sure you clean up the DB - objects in transient
states and deleted objects that are not purged

19. Copyright 2015

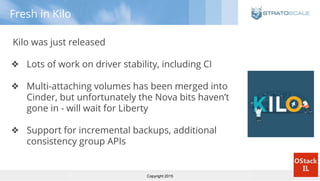

Fresh in Kilo
Kilo was just released
❖ Lots of work on driver stability, including CI
❖ Multi-attaching volumes has been merged into
Cinder, but unfortunately the Nova bits haven’t
gone in - will wait for Liberty
❖ Support for incremental backups, additional
consistency group APIs

20. Copyright 2015

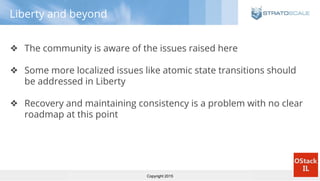

Liberty and beyond
❖ The community is aware of the issues raised here
❖ Some more localized issues like atomic state transitions should
be addressed in Liberty
❖ Recovery and maintaining consistency is a problem with no clear
roadmap at this point

21. Thank You
Avishay Traeger, PhD
Shimshon Zimmerman
