1. Statim
time series interface for Perl
Thiago Rondon
YAPC::Brasil 2011

2. “Science progresses
throught observation”
-- Isaac Newton

3. “The greatest value of a picture
is that is forces us to notice what
we never expected to see”
-- John Tukey

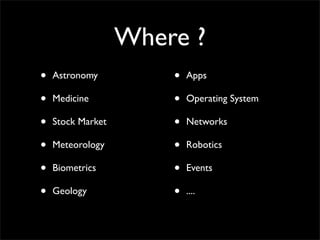

4. Where ?
• Astronomy • Apps
• Medicine • Operating System
• Stock Market • Networks
• Meteorology • Robotics
• Biometrics • Events
• Geology • ....

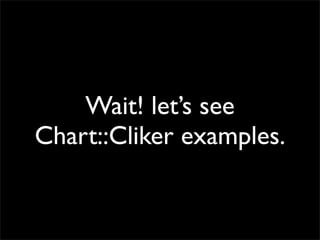

5. Wait! let’s see
Chart::Cliker examples.

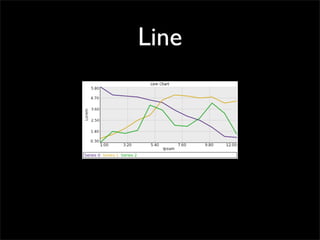

6. Line

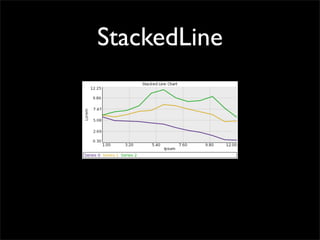

7. StackedLine

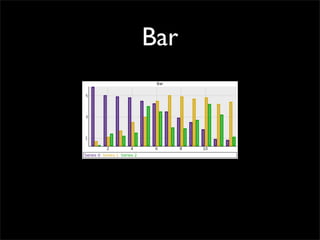

8. Bar

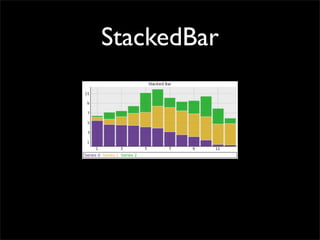

9. StackedBar

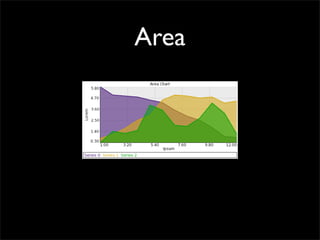

10. Area

11. StackedArea

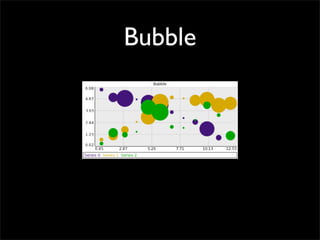

12. Bubble

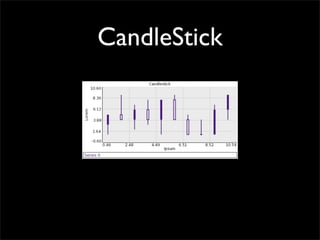

13. CandleStick

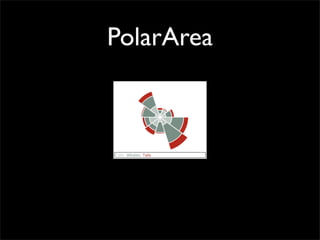

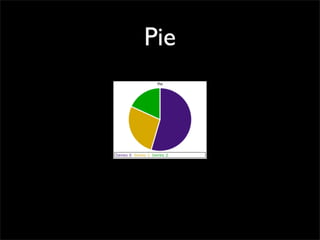

14. Pie

15. PolarArea

16. What ?
• time series is a sequence of data points,
measured typically at successive times
spaced at uniform time intervals.
• interface define a set of methods and
conventions that provides a consistent time
series interface.

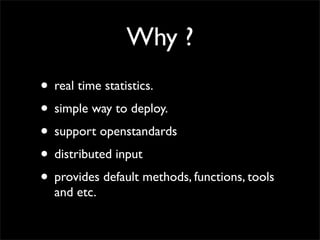

17. Why ?
• real time statistics.
• simple way to deploy.
• support openstandards
• distributed input
• provides default methods, functions, tools
and etc.

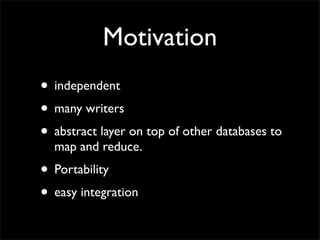

18. Motivation
• independent
• many writers
• abstract layer on top of other databases to
map and reduce.
• Portability
• easy integration

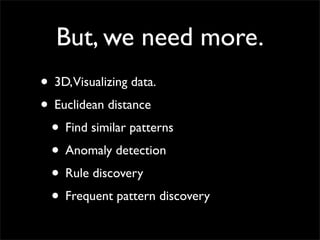

19. But, we need more.
• 3D,Visualizing data.
• Euclidean distance
• Find similar patterns
• Anomaly detection
• Rule discovery
• Frequent pattern discovery

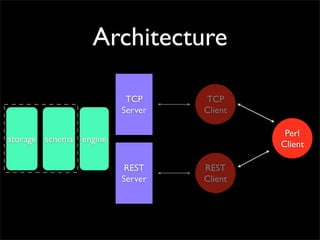

20. Architecture
TCP TCP
Server Client
Perl
storage schema engine
Client
REST REST
Server Client

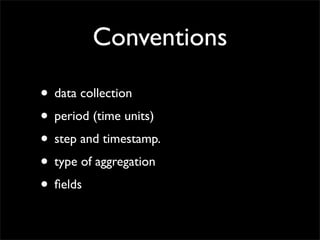

21. Conventions
• data collection
• period (time units)
• step and timestamp.
• type of aggregation
• fields

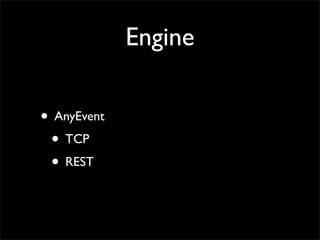

22. Engine
• AnyEvent
• TCP
• REST

23. Storage
• Key Interface
• Redis
• Memcached
• Table Interface
• DBI
• File
• RRD Interface
• RRD

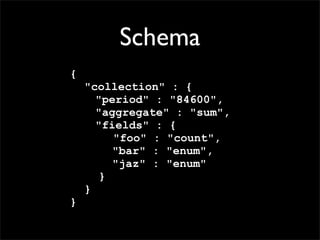

24. Schema
{
"collection" : {
"period" : "84600",
"aggregate" : "sum",
"fields" : {
"foo" : "count",
"bar" : "enum",
"jaz" : "enum"
}
}
}

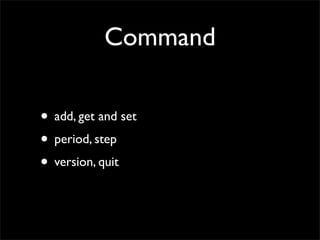

25. Command
• add, get and set
• period, step
• version, quit

26. Commands
• add collection foo:jaz bar:1
• OK 1
• add collection foo:jaz bar:1
• OK 2
• add collection foo:wow bar:10
• OK 10
• get collection foo:jaz bar
• OK 2
• get collection bar
• OK 12
• set collection foo:jaz bar:2
• OK 2

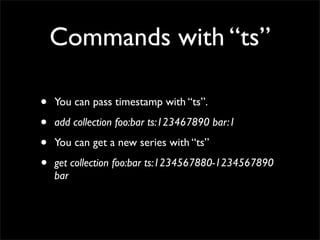

27. Commands with “ts”
• You can pass timestamp with “ts”.
• add collection foo:bar ts:123467890 bar:1
• You can get a new series with “ts”
• get collection foo:bar ts:1234567880-1234567890
bar

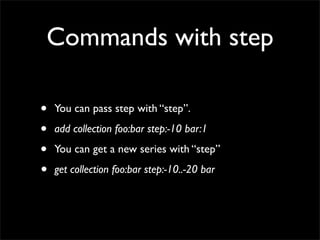

28. Commands with step
• You can pass step with “step”.
• add collection foo:bar step:-10 bar:1
• You can get a new series with “step”
• get collection foo:bar step:-10..-20 bar

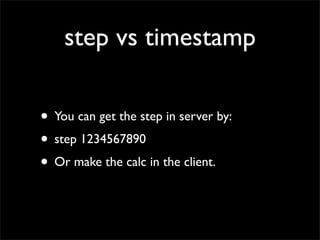

29. step vs timestamp
• You can get the step in server by:
• step 1234567890
• Or make the calc in the client.

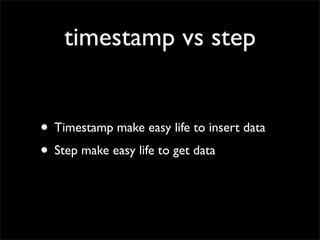

30. timestamp vs step
• Timestamp make easy life to insert data
• Step make easy life to get data

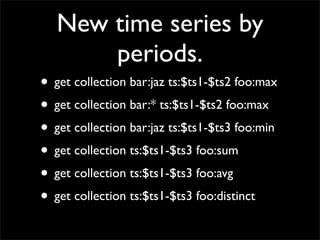

31. New time series by
periods.
• get collection bar:jaz ts:$ts1-$ts2 foo:max
• get collection bar:* ts:$ts1-$ts2 foo:max
• get collection bar:jaz ts:$ts1-$ts3 foo:min
• get collection ts:$ts1-$ts3 foo:sum
• get collection ts:$ts1-$ts3 foo:avg
• get collection ts:$ts1-$ts3 foo:distinct

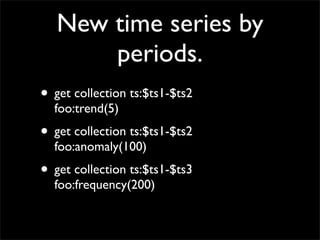

32. New time series by
periods.
• get collection ts:$ts1-$ts2
foo:trend(5)
• get collection ts:$ts1-$ts2
foo:anomaly(100)
• get collection ts:$ts1-$ts3
foo:frequency(200)

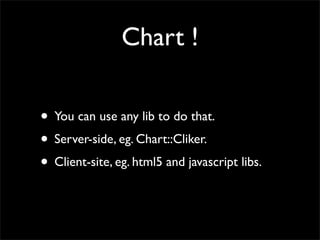

33. Chart !
• You can use any lib to do that.
• Server-side, eg. Chart::Cliker.
• Client-site, eg. html5 and javascript libs.

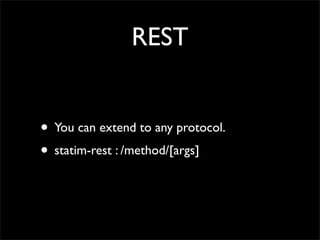

34. REST
• You can extend to any protocol.
• statim-rest : /method/[args]

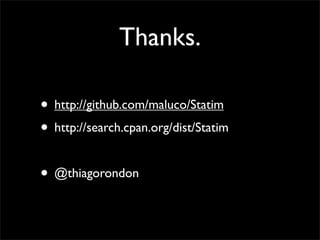

35. Thanks.
• http://github.com/maluco/Statim
• http://search.cpan.org/dist/Statim
• @thiagorondon
