This document outlines procedures for analyzing malicious PDFs, Office documents, and executables through static malware analysis. It describes using tools like Olevba.py to analyze Office documents for malicious macros, Pyew.py to disassemble files, strings to extract text, and UPX to unpack executables. It provides an example analysis of a malicious PDF containing obfuscated JavaScript, Office documents containing VBScript to open notepad.exe, and a keylogging executable packed with UPX and encoded with XOR. Indicators of compromise like domain names and files are extracted to provide to further analysis.

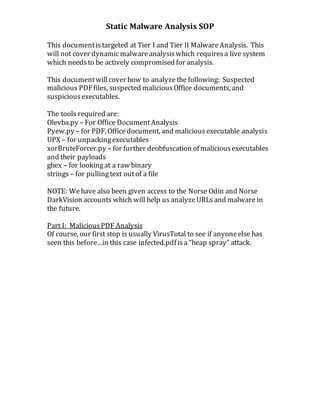

1. Static Malware Analysis SOP
This documentistargeted at Tier I and Tier II MalwareAnalysis. This
will not cover dynamicmalwareanalysiswhich requiresa live system
which needsto be actively compromised for analysis.
This documentwillcover how to analyzethe following: Suspected
malicious PDFfiles, suspected maliciousOffice documents, and
suspiciousexecutables.
The tools required are:
Olevba.py – For Office DocumentAnalysis
Pyew.py – for PDF, Officedocument, and maliciousexecutable analysis
UPX – for unpackingexecutables
xorBruteForcer.py – for further deobfuscation of maliciousexecutables
and their payloads
ghex – for lookingat a raw binary
strings – for pullingtext outof a file
NOTE: Wehave also been given access to the Norse Odin and Norse
DarkVision accounts which will help us analyzeURLsand malware in
the future.
Part I: MaliciousPDF Analysis
Of course, our first stop is usually VirusTotal to see if anyoneelse has
seen this before…in this case infected.pdf isa “heap spray” attack.

2. Figure1 - VirusTotal positivehits for infected.pdf
Wetry openingthe infected.pdf withpyew, and wesee already there is
some Javascriptin there
USAGE: pyew.py infected.pdf

3. Figure2 - pyew.py shows someJavascript insidethe pdf
Runningthe command “pdfview” from insideof pyew lets usactually
read the JavaScript….in this case it is suspiciousand appear to be hiding
some sort of shellcode…since wesee that VirusTotal has a hit on it and
also there is some Javascriptembedded in the PDF, we can declare this
malware. The Tier III personnelwillhave the tools and expertise to de-
obfuscate this JavaScript and figureout what it is doing.

4. Figure3 - pdfview shows us the Javascript embedded inside.
So here wesee someobfuscated JavaScriptwhich is difficultto decode
unlessyou are very familiar with JavaScript, and we see a very strangely
named function and avariable named “large_hahacode”.
Part II: Malicious Office Documents
Analysisof these is pretty simple, but what is visible in regular .xls
documentsis notvisible in the new .xlsm formatfor Office which is
based on .xml.
Wewill look at 2 Excel sheets with the same basic exploit inside, but one
is an .xls documentand the other is a .xlsm document. The basic exploit
here is a VBScript macro that opensnotepad.exeand pings127.0.0.1.
Running“strings” against the malware.xlsfile gives uspretty obvious
results as we see the referenceclearly to notepad.exeand 127.0.0.1

5. Figure4 - strings against a .xls file
Butrunningstringsagainst the malware.xlsm file does not.
Figure5 - strings against the new OfficeXML-based format
A morereliable tool is olevba.py. Itsvery easy to use and quickly
extracts VBA Macros. As you can see below, it indicates what the macro
is, and even gives you a list of IOCs you can use to detect how
widespread this is on your network

6. Figure6 - olevba output against a .xls Officedocument
Here we can see the same items that “strings” found for usin the
original .xls.

7. Figure 7 - olevba.py against an xlsm document
Here we can see the referencesto vbaProject.bin which seems to be
what is hidingthe pertinentinformation from “strings” in .xlsm
documents.
From the olevba.py report, we can determine that there are some bad VBA Macros
in these documents and can pass along for Tier III Malware Analysis with our
findings.
Part III: Malicious Executable Analysis
This is by far the most difficult and time consuming. Obfuscation and evasion
techniques such as packing and XOR’ing of contents makes these difficult to find out
what is going on or to generate a list of IOCs (Indicators of compromise).
We will be using a piece of malware known as “Frethog”, a keylogger and password
stealing program.
When we open it with “pyew.py”, we don’t see much, and when we run the pyew
command “packer”, we can see why. Its packed using the UPX algorithm in an
attempt to evade analysis.

8. Figure8 - pyew "packer" analysis of an .exe file
Running “strings” against a packed file gives us very little, so we have to unpack this
file.
Figure9 - strings runagainst a UPX packed file
To “unpack” the file we use the UPX program
USAGE: upx –d –k fethog.000 (-d -= decompress –k = “keep a copy”) which will give
us an unpacked file named “fethog.000” to analyze and the original is renamed
fethog.00~

9. Figure10 - using UPX tp unpack a malicious executable
Now we can look at it with pyew again and check the packing…now we see it is
seeing it as a VisualBasic file
Figure11 - pyew analysis of the unpacked malware
And we can see “strings” gives us better results now

10. Figure12 - strings analysis against the unpacked file
BONUS ROUND
However, this file is also using XOR to hide its payload, so we are going to use
xorBruteForcer.py to try every possible key against its contents to see if anything
works….once you see some entries with cleartext, then you know you have found
the right key…in this case, the key was 0x20. So we use xorBruteforcer.py again
with the key specified, and we get some more valuable information.
USAGE: xorBruteForcer.py fethog.000 - this will try all key combinations and we
will look at this output to determine what the key was by looking at cleartext.
USAGE: xorBruteForcer.py –k 20 fethog.000 -k indicates the key we want to use

11. Figure13 - output of xorBruteForcer against the unpacked malware
Now we see references to www.yswm.net, www.ahwm.net, and couple other URLs,
but now we have some additional IOC’s (Indicators of Compromise) that we can
check to see if any other computers on our network have been trying to get to these
sites. …they are reaching out trying to pull down file.txt.
Further analysis of this de-XOR’d file will yield even more IOC’s that we can proved
to SOC Analysts to investigate.
