The document discusses slowly changing dimensions and the different types of changes that can occur in dimension attributes during an extract, transform, load (ETL) process. It describes fixed attributes, which should not change value; changing attributes, which overwrite existing records; and historical attributes, which create new records instead of updating existing ones. Historical changes are directed to two outputs to insert new records and flag the previous record as expired. The slowly changing dimension transformation supports these different change types and directs rows to the appropriate outputs.

1. Implementing an Incremental ETL Process
Ram Kedem

2. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

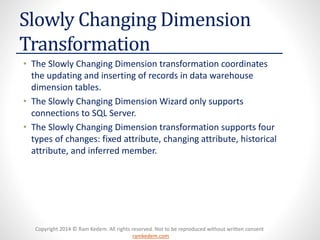

Slowly Changing Dimension Transformation
•The Slowly Changing Dimension transformation coordinates the updating and inserting of records in data warehouse dimension tables.
•The Slowly Changing Dimension Wizard only supports connections to SQL Server.
•The Slowly Changing Dimension transformation supports four types of changes: fixed attribute, changing attribute, historical attribute, and inferred member.

3. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

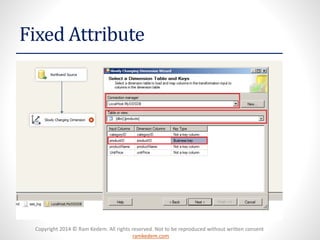

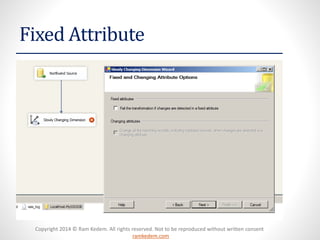

Fixed Attribute
•Fixed attribute changes indicate the column value must not change. The Slowly Changing Dimension transformation detects changes and can direct the rows with changes to an output named Fixed Attribute Output.

4. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

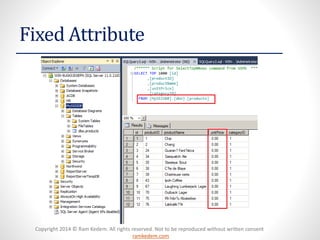

Fixed Attribute

5. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

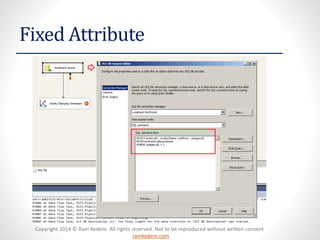

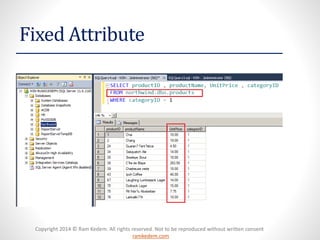

Fixed Attribute

6. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Fixed Attribute

7. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Fixed Attribute

8. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Fixed Attribute

9. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Fixed Attribute

10. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

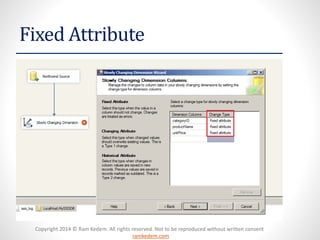

Fixed Attribute

11. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Fixed Attribute

12. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

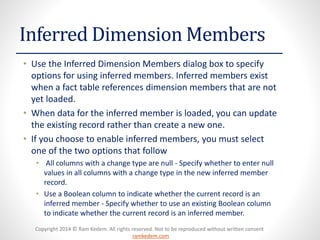

Inferred Dimension Members
•Use the Inferred Dimension Members dialog box to specify options for using inferred members. Inferred members exist when a fact table references dimension members that are not yet loaded.
•When data for the inferred member is loaded, you can update the existing record rather than create a new one.
•If you choose to enable inferred members, you must select one of the two options that follow
•All columns with a change type are null -Specify whether to enter null values in all columns with a change type in the new inferred member record.
•Use a Boolean column to indicate whether the current record is an inferred member -Specify whether to use an existing Boolean column to indicate whether the current record is an inferred member.

13. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Fixed Attribute

14. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Fixed Attribute

15. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Fixed Attribute

16. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

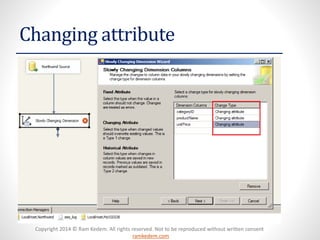

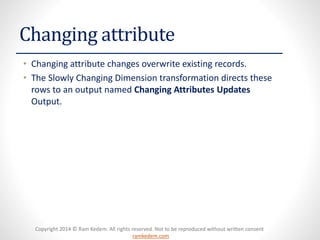

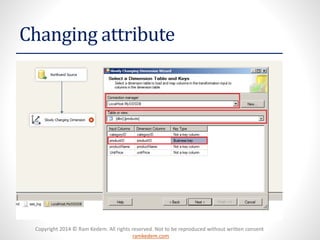

Changing attribute
•Changing attribute changes overwrite existing records.
•The Slowly Changing Dimension transformation directs these rows to an output named Changing Attributes Updates Output.

17. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Changing attribute

18. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

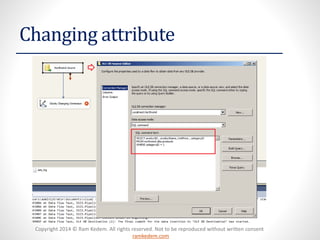

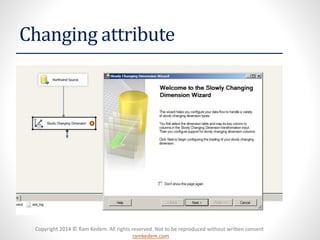

Changing attribute

19. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Changing attribute

20. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Changing attribute

21. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Changing attribute

22. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Changing attribute

23. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

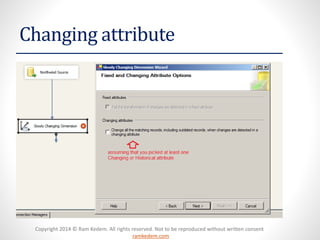

Changing attribute

24. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

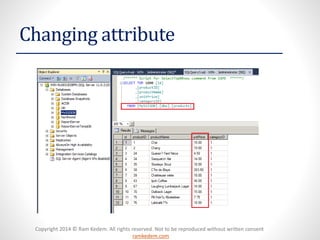

Changing attribute

25. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Changing attribute

26. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Historical Attribute
•Historical attribute changes create new records instead of updating existing ones. The only change that is permitted in an existing record is an update to a column that indicates whether the record is current or expired.
•The Slowly Changing Dimension transformation directs these rows to two outputs: Historical Attribute Inserts Output and New Output

27. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

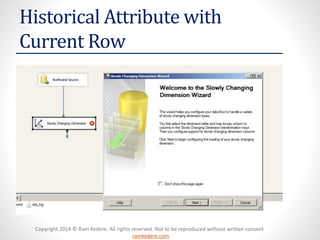

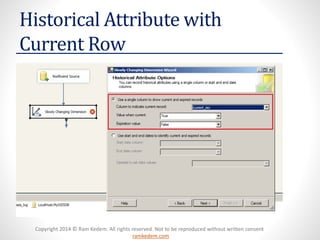

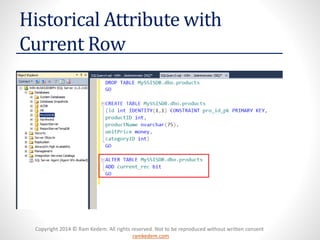

Historical Attribute with Current Row

28. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Historical Attribute with Current Row

29. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

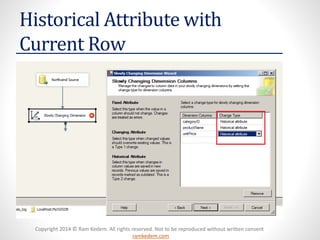

Historical Attribute with Current Row

30. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Historical Attribute with Current Row

31. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

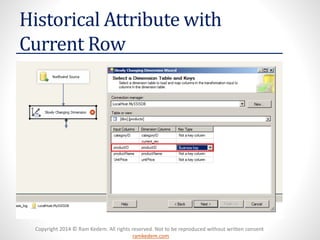

Historical Attribute with Current Row

32. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

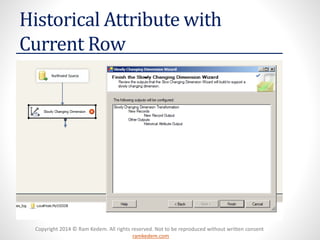

Historical Attribute with Current Row

33. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

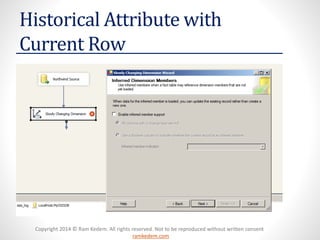

Historical Attribute with Current Row

34. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Historical Attribute with Current Row

35. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

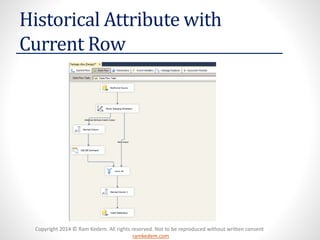

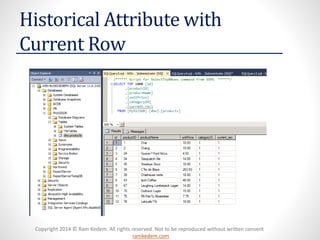

Historical Attribute with Current Row

36. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

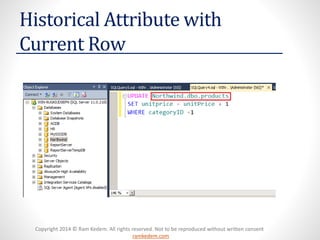

Historical Attribute with Current Row

37. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

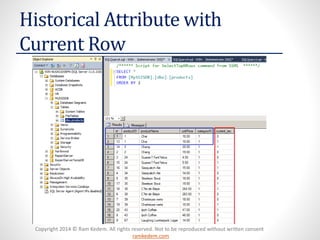

Historical Attribute with Current Row

38. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

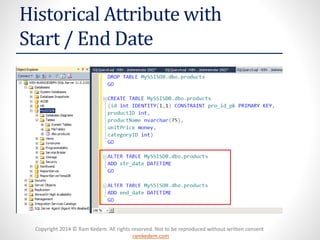

Historical Attribute with Current Row

39. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

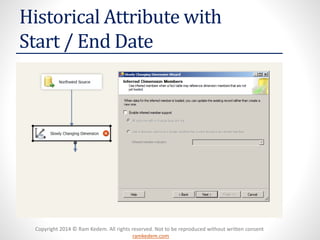

Historical Attribute with Start / End Date

40. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Historical Attribute with Start / End Date

41. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Historical Attribute with Start / End Date

42. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

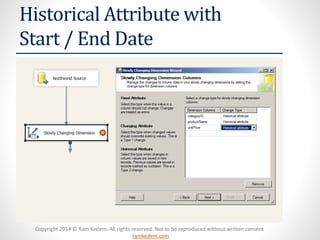

Historical Attribute with Start / End Date

43. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Historical Attribute with Start / End Date

44. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Historical Attribute with Start / End Date

45. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

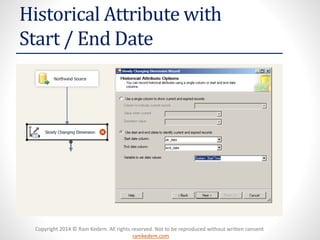

Historical Attribute with Start / End Date

46. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Historical Attribute with Start / End Date

47. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

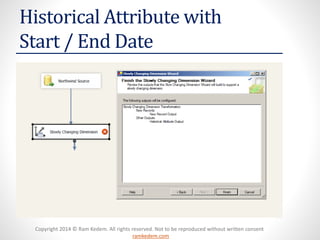

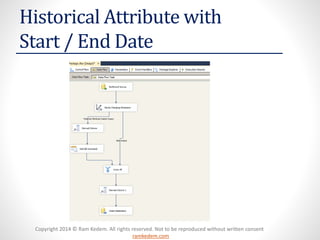

Historical Attribute with Start / End Date

48. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Historical Attribute with Start / End Date

49. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com

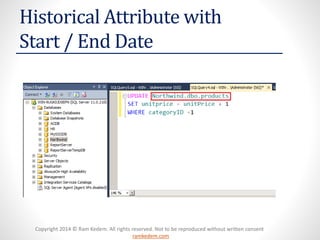

Historical Attribute with Start / End Date

50. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent
ramkedem.com
Historical Attribute with Start / End Date
