1. Data Mining
In SSAS
Ram Kedem

2. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

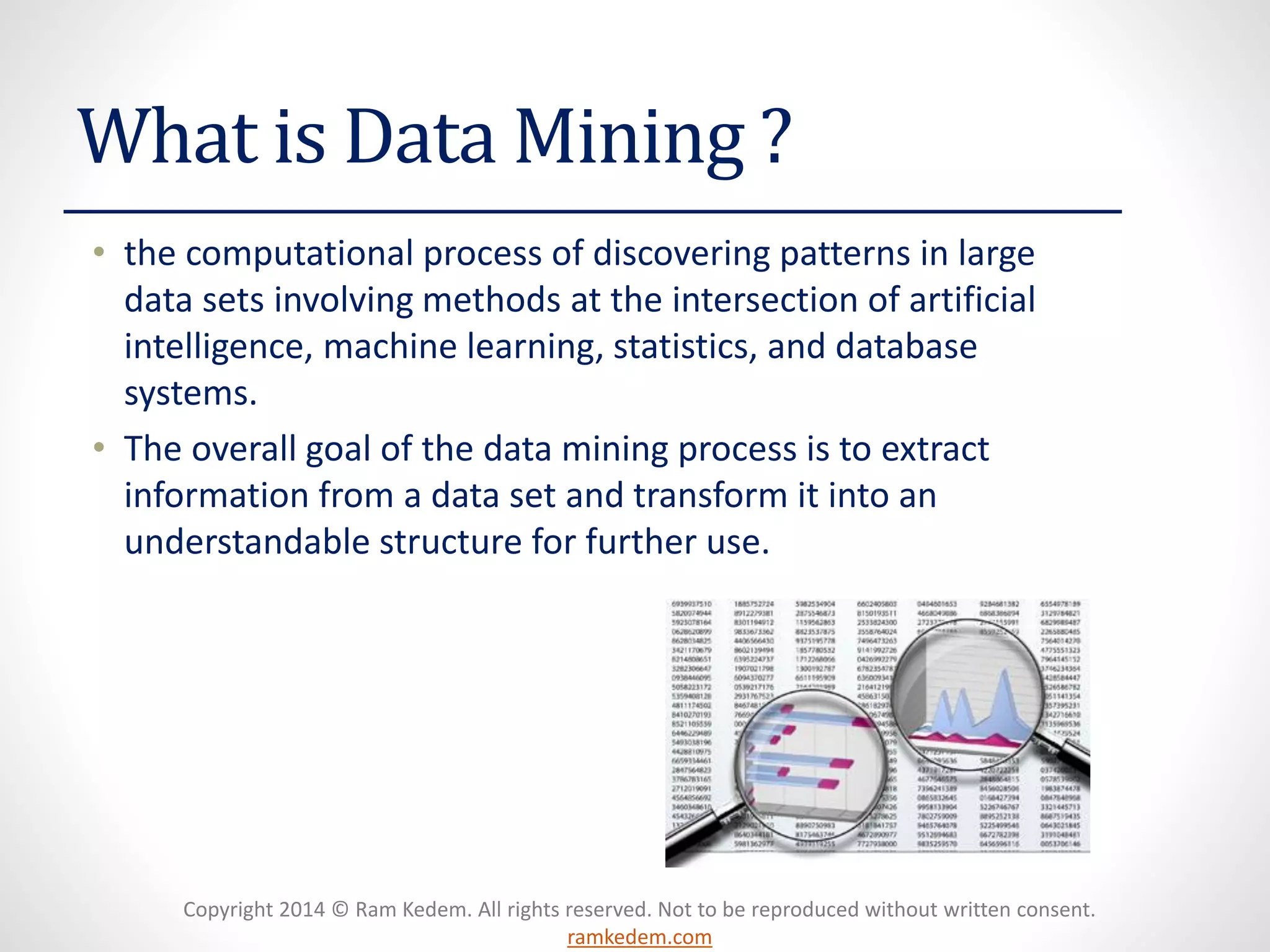

What is Data Mining ?
• the computational process of discovering patterns in large
data sets involving methods at the intersection of artificial
intelligence, machine learning, statistics, and database
systems.
• The overall goal of the data mining process is to extract
information from a data set and transform it into an
understandable structure for further use.

3. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

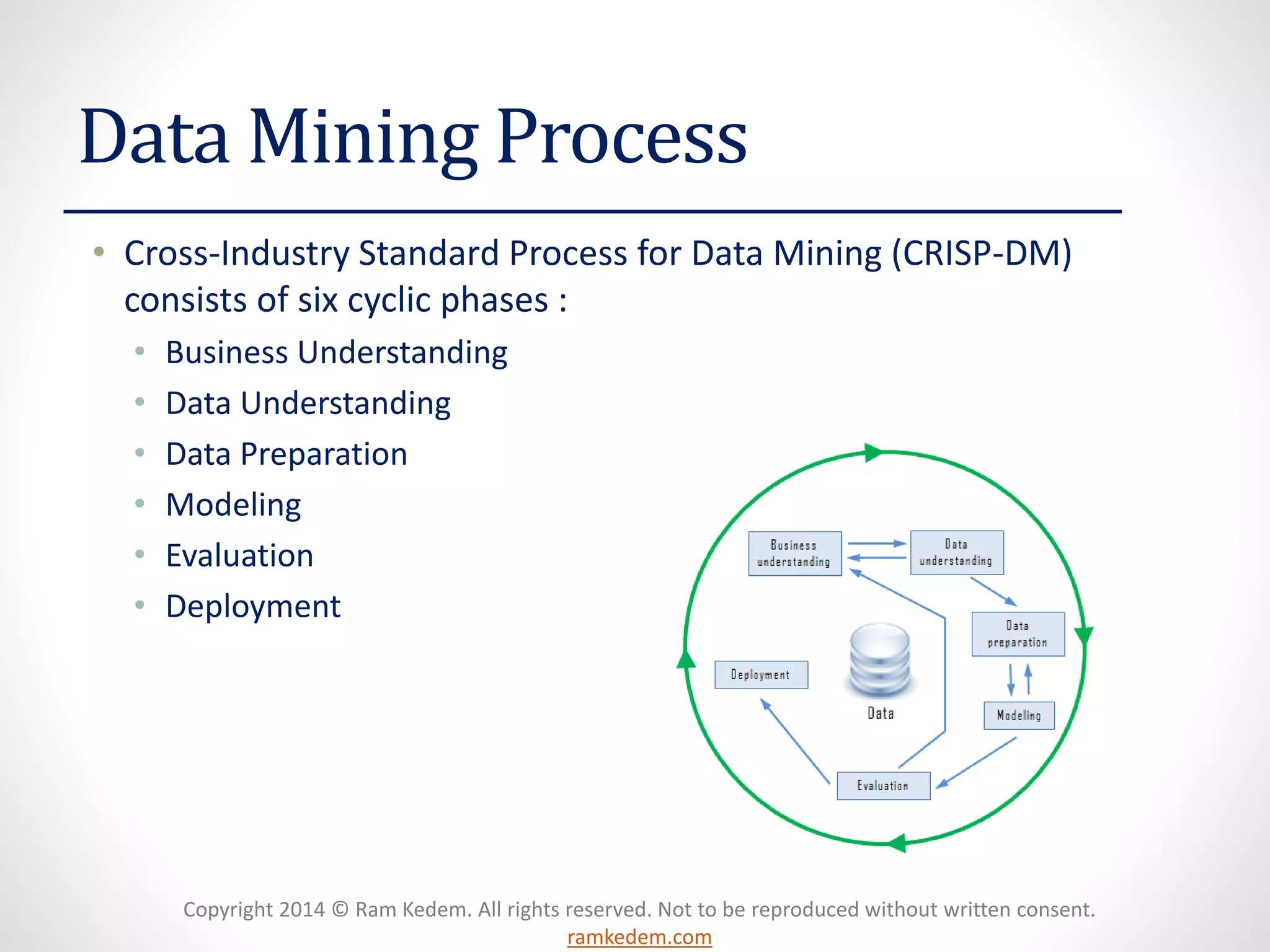

Data Mining Process
• Cross-Industry Standard Process for Data Mining (CRISP-DM)
consists of six cyclic phases :
• Business Understanding
• Data Understanding
• Data Preparation
• Modeling
• Evaluation
• Deployment

4. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

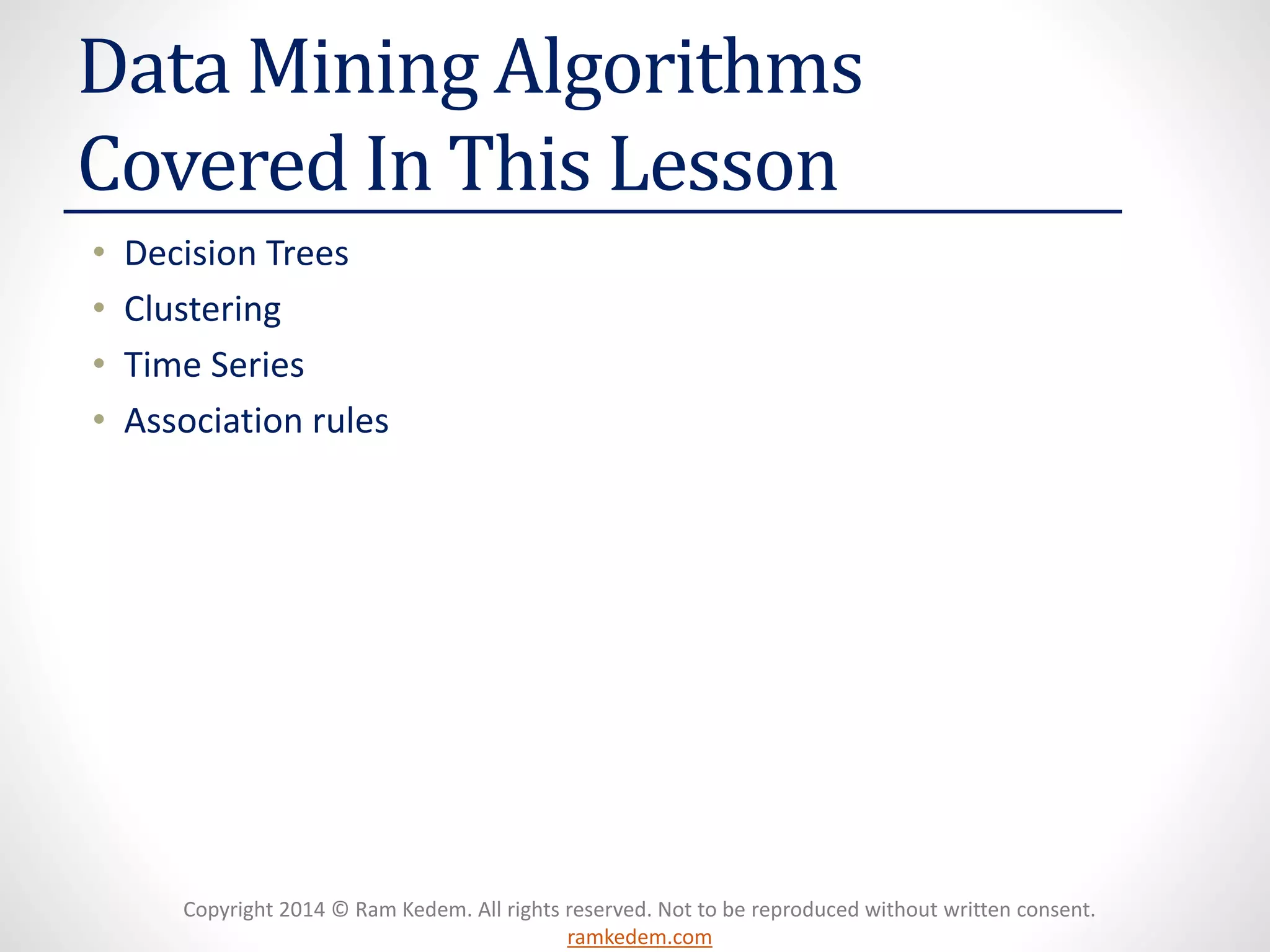

Data Mining Algorithms
Covered In This Lesson
• Decision Trees
• Clustering
• Time Series
• Association rules

5. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

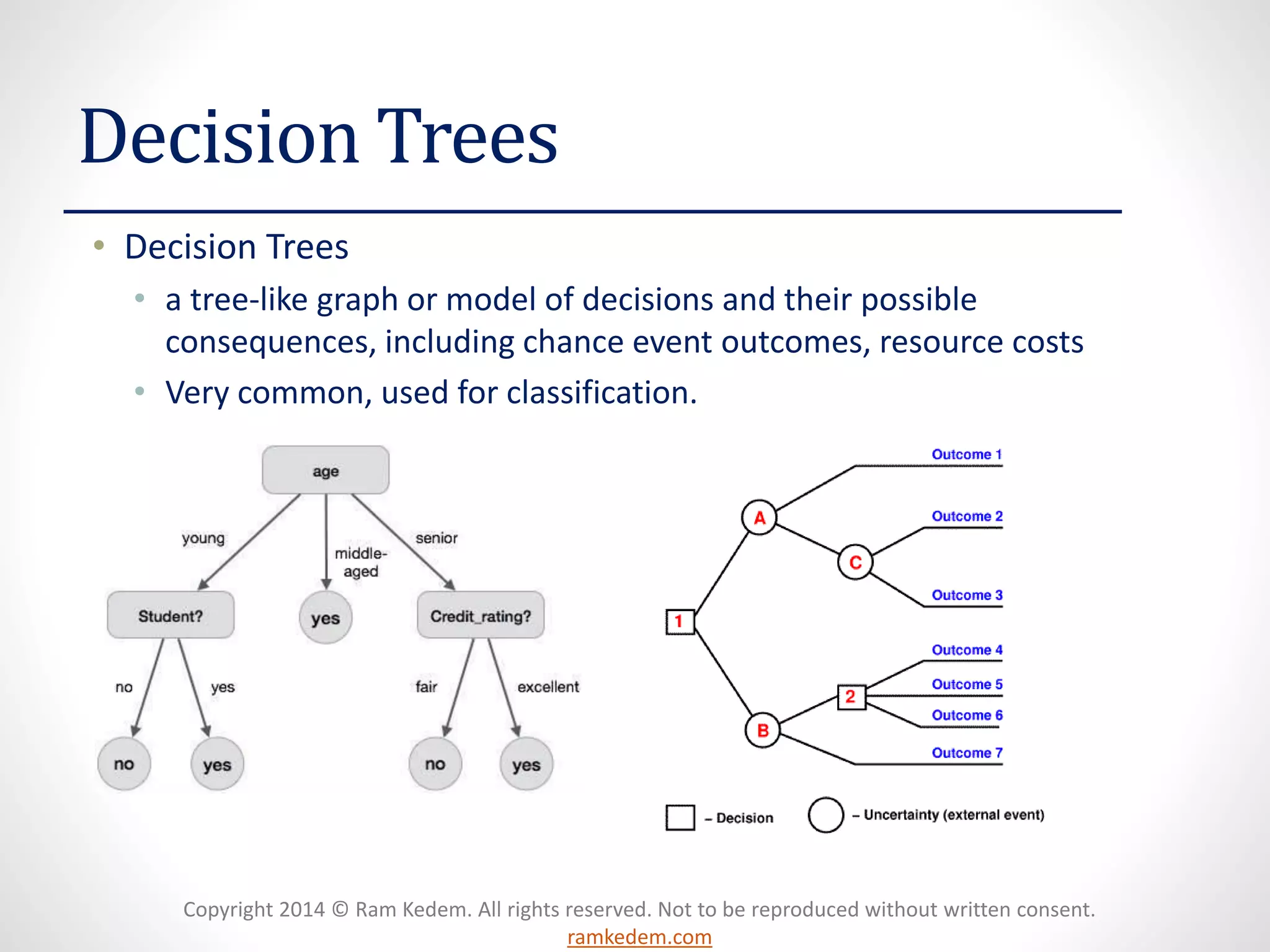

Decision Trees
• Decision Trees
• a tree-like graph or model of decisions and their possible
consequences, including chance event outcomes, resource costs
• Very common, used for classification.

6. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

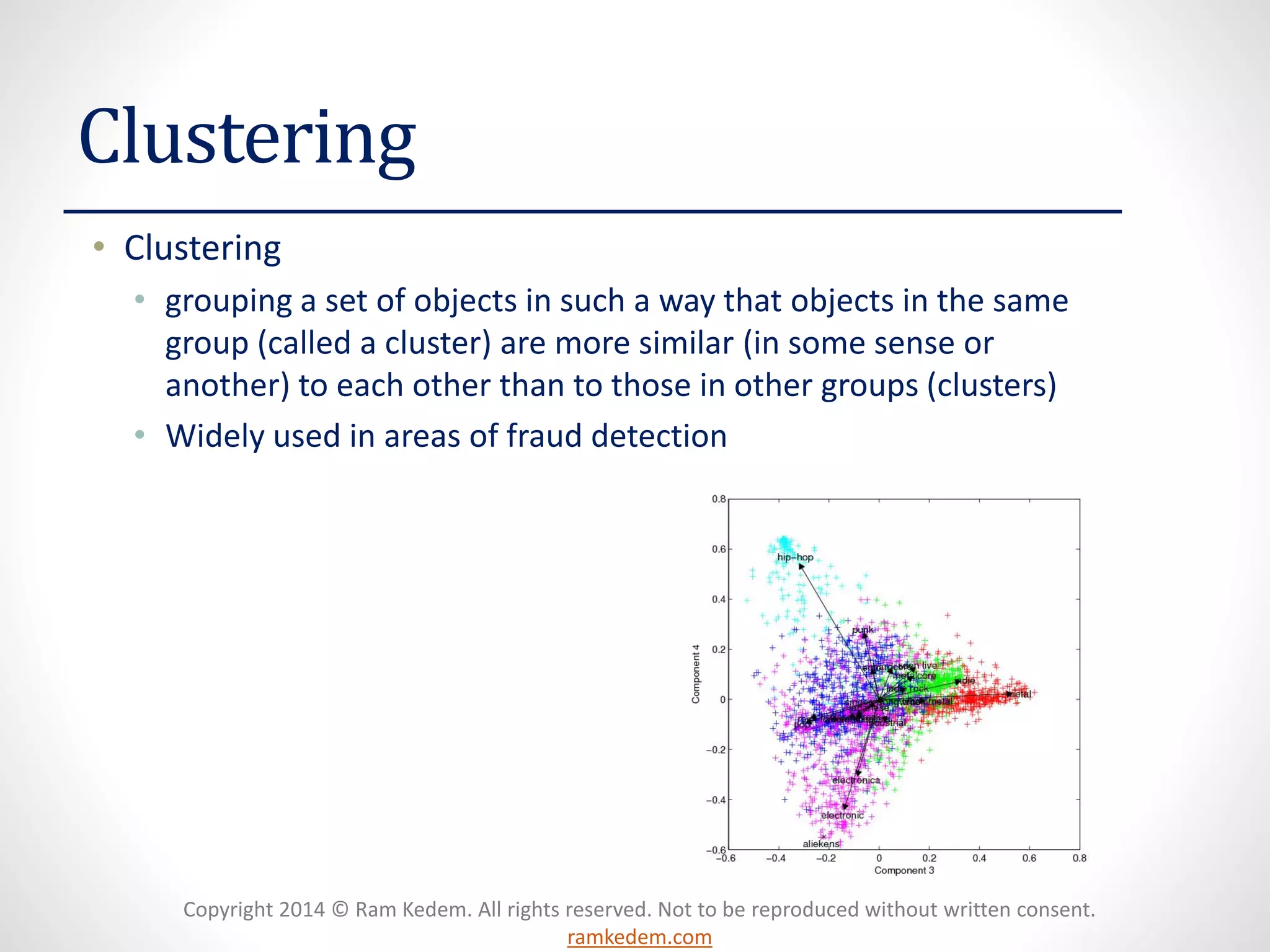

Clustering
• Clustering
• grouping a set of objects in such a way that objects in the same
group (called a cluster) are more similar (in some sense or
another) to each other than to those in other groups (clusters)
• Widely used in areas of fraud detection

7. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

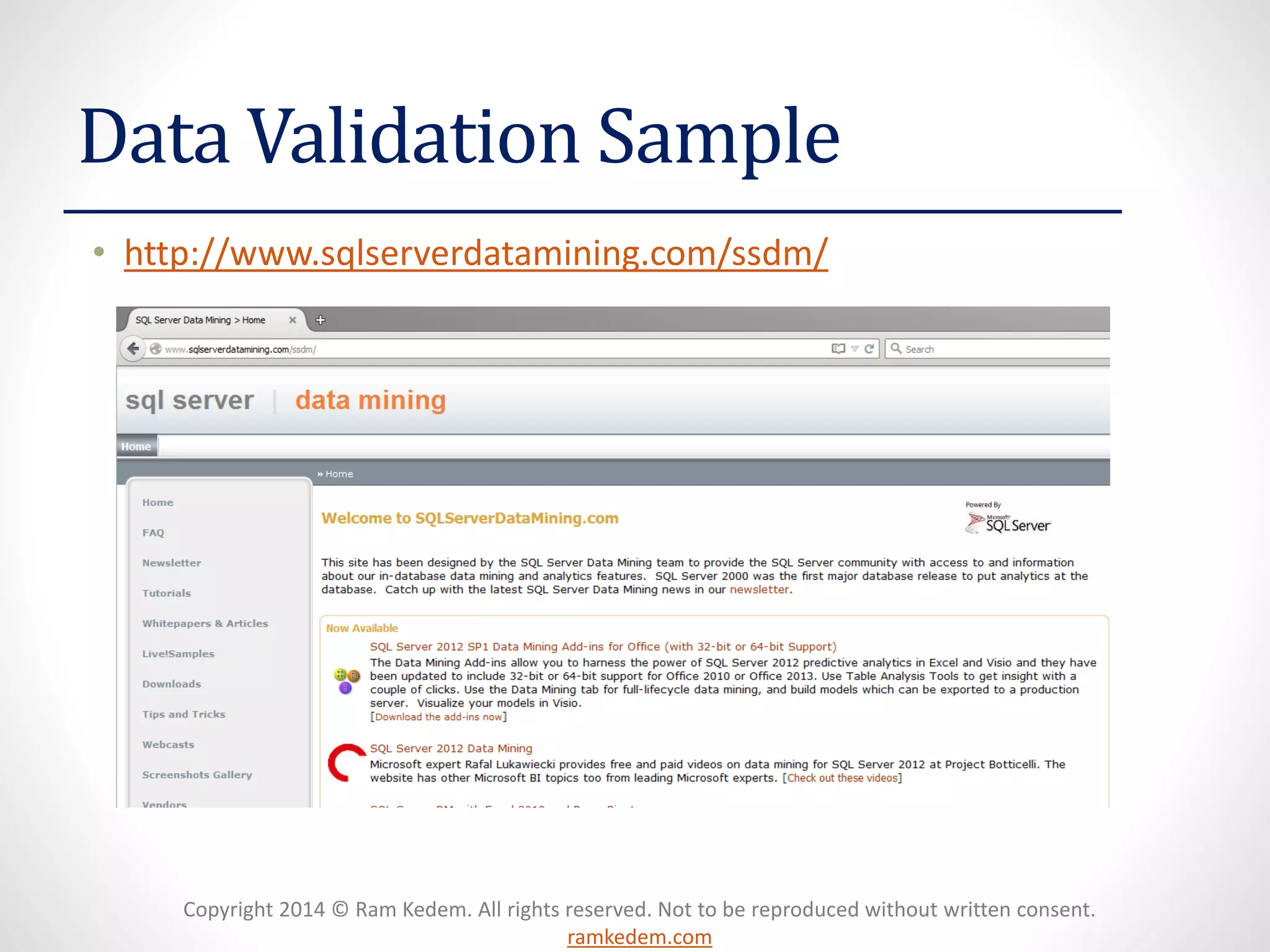

Data Validation Sample
• http://www.sqlserverdatamining.com/ssdm/

8. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

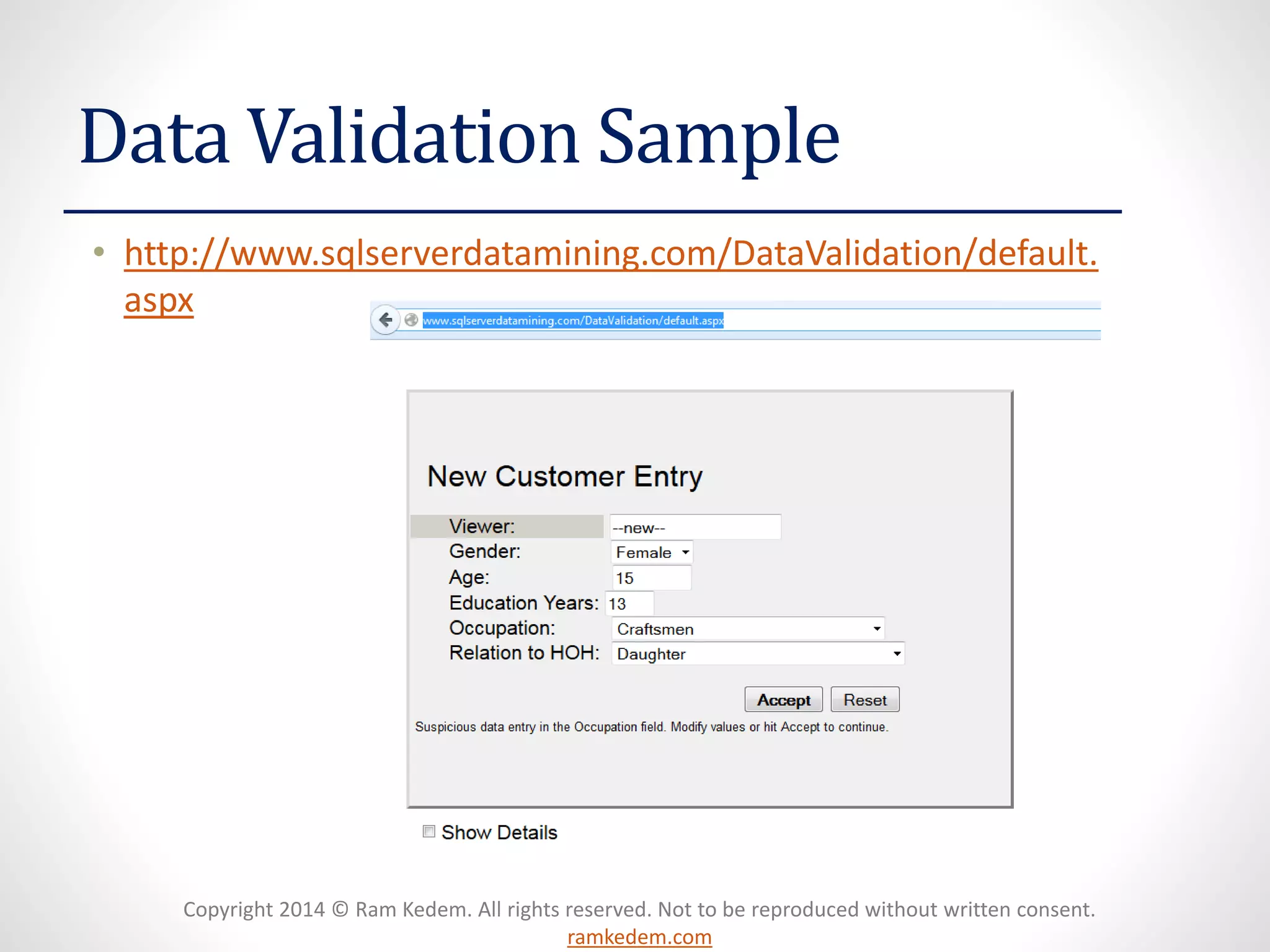

Data Validation Sample
• http://www.sqlserverdatamining.com/DataValidation/default.
aspx

9. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

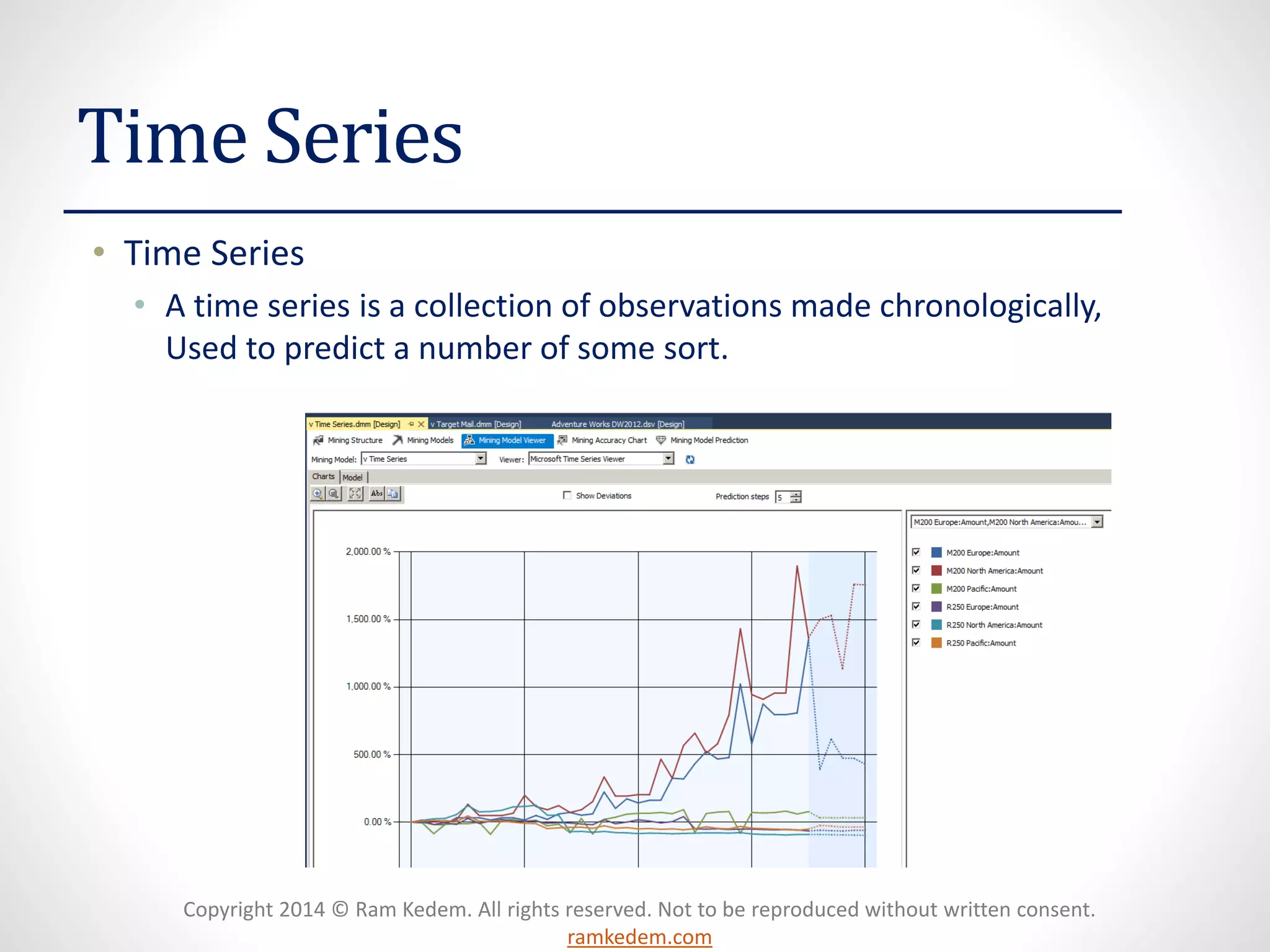

Time Series
• Time Series
• A time series is a collection of observations made chronologically,
Used to predict a number of some sort.

10. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

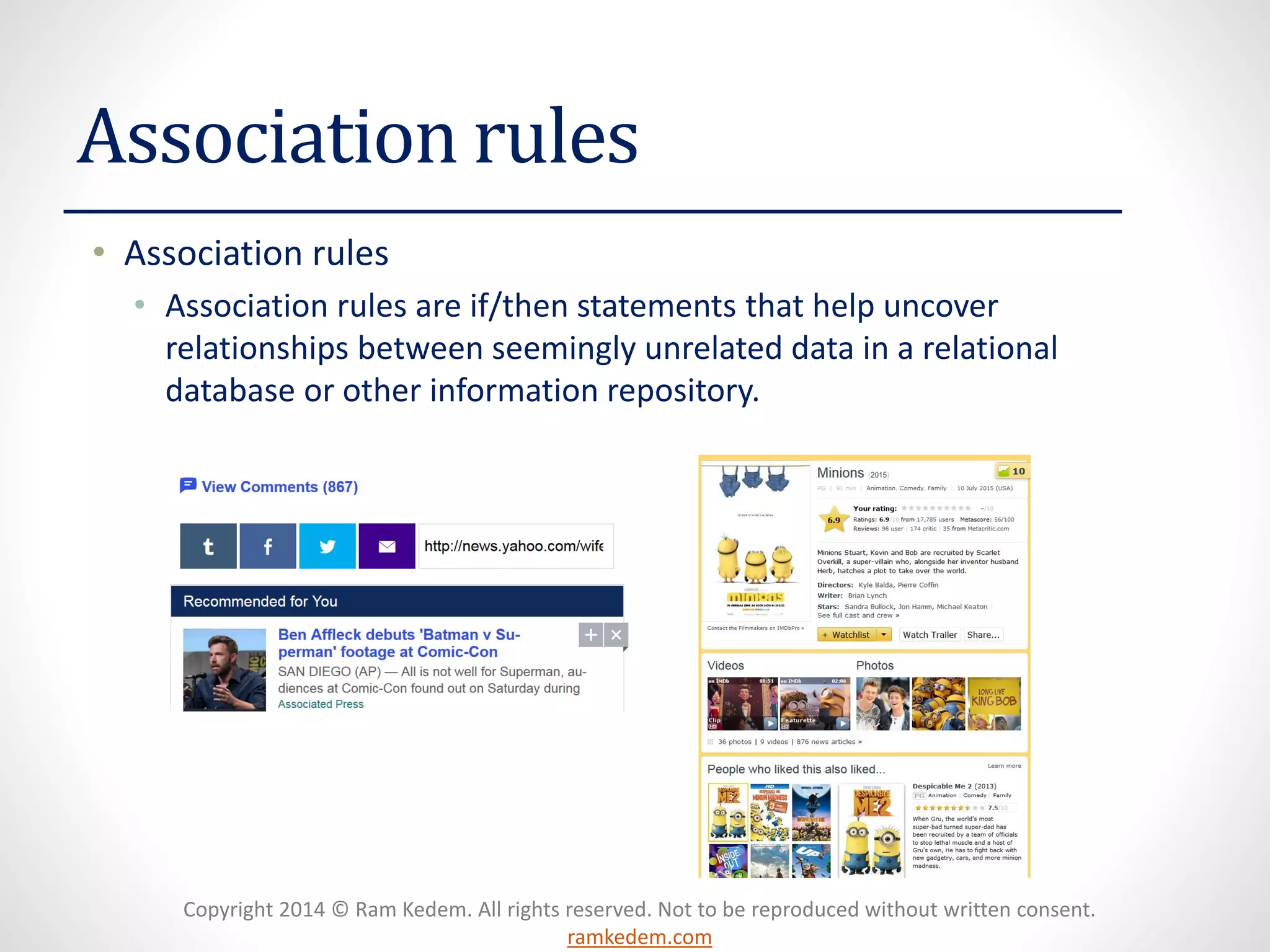

Association rules
• Association rules
• Association rules are if/then statements that help uncover
relationships between seemingly unrelated data in a relational
database or other information repository.

11. Create New Mining
Structure

12. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Define your Data Source

13. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

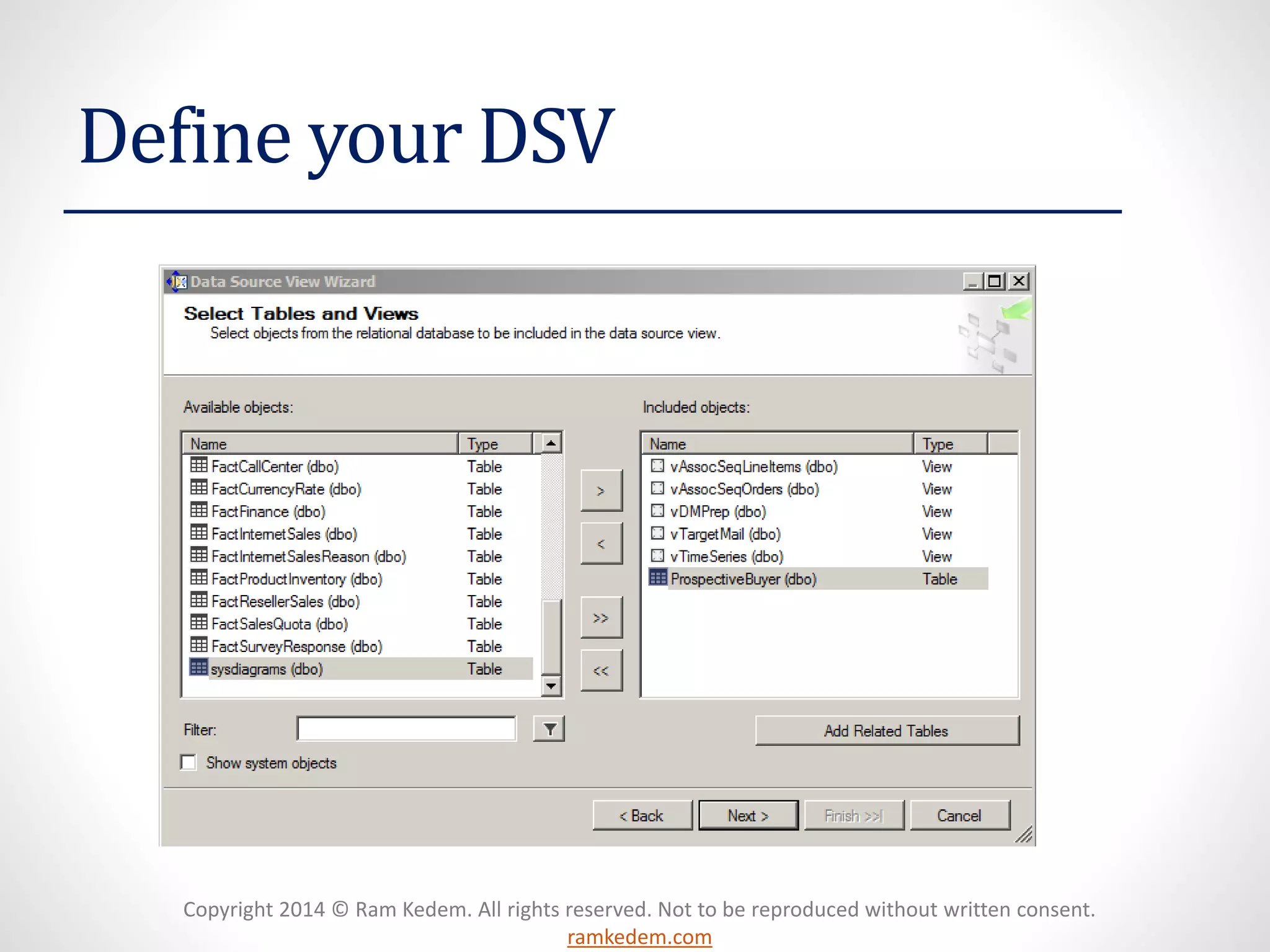

Define your DSV

14. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

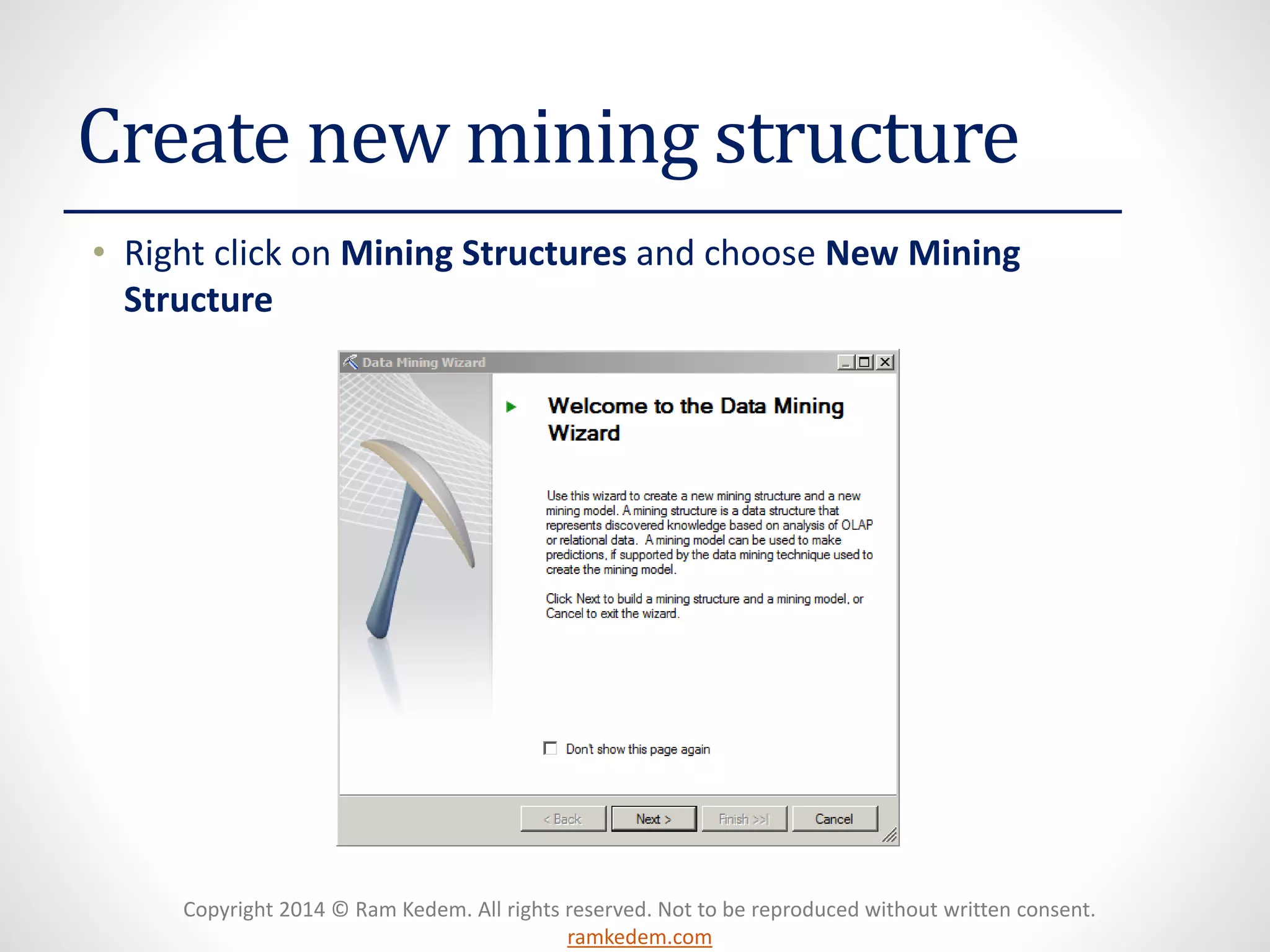

Create new mining structure
• Right click on Mining Structures and choose New Mining
Structure

15. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

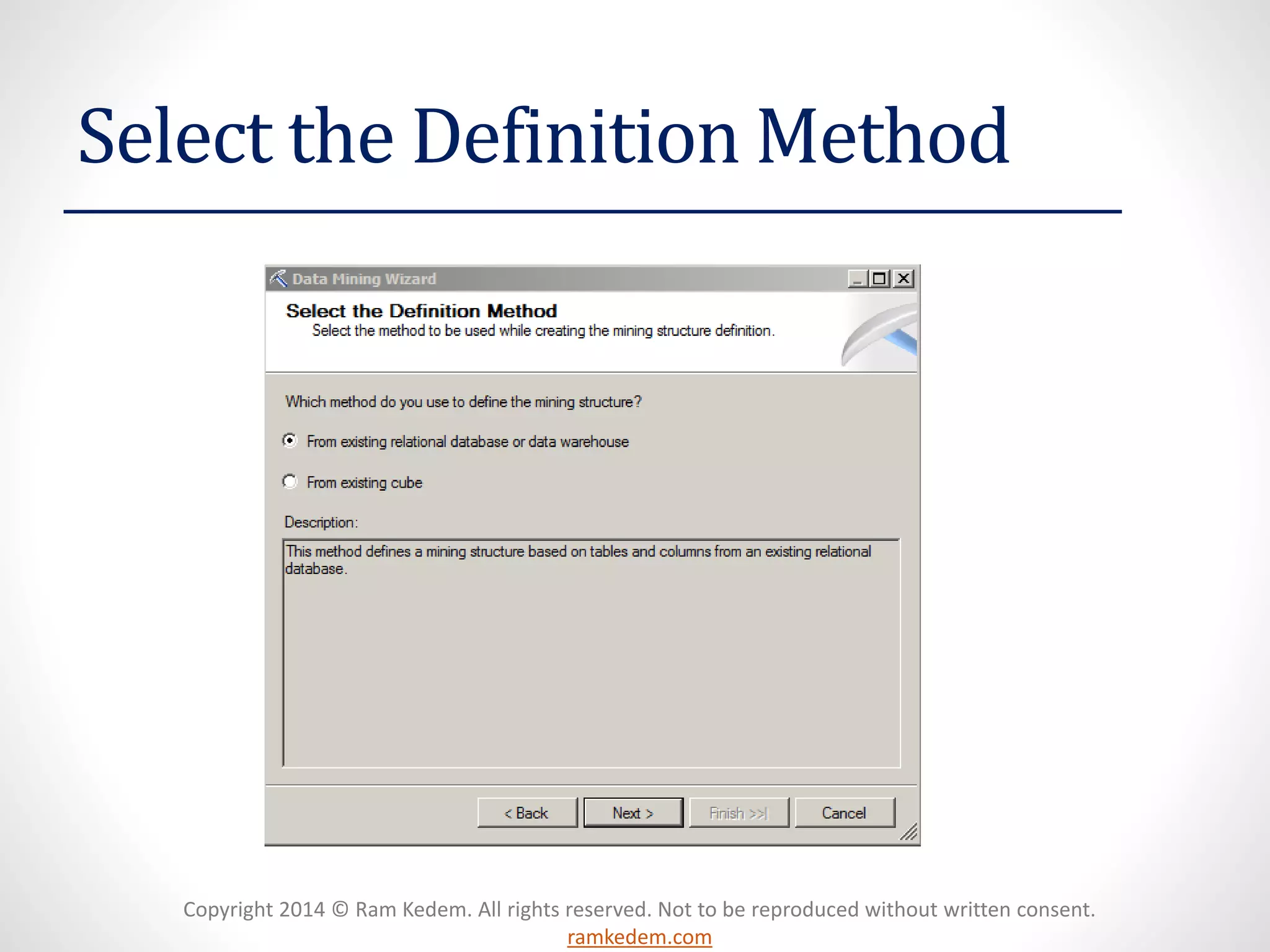

Select the Definition Method

16. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

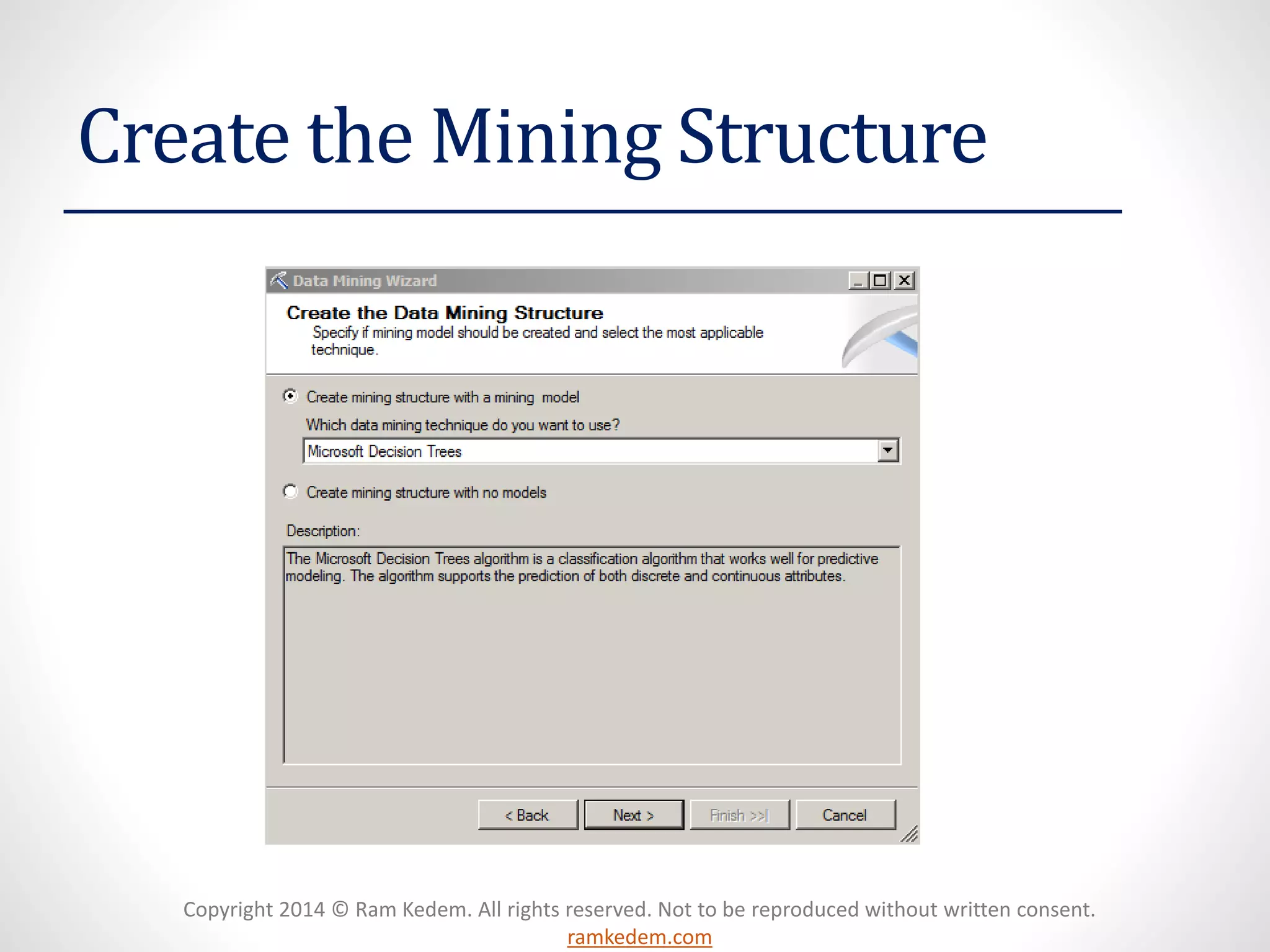

Create the Mining Structure

17. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

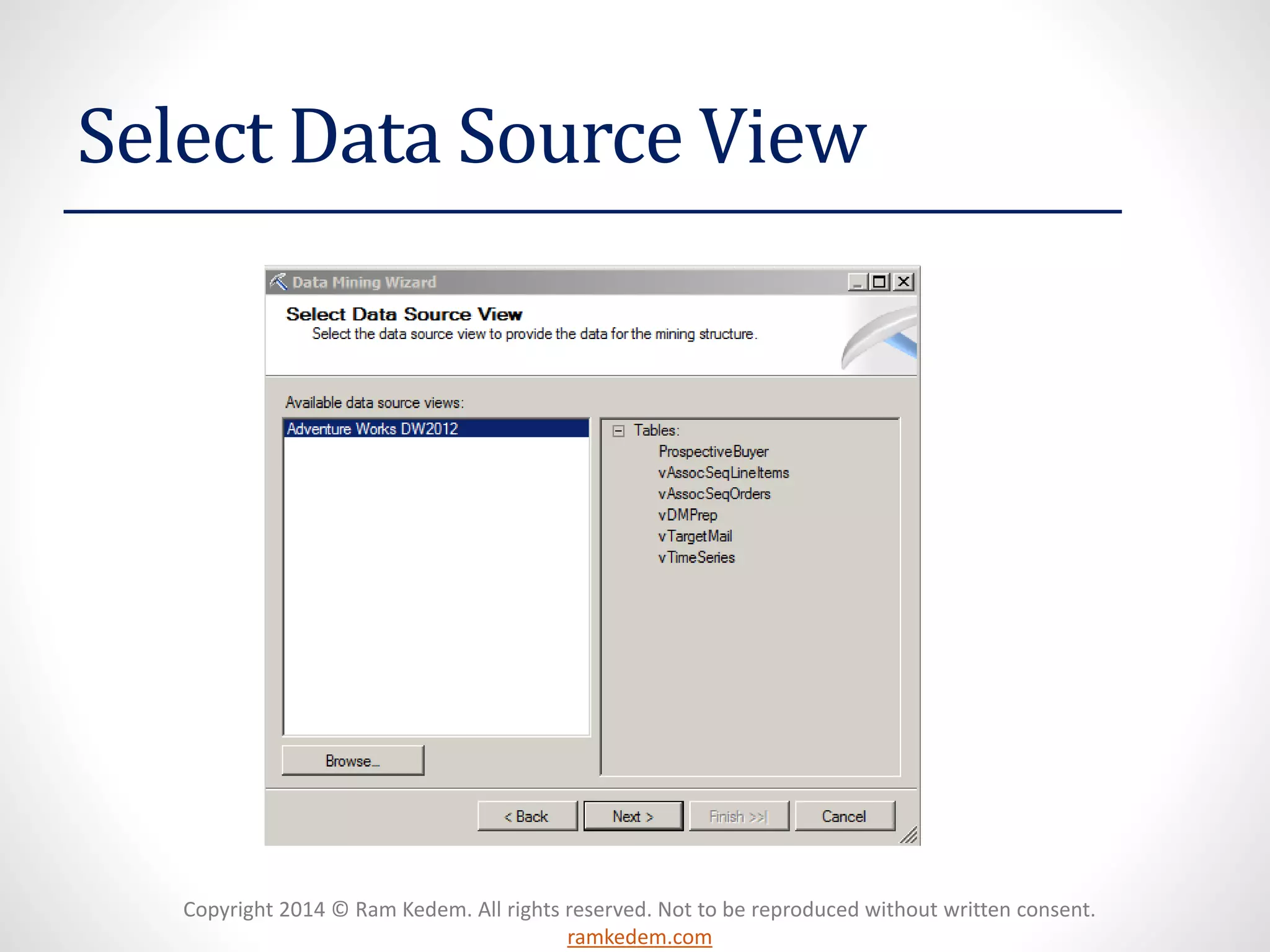

Select Data Source View

18. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

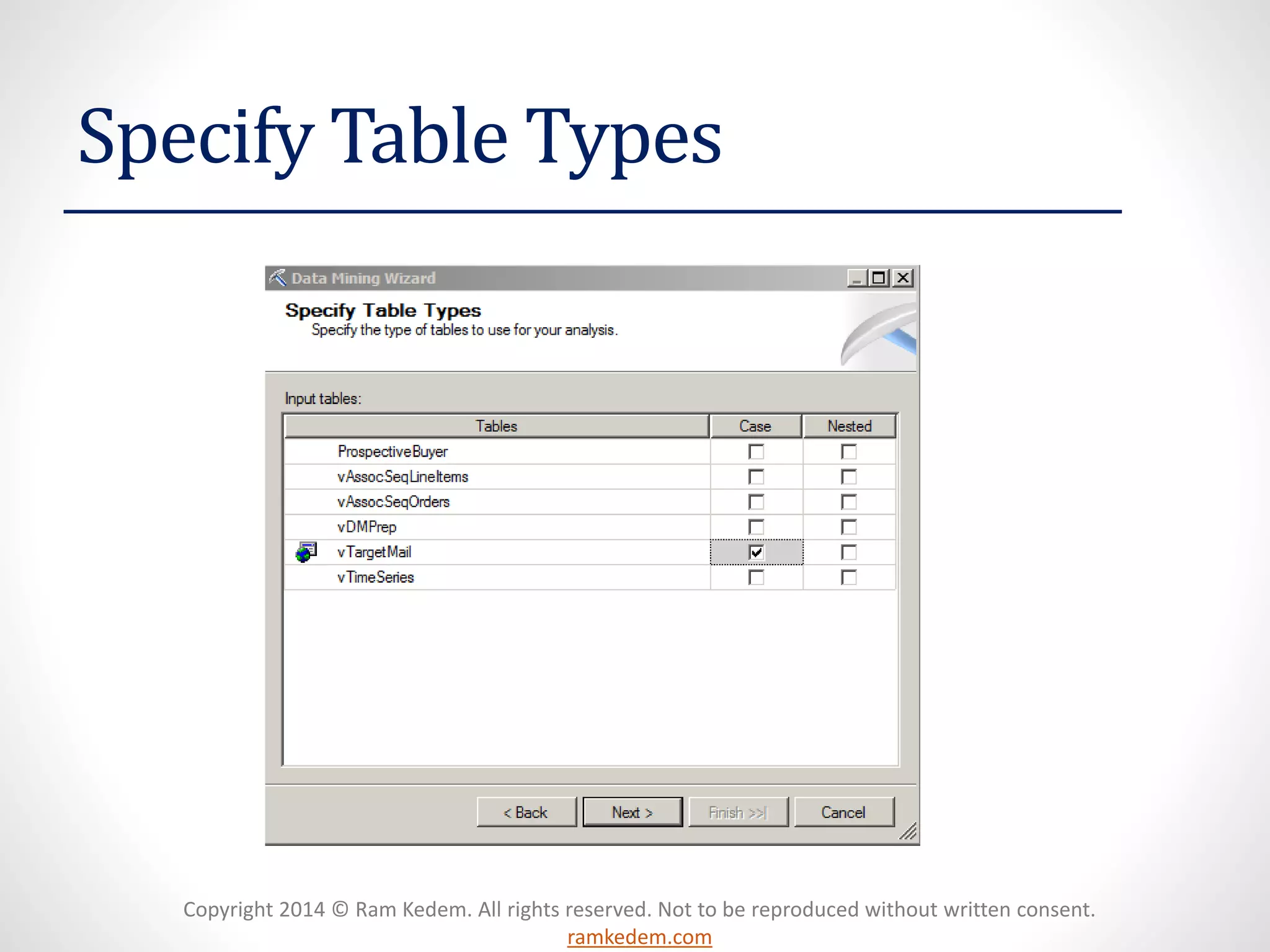

Specify Table Types

19. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

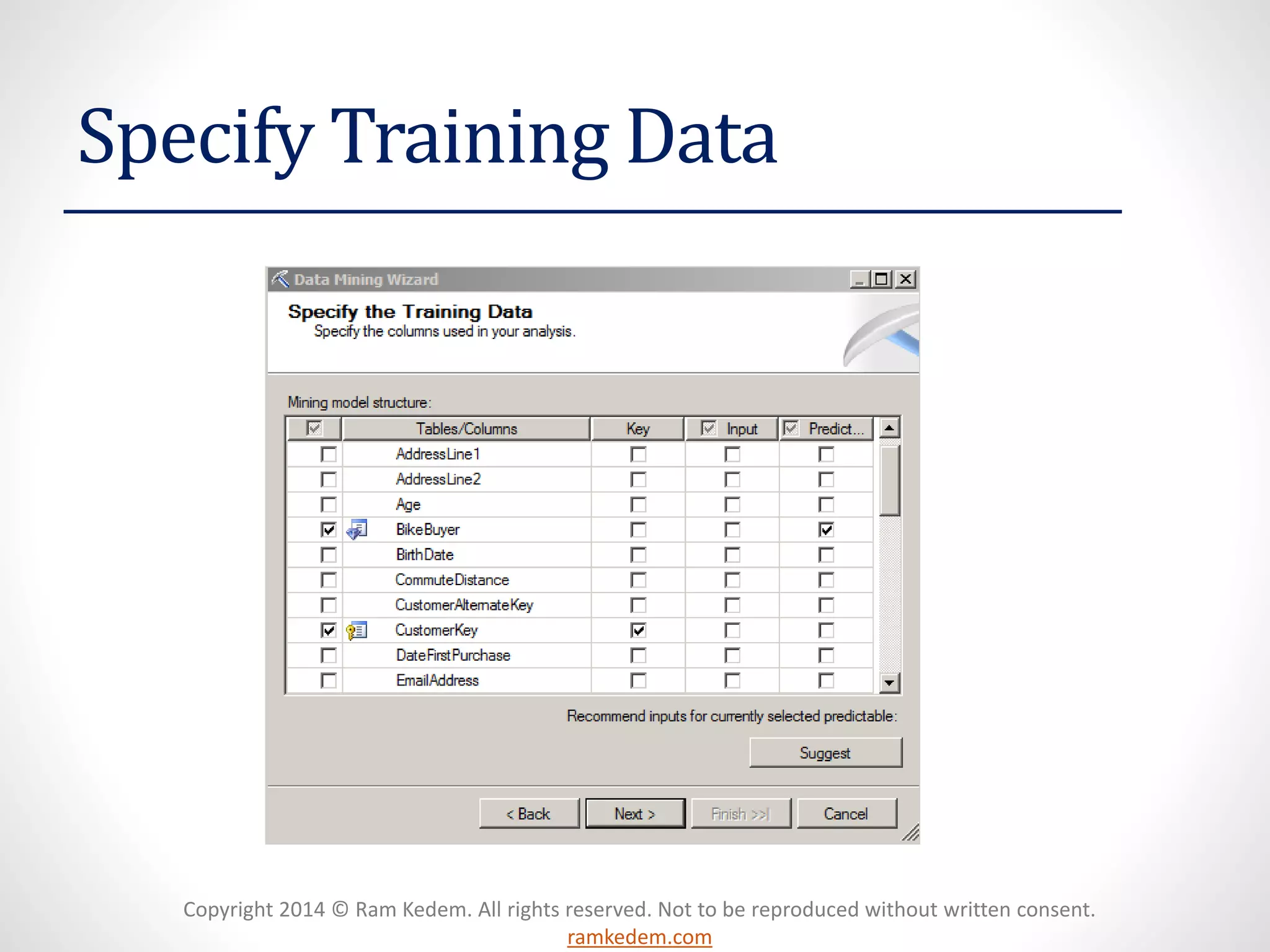

Specify Training Data

20. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Suggest Related Columns

21. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

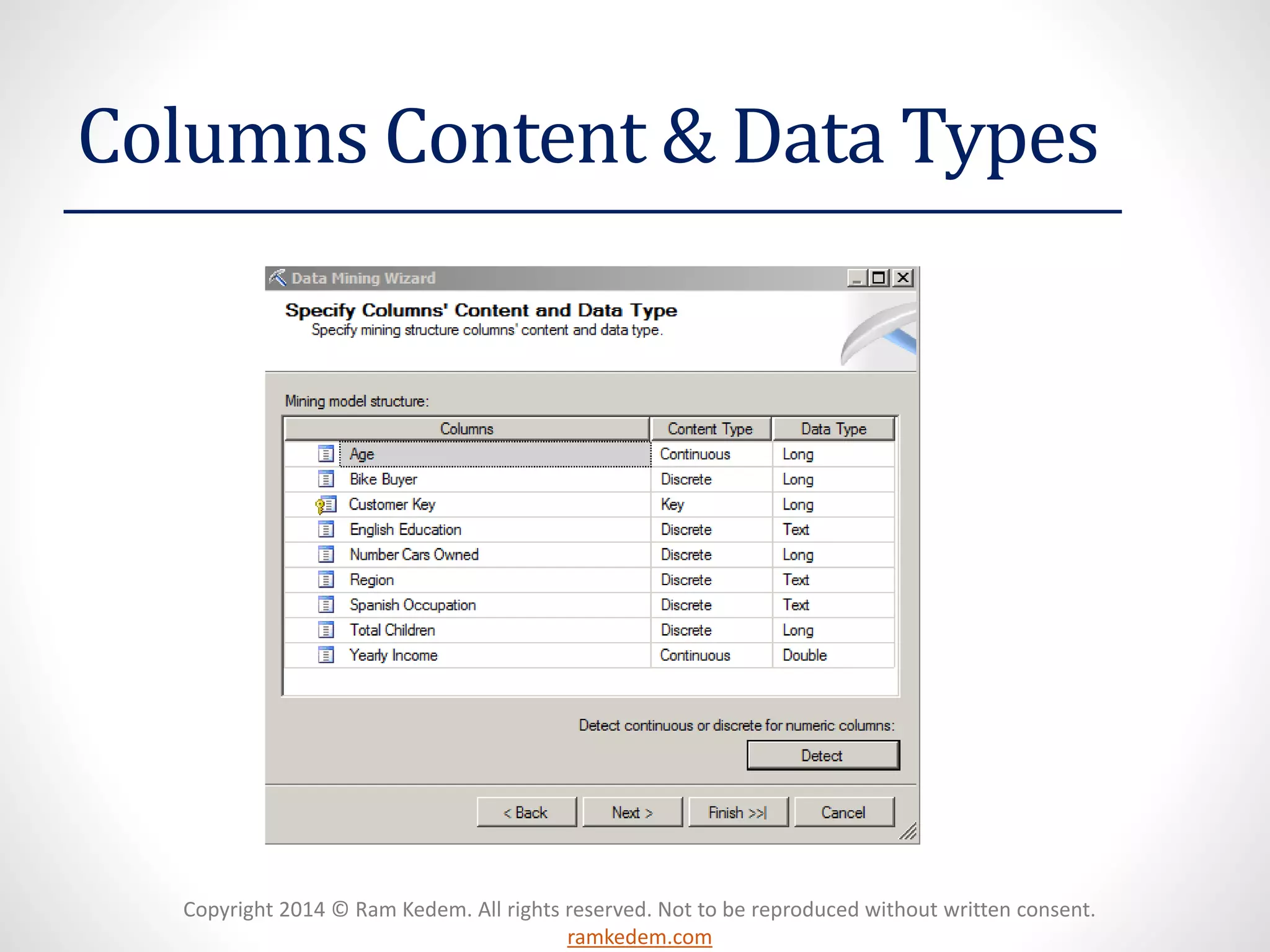

Columns Content & Data Types

22. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

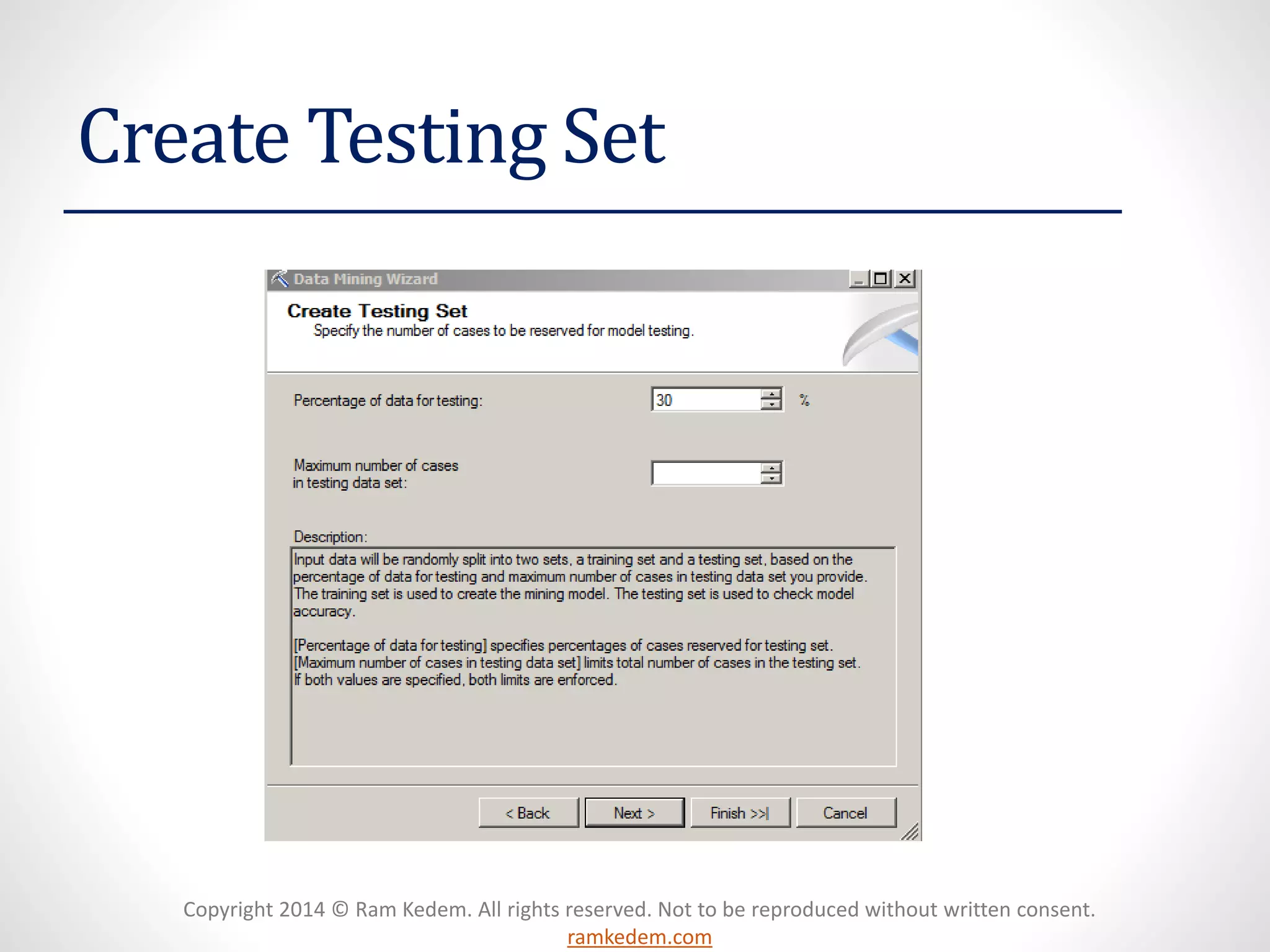

Create Testing Set

23. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

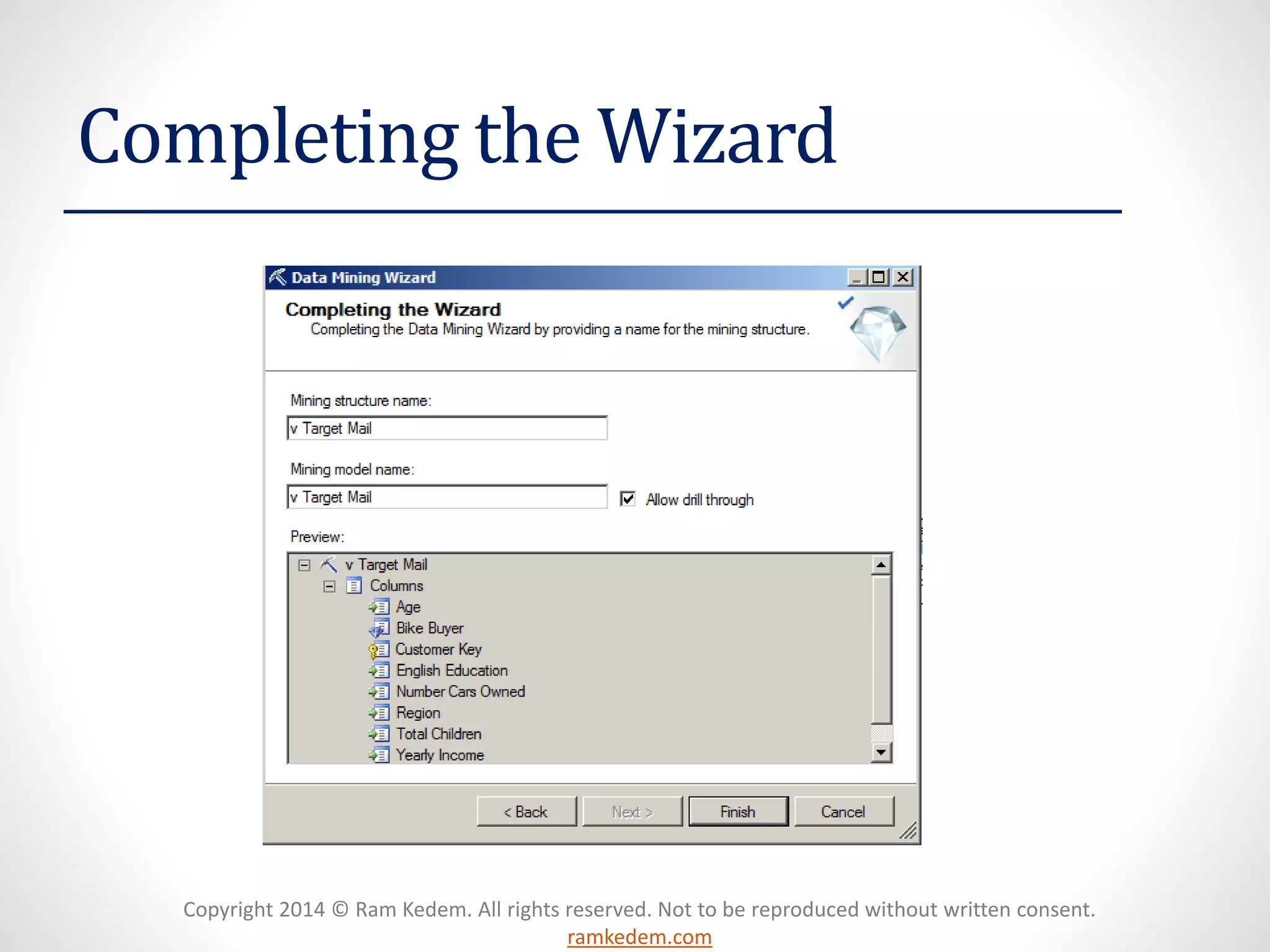

Completing the Wizard

24. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

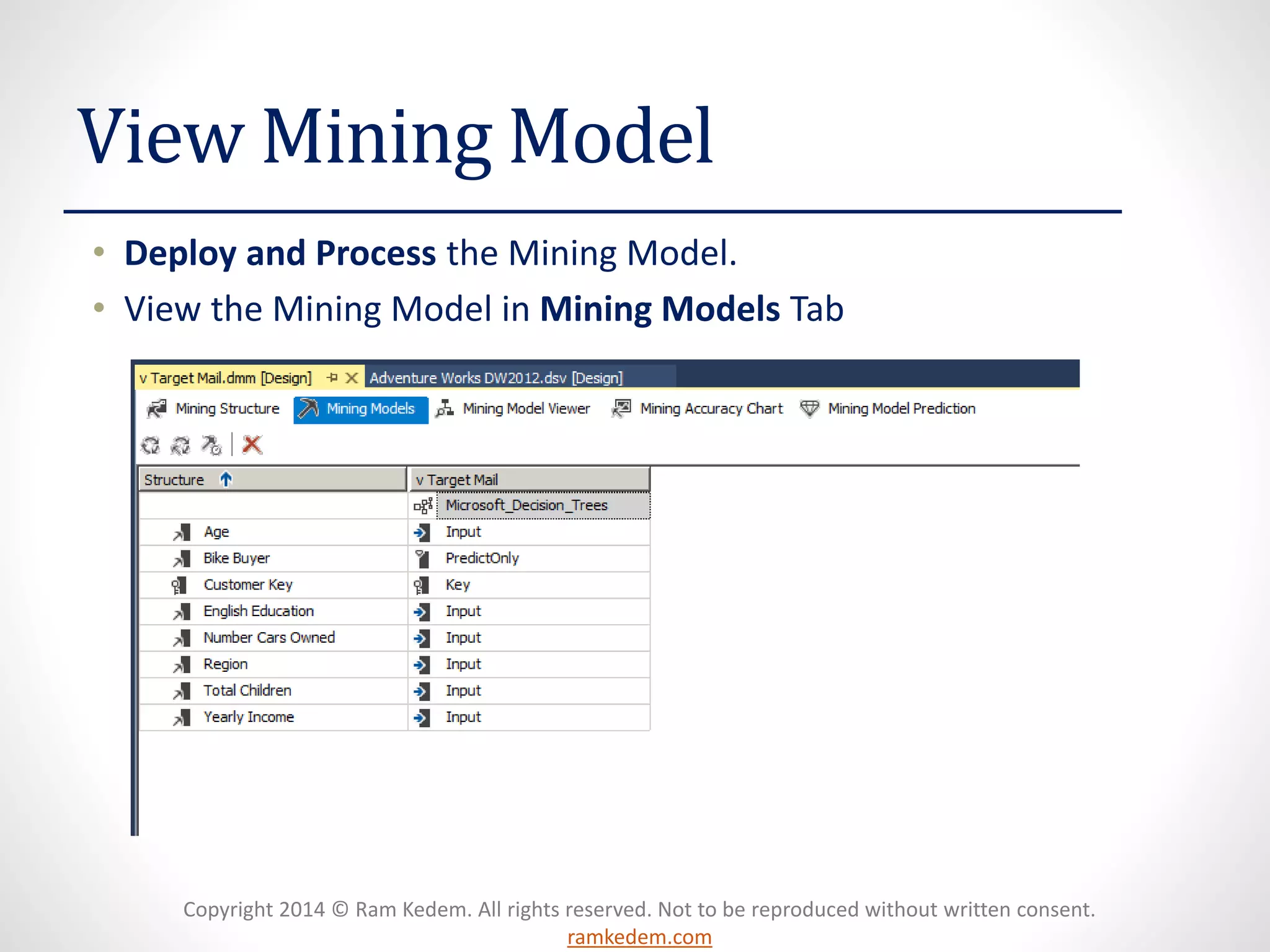

View Mining Model
• Deploy and Process the Mining Model.
• View the Mining Model in Mining Models Tab

25. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

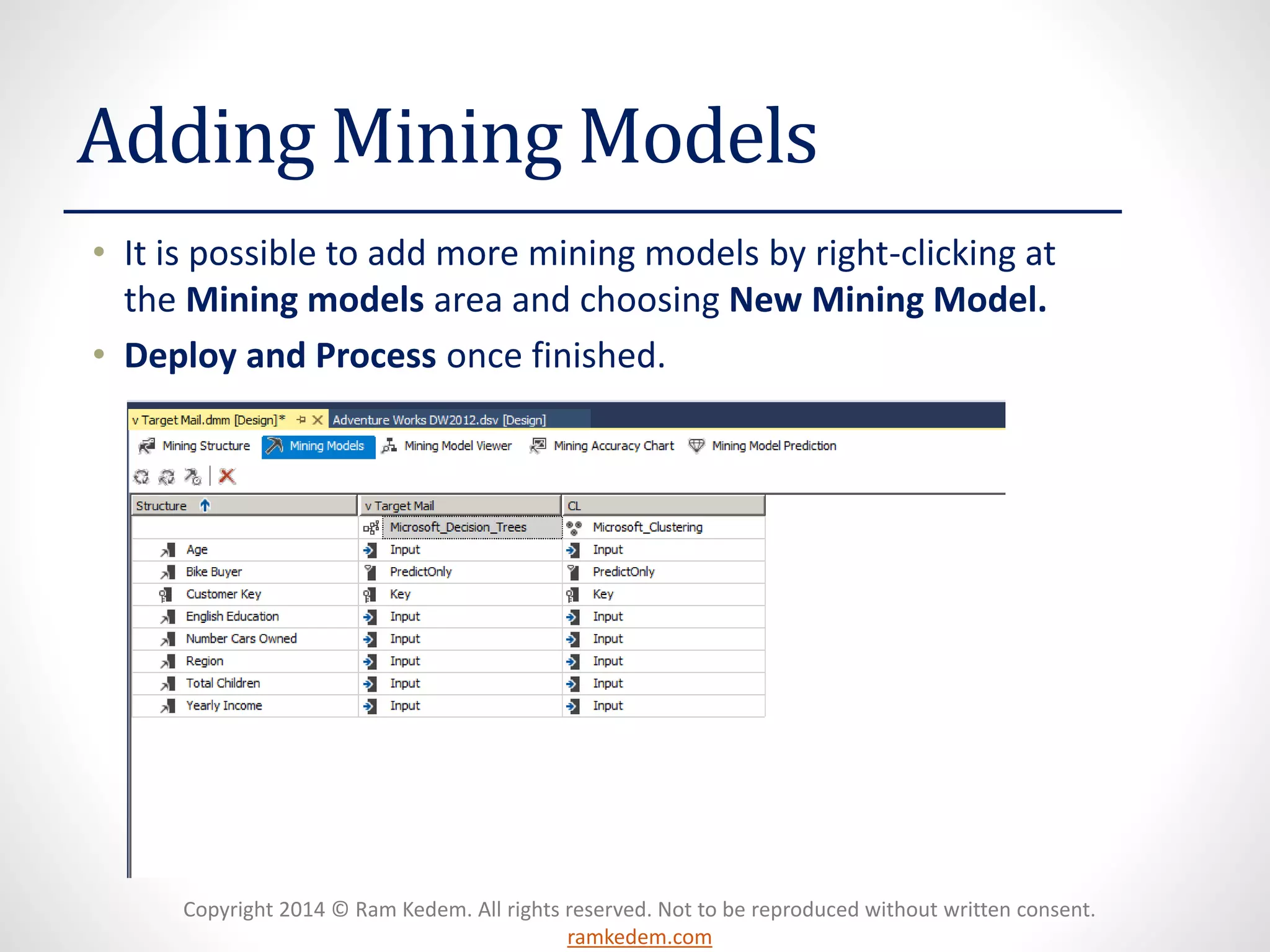

Adding Mining Models
• It is possible to add more mining models by right-clicking at
the Mining models area and choosing New Mining Model.
• Deploy and Process once finished.

26. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

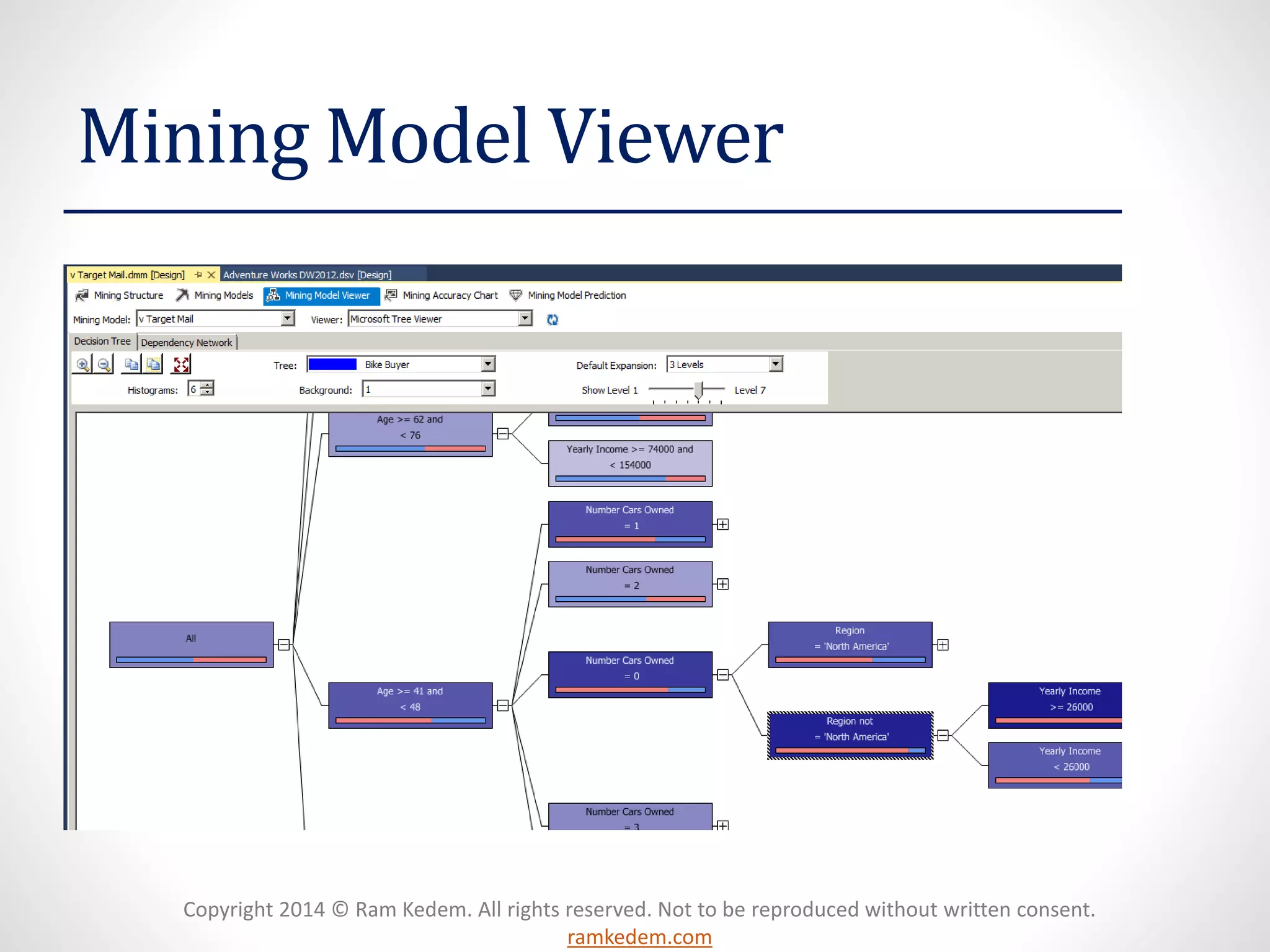

Mining Model Viewer

27. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

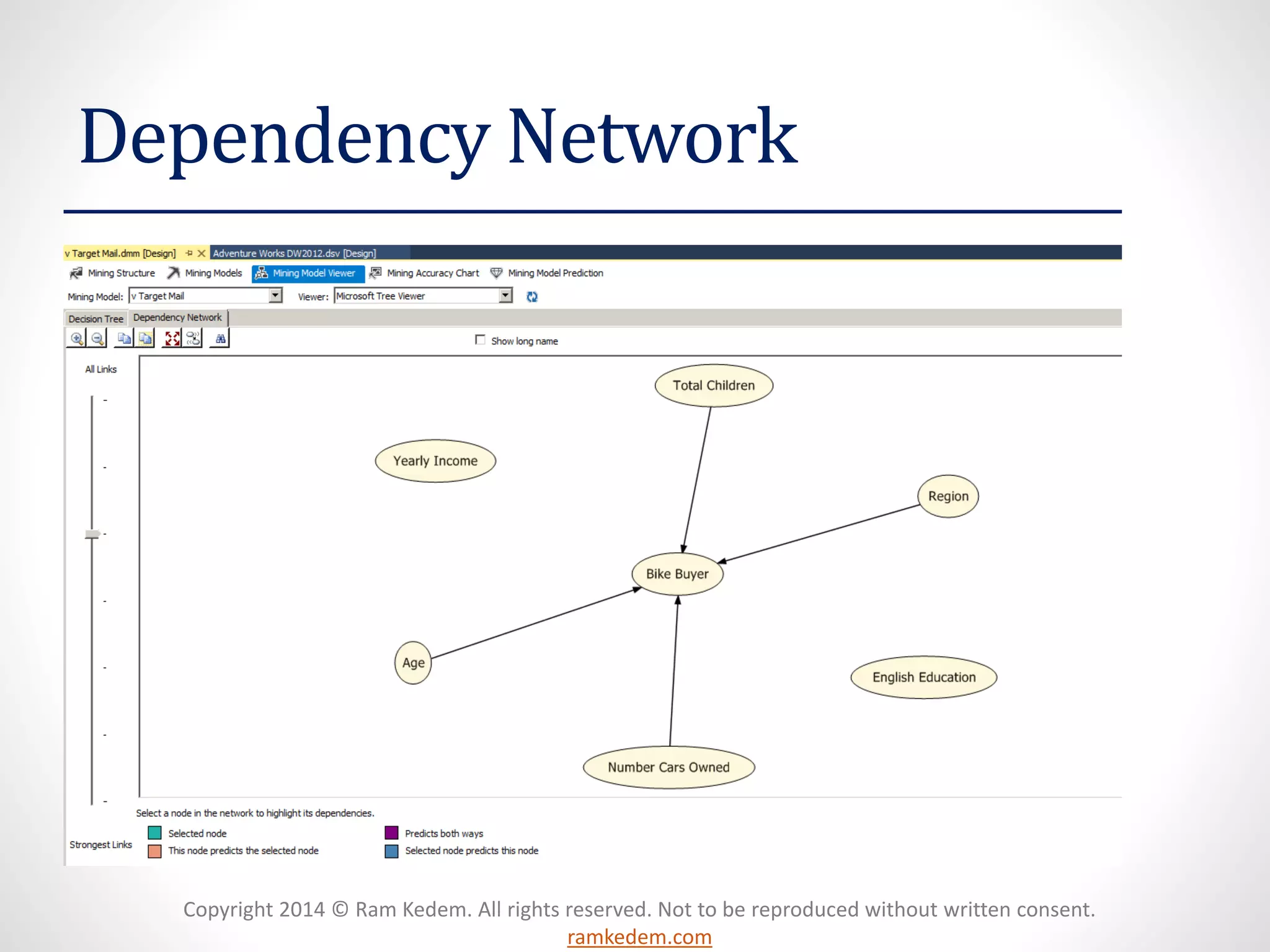

Dependency Network

28. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

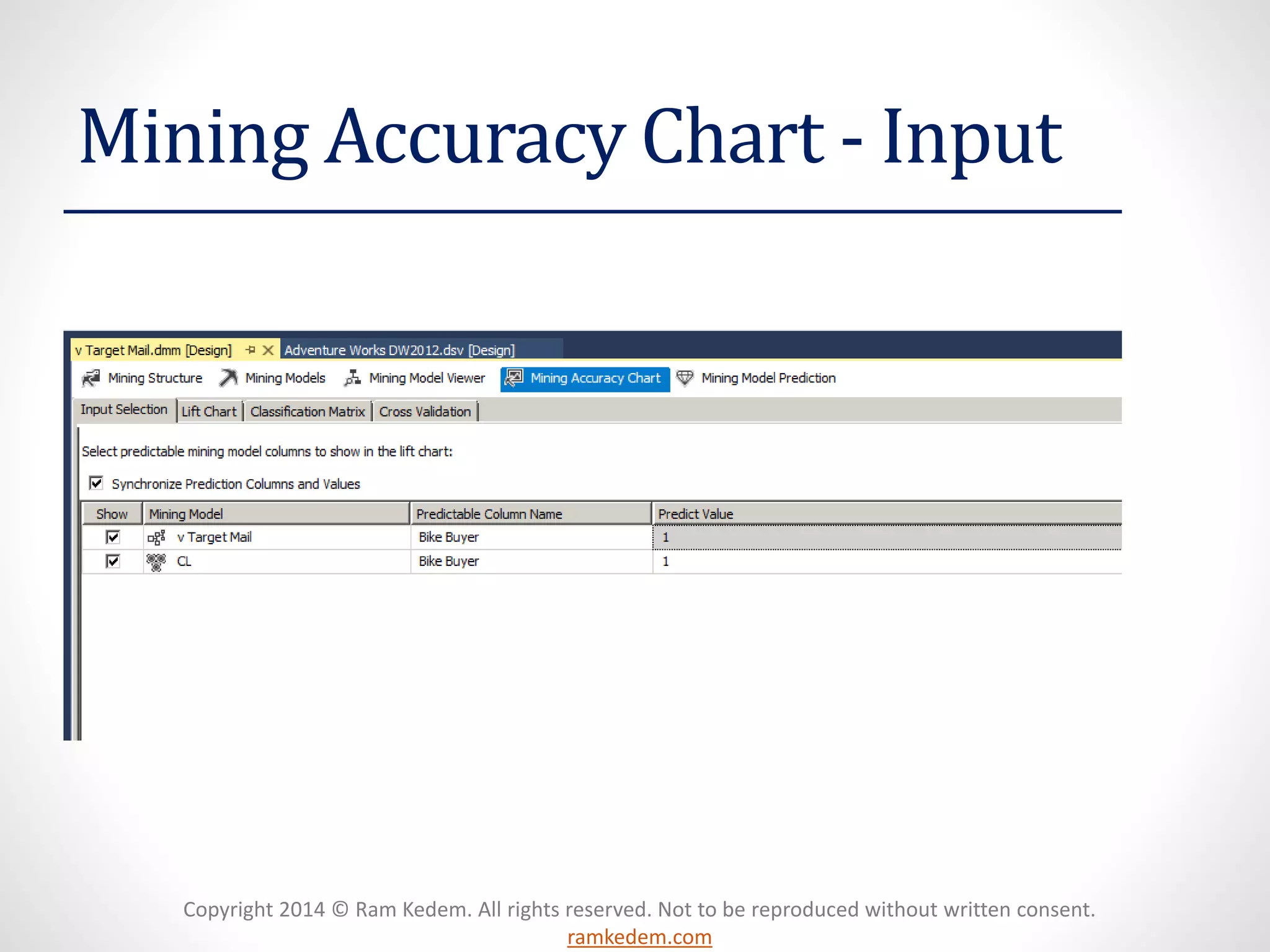

Mining Accuracy Chart - Input

29. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

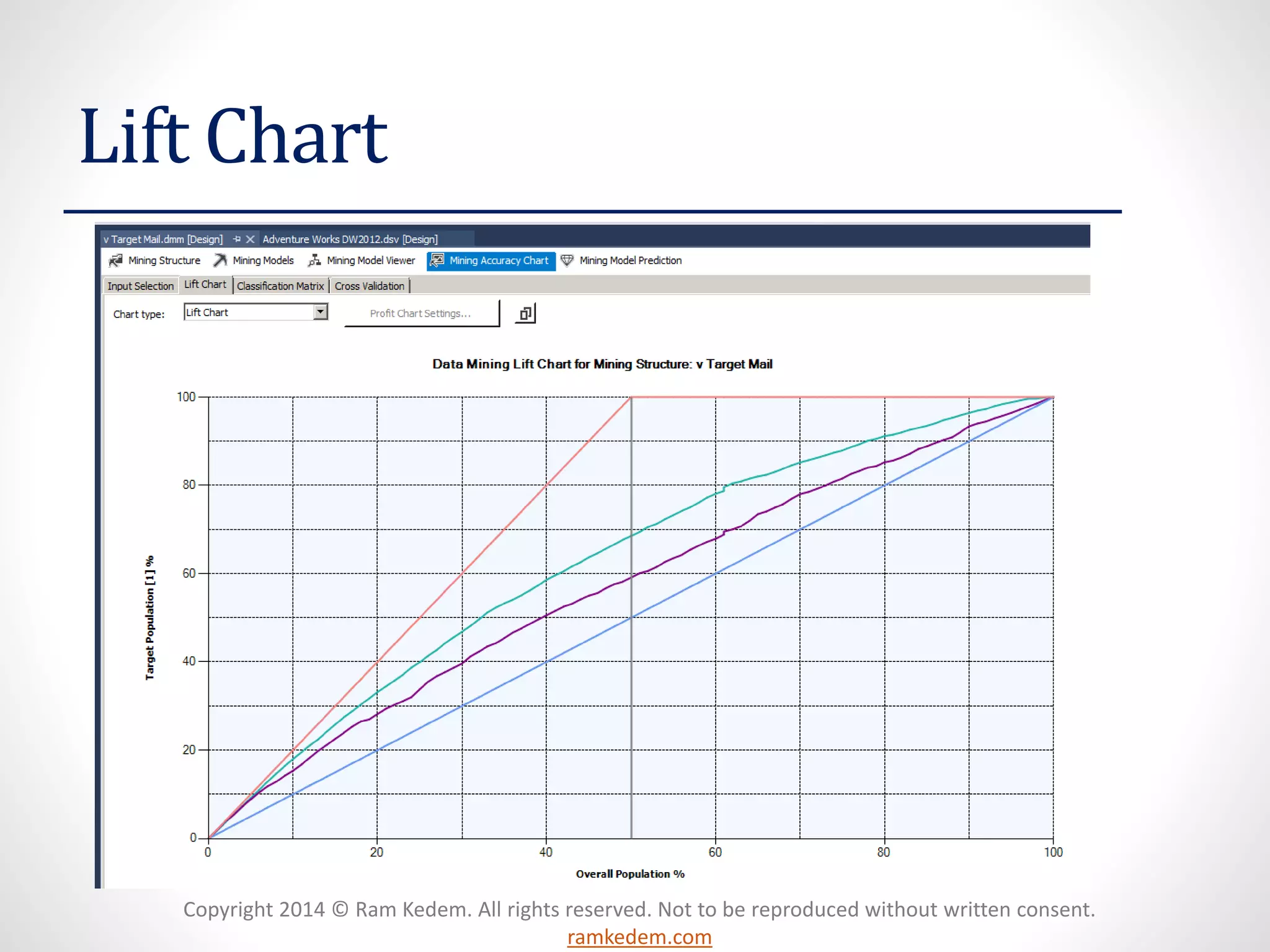

Lift Chart

30. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

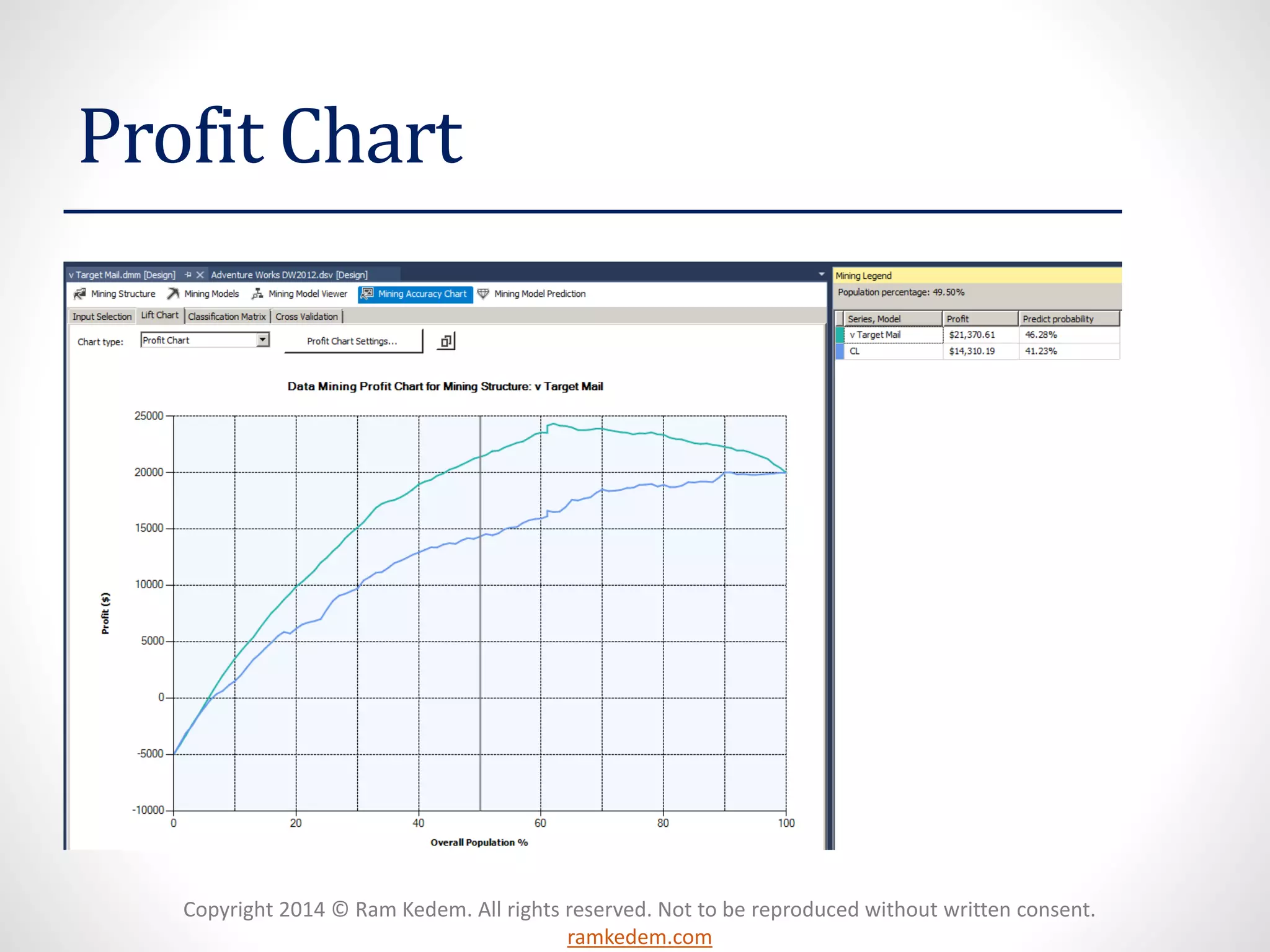

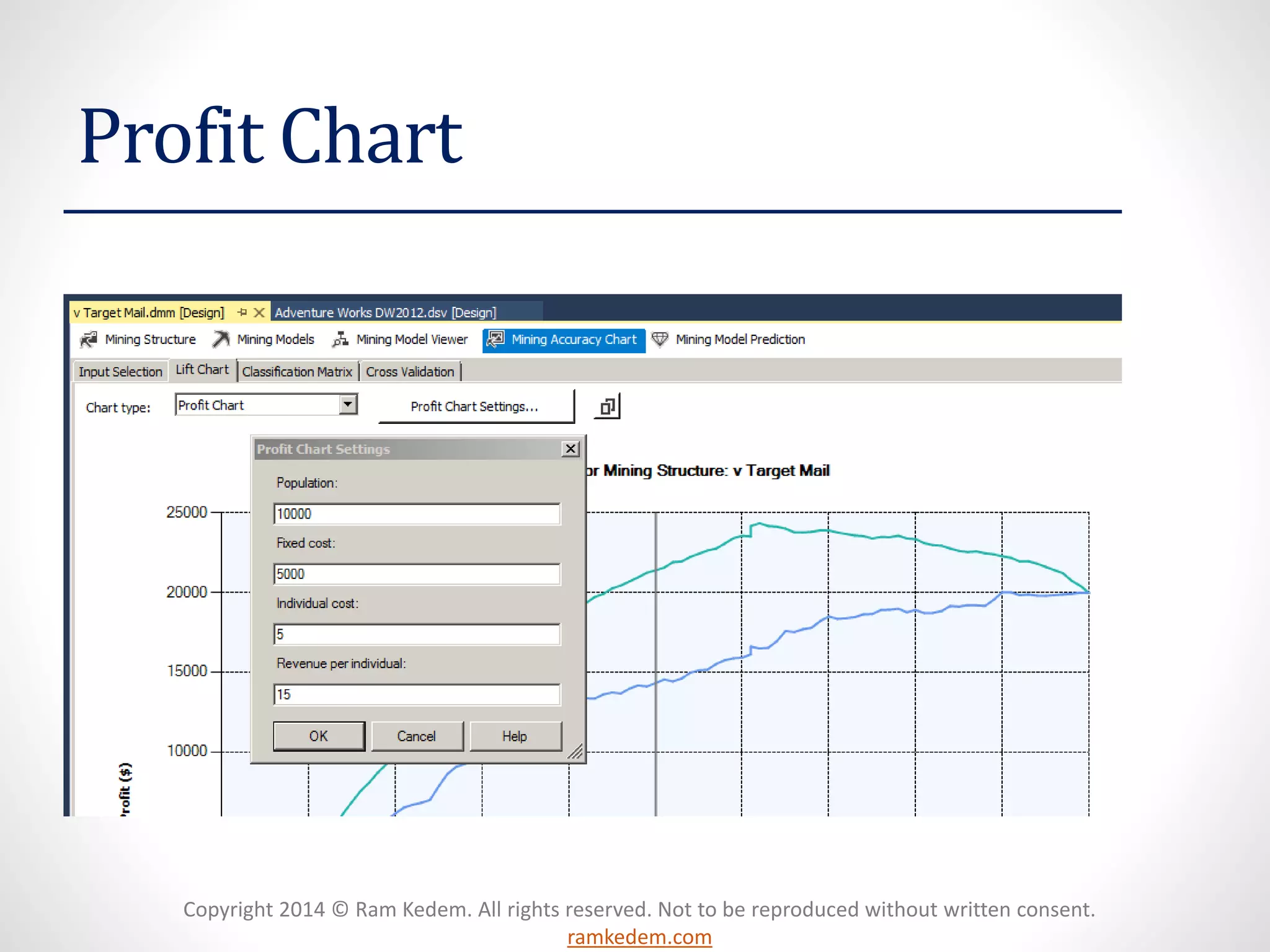

Profit Chart

31. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Profit Chart

32. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

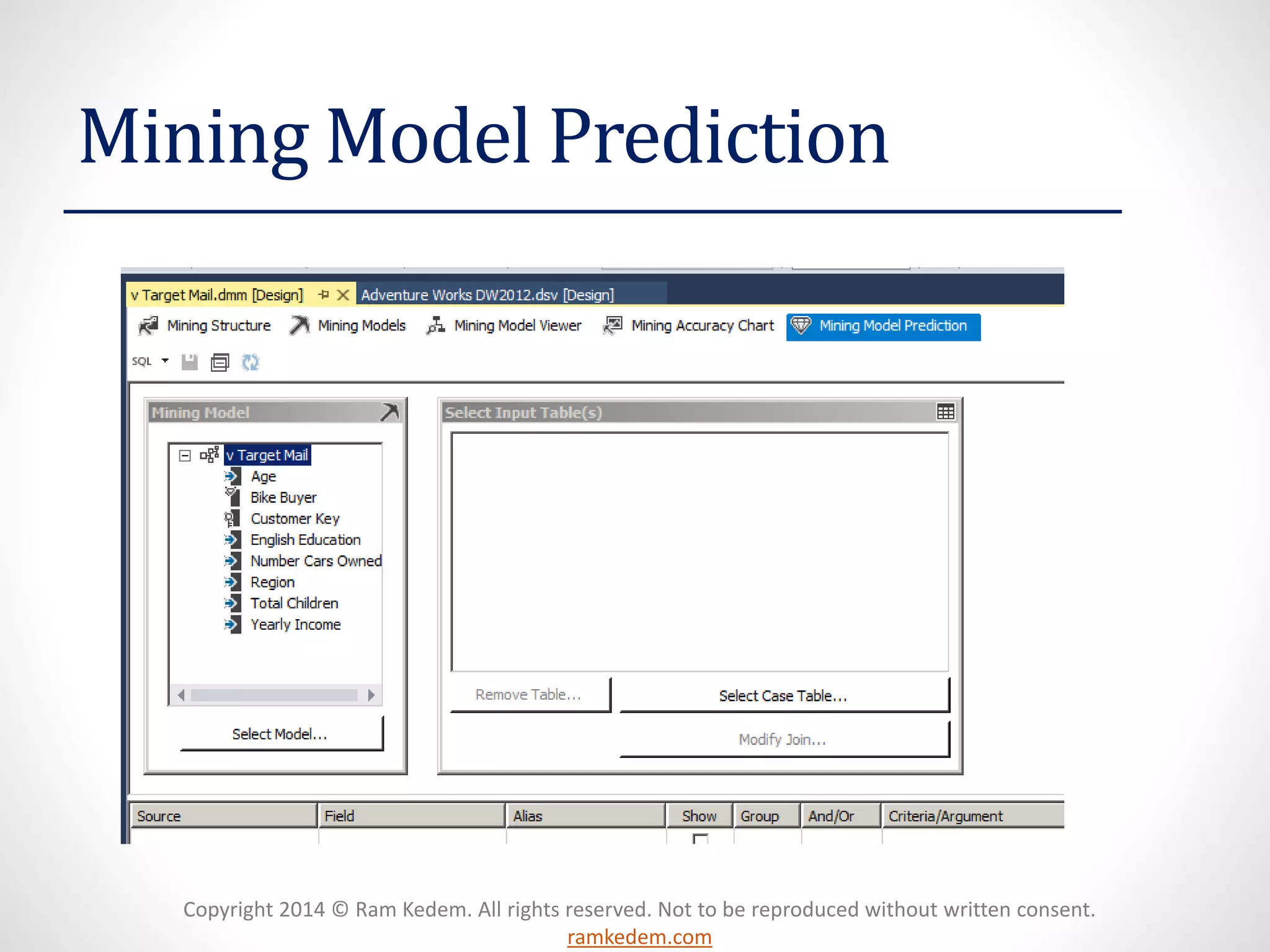

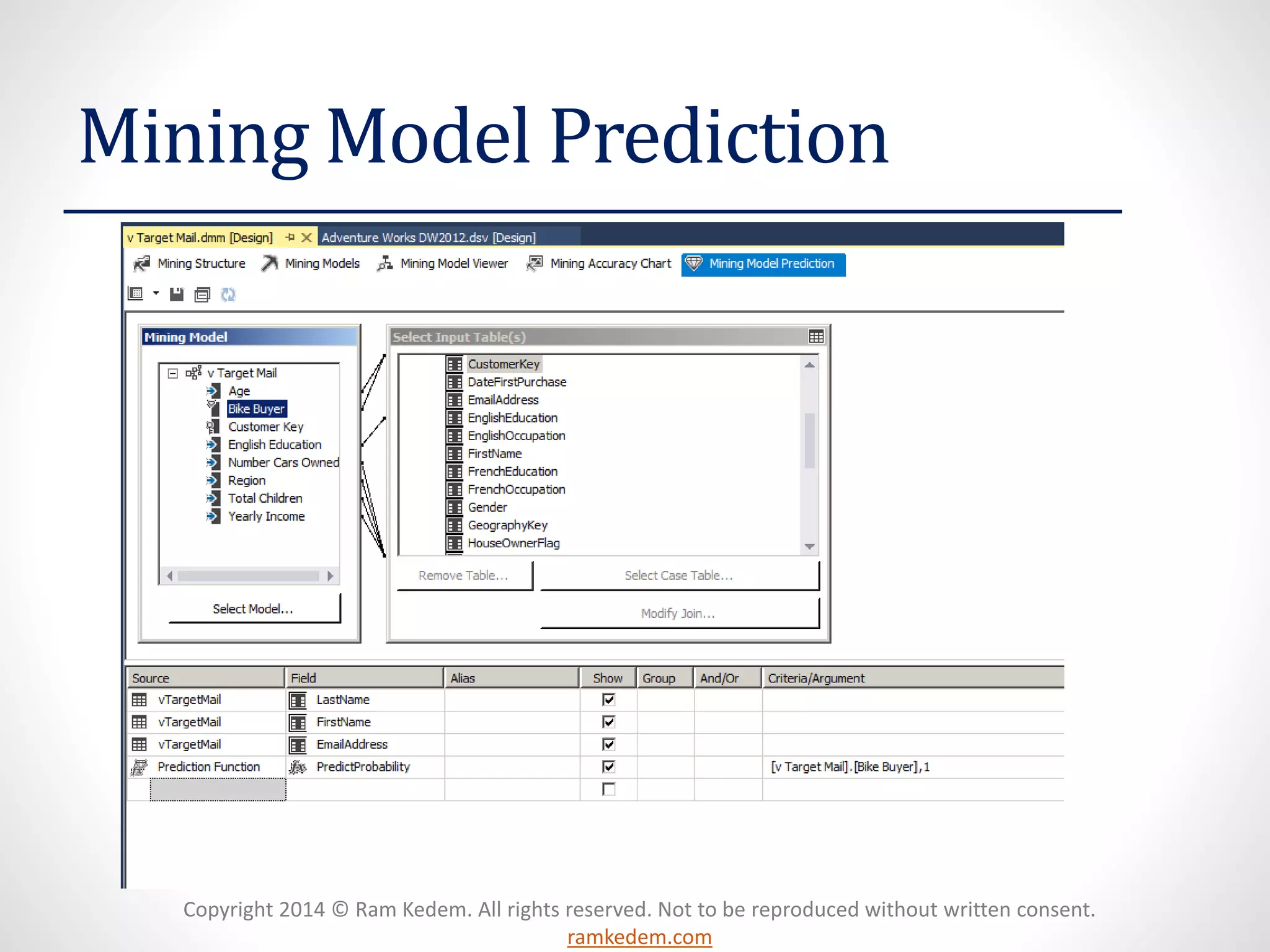

Mining Model Prediction

33. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Mining Model Prediction

34. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

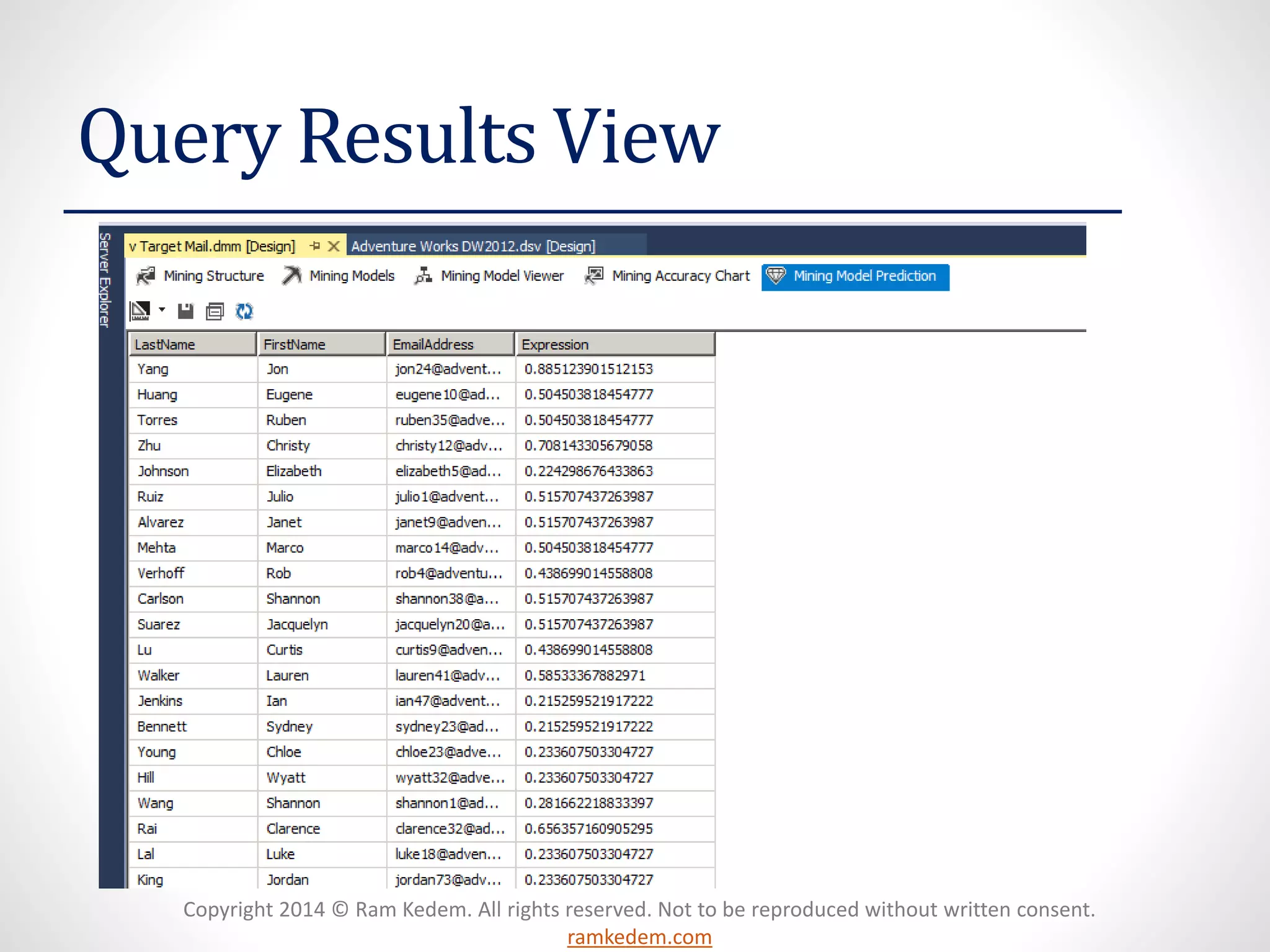

Query Results View

35. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Order the Data Differently

36. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

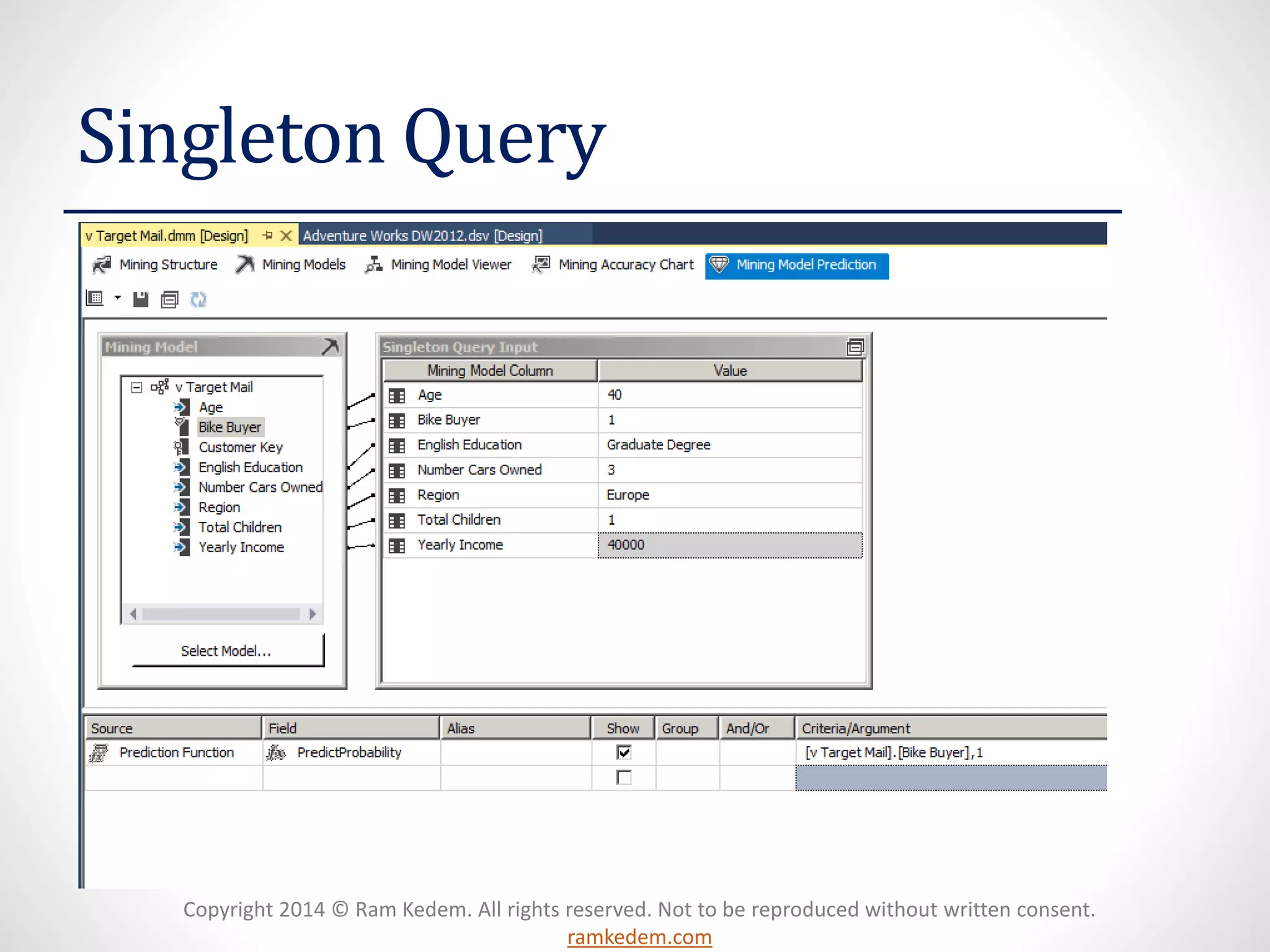

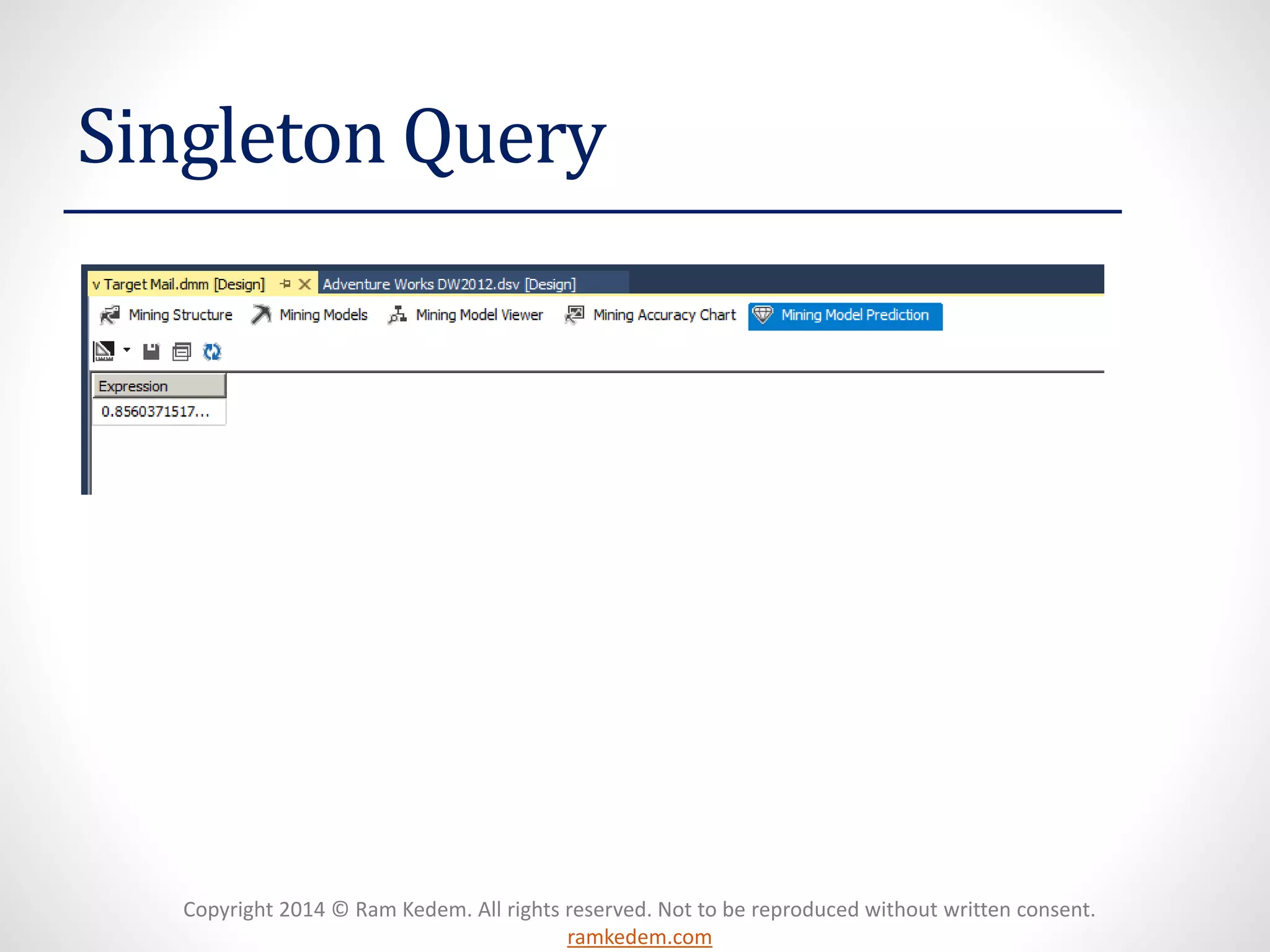

Singleton Query

37. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Singleton Query

38. Time Series Mining
Structure

39. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Time Series Mining Structure
• Right click on Mining Structures and choose New Mining
Structure

40. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

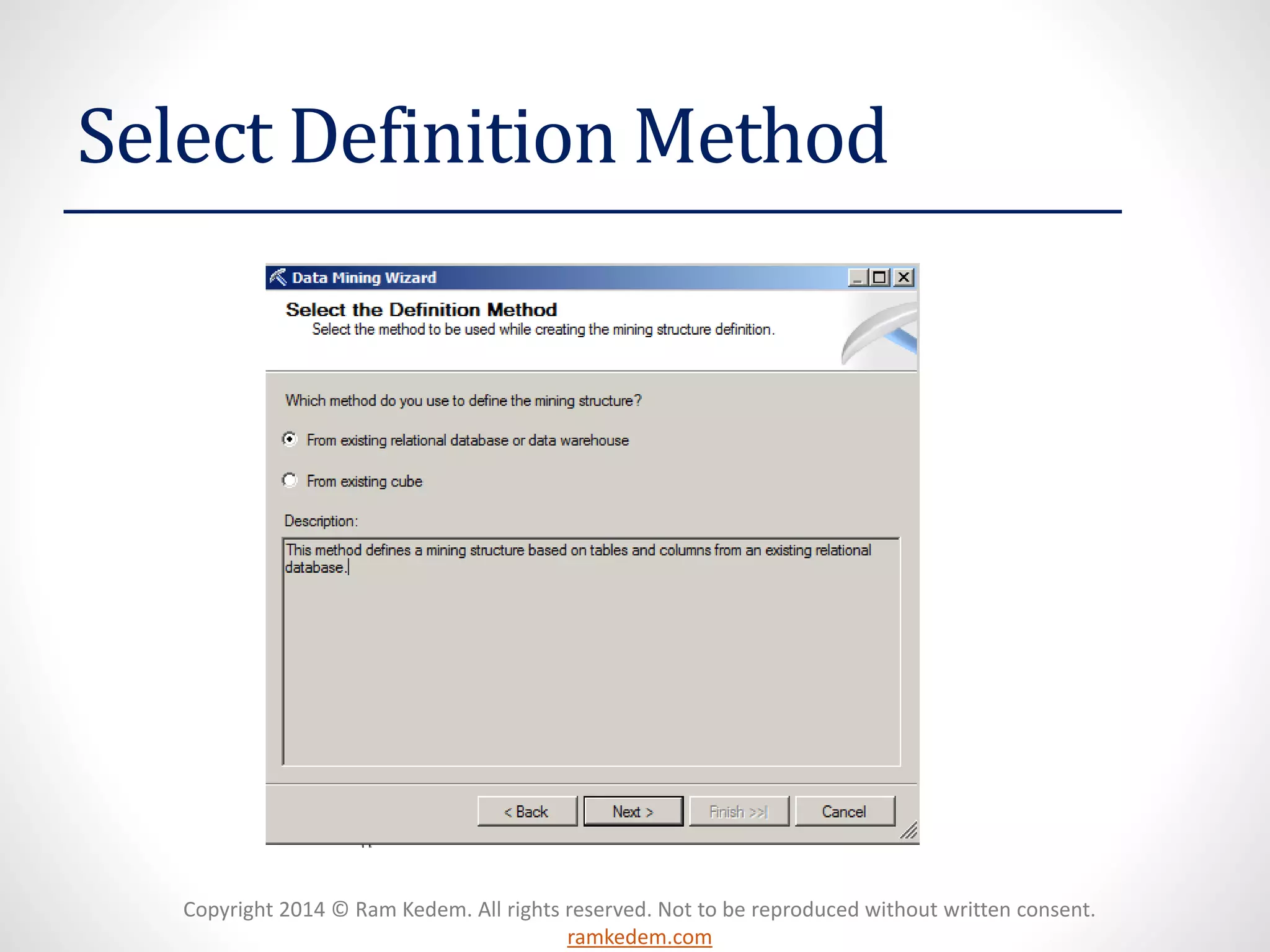

Select Definition Method

41. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

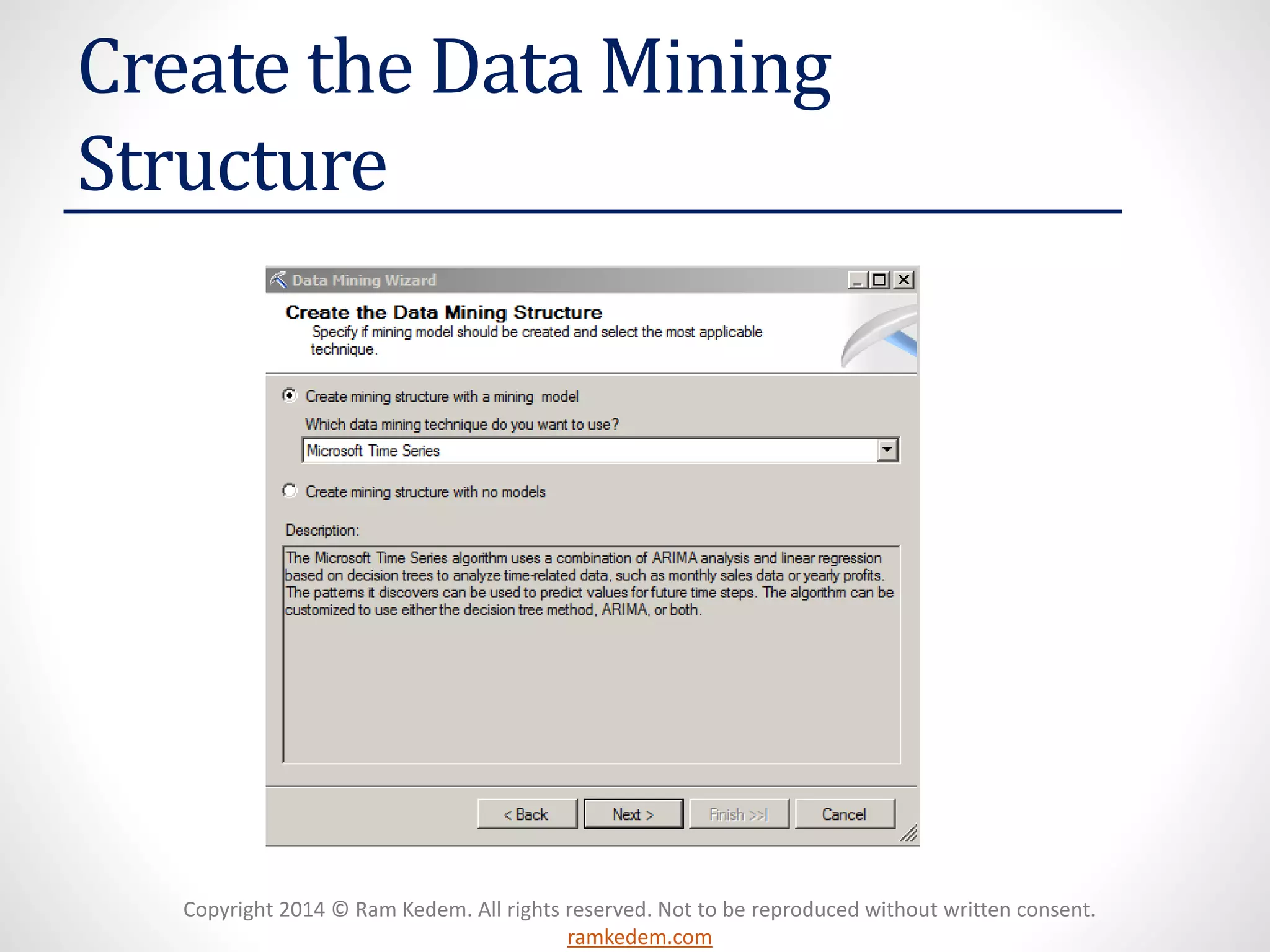

Create the Data Mining
Structure

42. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

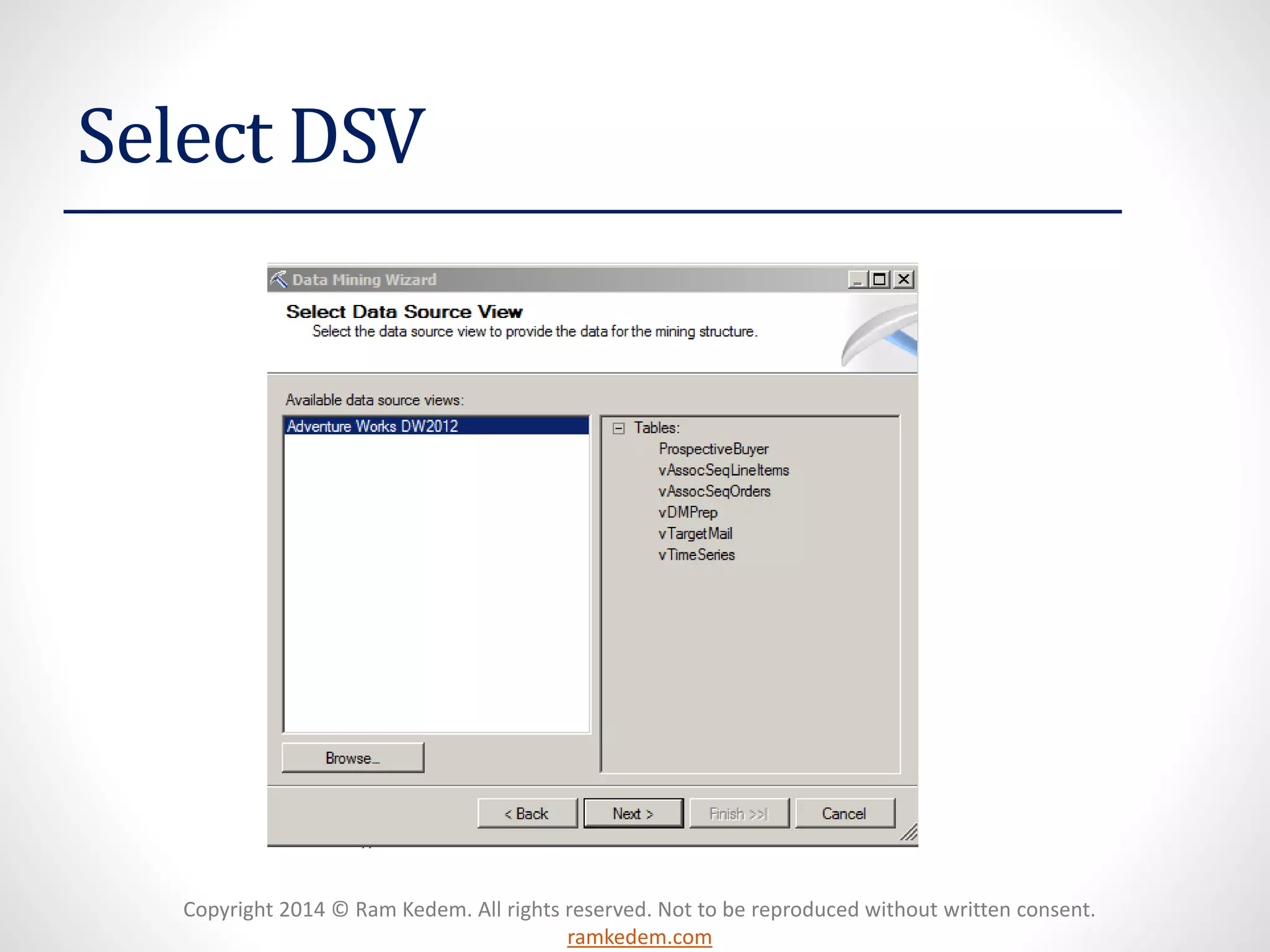

Select DSV

43. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

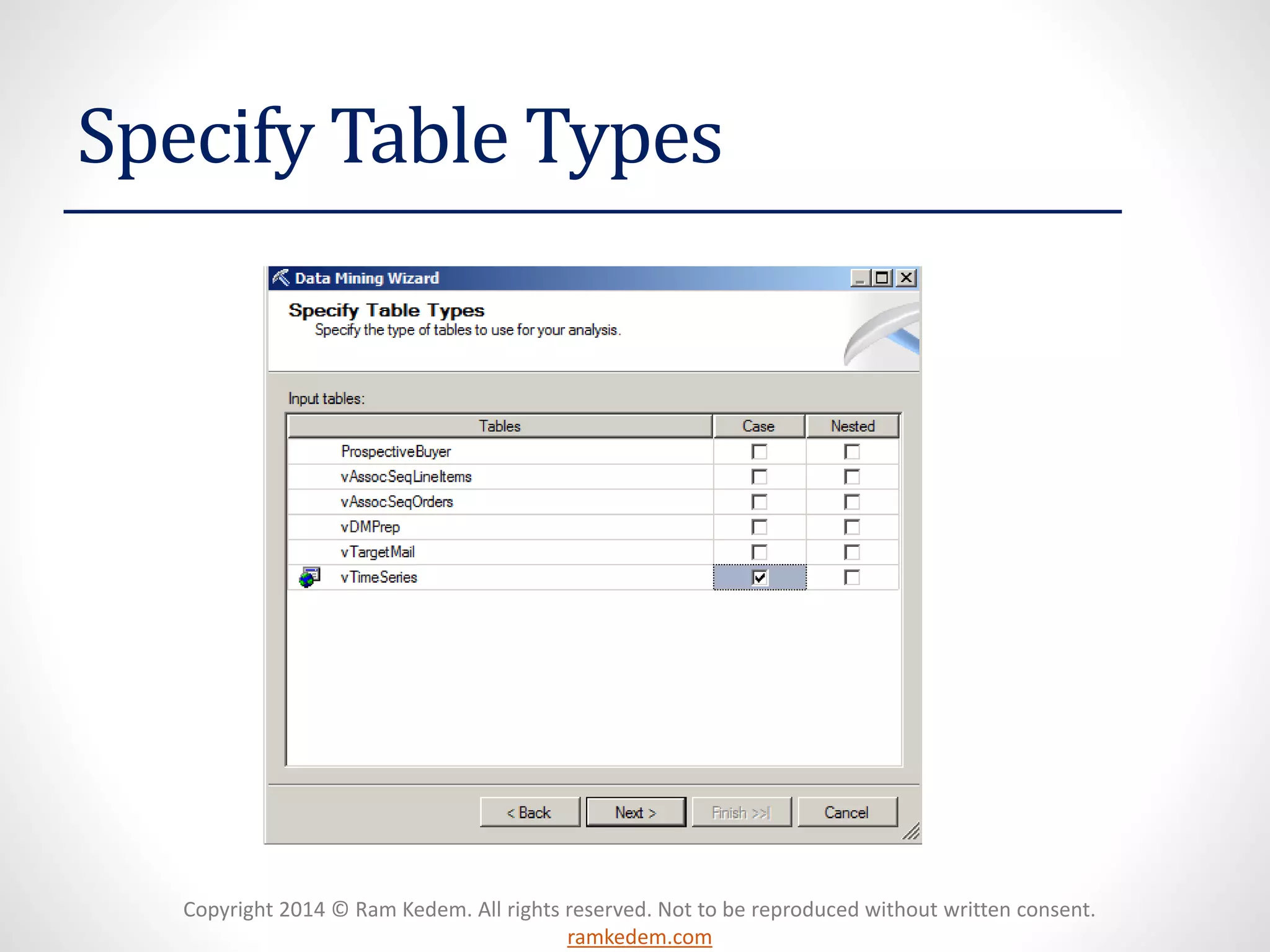

Specify Table Types

44. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

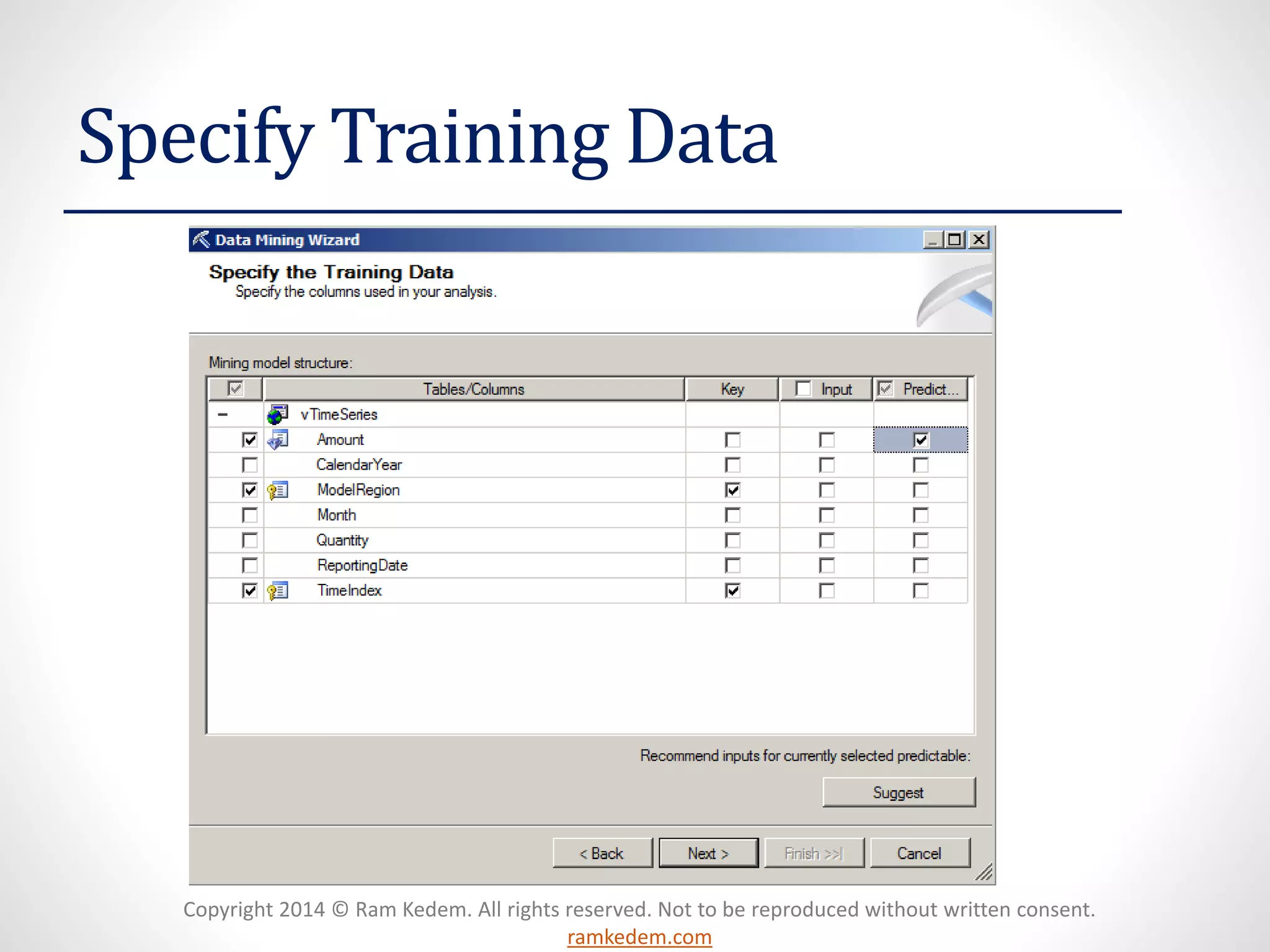

Specify Training Data

45. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

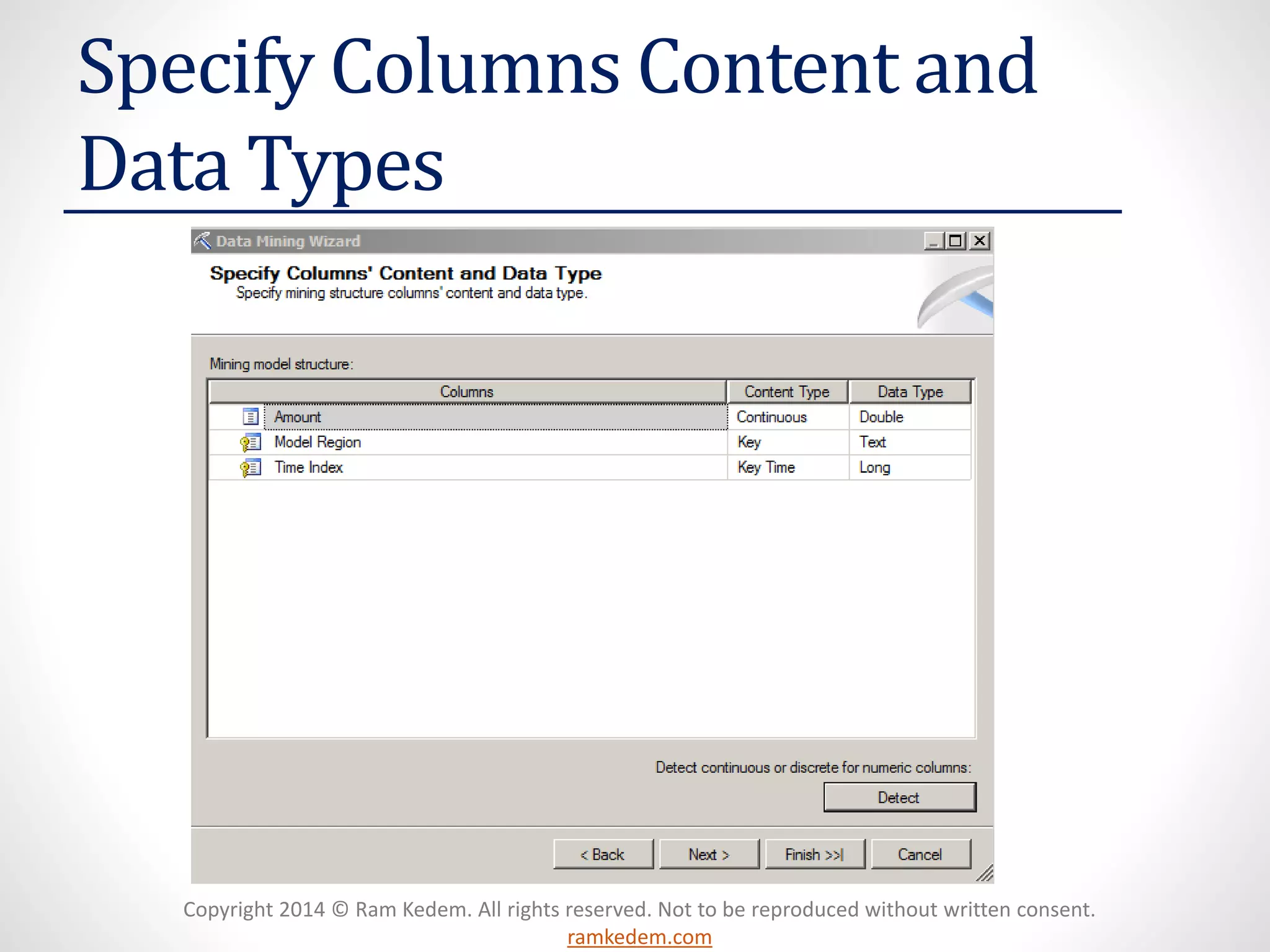

Specify Columns Content and
Data Types

46. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

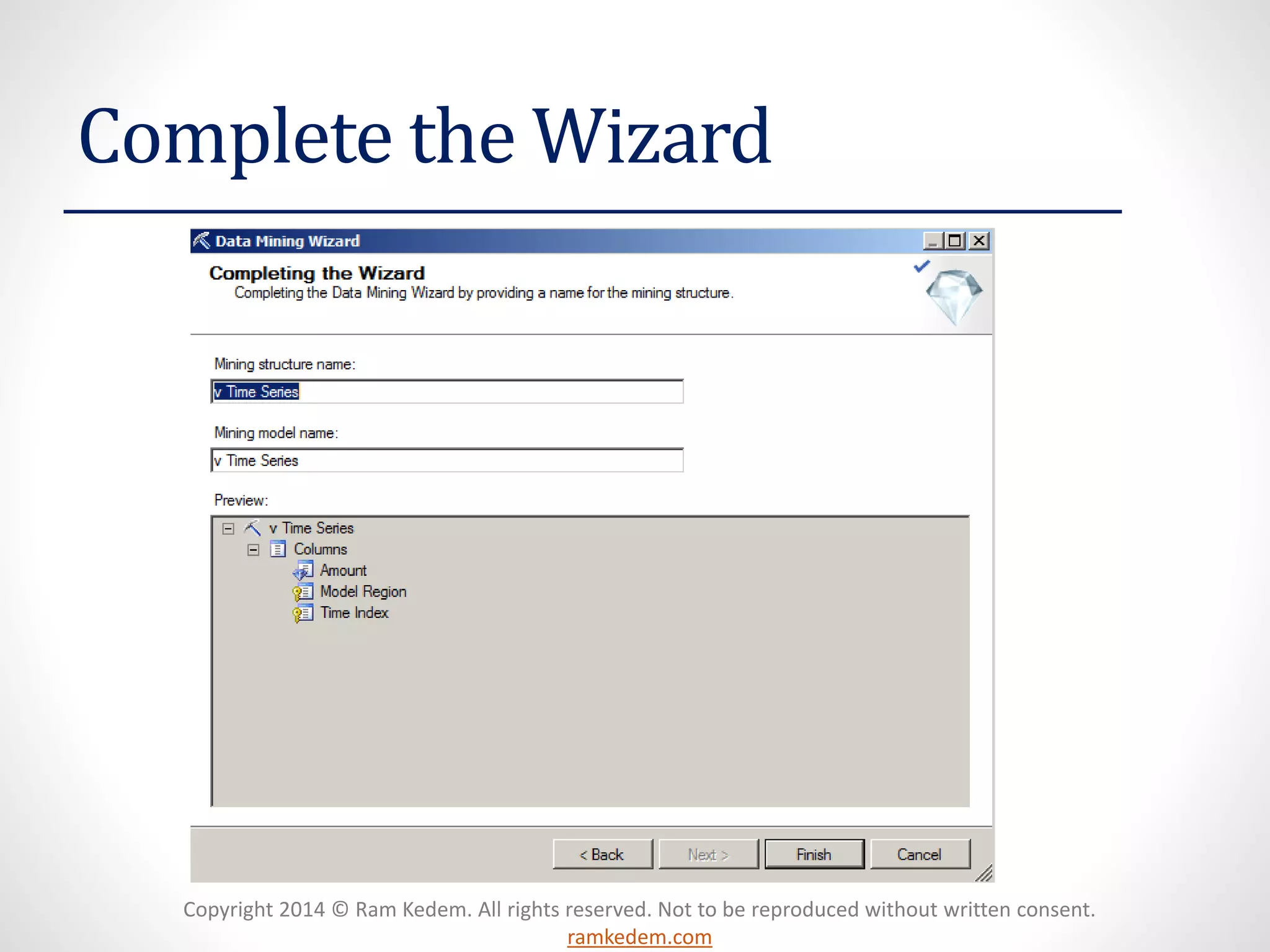

Complete the Wizard

47. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

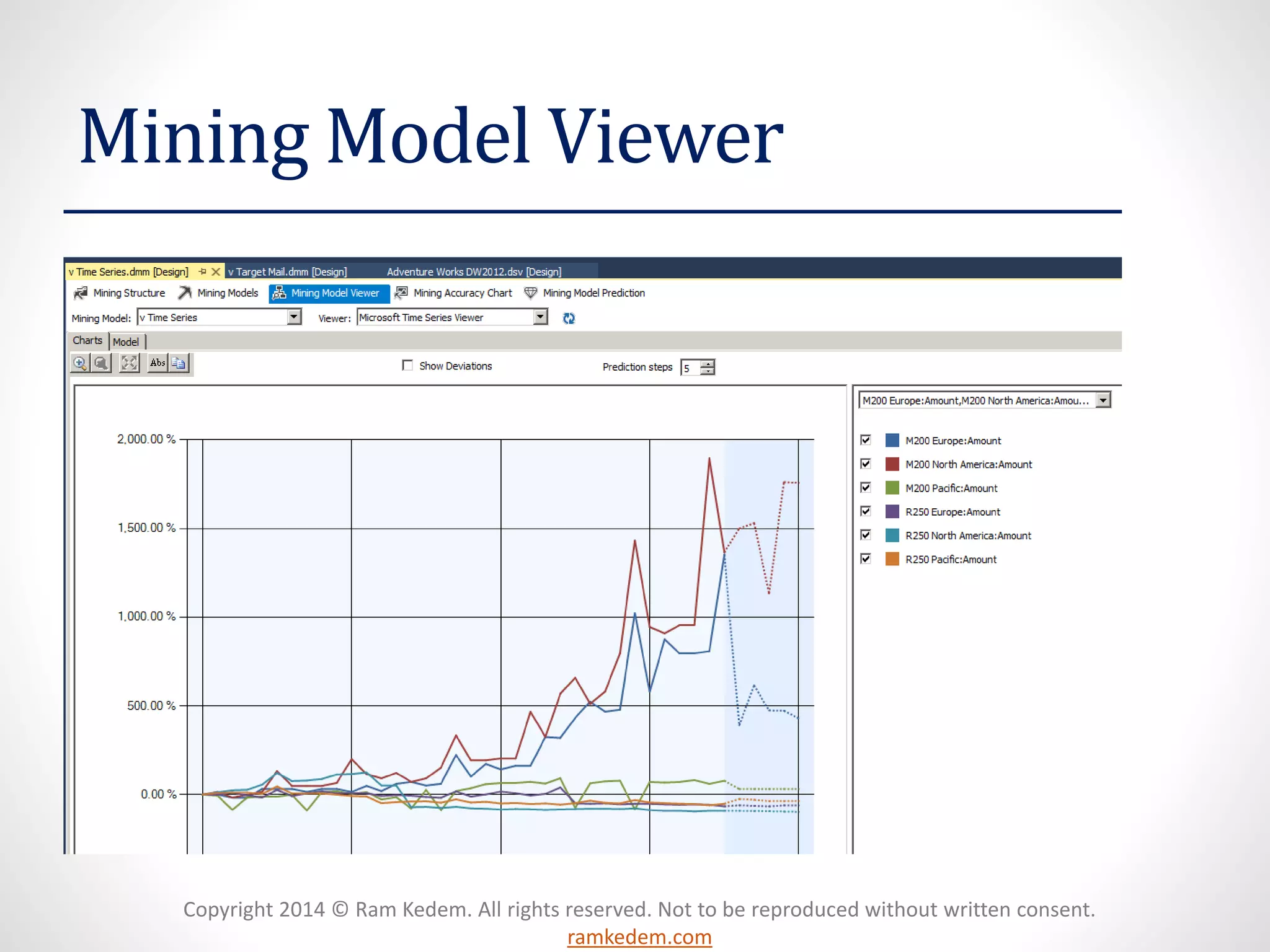

Mining Model Viewer
