1. Cubes & Hierarchies
Ram Kedem

2. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

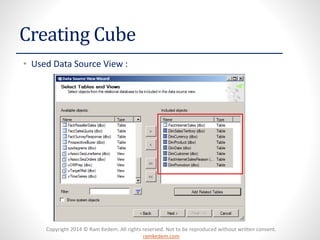

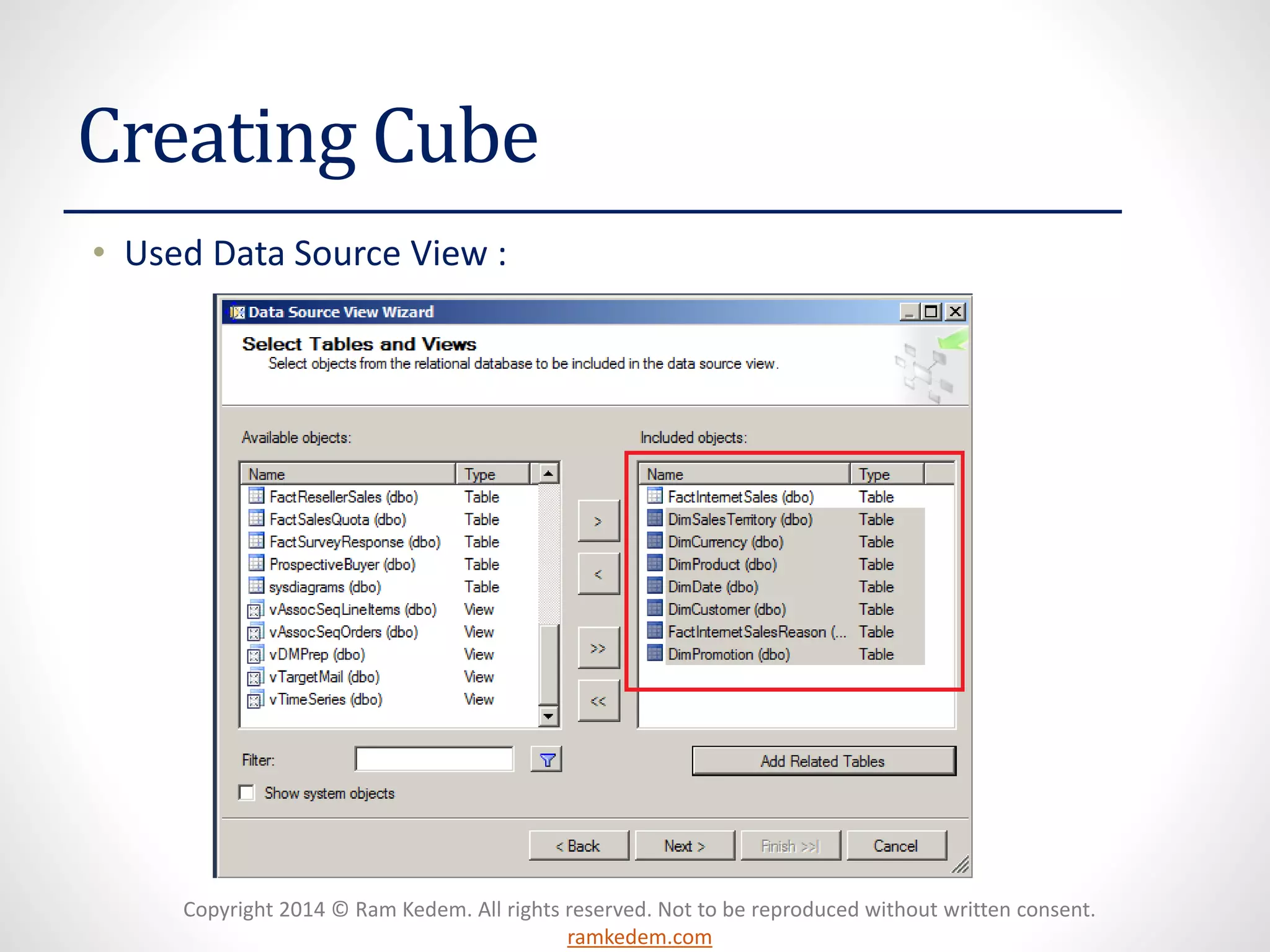

Creating Cube
• Used Data Source View :

3. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

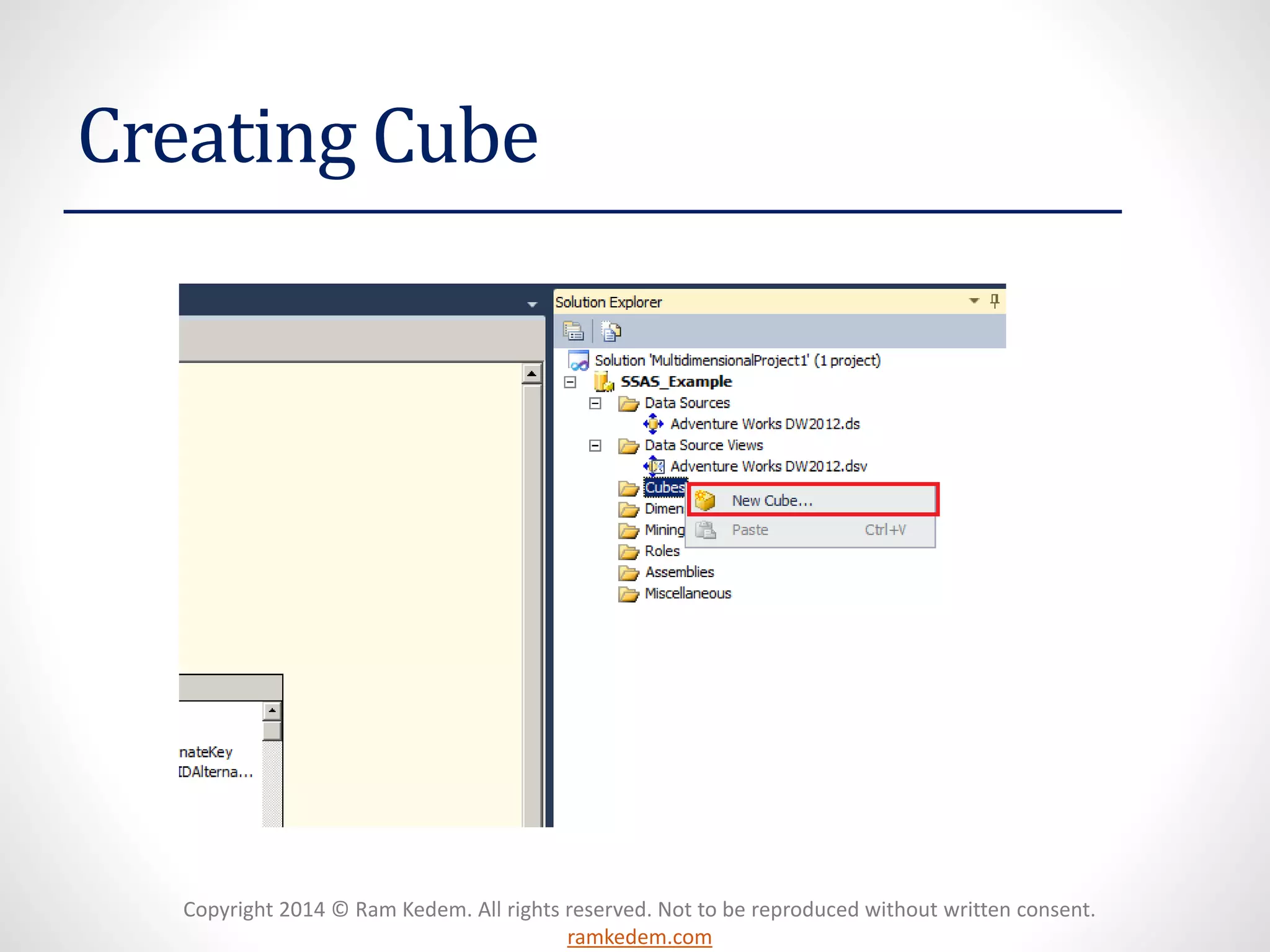

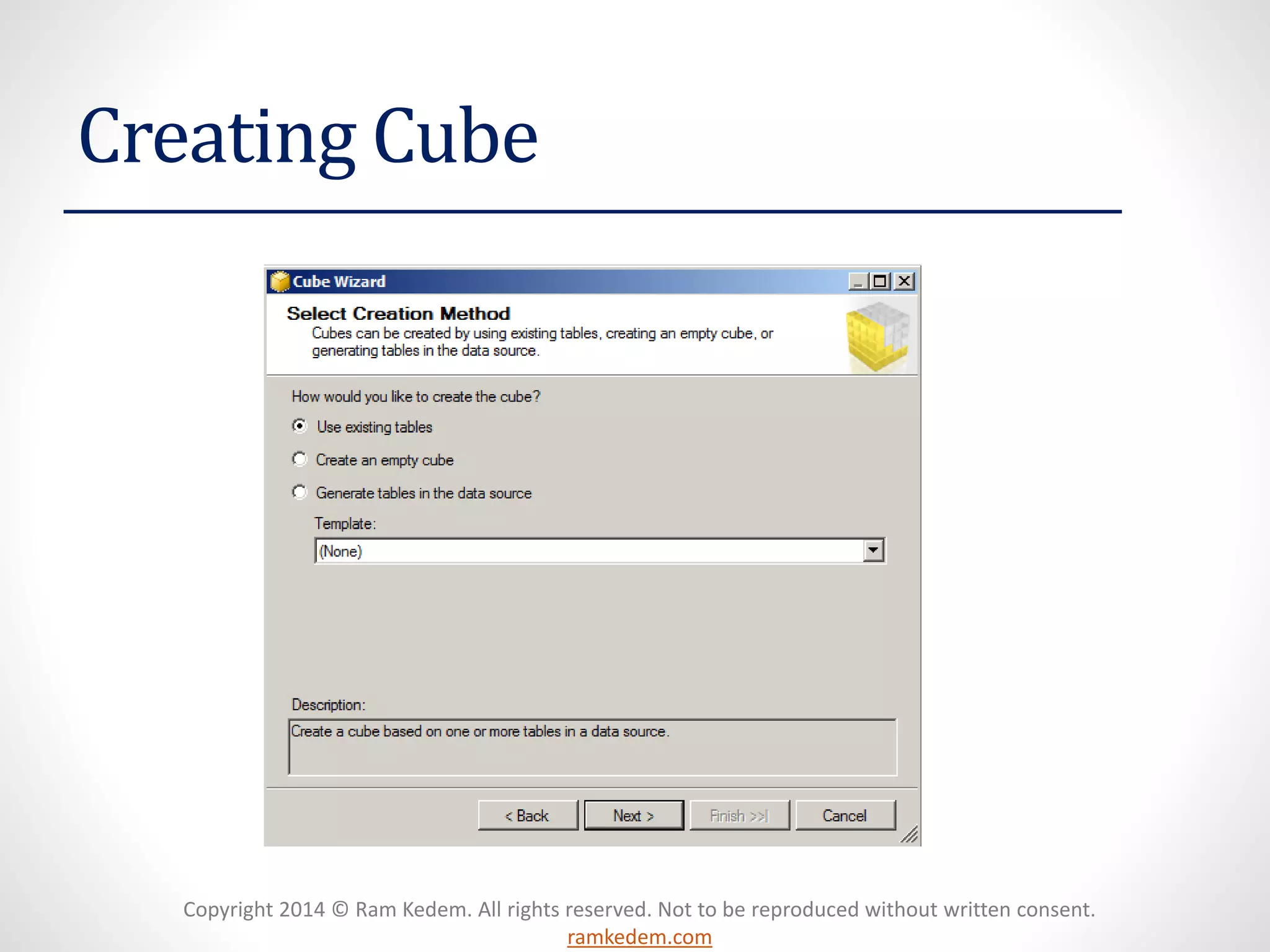

Creating Cube

4. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

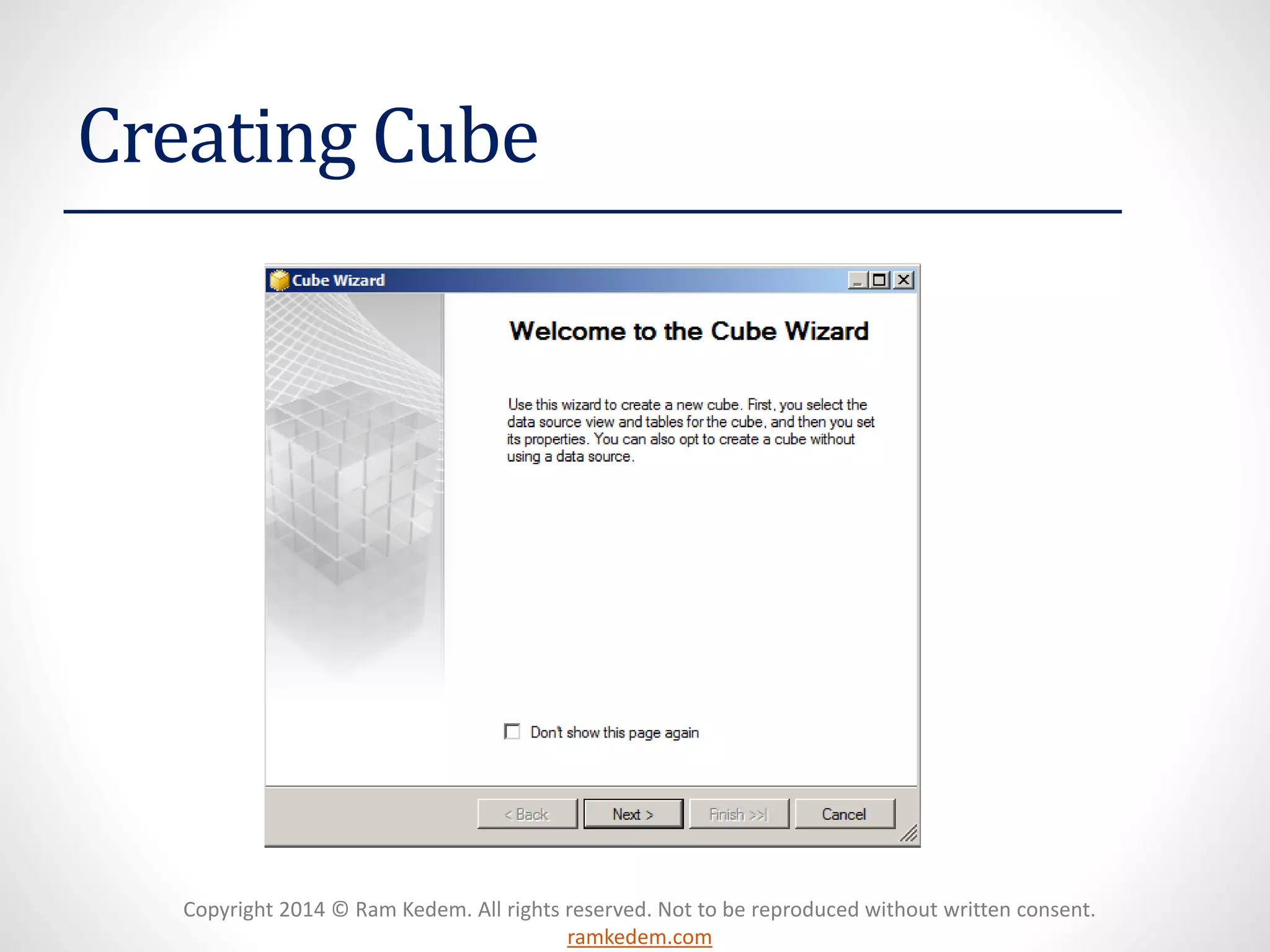

Creating Cube

5. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

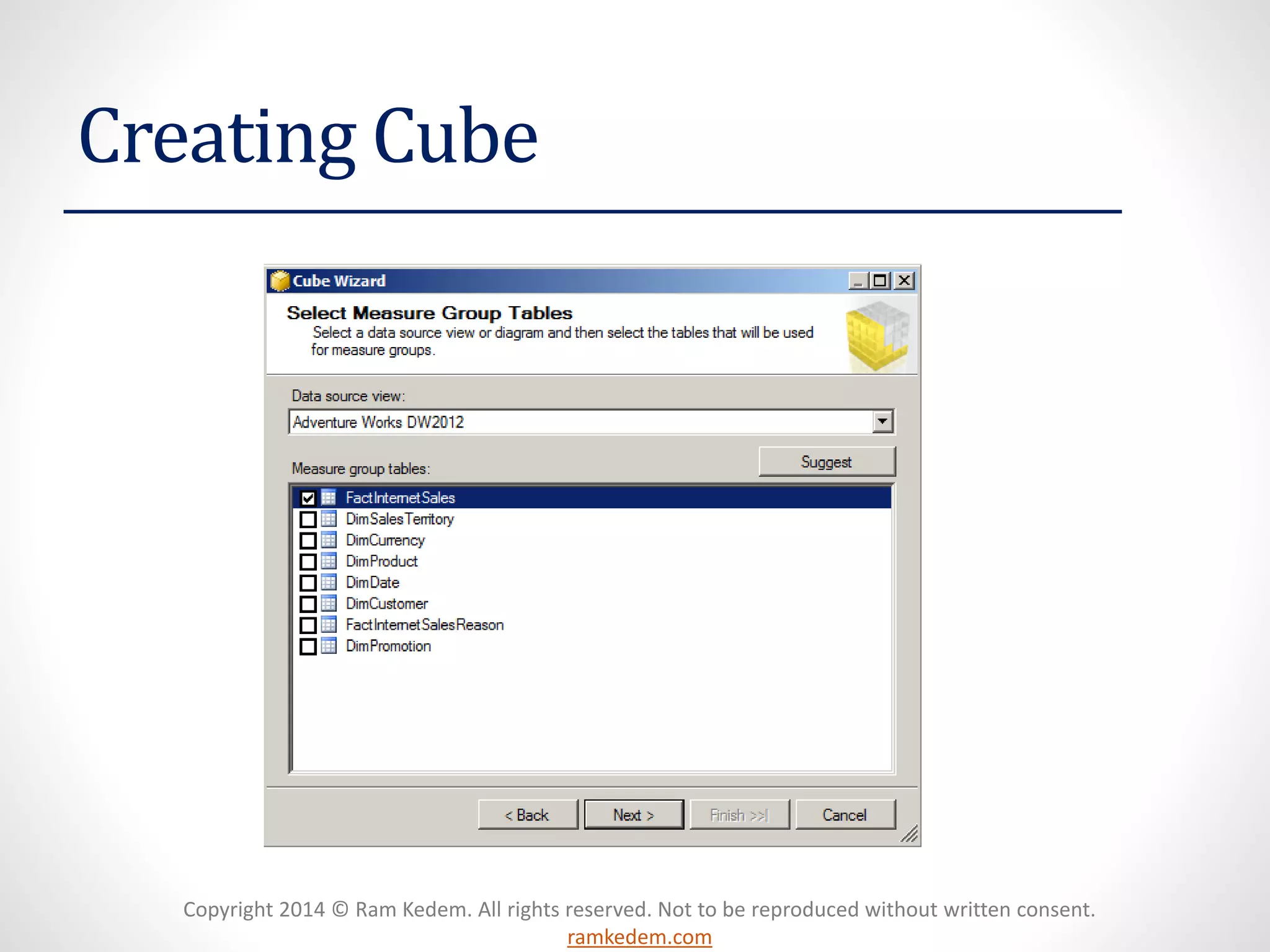

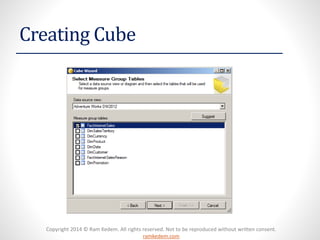

Creating Cube

6. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Creating Cube

7. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Creating Cube

8. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

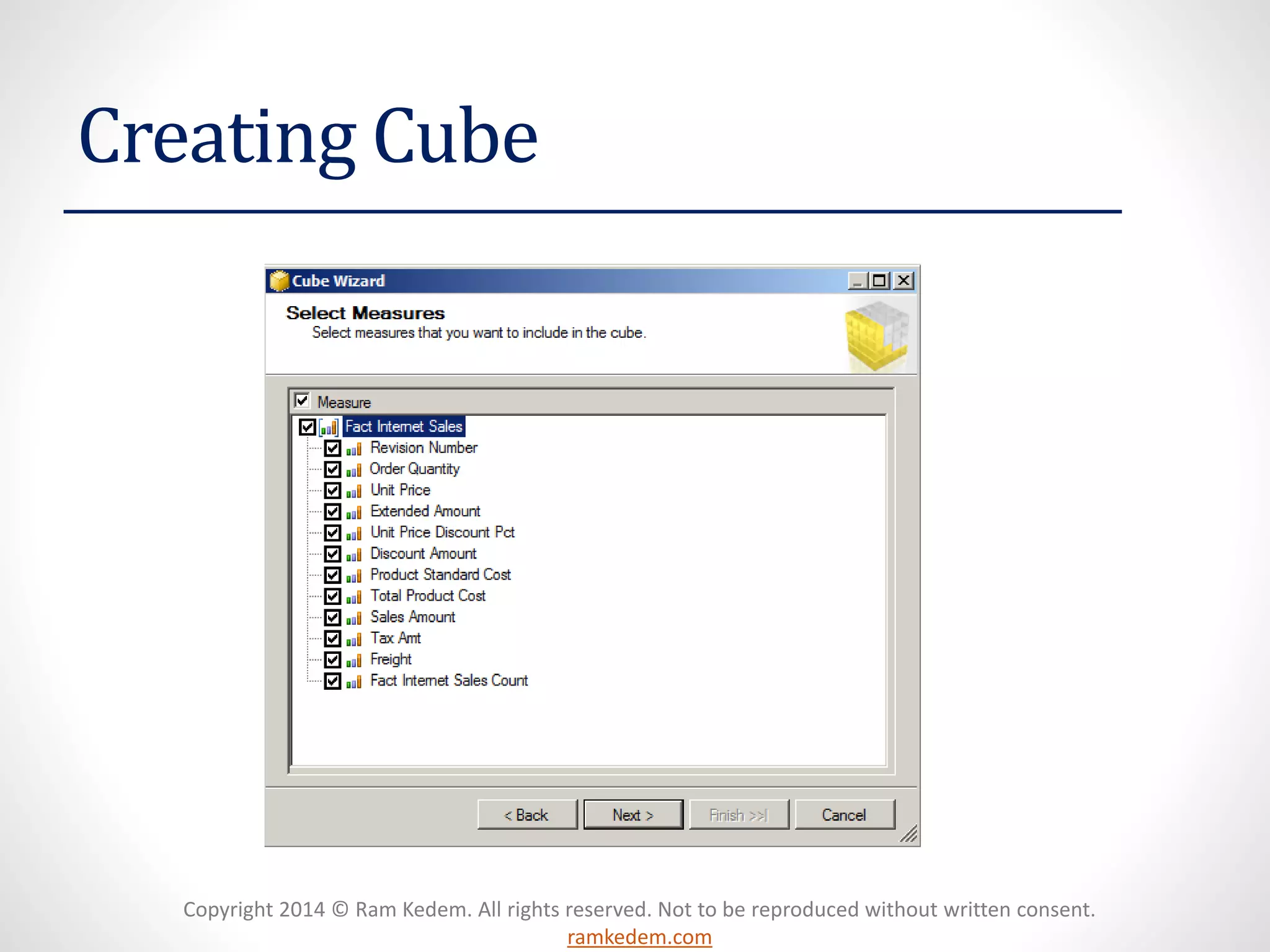

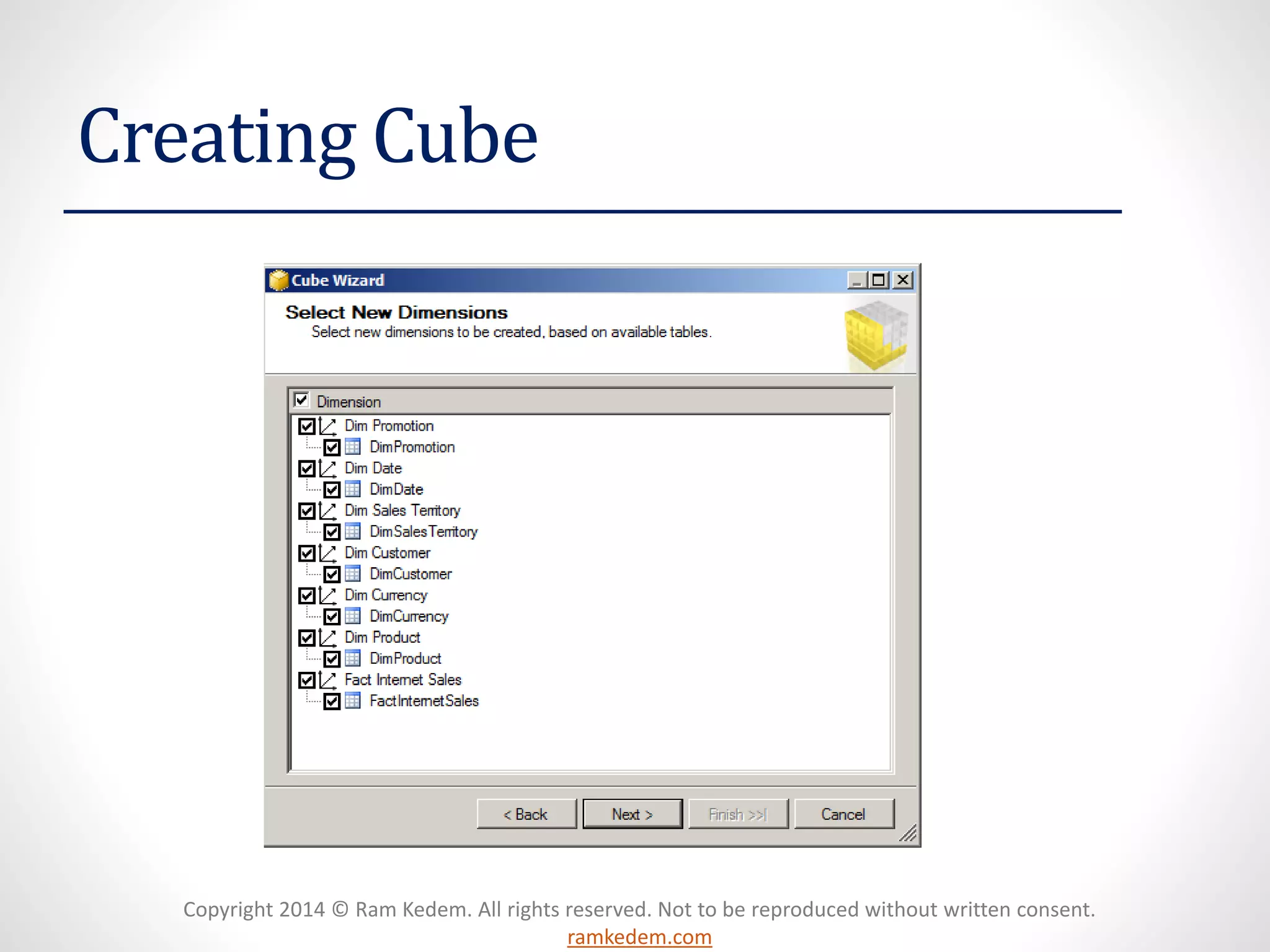

Creating Cube

9. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Creating Cube

10. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
“Publishing” an SSAS Project

11. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
“Publishing” an SSAS Project
• There are three distinct phases when “publishing” as SSAS
project :
• Build – Project file structure are being verified. In addition several
local files are being created.
• Deploy – Sends files from the build process to the target server.
• Process – Reads data from the source and build the dimension
and cube structures.

12. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

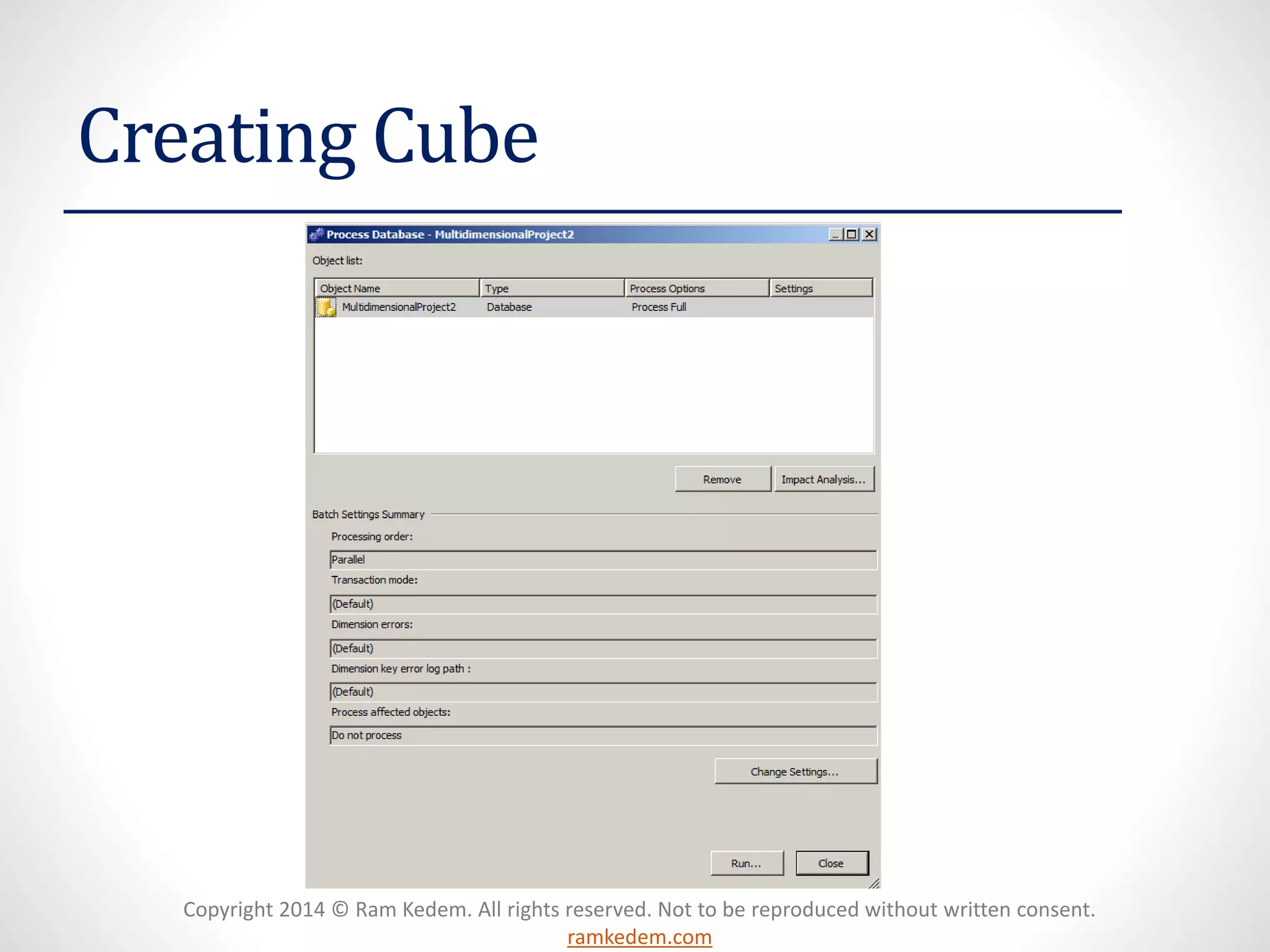

Creating Cube

13. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Creating Cube

14. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

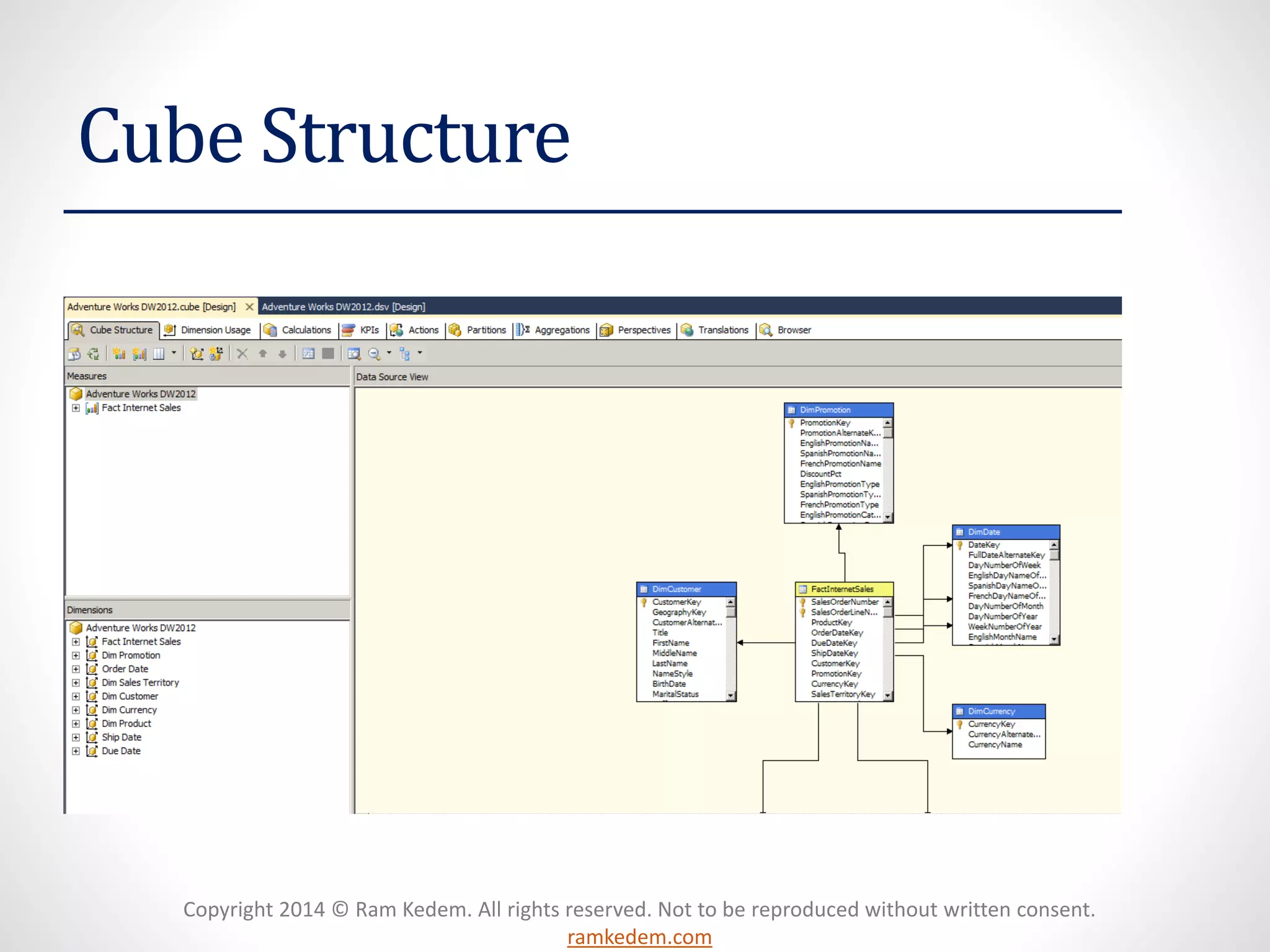

Cube Structure

15. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

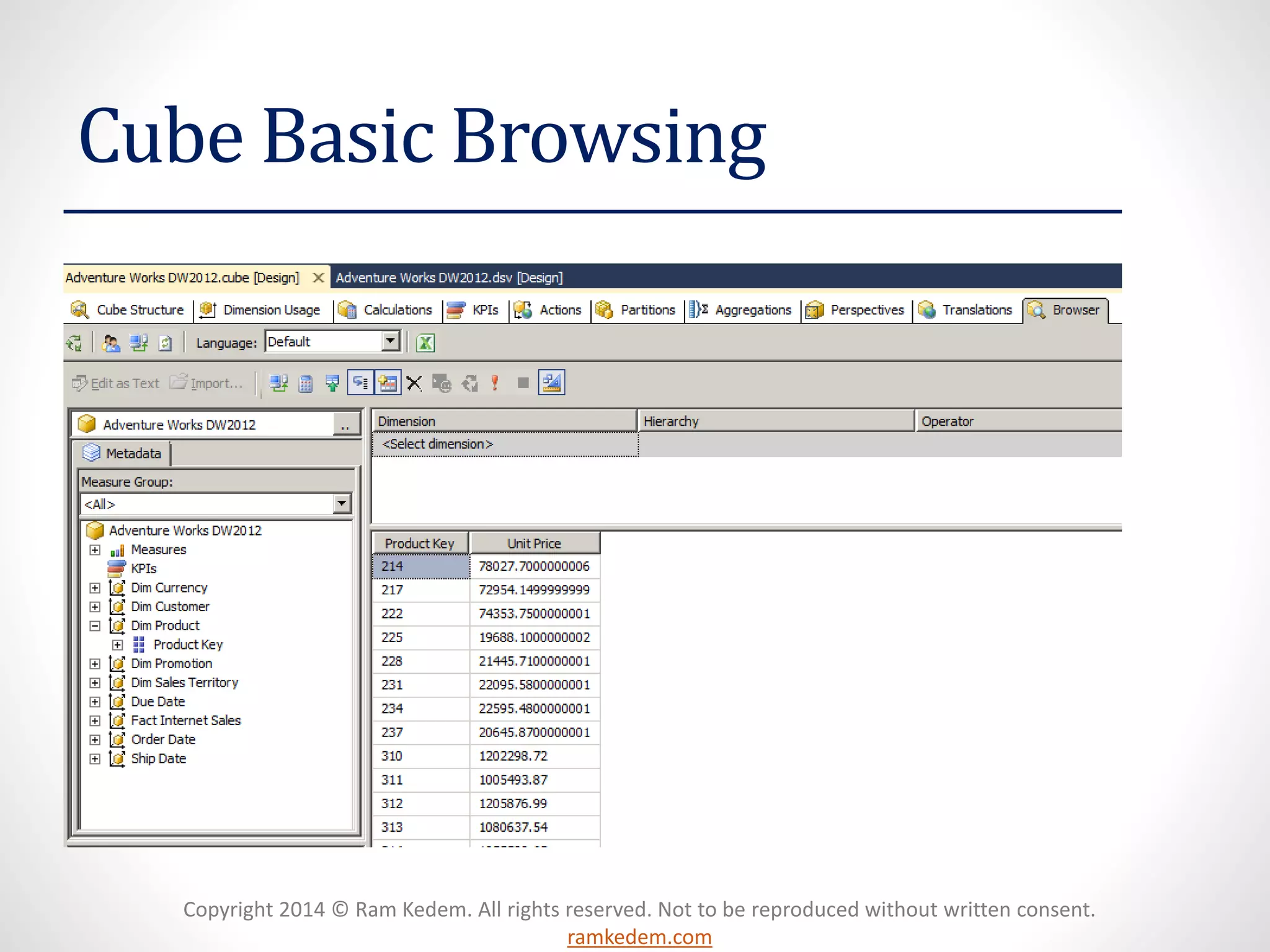

Cube Basic Browsing

16. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

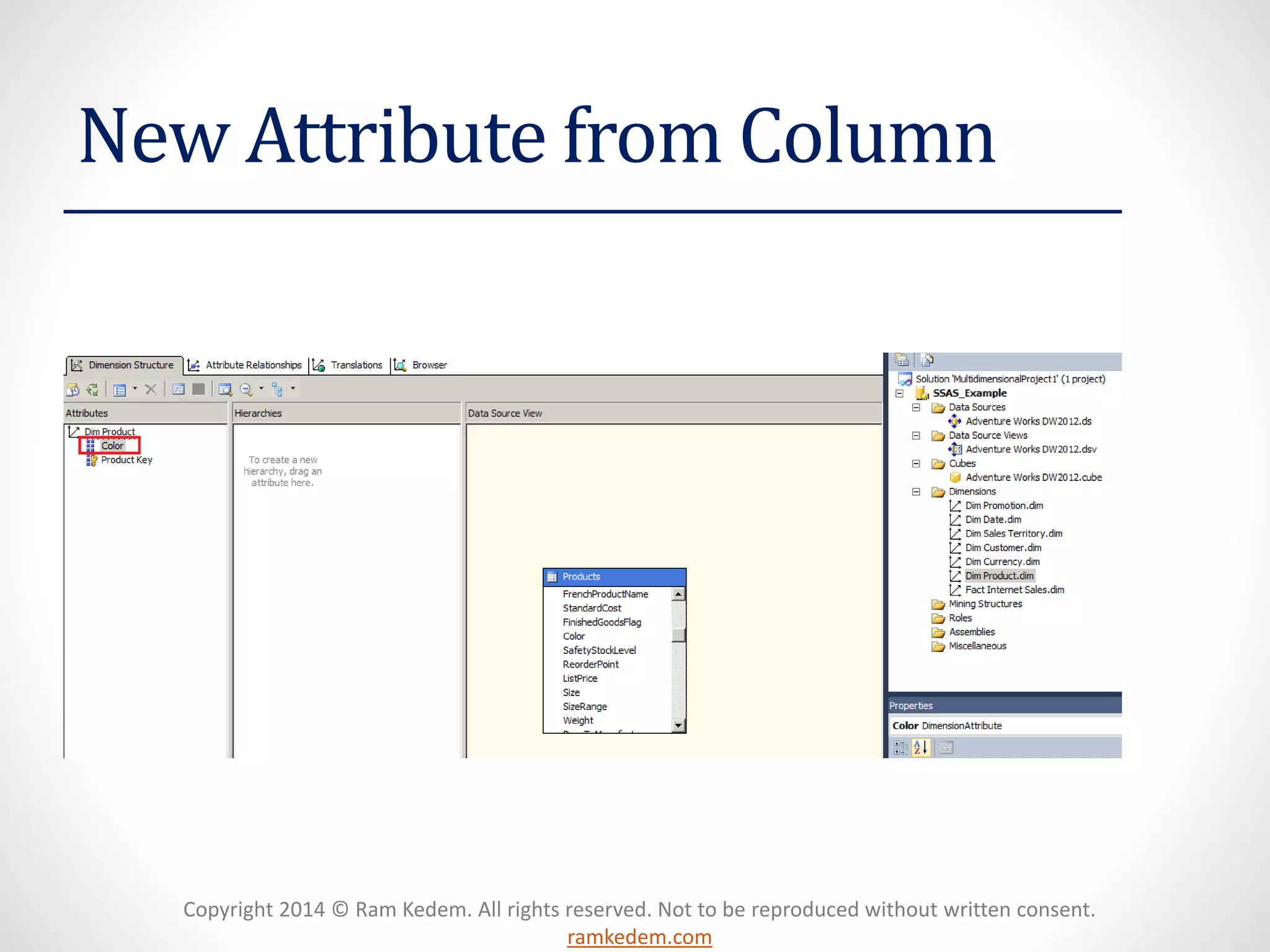

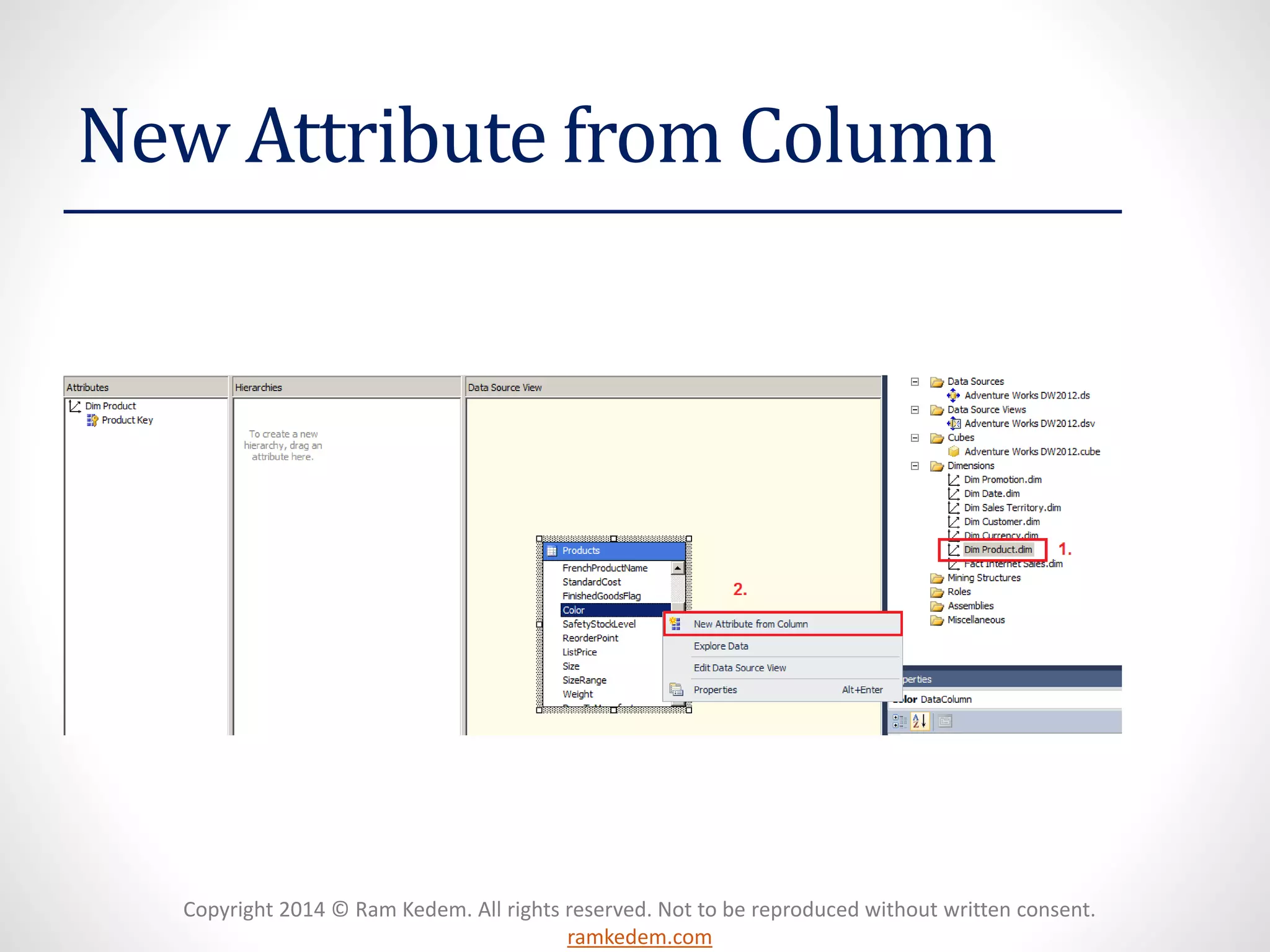

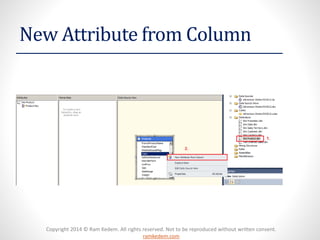

New Attribute from Column

17. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
New Attribute from Column

18. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

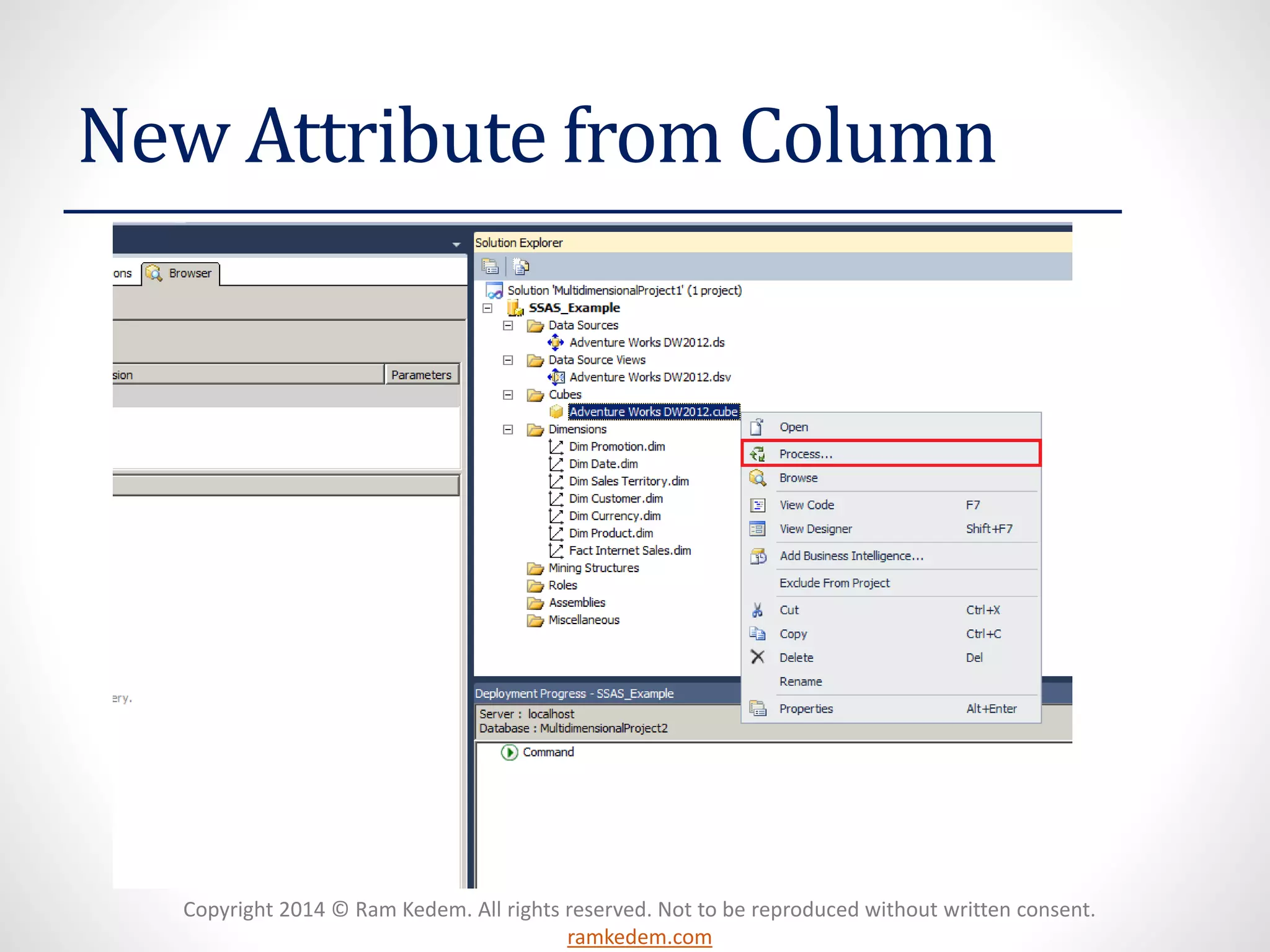

New Attribute from Column

19. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

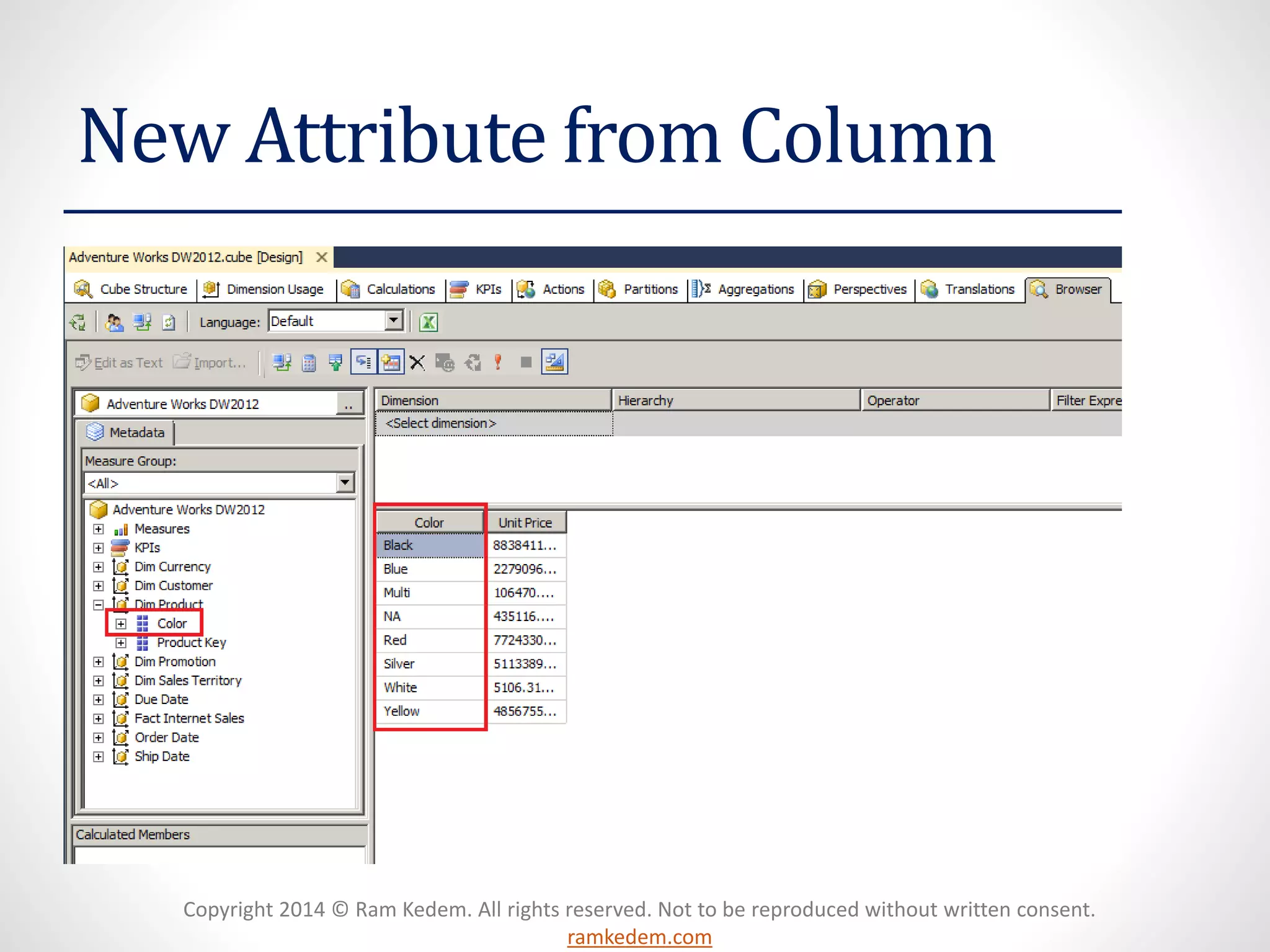

New Attribute from Column

20. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

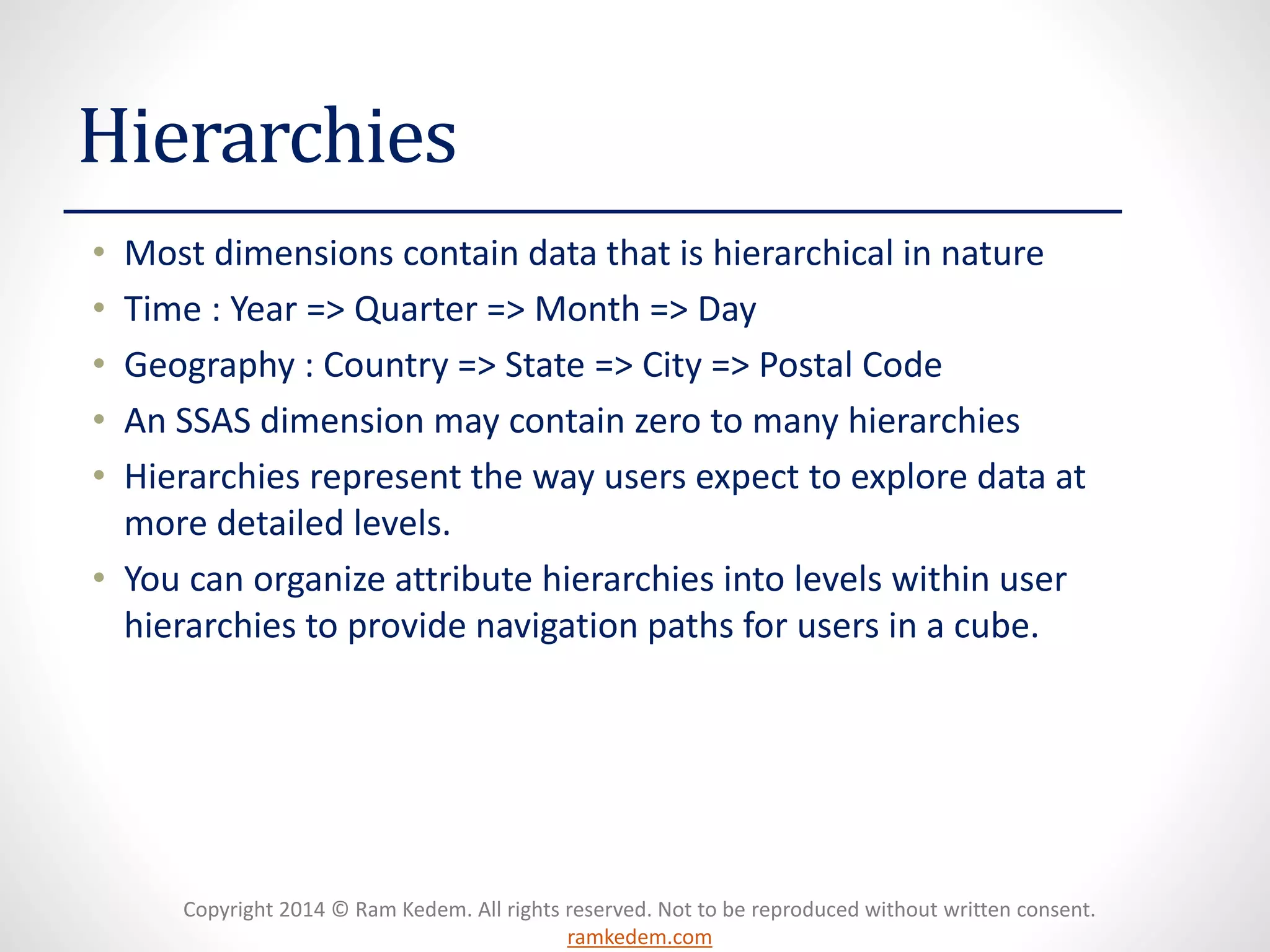

Hierarchies
• Most dimensions contain data that is hierarchical in nature
• Time : Year => Quarter => Month => Day
• Geography : Country => State => City => Postal Code
• An SSAS dimension may contain zero to many hierarchies
• Hierarchies represent the way users expect to explore data at
more detailed levels.
• You can organize attribute hierarchies into levels within user
hierarchies to provide navigation paths for users in a cube.

21. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

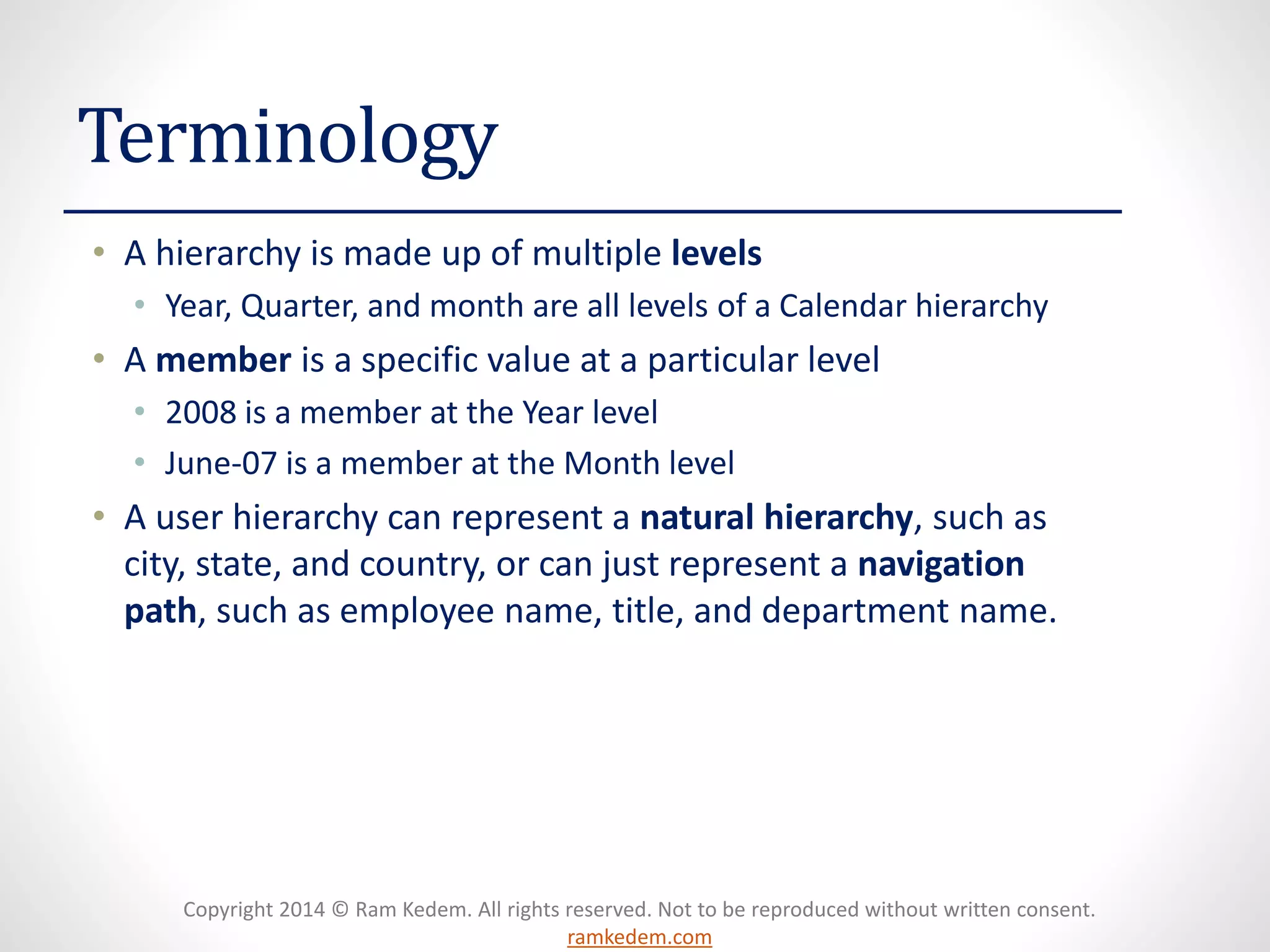

Terminology
• A hierarchy is made up of multiple levels
• Year, Quarter, and month are all levels of a Calendar hierarchy
• A member is a specific value at a particular level
• 2008 is a member at the Year level
• June-07 is a member at the Month level
• A user hierarchy can represent a natural hierarchy, such as
city, state, and country, or can just represent a navigation
path, such as employee name, title, and department name.

22. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

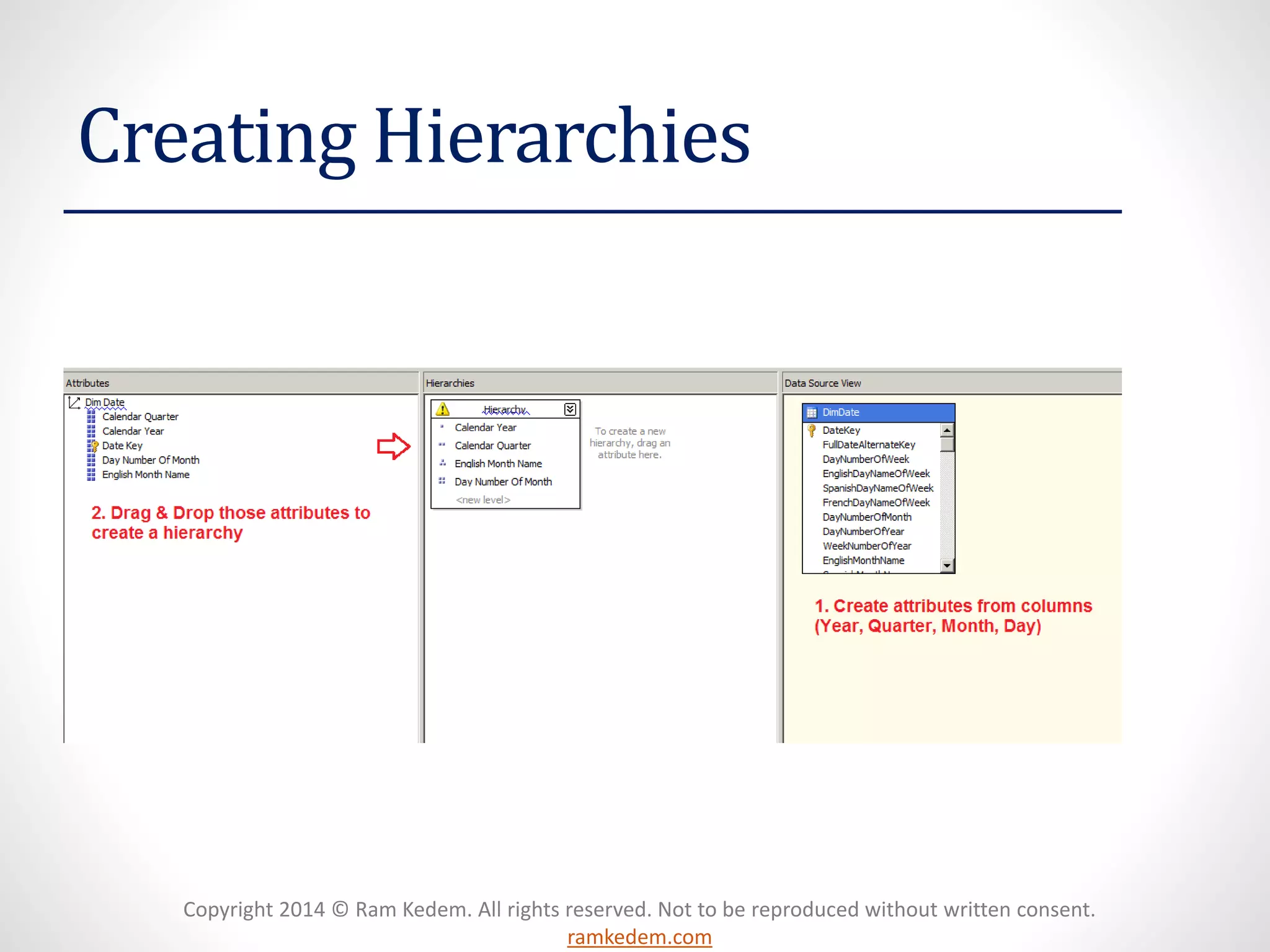

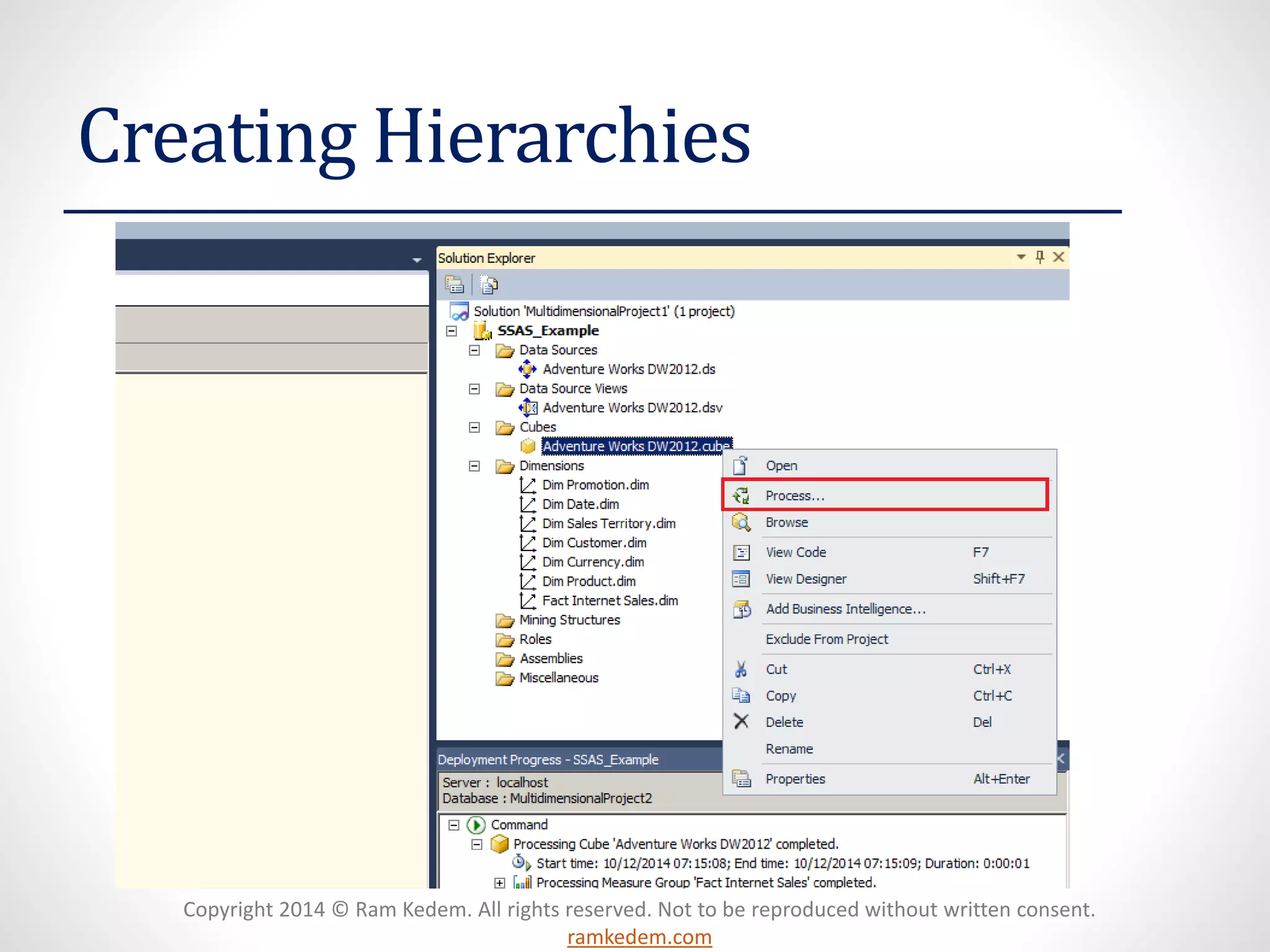

Creating Hierarchies

23. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com
Creating Hierarchies

24. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

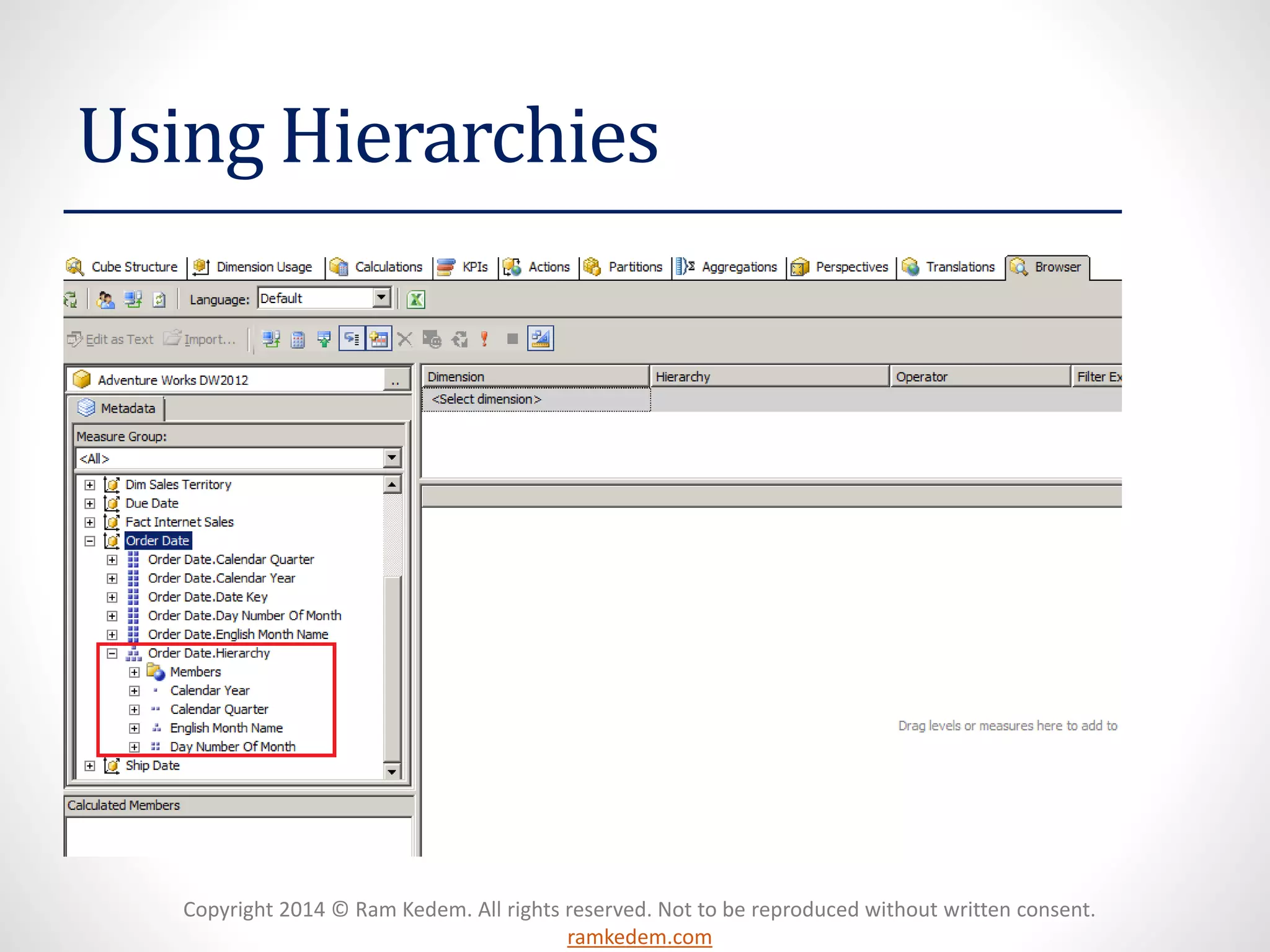

Using Hierarchies

25. Copyright 2014 © Ram Kedem. All rights reserved. Not to be reproduced without written consent.
ramkedem.com

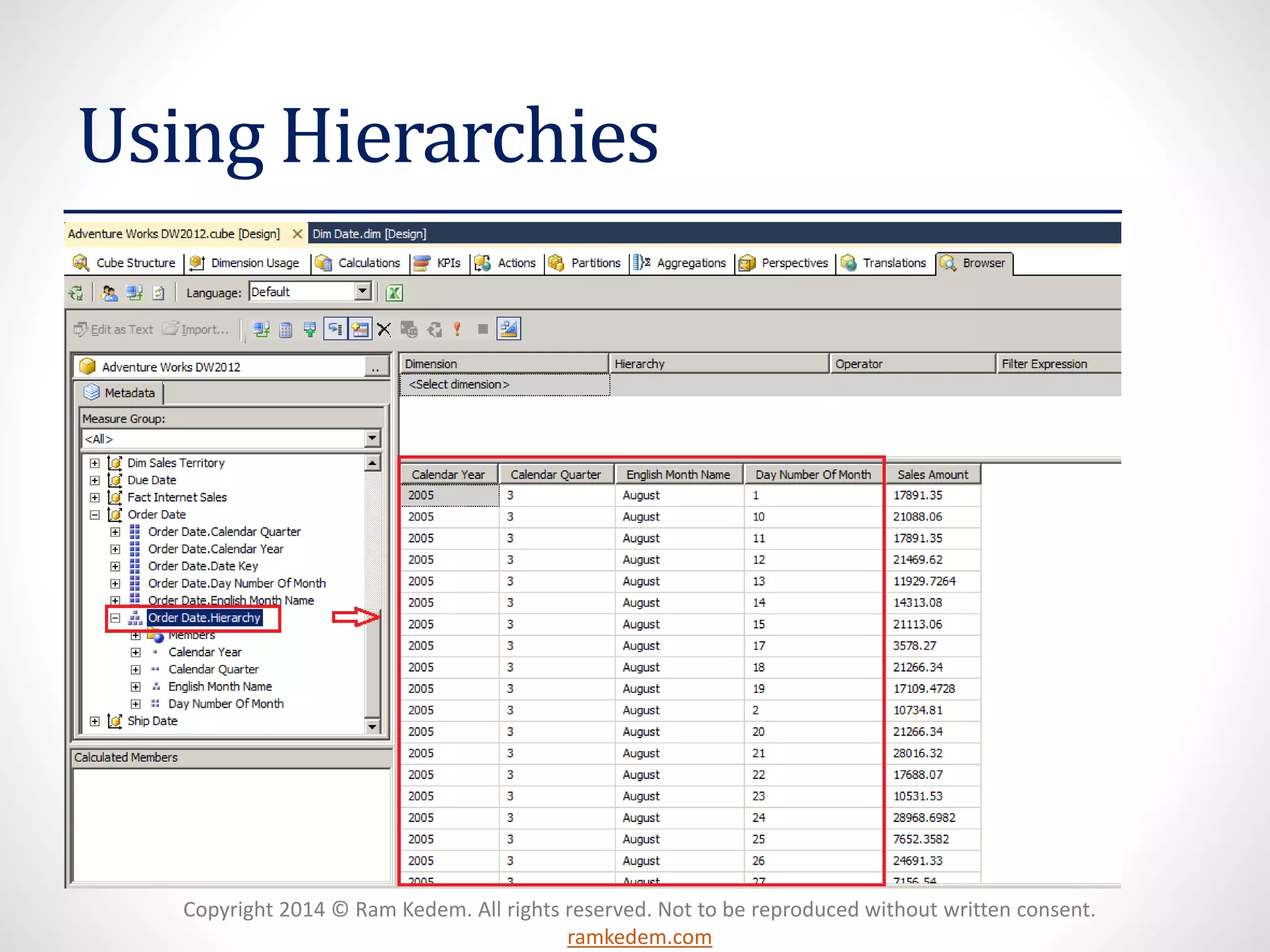

Using Hierarchies
