Multi-Terabyte Sphinx HA cluster
Vyacheslav Kryukov
vkrukov@ivinco.com

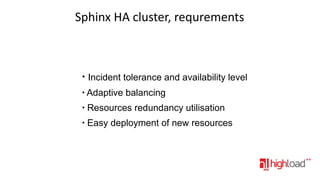

Sphinx HA cluster, requrements

●

Incident tolerance and availability level

●

Adaptive balancing

●

Resources redundancy utilisation

●

Easy deployment of new resources

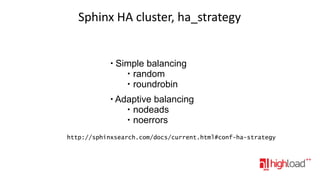

Sphinx HA cluster, ha_strategy

●

●

Simple balancing
●
random
●
roundrobin
Adaptive balancing
●
nodeads
●
noerrors

http://sphinxsearch.com/docs/current.html#conf-ha-strategy

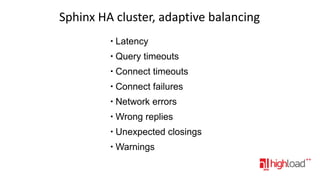

Sphinx HA cluster, adaptive balancing
●

Latency

●

Query timeouts

●

Connect timeouts

●

Connect failures

●

Network errors

●

Wrong replies

●

Unexpected closings

●

Warnings

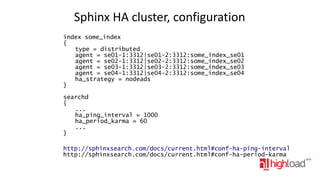

$Sphinx HA cluster, configuration index some_index { type = distributed agent = se01-1:3312|se01-2:3312:some_index_se01 agent = se02-1:3312|se02-2:3312:some_index_se02 agent = se03-1:3312|se03-2:3312:some_index_se03 agent = se04-1:3312|se04-2:3312:some_index_se04 ha_strategy = nodeads } searchd { ... ha_ping_interval = 1000 ha_period_karma = 60 ... } http://sphinxsearch.com/docs/current.html#conf-ha-ping-interval http://sphinxsearch.com/docs/current.html#conf-ha-period-karma$

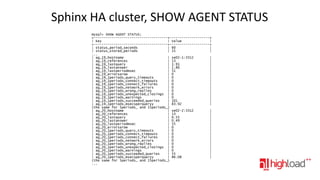

Sphinx HA cluster, SHOW AGENT STATUS
mysql> SHOW AGENT STATUS;
+-------------------------------------+--------------------+
| Key
| Value
|
+-------------------------------------+--------------------+
| status_period_seconds
| 60
|
| status_stored_periods
| 15
|
...
| ag_19_hostname
| se02-1:3312
|
| ag_19_references
| 13
|
| ag_19_lastquery
| 1.91
|
| ag_19_lastanswer
| 1.86
|
| ag_19_lastperiodmsec
| 51
|
| ag_19_errorsarow
| 0
|
| ag_19_1periods_query_timeouts
| 0
|
| ag_19_1periods_connect_timeouts
| 0
|
| ag_19_1periods_connect_failures
| 0
|
| ag_19_1periods_network_errors
| 0
|
| ag_19_1periods_wrong_replies
| 0
|
| ag_19_1periods_unexpected_closings | 0
|
| ag_19_1periods_warnings
| 0
|
| ag_19_1periods_succeeded_queries
| 101
|
| ag_19_1periods_msecsperqueryy
| 83.92
|
(the same for 5periods_ and 15periods_)
| ag_20_hostname
| se02-2:3312
|
| ag_20_references
| 13
|
| ag_20_lastquery
| 0.55
|
| ag_20_lastanswer
| 0.49
|
| ag_20_lastperiodmsec
| 55
|
| ag_20_errorsarow
| 0
|
| ag_20_1periods_query_timeouts
| 0
|
| ag_20_1periods_connect_timeouts
| 0
|
| ag_20_1periods_connect_failures
| 0
|
| ag_20_1periods_network_errors
| 0
|
| ag_20_1periods_wrong_replies
| 0
|
| ag_20_1periods_unexpected_closings | 0
|
| ag_20_1periods_warnings
| 0
|
| ag_20_1periods_succeeded_queries
| 55
|
| ag_20_1periods_msecsperqueryy
| 86.08
|
(the same for 5periods_ and 15periods_)
...

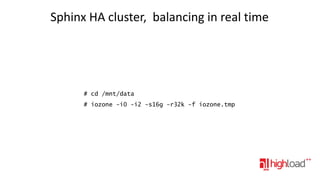

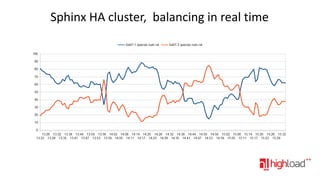

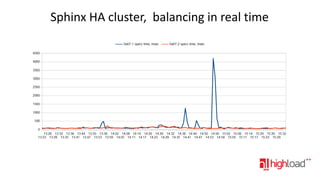

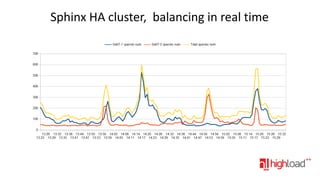

Sphinx HA cluster, balancing in real time

Sphinx HA cluster, balancing in real time

# cd /mnt/data
# iozone -i0 -i2 -s16g -r32k -f iozone.tmp

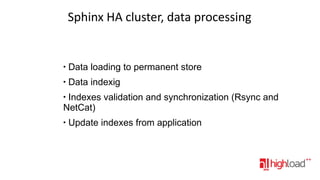

Sphinx HA cluster, data processing

●

Data loading to permanent store

●

Data indexig

Indexes validation and synchronization (Rsync and
NetCat)
●

●

Update indexes from application

Sphinx HA cluster, performance and
availability
●

Provide performance with band wide

●

What to monitor
●

SHOW AGENT STATUS, nodes performance, disc
space, io and cpu usage

●

Errors, warnings, crashes

●

Indexes synchronization, validity, freshness

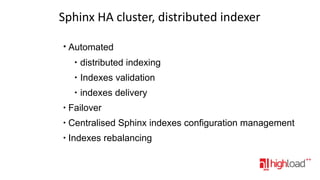

Sphinx HA cluster, distributed indexer
●

Automated
●

distributed indexing

●

Indexes validation

●

indexes delivery

●

Failover

●

Centralised Sphinx indexes configuration management

●

Indexes rebalancing

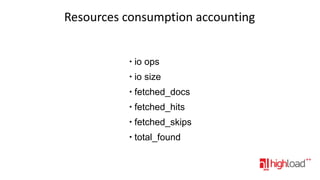

Resources consumption accounting

●

io ops

●

io size

●

fetched_docs

●

fetched_hits

●

fetched_skips

●

total_found

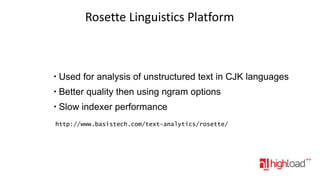

Rosette Linguistics Platform

●

Used for analysis of unstructured text in CJK languages

●

Better quality then using ngram options

●

Slow indexer performance

http://www.basistech.com/text-analytics/rosette/
