1. 【企業應用行動化開發模式 】
－ Rational Mobile Suite
IBM ,Software 資深技術顧問 Tommy Wu,
© 2011 IBM Corporation

2. Mobile Suite 開發模式 Overview
UI Layer: Dojo Mobile
Logic Layer : Ajax
Data Access Layer : Storage Access
Model
Controller
View
© 2011 IBM Corporation

3. Presentation Layer (View) – 細說 Dojo Mobile
 Dojo Mobile 是 Dojo Toolkit 的一個延伸應用，其提供了一系列的
widget 或 component ，以用在諸如智慧手機或是平板電腦一類的
移動設備上。這些元件是完全可以使用一些主題來做定義的，比如
說，可讓你向 iOS 用戶推出與 Android 用戶不同的一組風格。
 Dojo Mobile 的工作方式類似於元件的 Dijit 庫，要在應用中使用小
部件的某個具體類型的話，你首先要在應用的主 JavaScript 塊中使
用 dojo.require 來載入相關的類別。然後你就可以通過兩種方式來
把 widget 加到應用中，或者是使用帶有 dojoType 屬性的 HTML
標籤，或者是使用 JavaScript 代碼來動態產生。
 Dojo Mobile 在 iOS 和 Android 設備上都或得完全的支援，這大部
分要歸功於在這些平臺上 Webkit 瀏覽器都是可用的。這一優勢還
可延續到其他提供了符合 WebKit 標準的流覽器的平臺上，比如說
BlackBerry OS 6 、 HP webOS, Windows Phone 等等。
© 2011 IBM Corporation

4. Dojo Mobile 主要功能特性
 Dojo Mobile 的一些主要功能特性包括：
 1. Lightweight 的 widget 載入，這要歸功於 Dojo
Mobile 的解析器。
2. iOS 和 Android/Windows Phone/.. 設備上的 CSS3
動畫和過渡。
3. 包括了多種智慧裝置如 iOS 和 Android 觀感的主題
(Theme) 。
4. 非 CSS3 相容的設備和流覽器的相容性。
5. 完全宣告式 (Declarative) 的語法使得學習曲線變得
很平坦。
6. 一大批的 Widgets ，目前最新版本為 1.8 Beta 。
© 2011 IBM Corporation

5. 如何開始？從 View 開始
 手動的載入 Dojo Mobile 類別
 dojo.require("dojox.mobile.ScrollableView");
dojo.require("dojox.mobile.FlippableView");
dojo.require("dojox.mobile.IconContainer");
© 2011 IBM Corporation

6. Dojo Mobile View
 View
 View （視圖）是一個容器部件，其佔用了設備螢幕上的所有可用
空間。你的應用頁面可以包含多個 View 物件，但在任何特定時候
都永遠只會有其中的一個是活動的。用戶通常會使用工具欄按鈕和
標籤欄按鈕來在不同的視圖之間進行導航，這種導航為在各個視圖
之間的轉移提供了各種各樣的過渡效果。圖 2 給出了一個空視圖的
例子。
 圖 2. 一個空的 View 物件
© 2011 IBM Corporation

7. 視圖呈現
 在使用 View 物件的時候，你使用 selected 屬性來定義在應用啟動
時該視圖是否應該被顯示出來（啟動視圖）。以宣告來建立上面的
View 需要用到如下代碼。
 < div dojoType="dojox.mobile.View" selected="true">< /div>
© 2011 IBM Corporation

8. 其他基本 Dojo Mobile UI widget 應用
 Heading
 Heading 物件允許你建立一個出現在應用的最頂部的導航
欄， Heading 物件通常會有一個標題。你也可以往其中加入一些
導航元素，比如 Back （後退）按鈕或是工具欄按鈕等，以此來提
供一種導航到應用各處的簡單方式。
 < h1 dojoType="dojox.mobile.Heading" label="My App"
back="Back"
moveTo="back">
< div dojoType="dojox.mobile.ToolBarButton" label="Edit"
class="mblColorBlue" style="width:25px;float:right">
< /div>
< /h1>
© 2011 IBM Corporation

9. Dojo Mobile Data Container Widget
 RoundRect
 RoundRect 類別允許你建立一個簡單的圓角容器，該容器可用來
放置靜態的 HTML 或是其他的 Dojo Mobile 部件。圖 6 給出了一
個 RoundRect 部件的例子。
 圖 6. 使用 RoundRect 容器
 < div dojoType="dojox.mobile.RoundRect" shadow="true">
This is a simple RoundRect object with some content in it.
< /div>
© 2011 IBM Corporation

10. Dojo Mobile Data Container Widget
 RoundRectCategory 和 RoundRectList
 在移動設備上呈現資料的時候，列表起到了非常重要的作用。垂直的表格
結構允許你表示一系列不同的列表，這些項目可被用來顯示用於導航目的
或是其他各種用途的資訊。 Dojo Mobile 允許你建立兩種類型的列表，這
兩種列表都有著一個相關的類別部件。 RoundRectList 建立的列表的兩邊
都有著一條間縫，第一項和最後一項的邊角則是圓的。圖 7 給出了在
iPhone 上看到的 RoundRectCategory 和 RoundRectList 的樣子。
 圖 7. RoundRectList
 < h2 dojoType="dojox.mobile.RoundRectCategory">
List Heading< /h2>
< ul dojoType="dojox.mobile.RoundRectList">
< li dojoType="dojox.mobile.ListItem">List Item 1< /li>
< li dojoType="dojox.mobile.ListItem">List Item 2< /li>
< li dojoType="dojox.mobile.ListItem">List Item 3< /li>
< /ul>
© 2011 IBM Corporation

11. 一個 Dojo Mobile 綜合應用的簡單範例
 < div dojoType="dojox.mobile.ScrollableView" selected="true">
< h1 dojoType="dojox.mobile.Heading" fixed="top">Hello, World!<
/h1>
< h2 dojoType="dojox.mobile.RoundRectCategory">First Section<
/h2>
< div dojoType="dojox.mobile.RoundRect">
This is a nice standard rounded rectangular label.
< /div>
< h2 dojoType="dojox.mobile.RoundRectCategory">Second
Section< /h2>
< ul dojoType="dojox.mobile.RoundRectList">
< li dojoType="dojox.mobile.ListItem">List Item 1< /li>
< li dojoType="dojox.mobile.ListItem">List Item 2< /li>
< li dojoType="dojox.mobile.ListItem">List Item 3< /li>
< li dojoType="dojox.mobile.ListItem">List Item 4< /li>
< li dojoType="dojox.mobile.ListItem">List Item 5< /li>
< /ul>
< /div>
© 2011 IBM Corporation

12. 其他常用 UI Widget
< div dojoType="dojox.mobile.Switch" value="off">< /div>
< ul dojoType="dojox.mobile.TabBar" barType="segmentedControl">
< li dojoType="dojox.mobile.TabBarButton" moveTo="view1"
selected="true">Albums< /li>
< li dojoType="dojox.mobile.TabBarButton"
moveTo="view2">Events< /li>
< /ul> < button dojoType="dojox.mobile.Button" btnClass="mblBlueButton"
style="width: 100px">Click me!< /button>
© 2011 IBM Corporation

13. Logic Layer : Ajax for xhr
 Ajax : AJAX (Asynchronous JavaScript and XML)
-XMLHttpRequest 物件
 Ajax is a term used to describe a combination of technologies to
make calls (asynchronously) to a server while the user's web
page stays loaded. Dojo.xhrGet
 Making the call to the URL from the Dojo Toolkit ,Simply set up
the arguments for the call, as shown in Listing 6, and pass them
to the service.
© 2011 IBM Corporation

14. XMLHTTPREQUEST2
 Cross-Origin Resource Sharing
 FormData, another new data type conceived for
XHR2. FormData is convenient for creating an HTML <form> on-
the-fly, in JavaScript. That form can then be submitted using
AJAX
 Typed Array
 Progress Events
© 2011 IBM Corporation

15. REST API Call
 In addition to calling standard Ajax-style services, you can also
use the Dojo Toolkit to call RESTful web services.
 Using a RESTful service
 Most RESTful web services follow conventions for the way a URL
is constructed for a specific type of request, in addition to the
HTTP method used for the request.
 Calling a RESTful web service using dojo.rpc.Rest
// Calling this access the URL hobbits/1 (see Table 2)
 var service = dojox.rpc.Rest("hobbits");
 service("1");
© 2011 IBM Corporation

16. xhr.responseType='blob'
 A Blob can be used in a number of places, including saving it to
indexedDB, writing it to the HTML5 File System, or creating an
Blob URL
© 2011 IBM Corporation

17. Send File or Blob data using XHR2
 Sets up a handler to inform the user of the upload's progress:
© 2011 IBM Corporation

18. Cross-Origin Resource Sharing- CORS 限制 (same origin policy )
 跨網域代理（ Cross Domain Proxy ）
 Using an iframe and document.domain
 JsonP : JSONP 其實就是運用 json 資料格式，及回呼程式
(callback=?) 的方式達到可以取得到其它網域的資料並且執行後續
callback 的 function
 CORS Spec :
Header 的部份宣告 Access-Control-Allow-Origin ，並且限制可存
取網域為 http://clonn.info ，如果希望所有網站都可以存取可以使
用 "*"
 JS Library
– easyXDM
– easyXSS
© 2011 IBM Corporation

19. Data Access Layer : Offline Storage Access
 Application Cache :
– allows us to store a copy of our web app's HTML, CSS and other
assets off line, to be used when the network is not available.
 LocalStorage :
– Web Storage takes the principles of older storage mechanisms
such as cookies, and makes them more powerful and flexible
 WebSQL (Embedded SQLite)
– WebSQL provides a fully-operational SQL database inside the
browser, which can store a copy of our web app's data offline,
allowing users to continue working with their data when they
have no connection available.
© 2011 IBM Corporation

20. Application Cache
 Loading our app's files when there is no network connection
 Define a manifest file containing the references to the files
needed to run that app offline.
 <html manifest="demo.manifest">
© 2011 IBM Corporation

21. Web Storage (LocalStorage)
 Web Storage is perfect for storing small chunks of information
rather than large tables of organized information.
© 2011 IBM Corporation

22. WebSQL
 WebSQL is a local SQLite database that you can save application
data to, using a combination of simple JavaScript and SQL.
 Transactions
© 2011 IBM Corporation

23. WebSQL
 Looping through result sets
© 2011 IBM Corporation

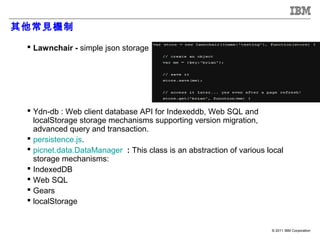

24. 其他常見機制
 Lawnchair - simple json storage
 Ydn-db : Web client database API for Indexeddb, Web SQL and
localStorage storage mechanisms supporting version migration,
advanced query and transaction.
 persistence.js.
 picnet.data.DataManager : This class is an abstraction of various local
storage mechanisms:
 IndexedDB
 Web SQL
 Gears
 localStorage
© 2011 IBM Corporation

25. Performance Tips for HTML5/CSS/JS
 MAKING APPLICATIONS ASYNCHRONOUS-READY
– right design is to proactively make all application API that could take
some time to process, asynchronous from the beginning as
retrofitting synchronous application code to be asynchronous can be
a daunting task
© 2011 IBM Corporation

26. Data exchange language performance : JSON vs. XML
 JSON should be faster since it's JS Object Notation, which
means it can be recognized natively by JavaScript
 JSON lets you send JavaScript objects, while XML requires
parsing a document.
Benchmarking( JSON vs XML )
 http://www.navioo.com/ajax/ajax_json_xml_Benchmarking.p
hp
Parsing JSON was 2 -10 times faster than parsing XML! © 2011 IBM Corporation

27. Minimizing browser reflow
 Reflow is the name of the web browser process for re-calculating
the positions and geometries of elements in the document
Reduce unnecessary DOM depth
Minimize CSS rules
Avoid unnecessary complex CSS selectors
© 2011 IBM Corporation

28. SLICING A FILE AND UPLOADING EACH PORTION
 we can minimize the work to upload a large file. The technique is
to slice the upload into multiple chunks, spawn an XHR for each
portion, and put the file together on the server.
© 2011 IBM Corporation

29. Dojo Tips : CSS Sprite
 The combined big image can be clipped and adjusted with CSS
properties so that it can be used as one of small images – Dojo
Mobile
© 2011 IBM Corporation

30. Dojo Tips : Dynamic creation and lazy loading
 Dojo Mobile use lazy loading technique to load modules only
when they are referenced for the first time—improves the
application's startup performance
 Lazy-load ：
– With the url property of _ItemBase, you can dynamically create a new
view immediately before making a view transition
– To improve the startup time performance, you can specify
the lazy="true" parameter on IconItems
– TabBar lazy=“true”
 Requiring modules dynamically
 Asynchronous mode
– In Dojo 1.7, a new AMD (Asynchronous Module Definition) loader is
provided in addition to the traditional Dojo loader. Dojo Mobile
widgets are written in the new AMD syntax.
© 2011 IBM Corporation

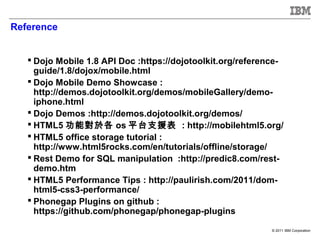

31. Reference
 Dojo Mobile 1.8 API Doc :https://dojotoolkit.org/reference-
guide/1.8/dojox/mobile.html
 Dojo Mobile Demo Showcase :
http://demos.dojotoolkit.org/demos/mobileGallery/demo-
iphone.html
 Dojo Demos :http://demos.dojotoolkit.org/demos/
 HTML5 功能對於各 os 平台支援表 : http://mobilehtml5.org/
 HTML5 office storage tutorial :
http://www.html5rocks.com/en/tutorials/offline/storage/
 Rest Demo for SQL manipulation :http://predic8.com/rest-
demo.htm
 HTML5 Performance Tips : http://paulirish.com/2011/dom-
html5-css3-performance/
 Phonegap Plugins on github :
https://github.com/phonegap/phonegap-plugins
© 2011 IBM Corporation
