This document discusses big data and SQL technologies. It provides an overview of Hadoop, HDFS, Hive, and data warehousing technologies like Amazon Redshift. It also includes sample HiveQL queries to demonstrate how to analyze log data and Wikipedia edit histories stored in HDFS. The document aims to introduce SQL professionals to working with large datasets using these big data tools and cloud services.

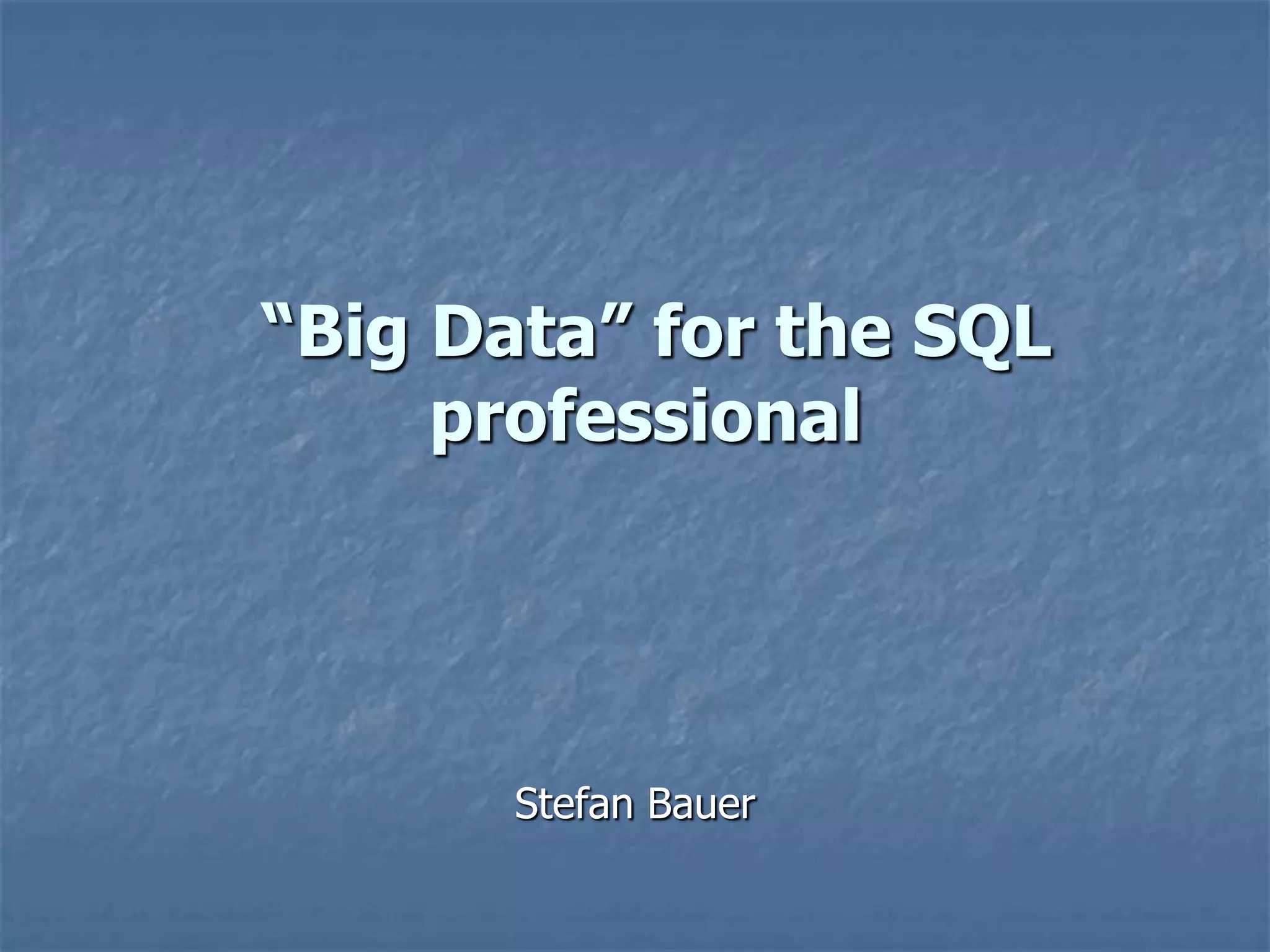

2. “Big Data” for the SQL
professional
Stefan Bauer

3. stef-bauer.com/2012/12/10/you-need-a-zetta-what

5. A little about me…
 Data Warehouse Administrator
 Author
 Architect (logical/physical)
 DBA (monitoring, space management, etc)
 SSIS Developer (build it… run it… support it)
 SSAS/SSRS (performance tuning, supporting)
 Performance monitoring (is it all working?)
 I am a geek (Some people have pointed that out about me…
judge for yourself)

6. What we will cover
 Why do you care (or at least why you should)?
 General overview
 Basic terms (get us on the same page)
 A Look at some of the technology (aka demo)
 Elastic Map Reduce (EMR) jobflow using a hiveql
script
 Redshift – Starting a cluster
 All of the technical parts are in a multi-part
series on my Blog

7. What kind of blocks do you sort
through?
Interesting technology…
might not be for you
Getting there… might
be something
interesting to start
working out the
details…
You have big data…
and you know it!

8. What is that Hadoop thing I
keep hearing about?
 A Framework (collection of technologies)
 Complex processing
 Massively parallel
 Large amounts of data
 Commodity hardware

9. Hadoop … what is it not
 Ad hoc analytics
 Low latency between data arrival,
analysis, and query usage
 “fast” (speed is a relative thing)
 Facebook has interactive queries on Hadoop
framework
 Good for small data

10. Terms
 Cloud
 Cluster
 Hadoop
 Hadoop Distributed File System (HDFS)
 Hue (Web Interface for Mapreduce/Oozie)
 Mapreduce
 Job Tracker
 Task Trackers (on Data Nodes)
 Oozie (Workflow Management)

11. Terms
 Pig (Distributed Transformation Scripting)
 Beeswax (Wrapper for Hive)
 Hive
 EDW on (10‟s, 100‟s, 1000‟s servers)
 HiveQL (Based on Ansi SQL)
 Reporting Tools/Business Analytics
 Name Node
 Data Nodes
 Zookeeper (Distributed Configuration Management)
 Cloudera/MapR/Amazon/Hortonworks …

12. HDFS

14. Cloudera

17. Hive

18. Hiveql
CREATE TABLE output_tbl (type string, cnt int)
ROW FORMAT DELIMITED FIELDS TERMINATED BY 't' LINES TERMINATED BY 'n'
STORED AS TEXTFILE
LOCATION '${OUTPUT}' ;
INSERT OVERWRITE TABLE output_tbl
SELECT type_in, count(*) as cnt
FROM log_table
GROUP BY type_in;
add jar s3://testing-royall-com/hive/libs/json-serde-1.1.6.jar;
CREATE external TABLE log_table (
message_in string,
level_in int,
ip_in string,
type_in string,
timestamp_in string,
id_in string,
pid_in string,
src_in struct<classname:string, linenumber:int>
)
ROW FORMAT SERDE 'org.openx.data.jsonserde.JsonSerDe'
WITH SERDEPROPERTIES ( "mapping.type_in" = "@type",
"mapping.message_in" = "__message",
"mapping.level_in" = "__level",
"mapping.ip_in" = "__ip",
"mapping.src_in" = "__src",
"mapping.timestamp_in" = "@timestamp",
"mapping.id_in" = "__id",
"mapping.pid_in" = "__pid",
"ignore.malformed.json" = "true")
LOCATION '${INPUT}';

19. Hiveql
ADD JAR s3://elasticmapreduce/training/lib/hive-contrib-0.8.0.jar ;
CREATE EXTERNAL TABLE wikipedia (
edittime string,
contributor string
)
ROW FORMAT
SERDE 'org.apache.hadoop.hive.contrib.serde2.RegexSerDe'
WITH serdeproperties (
"input.regex" =
".*<revision>.*<timestamp>(.+)</timestamp>.*<contributor>.*<username
>(.*)</username>.*</contributor>.*</revision>.*",
"output.format.string" = "%1$s %2$s"
)
LOCATION '${INPUT}' ;

20. Hiveql
 Demo – Create/Run EMR
 Demo – Create Redshift cluster
CREATE TABLE big_contributors (contributor string, numedits int)
ROW FORMAT DELIMITED FIELDS TERMINATED BY 't' LINES TERMINATED
BY 'n'
STORED AS TEXTFILE
LOCATION '${OUTPUT}' ;
INSERT OVERWRITE TABLE big_contributors
SELECT contributor, COUNT(*) AS numedits
FROM wikipedia
GROUP BY contributor
SORT BY numedits DESC
LIMIT 20 ;

21. Redshift
What is a column store anyway?

22. Compression
8k / 64K / 1Mb

23. Copy Data
 From S3… (or DynamoDB)
copy <table name> from 's3://<s3 file>‟ credentials
'aws_access_key_id=<yourkey>;aws_secret_access_key=
<yourkey>‟ CSV delimted by „|‟;

24. Check back on the demos…

26. Questions?
@stefbauer
Stef_Bauer@hotmail.com
Stef-Bauer.com
http://spkr8.com/t/25821
