Sql And Storage Considerations For Share Point Server 2010
The document summarizes best practices for SQL and storage considerations for SharePoint Server 2010. It discusses the changes in SharePoint 2010 architecture and services and recommends configuring SQL for 64-bit, dedicating appropriate hardware and storage, using RAID 10 for disks, and monitoring disk IO. It also emphasizes that optimizing SQL and storage is key to scaling SharePoint deployments.
More Related Content
Similar to Sql And Storage Considerations For Share Point Server 2010
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
Sql And Storage Considerations For Share Point Server 2010
- 1. SQL and StorageConsiderations for SharePoint Server 2010 Mike Watson Sr. Product Manager Quest Software

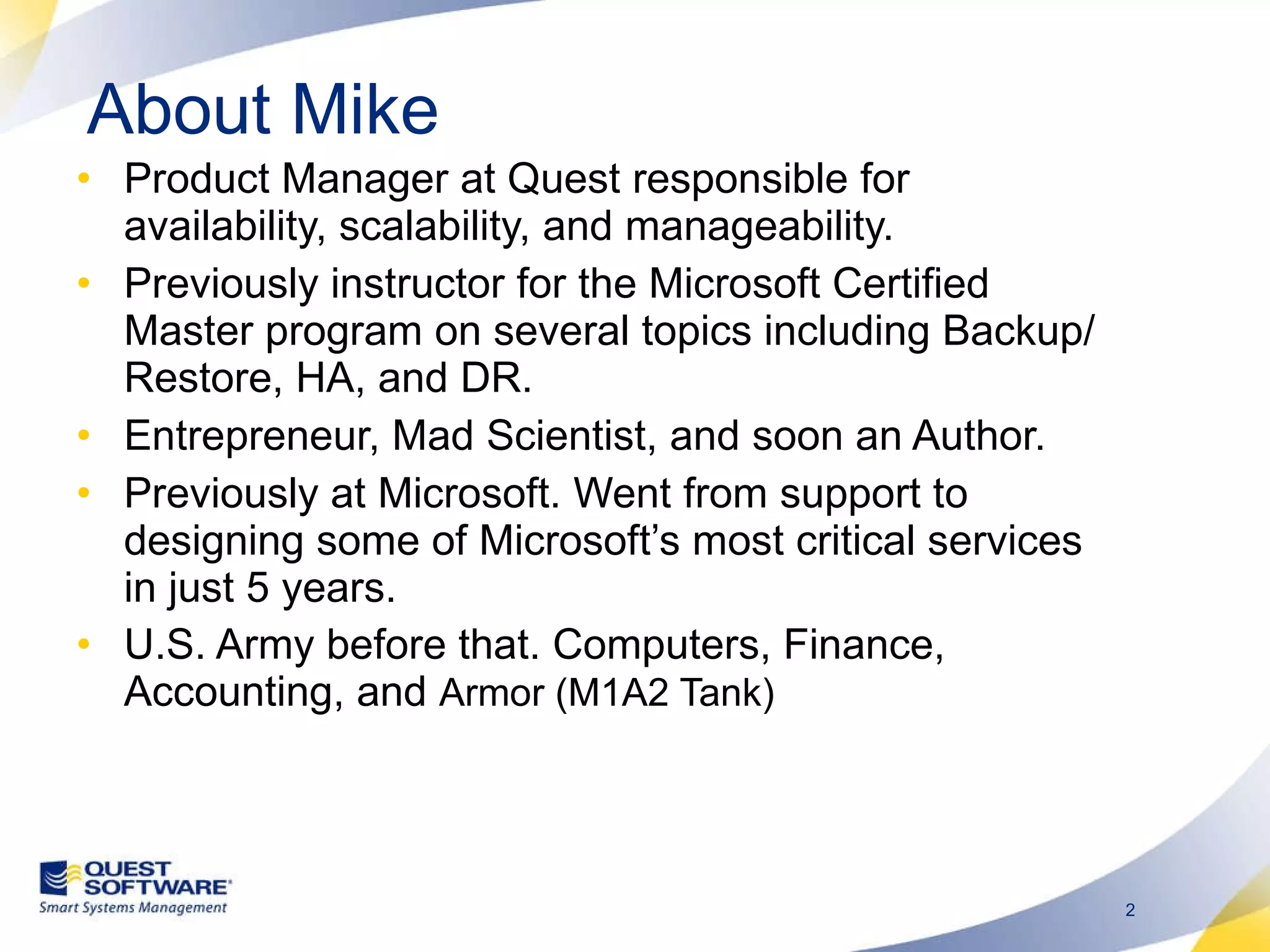

- 2. About Mike ProductManager at Quest responsible for availability, scalability, and manageability. Previously instructor for the Microsoft Certified Master program on several topics including Backup/Restore, HA, and DR. Entrepreneur, Mad Scientist, and soon an Author. Previously at Microsoft. Went from support to designing some of Microsoft’s most critical services in just 5 years. U.S. Army before that. Computers, Finance, Accounting, and Armor (M1A2 Tank)
- 3.

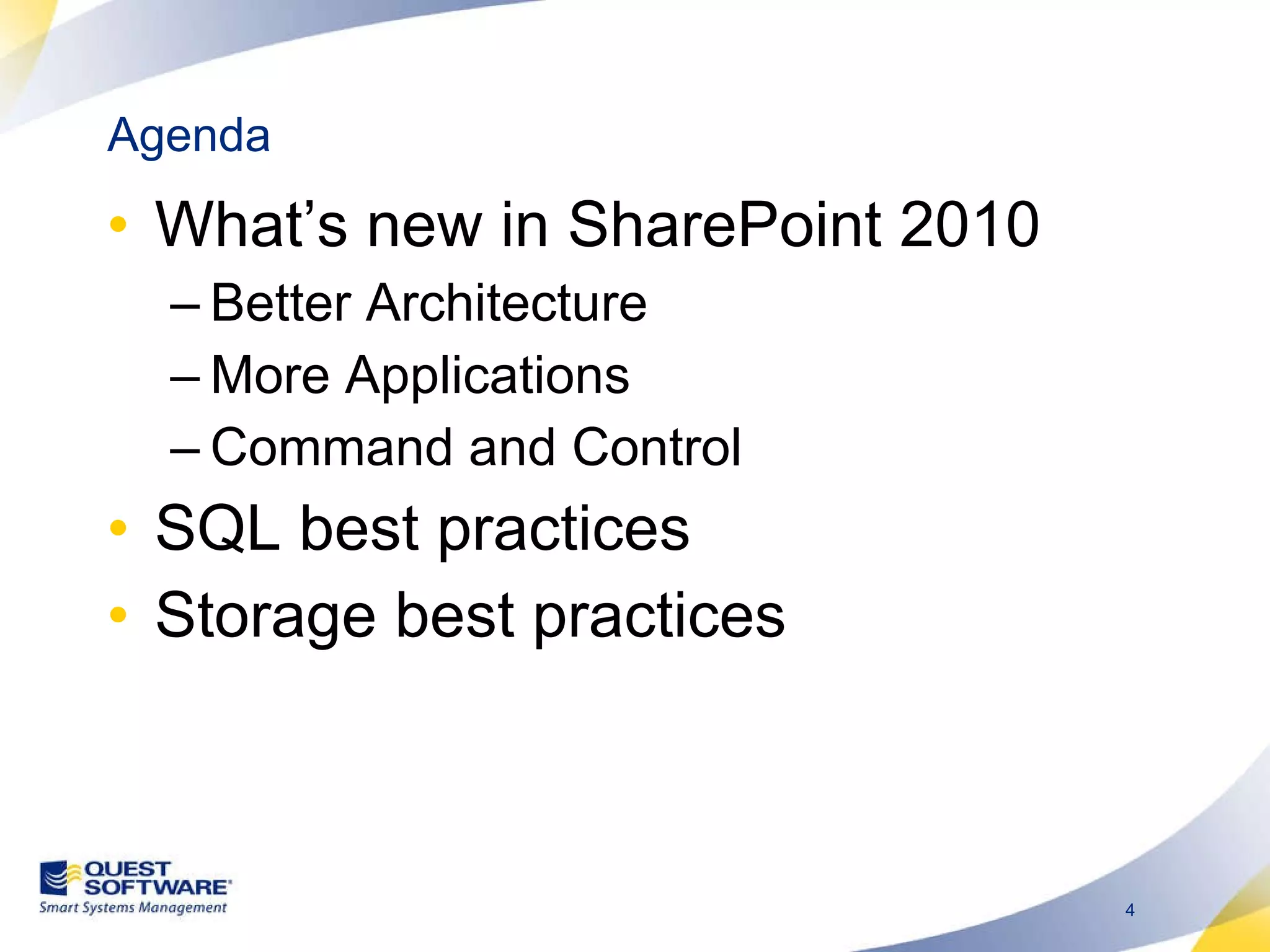

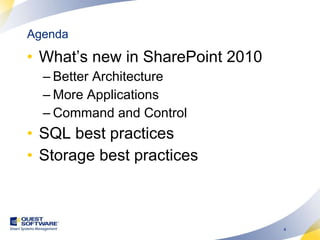

- 4. Agenda What’s newin SharePoint 2010 Better Architecture More Applications Command and Control SQL best practices Storage best practices

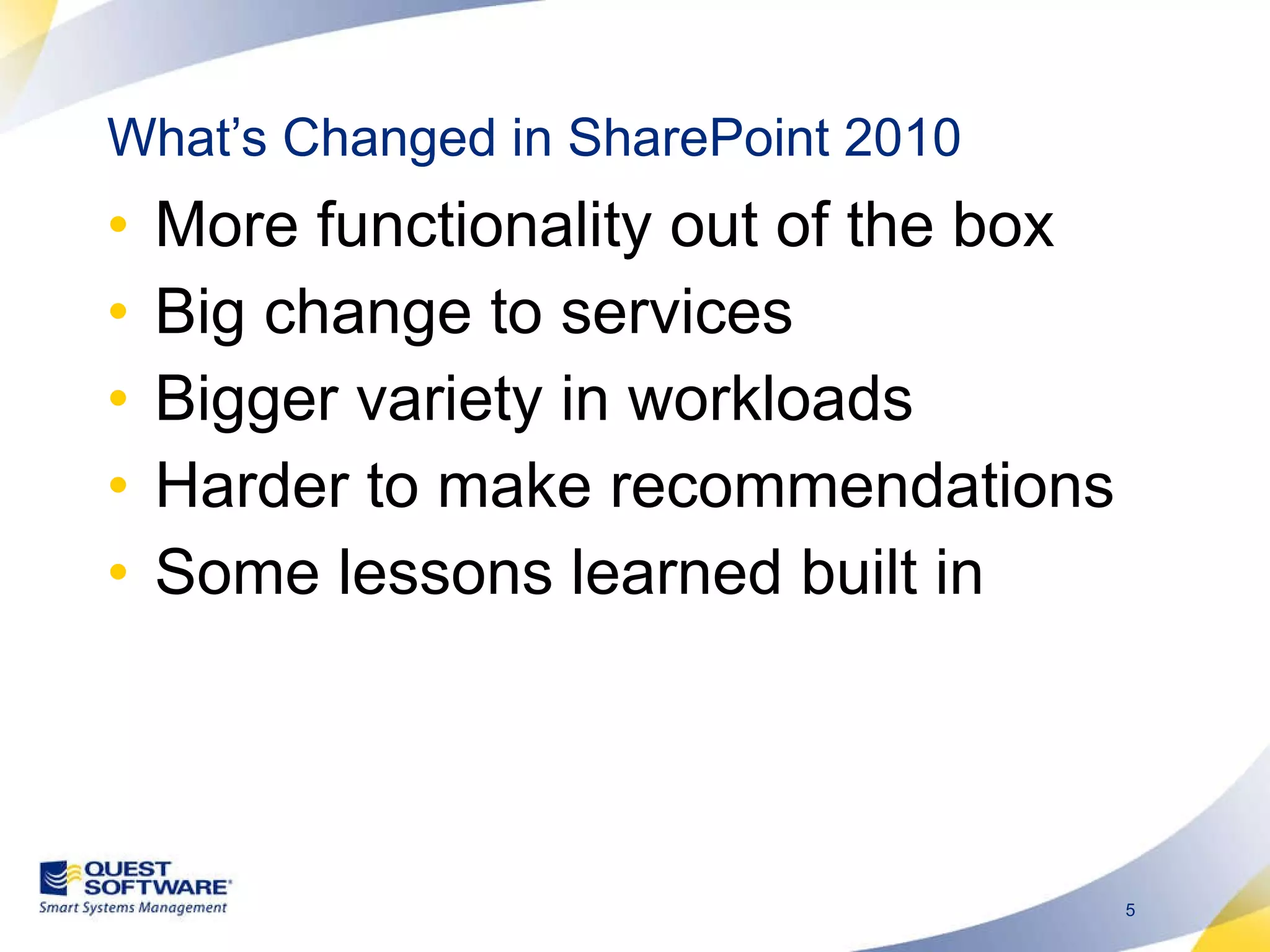

- 5. What’s Changed inSharePoint 2010 More functionality out of the box Big change to services Bigger variety in workloads Harder to make recommendations Some lessons learned built in

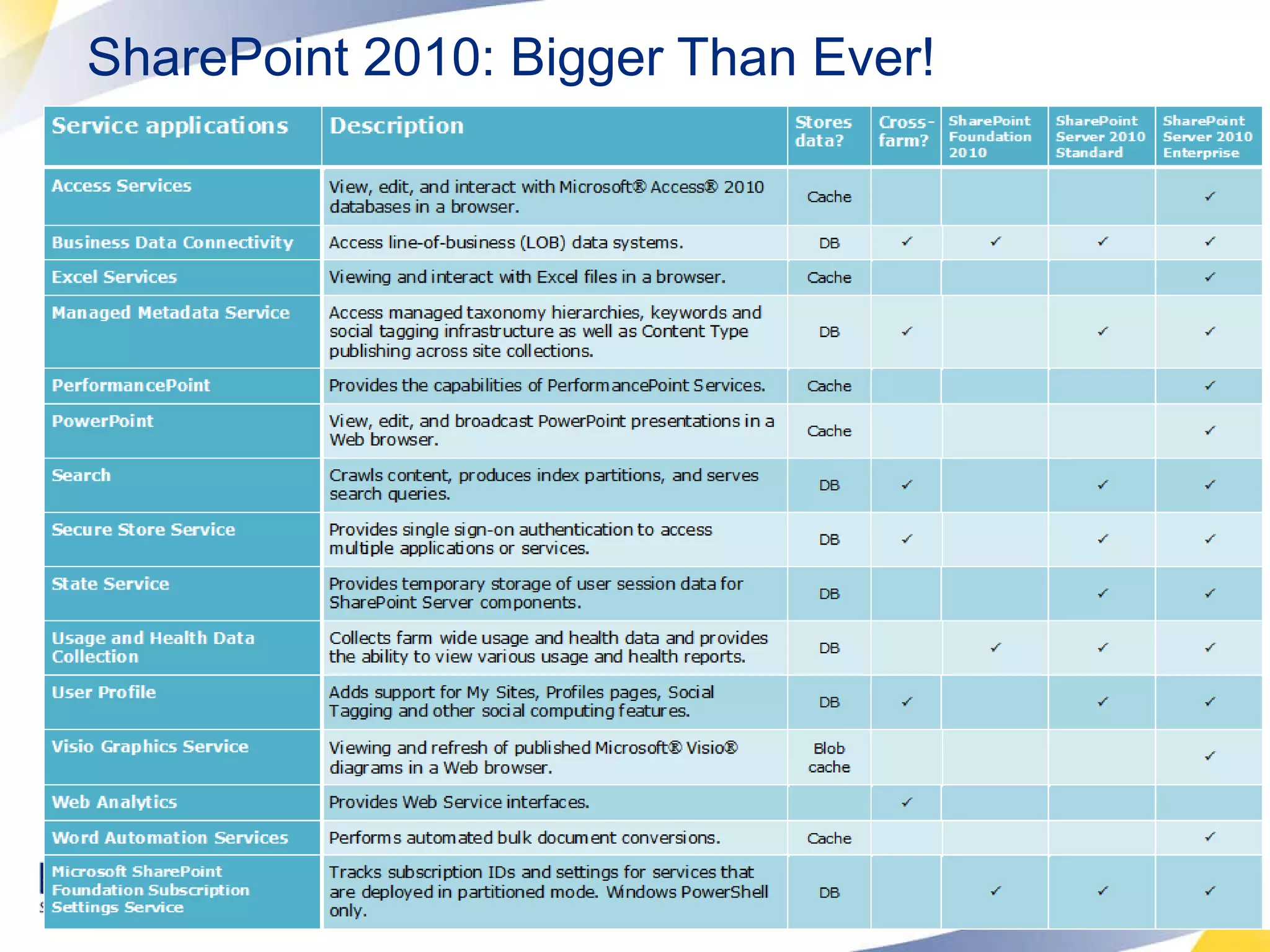

- 6. SharePoint 2010: BiggerThan Ever!

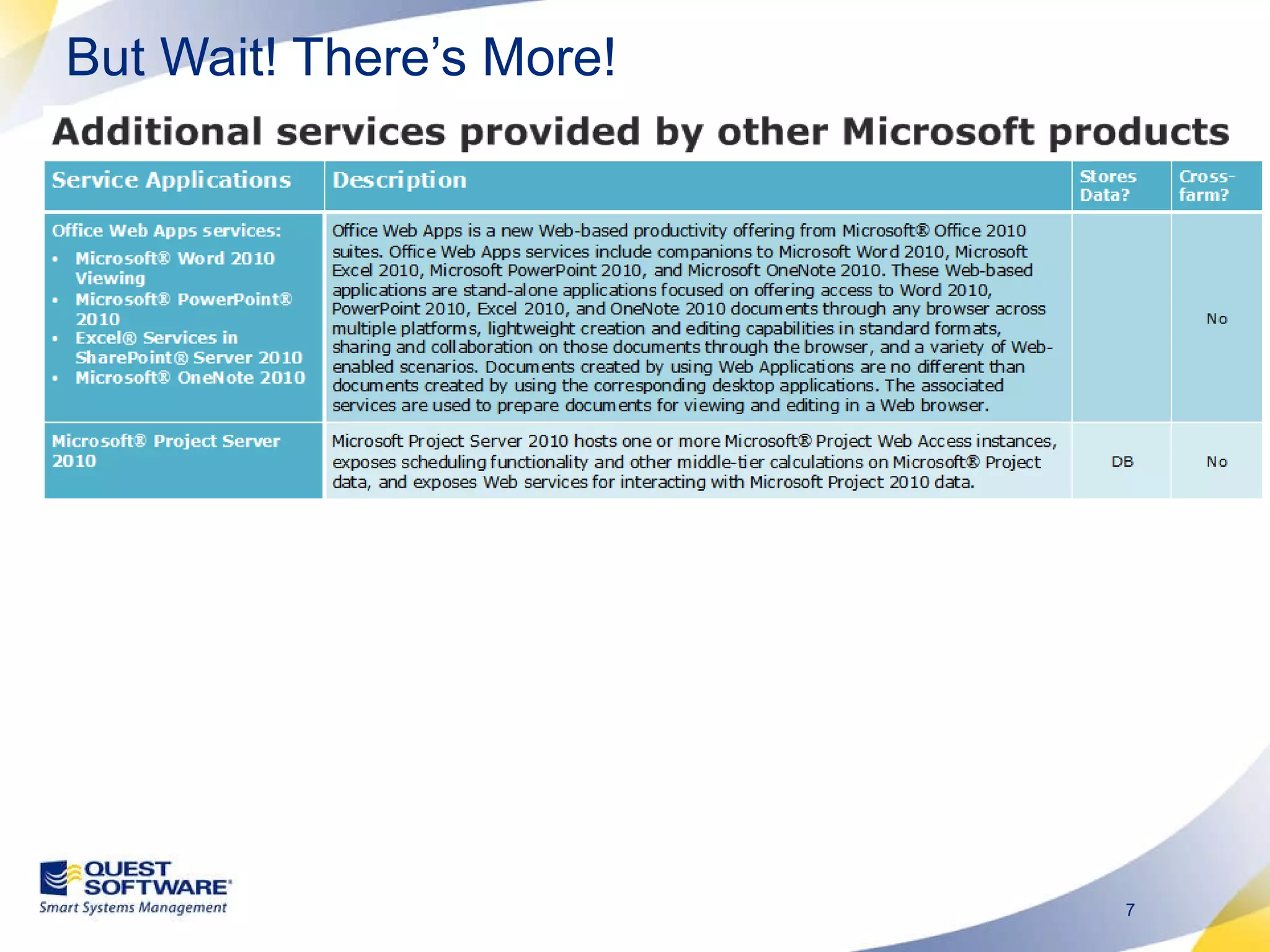

- 7. But Wait! There’sMore!

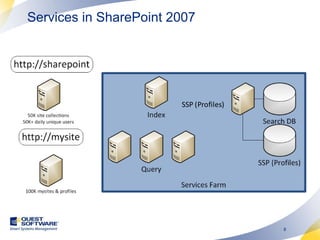

- 8.

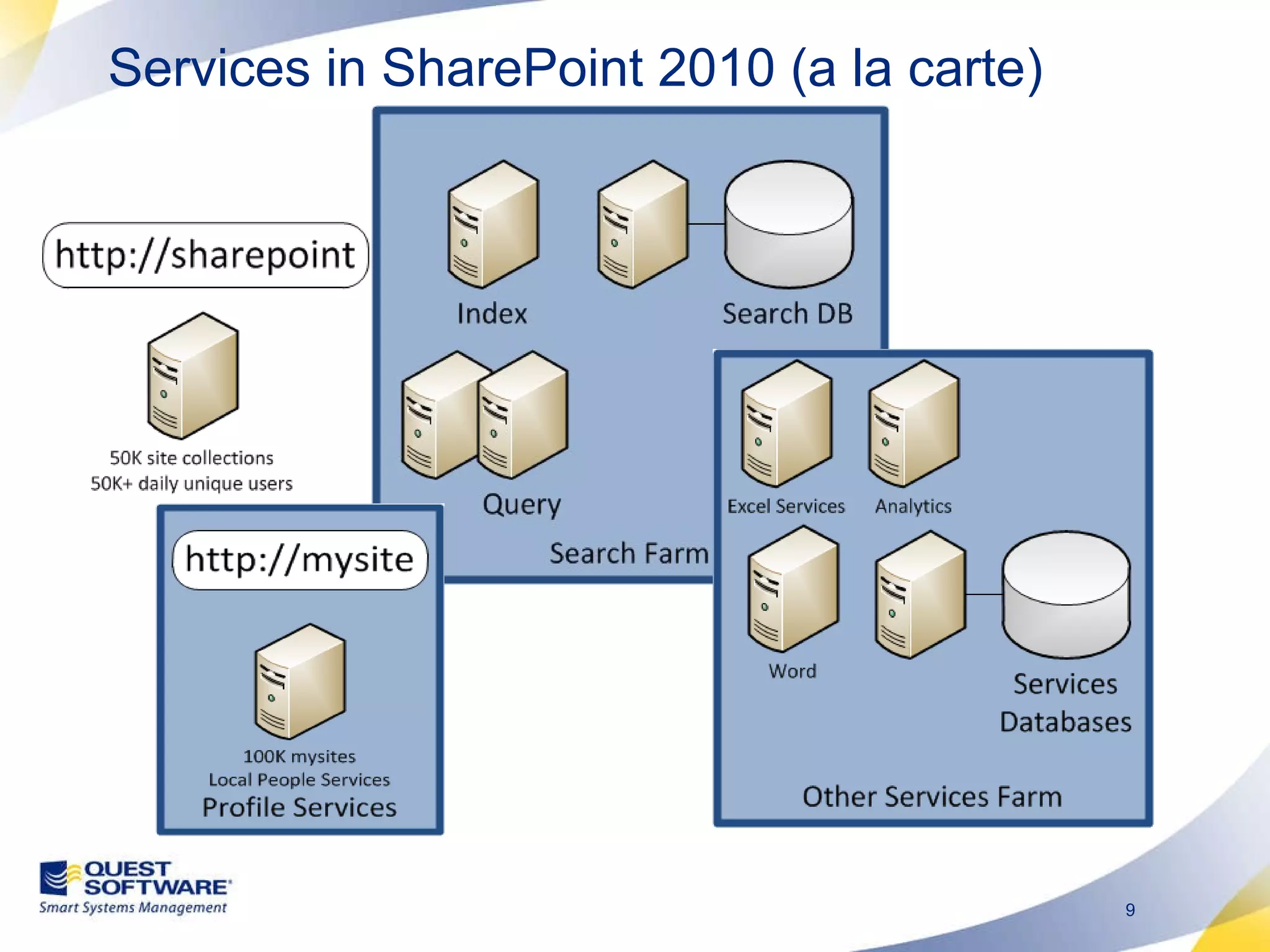

- 9. Services in SharePoint2010 (a la carte)

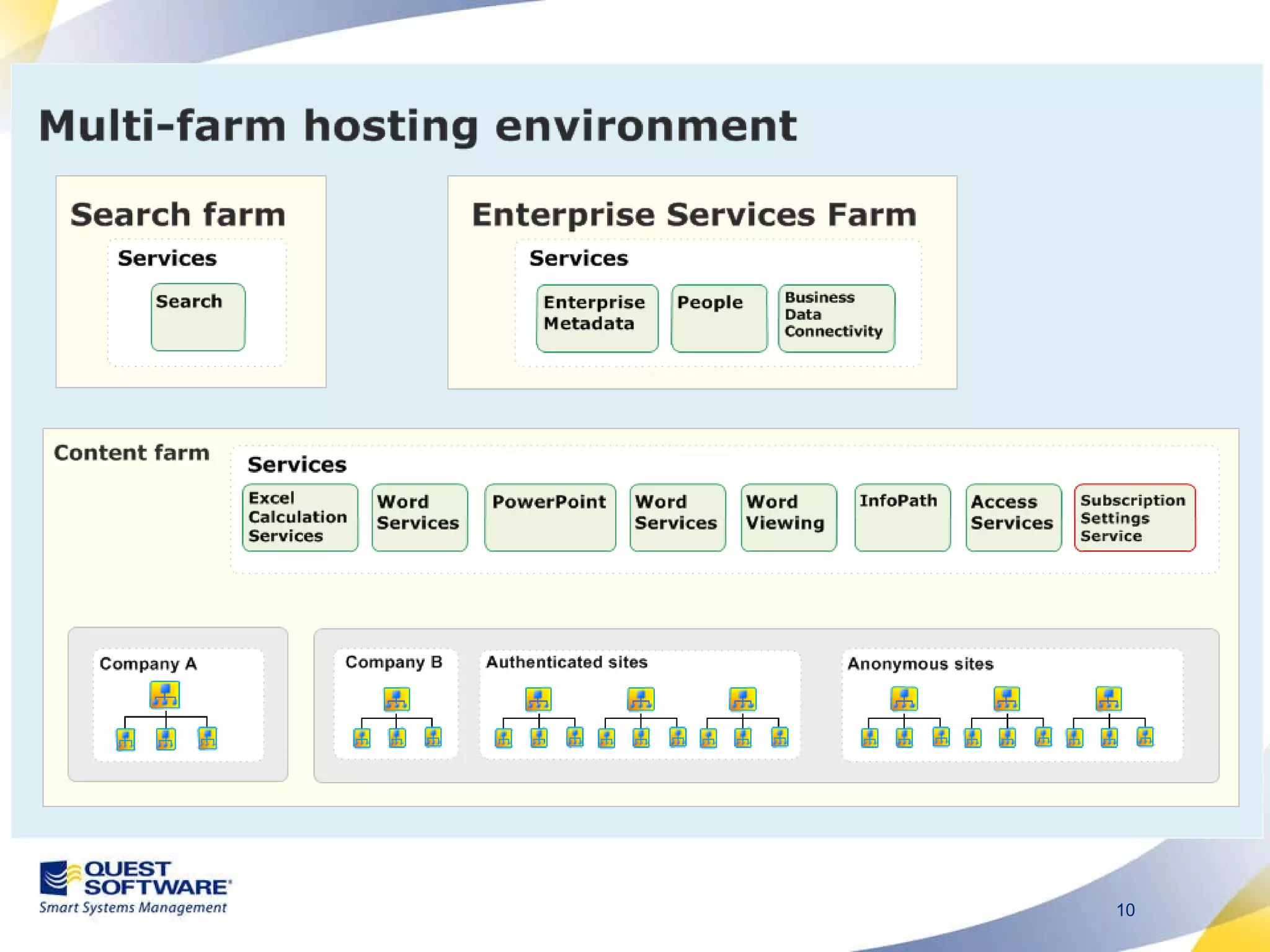

- 10.

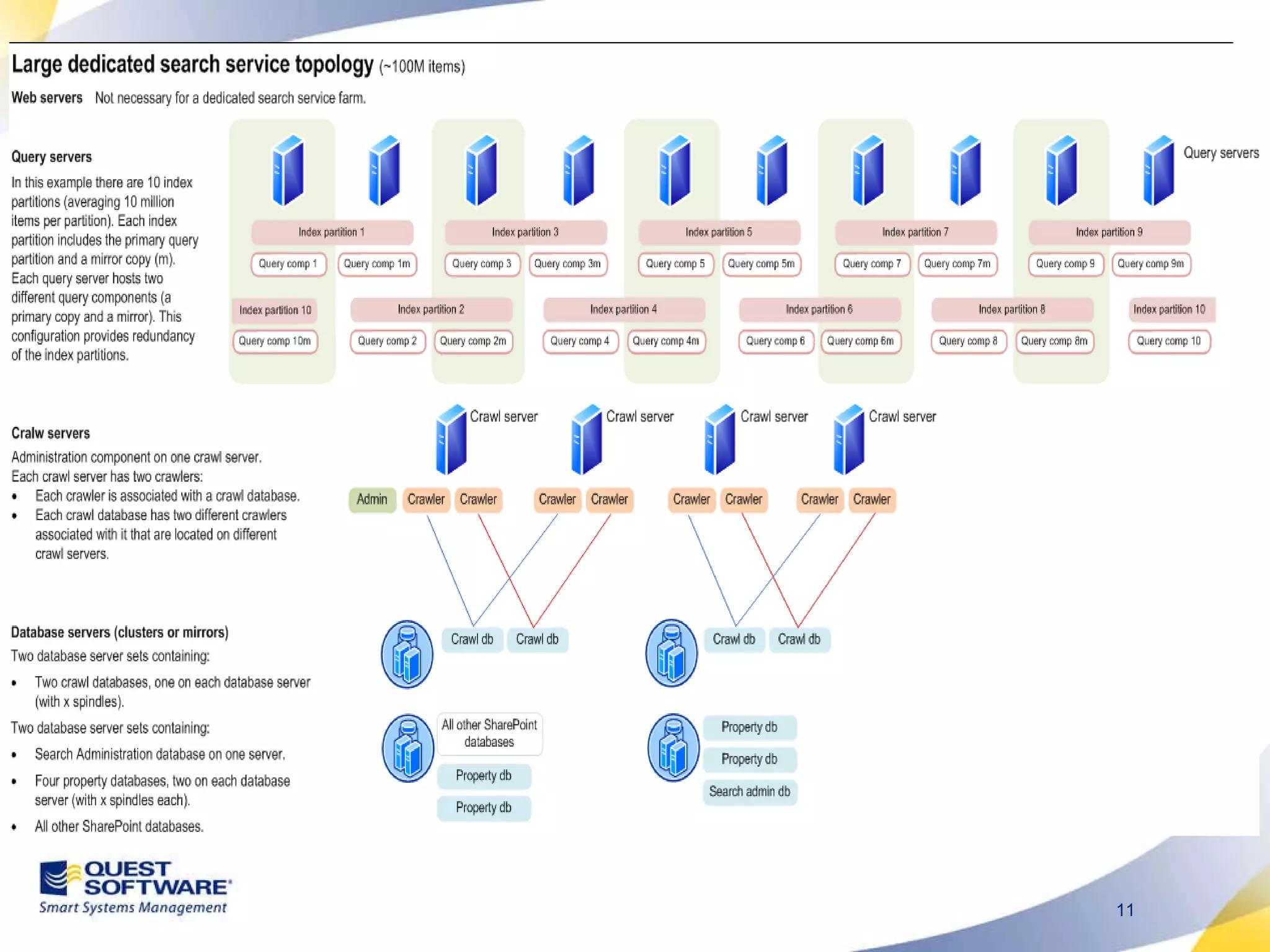

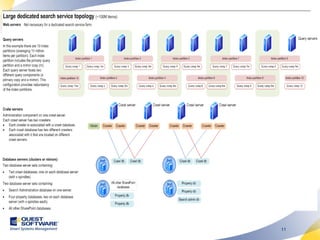

- 11.

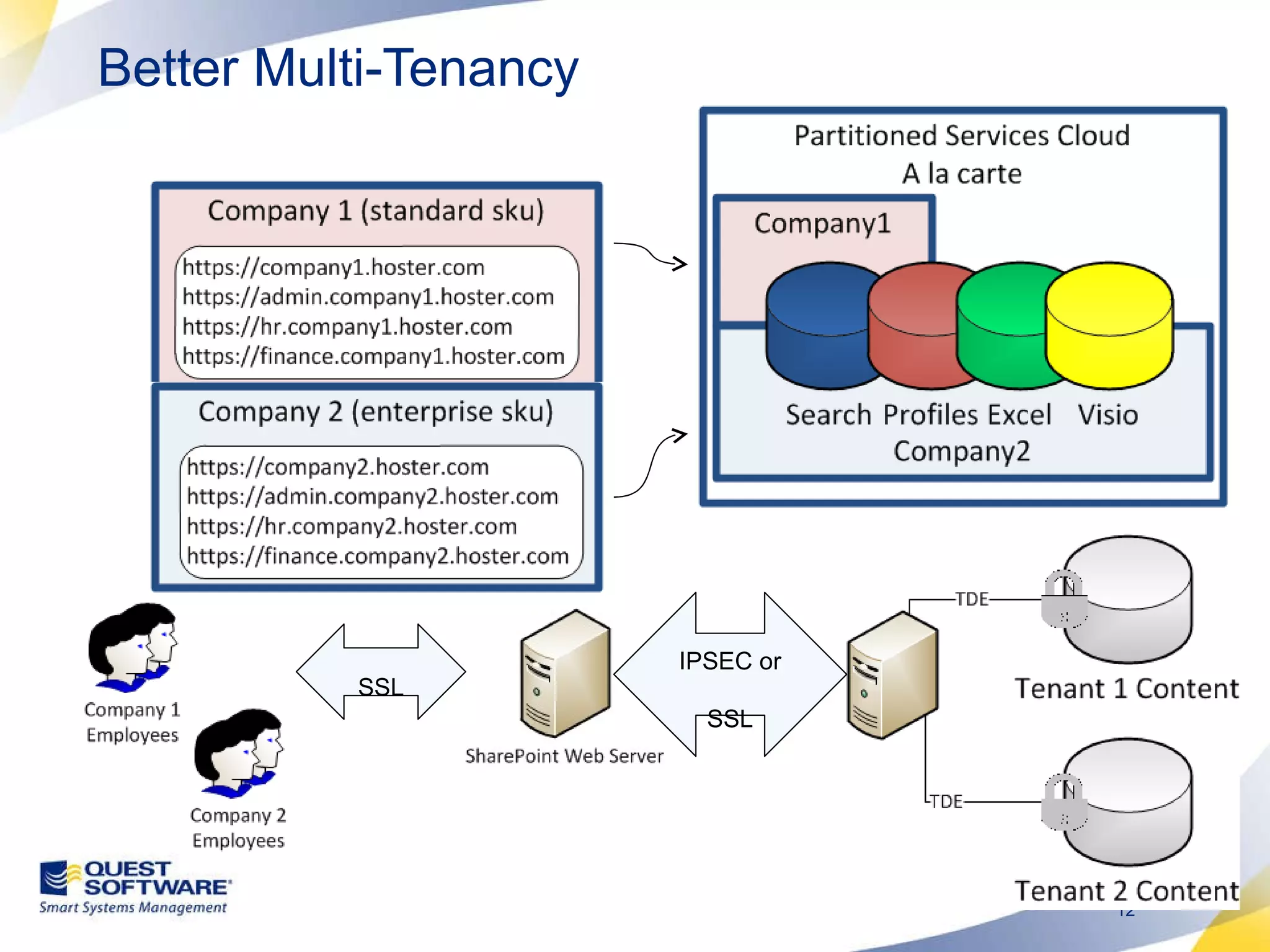

- 12. Better Multi-Tenancy IPSEC or SSL SSL

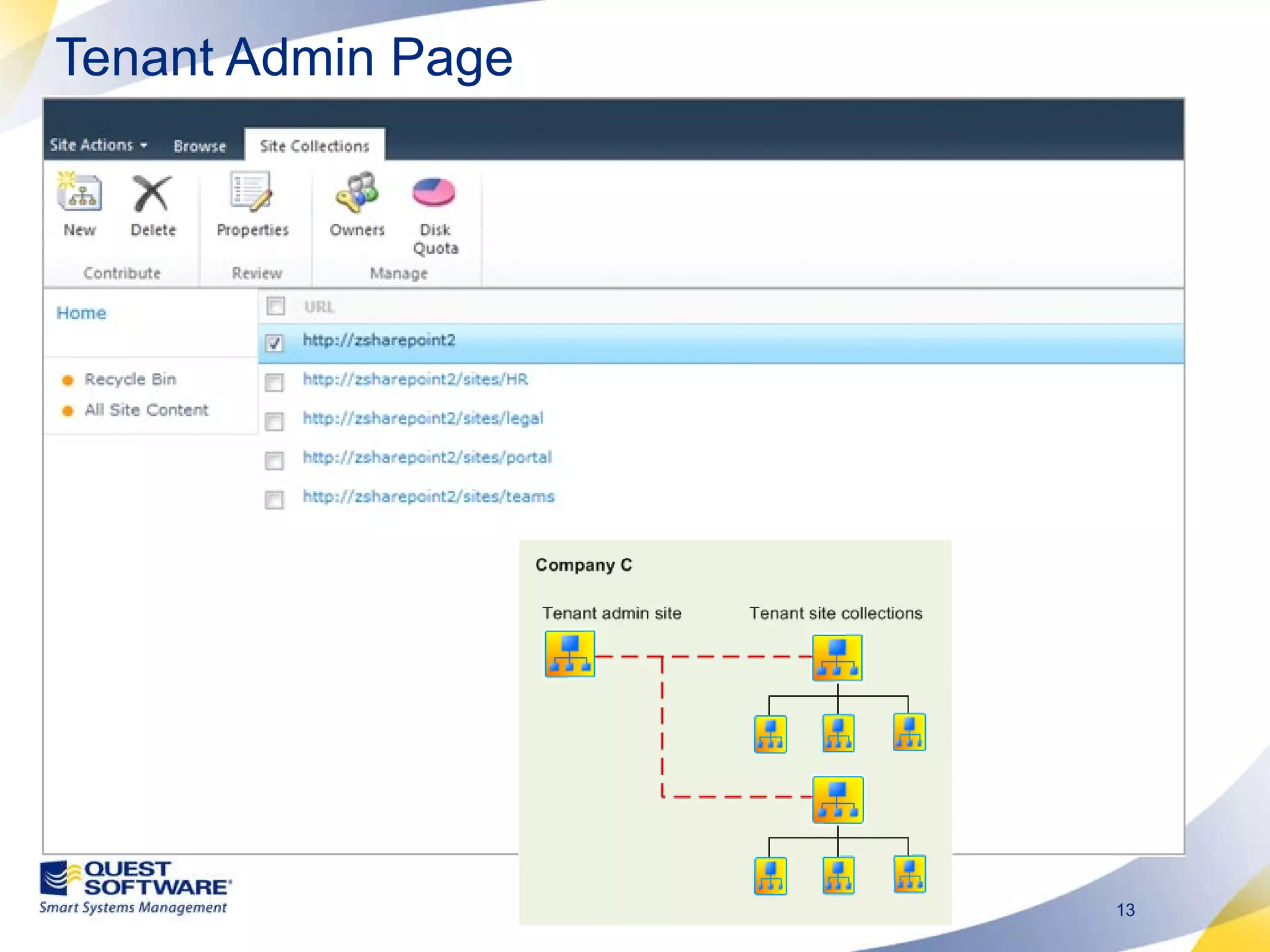

- 13.

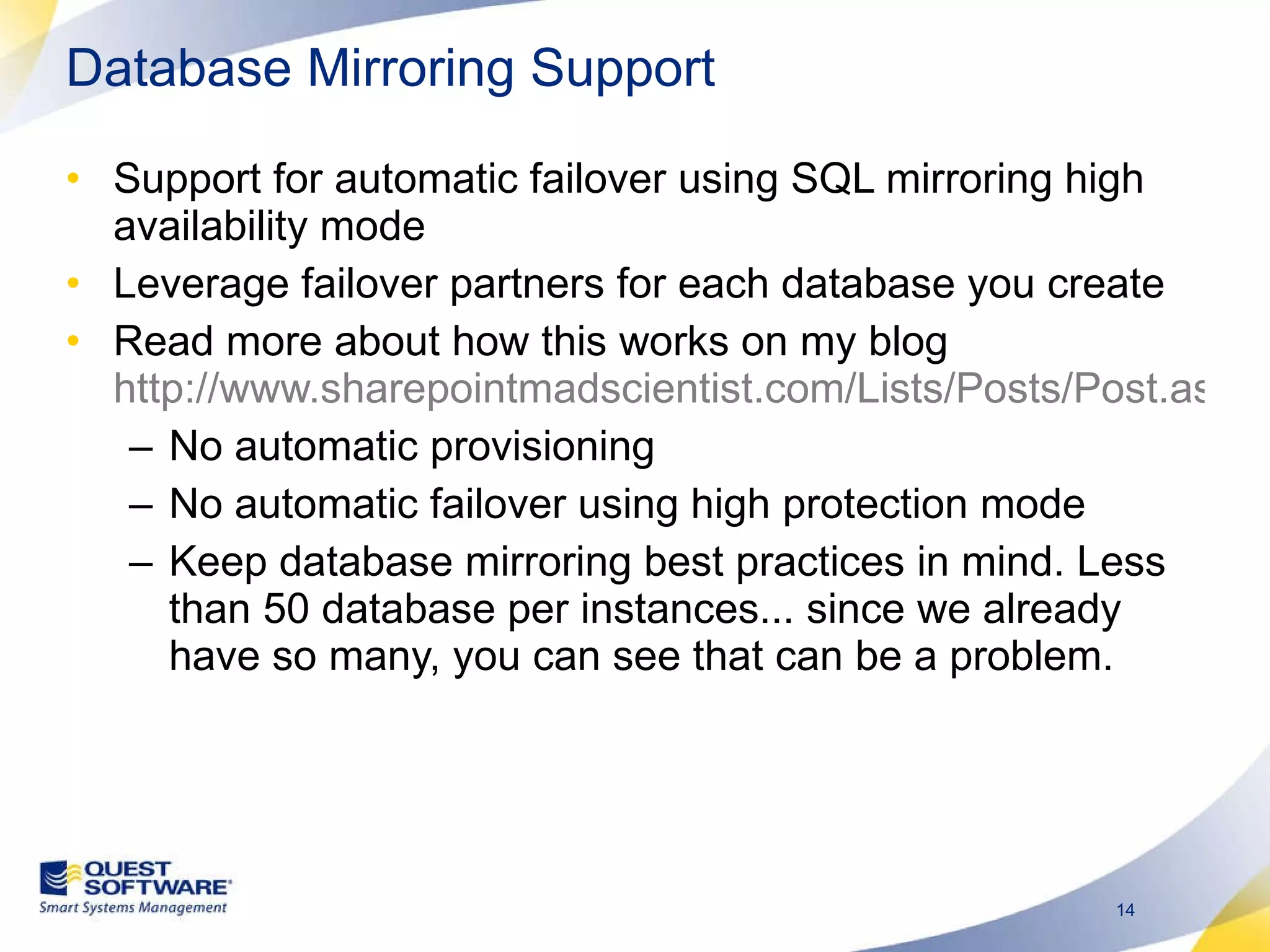

- 14. Database Mirroring SupportSupport for automatic failover using SQL mirroring high availability mode Leverage failover partners for each database you create Read more about how this works on my blog http://www.sharepointmadscientist.com/Lists/Posts/Post.aspx?ID=46 No automatic provisioning No automatic failover using high protection mode Keep database mirroring best practices in mind. Less than 50 database per instances... since we already have so many, you can see that can be a problem.

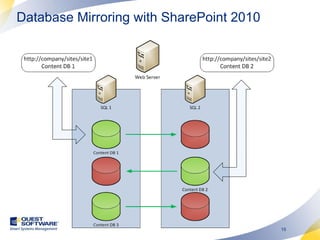

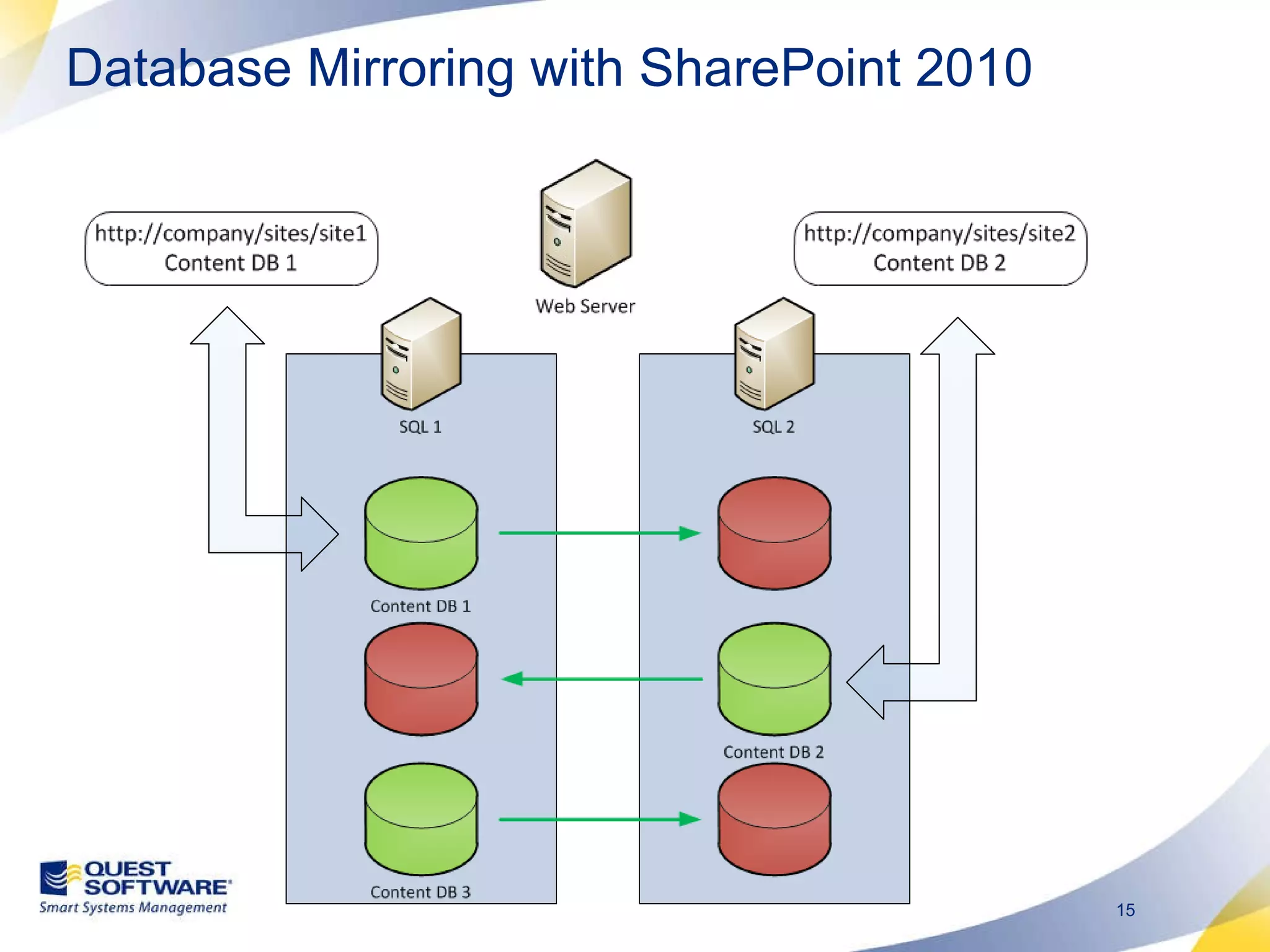

- 15. Database Mirroring withSharePoint 2010

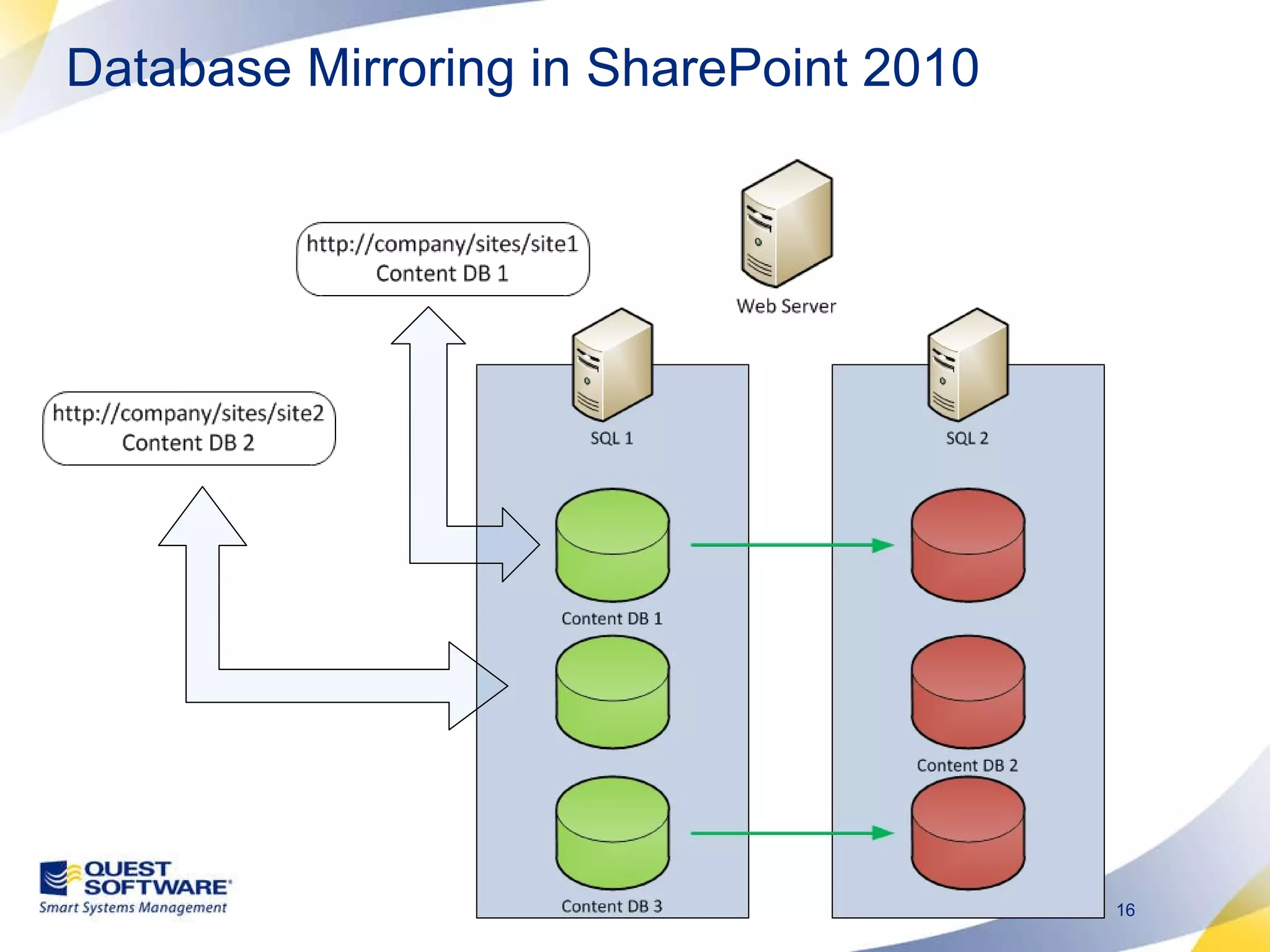

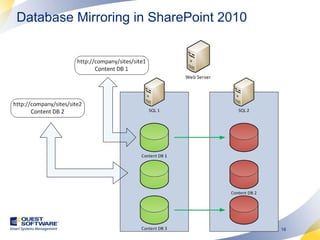

- 16. Database Mirroring inSharePoint 2010

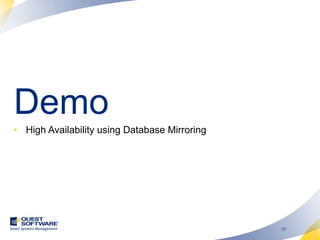

- 17. Demo High Availabilityusing Database Mirroring

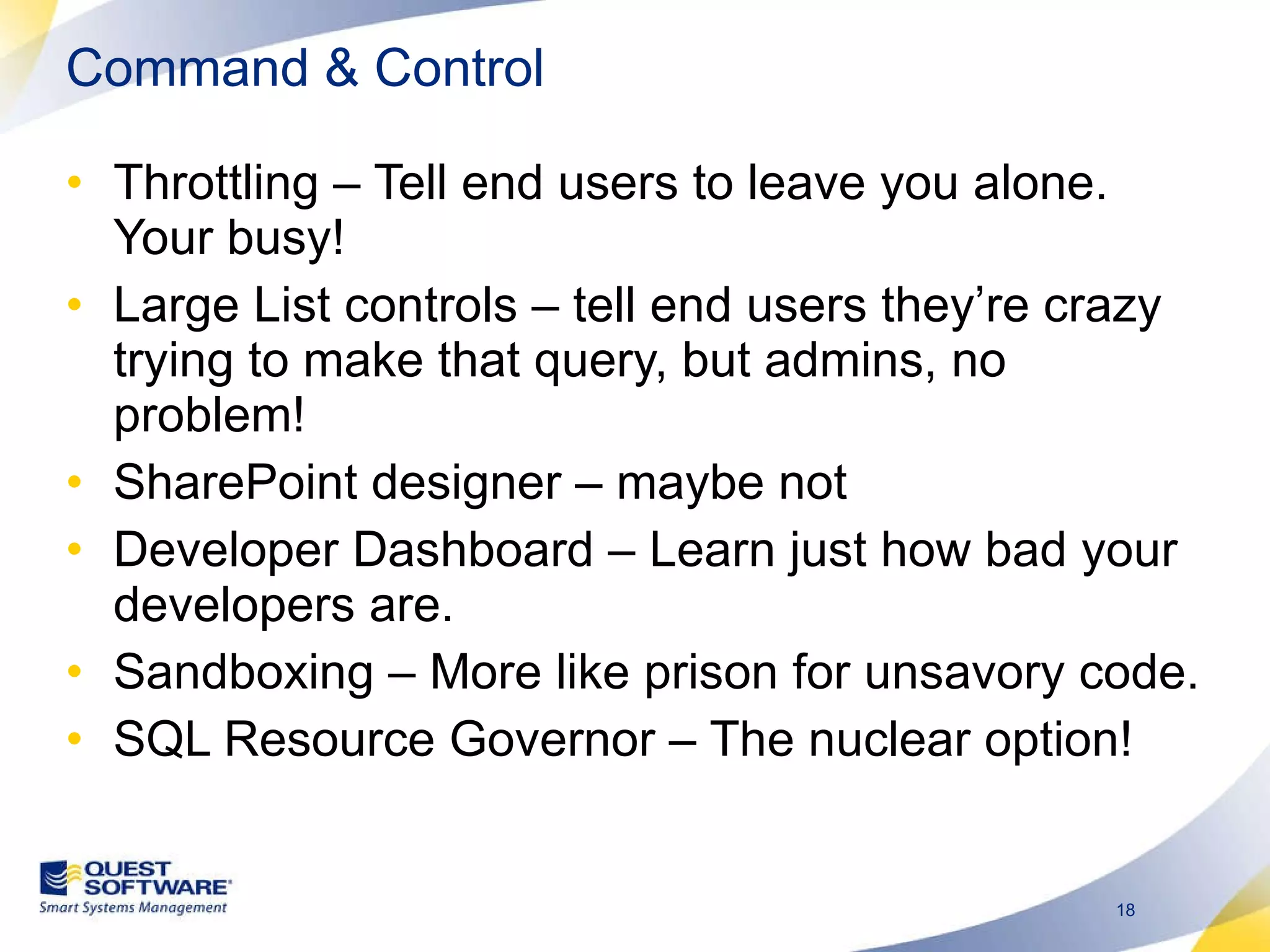

- 18. Command & ControlThrottling – Tell end users to leave you alone. Your busy! Large List controls – tell end users they’re crazy trying to make that query, but admins, no problem! SharePoint designer – maybe not Developer Dashboard – Learn just how bad your developers are. Sandboxing – More like prison for unsavory code. SQL Resource Governor – The nuclear option!

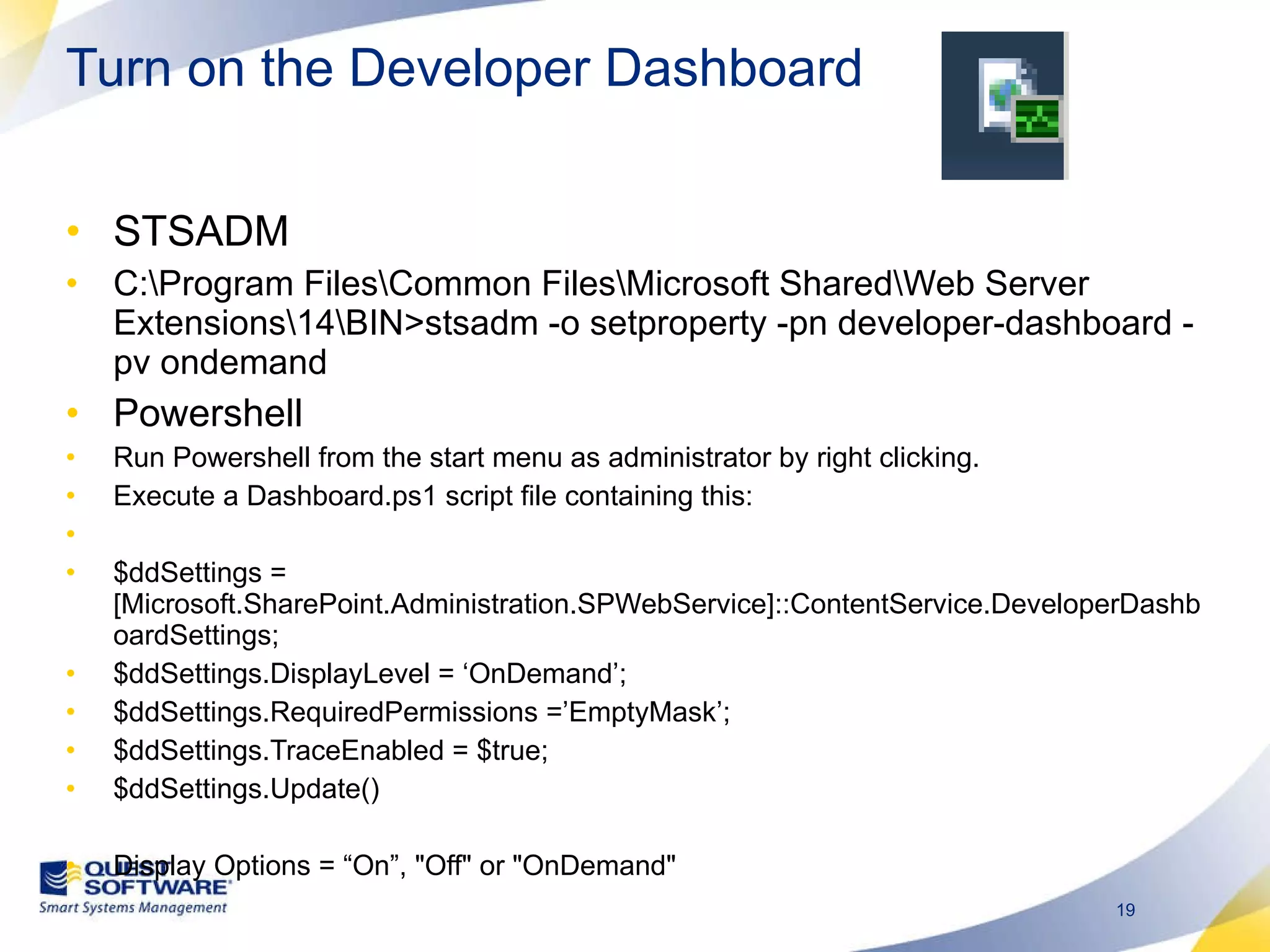

- 19. Turn on theDeveloper Dashboard STSADM C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\BIN>stsadm -o setproperty -pn developer-dashboard -pv ondemand Powershell Run Powershell from the start menu as administrator by right clicking. Execute a Dashboard.ps1 script file containing this: $ddSettings = [Microsoft.SharePoint.Administration.SPWebService]::ContentService.DeveloperDashboardSettings; $ddSettings.DisplayLevel = ‘OnDemand’; $ddSettings.RequiredPermissions =’EmptyMask’; $ddSettings.TraceEnabled = $true; $ddSettings.Update() Display Options = “On”, "Off" or "OnDemand"

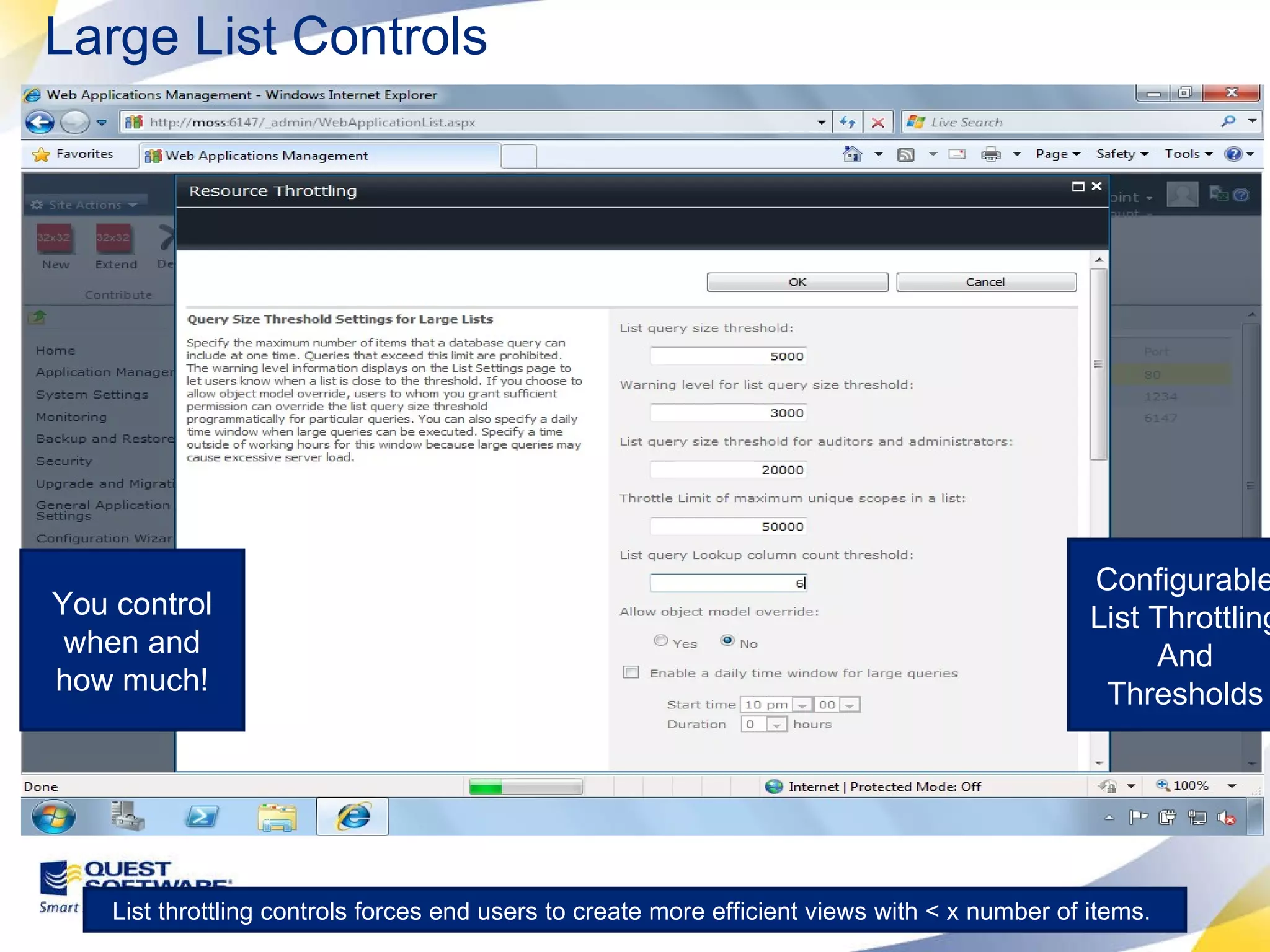

- 20. Large List ControlsConfigurable List Throttling And Thresholds You control when and how much! List throttling controls forces end users to create more efficient views with < x number of items.
- 21.

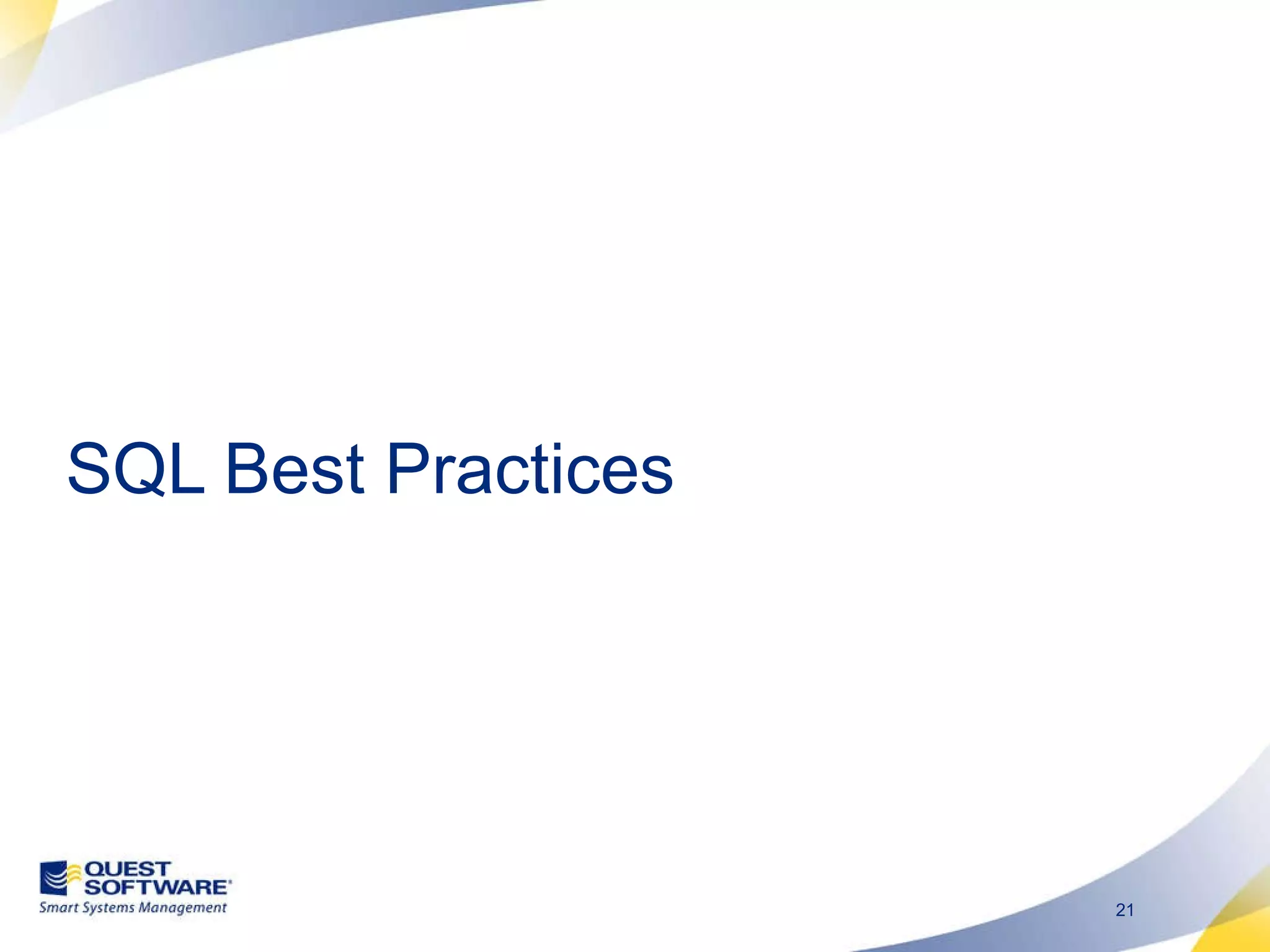

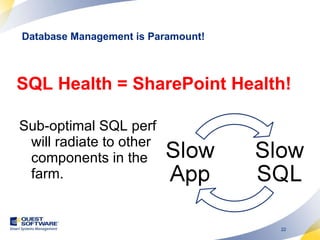

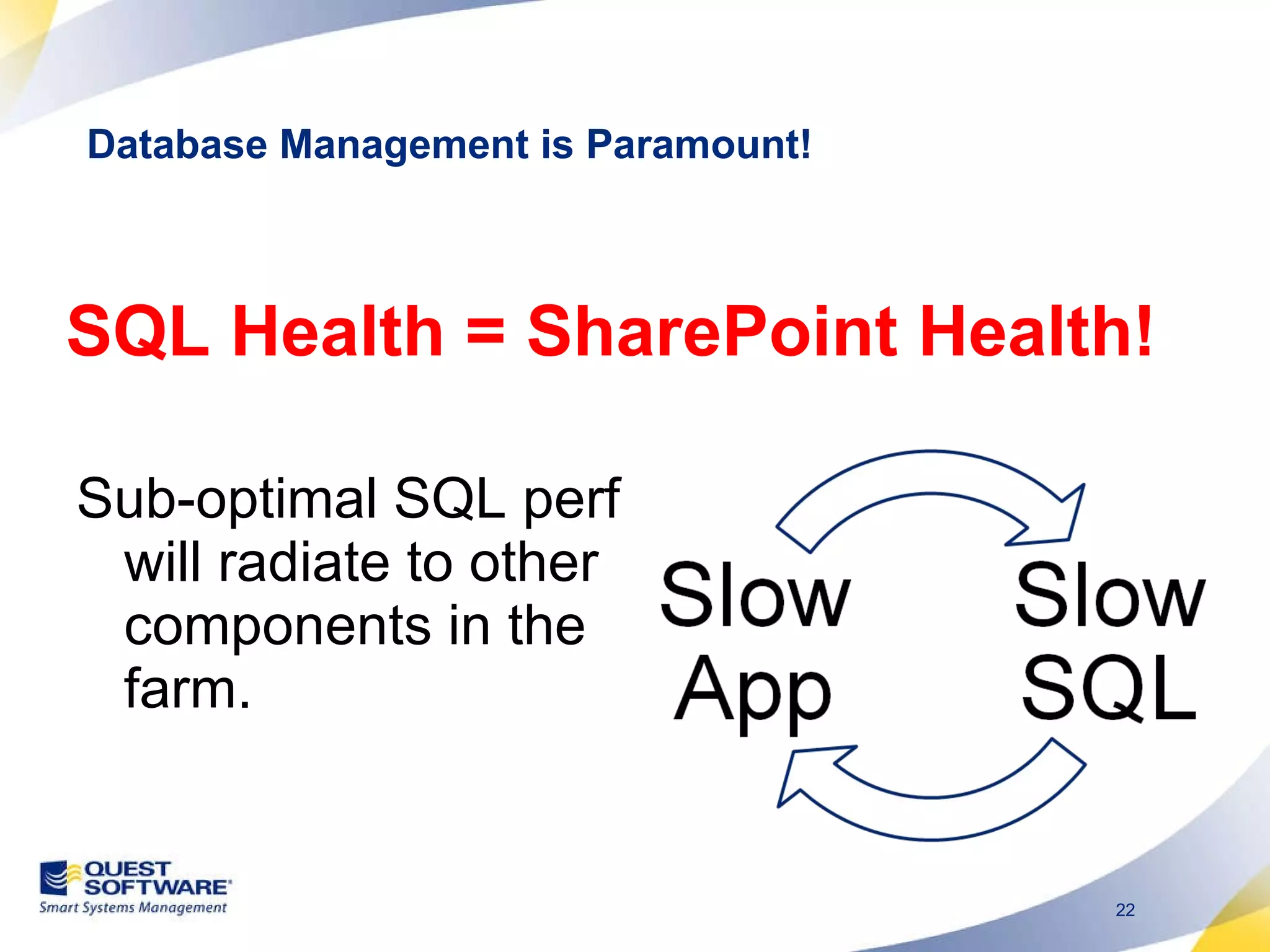

- 22. SQL Health =SharePoint Health! Sub-optimal SQL perf will radiate to other components in the farm. Database Management is Paramount!

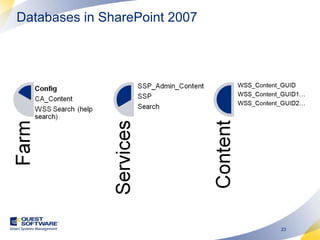

- 23.
- 24.

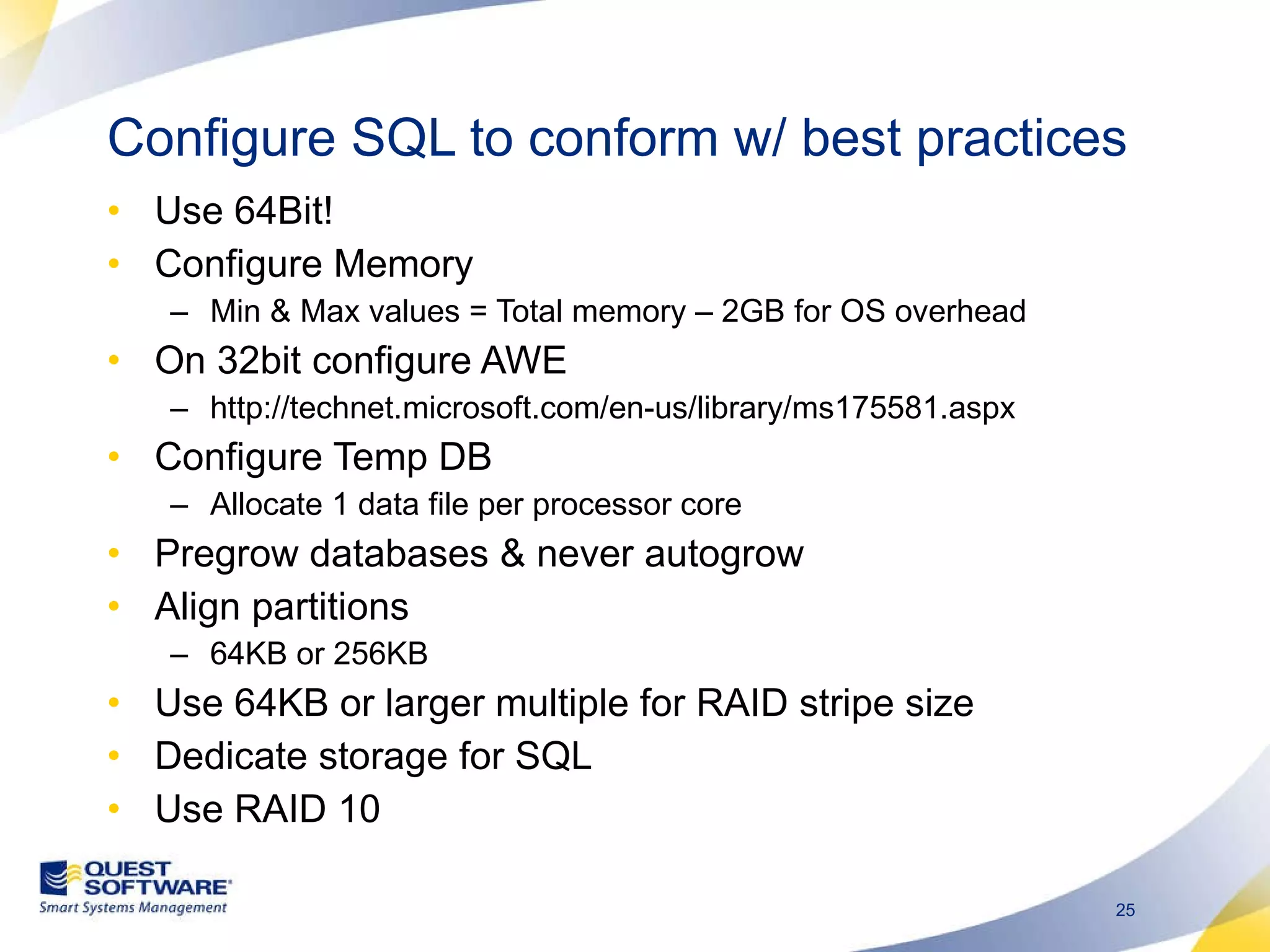

- 25. Use 64Bit! ConfigureMemory Min & Max values = Total memory – 2GB for OS overhead On 32bit configure AWE http://technet.microsoft.com/en-us/library/ms175581.aspx Configure Temp DB Allocate 1 data file per processor core Pregrow databases & never autogrow Align partitions 64KB or 256KB Use 64KB or larger multiple for RAID stripe size Dedicate storage for SQL Use RAID 10 Configure SQL to conform w/ best practices

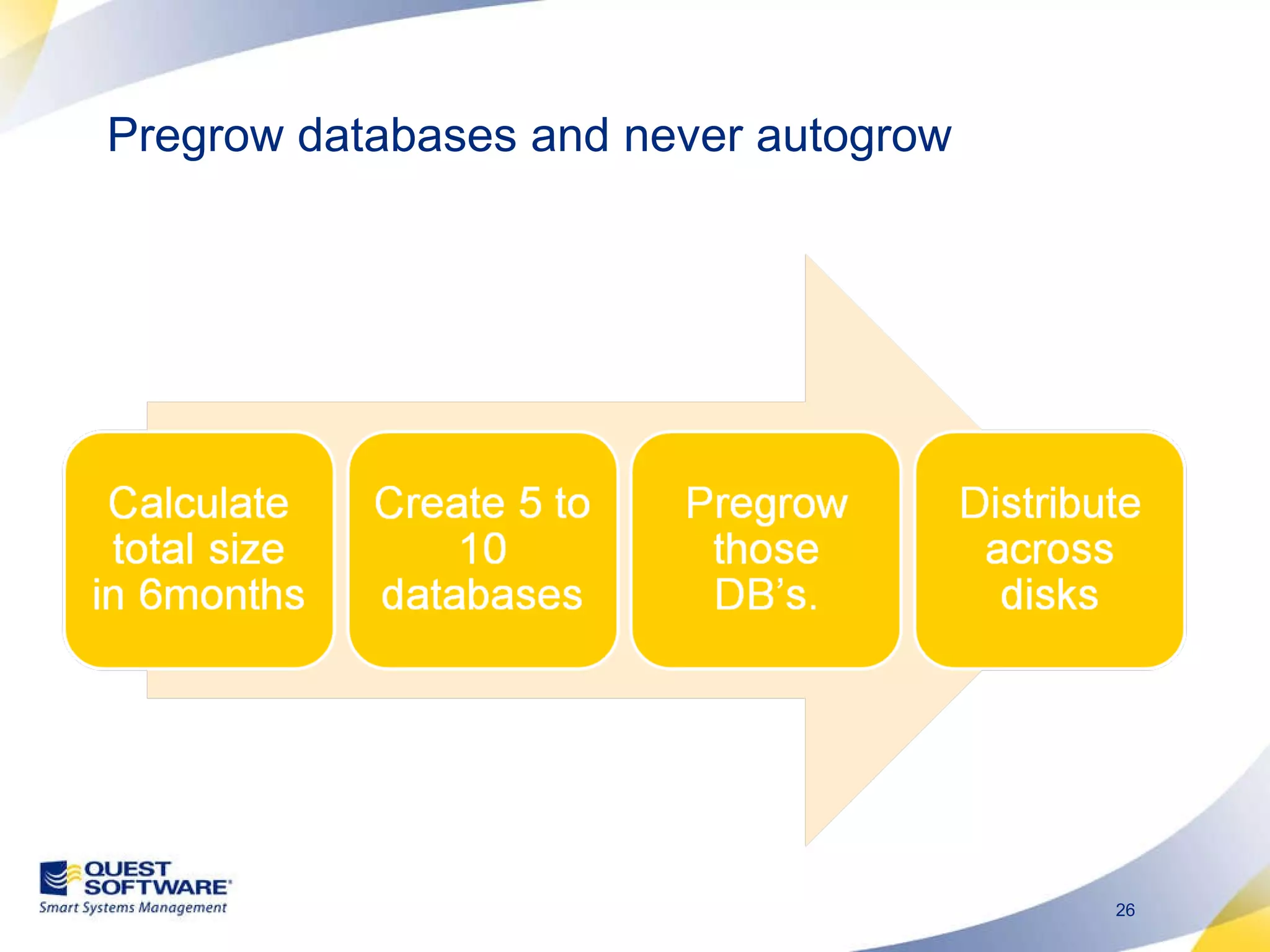

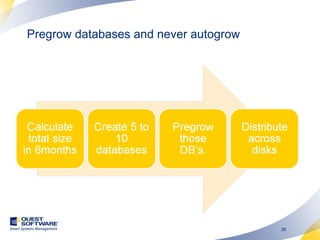

- 26. Pregrow databases andnever autogrow

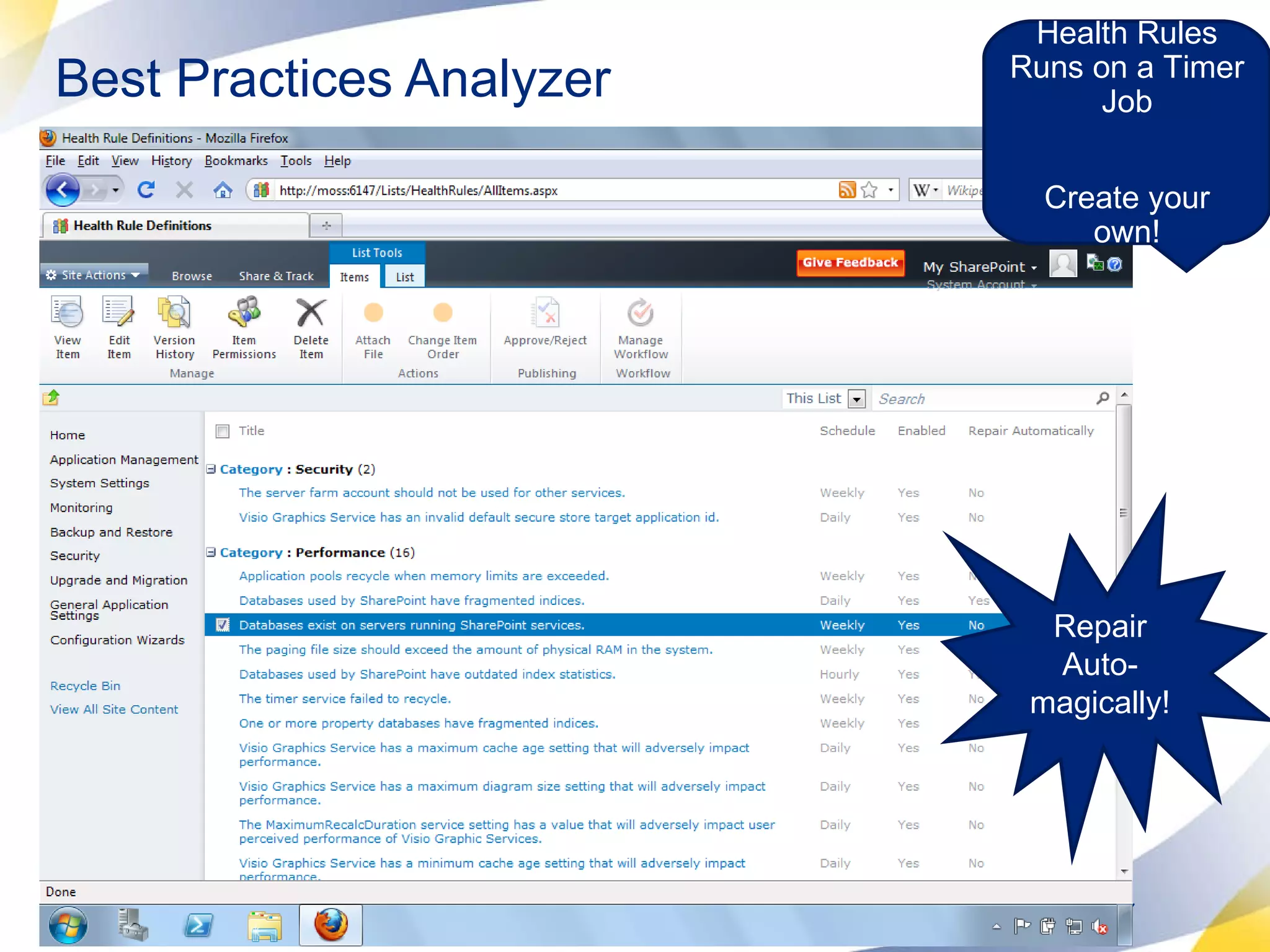

- 27. Best Practices AnalyzerHealth Rules Runs on a Timer Job Create your own! Repair Auto-magically!
- 28. Demo SQL BestPractices using SharePoint Health Analyzer

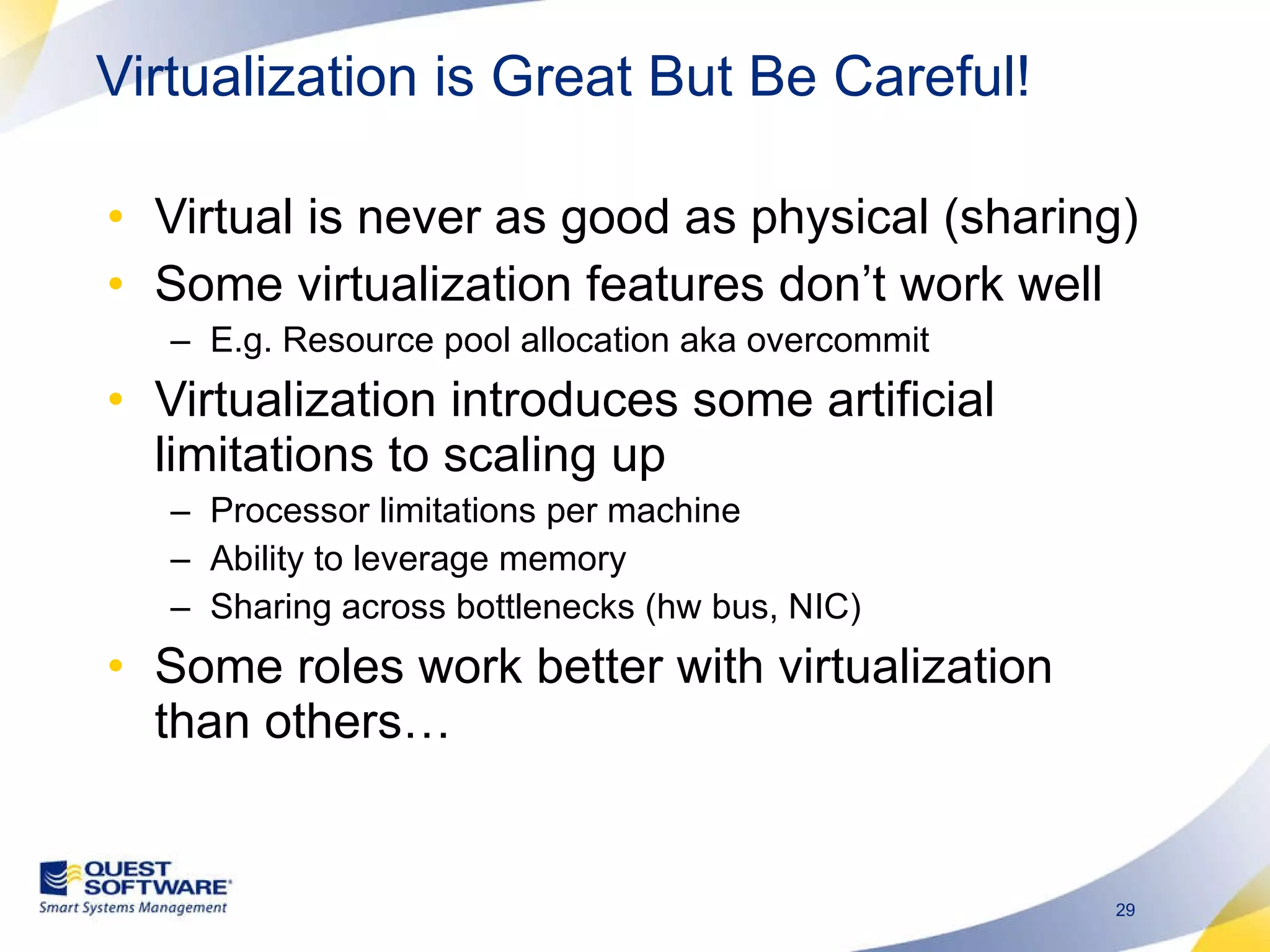

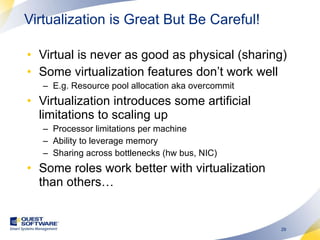

- 29. Virtual is neveras good as physical (sharing) Some virtualization features don’t work well E.g. Resource pool allocation aka overcommit Virtualization introduces some artificial limitations to scaling up Processor limitations per machine Ability to leverage memory Sharing across bottlenecks (hw bus, NIC) Some roles work better with virtualization than others… Virtualization is Great But Be Careful!
- 30.

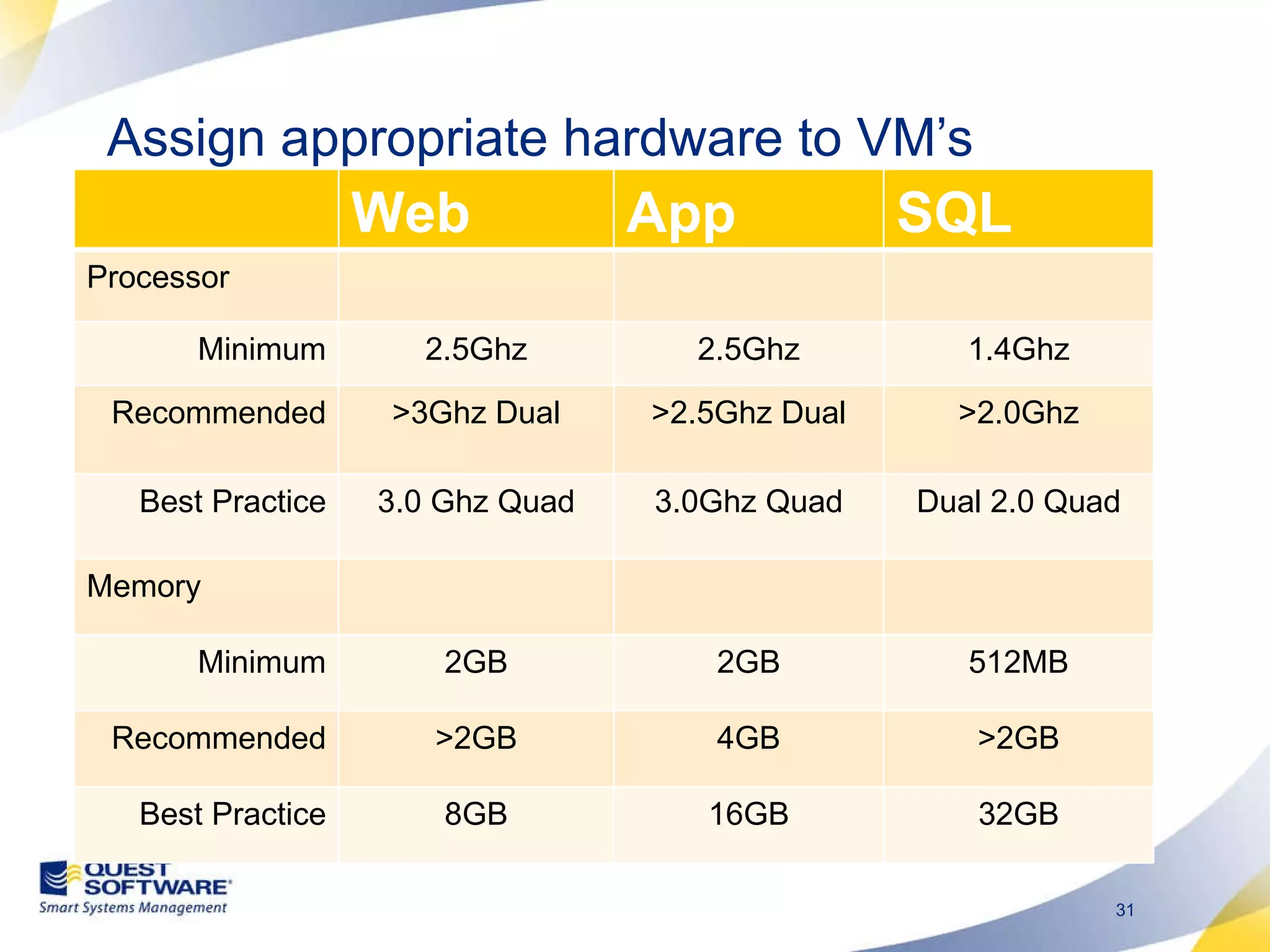

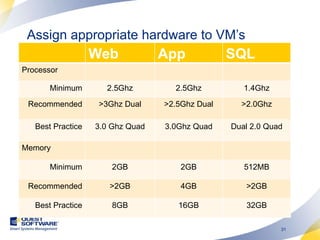

- 31. Assign appropriate hardwareto VM’s Web App SQL Processor Minimum 2.5Ghz 2.5Ghz 1.4Ghz Recommended >3Ghz Dual >2.5Ghz Dual >2.0Ghz Best Practice 3.0 Ghz Quad 3.0Ghz Quad Dual 2.0 Quad Memory Minimum 2GB 2GB 512MB Recommended >2GB 4GB >2GB Best Practice 8GB 16GB 32GB
- 32.
- 33.

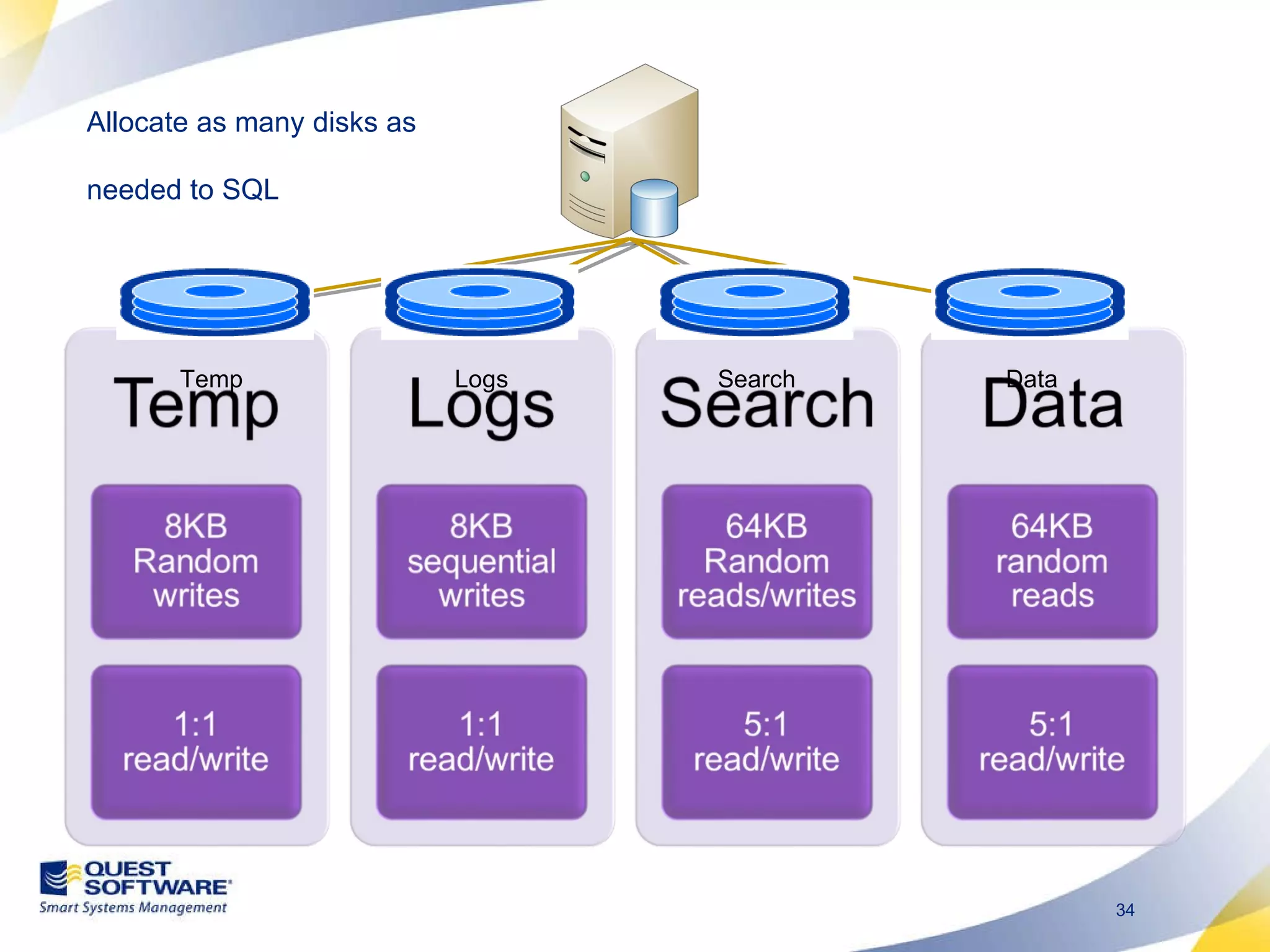

- 34. Allocate as manydisks as needed to SQL Temp Logs Search Data

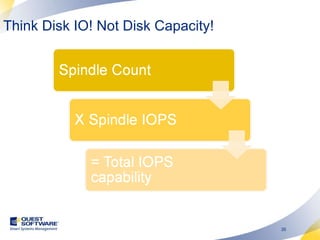

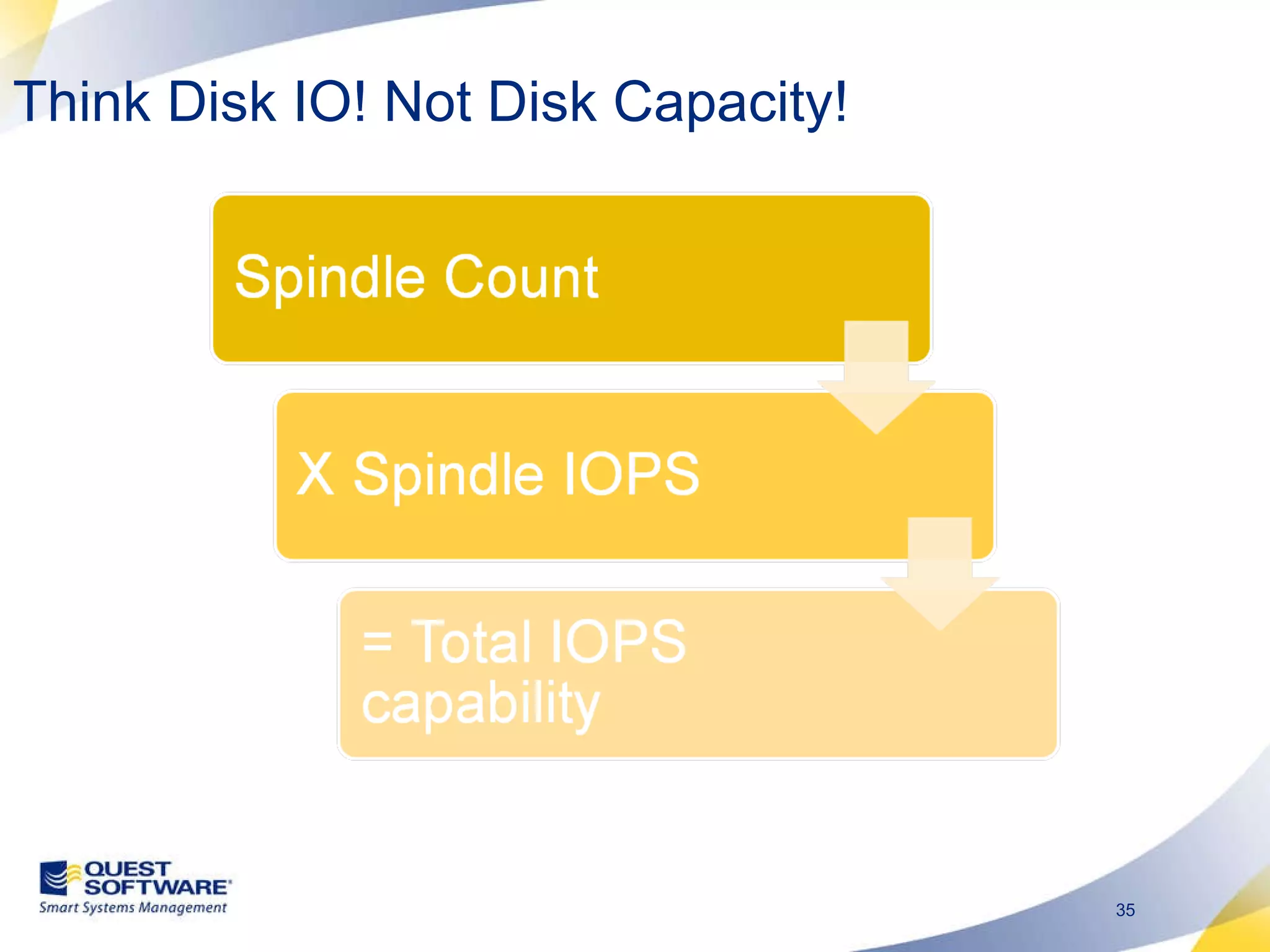

- 35. Think Disk IO!Not Disk Capacity!

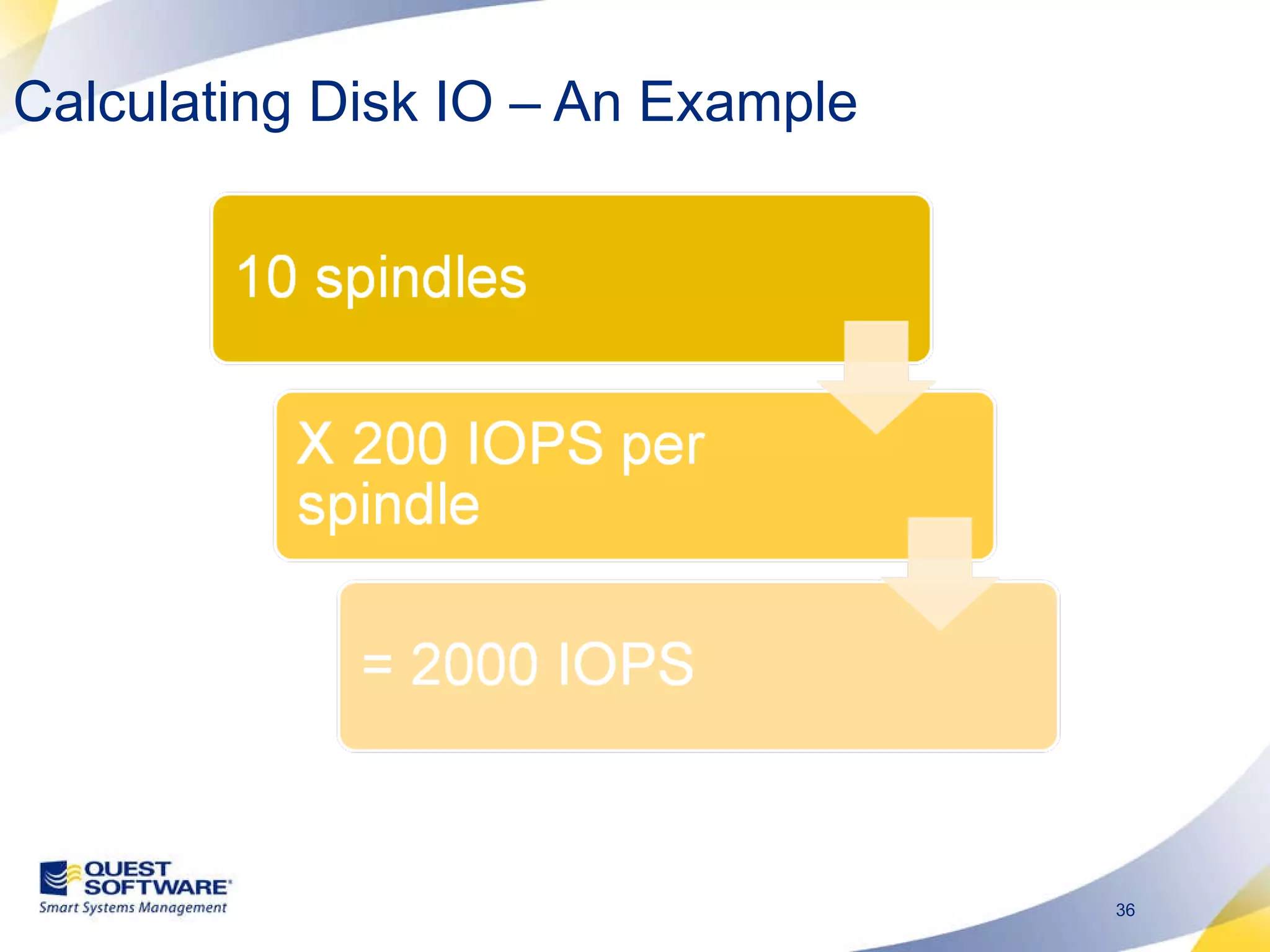

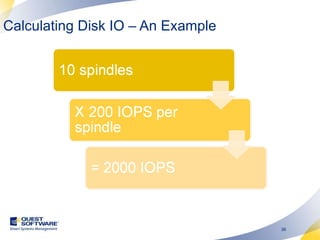

- 36. Calculating Disk IO– An Example

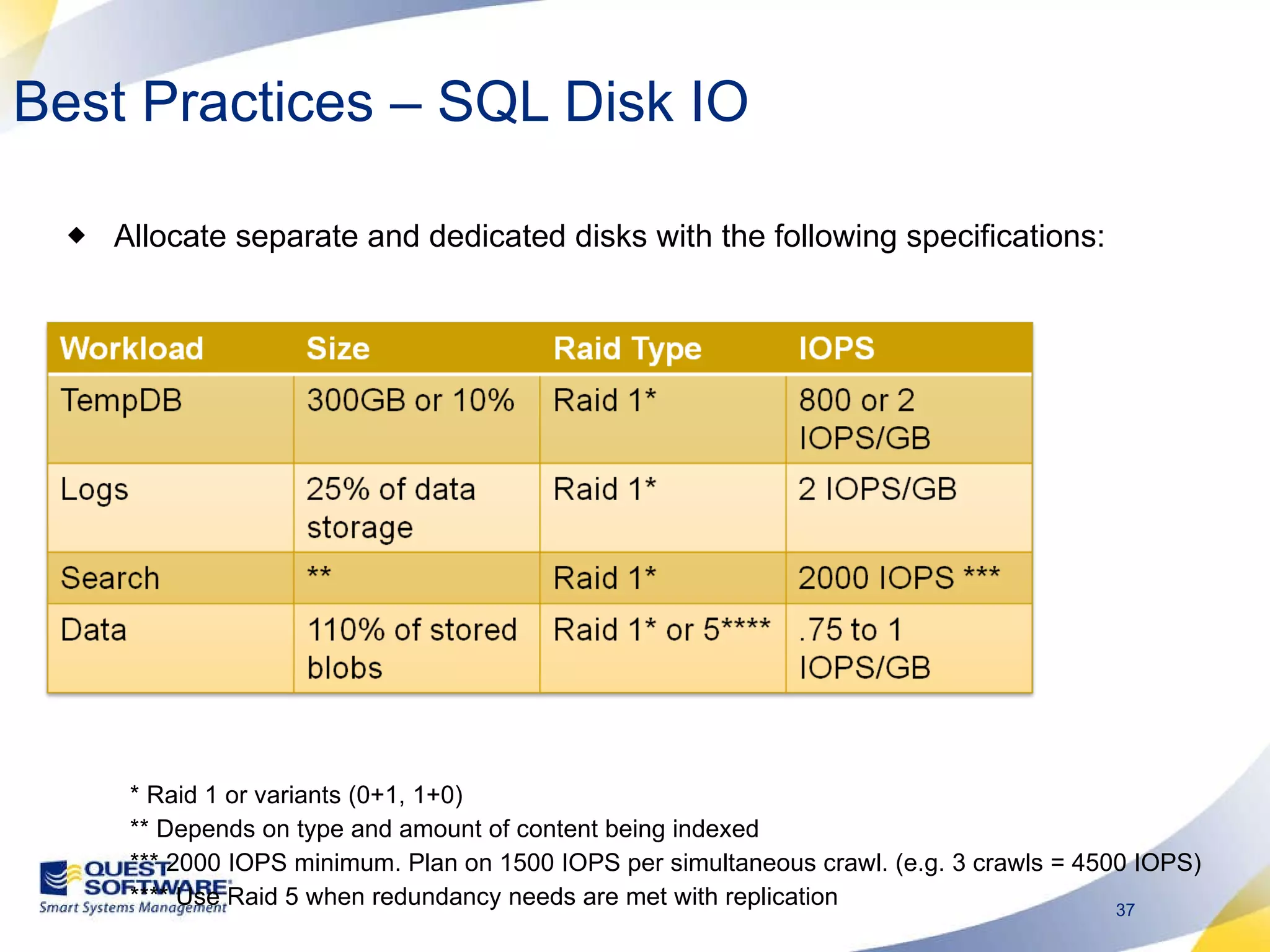

- 37. Best Practices –SQL Disk IO Allocate separate and dedicated disks with the following specifications: * Raid 1 or variants (0+1, 1+0) ** Depends on type and amount of content being indexed *** 2000 IOPS minimum. Plan on 1500 IOPS per simultaneous crawl. (e.g. 3 crawls = 4500 IOPS) **** Use Raid 5 when redundancy needs are met with replication
- 38.
- 39.

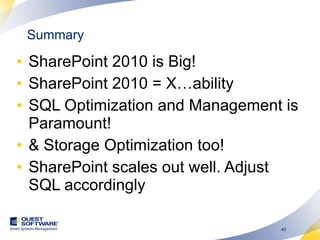

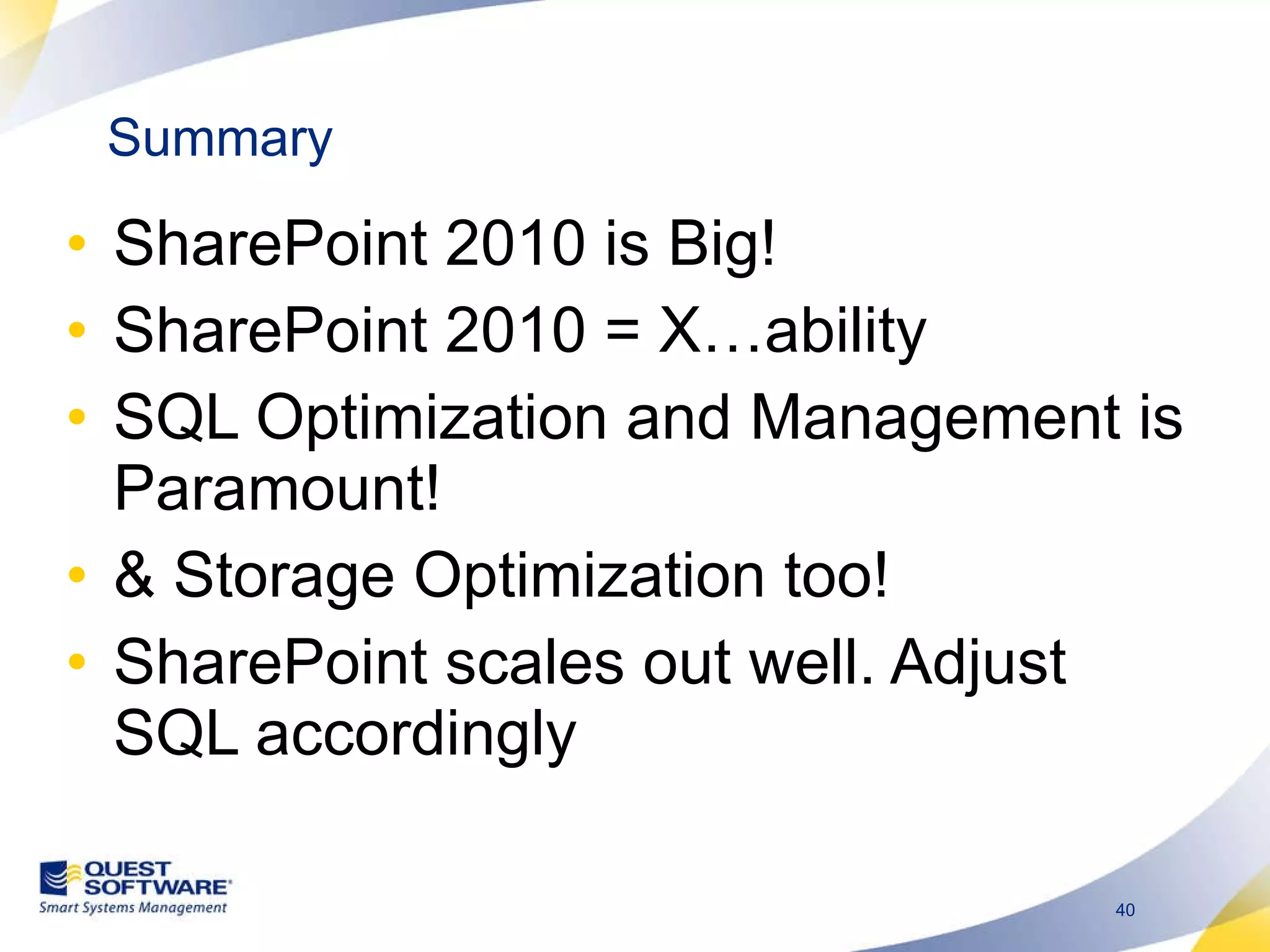

- 40. Summary SharePoint 2010is Big! SharePoint 2010 = X…ability SQL Optimization and Management is Paramount! & Storage Optimization too! SharePoint scales out well. Adjust SQL accordingly

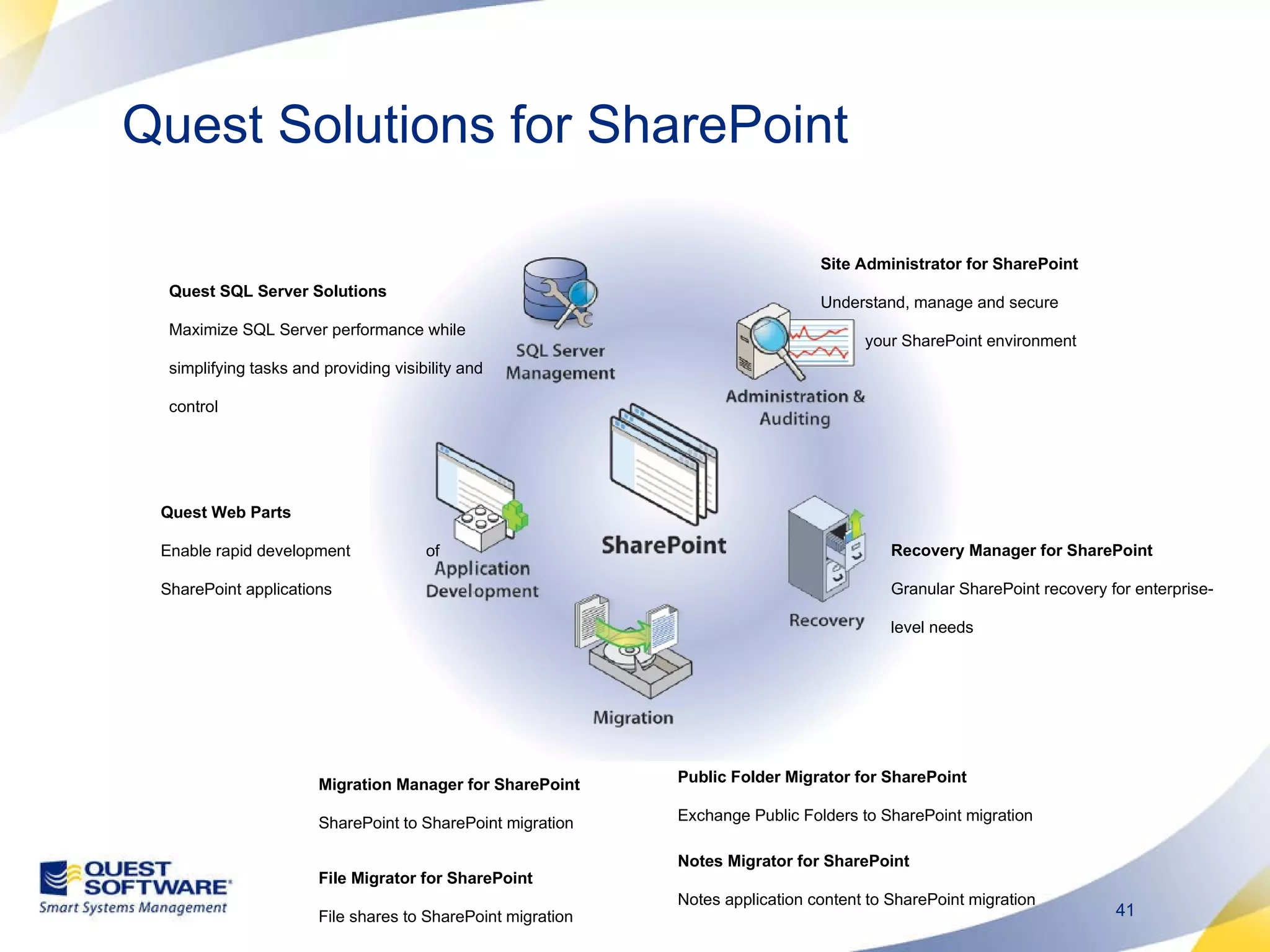

- 41. Quest Solutions forSharePoint Site Administrator for SharePoint Understand, manage and secure your SharePoint environment Migration Manager for SharePoint SharePoint to SharePoint migration File Migrator for SharePoint File shares to SharePoint migration Recovery Manager for SharePoint Granular SharePoint recovery for enterprise-level needs Quest Web Parts Enable rapid development of SharePoint applications Public Folder Migrator for SharePoint Exchange Public Folders to SharePoint migration Notes Migrator for SharePoint Notes application content to SharePoint migration Quest SQL Server Solutions Maximize SQL Server performance while simplifying tasks and providing visibility and control
