SPTECHCON - Rev Your Engines - SharePoint 2013 Performance Enhancements
This document discusses performance enhancements in SharePoint 2013, including distributed cache, shredded storage, request management, and user interface fundamentals. It provides guidance on configuring the distributed cache and request management systems for farms of different sizes. Key aspects covered are recommended cache sizes, minimum cache hosts, counters for monitoring performance, and demos of configuring each system.
More Related Content
![[Vončina] Configuring SharePoint 2016 for BI Scenarios](https://cdn.slidesharecdn.com/ss_thumbnails/d46etofktuacapz9mcyy-signature-d4523b3bf020616e67040d2a940ba8bf9aeab187b20da49956548f98de22ea12-poli-180606121949-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to SPTECHCON - Rev Your Engines - SharePoint 2013 Performance Enhancements
SPTECHCON - Rev Your Engines - SharePoint 2013 Performance Enhancements
- 1. SharePoint 2013 PerformanceEnhancements
- 2. CKS:DEV The SharePoint Cowboy Patterns & Practices Eric Shupps www.sharepointcowboy.com eshupps@binarywave.comfacebook.com/sharepointcowboy @eshupps
- 3.
- 4.
- 5.
- 6. Database Users Search BI App WebWeb Database Distrib Cache Distrib Cache Request Manager Request Manager Request Manager Office Web Apps Workflow Apps Azure O365

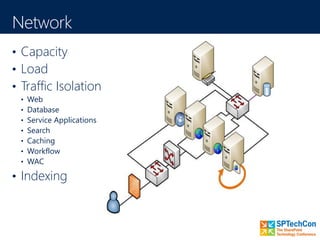

- 7. • Capacity • Load •Traffic Isolation • Web • Database • Service Applications • Search • Caching • Workflow • WAC • Indexing
- 8.
- 9.

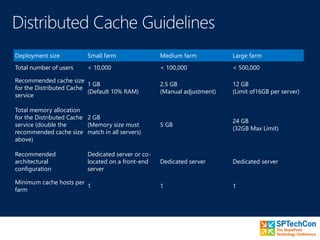

- 10. Deployment size Smallfarm Medium farm Large farm Total number of users < 10,000 < 100,000 < 500,000 Recommended cache size for the Distributed Cache service 1 GB (Default 10% RAM) 2.5 GB (Manual adjustment) 12 GB (Limit of16GB per server) Total memory allocation for the Distributed Cache service (double the recommended cache size above) 2 GB (Memory size must match in all servers) 5 GB 24 GB (32GB Max Limit) Recommended architectural configuration Dedicated server or co- located on a front-end server Dedicated server Dedicated server Minimum cache hosts per farm 1 1 1
- 11.

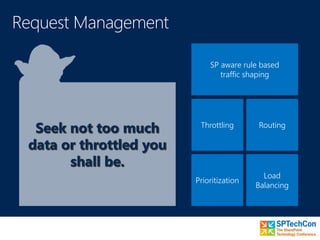

- 12. SP aware rulebased traffic shaping Throttling Prioritization Routing Load Balancing

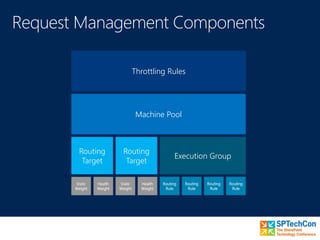

- 14. Machine Pool Routing Target Routing Target Execution Group ThrottlingRules Health Weight Static Weight Health Weight Static Weight Routing Rule Routing Rule Routing Rule Routing Rule

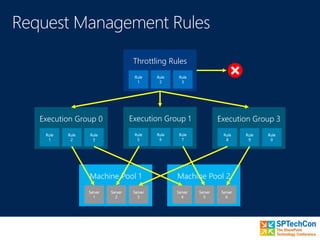

- 15. Throttling Rules Rule 1 Rule 2 Rule 3 Execution Group0 Rule 1 Rule 2 Rule 3 Execution Group 1 Rule 5 Rule 6 Rule 7 Execution Group 3 Rule 8 Rule 9 Rule 0 Machine Pool 1 Server 1 Server 2 Server 3 Machine Pool 2 Server 4 Server 5 Server 6
- 16. Counter name Description ConnectionsCurrent The total number of connections that are currently open by Request Manager. Connections Reused / Sec The number of connections per second that are reused when the same client connection makes another request without closing the connection. Routed Requests / Sec The number of routed requests per second. The instance determines the application pool and server for which this counter tracks. Throttled Requests / Sec The number of throttled requests per second. Failed Requests / Sec The number of failed requests per second. Average Processing Time The time to process the request that is, the time to evaluate all the rules and determine a routing target. Last Ping Latency The last ping latency (that is, Request Manager's PING feature) and the instance determine which application pool and machine target. Connection Endpoints Current The total number of endpoints that are connected for all active connections. Routed Requests Current The number of unfinished routed requests. The instance determines which application pool and machine target.
- 17.
- 18.
- 20.
- 21. Page 1 Controls Chrome Content Page 2 Controls Chrome Content FirstRequest Second Request Page 1 Controls Chrome Content Page 2 Controls Chrome Content Download Manager Download Manager First Request Second Request

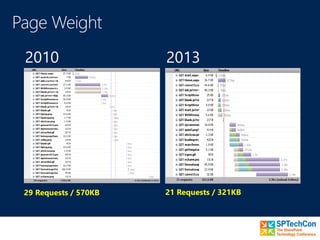

- 23. 29 Requests /570KB 21 Requests / 321KB
- 24.
- 25.
