The presentation focuses on the problem of wiring the different layers of a Spring MVC Web application. More precisely, the presentation explains how to wire the presentation layer (made of Spring MVC controllers) with the service and persistence objects. To this end, the slides first explain how to create the so called back-end (a.k.a. root) container, which will host the persistence and the service objects. Second, the @Repository and @Service annotations are introduced, which permit the framework to auto-discover the application beans. Finally, it is discussed how to wire such beans, through the usage of either the Spring-specific @Autowired annotation or the JEE @Inject annotation.

1. Wiring the different layers
Ilio Catallo - info@iliocatallo.it

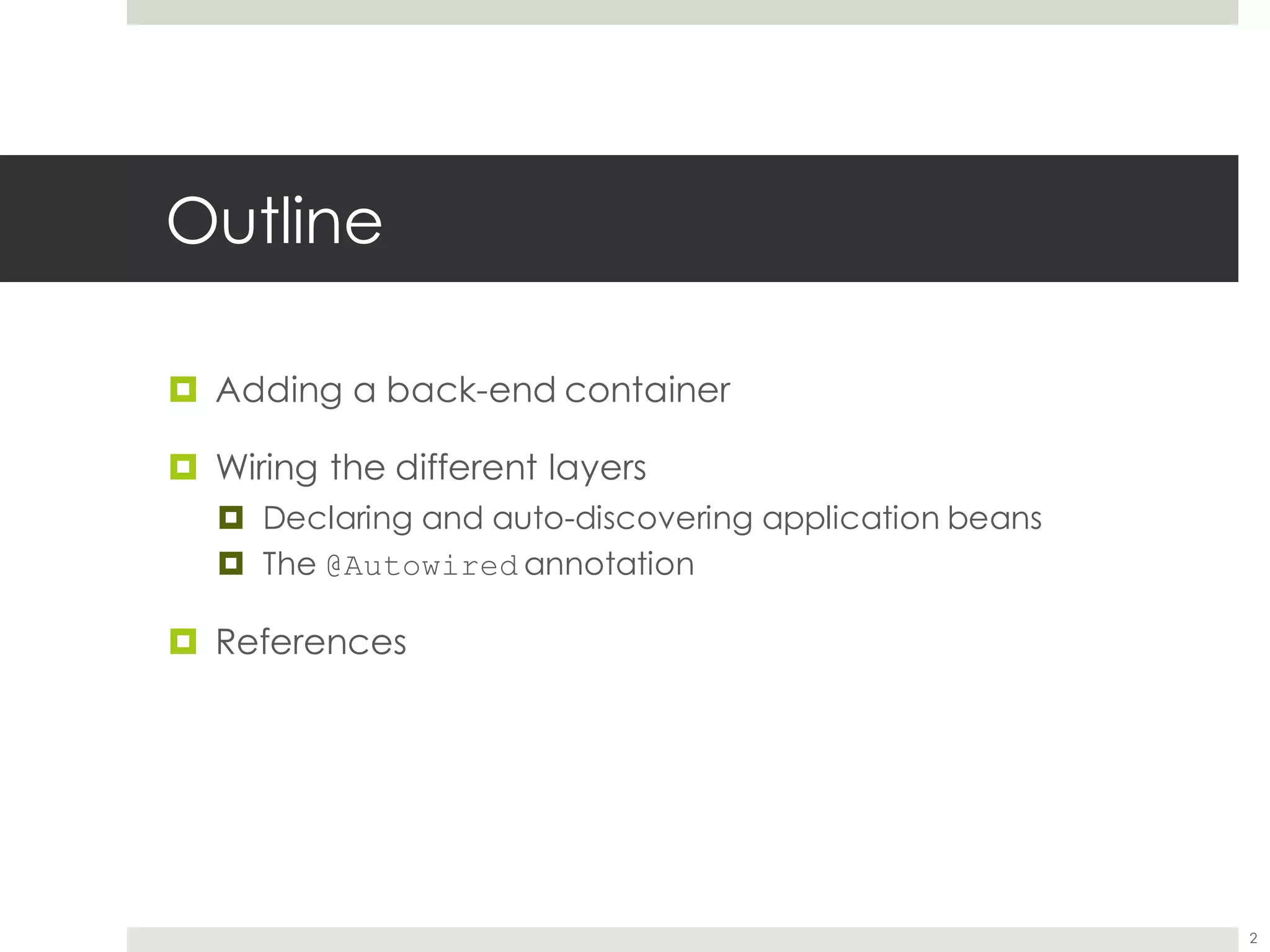

2. Outline
• Adding a back-end container
• Wiring the different layers
• References

3. Adding a back-end container

4. Web beans
DispatcherServlet ini$alizes its DI container from a single file
named frontcontroller-servlet.xml
+---------------------------------------------------+
| |
| |
| |
| +------------+ +------------+ |
| | +------------+ | +------------+ |
| | | +-------------+ | | +-------------+ |
| | | | | | | | | |
| +-+ | Controllers | +-+ | Special | |
| +-+ | +-+ beans | |
| +-------------+ +-------------+ |
| |
| |
| |
+---------------------------------------------------+
Spring DI Container

5. Web beans
Controllers and special beans are the Web-specific components
(Web beans) of our applica9on
+---------------------------------------------------+
| |
| |
| |
| +------------+ +------------+ |
| | +------------+ | +------------+ |
| | | +-------------+ | | +-------------+ |
| | | | | | | | | |
| +-+ | Controllers | +-+ | Special | |
| +-+ | +-+ beans | |
| +-------------+ +-------------+ |
| |
| |
| |
+---------------------------------------------------+
Spring DI Container

6. Service and persistence beans
What about all the other applica,on components (beans) that we
will need for our applica6on?
+---------------------------------------------------+ +--------------+
| | | +--------------+
| | | | +---------------+
| | | | | |
| +------------+ +------------+ | +-+ | Service beans |
| | +------------+ | +------------+ | +-+ |
| | | +-------------+ | | +-------------+ | +---------------+
| | | | | | | | | |
| +-+ | Controllers | +-+ | Special | | +--------------+
| +-+ | +-+ beans | | | +--------------+
| +-------------+ +-------------+ | | | +---------------+
| | | | | |
| | | | | Persistence |
| | +-+ | beans |
+---------------------------------------------------+ +-| |
Spring DI Container +---------------+

7. Service and persistence beans
Do we have also to declare service and persistence beans into
frontcontroller-servlet.xml?
+---------------------------------------------------+ +--------------+
| | | +--------------+
| | | | +---------------+
| | | | | |
| +------------+ +------------+ | +-+ | Service beans |
| | +------------+ | +------------+ | +-+ |
| | | +-------------+ | | +-------------+ | +---------------+
| | | | | | | | | |
| +-+ | Controllers | +-+ | Special | | +--------------+
| +-+ | +-+ beans | | | +--------------+
| +-------------+ +-------------+ | | | +---------------+
| | | | | |
| | | | | Persistence |
| | +-+ | beans |
+---------------------------------------------------+ +-| |
Spring DI Container +---------------+

8. Mul$ple configura$on files
Although not strictly required, it is a good idea to organize our
Spring configura8on across mul+ple files

9. Mul$ple configura$on files
We will add some addi,onal XML configura,on files
• One for the service layer
• One for the persistence layer
• One for data source configura7on

10. Spli%ng by architectural layers
By doing so, we separate applica&on beans (services and
persistence beans) from Web beans (controllers and special beans)

11. Spli%ng by architectural layers
That is, the Spring configura3on is broken out by architectural
layers
┌──────┐┌────────────────────────────────┐
│ D ││ │
│ o ││ Presentation layer │
│ m ││ │
│ a │└────────────────────────────────┘
│ i │┌────────────────────────────────┐
│ n ││ │
│ ││ Service layer │
│ m ││ │
│ o │└────────────────────────────────┘
│ d │┌────────────────────────────────┐
│ e ││ │
│ l ││ Persistence layer │
│ ││ │
└──────┘└────────────────────────────────┘

12. ContextLoaderListener
ContextLoaderListener is a Spring's component capable of
loading addi$onal configura6on files

13. Event listeners
The Java Servlet specifica1on includes the capability to track
events in a Web applica1on through event listeners

14. ServletContextListener
We can monitor events related to the Web app lifecycle by means
of a ServletContextListener implementa5on
public interface ServletContextListener {
public void contextInitialized(ServletContextEvent sce);
public void contextDestroyed(ServletContextEvent sce);
}

15. ServletContextListener
ServletContextListeners are loaded at Web container
startup, before any servlet
public interface ServletContextListener {
public void contextInitialized(ServletContextEvent sce);
public void contextDestroyed(ServletContextEvent sce);
}

16. ContextLoaderListener
ContextLoaderListener implements the
ServletContextListener interface
public class ContextLoaderListener implements ServletContextListener { ... }

17. ContextLoaderListener
As with any Web component, we need to declare
ContextLoaderListener in web.xml
<listener>
<listener-class>
org.springframework.web.context.ContextLoaderListener
</listener-class>
</listener>

18. ContextLoaderListener
The loca)ons of the addi)onal configura)on files are specified as a
context parameter named contextConfigLocation1
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
classpath:service-context.xml
classpath:persistence-context.xml
classpath:dataSource-context.xml
</param-value>
</context-param>
1
Note that we are not allowed to specify any other parameter name

19. ContextLoaderListener
The classpath: prefix is used to inform Spring that the files are
located in the CLASSPATH
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
classpath:service-context.xml
classpath:persistence-context.xml
classpath:dataSource-context.xml
</param-value>
</context-param>

20. One configura,on file per layer
Service beans are declared in service-context.xml
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
classpath:service-context.xml <!-- Service beans -->
classpath:persistence-context.xml
classpath:dataSource-context.xml
</param-value>
</context-param>

21. One configura,on file per layer
Persistence beans are declared in persistence-context.xml
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
classpath:service-context.xml
classpath:persistence-context.xml <!-- Persistence beans -->
classpath:dataSource-context.xml
</param-value>
</context-param>

22. One configura,on file per layer
Finally, dataSource-context.xml configures the data source
we would like to use
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
classpath:service-context.xml
classpath:persistence-context.xml
classpath:dataSource-context.xml <!-- data source config -->
</param-value>
</context-param>

23. How do the addi+onal configura+on files relate to
frontcontroller-servlet.xml?

24. Back-end container
The ContextLoaderListener bootstraps an addi$onal
container called the back-end container
+--------------------------------------+
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
+--------------------------------------+
Spring DI back-end container

25. Separa&ng the different areas
Service and persistence beans will live within the back-end
container...
+---------------------------------------------------+
| |
| |
| +--------------+ |
| | +--------------+ +--------------+ |
| | | +--------------- | +--------------+ |
| | | | + | | +---------------+ |
| +-+ | Service beans | | | | | |
| +-+ | | | | Persistence | |
| +---------------| +-+ | beans | |
| +-+ | |
| +---------------+ |
| |
| |
+---------------------------------------------------+
Spring DI back-end container

26. Separa&ng the different areas
...whereas Web beans will live in the front-end container created
by DispatcherServlet
+---------------------------------------------------+
| |
| |
| |
| +------------+ +------------+ |
| | +------------+ | +------------+ |
| | | +-------------+ | | +-------------+ |
| | | | | | | | | |
| +-+ | Controllers | +-+ | Special | |
| +-+ | +-+ beans | |
| +-------------+ +-------------+ |
| |
| |
| |
+---------------------------------------------------+
Spring DI front-end container

27. Separa&ng the different areas
We are effec(vely separa&ng the applica(on beans from the Web
beans by crea(ng different containers
+-------------------------+ +-------------------------+
| | | |
| | | |
| <----> |
| | | |
| | | |
+-------------------------+ +-------------------------+
Front-end container Back-end container

28. The back-end container is unique
Remember: the back-end container is unique
+---------------------------------------------------+
| |
| |
| +--------------+ |
| | +--------------+ +--------------+ |
| | | +--------------- | +--------------+ |
| | | | + | | +---------------+ |
| +-+ | Service beans | | | | | |
| +-+ | | | | Persistence | |
| +---------------| +-+ | beans | |
| +-+ | |
| +---------------+ |
| |
| |
+---------------------------------------------------+
Spring DI back-end container

29. The back-end container is unique
In other words, ContextLoaderListener loads the different
configura5on files into the same back-end container
+---------------------------------------------------+
| |
| |
| +--------------+ |
| | +--------------+ +--------------+ |
| | | +--------------- | +--------------+ |
| | | | + | | +---------------+ |
| +-+ | Service beans | | | | | |
| +-+ | | | | Persistence | |
| +---------------| +-+ | beans | |
| +-+ | |
| +---------------+ |
| |
| |
+---------------------------------------------------+
Spring DI back-end container

30. Parent-child rela.onship
The back-end container serves as a parent for the front-end
container
+----------------------+
| |
| Back-end container |
| |
+----------^-----------+
|
| Child of...
|
+----------+-----------+
| |
| Front-end container |
| |
+----------------------+

31. Parent-child rela.onship
That is why the back-end container is also called the root container
+----------------------+
| |
| Back-end container |
| |
+----------^-----------+
|
| Child of...
|
+----------+-----------+
| |
| Front-end container |
| |
+----------------------+

32. Parent-child rela.onship
A container can only have a single parent, but it can have mul6ple
children
+--------------+
| |
| Container A |
| |
+------^-------+
|
+--------------+-------------+
| |
+------+-------+ +-------+------+
| | | |
| Container B | | Container C |
| | | |
+--------------+ +------^-------+
|
+--------------+-------------+
| |
+------+-------+ +-------+------+
| | | |
| Container D | | Container E |
| | | |
+--------------+ +--------------+

33. Parent-child rela.onship
Child containers can access beans defined in the parent container
+--------------+
| |
| Container A |
| |
+------^-------+
|
+--------------+-------------+
| |
+------+-------+ +-------+------+
| | | |
| Container B | | Container C |
| | | |
+--------------+ +------^-------+
|
+--------------+-------------+
| |
+------+-------+ +-------+------+
| | | |
| Container D | | Container E |
| | | |
+--------------+ +--------------+

34. Parent-child rela.onship
However, parent beans cannot access beans in the child container
+--------------+
| |
| Container A |
| |
+------^-------+
|
+--------------+-------------+
| |
+------+-------+ +-------+------+
| | | |
| Container B | | Container C |
| | | |
+--------------+ +------^-------+
|
+--------------+-------------+
| |
+------+-------+ +-------+------+
| | | |
| Container D | | Container E |
| | | |
+--------------+ +--------------+

35. Parent-child rela.onship
Hence, shared beans and infrastructure configura2on are
• Declared in the back-end container
• Consumed in the front-end container by Web components

36. Wiring the different layers

37. Discovering beans
Once created, we have to declare which beans are going to be part
of the back-end container
+---------------------------------------------------+
| |
| |
| +--------------+ |
| | +--------------+ +--------------+ |
| | | +--------------- | +--------------+ |
| | | | + | | +---------------+ |
| +-+ | Service beans | | | | | |
| +-+ | | | | Persistence | |
| +---------------| +-+ | beans | |
| +-+ | |
| +---------------+ |
| |
| |
+---------------------------------------------------+
Spring DI back-end container

38. Discovering beans
We can configure Spring to automa&cally discover beans and
declare them in the back-end container

39. Stereotype annota+ons
To this end, four stereotype annota+ons are available
• @Component
• @Controller
• @Service
• @Repository

40. Stereotype annota+ons
Both @Controller, @Service and @Repository are
specializa2on of @Component

41. Service beans
Service beans should be annotated with the @Service annota/on
@Service
public class AccountServiceImpl implements AccountService { ... }

42. Service beans
Currently, @Service does not provide any addi1onal behavior
over the @Component annota1on
@Service
public class AccountServiceImpl implements AccountService { ... }

43. Service beans
However, this annota/on might include service layer specific
func/onality in future Spring releases
@Service
public class AccountServiceImpl implements AccountService { ... }

44. Service beans
Nevertheless, @Service is s,ll useful, as it helps in clearly
demarca-ng the role of the bean
@Service
public class AccountServiceImpl implements AccountService { ... }

45. Persistence beans
Persistence beans should be annotated with the @Repository
annota/on
@Repository
public class AccountRepositoryImpl implements AccountRepository { ... }

46. Persistence beans
Like @Service, the @Repository is a specializa/on of the
@Component annota/on

47. Persistence beans
The @Repository annota)on makes the unchecked excep+ons
thrown by the repository bean eligible for transla)on into Spring's
DataAccessExceptions

48. Auto-discovering beans
With all the @Service and @Repository annota,ons in place,
we are now ready to auto-discover beans

49. Auto-discovering beans
The auto-discovery mechanism will find all the service and
persistence beans without having to provide XML configura<on
entries for them

50. Auto-discovering beans
The <context:component-scan> loads into the container
those beans annotated with any @Component specializa4on

51. Auto-discovering beans
service-context.xml:
<beans>
<context:component-scan
base-package="it.polimi.awt.springmvc.service"/>
</beans>

52. Auto-discovering beans
persistence-context.xml:
<beans>
<context:component-scan
base-package="it.polimi.awt.springmvc.repository"/>
</beans>

53. Auto-discovering beans
No#ce that we already used the auto-discovery mechanism, since
@Controller is also a @Component specializa#on

54. Auto-discovering beans
frontcontroller-servlet.xml:
<context:component-scan
base-package="it.polimi.awt.springmvc.web"/>

55. Beans injec*on
With the back-end container in place, we are now ready to inject
instances of the service beans into the controllers

56. Annota&on-based wiring
The most common way of wiring beans is to use annota%ons
@Controller
@RequestMapping("/account")
public class AccountController {
private AccountService accountService;
@PleaseInjectHere
public AccountController(AccountService accountService) {
accountService = accountService;
}
}

57. Annota&on-based wiring
It turns out that Spring supports different annota+ons
• The @Autowired annota*on (Spring API)
• The @Inject annota*on (Dependency Injec*on API)
• The @Resource annota*on (Common Annota*ons API)

58. Annota&on-based wiring
It turns out that Spring supports different annota+ons
• The @Autowired annota)on (Spring API)
• The @Inject annota*on (Dependency Injec*on API)
• The @Resource annota*on (Common Annota*ons API)

59. @Autowired
When Spring sees something annotated with @Autowired, it will
try to perform wiring by type

60. @Autowired
@Autowired can be used:
• On fields
• On se*er methods
• On constructor methods
• On methods with arbitrary signature

61. @Autowired
@Controller
@RequestMapping("/account")
public class AccountController {
private AccountService accountService;
@Autowired
public AccountController(AccountService accountService) {
accountService = accountService;
}
}

62. Resolving dependencies
If no bean can be wired into the @Autowired-annotated
argument, a NoSuchBeanDefinitionException will be thrown

63. Resolving dependencies
If more than one bean are suitable for injec1on, @Autowired
cannot determine which one to choose...

64. Resolving dependencies
...and so a NoSuchBeanDefinitionException will be thrown

65. Annota&on-based wiring
It turns out that Spring supports different annota2ons:
• The @Autowired annota*on (Spring API)
• The @Inject annota)on (Dependency Injec)on API)
• The @Resource annota*on (Common Annota*ons API)

66. Dependency Injec+on API
Spring 3 added support for annota1ons coming from the
Dependency Injec+on API (JSR-330)

67. Dependency Injec+on API
JSR-330 defines some annota1ons contained in the
javax.inject package, such as @Inject and @Named

68. @Inject
The centerpiece of JSR-330 is the @Inject annota5on. This
annota5on is an almost complete drop-in replacement for Spring’s
@Autowired annota5on

69. @Inject
@Controller
@RequestMapping("/account")
public class AccountController {
private AccountService accountService;
@Inject
public AccountController(AccountService accountService) {
accountService = accountService;
}
}

70. Wiring the persistence layer
Of course, we can use @Autowired also to inject persistence
beans into service beans

71. Wiring the persistence layer
@Service
public class AccountServiceImpl implements AccountService {
private AccountRepository accountRepository;
@Autowired
public AccountServiceImpl(AccountRepository accountRepository) {
this.accountRepository = accountRepository;
}
}

72. References

73. References
• SpringSource, Spring Framework Reference
• SpringSource, ContextLoader Java-doc
• M. Deinum, K. Serneels, Pro Spring MVC: with Web flows,
Apress PublicaIons
• Craig Walls, Spring in AcIon (3rd EdiIon),
Manning PublicaIons
• Willie Wheeler, Spring in PracIce, Manning PublicaIons
