The document is a presentation on Spring Integration covering essential concepts like message anatomy, channels, endpoints, and basic enterprise integration patterns. It discusses various adapter types for integration with external systems and provides high-level insights into error handling and message routing components. The presentation aims to highlight Spring Integration's capabilities, benefits, and its differences compared to competitors like Apache Camel and various ESBs.

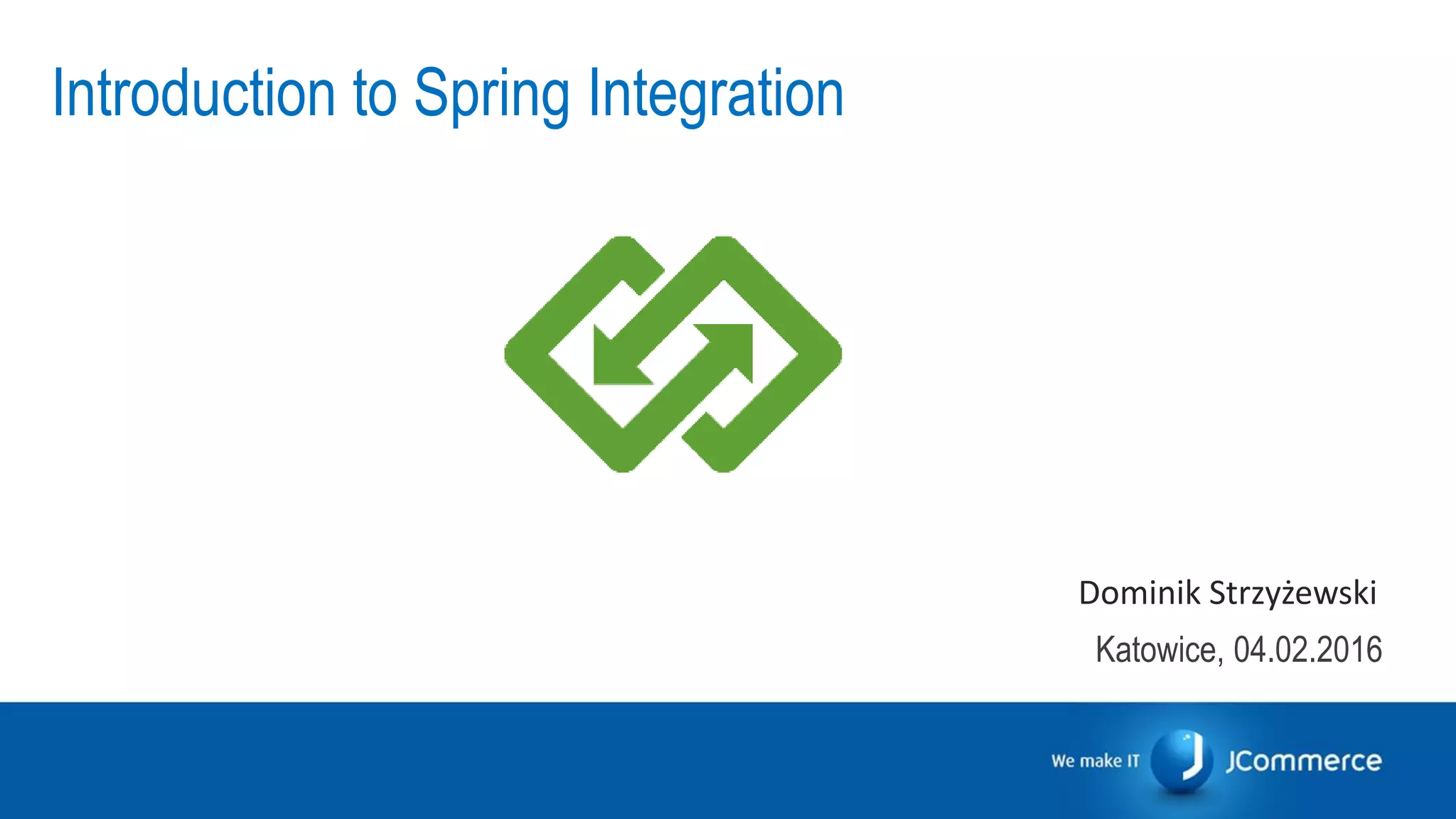

2. Introduction to Spring Integration
Katowice, 04.02.2016
Dominik Strzyżewski

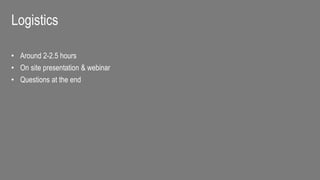

3. Logistics
• Around 2-2.5 hours
• On site presentation & webinar
• Questions at the end

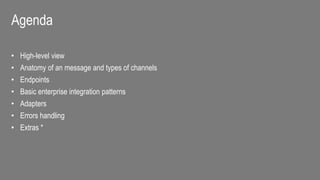

4. Agenda
• High-level view
• Anatomy of an message and types of channels
• Endpoints
• Basic enterprise integration patterns
• Adapters
• Errors handling
• Extras *

5. High-level view

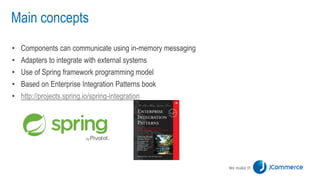

6. Main concepts
• Components can communicate using in-memory messaging
• Adapters to integrate with external systems
• Use of Spring framework programming model
• Based on Enterprise Integration Patterns book
• http://projects.spring.io/spring-integration

7. Sample workflow
http://docs.spring.io/autorepo/docs/spring-integration/2.0.x/reference/htmlsingle/images/cafe-eip.png

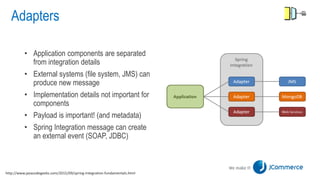

8. Adapters
• Application components are separated
from integration details
• External systems (file system, JMS) can
produce new message
• Implementation details not important for
components
• Payload is important! (and metadata)
• Spring Integration message can create
an external event (SOAP, JDBC)
http://www.javacodegeeks.com/2015/09/spring-integration-fundamentals.html

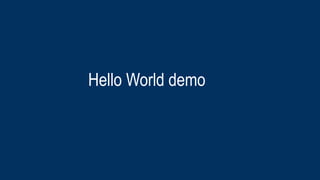

9. Hello World demo

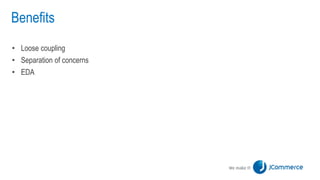

10. Benefits
• Loose coupling
• Separation of concerns
• EDA

11. Competitors
• Apache Camel
• ESB:
• Mule ESB
• Apache ServiceMix
• Red Hat Fuse ESB
• IBM WebSphere ESB
• Oracle Enterprise Service Bus
• TIBCO ESB
http://www.infoq.com/articles/ESB-Integration

12. Anatomy of an message and types of
channels

13. Basic interaction
• An endpoint sends a message
• Endpoints are connected using MessageChannels
• Endpoints can receive messages from channels by:
• Subscribing (passive)
• Polling (active)

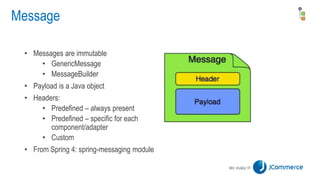

14. Message
• Messages are immutable
• GenericMessage
• MessageBuilder
• Payload is a Java object
• Headers:
• Predefined – always present
• Predefined – specific for each
component/adapter
• Custom
• From Spring 4: spring-messaging module

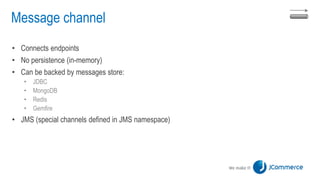

15. Message channel
• Connects endpoints
• No persistence (in-memory)
• Can be backed by messages store:
• JDBC
• MongoDB
• Redis
• Gemfire
• JMS (special channels defined in JMS namespace)

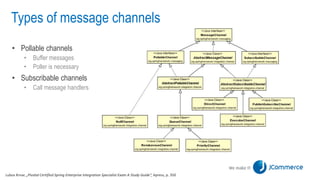

16. Types of message channels
• Pollable channels
• Buffer messages
• Poller is necessary
• Subscribable channels
• Call message handlers
Lubos Krnac „Pivotal Certified Spring Enterprise Integration Specialist Exam A Study Guide”, Apress, p. 350

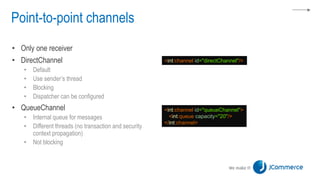

17. Point-to-point channels
• Only one receiver
• DirectChannel
• Default
• Use sender’s thread
• Blocking
• Dispatcher can be configured
• QueueChannel
• Internal queue for messages
• Different threads (no transaction and security
context propagation)
• Not blocking
<int:channel id="directChannel"/>
<int:channel id="queueChannel">
<int:queue capacity="20"/>
</int:channel>

18. Point-to-point channels
• PriorityChannel
• Priority queue
• Use priority header
• Or custom comparator
• RendezvousChannel
• Use SynchronousQueue
• Sender knows that some receiver has accepted the message
• Request-reply operations
• ExecutorChannel
• Like DirectChannel
• Use TaskExecutor to dispatch – different thread
• NullChannel (disarded messages)
<int:channel id="rendezvousChannel">
<int:rendezvous-queue/>
</int:channel>
<int:channel id="priorityChannel">
<int:priority-queue capacity="10"/>
</int:channel>
<int:channel id="executorChannel">
<int:dispatcher task-executor="taskExecutor"/>
</int:channel>

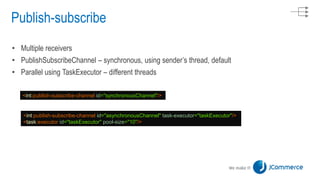

19. Publish-subscribe
• Multiple receivers
• PublishSubscribeChannel – synchronous, using sender’s thread, default
• Parallel using TaskExecutor – different threads
<int:publish-subscribe-channel id="synchronousChannel"/>
<int:publish-subscribe-channel id="asynchronousChannel" task-executor="taskExecutor"/>
<task:executor id="taskExecutor" pool-size="10"/>

20. Publish-subscribe demo

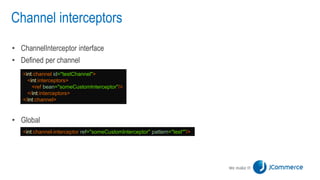

21. Channel interceptors
• ChannelInterceptor interface
• Defined per channel
• Global
<int:channel id="testChannel">
<int:interceptors>
<ref bean="someCustomInterceptor"/>
</int:interceptors>
</int:channel>
<int:channel-interceptor ref="someCustomInterceptor" pattern="test*"/>

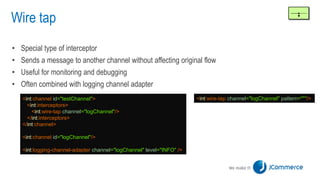

22. Wire tap
• Special type of interceptor
• Sends a message to another channel without affecting original flow
• Useful for monitoring and debugging
• Often combined with logging channel adapter
<int:channel id="testChannel">
<int:interceptors>
<int:wire-tap channel="logChannel"/>
</int:interceptors>
</int:channel>
<int:channel id="logChannel"/>
<int:logging-channel-adapter channel="logChannel" level="INFO" />
<int:wire-tap channel="logChannel" pattern="*"/>

23. Endpoints

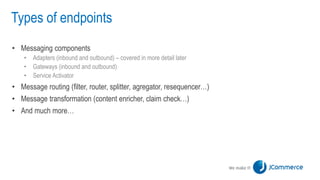

24. Types of endpoints
• Messaging components
• Adapters (inbound and outbound) – covered in more detail later
• Gateways (inbound and outbound)
• Service Activator
• Message routing (filter, router, splitter, agregator, resequencer…)
• Message transformation (content enricher, claim check…)
• And much more…

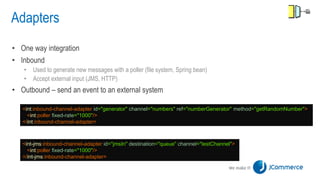

25. Adapters
• One way integration
• Inbound
• Used to generate new messages with a poller (file system, Spring bean)
• Accept external input (JMS, HTTP)
• Outbound – send an event to an external system
<int:inbound-channel-adapter id="generator" channel="numbers" ref="numberGenerator" method="getRandomNumber">
<int:poller fixed-rate="1000"/>
</int:inbound-channel-adapter>
<int-jms:inbound-channel-adapter id="jmsIn" destination="queue" channel="testChannel">
<int:poller fixed-rate="1000"/>
</int-jms:inbound-channel-adapter>

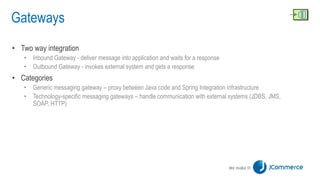

26. Gateways
• Two way integration
• Inbound Gateway - deliver message into application and waits for a response
• Outbound Gateway - invokes external system and gets a response
• Categories
• Generic messaging gateway – proxy between Java code and Spring Integration infrastructure
• Technology-specific messaging gateways – handle communication with external systems (JDBS, JMS,
SOAP, HTTP)

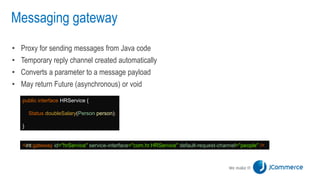

27. Messaging gateway
• Proxy for sending messages from Java code
• Temporary reply channel created automatically
• Converts a parameter to a message payload
• May return Future (asynchronous) or void
public interface HRService {
Status doubleSalary(Person person);
}
<int:gateway id="hrService" service-interface="com.hr.HRService" default-request-channel="people" />

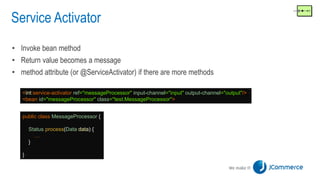

28. Service Activator
• Invoke bean method
• Return value becomes a message
• method attribute (or @ServiceActivator) if there are more methods
public class MessageProcessor {
Status process(Data data) {
…
}
}
<int:service-activator ref="messageProcessor" input-channel="input" output-channel="output"/>
<bean id="messageProcessor" class="test.MessageProcessor">

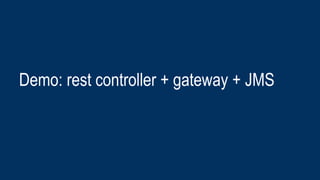

29. Demo: rest controller + gateway + JMS

30. Basic enterprise integration patterns

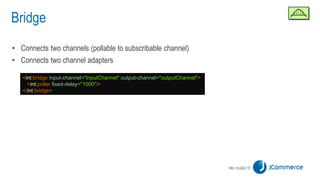

31. Bridge
• Connects two channels (pollable to subscribable channel)
• Connects two channel adapters
<int:bridge input-channel="inputChannel" output-channel="outputChannel">
<int:poller fixed-delay="1000"/>
</int:bridge>

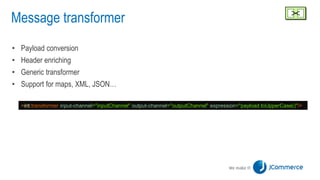

32. Message transformer
• Payload conversion
• Header enriching
• Generic transformer
• Support for maps, XML, JSON…
<int:transformer input-channel="inputChannel" output-channel="outputChannel" expression="payload.toUpperCase()"/>

33. Filter
• Decides to allow message processing
• Default: drop message
• Exception on rejection
• Discard channel
<int:filter input-channel="inputChannel" output-channel="outputChannel"
ref="filterBean" method="filter"
discard-channel="invalidData"/>

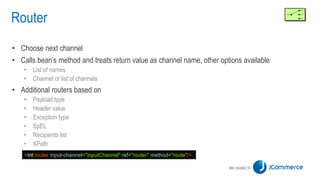

34. Router
• Choose next channel
• Calls bean’s method and treats return value as channel name, other options available
• List of names
• Channel or list of channels
• Additional routers based on
• Payload type
• Header value
• Exception type
• SpEL
• Recipients list
• XPath
<int:router input-channel="inputChannel" ref="router" method="route"/>

35. Splitter
• Input – one message
• Output – many messages
<int:splitter input-channel="orders" output-channel="items" ref="orderSplitter" method="split"/>
List<LineItem> split(Order order) {
return order.getItems();
}

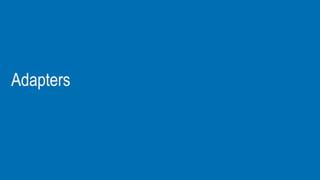

36. Adapters

37. Plenty of them…
• Files/FTP/FTPS/SFTP
• JDBC/JPA
• MongoDB
• Redis
• JMS/AMQP
• RSS
• HTTP/WebSockets/SOAP/RMI
• Mails
• MQTT
• Twitter
• That’s not all!

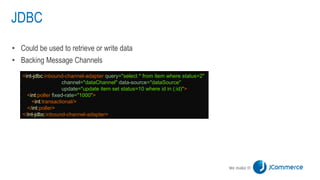

38. JDBC
• Could be used to retrieve or write data
• Backing Message Channels
<int-jdbc:inbound-channel-adapter query="select * from item where status=2"
channel="dataChannel" data-source="dataSource"
update="update item set status=10 where id in (:id)">
<int:poller fixed-rate="1000">
<int:transactional/>
</int:poller>
</int-jdbc:inbound-channel-adapter>

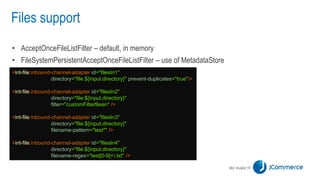

39. Files support
• AcceptOnceFileListFilter – default, in memory
• FileSystemPersistentAcceptOnceFileListFilter – use of MetadataStore
<int-file:inbound-channel-adapter id="filesIn1"
directory="file:${input.directory}" prevent-duplicates="true"/>
<int-file:inbound-channel-adapter id="filesIn2"
directory="file:${input.directory}"
filter="customFilterBean" />
<int-file:inbound-channel-adapter id="filesIn3"
directory="file:${input.directory}"
filename-pattern="test*" />
<int-file:inbound-channel-adapter id="filesIn4"
directory="file:${input.directory}"
filename-regex="test[0-9]+.txt" />

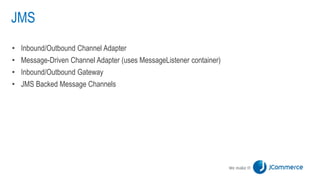

40. JMS
• Inbound/Outbound Channel Adapter
• Message-Driven Channel Adapter (uses MessageListener container)
• Inbound/Outbound Gateway
• JMS Backed Message Channels

41. Demo: JDBC in + JMS channel +splitter +
MongoDB out

42. Errors handling

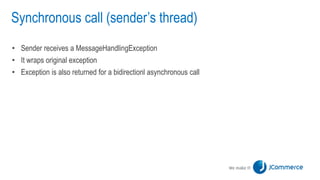

43. Synchronous call (sender’s thread)
• Sender receives a MessageHandlingException
• It wraps original exception
• Exception is also returned for a bidirectionl asynchronous call

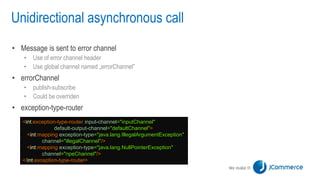

44. Unidirectional asynchronous call
• Message is sent to error channel
• Use of error channel header
• Use global channel named „errorChannel”
• errorChannel
• publish-subscribe
• Could be overriden
• exception-type-router
<int:exception-type-router input-channel="inputChannel"
default-output-channel="defaultChannel">
<int:mapping exception-type="java.lang.IllegalArgumentException"
channel="illegalChannel"/>
<int:mapping exception-type="java.lang.NullPointerException"
channel="npeChannel"/>
</int:exception-type-router>

45. Extras

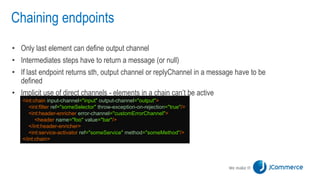

46. Chaining endpoints
• Only last element can define output channel
• Intermediates steps have to return a message (or null)
• If last endpoint returns sth, output channel or replyChannel in a message have to be
defined
• Implicit use of direct channels - elements in a chain can’t be active
<int:chain input-channel="input" output-channel="output">
<int:filter ref="someSelector" throw-exception-on-rejection="true"/>
<int:header-enricher error-channel="customErrorChannel">
<header name="foo" value="bar"/>
</int:header-enricher>
<int:service-activator ref="someService" method="someMethod"/>
</int:chain>

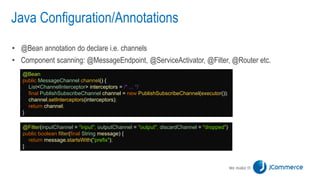

47. Java Configuration/Annotations
• @Bean annotation do declare i.e. channels
• Component scanning: @MessageEndpoint, @ServiceActivator, @Filter, @Router etc.
@Bean
public MessageChannel channel() {
List<ChannelInterceptor> interceptors = /* ... */
final PublishSubscribeChannel channel = new PublishSubscribeChannel(executor());
channel.setInterceptors(interceptors);
return channel;
}
@Filter(inputChannel = "input", outputChannel = "output", discardChannel = "dropped")
public boolean filter(final String message) {
return message.startsWith("prefix");
}

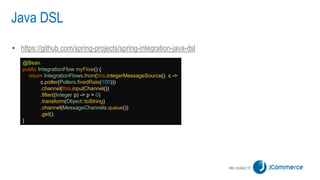

48. Java DSL
• https://github.com/spring-projects/spring-integration-java-dsl
@Bean
public IntegrationFlow myFlow() {
return IntegrationFlows.from(this.integerMessageSource(), c ->
c.poller(Pollers.fixedRate(100)))
.channel(this.inputChannel())
.filter((Integer p) -> p > 0)
.transform(Object::toString)
.channel(MessageChannels.queue())
.get();
}

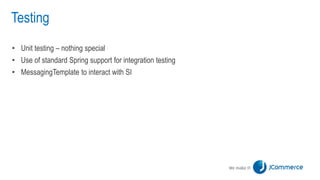

49. Testing
• Unit testing – nothing special
• Use of standard Spring support for integration testing
• MessagingTemplate to interact with SI

50. Demo: simple testing example

51. Questions?

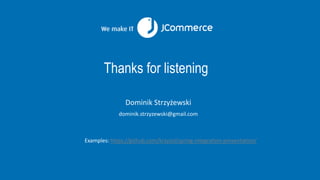

52. Thanks for listening
Dominik Strzyżewski
dominik.strzyzewski@gmail.com
Examples: https://github.com/krzyzol/spring-integration-presentation/
