ENTERPRISE INTEGRATION PATTERNS:
SPRING WAY
Dragan Gajic
INTEGRATION
• Creating a single, monolite app to cover
all aspects of business is hard
• Enterpises are comprised of
applications which can be: custom
build, 3rd party, legacy
• Connecting computer systems,
companies or people
• Share data and processes
INTEGRATION CHALLENGES
• Networks: unreliable & slow
• Differences: language, platform & data format
• Changes
• Limited control
• Standards
• Maintenance

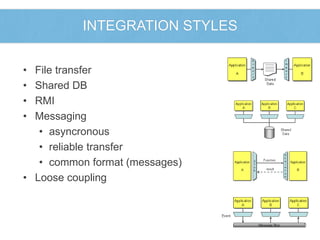

INTEGRATION STYLES
• File transfer
• Shared DB
• RMI
• Messaging
• asyncronous
• reliable transfer
• common format (messages)
• Loose coupling

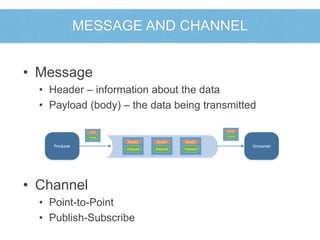

MESSAGE AND CHANNEL
• Message
• Header – information about the data
• Payload (body) – the data being transmitted
• Channel
Header
Payload
Header
Payload
• Point-to-Point
• Publish-Subscribe
Header
Payload
Header
Payload
Header
Payload
Producer Consumer

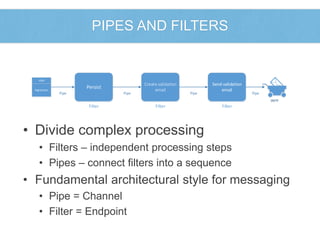

PIPES AND FILTERS
Persist
Pipe
Create validation
email
Pipe Pipe
Filter Filter
Send validation
email
SMTP
Pipe
Filter
USER
Registration
• Divide complex processing
• Filters – independent processing steps
• Pipes – connect filters into a sequence
• Fundamental architectural style for messaging
• Pipe = Channel
• Filter = Endpoint
SPRING INTEGRATION
• Top-level project in spring.io
• Enables lightweight messaging
• Combines DI, POJO and Messaging
• Implements most of EIP
• Includes wide selection of channel adapters
• SI != MOM, ESB

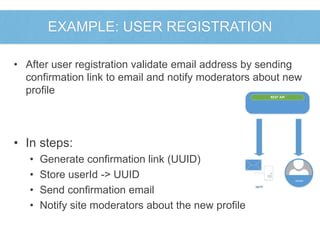

EXAMPLE: USER REGISTRATION
• After user registration validate email address by sending
confirmation link to email and notify moderators about new
profile
• In steps:
• Generate confirmation link (UUID)
• Store userId -> UUID
• Send confirmation email
• Notify site moderators about the new profile
SMTP
ADMIN
REST API

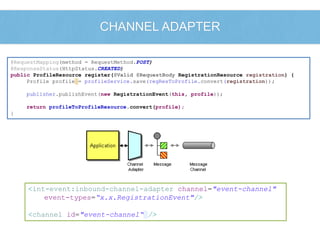

CHANNEL ADAPTER
@RequestMapping(method = RequestMethod.POST)
@ResponseStatus(HttpStatus.CREATED)
public ProfileResource register(@Valid @RequestBody RegistrationResource registration) {
Profile profile = profileService.save(regResToProfile.convert(registration));
publisher.publishEvent(new RegistrationEvent(this, profile));
return profileToProfileResource.convert(profile);
}
<int-event:inbound-channel-adapter channel="event-channel"
event-types=“x.x.RegistrationEvent"/>
<channel id="event-channel“ />
ENRICHER
<header-enricher input-channel="event-channel">
<header name="uuid“ expression="T(java.util.UUID).randomUUID.toString()"/>
</header-enricher>

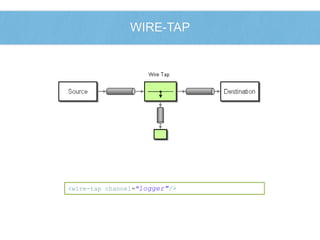

WIRE-TAP
<wire-tap channel="logger"/>
PIPING IT ALL TOGETHER
<int-event:inbound-channel-adapter channel="event-channel"
event-types="com.levi9.samples.eip.registration.event.RegistrationEvent" />
<channel id="event-channel" />
<header-enricher input-channel="event-channel" output-channel=“logger">
<header name="uuid" expression="T(java.util.UUID).randomUUID().toString()" />
</header-enricher>
<logging-channel-adapter id="logger" level="INFO" log-full-message="true" />

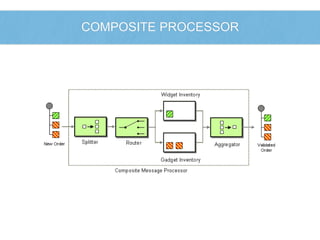

COMPOSITE PROCESSOR

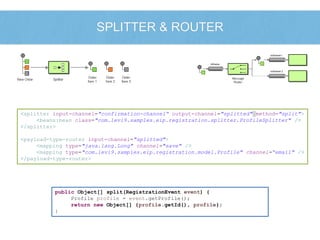

SPLITTER & ROUTER
<splitter input-channel="confirmation-channel“ output-channel="splitted" method="split">
<beans:bean class="com.levi9.samples.eip.registration.splitter.ProfileSplitter" />
</splitter>
<payload-type-router input-channel="splitted">
<mapping type="java.lang.Long" channel="save" />
<mapping type="com.levi9.samples.eip.registration.model.Profile" channel=“email" />
</payload-type-router>
public Object[] split(RegistrationEvent event) {
Profile profile = event.getProfile();
return new Object[] {profile.getId(), profile};
}
<service-activator input-channel="save" output-channel="done"
expression="@profileService.pending(headers.uuid, payload)" />
<chain input-channel="email" output-channel="done">
<int-mail:header-enricher>
<int-mail:from value="EIP" />
<int-mail:to expression="payload.email" />
<int-mail:subject value="Registration confirmation" />
</int-mail:header-enricher>
<transformer
expression="'Dear ' + payload.name + ', please click on the following link
#{ environment['host.name'] }/confirm/' + headers.uuid
+ ' in order to confirm email address.'" />
</chain>

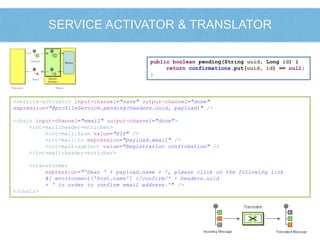

SERVICE ACTIVATOR & TRANSLATOR
public boolean pending(String uuid, Long id) {
return confirmations.put(uuid, id) == null;
}
AGGREGATOR & MAIL ADAPTER
public String aggregate(List<Message<?>> messages) {
return (String) messages
.stream()
.filter(p -> p.getPayload() instanceof String)
.findFirst().orElse(null).getPayload();
}
<aggregator input-channel="done" method="aggregate" message-store=“store"
output-channel="mail-outbound" >
<bean class="com.levi9.samples.eip.registration.aggregator.ConfirmationAggregator"/>
</aggregator>
<channel id="mail-outbound" />
<int-mail:outbound-channel-adapter channel="mail-outbound"
host="#{ environment['mail.smtp.host']}"
port="#{ environment['mail.smtp.port']}" />
<bean id=“store" class="org.springframework.integration.store.SimpleMessageStore" />

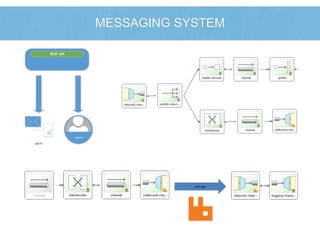

MESSAGING SYSTEM
message
SMTP
ADMIN
REST API

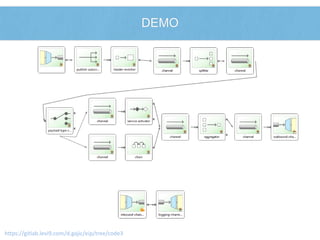

DEMO
https://gitlab.levi9.com/d.gajic/eip/tree/code3
RESOURCES
• Book
• Enterprise Integration Patterns
• Gregor Hohpe, Bobby Woolf
• Spring Integration
• http://projects.spring.io/spring-integration
• Samples
• https://gitlab.levi9.com/d.gajic/eip.git
• Patterns
• http://www.enterpriseintegrationpatterns.com
Q&A
