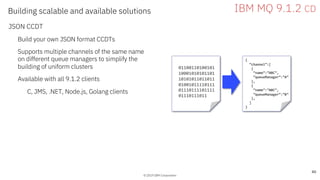

![© 2019 IBM Corporation
Building scalable and available solutions
JSON CCDT
Build your own JSON format CCDTs
Supports multiple channels of the same name
on different queue managers to simplify the
building of uniform clusters
Available with all 9.1.2 clients
C, JMS, .NET, Node.js, Golang clients
© 2019 IBM Corporation
40
IBM MQ 9.1.2 CD
01100110100101
10001010101101
10101011011011
01001011110111
01110111101111
01110111011
{
“channel”:[
{
“name”:”ABC”,
”queueManager”:”A”
},
{
“name”:”ABC”,
”queueManager”:”B”
},
]
}](https://image.slidesharecdn.com/faulttolerantandscalableibmmq-191011111740/85/Fault-tolerant-and-scalable-ibm-mq-40-320.jpg)
![© 2019 IBM Corporation

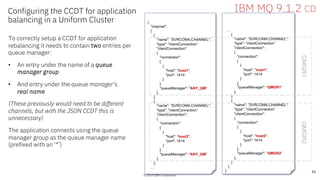

Configuring the CCDT for application
balancing in a Uniform Cluster
To correctly setup a CCDT for application
rebalancing it needs to contain two entries per
queue manager:
• An entry under the name of a queue
manager group
• And entry under the queue manager’s
real name
(These previously would need to be different
channels, but with the JSON CCDT this is
unnecessary)
The application connects using the queue
manager group as the queue manager name
(prefixed with an ‘*’)
© 2019 IBM Corporation
41
IBM MQ 9.1.2 CD
{
"channel":
[
{
"name": ”SVRCONN.CHANNEL",
"type": "clientConnection”
"clientConnection":
{
"connection":
[
{
"host": ”host1",
"port": 1414
}
],
"queueManager": "ANY_QM”
},
},
{
"name": ”SVRCONN.CHANNEL",
"type": "clientConnection”
"clientConnection":
{
"connection":
[
{
"host": ”host2",
"port": 1414
}
],
"queueManager": "ANY_QM”
},
},
…
…
{
"name": ”SVRCONN.CHANNEL",
"type": "clientConnection”
"clientConnection":
{
"connection":
[
{
"host": ”host1",
"port": 1414
}
],
"queueManager": ”QMGR1”
},
},
{
"name": ”SVRCONN.CHANNEL",
"type": "clientConnection”
"clientConnection":
{
"connection":
[
{
"host": ”host2",
"port": 1414
}
],
"queueManager": ”QMGR2”
},
}
]
}
QMGR1QMGR2](https://image.slidesharecdn.com/faulttolerantandscalableibmmq-191011111740/85/Fault-tolerant-and-scalable-ibm-mq-41-320.jpg)

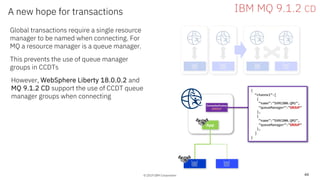

![© 2019 IBM Corporation
A new hope for transactions
44
© 2019 IBM Corporation
Global transactions require a single resource
manager to be named when connecting. For
MQ a resource manager is a queue manager.
This prevents the use of queue manager
groups in CCDTs
However, WebSphere Liberty 18.0.0.2 and
MQ 9.1.2 CD support the use of CCDT queue
manager groups when connecting
IBM MQ 9.1.2 CD
App
ConnectionFactory
GROUP
{
“channel”:[
{
“name”:”SVRCONN.QM1”,
”queueManager”:”GROUP”
},
{
“name”:”SVRCONN.QM2”,
”queueManager”:”GROUP”
},
]
}](https://image.slidesharecdn.com/faulttolerantandscalableibmmq-191011111740/85/Fault-tolerant-and-scalable-ibm-mq-44-320.jpg)
Uploaded byDavid Ware
Fault tolerant and scalable ibm mq
The document discusses the construction of a fault-tolerant and scalable IBM MQ solution, emphasizing the importance of horizontally scaling both applications and queue managers. It outlines strategies for achieving high availability, including utilizing multiple queue managers and distributing workloads to eliminate single points of failure. Additionally, it introduces the concept of a uniform cluster, which facilitates automatic application balancing and efficient resource management across the queue managers, ensuring enhanced system resilience and performance.
More Related Content
Similar to Fault tolerant and scalable ibm mq
Fault tolerant and scalable ibm mq
- 1. Integration Technical Conference2019 Build a truly fault tolerant and scalable IBM MQ solution David Ware Chief Architect, IBM MQ
- 2. © 2019 IBMCorporation Fault Toleration 2 Queue Manager Single Queue Manager Queue Manager Queue Manager Queue Manager Multiple 100% 0% 100% 0% availabilityavailability More is better for availability

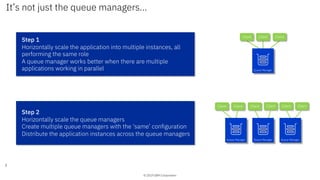

- 3. © 2019 IBMCorporation Queue Manager Queue Manager Queue Manager It’s not just the queue managers… 3 Client Client Client Step 1 Horizontally scale the application into multiple instances, all performing the same role A queue manager works better when there are multiple applications working in parallel Queue Manager Step 2 Horizontally scale the queue managers Create multiple queue managers with the ‘same’ configuration Distribute the application instances across the queue managers Client Client Client Client Client Client Queue Manager Queue Manager Queue Manager

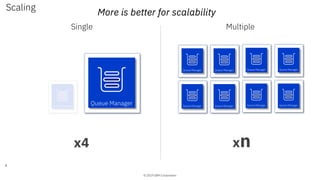

- 4. © 2019 IBMCorporation Scaling 4 Single Multiple Queue Manager Queue Manager Queue Manager Queue Manager Queue Manager Queue Manager Queue Manager Queue Manager Queue Manager Queue Manager x1x4 x1x2x3x4x5x6x7x8xn More is better for scalability
- 5. © 2019 IBMCorporation 5 Let’s go through that availability thing one step at a time…

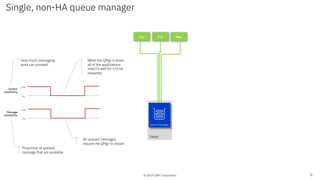

- 6. © 2019 IBMCorporation Node Single, non-HA queue manager 6 App App App Queue Manager 100% 0% 100% 0% System availability Message availability While the QMgr is down all of the applications need to wait for it to be restarted All queued messages require the QMgr to restart How much messaging work can proceed Proportion of queued message that are available

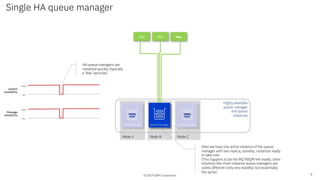

- 7. © 2019 IBMCorporation Node B Node CNode A Single HA queue manager 7 App App App Queue Manager Queue ManagerQueue Manager Highly available queue manager and queue instances 100% 0% 100% 0% HA queue managers are restarted quickly (typically a ‘few’ seconds) System availability Message availability Here we have one active instance of the queue manager with two replica, standby, instances ready to take over. (This happens to be the MQ RDQM HA model, other solutions like multi-instance queue managers are subtly different (only one standby) but essentially the same)

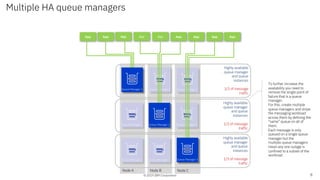

- 8. © 2019 IBMCorporation Node B Node CNode A Multiple HA queue managers 8 Queue Manager 1 App App App AppAppApp App Queue Manager 1Queue Manager 1 Highly available queue manager and queue instances 1/3 of message traffic Queue Manager 2 Queue Manager 2Queue Manager 2 Highly available queue manager and queue instances 1/3 of message traffic Queue Manager 3Queue Manager 3Queue Manager 3 Highly available queue manager and queue instances 1/3 of message traffic AppApp To further increase the availability you need to remove the single point of failure that is a queue manager. For this, create multiple queue managers and stripe the messaging workload across them by defining the “same” queue on all of them. Each message is only queued on a single queue manager but the multiple queue managers mean any one outage is confined to a subset of the workload

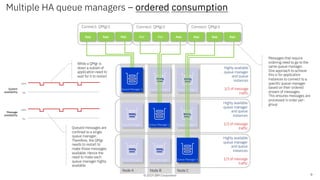

- 9. © 2019 IBMCorporation Node B Node CNode A Multiple HA queue managers – ordered consumption 9 Queue Manager 1 App App App AppAppApp App Queue Manager 1Queue Manager 1 Highly available queue manager and queue instances 1/3 of message traffic Queue Manager 2 Queue Manager 2Queue Manager 2 Highly available queue manager and queue instances 1/3 of message traffic Queue Manager 3Queue Manager 3Queue Manager 3 Highly available queue manager and queue instances 1/3 of message traffic AppApp Connect: QMgr1 Connect: QMgr2 Connect: QMgr3 100% 0% 100% 0% Messages that require ordering need to go to the same queue manager. One approach to achieve this is for application instances to connect to a specific queue manager based on their ordered stream of messages. This ensures messages are processed in order per- group While a QMgr is down a subset of application need to wait for it to restart System availability Message availability Queued messages are confined to a single queue manager. Therefore, the QMgr needs to restart to make those messages available. Hence the need to make each queue manager highly available

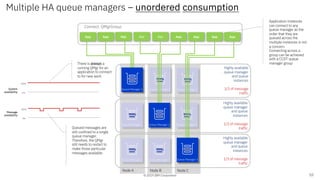

- 10. © 2019 IBMCorporation Node B Node CNode A Multiple HA queue managers – unordered consumption 10 Queue Manager 1 App App App AppAppApp App Queue Manager 1Queue Manager 1 Highly available queue manager and queue instances 1/3 of message traffic Queue Manager 2 Queue Manager 2Queue Manager 2 Highly available queue manager and queue instances 1/3 of message traffic Queue Manager 3Queue Manager 3Queue Manager 3 Highly available queue manager and queue instances 1/3 of message traffic AppApp Connect: QMgrGroup 100% 0% 100% 0% Application instances can connect to any queue manager as the order that they are queued across the multiple instances is not a concern. Connecting across a group can be achieved with a CCDT queue manager groupThere is always a running QMgr for an application to connect to for new work Queued messages are still confined to a single queue manager. Therefore, the QMgr still needs to restart to make those particular messages available. System availability Message availability

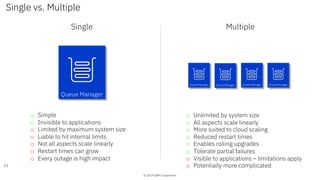

- 11. © 2019 IBMCorporation Single vs. Multiple 11 Single o Simple o Invisible to applications o Limited by maximum system size o Liable to hit internal limits o Not all aspects scale linearly o Restart times can grow o Every outage is high impact Multiple o Unlimited by system size o All aspects scale linearly o More suited to cloud scaling o Reduced restart times o Enables rolling upgrades o Tolerate partial failures o Visible to applications – limitations apply o Potentially more complicated Queue Manager Queue Manager Queue Manager Queue Manager Queue Manager

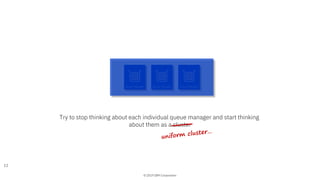

- 12. © 2019 IBMCorporation uniform cluster… 12 Try to stop thinking about each individual queue manager and start thinking about them as a cluster Queue Manager Queue Manager Queue Manager
- 13. © 2019 IBMCorporation 13 The fundamentals on MQ Clusters (skip this if you know it)

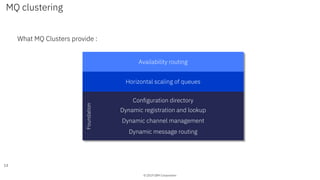

- 14. © 2019 IBMCorporation MQ clustering What MQ Clusters provide : 14 Availability routing Horizontal scaling of queues Configuration directory Dynamic registration and lookup Dynamic channel management Dynamic message routing Foundation

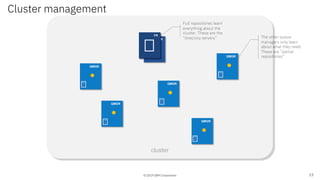

- 15. © 2019 IBMCorporation cluster FR directoryQMGRFR QMGR QMGR QMGR QMGR QMGR Cluster management 15 Full repositories learn everything about the cluster. These are the “directory servers” The other queue managers only learn about what they need. These are ”partial repositories”

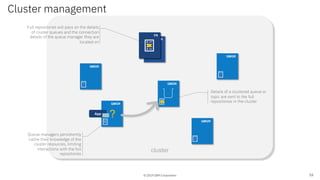

- 16. © 2019 IBMCorporation cluster FR directoryQMGRFR QMGR QMGR QMGR QMGR QMGR App ? Queue managers persistently cache their knowledge of the cluster resources, limiting interactions with the full repositories Cluster management 16 Full repositories will pass on the details of cluster queues and the connection details of the queue manager they are located on Details of a clustered queue or topic are sent to the full repositories in the cluster

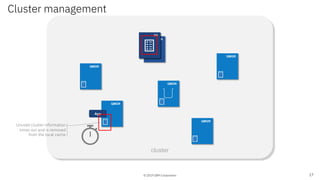

- 17. © 2019 IBMCorporation cluster FR directoryQMGRFR QMGR QMGR QMGR QMGR QMGR App Unused cluster information times out and is removed from the local cache Cluster management 17

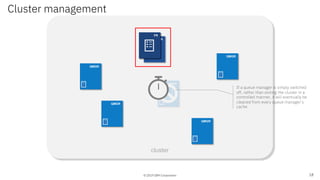

- 18. © 2019 IBMCorporation cluster FR directoryQMGRFR QMGR QMGR QMGR QMGR QMGR If a queue manager is simply switched off, rather than exiting the cluster in a controlled manner, it will eventually be cleaned from every queue manager’s cache Cluster management 18
- 19. © 2019 IBMCorporation 19 How to set up a cluster (skip this too if you know it)

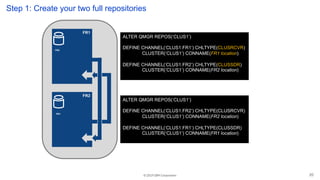

- 20. © 2019 IBMCorporation FR1 Step 1: Create your two full repositories ALTER QMGR REPOS(‘CLUS1’) DEFINE CHANNEL(‘CLUS1.FR1’) CHLTYPE(CLUSRCVR) CLUSTER(‘CLUS1’) CONNAME(FR1 location) DEFINE CHANNEL(‘CLUS1.FR2’) CHLTYPE(CLUSSDR) CLUSTER(‘CLUS1’) CONNAME(FR2 location) FR2 ALTER QMGR REPOS(‘CLUS1’) DEFINE CHANNEL(‘CLUS1.FR2’) CHLTYPE(CLUSRCVR) CLUSTER(‘CLUS1’) CONNAME(FR2 location) DEFINE CHANNEL(‘CLUS1.FR1’) CHLTYPE(CLUSSDR) CLUSTER(‘CLUS1’) CONNAME(FR1 location) FR2 FR1 20

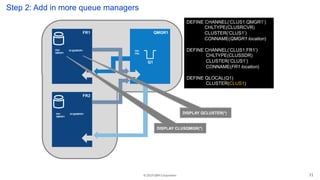

- 21. © 2019 IBMCorporation FR1 FR2 QMGR1 DEFINE CHANNEL(‘CLUS1.QMGR1’) CHLTYPE(CLUSRCVR) CLUSTER(‘CLUS1’) CONNAME(QMGR1 location) DEFINE CHANNEL(‘CLUS1.FR1’) CHLTYPE(CLUSSDR) CLUSTER(‘CLUS1’) CONNAME(FR1 location) DEFINE QLOCAL(Q1) CLUSTER(CLUS1) Q1 FR2 QMGR1 FR1 QMGR1 Q1@QMGR1 FR1 FR2 Step 2: Add in more queue managers DISPLAY CLUSQMGR(*) DISPLAY QCLUSTER(*)Q1@QMGR1 21

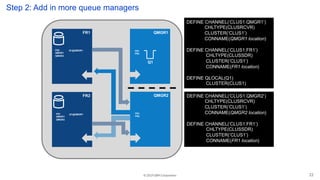

- 22. © 2019 IBMCorporation FR1 FR2 QMGR1 DEFINE CHANNEL(‘CLUS1.QMGR1’) CHLTYPE(CLUSRCVR) CLUSTER(‘CLUS1’) CONNAME(QMGR1 location) DEFINE CHANNEL(‘CLUS1.FR1’) CHLTYPE(CLUSSDR) CLUSTER(‘CLUS1’) CONNAME(FR1 location) DEFINE QLOCAL(Q1) CLUSTER(CLUS1) Q1 QMGR2 DEFINE CHANNEL(‘CLUS1.QMGR2’) CHLTYPE(CLUSRCVR) CLUSTER(‘CLUS1’) CONNAME(QMGR2 location) DEFINE CHANNEL(‘CLUS1.FR1’) CHLTYPE(CLUSSDR) CLUSTER(‘CLUS1’) CONNAME(FR1 location) FR2 QMGR1 QMGR2 FR1 QMGR1 QMGR2 Q1@QMGR1 Q1@QMGR1 FR1 FR2 FR1 FR2 Step 2: Add in more queue managers 22

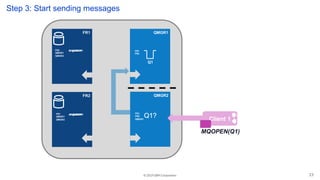

- 23. © 2019 IBMCorporation FR1 FR2 QMGR1 Q1 QMGR2 FR2 QMGR1 QMGR2 FR1 QMGR1 QMGR2 Q1@QMGR1 Q1@QMGR1 Client 1 MQOPEN(Q1) Q1? FR1 FR2 QMGR1 FR1 FR2 Q1? Q1@QMGR1 Q1@QMGR1 Step 3: Start sending messages 23

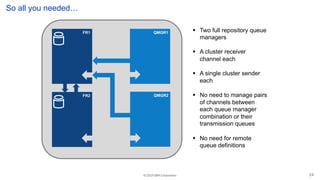

- 24. © 2019 IBMCorporation FR1 FR2 QMGR1 QMGR2 So all you needed… § Two full repository queue managers § A cluster receiver channel each § A single cluster sender each § No need to manage pairs of channels between each queue manager combination or their transmission queues § No need for remote queue definitions 24
- 25. © 2019 IBMCorporation Horizontal scaling with MQ Clustering

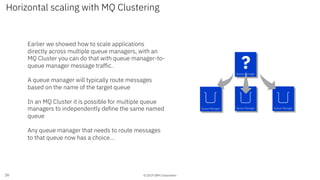

- 26. © 2019 IBMCorporation Horizontal scaling with MQ Clustering 26 Queue Manager Queue Manager Queue Manager Queue Manager Earlier we showed how to scale applications directly across multiple queue managers, with an MQ Cluster you can do that with queue manager-to- queue manager message traffic. A queue manager will typically route messages based on the name of the target queue In an MQ Cluster it is possible for multiple queue managers to independently define the same named queue Any queue manager that needs to route messages to that queue now has a choice… ?

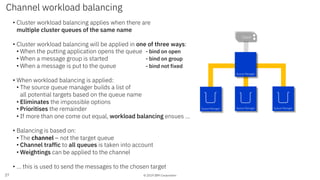

- 27. © 2019 IBMCorporation Channel workload balancing 27 App 1App 1Client Queue Manager Queue Manager Queue Manager Queue Manager • Cluster workload balancing applies when there are multiple cluster queues of the same name • Cluster workload balancing will be applied in one of three ways: • When the putting application opens the queue - bind on open • When a message group is started - bind on group • When a message is put to the queue - bind not fixed • When workload balancing is applied: • The source queue manager builds a list of all potential targets based on the queue name • Eliminates the impossible options • Prioritises the remainder • If more than one come out equal, workload balancing ensues … • Balancing is based on: • The channel – not the target queue • Channel traffic to all queues is taken into account • Weightings can be applied to the channel • … this is used to send the messages to the chosen target

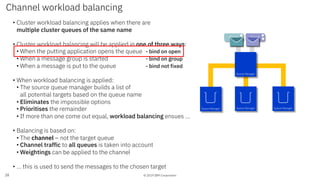

- 28. © 2019 IBMCorporation • Cluster workload balancing applies when there are multiple cluster queues of the same name • Cluster workload balancing will be applied in one of three ways: • When the putting application opens the queue - bind on open • When a message group is started - bind on group • When a message is put to the queue - bind not fixed • When workload balancing is applied: • The source queue manager builds a list of all potential targets based on the queue name • Eliminates the impossible options • Prioritises the remainder • If more than one come out equal, workload balancing ensues … • Balancing is based on: • The channel – not the target queue • Channel traffic to all queues is taken into account • Weightings can be applied to the channel • … this is used to send the messages to the chosen target Channel workload balancing 28 Client Queue Manager Queue Manager Queue Manager Queue Manager Client

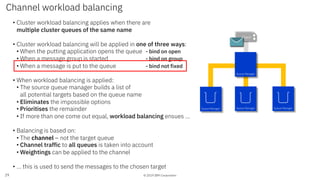

- 29. © 2019 IBMCorporation • Cluster workload balancing applies when there are multiple cluster queues of the same name • Cluster workload balancing will be applied in one of three ways: • When the putting application opens the queue - bind on open • When a message group is started - bind on group • When a message is put to the queue - bind not fixed • When workload balancing is applied: • The source queue manager builds a list of all potential targets based on the queue name • Eliminates the impossible options • Prioritises the remainder • If more than one come out equal, workload balancing ensues … • Balancing is based on: • The channel – not the target queue • Channel traffic to all queues is taken into account • Weightings can be applied to the channel • … this is used to send the messages to the chosen target Channel workload balancing 29 App 1App 1Client Queue Manager Queue Manager Queue Manager Queue Manager

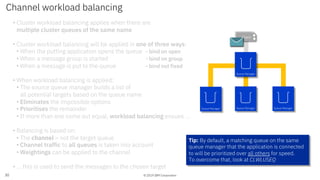

- 30. © 2019 IBMCorporation • Cluster workload balancing applies when there are multiple cluster queues of the same name • Cluster workload balancing will be applied in one of three ways: • When the putting application opens the queue - bind on open • When a message group is started - bind on group • When a message is put to the queue - bind not fixed • When workload balancing is applied: • The source queue manager builds a list of all potential targets based on the queue name • Eliminates the impossible options • Prioritises the remainder • If more than one come out equal, workload balancing ensues … • Balancing is based on: • The channel – not the target queue • Channel traffic to all queues is taken into account • Weightings can be applied to the channel • … this is used to send the messages to the chosen target Channel workload balancing 30 App 1App 1Client Queue Manager Queue Manager Queue Manager Queue Manager Tip: By default, a matching queue on the same queue manager that the application is connected to will be prioritized over all others for speed. To overcome that, look at CLWLUSEQ

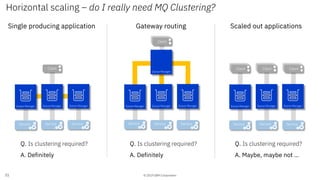

- 31. © 2019 IBMCorporation Horizontal scaling – do I really need MQ Clustering? 31 App 1App 1Client Service Scaled out applications App 1App 1Client Service App 1App 1Client Service Queue Manager Queue Manager Queue Manager Q. Is clustering required? A. Maybe, maybe not … Service Single producing application Client ServiceService Queue Manager Queue Manager Queue Manager Q. Is clustering required? A. Definitely Q. Is clustering required? A. Definitely ServiceService ¸ App 1App 1Client Gateway routing Service Queue Manager Queue Manager Queue Manager Queue Manager
- 32. © 2019 IBMCorporation Back to the uniform cluster

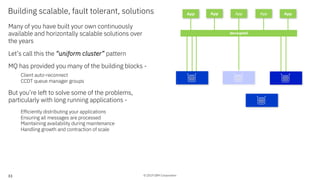

- 33. © 2019 IBMCorporation Building scalable, fault tolerant, solutions Many of you have built your own continuously available and horizontally scalable solutions over the years Let’s call this the “uniform cluster” pattern MQ has provided you many of the building blocks - Client auto-reconnect CCDT queue manager groups But you’re left to solve some of the problems, particularly with long running applications - Efficiently distributing your applications Ensuring all messages are processed Maintaining availability during maintenance Handling growth and contraction of scale App App App decoupled AppApp 33
- 34. © 2019 IBMCorporation Uniform Cluster 34 MQ 9.1.2 started to make that easier For the distributed platforms, declare a set of matching queue managers to be following the uniform cluster pattern All members of an MQ Cluster Matching queues are defined on every queue manager Applications can connect as clients to every queue manager MQ will automatically share application connectivity knowledge between queue managers The group will use this knowledge to automatically keep matching application instances balanced across the queue managers Matching applications are based on application name (new abilities to programmatically define this) MQ 9.1.2 is started to roll out the client support for this IBM MQ 9.1.2 CD Application awareness https://developer.ibm.com/messaging/2019/03/21/building-scalable-fault-tolerant-ibm-mq-systems/

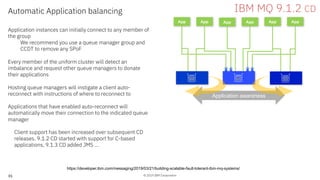

- 35. © 2019 IBMCorporation Application awareness 35 App App Automatic Application balancing Application instances can initially connect to any member of the group We recommend you use a queue manager group and CCDT to remove any SPoF Every member of the uniform cluster will detect an imbalance and request other queue managers to donate their applications Hosting queue managers will instigate a client auto- reconnect with instructions of where to reconnect to Applications that have enabled auto-reconnect will automatically move their connection to the indicated queue manager Client support has been increased over subsequent CD releases. 9.1.2 CD started with support for C-based applications, 9.1.3 CD added JMS … App App App App IBM MQ 9.1.2 CD https://developer.ibm.com/messaging/2019/03/21/building-scalable-fault-tolerant-ibm-mq-systems/

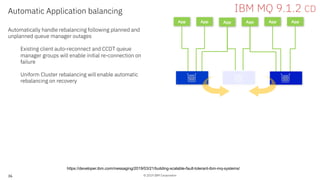

- 36. © 2019 IBMCorporation36 App App Automatic Application balancing Automatically handle rebalancing following planned and unplanned queue manager outages Existing client auto-reconnect and CCDT queue manager groups will enable initial re-connection on failure Uniform Cluster rebalancing will enable automatic rebalancing on recovery App App App App IBM MQ 9.1.2 CD https://developer.ibm.com/messaging/2019/03/21/building-scalable-fault-tolerant-ibm-mq-systems/

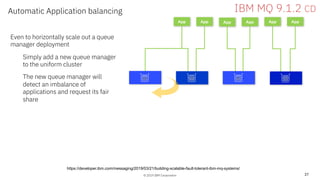

- 37. © 2019 IBMCorporation Automatic Application balancing 37 App App App App App App IBM MQ 9.1.2 CD Even to horizontally scale out a queue manager deployment Simply add a new queue manager to the uniform cluster The new queue manager will detect an imbalance of applications and request its fair share https://developer.ibm.com/messaging/2019/03/21/building-scalable-fault-tolerant-ibm-mq-systems/

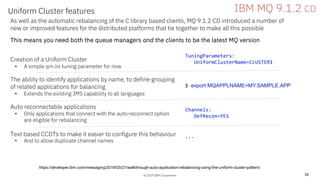

- 38. © 2019 IBMCorporation Uniform Cluster features 38 IBM MQ 9.1.2 CD As well as the automatic rebalancing of the C library based clients, MQ 9.1.2 CD introduced a number of new or improved features for the distributed platforms that tie together to make all this possible This means you need both the queue managers and the clients to be the latest MQ version Creation of a Uniform Cluster • A simple qm.ini tuning parameter for now The ability to identify applications by name, to define grouping of related applications for balancing • Extends the existing JMS capability to all languages Auto reconnectable applications • Only applications that connect with the auto-reconnect option are eligible for rebalancing Text based CCDTs to make it easier to configure this behaviour • And to allow duplicate channel names TuningParameters: UniformClusterName=CLUSTER1 $ export MQAPPLNAME=MY.SAMPLE.APP https://developer.ibm.com/messaging/2019/03/21/walkthrough-auto-application-rebalancing-using-the-uniform-cluster-pattern/ ... Channels: DefRecon=YES

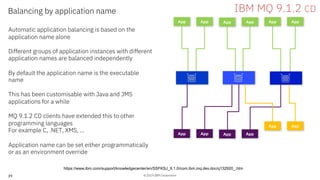

- 39. © 2019 IBMCorporation39 Balancing by application name Automatic application balancing is based on the application name alone Different groups of application instances with different application names are balanced independently By default the application name is the executable name This has been customisable with Java and JMS applications for a while MQ 9.1.2 CD clients have extended this to other programming languages For example C, .NET, XMS, … Application name can be set either programmatically or as an environment override App App App App App App IBM MQ 9.1.2 CD https://www.ibm.com/support/knowledgecenter/en/SSFKSJ_9.1.0/com.ibm.mq.dev.doc/q132920_.htm App App App App App App
- 40. © 2019 IBMCorporation Building scalable and available solutions JSON CCDT Build your own JSON format CCDTs Supports multiple channels of the same name on different queue managers to simplify the building of uniform clusters Available with all 9.1.2 clients C, JMS, .NET, Node.js, Golang clients © 2019 IBM Corporation 40 IBM MQ 9.1.2 CD 01100110100101 10001010101101 10101011011011 01001011110111 01110111101111 01110111011 { “channel”:[ { “name”:”ABC”, ”queueManager”:”A” }, { “name”:”ABC”, ”queueManager”:”B” }, ] }
- 41. © 2019 IBMCorporation Configuring the CCDT for application balancing in a Uniform Cluster To correctly setup a CCDT for application rebalancing it needs to contain two entries per queue manager: • An entry under the name of a queue manager group • And entry under the queue manager’s real name (These previously would need to be different channels, but with the JSON CCDT this is unnecessary) The application connects using the queue manager group as the queue manager name (prefixed with an ‘*’) © 2019 IBM Corporation 41 IBM MQ 9.1.2 CD { "channel": [ { "name": ”SVRCONN.CHANNEL", "type": "clientConnection” "clientConnection": { "connection": [ { "host": ”host1", "port": 1414 } ], "queueManager": "ANY_QM” }, }, { "name": ”SVRCONN.CHANNEL", "type": "clientConnection” "clientConnection": { "connection": [ { "host": ”host2", "port": 1414 } ], "queueManager": "ANY_QM” }, }, … … { "name": ”SVRCONN.CHANNEL", "type": "clientConnection” "clientConnection": { "connection": [ { "host": ”host1", "port": 1414 } ], "queueManager": ”QMGR1” }, }, { "name": ”SVRCONN.CHANNEL", "type": "clientConnection” "clientConnection": { "connection": [ { "host": ”host2", "port": 1414 } ], "queueManager": ”QMGR2” }, } ] } QMGR1QMGR2
- 42. © 2019 IBMCorporation Can I decouple any application?

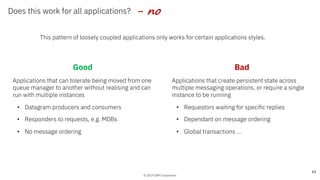

- 43. © 2019 IBMCorporation Does this work for all applications? This pattern of loosely coupled applications only works for certain applications styles. 43 - no Good Applications that can tolerate being moved from one queue manager to another without realising and can run with multiple instances • Datagram producers and consumers • Responders to requests, e.g. MDBs • No message ordering Bad Applications that create persistent state across multiple messaging operations, or require a single instance to be running • Requestors waiting for specific replies • Dependant on message ordering • Global transactions …
- 44. © 2019 IBMCorporation A new hope for transactions 44 © 2019 IBM Corporation Global transactions require a single resource manager to be named when connecting. For MQ a resource manager is a queue manager. This prevents the use of queue manager groups in CCDTs However, WebSphere Liberty 18.0.0.2 and MQ 9.1.2 CD support the use of CCDT queue manager groups when connecting IBM MQ 9.1.2 CD App ConnectionFactory GROUP { “channel”:[ { “name”:”SVRCONN.QM1”, ”queueManager”:”GROUP” }, { “name”:”SVRCONN.QM2”, ”queueManager”:”GROUP” }, ] }
- 45. © 2019 IBMCorporation Availability routing in an MQ Cluster

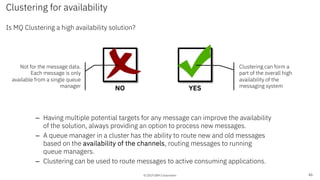

- 46. © 2019 IBMCorporation Clustering for availability Is MQ Clustering a high availability solution? 46 NO YES – Having multiple potential targets for any message can improve the availability of the solution, always providing an option to process new messages. – A queue manager in a cluster has the ability to route new and old messages based on the availability of the channels, routing messages to running queue managers. – Clustering can be used to route messages to active consuming applications. Not for the message data. Each message is only available from a single queue manager Clustering can form a part of the overall high availability of the messaging system

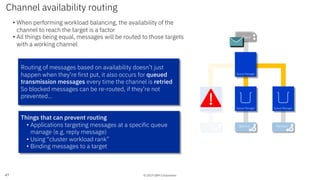

- 47. © 2019 IBMCorporation Channel availability routing 47 • When performing workload balancing, the availability of the channel to reach the target is a factor • All things being equal, messages will be routed to those targets with a working channel Things that can prevent routing • Applications targeting messages at a specific queue manage (e.g. reply message) • Using “cluster workload rank” • Binding messages to a target Routing of messages based on availability doesn’t just happen when they’re first put, it also occurs for queued transmission messages every time the channel is retried So blocked messages can be re-routed, if they’re not prevented… ServiceService App 1App 1Client Service Queue Manager Queue Manager Queue Manager Queue Manager

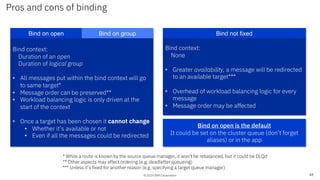

- 48. © 2019 IBMCorporation Pros and cons of binding 48 Bind context: Duration of an open Duration of logical group • All messages put within the bind context will go to same target* • Message order can be preserved** • Workload balancing logic is only driven at the start of the context • Once a target has been chosen it cannot change • Whether it’s available or not • Even if all the messages could be redirected Bind on open Bind on group Bind context: None • Greater availability, a message will be redirected to an available target*** • Overhead of workload balancing logic for every message • Message order may be affected Bind not fixed Bind on open is the default It could be set on the cluster queue (don’t forget aliases) or in the app * While a route is known by the source queue manager, it won’t be rebalanced, but it could be DLQd ** Other aspects may affect ordering (e.g. deadletter queueing) *** Unless it’s fixed for another reason (e.g. specifying a target queue manager)
- 49. © 2019 IBMCorporation Application availability routing

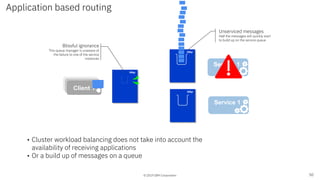

- 50. © 2019 IBMCorporation App 1App 1Client 1 QMgr QMgr QMgr • Cluster workload balancing does not take into account the availability of receiving applications • Or a build up of messages on a queue Service 1 Service 1 Blissful ignorance This queue manager is unaware of the failure to one of the service instances Unserviced messages Half the messages will quickly start to build up on the service queue Application based routing 50

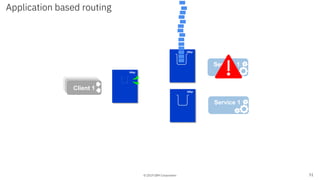

- 51. © 2019 IBMCorporation Service 1 Service 1 QMgr QMgr QMgr App 1App 1Client 1 Application based routing 51
- 52. © 2019 IBMCorporation App 1App 1Client 1 • MQ provides a sample monitoring service tool, amqsclm • It regularly checks for attached consuming applications (IPPROCS) • And automatically adjusts the cluster queue definitions to route messages intelligently (CLWLPRTY) • That information is automatically distributed around the cluster Service 1 Service 1 QMgr QMgr QMgr Moving messages Any messages that slipped through will be transferred to an active instance of the queue Detecting a change When a change to the open handles is detected the cluster workload balancing state is modifiedSending queue managers Newly sent messages will be sent to active instances of the queue Application based routing 52 FR

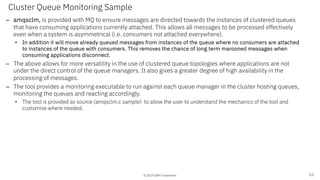

- 53. © 2019 IBMCorporation Cluster Queue Monitoring Sample – amqsclm, is provided with MQ to ensure messages are directed towards the instances of clustered queues that have consuming applications currently attached. This allows all messages to be processed effectively even when a system is asymmetrical (i.e. consumers not attached everywhere). • In addition it will move already queued messages from instances of the queue where no consumers are attached to instances of the queue with consumers. This removes the chance of long term marooned messages when consuming applications disconnect. – The above allows for more versatility in the use of clustered queue topologies where applications are not under the direct control of the queue managers. It also gives a greater degree of high availability in the processing of messages. – The tool provides a monitoring executable to run against each queue manager in the cluster hosting queues, monitoring the queues and reacting accordingly. • The tool is provided as source (amqsclm.c sample) to allow the user to understand the mechanics of the tool and customise where needed. 53

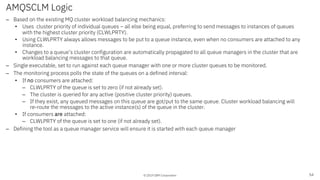

- 54. © 2019 IBMCorporation AMQSCLM Logic – Based on the existing MQ cluster workload balancing mechanics: • Uses cluster priority of individual queues – all else being equal, preferring to send messages to instances of queues with the highest cluster priority (CLWLPRTY). • Using CLWLPRTY always allows messages to be put to a queue instance, even when no consumers are attached to any instance. • Changes to a queue’s cluster configuration are automatically propagated to all queue managers in the cluster that are workload balancing messages to that queue. – Single executable, set to run against each queue manager with one or more cluster queues to be monitored. – The monitoring process polls the state of the queues on a defined interval: • If no consumers are attached: – CLWLPRTY of the queue is set to zero (if not already set). – The cluster is queried for any active (positive cluster priority) queues. – If they exist, any queued messages on this queue are got/put to the same queue. Cluster workload balancing will re-route the messages to the active instance(s) of the queue in the cluster. • If consumers are attached: – CLWLPRTY of the queue is set to one (if not already set). – Defining the tool as a queue manager service will ensure it is started with each queue manager 54
- 55. © 2019 IBMCorporation Putting it all together

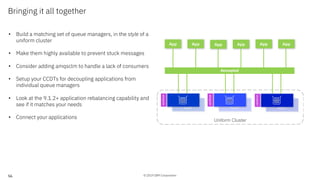

- 56. © 2019 IBMCorporation Uniform Cluster 56 App App Bringing it all together • Build a matching set of queue managers, in the style of a uniform cluster • Make them highly available to prevent stuck messages • Consider adding amqsclm to handle a lack of consumers • Setup your CCDTs for decoupling applications from individual queue managers • Look at the 9.1.2+ application rebalancing capability and see if it matches your needs • Connect your applications App App App App amqsclm amqsclm amqsclm decoupled
- 57. © 2019 IBMCorporation What about MQ Clusters in the cloud?

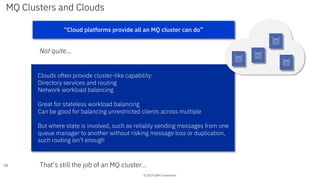

- 58. © 2019 IBMCorporation MQ Clusters and Clouds Not quite… 58 “Cloud platforms provide all an MQ cluster can do” Clouds often provide cluster-like capability: Directory services and routing Network workload balancing Great for stateless workload balancing Can be good for balancing unrestricted clients across multiple But where state is involved, such as reliably sending messages from one queue manager to another without risking message loss or duplication, such routing isn’t enough That’s still the job of an MQ cluster…

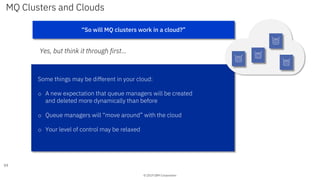

- 59. © 2019 IBMCorporation MQ Clusters and Clouds Yes, but think it through first… 59 “So will MQ clusters work in a cloud?” Some things may be different in your cloud: o A new expectation that queue managers will be created and deleted more dynamically than before o Queue managers will “move around” with the cloud o Your level of control may be relaxed

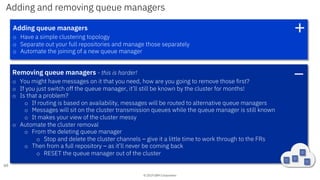

- 60. © 2019 IBMCorporation Adding and removing queue managers 60 Adding queue managers o Have a simple clustering topology o Separate out your full repositories and manage those separately o Automate the joining of a new queue manager + Removing queue managers - this is harder! o You might have messages on it that you need, how are you going to remove those first? o If you just switch off the queue manager, it’ll still be known by the cluster for months! o Is that a problem? o If routing is based on availability, messages will be routed to alternative queue managers o Messages will sit on the cluster transmission queues while the queue manager is still known o It makes your view of the cluster messy o Automate the cluster removal o From the deleting queue manager o Stop and delete the cluster channels – give it a little time to work through to the FRs o Then from a full repository – as it’ll never be coming back o RESET the queue manager out of the cluster _

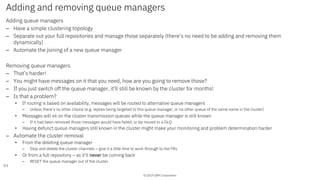

- 61. © 2019 IBMCorporation Adding and removing queue managers Adding queue managers – Have a simple clustering topology – Separate out your full repositories and manage those separately (there’s no need to be adding and removing them dynamically) – Automate the joining of a new queue manager Removing queue managers – That’s harder! – You might have messages on it that you need, how are you going to remove those? – If you just switch off the queue manager, it’ll still be known by the cluster for months! – Is that a problem? • If routing is based on availability, messages will be routed to alternative queue managers – Unless there’s no other choice (e.g. replies being targeted to this queue manager, or no other queue of the same name in the cluster) • Messages will sit on the cluster transmission queues while the queue manager is still known – If it had been removed those messages would have failed, or be moved to a DLQ • Having defunct queue managers still known in the cluster might make your monitoring and problem determination harder – Automate the cluster removal • From the deleting queue manager – Stop and delete the cluster channels – give it a little time to work through to the FRs • Or from a full repository – as it’ll never be coming back – RESET the queue manager out of the cluster 61

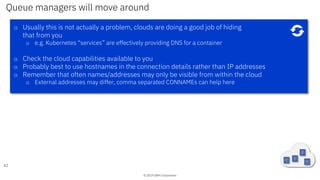

- 62. © 2019 IBMCorporation Queue managers will move around 62 o Usually this is not actually a problem, clouds are doing a good job of hiding that from you o e.g. Kubernetes “services” are effectively providing DNS for a container o Check the cloud capabilities available to you o Probably best to use hostnames in the connection details rather than IP addresses o Remember that often names/addresses may only be visible from within the cloud o External addresses may differ, comma separated CONNAMEs can help here

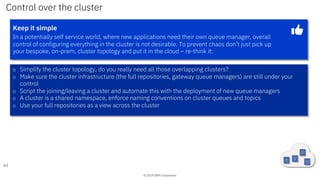

- 63. © 2019 IBMCorporation Control over the cluster 63 Keep it simple In a potentially self service world, where new applications need their own queue manager, overall control of configuring everything in the cluster is not desirable. To prevent chaos don’t just pick up your bespoke, on-prem, cluster topology and put it in the cloud – re-think it: o Simplify the cluster topology, do you really need all those overlapping clusters? o Make sure the cluster infrastructure (the full repositories, gateway queue managers) are still under your control o Script the joining/leaving a cluster and automate this with the deployment of new queue managers o A cluster is a shared namespace, enforce naming conventions on cluster queues and topics o Use your full repositories as a view across the cluster
- 64. © 2019 IBMCorporation Clustering good practices

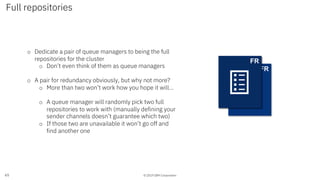

- 65. © 2019 IBMCorporation Full repositories 65 o Dedicate a pair of queue managers to being the full repositories for the cluster o Don’t even think of them as queue managers o A pair for redundancy obviously, but why not more? o More than two won’t work how you hope it will… o A queue manager will randomly pick two full repositories to work with (manually defining your sender channels doesn’t guarantee which two) o If those two are unavailable it won’t go off and find another one FR QMGRFR

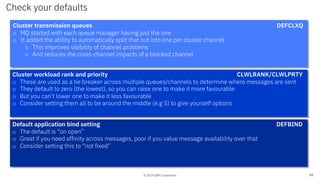

- 66. © 2019 IBMCorporation Check your defaults 66 Cluster transmission queues DEFCLXQ o MQ started with each queue manager having just the one o It added the ability to automatically split that out into one per cluster channel o This improves visibility of channel problems o And reduces the cross-channel impacts of a blocked channel Cluster workload rank and priority CLWLRANK/CLWLPRTY o These are used as a tie breaker across multiple queues/channels to determine where messages are sent o They default to zero (the lowest), so you can raise one to make it more favourable o But you can’t lower one to make it less favourable o Consider setting them all to be around the middle (e.g 5) to give yourself options Default application bind setting DEFBIND o The default is “on open” o Great if you need affinity across messages, poor if you value message availability over that o Consider setting this to “not fixed”
- 67. © 2019 IBMCorporation 67 Problem diagnosis

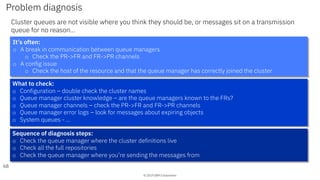

- 68. © 2019 IBMCorporation Problem diagnosis Cluster queues are not visible where you think they should be, or messages sit on a transmission queue for no reason… 68 It’s often: o A break in communication between queue managers o Check the PR->FR and FR->PR channels o A config issue o Check the host of the resource and that the queue manager has correctly joined the cluster What to check: o Configuration – double check the cluster names o Queue manager cluster knowledge – are the queue managers known to the FRs? o Queue manager channels – check the PR->FR and FR->PR channels o Queue manager error logs – look for messages about expiring objects o System queues - … Sequence of diagnosis steps: o Check the queue manager where the cluster definitions live o Check all the full repositories o Check the queue manager where you’re sending the messages from

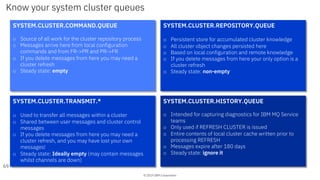

- 69. © 2019 IBMCorporation Know your system cluster queues 69 SYSTEM.CLUSTER.COMMAND.QUEUE o Source of all work for the cluster repository process o Messages arrive here from local configuration commands and from FR->PR and PR->FR o If you delete messages from here you may need a cluster refresh o Steady state: empty SYSTEM.CLUSTER.REPOSITORY.QUEUE o Persistent store for accumulated cluster knowledge o All cluster object changes persisted here o Based on local configuration and remote knowledge o If you delete messages from here your only option is a cluster refresh o Steady state: non-empty SYSTEM.CLUSTER.TRANSMIT.* o Used to transfer all messages within a cluster o Shared between user messages and cluster control messages o If you delete messages from here you may need a cluster refresh, and you may have lost your own messages! o Steady state: Ideally empty (may contain messages whilst channels are down) SYSTEM.CLUSTER.HISTORY.QUEUE o Intended for capturing diagnostics for IBM MQ Service teams o Only used if REFRESH CLUSTER is issued o Entire contents of local cluster cache written prior to processing REFRESH o Messages expire after 180 days o Steady state: ignore it
- 70. Thank You David Ware ChiefArchitect, IBM MQ dware@uk.ibm.com www.linkedin.com/in/dware1
