Introduction to Spring WebFlux #jsug #sf_a1

10,234 views

Published on

Introduction to Spring WebFlux @ Spring Fest 2017

Published in: Technology

Introduction to Spring WebFlux #jsug #sf_a1

  1. 1. 1 Introduction to Spring WebFlux 2017-11-24 Toshiaki Maki (@making) #jsug #sf_a1
  2. 2. Who am I ? 2 Toshiaki Maki (@making) https://blog.ik.am Sr. Solutions Architect @Pivotal Japan Spring Framework πŸ’– Cloud Foundry πŸ’–
  3. 3. DEMO
  4. 4. 4 πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“± πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±4 πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±4 πŸ—„ πŸ“ˆ Devices Dashboard HTTP POST Server-Sent Events βˆžπŸ”„ http://bit.ly/demoiot
  5. 5. ❓How many threads are this app using? 5

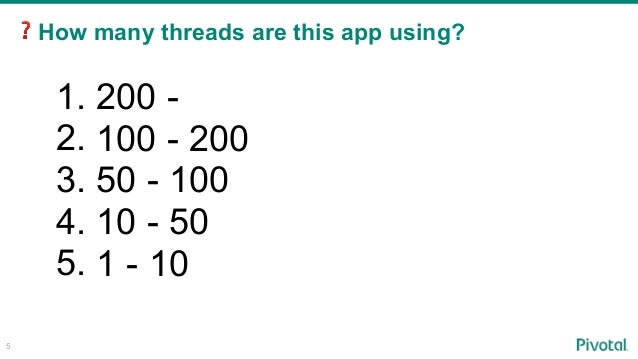

  6. 6. ❓How many threads are this app using? 5 1. 200 - 2. 100 - 200 3. 50 - 100 4. 10 - 50 5. 1 - 10

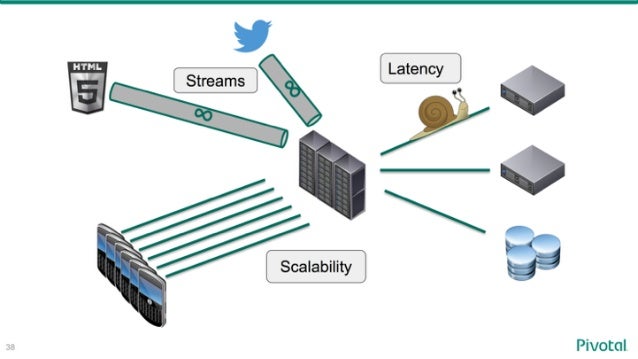

  7. 7. 6

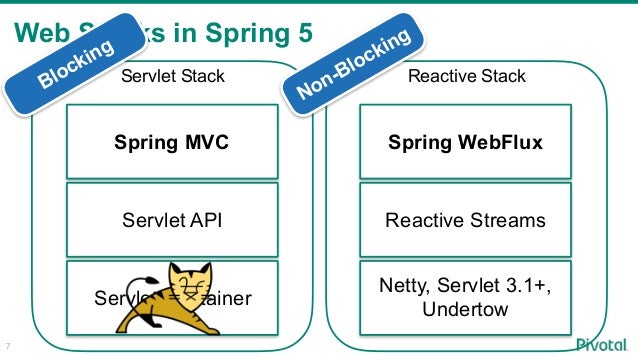

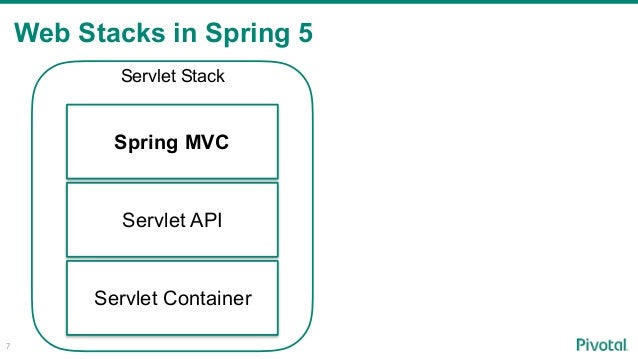

  8. 8. Web Stacks in Spring 5 7 Servlet Container Servlet API Spring MVC Servlet Stack
  9. 9. Web Stacks in Spring 5 7 Servlet Container Servlet API Spring MVC Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Servlet Stack

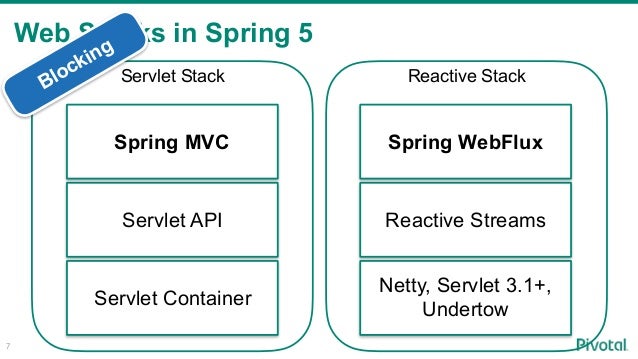

  10. 10. Web Stacks in Spring 5 7 Servlet Container Servlet API Spring MVC Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Servlet StackBlocking
  11. 11. Web Stacks in Spring 5 7 Servlet Container Servlet API Spring MVC Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Servlet StackBlocking
  12. 12. Web Stacks in Spring 5 7 Servlet Container Servlet API Spring MVC Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Servlet StackBlocking Non-Blocking

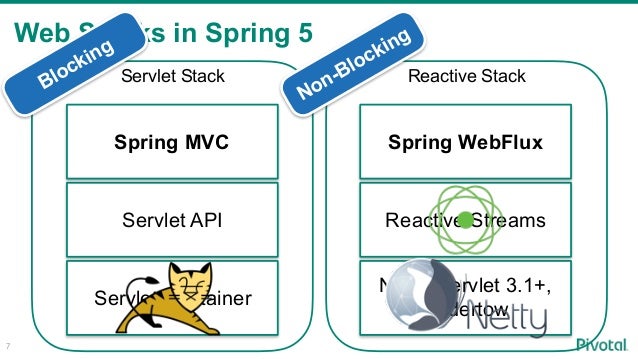

  13. 13. Web Stacks in Spring 5 7 Servlet Container Servlet API Spring MVC Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Servlet StackBlocking Non-Blocking

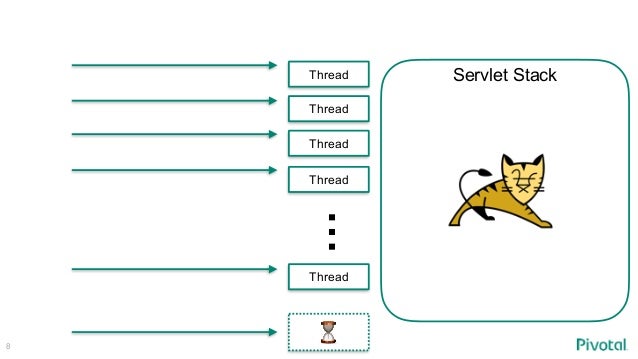

  14. 14. 8 Servlet StackThread Thread Thread Thread Thread …⏳
  15. 15. 9 Reactive Stack πŸ”„ Thread πŸ”„ Thread πŸ”„ Thread πŸ”„ Thread

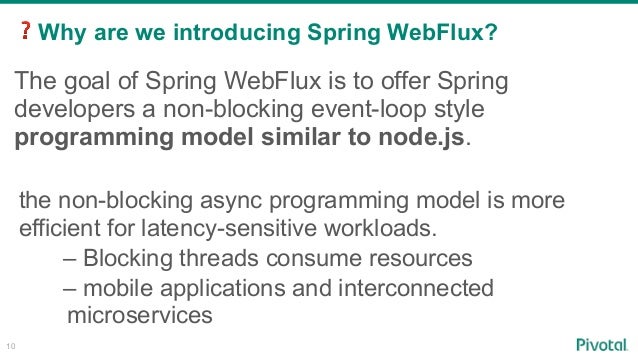

  16. 16. ❓Why are we introducing Spring WebFlux? 10
  17. 17. ❓Why are we introducing Spring WebFlux? 10 The goal of Spring WebFlux is to offer Spring developers a non-blocking event-loop style programming model similar to node.js.
  18. 18. the non-blocking async programming model is more efficient for latency-sensitive workloads. – Blocking threads consume resources – mobile applications and interconnected microservices ❓Why are we introducing Spring WebFlux? 10 The goal of Spring WebFlux is to offer Spring developers a non-blocking event-loop style programming model similar to node.js.

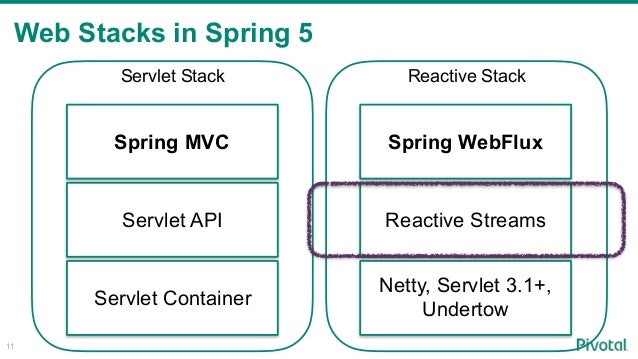

  19. 19. Web Stacks in Spring 5 11 Servlet Container Servlet API Spring MVC Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Servlet Stack

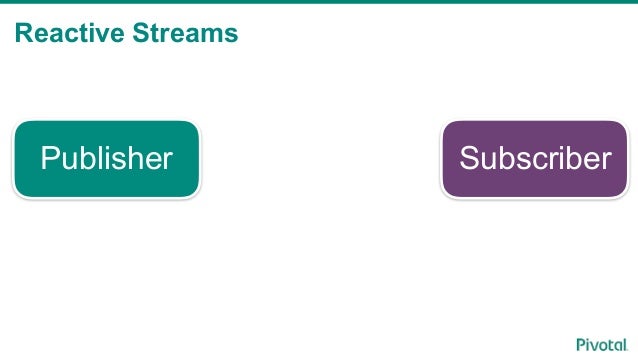

  20. 20. Publisher Subscriber Reactive Streams 2

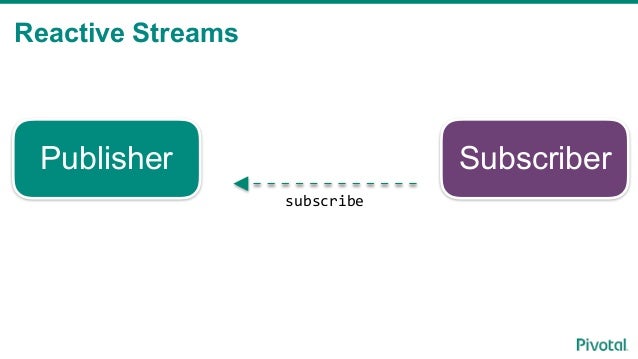

  21. 21. Publisher Subscriber subscribe Reactive Streams 2
  22. 22. Publisher Subscriber request(n) Backpressure Reactive Streams 2

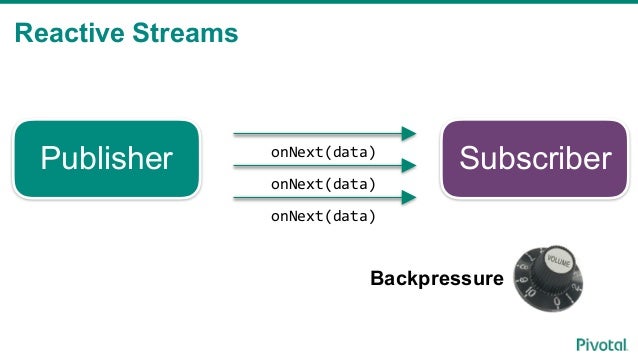

  23. 23. Publisher Subscriber Backpressure onNext(data) onNext(data) onNext(data) Reactive Streams 2

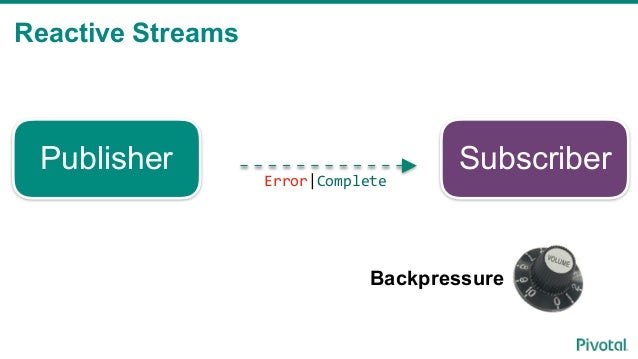

  24. 24. Publisher Subscriber Backpressure Error|Complete Reactive Streams 2
  25. 25. 13
  26. 26. 13
  27. 27. 4 Flux<T> Mono<T>

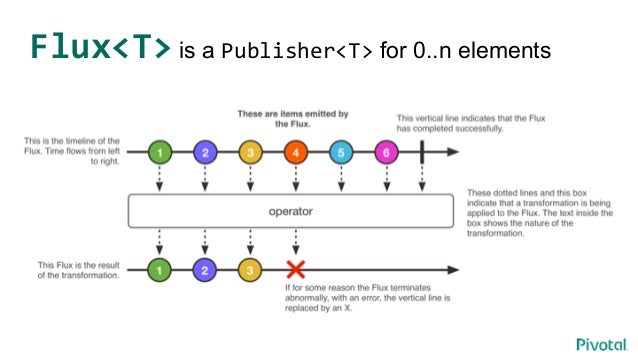

  28. 28. 5 Flux<T> is a Publisher<T> for 0..n elements
  29. 29. 6 Flux<T> Mono<T>

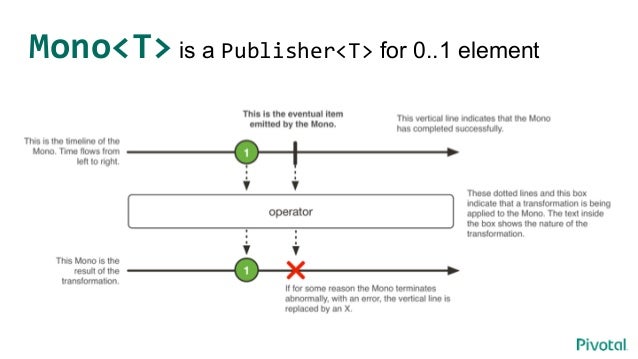

  30. 30. 7 Mono<T> is a Publisher<T> for 0..1 element

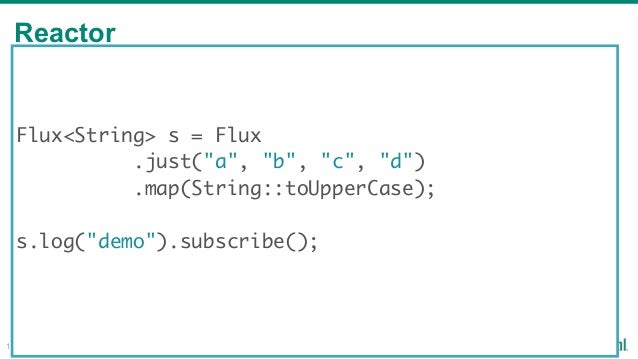

  31. 31. Reactor 18 Flux<String> s = Flux .just("a", "b", "c", "d") .map(String::toUpperCase); s.log("demo").subscribe();

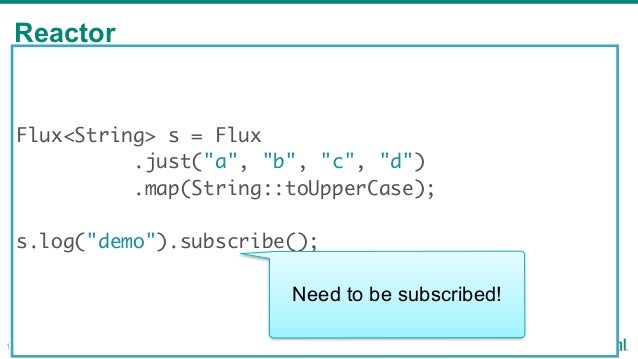

  32. 32. Reactor 18 Flux<String> s = Flux .just("a", "b", "c", "d") .map(String::toUpperCase); s.log("demo").subscribe(); Need to be subscribed!

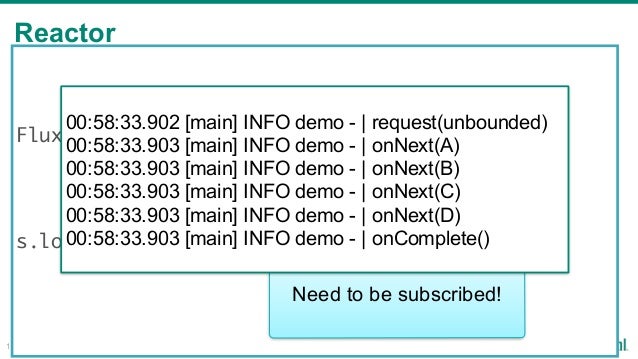

  33. 33. Reactor 18 Flux<String> s = Flux .just("a", "b", "c", "d") .map(String::toUpperCase); s.log("demo").subscribe(); Need to be subscribed! 00:58:33.902 [main] INFO demo - | request(unbounded) 00:58:33.903 [main] INFO demo - | onNext(A) 00:58:33.903 [main] INFO demo - | onNext(B) 00:58:33.903 [main] INFO demo - | onNext(C) 00:58:33.903 [main] INFO demo - | onNext(D) 00:58:33.903 [main] INFO demo - | onComplete()
  34. 34. Reactor 19 Flux<String> s = Flux .just("a", "b", "c", "d") .map(String::toUpperCase) .delayElements(Duration.ofSeconds(1)); s.log("demo").subscribe();

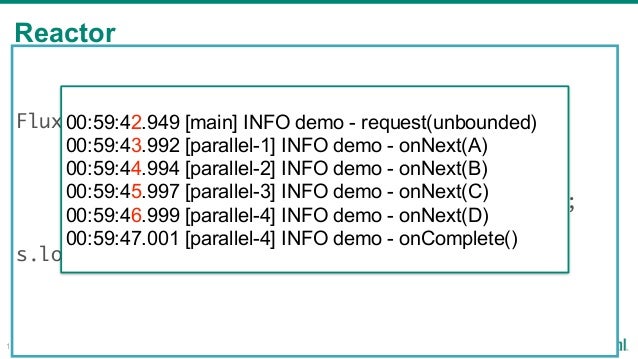

  35. 35. Reactor 19 Flux<String> s = Flux .just("a", "b", "c", "d") .map(String::toUpperCase) .delayElements(Duration.ofSeconds(1)); s.log("demo").subscribe(); 00:59:42.949 [main] INFO demo - request(unbounded) 00:59:43.992 [parallel-1] INFO demo - onNext(A) 00:59:44.994 [parallel-2] INFO demo - onNext(B) 00:59:45.997 [parallel-3] INFO demo - onNext(C) 00:59:46.999 [parallel-4] INFO demo - onNext(D) 00:59:47.001 [parallel-4] INFO demo - onComplete()

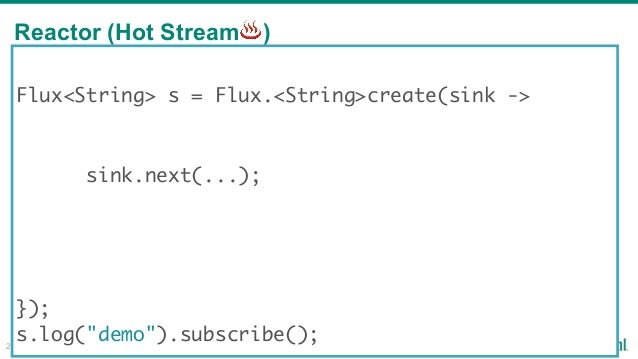

  36. 36. Reactor (Hot Stream♨) 20 Flux<String> s = Flux.<String>create(sink -> sink.next(...); }); s.log("demo").subscribe();

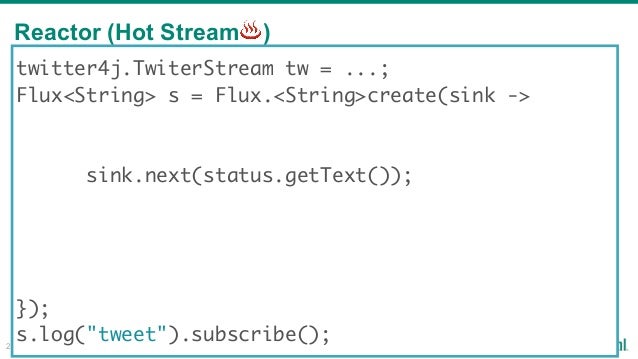

  37. 37. Reactor (Hot Stream♨) 21 twitter4j.TwiterStream tw = ...; Flux<String> s = Flux.<String>create(sink -> sink.next(status.getText()); }); s.log("tweet").subscribe();
  38. 38. Reactor (Hot Stream♨) 22 twitter4j.TwiterStream tw = ...; Flux<String> s = Flux.<String>create(sink -> tw.addListener(new StatusAdapter() { public void onStatus(Status status) { sink.next(status.getText()); } public void onException(Exception e) { sink.error(e); }}); sink.onCancel(tw::shutdown); tw.sample(); }); s.log("tweet").subscribe();

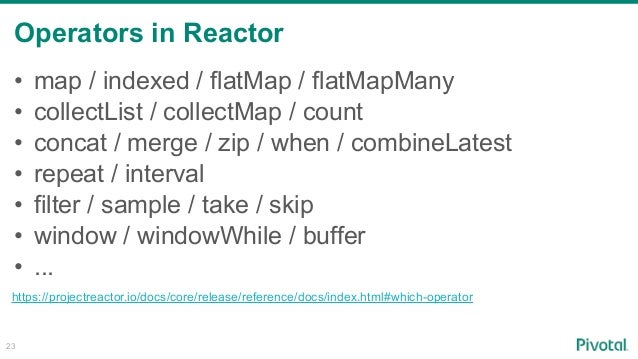

  39. 39. Operators in Reactor 23 β€’ map / indexed / flatMap / flatMapMany β€’ collectList / collectMap / count β€’ concat / merge / zip / when / combineLatest β€’ repeat / interval β€’ filter / sample / take / skip β€’ window / windowWhile / buffer β€’ ... https://projectreactor.io/docs/core/release/reference/docs/index.html#which-operator
  40. 40. zip 24

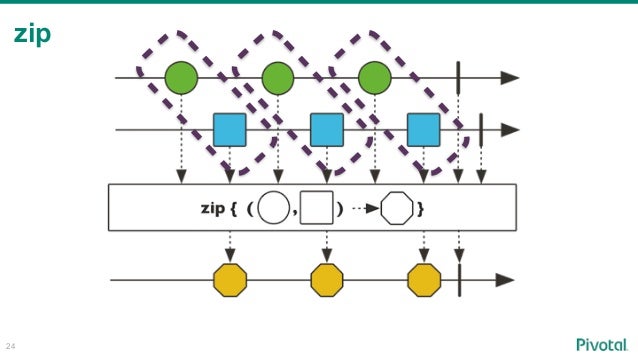

  41. 41. zip 24

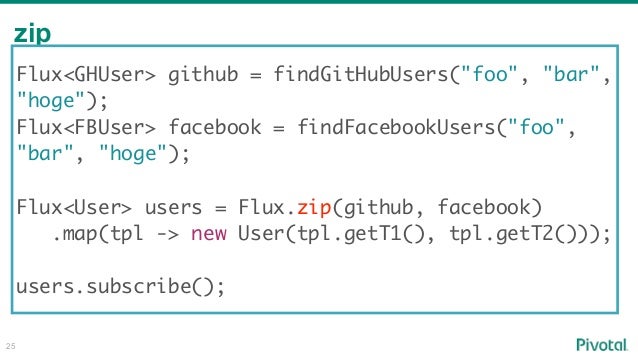

  42. 42. zip 25 Flux<GHUser> github = findGitHubUsers("foo", "bar", "hoge");
 Flux<FBUser> facebook = findFacebookUsers("foo", "bar", "hoge"); Flux<User> users = Flux.zip(github, facebook) .map(tpl -> new User(tpl.getT1(), tpl.getT2())); users.subscribe();

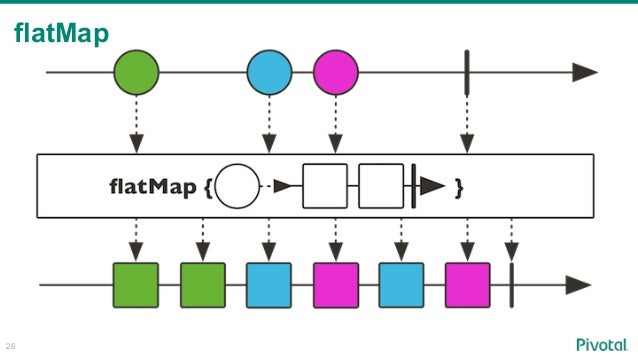

  43. 43. flatMap 26

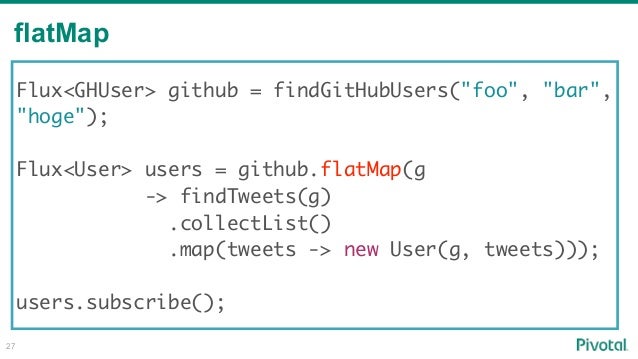

  44. 44. flatMap 27 Flux<GHUser> github = findGitHubUsers("foo", "bar", "hoge");
 Flux<User> users = github.flatMap(g -> findTweets(g) .collectList() .map(tweets -> new User(g, tweets))); users.subscribe();

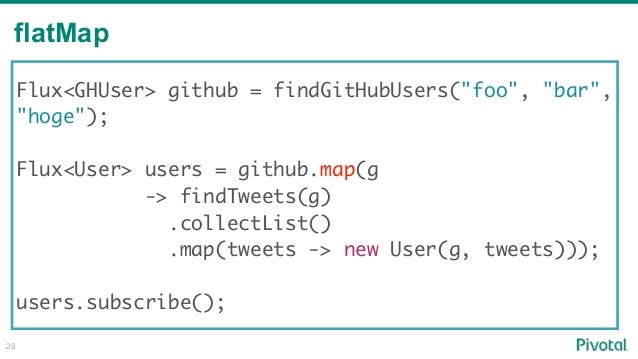

  45. 45. flatMap 28 Flux<GHUser> github = findGitHubUsers("foo", "bar", "hoge");
 Flux<User> users = github.map(g -> findTweets(g) .collectList() .map(tweets -> new User(g, tweets))); users.subscribe();

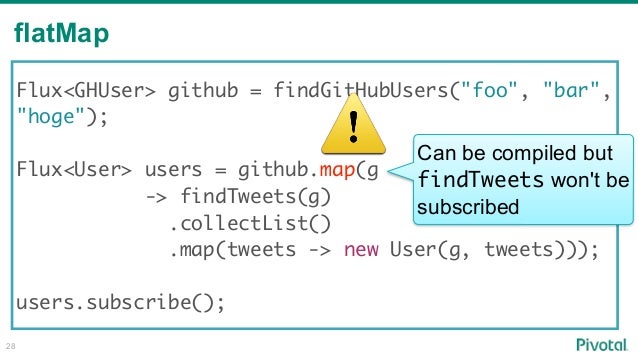

  46. 46. flatMap 28 Flux<GHUser> github = findGitHubUsers("foo", "bar", "hoge");
 Flux<User> users = github.map(g -> findTweets(g) .collectList() .map(tweets -> new User(g, tweets))); users.subscribe(); ⚠ Can be compiled but findTweets won't be subscribed

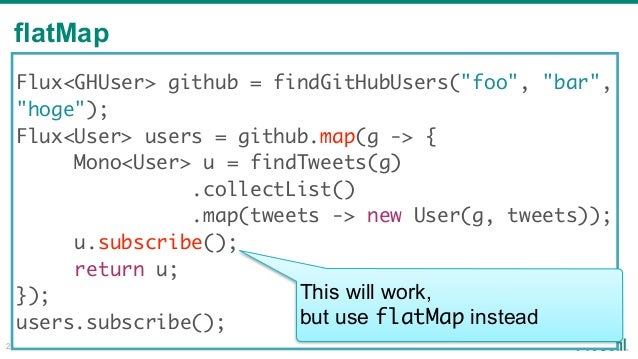

  47. 47. flatMap 29 Flux<GHUser> github = findGitHubUsers("foo", "bar", "hoge"); Flux<User> users = github.map(g -> { Mono<User> u = findTweets(g) .collectList() .map(tweets -> new User(g, tweets)); u.subscribe(); return u; }); users.subscribe(); This will work, but use flatMap instead

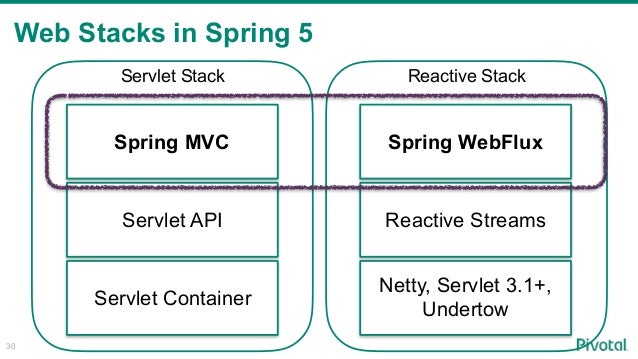

  48. 48. Web Stacks in Spring 5 30 Servlet Container Servlet API Spring MVC Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Servlet Stack

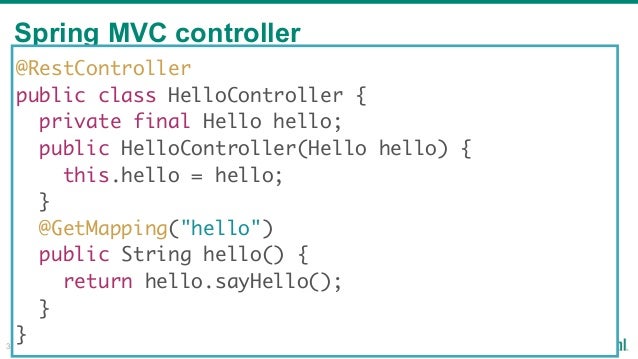

  49. 49. Spring MVC controller 31 @RestController public class HelloController { private final Hello hello; public HelloController(Hello hello) { this.hello = hello; } @GetMapping("hello") public String hello() { return hello.sayHello(); } }

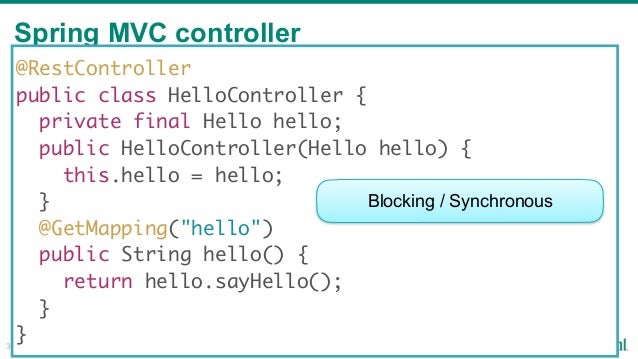

  50. 50. Spring MVC controller 31 @RestController public class HelloController { private final Hello hello; public HelloController(Hello hello) { this.hello = hello; } @GetMapping("hello") public String hello() { return hello.sayHello(); } } Blocking / Synchronous

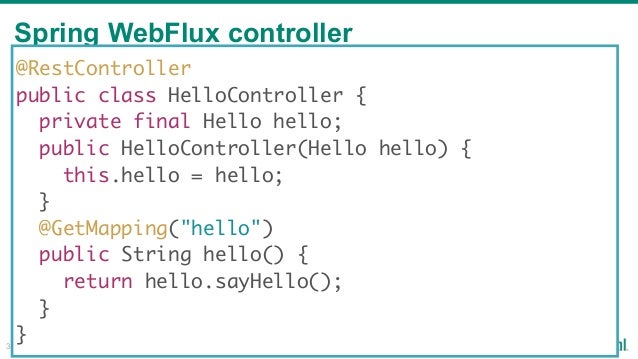

  51. 51. Spring WebFlux controller 32 @RestController public class HelloController { private final Hello hello; public HelloController(Hello hello) { this.hello = hello; } @GetMapping("hello") public String hello() { return hello.sayHello(); } }
  52. 52. Spring WebFlux controller 32 @RestController public class HelloController { private final Hello hello; public HelloController(Hello hello) { this.hello = hello; } @GetMapping("hello") public String hello() { return hello.sayHello(); } } Non-blocking / Synchronous
  53. 53. Spring WebFlux controller 33 @RestController public class HelloController { private final Hello hello; public HelloController(Hello hello) { this.hello = hello; } @GetMapping("hello") public Mono<String> hello() { return Mono.fromCallable(hello::sayHello); } }
  54. 54. Spring WebFlux controller 33 @RestController public class HelloController { private final Hello hello; public HelloController(Hello hello) { this.hello = hello; } @GetMapping("hello") public Mono<String> hello() { return Mono.fromCallable(hello::sayHello); } } Non-blocking / Asynchronous

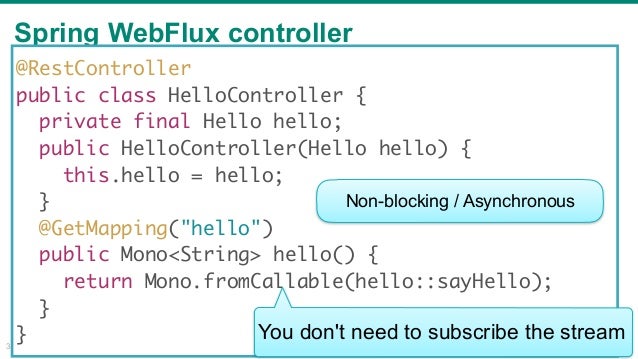

  55. 55. Spring WebFlux controller 33 @RestController public class HelloController { private final Hello hello; public HelloController(Hello hello) { this.hello = hello; } @GetMapping("hello") public Mono<String> hello() { return Mono.fromCallable(hello::sayHello); } } Non-blocking / Asynchronous You don't need to subscribe the stream

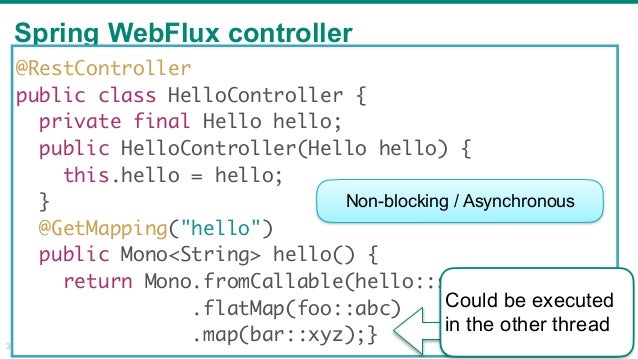

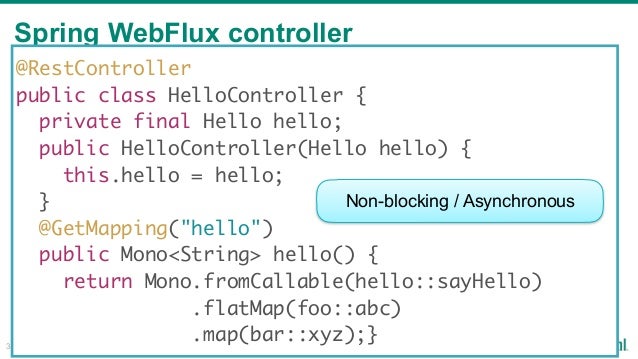

  56. 56. Spring WebFlux controller 34 @RestController public class HelloController { private final Hello hello; public HelloController(Hello hello) { this.hello = hello; } @GetMapping("hello") public Mono<String> hello() { return Mono.fromCallable(hello::sayHello) .flatMap(foo::abc) .map(bar::xyz);} Non-blocking / Asynchronous
  57. 57. Spring WebFlux controller 34 @RestController public class HelloController { private final Hello hello; public HelloController(Hello hello) { this.hello = hello; } @GetMapping("hello") public Mono<String> hello() { return Mono.fromCallable(hello::sayHello) .flatMap(foo::abc) .map(bar::xyz);} Non-blocking / Asynchronous Could be executed in the other thread

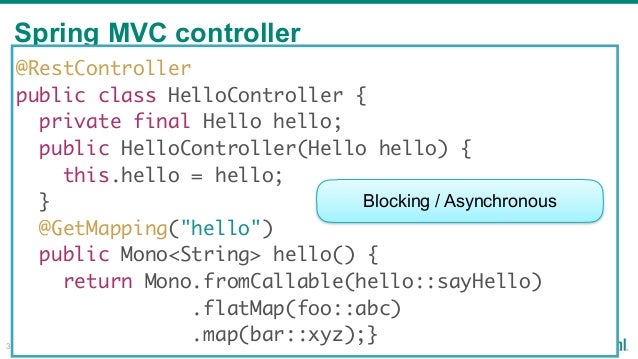

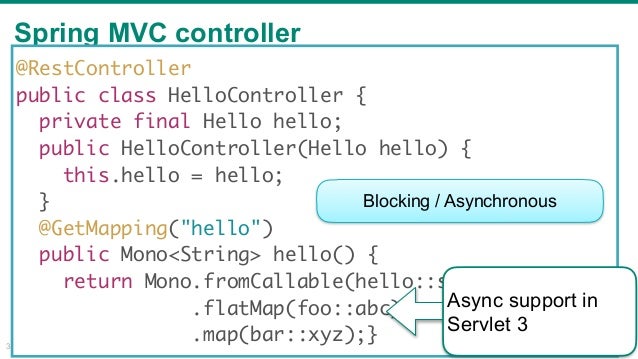

  58. 58. Spring MVC controller 35 @RestController public class HelloController { private final Hello hello; public HelloController(Hello hello) { this.hello = hello; } @GetMapping("hello") public Mono<String> hello() { return Mono.fromCallable(hello::sayHello) .flatMap(foo::abc) .map(bar::xyz);} Blocking / Asynchronous
  59. 59. Spring MVC controller 35 @RestController public class HelloController { private final Hello hello; public HelloController(Hello hello) { this.hello = hello; } @GetMapping("hello") public Mono<String> hello() { return Mono.fromCallable(hello::sayHello) .flatMap(foo::abc) .map(bar::xyz);} Blocking / Asynchronous Async support in Servlet 3

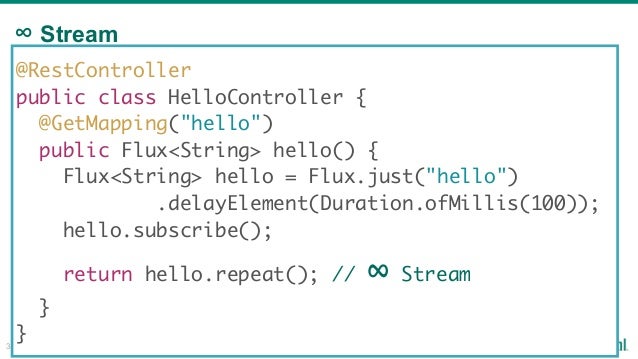

  60. 60. ∞ Stream 36 @RestController public class HelloController { @GetMapping("hello") public Flux<String> hello() { Flux<String> hello = Flux.just("hello") .delayElement(Duration.ofMillis(100)); hello.subscribe(); return hello.repeat(); // ∞ Stream } }
  61. 61. DEMO
  62. 62. Content Negotiation 38 Accept: text/event-stream Accept: application/stream+json Accept: application/json
  63. 63. Content Negotiation 38 Accept: text/event-stream Accept: application/stream+json Accept: application/json βœ… Backpressure βœ… Backpressure ❌ Backpressure

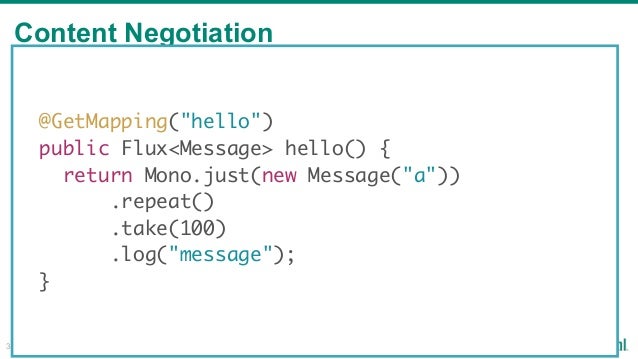

  64. 64. Content Negotiation 39 @GetMapping("hello") public Flux<Message> hello() { return Mono.just(new Message("a")) .repeat() .take(100) .log("message"); }

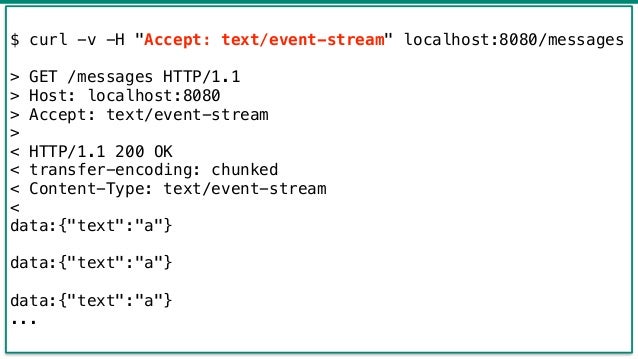

  65. 65. 40 $ curl -v -H "Accept: text/event-stream" localhost:8080/messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: text/event-stream > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: text/event-stream < data:{"text":"a"} data:{"text":"a"} data:{"text":"a"} ...

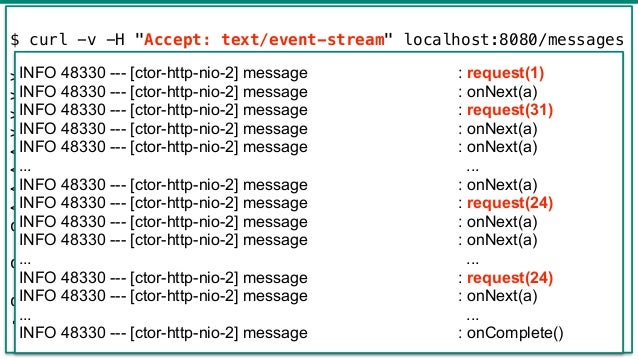

  66. 66. 40 $ curl -v -H "Accept: text/event-stream" localhost:8080/messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: text/event-stream > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: text/event-stream < data:{"text":"a"} data:{"text":"a"} data:{"text":"a"} ... INFO 48330 --- [ctor-http-nio-2] message : request(1) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) INFO 48330 --- [ctor-http-nio-2] message : request(31) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-2] message : onNext(a) INFO 48330 --- [ctor-http-nio-2] message : request(24) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-2] message : request(24) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-2] message : onComplete()

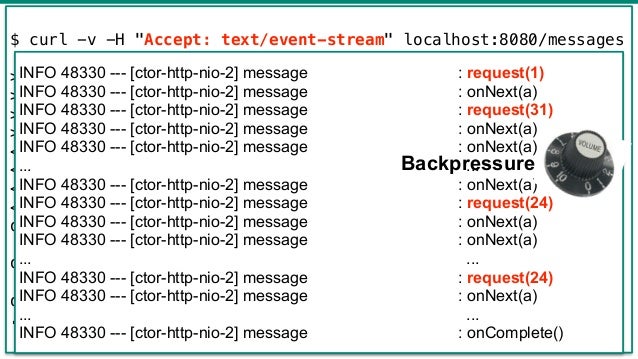

  67. 67. 40 $ curl -v -H "Accept: text/event-stream" localhost:8080/messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: text/event-stream > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: text/event-stream < data:{"text":"a"} data:{"text":"a"} data:{"text":"a"} ... INFO 48330 --- [ctor-http-nio-2] message : request(1) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) INFO 48330 --- [ctor-http-nio-2] message : request(31) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-2] message : onNext(a) INFO 48330 --- [ctor-http-nio-2] message : request(24) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-2] message : request(24) INFO 48330 --- [ctor-http-nio-2] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-2] message : onComplete() Backpressure
  68. 68. (FYI) In case of Servlet Stack 41

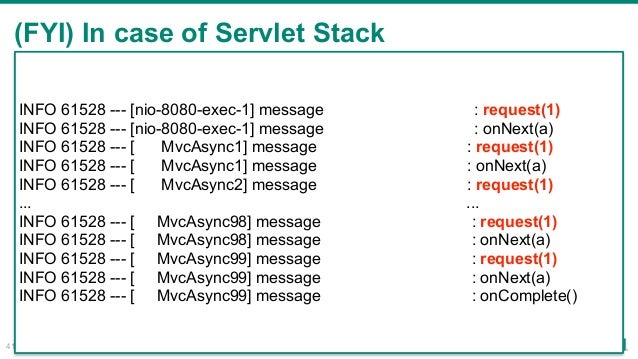

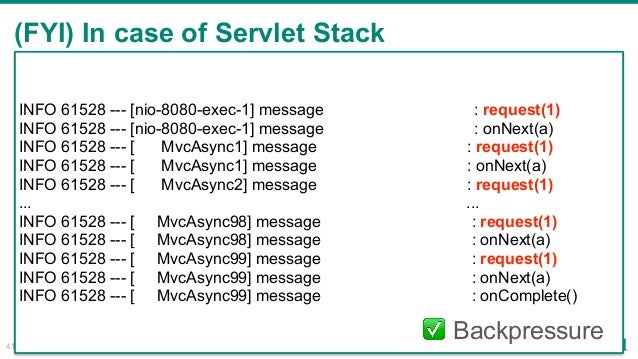

  69. 69. (FYI) In case of Servlet Stack 41 INFO 61528 --- [nio-8080-exec-1] message : request(1) INFO 61528 --- [nio-8080-exec-1] message : onNext(a) INFO 61528 --- [ MvcAsync1] message : request(1) INFO 61528 --- [ MvcAsync1] message : onNext(a) INFO 61528 --- [ MvcAsync2] message : request(1) ... ... INFO 61528 --- [ MvcAsync98] message : request(1) INFO 61528 --- [ MvcAsync98] message : onNext(a) INFO 61528 --- [ MvcAsync99] message : request(1) INFO 61528 --- [ MvcAsync99] message : onNext(a) INFO 61528 --- [ MvcAsync99] message : onComplete()
  70. 70. (FYI) In case of Servlet Stack 41 INFO 61528 --- [nio-8080-exec-1] message : request(1) INFO 61528 --- [nio-8080-exec-1] message : onNext(a) INFO 61528 --- [ MvcAsync1] message : request(1) INFO 61528 --- [ MvcAsync1] message : onNext(a) INFO 61528 --- [ MvcAsync2] message : request(1) ... ... INFO 61528 --- [ MvcAsync98] message : request(1) INFO 61528 --- [ MvcAsync98] message : onNext(a) INFO 61528 --- [ MvcAsync99] message : request(1) INFO 61528 --- [ MvcAsync99] message : onNext(a) INFO 61528 --- [ MvcAsync99] message : onComplete() βœ… Backpressure

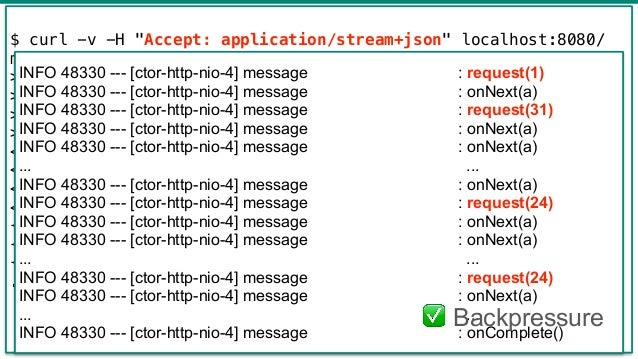

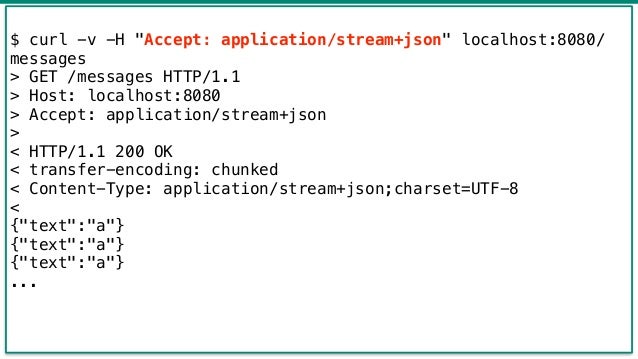

  71. 71. 42 $ curl -v -H "Accept: application/stream+json" localhost:8080/ messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: application/stream+json > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: application/stream+json;charset=UTF-8 < {"text":"a"} {"text":"a"} {"text":"a"} ...
  72. 72. 42 $ curl -v -H "Accept: application/stream+json" localhost:8080/ messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: application/stream+json > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: application/stream+json;charset=UTF-8 < {"text":"a"} {"text":"a"} {"text":"a"} ... INFO 48330 --- [ctor-http-nio-4] message : request(1) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) INFO 48330 --- [ctor-http-nio-4] message : request(31) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-4] message : onNext(a) INFO 48330 --- [ctor-http-nio-4] message : request(24) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-4] message : request(24) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-4] message : onComplete()
  73. 73. 42 $ curl -v -H "Accept: application/stream+json" localhost:8080/ messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: application/stream+json > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: application/stream+json;charset=UTF-8 < {"text":"a"} {"text":"a"} {"text":"a"} ... INFO 48330 --- [ctor-http-nio-4] message : request(1) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) INFO 48330 --- [ctor-http-nio-4] message : request(31) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-4] message : onNext(a) INFO 48330 --- [ctor-http-nio-4] message : request(24) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-4] message : request(24) INFO 48330 --- [ctor-http-nio-4] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-4] message : onComplete() βœ… Backpressure

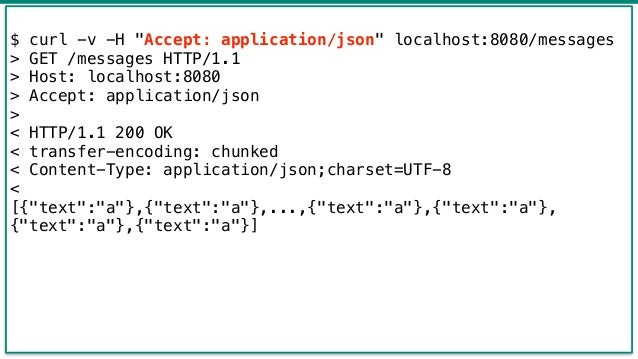

  74. 74. 43 $ curl -v -H "Accept: application/json" localhost:8080/messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: application/json > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: application/json;charset=UTF-8 < [{"text":"a"},{"text":"a"},...,{"text":"a"},{"text":"a"}, {"text":"a"},{"text":"a"}]
  75. 75. 43 $ curl -v -H "Accept: application/json" localhost:8080/messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: application/json > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: application/json;charset=UTF-8 < [{"text":"a"},{"text":"a"},...,{"text":"a"},{"text":"a"}, {"text":"a"},{"text":"a"}] INFO 48330 --- [ctor-http-nio-3] message : request(unbounded) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onComplete()

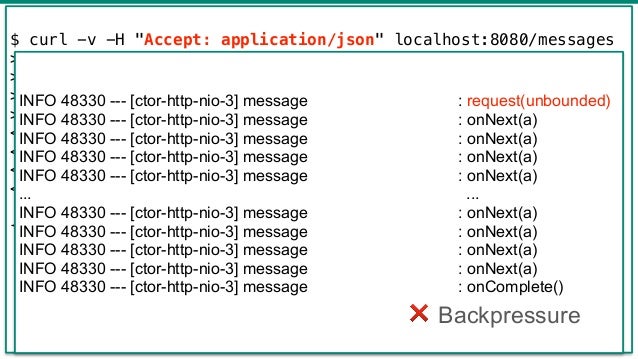

  76. 76. 43 $ curl -v -H "Accept: application/json" localhost:8080/messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: application/json > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: application/json;charset=UTF-8 < [{"text":"a"},{"text":"a"},...,{"text":"a"},{"text":"a"}, {"text":"a"},{"text":"a"}] INFO 48330 --- [ctor-http-nio-3] message : request(unbounded) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) ... ... INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onNext(a) INFO 48330 --- [ctor-http-nio-3] message : onComplete() ❌ Backpressure

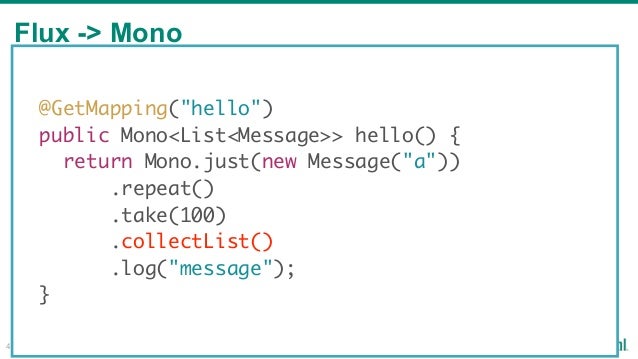

  77. 77. Flux -> Mono 44 @GetMapping("hello") public Mono<List<Message>> hello() { return Mono.just(new Message("a")) .repeat() .take(100) .collectList() .log("message"); }
  78. 78. Flux -> Mono 45 @GetMapping("hello") public Mono<List<Message>> hello() { return Mono.just(new Message("a")) .repeat() .take(100) .collectList() .log("message"); } $ curl -v -H "Accept: application/stream+json" localhost:8080/ messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: application/stream+json > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: application/stream+json;charset=UTF-8 < [{"text":"a"},{"text":"a"},...,{"text":"a"},{"text":"a"}, {"text":"a"},{"text":"a"}]
  79. 79. Flux -> Mono 45 @GetMapping("hello") public Mono<List<Message>> hello() { return Mono.just(new Message("a")) .repeat() .take(100) .collectList() .log("message"); } $ curl -v -H "Accept: application/stream+json" localhost:8080/ messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: application/stream+json > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: application/stream+json;charset=UTF-8 < [{"text":"a"},{"text":"a"},...,{"text":"a"},{"text":"a"}, {"text":"a"},{"text":"a"}] INFO 48330 --- [ctor-http-nio-3] message : | request(1) INFO 48330 --- [ctor-http-nio-3] message : | onNext([a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a]) INFO 48330 --- [ctor-http-nio-3] message : | request(31) INFO 48330 --- [ctor-http-nio-3] message : | onComplete()
  80. 80. Flux -> Mono 45 @GetMapping("hello") public Mono<List<Message>> hello() { return Mono.just(new Message("a")) .repeat() .take(100) .collectList() .log("message"); } $ curl -v -H "Accept: application/stream+json" localhost:8080/ messages > GET /messages HTTP/1.1 > Host: localhost:8080 > Accept: application/stream+json > < HTTP/1.1 200 OK < transfer-encoding: chunked < Content-Type: application/stream+json;charset=UTF-8 < [{"text":"a"},{"text":"a"},...,{"text":"a"},{"text":"a"}, {"text":"a"},{"text":"a"}] INFO 48330 --- [ctor-http-nio-3] message : | request(1) INFO 48330 --- [ctor-http-nio-3] message : | onNext([a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a, a]) INFO 48330 --- [ctor-http-nio-3] message : | request(31) INFO 48330 --- [ctor-http-nio-3] message : | onComplete() ❌ Backpressure

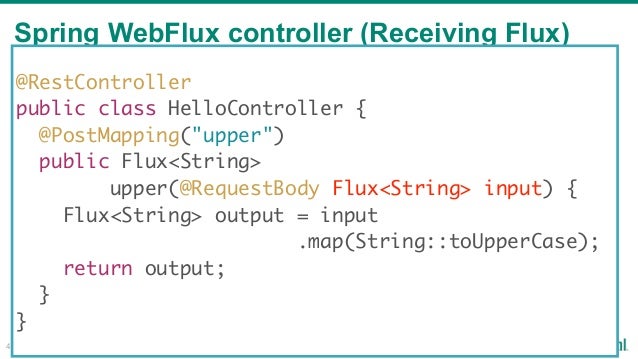

  81. 81. Spring WebFlux controller (Receiving Flux) 46 @RestController public class HelloController { @PostMapping("upper") public Flux<String> upper(@RequestBody Flux<String> input) { Flux<String> output = input .map(String::toUpperCase); return output; } }

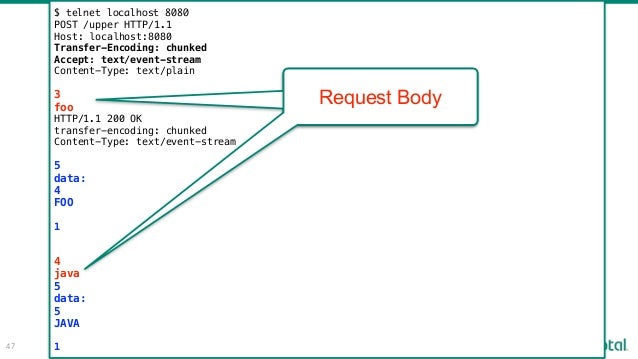

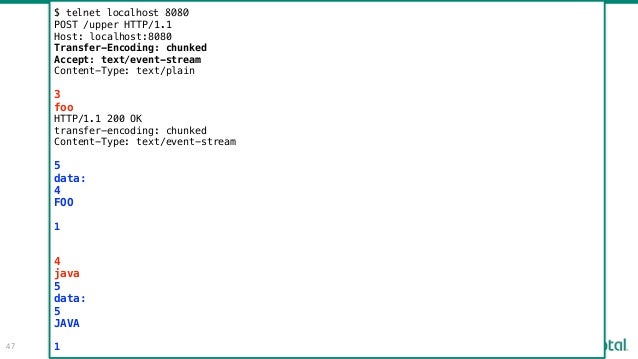

  82. 82. 47 $ telnet localhost 8080 POST /upper HTTP/1.1 Host: localhost:8080 Transfer-Encoding: chunked Accept: text/event-stream Content-Type: text/plain 3 foo HTTP/1.1 200 OK transfer-encoding: chunked Content-Type: text/event-stream 5 data: 4 FOO 1 4 java 5 data: 5 JAVA 1
  83. 83. 47 $ telnet localhost 8080 POST /upper HTTP/1.1 Host: localhost:8080 Transfer-Encoding: chunked Accept: text/event-stream Content-Type: text/plain 3 foo HTTP/1.1 200 OK transfer-encoding: chunked Content-Type: text/event-stream 5 data: 4 FOO 1 4 java 5 data: 5 JAVA 1 Request Body
  84. 84. 47 $ telnet localhost 8080 POST /upper HTTP/1.1 Host: localhost:8080 Transfer-Encoding: chunked Accept: text/event-stream Content-Type: text/plain 3 foo HTTP/1.1 200 OK transfer-encoding: chunked Content-Type: text/event-stream 5 data: 4 FOO 1 4 java 5 data: 5 JAVA 1 Request Body Response Body

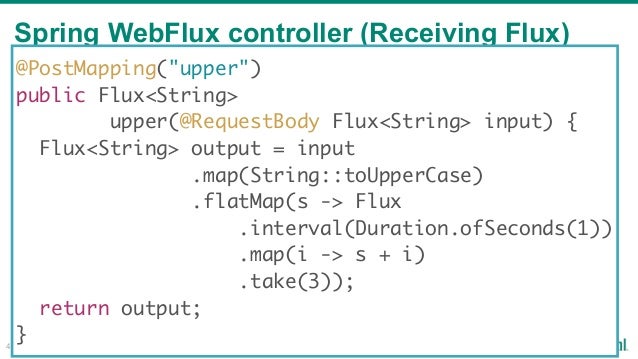

  85. 85. Spring WebFlux controller (Receiving Flux) 48 @PostMapping("upper") public Flux<String> upper(@RequestBody Flux<String> input) { Flux<String> output = input .map(String::toUpperCase) .flatMap(s -> Flux .interval(Duration.ofSeconds(1)) .map(i -> s + i) .take(3)); return output; }

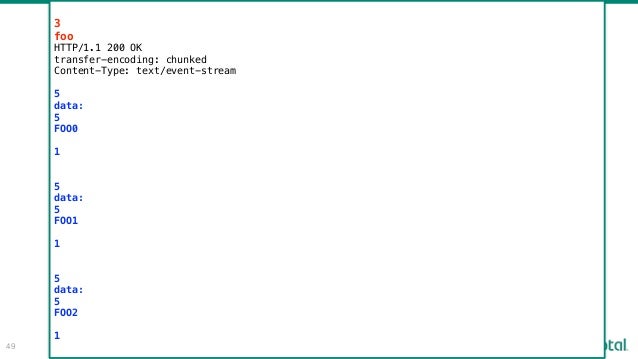

  86. 86. 49 3 foo HTTP/1.1 200 OK transfer-encoding: chunked Content-Type: text/event-stream 5 data: 5 FOO0 1 5 data: 5 FOO1 1 5 data: 5 FOO2 1
  87. 87. DEMO

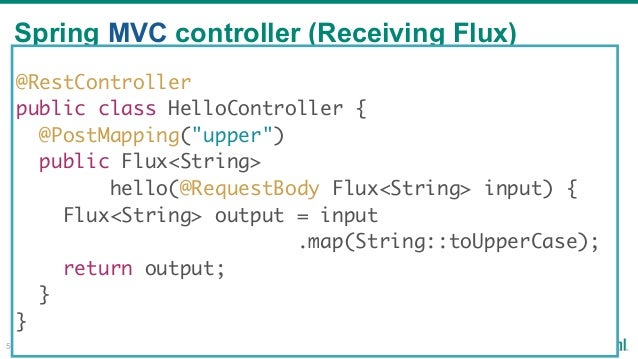

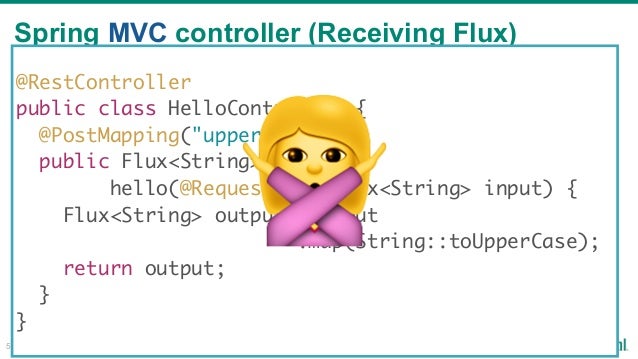

  88. 88. Spring MVC controller (Receiving Flux) 51 @RestController public class HelloController { @PostMapping("upper") public Flux<String> hello(@RequestBody Flux<String> input) { Flux<String> output = input .map(String::toUpperCase); return output; } }

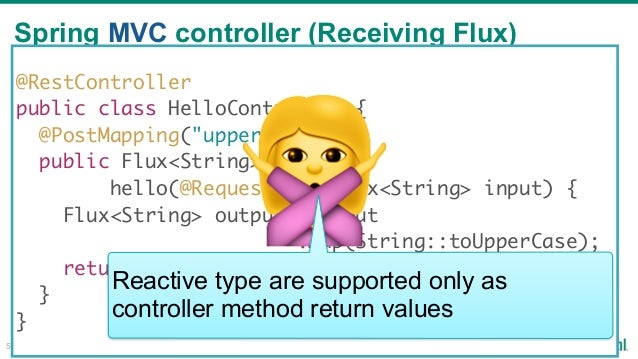

  89. 89. Spring MVC controller (Receiving Flux) 51 @RestController public class HelloController { @PostMapping("upper") public Flux<String> hello(@RequestBody Flux<String> input) { Flux<String> output = input .map(String::toUpperCase); return output; } } πŸ™…
  90. 90. Spring MVC controller (Receiving Flux) 51 @RestController public class HelloController { @PostMapping("upper") public Flux<String> hello(@RequestBody Flux<String> input) { Flux<String> output = input .map(String::toUpperCase); return output; } } πŸ™…Reactive type are supported only as controller method return values

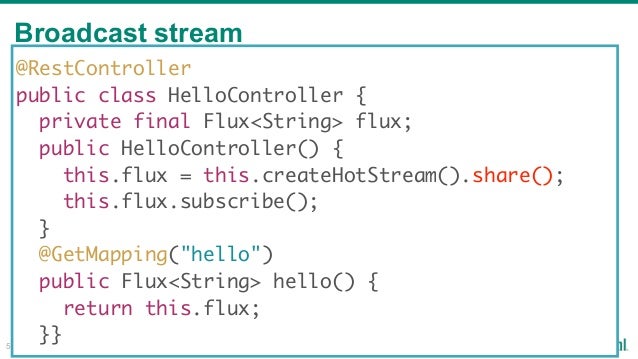

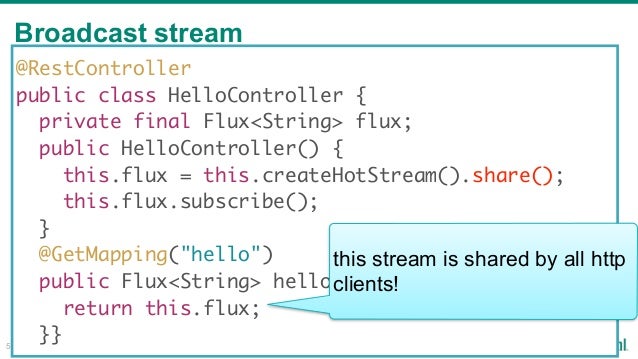

  91. 91. Broadcast stream 52 @RestController public class HelloController { private final Flux<String> flux; public HelloController() { this.flux = this.createHotStream().share(); this.flux.subscribe(); } @GetMapping("hello") public Flux<String> hello() { return this.flux; }}
  92. 92. Broadcast stream 52 @RestController public class HelloController { private final Flux<String> flux; public HelloController() { this.flux = this.createHotStream().share(); this.flux.subscribe(); } @GetMapping("hello") public Flux<String> hello() { return this.flux; }} this stream is shared by all http clients!

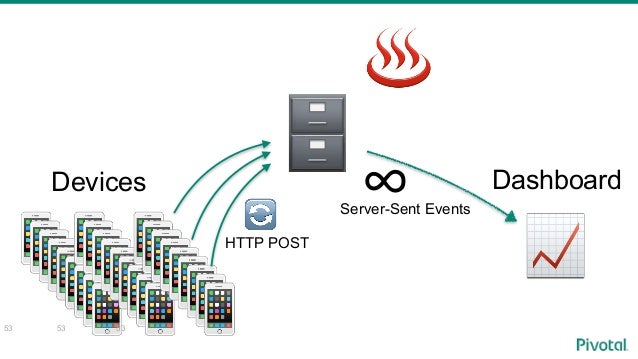

  93. 93. 53 πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“± πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±53 πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±53 πŸ—„ πŸ“ˆ Devices Dashboard HTTP POST Server-Sent Events βˆžπŸ”„ ♨

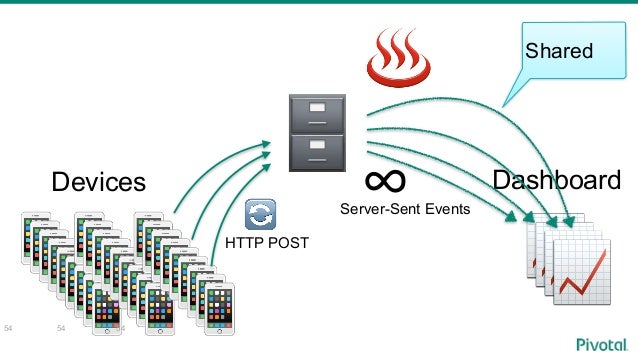

  94. 94. 54 πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“± πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±54 πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±54 πŸ—„ πŸ“ˆ Devices Dashboard HTTP POST Server-Sent Events βˆžπŸ”„ πŸ“ˆπŸ“ˆπŸ“ˆ ♨
  95. 95. 54 πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“± πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±54 πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±πŸ“±54 πŸ—„ πŸ“ˆ Devices Dashboard HTTP POST Server-Sent Events βˆžπŸ”„ πŸ“ˆπŸ“ˆπŸ“ˆ ♨ Shared
  96. 96. Web Stacks in Spring 5 55 Servlet Container Servlet API Spring MVC Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Servlet Stack

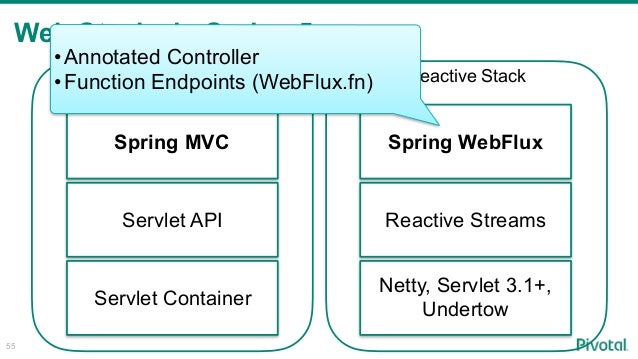

  97. 97. Web Stacks in Spring 5 55 Servlet Container Servlet API Spring MVC Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Servlet Stack β€’Annotated Controller β€’Function Endpoints (WebFlux.fn)
  98. 98. @Configuration public class RouterConfig { @Bean public RouterFunctions<ServerResponse> routes() { return route(GET("hello"), req -> { return ServerReponse.ok() .body(Mono.just("hello"), String.class); }); } } Spring WebFlux.fn 56

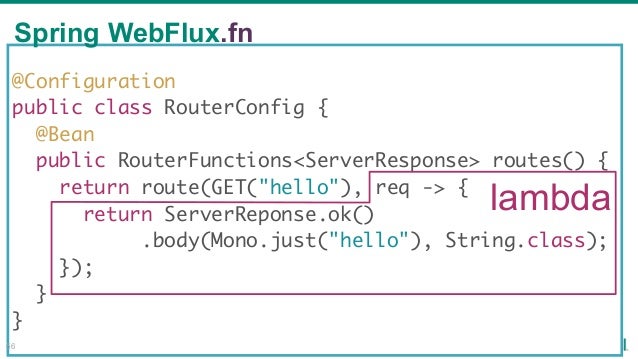

  99. 99. @Configuration public class RouterConfig { @Bean public RouterFunctions<ServerResponse> routes() { return route(GET("hello"), req -> { return ServerReponse.ok() .body(Mono.just("hello"), String.class); }); } } lambda Spring WebFlux.fn 56

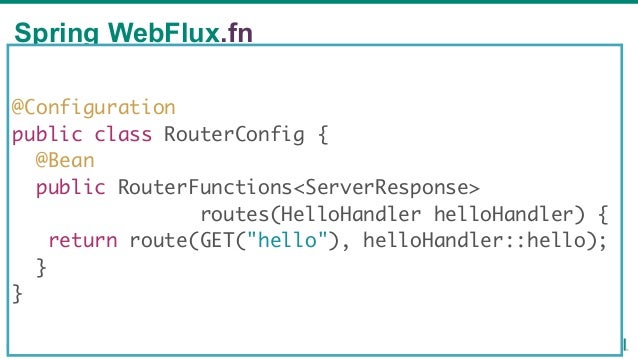

  100. 100. Spring WebFlux.fn 57 @Configuration public class RouterConfig { @Bean public RouterFunctions<ServerResponse> routes(HelloHandler helloHandler) { return route(GET("hello"), helloHandler::hello); } }
  101. 101. Spring WebFlux.fn 58 public RouterFunctions<ServerResponse> routes(PersonHandeler ph) { return route(GET("person"), ph::findAll) .andRoute(POST("person"), ph::create) .andRoute(GET("person/{id}"), ph::findOne) .andRoute(PUT("person/{id}"), ph::update) .andRoute(DELETE("person/{id}"), ph::delete)); }
  102. 102. Spring WebFlux.fn 59 public RouterFunctions<ServerResponse> routes(PersonHandeler ph) { return nest(path("person"), route(GET("/"), ph::findAll) .andRoute(POST("/"), ph::create) .andRoute(GET("/{id}"), ph::findOne) .andRoute(PUT("/{id}"), ph::update) .andRoute(DELETE("/{id}"), ph::delete))); }

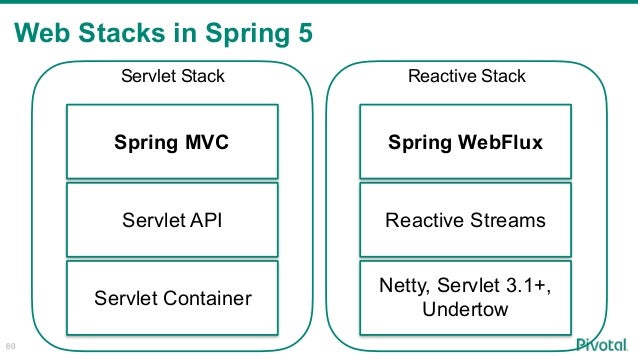

  103. 103. Web Stacks in Spring 5 60 Servlet Container Servlet API Spring MVC Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Servlet Stack
  104. 104. Web Stacks in Spring 5 60 Servlet Container Servlet API Spring MVC Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Servlet Stack Reactive Web Client

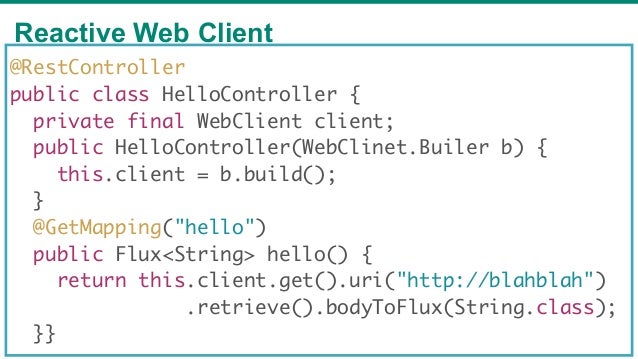

  105. 105. Reactive Web Client 61 @RestController public class HelloController { private final WebClient client; public HelloController(WebClinet.Builer b) { this.client = b.build(); } @GetMapping("hello") public Flux<String> hello() { return this.client.get().uri("http://blahblah") .retrieve().bodyToFlux(String.class); }}
  106. 106. Reactive Web Client 62 Flux<User> users = webClient.get() .uri("http://user-service") .exchange() // => Mono<ClientResponse> .flatMap(r -> r.bodyToFlux(User.class)); // short-cut Flux<User> users = webClient.get() .uri("http://user-service") .retrieve() .bodyToFlux(User.class);
  107. 107. Reactive Web Client 63 Mono<User> user = webClient.get() .uri("http://user-service/{id}", id) .header("X-Foo", "foo") .retrieve().bodyToMono(User.class); Mono<User> user = ... Mono<Void> created = webClient.post() .uri("http://user-service") .body(user, User.class) .retrieve().bodyToMono(Void.class);

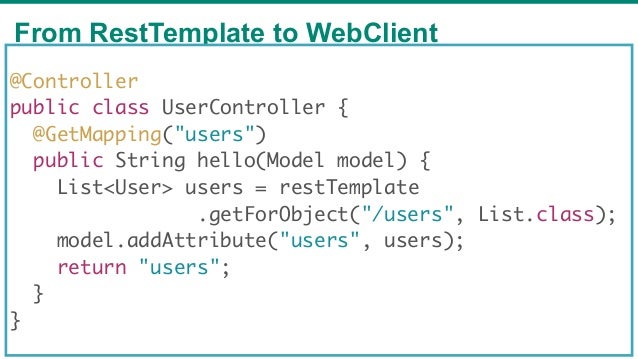

  108. 108. From RestTemplate to WebClient 64 @Controller public class UserController { @GetMapping("users") public String hello(Model model) { List<User> users = restTemplate .getForObject("/users", List.class); model.addAttribute("users", users); return "users"; } }
  109. 109. From RestTemplate to WebClient 65 @Controller public class UserController { @GetMapping("users") public String hello(Model model) { Flux<User> users = client.get().uri("/users") .retrieve().bodyToFlux(String.class); model.addAttribute("users", users); return "users"; } }

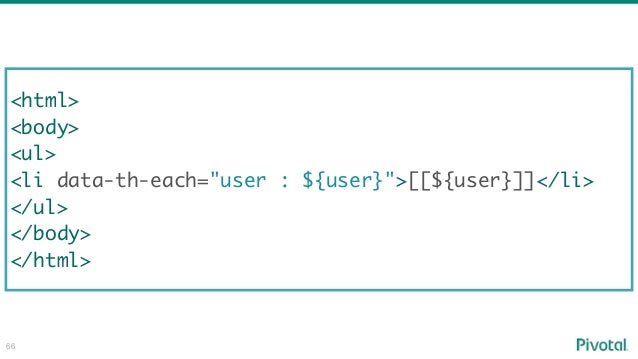

  110. 110. 66 <html> <body> <ul> <li data-th-each="user : ${user}">[[${user}]]</li> </ul> </body> </html>

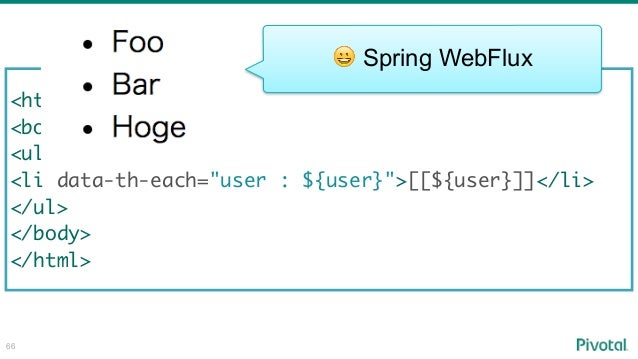

  111. 111. 66 <html> <body> <ul> <li data-th-each="user : ${user}">[[${user}]]</li> </ul> </body> </html> πŸ˜€ Spring WebFlux
  112. 112. 66 <html> <body> <ul> <li data-th-each="user : ${user}">[[${user}]]</li> </ul> </body> </html> πŸ˜€ Spring WebFlux 😨 Spring MVC

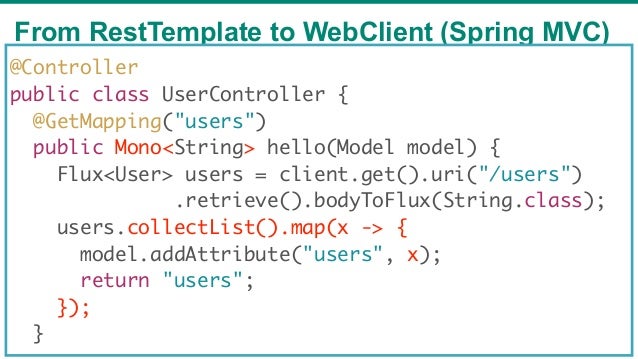

  113. 113. From RestTemplate to WebClient (Spring MVC) 67 @Controller public class UserController { @GetMapping("users") public Mono<String> hello(Model model) { Flux<User> users = client.get().uri("/users") .retrieve().bodyToFlux(String.class); users.collectList().map(x -> { model.addAttribute("users", x); return "users"; }); }

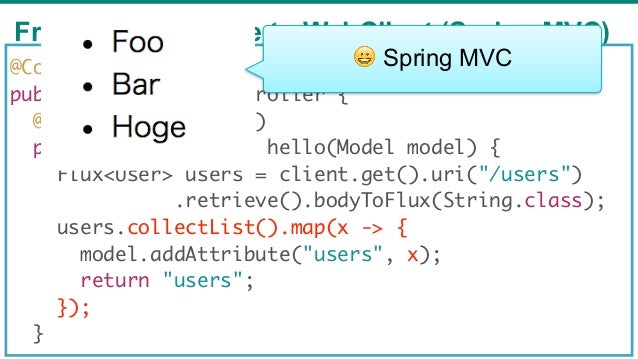

  114. 114. From RestTemplate to WebClient (Spring MVC) 67 @Controller public class UserController { @GetMapping("users") public Mono<String> hello(Model model) { Flux<User> users = client.get().uri("/users") .retrieve().bodyToFlux(String.class); users.collectList().map(x -> { model.addAttribute("users", x); return "users"; }); } πŸ˜€ Spring MVC

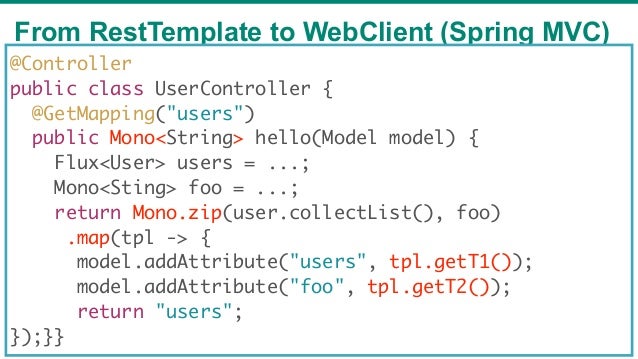

  115. 115. From RestTemplate to WebClient (Spring MVC) 68 @Controller public class UserController { @GetMapping("users") public Mono<String> hello(Model model) { Flux<User> users = ...; Mono<Sting> foo = ...; return Mono.zip(user.collectList(), foo)    .map(tpl -> { model.addAttribute("users", tpl.getT1()); model.addAttribute("foo", tpl.getT2()); return "users"; });}}

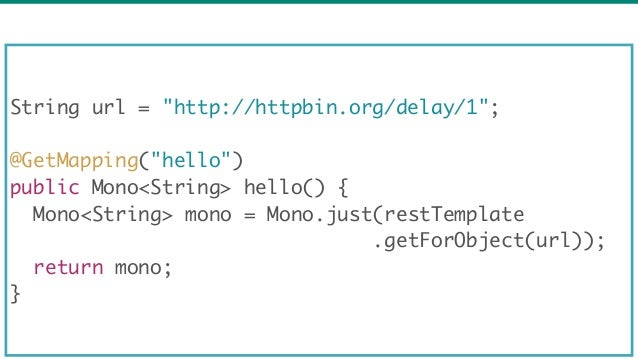

  116. 116. 69 String url = "http://httpbin.org/delay/1"; @GetMapping("hello") public Mono<String> hello() { Mono<String> mono = Mono.just(restTemplate .getForObject(url)); return mono; }

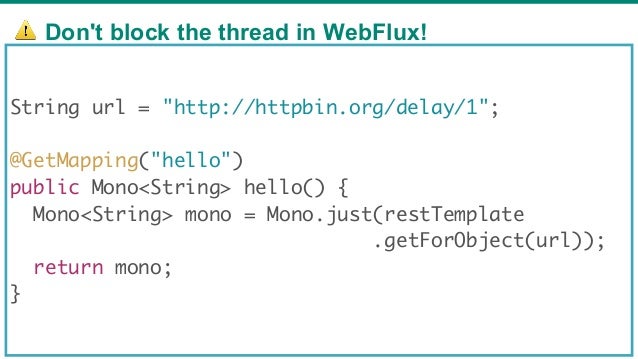

  117. 117. ⚠ Don't block the thread in WebFlux! 69 String url = "http://httpbin.org/delay/1"; @GetMapping("hello") public Mono<String> hello() { Mono<String> mono = Mono.just(restTemplate .getForObject(url)); return mono; }
  118. 118. ⚠ Don't block the thread in WebFlux! 69 String url = "http://httpbin.org/delay/1"; @GetMapping("hello") public Mono<String> hello() { Mono<String> mono = Mono.just(restTemplate .getForObject(url)); return mono; } 😠 Blocking!

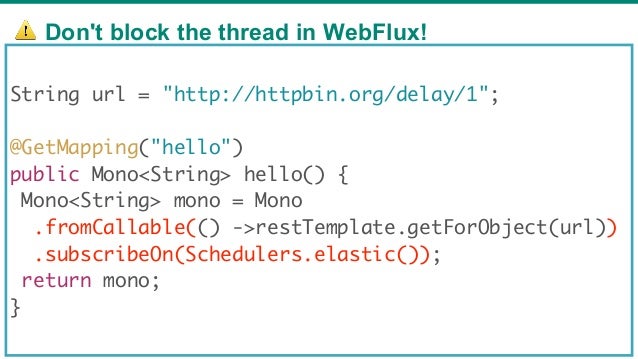

  119. 119. ⚠ Don't block the thread in WebFlux! 70 String url = "http://httpbin.org/delay/1"; @GetMapping("hello") public Mono<String> hello() { Mono<String> mono = Mono .fromCallable(() ->restTemplate.getForObject(url)) .subscribeOn(Schedulers.elastic()); return mono; }

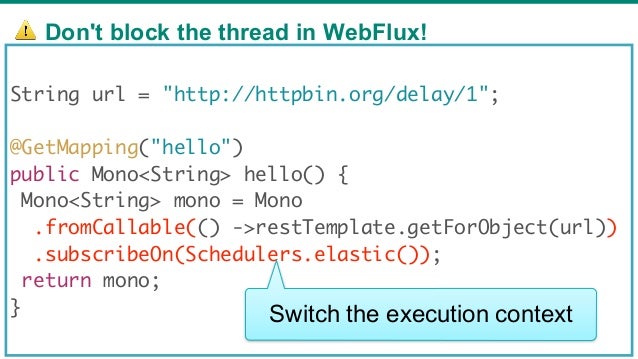

  120. 120. ⚠ Don't block the thread in WebFlux! 70 String url = "http://httpbin.org/delay/1"; @GetMapping("hello") public Mono<String> hello() { Mono<String> mono = Mono .fromCallable(() ->restTemplate.getForObject(url)) .subscribeOn(Schedulers.elastic()); return mono; } Switch the execution context

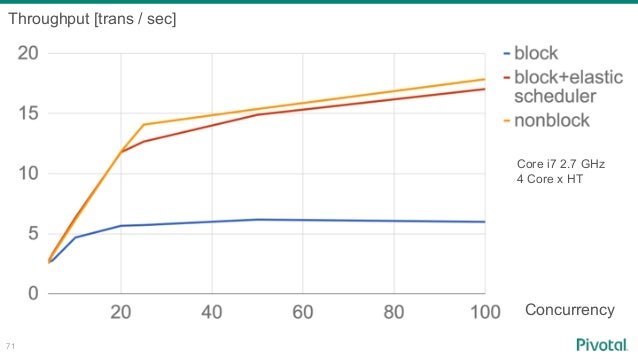

  121. 121. 71 Concurrency Throughput [trans / sec] Core i7 2.7 GHz 4 Core x HT
  122. 122. Reactive Support in Spring Projects 72 Spring Data Reactive Stack Netty, Servlet 3.1+, Undertow Reactive Streams Spring WebFlux Spring Security Thymeleaf

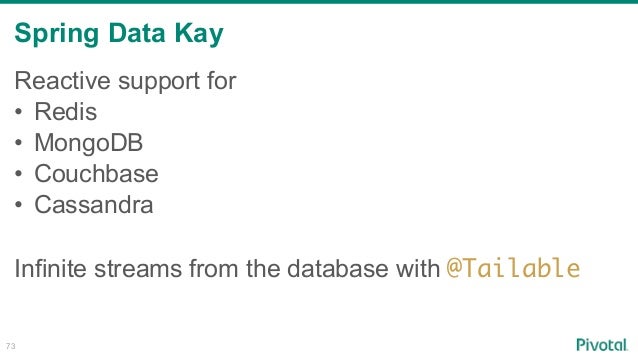

  123. 123. Spring Data Kay 73 Reactive support for β€’ Redis β€’ MongoDB β€’ Couchbase β€’ Cassandra Infinite streams from the database with @Tailable

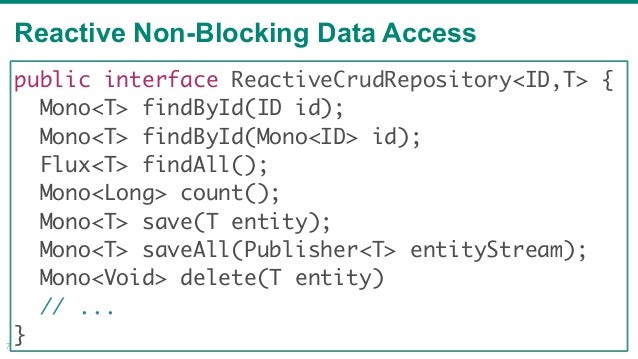

  124. 124. Reactive Non-Blocking Data Access 74 public interface ReactiveCrudRepository<ID,T> { Mono<T> findById(ID id); Mono<T> findById(Mono<ID> id); Flux<T> findAll(); Mono<Long> count(); Mono<T> save(T entity); Mono<T> saveAll(Publisher<T> entityStream); Mono<Void> delete(T entity) // ... }

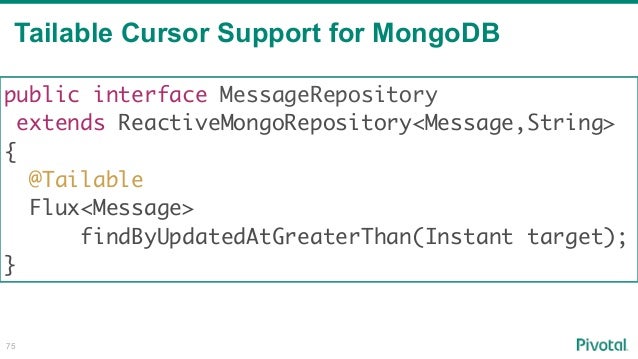

  125. 125. Tailable Cursor Support for MongoDB 75 public interface MessageRepository extends ReactiveMongoRepository<Message,String> { @Tailable Flux<Message> findByUpdatedAtGreaterThan(Instant target); }

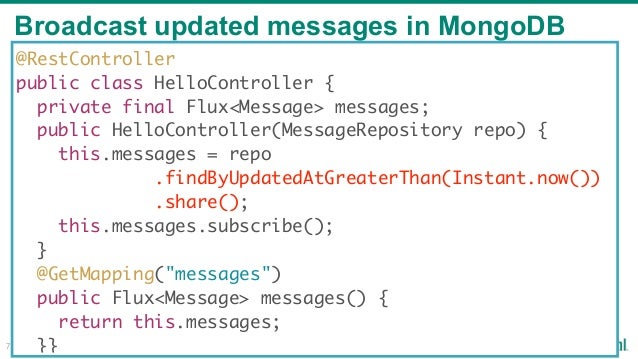

  126. 126. Broadcast updated messages in MongoDB 76 @RestController public class HelloController { private final Flux<Message> messages; public HelloController(MessageRepository repo) { this.messages = repo .findByUpdatedAtGreaterThan(Instant.now()) .share(); this.messages.subscribe(); } @GetMapping("messages") public Flux<Message> messages() { return this.messages; }}
  127. 127. But, but, JDBC is blocking .... 😭 77

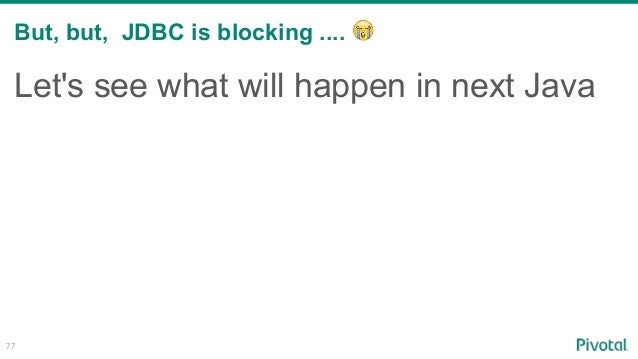

  128. 128. But, but, JDBC is blocking .... 😭 77 Let's see what will happen in next Java

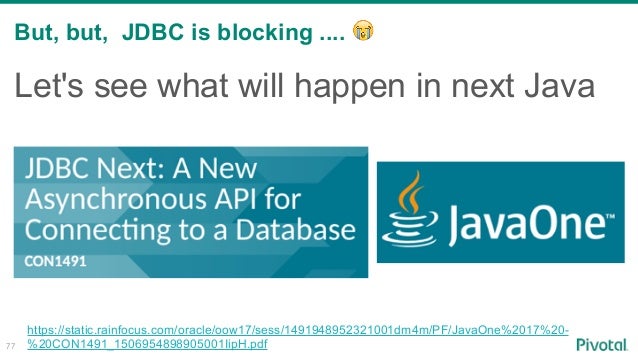

  129. 129. But, but, JDBC is blocking .... 😭 77 Let's see what will happen in next Java https://static.rainfocus.com/oracle/oow17/sess/1491948952321001dm4m/PF/JavaOne%2017%20- %20CON1491_1506954898905001IipH.pdf
  130. 130. java.sql2 78 http://cr.openjdk.java.net/~lancea/apidoc/java/sql2/package-summary.html
  131. 131. java.sql2 78 http://cr.openjdk.java.net/~lancea/apidoc/java/sql2/package-summary.html 😒 Does not seem to support Reactive Streams (j.u.c.Flow)

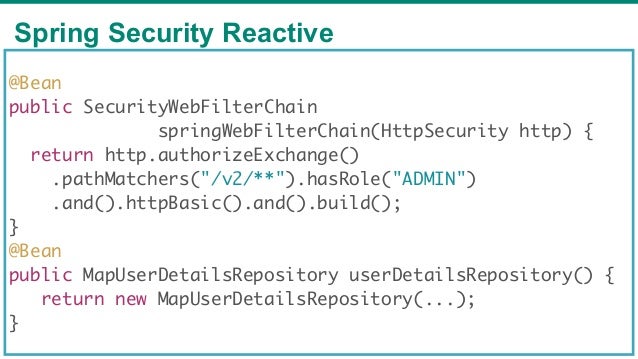

  132. 132. Spring Security Reactive 79 @Bean public SecurityWebFilterChain springWebFilterChain(HttpSecurity http) { return http.authorizeExchange() .pathMatchers("/v2/**").hasRole("ADMIN") .and().httpBasic().and().build(); } @Bean public MapUserDetailsRepository userDetailsRepository() { return new MapUserDetailsRepository(...); }

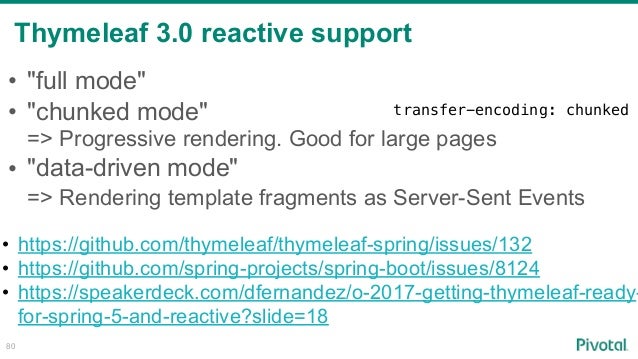

  133. 133. Thymeleaf 3.0 reactive support 80 β€’ "full mode" β€’ "chunked mode"
 => Progressive rendering. Good for large pages β€’ "data-driven mode"
 => Rendering template fragments as Server-Sent Events
 β€’ https://github.com/thymeleaf/thymeleaf-spring/issues/132 β€’ https://github.com/spring-projects/spring-boot/issues/8124 β€’ https://speakerdeck.com/dfernandez/o-2017-getting-thymeleaf-ready- for-spring-5-and-reactive?slide=18 transfer-encoding: chunked

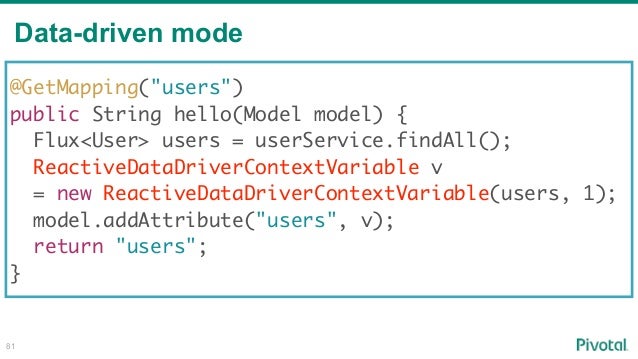

  134. 134. Data-driven mode 81 @GetMapping("users") public String hello(Model model) { Flux<User> users = userService.findAll(); ReactiveDataDriverContextVariable v = new ReactiveDataDriverContextVariable(users, 1); model.addAttribute("users", v); return "users"; }
  135. 135. DEMO
  136. 136. Reactive Application Patterns (as of 2017) 83

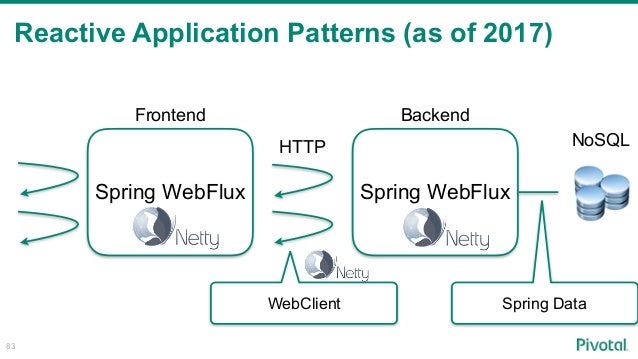

  137. 137. Reactive Application Patterns (as of 2017) 83 Spring WebFluxSpring WebFlux Frontend Backend HTTP NoSQL WebClient Spring Data

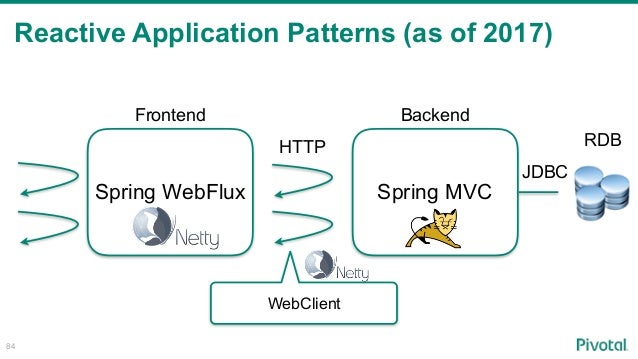

  138. 138. Reactive Application Patterns (as of 2017) 84 Spring MVCSpring WebFlux Frontend Backend HTTP RDB JDBC WebClient

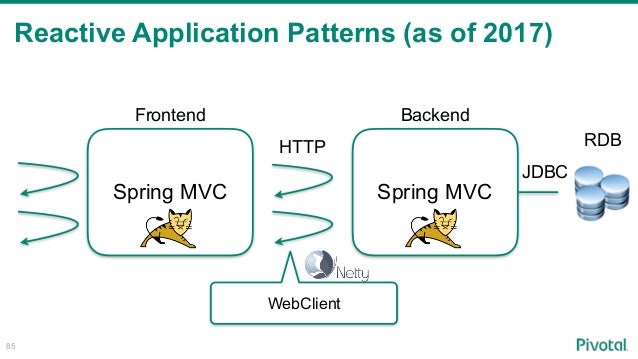

  139. 139. Reactive Application Patterns (as of 2017) 85 Spring MVCSpring MVC Frontend Backend HTTP RDB JDBC WebClient

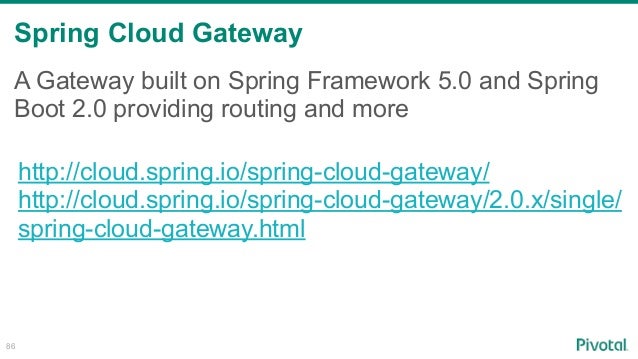

  140. 140. Spring Cloud Gateway 86 A Gateway built on Spring Framework 5.0 and Spring Boot 2.0 providing routing and more http://cloud.spring.io/spring-cloud-gateway/ http://cloud.spring.io/spring-cloud-gateway/2.0.x/single/ spring-cloud-gateway.html

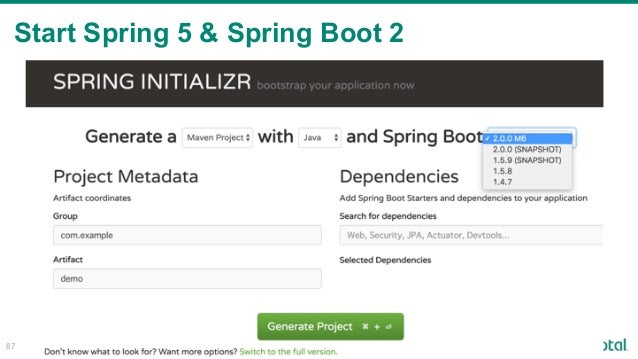

  141. 141. Start Spring 5 & Spring Boot 2 87

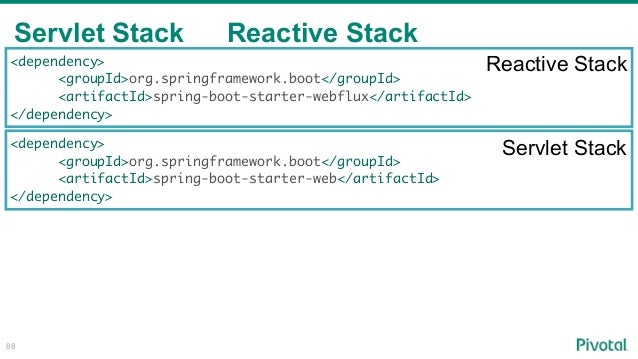

  142. 142. Servlet Stack ⇄ Reactive Stack 88 <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-webflux</artifactId> </dependency> Reactive Stack Servlet Stack

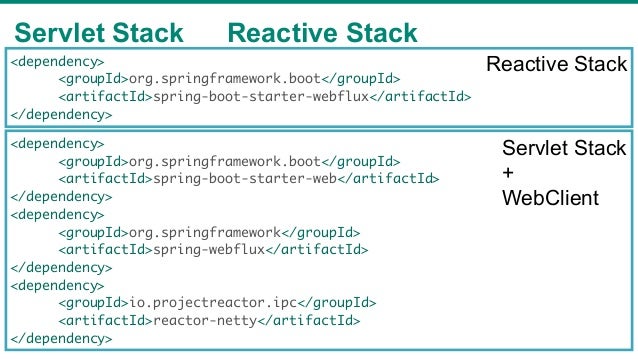

  143. 143. Servlet Stack ⇄ Reactive Stack 89 <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webflux</artifactId> </dependency> <dependency> <groupId>io.projectreactor.ipc</groupId> <artifactId>reactor-netty</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-webflux</artifactId> </dependency> Reactive Stack Servlet Stack + WebClient
  144. 144. Thanks! 90 Resources β€’ Servlet vs Reactive Stacks in Five Use Cases β€’ Spring Boot 2 0 Web Applications β€’ Spring Framework 5: Themes & Trends β€’ Why Spring ❀ Kotlin
