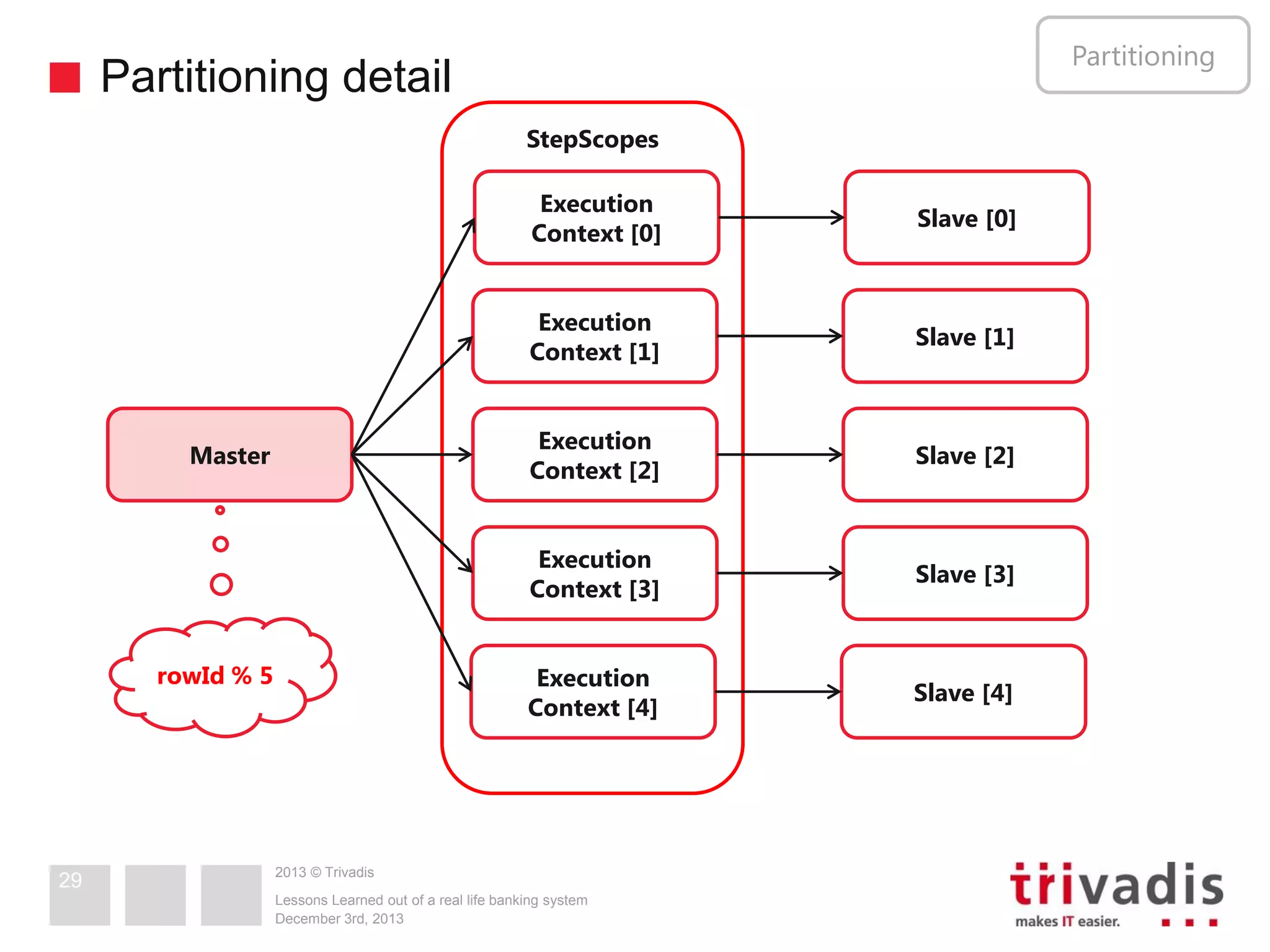

![Partitioning
Partitioning detail
StepScopes
Execution
Context [0]
Execution
Context [1]
29
Slave [2]
Execution
Context [3]
Slave [3]
Execution
Context [4]
rowId % 5
Slave [1]
Execution
Context [2]
Master
Slave [0]
Slave [4]
2013 © Trivadis
Lessons Learned out of a real life banking system
December 3rd, 2013](https://image.slidesharecdn.com/jugsspring-batch-131203133628-phpapp02/75/Spring-Batch-Lessons-Learned-out-of-a-real-life-banking-system-29-2048.jpg)
![Monitoring – logging to a database
Step
Monitoring &
Tracing
Listener
Before
Read
OnSkip
[WARN]
Process
LoggerService
@Transactional(propagation =
Propagation.REQUIRES_NEW)
OnError
[ERROR]
Write
After
[INFO]
2 calls on error
40
2013 © Trivadis
Lessons Learned out of a real life banking system
December 3rd, 2013](https://image.slidesharecdn.com/jugsspring-batch-131203133628-phpapp02/75/Spring-Batch-Lessons-Learned-out-of-a-real-life-banking-system-40-2048.jpg)
Uploaded byRaffael Schmid
Spring Batch - Lessons Learned out of a real life banking system.
This document discusses lessons learned from implementing Spring Batch in a real-life banking system. It covers topics like performance optimization through partitioning, error handling through restartability and retry/skip features, monitoring job executions, and controlling job execution through triggering, loading, and dependencies. The key lessons are around using Spring Batch's built-in partitioning to improve performance, persisting job execution details to enable restarting from failures, and leveraging its triggering and dependency mechanisms to control job scheduling and ordering.
More Related Content
Similar to Spring Batch - Lessons Learned out of a real life banking system.
Spring Batch - Lessons Learned out of a real life banking system.
- 1. Spring Batch Lessons Learnedout of a real life banking system. Michael Beer Senior Consultant Raffael Schmid Consultant BASEL 1 BERN BRUGG LAUSANNE ZUERICH DUESSELDORF 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 FRANKFURT A.M. FREIBURG I.BR. HAMBURG MUNICH STUTTGART VIENNA
- 2. About us Michael Beer SeniorConsultant Trivadis since 2001 Trivadis since 2010 design and development of web based applications design and development of web based applications part of the Trivadis APM team 2 Raffael Schmid Consultant interested in performance related things on the JVM 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

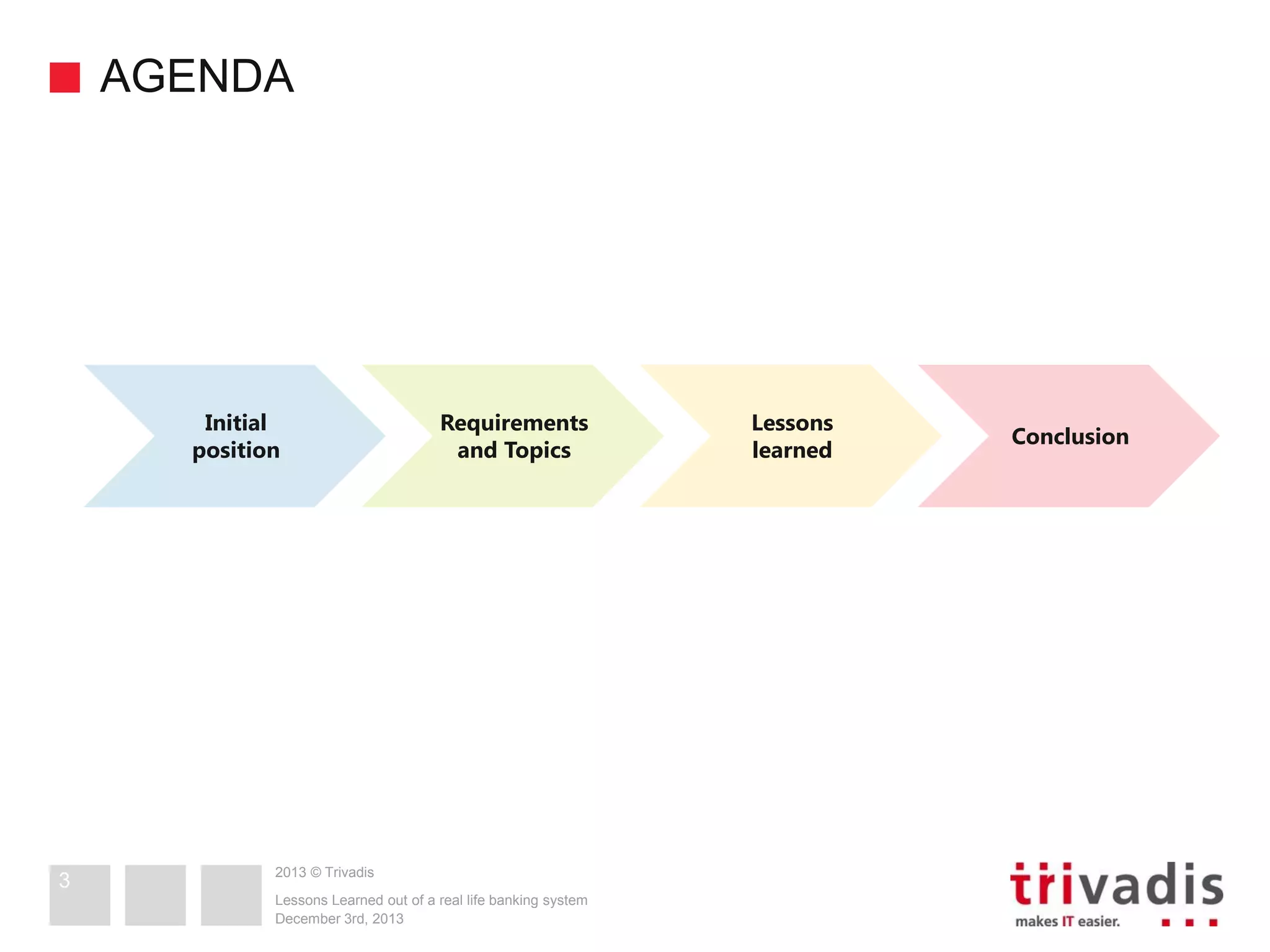

- 3. AGENDA Initial position 3 Requirements and Topics 2013 ©Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Lessons learned Conclusion

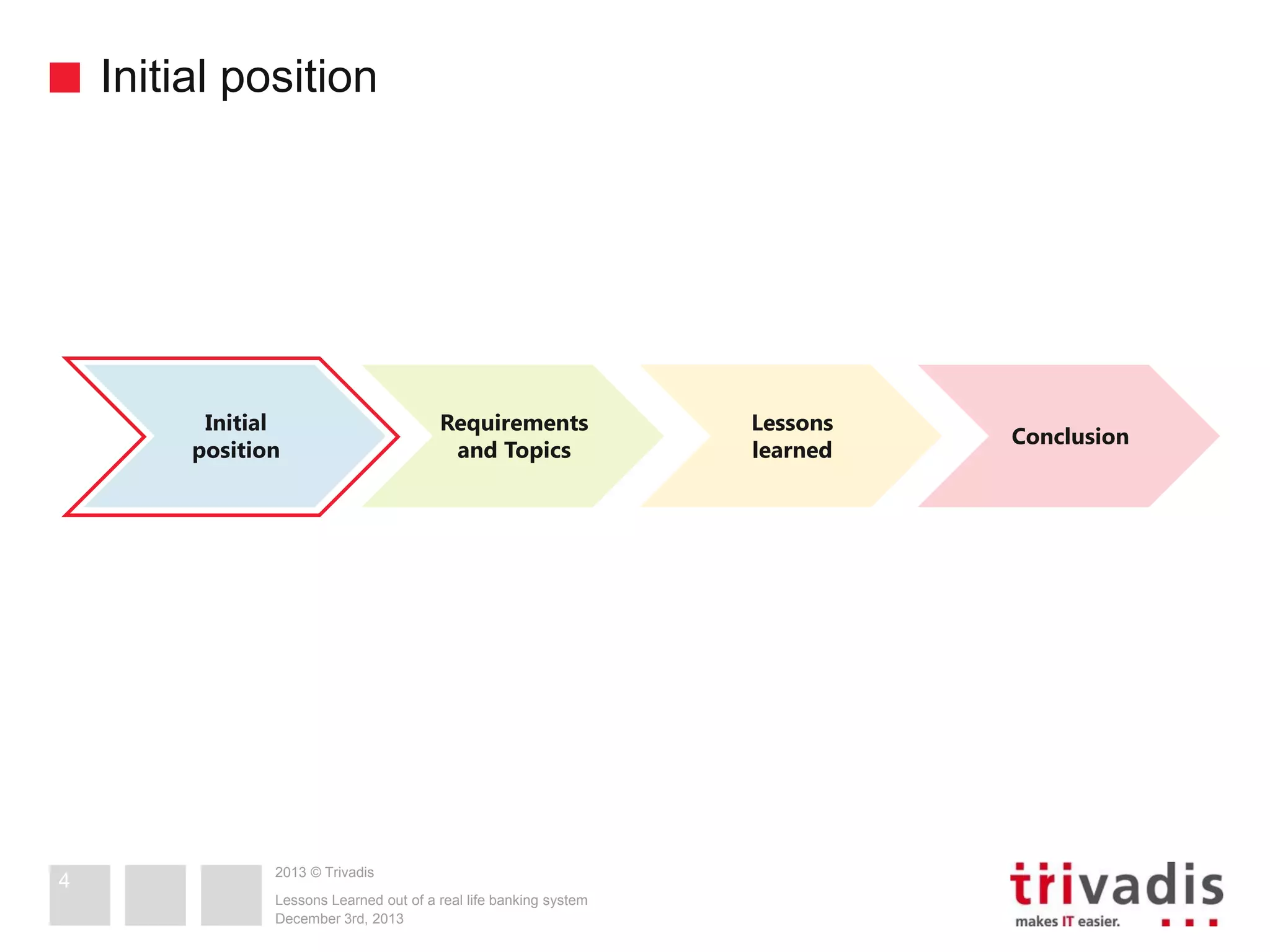

- 4. Initial position Initial position 4 Requirements and Topics 2013© Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Lessons learned Conclusion

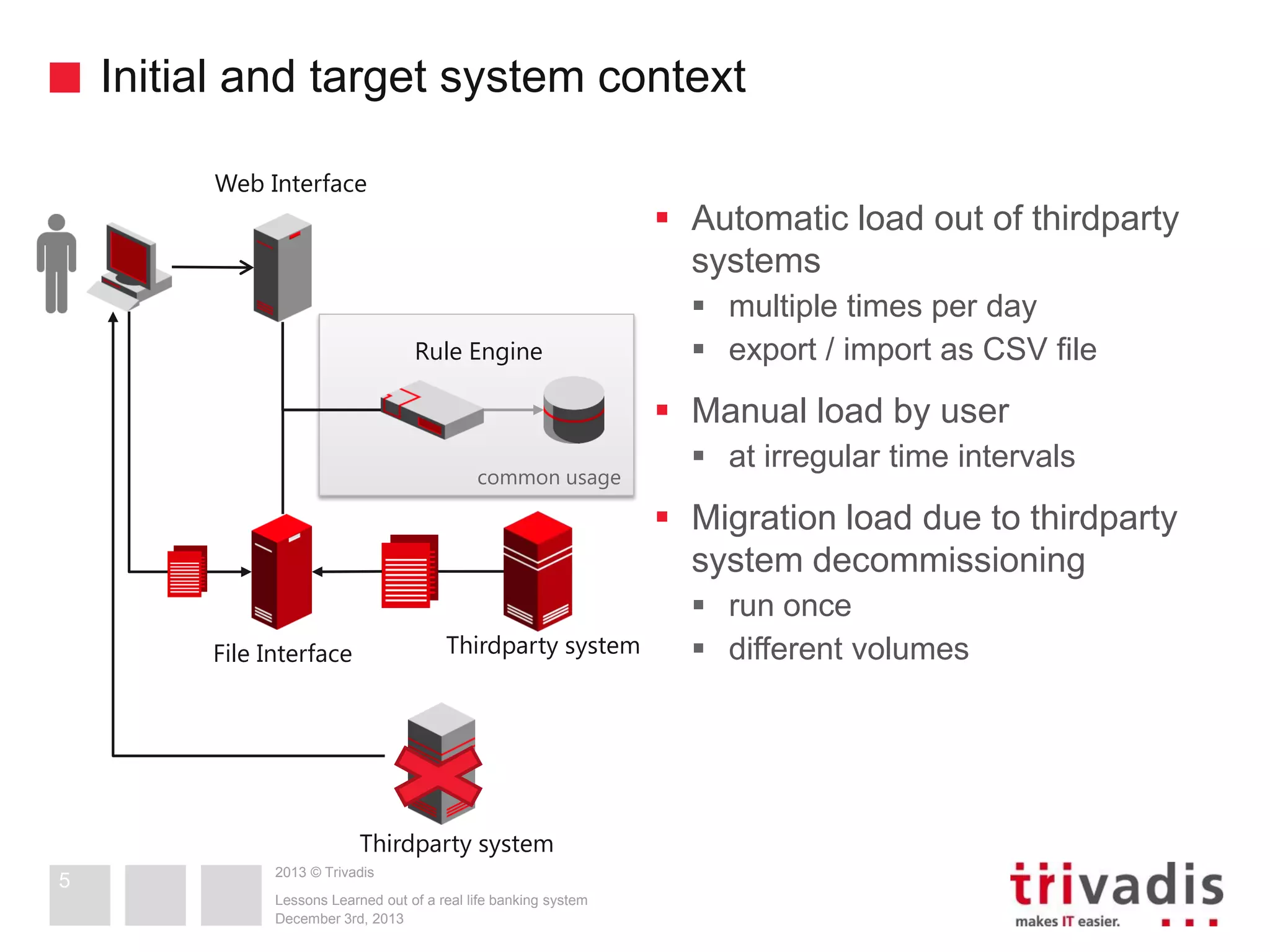

- 5. Initial and targetsystem context Web Interface Automatic load out of thirdparty systems Rule Engine multiple times per day export / import as CSV file Manual load by user common usage at irregular time intervals Migration load due to thirdparty system decommissioning Thirdparty system File Interface Thirdparty system 5 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 run once different volumes

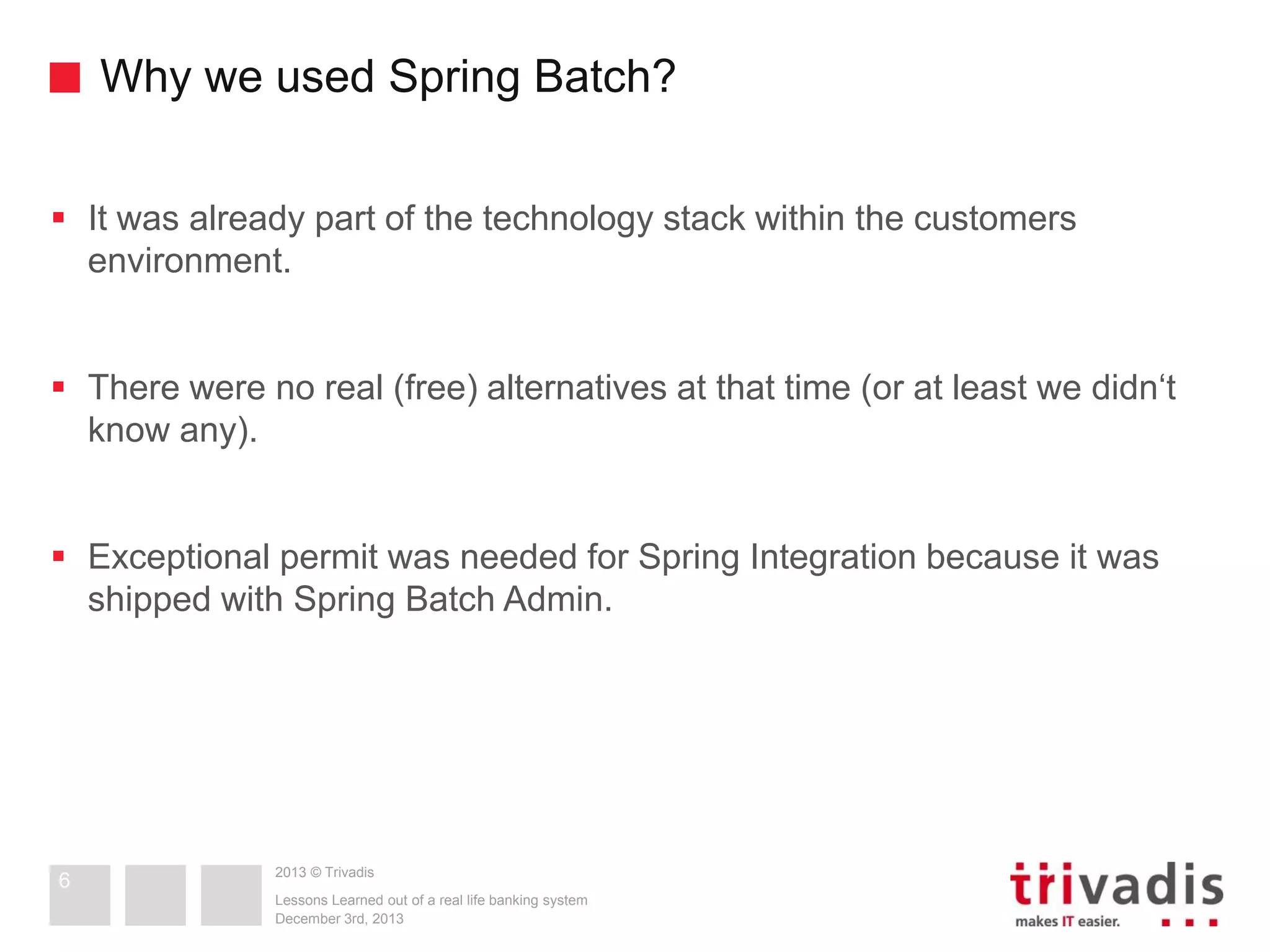

- 6. Why we usedSpring Batch? It was already part of the technology stack within the customers environment. There were no real (free) alternatives at that time (or at least we didn‘t know any). Exceptional permit was needed for Spring Integration because it was shipped with Spring Batch Admin. 6 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

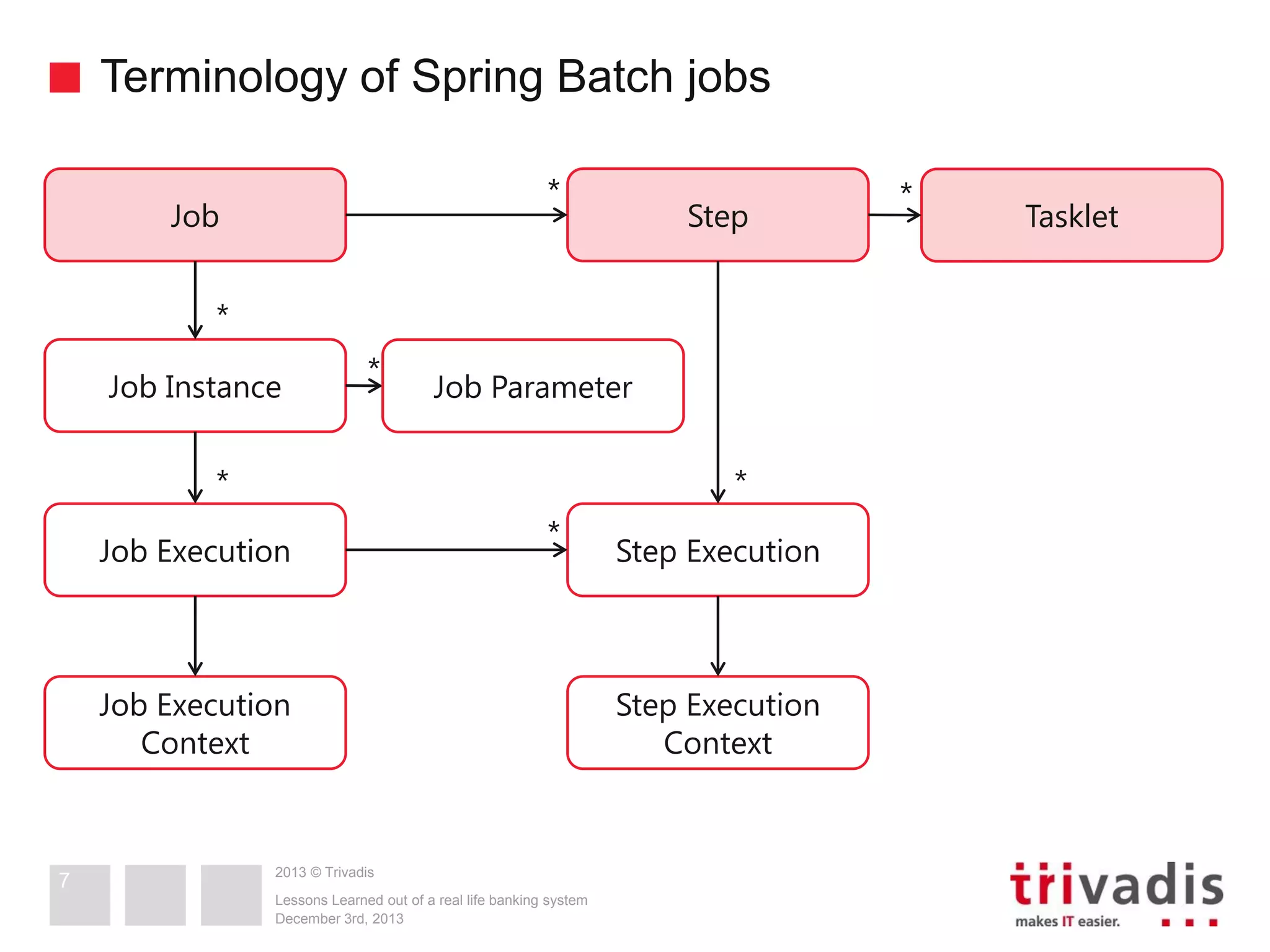

- 7. Terminology of SpringBatch jobs * Job Step * Job Instance * Job Parameter * * Job Execution * Job Execution Context 7 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Step Execution Step Execution Context * Tasklet

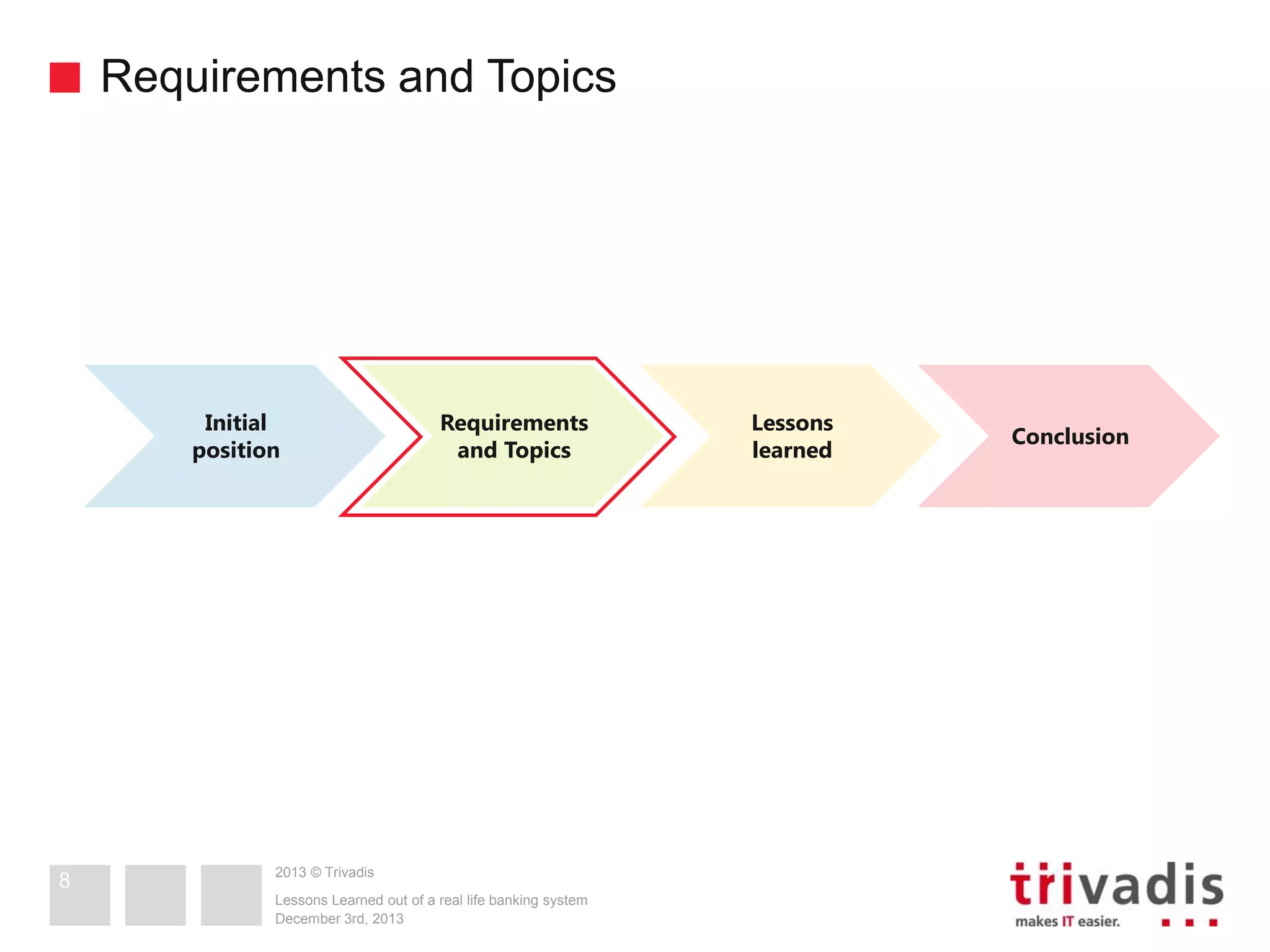

- 8. Requirements and Topics Initial position 8 Requirements andTopics 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Lessons learned Conclusion

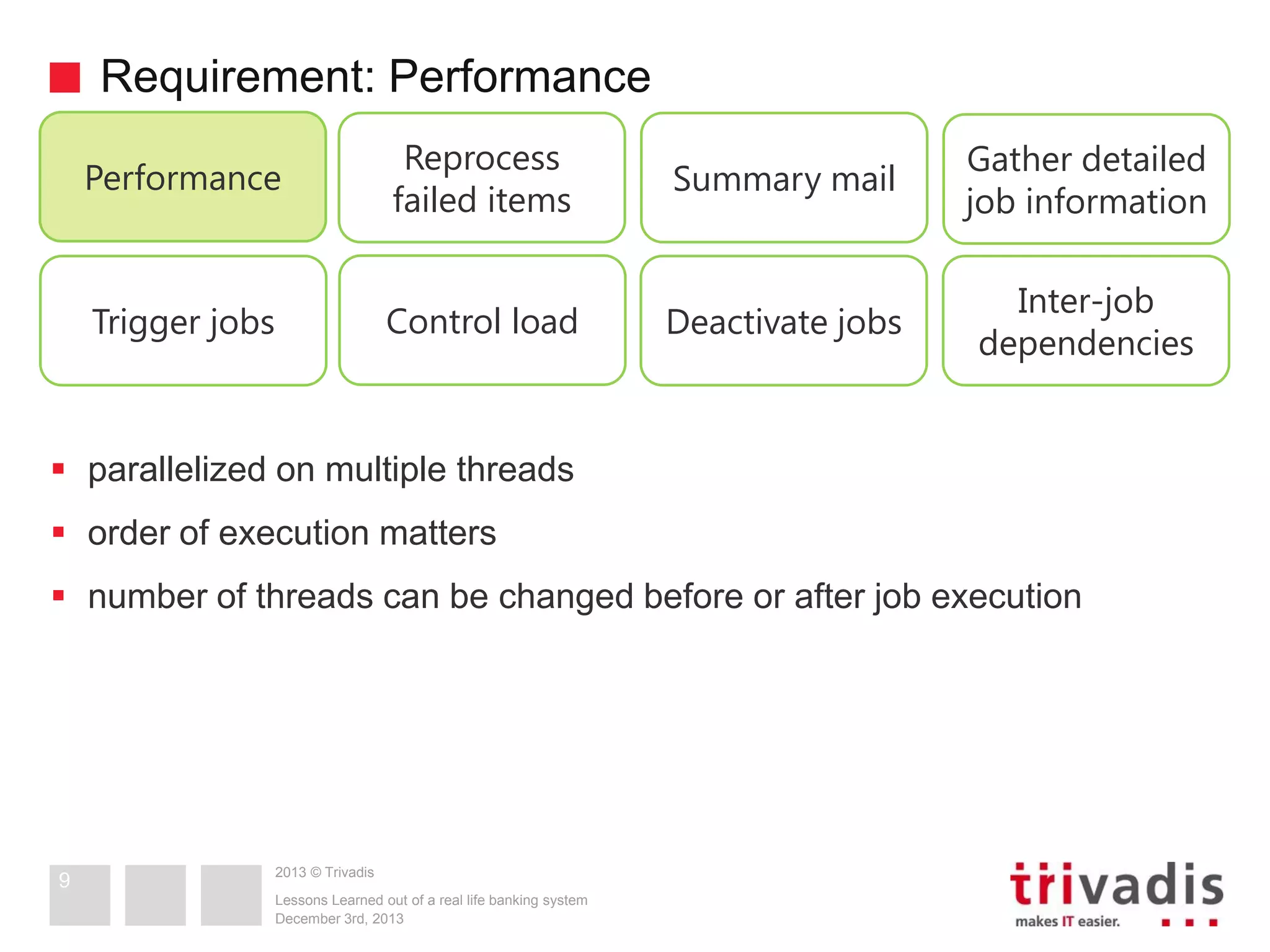

- 9. Requirement: Performance Performance Reprocess failed items Summarymail Gather detailed job information Trigger jobs Control load Deactivate jobs Inter-job dependencies parallelized on multiple threads order of execution matters number of threads can be changed before or after job execution 9 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

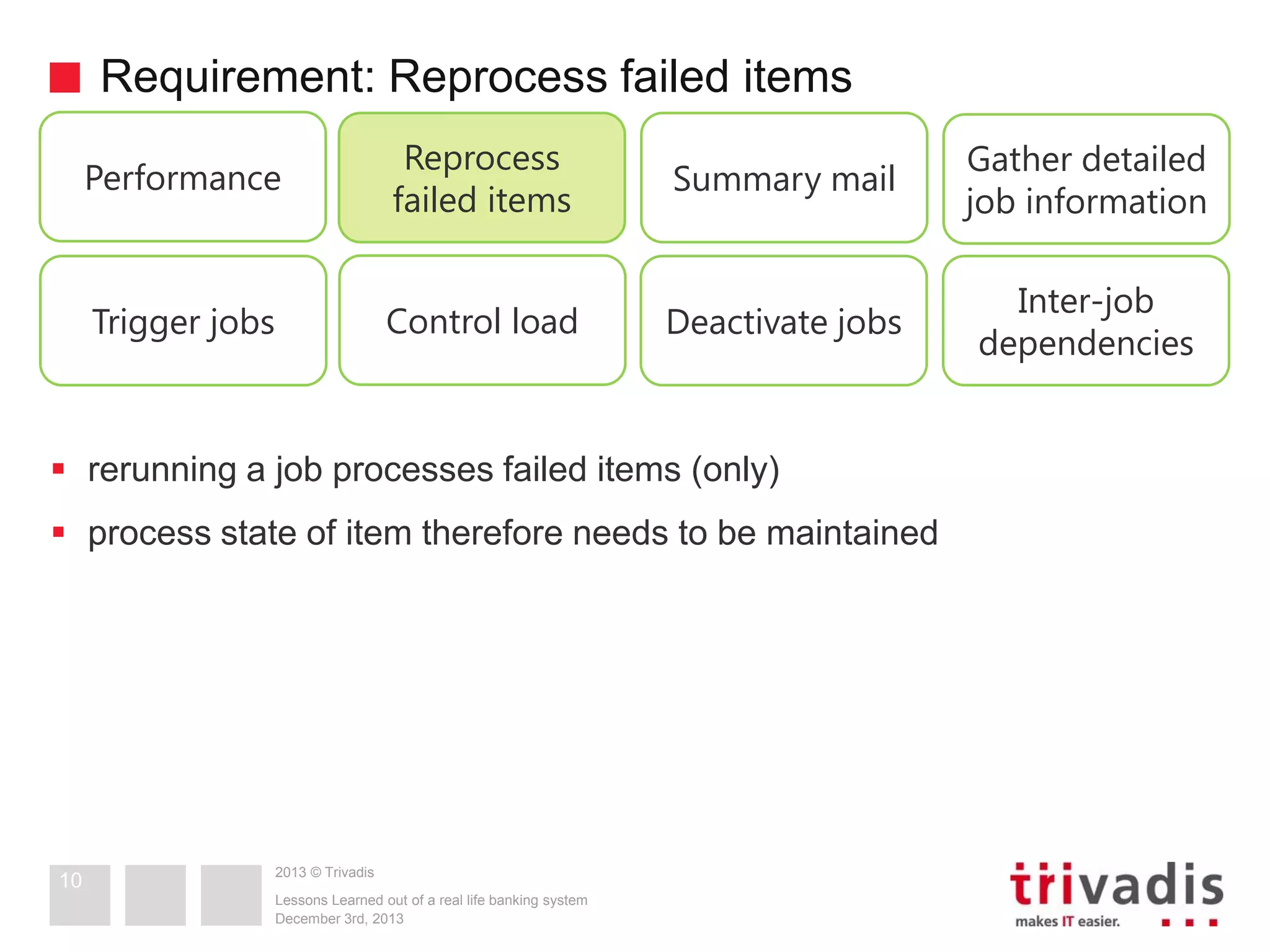

- 10. Requirement: Reprocess faileditems Performance Reprocess failed items Summary mail Gather detailed job information Trigger jobs Control load Deactivate jobs Inter-job dependencies rerunning a job processes failed items (only) process state of item therefore needs to be maintained 10 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

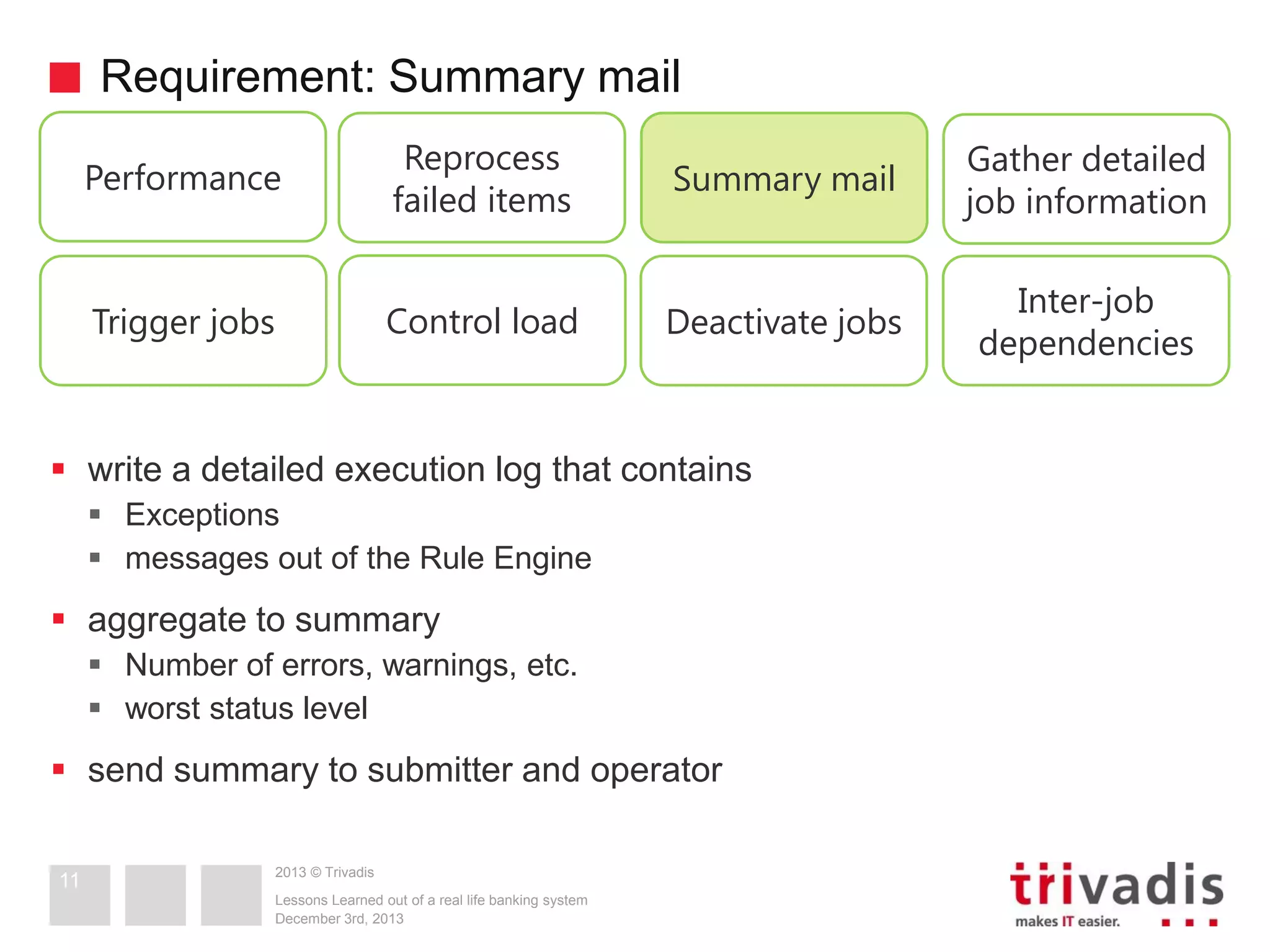

- 11. Requirement: Summary mail Performance Reprocess faileditems Summary mail Gather detailed job information Trigger jobs Control load Deactivate jobs Inter-job dependencies write a detailed execution log that contains Exceptions messages out of the Rule Engine aggregate to summary Number of errors, warnings, etc. worst status level send summary to submitter and operator 11 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

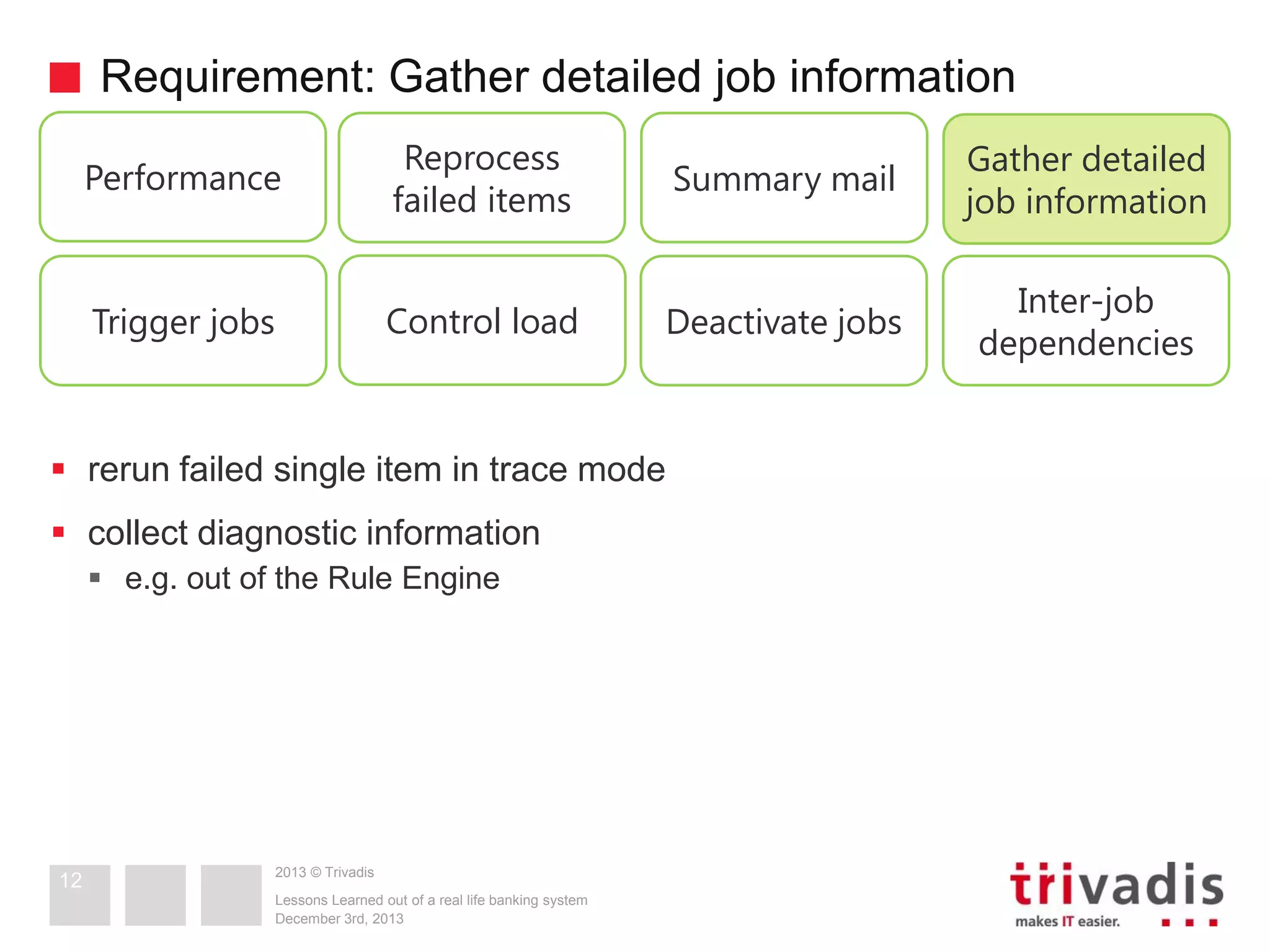

- 12. Requirement: Gather detailedjob information Performance Reprocess failed items Summary mail Gather detailed job information Trigger jobs Control load Deactivate jobs Inter-job dependencies rerun failed single item in trace mode collect diagnostic information e.g. out of the Rule Engine 12 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

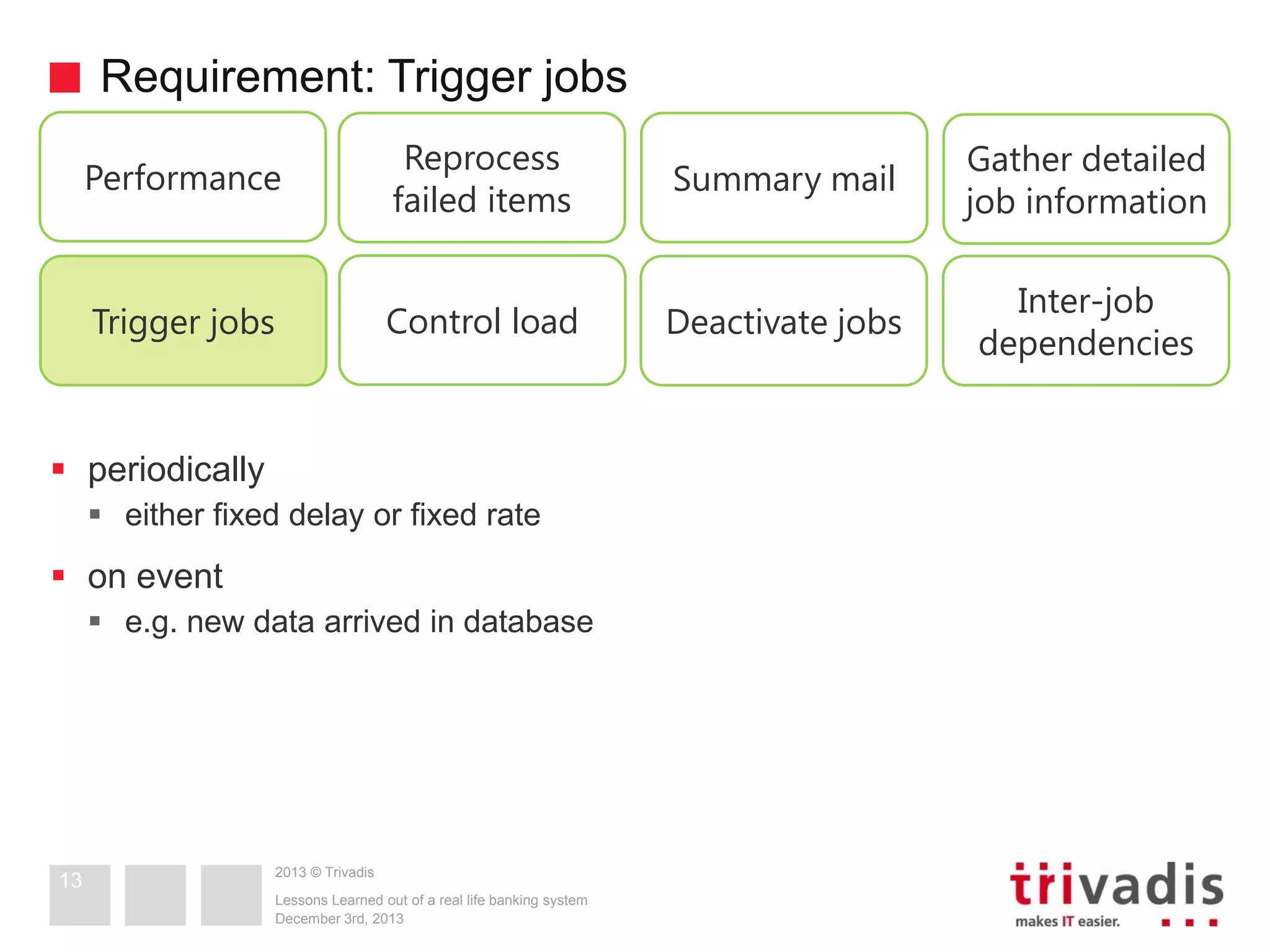

- 13. Requirement: Trigger jobs Performance Reprocess faileditems Summary mail Gather detailed job information Trigger jobs Control load Deactivate jobs Inter-job dependencies periodically either fixed delay or fixed rate on event e.g. new data arrived in database 13 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

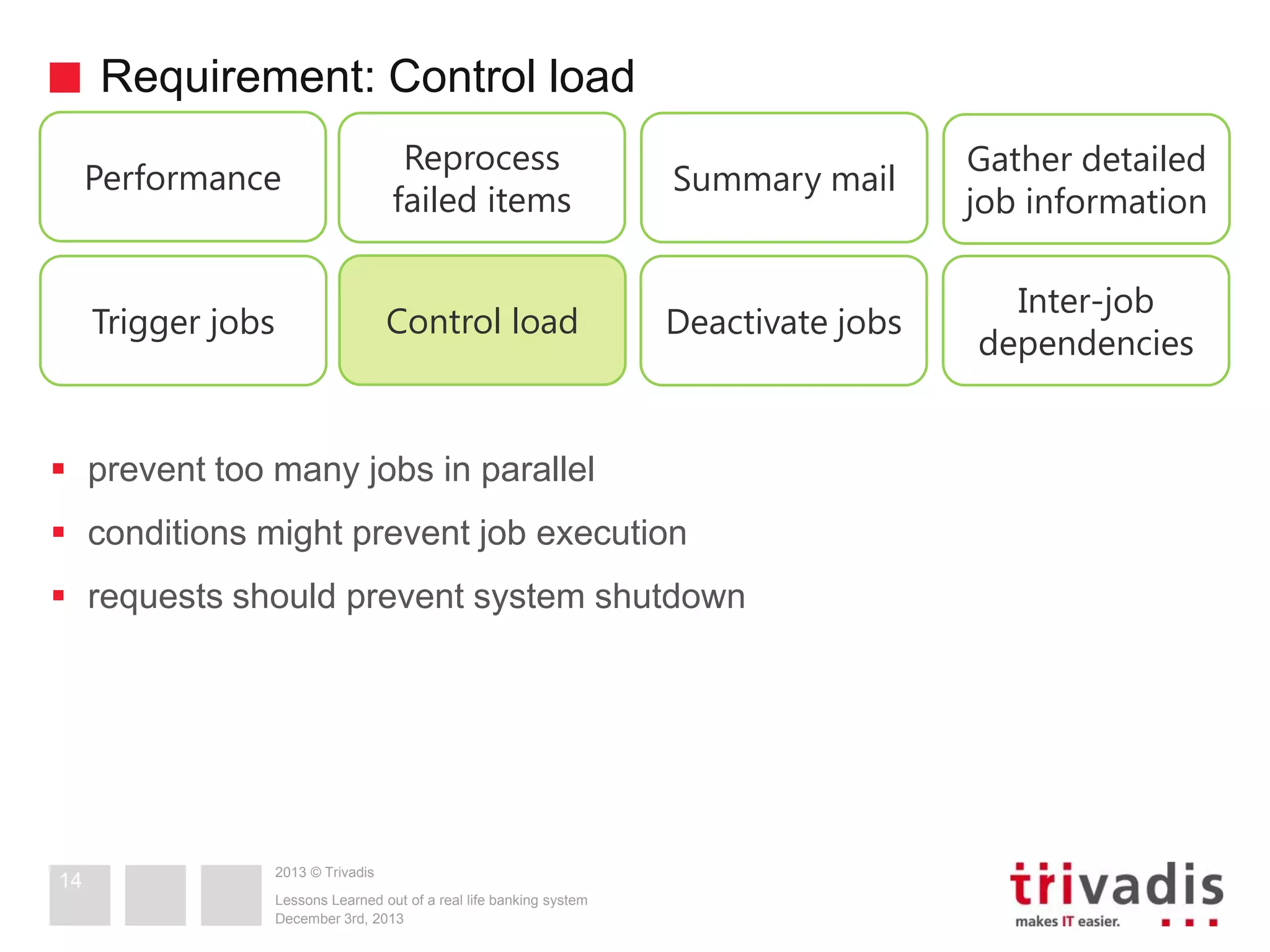

- 14. Requirement: Control load Performance Reprocess faileditems Summary mail Gather detailed job information Trigger jobs Control load Deactivate jobs Inter-job dependencies prevent too many jobs in parallel conditions might prevent job execution requests should prevent system shutdown 14 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

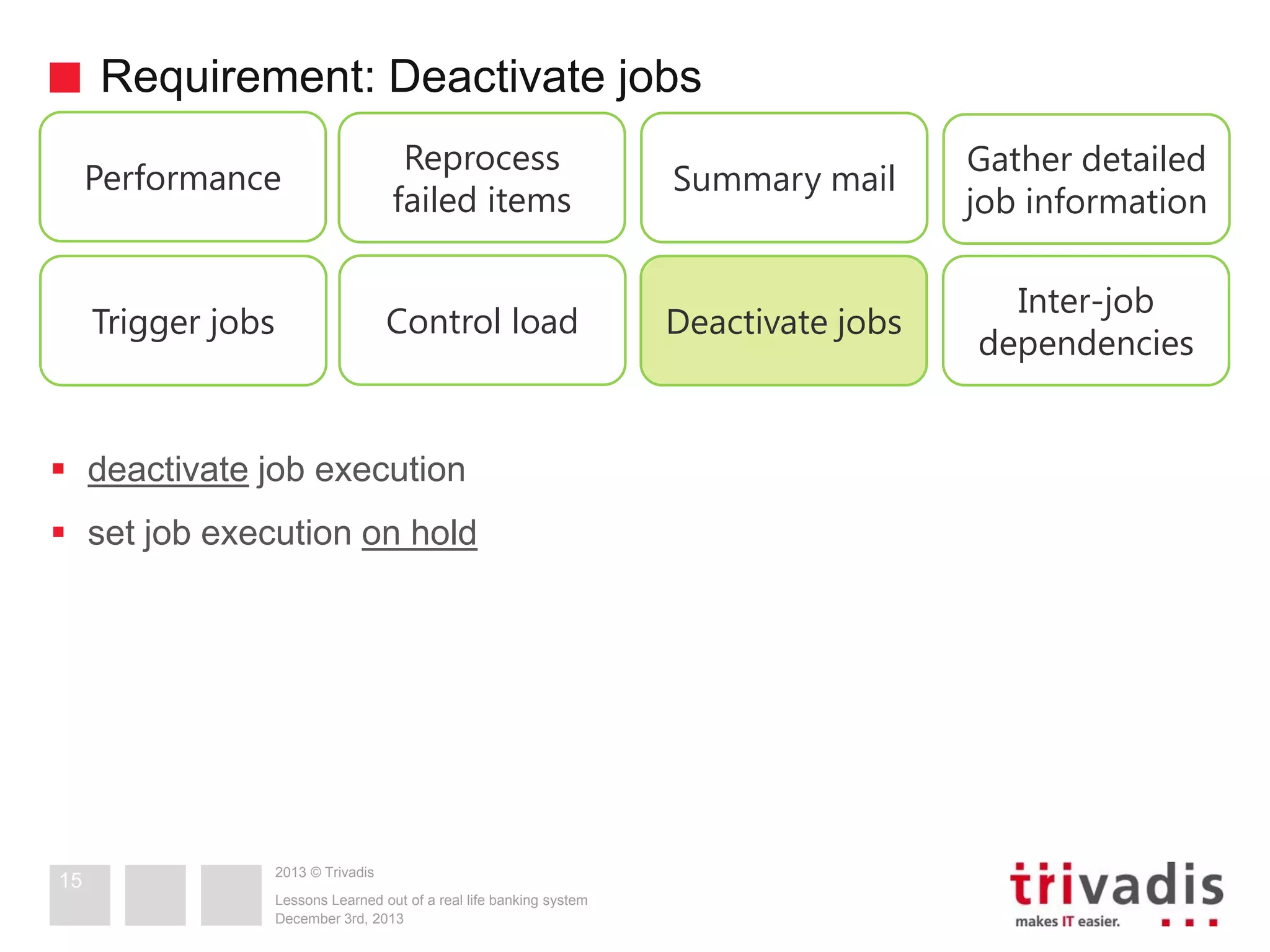

- 15. Requirement: Deactivate jobs Performance Reprocess faileditems Summary mail Gather detailed job information Trigger jobs Control load Deactivate jobs Inter-job dependencies deactivate job execution set job execution on hold 15 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

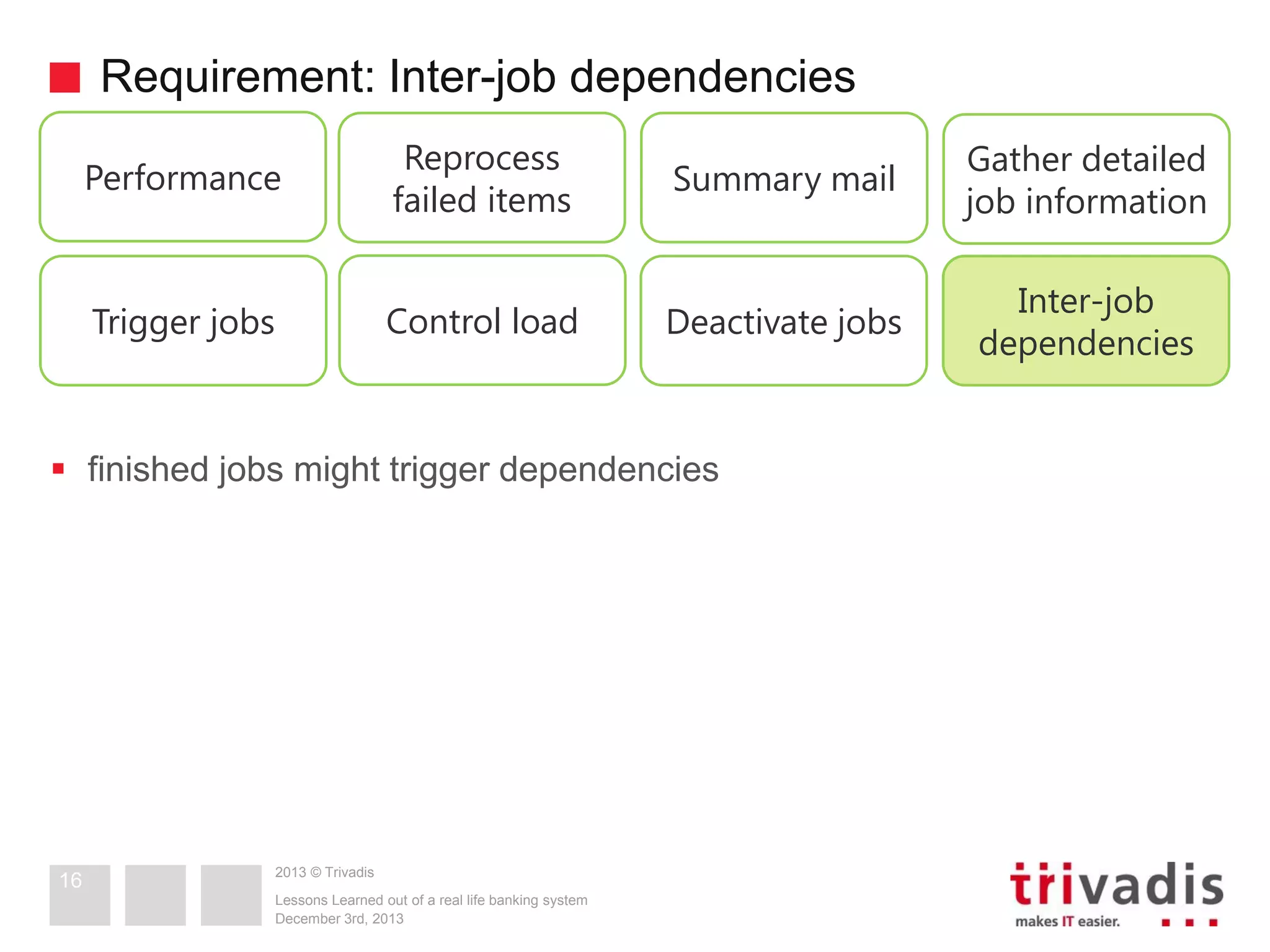

- 16. Requirement: Inter-job dependencies Performance Reprocess faileditems Summary mail Gather detailed job information Trigger jobs Control load Deactivate jobs Inter-job dependencies finished jobs might trigger dependencies 16 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

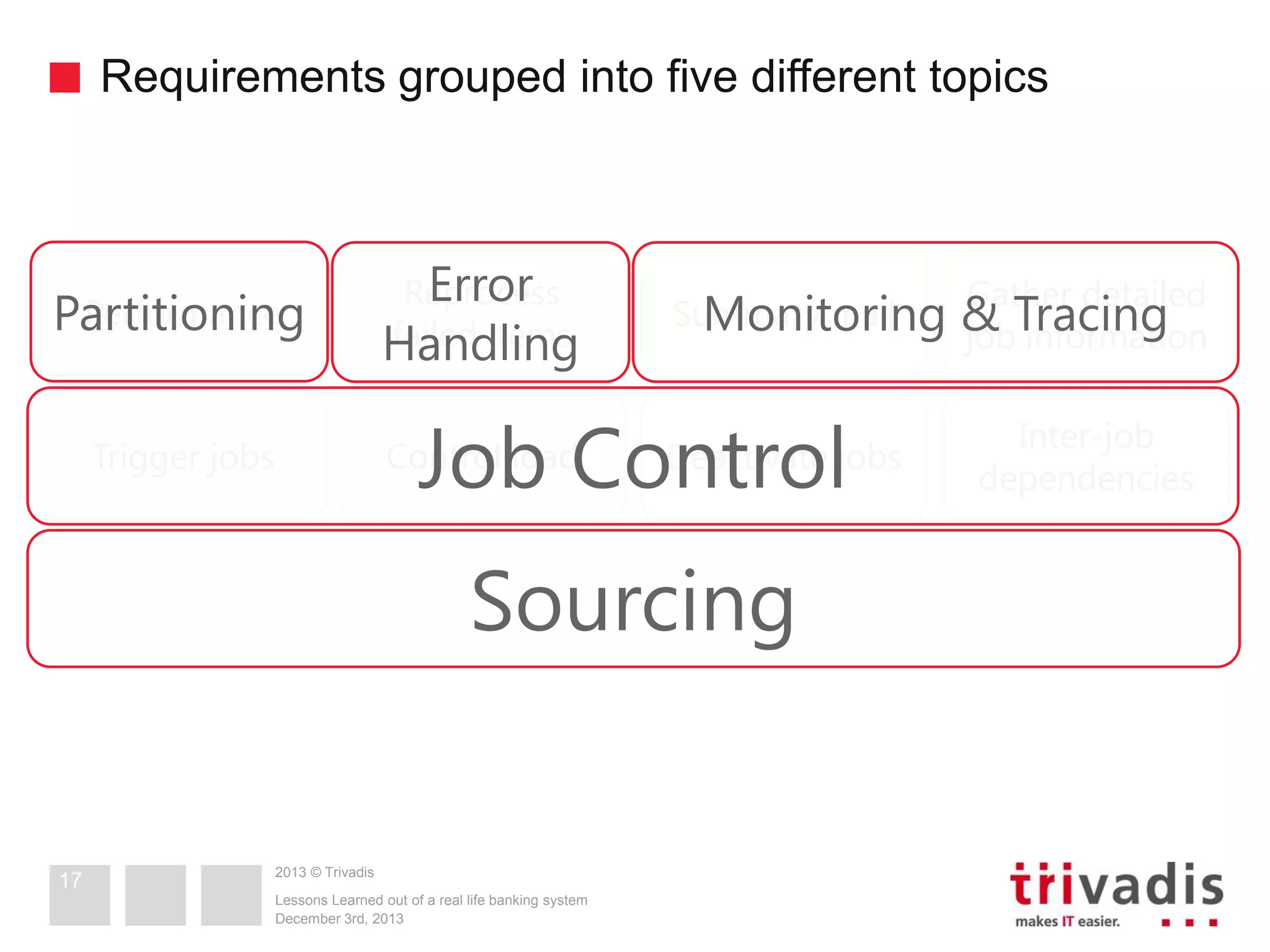

- 17. Requirements grouped intofive different topics Performance Partitioning Error Reprocess failed items Handling Trigger jobs Control load Summary mail Monitoring Job Control Deactivate jobs Sourcing 17 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Gather detailed & Tracing job information Inter-job dependencies

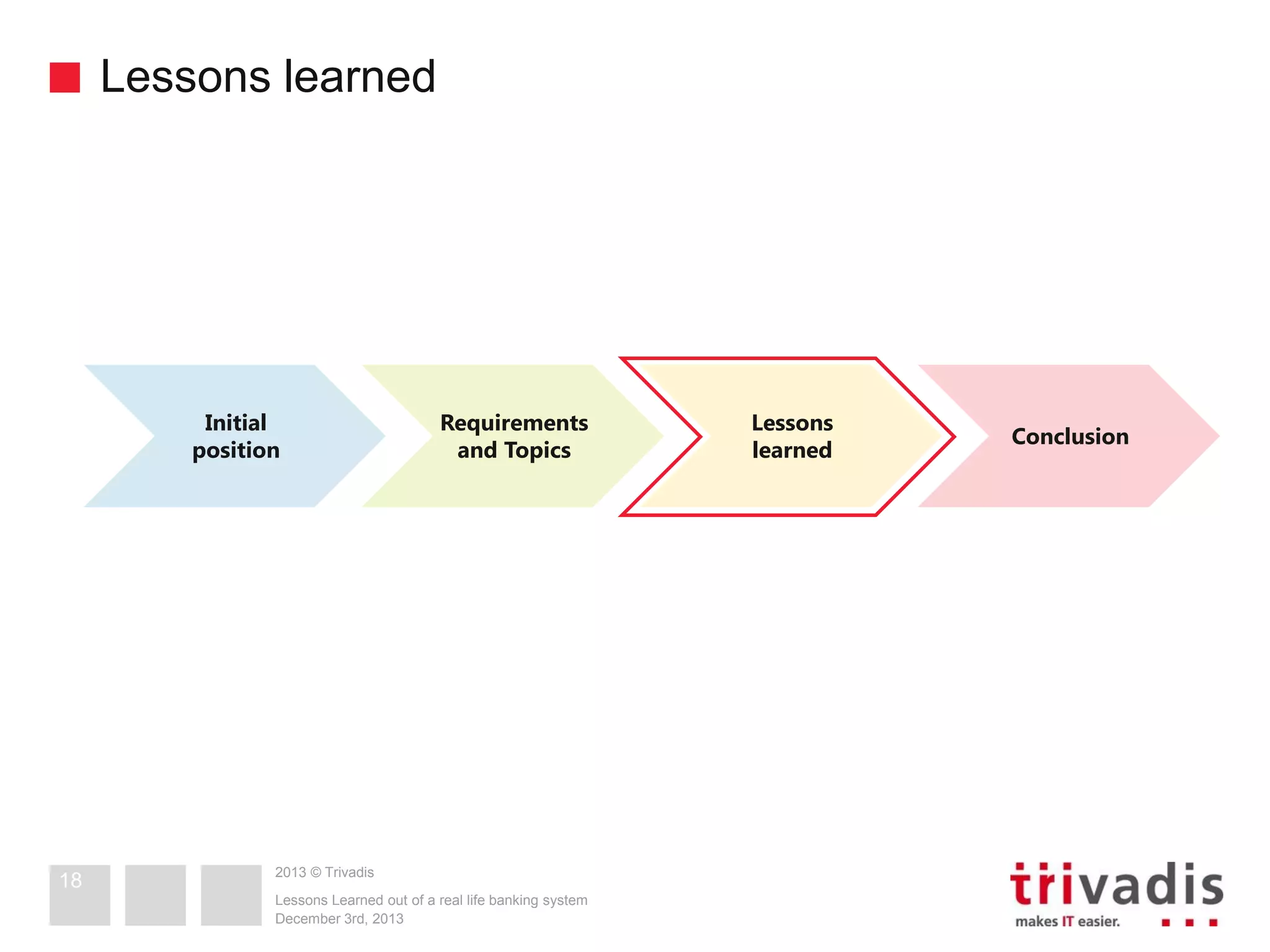

- 18. Lessons learned Initial position 18 Requirements and Topics 2013© Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Lessons learned Conclusion

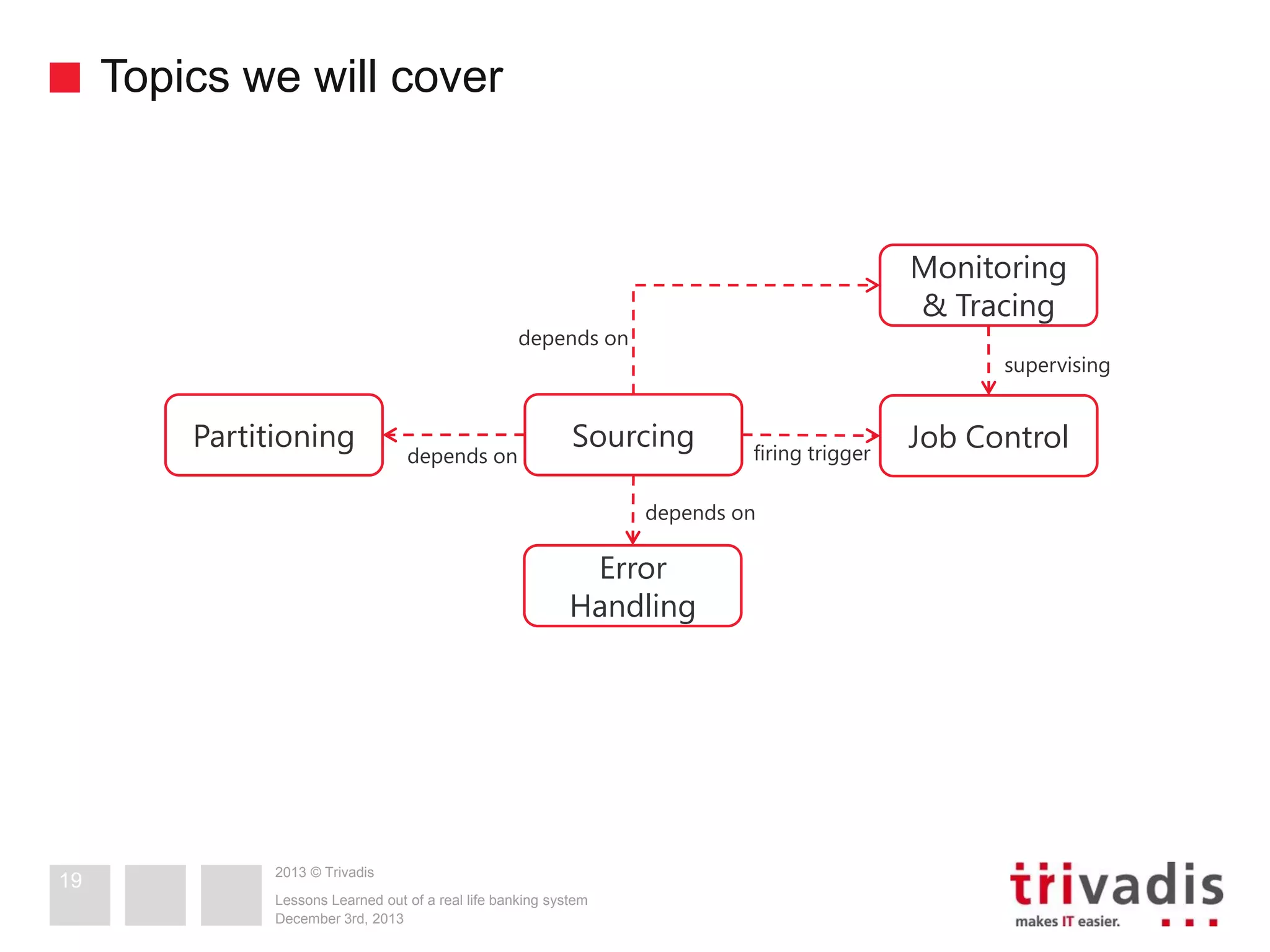

- 19. Topics we willcover Monitoring & Tracing depends on Partitioning depends on supervising Sourcing firing trigger depends on Error Handling 19 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Job Control

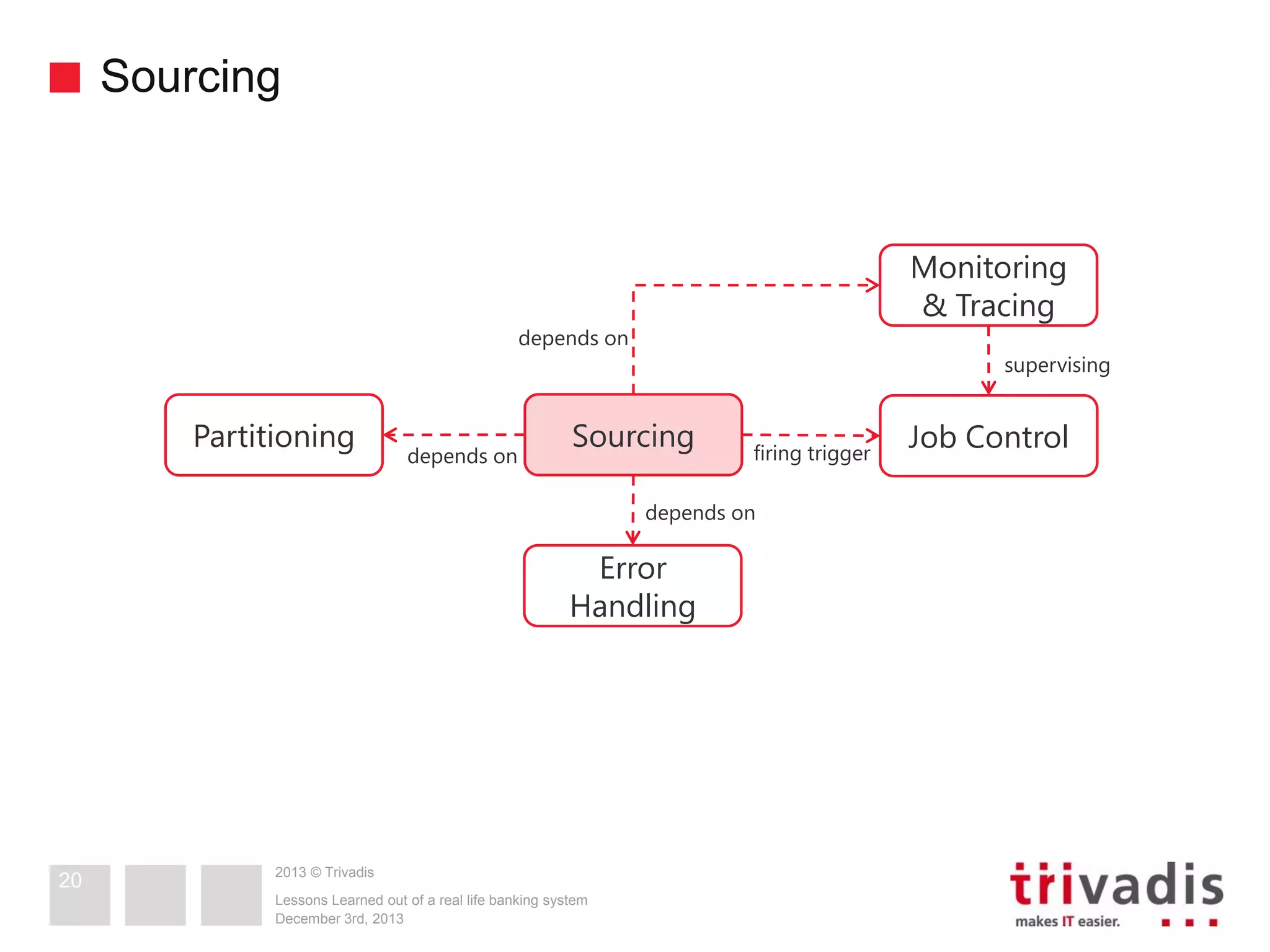

- 20. Sourcing Monitoring & Tracing depends on Partitioning dependson supervising Sourcing firing trigger depends on Error Handling 20 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Job Control

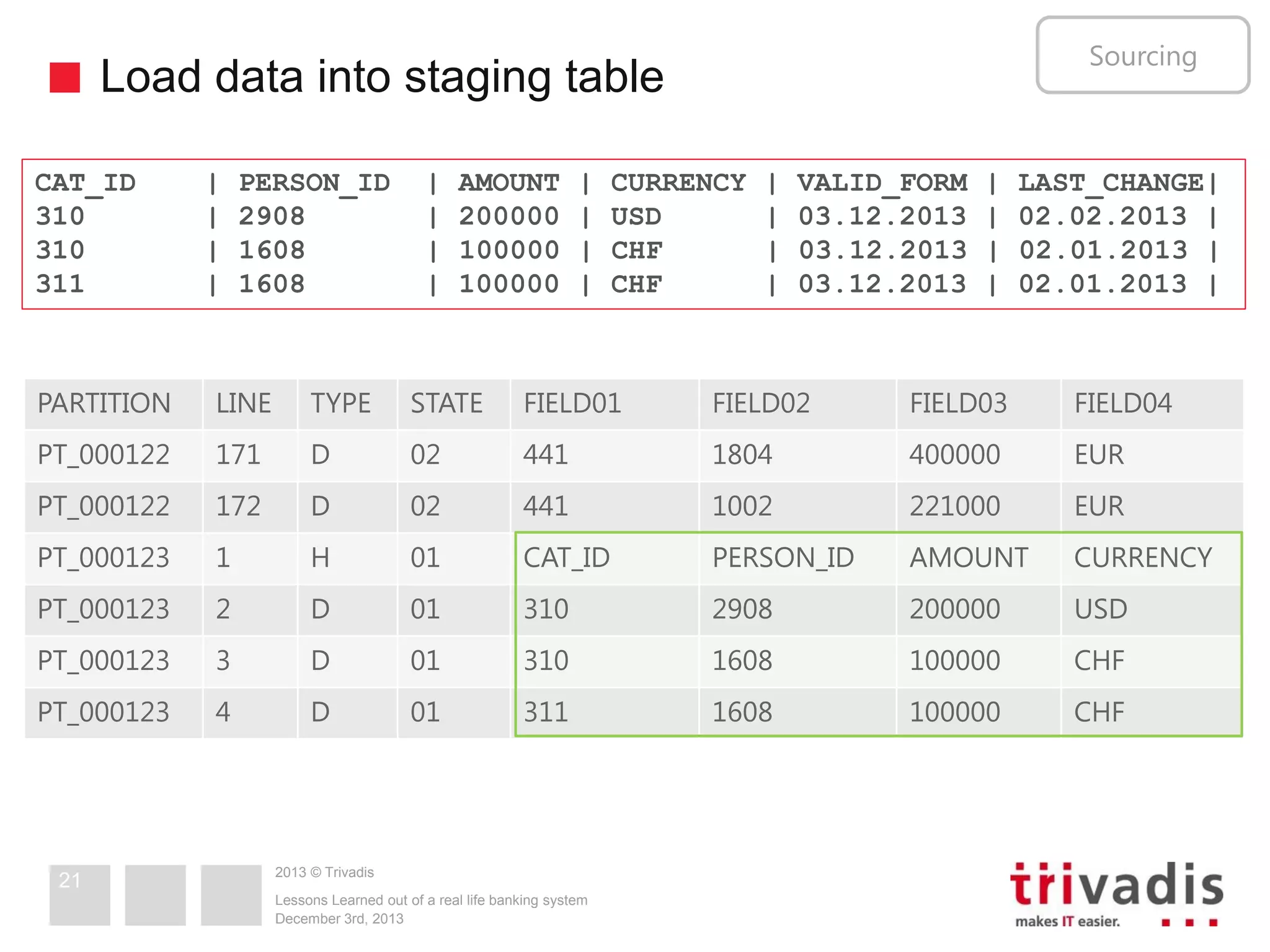

- 21. Sourcing Load data intostaging table CAT_ID 310 310 311 | | | | PERSON_ID 2908 1608 1608 | | | | AMOUNT 200000 100000 100000 | | | | CURRENCY USD CHF CHF | | | | VALID_FORM 03.12.2013 03.12.2013 03.12.2013 | | | | LAST_CHANGE| 02.02.2013 | 02.01.2013 | 02.01.2013 | PARTITION LINE TYPE STATE FIELD01 FIELD02 FIELD03 FIELD04 PT_000122 171 D 02 441 1804 400000 EUR PT_000122 172 D 02 441 1002 221000 EUR PT_000123 1 H 01 CAT_ID PERSON_ID AMOUNT CURRENCY PT_000123 2 D 01 310 2908 200000 USD PT_000123 3 D 01 310 1608 100000 CHF PT_000123 4 D 01 311 1608 100000 CHF 21 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

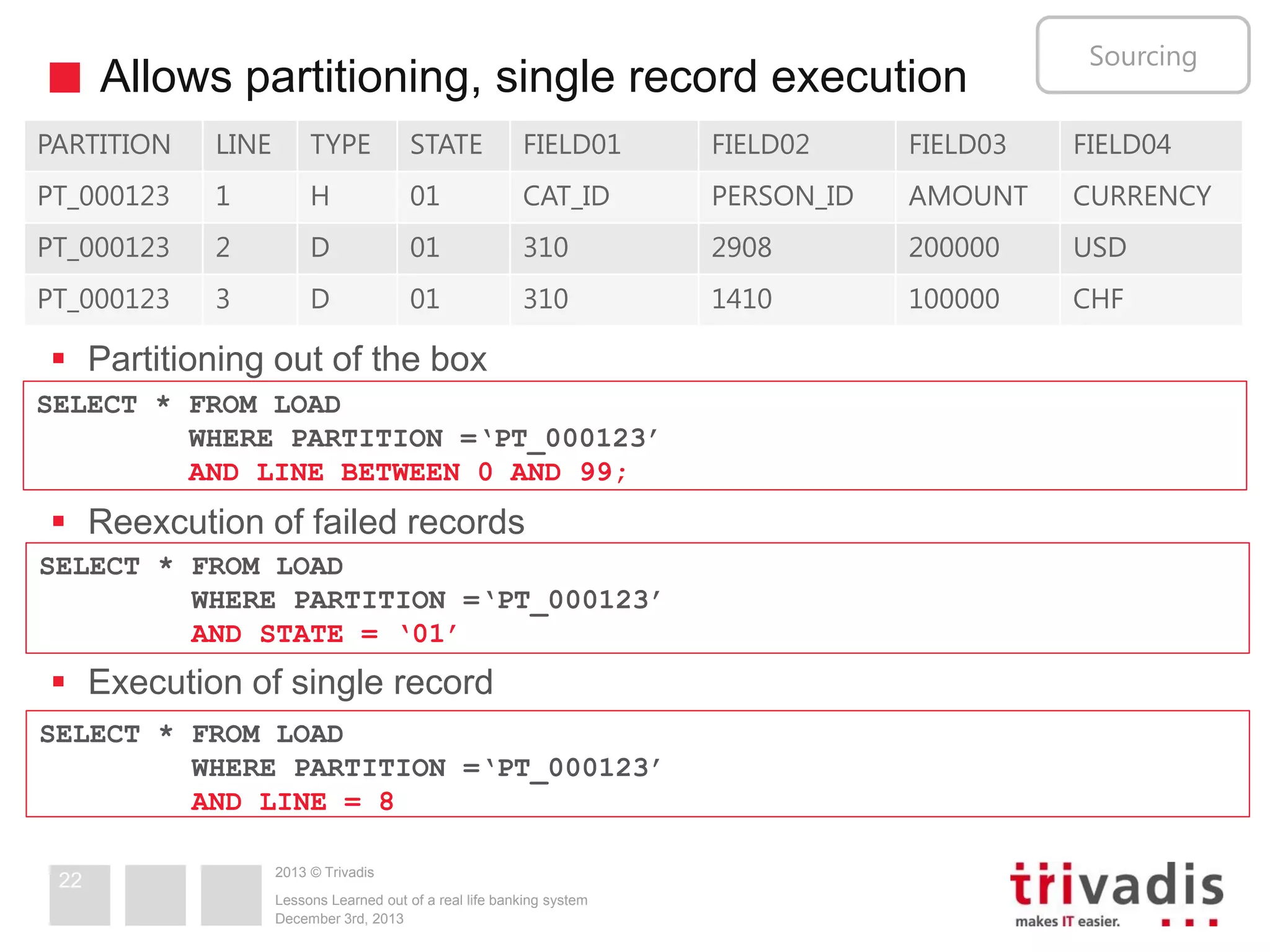

- 22. Allows partitioning, singlerecord execution Sourcing PARTITION LINE TYPE STATE FIELD01 FIELD02 FIELD03 FIELD04 PT_000123 1 H 01 CAT_ID PERSON_ID AMOUNT CURRENCY PT_000123 2 D 01 310 2908 200000 USD PT_000123 3 D 01 310 1410 100000 CHF Partitioning out of the box SELECT * FROM LOAD WHERE PARTITION =‘PT_000123’ AND LINE BETWEEN 0 AND 99; Reexcution of failed records SELECT * FROM LOAD WHERE PARTITION =‘PT_000123’ AND STATE = ‘01’ Execution of single record SELECT * FROM LOAD WHERE PARTITION =‘PT_000123’ AND LINE = 8 22 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

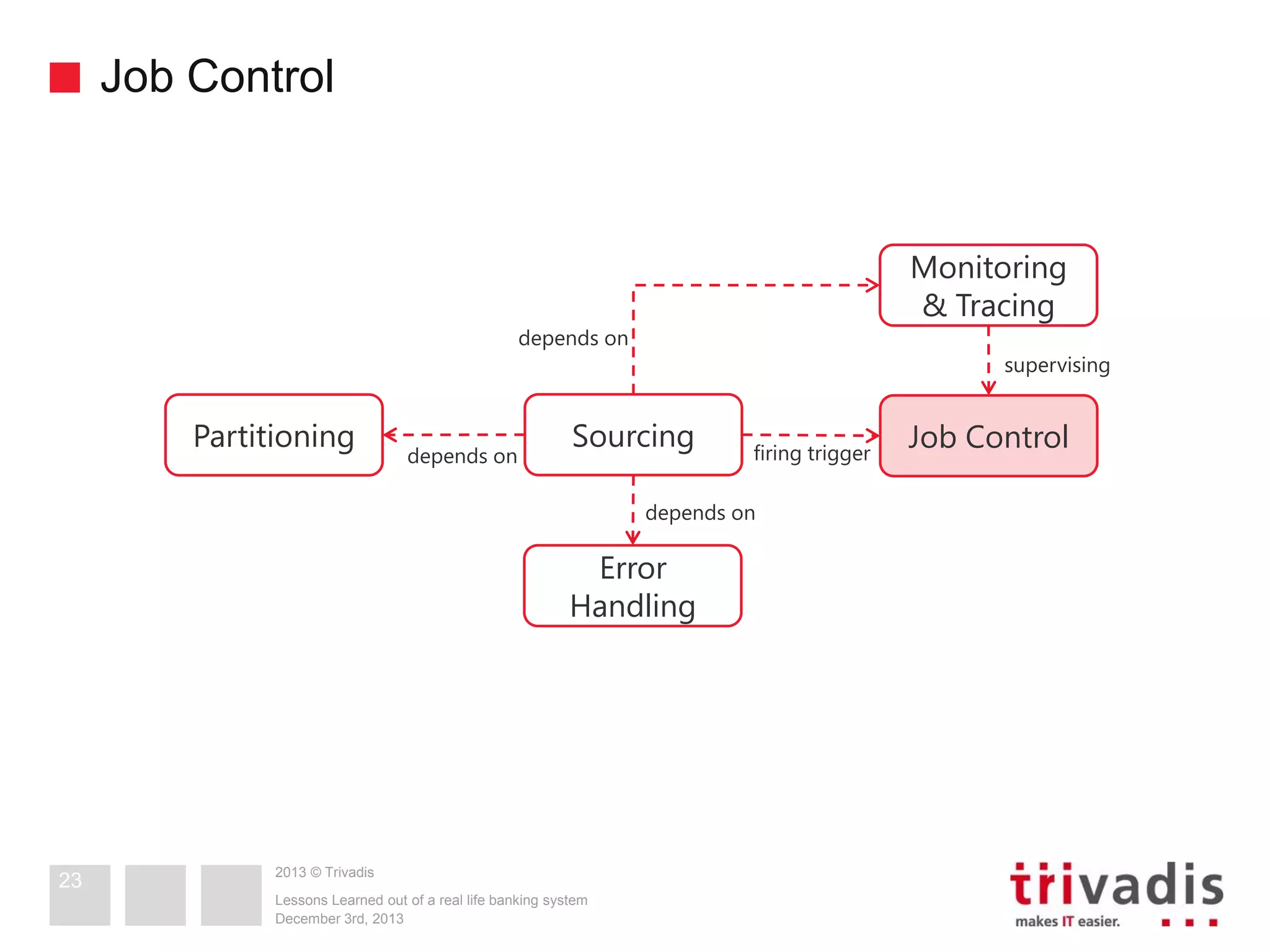

- 23. Job Control Monitoring & Tracing dependson Partitioning depends on supervising Sourcing firing trigger depends on Error Handling 23 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Job Control

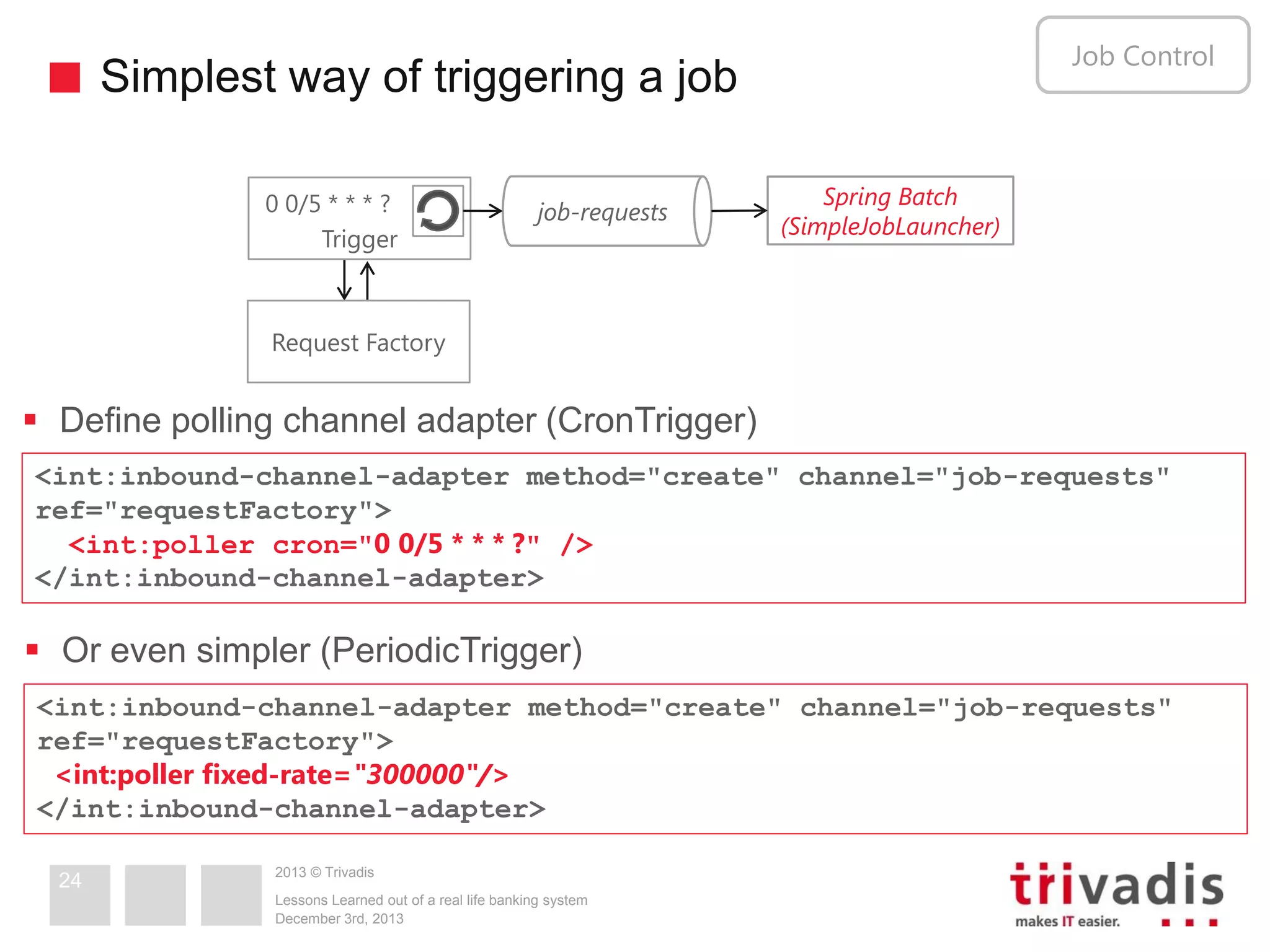

- 24. Job Control Simplest wayof triggering a job 0 0/5 * * * ? Trigger job-requests Spring Batch (SimpleJobLauncher) Request Factory Define polling channel adapter (CronTrigger) <int:inbound-channel-adapter method="create" channel="job-requests" ref="requestFactory"> <int:poller cron="0 0/5 * * * ?" /> </int:inbound-channel-adapter> Or even simpler (PeriodicTrigger) <int:inbound-channel-adapter method="create" channel="job-requests" ref="requestFactory"> <int:poller fixed-rate="300000"/> </int:inbound-channel-adapter> 24 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

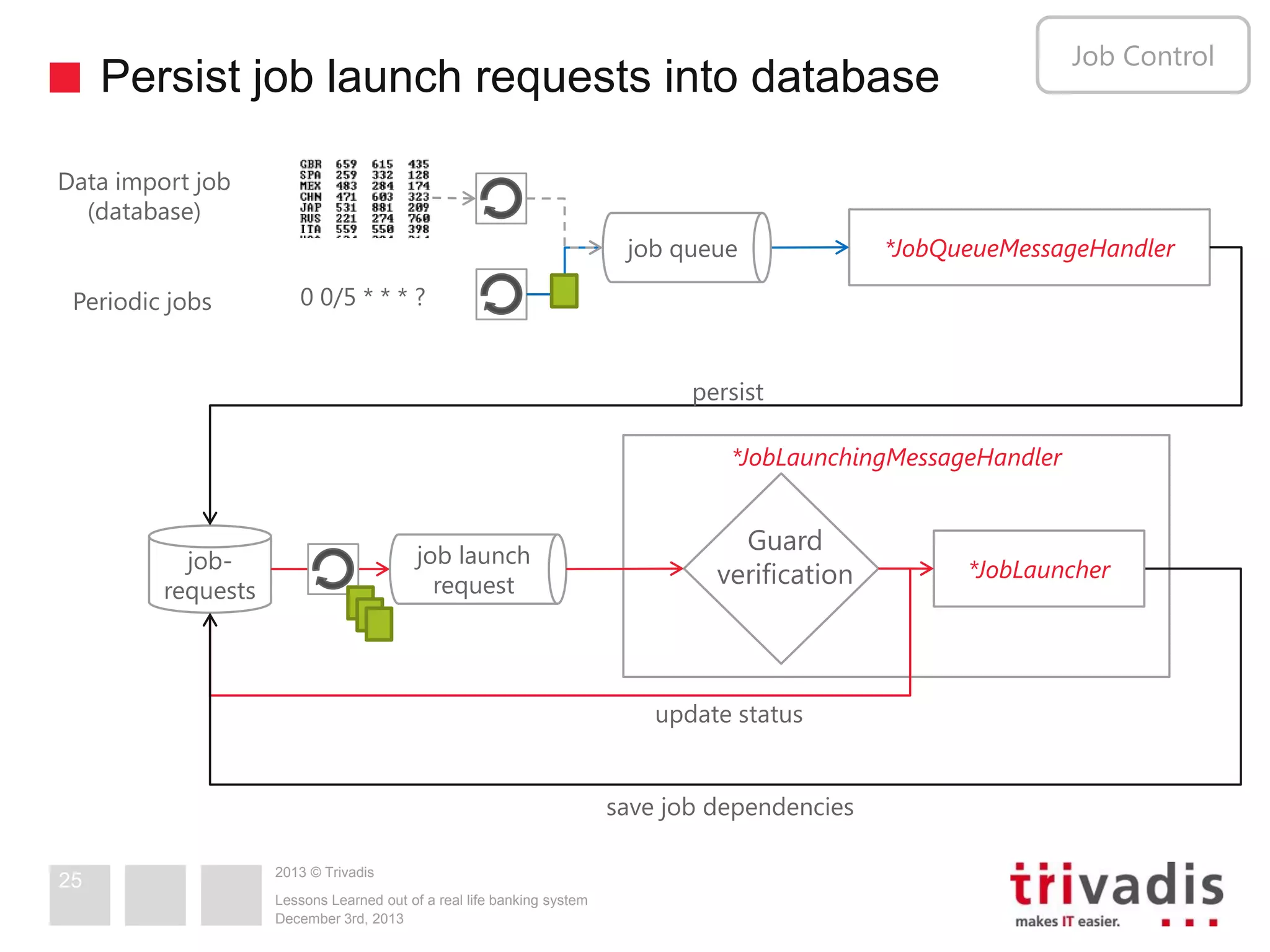

- 25. Job Control Persist joblaunch requests into database Data import job (database) job queue Periodic jobs *JobQueueMessageHandler 0 0/5 * * * ? persist *JobLaunchingMessageHandler job launch request jobrequests Guard verification update status save job dependencies 25 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 *JobLauncher

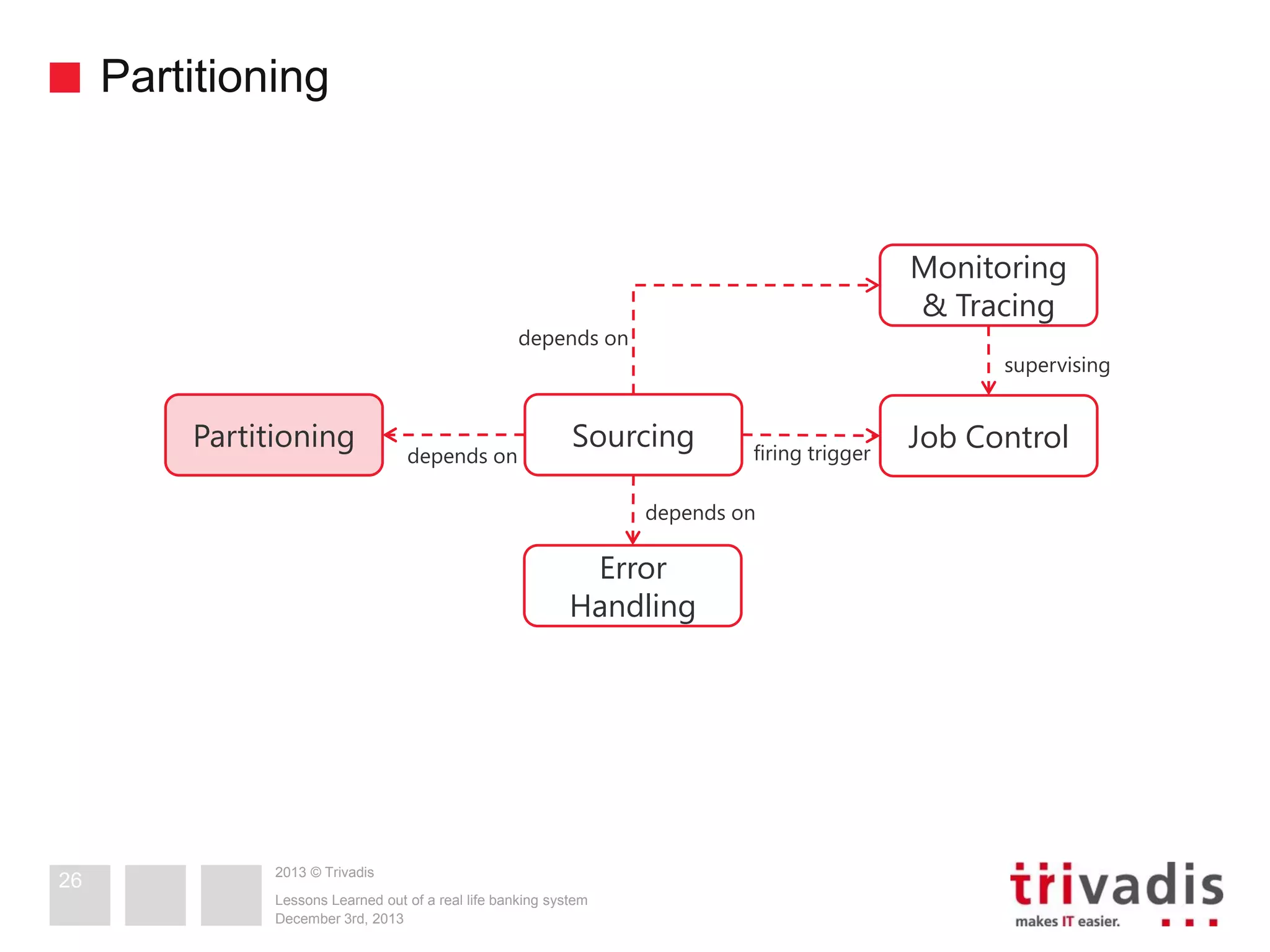

- 26. Partitioning Monitoring & Tracing depends on Partitioning dependson supervising Sourcing firing trigger depends on Error Handling 26 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Job Control

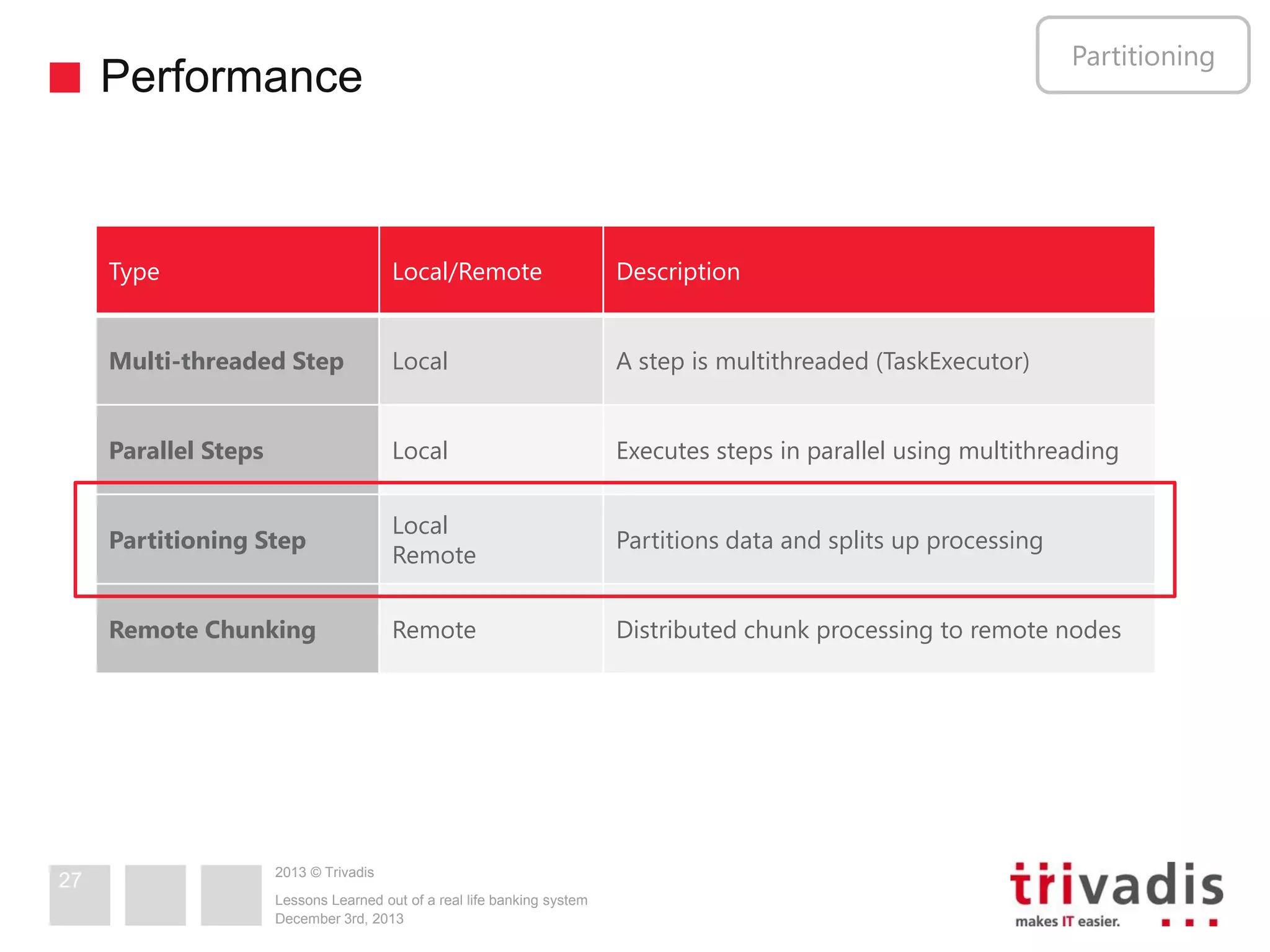

- 27. Partitioning Performance Type Description Multi-threaded Step Local A stepis multithreaded (TaskExecutor) Parallel Steps Local Executes steps in parallel using multithreading Partitioning Step Local Remote Partitions data and splits up processing Remote Chunking 27 Local/Remote Remote Distributed chunk processing to remote nodes 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

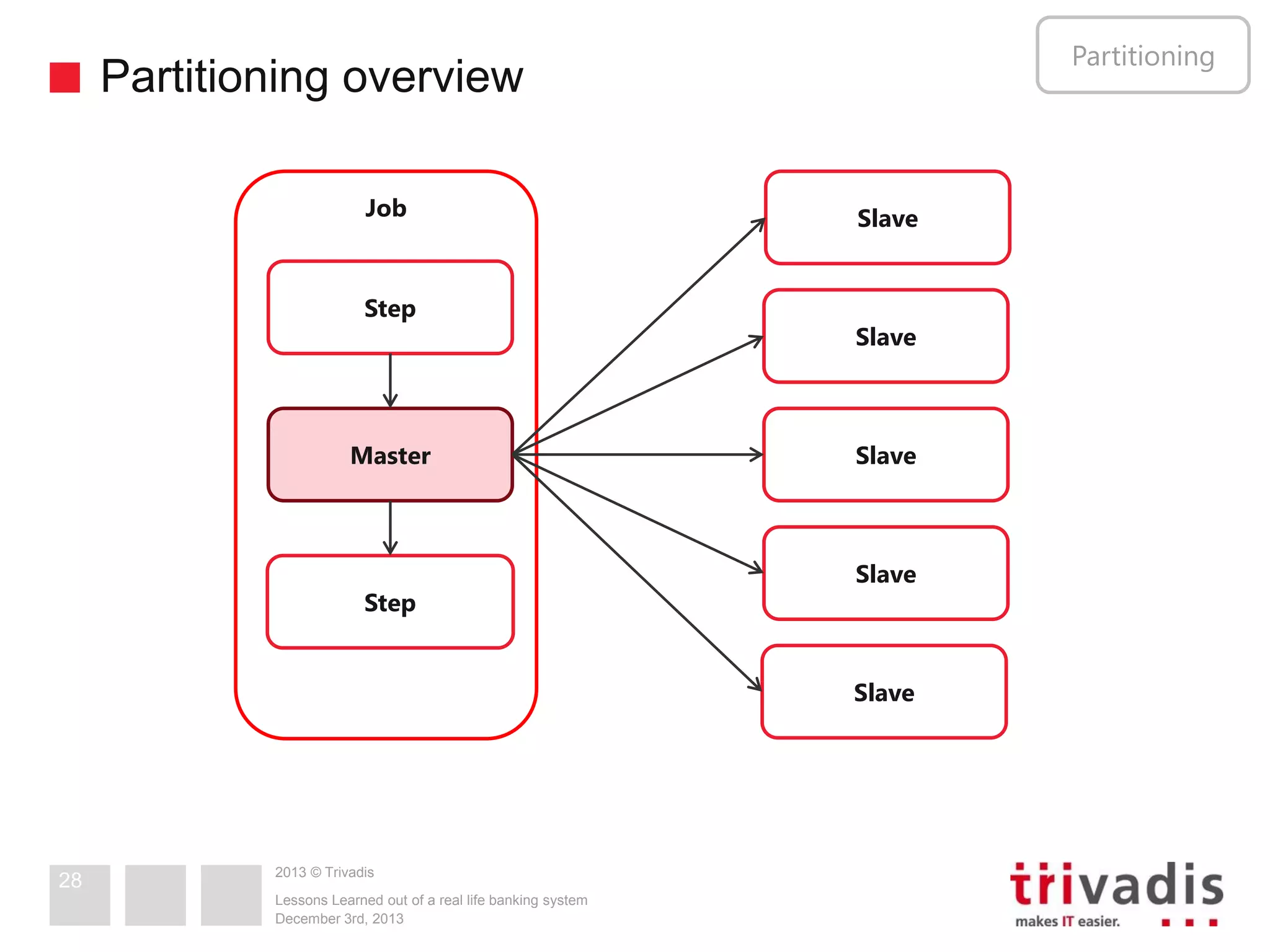

- 28. Partitioning Partitioning overview Job Step Master Step Slave Slave Slave Slave Slave 28 2013 ©Trivadis Lessons Learned out of a real life banking system December 3rd, 2013
- 29. Partitioning Partitioning detail StepScopes Execution Context [0] Execution Context[1] 29 Slave [2] Execution Context [3] Slave [3] Execution Context [4] rowId % 5 Slave [1] Execution Context [2] Master Slave [0] Slave [4] 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

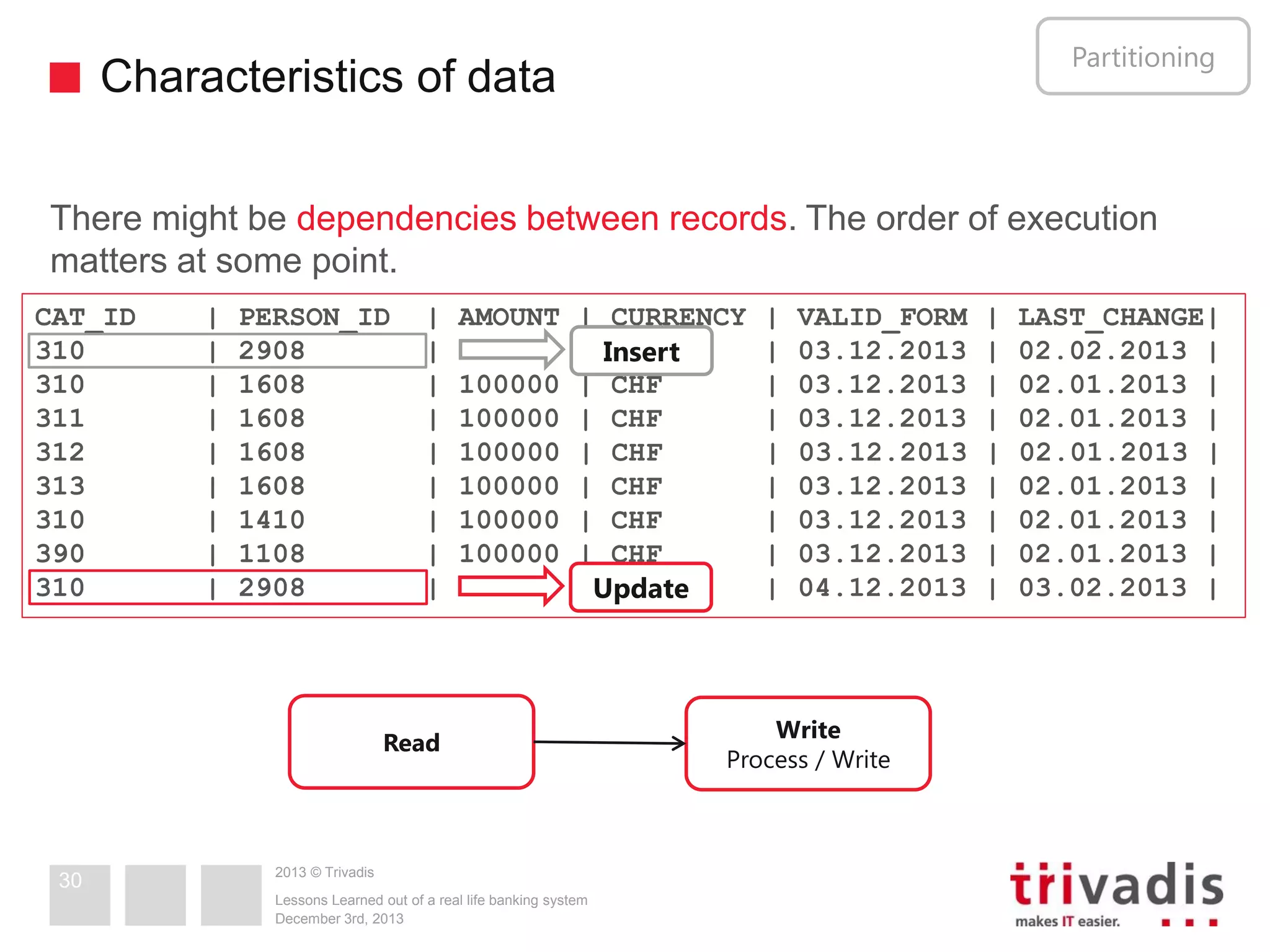

- 30. Partitioning Characteristics of data Theremight be dependencies between records. The order of execution matters at some point. CAT_ID 310 310 311 312 313 310 390 310 | | | | | | | | | PERSON_ID 2908 1608 1608 1608 1608 1410 1108 2908 | | | | | | | | | AMOUNT 200000 100000 100000 100000 100000 100000 100000 500000 | CURRENCY | Insert USD | CHF | CHF | CHF | CHF | CHF | CHF |Update USD Read 30 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 | | | | | | | | | VALID_FORM 03.12.2013 03.12.2013 03.12.2013 03.12.2013 03.12.2013 03.12.2013 03.12.2013 04.12.2013 Write Process / Write | | | | | | | | | LAST_CHANGE| 02.02.2013 | 02.01.2013 | 02.01.2013 | 02.01.2013 | 02.01.2013 | 02.01.2013 | 02.01.2013 | 03.02.2013 |

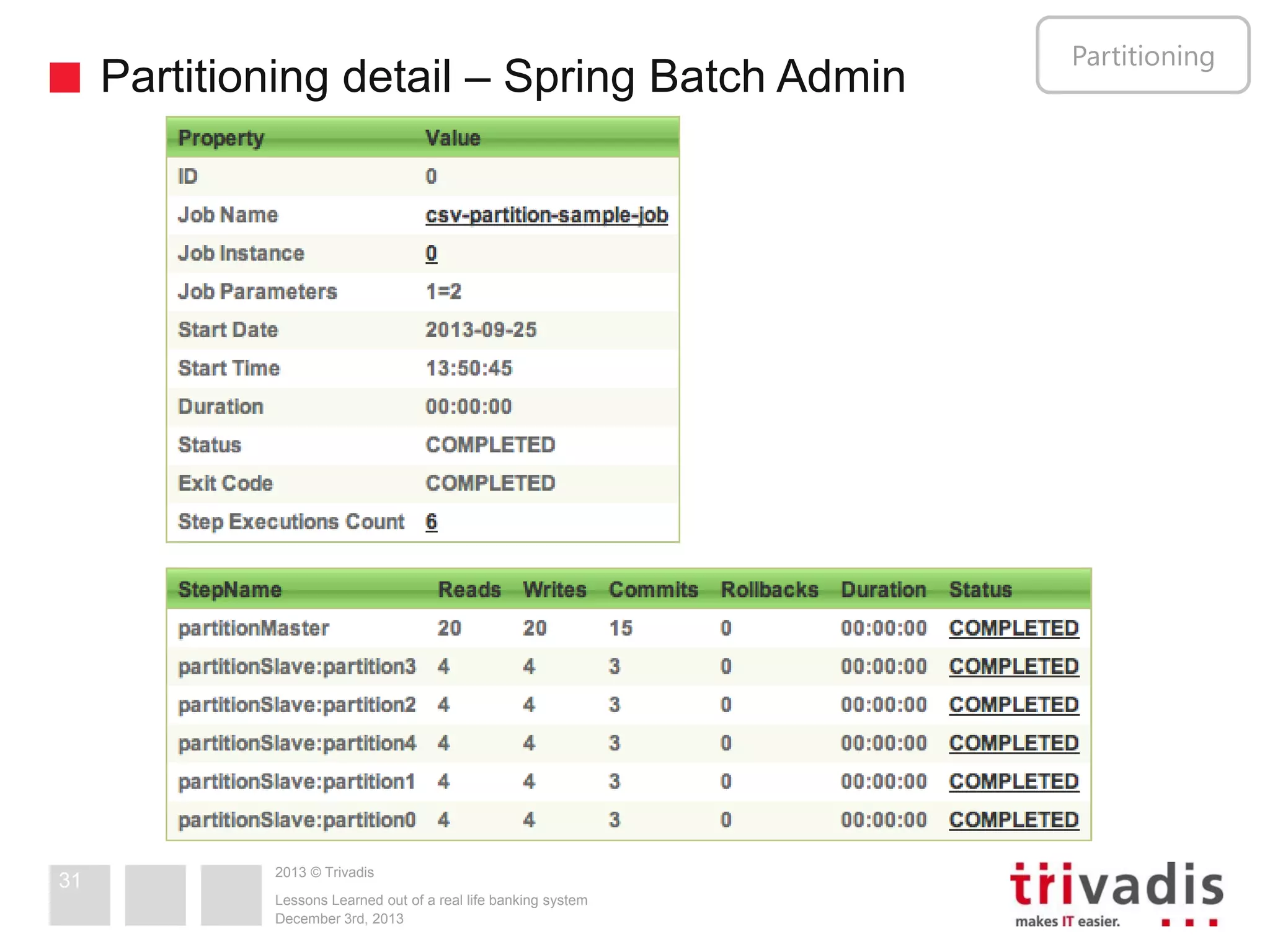

- 31. Partitioning detail –Spring Batch Admin 31 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Partitioning

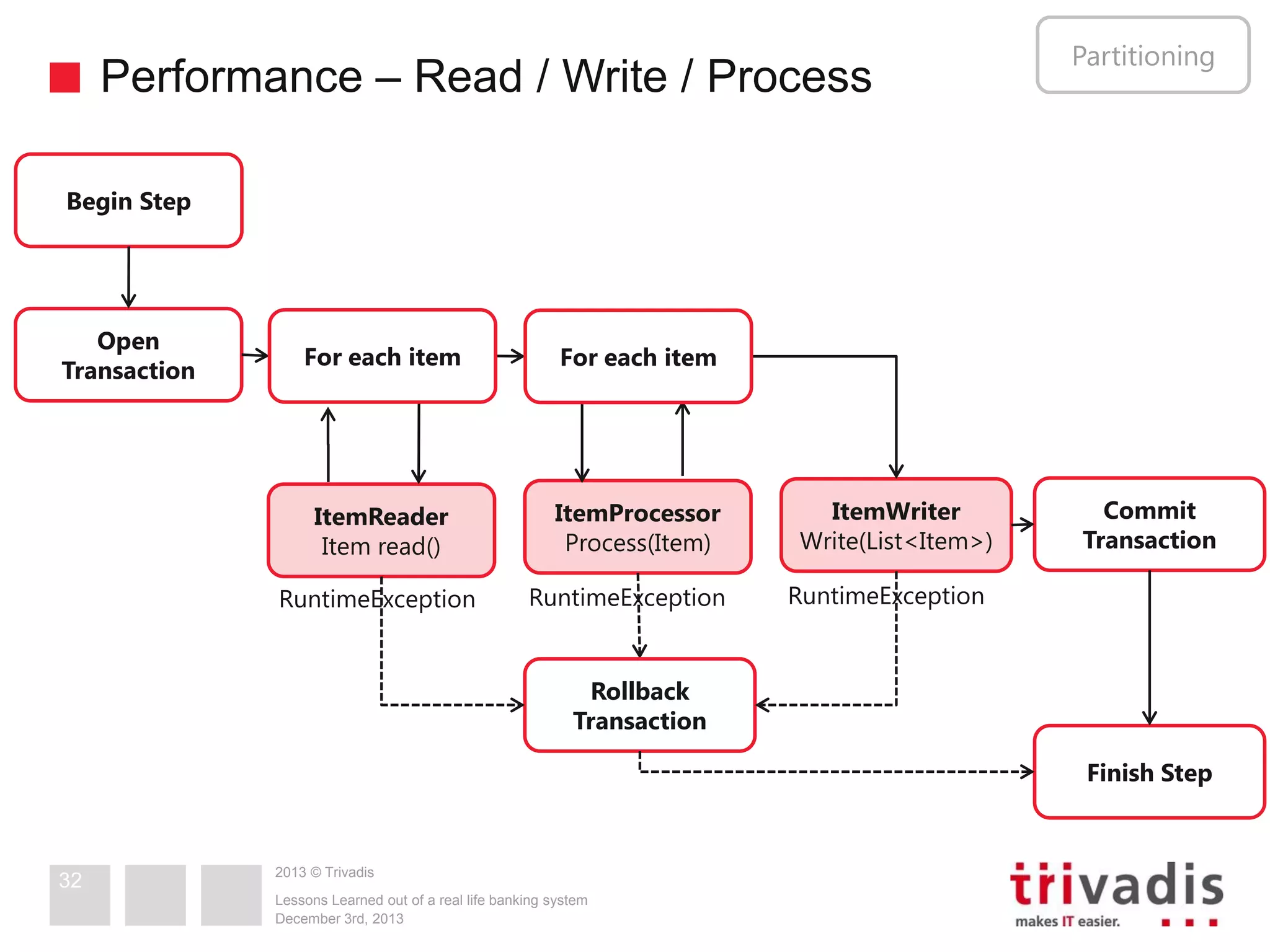

- 32. Performance – Read/ Write / Process Partitioning Begin Step Open Transaction For each item For each item ItemReader Item read() ItemProcessor Process(Item) RuntimeException RuntimeException ItemWriter Write(List<Item>) Commit Transaction RuntimeException Rollback Transaction Finish Step 32 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

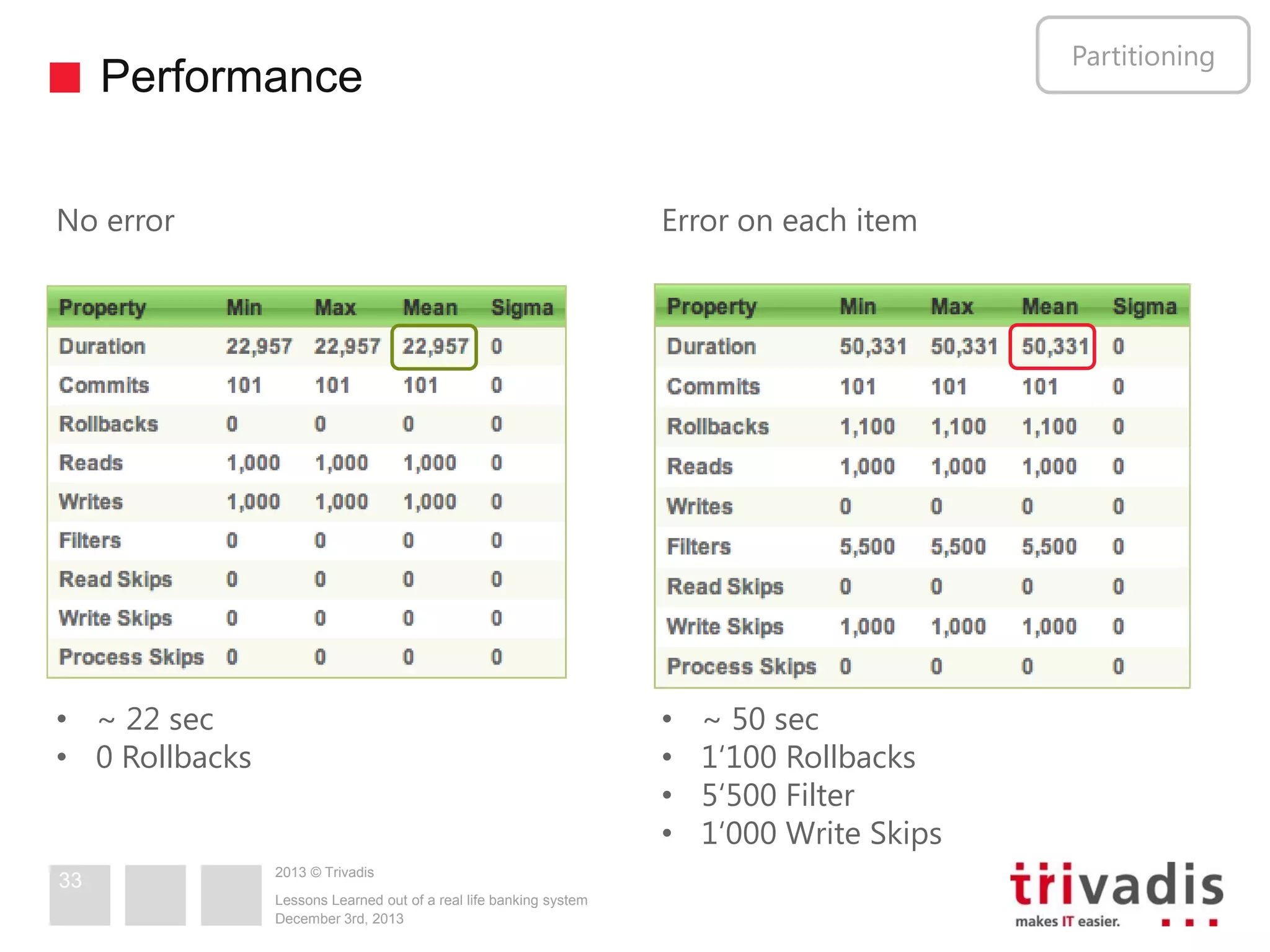

- 33. Partitioning Performance No error Error oneach item • ~ 22 sec • 0 Rollbacks • • • • 33 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 ~ 50 sec 1‘100 Rollbacks 5‘500 Filter 1‘000 Write Skips

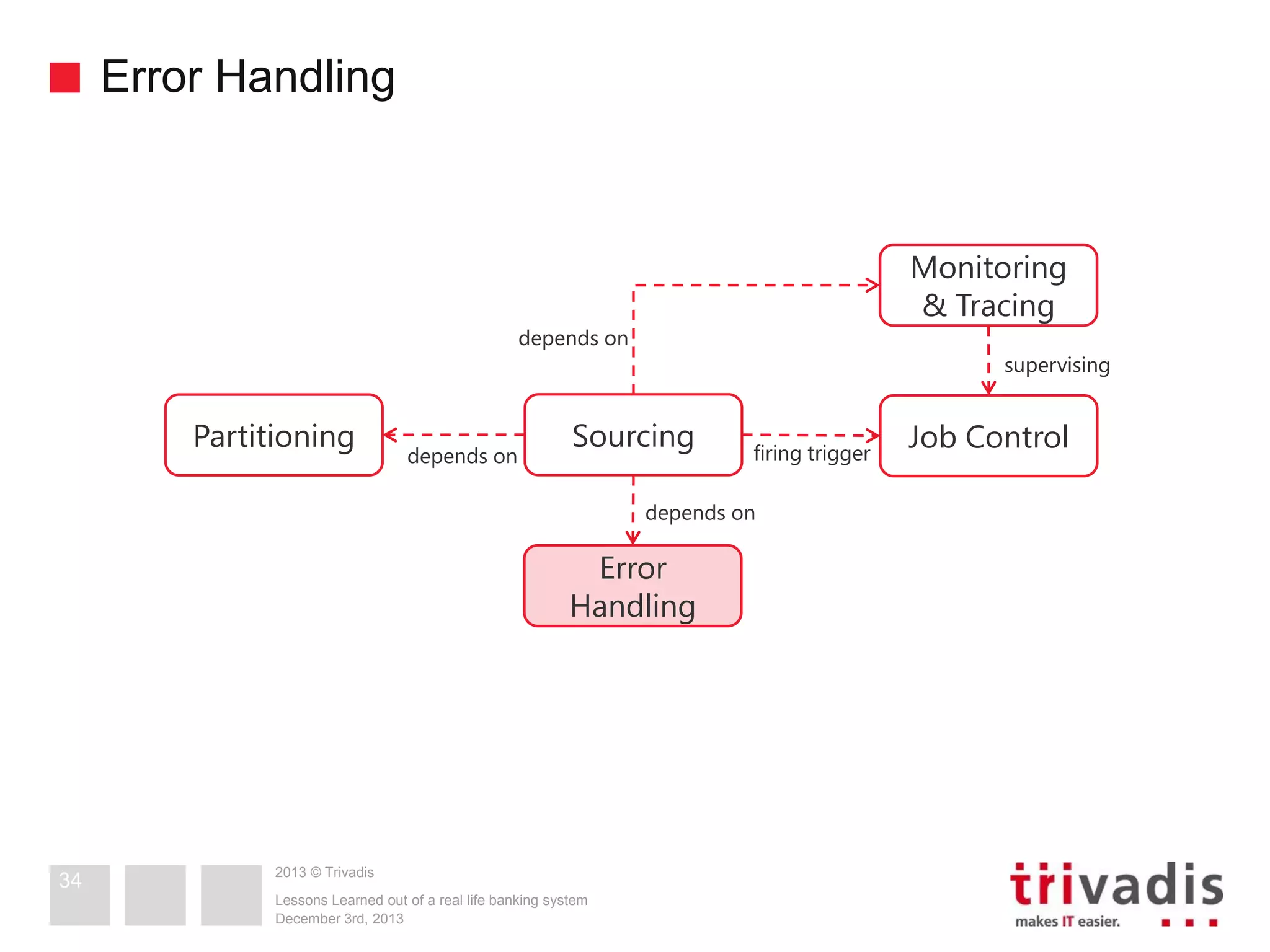

- 34. Error Handling Monitoring & Tracing dependson Partitioning depends on supervising Sourcing firing trigger depends on Error Handling 34 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Job Control

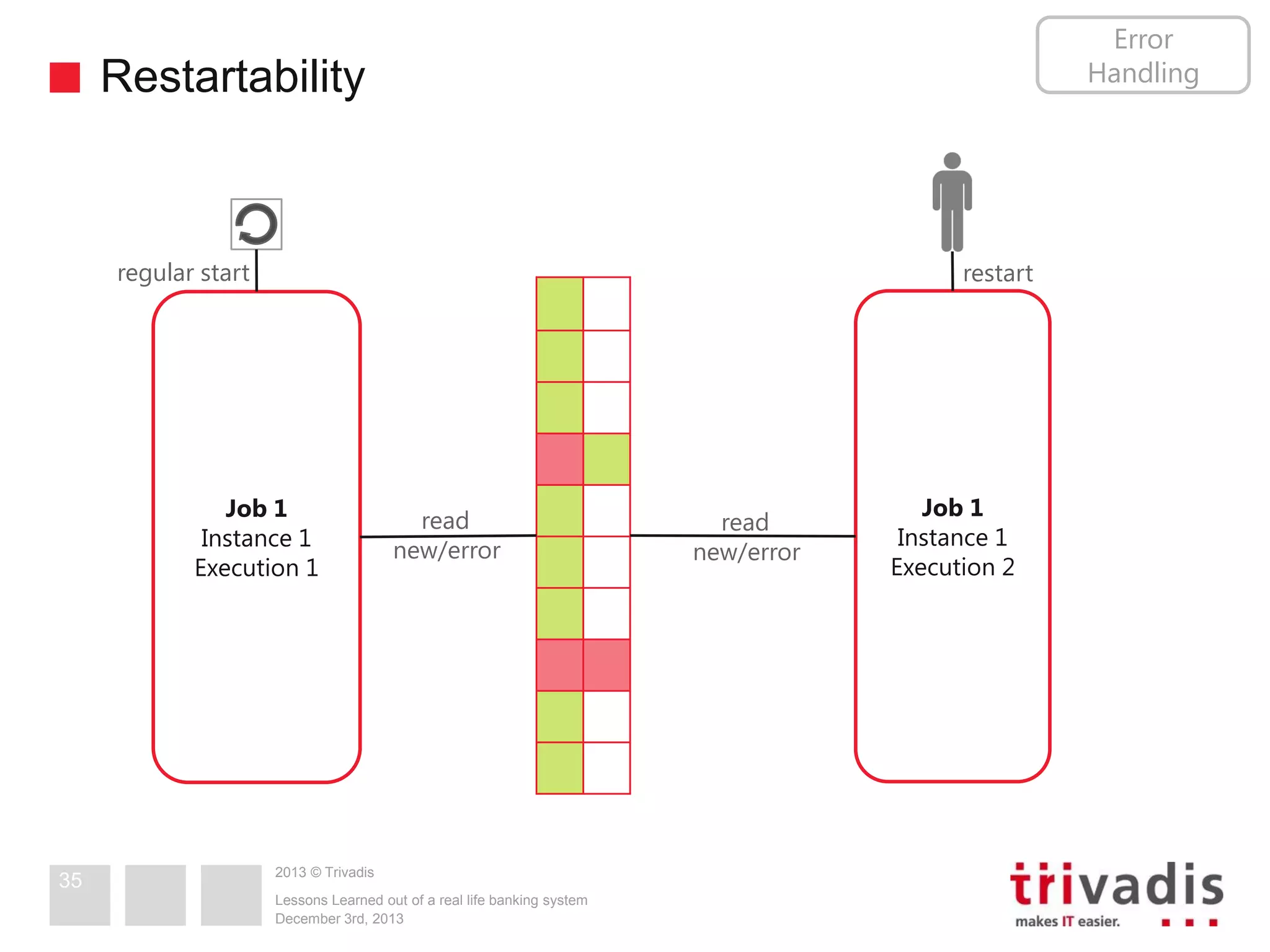

- 35. Error Handling Restartability regular start restart Job 1 Instance1 Execution 1 35 read new/error 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 read new/error Job 1 Instance 1 Execution 2

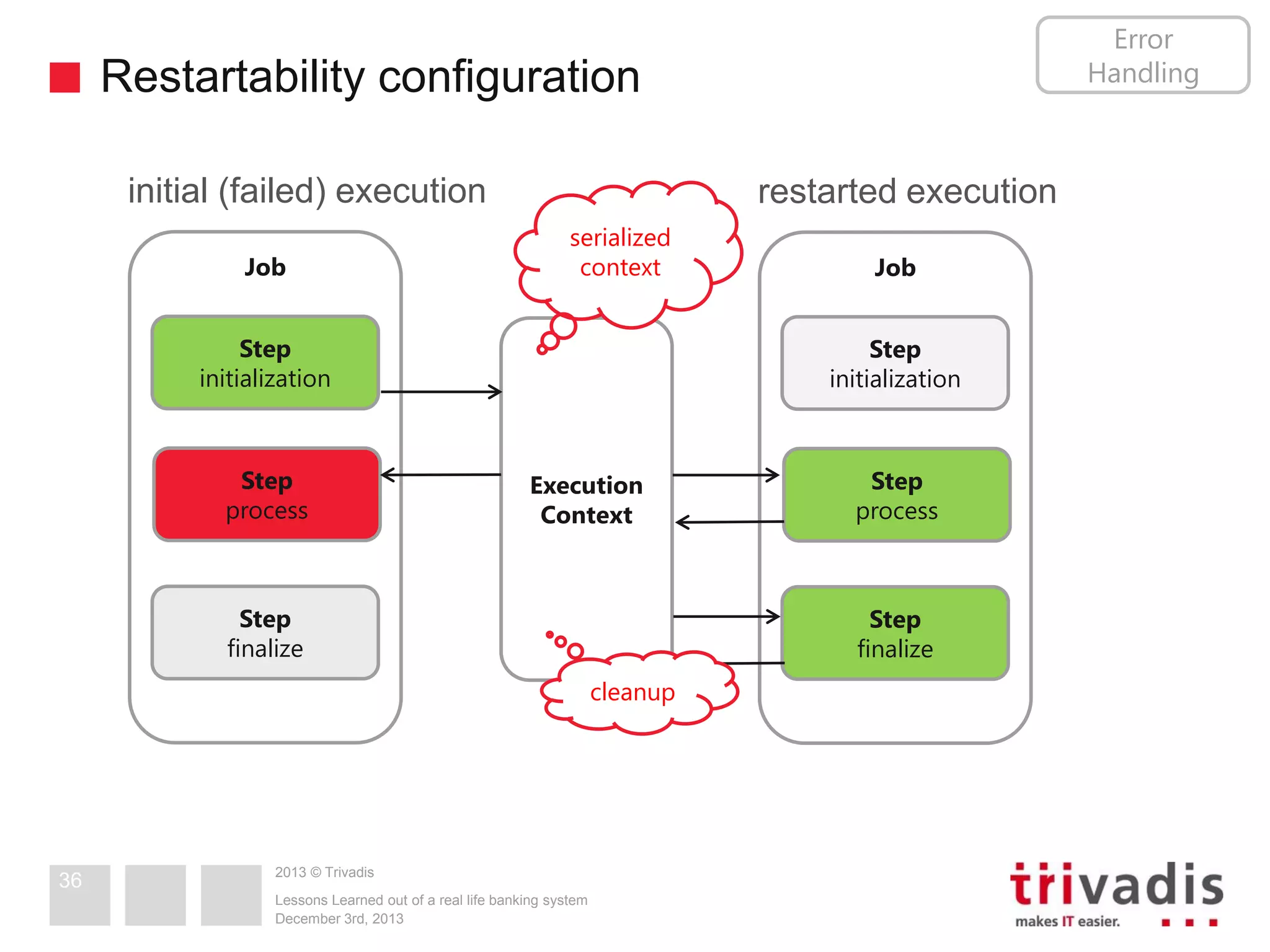

- 36. Error Handling Restartability configuration initial (failed)execution Job restarted execution serialized context Step initialization Step process Step initialization Execution Context Step finalize 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Step process Step finalize cleanup 36 Job

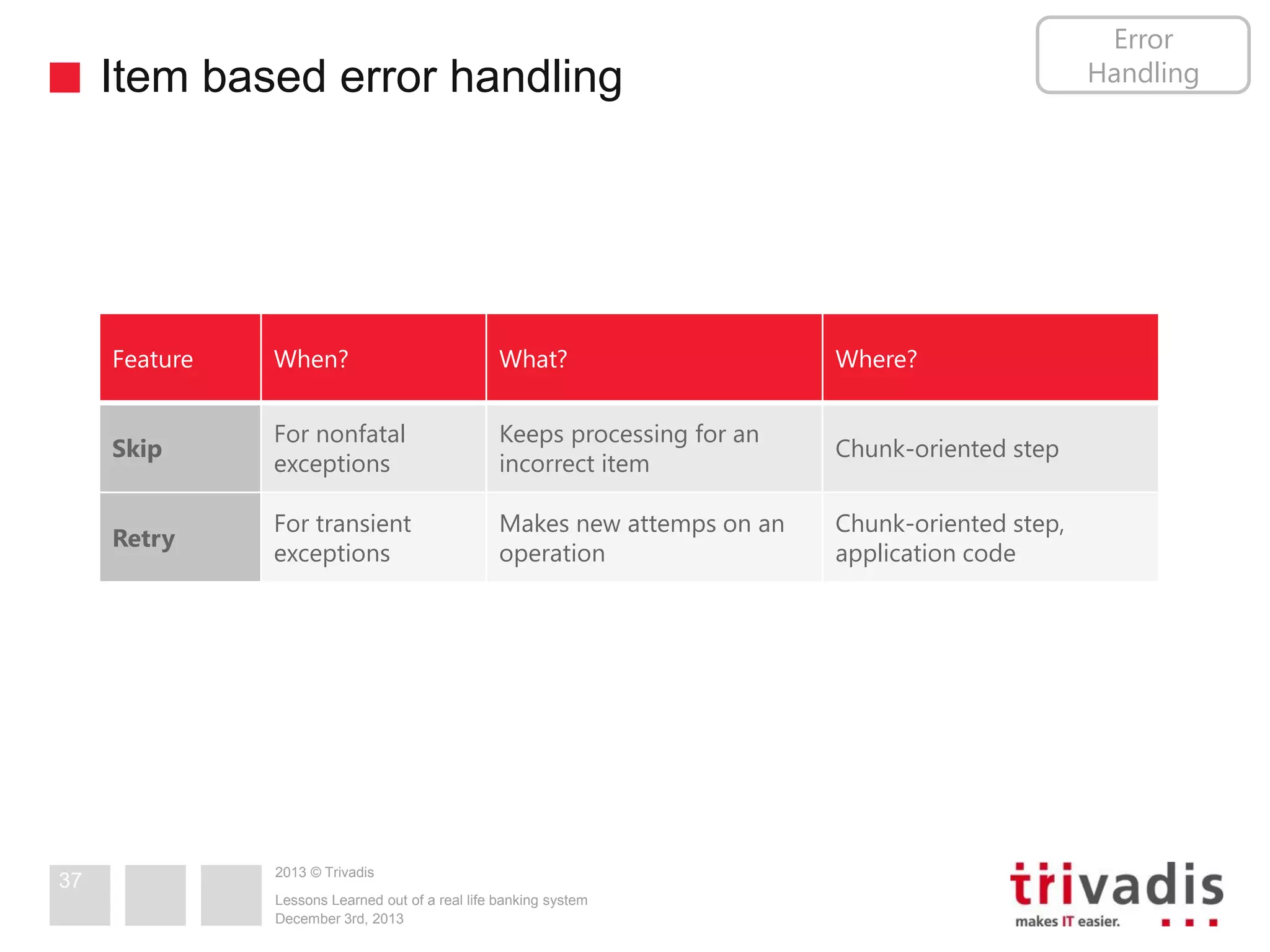

- 37. Error Handling Item based errorhandling Feature What? Where? Skip For nonfatal exceptions Keeps processing for an incorrect item Chunk-oriented step Retry 37 When? For transient exceptions Makes new attemps on an operation Chunk-oriented step, application code 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

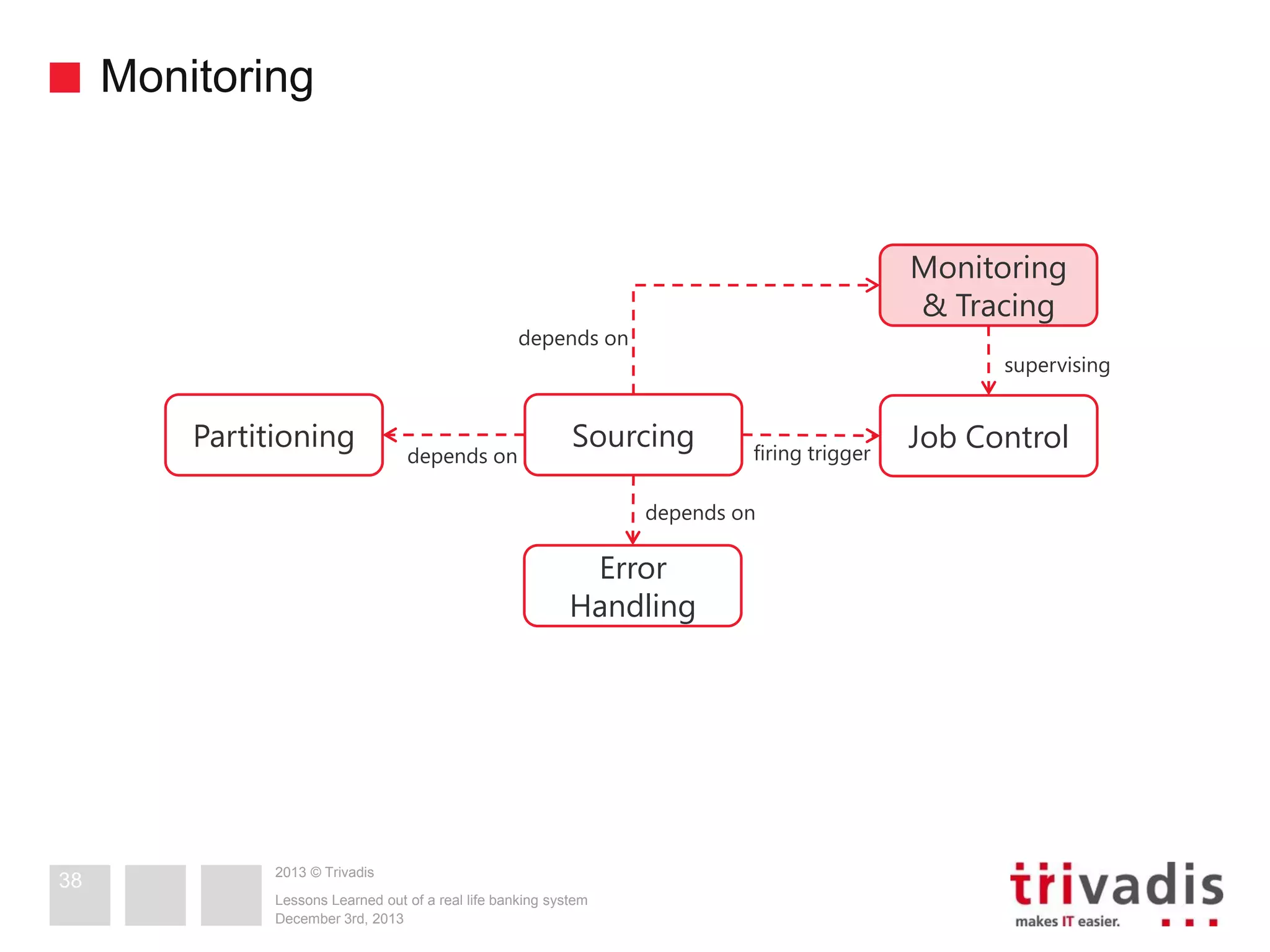

- 38. Monitoring Monitoring & Tracing depends on Partitioning dependson supervising Sourcing firing trigger depends on Error Handling 38 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Job Control

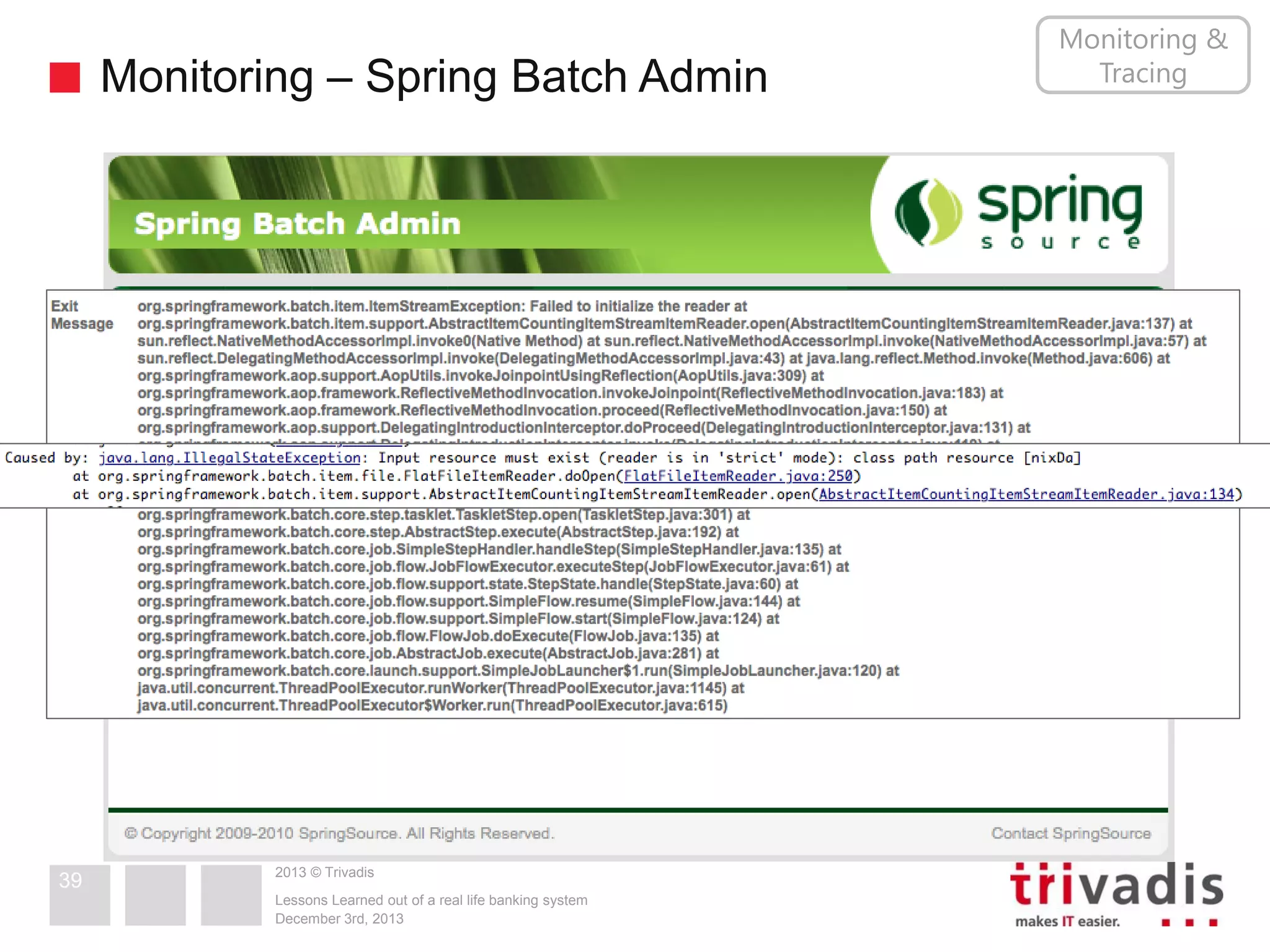

- 39. Monitoring – SpringBatch Admin 39 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Monitoring & Tracing

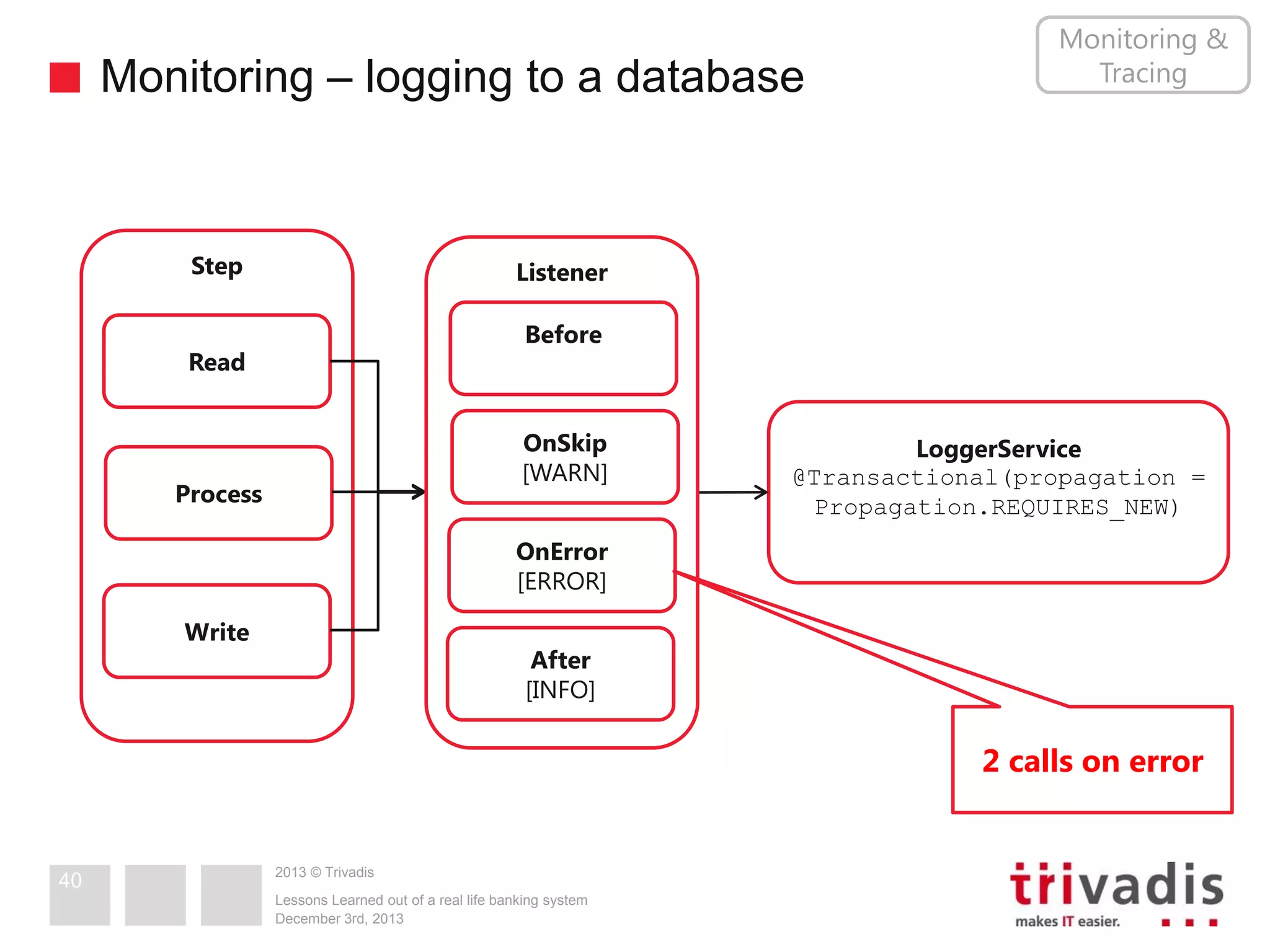

- 40. Monitoring – loggingto a database Step Monitoring & Tracing Listener Before Read OnSkip [WARN] Process LoggerService @Transactional(propagation = Propagation.REQUIRES_NEW) OnError [ERROR] Write After [INFO] 2 calls on error 40 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

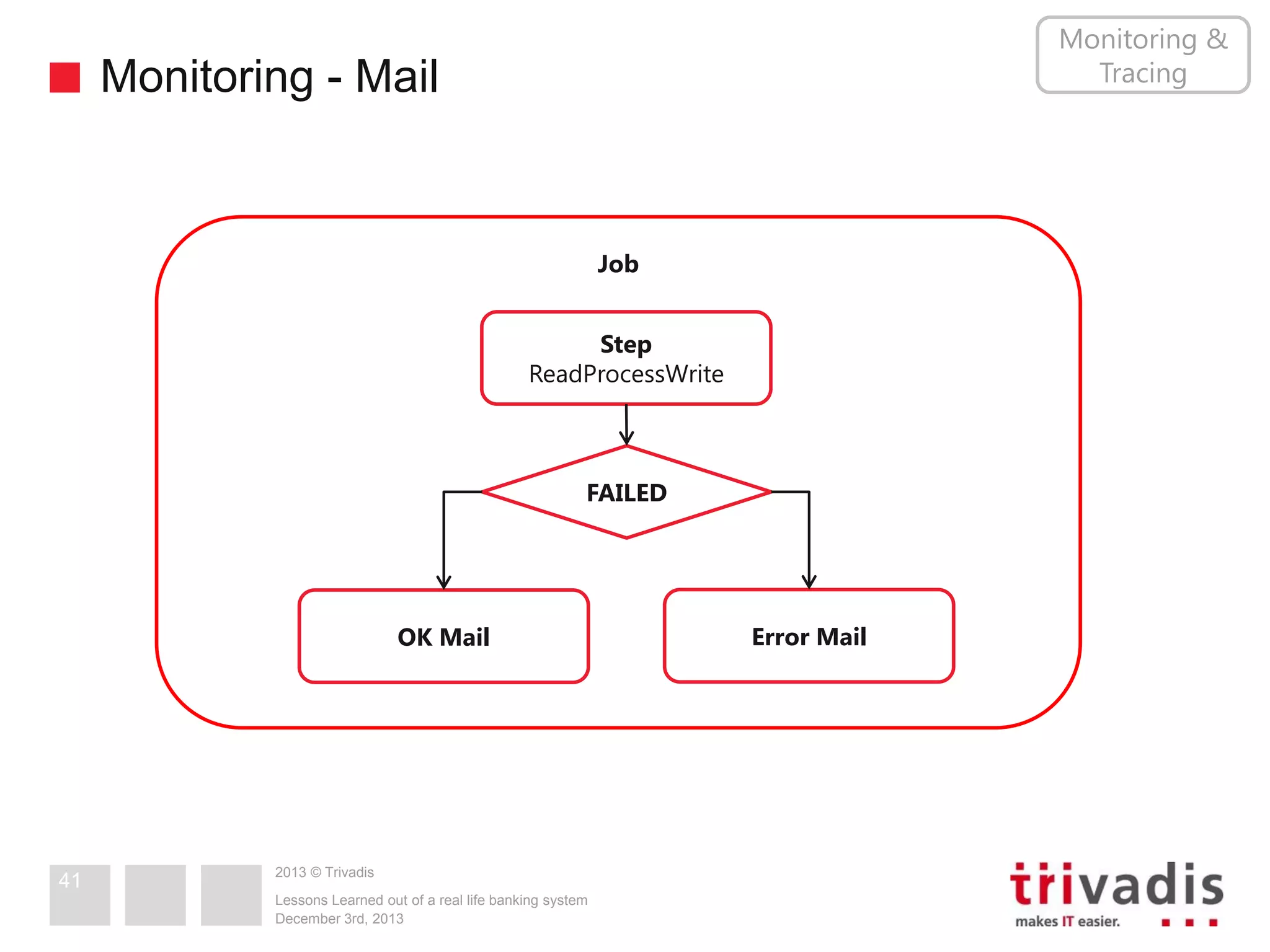

- 41. Monitoring & Tracing Monitoring -Mail Job Step ReadProcessWrite FAILED OK Mail 41 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Error Mail

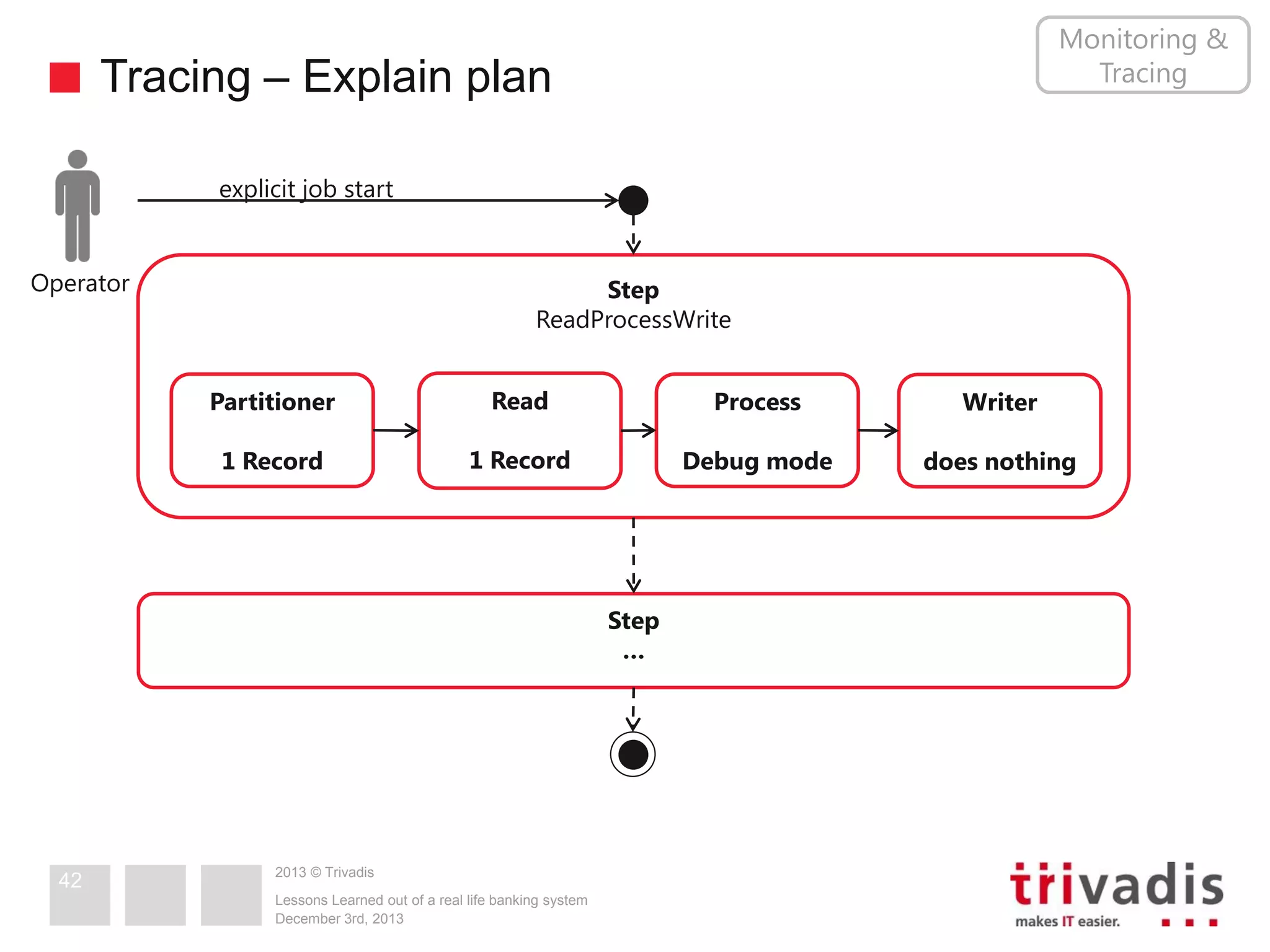

- 42. Monitoring & Tracing Tracing –Explain plan explicit job start Operator Step ReadProcessWrite Partitioner Read Process Writer 1 Record 1 Record Debug mode does nothing Step … 42 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

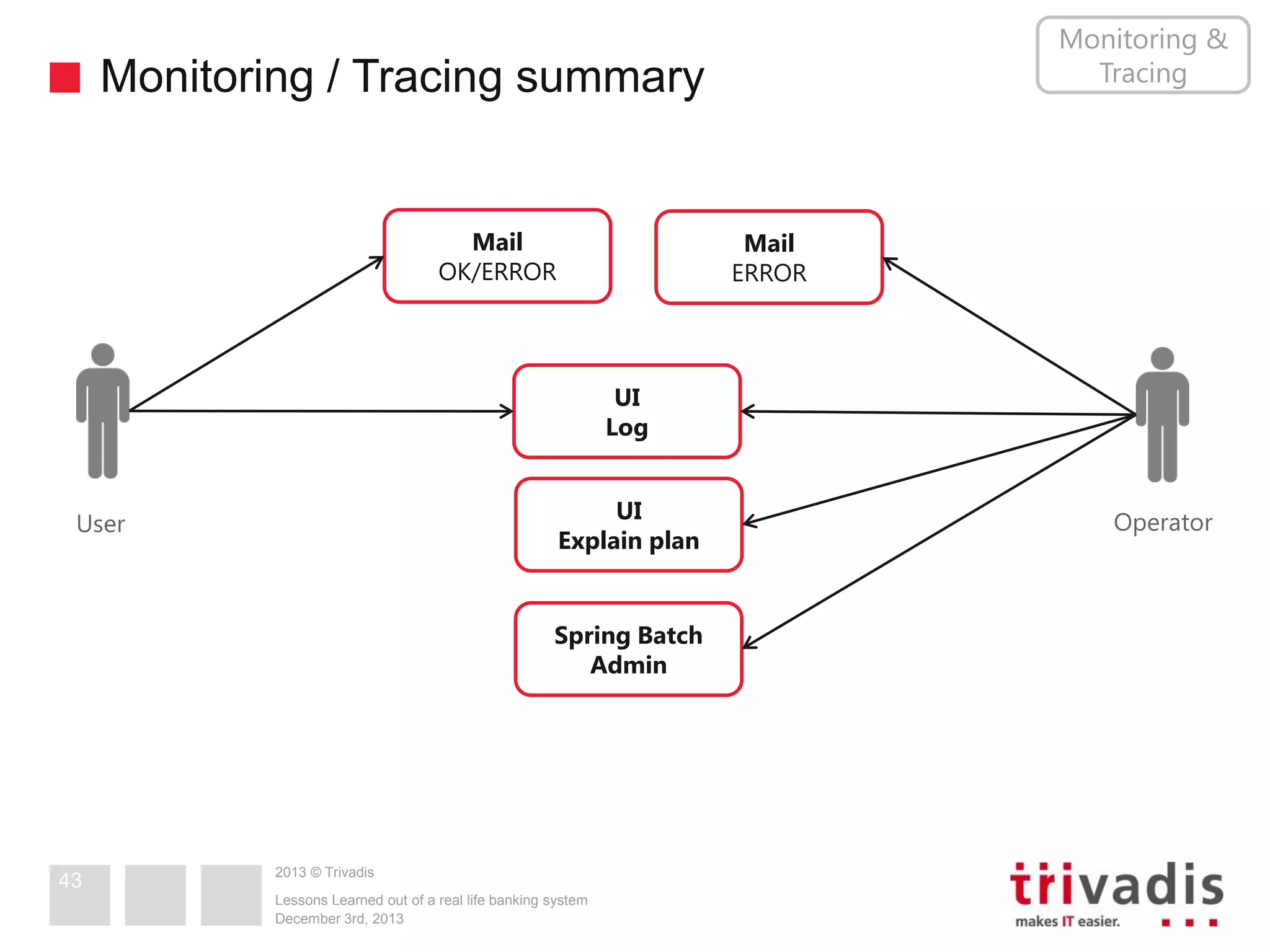

- 43. Monitoring & Tracing Monitoring /Tracing summary Mail OK/ERROR Mail ERROR UI Log UI Explain plan User Spring Batch Admin 43 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Operator

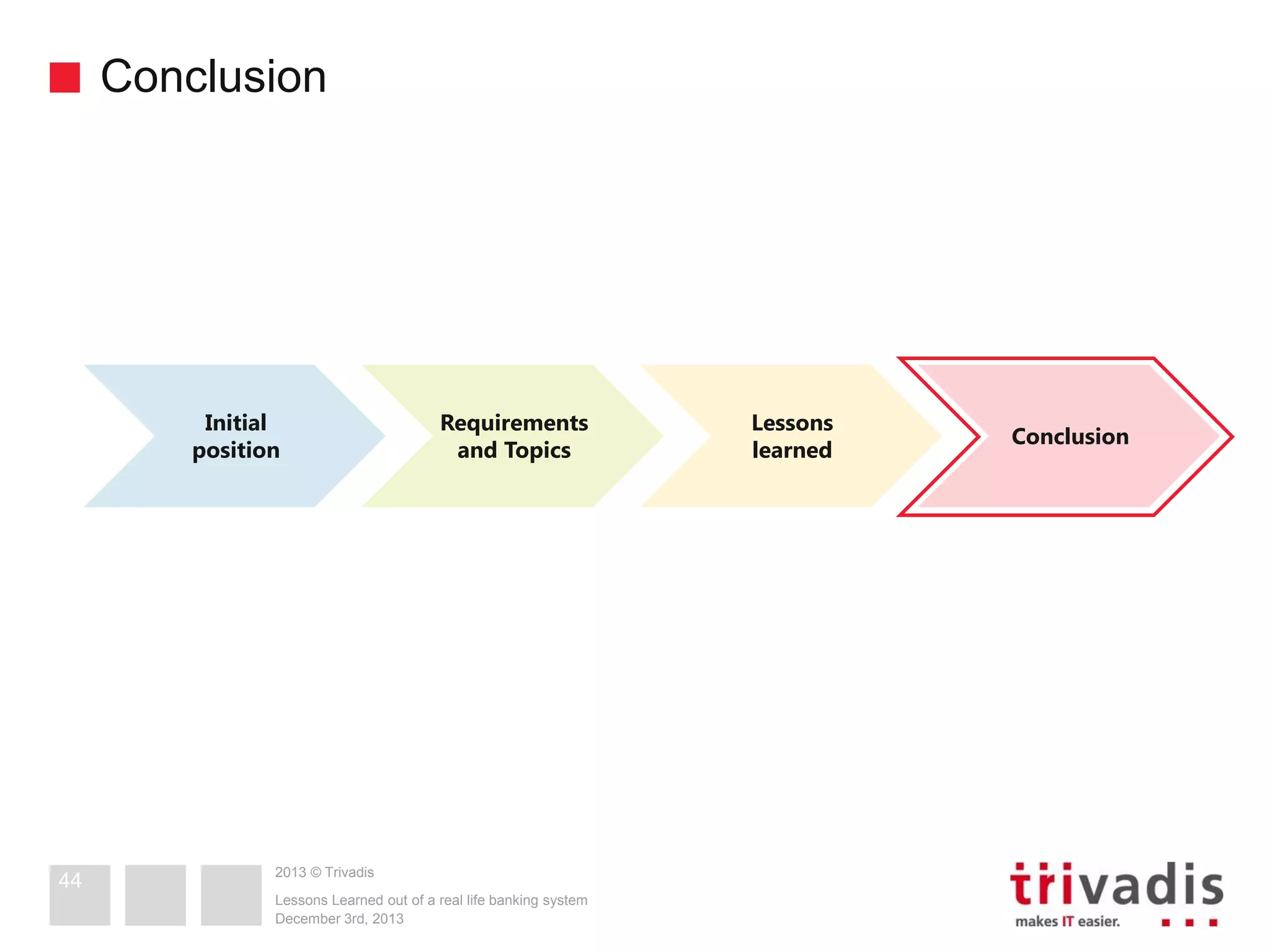

- 44. Conclusion Initial position 44 Requirements and Topics 2013 ©Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Lessons learned Conclusion

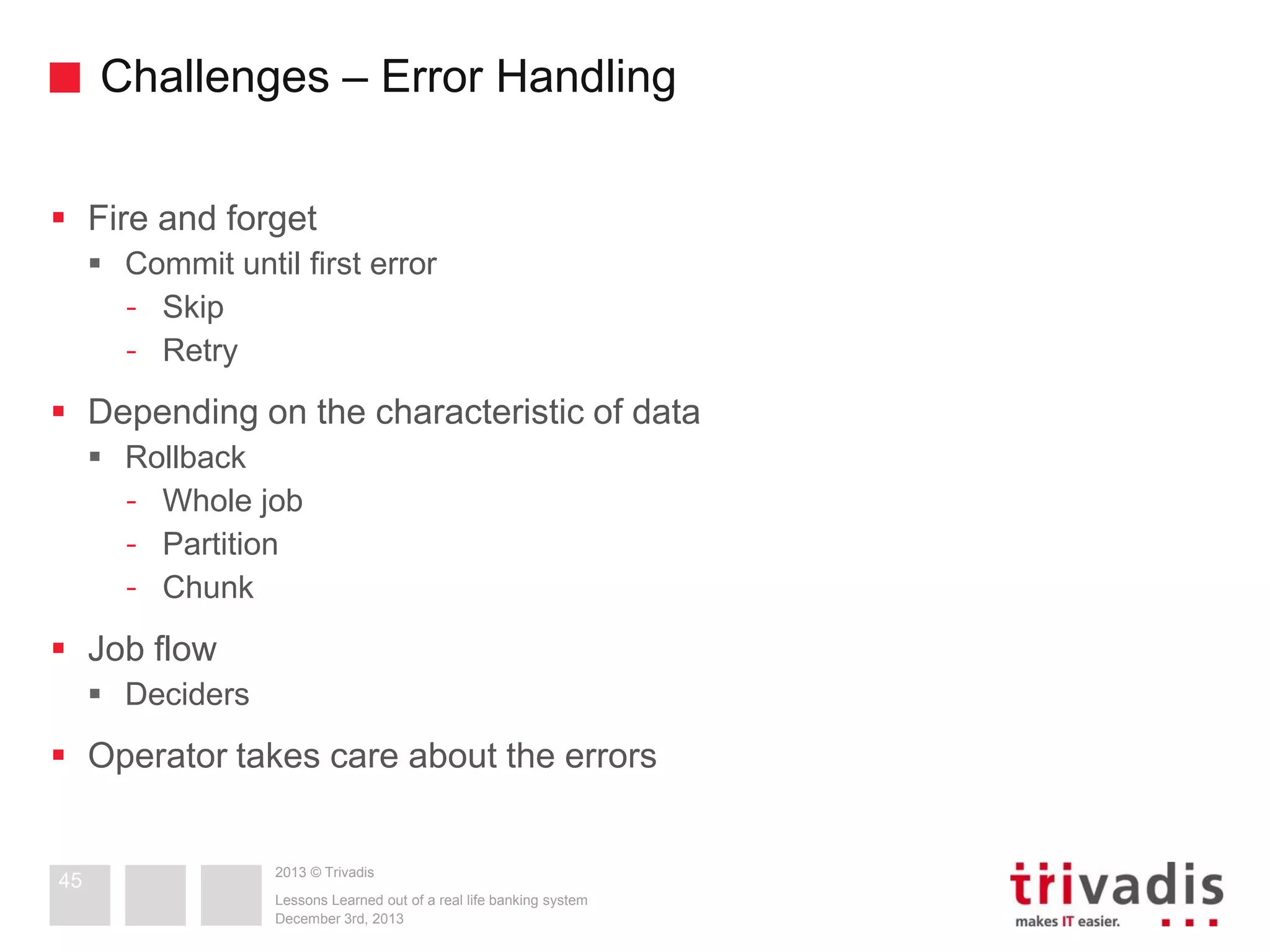

- 45. Challenges – ErrorHandling Fire and forget Commit until first error - Skip - Retry Depending on the characteristic of data Rollback - Whole job - Partition - Chunk Job flow Deciders Operator takes care about the errors 45 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013

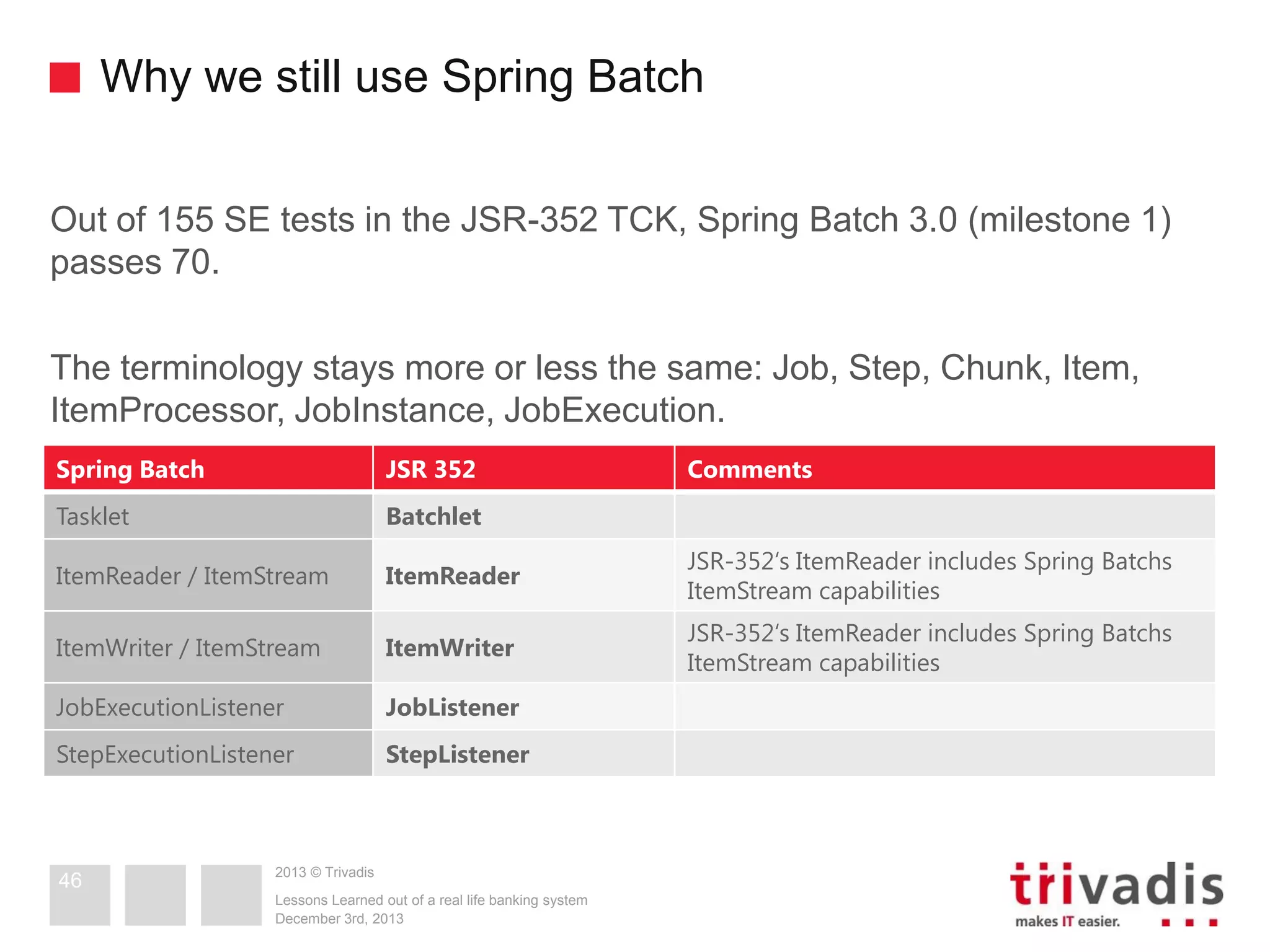

- 46. Why we stilluse Spring Batch Out of 155 SE tests in the JSR-352 TCK, Spring Batch 3.0 (milestone 1) passes 70. The terminology stays more or less the same: Job, Step, Chunk, Item, ItemProcessor, JobInstance, JobExecution. Spring Batch JSR 352 Tasklet Batchlet ItemReader / ItemStream ItemReader JSR-352‘s ItemReader includes Spring Batchs ItemStream capabilities ItemWriter / ItemStream ItemWriter JSR-352‘s ItemReader includes Spring Batchs ItemStream capabilities JobExecutionListener JobListener StepExecutionListener StepListener 46 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 Comments

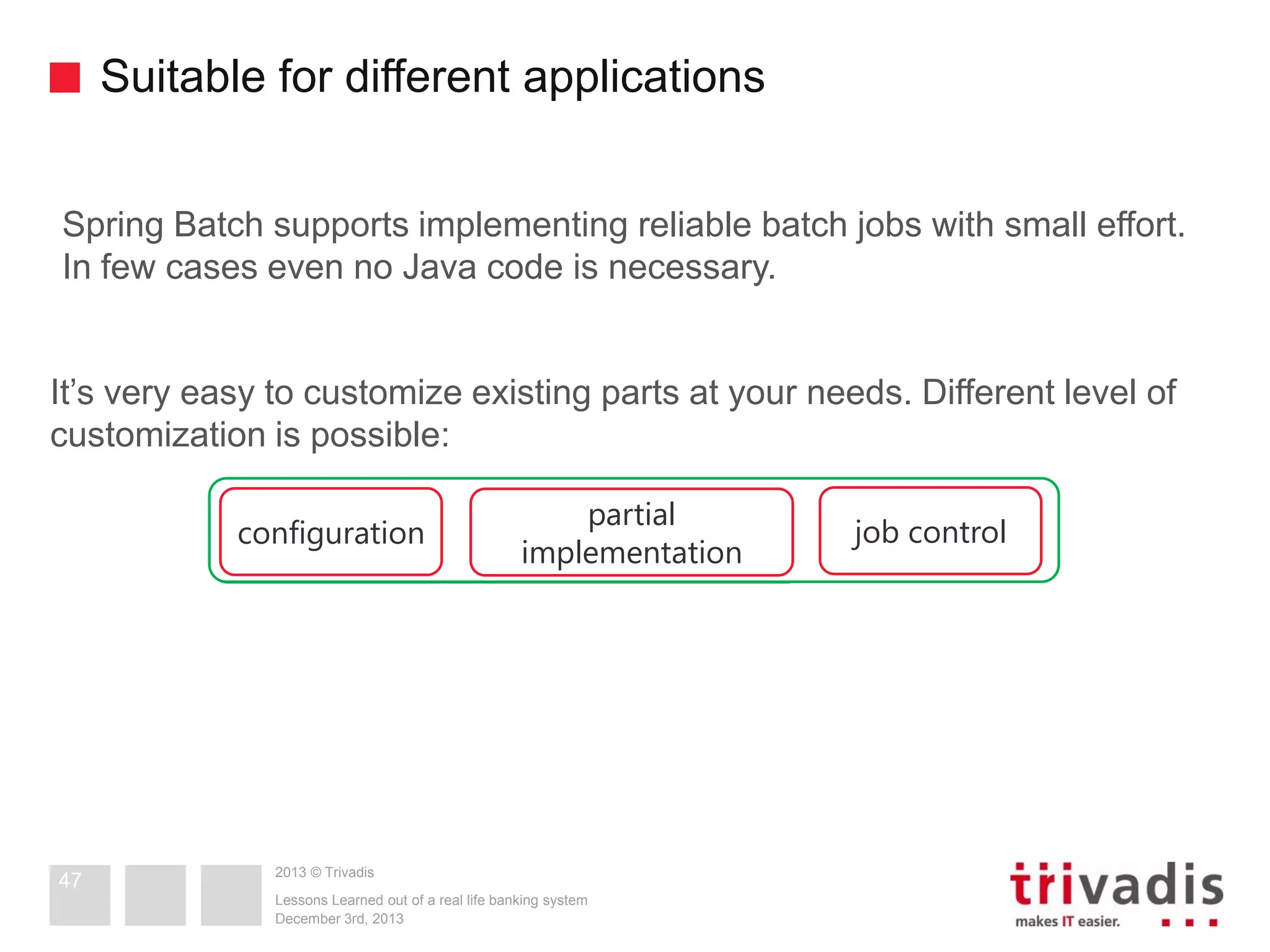

- 47. Suitable for differentapplications Spring Batch supports implementing reliable batch jobs with small effort. In few cases even no Java code is necessary. It’s very easy to customize existing parts at your needs. Different level of customization is possible: configuration 47 partial implementation 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 job control
- 48. Questions and answers... Michael Beer michael.beer@trivadis.com +41 58 459 51 90 Raffael Schmid raffael.schmid@trivadis.com +41 58 459 52 34 BASEL 48 BERN BRUGG LAUSANNE ZUERICH DUESSELDORF 2013 © Trivadis Lessons Learned out of a real life banking system December 3rd, 2013 FRANKFURT A.M. FREIBURG I.BR. HAMBURG MUNICH STUTTGART VIENNA
