1. Spring Batch

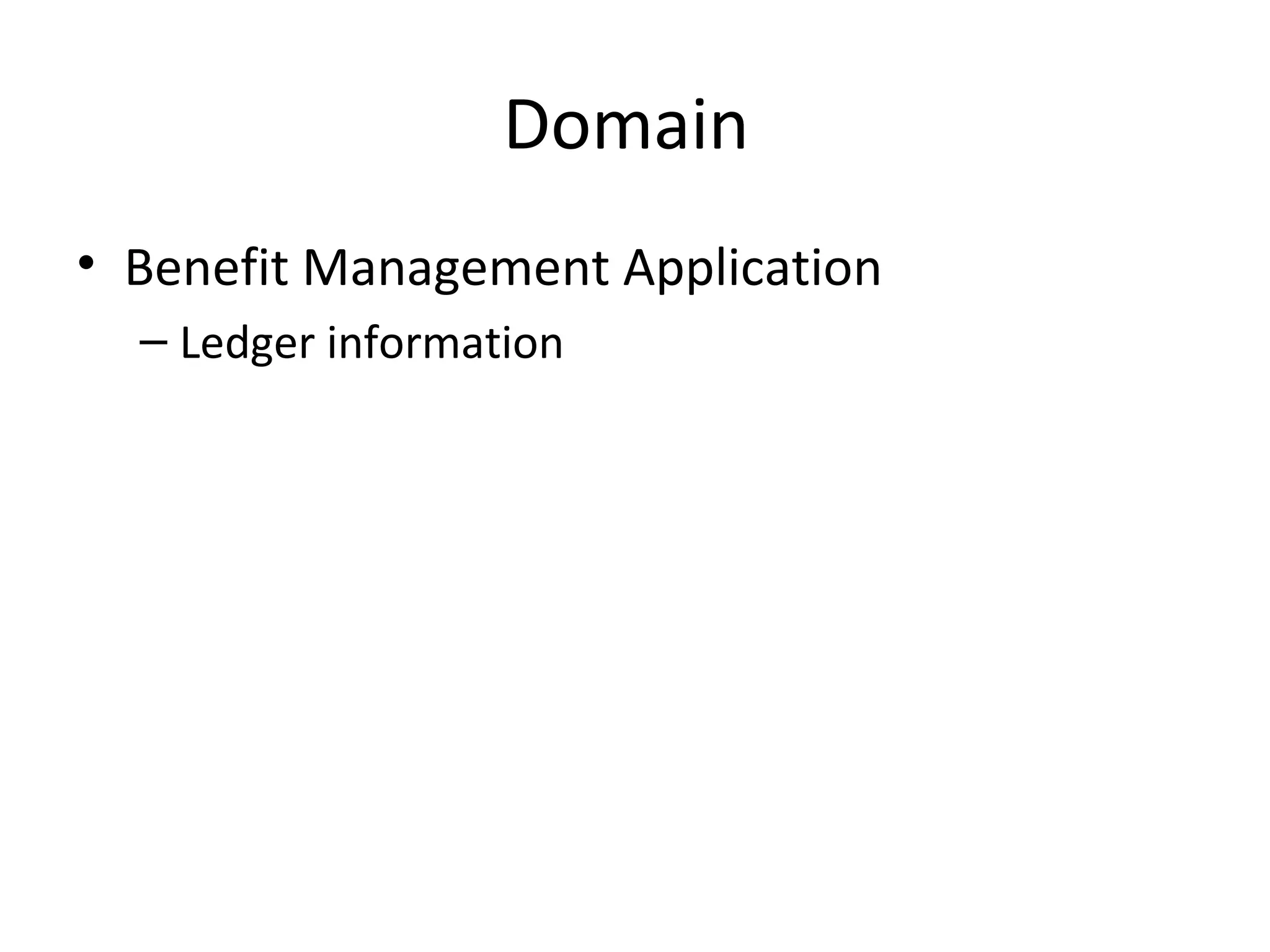

2. Domain
• Benefit Management Application
– Ledger information

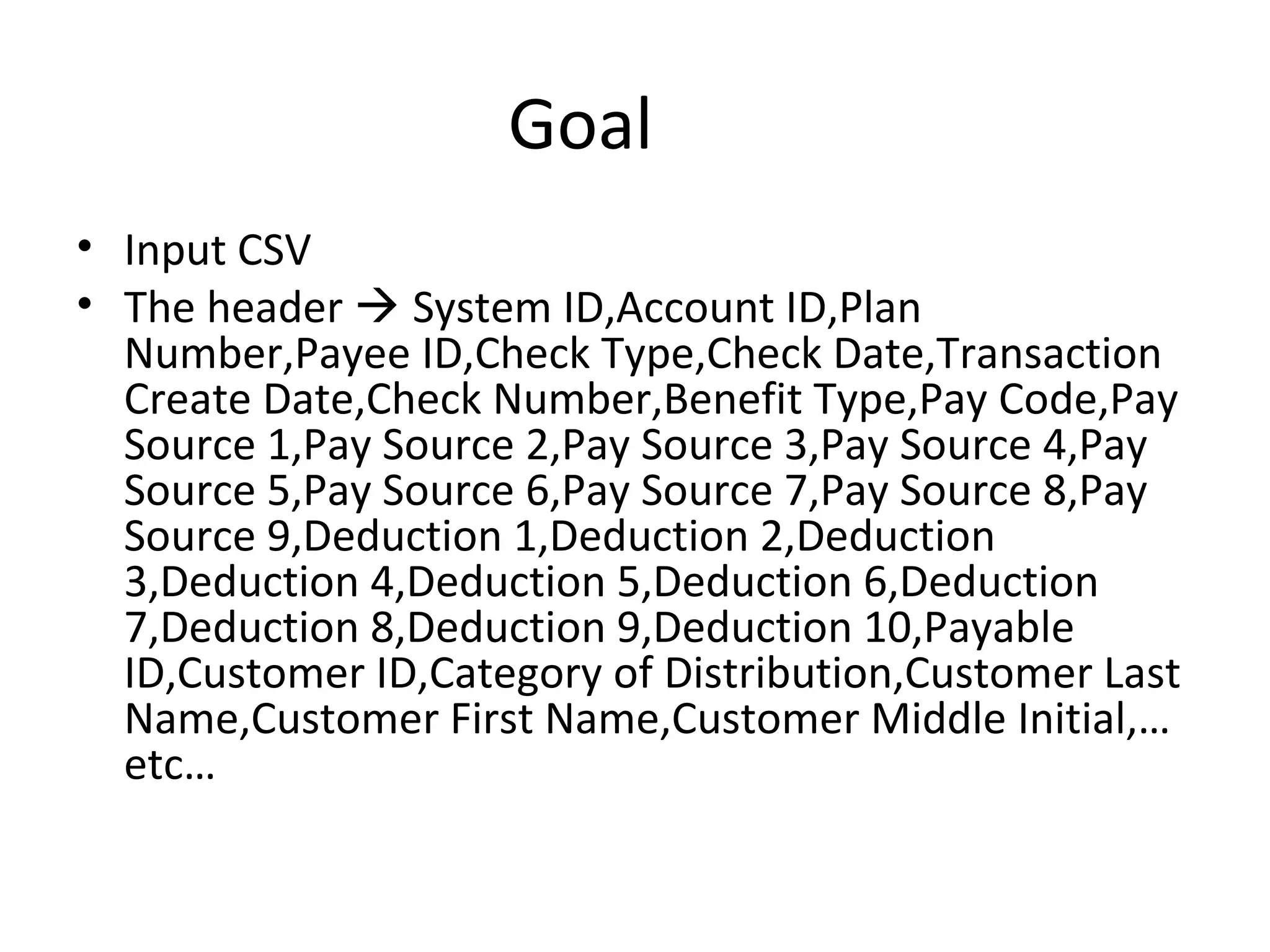

3. Goal
• Input CSV
• The header  System ID,Account ID,Plan
Number,Payee ID,Check Type,Check Date,Transaction
Create Date,Check Number,Benefit Type,Pay Code,Pay
Source 1,Pay Source 2,Pay Source 3,Pay Source 4,Pay
Source 5,Pay Source 6,Pay Source 7,Pay Source 8,Pay
Source 9,Deduction 1,Deduction 2,Deduction
3,Deduction 4,Deduction 5,Deduction 6,Deduction
7,Deduction 8,Deduction 9,Deduction 10,Payable
ID,Customer ID,Category of Distribution,Customer Last
Name,Customer First Name,Customer Middle Initial,…
etc…

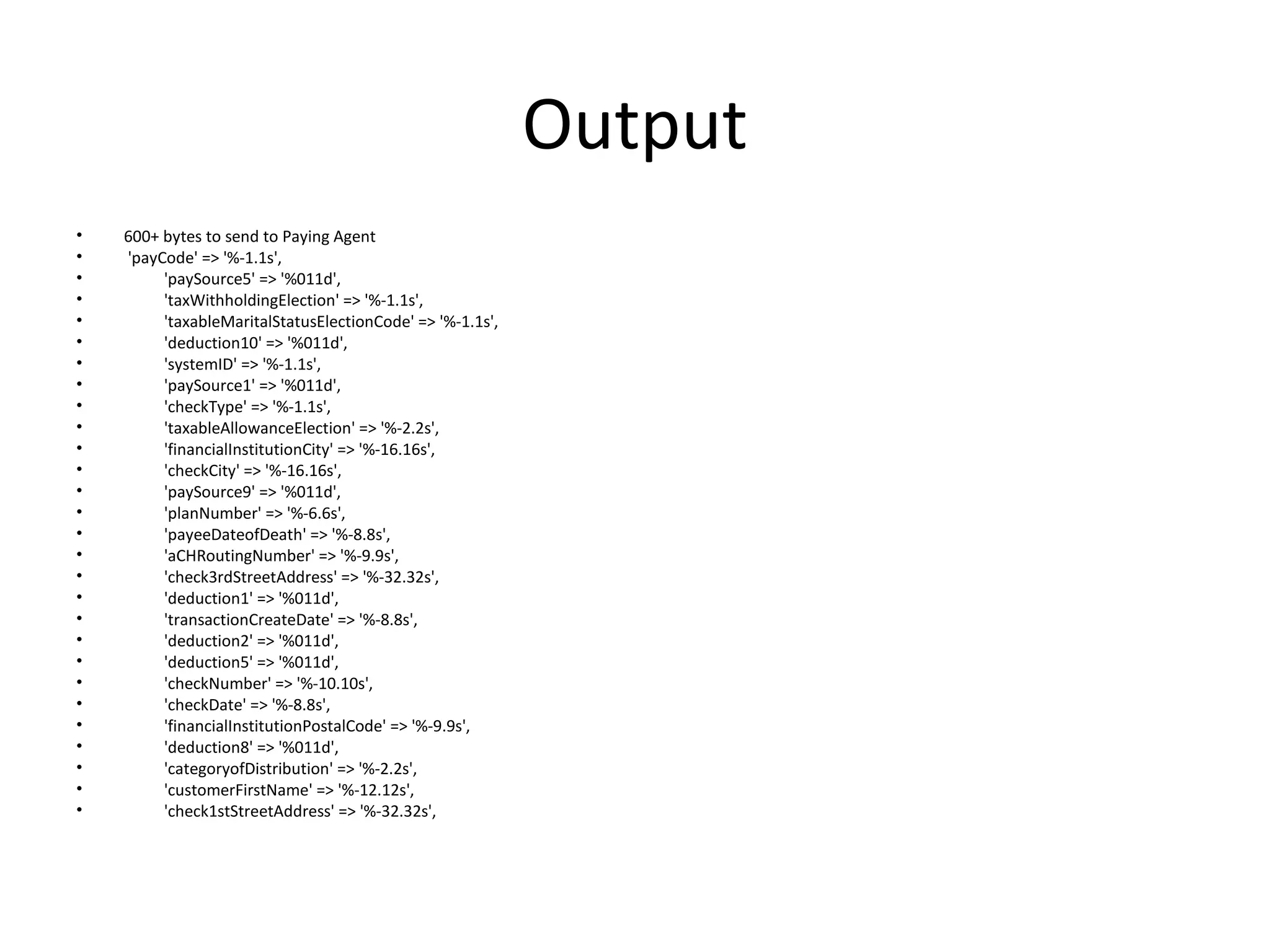

4. Output
• 600+ bytes to send to Paying Agent
• 'payCode' => '%-1.1s',
• 'paySource5' => '%011d',
• 'taxWithholdingElection' => '%-1.1s',
• 'taxableMaritalStatusElectionCode' => '%-1.1s',
• 'deduction10' => '%011d',
• 'systemID' => '%-1.1s',
• 'paySource1' => '%011d',
• 'checkType' => '%-1.1s',
• 'taxableAllowanceElection' => '%-2.2s',
• 'financialInstitutionCity' => '%-16.16s',
• 'checkCity' => '%-16.16s',
• 'paySource9' => '%011d',
• 'planNumber' => '%-6.6s',
• 'payeeDateofDeath' => '%-8.8s',
• 'aCHRoutingNumber' => '%-9.9s',
• 'check3rdStreetAddress' => '%-32.32s',
• 'deduction1' => '%011d',
• 'transactionCreateDate' => '%-8.8s',
• 'deduction2' => '%011d',
• 'deduction5' => '%011d',
• 'checkNumber' => '%-10.10s',
• 'checkDate' => '%-8.8s',
• 'financialInstitutionPostalCode' => '%-9.9s',
• 'deduction8' => '%011d',
• 'categoryofDistribution' => '%-2.2s',
• 'customerFirstName' => '%-12.12s',
• 'check1stStreetAddress' => '%-32.32s',

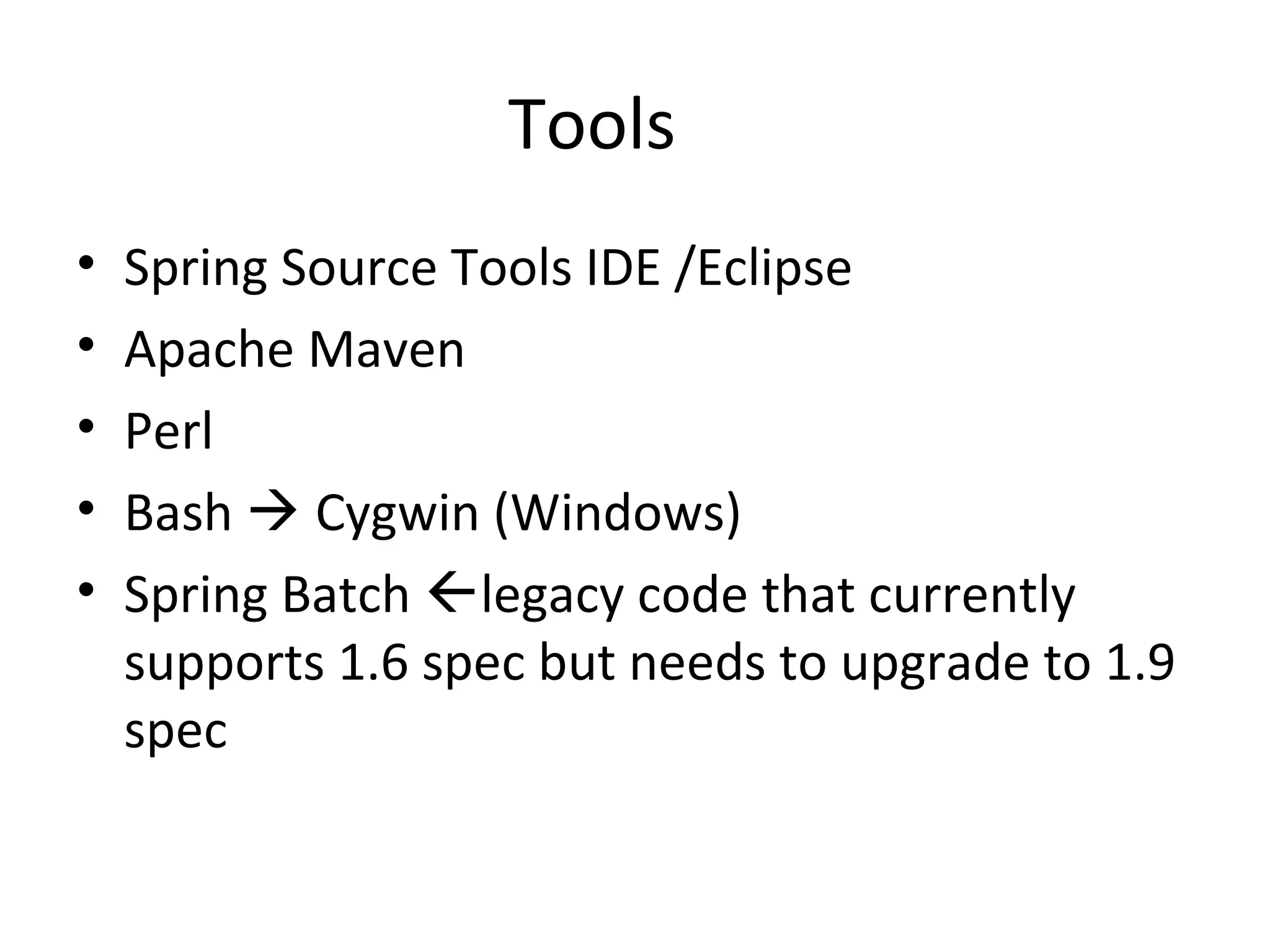

5. Tools
• Spring Source Tools IDE /Eclipse
• Apache Maven
• Perl
• Bash  Cygwin (Windows)
• Spring Batch legacy code that currently
supports 1.6 spec but needs to upgrade to 1.9
spec

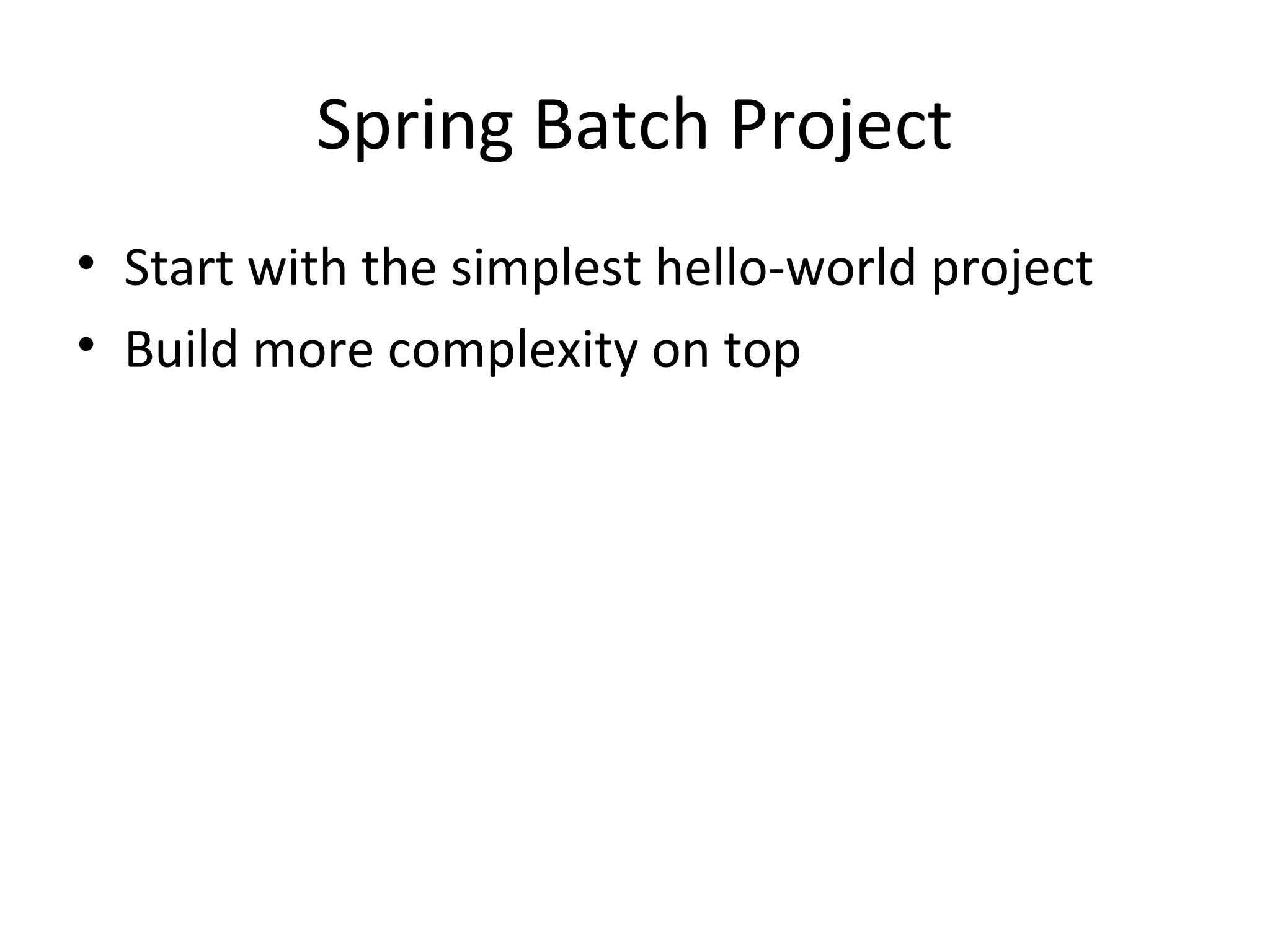

6. Spring Batch Project
• Start with the simplest hello-world project
• Build more complexity on top

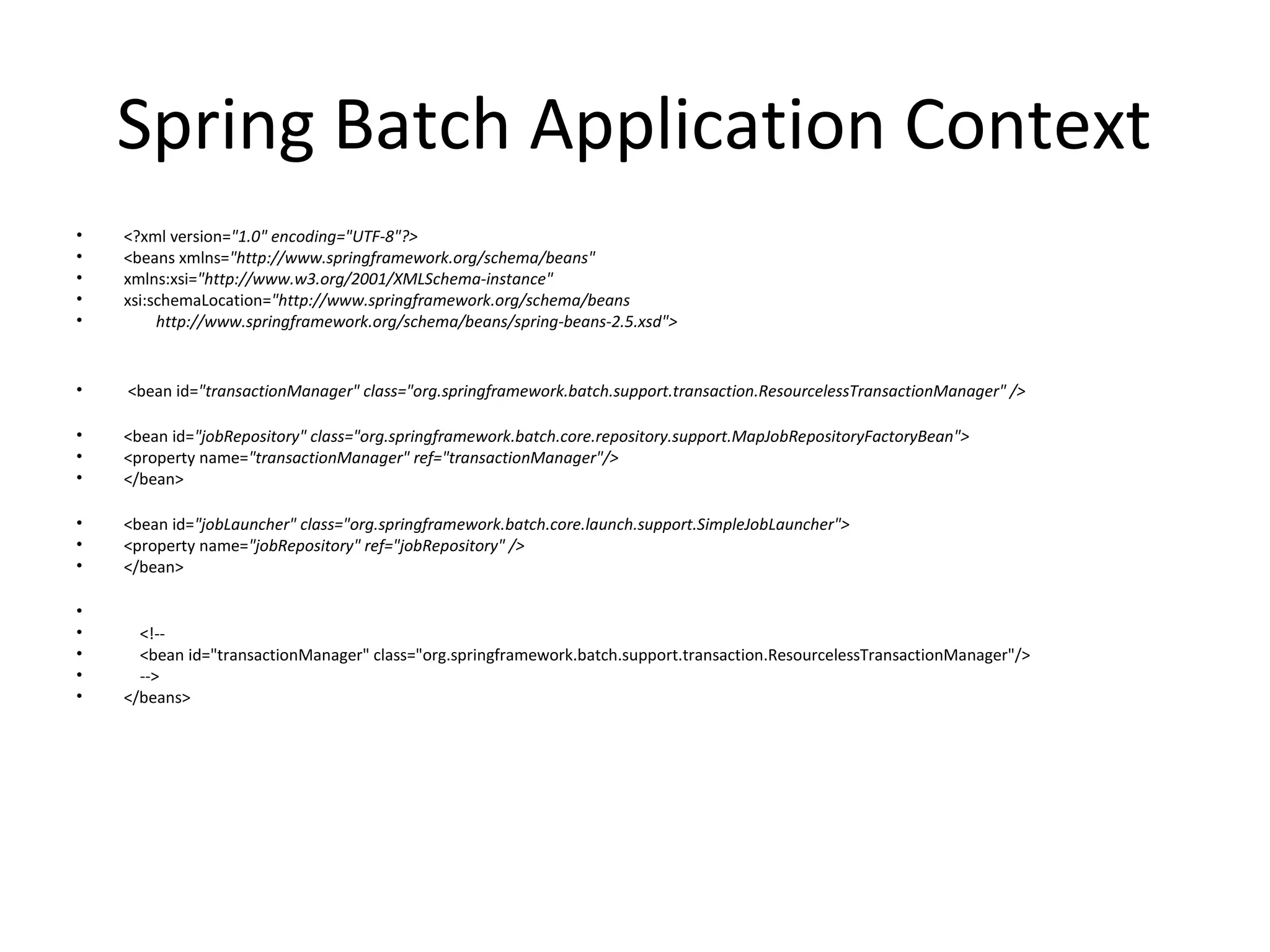

7. Spring Batch Application Context
• <?xml version="1.0" encoding="UTF-8"?>
• <beans xmlns="http://www.springframework.org/schema/beans"
• xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
• xsi:schemaLocation="http://www.springframework.org/schema/beans
• http://www.springframework.org/schema/beans/spring-beans-2.5.xsd">
• <bean id="transactionManager" class="org.springframework.batch.support.transaction.ResourcelessTransactionManager" />
• <bean id="jobRepository" class="org.springframework.batch.core.repository.support.MapJobRepositoryFactoryBean">
• <property name="transactionManager" ref="transactionManager"/>
• </bean>
• <bean id="jobLauncher" class="org.springframework.batch.core.launch.support.SimpleJobLauncher">
• <property name="jobRepository" ref="jobRepository" />
• </bean>
•
• <!--
• <bean id="transactionManager" class="org.springframework.batch.support.transaction.ResourcelessTransactionManager"/>
• -->
• </beans>

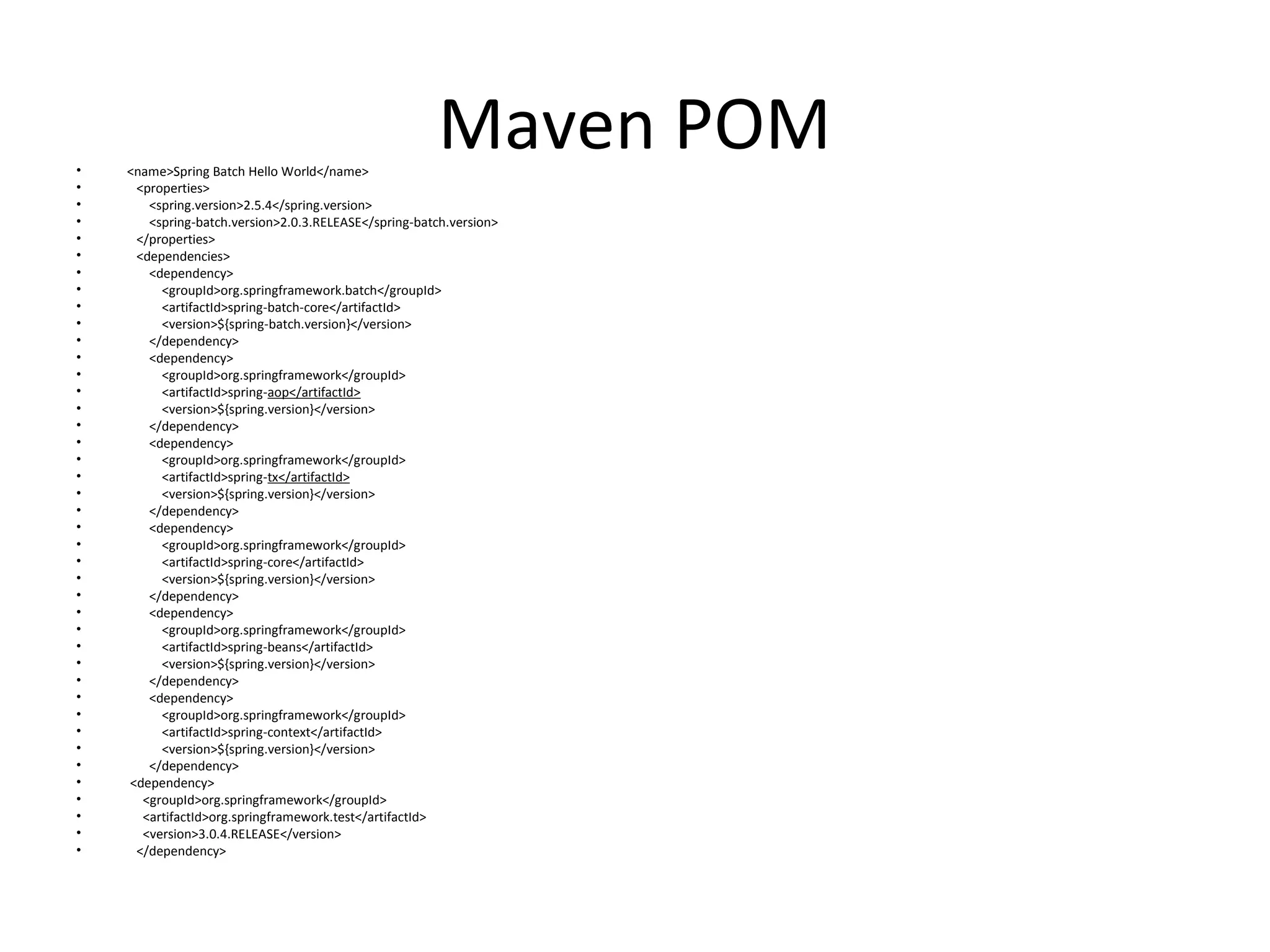

8. Maven POM• <name>Spring Batch Hello World</name>
• <properties>
• <spring.version>2.5.4</spring.version>
• <spring-batch.version>2.0.3.RELEASE</spring-batch.version>
• </properties>
• <dependencies>
• <dependency>
• <groupId>org.springframework.batch</groupId>
• <artifactId>spring-batch-core</artifactId>
• <version>${spring-batch.version}</version>
• </dependency>
• <dependency>
• <groupId>org.springframework</groupId>
• <artifactId>spring-aop</artifactId>
• <version>${spring.version}</version>
• </dependency>
• <dependency>
• <groupId>org.springframework</groupId>
• <artifactId>spring-tx</artifactId>
• <version>${spring.version}</version>
• </dependency>
• <dependency>
• <groupId>org.springframework</groupId>
• <artifactId>spring-core</artifactId>
• <version>${spring.version}</version>
• </dependency>
• <dependency>
• <groupId>org.springframework</groupId>
• <artifactId>spring-beans</artifactId>
• <version>${spring.version}</version>
• </dependency>
• <dependency>
• <groupId>org.springframework</groupId>
• <artifactId>spring-context</artifactId>
• <version>${spring.version}</version>
• </dependency>
• <dependency>
• <groupId>org.springframework</groupId>
• <artifactId>org.springframework.test</artifactId>
• <version>3.0.4.RELEASE</version>
• </dependency>

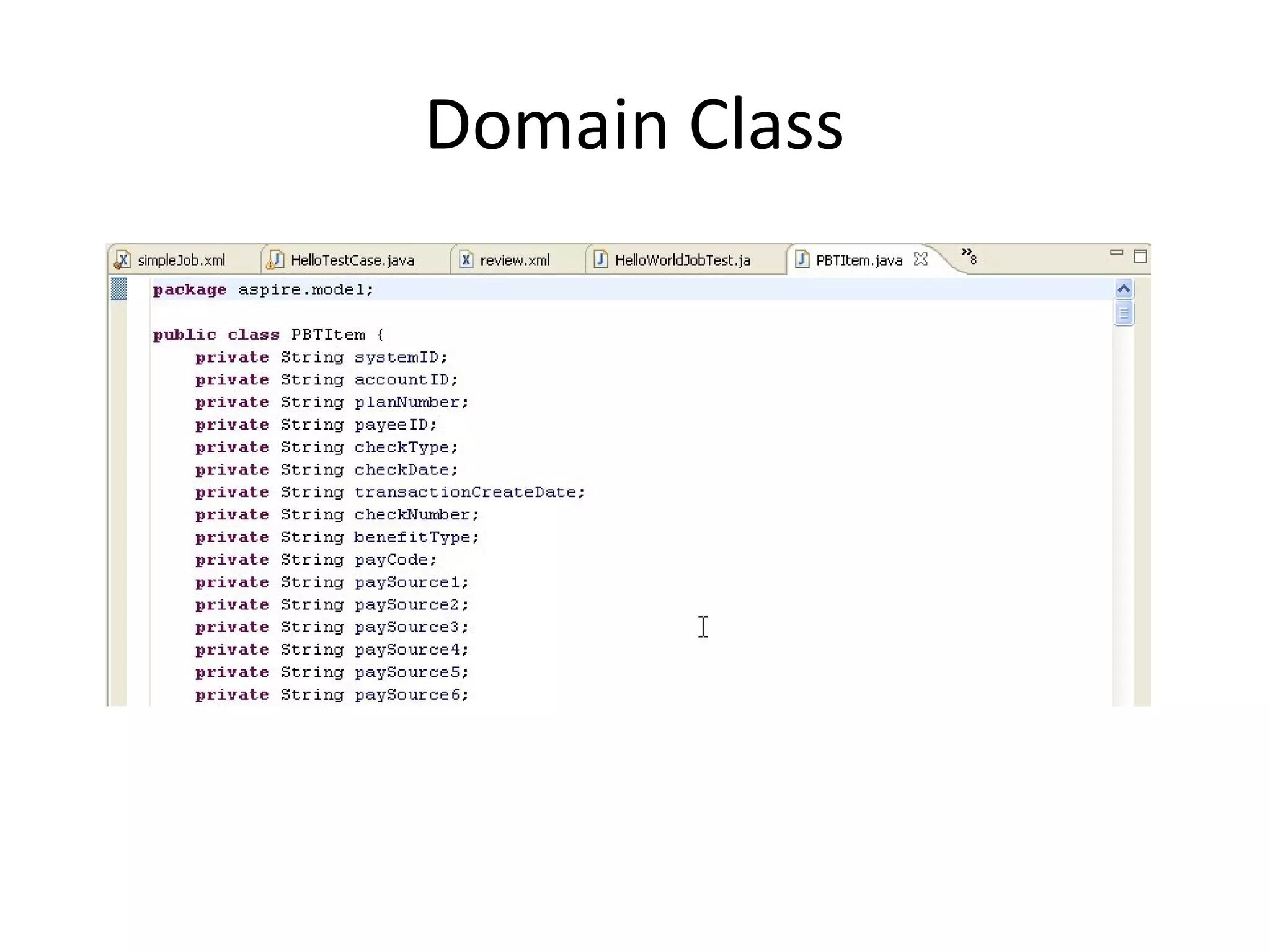

9. Domain Class

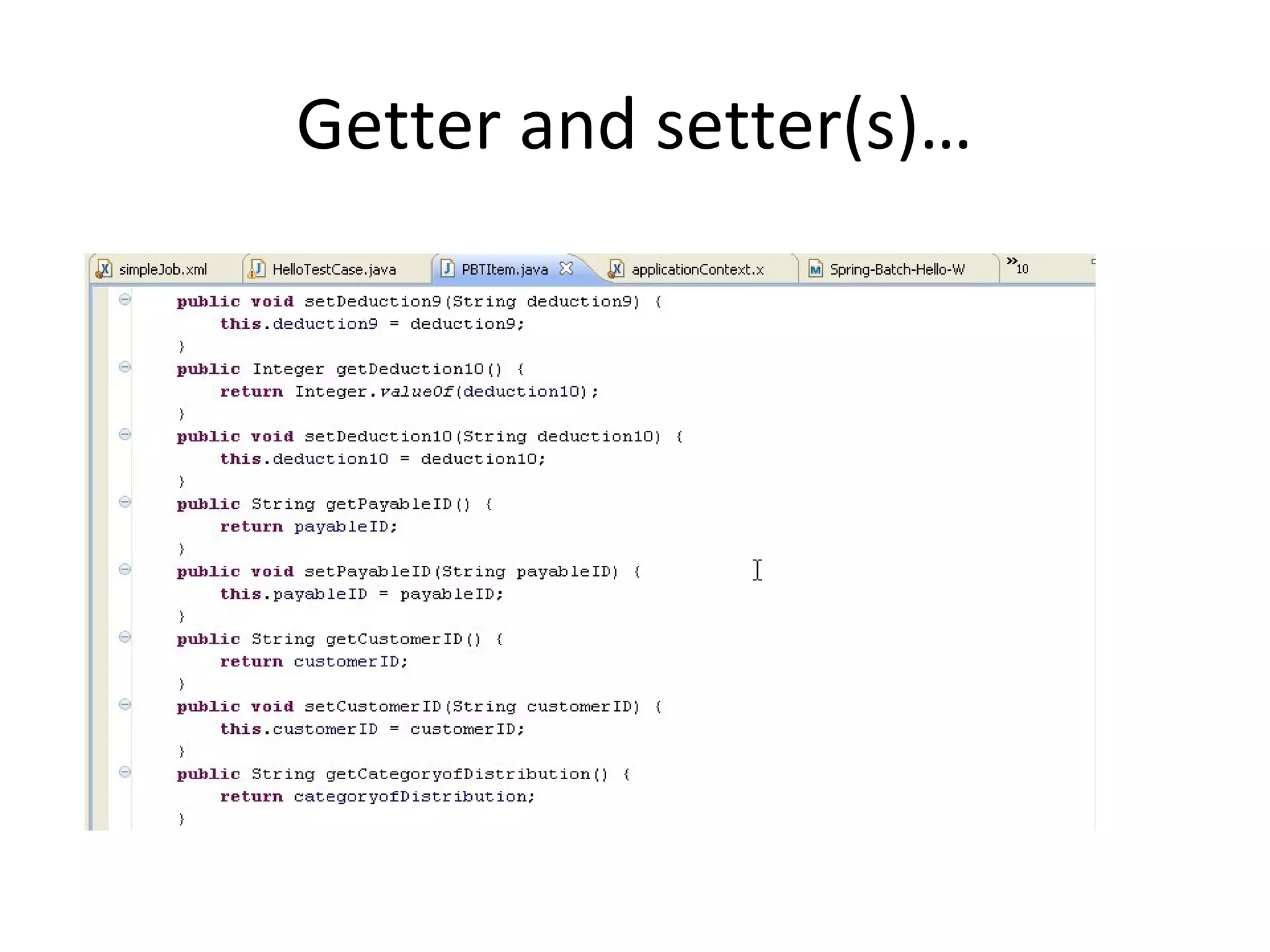

10. Getter and setter(s)…

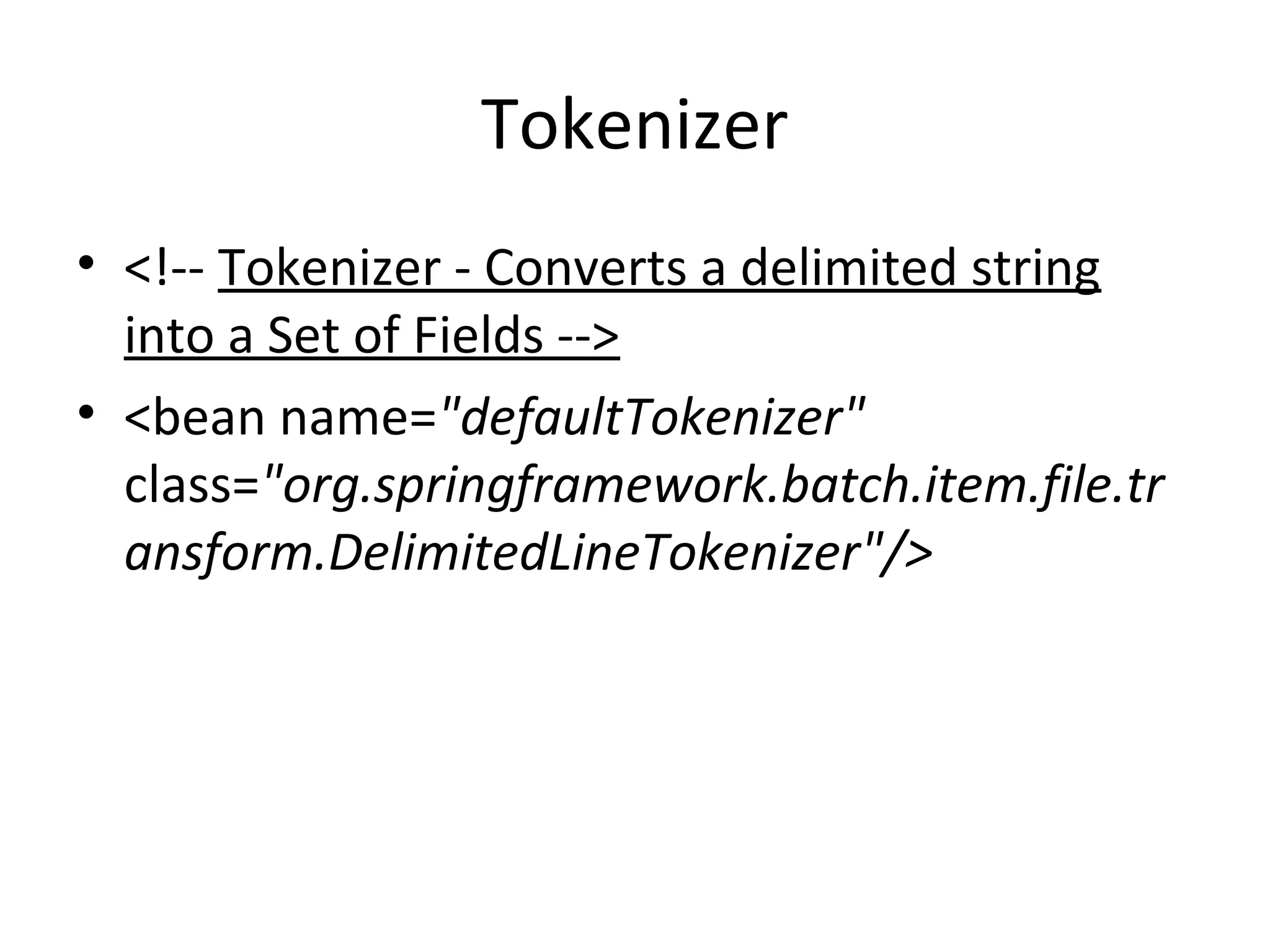

11. Tokenizer
• <!-- Tokenizer - Converts a delimited string
into a Set of Fields -->
• <bean name="defaultTokenizer"
class="org.springframework.batch.item.file.tr
ansform.DelimitedLineTokenizer"/>

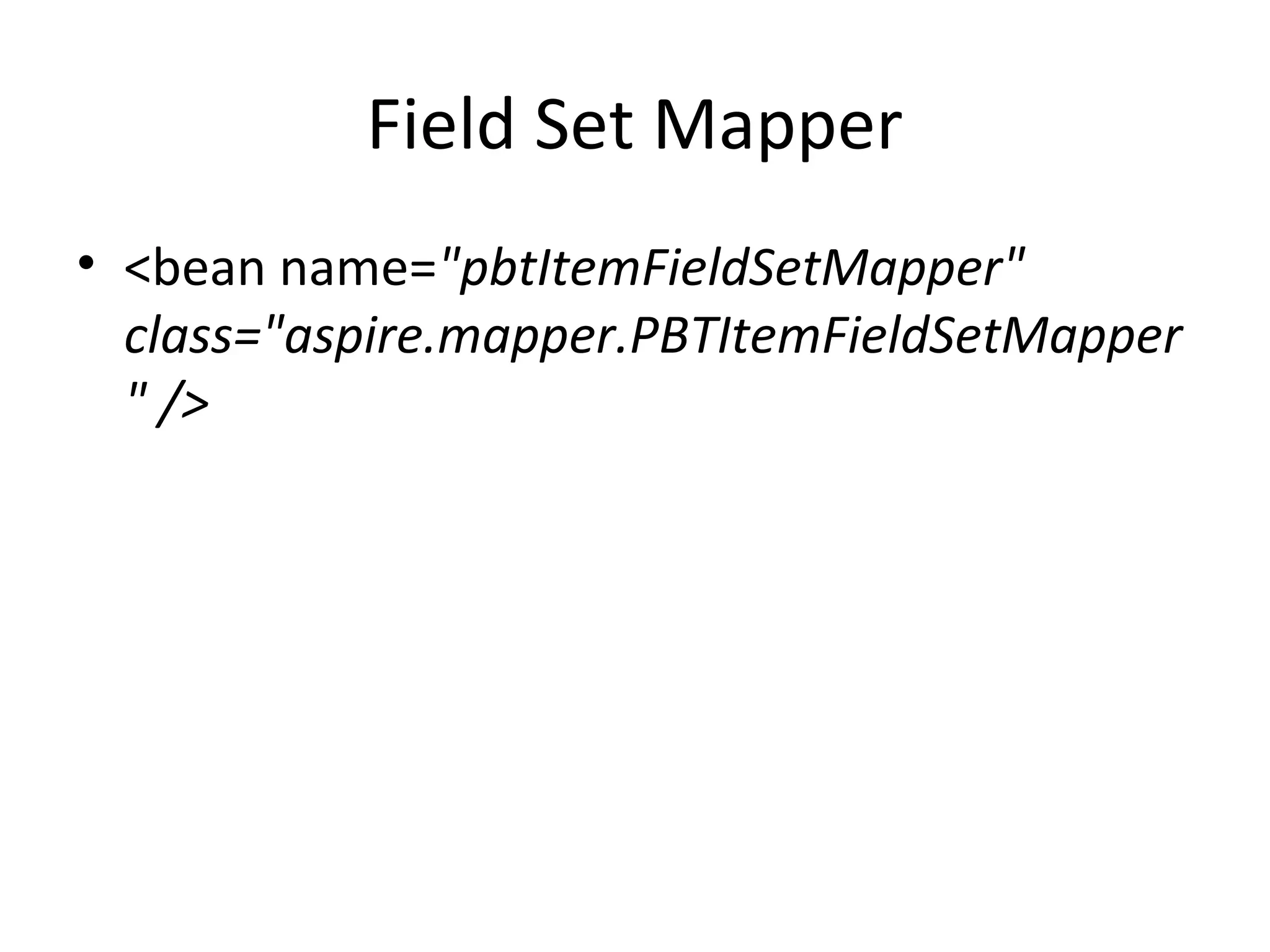

12. Field Set Mapper
• <bean name="pbtItemFieldSetMapper"
class="aspire.mapper.PBTItemFieldSetMapper
" />

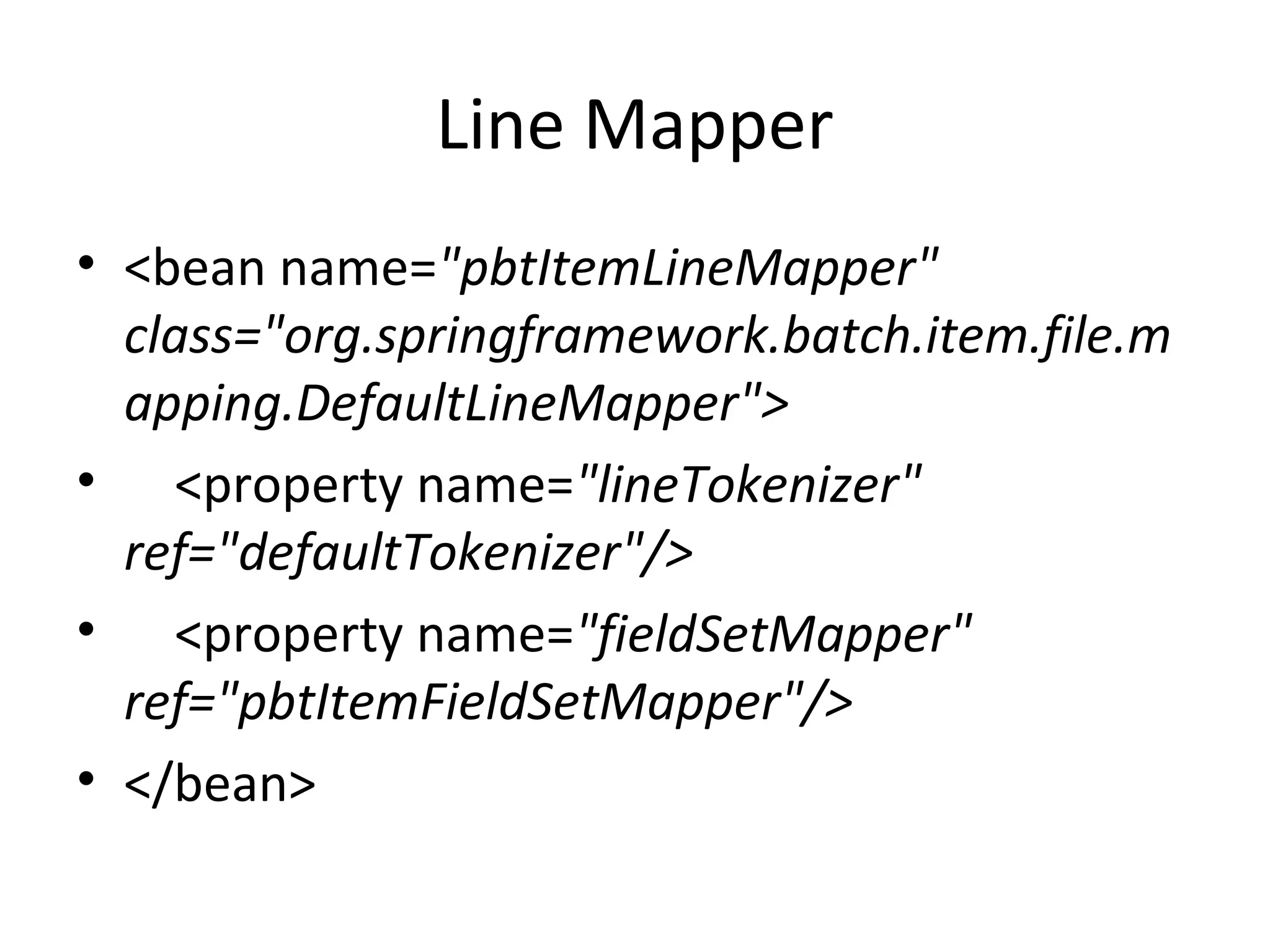

13. Line Mapper
• <bean name="pbtItemLineMapper"
class="org.springframework.batch.item.file.m
apping.DefaultLineMapper">
• <property name="lineTokenizer"
ref="defaultTokenizer"/>
• <property name="fieldSetMapper"
ref="pbtItemFieldSetMapper"/>
• </bean>

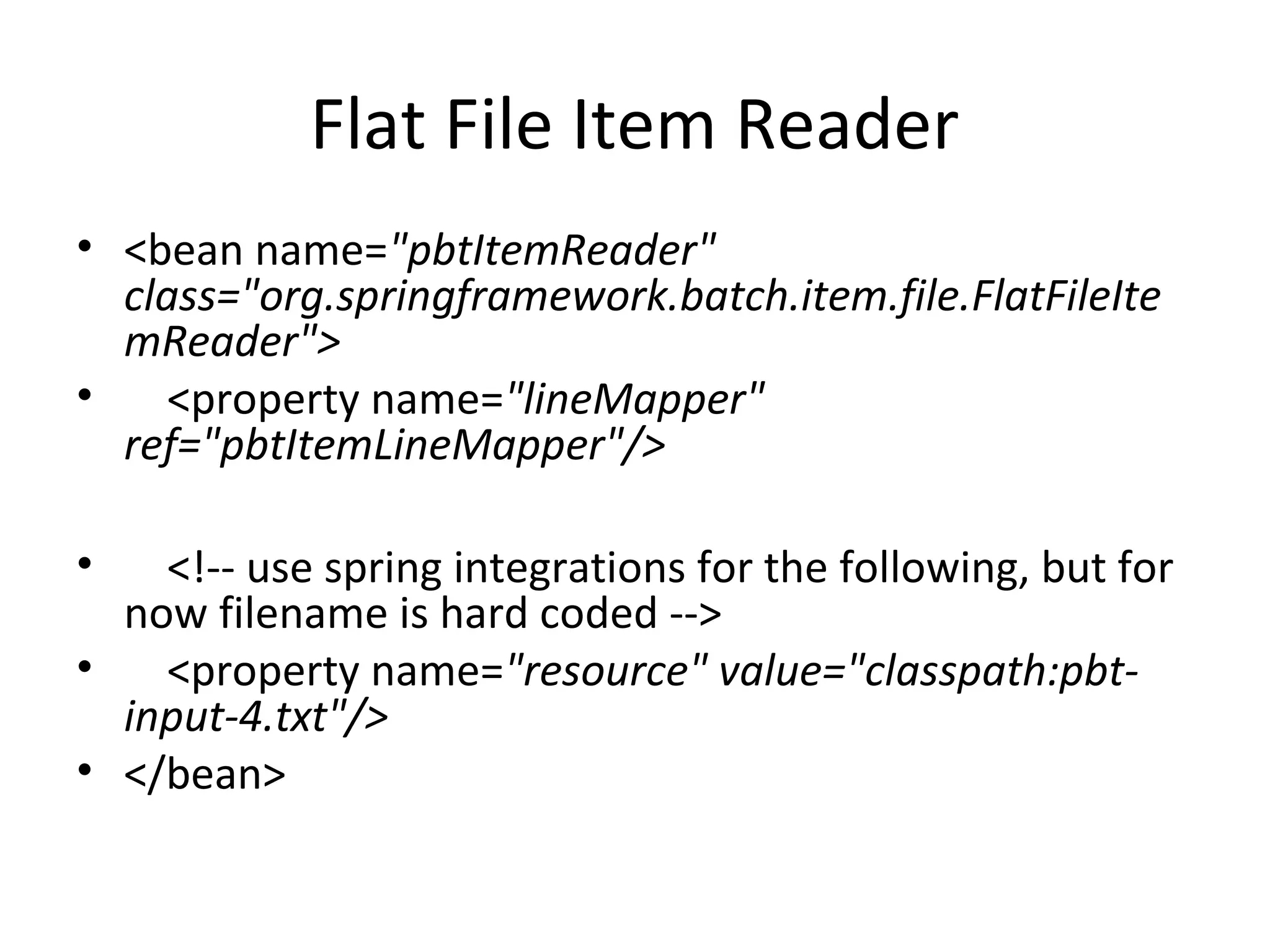

14. Flat File Item Reader
• <bean name="pbtItemReader"
class="org.springframework.batch.item.file.FlatFileIte
mReader">
• <property name="lineMapper"
ref="pbtItemLineMapper"/>
• <!-- use spring integrations for the following, but for
now filename is hard coded -->
• <property name="resource" value="classpath:pbt-
input-4.txt"/>
• </bean>

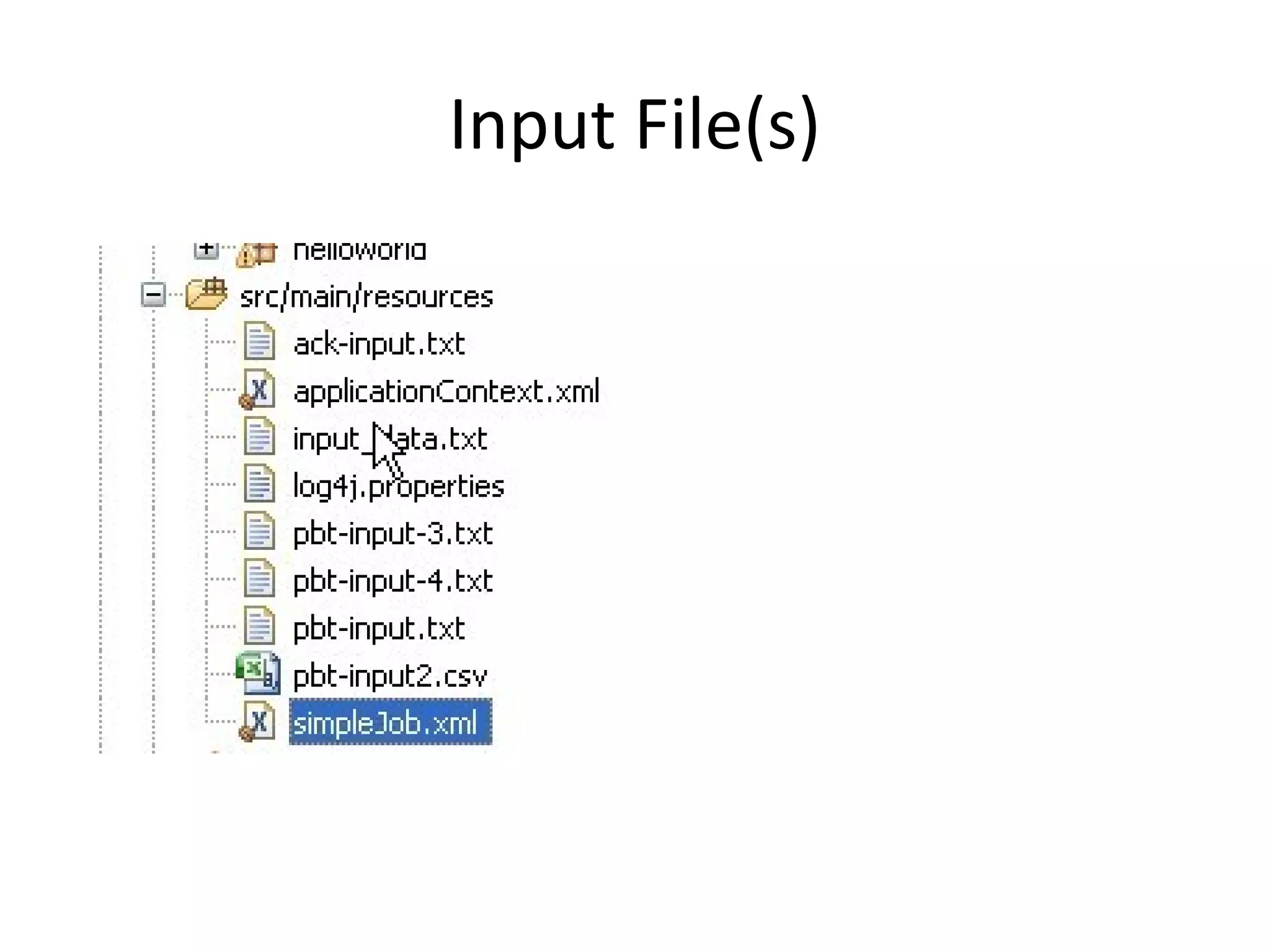

15. Input File(s)

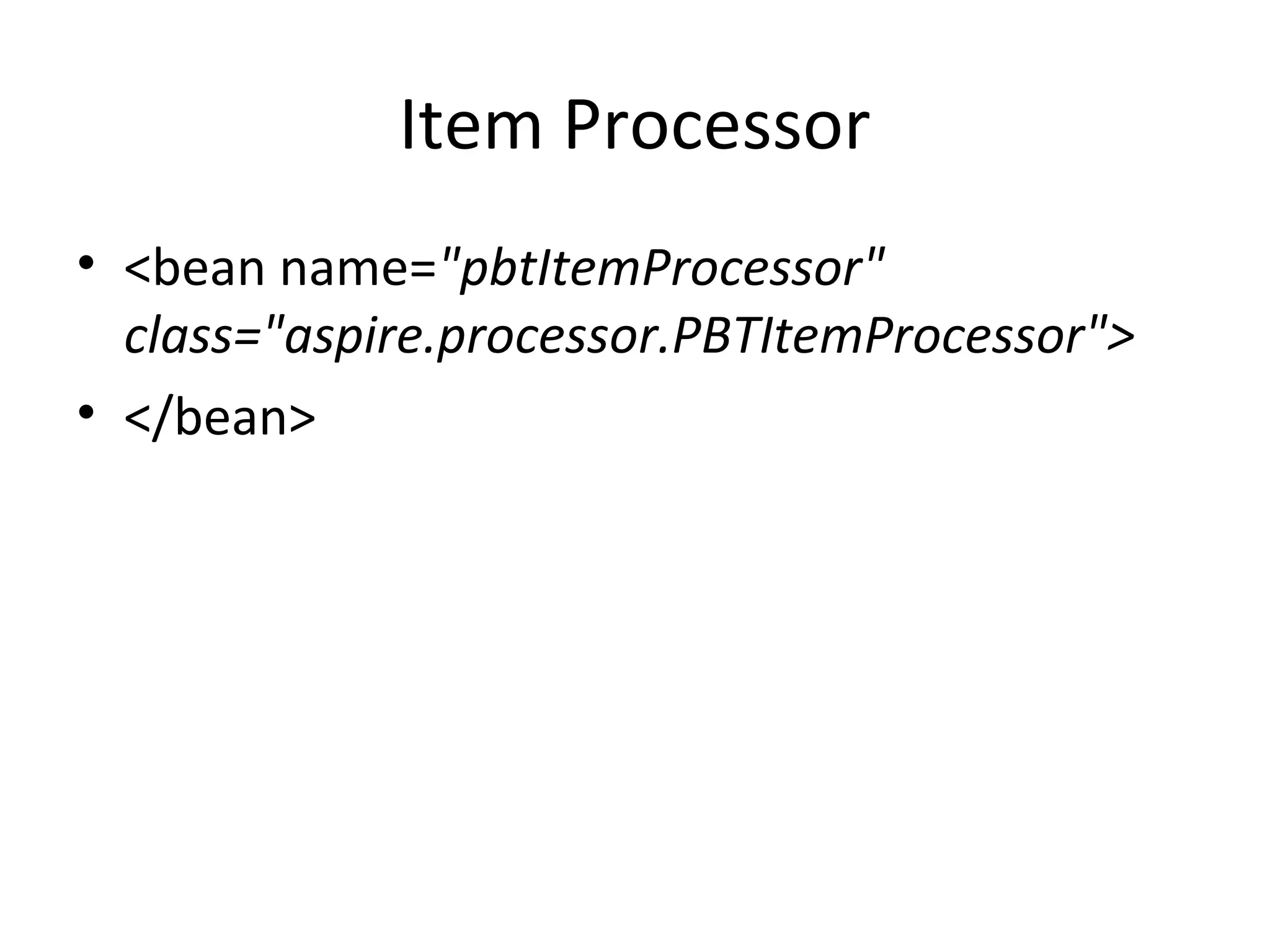

16. Item Processor
• <bean name="pbtItemProcessor"
class="aspire.processor.PBTItemProcessor">
• </bean>

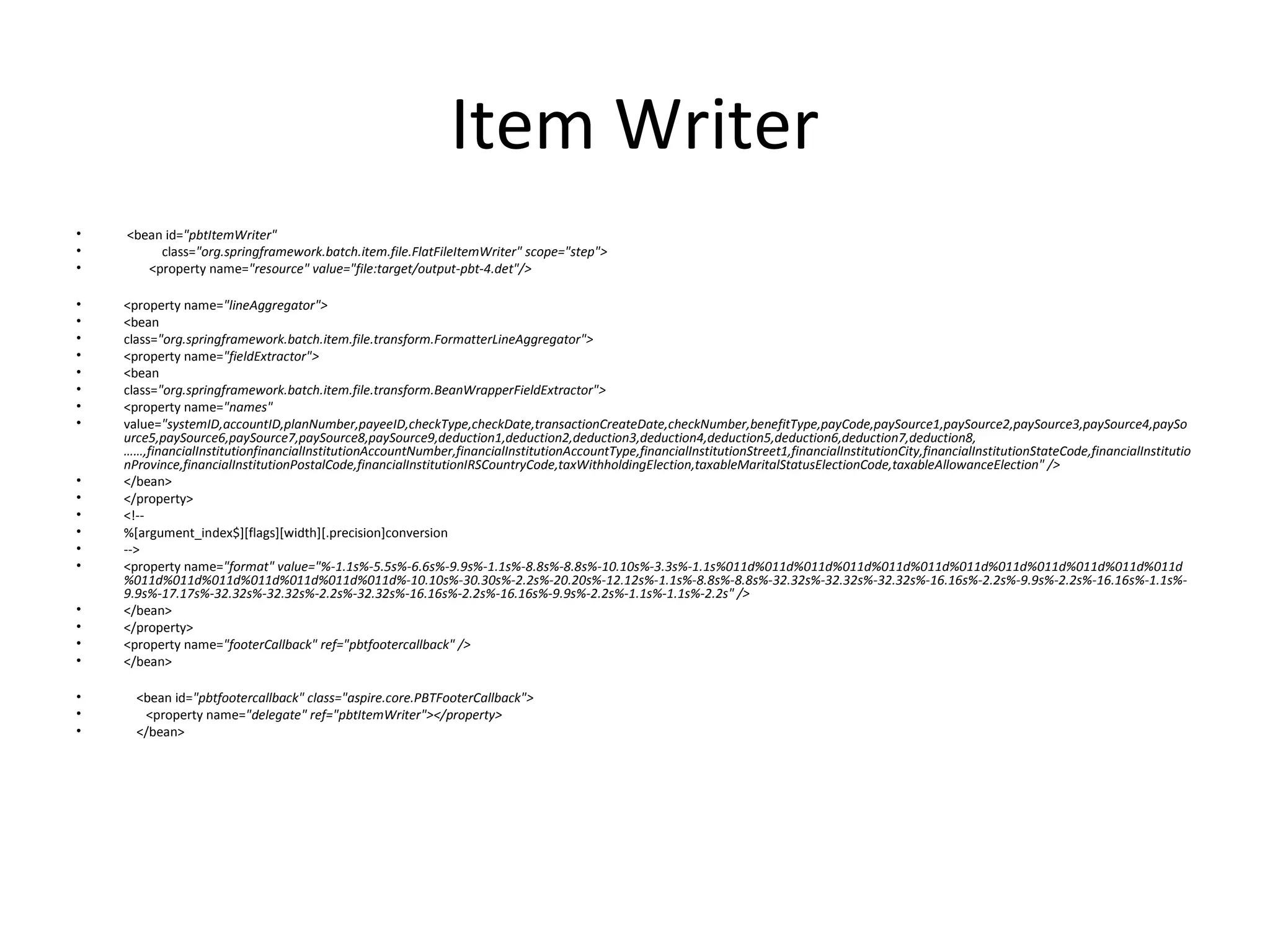

17. Item Writer
• <bean id="pbtItemWriter"
• class="org.springframework.batch.item.file.FlatFileItemWriter" scope="step">
• <property name="resource" value="file:target/output-pbt-4.det"/>
• <property name="lineAggregator">
• <bean
• class="org.springframework.batch.item.file.transform.FormatterLineAggregator">
• <property name="fieldExtractor">
• <bean
• class="org.springframework.batch.item.file.transform.BeanWrapperFieldExtractor">
• <property name="names"
• value="systemID,accountID,planNumber,payeeID,checkType,checkDate,transactionCreateDate,checkNumber,benefitType,payCode,paySource1,paySource2,paySource3,paySource4,paySo
urce5,paySource6,paySource7,paySource8,paySource9,deduction1,deduction2,deduction3,deduction4,deduction5,deduction6,deduction7,deduction8,
……,financialInstitutionfinancialInstitutionAccountNumber,financialInstitutionAccountType,financialInstitutionStreet1,financialInstitutionCity,financialInstitutionStateCode,financialInstitutio
nProvince,financialInstitutionPostalCode,financialInstitutionIRSCountryCode,taxWithholdingElection,taxableMaritalStatusElectionCode,taxableAllowanceElection" />
• </bean>
• </property>
• <!--
• %[argument_index$][flags][width][.precision]conversion
• -->
• <property name="format" value="%-1.1s%-5.5s%-6.6s%-9.9s%-1.1s%-8.8s%-8.8s%-10.10s%-3.3s%-1.1s%011d%011d%011d%011d%011d%011d%011d%011d%011d%011d%011d%011d
%011d%011d%011d%011d%011d%011d%011d%-10.10s%-30.30s%-2.2s%-20.20s%-12.12s%-1.1s%-8.8s%-8.8s%-32.32s%-32.32s%-32.32s%-16.16s%-2.2s%-9.9s%-2.2s%-16.16s%-1.1s%-
9.9s%-17.17s%-32.32s%-32.32s%-2.2s%-32.32s%-16.16s%-2.2s%-16.16s%-9.9s%-2.2s%-1.1s%-1.1s%-2.2s" />
• </bean>
• </property>
• <property name="footerCallback" ref="pbtfootercallback" />
• </bean>
• <bean id="pbtfootercallback" class="aspire.core.PBTFooterCallback">
• <property name="delegate" ref="pbtItemWriter"></property>
• </bean>

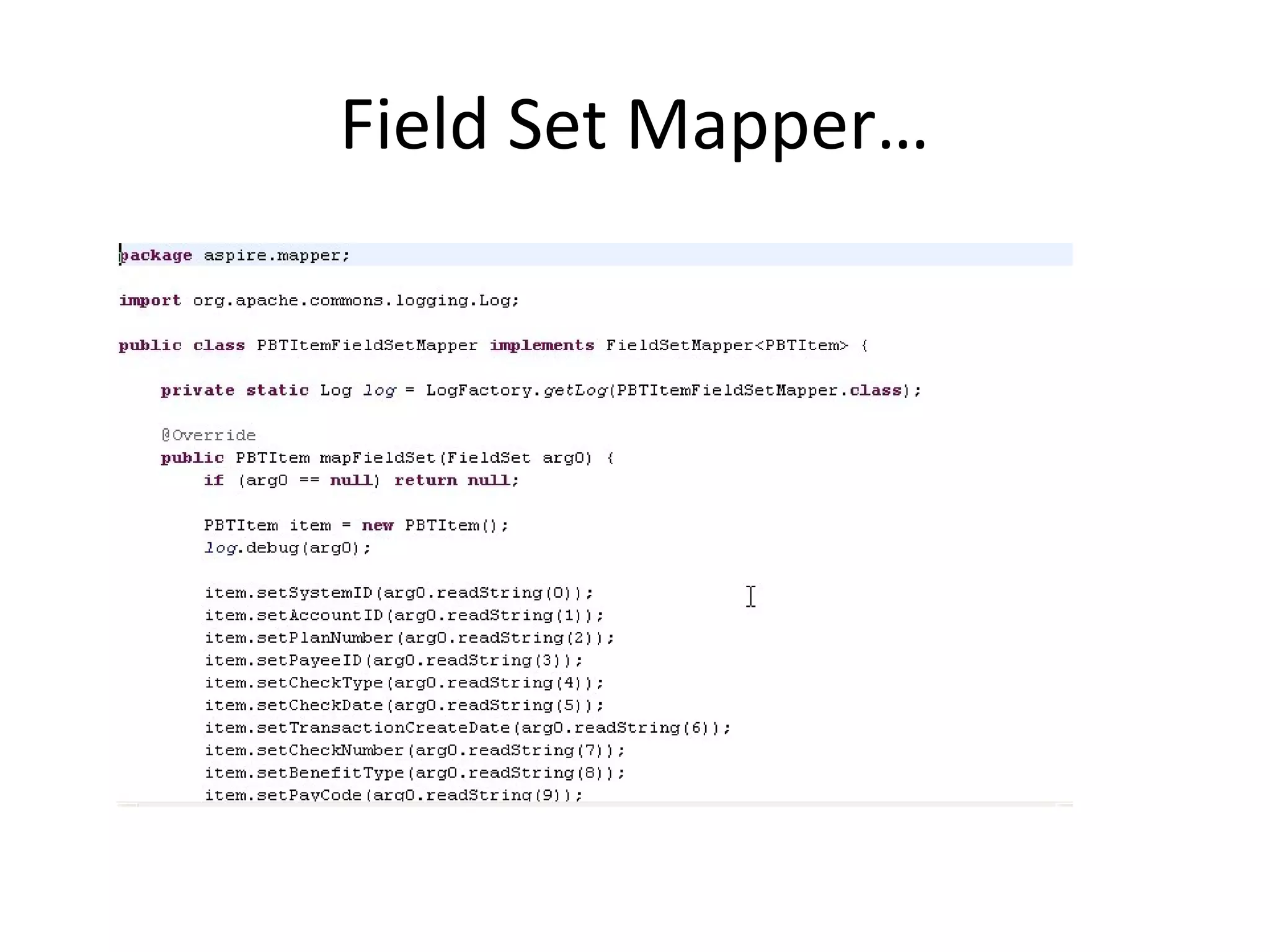

18. Field Set Mapper…

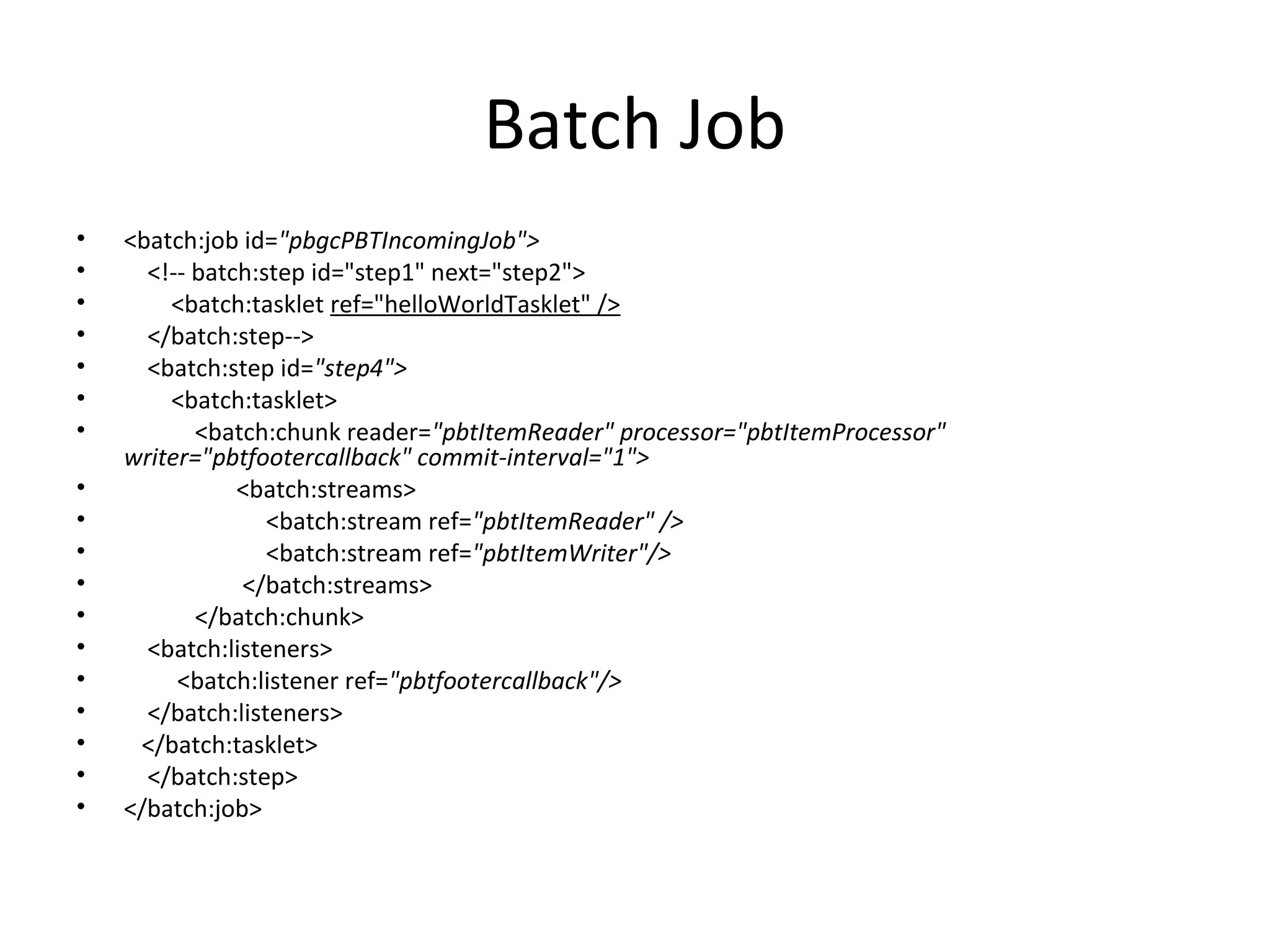

19. Batch Job
• <batch:job id="pbgcPBTIncomingJob">
• <!-- batch:step id="step1" next="step2">
• <batch:tasklet ref="helloWorldTasklet" />
• </batch:step-->
• <batch:step id="step4">
• <batch:tasklet>
• <batch:chunk reader="pbtItemReader" processor="pbtItemProcessor"
writer="pbtfootercallback" commit-interval="1">
• <batch:streams>
• <batch:stream ref="pbtItemReader" />
• <batch:stream ref="pbtItemWriter"/>
• </batch:streams>
• </batch:chunk>
• <batch:listeners>
• <batch:listener ref="pbtfootercallback"/>
• </batch:listeners>
• </batch:tasklet>
• </batch:step>
• </batch:job>

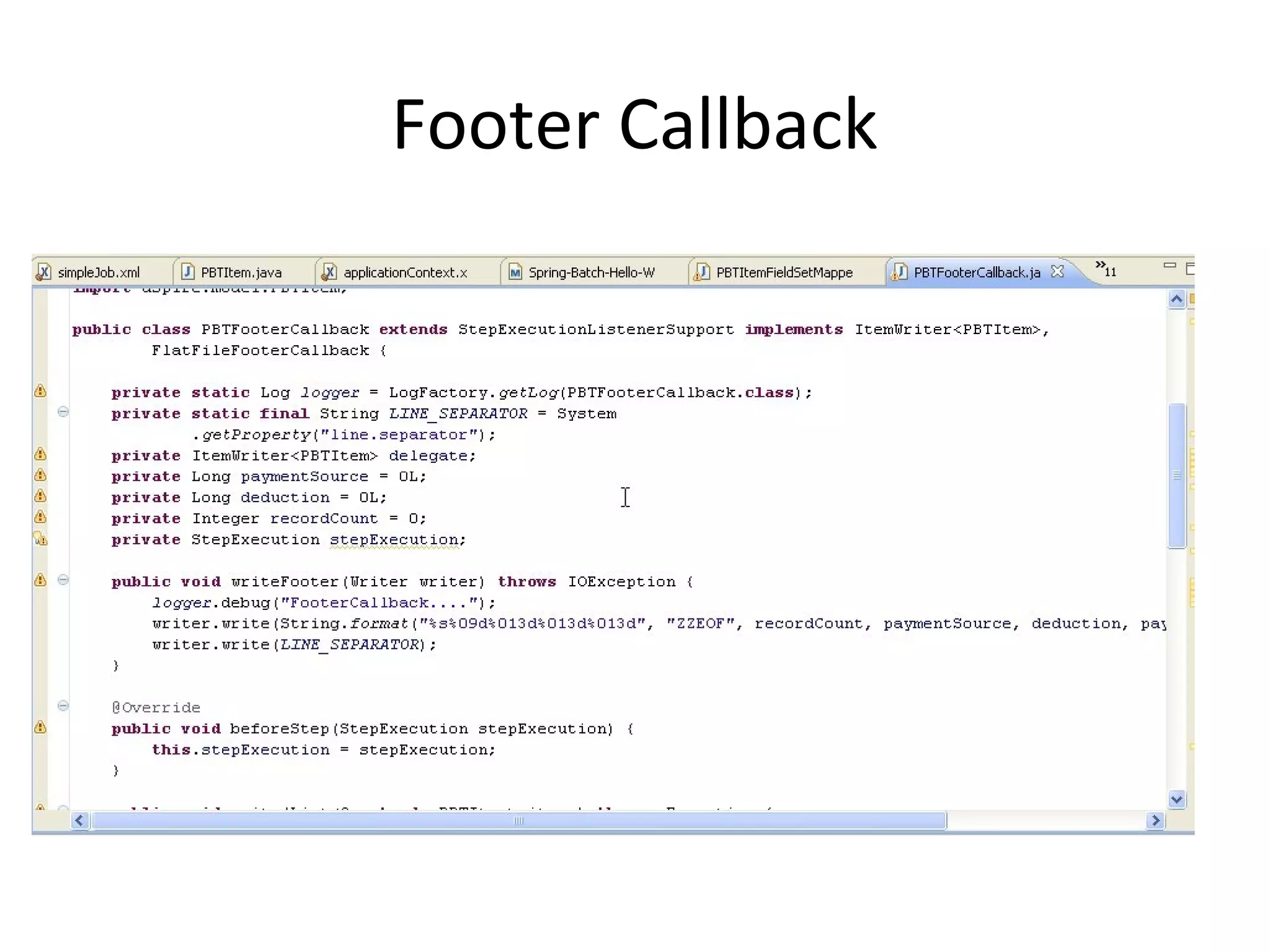

20. Footer Callback

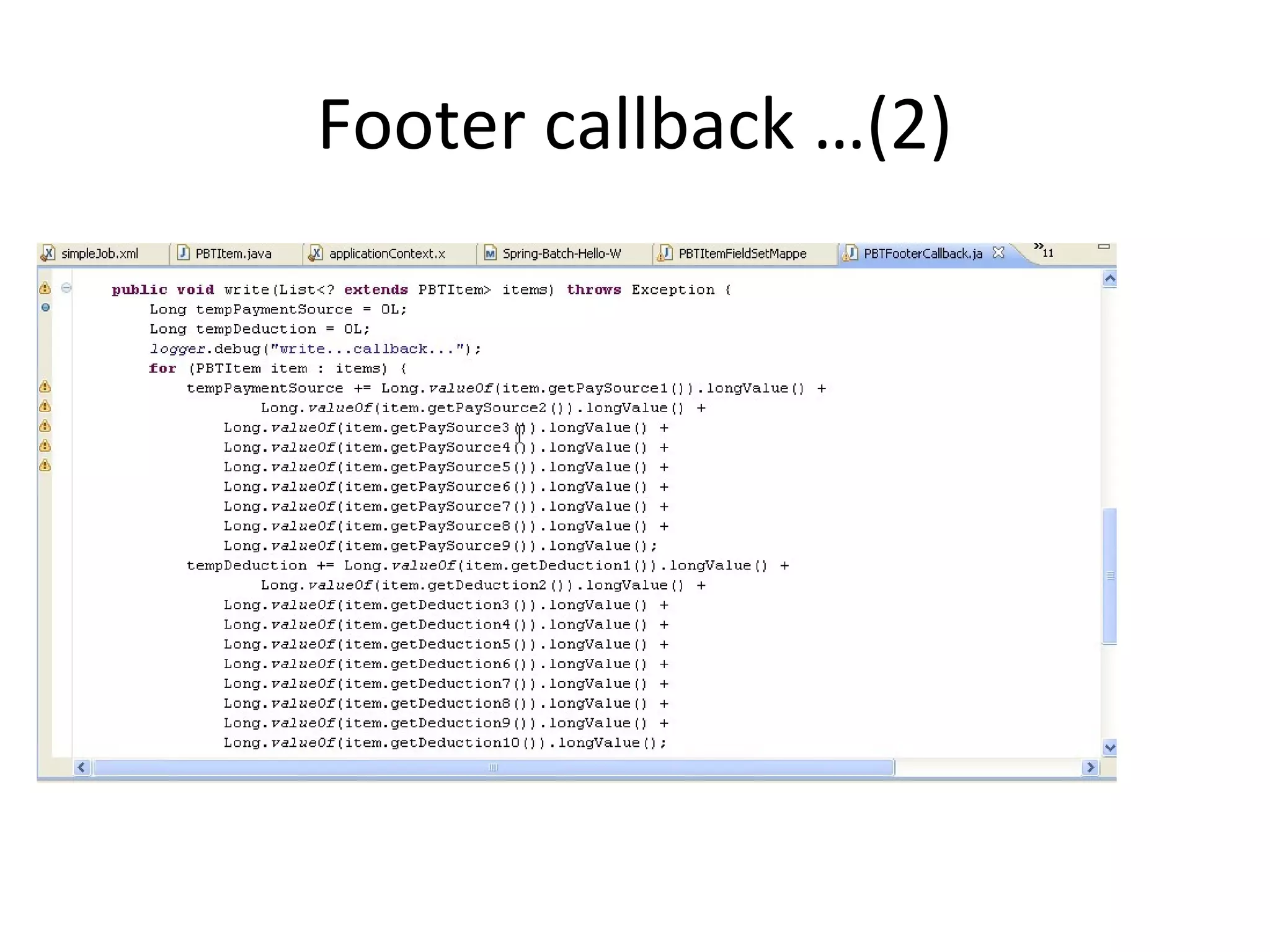

21. Footer callback …(2)

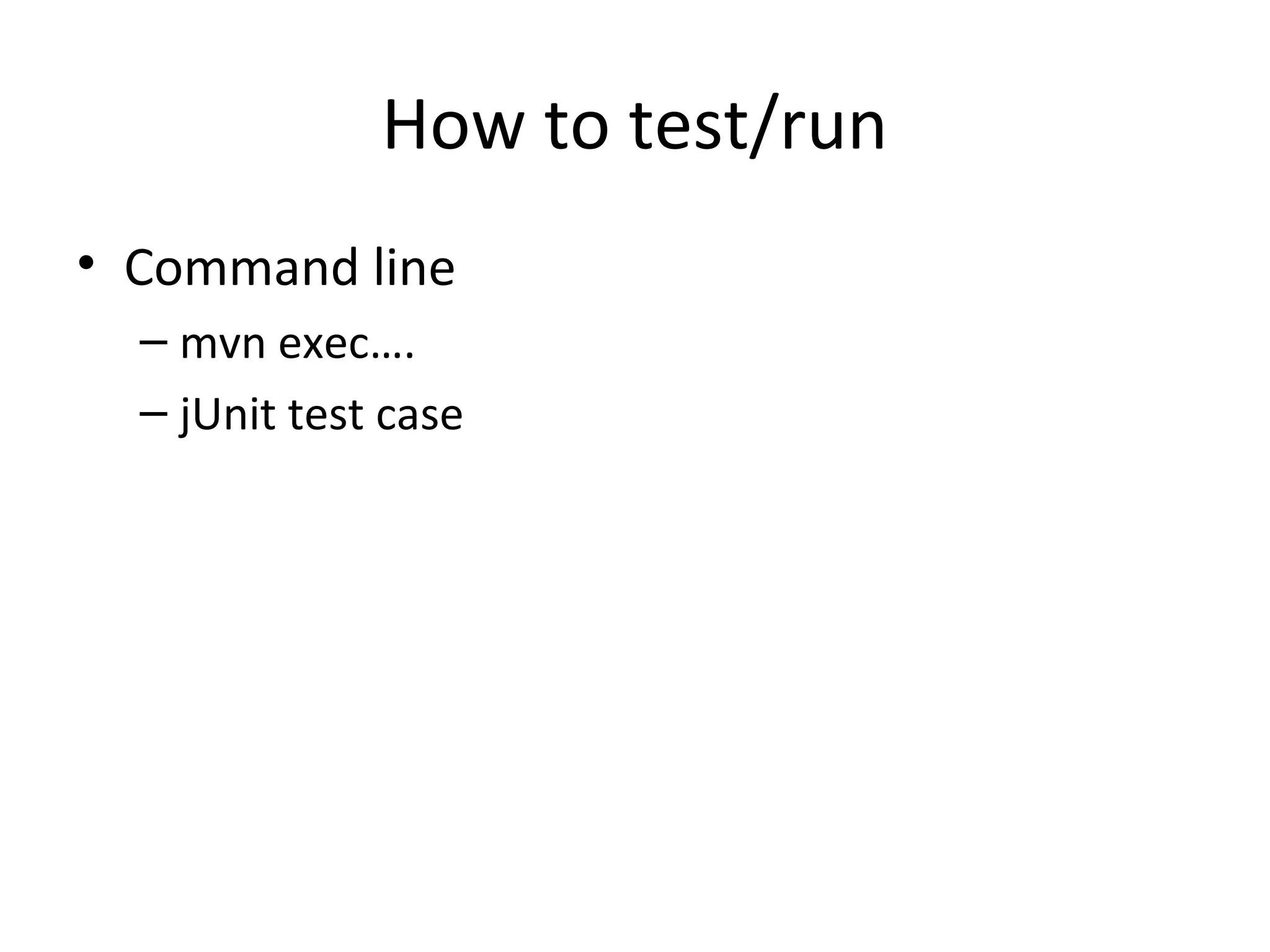

22. How to test/run
• Command line
– mvn exec….
– jUnit test case

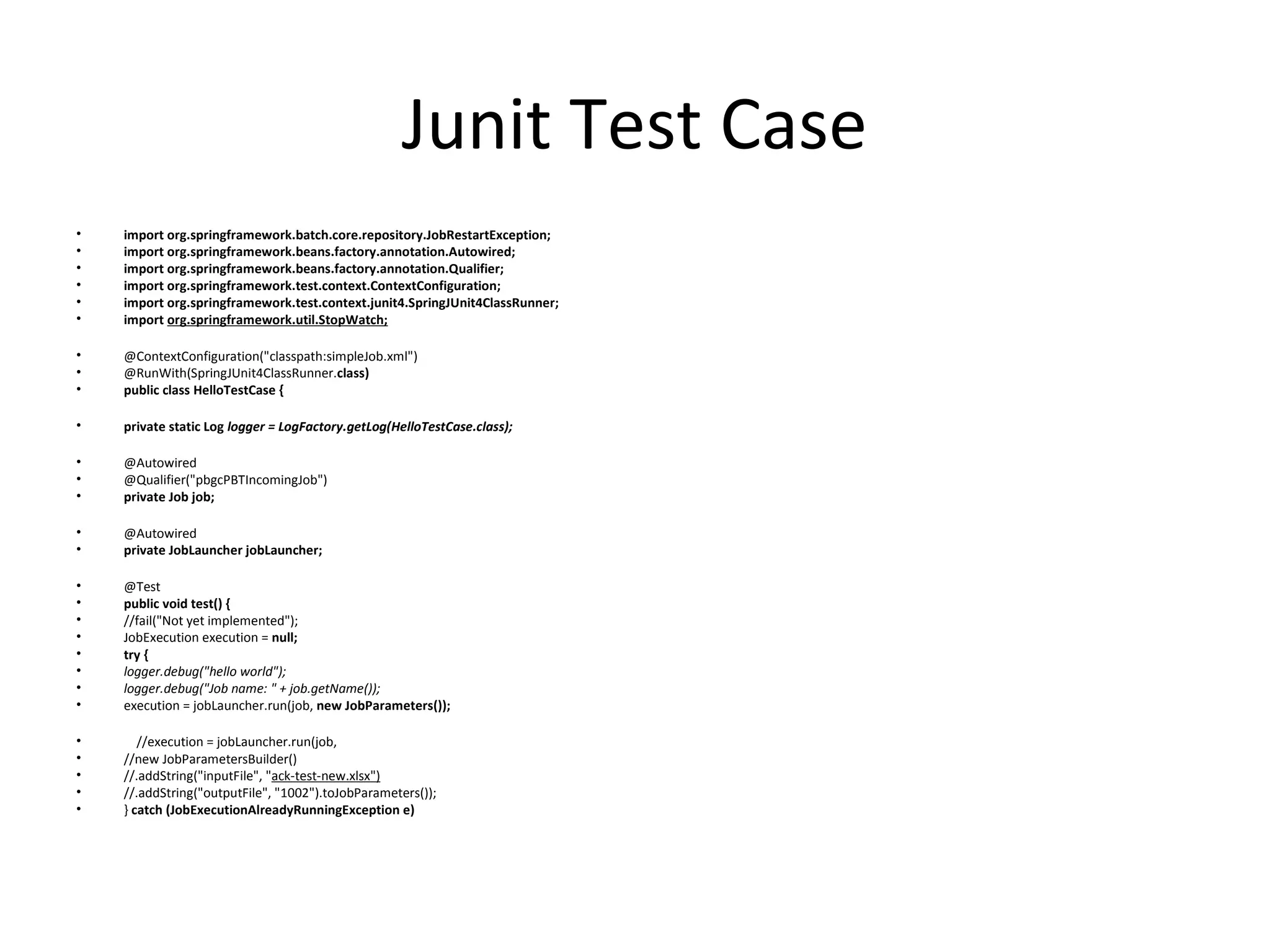

23. Junit Test Case
• import org.springframework.batch.core.repository.JobRestartException;
• import org.springframework.beans.factory.annotation.Autowired;
• import org.springframework.beans.factory.annotation.Qualifier;
• import org.springframework.test.context.ContextConfiguration;
• import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
• import org.springframework.util.StopWatch;
• @ContextConfiguration("classpath:simpleJob.xml")
• @RunWith(SpringJUnit4ClassRunner.class)
• public class HelloTestCase {
• private static Log logger = LogFactory.getLog(HelloTestCase.class);
• @Autowired
• @Qualifier("pbgcPBTIncomingJob")
• private Job job;
• @Autowired
• private JobLauncher jobLauncher;
• @Test
• public void test() {
• //fail("Not yet implemented");
• JobExecution execution = null;
• try {
• logger.debug("hello world");
• logger.debug("Job name: " + job.getName());
• execution = jobLauncher.run(job, new JobParameters());
• //execution = jobLauncher.run(job,
• //new JobParametersBuilder()
• //.addString("inputFile", "ack-test-new.xlsx")
• //.addString("outputFile", "1002").toJobParameters());
• } catch (JobExecutionAlreadyRunningException e)

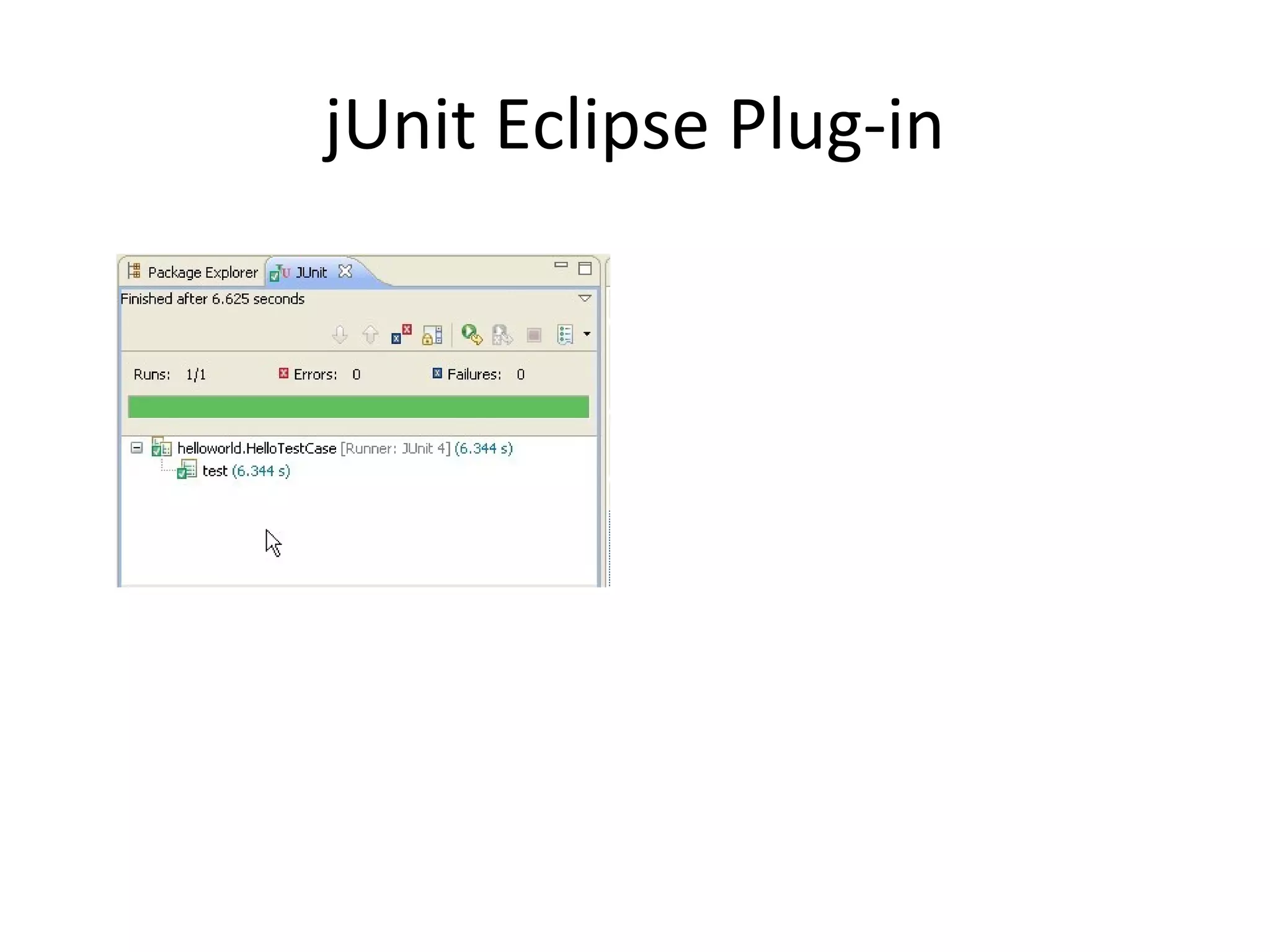

24. jUnit Eclipse Plug-in

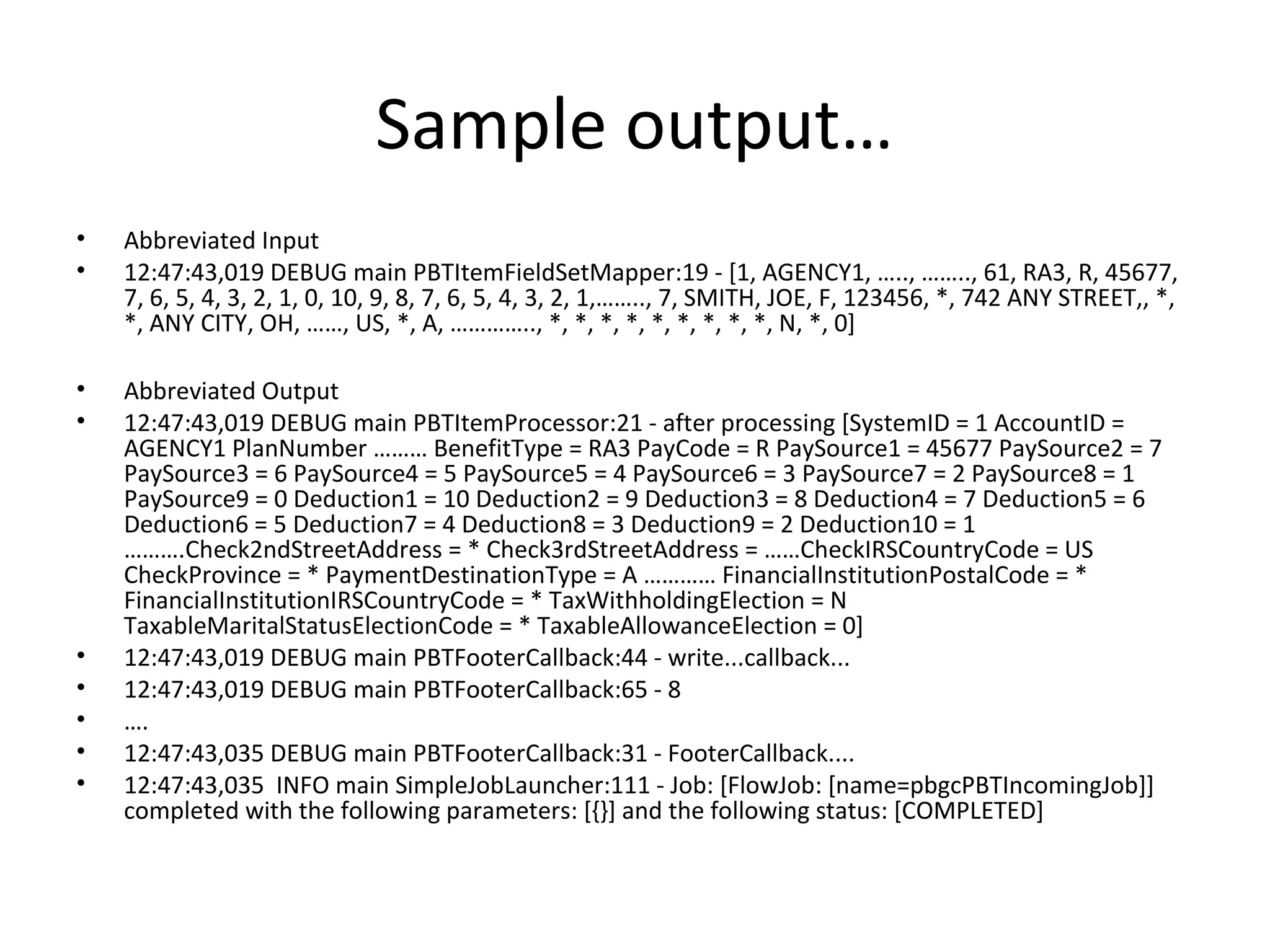

25. Sample output…
• Abbreviated Input
• 12:47:43,019 DEBUG main PBTItemFieldSetMapper:19 - [1, AGENCY1, ….., …….., 61, RA3, R, 45677,
7, 6, 5, 4, 3, 2, 1, 0, 10, 9, 8, 7, 6, 5, 4, 3, 2, 1,…….., 7, SMITH, JOE, F, 123456, *, 742 ANY STREET,, *,
*, ANY CITY, OH, ……, US, *, A, ………….., *, *, *, *, *, *, *, *, *, N, *, 0]
• Abbreviated Output
• 12:47:43,019 DEBUG main PBTItemProcessor:21 - after processing [SystemID = 1 AccountID =
AGENCY1 PlanNumber ……… BenefitType = RA3 PayCode = R PaySource1 = 45677 PaySource2 = 7
PaySource3 = 6 PaySource4 = 5 PaySource5 = 4 PaySource6 = 3 PaySource7 = 2 PaySource8 = 1
PaySource9 = 0 Deduction1 = 10 Deduction2 = 9 Deduction3 = 8 Deduction4 = 7 Deduction5 = 6
Deduction6 = 5 Deduction7 = 4 Deduction8 = 3 Deduction9 = 2 Deduction10 = 1
……….Check2ndStreetAddress = * Check3rdStreetAddress = ……CheckIRSCountryCode = US
CheckProvince = * PaymentDestinationType = A ………… FinancialInstitutionPostalCode = *
FinancialInstitutionIRSCountryCode = * TaxWithholdingElection = N
TaxableMaritalStatusElectionCode = * TaxableAllowanceElection = 0]
• 12:47:43,019 DEBUG main PBTFooterCallback:44 - write...callback...
• 12:47:43,019 DEBUG main PBTFooterCallback:65 - 8
• ….
• 12:47:43,035 DEBUG main PBTFooterCallback:31 - FooterCallback....
• 12:47:43,035 INFO main SimpleJobLauncher:111 - Job: [FlowJob: [name=pbgcPBTIncomingJob]]
completed with the following parameters: [{}] and the following status: [COMPLETED]

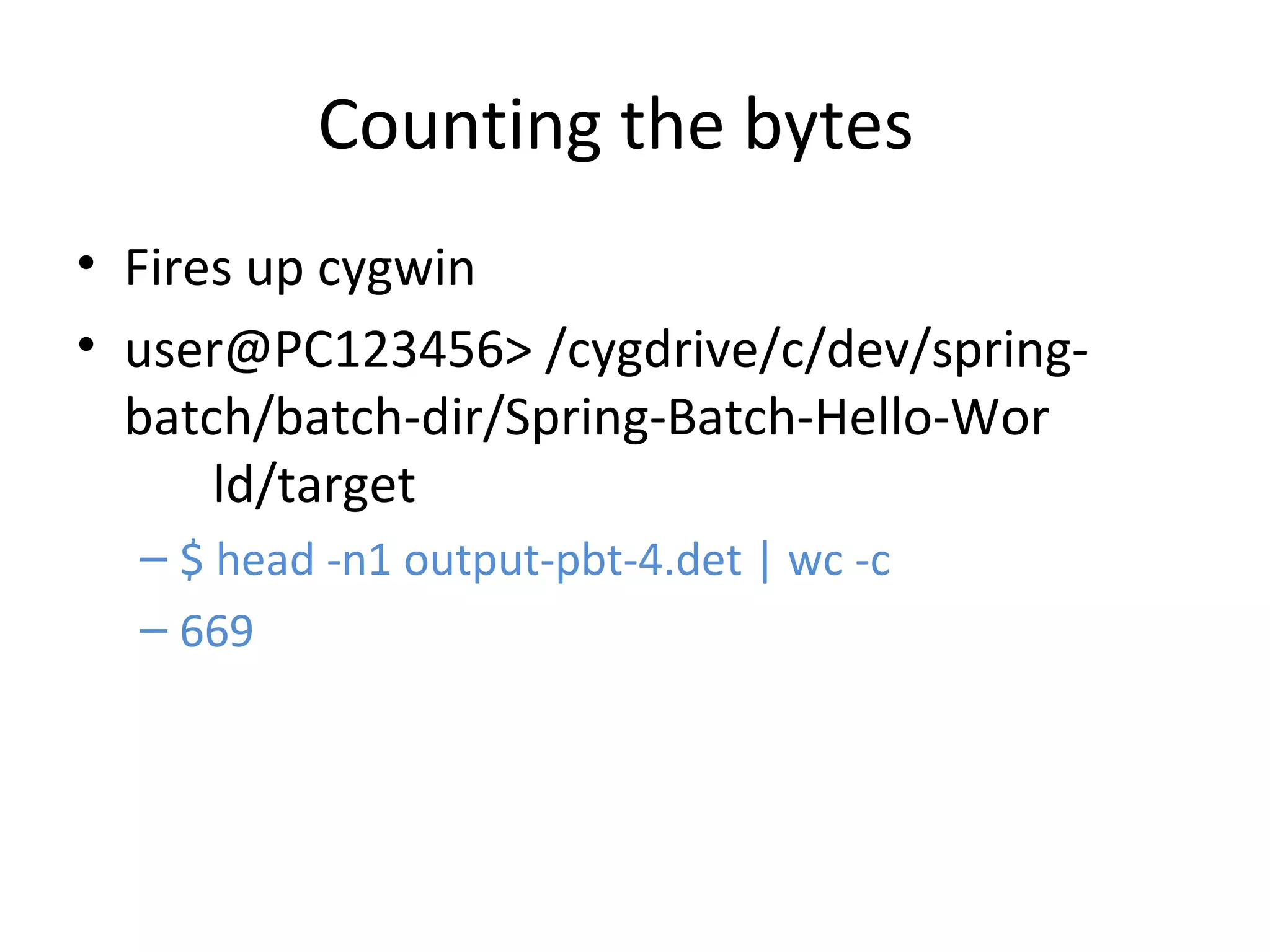

26. Counting the bytes
• Fires up cygwin
• user@PC123456> /cygdrive/c/dev/spring-
batch/batch-dir/Spring-Batch-Hello-Wor
ld/target
– $ head -n1 output-pbt-4.det | wc -c
– 669

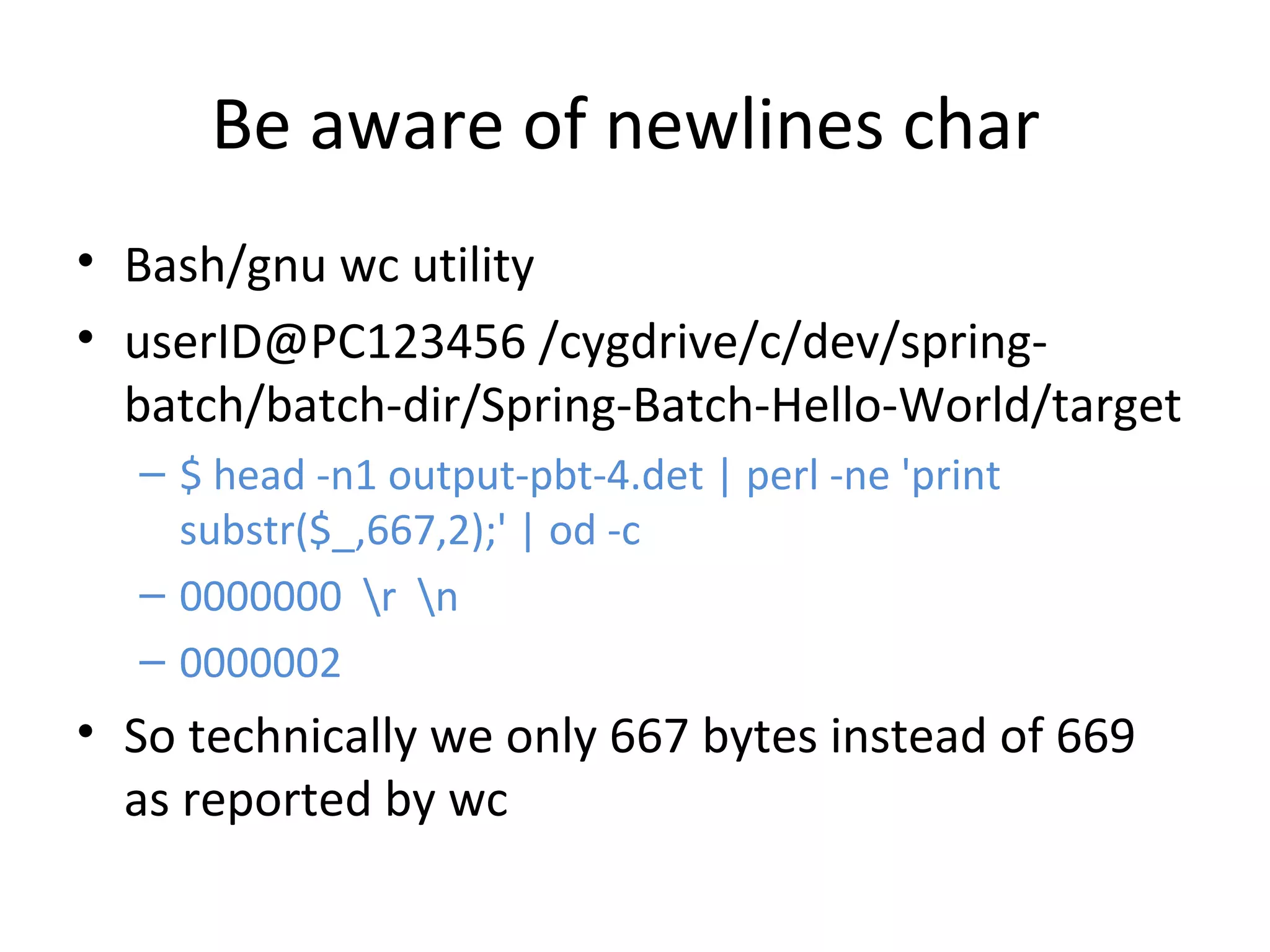

27. Be aware of newlines char
• Bash/gnu wc utility
• userID@PC123456 /cygdrive/c/dev/spring-
batch/batch-dir/Spring-Batch-Hello-World/target
– $ head -n1 output-pbt-4.det | perl -ne 'print
substr($_,667,2);' | od -c
– 0000000 r n
– 0000002
• So technically we only 667 bytes instead of 669
as reported by wc
