Huawei GPRS/EDGE CQT&DT Test Specifications

HUAWEITECHNOLOGIES CO., LTD.
www.huawei.com
HUAWEIConfidential
Security Level:
Specifications and Key Points
for GPRS/EDGE CQT&DT Test
V1.1

HUAWEITECHNOLOGIES CO., LTD. HUAWEIConfidential

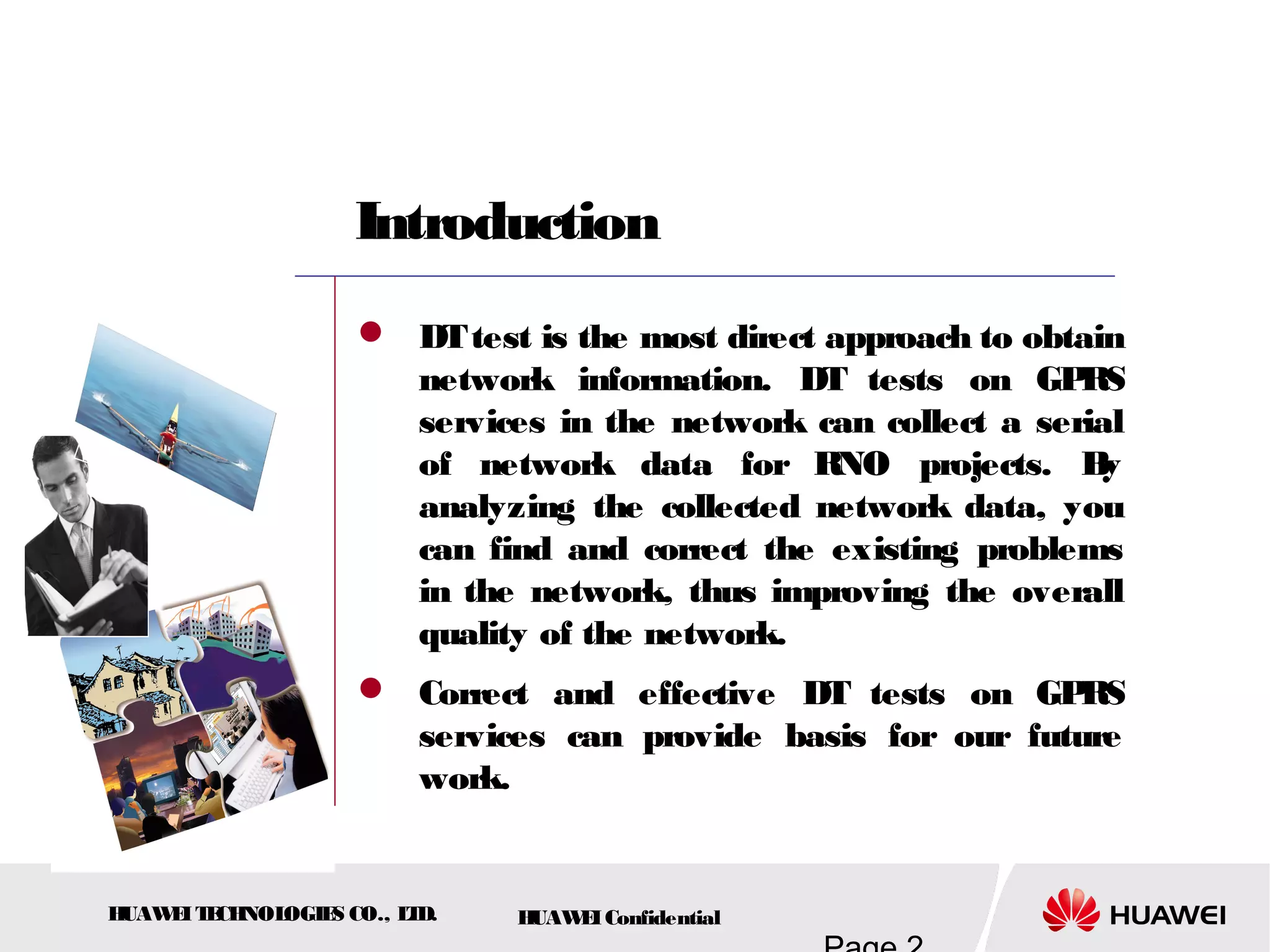

 DTtest is the most direct approach to obtain
network information. DT tests on GPRS
services in the network can collect a serial
of network data for RNO projects. By
analyzing the collected network data, you
can find and correct the existing problems
in the network, thus improving the overall
quality of the network.
 Correct and effective DT tests on GPRS
services can provide basis for our future
work.
Introduction

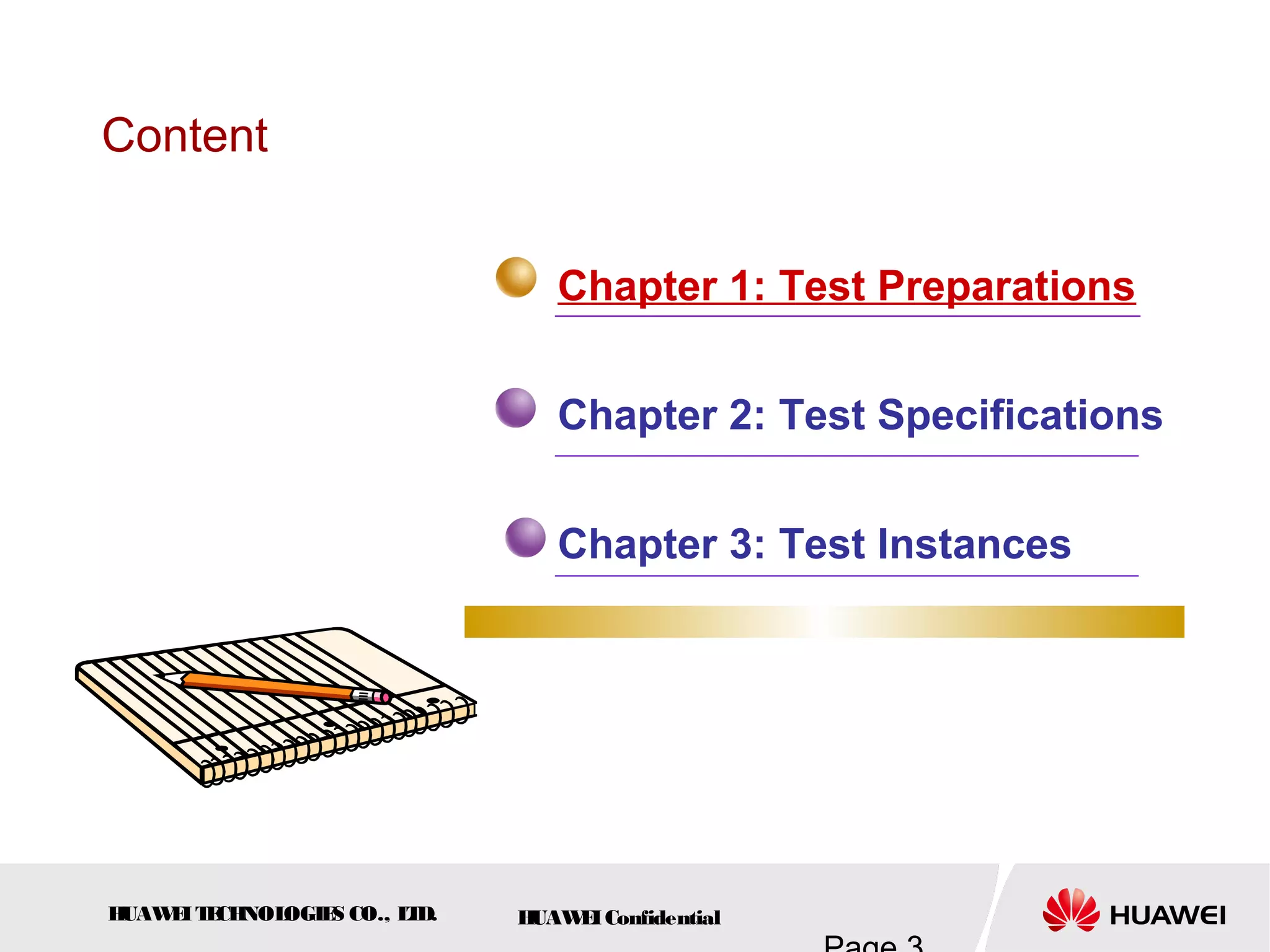

Content
Chapter 1: Test Preparations
Chapter 2: Test Specifications
Chapter 3: Test Instances

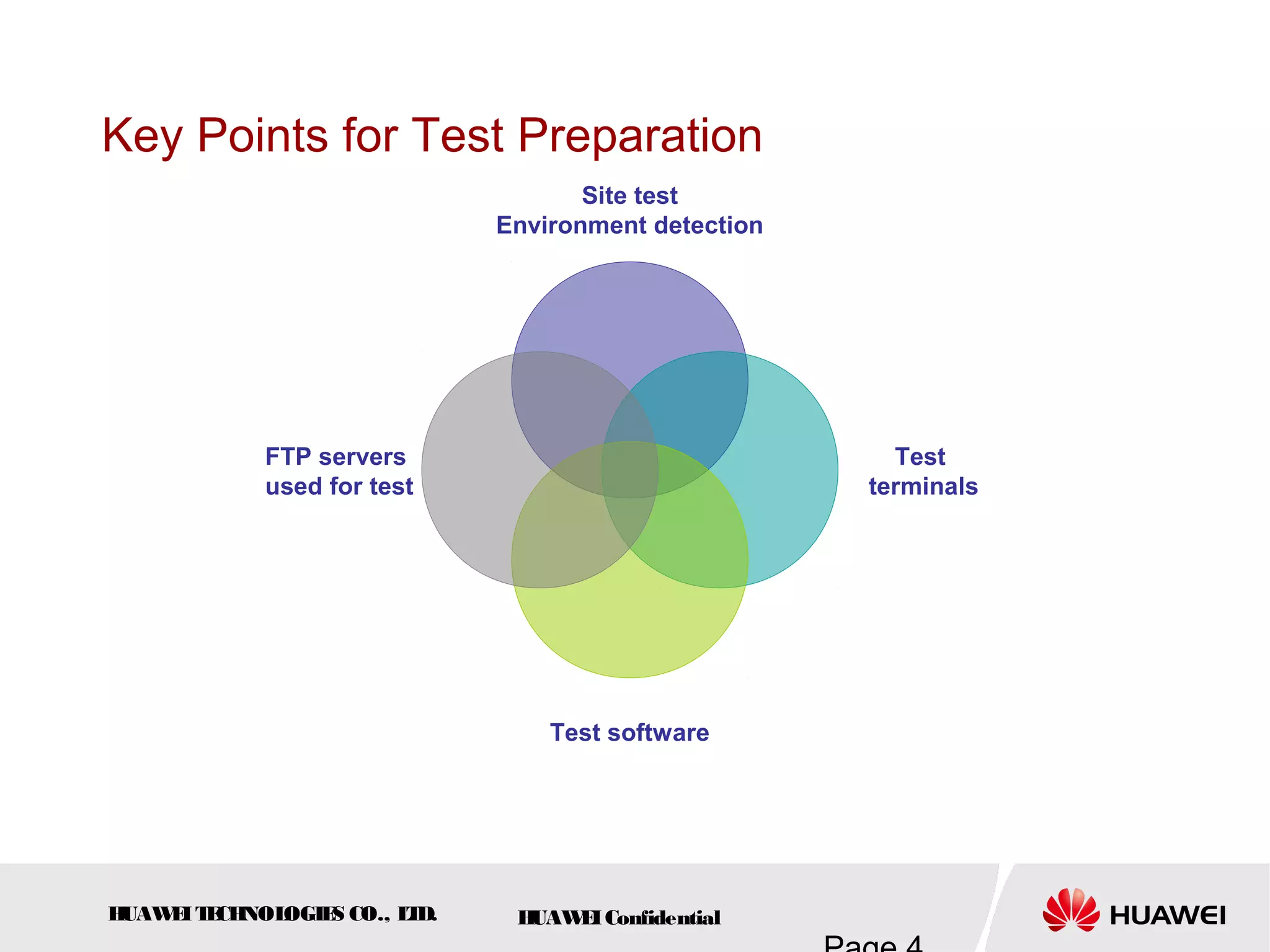

Key Points for Test Preparation
Site test
Environment detection
Test
terminals
Test software
FTP servers
used for test

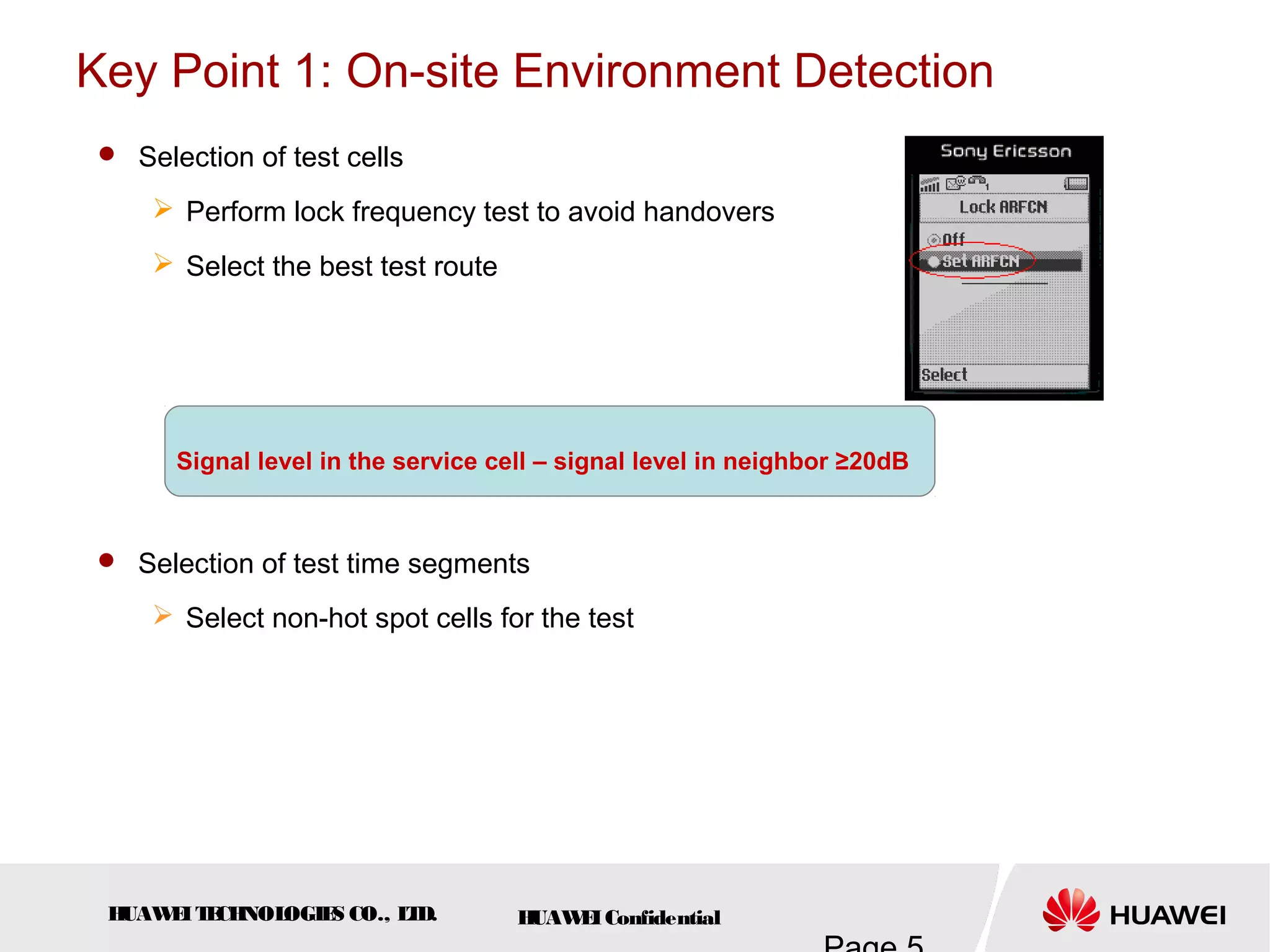

Key Point 1: On-site Environment Detection
 Selection of test cells
 Perform lock frequency test to avoid handovers
 Select the best test route
 Selection of test time segments
 Select non-hot spot cells for the test
Signal level in the service cell – signal level in neighbor ≥20dB

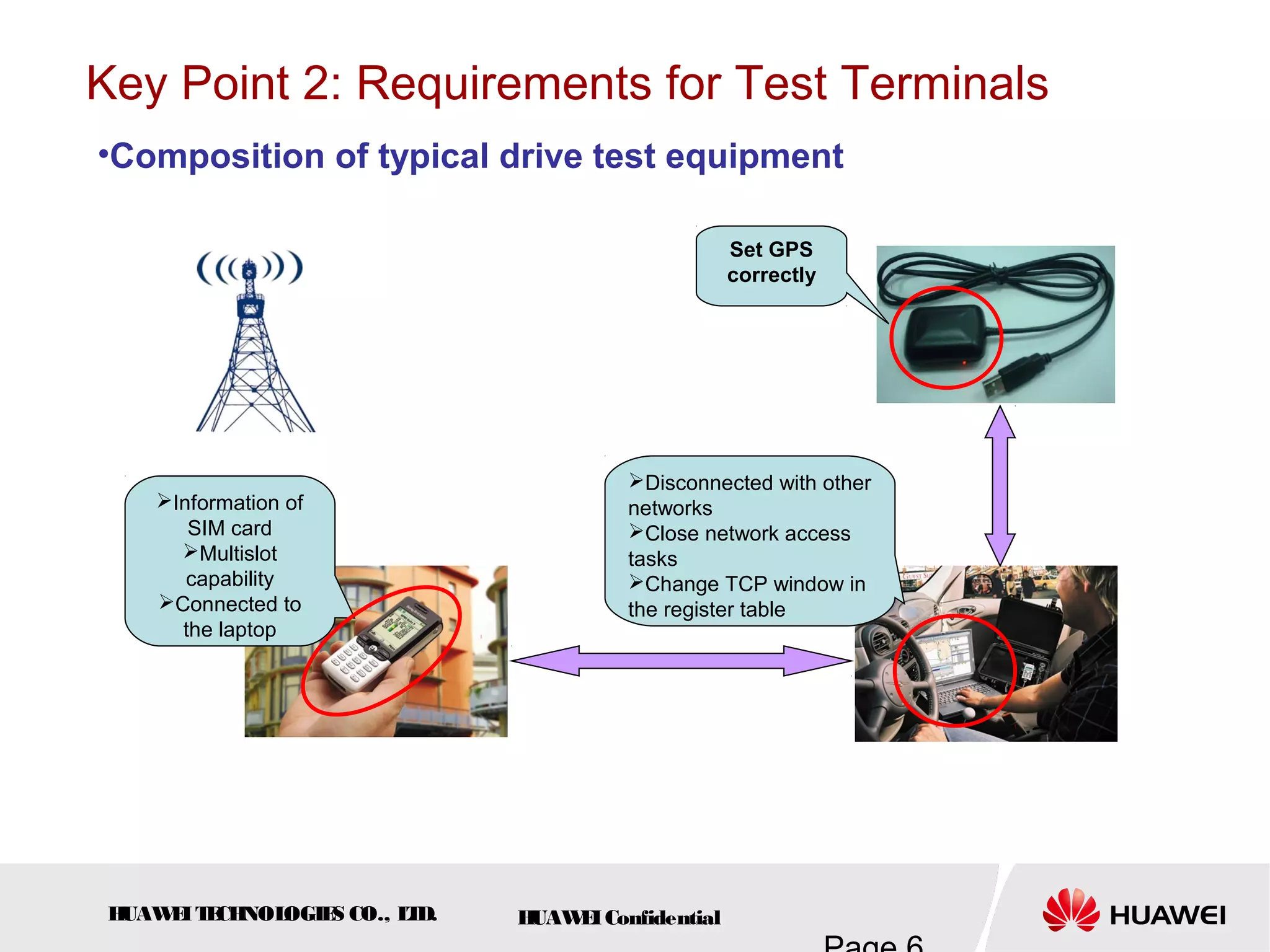

Key Point 2: Requirements for Test Terminals
•Composition of typical drive test equipment
Information of
SIM card
Multislot
capability
Connected to
the laptop
Disconnected with other
networks
Close network access
tasks
Change TCP window in
the register table
Set GPS
correctly

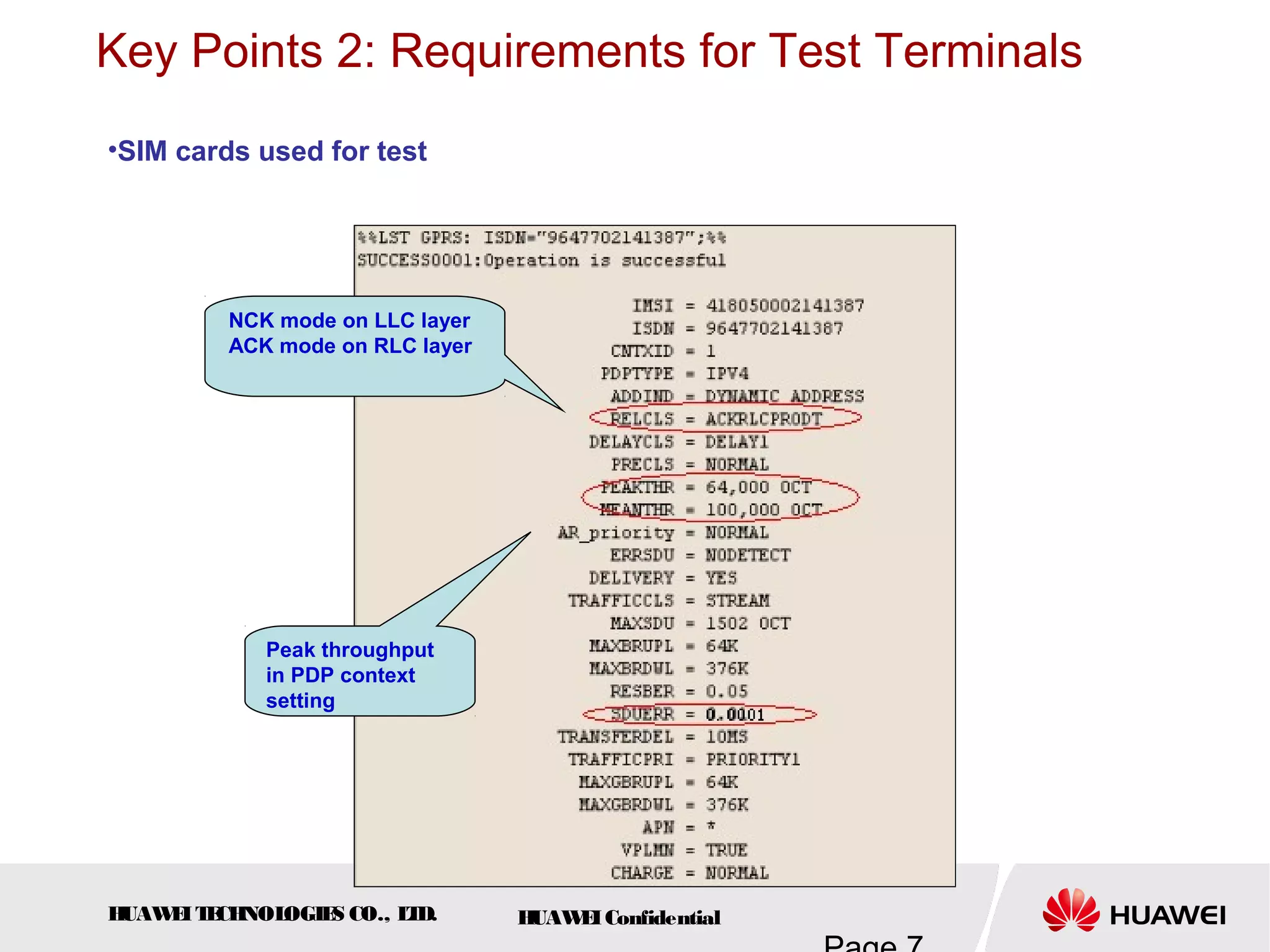

Key Points 2: Requirements for Test Terminals
Peak throughput
in PDP context
setting
NCK mode on LLC layer
ACK mode on RLC layer
•SIM cards used for test

Key Point 3: FTP Server Used for Test
Test FTP address
provided by the
operator
•Select FTP servers with reliable performance for test

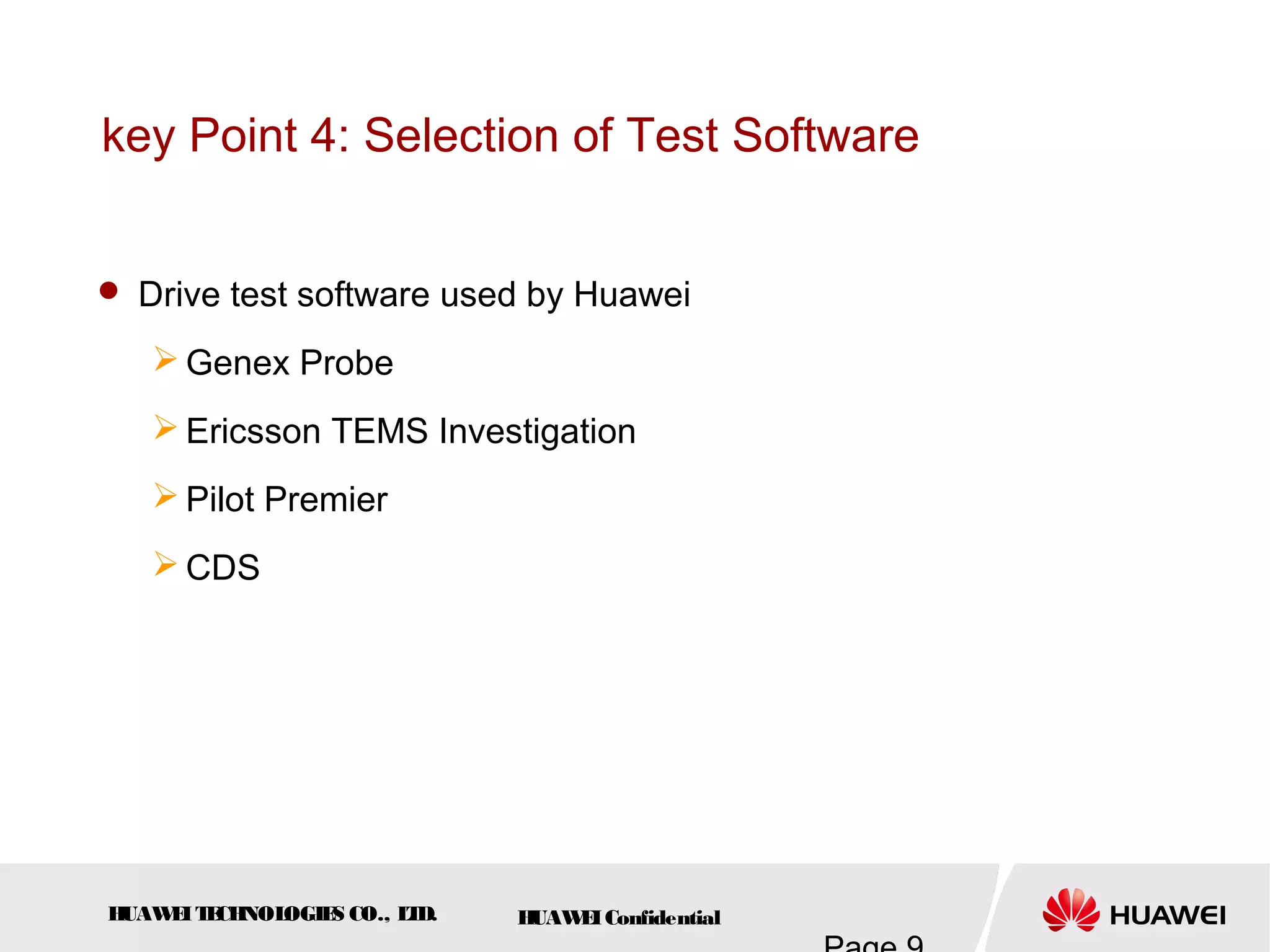

key Point 4: Selection of Test Software
 Drive test software used by Huawei
 Genex Probe
 Ericsson TEMS Investigation
 Pilot Premier
 CDS

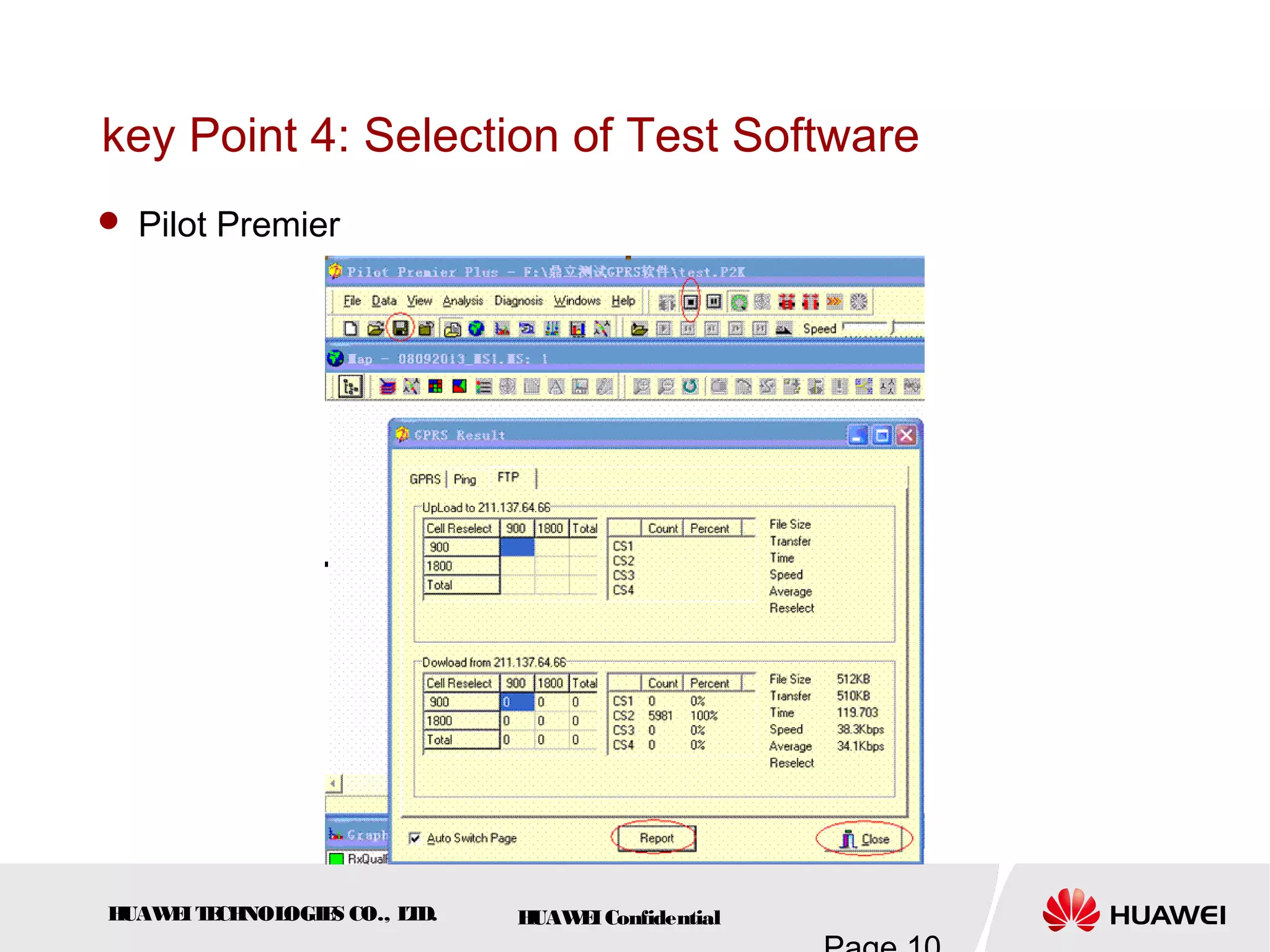

 Pilot Premier

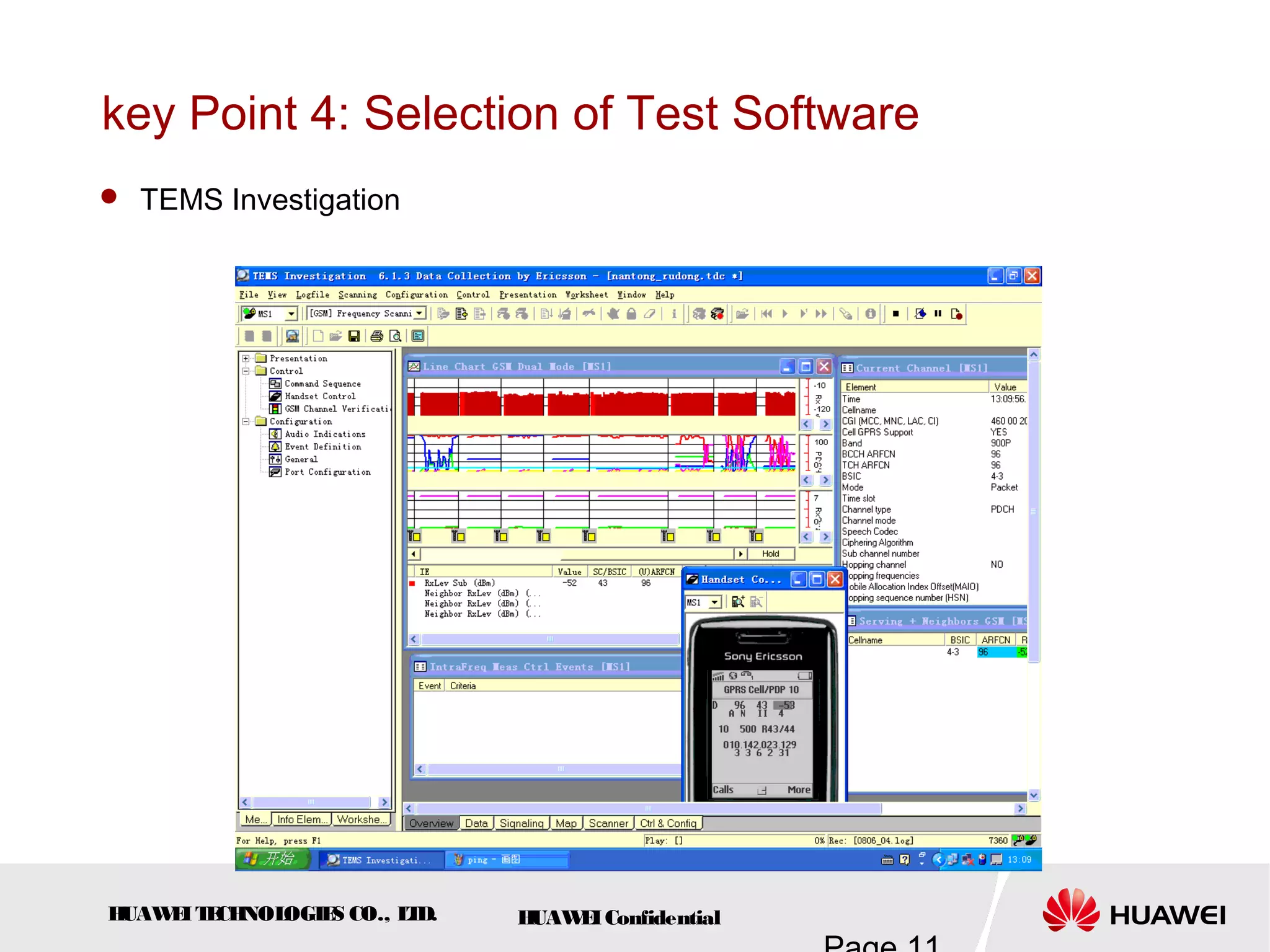

 TEMS Investigation

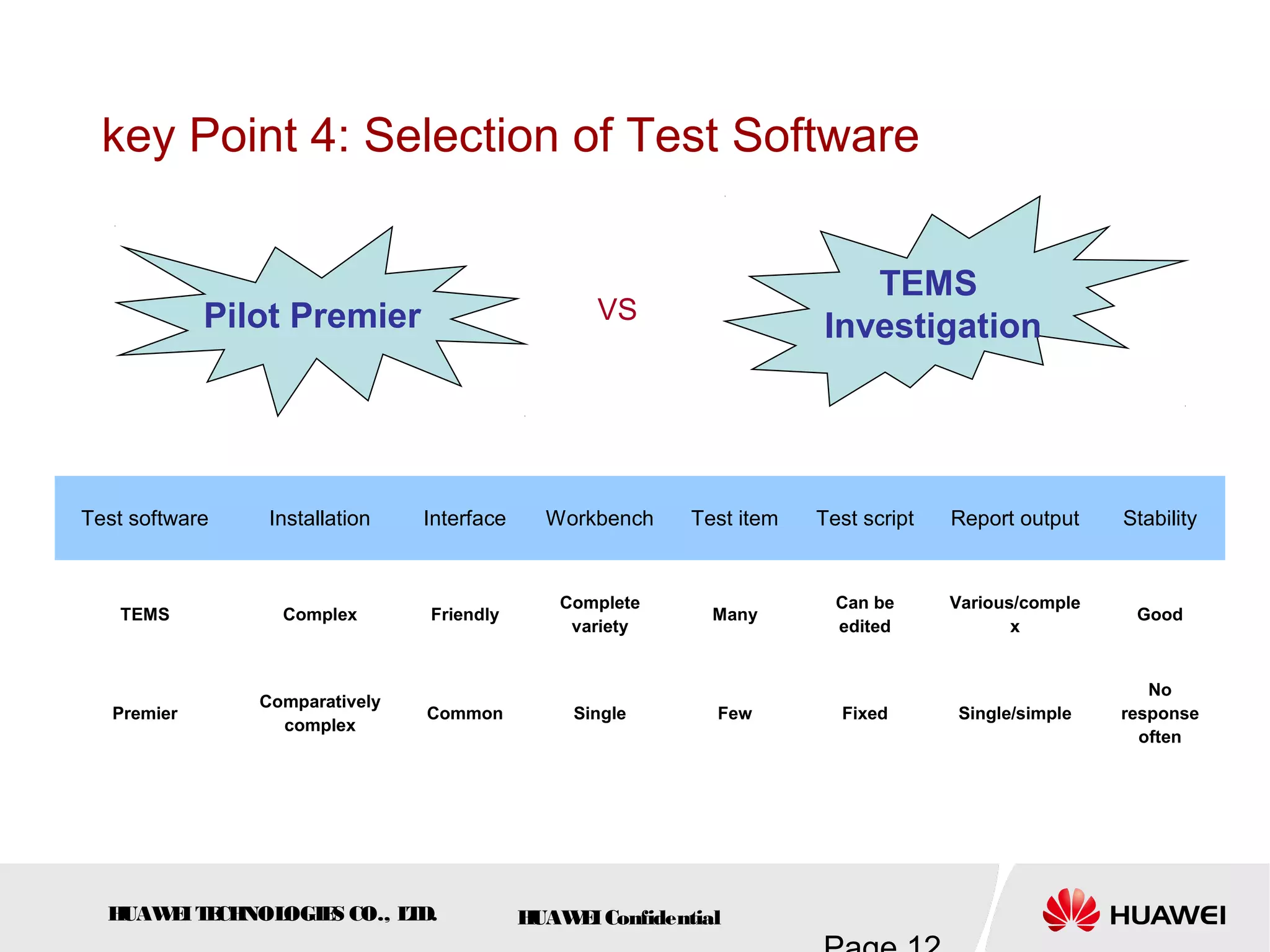

Test software Installation Interface Workbench Test item Test script Report output Stability
TEMS Complex Friendly
Complete
variety
Many
Can be
edited
Various/comple
x
Good
Premier
Comparatively
complex
Common Single Few Fixed Single/simple
No
response
often
Pilot Premier
TEMS
Investigation
VS

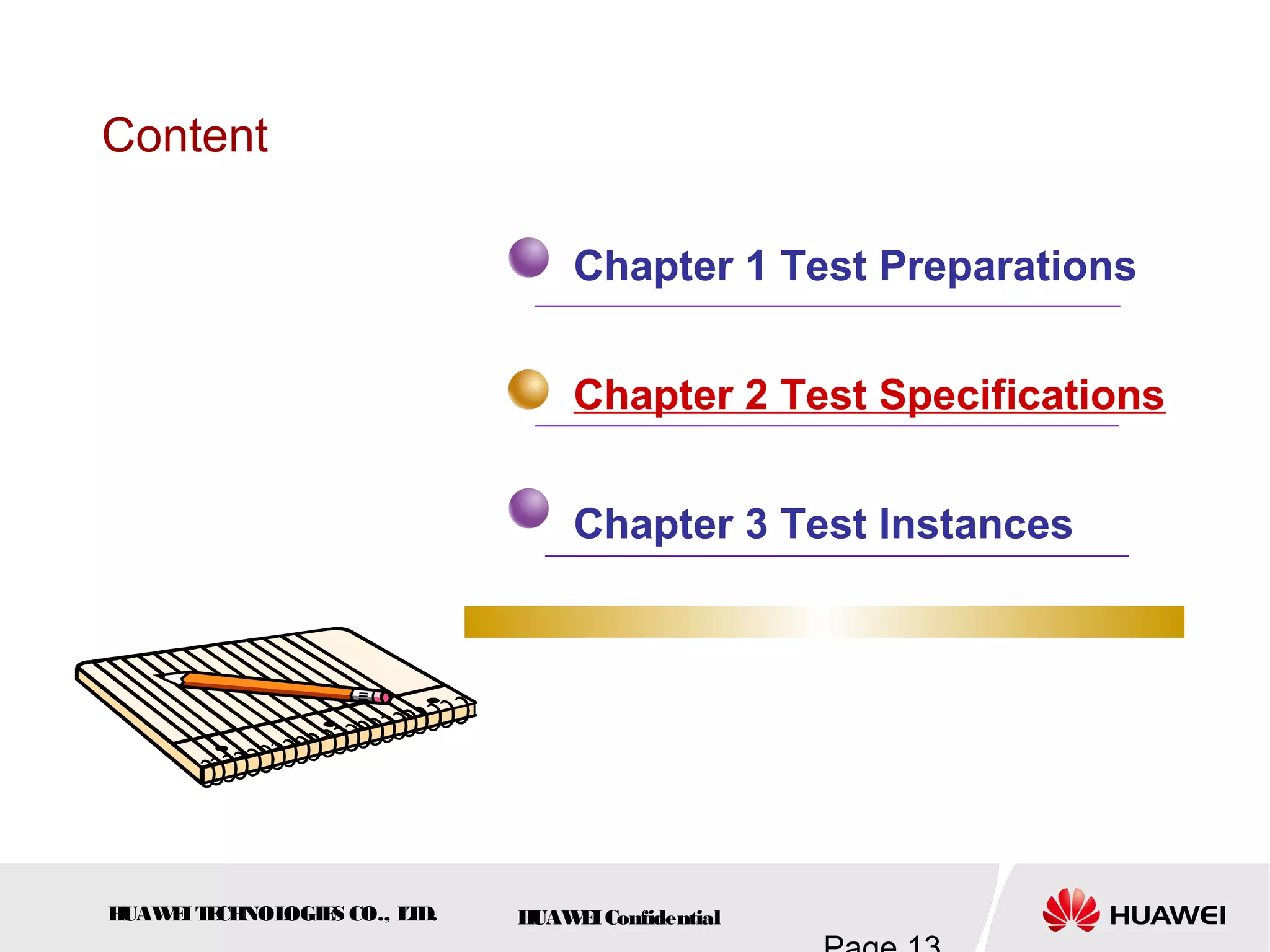

Content
Chapter 1 Test Preparations
Chapter 2 Test Specifications
Chapter 3 Test Instances

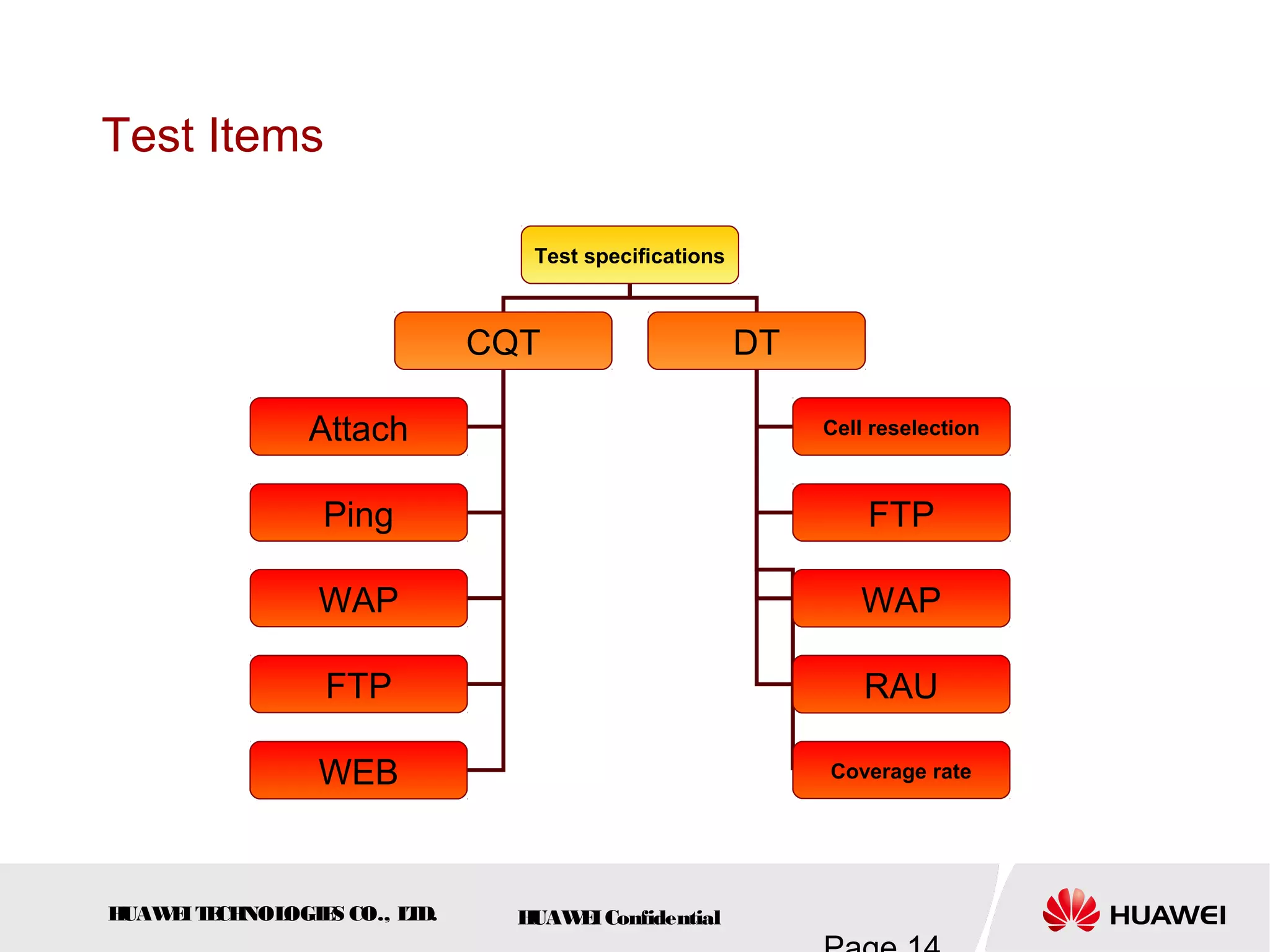

Test Items
Test specifications
CQT DT
Attach
Ping
WAP
FTP
Cell reselection
WEB
FTP
WAP
RAU
Coverage rate

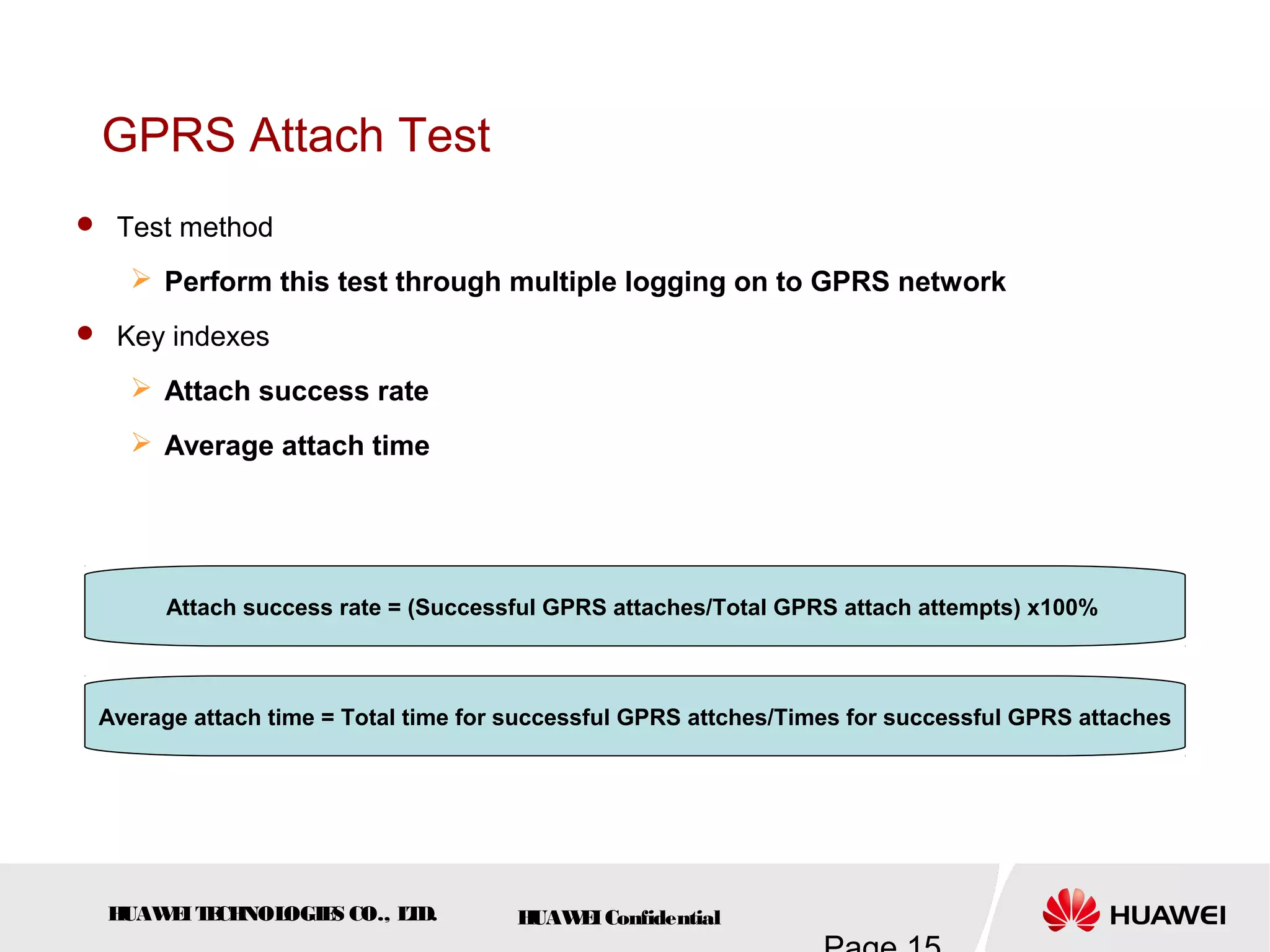

GPRS Attach Test
 Test method
 Perform this test through multiple logging on to GPRS network
 Key indexes
 Attach success rate
 Average attach time
Attach success rate = (Successful GPRS attaches/Total GPRS attach attempts) x100%
Average attach time = Total time for successful GPRS attches/Times for successful GPRS attaches

GPRS Attach Test
 GPRS Attach interface for TEMS test
detac
h
attac
h

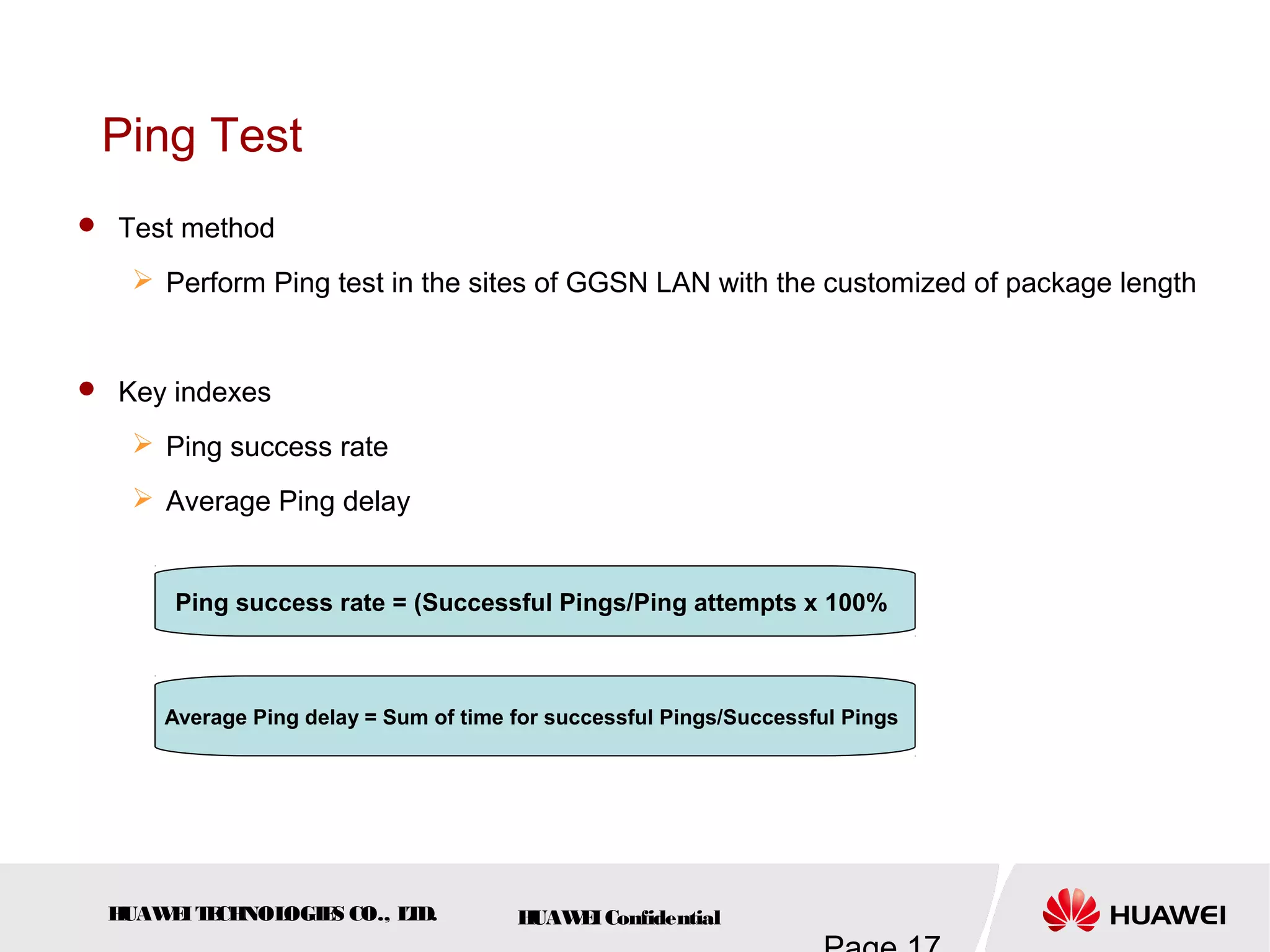

Ping Test
 Test method
 Perform Ping test in the sites of GGSN LAN with the customized of package length
 Key indexes
 Ping success rate
 Average Ping delay
Ping success rate = (Successful Pings/Ping attempts x 100%
Average Ping delay = Sum of time for successful Pings/Successful Pings

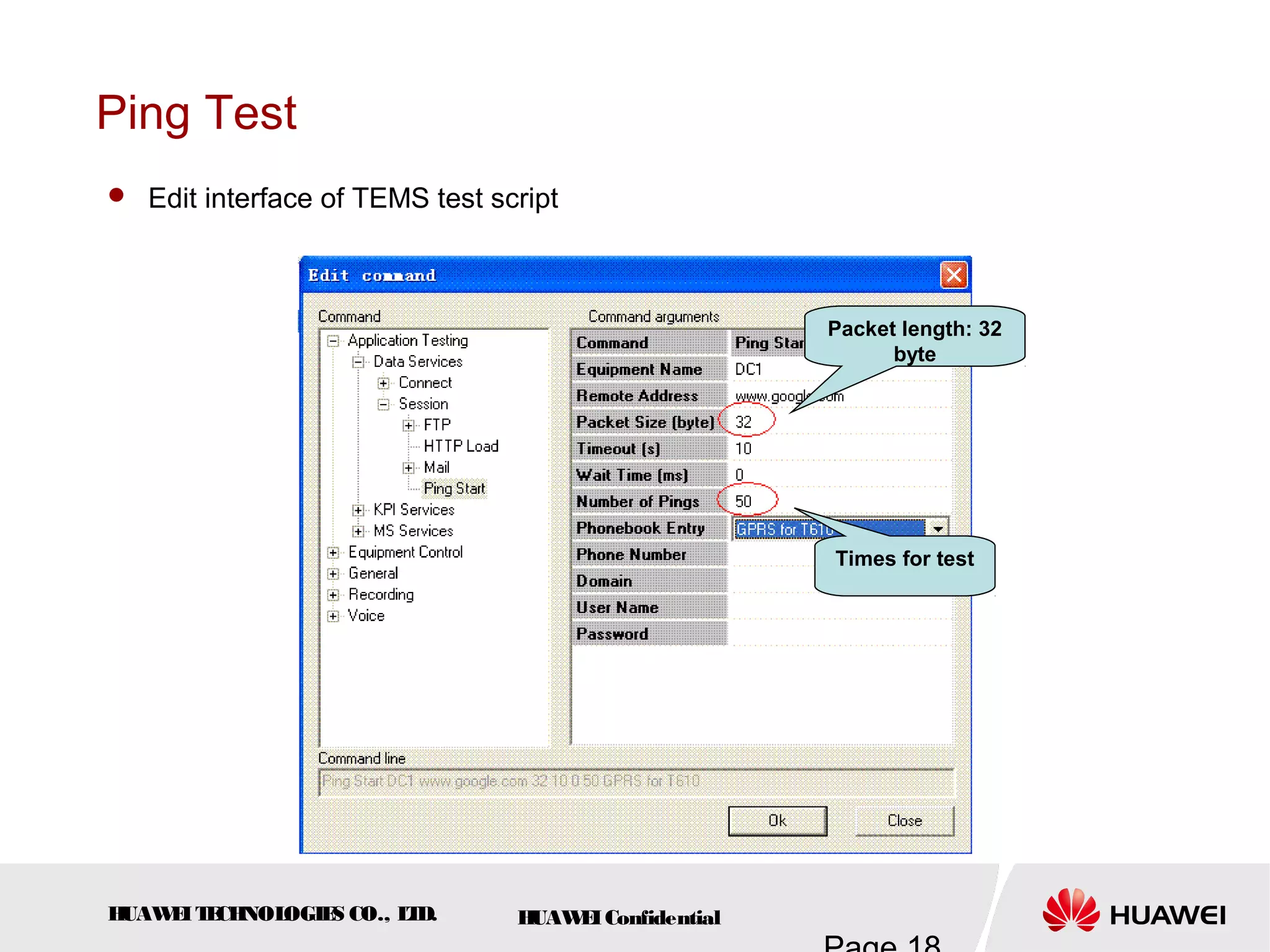

Ping Test
 Edit interface of TEMS test script
Packet length: 32
byte
Times for test

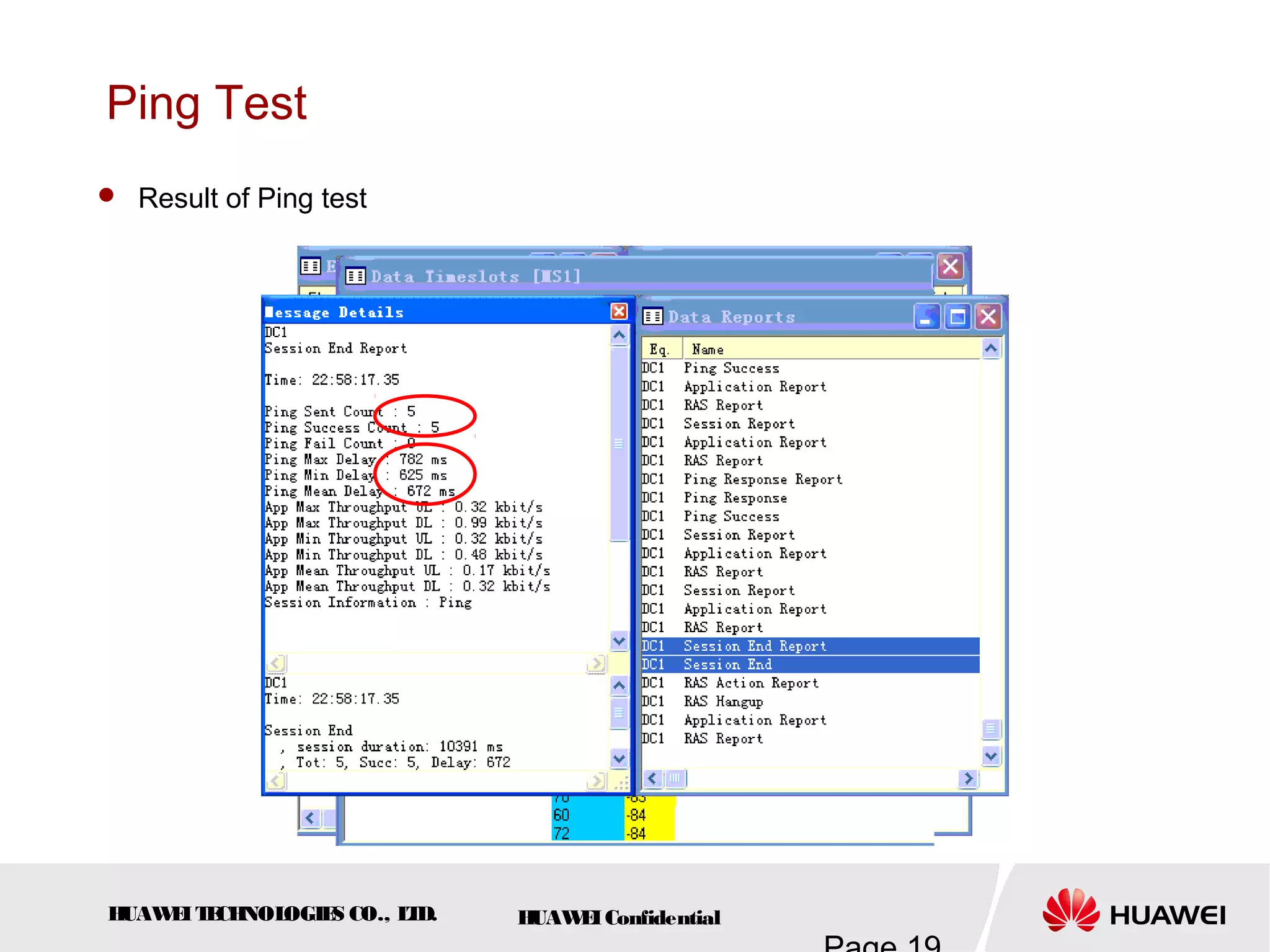

Ping Test
 Result of Ping test

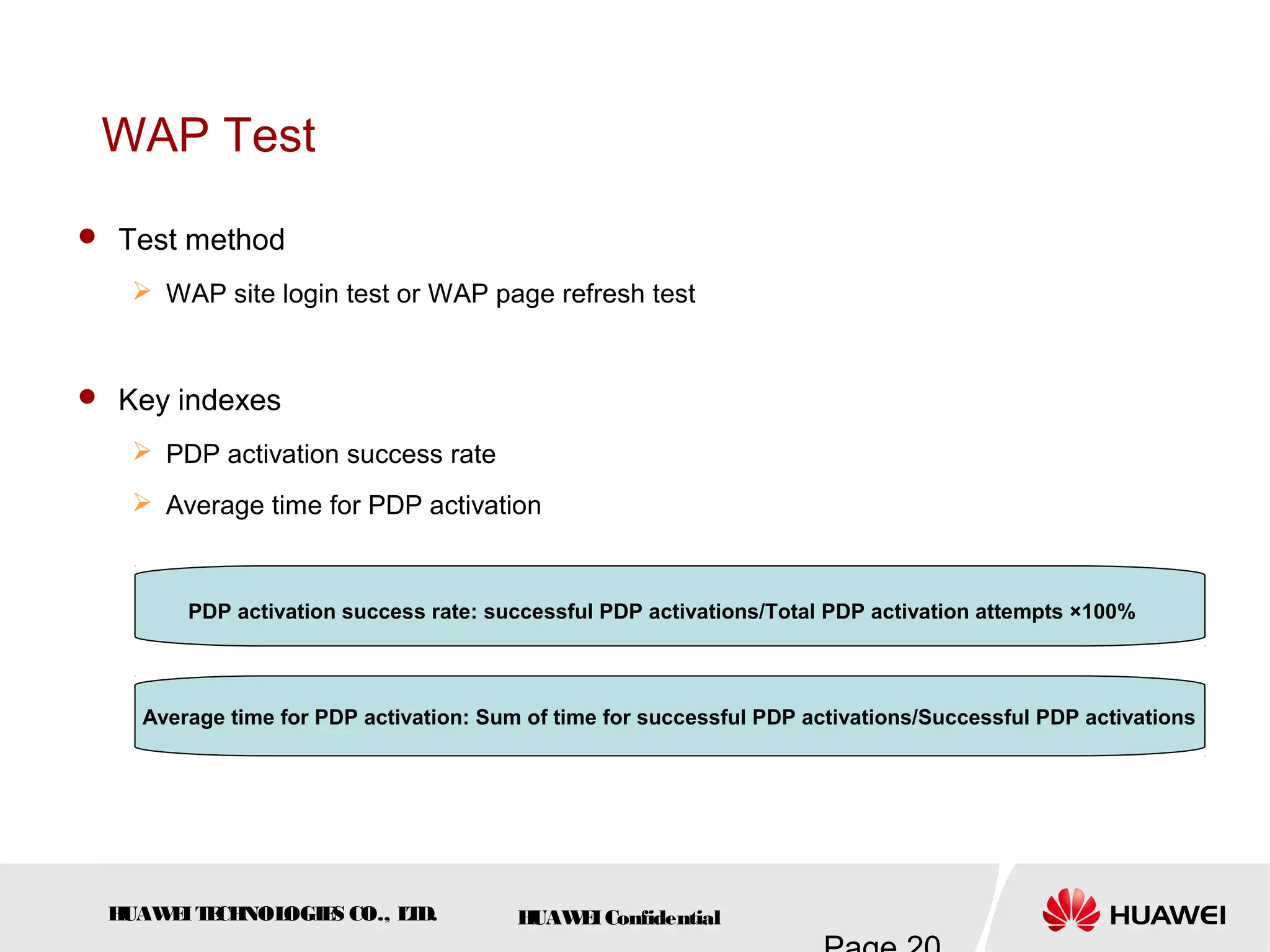

WAP Test
 Test method
 WAP site login test or WAP page refresh test
 Key indexes
 PDP activation success rate
 Average time for PDP activation
PDP activation success rate: successful PDP activations/Total PDP activation attempts ×100%
Average time for PDP activation: Sum of time for successful PDP activations/Successful PDP activations

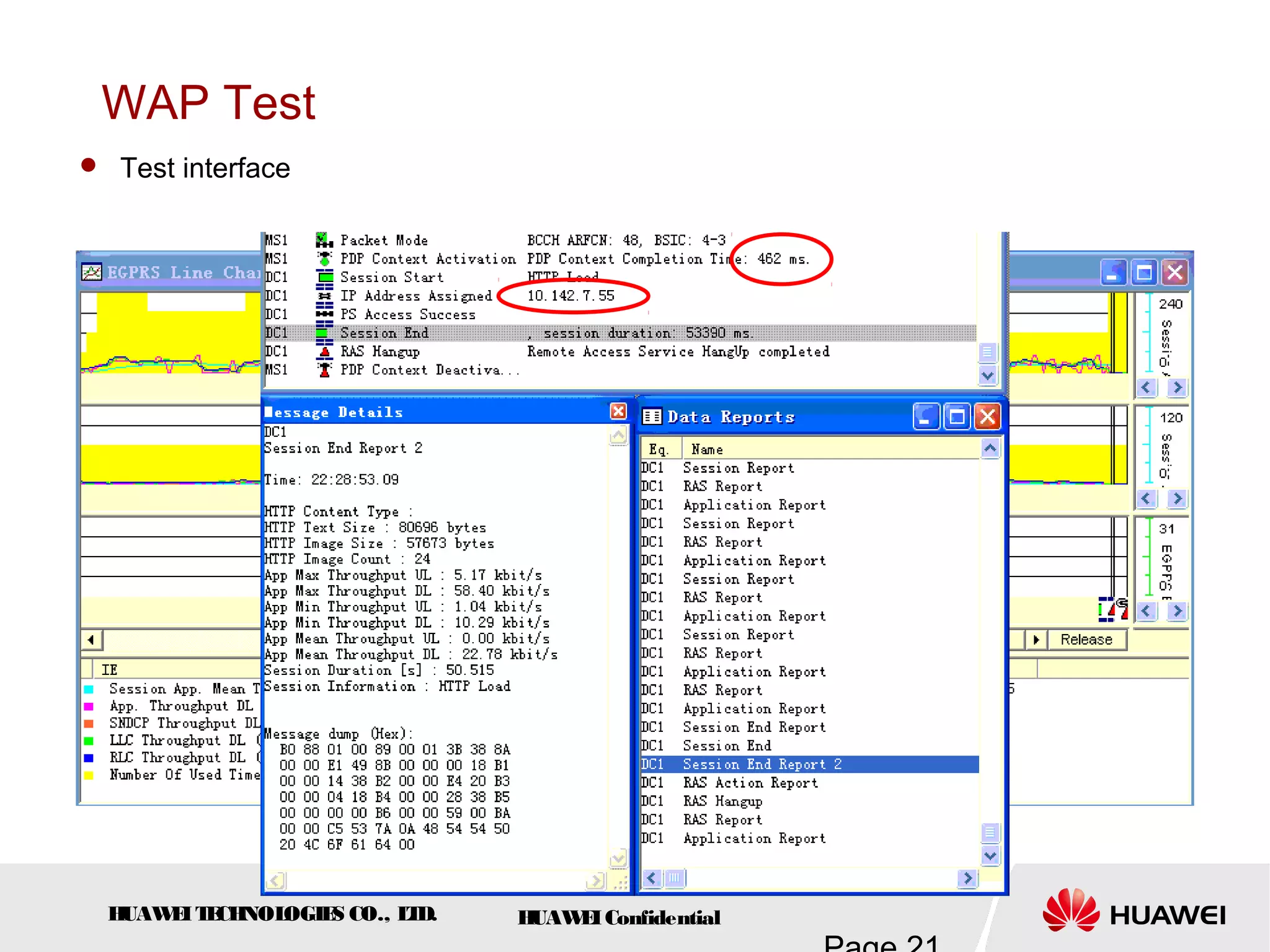

WAP Test
 Test interface

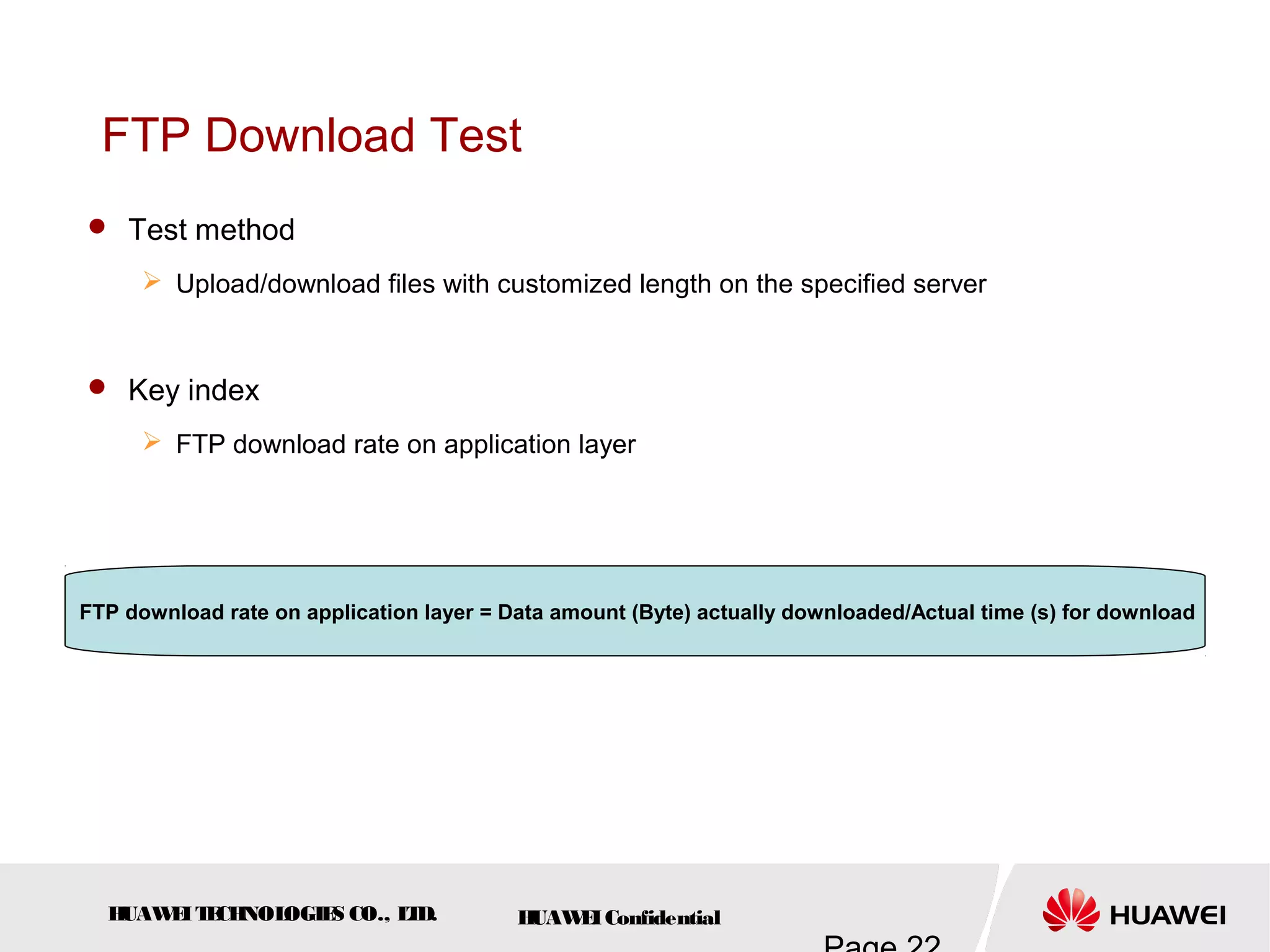

FTP Download Test
 Test method
 Upload/download files with customized length on the specified server
 Key index
 FTP download rate on application layer
FTP download rate on application layer = Data amount (Byte) actually downloaded/Actual time (s) for download

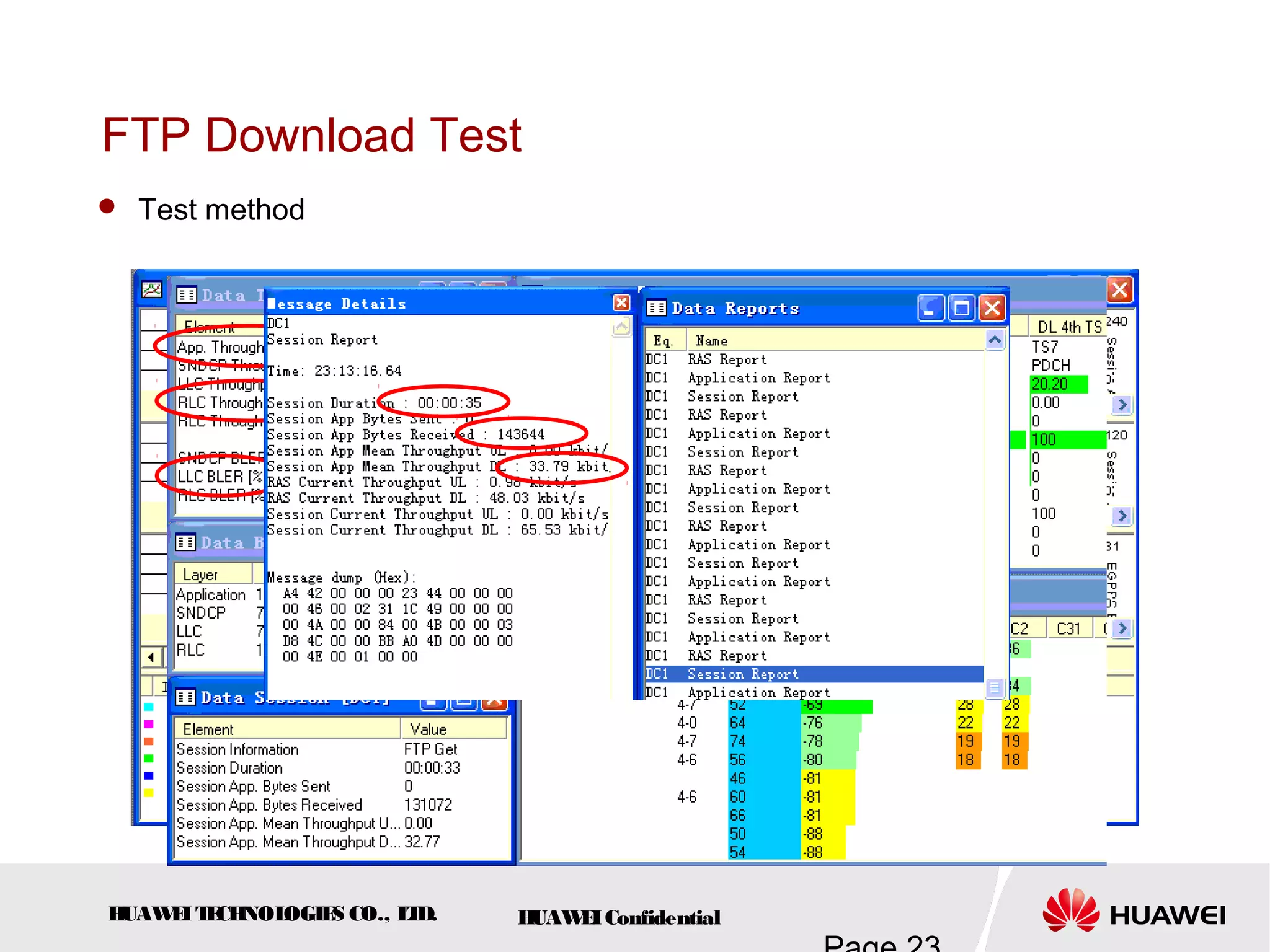

FTP Download Test
 Test method

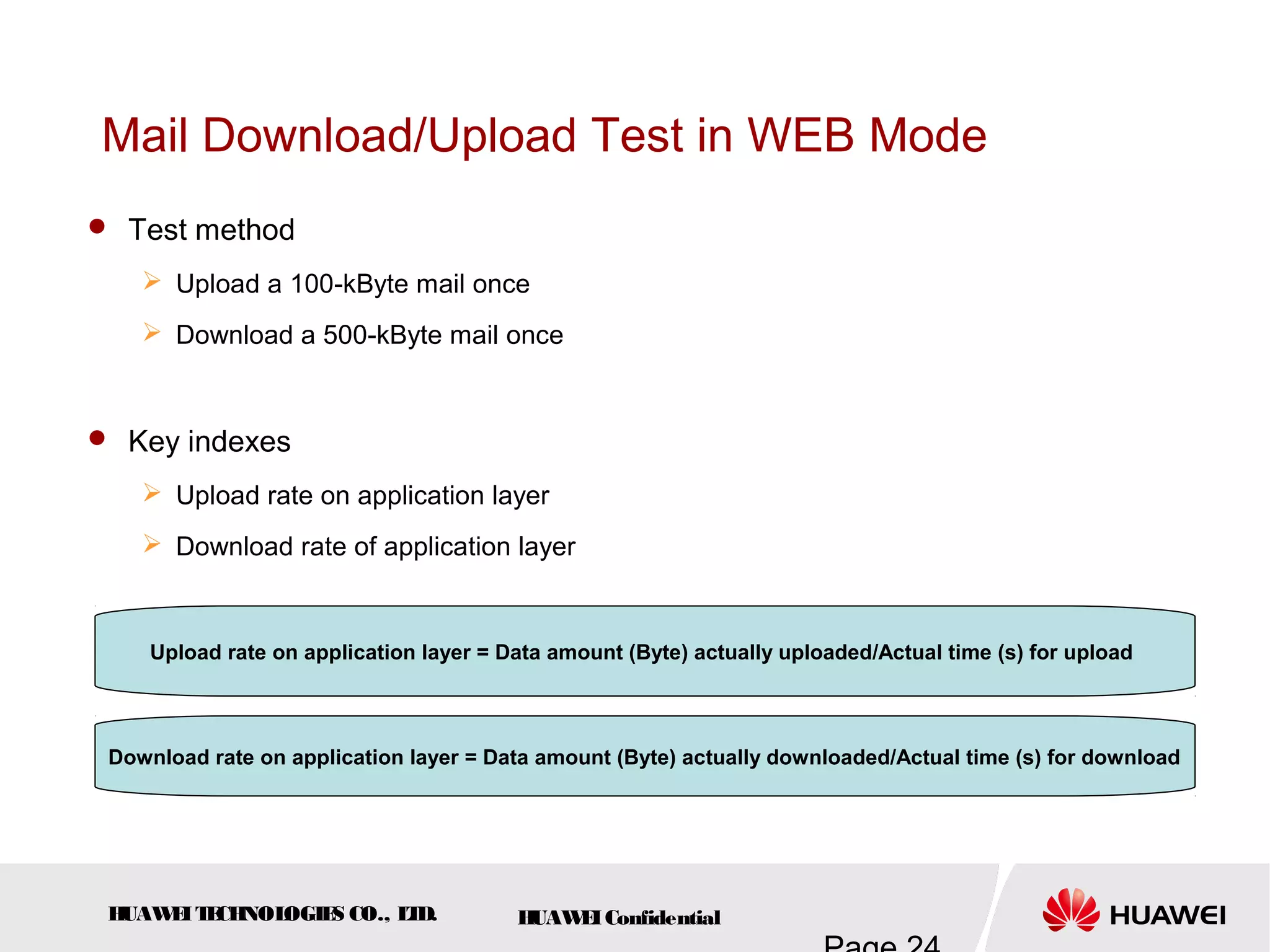

Mail Download/Upload Test in WEB Mode
 Test method
 Upload a 100-kByte mail once
 Download a 500-kByte mail once
 Key indexes
 Upload rate on application layer
 Download rate of application layer
Upload rate on application layer = Data amount (Byte) actually uploaded/Actual time (s) for upload
Download rate on application layer = Data amount (Byte) actually downloaded/Actual time (s) for download

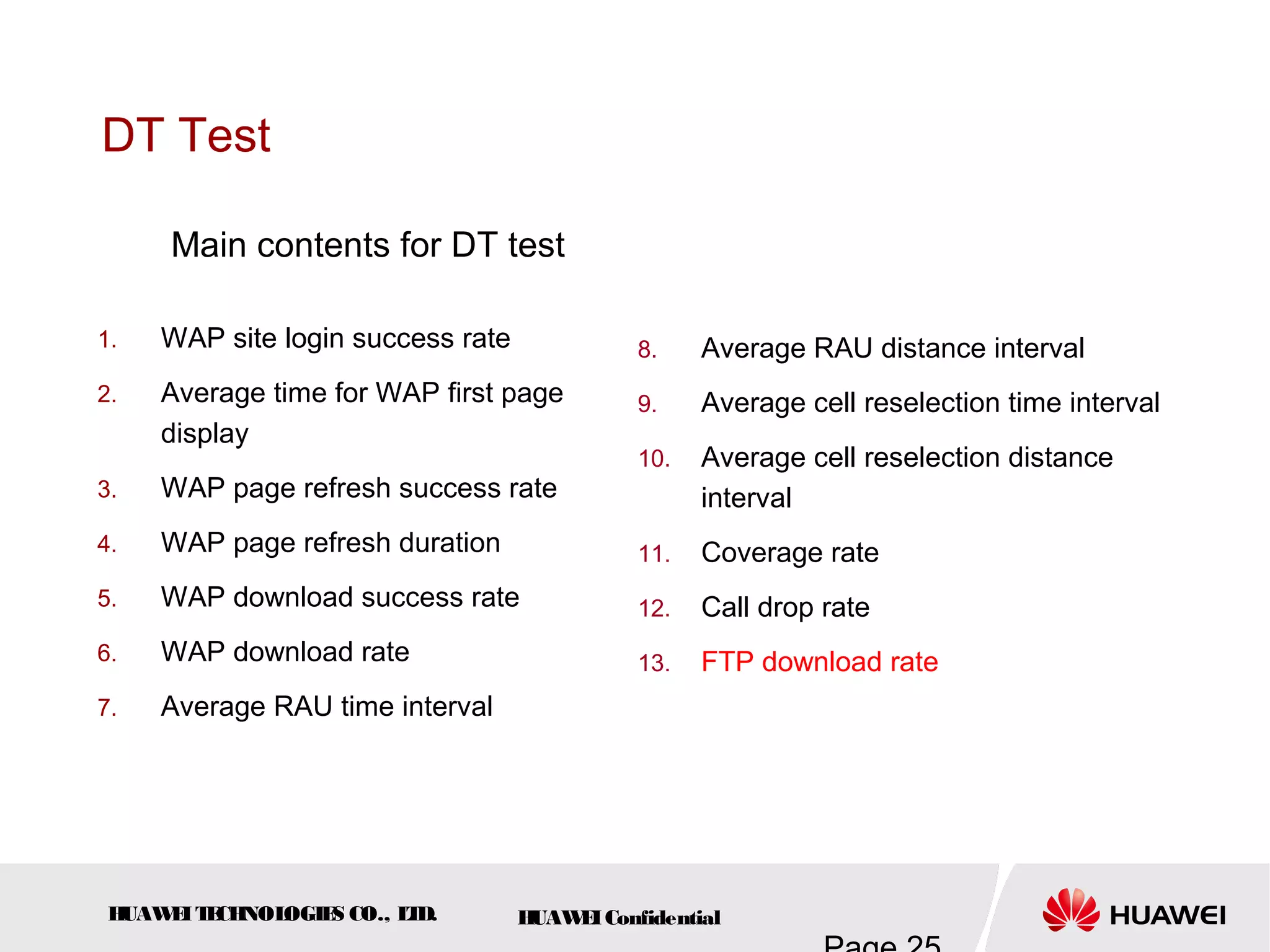

DT Test
1. WAP site login success rate
2. Average time for WAP first page
display
3. WAP page refresh success rate
4. WAP page refresh duration
5. WAP download success rate
6. WAP download rate
7. Average RAU time interval
8. Average RAU distance interval
9. Average cell reselection time interval
10. Average cell reselection distance
interval
11. Coverage rate
12. Call drop rate
13. FTP download rate
Main contents for DT test

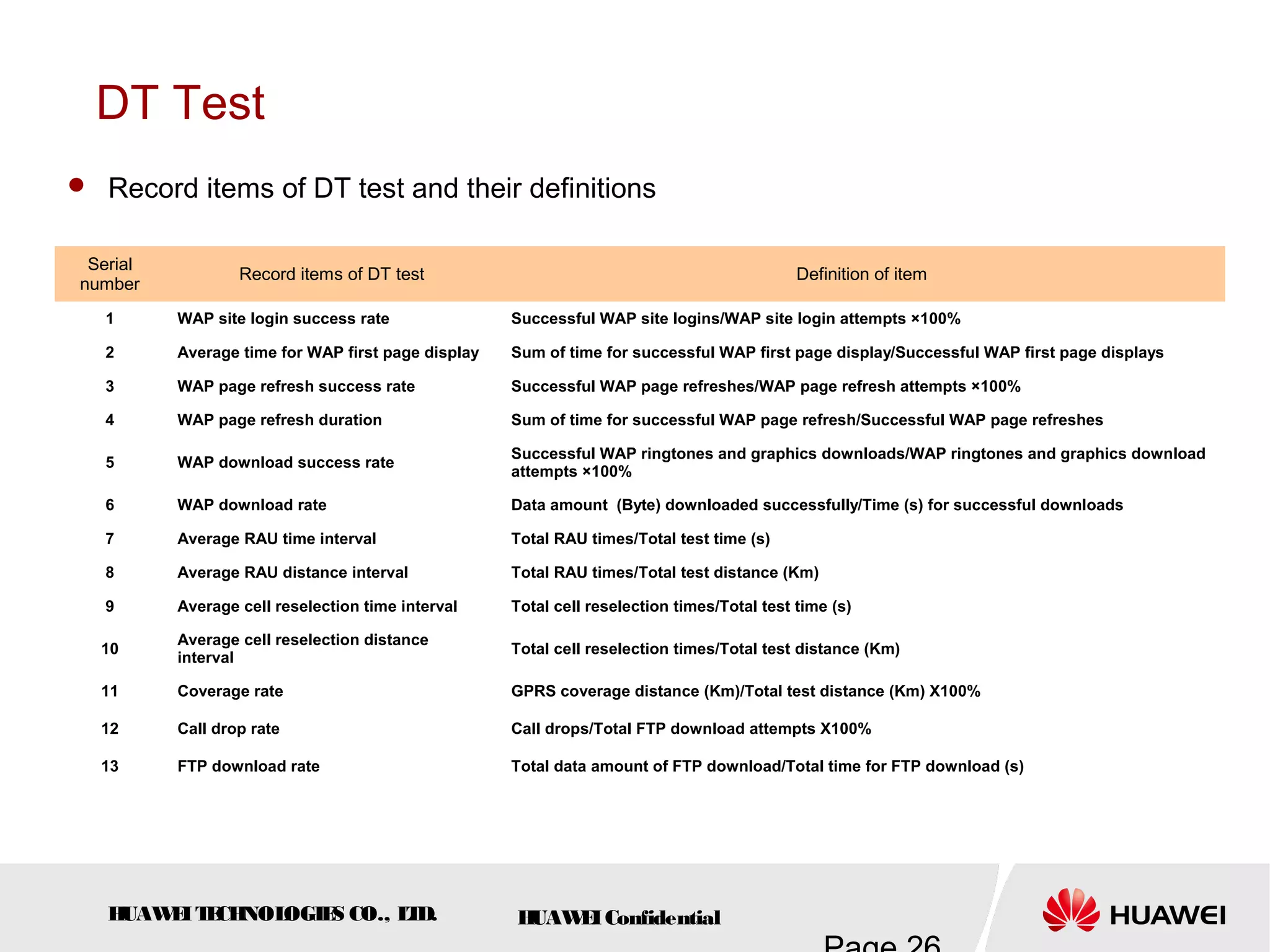

DT Test
Serial
number
Record items of DT test Definition of item
1 WAP site login success rate Successful WAP site logins/WAP site login attempts ×100%
2 Average time for WAP first page display Sum of time for successful WAP first page display/Successful WAP first page displays
3 WAP page refresh success rate Successful WAP page refreshes/WAP page refresh attempts ×100%
4 WAP page refresh duration Sum of time for successful WAP page refresh/Successful WAP page refreshes
5 WAP download success rate
Successful WAP ringtones and graphics downloads/WAP ringtones and graphics download
attempts ×100%
6 WAP download rate Data amount (Byte) downloaded successfully/Time (s) for successful downloads
7 Average RAU time interval Total RAU times/Total test time (s)
8 Average RAU distance interval Total RAU times/Total test distance (Km)
9 Average cell reselection time interval Total cell reselection times/Total test time (s)
10
Average cell reselection distance
interval
Total cell reselection times/Total test distance (Km)
11 Coverage rate GPRS coverage distance (Km)/Total test distance (Km) X100%
12 Call drop rate Call drops/Total FTP download attempts X100%
13 FTP download rate Total data amount of FTP download/Total time for FTP download (s)
 Record items of DT test and their definitions

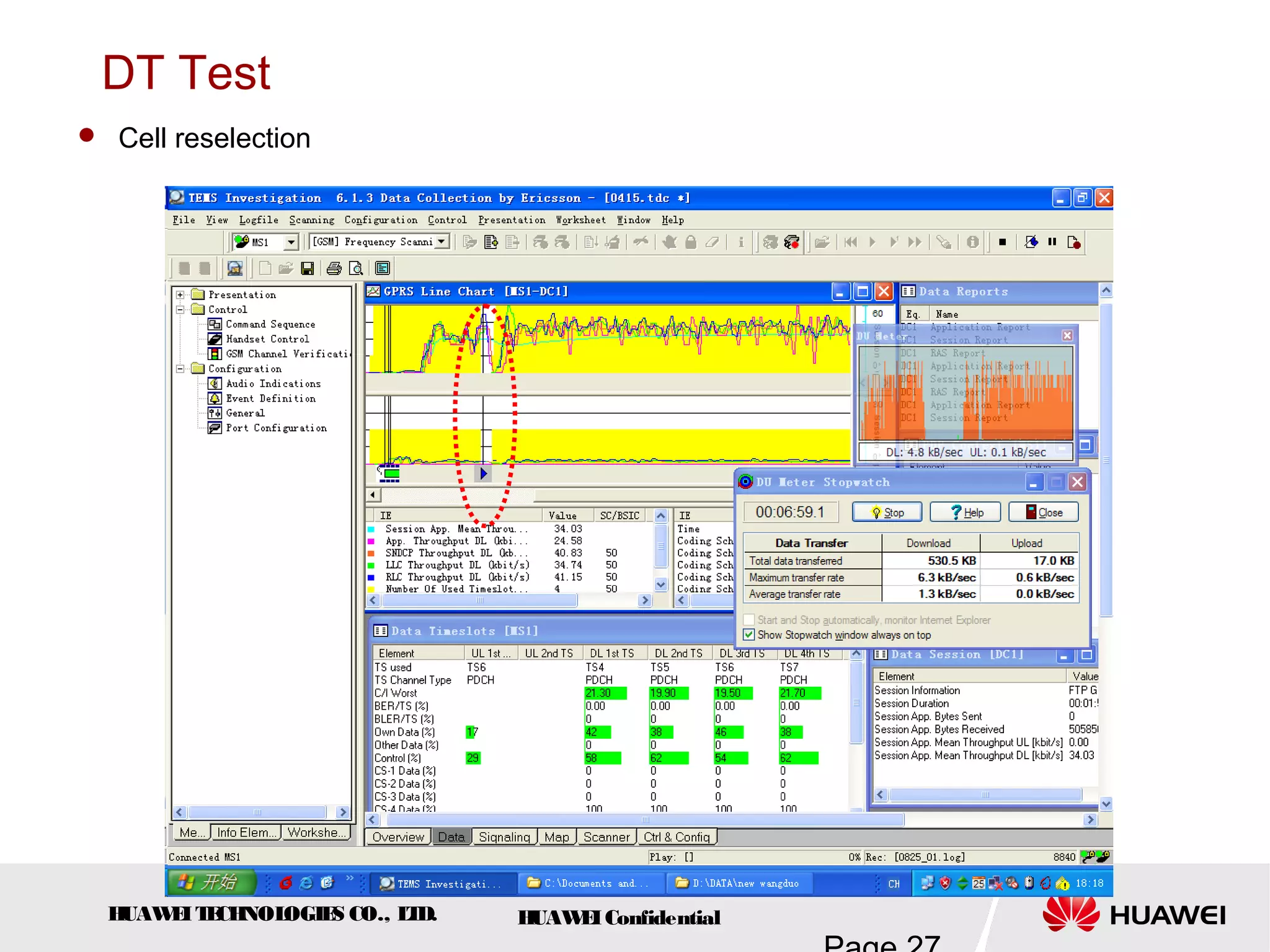

DT Test
 Cell reselection

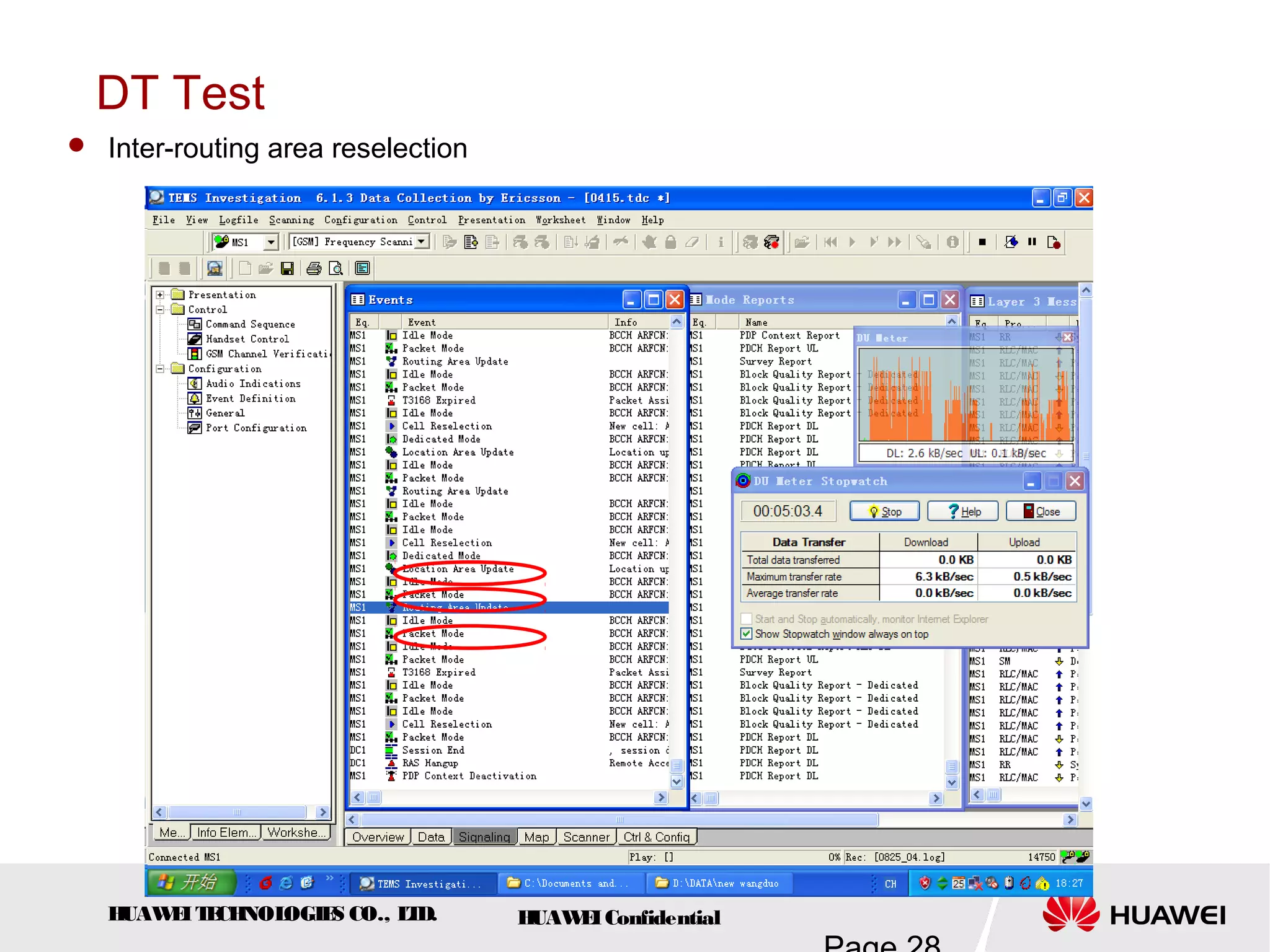

DT Test
 Inter-routing area reselection

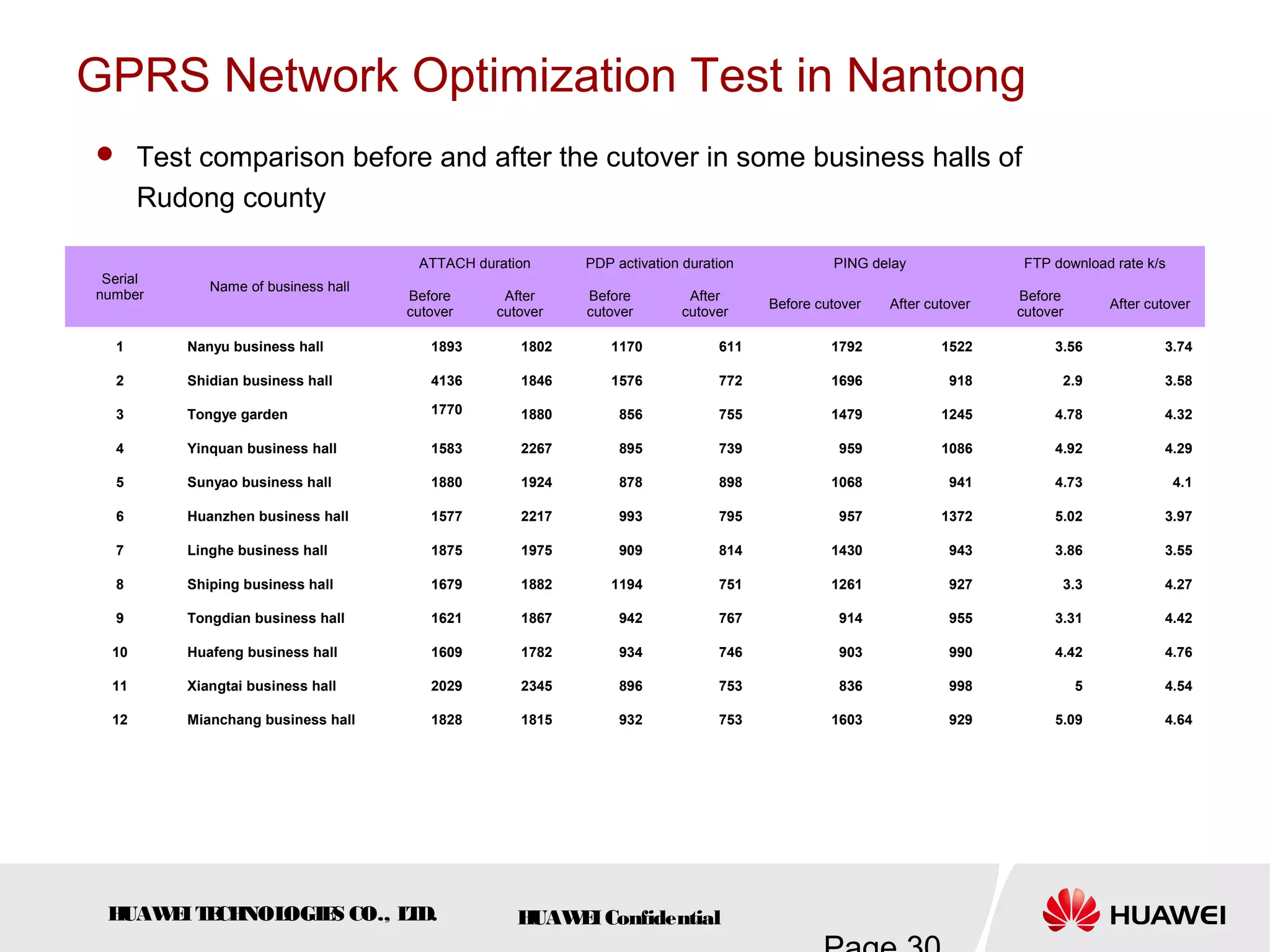

GPRS Network Optimization Test in Nantong
 Test comparison before and after the cutover in some business halls of
Rudong county
Serial
number
Name of business hall
ATTACH duration PDP activation duration PING delay FTP download rate k/s
Before
cutover
After
cutover
Before
cutover
After
cutover
Before cutover After cutover
Before
cutover
After cutover
1 Nanyu business hall 1893 1802 1170 611 1792 1522 3.56 3.74
2 Shidian business hall 4136 1846 1576 772 1696 918 2.9 3.58
3 Tongye garden 1770 1880 856 755 1479 1245 4.78 4.32
4 Yinquan business hall 1583 2267 895 739 959 1086 4.92 4.29
5 Sunyao business hall 1880 1924 878 898 1068 941 4.73 4.1
6 Huanzhen business hall 1577 2217 993 795 957 1372 5.02 3.97
7 Linghe business hall 1875 1975 909 814 1430 943 3.86 3.55
8 Shiping business hall 1679 1882 1194 751 1261 927 3.3 4.27
9 Tongdian business hall 1621 1867 942 767 914 955 3.31 4.42
10 Huafeng business hall 1609 1782 934 746 903 990 4.42 4.76
11 Xiangtai business hall 2029 2345 896 753 836 998 5 4.54
12 Mianchang business hall 1828 1815 932 753 1603 929 5.09 4.64

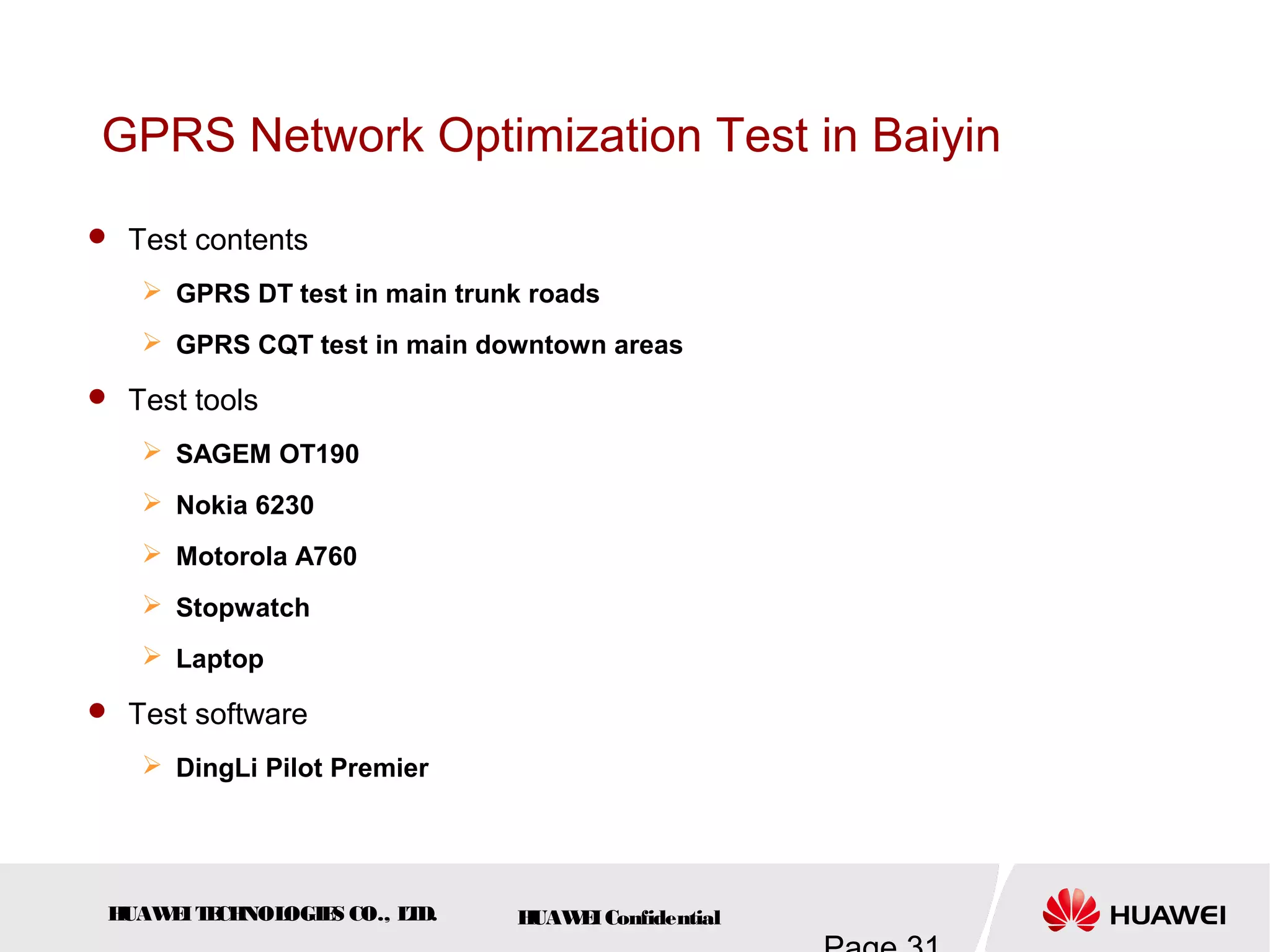

GPRS Network Optimization Test in Baiyin
 Test contents
 GPRS DT test in main trunk roads
 GPRS CQT test in main downtown areas
 Test tools
 SAGEM OT190
 Nokia 6230
 Motorola A760
 Stopwatch
 Laptop
 Test software
 DingLi Pilot Premier

Test item
Test result of
Huawei
Test result before
the optimization
Test result
after the
optimization
Attach test
Attach success rate 100.00% 95.00% 97.00%
Average time (s) 2.0325 1.81 1.77
PDP activation test
PDP activation success rate 100.00% 97.00% 100.00%
Average PDP activation time (s) 2.1279 0.86 0.81
PING test
Success rate 99.00% 95.00% 97.00%
Average delay (s) 2.1336 1.63 1.46
FTP test FTP download (KB/S) 3.0546 3.2 3.52
WAP test
WAP login success rate 94.00% 99.70% 100.00%
Time for first page display (s) 10.7626 9.28 6.01
Refresh success rate 100.00% 100.00% 100.00%
Time for page refresh (s) 4.7886 5.74 4.33
Graphics and ringtones download
success rate
99.00% 99.00% 100.00%
Graphics and ringtones download rate
(Kb/s)
11.5432 17.8 18.9
KJava test
Mobile KJava download rate (Kb/s) 12.6173 15.5 15.9
Mobile KJava download success rate 84.00% 96.20% 96.00%
SMS test
SMS test success rate 100.00% 100.00% 100.00%
SMS end-to-end delay 4.3042 5.2 5.3
MMS test
Push message success rate 100.00% 100.00% 100.00%
Average Push message delay 8.7660 6.5 6.2
Color message end-to-end success rate 87.50% 97.30% 97.00%

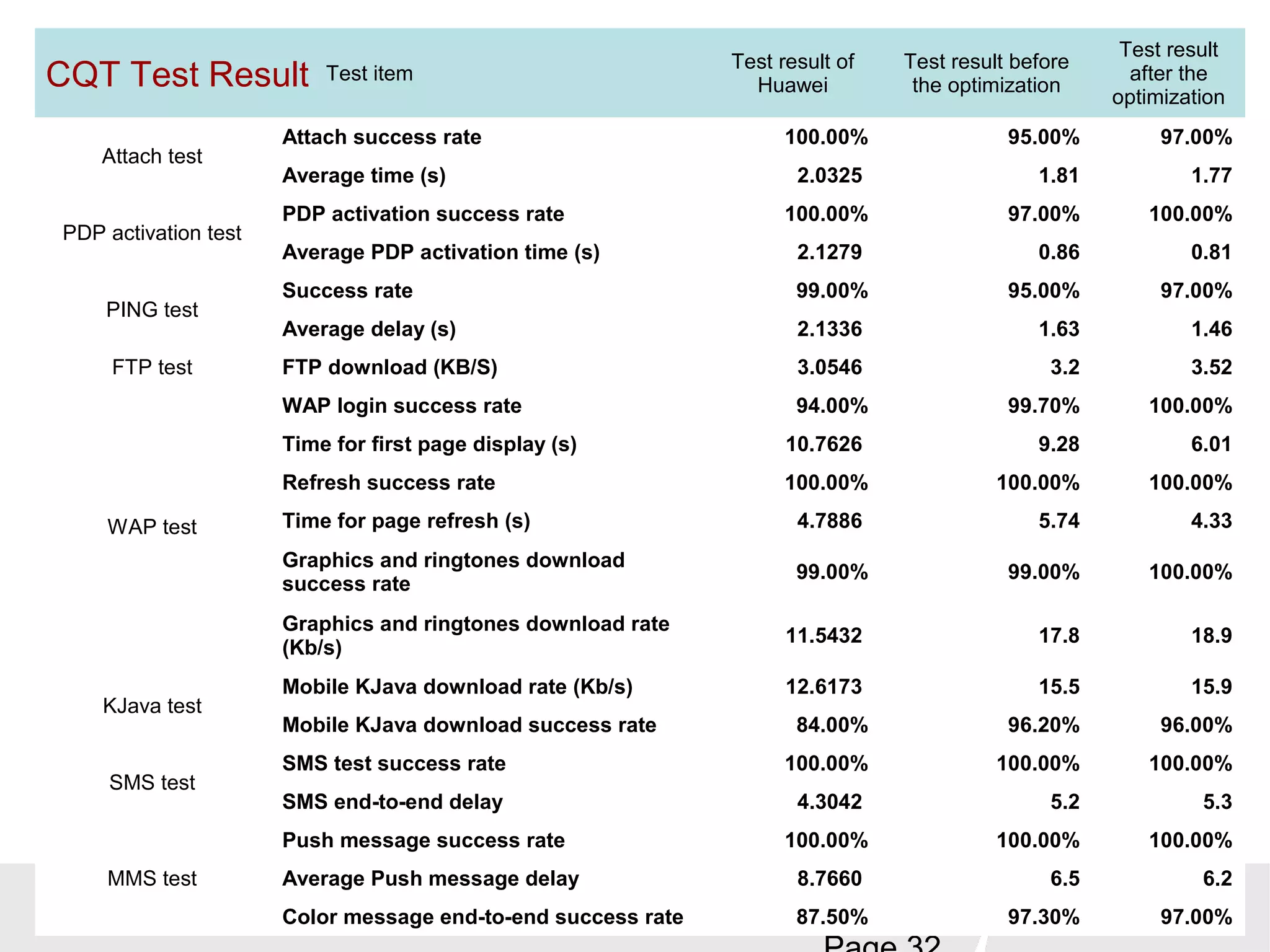

CQT Test Result

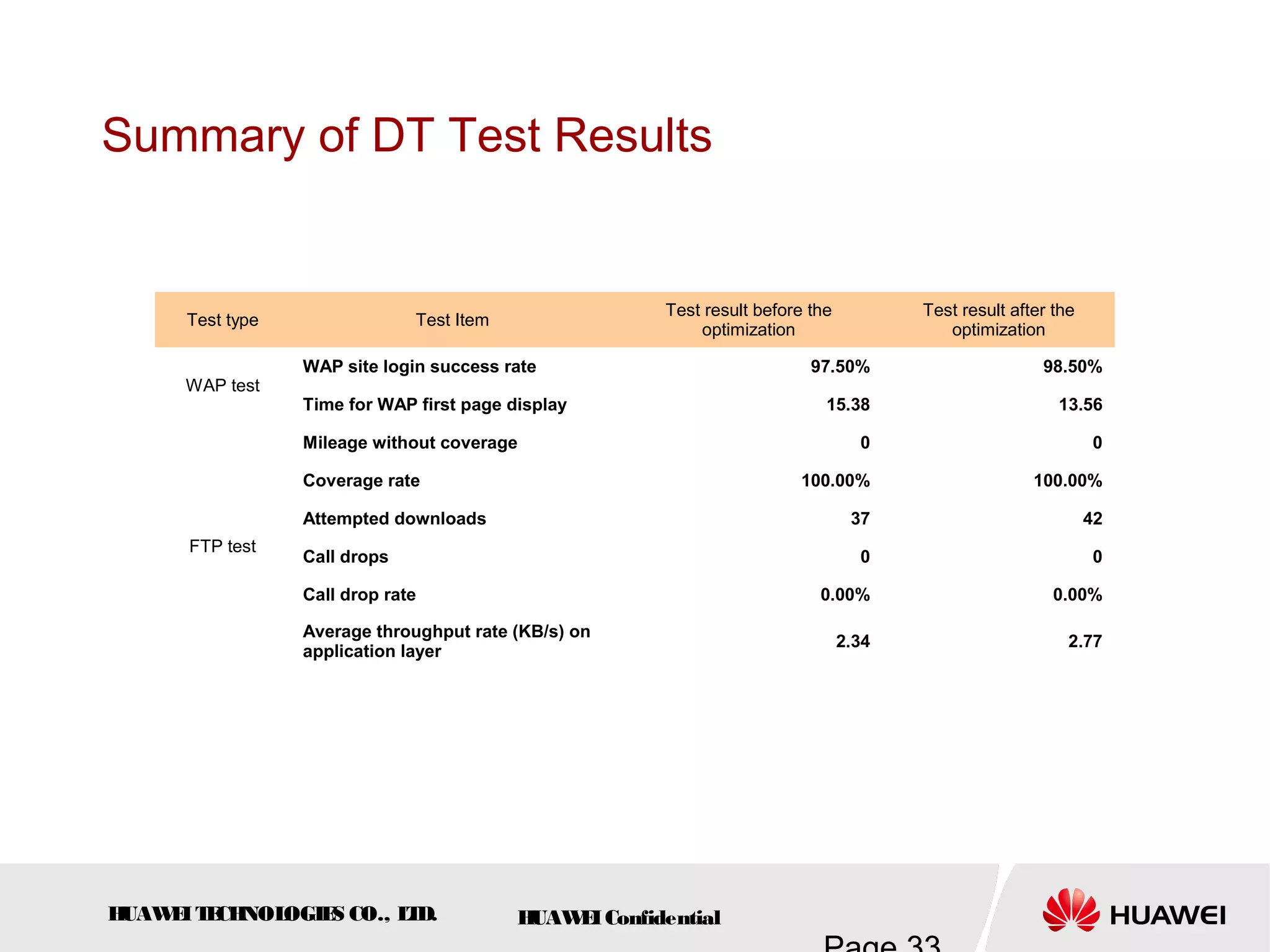

Summary of DT Test Results
Test type Test Item
Test result before the
optimization
Test result after the
optimization
WAP test
WAP site login success rate 97.50% 98.50%
Time for WAP first page display 15.38 13.56
FTP test
Mileage without coverage 0 0
Coverage rate 100.00% 100.00%
Attempted downloads 37 42
Call drops 0 0
Call drop rate 0.00% 0.00%
Average throughput rate (KB/s) on
application layer
2.34 2.77

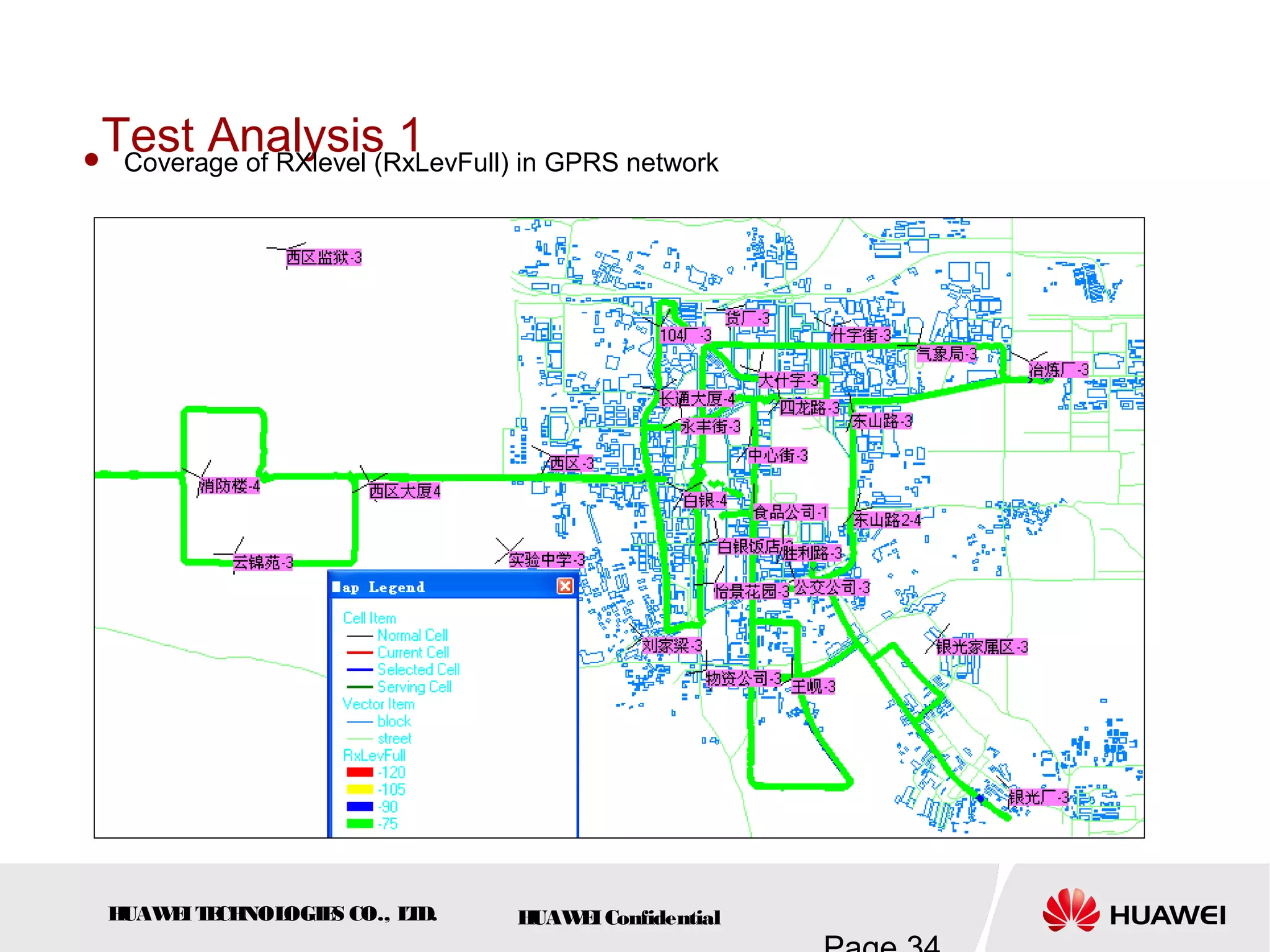

Test Analysis 1 Coverage of RXlevel (RxLevFull) in GPRS network

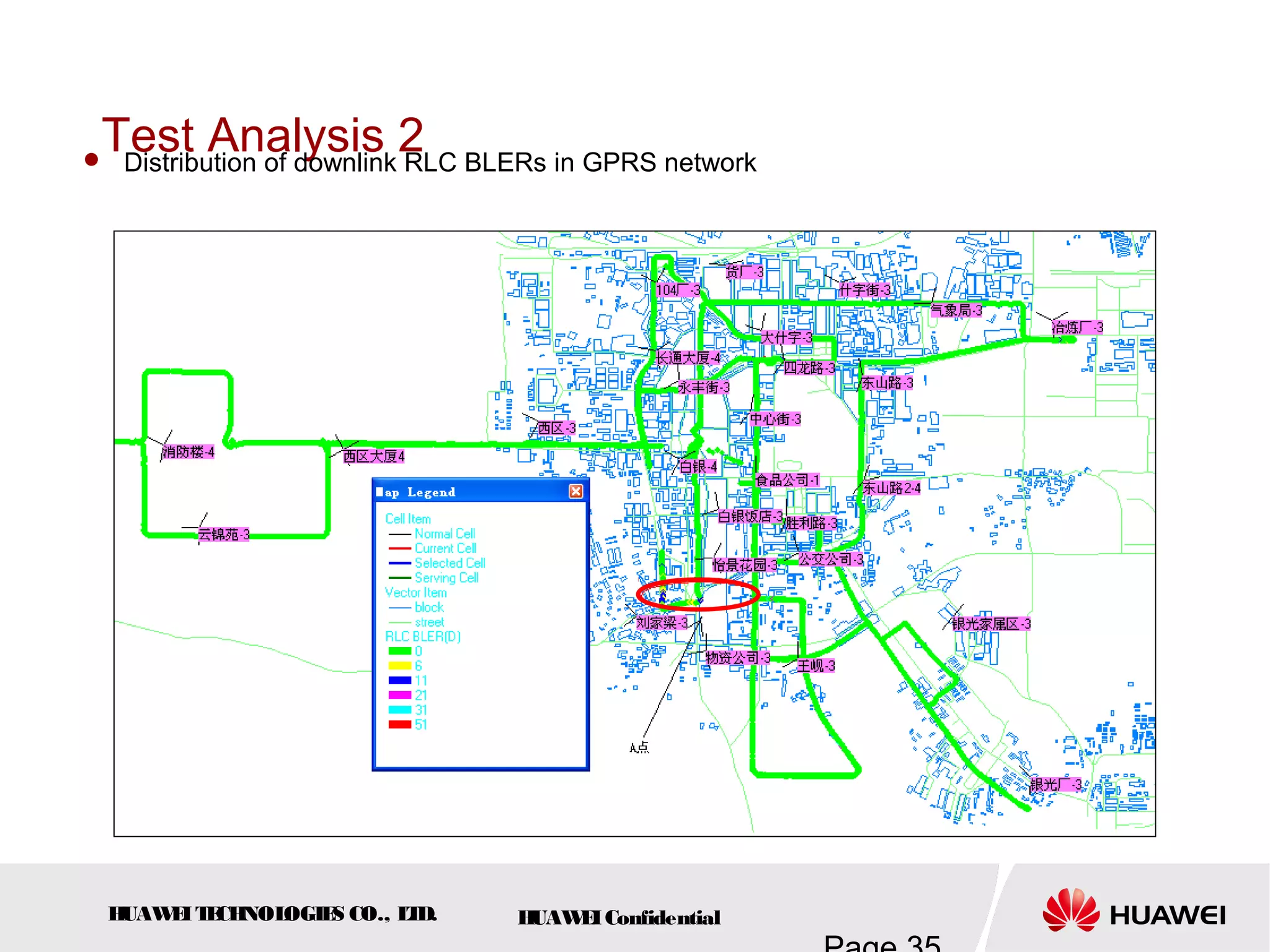

Test Analysis 2 Distribution of downlink RLC BLERs in GPRS network

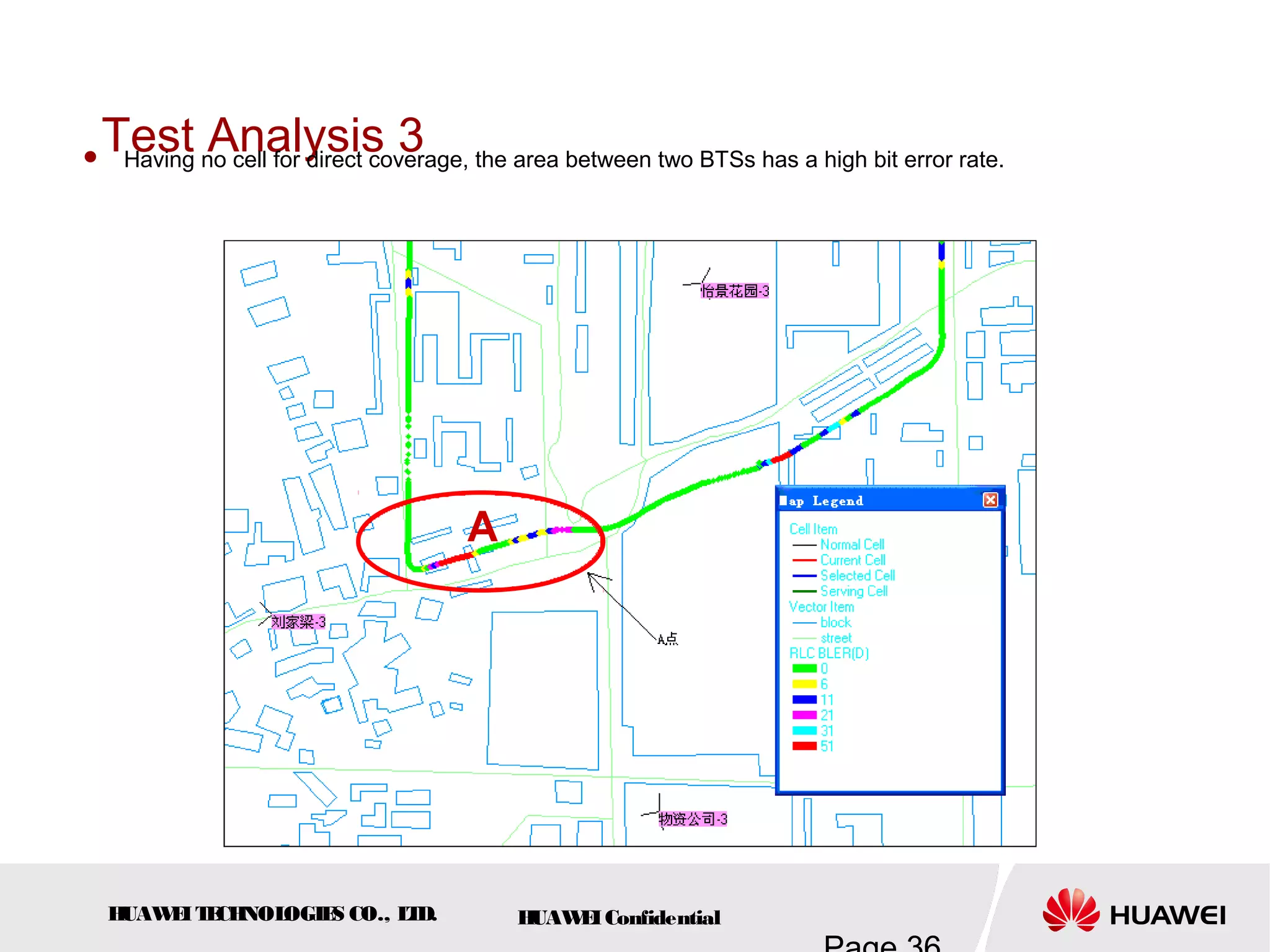

Test Analysis 3 Having no cell for direct coverage, the area between two BTSs has a high bit error rate.
A

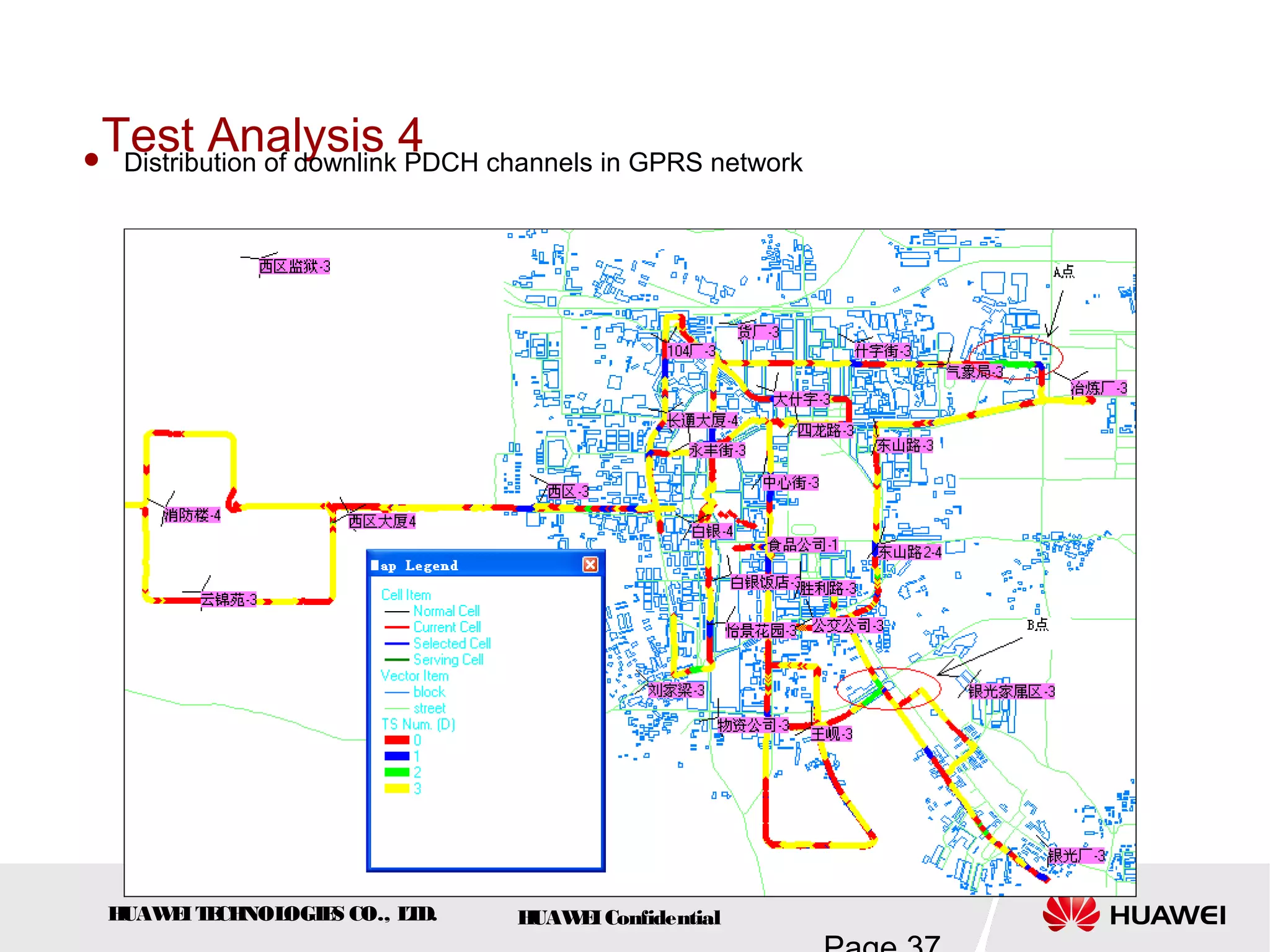

Test Analysis 4 Distribution of downlink PDCH channels in GPRS network

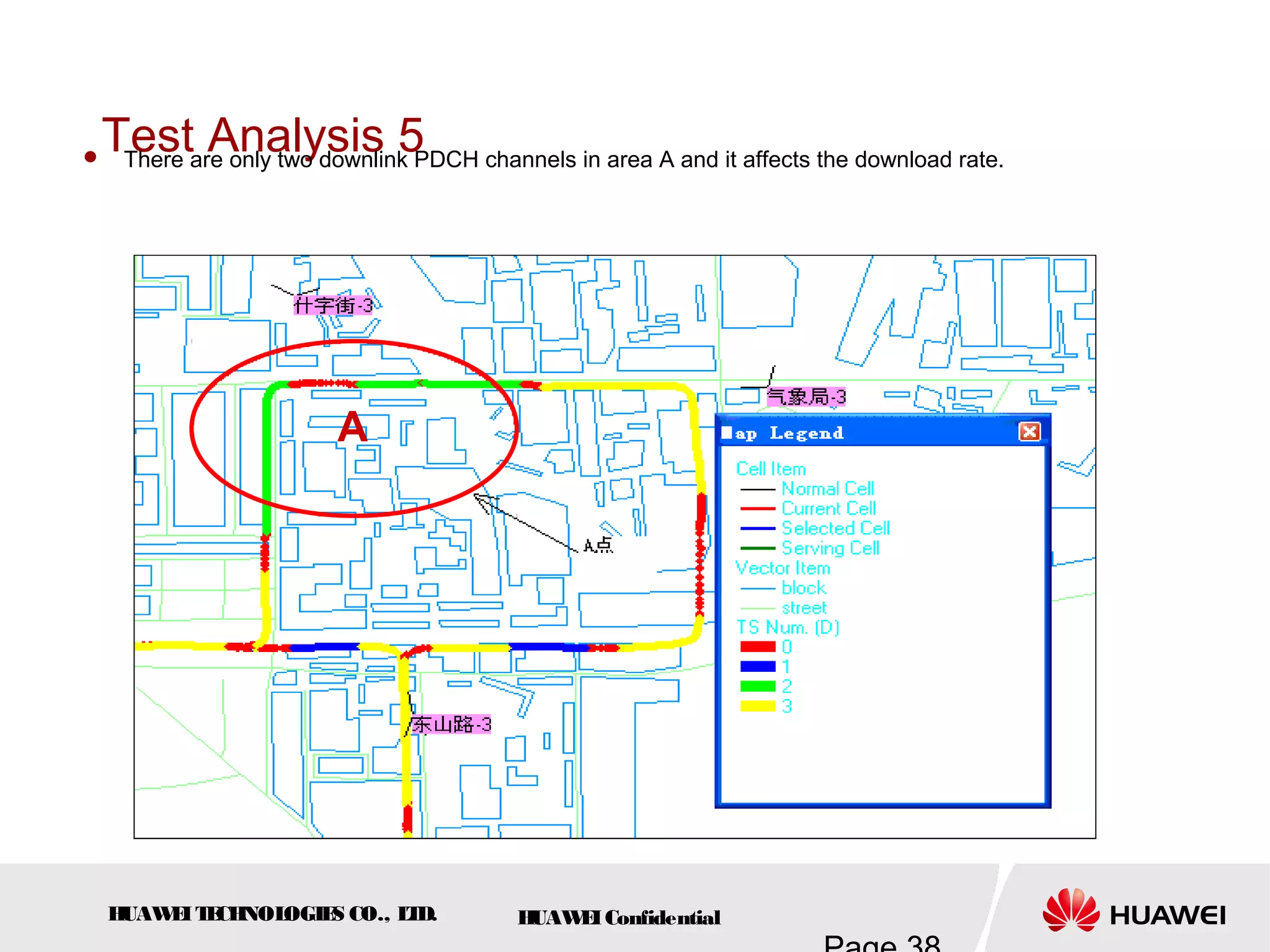

Test Analysis 5
A
 There are only two downlink PDCH channels in area A and it affects the download rate.

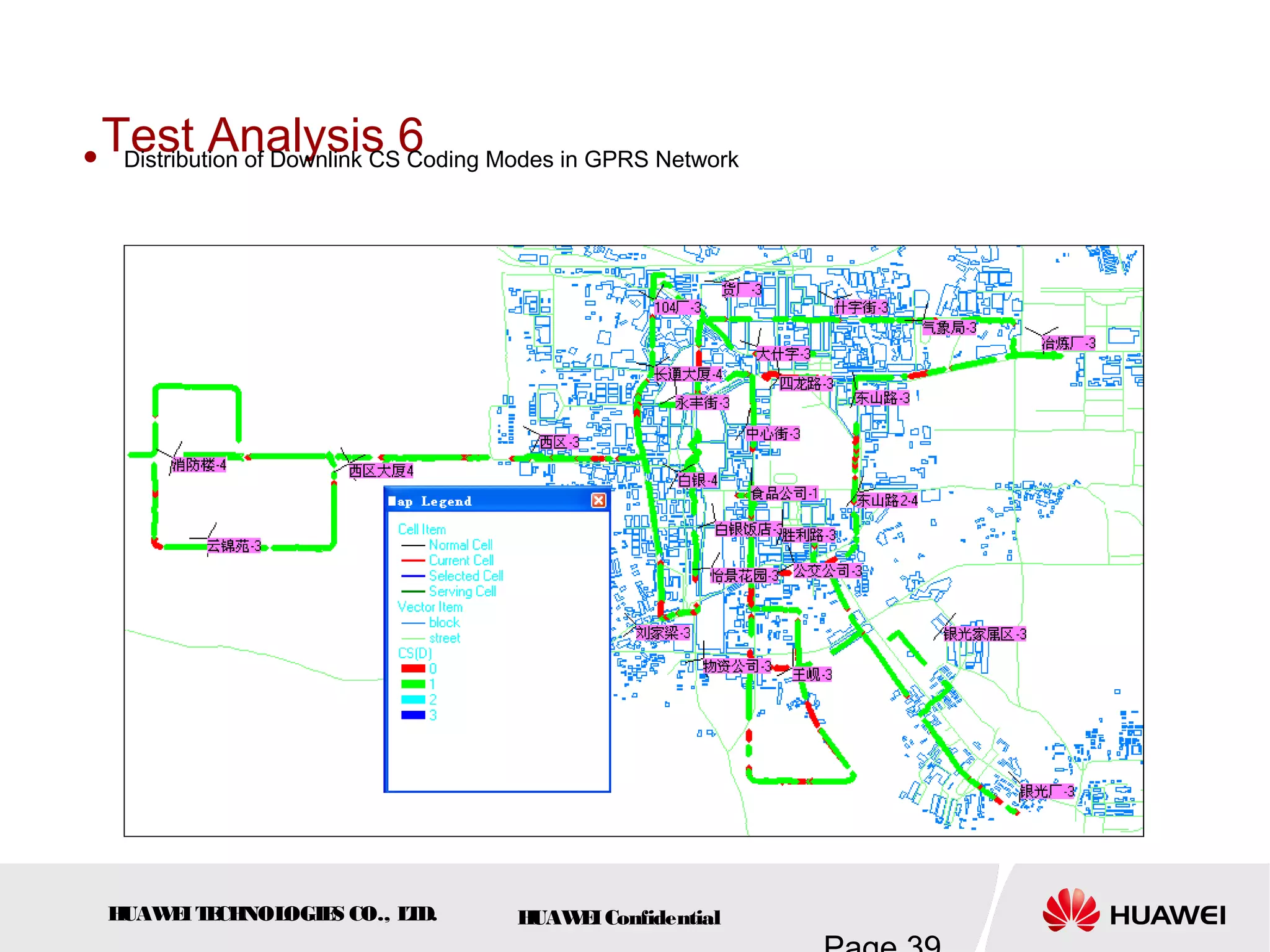

Test Analysis 6 Distribution of Downlink CS Coding Modes in GPRS Network

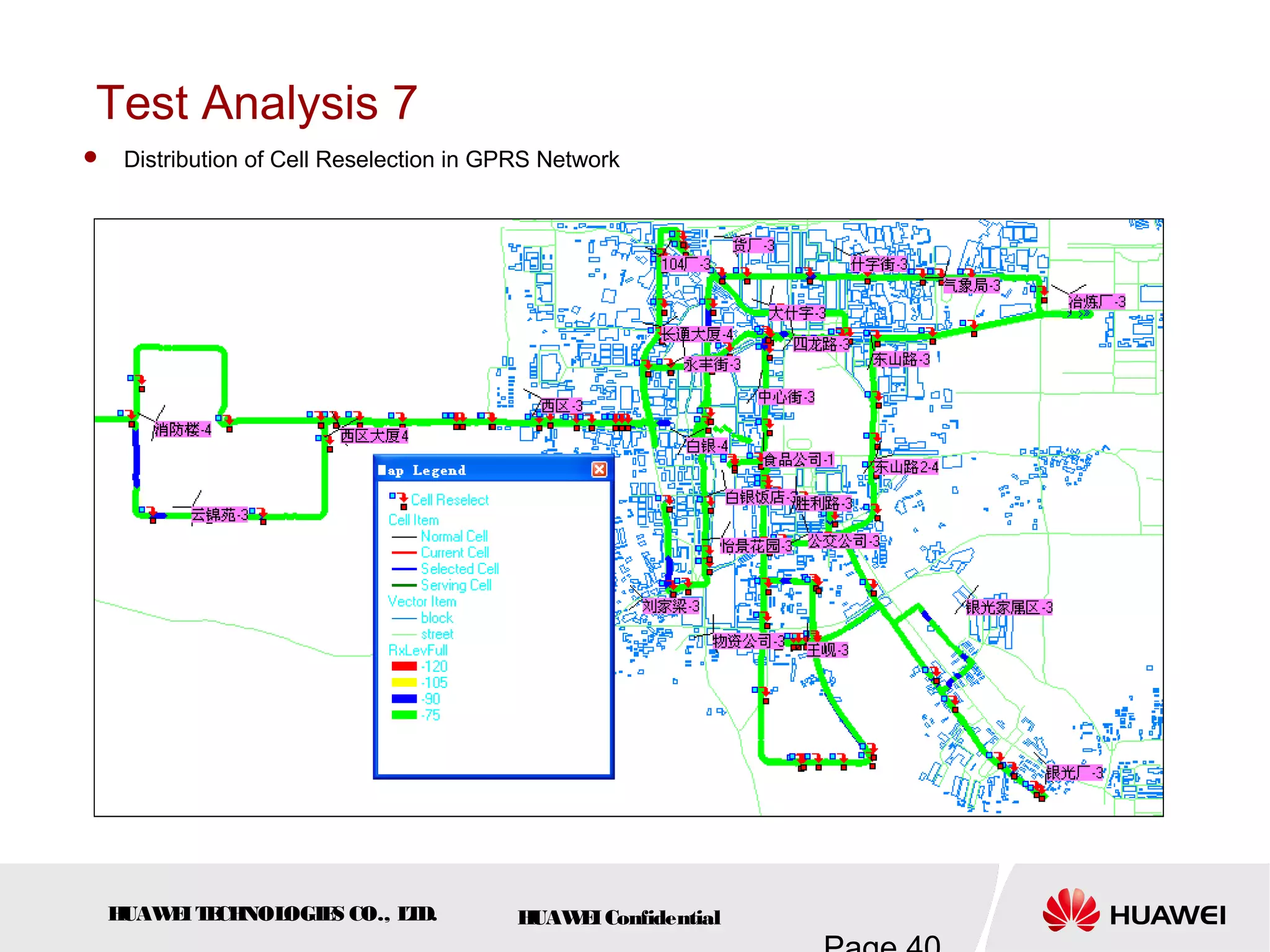

Test Analysis 7
 Distribution of Cell Reselection in GPRS Network

Thank You
