Docker and Vagrant usage in OPENi
This document discusses using Vagrant and Docker together to build portable development environments. It provides an overview of Vagrant and Docker, including how Vagrant uses boxes and providers to manage virtual machines and containers. It then shows how to set up a sample Vagrantfile to provision a Docker container for development. Key steps include installing Vagrant, initializing a project directory, selecting a box, editing the Vagrantfile to specify the box and Docker configuration, and running vagrant up to launch the environment.
More Related Content
Similar to Docker and Vagrant usage in OPENi
Docker and Vagrant usage in OPENi
- 1. Research + Vagrant +Docker building portable environments Michael Petychakis @mpetyx
- 2.

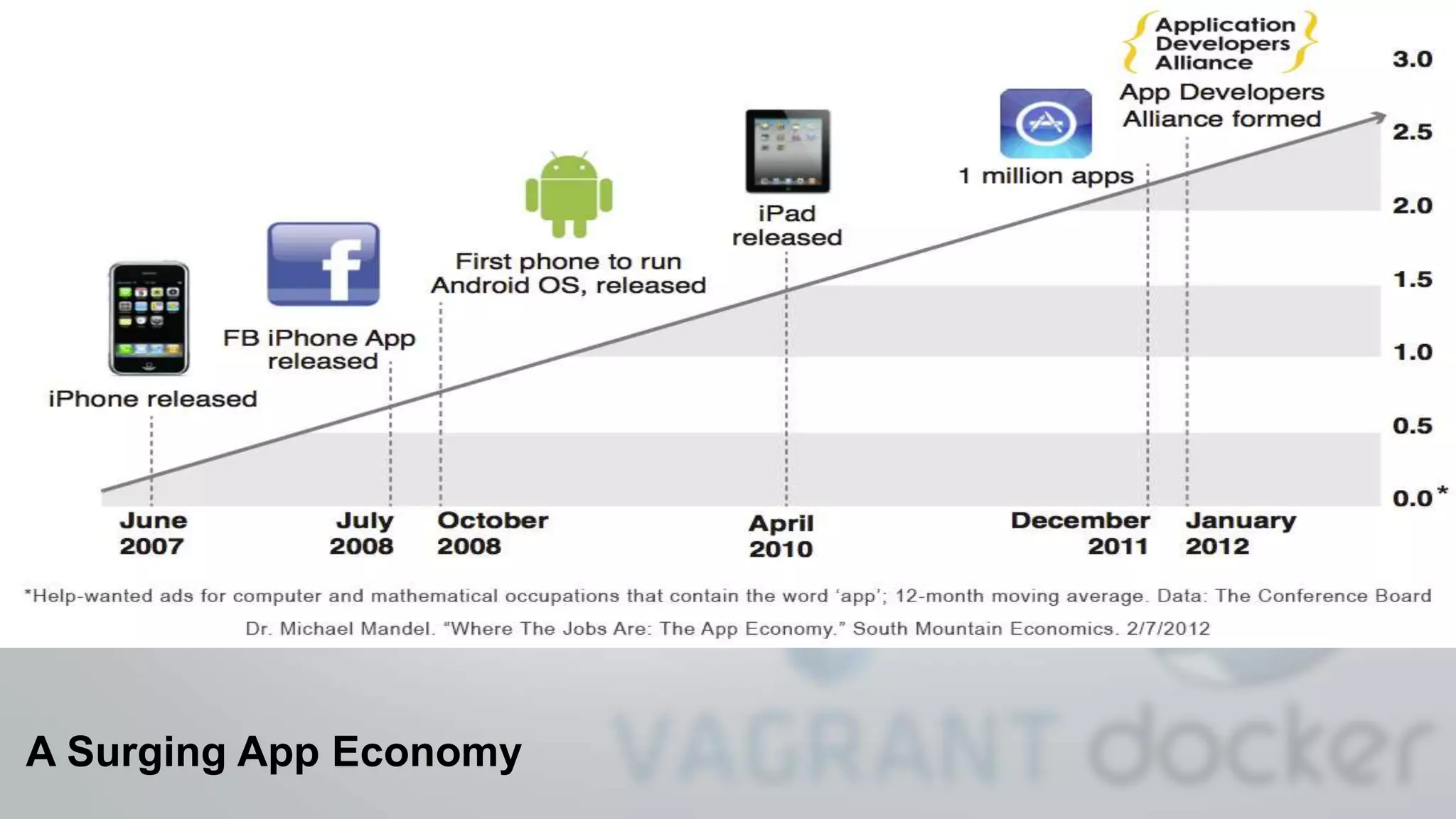

- 3. A Surging AppEconomy

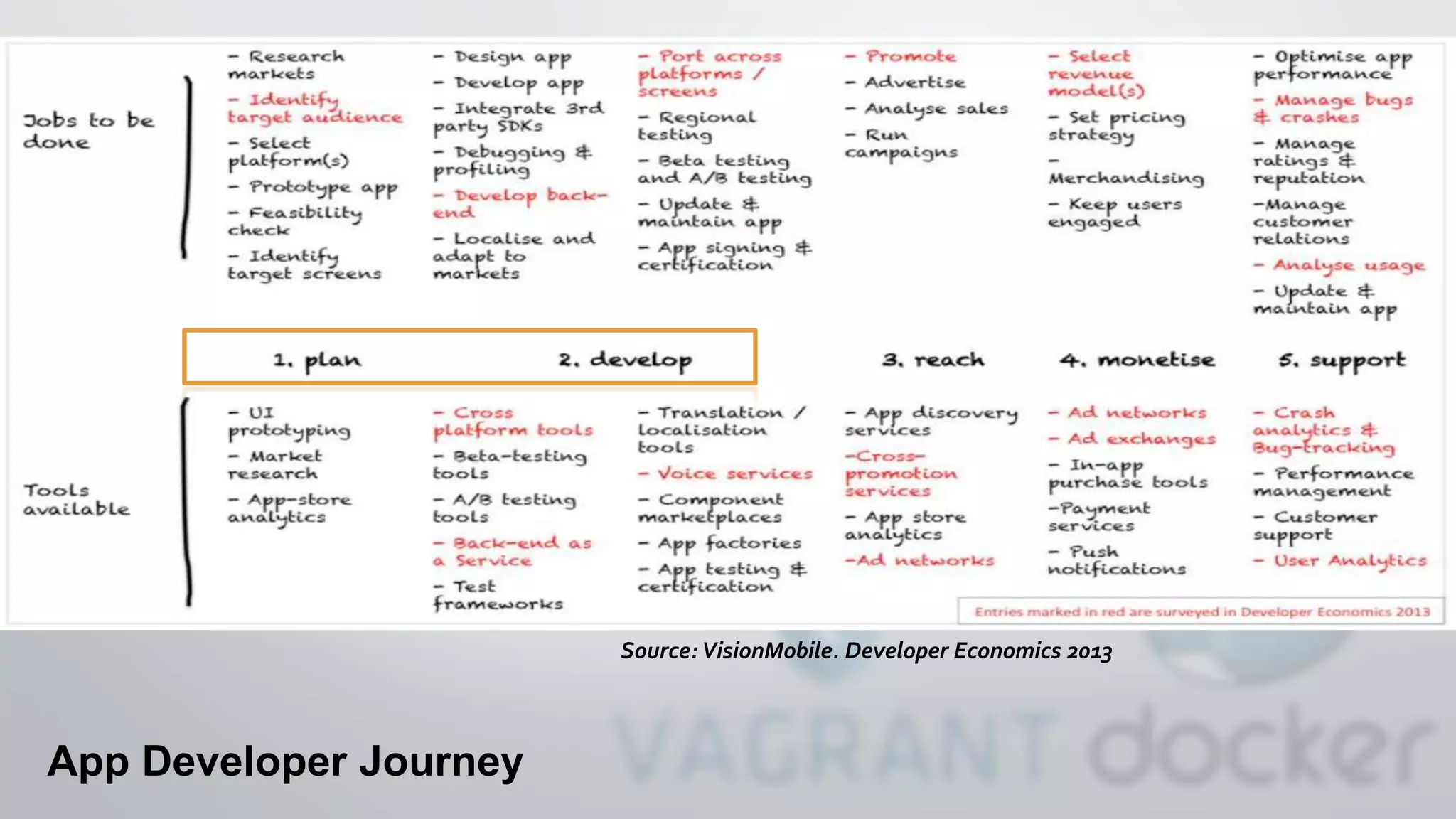

- 4. App Developer Journey Source:VisionMobile. Developer Economics 2013

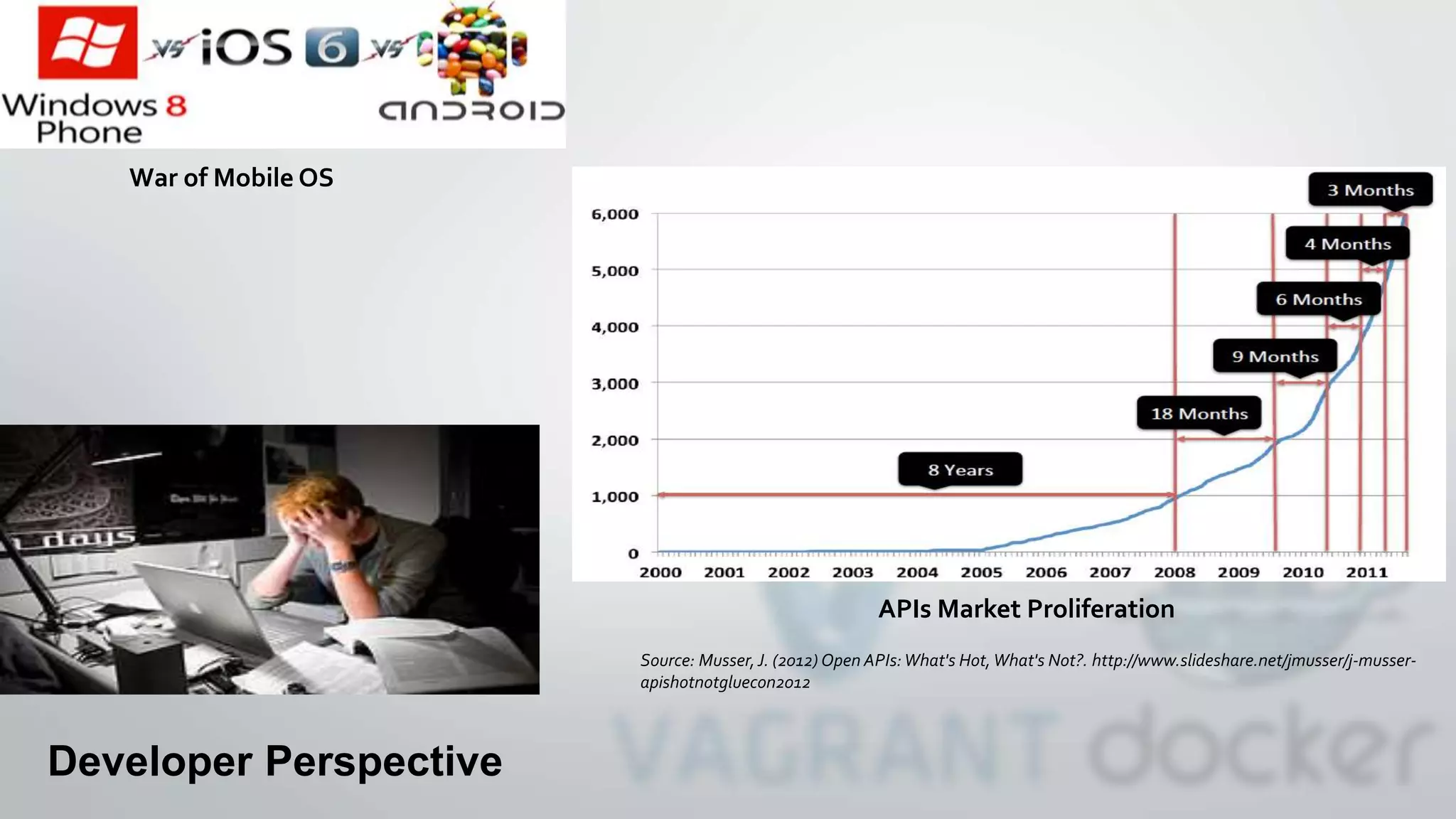

- 5. Developer Perspective War ofMobile OS APIs Market Proliferation Source: Musser,J. (2012) Open APIs:What's Hot,What's Not?. http://www.slideshare.net/jmusser/j-musser- apishotnotgluecon2012
- 6. Service Providers Perspective Applicationsas cost centres Concerns for disruption of business models
- 7. Lack of datacontrol Fragmentation in data silos Users Perspective Personal data on the cloud
- 8.

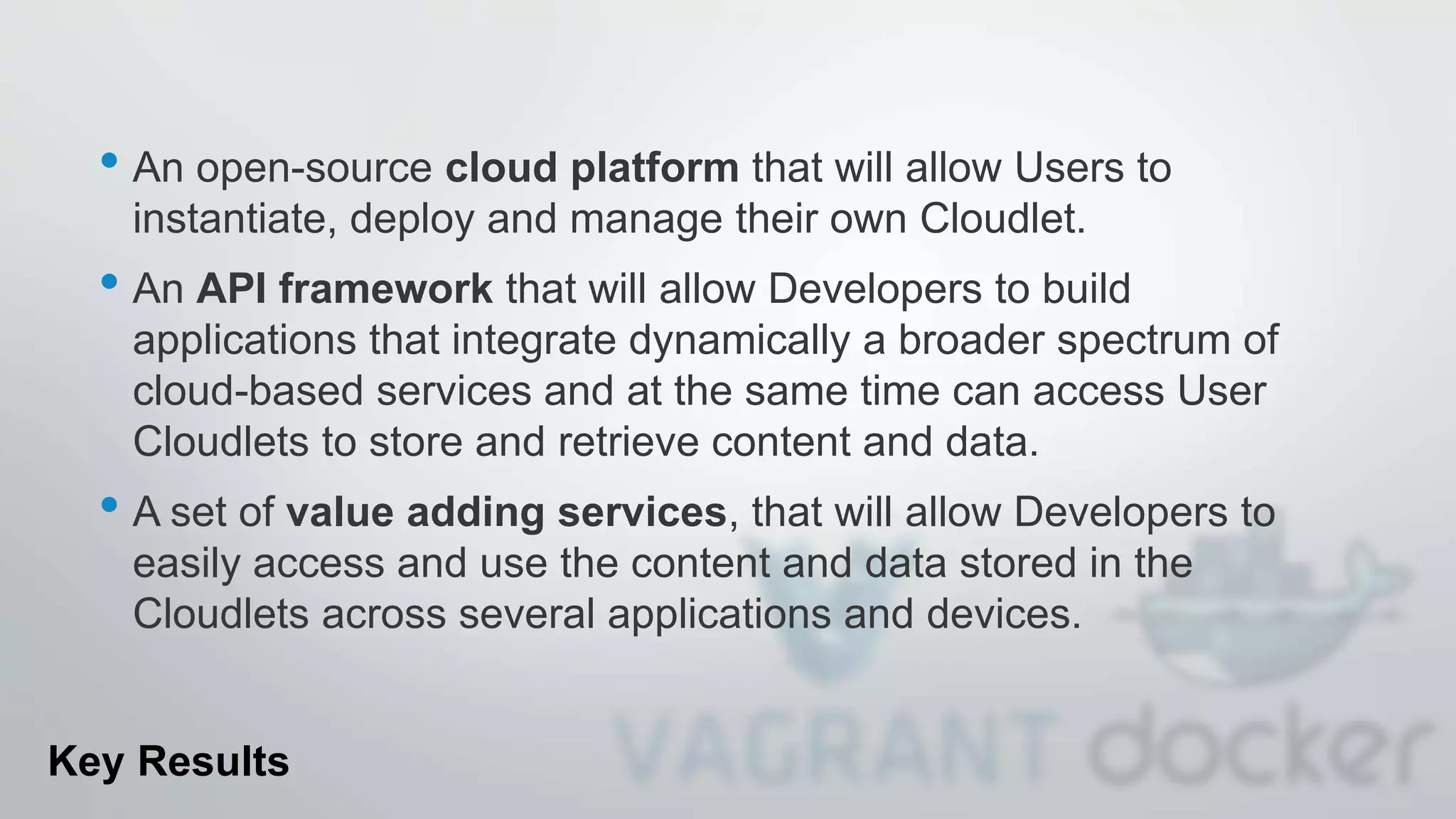

- 9. • An open-sourcecloud platform that will allow Users to instantiate, deploy and manage their own Cloudlet. • An API framework that will allow Developers to build applications that integrate dynamically a broader spectrum of cloud-based services and at the same time can access User Cloudlets to store and retrieve content and data. • A set of value adding services, that will allow Developers to easily access and use the content and data stored in the Cloudlets across several applications and devices. Key Results

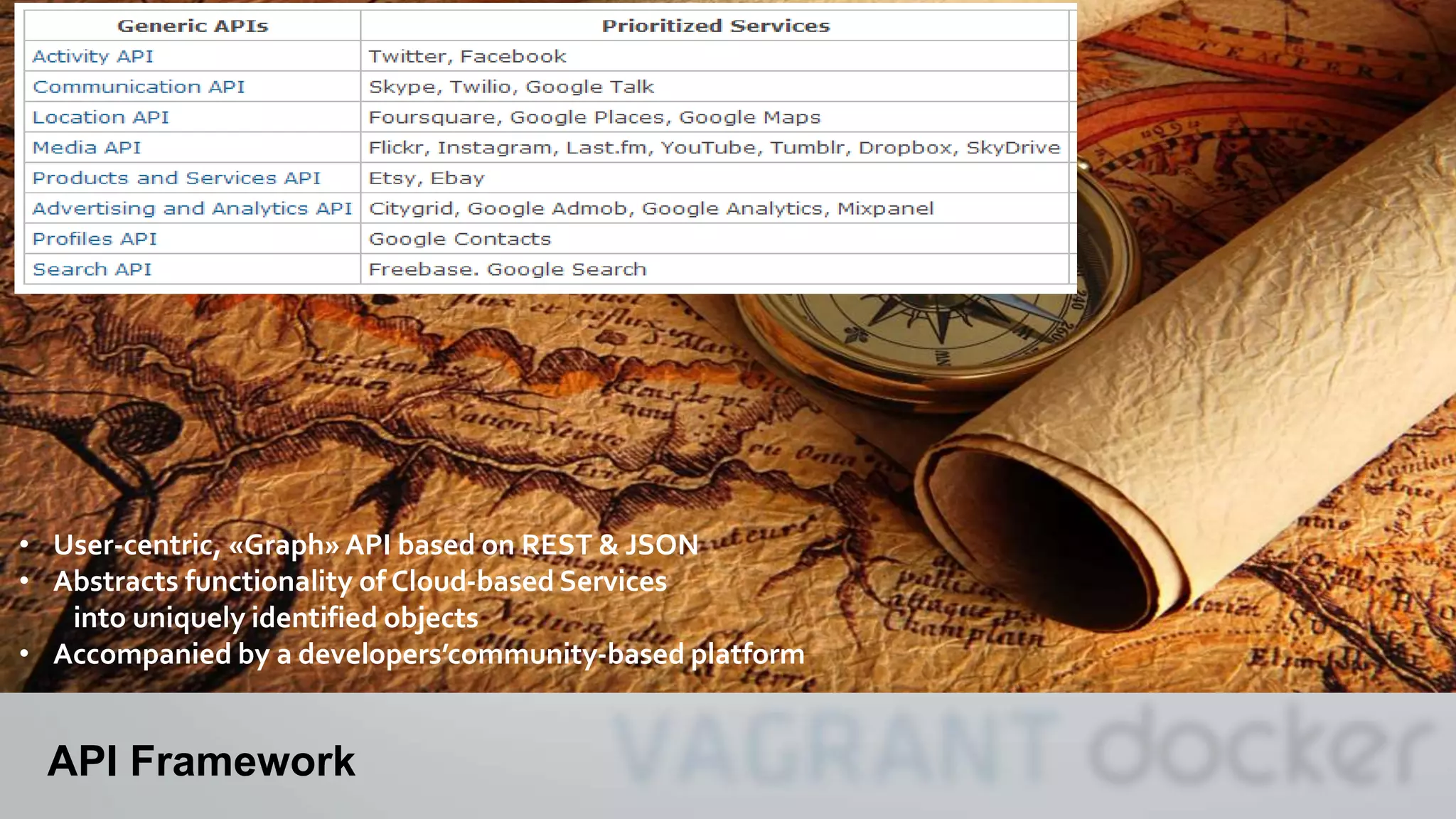

- 10. API Framework • User-centric,«Graph» API based on REST & JSON • Abstracts functionality of Cloud-based Services into uniquely identified objects • Accompanied by a developers’community-based platform

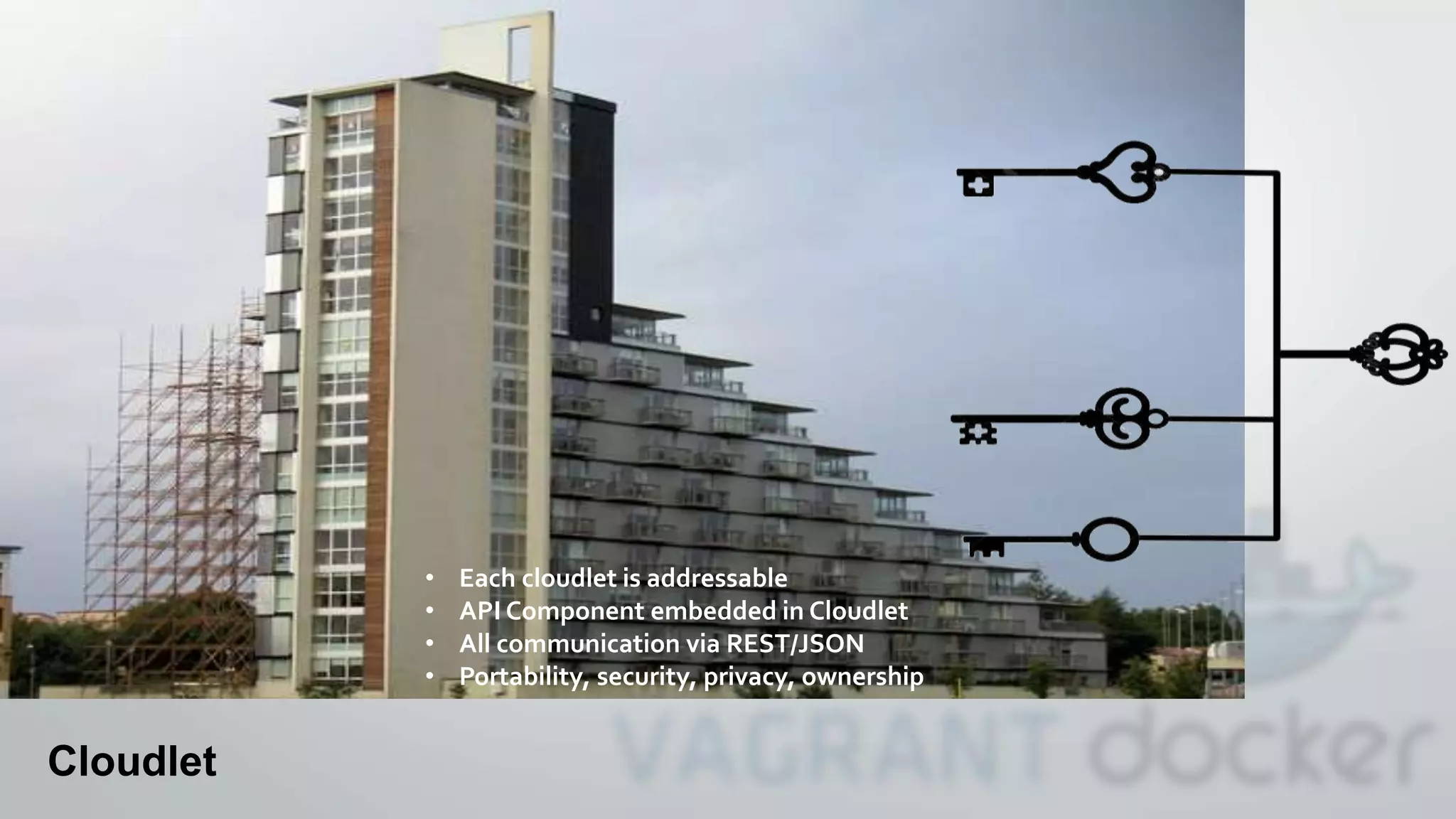

- 11. Cloudlet Cloudlet • Each cloudletis addressable • API Component embedded in Cloudlet • All communication via REST/JSON • Portability, security, privacy, ownership
- 12.
- 13.

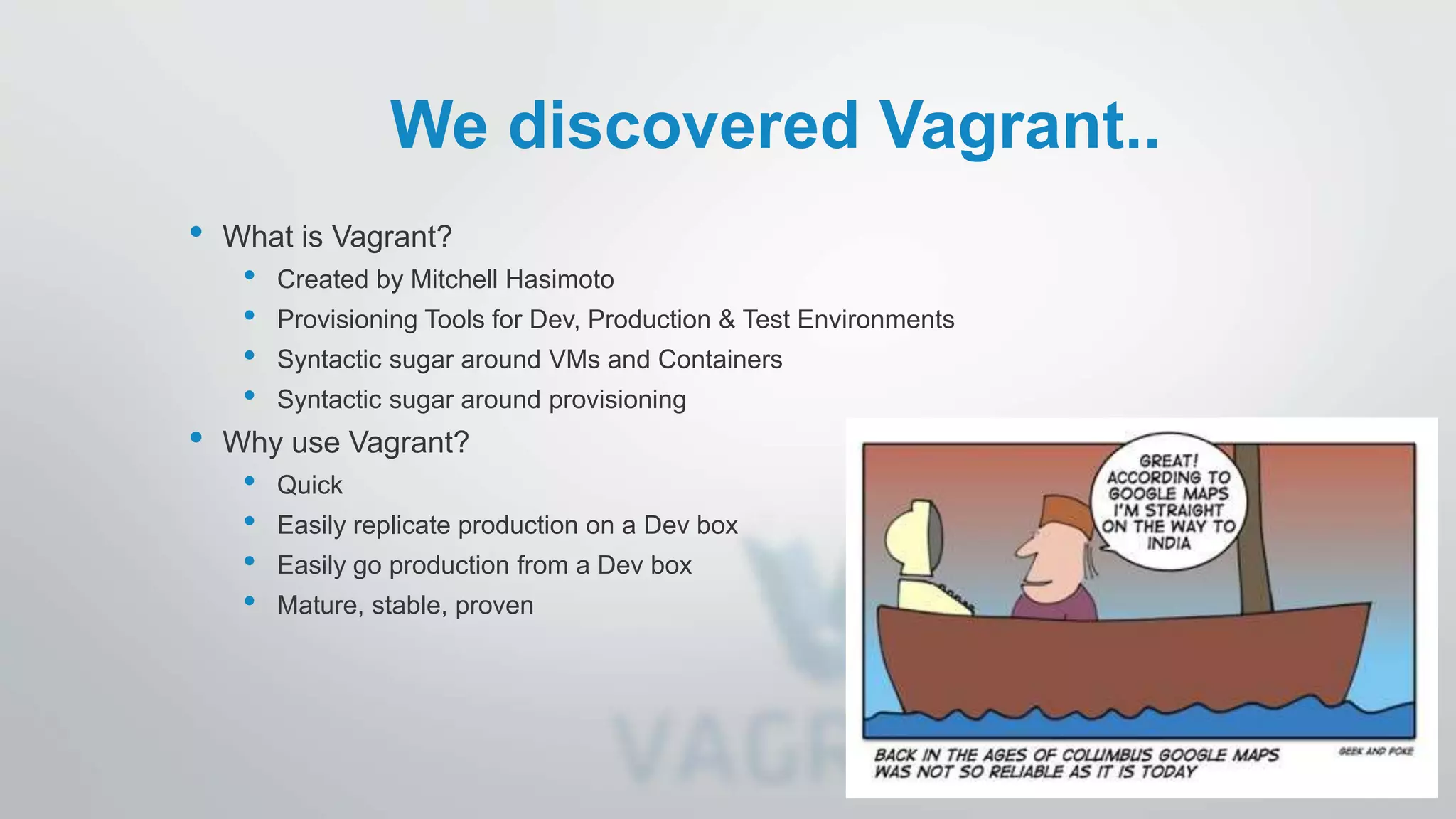

- 14. We discovered Vagrant.. •What is Vagrant? • Created by Mitchell Hasimoto • Provisioning Tools for Dev, Production & Test Environments • Syntactic sugar around VMs and Containers • Syntactic sugar around provisioning • Why use Vagrant? • Quick • Easily replicate production on a Dev box • Easily go production from a Dev box • Mature, stable, proven
- 15.
- 16.
- 18. One container torule them all? Full-stack container vs one container per stack

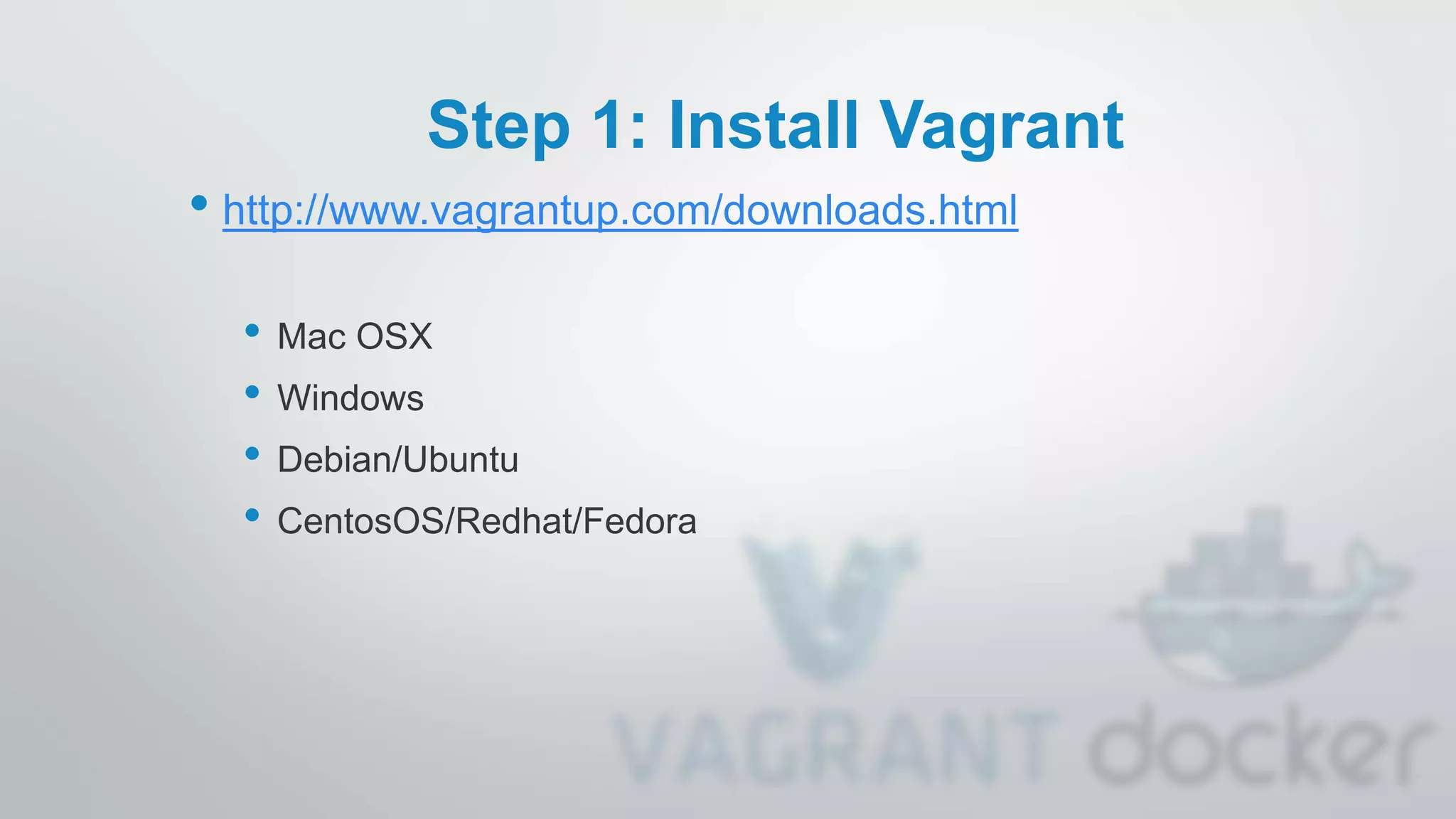

- 19. Step 1: InstallVagrant • http://www.vagrantup.com/downloads.html • Mac OSX • Windows • Debian/Ubuntu • CentosOS/Redhat/Fedora

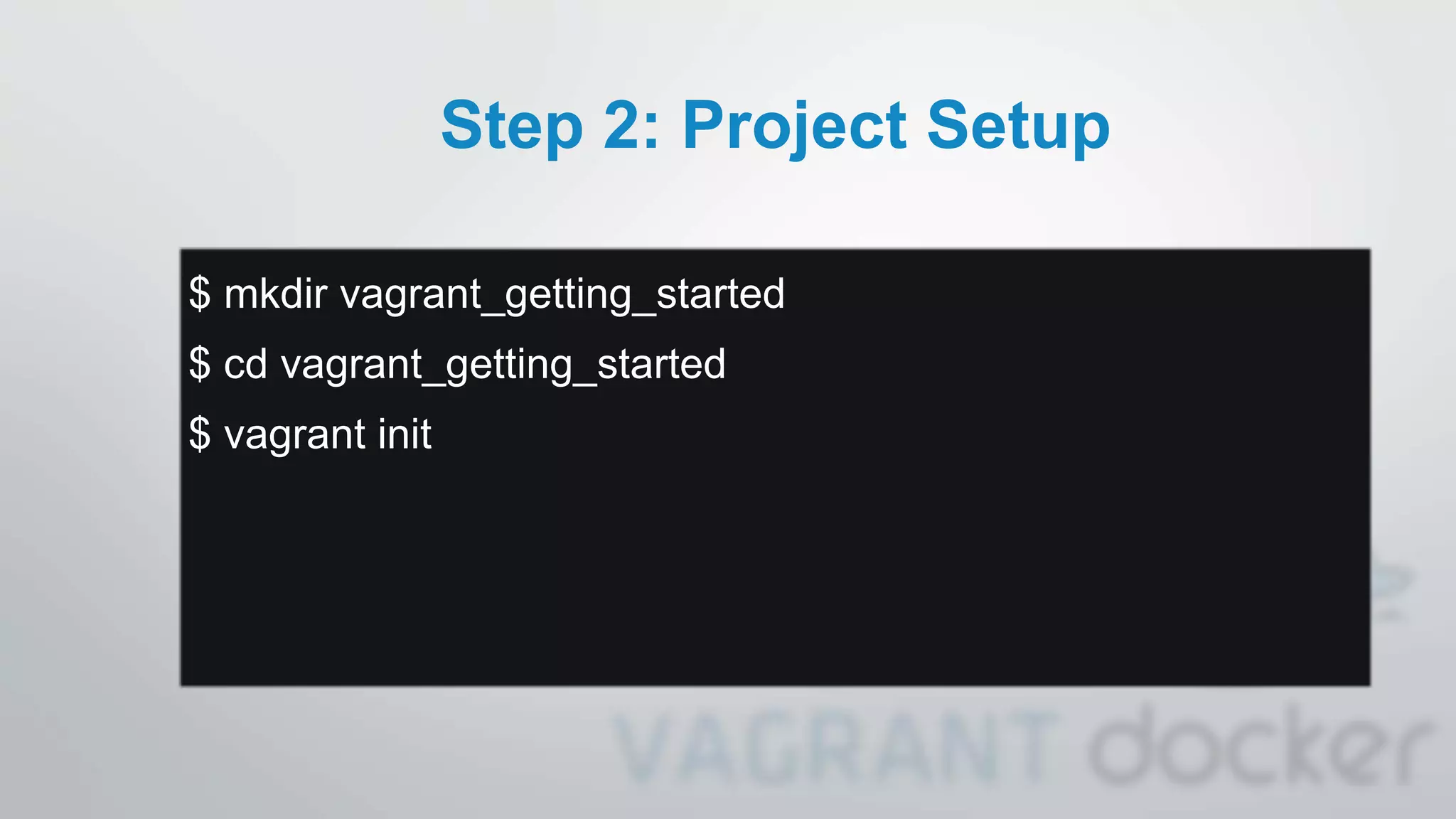

- 20. Step 2: ProjectSetup $ mkdir vagrant_getting_started $ cd vagrant_getting_started $ vagrant init

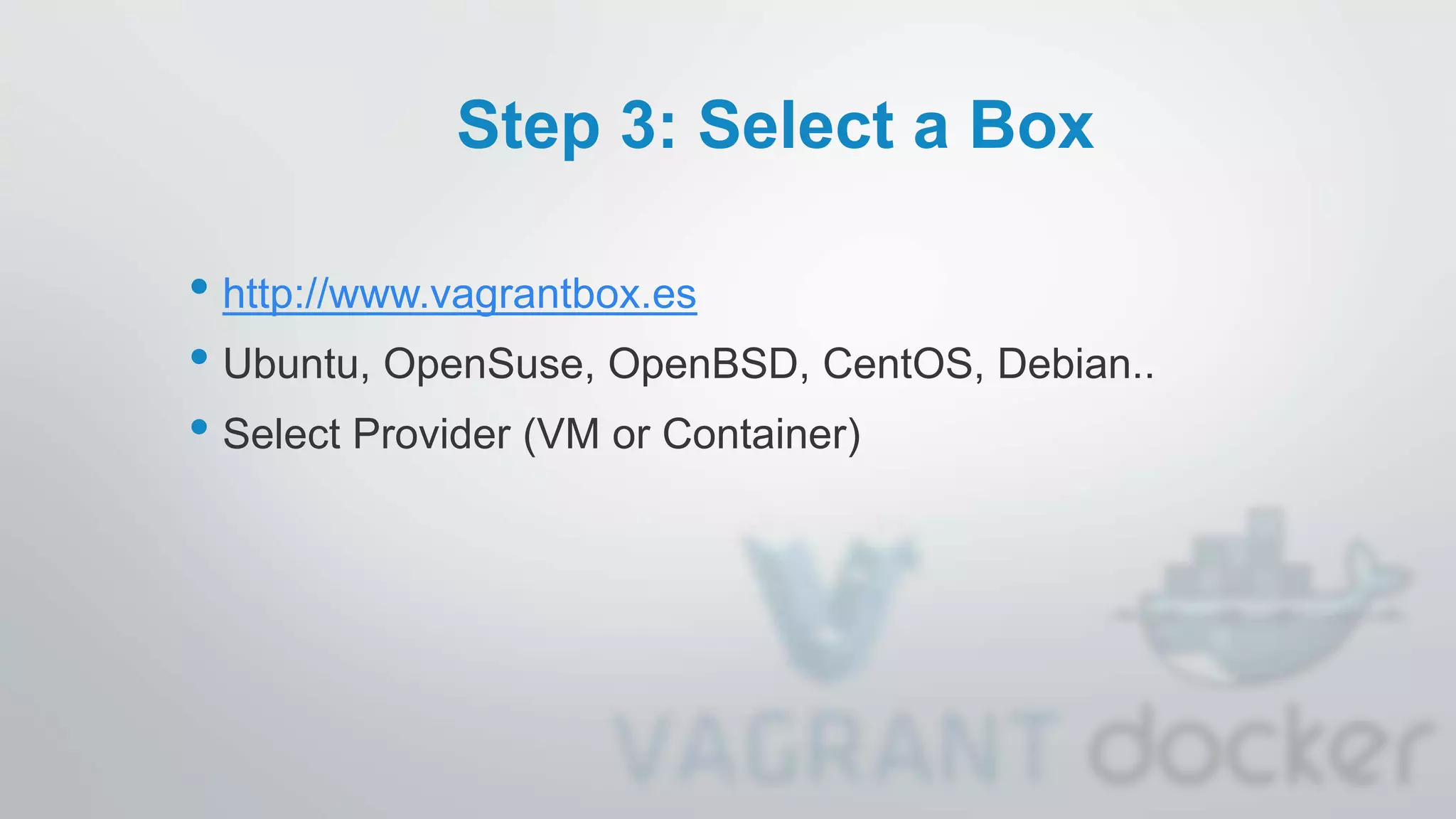

- 21. Step 3: Selecta Box • http://www.vagrantbox.es • Ubuntu, OpenSuse, OpenBSD, CentOS, Debian.. • Select Provider (VM or Container)

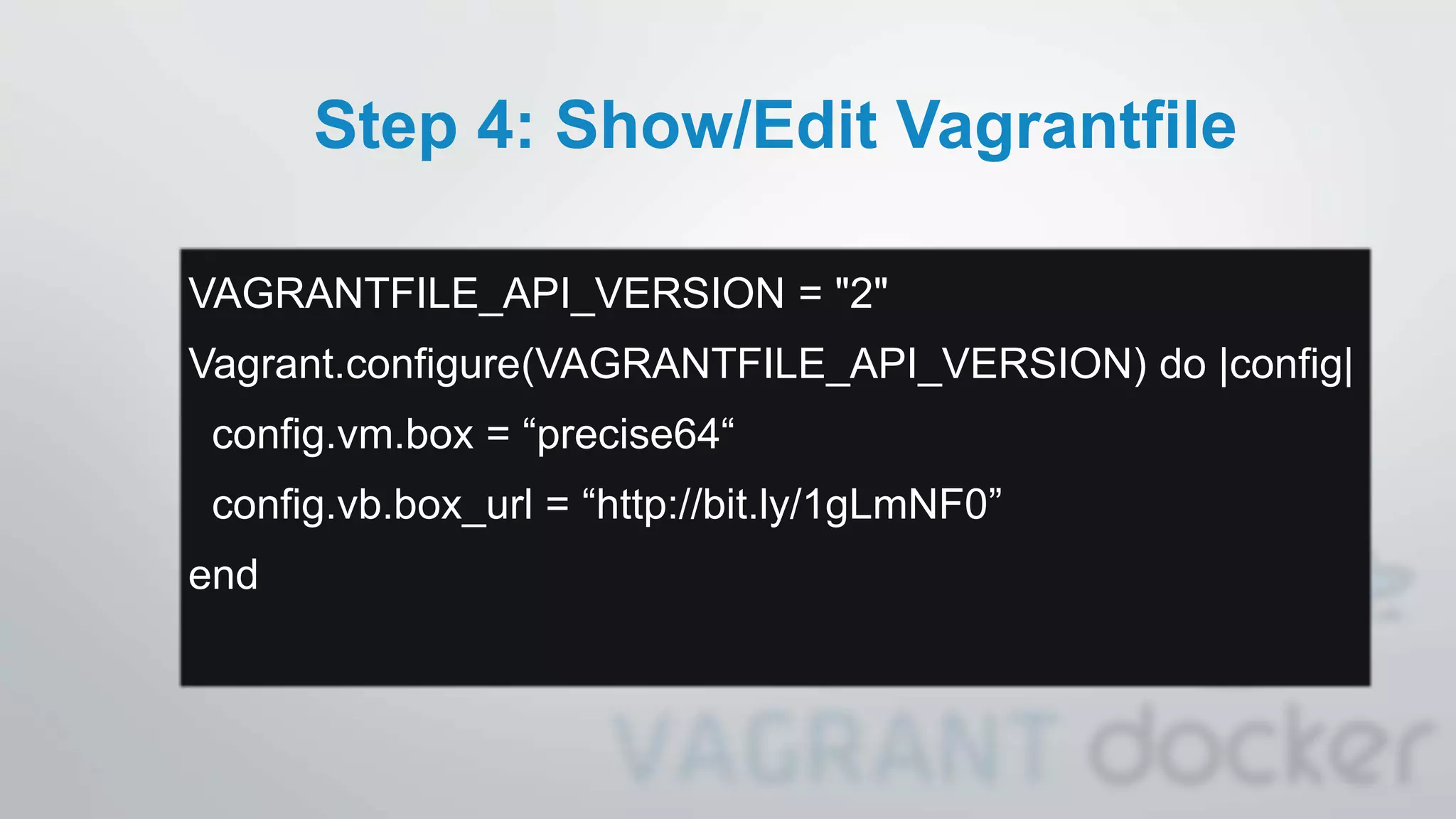

- 22. Step 4: Show/EditVagrantfile VAGRANTFILE_API_VERSION = "2" Vagrant.configure(VAGRANTFILE_API_VERSION) do |config| config.vm.box = “precise64“ config.vb.box_url = “http://bit.ly/1gLmNF0” end

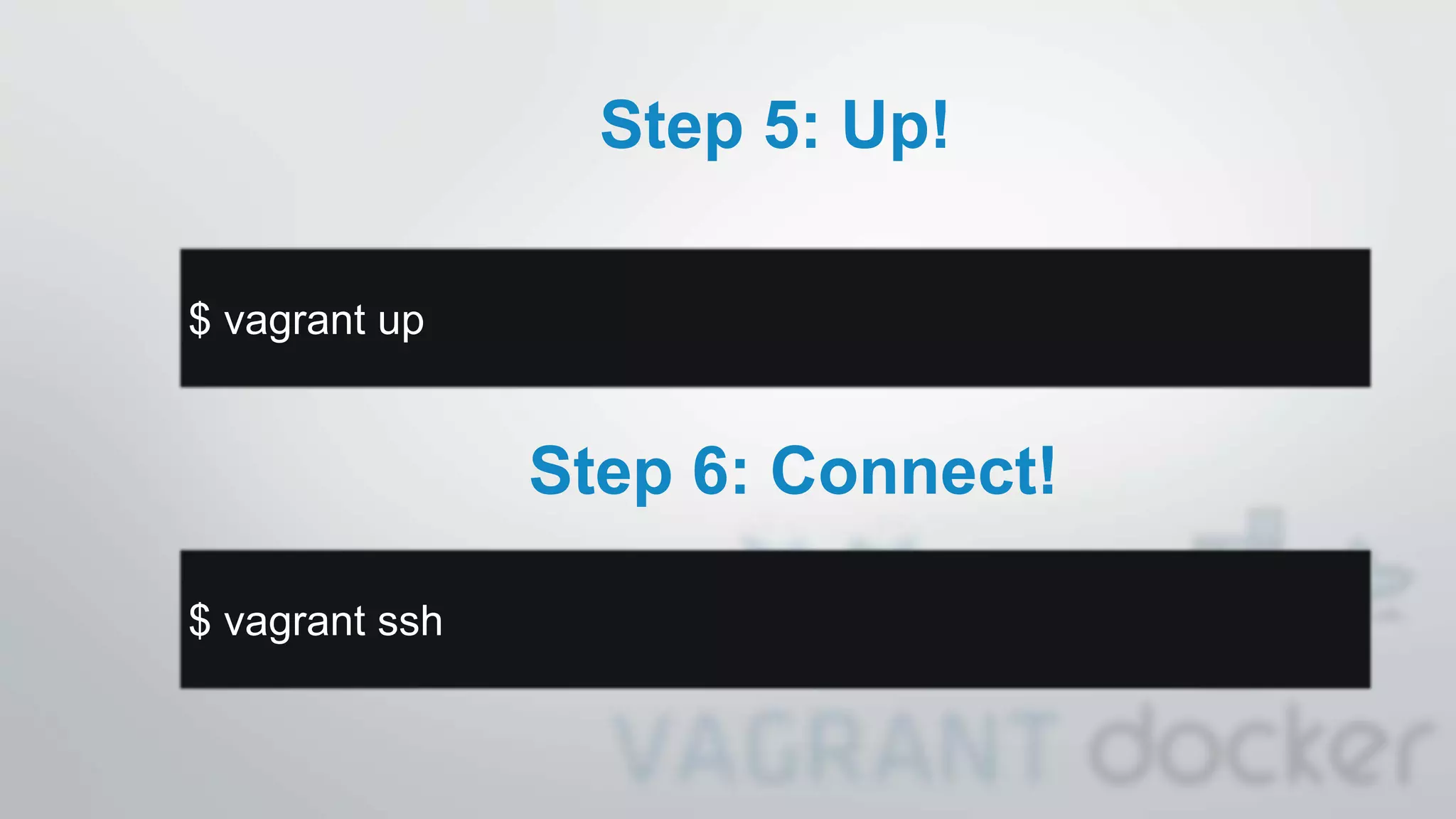

- 23. Step 5: Up! $vagrant up Step 6: Connect! $ vagrant ssh
- 24.

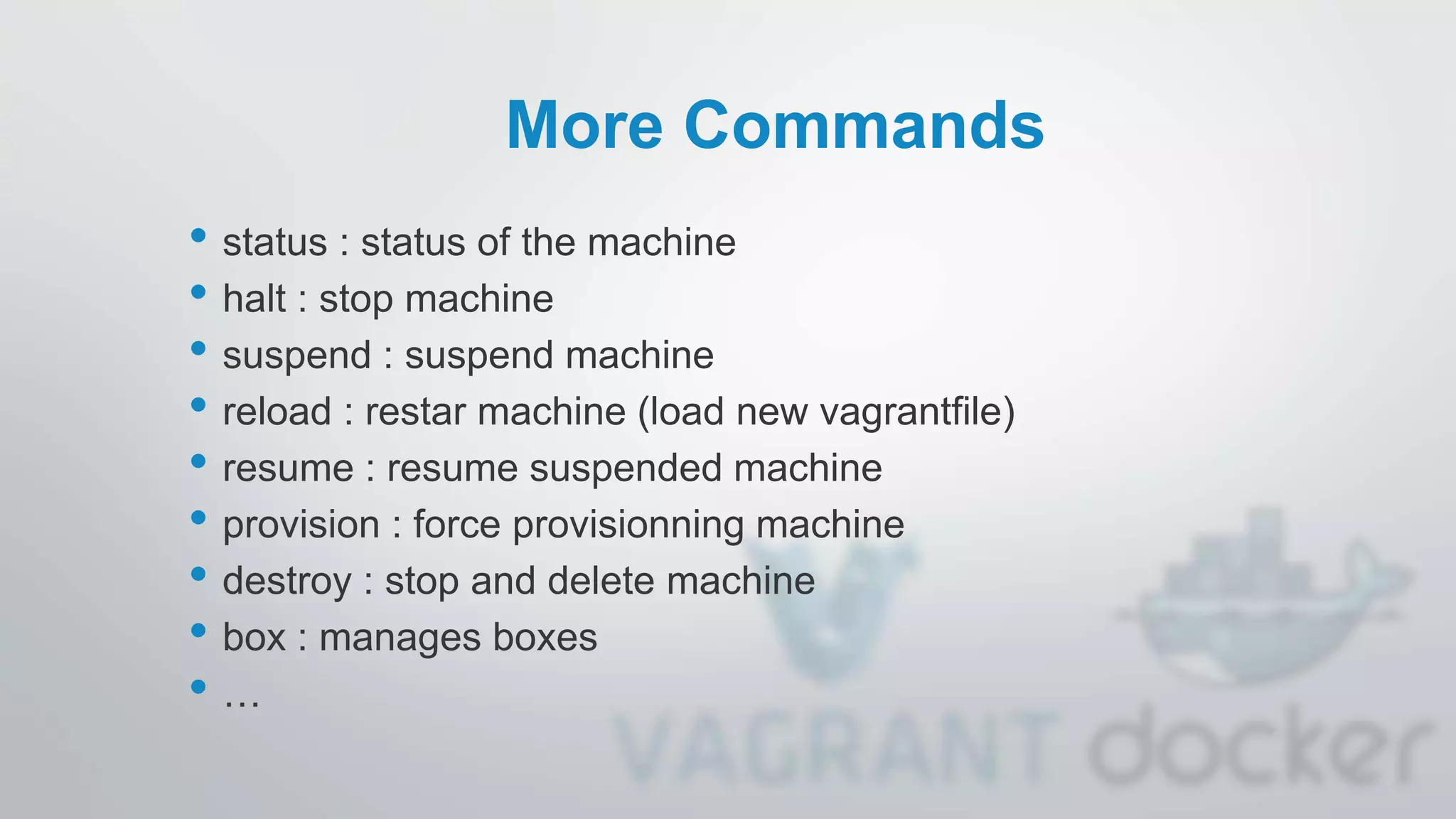

- 25. More Commands • status: status of the machine • halt : stop machine • suspend : suspend machine • reload : restar machine (load new vagrantfile) • resume : resume suspended machine • provision : force provisionning machine • destroy : stop and delete machine • box : manages boxes • …

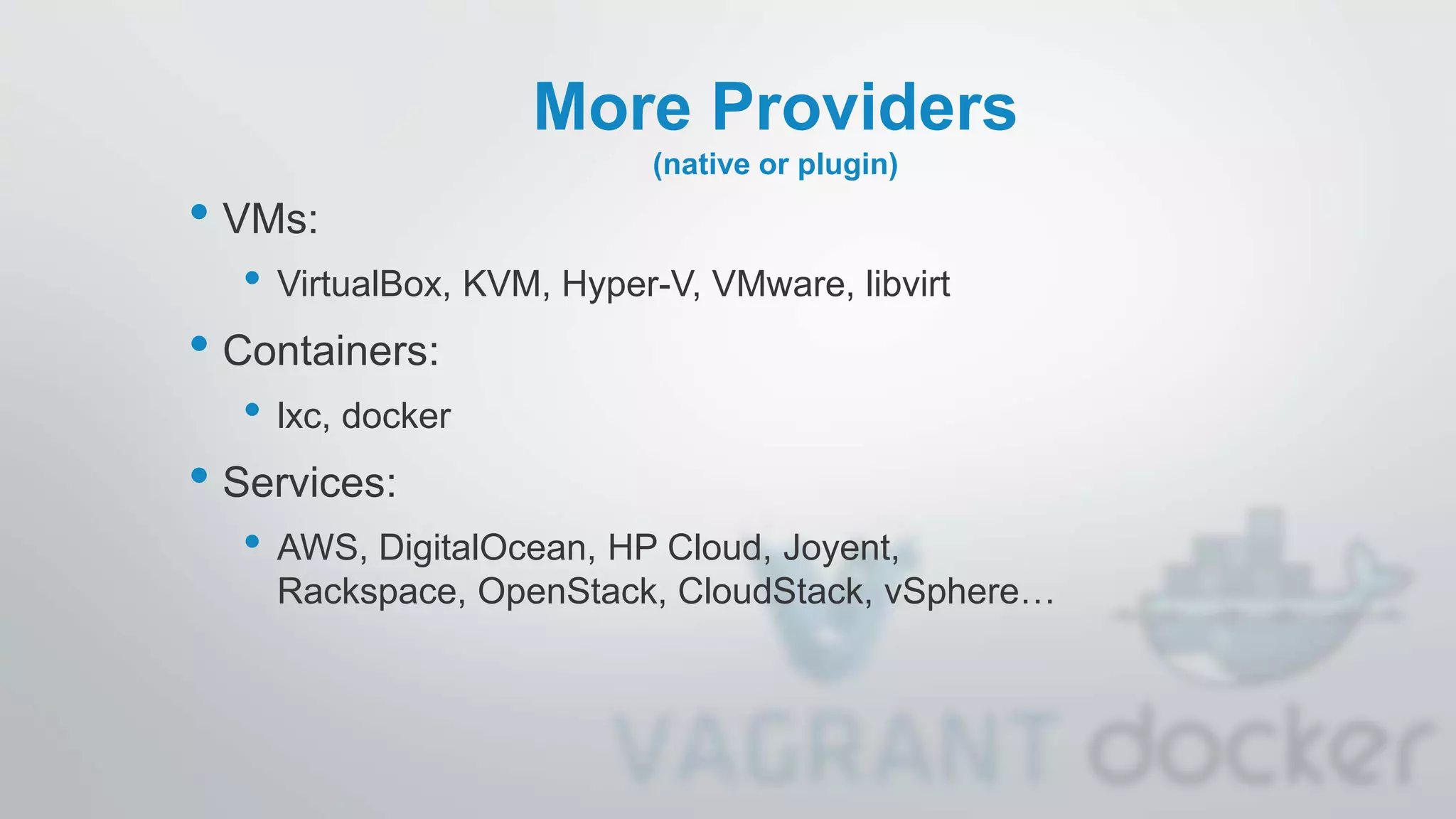

- 26. More Providers (native orplugin) • VMs: • VirtualBox, KVM, Hyper-V, VMware, libvirt • Containers: • lxc, docker • Services: • AWS, DigitalOcean, HP Cloud, Joyent, Rackspace, OpenStack, CloudStack, vSphere…

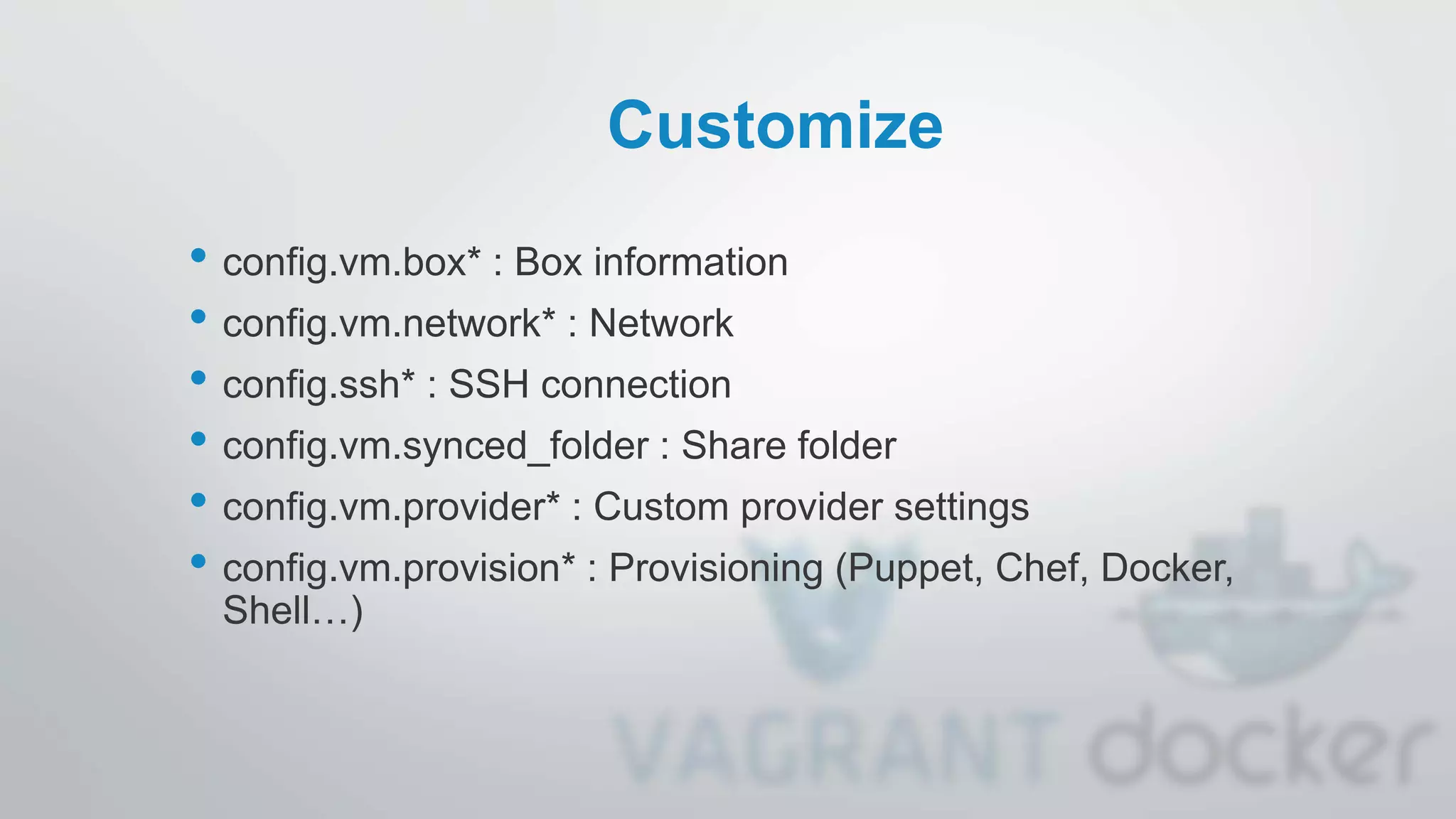

- 27. Customize • config.vm.box* :Box information • config.vm.network* : Network • config.ssh* : SSH connection • config.vm.synced_folder : Share folder • config.vm.provider* : Custom provider settings • config.vm.provision* : Provisioning (Puppet, Chef, Docker, Shell…)

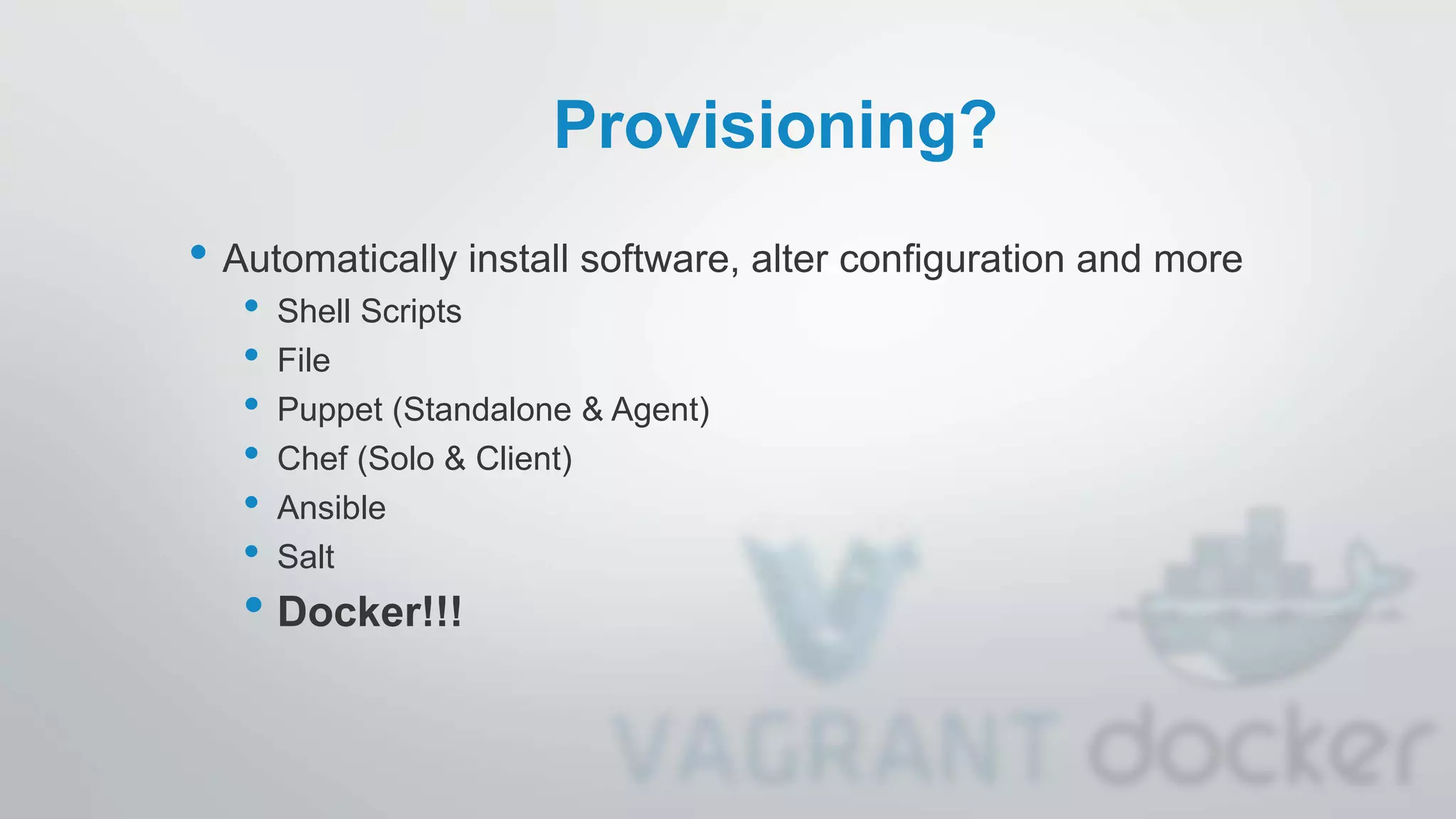

- 28. Provisioning? • Automatically installsoftware, alter configuration and more • Shell Scripts • File • Puppet (Standalone & Agent) • Chef (Solo & Client) • Ansible • Salt • Docker!!!

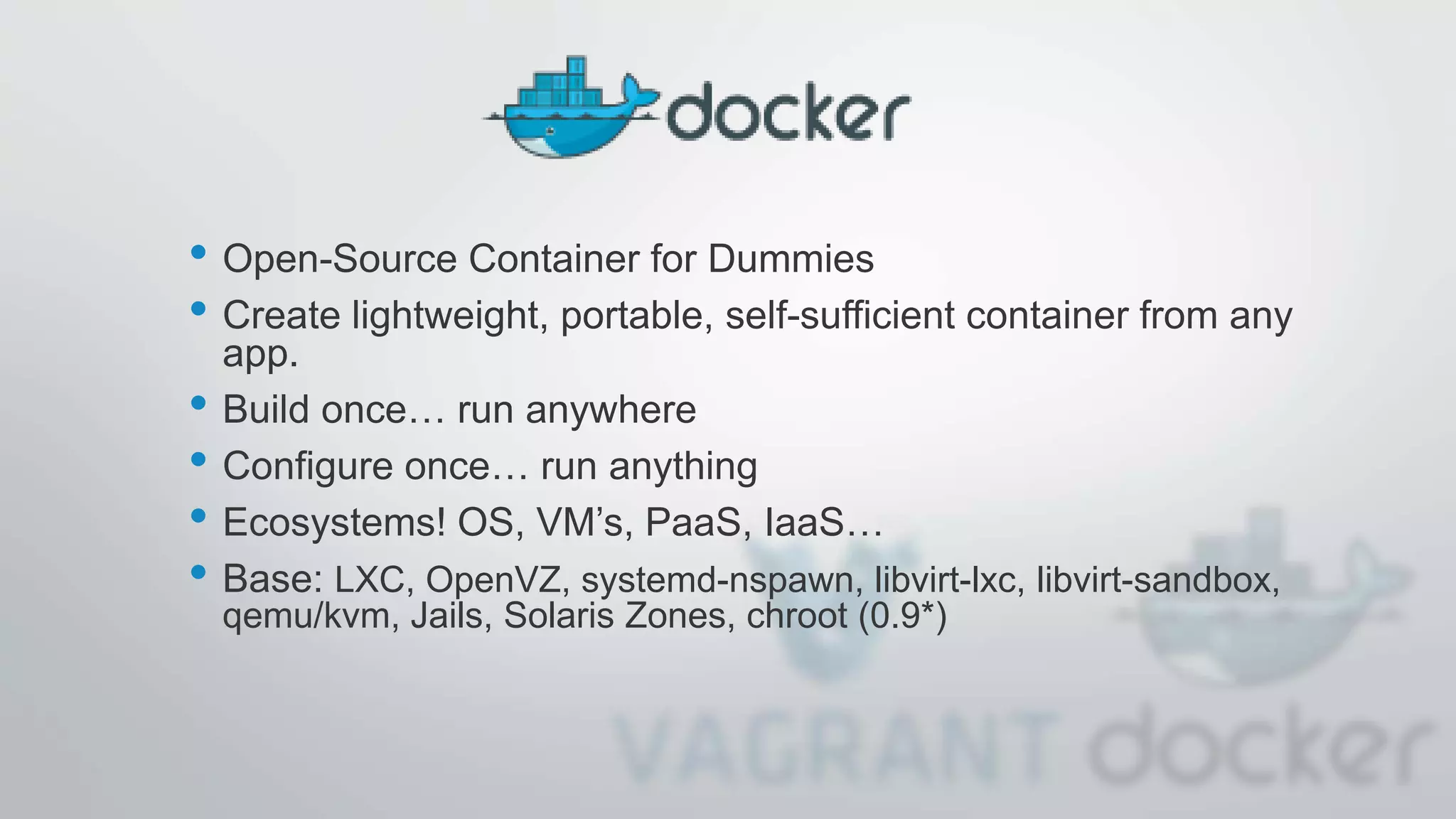

- 29. • Open-Source Containerfor Dummies • Create lightweight, portable, self-sufficient container from any app. • Build once… run anywhere • Configure once… run anything • Ecosystems! OS, VM’s, PaaS, IaaS… • Base: LXC, OpenVZ, systemd-nspawn, libvirt-lxc, libvirt-sandbox, qemu/kvm, Jails, Solaris Zones, chroot (0.9*)

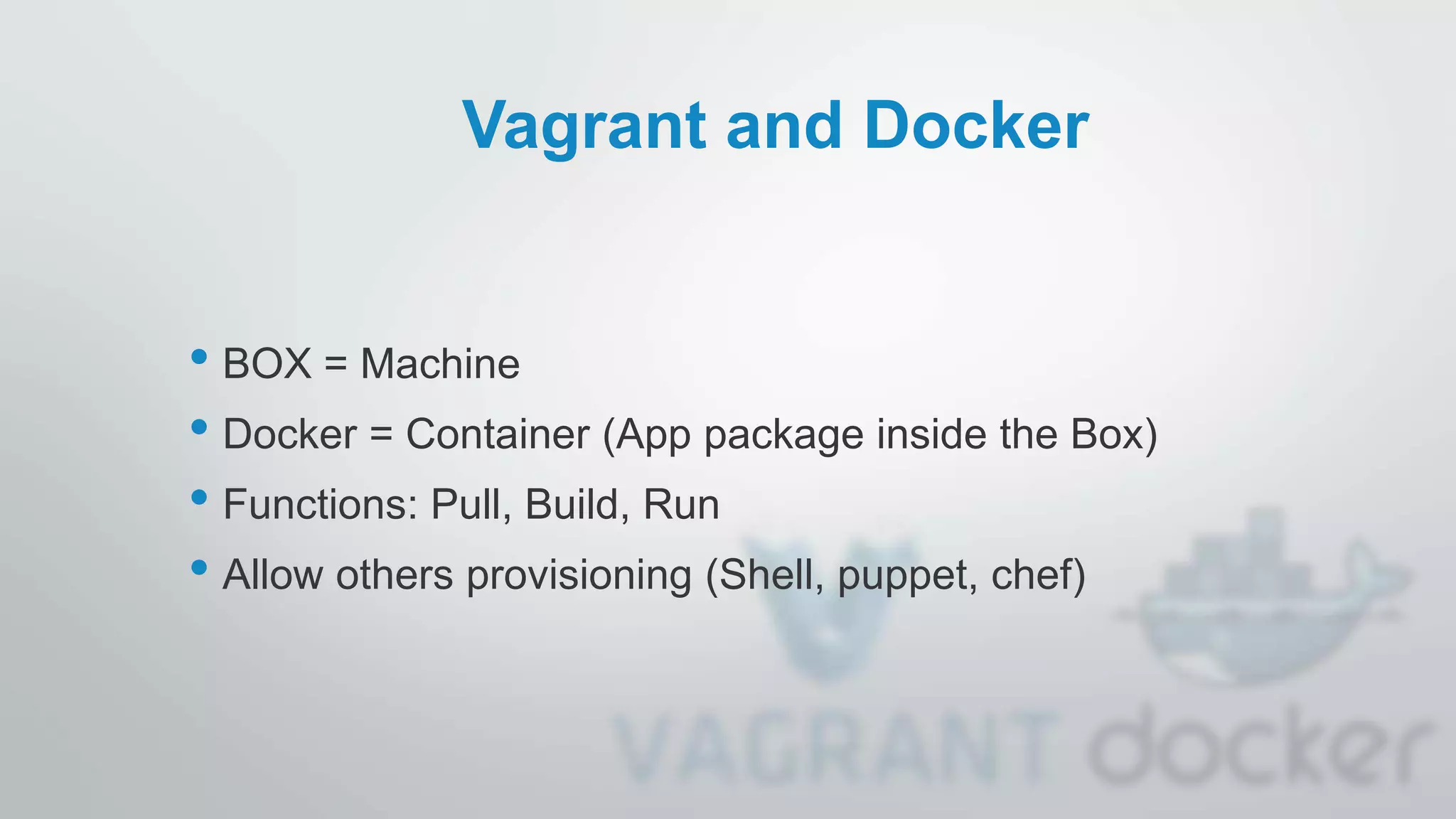

- 30. Vagrant and Docker •BOX = Machine • Docker = Container (App package inside the Box) • Functions: Pull, Build, Run • Allow others provisioning (Shell, puppet, chef)

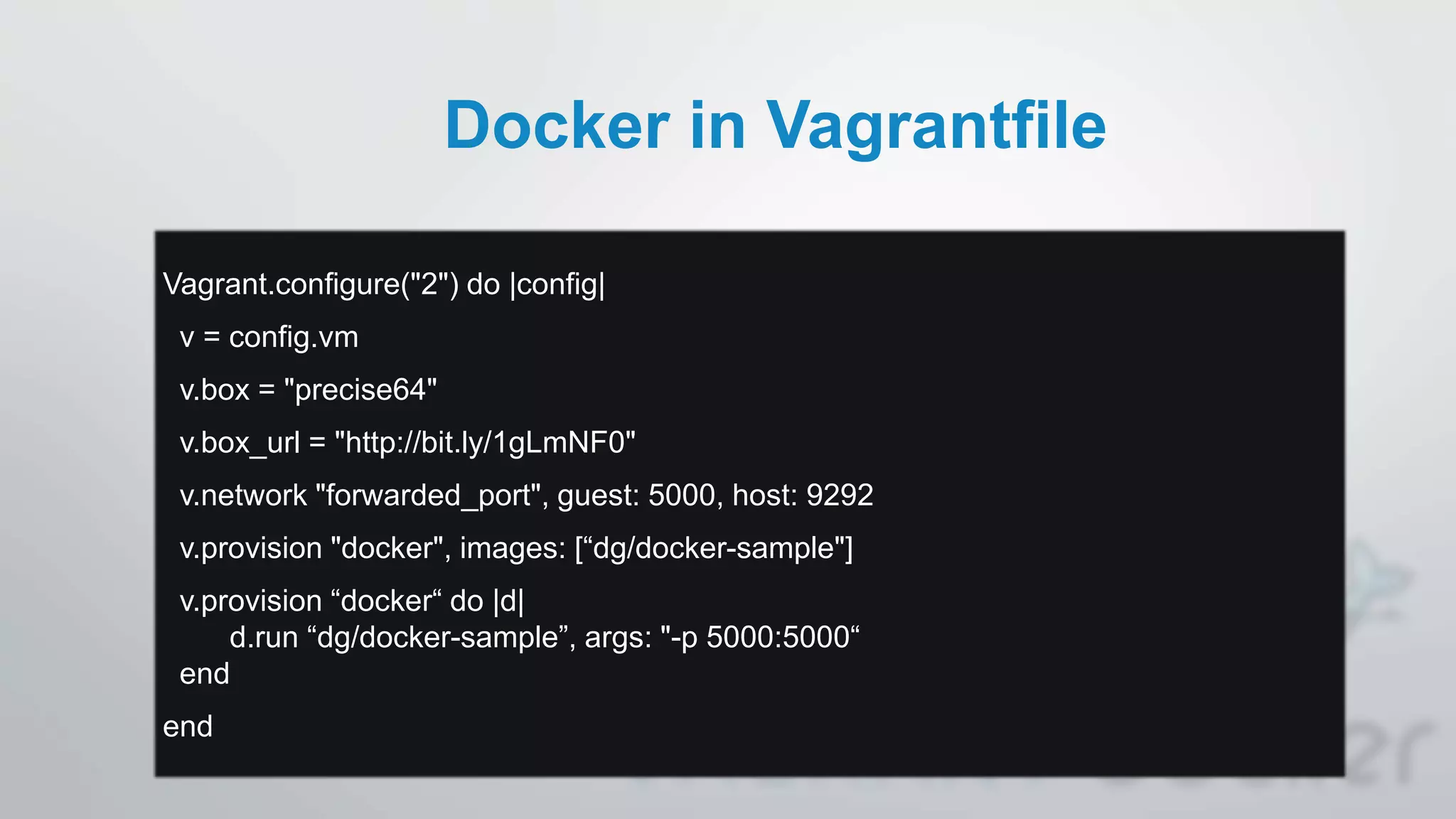

- 31. Docker in Vagrantfile Vagrant.configure("2")do |config| v = config.vm v.box = "precise64" v.box_url = "http://bit.ly/1gLmNF0" v.network "forwarded_port", guest: 5000, host: 9292 v.provision "docker", images: [“dg/docker-sample"] v.provision “docker“ do |d| d.run “dg/docker-sample”, args: "-p 5000:5000“ end end
- 32.
- 33.

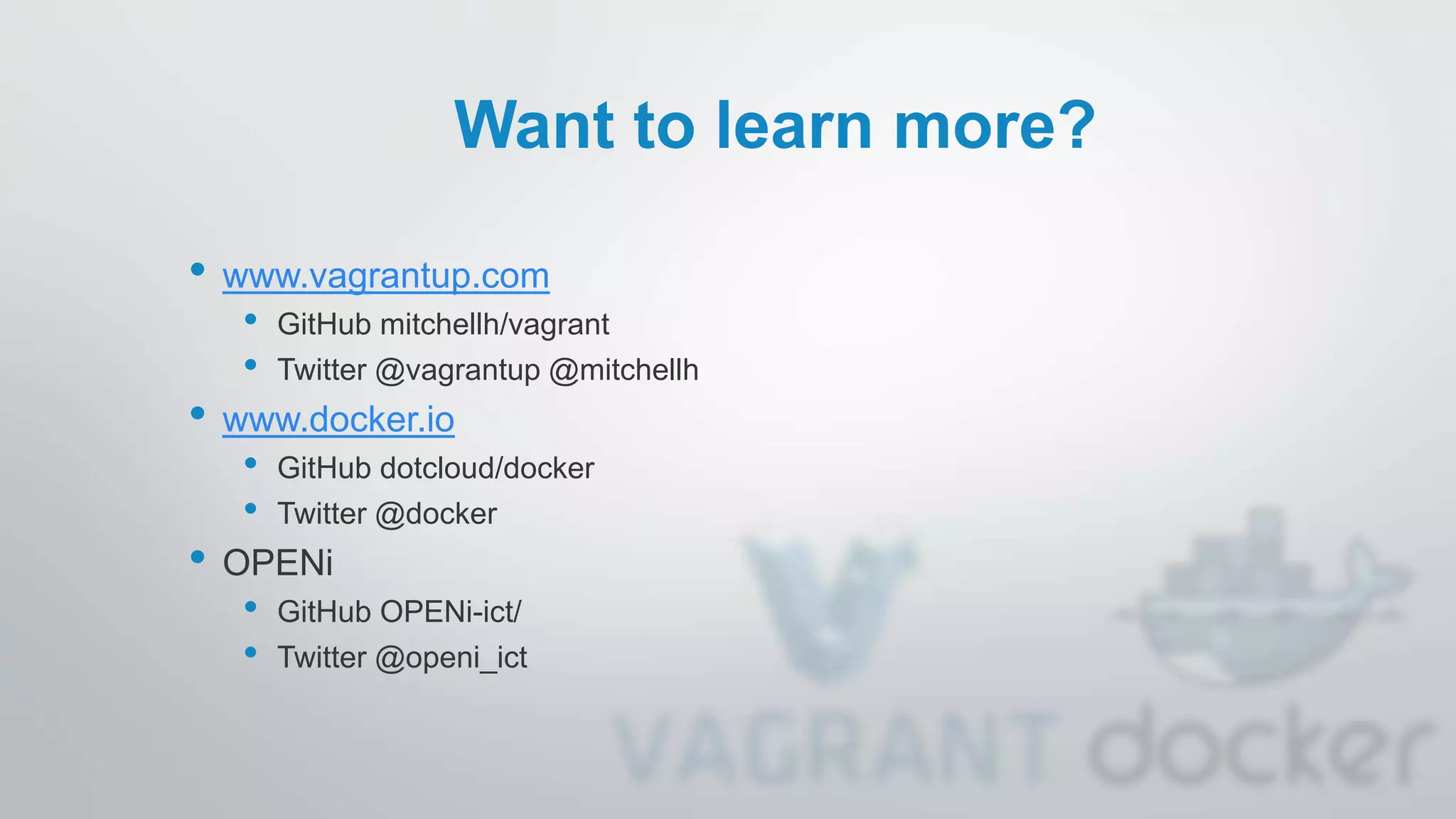

- 34. Want to learnmore? • www.vagrantup.com • GitHub mitchellh/vagrant • Twitter @vagrantup @mitchellh • www.docker.io • GitHub dotcloud/docker • Twitter @docker • OPENi • GitHub OPENi-ict/ • Twitter @openi_ict
