This document provides an overview of Surveon's megapixel solutions package optimized for Milestone XProtect video management software. It discusses Surveon's NVR series including the EMR2000, EMR5000, EMR8000 and EMR9000 models. Performance test results are shown for configurations ranging from 8 to 64 channels. Larger advanced projects using iSCSI storage solutions supporting up to 3000 channels are also described. The document aims to demonstrate how Surveon's solutions provide reliable, scalable and cost effective video surveillance systems.

1. Megapixel Solutions Package
Optimized for Milestone XProtect

2. Confidential
Agenda
• Company Overview
• Surveon Megapixel NVR Series
• Surveon Solutions Package for XProtect
• Successful Case
• Question & Answer
2

3. Confidential
1. Company Overview

4. Confidential
4
Partner & Association

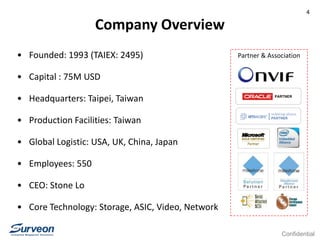

Company Overview
• Founded: 1993 (TAIEX: 2495)
• Capital : 75M USD
• Headquarters: Taipei, Taiwan
• Production Facilities: Taiwan
• Global Logistic: USA, UK, China, Japan
• Employees: 550
• CEO: Stone Lo
• Core Technology: Storage, ASIC, Video, Network

5. Confidential
5
Proven Design & Manufacturing Quality
Security &
Surveillance
MilitaryChannel & Service Media &
Broadcasting
Research &
Education
Medical
Internet Service
Provider

6. Confidential
2. Surveon Megapixel NVR Series

7. Confidential
I/O & Storage @ 1080P Cameras
Number of IP
Cameras
Storage I/O
Requirement
HD Number
Common PC
Solution
Surveon
NVR
8 32 5 V Yes
16 64 11 NO Yes
20 80 14 NO Yes
25 100 17 NO Yes
32 128 22 NO Yes
40 160 27 NO Yes
50 200 34 NO Yes
64 256 43 NO Yes
• 30 days & always recording
• Based on 2TB HD
I/O Performance And Storage Reliability
are the key Challenge
7

8. Confidential
8
The most critical issue for SI on megapixel is a high
integration reliable VMS/NVR
Drop Frame
Disk Error
Integration
VMS SW

9. Confidential
9

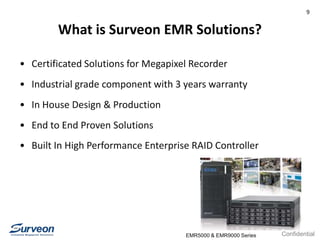

What is Surveon EMR Solutions?
• Certificated Solutions for Megapixel Recorder
• Industrial grade component with 3 years warranty
• In House Design & Production
• End to End Proven Solutions
• Built In High Performance Enterprise RAID Controller
EMR5000 & EMR9000 Series

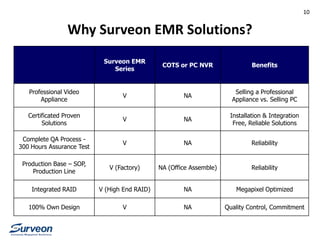

10. Why Surveon EMR Solutions?
Surveon EMR
Series
COTS or PC NVR Benefits
Professional Video
Appliance
V NA
Selling a Professional
Appliance vs. Selling PC
Certificated Proven
Solutions
V NA
Installation & Integration
Free, Reliable Solutions
Complete QA Process -
300 Hours Assurance Test
V NA Reliability
Production Base – SOP,
Production Line
V (Factory) NA (Office Assemble) Reliability
Integrated RAID V (High End RAID) NA Megapixel Optimized
100% Own Design V NA Quality Control, Commitment
10

11. 11

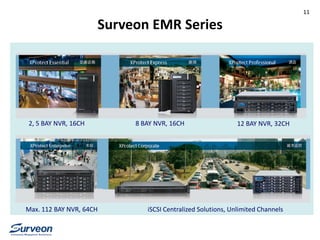

Surveon EMR Series
2, 5 BAY NVR, 16CH 8 BAY NVR, 16CH 12 BAY NVR, 32CH
Max. 112 BAY NVR, 64CH iSCSI Centralized Solutions, Unlimited Channels

12. Confidential
3. Solution Package for XProtect

13. Confidential
A – Small Installation
Max
Storage
8 x 2 MP
(4 Mbps)
16 x 1 MP
(2Mbps)
EMR2000 6TB 14 Days 14 Days
EMR5000 12TB* 28 Days 28 Days
Based on 3TB HDD, EMR5000 with RAID5
13
• EMR 2000 & EMR5000 Series
• Small Site Applications (Retail, SMB)
• No Local Display
• Smart Client Remote Monitoring

14. Confidential

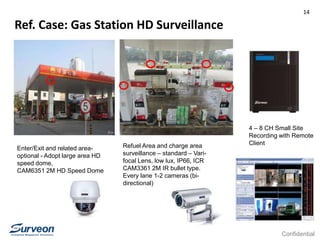

Ref. Case: Gas Station HD Surveillance
Enter/Exit and related area-
optional - Adopt large area HD
speed dome,
CAM6351 2M HD Speed Dome
Refuel Area and charge area
surveillance – standard – Vari-
focal Lens, low lux, IP66, ICR
CAM3361 2M IR bullet type.
Every lane 1-2 cameras (bi-
directional)
4 – 8 CH Small Site
Recording with Remote
Client
14

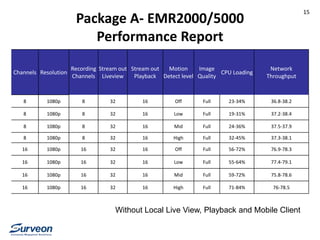

15. Package A- EMR2000/5000
Performance Report
Channels Resolution
Recording
Channels
Stream out
Liveview
Stream out
Playback
Motion
Detect level
Quality
CPU Loading
Network
Throughput
8 1080p 8 32 16 Off Full 23-34% 36.8-38.2
8 1080p 8 32 16 Low Full 19-31% 37.2-38.4
8 1080p 8 32 16 Mid Full 24-36% 37.5-37.9
8 1080p 8 32 16 High Full 32-45% 37.3-38.1
16 1080p 16 32 16 Off Full 56-72% 76.9-78.3
16 1080p 16 32 16 Low Full 55-64% 77.4-79.1
16 1080p 16 32 16 Mid Full 59-72% 75.8-78.6
16 1080p 16 32 16 High Full 71-84% 76-78.5
Without Local Live View, Playback and Mobile Client
15

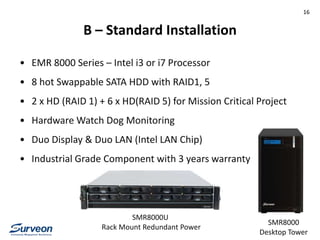

16. B – Standard Installation
• EMR 8000 Series – Intel i3 or i7 Processor
• 8 hot Swappable SATA HDD with RAID1, 5
• 2 x HD (RAID 1) + 6 x HD(RAID 5) for Mission Critical Project
• Hardware Watch Dog Monitoring
• Duo Display & Duo LAN (Intel LAN Chip)
• Industrial Grade Component with 3 years warranty
SMR8000U
Rack Mount Redundant Power
SMR8000
Desktop Tower
16

17. Confidential

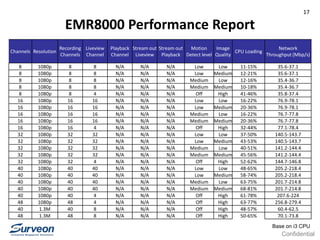

EMR8000 Performance Report
Channels Resolution
Recording
Channels
Liveview
Channel
Playback
Channel
Stream out
Liveview
Stream out
Playback
Motion
Detect level
Quality
CPU Loading
Network
Throughput (Mbp/s)
8 1080p 8 8 N/A N/A N/A Low Low 11-15% 35.6-37.1
8 1080p 8 8 N/A N/A N/A Low Medium 12-21% 35.6-37.1
8 1080p 8 8 N/A N/A N/A Medium Low 12-16% 35.4-36.7
8 1080p 8 8 N/A N/A N/A Medium Medium 10-18% 35.4-36.7
8 1080p 8 4 N/A N/A N/A Off High 41-46% 35.8-37.4
16 1080p 16 16 N/A N/A N/A Low Low 16-22% 76.9-78.1
16 1080p 16 16 N/A N/A N/A Low Medium 20-36% 76.9-78.1
16 1080p 16 16 N/A N/A N/A Medium Low 16-22% 76.7-77.8
16 1080p 16 16 N/A N/A N/A Medium Medium 20-36% 76.7-77.8
16 1080p 16 4 N/A N/A N/A Off High 32-44% 77.1-78.4
32 1080p 32 32 N/A N/A N/A Low Low 37-50% 140.5-143.7
32 1080p 32 32 N/A N/A N/A Low Medium 43-53% 140.5-143.7
32 1080p 32 32 N/A N/A N/A Medium Low 40-51% 141.2-144.4
32 1080p 32 32 N/A N/A N/A Medium Medium 45-56% 141.2-144.4
32 1080p 32 4 N/A N/A N/A Off High 52-62% 144.7-146.8
40 1080p 40 40 N/A N/A N/A Low Low 48-65% 205.2-218.4
40 1080p 40 40 N/A N/A N/A Low Medium 58-74% 205.2-218.4
40 1080p 40 40 N/A N/A N/A Medium Low 63-75% 201.7-214.8
40 1080p 40 40 N/A N/A N/A Medium Medium 68-81% 201.7-214.8
40 1080p 40 4 N/A N/A N/A Off High 61-78% 207.6-224
48 1080p 48 4 N/A N/A N/A Off High 63-77% 256.8-279.4
40 1.3M 40 8 N/A N/A N/A Off High 48-57% 60.4-62.5
48 1.3M 48 8 N/A N/A N/A Off High 50-65% 70.1-73.8
Base on i3 CPU
17

18. Confidential
C – Hybrid Installation
18
• EMR 8000 Series – Intel i3 or i7 Processor
• Support 16 Channel Analogue Camera Input
• 6 hot Swappable SATA HDD with RAID
• Hardware Watch Dog Monitoring
• Duo Display & Duo LAN (Intel LAN Chip)
• Industrial Grade Component with 3 years warranty
EMR6000
Desktop Tower

19. D – Professional Project 64 CH
Ideal Solutions for Mission Critical,
High Recording Day & Full Megapixel
Recording
19
• Single Server 32 – 64 Channels
• XEON Industrial Grade Server
• Built In SAS Connection, 4 GLAN
• Redundant & Hot Swappable Power & FAN (*4)
• Built in RAID 1 for O.S & Milestone XProtect
• 4 x SAS Disk for Live Disk, 8 – 100 Disk for Archiving Disk

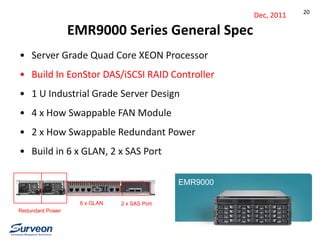

20. EMR9000 Series General Spec
Redundant Power
6 x GLAN 2 x SAS Port
EMR9000
Dec, 2011
• Server Grade Quad Core XEON Processor
• Build In EonStor DAS/iSCSI RAID Controller
• 1 U Industrial Grade Server Design
• 4 x How Swappable FAN Module
• 2 x How Swappable Redundant Power
• Build in 6 x GLAN, 2 x SAS Port
20

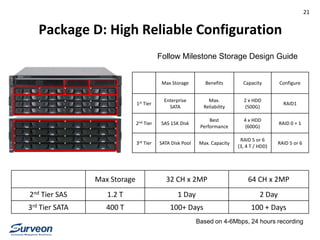

21. Package D: High Reliable Configuration
Max Storage 32 CH x 2MP 64 CH x 2MP
2nd Tier SAS 1.2 T 1 Day 2 Day
3rd Tier SATA 400 T 100+ Days 100 + Days
Max Storage Benefits Capacity Configure
1st Tier
Enterprise
SATA
Max.
Reliability
2 x HDD
(500G)
RAID1
2nd Tier SAS 15K Disk
Best
Performance
4 x HDD
(600G)
RAID 0 + 1
3rd Tier SATA Disk Pool Max. Capacity
RAID 5 or 6
(3, 4 T / HDD)
RAID 5 or 6
Based on 4-6Mbps, 24 hours recording
Follow Milestone Storage Design Guide
21

22. Package D- DAS Performance Report
Channels Resolution
Recording
Channels
Stream out
Liveview
Stream out
Playback
Motion
Detect level
Quality
CPU Loading
Storage
Throughput (MB/s)
Network
Throughput (Mb/s)
32 1080p 32 96 16 Off Full 14-20% 29.5-161.5 171.3-176.8
32 1080p 32 96 16 High Full 18-23% 23.7-176.5 170.6-175.7
38 1080p 38 96 16 Off Full 30-43% 39.2-152.8 186.5-193.4
38 1080p 38 96 16 High Full 29-38% 43-164.6 189.4-192.9
48 1080p 48 96 16 Off Full 29-38% 46.8-139.6 247.9-251.8
48 1.3M 48 96 16 Off Full 15-22% 39.4-157 75.1-81.3
48 1.3M 48 96 16 High Full 22-32% 23.7-176.5 77.2-80.1
50 1080p 48 96 16 Off Full 32-47% 37-189.7 250.4-254.1
64 1.3M 64 96 16 Off Full 23-26% 33.2-168.9 100.1-110.6
64 1080p 64 N/A N/A Off Full 48-55% N/A 348.8-355.7
64 1080p 64 64 16 Off Full 56-60% N/A 345.9-353.8
22

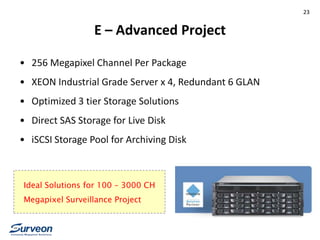

23. E – Advanced Project
• 256 Megapixel Channel Per Package
• XEON Industrial Grade Server x 4, Redundant 6 GLAN
• Optimized 3 tier Storage Solutions
• Direct SAS Storage for Live Disk
• iSCSI Storage Pool for Archiving Disk
Ideal Solutions for 100 – 3000 CH
Megapixel Surveillance Project
23

24. Solution E Package Configuration
Tire 2
Direct SAS Connection to DAS Storage
for 1st Living Disk
Tire 1
O.S and Milestone Xprotect load in built in
RAID 1 Enterprise HD with best reliable
Tire 3
Maximum 480 T IP SAN Storage Pool for Archiving Disk
2 GLAN to Camera
2 GLAN to iSCSI Storage
2 GLAN for Client & Admin
High Availability 6LAN Per NVR
24

25. Channels Resolution
Recording
Channels
Stream out
Liveview
Stream out
Playback
Motion
Detect level
Quality
CPU Loading
Storage
Throughput
(MB/s)
Network
Throughput
(Mb/s)
64 1080p 64 N/A N/A Off Full 42-50% 131.8 273.2
64 1080p 64 64 16 High Full 95-98% N/A N/A
64 1080p 64 64 16 Mid Full 57-78% 143.3 613.7
64 1080p 64 64 16 Low Full 43-56% 128.4 610.2

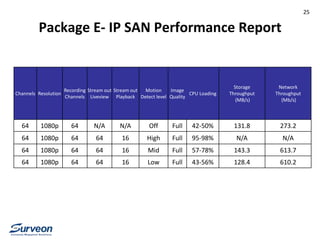

Package E- IP SAN Performance Report
25

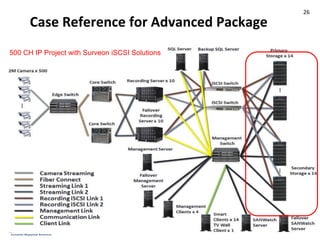

26. Case Reference for Advanced Package
500 CH IP Project with Surveon iSCSI Solutions
26

27. Ideal Solutions for Network Video
Redundant Power for
maximum Reliability
LAN 1 & 2
Network Cameras
LAN 3 & 4
iSCSI Storage
LAN 5 & LAN 6
Management, Live, Playback
RAID, Redundant Power, Redundant
Controller, 4 x GLAN
27

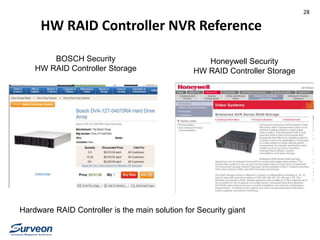

28. HW RAID Controller NVR Reference
BOSCH Security
HW RAID Controller Storage
Honeywell Security
HW RAID Controller Storage
Hardware RAID Controller is the main solution for Security giant
28

29. Benefits for iSCSI Solutions
• Truly IP Solutions on NVR, VMS & Storage
• Cost Savings of 30% for Projects > 30 IP cams
• Better Reliability & Scalability
• 20% Space, System & Mgt. Cost Savings
• No more HD failure/replacement on NVRs
29

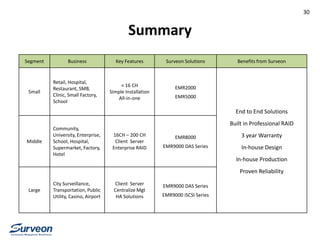

30. Summary
Segment Business Key Features Surveon Solutions Benefits from Surveon
Small
Retail, Hospital,
Restaurant, SMB,
Clinic, Small Factory,
School
< 16 CH
Simple Installation
All-in-one
EMR2000
EMR5000
End to End Solutions
Built in Professional RAID
3 year Warranty
In-house Design
In-house Production
Proven Reliability
Middle
Community,
University, Enterprise,
School, Hospital,
Supermarket, Factory,
Hotel
16CH – 200 CH
Client Server
Enterprise RAID
EMR8000
EMR9000 DAS Series
Large
City Surveillance,
Transportation, Public
Utility, Casino, Airport
Client Server
Centralize Mgt
HA Solutions
EMR9000 DAS Series
EMR9000 iSCSI Series
30
