This document discusses Surveon's Clustered Video Storage (CVST) solutions for IP video surveillance systems. Some key points: - CVST provides a clustered, virtualized storage pool that dynamically allocates capacity to prevent overprovisioning of NVRs and allows for online expansion of storage and servers. - It offers benefits over traditional NVR-based systems like 30% lower costs for projects over 64 cameras, better reliability and scalability, and 20% savings in space, system management, and power costs. - Surveon provides end-to-end solutions including IP cameras, NVR recorders, iSCSI-based storage subsystems, and proven certification testing for performance, bandwidth requirements

1. 1
Surveon CVST Solutions
- Clustered Video Storage Solutions
Product & Marketing Division
Surveon Technology, 2012

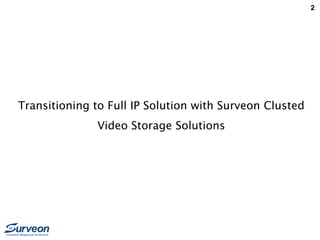

2. 2
Transitioning to Full IP Solution with Surveon Clusted
Video Storage Solutions

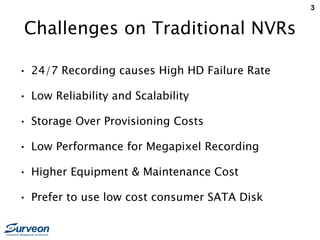

3. 3
Challenges on Traditional NVRs
• 24/7 Recording causes High HD Failure Rate
• Low Reliability and Scalability
• Storage Over Provisioning Costs
• Low Performance for Megapixel Recording
• Higher Equipment & Maintenance Cost
• Prefer to use low cost consumer SATA Disk

4. 4
The most critical issue for SI on megapixel is the
Storage Solutions - Seagate
Drop Frame
Disk Error
Integration
VMS SW

5. 5

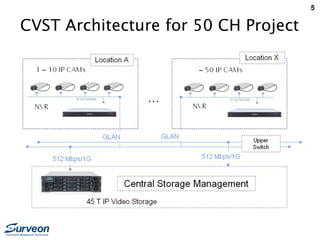

CVST Architecture for 50 CH Project

6. 6
What is CVST?
• Clustered Video Storage Architecture
• Virtualization Storage Pool for IP Camera
• Design Optimized for NVR recording Pattern
• High Reliability via HW RAID Engine
• Proven end to end megapixel Solutions

7. 7

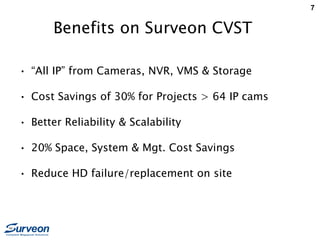

• “All IP” from Cameras, NVR, VMS & Storage
• Cost Savings of 30% for Projects > 64 IP cams
• Better Reliability & Scalability
• 20% Space, System & Mgt. Cost Savings
• Reduce HD failure/replacement on site
Benefits on Surveon CVST

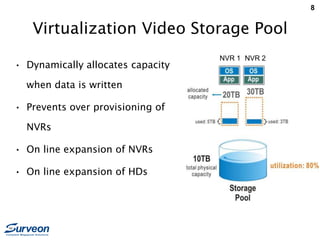

8. 8
Virtualization Video Storage Pool
• Dynamically allocates capacity
when data is written
• Prevents over provisioning of
NVRs
• On line expansion of NVRs
• On line expansion of HDs
NVR 1 NVR 2

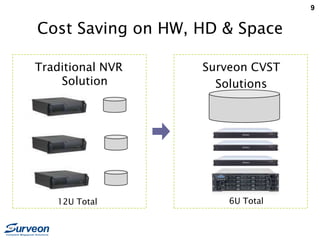

9. 9
Cost Saving on HW, HD & Space
Traditional NVR
Solution
Surveon CVST
Solutions
12U Total 6U Total

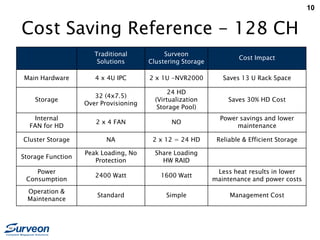

10. 10
Cost Saving Reference - 128 CH
Traditional
Solutions
Surveon
Clustering Storage
Cost Impact
Main Hardware 4 x 4U IPC 2 x 1U -NVR2000 Saves 13 U Rack Space
Storage
32 (4x7.5)
Over Provisioning
24 HD
(Virtualization
Storage Pool)
Saves 30% HD Cost
Internal
FAN for HD
2 x 4 FAN NO
Power savings and lower
maintenance
Cluster Storage NA 2 x 12 = 24 HD Reliable & Efficient Storage
Storage Function
Peak Loading, No
Protection
Share Loading
HW RAID
Power
Consumption
2400 Watt 1600 Watt
Less heat results in lower
maintenance and power costs
Operation &
Maintenance
Standard Simple Management Cost

11. 11

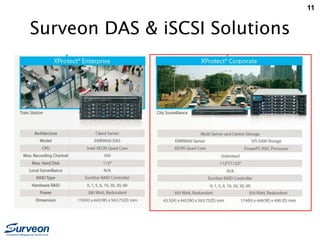

Surveon DAS & iSCSI Solutions

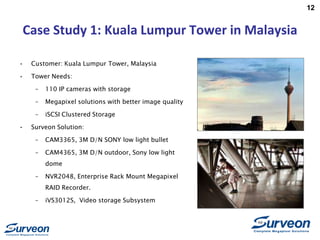

12. 12
Case Study 1: Kuala Lumpur Tower in Malaysia
• Customer: Kuala Lumpur Tower, Malaysia
• Tower Needs:
– 110 IP cameras with storage
– Megapixel solutions with better image quality
– iSCSI Clustered Storage
• Surveon Solution:
– CAM3365, 3M D/N SONY low light bullet
– CAM4365, 3M D/N outdoor, Sony low light
dome
– NVR2048, Enterprise Rack Mount Megapixel
RAID Recorder.
– iVS3012S, Video storage Subsystem

13. 13

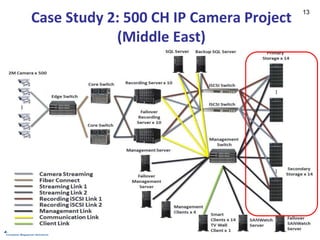

Case Study 2: 500 CH IP Camera Project
(Middle East)

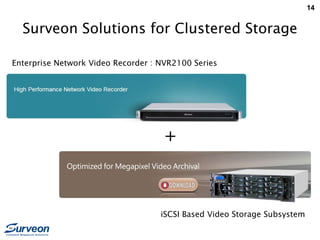

14. 14
Surveon Solutions for Clustered Storage
Enterprise Network Video Recorder : NVR2100 Series
iSCSI Based Video Storage Subsystem
+

15. 15

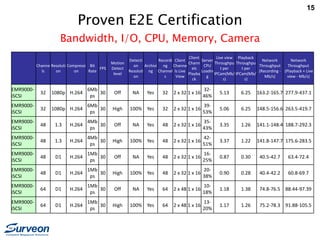

Proven E2E Certification
Bandwidth, I/O, CPU, Memory, Camera
Channe
ls
Resoluti
on
Compressi
on
Bit
Rate
FPS
Motion
Detect
level
Detecti
on
Resoluti
on
Archivi
ng
Recordi
ng
Channel
s
Client
Channe
ls Live
View
Client
Chann
els
Playba
ck
Server
CPU
Loadin
g
Live view
Throughpu
t per
IPCam(Mb/
s)
Playback
Throughpu
t per
IPCam(Mb/
s)
Network
Throughput
(Recording -
Mb/s)
Network
Throughput
(Playback + Live
view - Mb/s)
EMR9000-
iSCSI
32 1080p H.264
6Mb
ps
30 Off NA Yes 32 2 x 32 1 x 16
32-
46%
5.13 6.25 163.2-165.7 277.9-437.1
EMR9000-
iSCSI
32 1080p H.264
6Mb
ps
30 High 100% Yes 32 2 x 32 1 x 16
39-
53%
5.06 6.25 148.5-156.6 263.5-419.7
EMR9000-
iSCSI
48 1.3 H.264
4Mb
ps
30 Off NA Yes 48 2 x 32 1 x 16
35-
43%
3.35 1.26 141.1-148.4 188.7-292.3
EMR9000-
iSCSI
48 1.3 H.264
4Mb
ps
30 High 100% Yes 48 2 x 32 1 x 16
42-
51%
3.37 1.22 141.8-147.7 175.6-283.5
EMR9000-
iSCSI
48 D1 H.264
1Mb
ps
30 Off NA Yes 48 2 x 32 1 x 16
16-
25%
0.87 0.30 40.5-42.7 63.4-72.4
EMR9000-
iSCSI
48 D1 H.264
1Mb
ps
30 High 100% Yes 48 2 x 32 1 x 16
20-
38%
0.90 0.28 40.4-42.2 60.8-69.7
EMR9000-
iSCSI
64 D1 H.264
1Mb
ps
30 Off NA Yes 64 2 x 48 1 x 16
10-
18%
1.18 1.38 74.8-76.5 88.44-97.39
EMR9000-
iSCSI
64 D1 H.264
1Mb
ps
30 High 100% Yes 64 2 x 48 1 x 16
13-
20%
1.17 1.26 75.2-78.3 91.88-105.5

16. 16

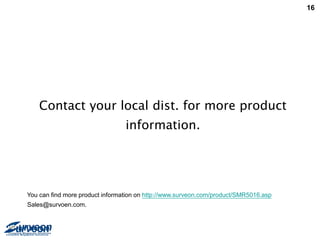

Contact your local dist. for more product
information.
You can find more product information on http://www.surveon.com/product/SMR5016.asp
Sales@survoen.com.

17. 17
Key Integration Issue
Cameras
VMS SW
VMS SW
HW Platform
Camera
Network & NVR
NVR
Storage
Issue
No Standard Not
Mature ONVIF
Use PC for NVR
CTOS NVR
Not Pro Solutions
Switch Performance
Integration
Recording Performance
Reliability
Impact
Unstable Connection
Video Lost
Compatibility Issue
Unstable
7/24 operations
Unstable Network
Unstable System
Video Lost
Importance High High Low High
Solutions
Test, Test, Test…
Complete Solutions
Test, Test, Test
Professional NVR
Complete Solutions
Test
Test, Test, Test
Professional Storage
Complete Solutions
It is impossible for a manufacturer to run all test through
all key components.

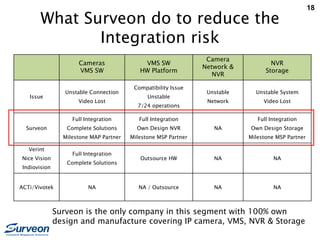

18. 18
What Surveon do to reduce the
Integration risk
Cameras
VMS SW
VMS SW
HW Platform
Camera
Network &
NVR
NVR
Storage
Issue
Unstable Connection
Video Lost
Compatibility Issue
Unstable
7/24 operations
Unstable
Network
Unstable System
Video Lost
Surveon
Full Integration
Complete Solutions
Milestone MAP Partner
Full Integration
Own Design NVR
Milestone MSP Partner
NA
Full Integration
Own Design Storage
Milestone MSP Partner
Verint
Nice Vision
Indiovision
Full Integration
Complete Solutions
Outsource HW NA NA
ACTi/Vivotek NA NA / Outsource NA NA
Surveon is the only company in this segment with 100% own
design and manufacture covering IP camera, VMS, NVR & Storage
