Solar photovoltaic power plants are a reliable solution to current power issues as they are non-polluting and require little maintenance. The Karnataka government provides opportunities for electricity consumers to install grid-connected solar rooftop systems from 1 kW to 1000 kW in capacity. Consumers can receive a tariff of Rs. 9.56/unit without subsidies or Rs. 7.2/unit with subsidies for generating solar power. Net metering and tax incentives are provided to encourage more individuals and organizations to install rooftop solar power systems. Freyrenergy offers customized solar off-grid and hybrid systems from 500W to 10kW for residential, commercial and industrial applications.

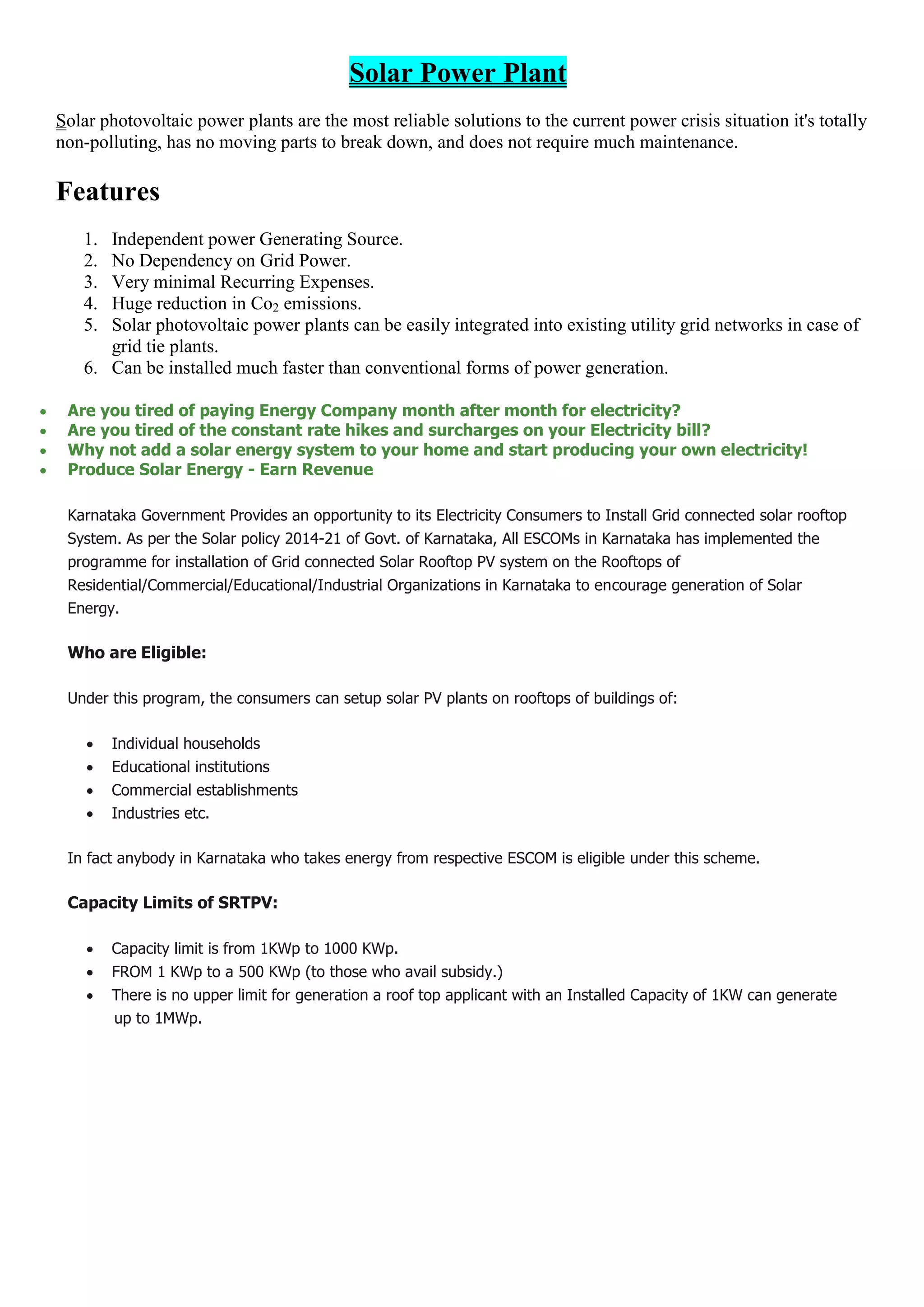

1. Solar Power Plant
Solar photovoltaic power plants are the most reliable solutions to the current power crisis situation it's totally
non-polluting, has no moving parts to break down, and does not require much maintenance.
Features
1. Independent power Generating Source.
2. No Dependency on Grid Power.
3. Very minimal Recurring Expenses.
4. Huge reduction in Co2 emissions.
5. Solar photovoltaic power plants can be easily integrated into existing utility grid networks in case of
grid tie plants.
6. Can be installed much faster than conventional forms of power generation.
 Are you tired of paying Energy Company month after month for electricity?
 Are you tired of the constant rate hikes and surcharges on your Electricity bill?
 Why not add a solar energy system to your home and start producing your own electricity!
 Produce Solar Energy - Earn Revenue
Karnataka Government Provides an opportunity to its Electricity Consumers to Install Grid connected solar rooftop
System. As per the Solar policy 2014-21 of Govt. of Karnataka, All ESCOMs in Karnataka has implemented the
programme for installation of Grid connected Solar Rooftop PV system on the Rooftops of
Residential/Commercial/Educational/Industrial Organizations in Karnataka to encourage generation of Solar
Energy.
Who are Eligible:
Under this program, the consumers can setup solar PV plants on rooftops of buildings of:
 Individual households
 Educational institutions
 Commercial establishments
 Industries etc.
In fact anybody in Karnataka who takes energy from respective ESCOM is eligible under this scheme.
Capacity Limits of SRTPV:
 Capacity limit is from 1KWp to 1000 KWp.
 FROM 1 KWp to a 500 KWp (to those who avail subsidy.)
 There is no upper limit for generation a roof top applicant with an Installed Capacity of 1KW can generate
up to 1MWp.

2. Power Purchase Tariff:
 Tariff as per KERC ORDER - DATED 10.10.2013 on Net Meter basis are as follows: (Tenure of the Power
purchase agreement shall be for 25 years.)
Type of Solar Plant
Approved Tariff in
Rs./Unit
Roof Top Solar PV plants (Without Subsidy) 9.56
Roof Top Solar PV plants (with MNRE
subsidy)
7.2
Incentives to Go Solar:
 Net Metering: Net Metering allows the Solar Project Owner to feed the excess Solar Power to grid when
the load available is low, say, during weekends in office buildings. The excess power fed is offset against
the electricity used from the grid in the electricity bill.
 Accelerated Depreciation: Accelerated depreciation of 80% is available under the Income Tax act for the
Commercial and Industrial rooftop solar PV systems. This can provide significant savings to a SRTPV power
plant generator who is a taxable assesse and has sufficient profits against which the depreciation can be
charged.
 Section 32: of Indian Income Tax Act. Provides Accelerated Depreciation Of 80% of the Invested Capital in
To Solar PV Projects to Professional Companies with Tax Liability. Investors Can Set off Their Tax Liability
on the Taxable Income to the tune of 80% in the 1st Year and subsequently 20% in the 2nd Year.
 Section 80-IA (sub section 4) of income tax Act, 1961 allows 100% tax waiver on the income generated for
any single 10 year period during first 15 years of operational life of a power generation project.
FREYRENERGY Commitment: “Providing sustainable and cost
effective Solar Power Solutions using Underutilized Rooftops”
 Rooftop solar installations or rooftop solar power systems on residential and commercial sites offer
unparalleled energy and revenue generation opportunities. In fact, Residential and commercial roofs are the
most under-utilized asset in the 20-year view. Large manufacturing plants and warehouses boast the largest
un-shaded rooftop opportunity per square foot. Although smaller units can be placed on a residential
building to cater to the captive power requirement making the residence power self-sustainable power in a
residence.

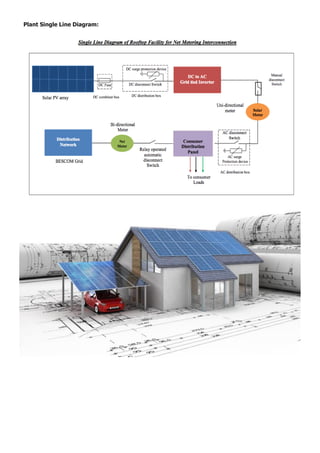

3. Plant Single Line Diagram:

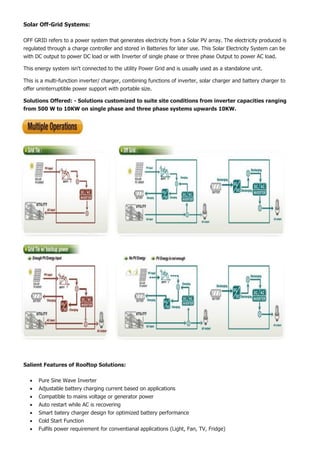

4. Solar Off-Grid Systems:
OFF GRID refers to a power system that generates electricity from a Solar PV array. The electricity produced is
regulated through a charge controller and stored in Batteries for later use. This Solar Electricity System can be
with DC output to power DC load or with Inverter of single phase or three phase Output to power AC load.
This energy system isn't connected to the utility Power Grid and is usually used as a standalone unit.
This is a multi-function inverter/ charger, combining functions of inverter, solar charger and battery charger to
offer uninterruptible power support with portable size.
Solutions Offered: - Solutions customized to suite site conditions from inverter capacities ranging
from 500 W to 10KW on single phase and three phase systems upwards 10KW.
Salient Features of Rooftop Solutions:
 Pure Sine Wave Inverter
 Adjustable battery charging current based on applications
 Compatible to mains voltage or generator power
 Auto restart while AC is recovering
 Smart batery charger design for optimized battery performance
 Cold Start Function
 Fulfils power requirement for conventianal applications (Light, Fan, TV, Fridge)

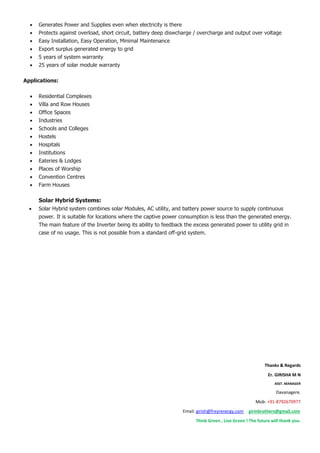

5.  Generates Power and Supplies even when electricity is there
 Protects against overload, short circuit, battery deep diswcharge / overcharge and output over voltage
 Easy Installation, Easy Operation, Minimal Maintenance
 Export surplus generated energy to grid
 5 years of system warranty
 25 years of solar module warranty
Applications:
 Residential Complexes
 Villa and Row Houses
 Office Spaces
 Industries
 Schools and Colleges
 Hostels
 Hospitals
 Institutions
 Eateries & Lodges
 Places of Worship
 Convention Centres
 Farm Houses
Solar Hybrid Systems:
 Solar Hybrid system combines solar Modules, AC utility, and battery power source to supply continuous
power. It is suitable for locations where the captive power consumption is less than the generated energy.
The main feature of the Inverter being its ability to feedback the excess generated power to utility grid in
case of no usage. This is not possible from a standard off-grid system.
Thanks & Regards
Er. GIRISHA M N
ASST. MANAGER
Davanagere.
Mob- +91-8792670977
Email: girish@freyrenergy.com girinbrothers@gmail.com
Think Green , Live Green ! The future will thank you.
