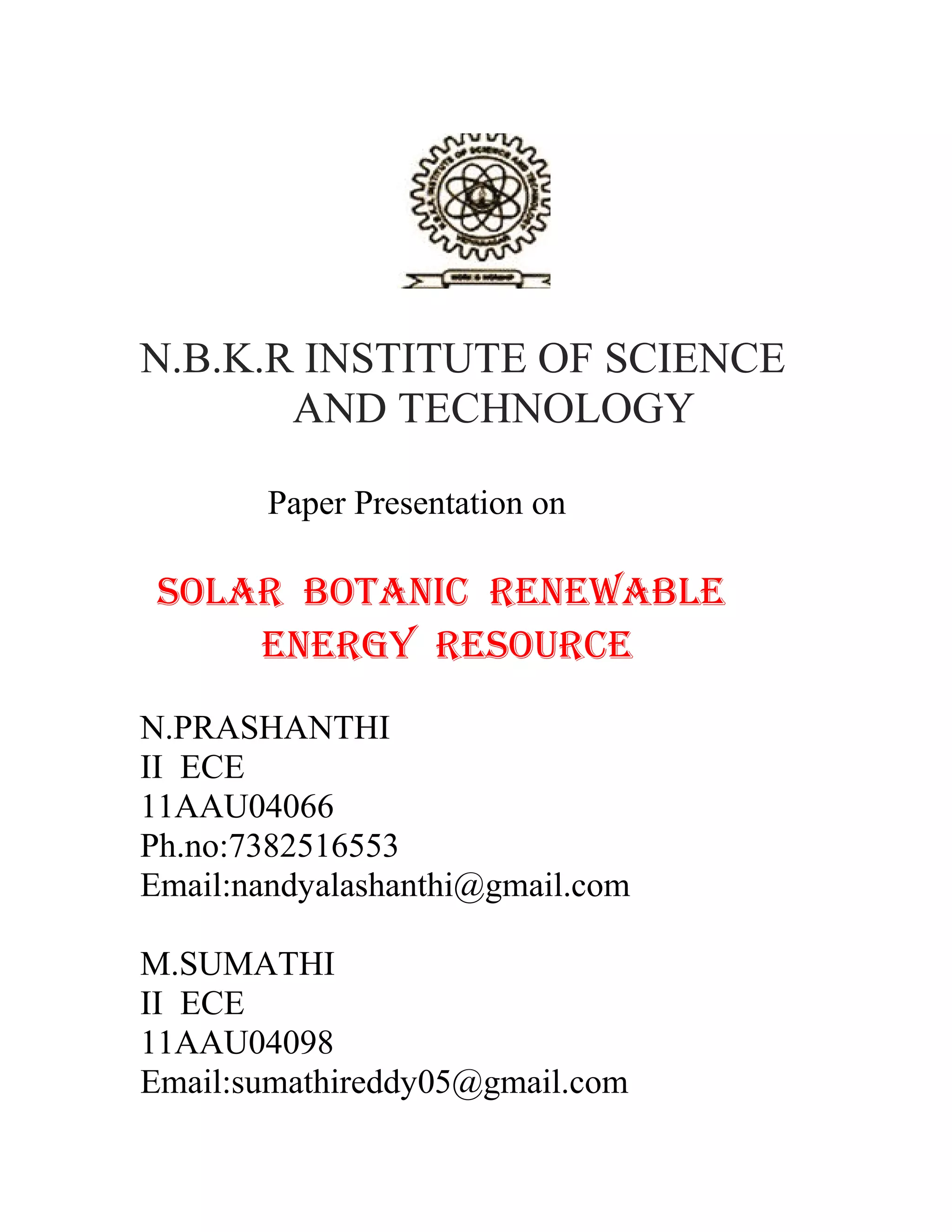

1. N.B.K.R INSTITUTE OF SCIENCE
AND TECHNOLOGY
Paper Presentation on
SOLAR BOTANIC RENEWABLE
ENERGY RESOURCE
N.PRASHANTHI
II ECE
11AAU04066
Ph.no:7382516553
Email:nandyalashanthi@gmail.com
M.SUMATHI
II ECE
11AAU04098
Email:sumathireddy05@gmail.com

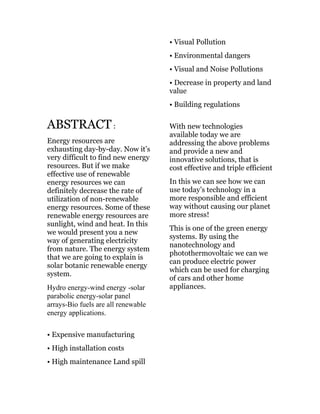

2. ABSTRACT:
Energy resources are
exhausting day-by-day. Now it’s
very difficult to find new energy
resources. But if we make
effective use of renewable
energy resources we can
definitely decrease the rate of
utilization of non-renewable
energy resources. Some of these
renewable energy resources are
sunlight, wind and heat. In this
we would present you a new
way of generating electricity
from nature. The energy system
that we are going to explain is
solar botanic renewable energy
system.
Hydro energy-wind energy -solar
parabolic energy-solar panel
arrays-Bio fuels are all renewable
energy applications.
• Expensive manufacturing
• High installation costs
• High maintenance Land spill
• Visual Pollution
• Environmental dangers
• Visual and Noise Pollutions
• Decrease in property and land
value
• Building regulations
With new technologies
available today we are
addressing the above problems
and provide a new and
innovative solutions, that is
cost effective and triple efficient
In this we can see how we can
use today’s technology in a
more responsible and efficient
way without causing our planet
more stress!
This is one of the green energy
systems. By using the
nanotechnology and
photothermovoltaic we can we
can produce electric power
which can be used for charging
of cars and other home
appliances.

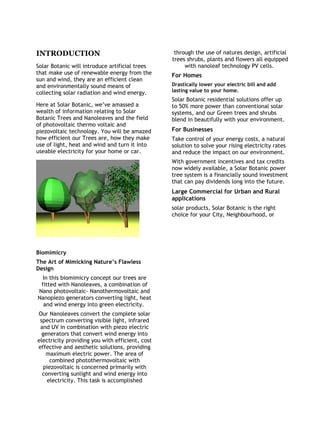

3. INTRODUCTION
Solar Botanic will introduce artificial trees
that make use of renewable energy from the
sun and wind, they are an efficient clean
and environmentally sound means of
collecting solar radiation and wind energy.
Here at Solar Botanic, we’ve amassed a
wealth of information relating to Solar
Botanic Trees and Nanoleaves and the field
of photovoltaic thermo voltaic and
piezovoltaic technology. You will be amazed
how efficient our Trees are, how they make
use of light, heat and wind and turn it into
useable electricity for your home or car.
Biomimicry
The Art of Mimicking Nature’s Flawless
Design
In this biomimicry concept our trees are
fitted with Nanoleaves, a combination of
Nano photovoltaic- Nanothermovoltaic and
Nanopiezo generators converting light, heat
and wind energy into green electricity.
Our Nanoleaves convert the complete solar
spectrum converting visible light, infrared
and UV in combination with piezo electric
generators that convert wind energy into
electricity providing you with efficient, cost
effective and aesthetic solutions, providing
maximum electric power. The area of
combined photothermovoltaic with
piezovoltaic is concerned primarily with
converting sunlight and wind energy into
electricity. This task is accomplished
through the use of natures design, artificial
trees shrubs, plants and flowers all equipped
with nanoleaf technology PV cells.
For Homes
Drastically lower your electric bill and add
lasting value to your home.
Solar Botanic residential solutions offer up
to 50% more power than conventional solar
systems, and our Green trees and shrubs
blend in beautifully with your environment.
For Businesses
Take control of your energy costs, a natural
solution to solve your rising electricity rates
and reduce the impact on our environment.
With government incentives and tax credits
now widely available, a Solar Botanic power
tree system is a financially sound investment
that can pay dividends long into the future.
Large Commercial for Urban and Rural
applications
solar products, Solar Botanic is the right
choice for your City, Neighbourhood, or

4. large-scale With solid performance and the
highest-efficiency green energy project.
Solar Botanic solar systems can be deployed
on ground, roof, or parking structures.
• Broad Leaf trees- These species can
provide between 3500kWh and 7000kWh
per year. They offer an abundance of
added value: providing shade, cooling the
air, green ambiance and much more.
Installation is quick. The trees are durable
and natural looking, to fit any
environment. Also, they are flexible,
similar to an original tree, and well
secured to the ground with our Octopus
root system.
• Ever green trees- These species can
provide between 2500kWh and
7000kWh per year. They can be
placed as single trees or to fence
garden properties. Also for
mountainous regions and hill sides,
very good noise and sound
abatement.
• Shrubs, Plants, Roof, Wall and
Fencing- A wide range of shrubs for
all your electrical needs. Our
SolarBotanic Nanoleaf roof Carpets
can be installed in minutes on any
roof design, various leaf and
vegetation designs available. Our
SolarBotanic Wall carpets, easy to
apply, you can cover unsightly
walls, or apply it as fencing and
generate electricity, creating a
natural ambiance in a matter of
minutes. Various leaf design
available, We have energy solutions
for the future.
Our products come with a guaranteed
international quality control and
assurance specification.
Power Trees & Shrubs
Discover why our Trees and plants are so
much more than other renewable energy
systems. Depending on size and location, a
tree can produce between 2000 and 12,000
kWh per year.
Smart solutions
Let SolarBotanic’s comprehensive application
portfolio help you to find the best place for your
trees, greater productivity and better scenic
values.
Urban & Rural applications
Increase the green awareness in your city,
help to reduce global warming, bring energy
closer to home, recharge your car and power
your home.

5. Latest nanotechnology for our leaves
The Nanoleaf is a combination of high Tec
materials brought together in a leaf design to
convert all 3 energy sources; Light, Heat and
Wind into electricity, our trees are a quantum
source of power and an excellent electricity
provider.
Solar Botanic products will be
multifunctional, efficient, renewable
energy systems. Within our collection,
you'll find a host of special options and
features designed to bring energy
efficiency and beauty to your home.
Solar Botanic products will be top-quality
multi energy collectors with maximum power
output day and night that are installed by our
contractors. The SolarBotanic energy trees
range from 2.000 to 12.000 kWh per year
power output, so you can find the right tree,
shrub or plants with the right features at the
right price.
This unique and efficient product that will
make use of natures perfect design features
will be sold exclusively by SolarBotanic and
officially appointed dealers only. Products will
be available in broadleaf and needle trees,
shrubs, flowering plants and water based
plants, each includes specific features and
options for a true natural product, and are
specially designed for maximum energy
efficiency in every climate.
Designed according to nature, that allows this
product to be installed within cities, rural
communities, and places of natural beauty
and island communities, for use in new and
existing residential projects without causing a
negative impact. Each product with its unique
features is designed to be well-matched with
certain types of local scenery.
SolarBotanic products are designed and
engineered for use in all areas and to
withstand extreme weather conditions, they
will comply with safety regulationsthat vary
from area to area. Every SolarBotanic
product is engineered for superior
performance, maximum power efficiency and
long-lasting beauty.
Nanoleaves
Sun, wind, water, earth and life touch our
living senses immediately always,
everywhere and without any intervention of
reason. They simply are there in their
unmatched variety, moving us, our moods,
memories, imaginations, intensions and
plans.
To capitalize on the wealth of designs and
processes found in nature, engineering and
technology gave us the ingredients, creative
thinking, and unique solutions made it
possible to bring all this together into a
natural looking leaf - the Nanoleaf.
To complete the tree for multi energy
exploitation, the petiole twigs and branches
are incorporated with Nano piezo-electric
elements. A Nanoleaf is thin like a natural
leaf, when outside forces, like the wind
pushes the Nanoleaf back and forth,

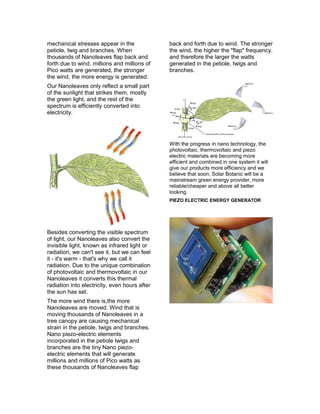

6. mechanical stresses appear in the
petiole, twig and branches. When
thousands of Nanoleaves flap back and
forth due to wind, millions and millions of
Pico watts are generated, the stronger
the wind, the more energy is generated.
Our Nanoleaves only reflect a small part
of the sunlight that strikes them, mostly
the green light, and the rest of the
spectrum is efficiently converted into
electricity.
Besides converting the visible spectrum
of light, our Nanoleaves also convert the
invisible light, known as infrared light or
radiation, we can't see it, but we can feel
it - it's warm - that's why we call it
radiation. Due to the unique combination
of photovoltaic and thermovoltaic in our
Nanoleaves it converts this thermal
radiation into electricity, even hours after
the sun has set.
The more wind there is,the more
Nanoleaves are moved. Wind that is
moving thousands of Nanoleaves in a
tree canopy are causing mechanical
strain in the petiole, twigs and branches.
Nano piezo-electric elements
incorporated in the petiole twigs and
branches are the tiny Nano piezo-
electric elements that will generate
millions and millions of Pico watts as
these thousands of Nanoleaves flap
back and forth due to wind. The stronger
the wind, the higher the "flap" frequency,
and therefore the larger the watts
generated in the petiole, twigs and
branches.
With the progress in nano technology, the
photovoltaic, thermovoltaic and piezo
electric materials are becoming more
efficient and combined in one system it will
give our products more efficiency and we
believe that soon, Solar Botanic will be a
mainstream green energy provider, more
reliable/cheaper and above all better
looking.
PIEZO ELECTRIC ENERGY GENERATOR

7. Advantages:
1.Absorbing CO2 from air
Another fascinating Solar Botanic
technology is used to separate the
carbon di oxide from other elements in
the air.it involves biomimicry of human
lung.
make use of a Norwegian invention that
uses a membrane that filters the air
through a liquid solution. The membrane is
separating the CO2 from the air. If we look
at a tree and the canopy of a tree, the outer
periphery will be having air nozzles for air
intake. This will be incorporated in the
branches. Then the air will be blown down
into the main trunk of the tree where it will
go through the membrane and the clean air
will be released through the top of the tree.
This is a very nice application which is really
good for air pollution affected cities.
2. .Low investment/high
return
A tree of approximately 7 – 8 meters high
and a tree canopy diameter of 6 meters
that would deliver per year between 5000
and 7000 killowatt hours and it should
come at a price of around 5,000 dollars.
3.Efficient Power
Generation
189,000 solar trees "planted" along the
road of 2700 kms long would generate over
1.2 GW of electricity; reduce our carbon
footprint by more than 900 thousand tons
of CO2 per year and produce enough
electricity to power over 118,000 average
size homes.
4.Triple efficiency.
5.Durable.
6..Easy to install.
7.Weather resistant: rain, hail
dust, lightning, wind.
8.Good monetary values for
private homes.

8. 9.Various sizes, colors and
species
10.Aesthetic natural design, in
harmony with nature.
11.Application for designer
gardens, penthouses, balconies
APPLICATIONS:
• Urban and Rural
• Recreational parks, city parks
• New housing estates
• Golf courses and resorts
• Mountainous regions
• Coastlines
• Highways
• Airports
• Deserts
• Penthouses, balconies, verandas
• Private gardens
• De-forested areas
• Areas of commercial interest;
Islands, nature resorts
• Ponds, lakes, seas and oceans
• Crop Protection
• SolarBotanic flowering plants to
harvest colorful your electric
power
SolarBotanics can be used for:
Windshield, Shade, anti glare,
objectionable views,sound barrier,
windbreak, wind obstruction and much
more.
CONCLUSION;
HENCE THIS A CLEAN AND CHEAPEST
POWER GENERATION. THIS IS AN ECO-
FRIENDLY POWER GENERATION
METHOD.THIS IS ONE OF THE GREEN
ENERGY SYSTEMS
Reference:
www.solarbotanic.com
www.energymatters.com.
WWW.ENERGYHARVESTING.NET
WWW.TI.COM
Devices for Recharging Batteries
HENRY.A
Elements of ecology – ROBERT SMITH
