The document discusses architectural test case writing. It begins by covering software development methodologies like waterfall and iterative models. It then discusses software testing, particularly architectural testing. Key aspects of architectural test cases are described such as using quality attributes to derive scenarios and test cases. An example scenario and test case template are provided. The document emphasizes that architectural test cases should validate quality attributes and non-functional requirements.

1. Software Architecture
Software Architectural Test Case Writing
2009.11.08 Sitdhibong Laokok
goto.champ@gmail.com

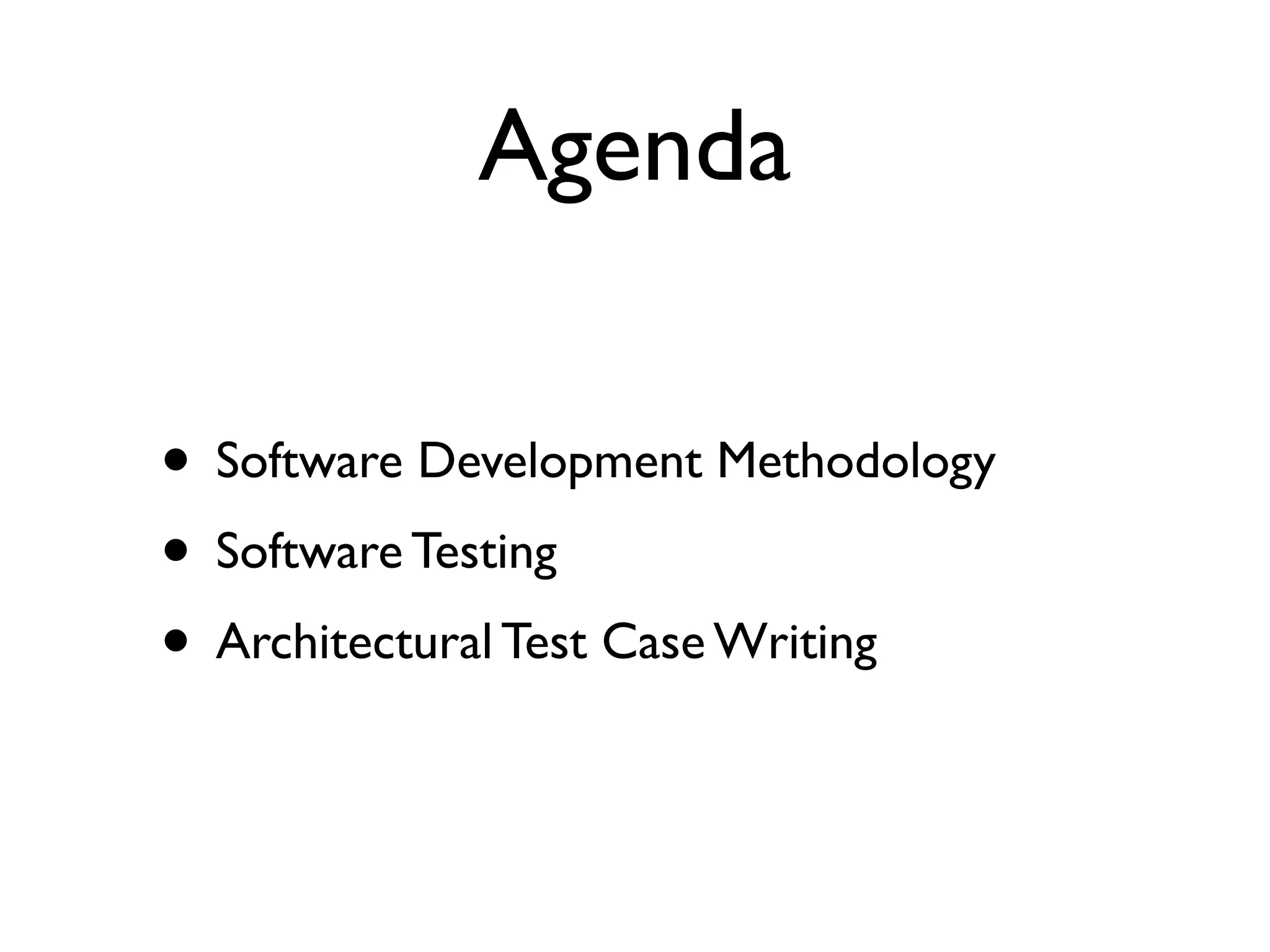

2. Agenda
• Software Development Methodology
• Software Testing
• Architectural Test Case Writing

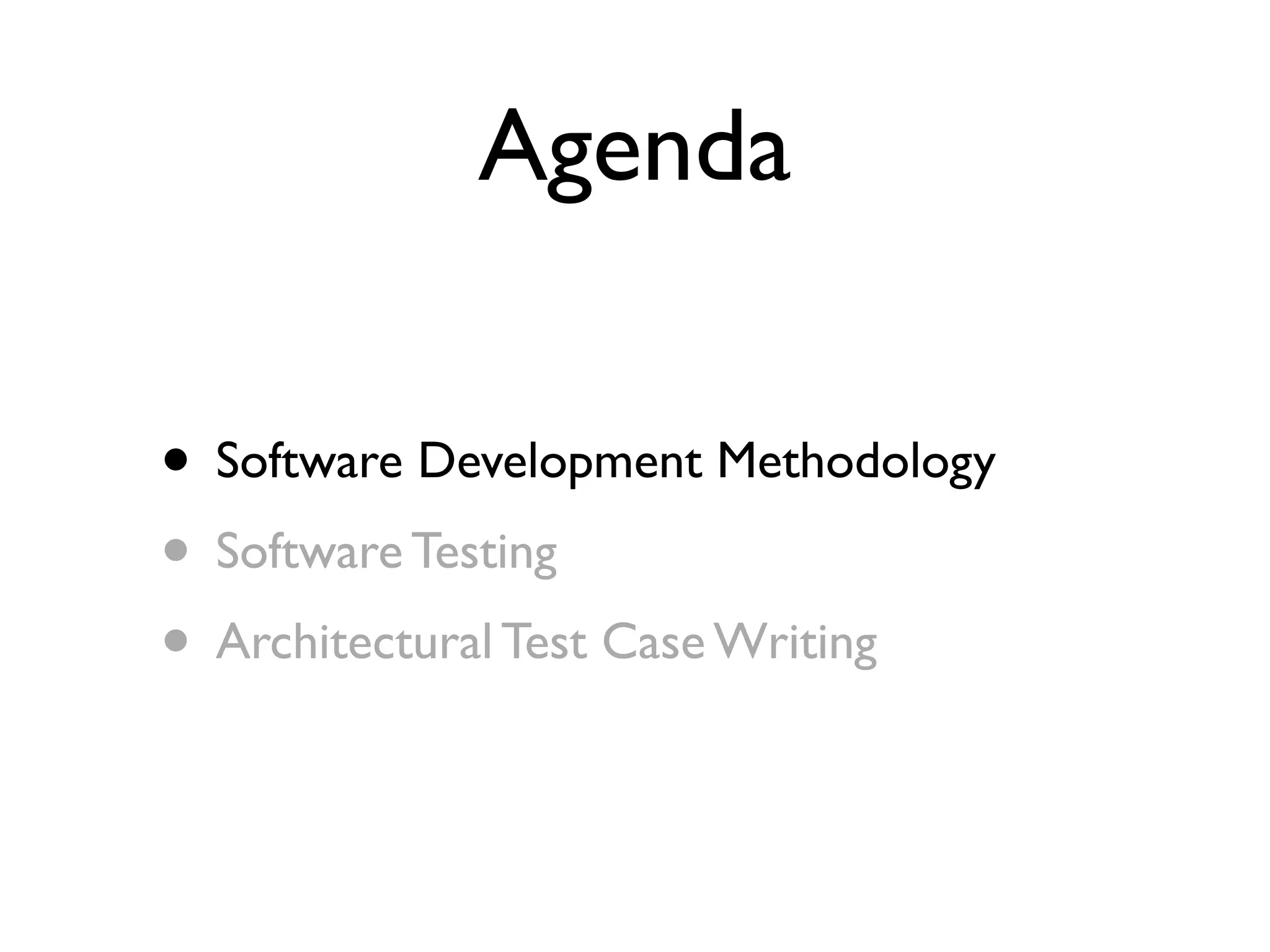

3. Agenda
• Software Development Methodology
• Software Testing
• Architectural Test Case Writing

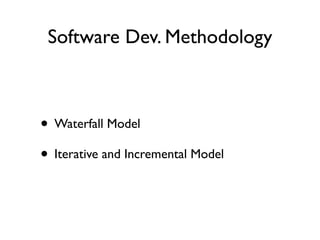

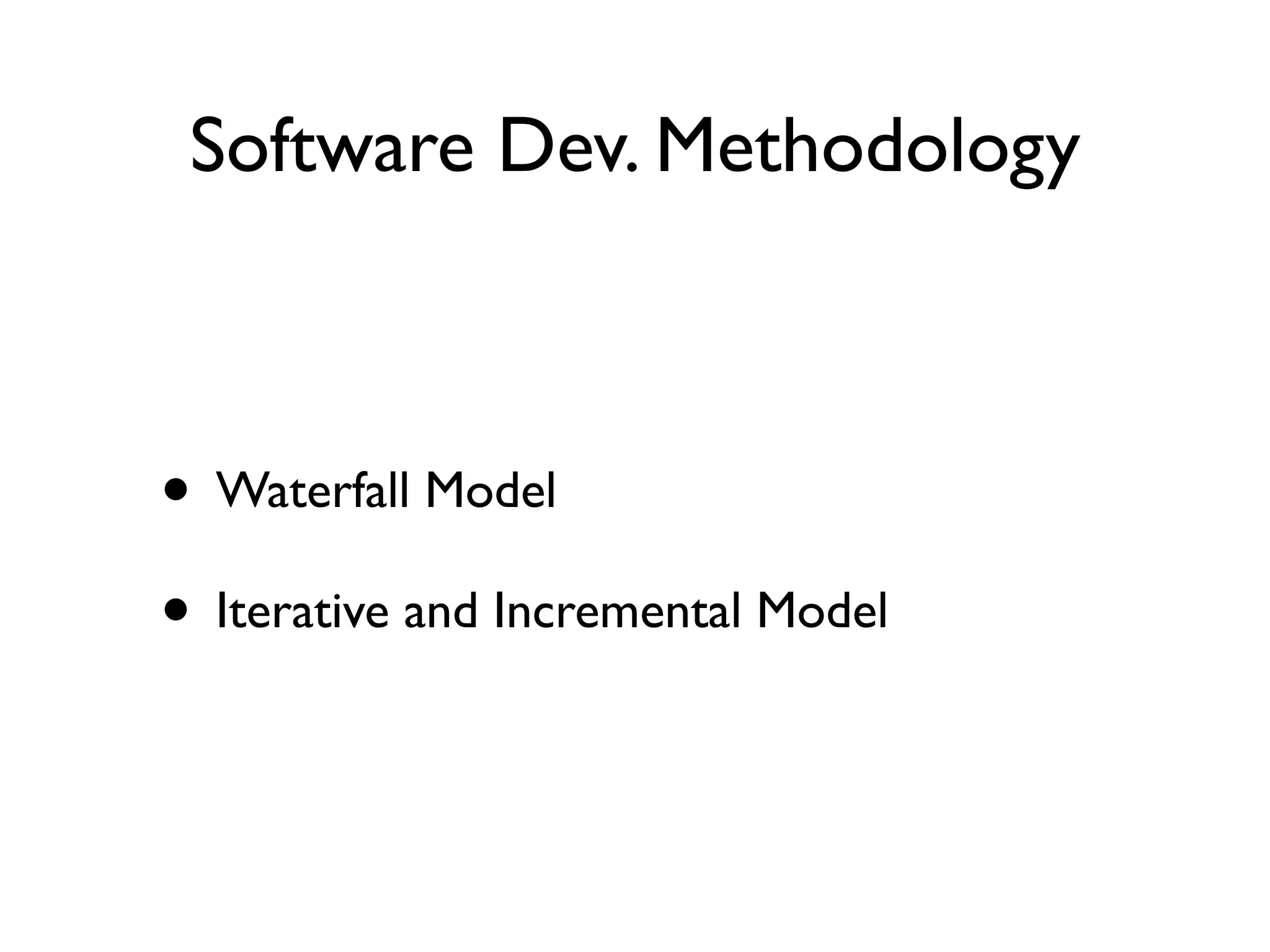

4. Software Dev. Methodology
• Waterfall Model
• Iterative and Incremental Model

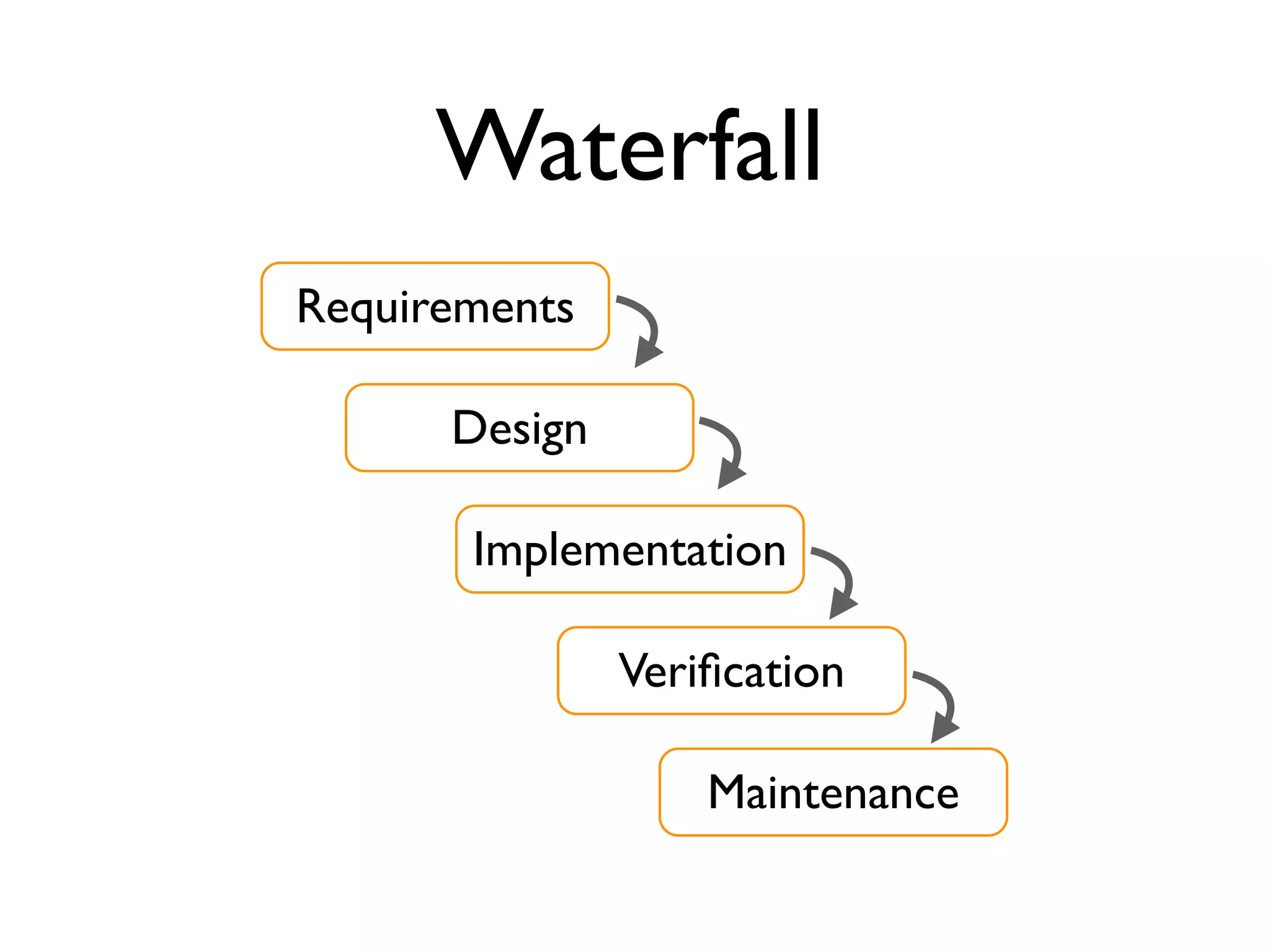

5. Waterfall
Requirements
Design
Implementation
Verification
Maintenance

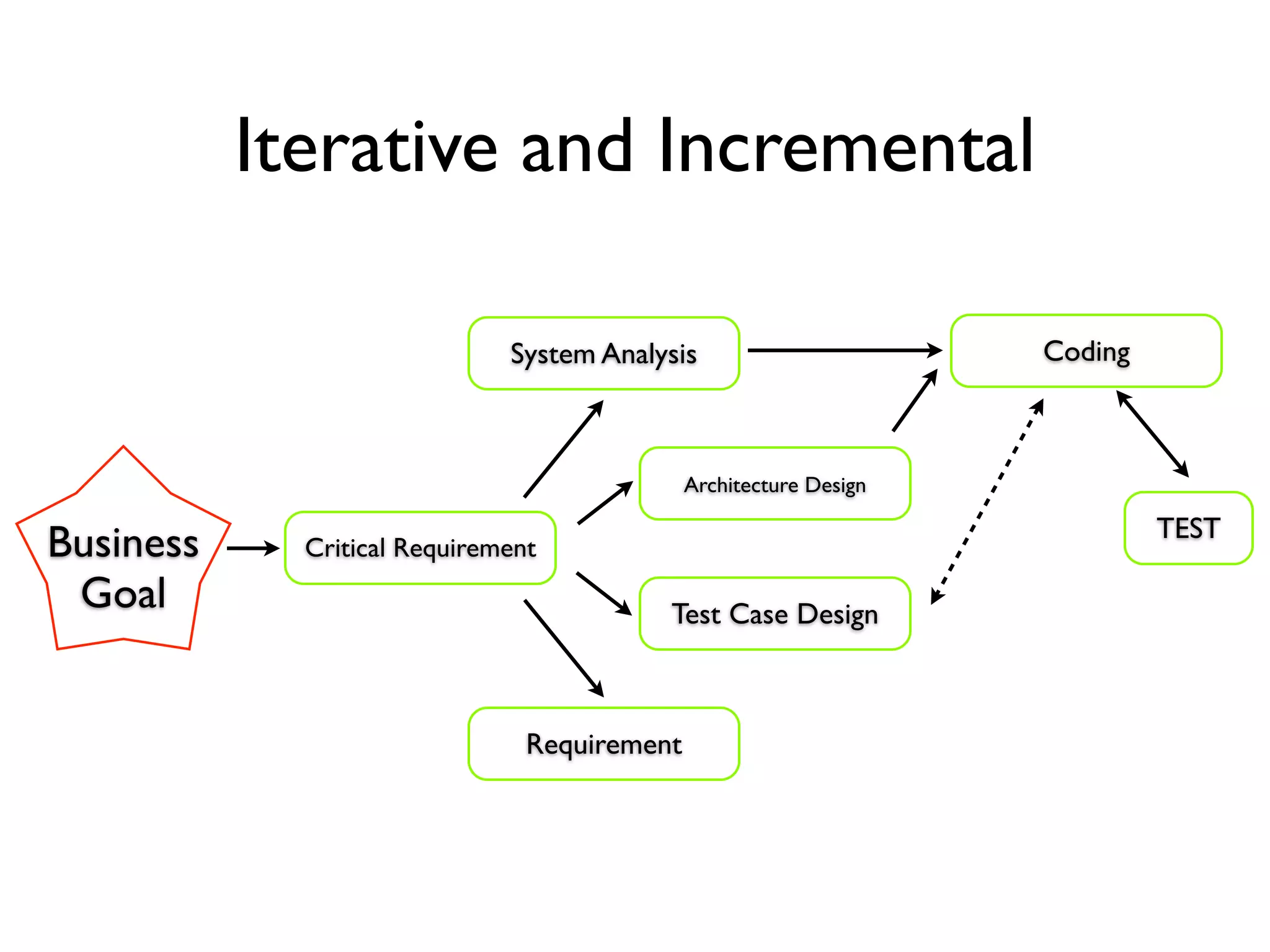

6. Iterative and Incremental
System Analysis Coding
Architecture Design
TEST
Business Critical Requirement
Goal Test Case Design
Requirement

7. Vilfredo Pareto
Italian economist
(1848 - 1923)

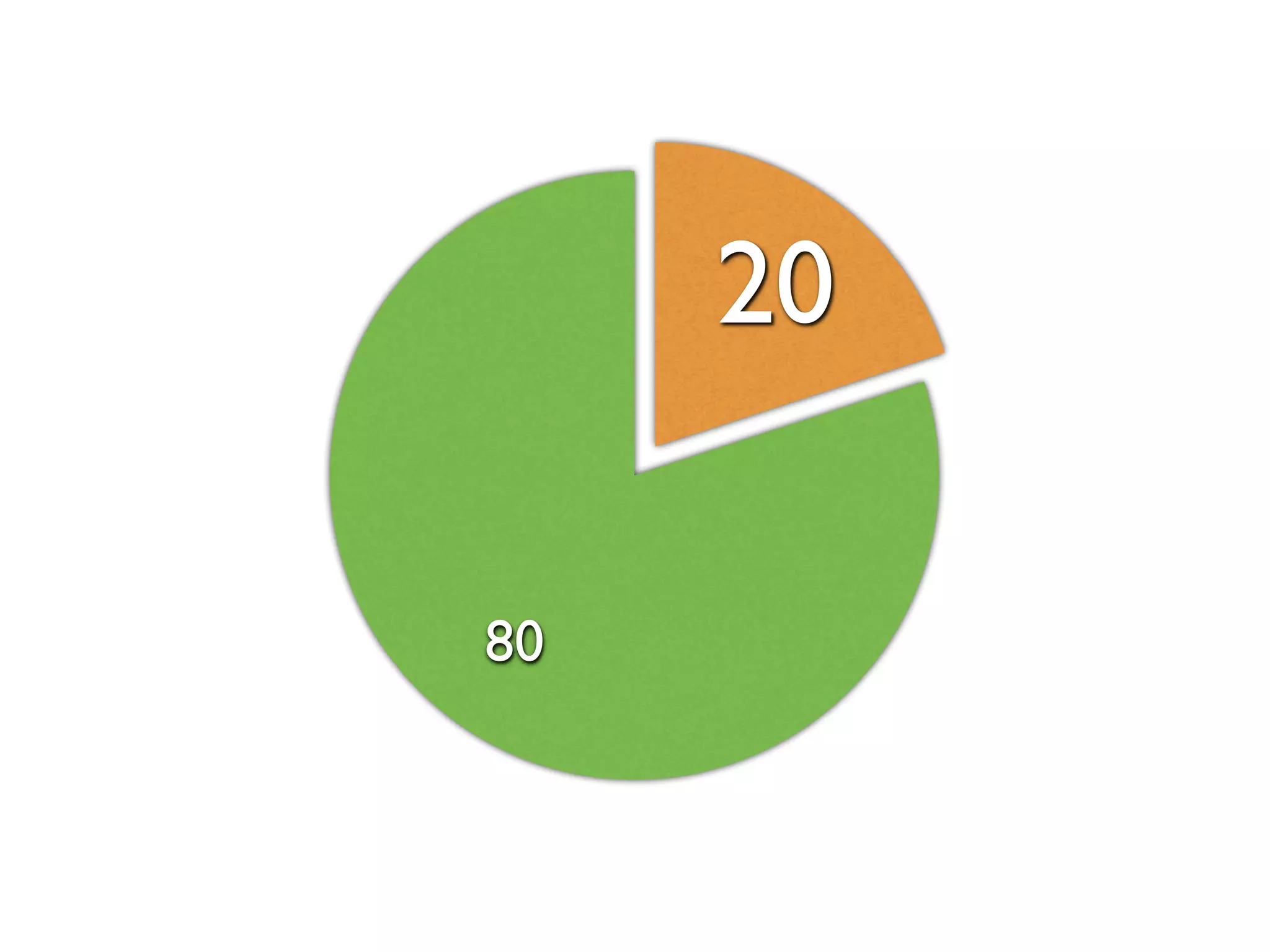

8. 20
80

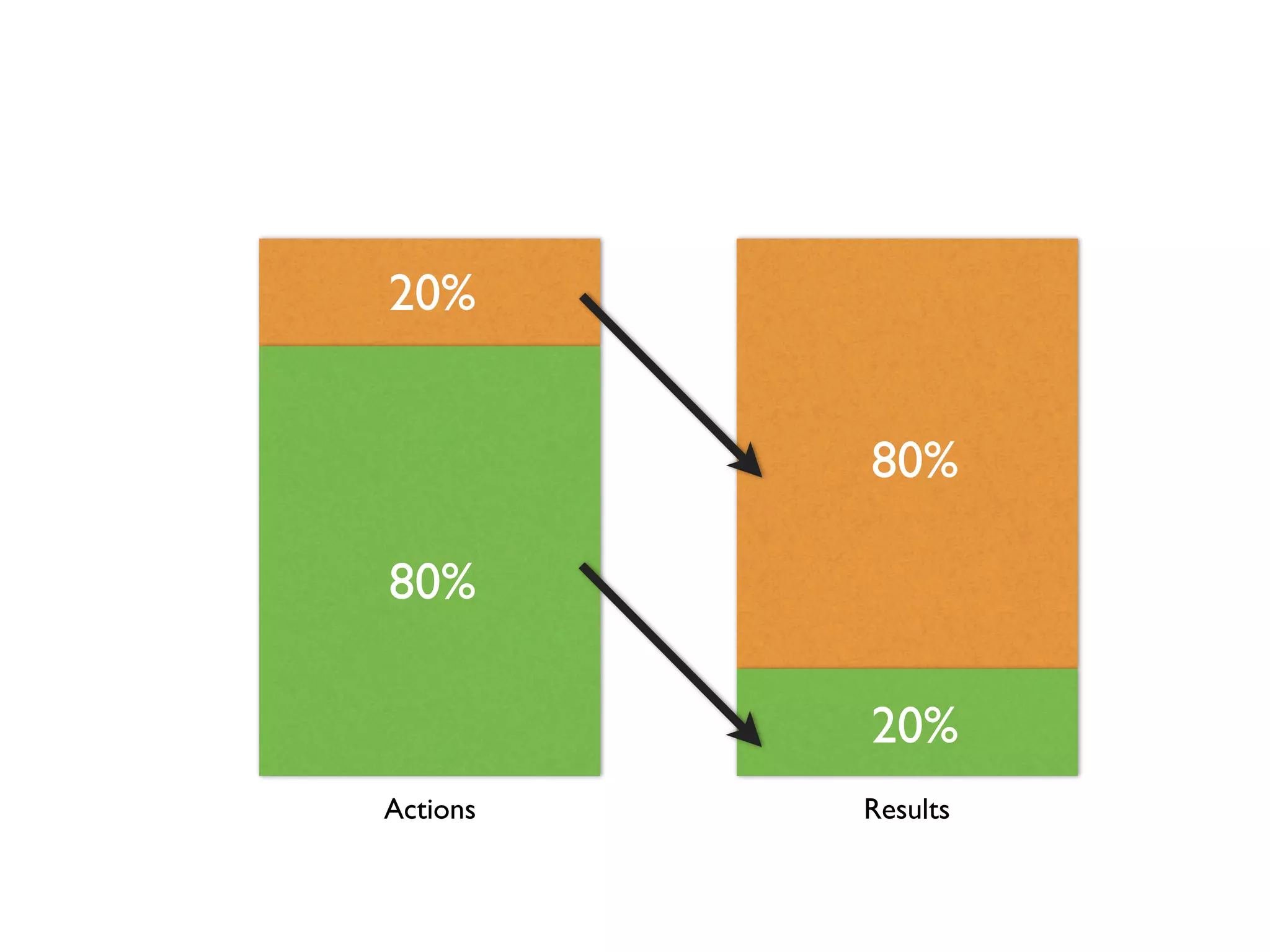

9. 100
20%
75
80%
50
80%
25
20%
0
Actions Results

10. Iterative and Incremental
System Analysis Coding
Architecture Design
TEST
Business Critical Requirement
Goal Test Case Design
Requirement

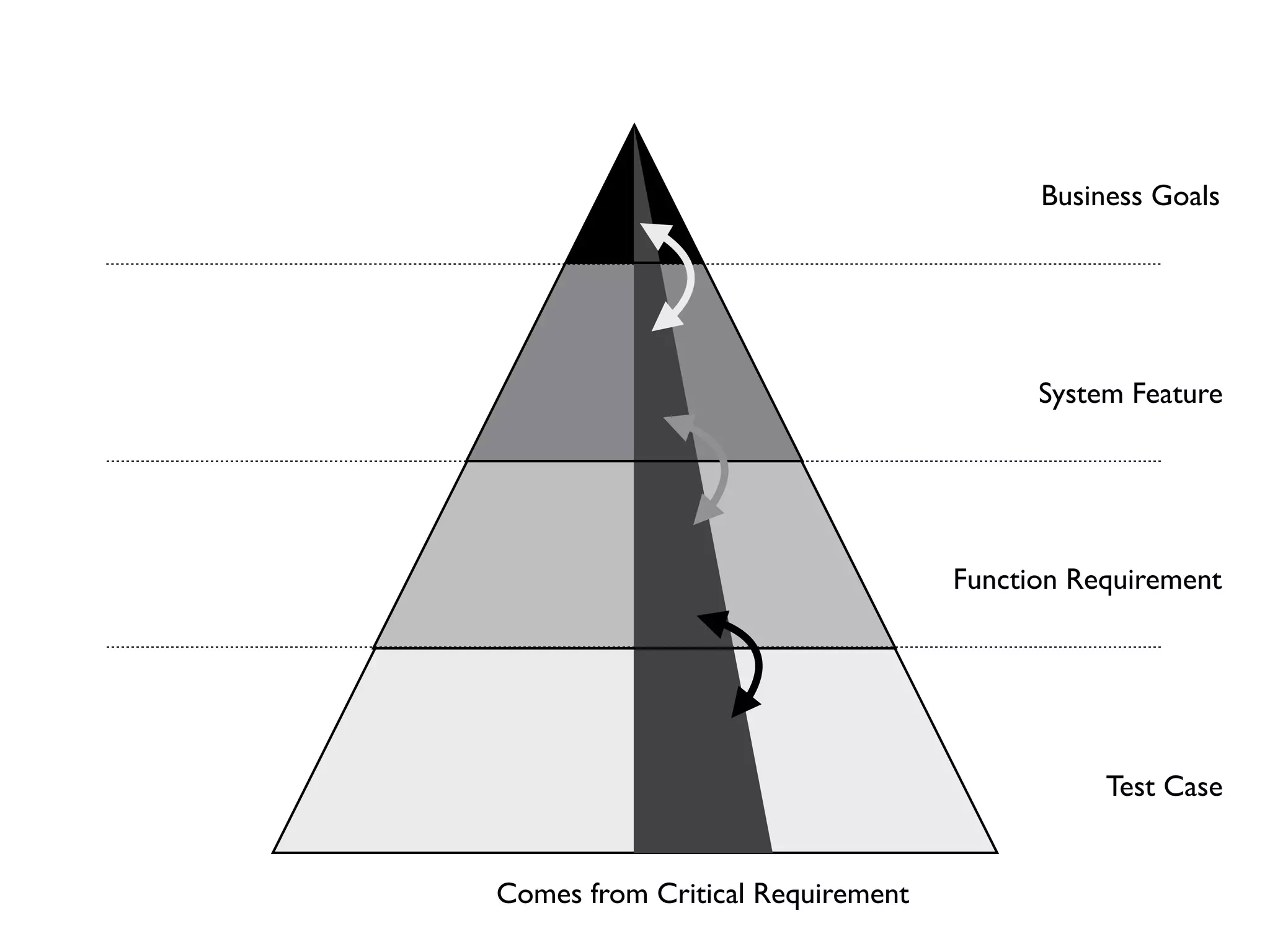

11. Business Goals
System Feature
Function Requirement
Test Case
Comes from Critical Requirement

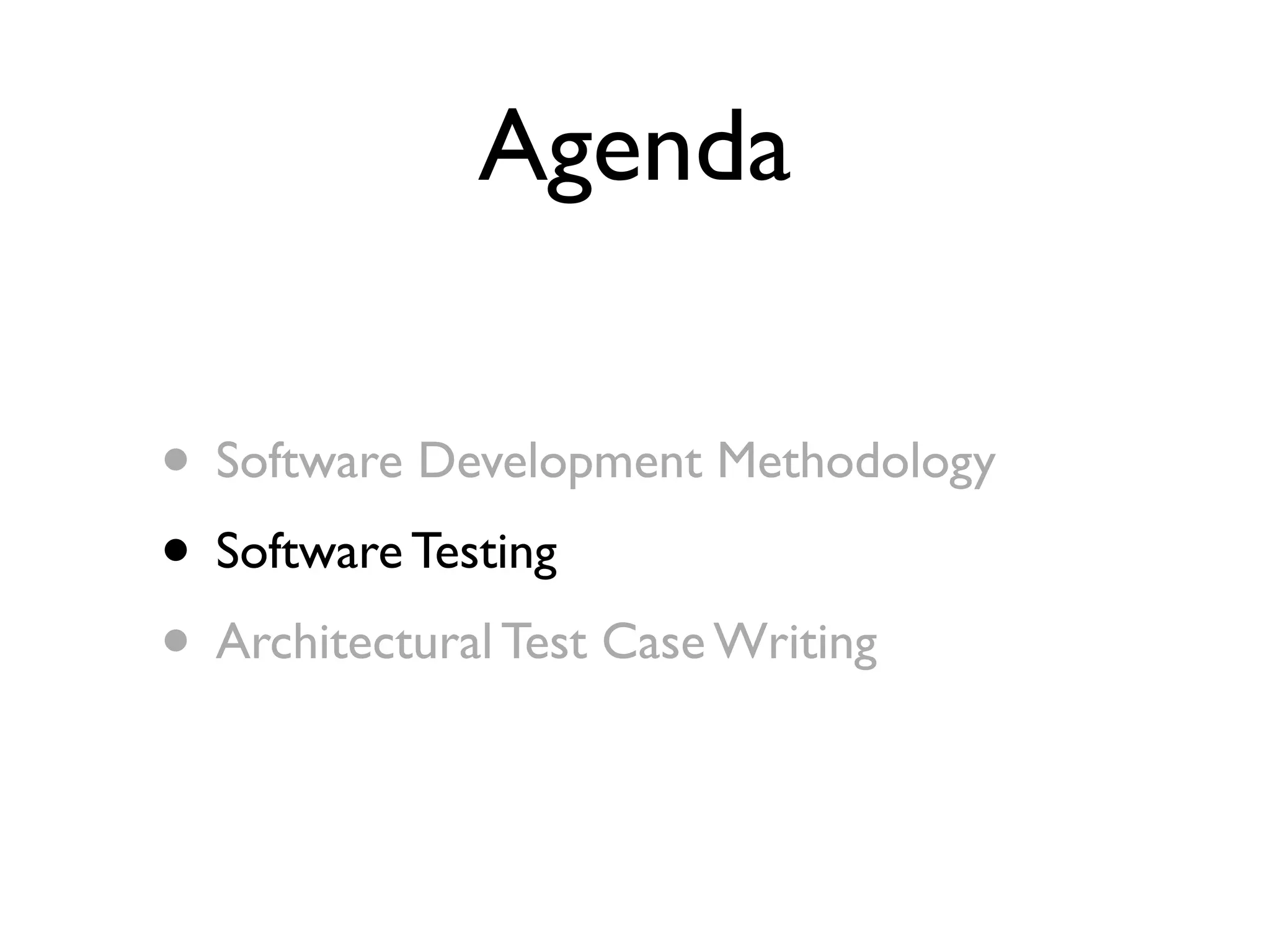

12. Agenda
• Software Development Methodology
• Software Testing
• Architectural Test Case Writing

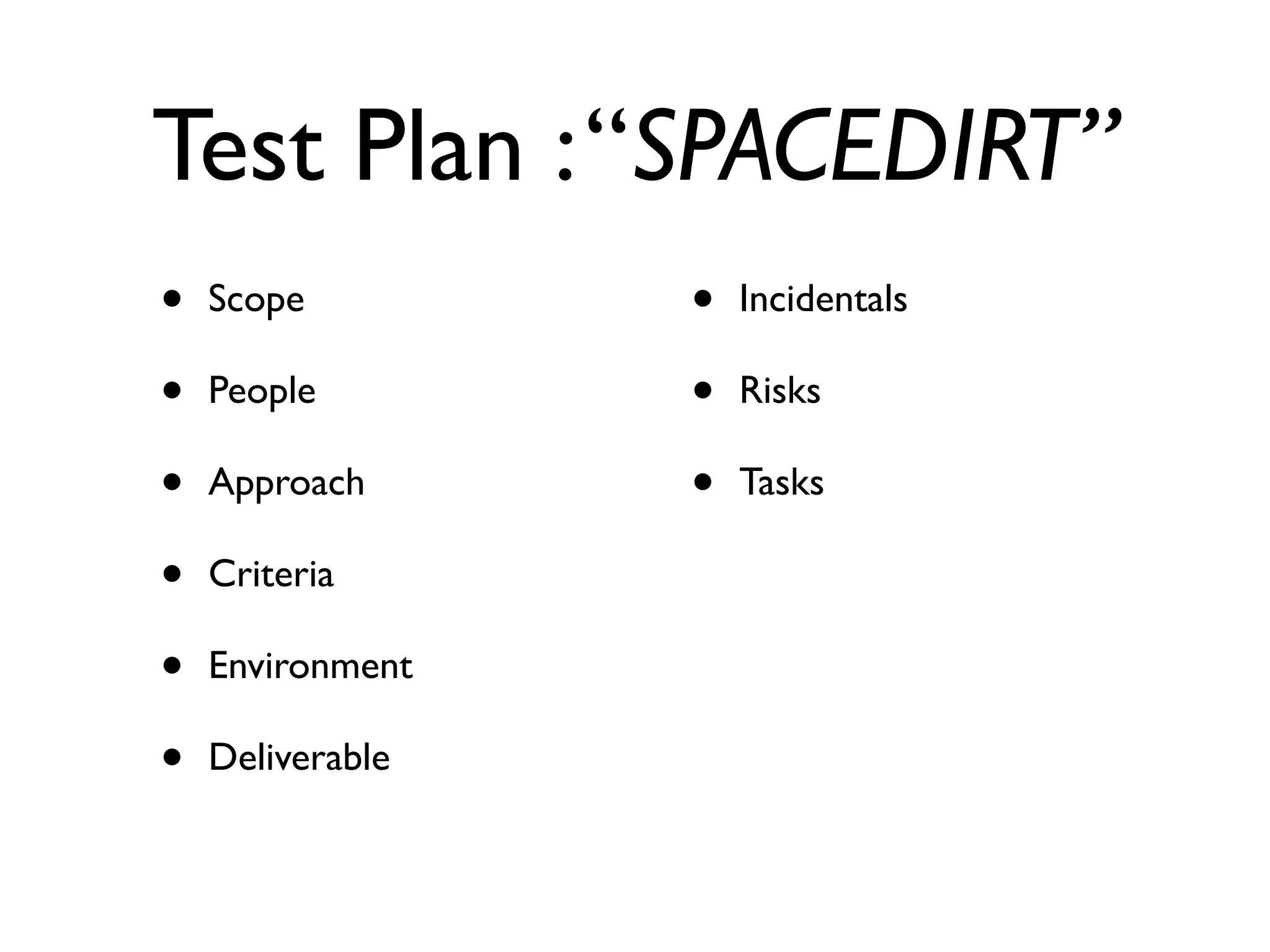

13. Test Plan : “SPACEDIRT”
• Scope • Incidentals
• People • Risks
• Approach • Tasks
• Criteria
• Environment
• Deliverable

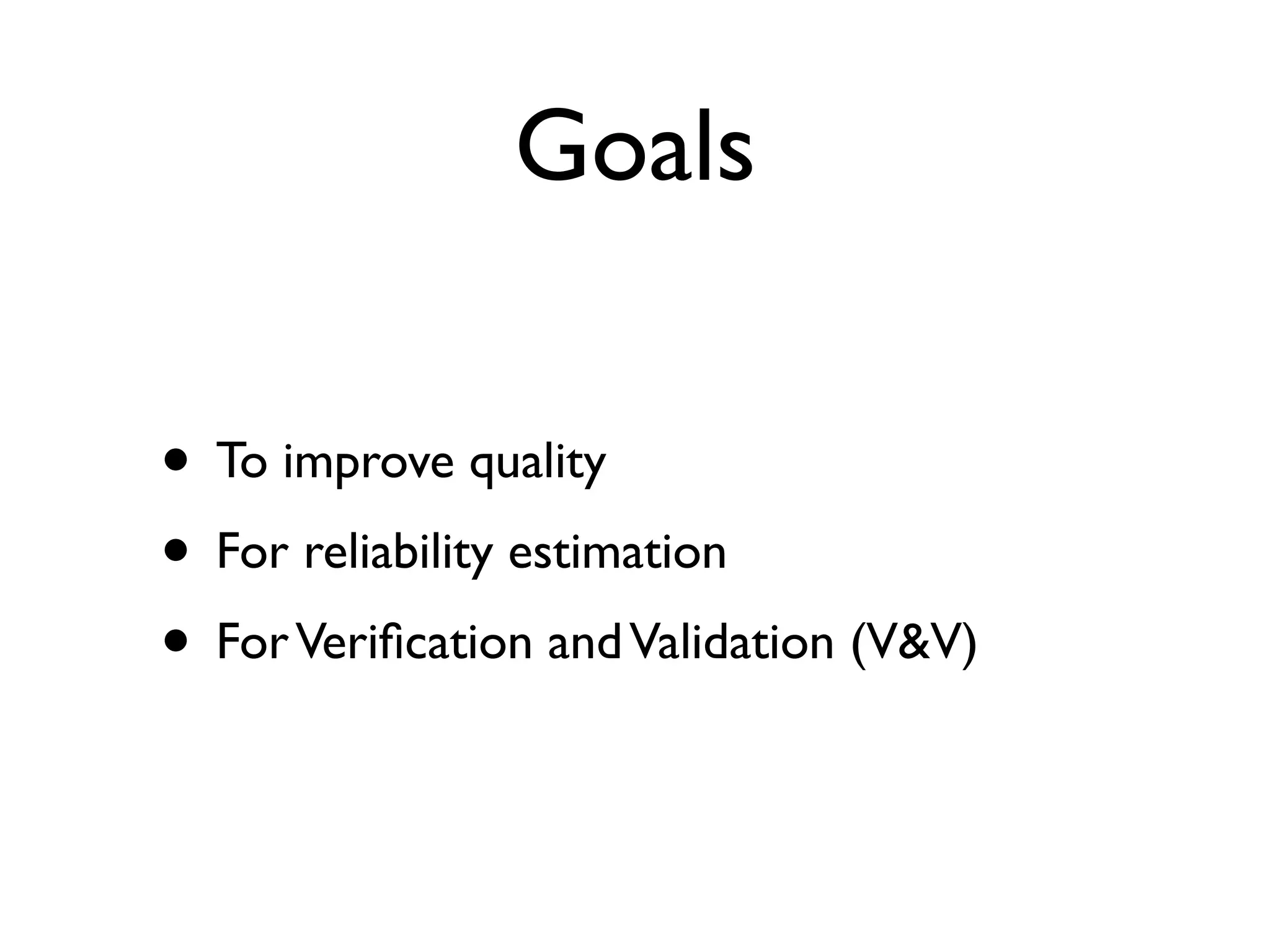

14. Goals
• To improve quality
• For reliability estimation
• For Verification and Validation (V&V)

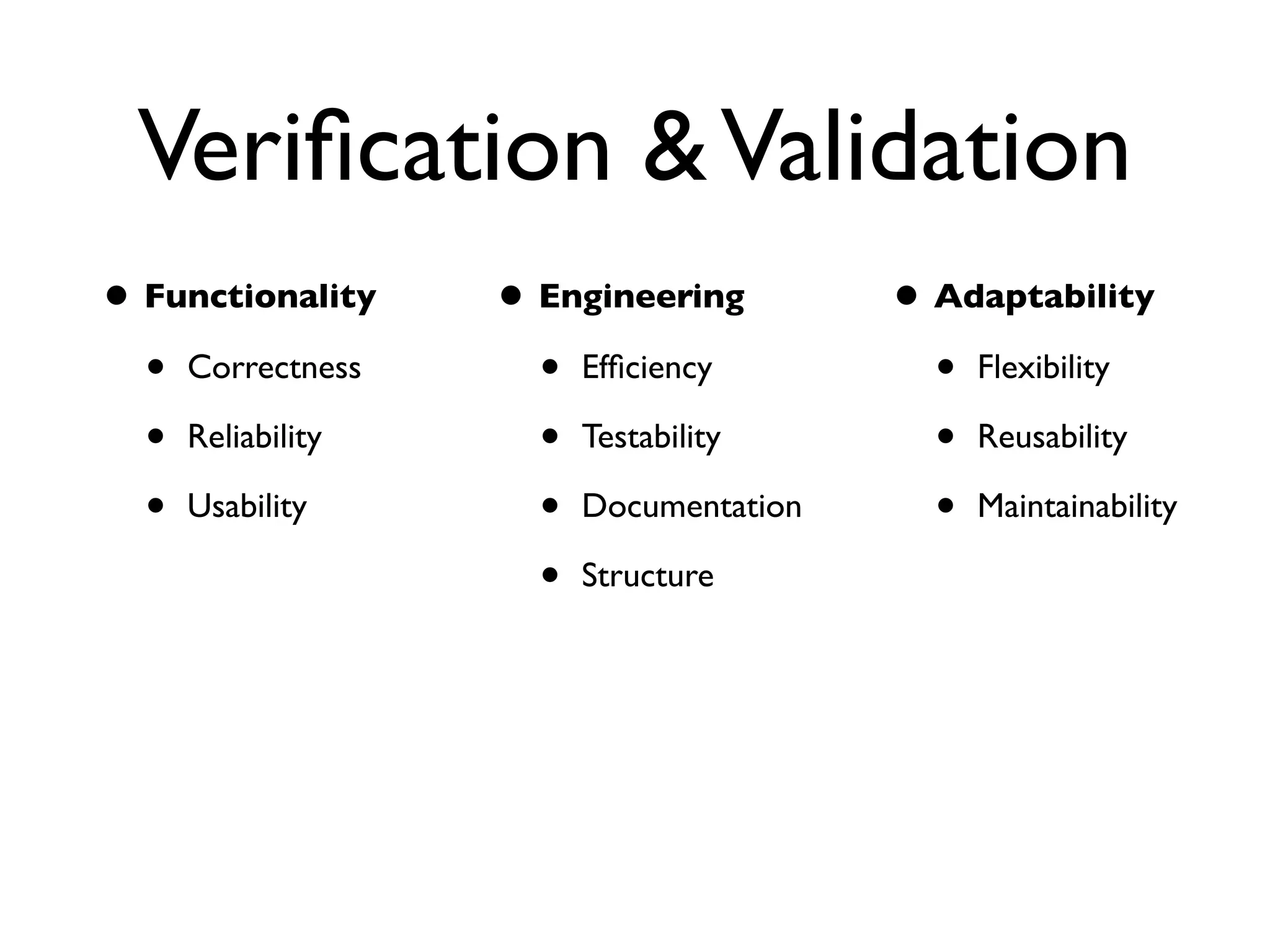

15. Verification & Validation
• Functionality • Engineering • Adaptability
• Correctness • Efficiency • Flexibility
• Reliability • Testability • Reusability
• Usability • Documentation • Maintainability
• Structure

16. Software Dimension
W3C Semantic Web Logo - http://www.w3.org/2007/10/sw-logos.html

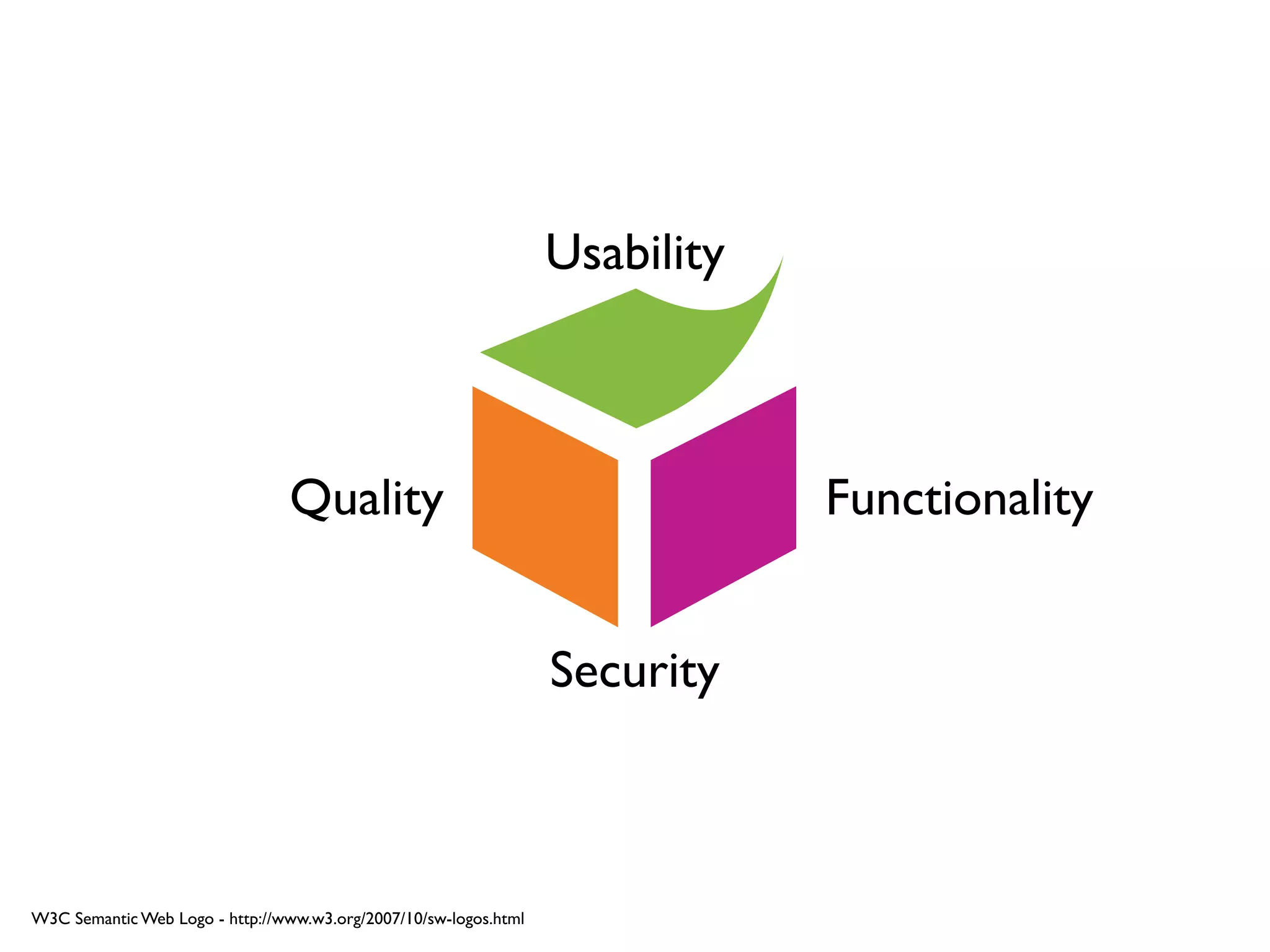

17. Software Dimension
Usability
Quality Functionality
Security
W3C Semantic Web Logo - http://www.w3.org/2007/10/sw-logos.html

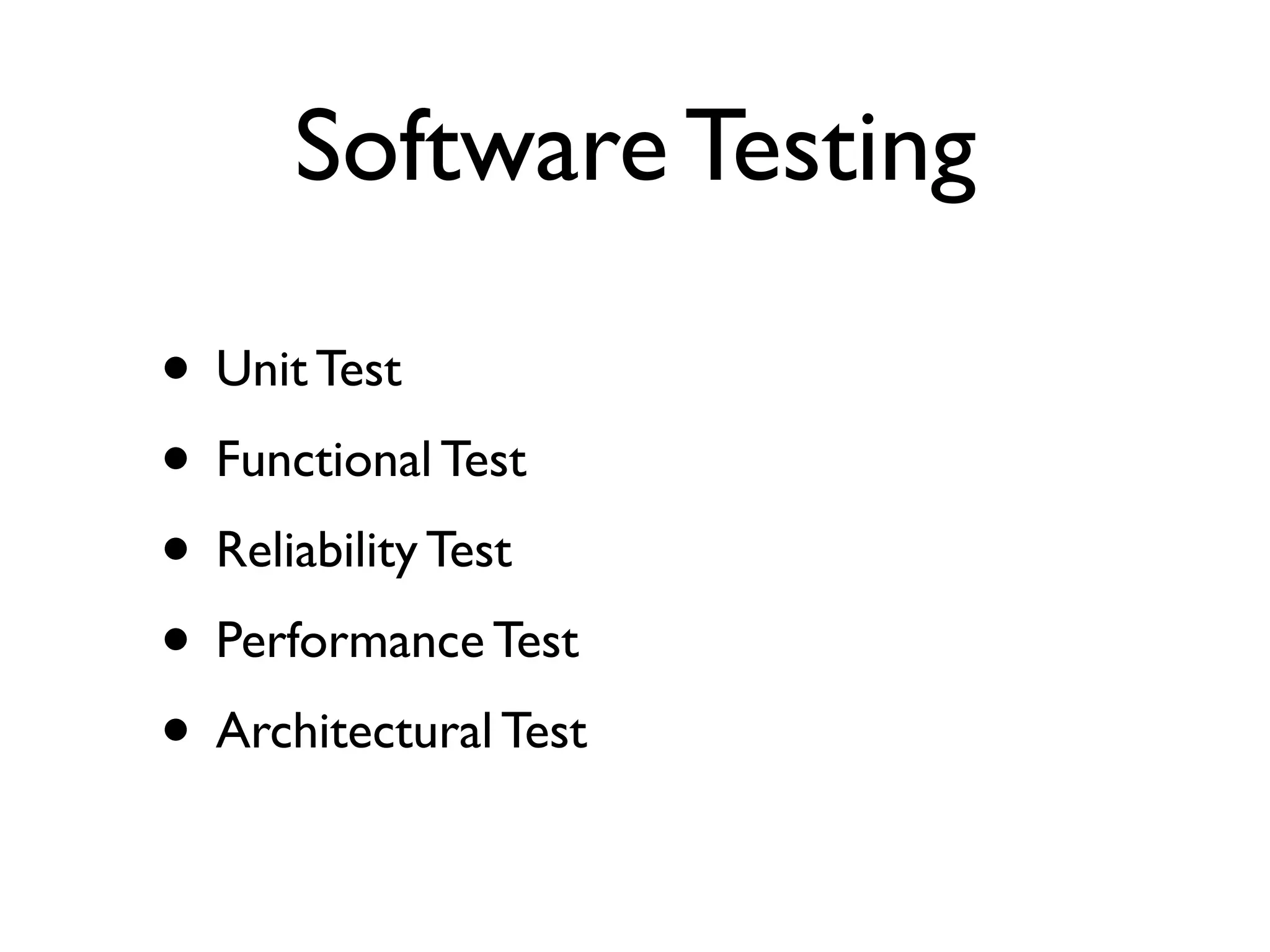

18. Software Testing
• Unit Test
• Functional Test
• Reliability Test
• Performance Test
• Architectural Test

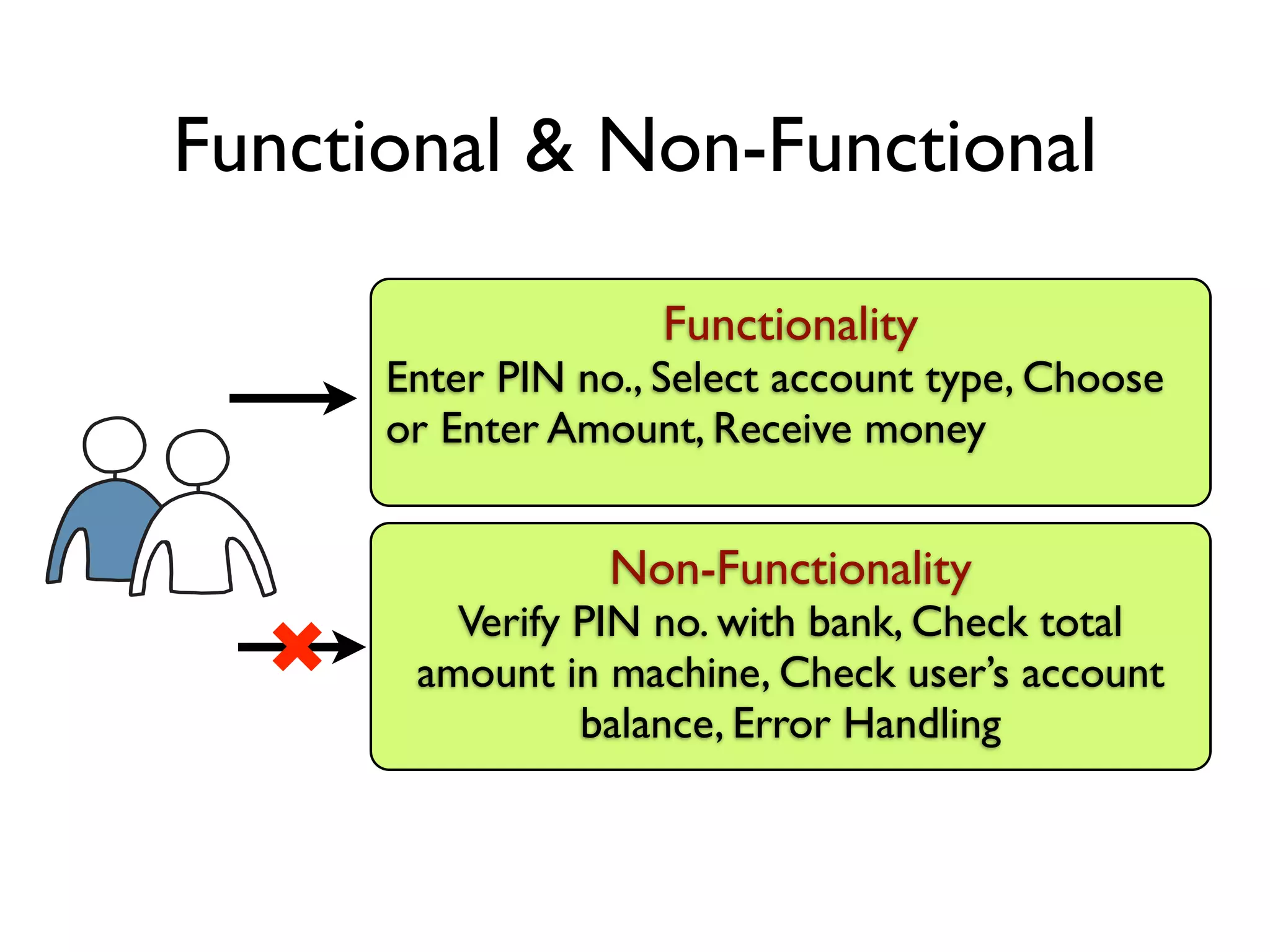

19. Functional & Non-Functional
Functionality
Enter PIN no., Select account type, Choose
or Enter Amount, Receive money
Non-Functionality
Verify PIN no. with bank, Check total
amount in machine, Check user’s account
balance, Error Handling

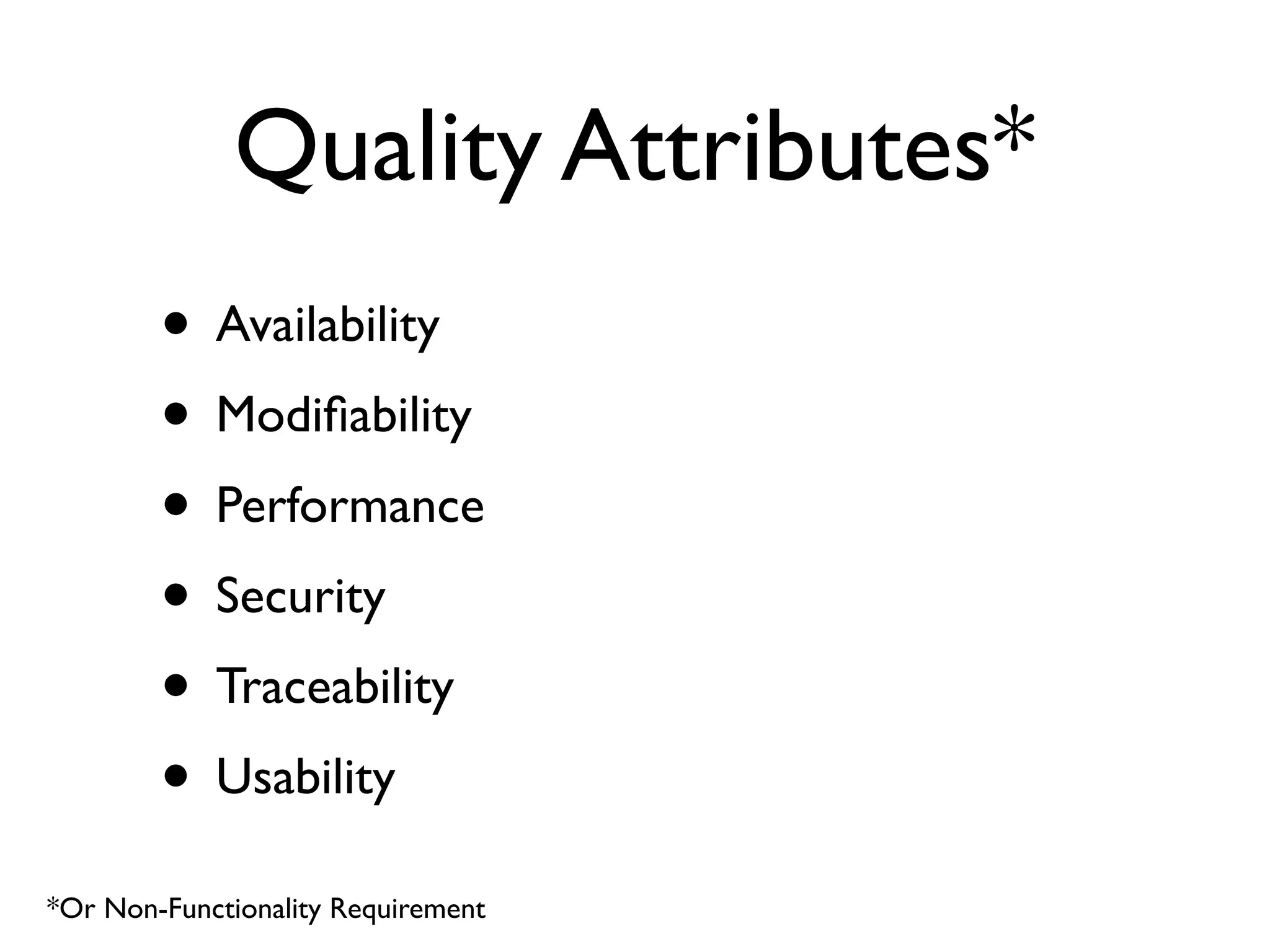

20. Quality Attributes*
• Availability
• Modifiability
• Performance
• Security
• Traceability
• Usability
*Or Non-Functionality Requirement

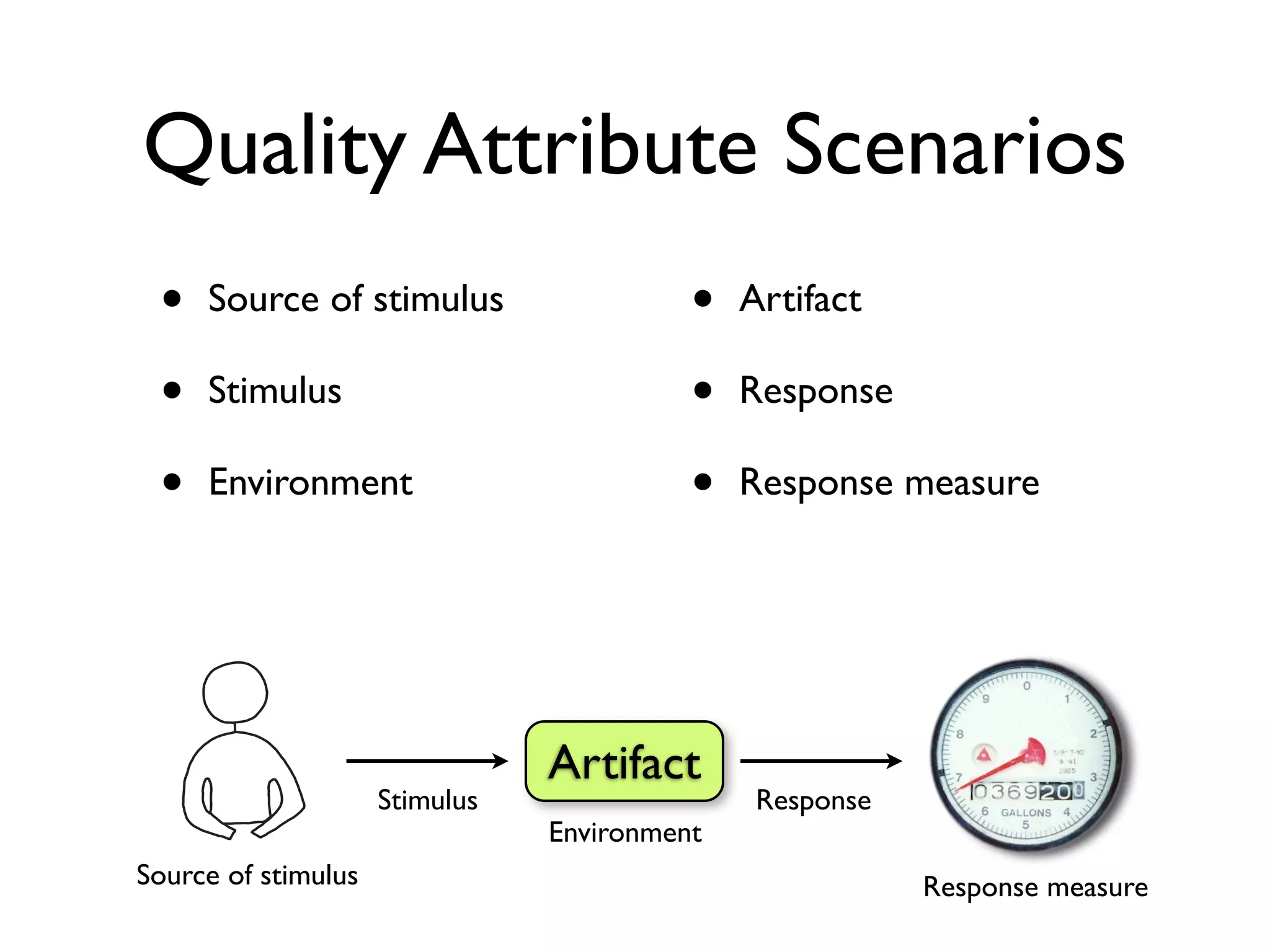

21. Quality Attribute Scenarios
• Source of stimulus • Artifact
• Stimulus • Response
• Environment • Response measure
Artifact
Stimulus Response
Environment
Source of stimulus Response measure

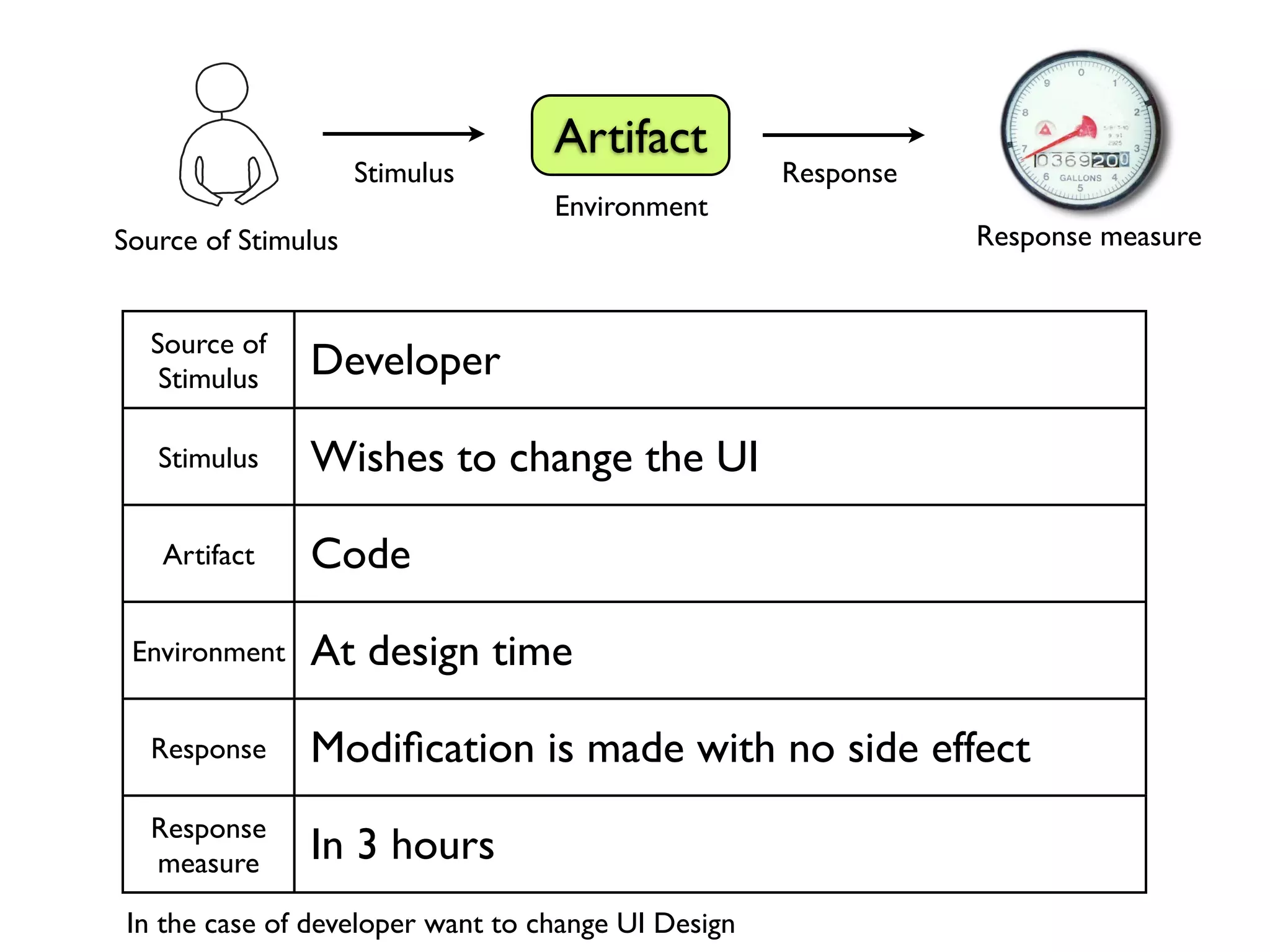

22. Artifact
Stimulus Response
Environment
Source of Stimulus Response measure
Source of
Stimulus Developer
Stimulus Wishes to change the UI
Artifact Code
Environment At design time
Response Modification is made with no side effect
Response
measure In 3 hours
In the case of developer want to change UI Design

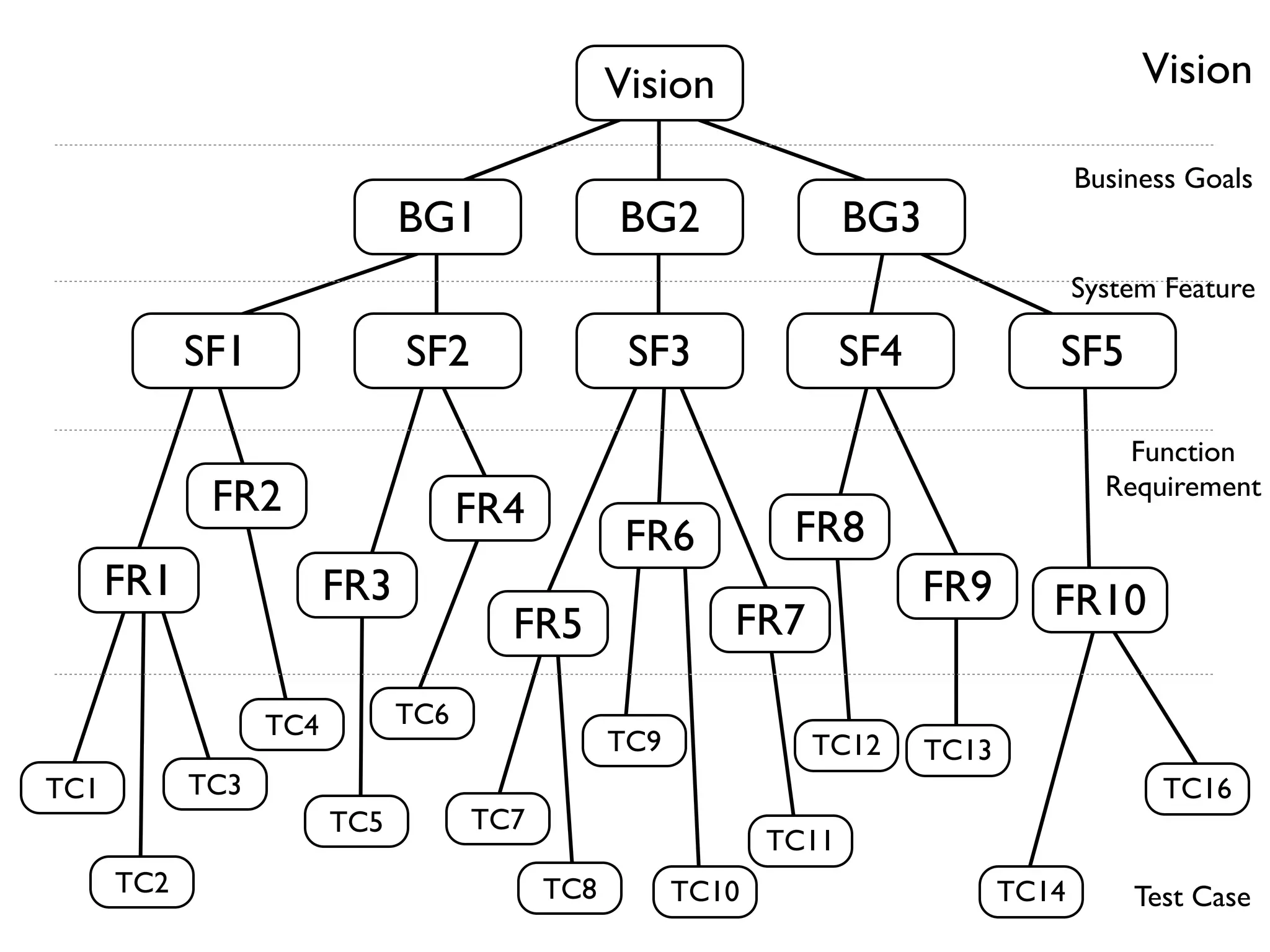

23. Vision Vision
Business Goals
BG1 BG2 BG3
System Feature
SF1 SF2 SF3 SF4 SF5
Function
Requirement
FR2 FR4
FR6 FR8
FR1 FR3 FR9 FR10
FR5 FR7
TC4 TC6
TC9 TC12 TC13
TC1 TC3 TC16
TC5 TC7
TC11
TC2 TC8 TC10 TC14 Test Case

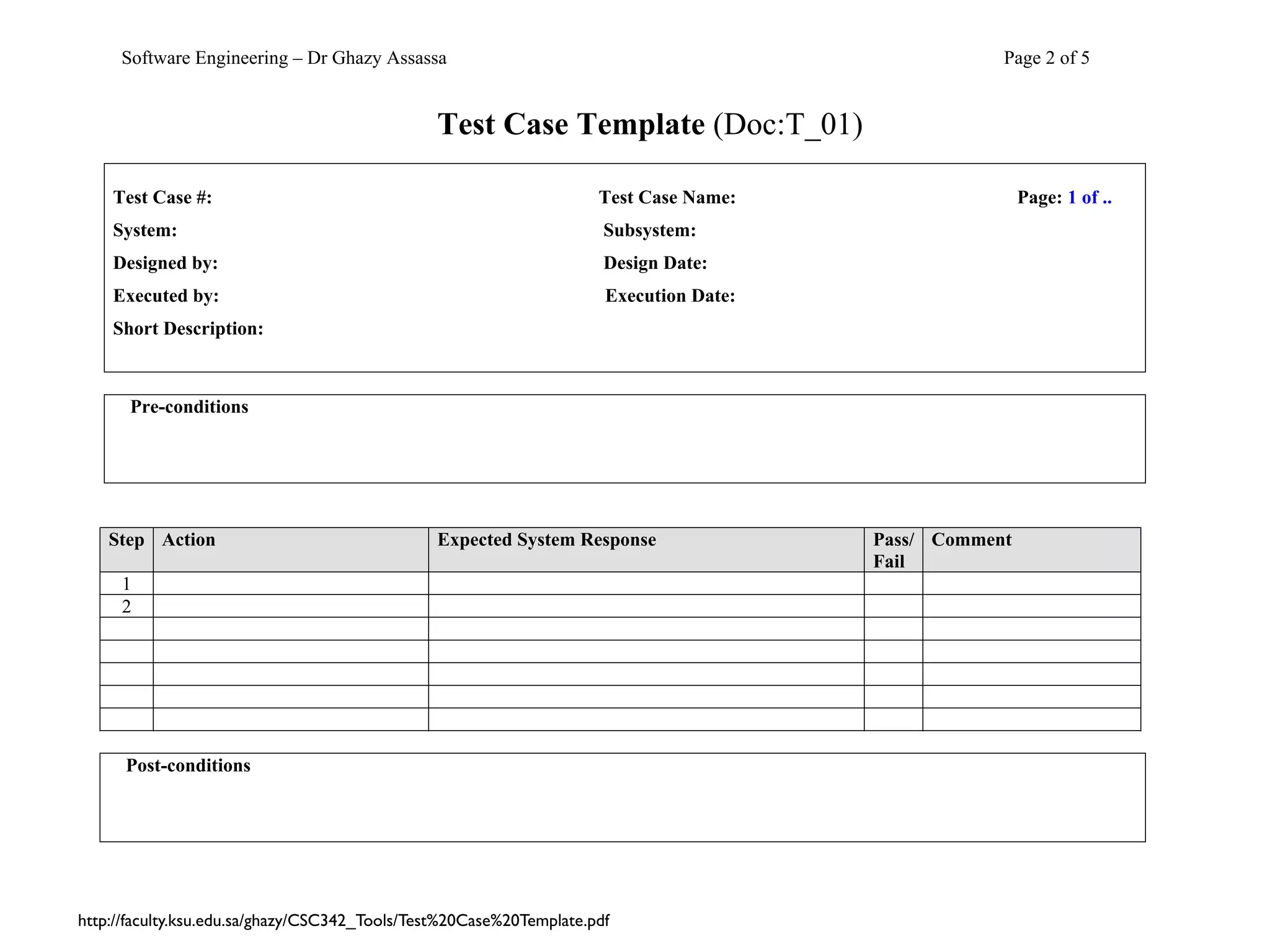

24. Software Engineering – Dr Ghazy Assassa Page 2 of 5
Test Case Template (Doc:T_01)
Test Case #: Test Case Name: Page: 1 of ..
System: Subsystem:
Designed by: Design Date:
Executed by: Execution Date:
Short Description:
Pre-conditions
Step Action Expected System Response Pass/ Comment
Fail
1
2
Post-conditions
http://faculty.ksu.edu.sa/ghazy/CSC342_Tools/Test%20Case%20Template.pdf

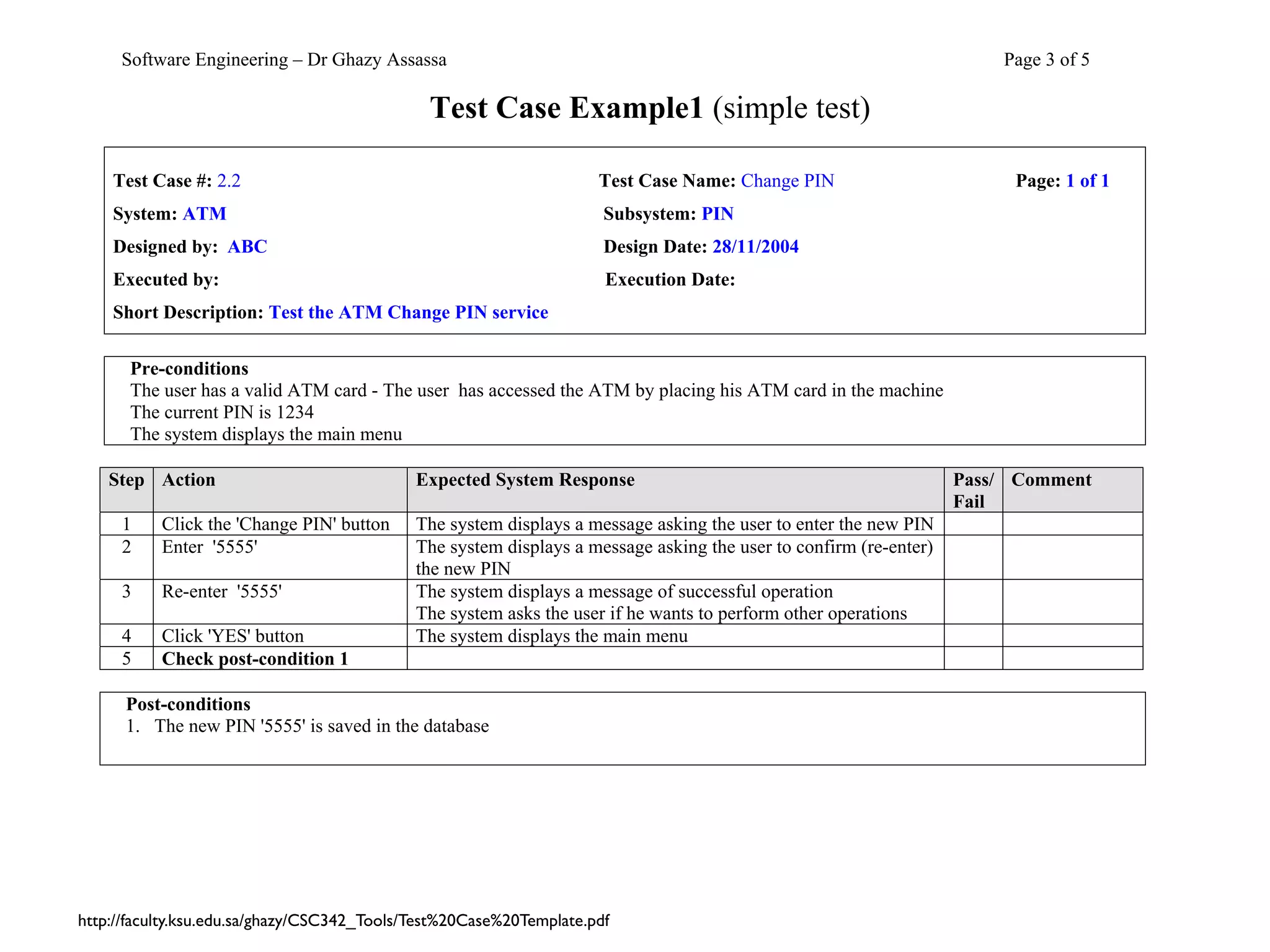

25. Software Engineering – Dr Ghazy Assassa Page 3 of 5
Test Case Example1 (simple test)
Test Case #: 2.2 Test Case Name: Change PIN Page: 1 of 1
System: ATM Subsystem: PIN
Designed by: ABC Design Date: 28/11/2004
Executed by: Execution Date:
Short Description: Test the ATM Change PIN service
Pre-conditions
The user has a valid ATM card - The user has accessed the ATM by placing his ATM card in the machine
The current PIN is 1234
The system displays the main menu
Step Action Expected System Response Pass/ Comment
Fail
1 Click the 'Change PIN' button The system displays a message asking the user to enter the new PIN
2 Enter '5555' The system displays a message asking the user to confirm (re-enter)
the new PIN
3 Re-enter '5555' The system displays a message of successful operation
The system asks the user if he wants to perform other operations
4 Click 'YES' button The system displays the main menu
5 Check post-condition 1
Post-conditions
1. The new PIN '5555' is saved in the database
http://faculty.ksu.edu.sa/ghazy/CSC342_Tools/Test%20Case%20Template.pdf

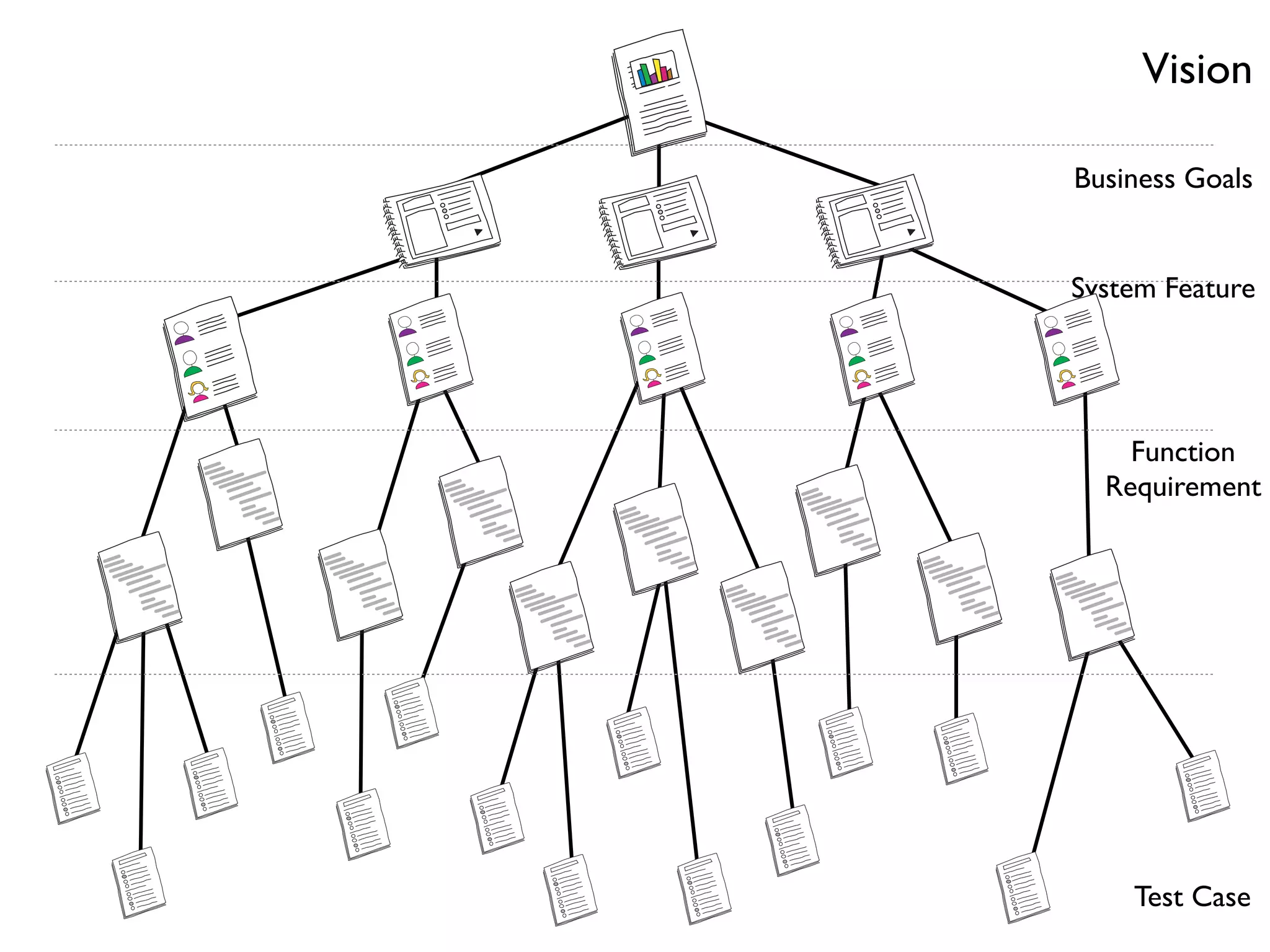

26. Vision
Business Goals
System Feature
Function
Requirement
Test Case

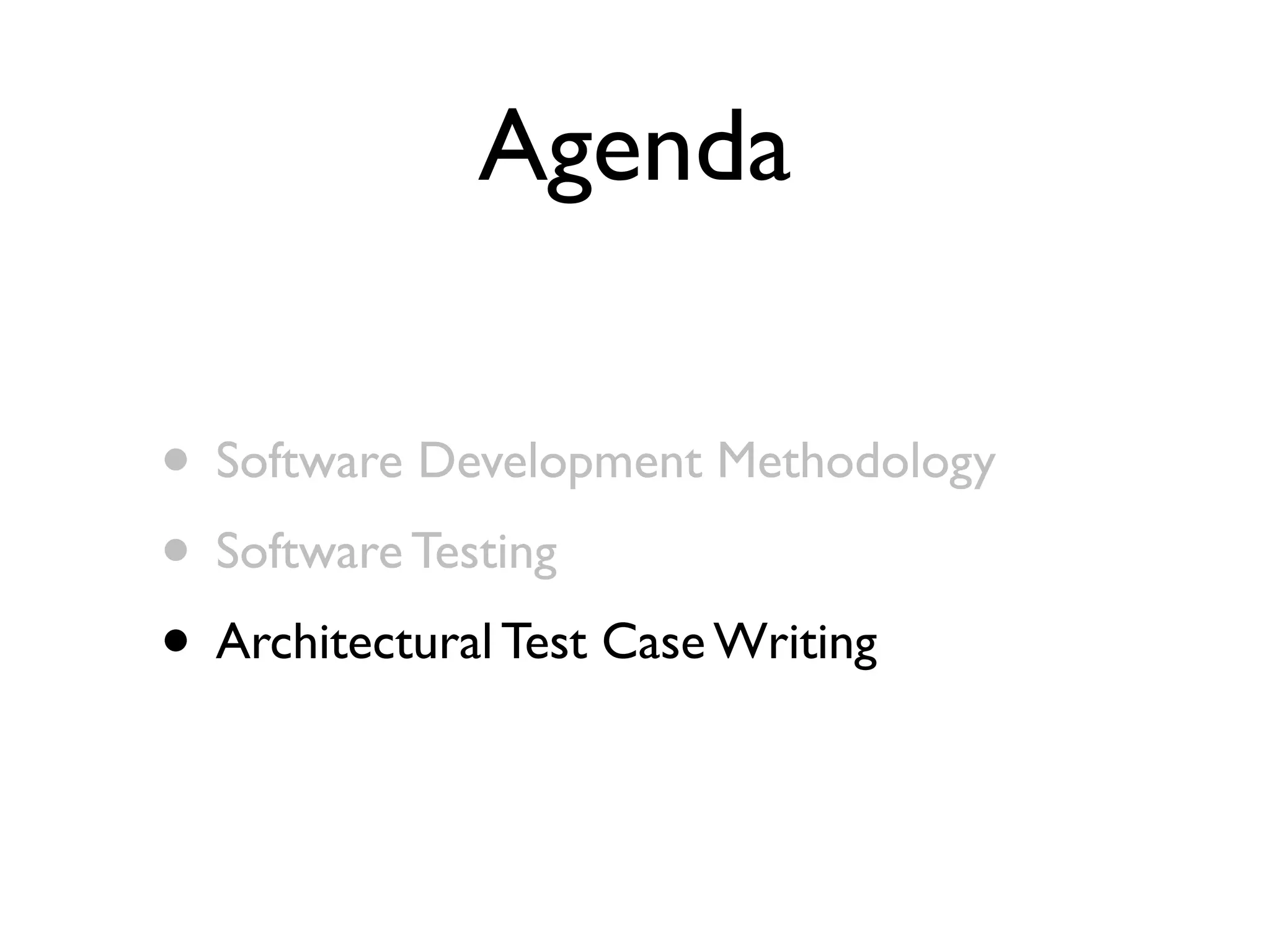

27. Agenda
• Software Development Methodology
• Software Testing
• Architectural Test Case Writing

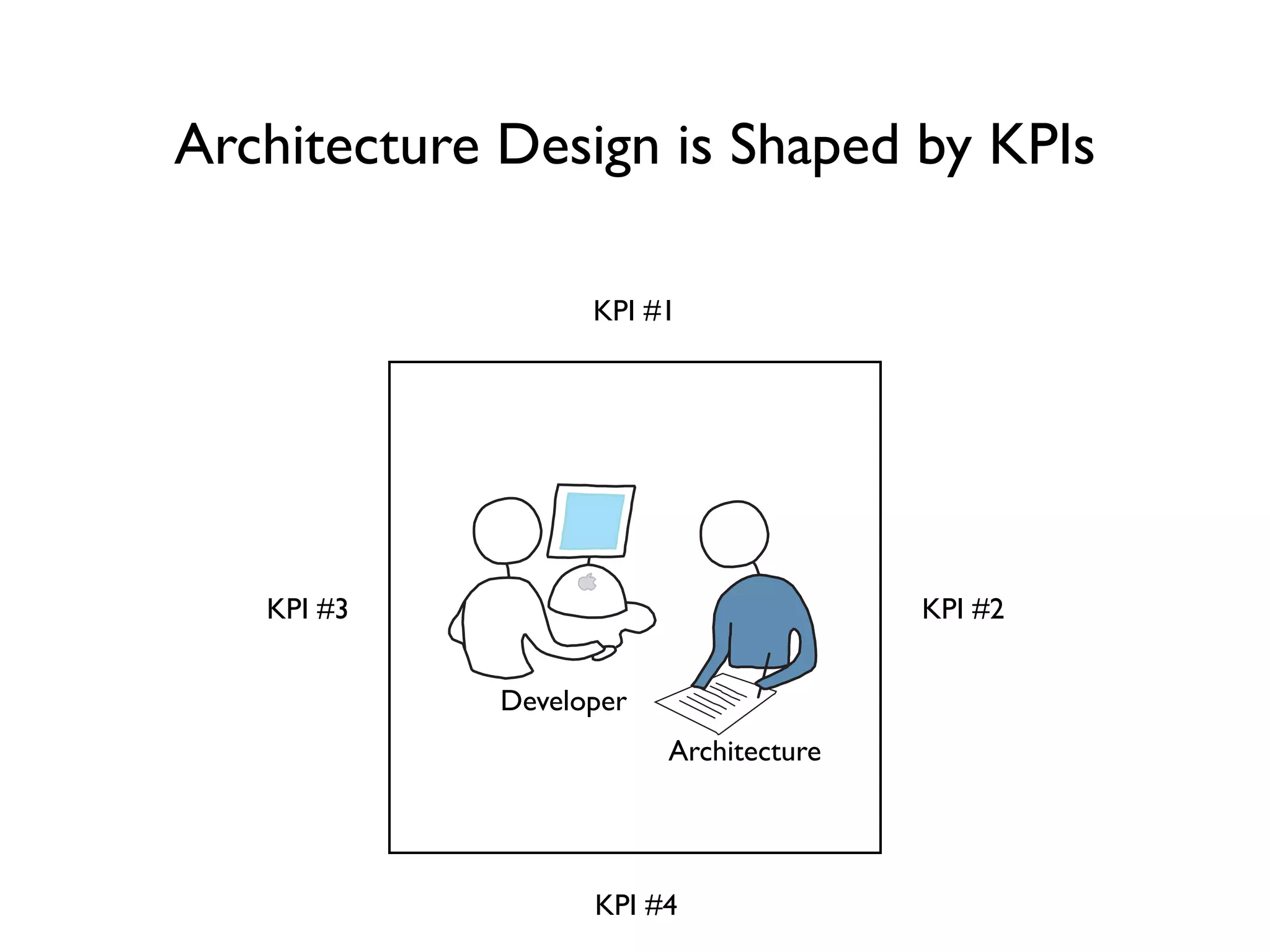

28. Architecture Design is Shaped by KPIs
KPI #1
KPI #3 KPI #2
Developer
Architecture
KPI #4

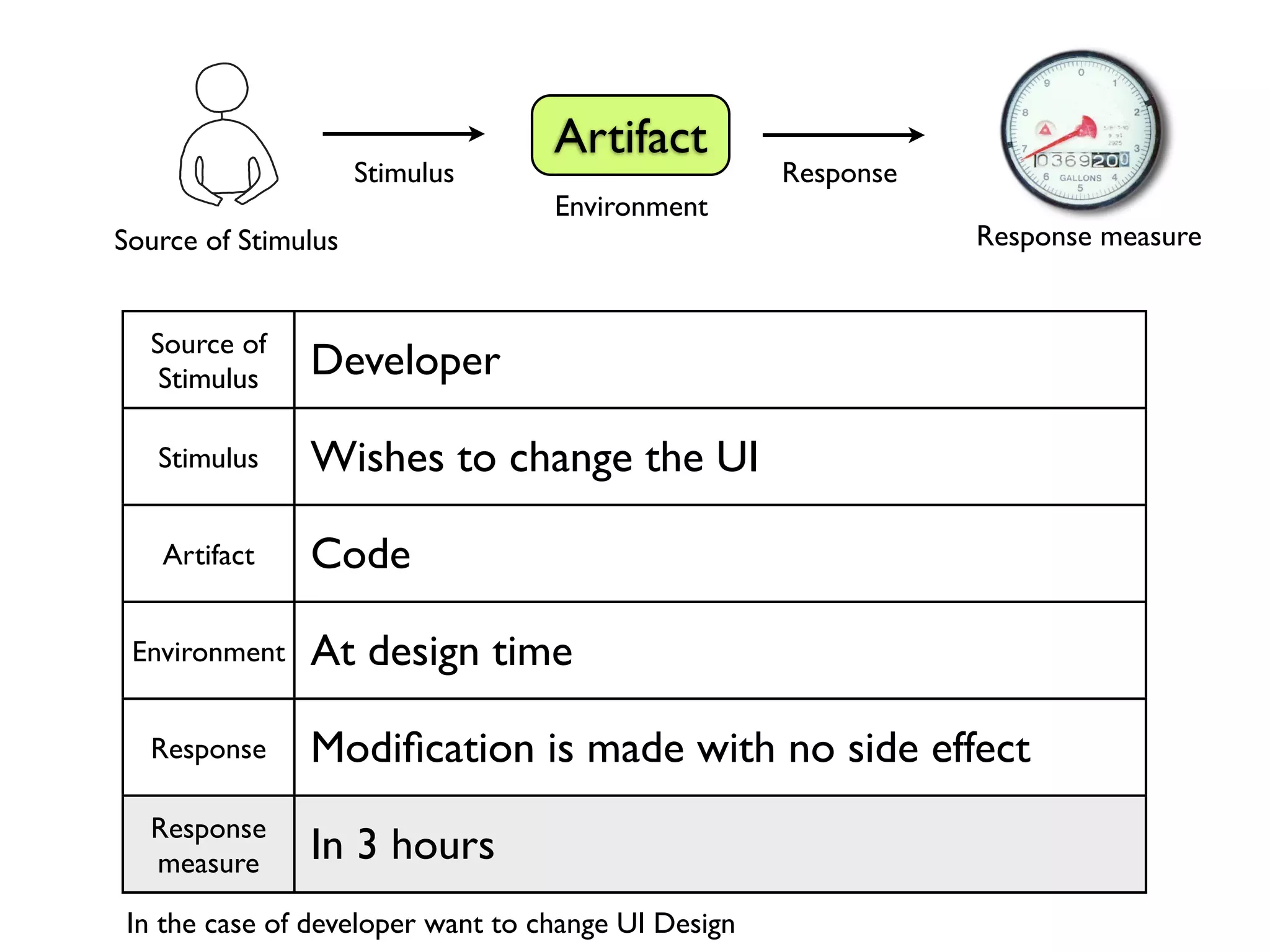

29. Artifact
Stimulus Response
Environment
Source of Stimulus Response measure
Source of
Stimulus Developer
Stimulus Wishes to change the UI
Artifact Code
Environment At design time
Response Modification is made with no side effect
Response
measure In 3 hours
In the case of developer want to change UI Design

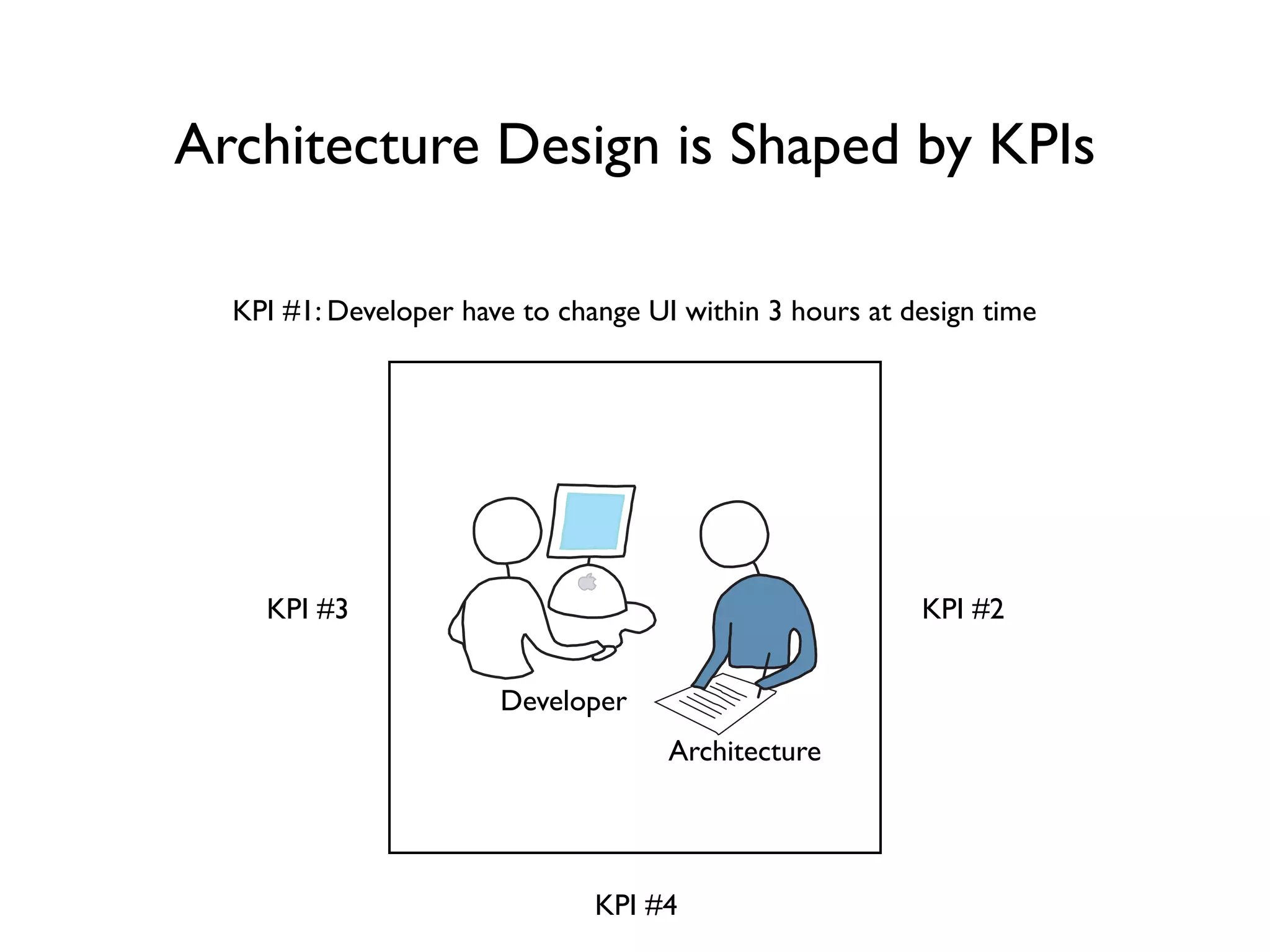

30. Architecture Design is Shaped by KPIs
KPI #1: Developer have to change UI within 3 hours at design time
KPI #3 KPI #2
Developer
Architecture
KPI #4

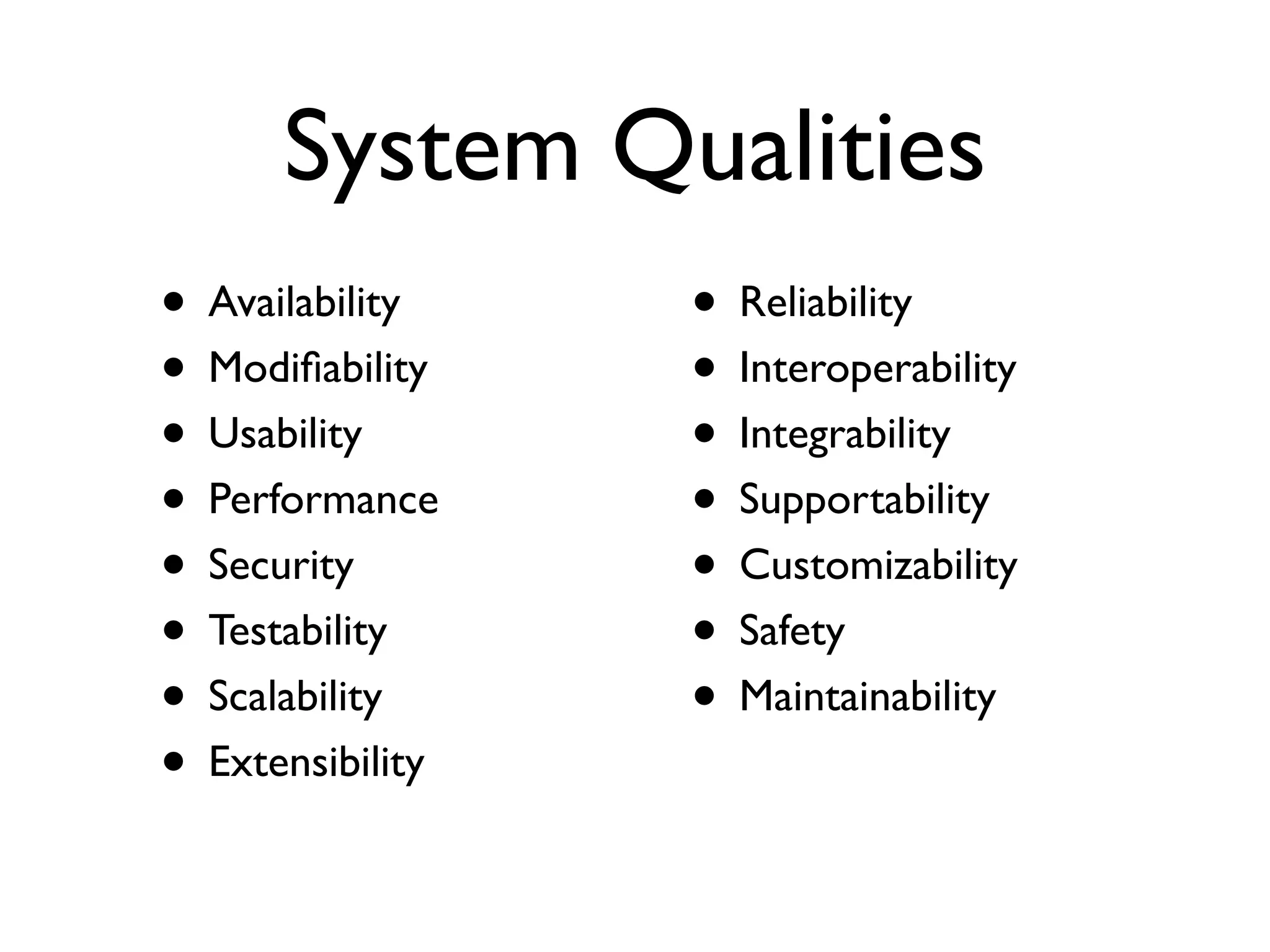

31. System Qualities
• Availability • Reliability
• Modifiability • Interoperability
• Usability • Integrability
• Performance • Supportability
• Security • Customizability
• Testability • Safety
• Scalability • Maintainability
• Extensibility

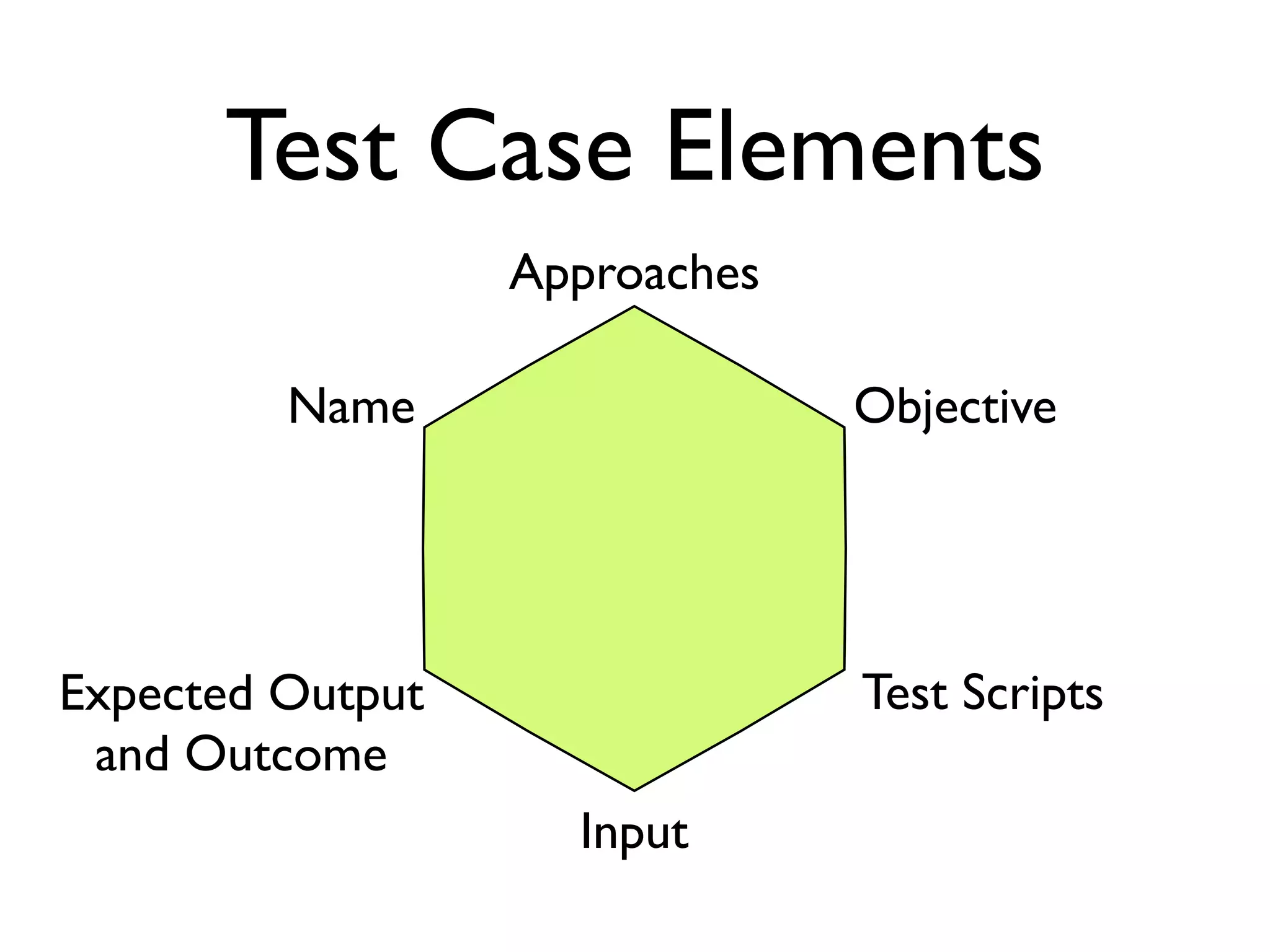

32. Test Case Elements
Approaches
Name Objective
Expected Output Test Scripts
and Outcome
Input

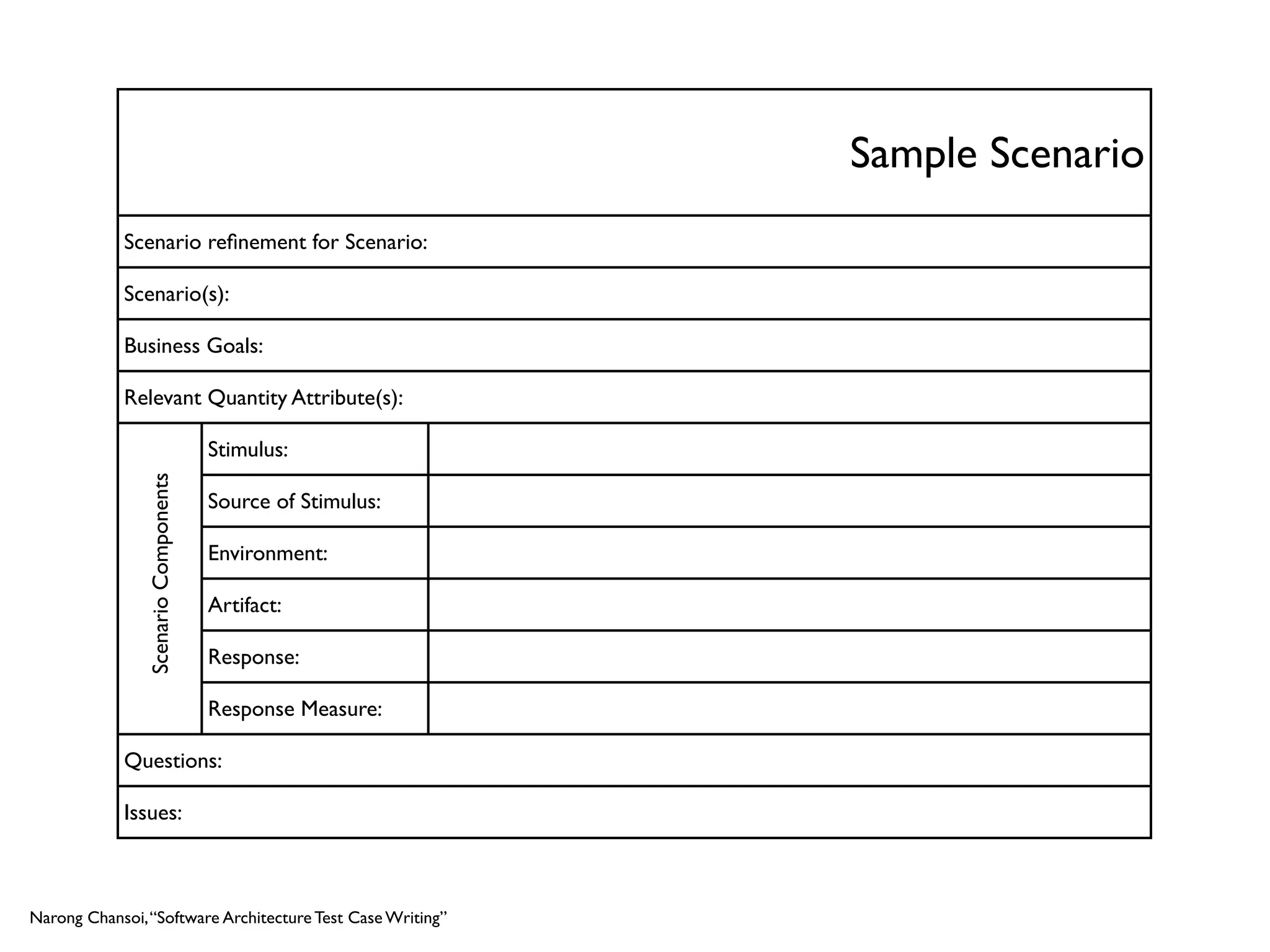

33. Sample Scenario
Scenario refinement for Scenario:
Scenario(s):
Business Goals:
Relevant Quantity Attribute(s):
Stimulus:
Scenario Components
Source of Stimulus:
Environment:
Artifact:
Response:
Response Measure:
Questions:
Issues:
Narong Chansoi, “Software Architecture Test Case Writing”

34. Artifact
Stimulus Response
Environment
Source of Stimulus Response measure
Source of
Stimulus Developer
Stimulus Wishes to change the UI
Artifact Code
Environment At design time
Response Modification is made with no side effect
Response
measure In 3 hours
In the case of developer want to change UI Design

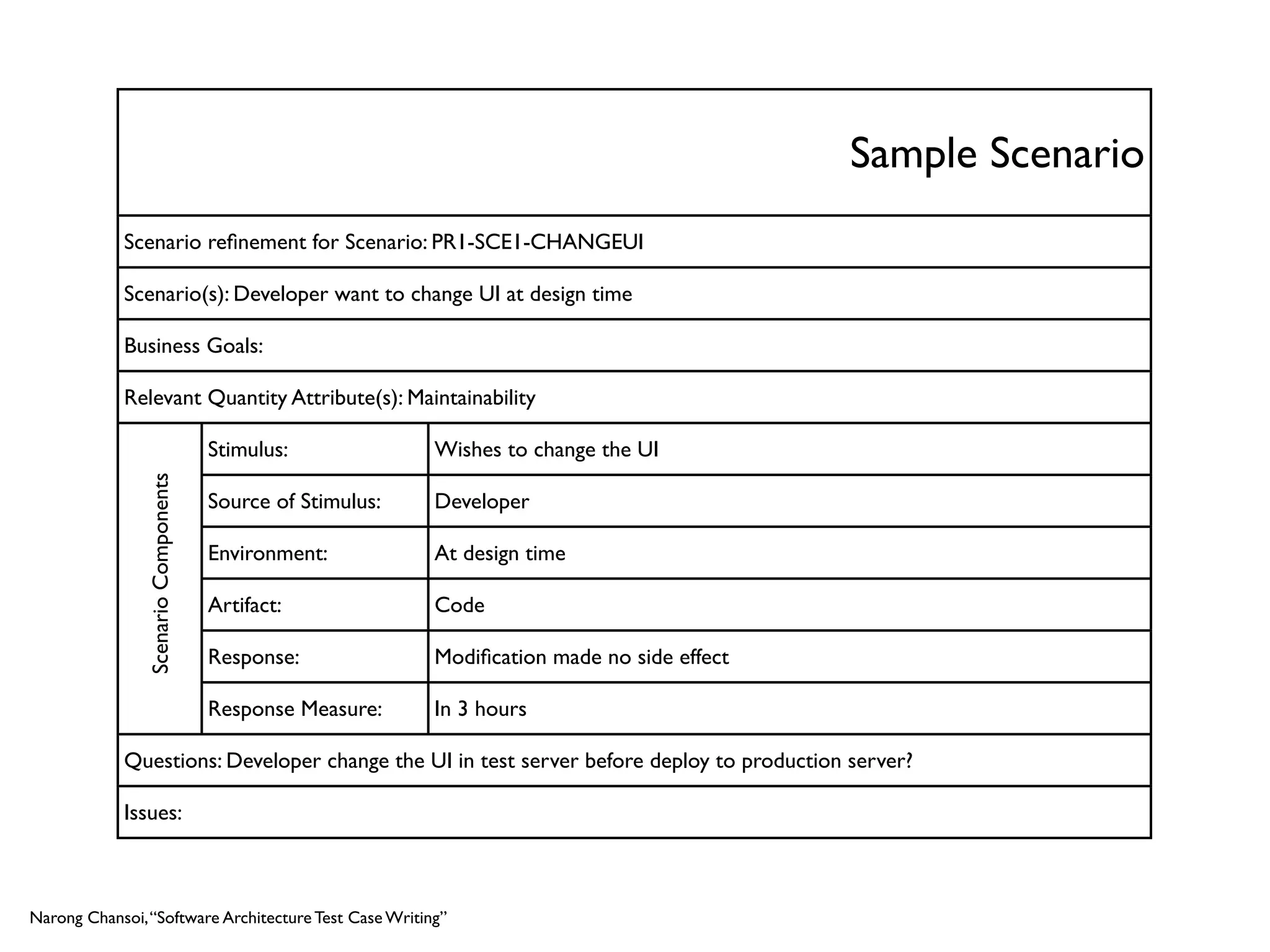

35. Sample Scenario
Scenario refinement for Scenario: PR1-SCE1-CHANGEUI
Scenario(s): Developer want to change UI at design time
Business Goals:
Relevant Quantity Attribute(s): Maintainability
Stimulus: Wishes to change the UI
Scenario Components
Source of Stimulus: Developer
Environment: At design time
Artifact: Code
Response: Modification made no side effect
Response Measure: In 3 hours
Questions: Developer change the UI in test server before deploy to production server?
Issues:
Narong Chansoi, “Software Architecture Test Case Writing”

36. Software Engineering – Dr Ghazy Assassa Page 3 of 5
Test Case Example1 (simple test)
Test Case #: 2.2 Test Case Name: Change PIN Page: 1 of 1
System: ATM Subsystem: PIN
Designed by: ABC Design Date: 28/11/2004
e
Executed by: Execution Date:
Short Description: Test the ATM Change PIN service
pl
Pre-conditions
The user has a valid ATM card - The user has accessed the ATM by placing his ATM card in the machine
The current PIN is 1234
am
The system displays the main menu
Step Action Expected System Response Pass/ Comment
Fail
1 Click the 'Change PIN' button The system displays a message asking the user to enter the new PIN
2 Enter '5555' The system displays a message asking the user to confirm (re-enter)
the new PIN
Ex
3 Re-enter '5555' The system displays a message of successful operation
The system asks the user if he wants to perform other operations
4 Click 'YES' button The system displays the main menu
5 Check post-condition 1
Post-conditions
1. The new PIN '5555' is saved in the database
http://faculty.ksu.edu.sa/ghazy/CSC342_Tools/Test%20Case%20Template.pdf

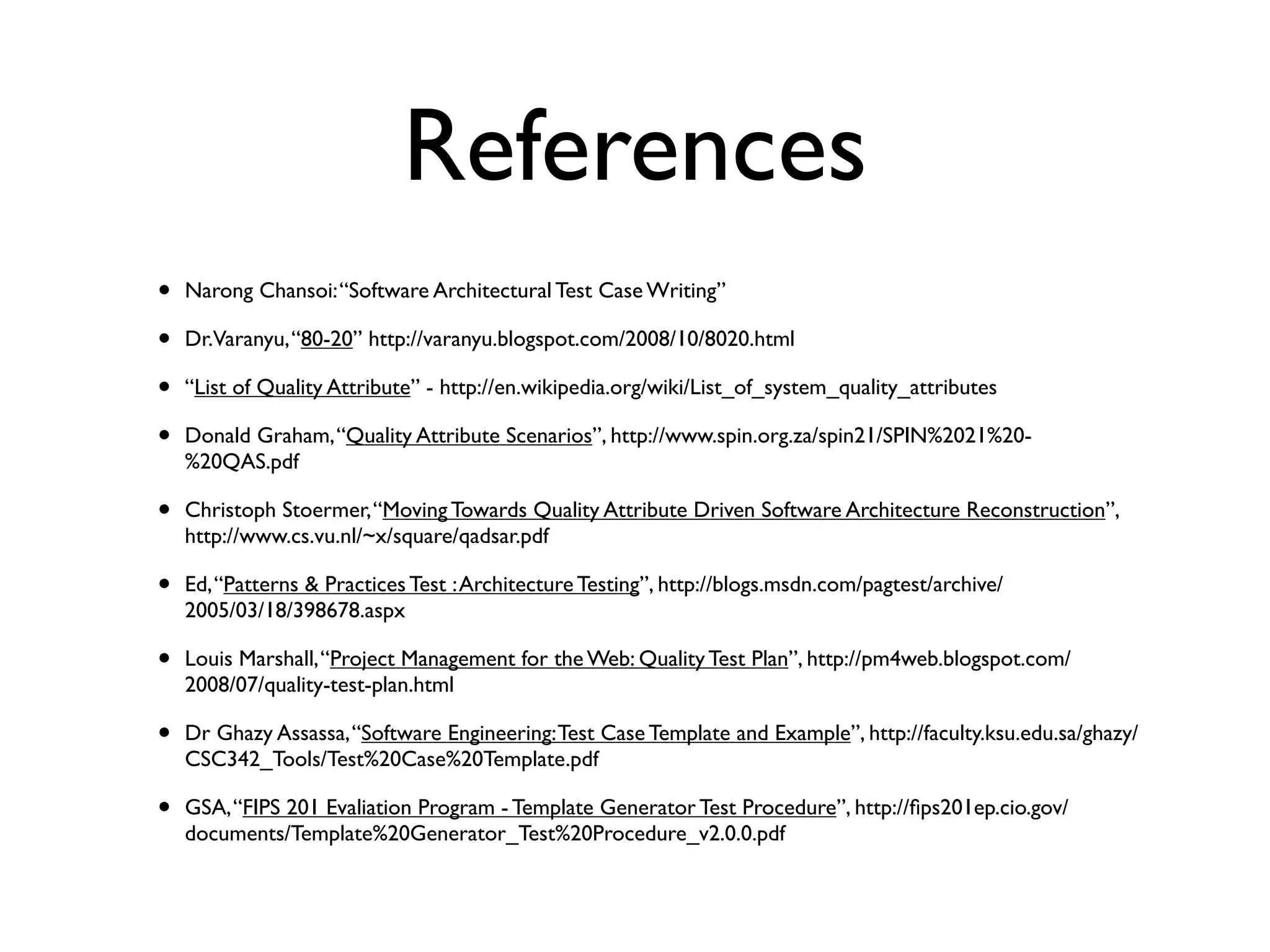

37. References
• Narong Chansoi: “Software Architectural Test Case Writing”
• Dr.Varanyu, “80-20” http://varanyu.blogspot.com/2008/10/8020.html
• “List of Quality Attribute” - http://en.wikipedia.org/wiki/List_of_system_quality_attributes
• Donald Graham, “Quality Attribute Scenarios”, http://www.spin.org.za/spin21/SPIN%2021%20-
%20QAS.pdf
• Christoph Stoermer, “Moving Towards Quality Attribute Driven Software Architecture Reconstruction”,
http://www.cs.vu.nl/~x/square/qadsar.pdf
• Ed, “Patterns & Practices Test : Architecture Testing”, http://blogs.msdn.com/pagtest/archive/
2005/03/18/398678.aspx
• Louis Marshall, “Project Management for the Web: Quality Test Plan”, http://pm4web.blogspot.com/
2008/07/quality-test-plan.html
• Dr Ghazy Assassa, “Software Engineering: Test Case Template and Example”, http://faculty.ksu.edu.sa/ghazy/
CSC342_Tools/Test%20Case%20Template.pdf
• GSA, “FIPS 201 Evaliation Program - Template Generator Test Procedure”, http://fips201ep.cio.gov/
documents/Template%20Generator_Test%20Procedure_v2.0.0.pdf

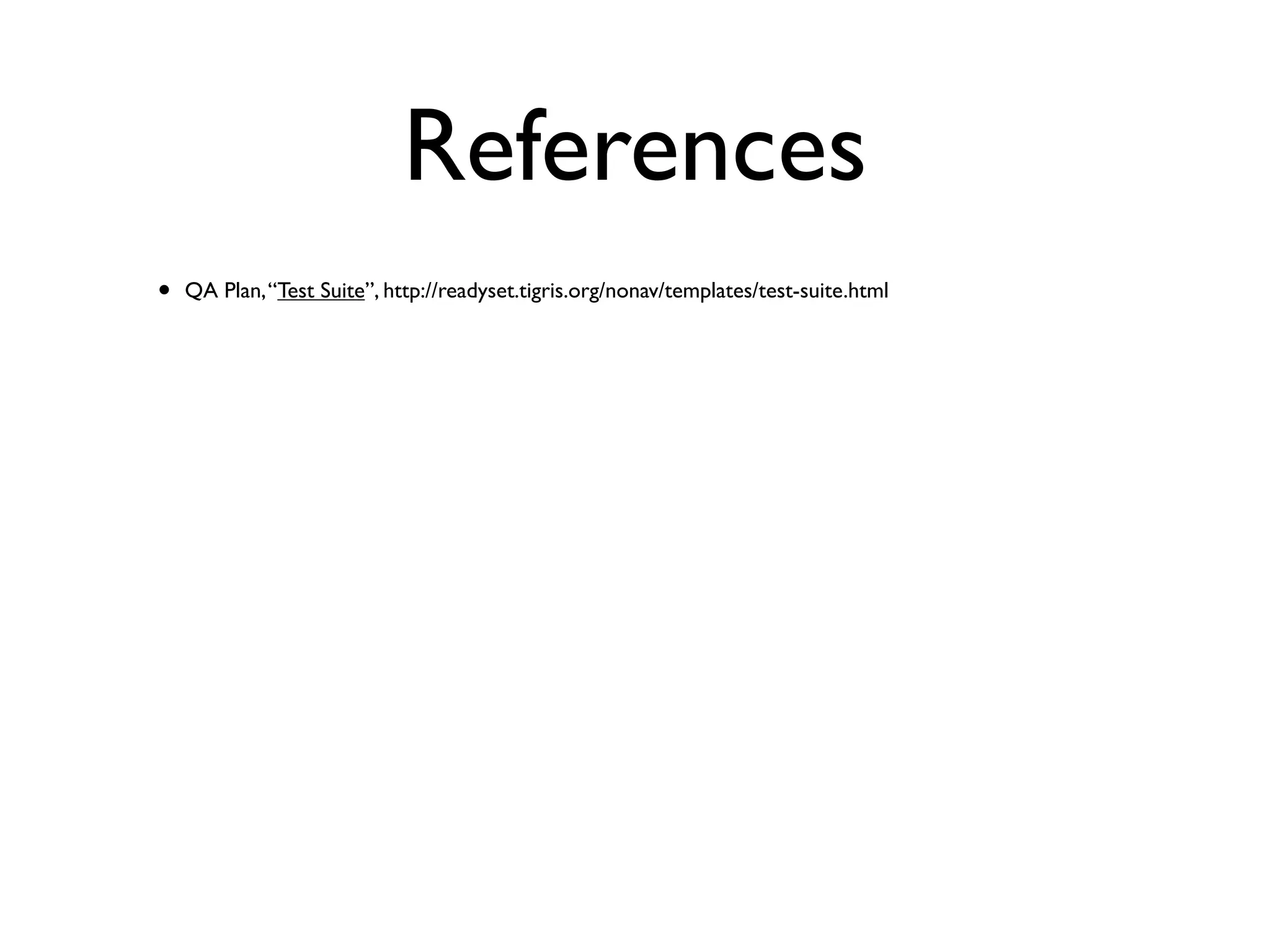

38. References
• QA Plan, “Test Suite”, http://readyset.tigris.org/nonav/templates/test-suite.html
