The Picor Cool-Oring series offers active oring solutions for various bus voltages, including sub 5V to 48V, with significant performance advantages such as faster response times and lower on-resistance compared to competitors. Their compact SIP packages optimize space and simplify PCB layouts, making them ideal for high and low-side telecom applications. The series includes fully integrated controllers and discrete solutions, providing a broad range of options for redundant power architectures.

1. Picor Cool-ORing® Active ORing Series
1

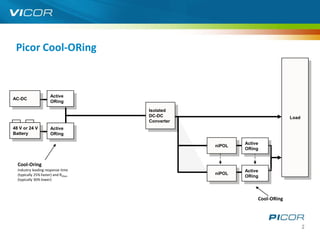

2. Picor Cool-ORing
Active
AC-DC
ORing
Isolated
DC-DC Load
Converter
48 V or 24 V Active
Battery ORing
Active
niPOL
ORing
Cool-Oring
Industry leading response time Active
(typically 25% faster) and RDSon niPOL
ORing
(typically 30% lower)
Cool-ORing
2

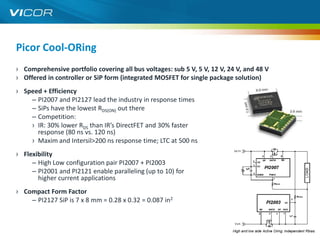

3. Picor Cool-ORing
› Comprehensive portfolio covering all bus voltages: sub 5 V, 5 V, 12 V, 24 V, and 48 V
› Offered in controller or SiP form (integrated MOSFET for single package solution)
› Speed + Efficiency
– PI2007 and PI2127 lead the industry in response times
– SiPs have the lowest RDS(ON) out there
– Competition:
› IR: 30% lower RDS than IR’s DirectFET and 30% faster
response (80 ns vs. 120 ns)
› Maxim and Intersil >200 ns response time; LTC at 500 ns
› Flexibility
– High Low configuration pair PI2007 + PI2003
– PI2001 and PI2121 enable paralleling (up to 10) for
higher current applications
› Compact Form Factor
– PI2127 SiP is 7 x 8 mm = 0.28 x 0.32 = 0.087 in2
3

4. Picor Cool-ORing SiP = System in Package
› Discrete universal active-ORing controllers:
S D
– Offered in multiple packages
MOSFET
PI200x – Drives industry standard MOSFETs
G
– Wide range of bus voltage applications
Controller
IC
› Full-function active ORing solutions:
– Very small, high density fully optimized 5 mm x 7 mm LGA
PI21xx › Up to 70% space savings versus conventional solution
S D › Low profile
MOSFET
– Integrated high performance MOSFET
– Variety of solutions to address different bus voltages
Controller – Simplifies PCB layout
Full-Function Solution
4

5. Picor Cool-ORing High and Low-Side Telecom Application
› 36 – 75 V high & low-side telecom active
ORing app note available now
5

6. Picor Cool-ORing Competition
Active
ORing
Hot-Swap /
Load Switch
Active
ORing
Hot- Active
niPOL
Swap ORing
Hot- Active
niPOL
Swap ORing
6

7. VI Chip PRM Protection with Picor Cool-ORing and Cool-Switch
PI2161: 60 V, 12 Amp Full-Function
Load Disconnect Switch Solution
PI2161 PI2127
48 V PRM
Input
To VTMs
PI2127: 60 V, 12 Amp Full-Function
Active ORing Solution
PI2161 PI2127
PRM
Cool-Switch® for Circuit Breaker Applications Cool-ORing® for Redundant Power Architectures
• Very small, high-density SIP packaging integrates • Very small, high-density SIP packaging integrates
high performance ultra-low resistance MOSFETs & high performance ultra-low resistance MOSFETs &
proprietary controller. proprietary controller.
• Up to 70% space savings • Up to 70% space savings
• Wide operating range • Feature rich
• Programmable • Broad product offering (package & voltage ratings)
to address all redundant buses, high & low-side from
48 V to point-of-load
7
