4. Engage users through streaming app
*http://www.nielsen.com/us/en/insights/reports/2014/shifts-in-viewing-the-cross-platform-report-q2-2014.html
+53
%
+80
%
+60
%
-1% -1% -2%
18/34 35/49 50/64 Ages

5. Engage users through streaming app
q In US more than 2 milion people watched last World Cup by a mobile App.1
q 270% increase in online video watched by smartphone and tablet.2
q More than one bilion tap on Google Chromecast cast button.3
q YouTube viewer habits prove “the bigger the screen, the longer people
watch.”4
1)WatchESPN app access 2)Nielsen Q3 ‘14 Total Audience report 3) Google’s Omid Kordestani interview 2015 4) Youtube usage internal analysis.

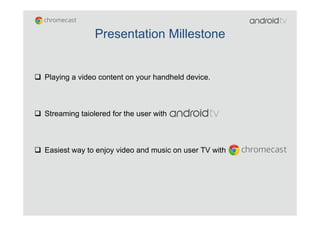

6. q Playing a video content on your handheld device.
q Streaming taiolered for the user with
q Easiest way to enjoy video and music on user TV with
Presentation Millestone

7. Android multimedia framework
Android support for playing several media types from media file stored inside
the application (raw resources, standalone files) or for OTT streaming.
*Camera, foto rendering and other media type are managed by it but they are out of scope for this talk.
Network Protocols
RTSP (RTP, SDP)
HTTP/HTTPS progressive streaming
HTTP/HTTPS live streaming
Dynamic adaptive streaming over HTTP (DASH)
Smooth Streaming
Core Media Formats
H.263 ->3GPP(.3gp),MPEG-4(.mp4)
H.264 AVC -> 3GPP(.3gp),MPEG-4(.mp4),MPEG-
TS(.ts)
MPEG-4 SP -> 3GPP(.3gp)
VP8 -> WebM(.webm),Matroska(.mkv)
Note. Any given mobile device may provide support for additional formats or file types not listed in the table.

8. Android multimedia framework documentation
50% Android multimedia framework questions are unaswered on
Stackoverflow

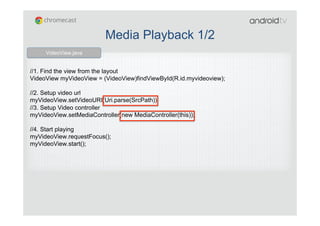

9. //1. Find the view from the layout
VideoView myVideoView = (VideoView)findViewById(R.id.myvideoview);
//2. Setup video url
myVideoView.setVideoURI(Uri.parse(SrcPath));
//3. Setup Video controller
myVideoView.setMediaController(new MediaController(this));
//4. Start playing
myVideoView.requestFocus();
myVideoView.start();
VideoView.java
Media Playback 1/2

10. //0. Get SurfaceView and its holder
mPreview = (SurfaceView)findViewById(R.id.surfaceView);
holder = mPreview.getHolder();
mp = new MediaPlayer(); //1. Create MediaPlayer object:
//2. Add SurfaceHolder callback - Aware when SurfaceView is created
holder.addCallback(new SurfaceHolder.Callback(){ ....
@Override
public void surfaceCreated(SurfaceHolder holder) {
mp.setDisplay(holder); //3. Attach the surface to the player
try {
mp.setDataSource(filepath);
//4. Prepare the Mediaplayer in sync or async mode ( prepareAsync() )
mp.prepare();
} catch (Exception e) {// Catch the exception}
mp.start(); //5. Start the player }...
});
MediaPlayer.java
Media Playback 2/2

11. ExoPlayer
ExoPlayer is a media player built on top of the MediaExtractor and MediaCodec
APIs released in Android 4.1 (API level 16).
ExoPlayer provides default TrackRenderer implementations for audio and
video, which make use of the MediaCodec and AudioTrack classes in the
Android framework.
During playback, your app can listen for events generated by the ExoPlayer
that indicates the overall state of the player (ExoPlayer.Listener).

12. player = ExoPlayer.Factory.newInstance(RENDERER_COUNT, minBuffer, maxBuffer);
// 2. Construct renderers.
DataSource dataSource = new UriDataSource(userAgent, bandwidthMeter);
HlsChunkSource chunkSource = new HlsChunkSource(dataSource, url, manifest, bandwidthMeter,
null,
HlsChunkSource.ADAPTIVE_MODE_SPLICE);
HlsSampleSource sampleSource = new HlsSampleSource(chunkSource, true, 3);
MediaCodecVideoTrackRenderer videoRenderer = new
MediaCodecVideoTrackRenderer(sampleSource,
MediaCodec.VIDEO_SCALING_MODE_SCALE_TO_FIT, 5000, player.getMainHandler(),
player, 50);
MediaCodecAudioTrackRenderer audioRenderer = new
MediaCodecAudioTrackRenderer(sampleSource);
player.prepare(videoRenderer, audioRenderer); // 3. Inject the renderers through prepare.
player.setSurface(surfaceView.getHolder().getSurface()); // 4. Pass the surface to the video renderer.
player.setPlayWhenReady(true); // 5. Start playback
…
…
player.release(); // Release when everything is done!
ExoPlayer.java
ExoPlayer – HLS implementation

13. What next?
q Built-in players
ü AwesomePlayer (default player selected)
ü NuPlayer (Apple HLS)
q Extra player factories can be registered
q DIY mediaplayer
ü Demuxing: android.media.mediaExtractor
ü Decoding: android.media.MediaCodec
ü Video rendering: android.media.MediaCodec
ü Audio rendering: android.media.AudioTrack
ü Implement the interface
frameworks/av/include/media/MediaPlayerInterface.h

14. Android TV

15. Android TV is Android!!!

16. Smartphone 5”
320 dp
TV Full HD 30”
320 dp
10 feet
16 inches
10 foot experience

17. Keep calm and lean back!!
Provides built-in tailored for 10 feet experience

18. <uses-feature android:name="android.software.leanback"
android:required="true" />
<application
android:allowBackup="false”
android:label="@string/app_name”
android:theme="@style/Theme.Leanback" >
<activity
android:name="MainActivity”
android:screenOrientation="landscape" >
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category
android:name="android.intent.category.LEANBACK_LAUNCHER" />
</intent-filter>
</activity>
AndroidManifest.xml
Android Manifest features1/2

19. Android Manifest features 2/2
Supporting landscape orientation is mandatory
No touch screen is required
<uses-feature android:name="android.hardware.sensor.accelerometer”
android:required="false" />
<uses-feature android:name="android.hardware.touchscreen”
android:required="false"/>
<activity android:name=”AndroidTvActivity”
android:screenOrientation="landscape" >
Limit your sensor! Your app doesn’t need to accelerate!!!

20. Leanback UI component – BroswerFragment

21. Leanback UI component – DetailFragment

22. Building Live TV Apps
TV Input Framework provides a unified method for receiving
audio and video channel content from hardware sources and
software sources.
Android 5.0 (API level 21) or higher
TV Provider manages all EPG info, meanwhile TV Input
Manager handles streaming contents.

23. TV Input Manager
<service android:name=”droidcon.it.DroidconTvInputService"
android:label="@string/sample_tv_input_label"
android:permission="android.permission.BIND_TV_INPUT">
<intent-filter>
<action android:name="android.media.tv.TvInputService" />
</intent-filter>
<meta-data android:name="android.media.tv.input"
android:resource="@xml/sample_tv_input" />
</service>
onTune() event is fired when user selects a channel, and
notifies the system TV app for changes in the content and
meta data.
TvInputService creates a TvInputService.Session that
implements Handler.Callback to handle player state
changes.

24. TV provider
<uses-permission android:name="com.android.providers.tv.permission.READ_EPG_DATA" />
<uses-permission android:name="com.android.providers.tv.permission.WRITE_EPG_DATA" />
Tv Channel
COLUMN_DESCRIPTION
COLUMN_DISPLAY_NAME
COLUMN_DISPLAY_NUMBER
COLUMN_INPUT_ID
COLUMN_SERVICE_TYPE
COLUMN_TRANSPORT_STREAM_ID
COLUMN_TYPE
COLUMN_INTERNAL_PROVIDER_DATA
COLUMN_NETWORK_AFFILIATION
COLUMN_ORIGINAL_NETWORK_ID
COLUMN_SEARCHABLE
COLUMN_SERVICE_ID
COLUMN_VERSION_NUMBER
COLUMN_VIDEO_FORMAT
Tv Program
COLUMN_LONG_DESCRIPTION
COLUMN_POSTER_ART_URI
COLUMN_SEASON_NUMBER
COLUMN_SHORT_DESCRIPTION
COLUMN_START_TIME_UTC_MILLIS
COLUMN_THUMBNAIL_URI
COLUMN_TITLE
COLUMN_VERSION_NUMBER
COLUMN_VIDEO_HEIGHT
COLUMN_VIDEO_WIDTH
COLUMN_AUDIO_LANGUAGE
COLUMN_BROADCAST_GENRE
COLUMN_CANONICAL_GENRE
COLUMN_CHANNEL_ID
COLUMN_CONTENT_RATING
COLUMN_END_TIME_UTC_MILLIS
COLUMN_EPISODE_NUMBER
COLUMN_EPISODE_TITLE
COLUMN_INTERNAL_PROVIDER_DATA
A basic database of TV content metadata such as channel and program
information.
Manifest permission:

25. Chromecast
a cast-ready device for multi-screen experience
source: www.google.it

26. Chromecast
some numbers
• 10 million units sold
• 1 billion times for Cast button
• 300+ apps on Play Store
• 6000 developers on 10000 apps

27. Chromecast
components
• Google Cast technology
• Multi-Screen experiece
• Google Cast SDK
• Sender Application
• Android app
• iOS app
• Chrome app
• Receiver Application
• Default Media Receiver
• Styled Media Receiver
• Custom Media Receiver

28. Android Client Application
library dependencies
• Minimum SDK version supported by Google Cast is 9 (Gingerbread)
• MediaRouter API of android-support-v7
• Google Play Services
• AppCompat API of android-support-v7

29. Android Client Application
typical sender application flow
• Sender app starts MediaRouter device discovery: MediaRouter.addCallback
• MediaRouter informs sender app of the route the user selected:
MediaRouter.Callback.onRouteSelected
• Sender app retrieves CastDevice instance: CastDevice.getFromBundle
• Sender app creates and uses GoogleApiClient: GoogleApiClient.Builder
• Sender app launches the receiver app: Cast.CastApi.launchApplication
• Sender app creates a communication channel: Cast.CastApi.setMessageReceivedCallbacks
• Sender sends a message to the receiver over the communication channel:
Cast.CastApi.sendMessage
source: developers.google.com

30. Cast-Ready Device Discovery
capabilities
Remote
Playback
Live
Audio
Live
Video
MediaRouteSelector.Builder builder = new MediaRouteSelector.Builder();
builder.addControlCategory(MediaControlIntent.CATEGORY_REMOTE_PLAYBACK);
builder.addControlCategory(MediaControlIntent.CATEGORY_LIVE_AUDIO);
builder.addControlCategory(MediaControlIntent.CATEGORY_LIVE_VIDEO);
MediaRouterSelector selector = builder.build();
MainAc'vity.java

31. Media Cast Button
easy approach for discovering
source: developers.google.com source: developers.google.com
public boolean onCreateOptionsMenu(Menu menu) {
MenuItem mediaRouteMenuItem = menu.findItem(R.id.media_route_menu_item);
MediaRouteActionProvider mediaRouteActionProvider = (MediaRouteActionProvider)
MenuItemCompat.getActionProvider(mediaRouteMenuItem);
mediaRouteActionProvider.setRouteSelector(mMediaRouteSelector);
}
MainAc'vity.java

32. RemoteMediaPlayer
…finally
MediaInfo mediaInfo = new MediaInfo.Builder("http://your.server.com/video.mp4")
.setContentType("video/mp4")
.setStreamType(MediaInfo.STREAM_TYPE_BUFFERED)
.setMetadata(mediaMetadata)
.build();
…
mRemoteMediaPlayer = new RemoteMediaPlayer();
mRemoteMediaPlayer.load(mApiClient, mediaInfo, true);
…
MainAc'vity.java

33. Receiver Application
powered by Chrome
What is?
HTML5 and Javascript application
What does?
Display the media content on TV
Message handling
Which type?
Default
Media
Receiver
Styled
Media
Receiver
Custom
Media
Receiver
source: unknow

34. Default Media Receiver
simplest
• Off-the-shelf
• No UI customization
• No registration
Source: developers.google.com

35. Styled Media Receiver
simple and customizable
• Similar to Default Media Player
• CSS UI customization
• Registration
Source:
developers.google.com

36. Custom Media Receiver
whatever you want
• Fully Web Applicaiton
• Debug(able) at 9222
• Registration
Source: developers.google.com

37. Custom Media Receiver
basic example
<html>
<head>
<title>Example minimum receiver</title>
<script src="//www.gstatic.com/cast/sdk/libs/receiver/2.0.0/cast_receiver.js"></
script>
</head>
<body>
<video id='media'/>
<script>
window.mediaElement = document.getElementById('media');
window.mediaManager = new cast.receiver.MediaManager(window.mediaElement);
window.castReceiverManager = cast.receiver.CastReceiverManager.getInstance();
window.castReceiverManager.start();
</script>
</body>
</html>
Index.htm

38. Custom Media Receiver
advanced features
• Video Codification/Decodification
• H.264 High Profile Level 4.1, 4.2 and 5
• VP8
• Adaptive Bitrate Streaming
• HTTP Live Streaming (HLS)
• Dynamic Adaptive Streaming over HTTP (MPEG-DASH)
• Smooth Streaming
• Digital Rights Management
• Play Ready DRM
• Widevine DRM
• Media Player Library

39. Custom Media Receiver
advanced example
Index.htm
<html>
<head>
<script
src="//www.gstatic.com/cast/sdk/libs/mediaplayer/1.0.0/media_player.js" />
</head>
<body>
<script type="text/javascript">
window.defaultOnLoad = mediaManager.onLoad;
mediaManager.onLoad = function (event) {
if (window.player !== null) {
player.unload();
window.player = null;
}

40. Custom Media Receiver
advanced example
if (event.data['media'] && event.data['media']['contentId']) {
var url = event.data['media']['contentId'];
window.host = new cast.player.api.Host({'mediaElement':mediaElement, 'url':url});
var ext = url.substring(url.lastIndexOf('.'), url.length);
var startAt = event.data['media']['currentTime'] || 0;
var autoplay = event.data['autoplay'] || true;
var protocol = null;
mediaElement.autoplay = autoplay;
if (url.lastIndexOf('.m3u8') >= 0) {
protocol = cast.player.api.CreateHlsStreamingProtocol(host);
} else if (url.lastIndexOf('.mpd') >= 0) {
protocol = cast.player.api.CreateDashStreamingProtocol(host);
} else if (url.indexOf('.ism/') >= 0) {
protocol = cast.player.api.CreateSmoothStreamingProtocol(host);
}
Index.htm

41. Custom Media Receiver
advanced example
host.onError = function(errorCode) {
if (window.player) {
window.player.unload();
window.player = null;
}
};
if (protocol !== null) {
window.player = new cast.player.api.Player(host);
window.player.load(protocol, startAt);
} else {
window.defaultOnLoad(event);
}
}
}
window.player = null;
window.castReceiverManager = cast.receiver.CastReceiverManager.getInstance();
castReceiverManager.start();
Index.html

42. Resources
• Google Cast: https://developers.google.com/cast
• Chromecast App:
http://www.google.it/chrome/devices/chromecast/apps.html
• Google Cast Downloads:
https://developers.google.com/cast/docs/downloads
• Github: https://github.com/googlecast
• Android TV: https://developer.android.com/tv
• Android TV Apps:
http://www.google.it/chrome/devices/chromecast/apps.html
• Android TV codelab: g.co/dev/codelab-androidtv
• Github Leanback:
https://github.com/googlesamples/androidtv-Leanback.git

43. Enjoy the video
thank you to all of you
Source: www.huffingtonpost.ca
+MatteoBonifazi +AlessandroMartellucci
@mbonifazi @martellux
