1. Building Streaming Applications with
Streaming SQL
Technical Lead, WSO2
Mohanadarshan Vivekanandalingam
Lead Solutions Engineer, WSO2
Vanjikumaran Sivajothy

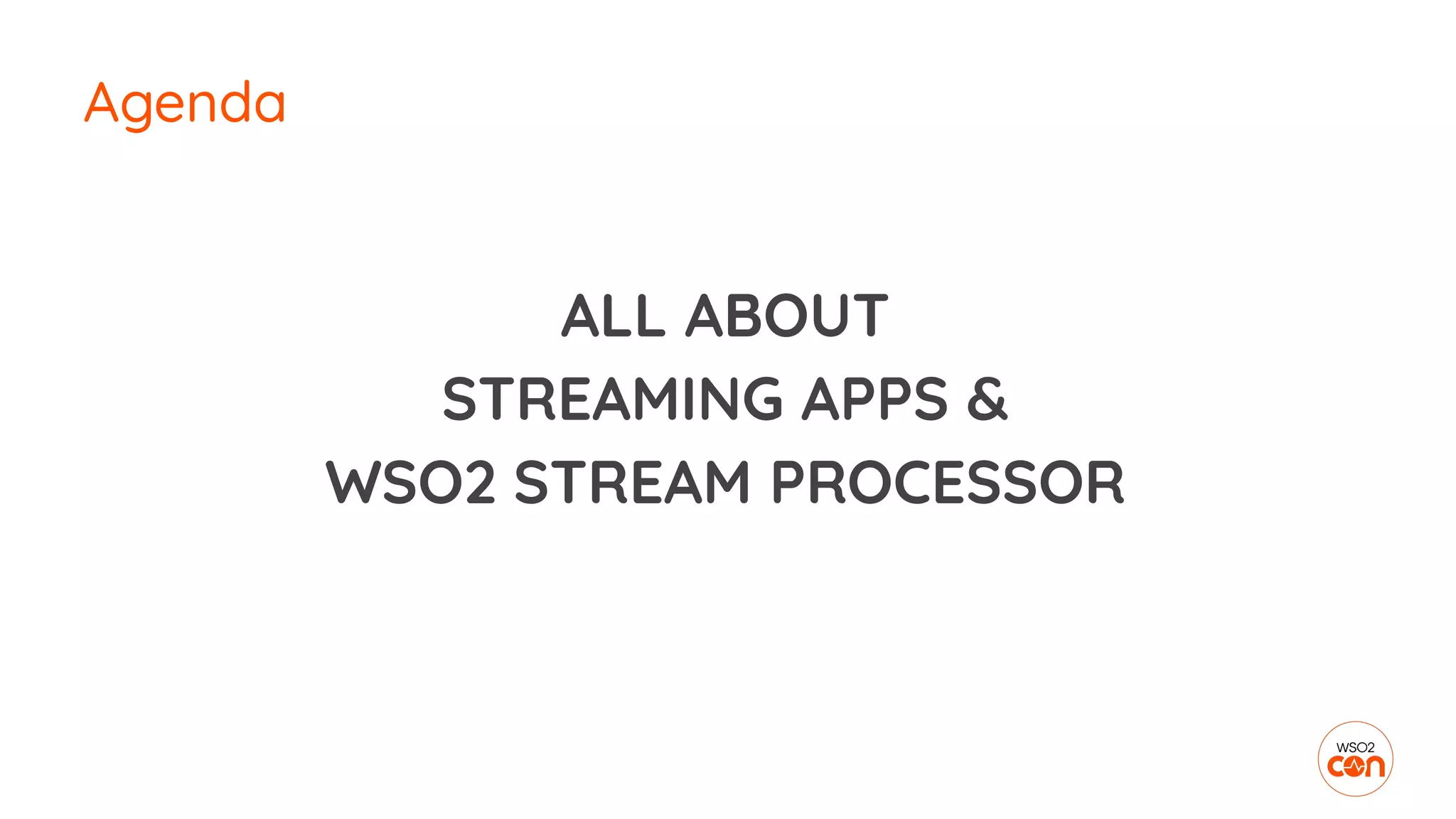

2. ALL ABOUT
STREAMING APPS &
WSO2 STREAM PROCESSOR
Agenda

3. Streaming Application
An Application that provides
analytical operators to
orchestrate data flow, calculate
analytics, and detect patterns on
event data from multiple,
disparate live data sources to
allow developers to build
applications that sense, think, and
act in real-time.
- Forrester

4. Challenges !
Write Code
Complex Deployment
(5-6 nodes)
Inability to Change
Fast

5. WSO2 Streaming
Analytics

6. Solutions
- Streaming SQL + graphical
editor
- 2 node minimum HA
deployment (scale beyond
with distributed deployment)
- Templated SQL scripts + drag
& drop UI

7. WSO2 Stream Processor

8. ● Lightweight, lean & cloud native
● Easy to learn Streaming SQL
● High performance analytics with just 2 nodes (HA)
● Native support for streaming Machine Learning
● Long term aggregations without batch analytics
● Highly scalable deployment with exactly-once processing
● Tools for development and monitoring
● Tools for business users to write their own rules
Overview of WSO2 Stream Processor

9. WSO2 Stream Processor
• Editor/Studio - Developer environment
• Worker/Resource - Resource node
• Dashboard
– Portal - Business dashboard
– Business Rules Manager - Management
console for business users
– Status Dashboard - Monitoring dashboard
• Manager - Job manager for distributed
processing
Profiles

10. WSO2 Analytics - Users

11. Use Case:
Online Shopping Application

12. Use Case
Sweet Factory Management

13. Use Case
• Monitor supply, production and sales
• Optimize resource utilization
• Detect and alert failures
• Predict demand
• Manage processing rules online
• Visualize real-time performance
Sweet Factory Management

14. Let’s start from the basics

15. Phases in Stream Processing
Receive
- Define Streams
- Configure
- Event Sources
- Event Mappings
- Define Mappings
Analyze
- Stream Processing
- Long-term Incremental
Processing
- Complex Event Processing
- Machine Learning
- Storage Integration
Report
- Define Streams
- Configure
- Event Sinks
- Event Mappings
- Publish results
- View results in dashboard

16. Streaming Processing
With WSO2 Stream Processor
Siddhi Streaming App
- Process events in streaming manner
- Isolated unit with set of queries, input and
output streams
- SQL Like Query Language
from Sales#window.time(1 hour)
select region, brand, avg(quantity) as AvgQuantity
group by region, brand
insert into LastHourSales ;
Stream
Processor
Siddhi App
{ Siddhi }
Input Streams Output Streams
Filter Aggregate
JoinTransform
Pattern
Siddhi Extensions

17. Developer Tools

18. Developer Studio
Supports both Drag n Drop
& Source Editor
Editor
Debugger
Simulation
Testing

20. Stream Processor Studio
• Writing Siddhi applications
– Syntax highlighting
– Auto completion
– Error reporting
– Documentation support
• Debugging Siddhi apps
– Inspect events
– Inspect query states
Developer Environment

21. Stream Processor Studio
• Testing Siddhi apps via Event Simulation
– Send Event by Event
– Simulate Random Data
– Simulate via CSV file
– Simulate from Database
• Support for running and testing on Python
– as PySiddhi
• IDE Tools
– Intellij Idea Plugin
Developer Environment

22. Let’s write some queries

23. Create a Siddhi App
@app:name(‘Sweet-Factory-Analytics’)
Name the Siddhi application

24. Define Input Streams
@app:name(‘Sweet-Factory-Analytics’)
define stream RawMaterialStream(name string, amount double);
define stream SweetProductionStream (name string, amount double);
Define input event streams

25. Define Event Sources
@app:name(‘Sweet-Factory-Analytics’)
@source(type = ‘http’, @map(type = ‘json’))
define stream RawMaterialStream(name string, amount double);
Consume and publish events via
MQTT, HTTP, TCP, Kafka, JMS, RabbitMQ, etc.

26. Define Event Sources
Default Mapping
@app:name(‘Sweet-Factory-Analytics’)
@source(type = ‘http’, @map(type = ‘json’))
define stream RawMaterialStream(name string, amount double);
Using default mapping
{
"event": {
"name": "sugar",
"amount": 75.5
}
}
Supported Mapping
Text, XML, JSON, Binary, KeyValue,
WSO2Event, etc.

27. Define Event Sources
Custom Mapping
@app:name(‘Sweet-Factory-Analytics’)
@source(type = ‘http’, @map(type = ‘json’))
define stream RawMaterialStream
(name string, amount double);
@source(type = ‘http’, @map(type = ‘json’,
@attributes( name = ‘$.item.id’,
amount = ‘$.item.amount’)))
define stream SweetProductionStream (name string, amount double);
Using custom mapping
{
"item": {
"id": "toffees",
"amount": 30.0
}
}

28. Define Event Sinks
To Log Events
@app:name(‘Sweet-Factory-Analytics’)
@source(type = ‘http’, @map(type = ‘json’))
@sink(type =‘log’, level = ‘info’)
define stream RawMaterialStream(name string, amount double);
@source(type = ‘http’, @map(type = ‘json’,
@attributes( name = ‘$.item.id’,
amount = ‘$.item.amount’)))
@sink(type =‘log’, level = ‘info’)
define stream SweetProductionStream (name string, amount double);
Logger sink
to log events on console

29. Use Case 1 :
Production at each factory should not
reduce below 5000 units per hour !

30. 1.1 Monitor and Identify events that
indicate low production

31. Total Amount Produced
define stream SweetProductionStream (name string, amount double);
from SweetProductionStream
select sum(amount) as hourlyTotal
insert into LowProducitonAlertStream ;
Calculate total amount
produced forever

32. Total Amount Produced in the Last Hour
define stream SweetProductionStream (name string, amount double);
from SweetProductionStream#window.time(1 hour)
select sum(amount) as hourlyTotal
insert into LowProducitonAlertStream ; Calculate total amount
produced for last hour

33. Amount Produced Per Product
define stream SweetProductionStream (name string, amount double);
from SweetProductionStream#window.time(1 hour)
select name, sum(amount) as hourlyTotal
group by name
insert into LowProducitonAlertStream ;
Calculate total amount
produced for each product

34. Identify Low Production Rates
define stream SweetProductionStream (name string, amount double);
from SweetProductionStream#window.time(1 hour)
select name, sum(amount) as hourlyTotal
group by name
having hourlyTotal < 5000
insert into LowProducitonAlertStream ;
Filter events where produced
amount is less than 5000

35. Consider Working Hours for Calculation
define stream SweetProductionStream (name string, amount double);
from SweetProductionStream#window.time(1 hour)
select name, sum(amount) as hourlyTotal,
time:extract(currentTimeMillis(), 'HOUR') as currentHour
group by name
having hourlyTotal < 5000 and
currentHour > 9 and currentHour < 17
insert into LowProducitonAlertStream ;
Use functions to extract the
hour of event arrival time

36. Rate Limit Low Production Alerts
define stream SweetProductionStream (name string, amount double);
from SweetProductionStream#window.time(1 hour)
select name, sum(amount) as hourlyTotal,
time:extract(currentTimeMillis(), 'HOUR') as currentHour
group by name
having hourlyTotal < 5000 and
currentHour > 9 and currentHour < 17
output last every 15 min
insert into LowProducitonAlertStream ;
Send alerts every 15 minutes

37. 1.2 Send alerts to factory managers
via email

38. Send Alerts via Email
@sink(type =‘email’, to=‘manager@sf.com’,
subject=‘Low Production of {{name}}!’,
@map (type=‘text’, @payload(“““
Hi Manager,
Production of {{name}} has gone down to {{hourlyTotal}}
in last hour!
From Sweet Factory”””)))
define stream LowProducitonAlertStream (name string, hourlyTotal double,
currentHour int);
Context sensitive
email

39. Use Case 2 :
Raw material storage at the factories
should be closely monitored

40. 2.1 Store raw material shipment
details in a data store

41. Data Store Integration
● Allow to perform operations with the data store while
processing the events on the fly.
Store, Retrieve, Remove and Modify
● Provides a REST endpoint to Query Data Store
● Query Optimizations using Primary and Indexing Keys
● Search ● Insert ● Delete ● Update ● Insert/Update

42. Store Raw Material Info
@source(type = ‘http’, @map(type = ‘json’))
define stream RawMaterialStream(name string, amount double);
define table LatestShipmentDetailTable (name string, amount double);
In-memory table to
store last shipment of raw
material

43. Store Data
With Primary Key & Index
@source(type = ‘http’, @map(type = ‘json’))
define stream RawMaterialStream(name string, amount double);
@primaryKey(‘name’)
@Index(‘amount’)
define table LatestShipmentDetailTable (name string, amount double);
Support for Primary Key and
Index for fast data access

44. Store in External Data Store
@source(type = ‘http’, @map(type = ‘json’))
define stream RawMaterialStream(name string, amount double);
@store(type=‘rdbms’, … )
@primaryKey(‘name’)
@Index(‘amount’)
define table LatestShipmentDetailTable (name string, amount double);
Table backed by
RDBMS, MongoDB, HBase, Cassandra, Solr,
Hazelcast, etc.

45. Insert Events into Table
@source(type = ‘http’, @map(type = ‘json’))
define stream RawMaterialStream(name string, amount double);
@store(type=‘rdbms’, … )
@primaryKey(‘name’)
@Index(‘amount’)
define table LatestShipmentDetailTable (name string, amount double);
from RawMaterialStream
select name, amount
insert into LatestShipmentDetailTable ;
Insert into table from stream

46. Update-Insert Events into Table
@source(type = ‘http’, @map(type = ‘json’))
define stream RawMaterialStream(name string, amount double);
@store(type=‘rdbms’, … )
@primaryKey(‘name’)
@Index(‘amount’)
define table LatestShipmentDetailTable (name string, amount double);
from RawMaterialStream
select name, amount
update or insert into LatestShipmentDetailTable
on LatestShipmentDetailTable.name == name ;
Update or Insert into
the table with stream

47. 2.2 Calculate hourly to yearly raw
material storage by each type

48. Streaming Data Summarization
Aggregations Over Long Time Periods
• Incremental Aggregation for every
– Seconds, Minutes, Hours, Days, …, Year
• Support for out-of-order event arrival
• Fast data retrieval from memory and disk for
real time update
Current Min
Current Hour
Sec
Min
Hour
0 - 1 - 5 ...
- 1
- 2 - 3 - 4 - 64 - 65 ...
- 2
- 124

49. Define Aggregation
define stream RawMaterialStream(name string, amount double);
define aggregation RawMaterialAggregation
from RawMaterialStream
select name, sum(amount) as totalAmount, avg(amount) as
averageAmount
group by name
aggregate every min … year
Calculate total and average amount
for each
min upto year

50. Define Aggregation ...
define stream RawMaterialStream(name string, amount double);
@store(type=‘rdbms’, … )
define aggregation RawMaterialAggregation
from RawMaterialStream
select name, sum(amount) as totalAmount, avg(amount) as
averageAmount
group by name
aggregate every min … year
Like Table Store Aggregation in
RDBMS, MongoDB, HBase, Cassandra, Solr, Hazelcast, etc.

51. Data Retrieval API
• Can perform data search on Data
Stores or pre-defined Aggregations.
• Supports both REST and Java APIs

52. Retrieve Summarized Data
Perform REST Call
curl -X POST https://localhost:9443/stores/query
-H "content-type: application/json"
-u "admin:admin"
-d '{"appName" : "Sweet-Factory-Analytics-3",
"query" : "from RawMaterialAggregation
on name == 'caramel'
within '2018-**-** **:**:**'
per 'minutes'
select name, totalAmount, averageAmount ;"
}'

53. 2.3 Visualize summary results in a
dashboard

54. Portal
Dashboard & Widgets for Business Users
• Generate dashboard and widgets
• Fine grained permissions
– Dashboard level
– Widget level
– Data level
• Localization support
• Inter widget communication
• Shareable dashboards with widget state persistence

55. Dashboard & Widgets

56. Use Case 3 :
Warehouse managers should be
alerted if there will be a shortage of
raw material for future production
cycles

57. 3.1 Check if the current raw material
input rate is enough for production

58. Join Raw Material with Production Input
define stream RawMaterialStream (name string, amount double);
define stream ProductionInputStream (name string, amount double);
from ProductionInputStream#window.time(1 hour) as p
join RawMaterialStream#window.time(1 hour) as r
on r.name == p.name
select r.name, sum(r.amount) as totalRawMaterial,
sum(p.amount) as totalConsumption
group by r.name
having (totalConsumption - totalRawMaterial)*100.0 / totalRawMaterial > 5
insert into RawMaterialInputRateAlertStream ;
Identify 5% increase by
joining two streams

59. Join with External Window
define window RawMaterialWindow (name string, amount double) time(1 hour);
define stream ProductionInputStream (name string, amount double);
from ProductionInputStream#window.time(1 hour) as p
join RawMaterialWindow as r
on r.name == p.name
select r.name, sum(r.amount) as totalRawMaterial,
sum(p.amount) as totalConsumption
group by r.name
having (totalConsumption - totalRawMaterial)*100.0 / totalRawMaterial > 5
insert into RawMaterialInputRateAlertStream ;
Joining a stream with a
defined window

60. 3.2 Predict the future raw material
requirement

61. Real-time Predictions
Using Machine Learning
• Use pre-created machine learning
models and perform predictions.
– PMML, TensorFlow, etc
• Streaming Machine Learning
– Clustering, Classification,
Regression
– Markov Models, Anomaly
detection, etc...

62. Using Pre-built PMML Model
define stream ProductionInputStream
(name string, currentHourAmmount double,
previousHourAmount double);
from ProductionInputStream#pmml:predict(‘file/model.pmml’, name,
previousHourAmount, currentHourAmmount )
select name, nextHourAmount, getEventTime() as currentTime
insert into PredictedProdInputStream ;
Predict required raw materials using a
static model

63. Online Machine Learning
define stream ProductionInputStream (currentHourAmount double,
previousHourAmount double );
define stream ProductionInputResultsStream ( currentHourAmount double,
previousHourAmount double, nextHourAmount double );
from ProductionInputResultsStream#streamingml:updateAMRulesRegressor
(currentHourAmount, previousHourAmount, nextHourAmount )
select *
insert into TrainOutputStream;
from ProductionInputStream#streamingml:AMRulesRegressor
(currentHourAmount, previousHourAmount )
select currentHourAmount, previousHourAmount, prediction as nextHourAmount
insert into PredictedProdInputStream;
Predict required raw materials while
learning in a streaming manner.

64. 3.3 Check predicted raw material
availability with warehouse stocks
and alert if insufficient

65. Predict & Alert
define window RawMaterialWindow (name string, amount double) time(1 hour);
define stream ProductionInputResultsStream ( currentHourAmount double,
previousHourAmount double, nextHourAmount double );
from ProductionInputResultsStream#streamingml:updateAMRulesRegressor
(currentHourAmount, previousHourAmount, nextHourAmount )
select *
insert into TrainOutputStream;
from PredictedProdInputStream as p join RawMaterialWindow as r
on r.name == p.name
select r.name, p.predictedAmount, sum(r.amount) as totalRawMaterial
having totalRawMaterial < totalConsumption
insert into RawMaterialInputRateAlertStream ;

66. Use Case 4 :
Factory Managers should be alerted if
production does not start within 15
min from raw material arrival

67. Non-occurrence through Patterns
define stream RawMaterialStream (name string, amount double);
define stream ProductionInputStream (name string, amount double);
from every (e1 = RawMaterialStream)
-> not ProductionInputStream[name == e1.name and
amount == e1.amount] for 15 min
select e1.name, e1.amount
insert into ProductionStartDelayed ; Identity non-occurrence Pattern

68. Use Case 5 :
Alert factory managers if rate of
production continuously decreases for
X time period

69. 5.1 Identify production trends over a
time period

70. Identify Trends
define stream SweetProductionStream(name string, amount double);
from SweetProductionStream#window.timeBatch(1 min)
select name, sum(amount) as amount, currentTimeMillis() as timestamp
group by name
insert into LastMinProdStream;
partition with (name of LastMinProdStream)
begin
from every e1=LastMinProdStream,
e2=LastMinProdStream[timestamp - e1.timestamp < 10 * 60000
and e1.amount > amount]*,
e3=LastMinProdStream[timestamp - e1.timestamp > 10 * 60000
and e2[last].amount > amount]
select e1.name, e1.amount as initalamout, e3.amount as finalAmount
insert into ContinousProdReductionStream ;
end;
Identify decreasing trends
for 10 mins

71. 5.2 Make this rule configurable

72. Business Rules Manager
• Hide Siddhi app creation complexity to business users
• Build rules via a simple web-based UI
– From scratch
Build custom filters to event streams
– From a template
Build rules from developer created template
Dashboard for Rule Management

73. Business Rules Manager

74. Business Rules Manager

75. Template as Business Rules
define stream SweetProductionStream(...);
…
partition by (name of LastMinProdStream)
begin
from every e1=LastMinProdStream,
e2=LastMinProdStream[timestamp - e1.timestamp < $TimeInMin * 60000
and e1.amount > amount]*,
e3=LastMinProdStream[timestamp - e1.timestamp > $TimeInMin * 60000
and e2[last].amount > amount]
select e1.name, e1.amount as initalamout, e3.amount as finalAmount
insert into ContinousProdReductionStream ;
end;
Identify decreasing trend for
X mins

76. Deploying Stream Processor

77. Minimum HA with 2 Nodes
Stream Processor
Stream Processor
• High Performance
– Process around 100k
events/sec
– Just 2 nodes
– While most others need 5+
• Zero Downtime
• Zero Event Loss
• Simple deployment with RDBMS
– No zookeeper, kafka, etc
• Multi Data Center Support
Event Sources
Siddhi App
Siddhi App
Siddhi App
Siddhi App
Siddhi App
Siddhi App
Event
Store

78. • Exactly-once processing
• Fault tolerance
• Highly scalable
• No back pressure
• Distributed development configurations via annotations
• Pluggable distribution options (YARN, K8, etc.)
Distributed Deployment

79. Distributed Deployment with Kafka
Event
Source
Event
Sink
Siddhi
App
Siddhi
App
Siddhi
App
Siddhi
App
Siddhi
App
Siddhi
App
Siddhi
App
Siddhi
App
Siddhi
App
Siddhi
App
Kafka Topic
Kafka Topic
Kafka Topic
Kafka
Topic
Kafka
Topic

80. Siddhi App for Distributed Deployment
@source(type = ‘kafka’,..., @map(type = ‘json’))
define stream ProductionStream (name string, amount double, factoryId int);
@dist(parallel = ‘4’, execGroup = ‘gp1’)
from ProductionStream[amount > 100]
select *
insert into HighProductionStream ;
@dist(parallel = ‘2’, execGroup = ‘gp2’)
partition with (factoryId of HighProductionStream)
Begin
from HighProductionStream#window.timeBatch(1 min)
select factoryId, sum(amount) as amount
group by factoryId
insert into ProdRateStream ;
end;
Filter
Source
FilterFilterFilter
PartitionPartition

82. Extensions & Supporting
Tools

83. Analytics Extension Store
https://store.wso2.com/store/assets/analyticsextension/list

84. Monitoring Streaming Apps

85. Status Dashboard
• Understand system performance via
– Throughput
– Latency
– CPU, memory utilizations
• Monitor in various scales
– Node Level
– Siddhi App Level
– Siddhi Query Level
Monitor resource nodes and Siddhi apps

88. Inbuilt Support for
Analytics Use Cases

89. HTTP Analytics

90. Message Tracing

91. Analytics Solutions

92. • Finance and Banking
• Retail
• Location
• Operational
• Smart Energy
• Social Media
• System and Network
• Healthcare
Available Options

93. Running Siddhi on the Edge
● Lightweight and lean
● OOTB support for consuming events from Android
sensors
● Support for Python
○ https://github.com/wso2/PySiddhi/
In Android & Raspberry Pi

94. WSO2 Stream Processor 4.2.0 Release.
Distribution URL: https://wso2.com/analytics
Download, Try & Comment

95. THANK YOU
wso2.com
