Reactive Programming with Rx

•
•
C4Media
C4Media

Video and slides synchronized, mp3 and slide download available at URL http://bit.ly/1DXFg0h. Ben Christensen summarizes why the Rx programming model was chosen and demonstrates how it is applied to a variety of use cases. Filmed at qconsf.com. Ben Christensen is a software engineer on the Netflix Edge Services Platform team responsible for fault tolerance, performance, architecture and scale while enabling millions of customers to access the Netflix experience across more than 1,000 different device types.

1 of 178
Ben Christensen Developer – Edge Engineering at Netflix @benjchristensen http://techblog.netflix.com/ QConSF - November 2014 ReactiveProgrammingwithRx
InfoQ.com: News & Community Site • 750,000 unique visitors/month • Published in 4 languages (English, Chinese, Japanese and Brazilian Portuguese) • Post content from our QCon conferences • News 15-20 / week • Articles 3-4 / week • Presentations (videos) 12-15 / week • Interviews 2-3 / week • Books 1 / month Watch the video with slide synchronization on InfoQ.com! http://www.infoq.com/presentations /rx-service-architecture
Purpose of QCon - to empower software development by facilitating the spread of knowledge and innovation Strategy - practitioner-driven conference designed for YOU: influencers of change and innovation in your teams - speakers and topics driving the evolution and innovation - connecting and catalyzing the influencers and innovators Highlights - attended by more than 12,000 delegates since 2007 - held in 9 cities worldwide Presented at QCon San Francisco www.qconsf.com

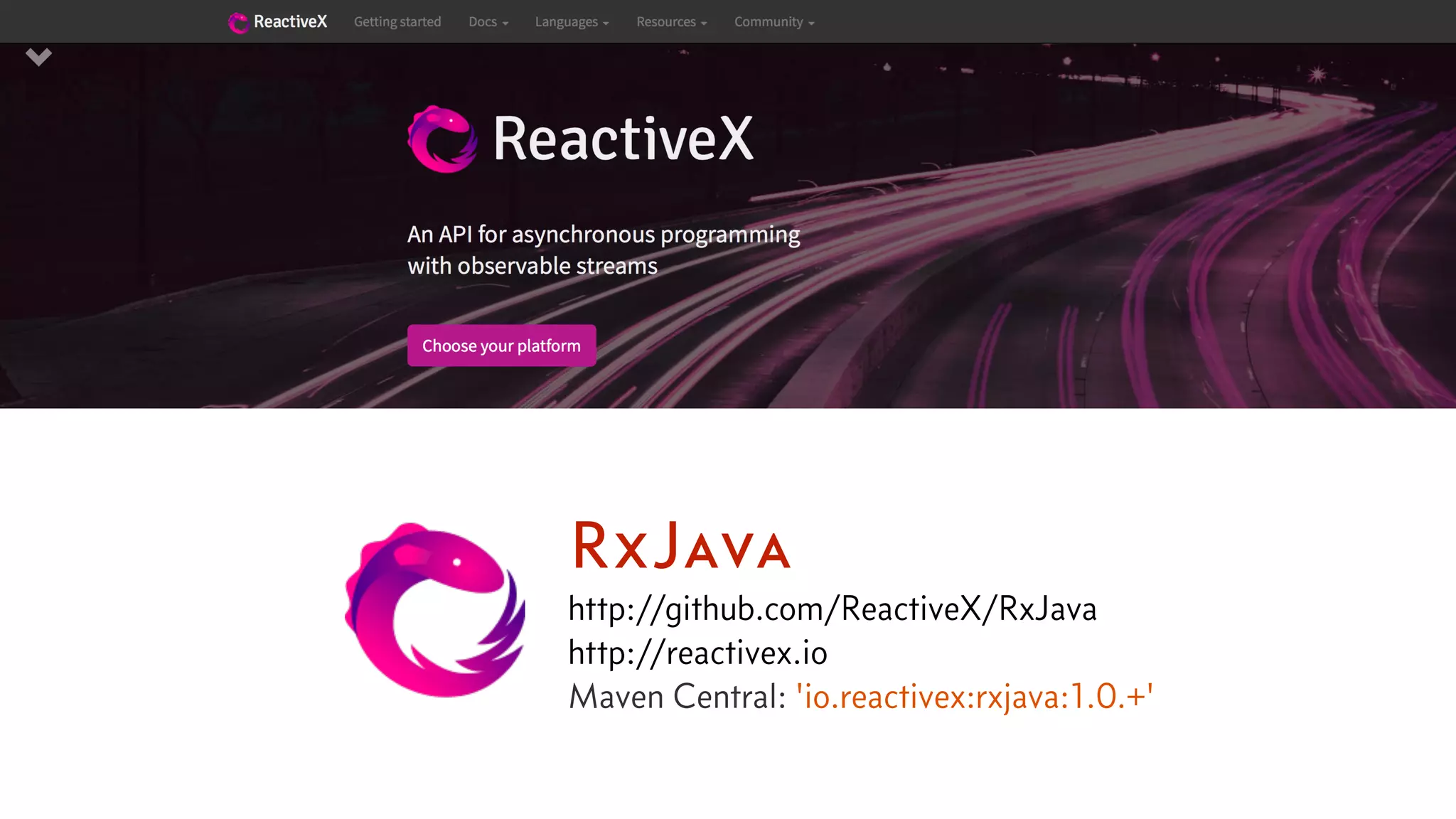

RxJava http://github.com/ReactiveX/RxJava http://reactivex.io Maven Central: 'io.reactivex:rxjava:1.0.+'

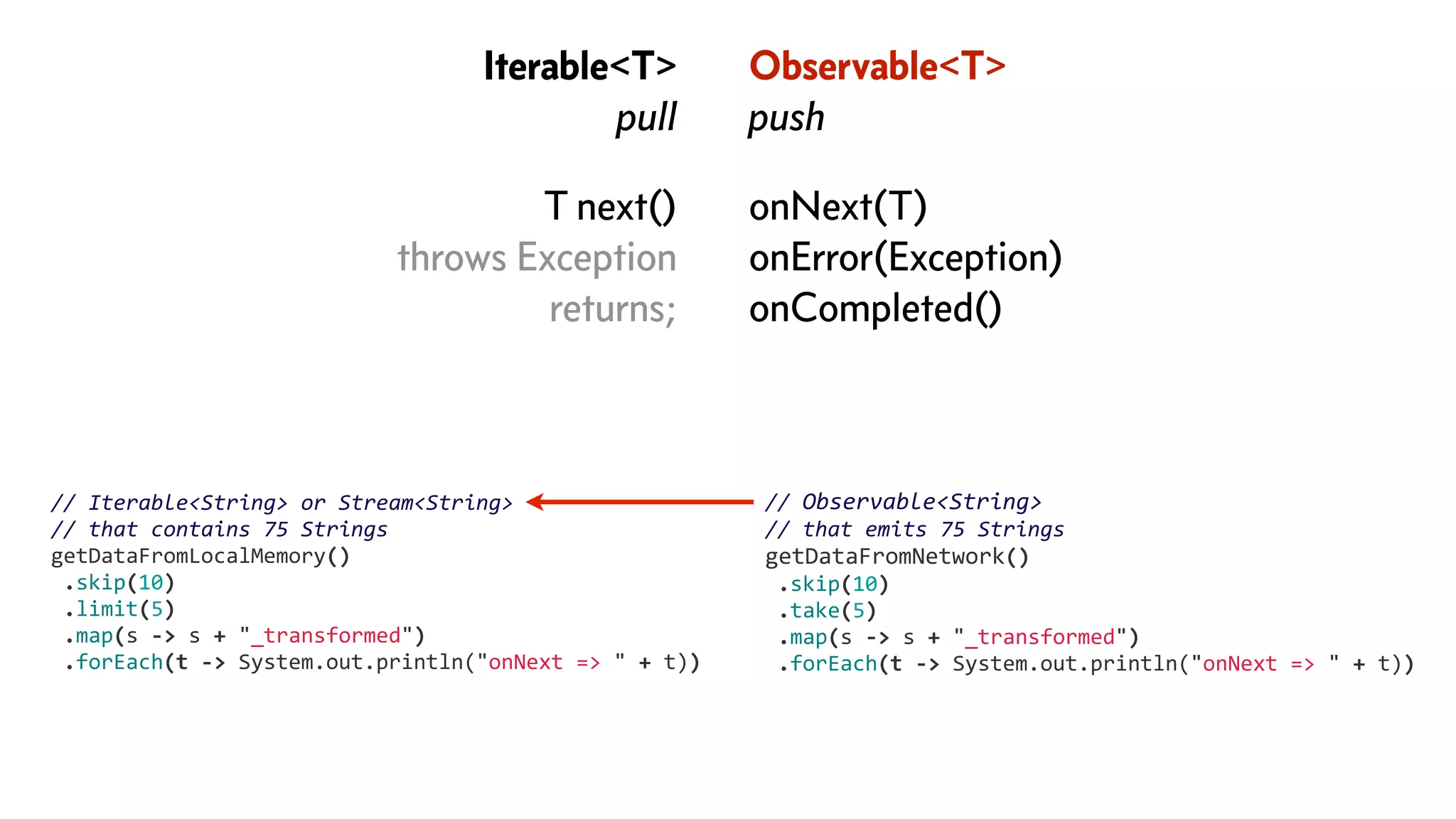

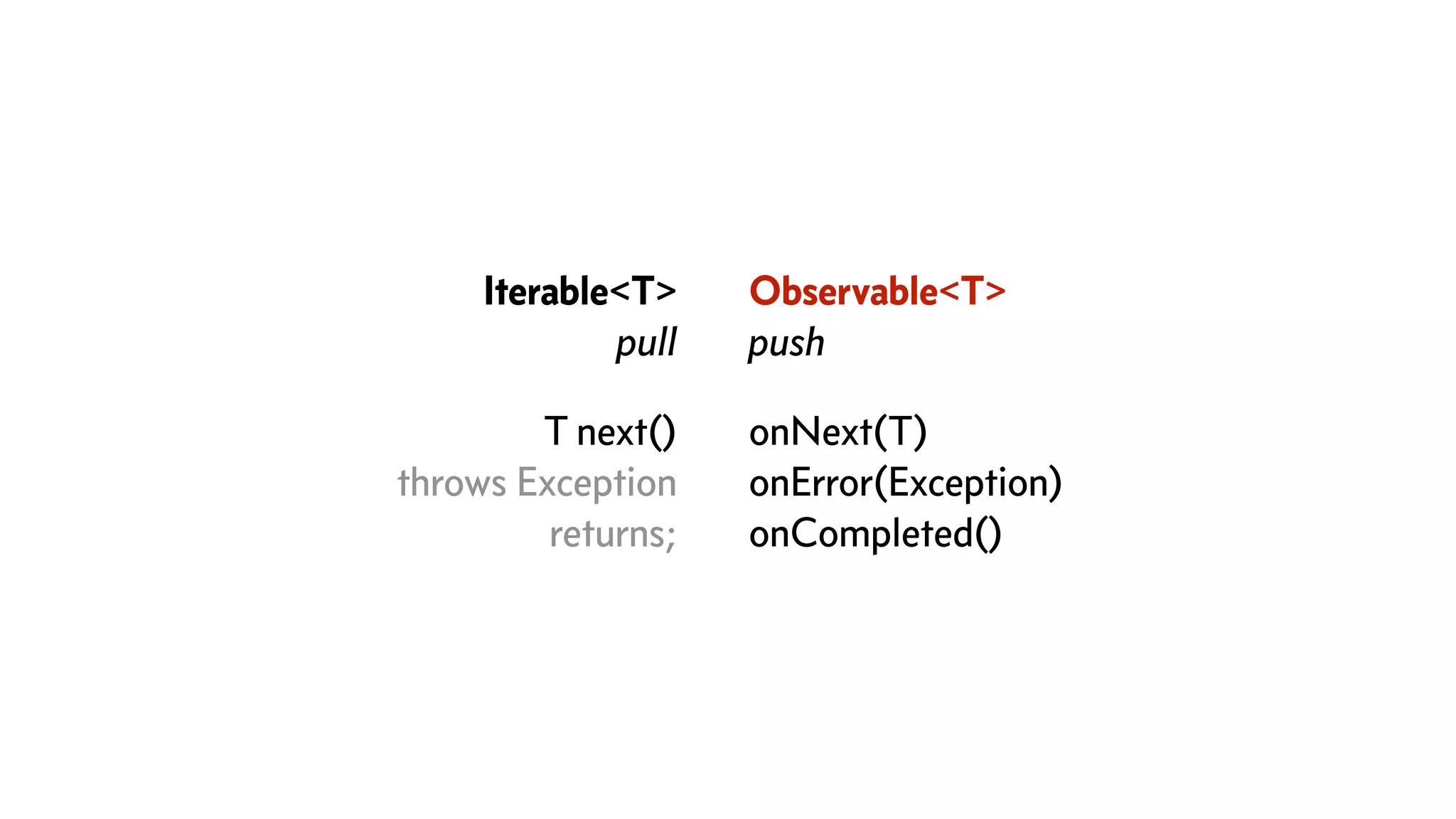

Iterable<T> pull Observable<T> push T next() throws Exception returns; onNext(T) onError(Exception) onCompleted()
Iterable<T> pull Observable<T> push T next() throws Exception returns; onNext(T) onError(Exception) onCompleted()  //  Iterable<String>  or  Stream<String>      //  that  contains  75  Strings    getDataFromLocalMemory()      .skip(10)      .limit(5)      .map(s  -­‐>  s  +  "_transformed")      .forEach(t  -­‐>  System.out.println("onNext  =>  "  +  t))    //  Observable<String>      //  that  emits  75  Strings    getDataFromNetwork()      .skip(10)      .take(5)      .map(s  -­‐>  s  +  "_transformed")      .forEach(t  -­‐>  System.out.println("onNext  =>  "  +  t))
Iterable<T> pull Observable<T> push T next() throws Exception returns; onNext(T) onError(Exception) onCompleted()  //  Observable<String>      //  that  emits  75  Strings    getDataFromNetwork()      .skip(10)      .take(5)      .map(s  -­‐>  s  +  "_transformed")      .forEach(t  -­‐>  System.out.println("onNext  =>  "  +  t))    //  Iterable<String>  or  Stream<String>      //  that  contains  75  Strings    getDataFromLocalMemory()      .skip(10)      .limit(5)      .map(s  -­‐>  s  +  "_transformed")      .forEach(t  -­‐>  System.out.println("onNext  =>  "  +  t))

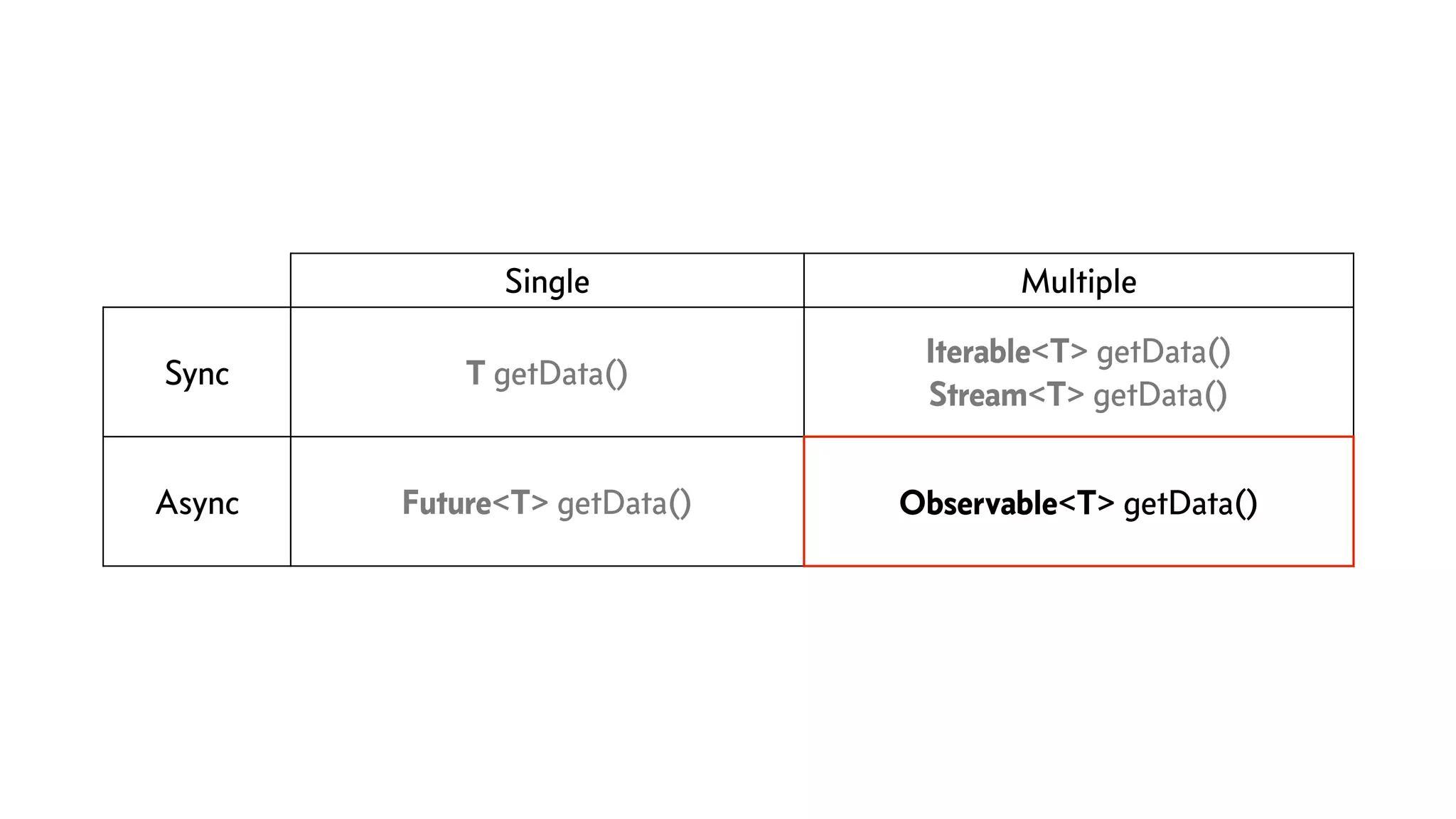

Single Multiple Sync T getData() Iterable<T> getData() Stream<T> getData() Async Future<T> getData() Observable<T> getData()

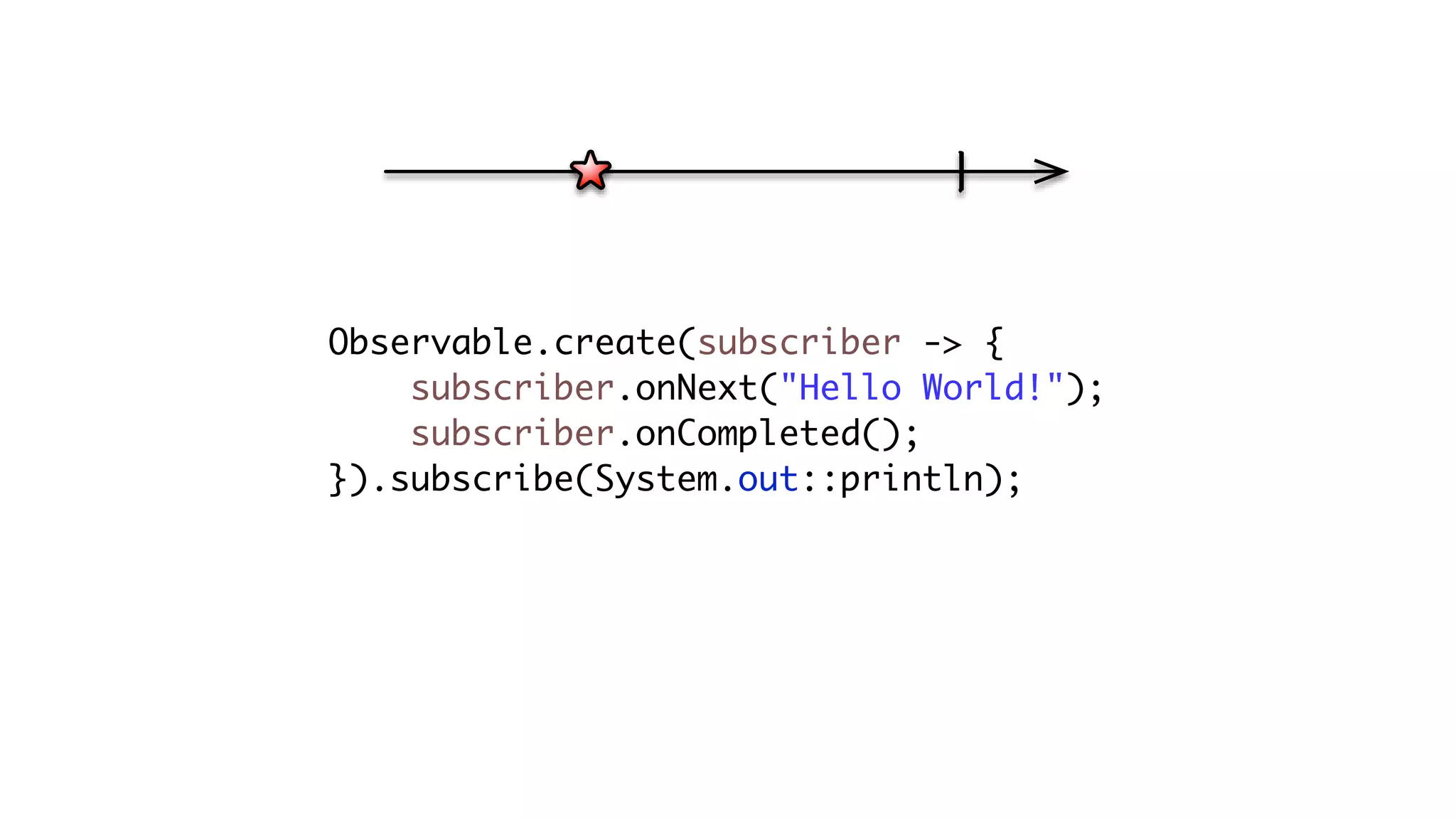

Observable.create(subscriber -> { subscriber.onNext("Hello World!"); subscriber.onCompleted(); }).subscribe(System.out::println);
Observable.create(subscriber -> { subscriber.onNext("Hello"); subscriber.onNext("World!"); subscriber.onCompleted(); }).subscribe(System.out::println);

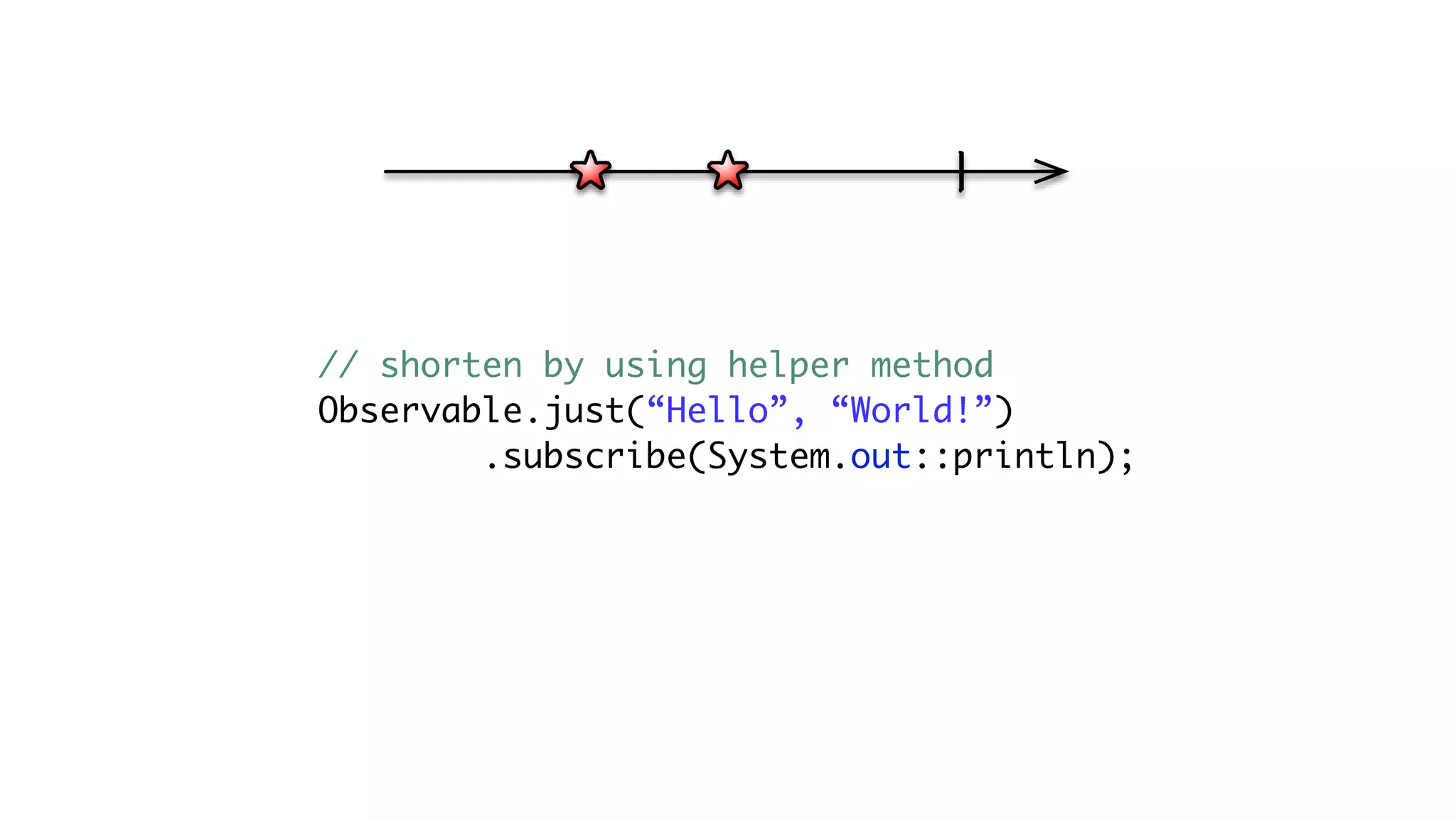

// shorten by using helper method Observable.just(“Hello”, “World!”) .subscribe(System.out::println);

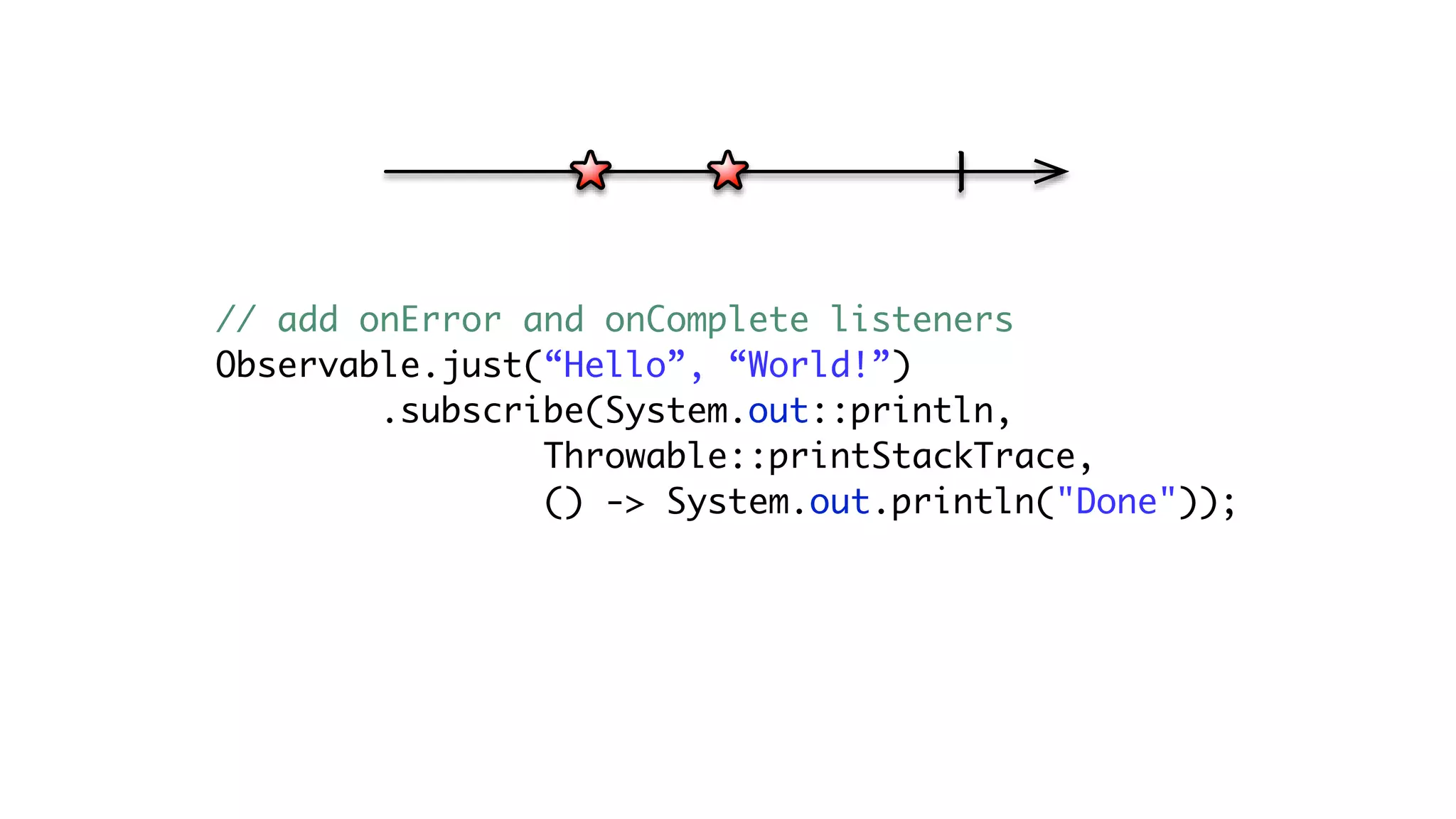

// add onError and onComplete listeners Observable.just(“Hello”, “World!”) .subscribe(System.out::println, Throwable::printStackTrace, () -> System.out.println("Done"));

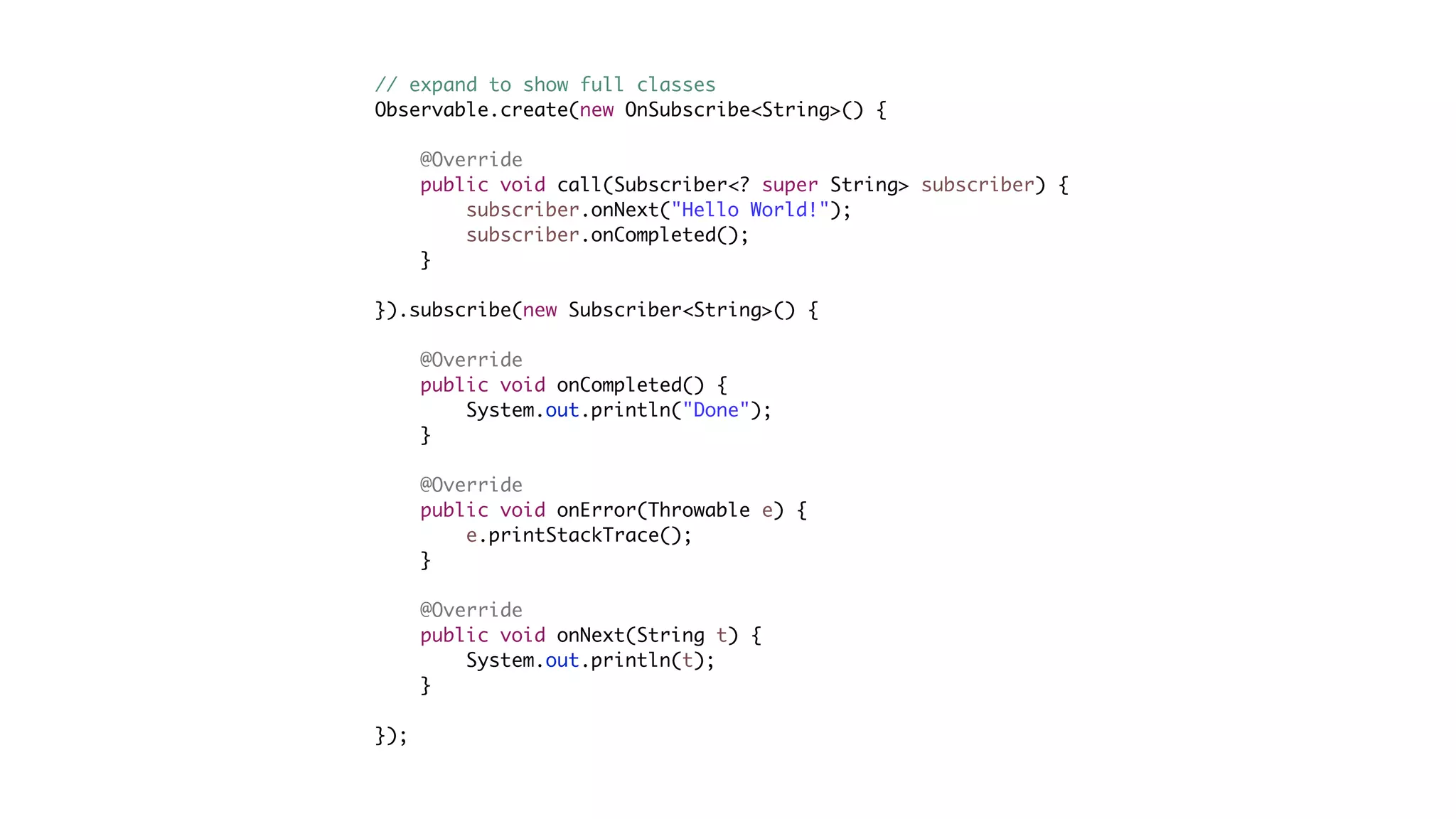

// expand to show full classes Observable.create(new OnSubscribe<String>() { @Override public void call(Subscriber<? super String> subscriber) { subscriber.onNext("Hello World!"); subscriber.onCompleted(); } }).subscribe(new Subscriber<String>() { @Override public void onCompleted() { System.out.println("Done"); } @Override public void onError(Throwable e) { e.printStackTrace(); } @Override public void onNext(String t) { System.out.println(t); } });

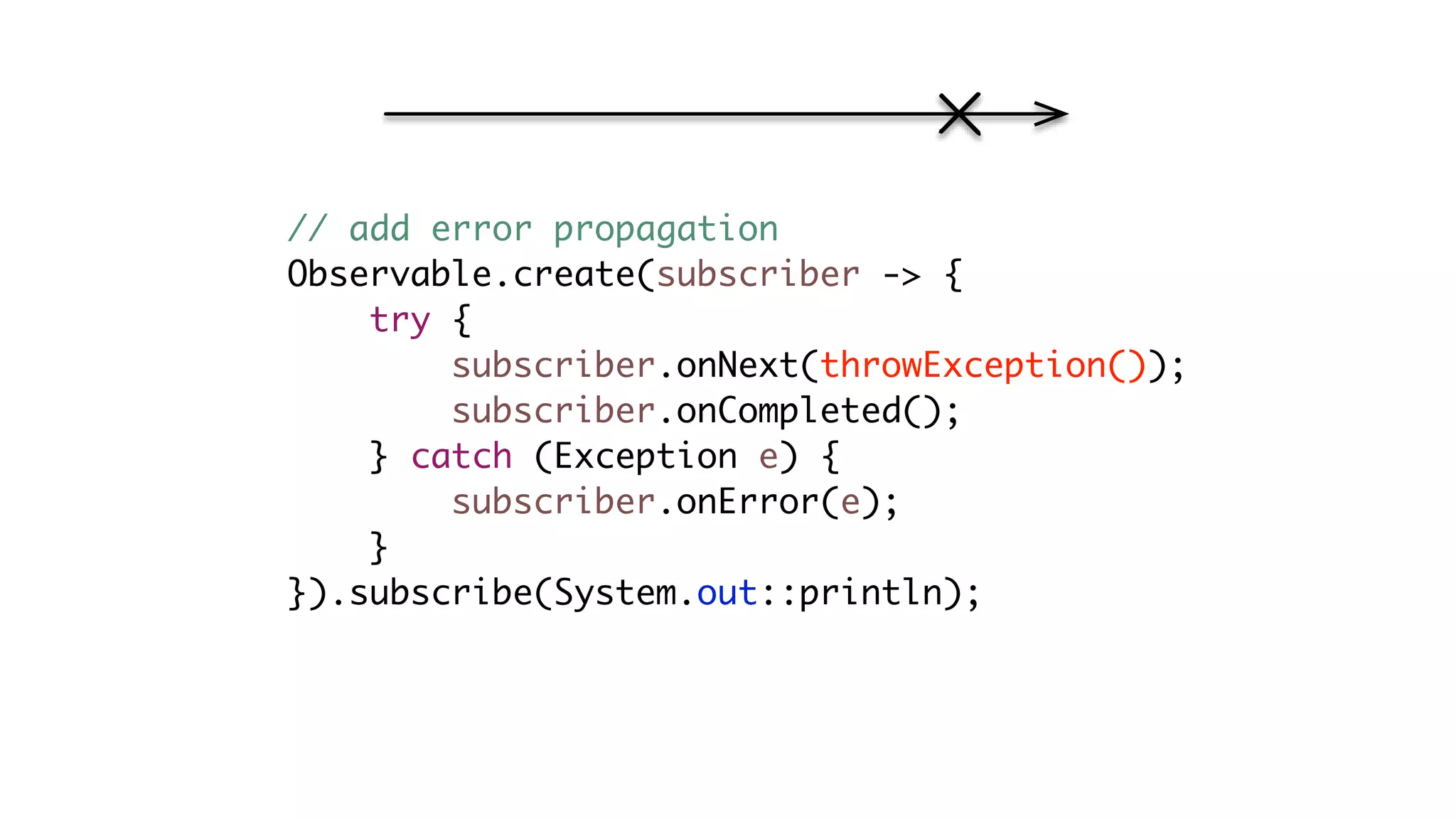

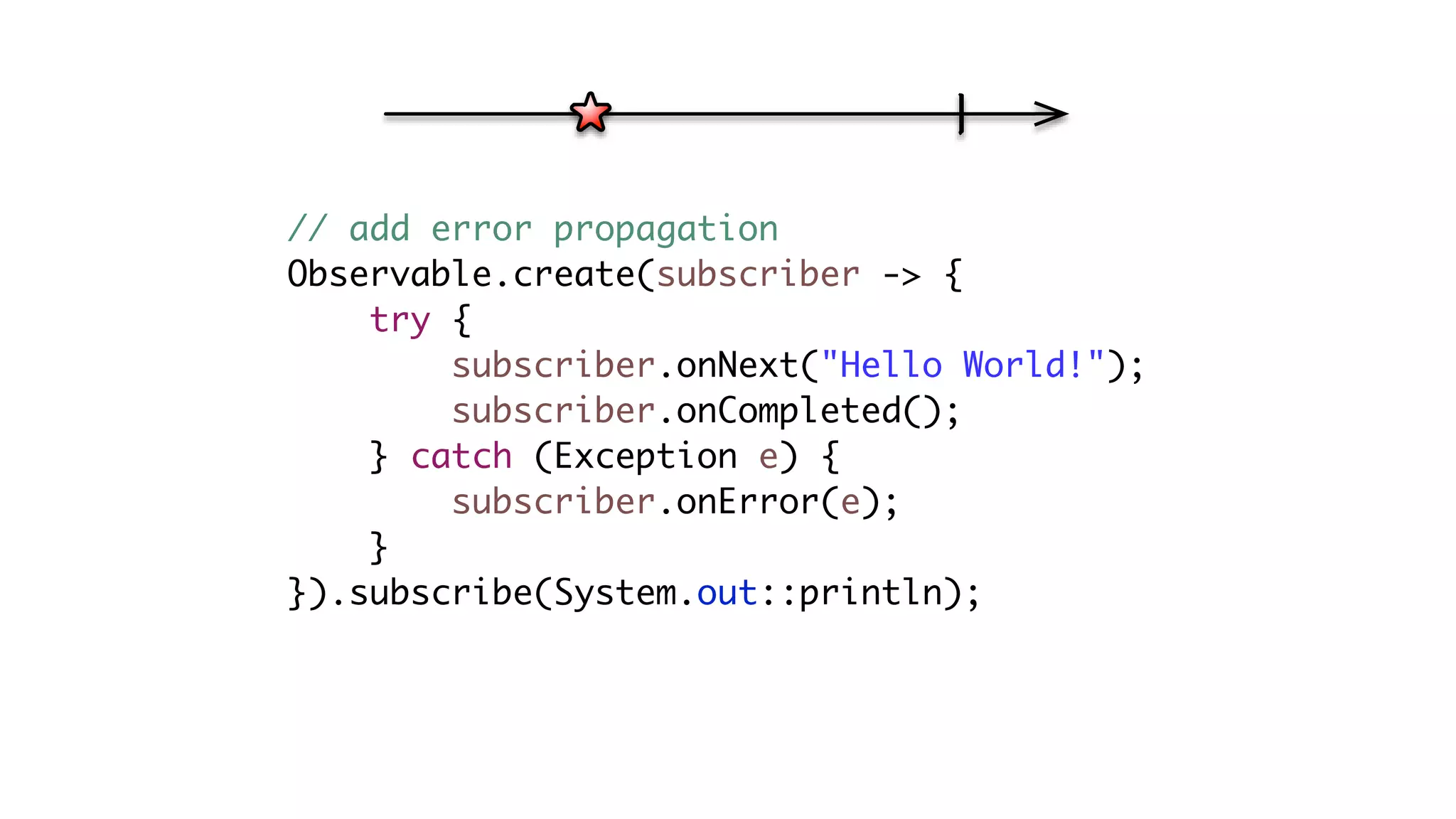

// add error propagation Observable.create(subscriber -> { try { subscriber.onNext("Hello World!"); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribe(System.out::println);

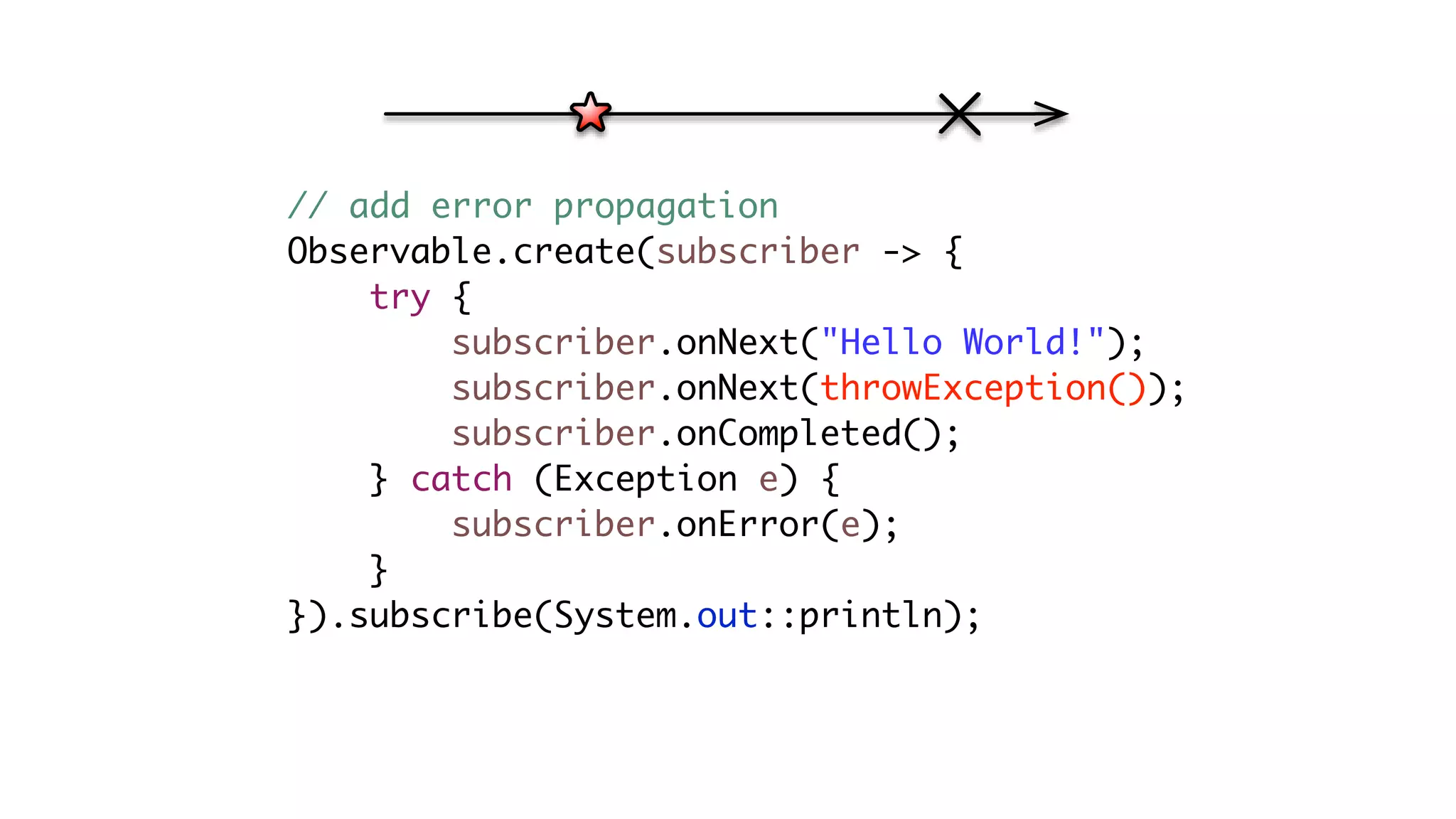

// add error propagation Observable.create(subscriber -> { try { subscriber.onNext(throwException()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribe(System.out::println);
// add error propagation Observable.create(subscriber -> { try { subscriber.onNext("Hello World!"); subscriber.onNext(throwException()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribe(System.out::println);

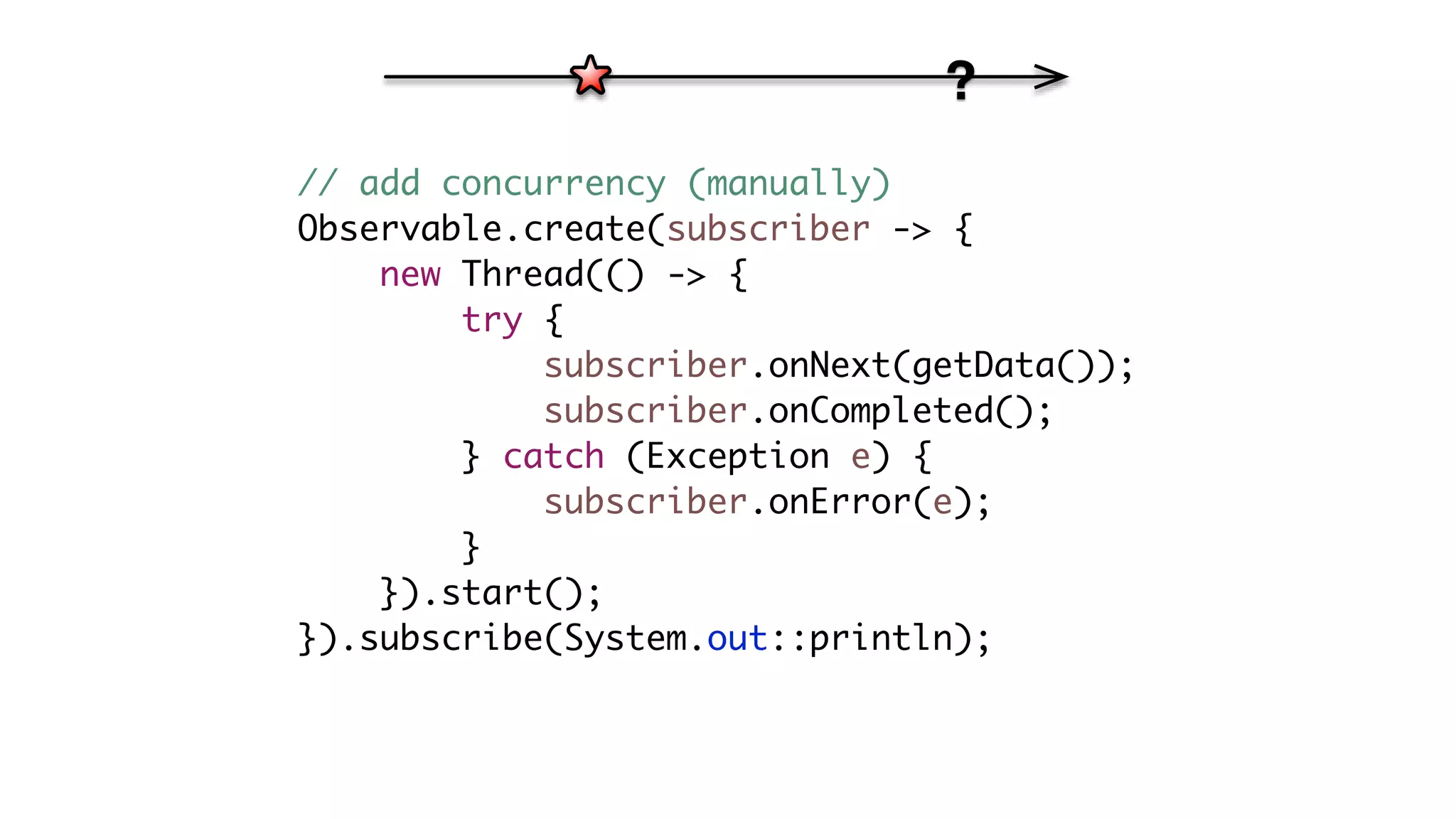

// add concurrency (manually) Observable.create(subscriber -> { new Thread(() -> { try { subscriber.onNext(getData()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).start(); }).subscribe(System.out::println); ?

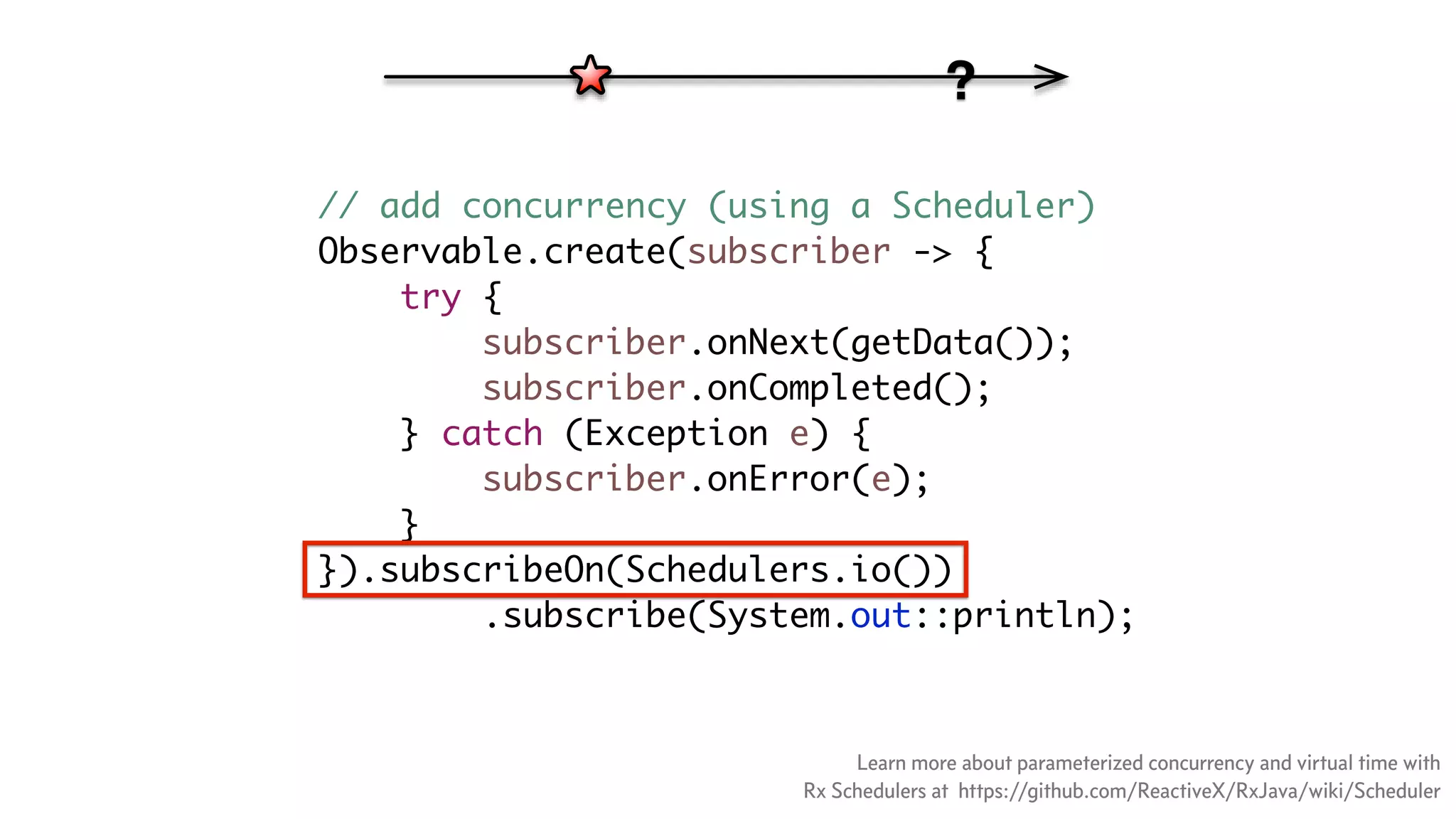

// add concurrency (using a Scheduler) Observable.create(subscriber -> { try { subscriber.onNext(getData()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribeOn(Schedulers.io()) .subscribe(System.out::println); ? Learn more about parameterized concurrency and virtual time with Rx Schedulers at https://github.com/ReactiveX/RxJava/wiki/Scheduler

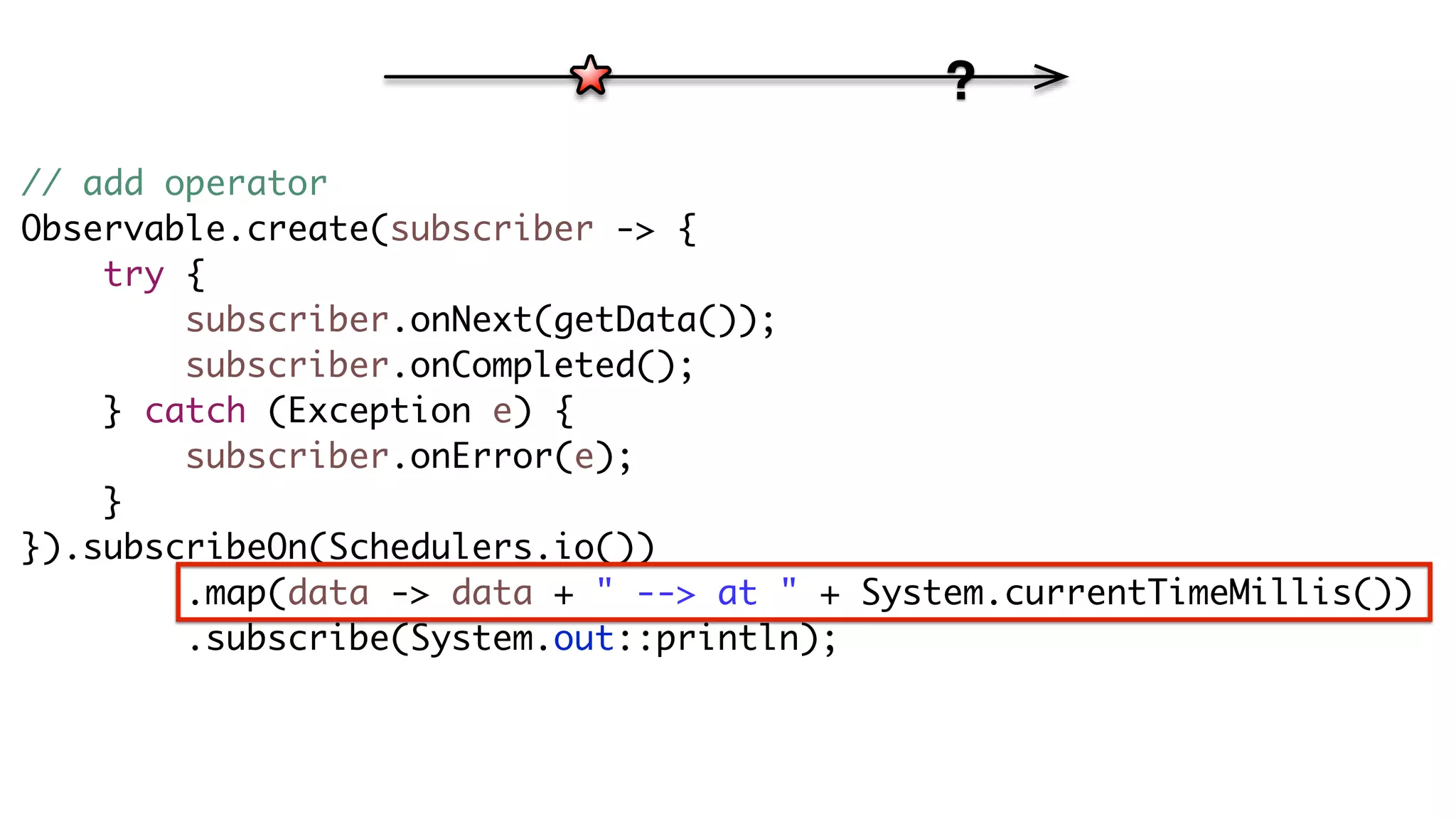

// add operator Observable.create(subscriber -> { try { subscriber.onNext(getData()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribeOn(Schedulers.io()) .map(data -> data + " --> at " + System.currentTimeMillis()) .subscribe(System.out::println); ?

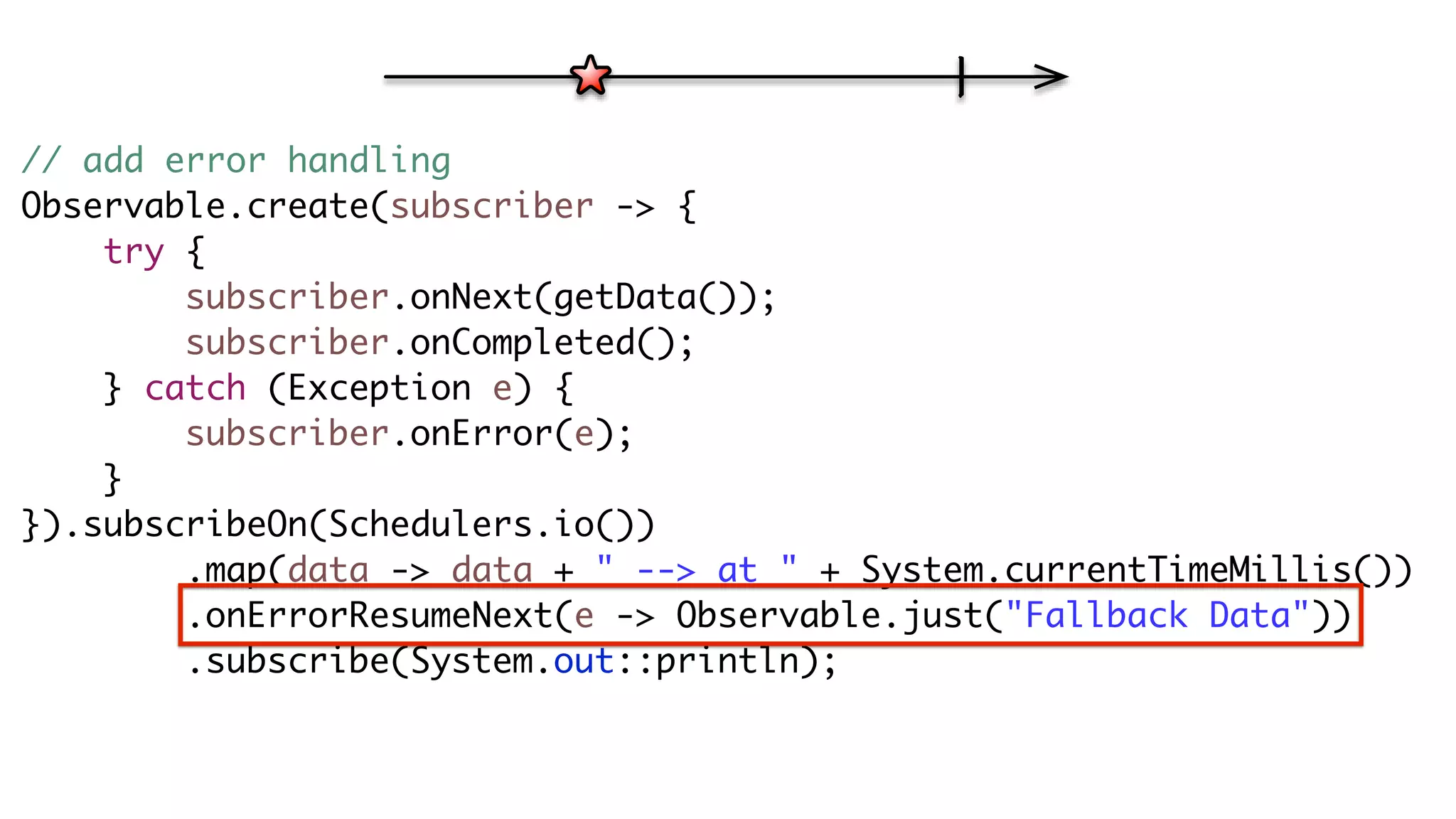

// add error handling Observable.create(subscriber -> { try { subscriber.onNext(getData()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribeOn(Schedulers.io()) .map(data -> data + " --> at " + System.currentTimeMillis()) .onErrorResumeNext(e -> Observable.just("Fallback Data")) .subscribe(System.out::println);

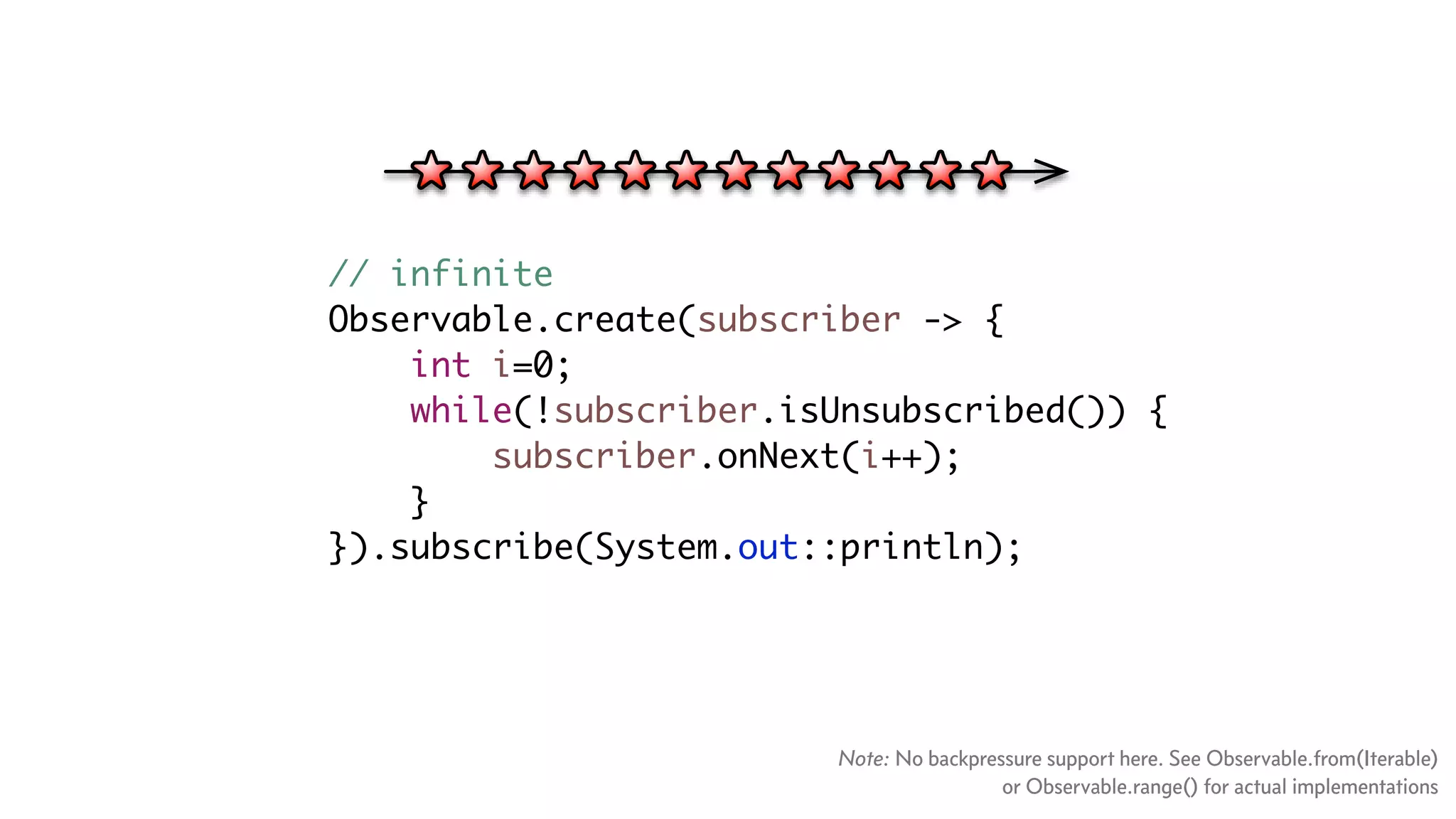

// infinite Observable.create(subscriber -> { int i=0; while(!subscriber.isUnsubscribed()) { subscriber.onNext(i++); } }).subscribe(System.out::println); Note: No backpressure support here. See Observable.from(Iterable) or Observable.range() for actual implementations

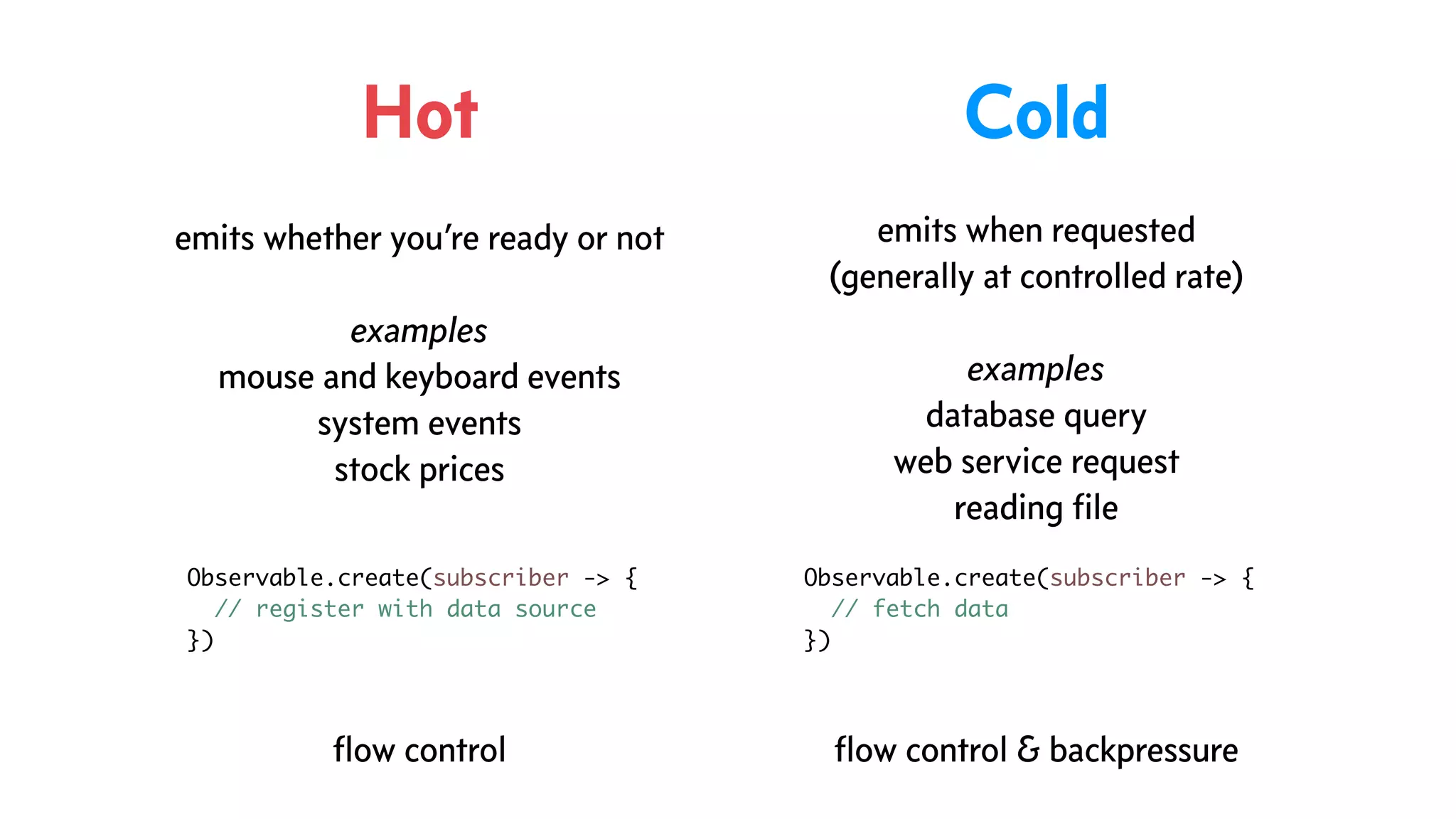

Hot Cold emits whether you’re ready or not examples mouse and keyboard events system events stock prices emits when requested (generally at controlled rate) examples database query web service request reading file Observable.create(subscriber -> { // register with data source }) Observable.create(subscriber -> { // fetch data })
Hot Cold emits whether you’re ready or not examples mouse and keyboard events system events stock prices emits when requested (generally at controlled rate) examples database query web service request reading file Observable.create(subscriber -> { // register with data source }) Observable.create(subscriber -> { // fetch data }) flow control flow control & backpressure

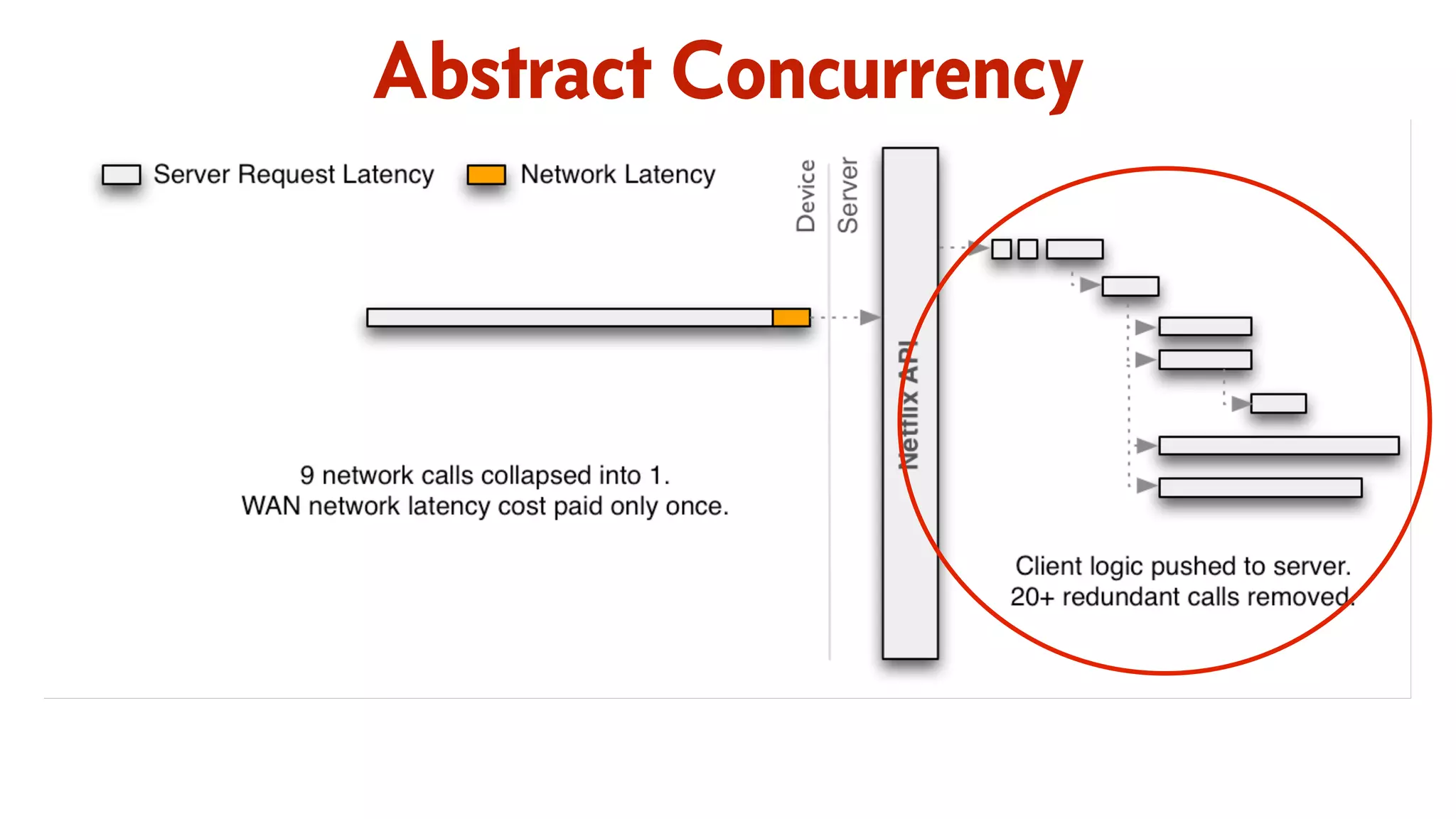

Abstract Concurrency
Cold Finite Streams

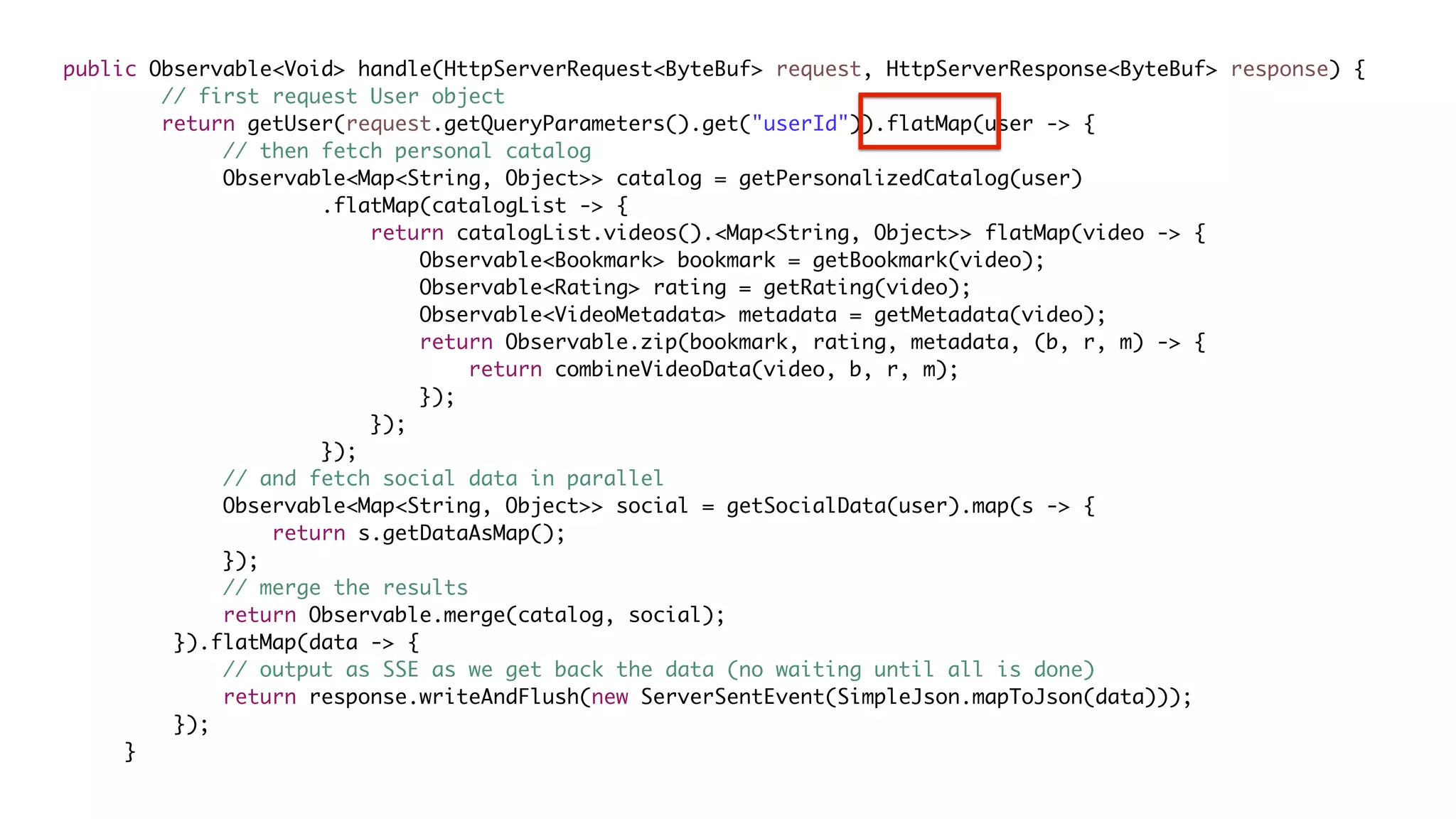

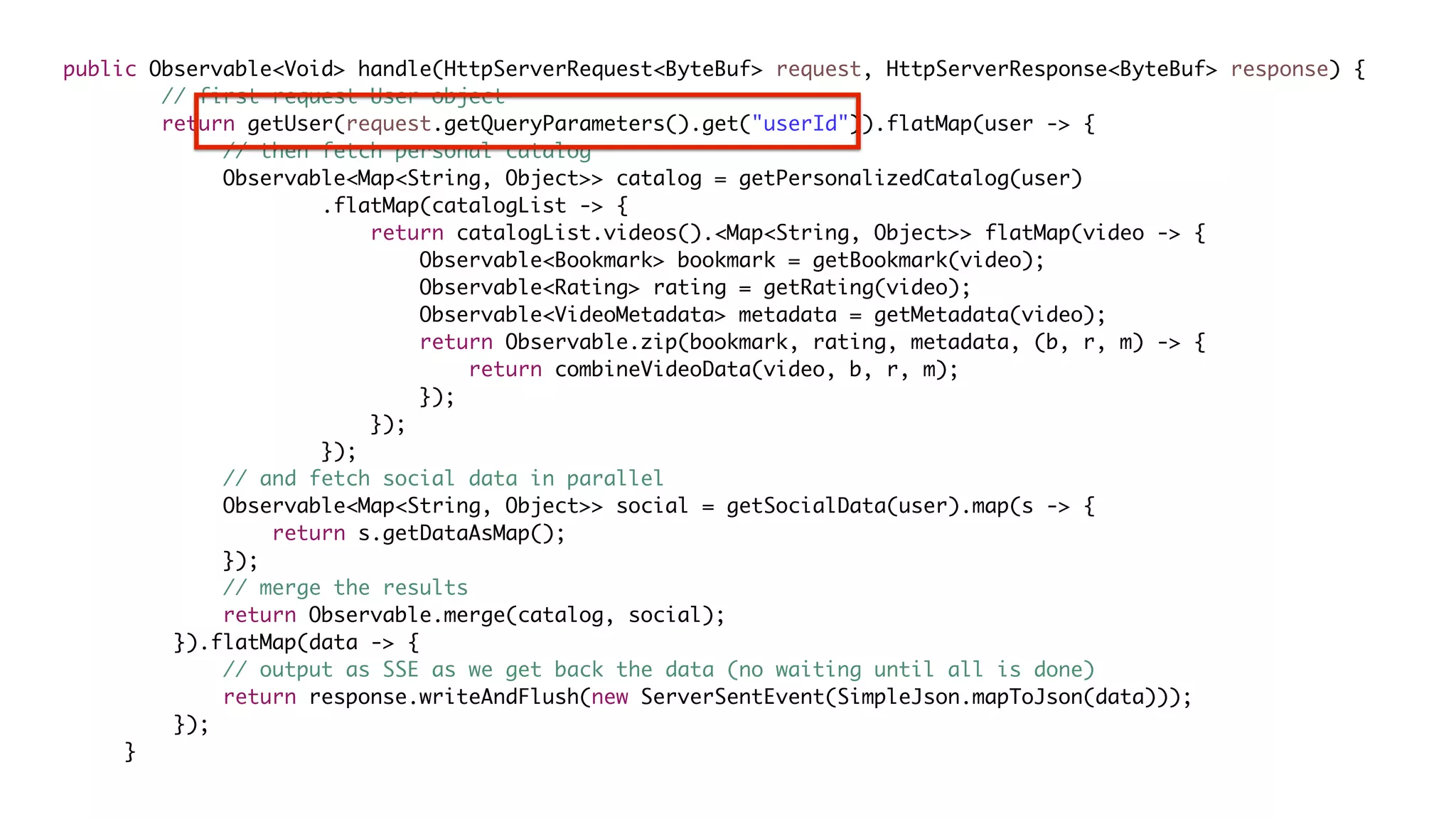

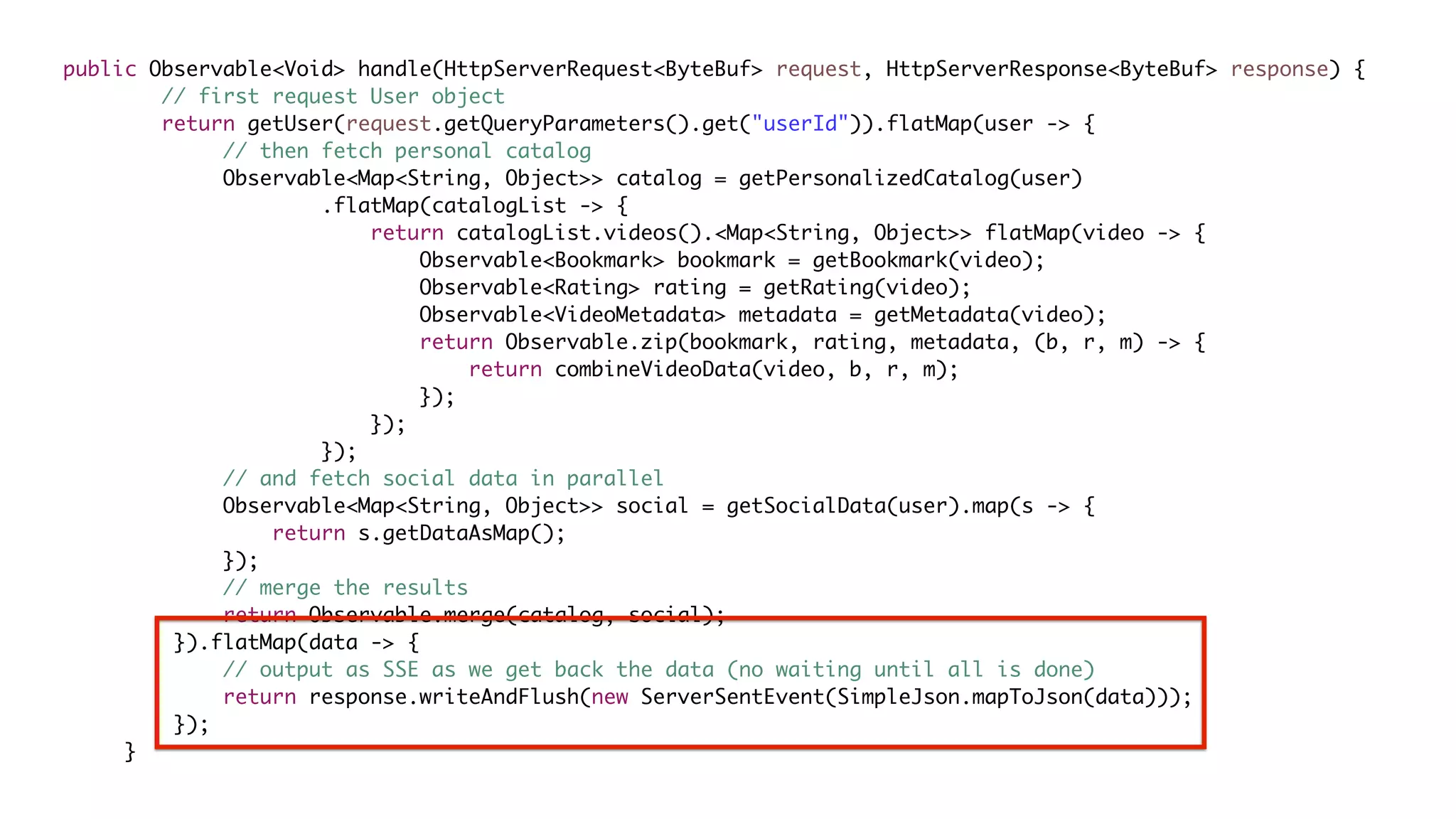

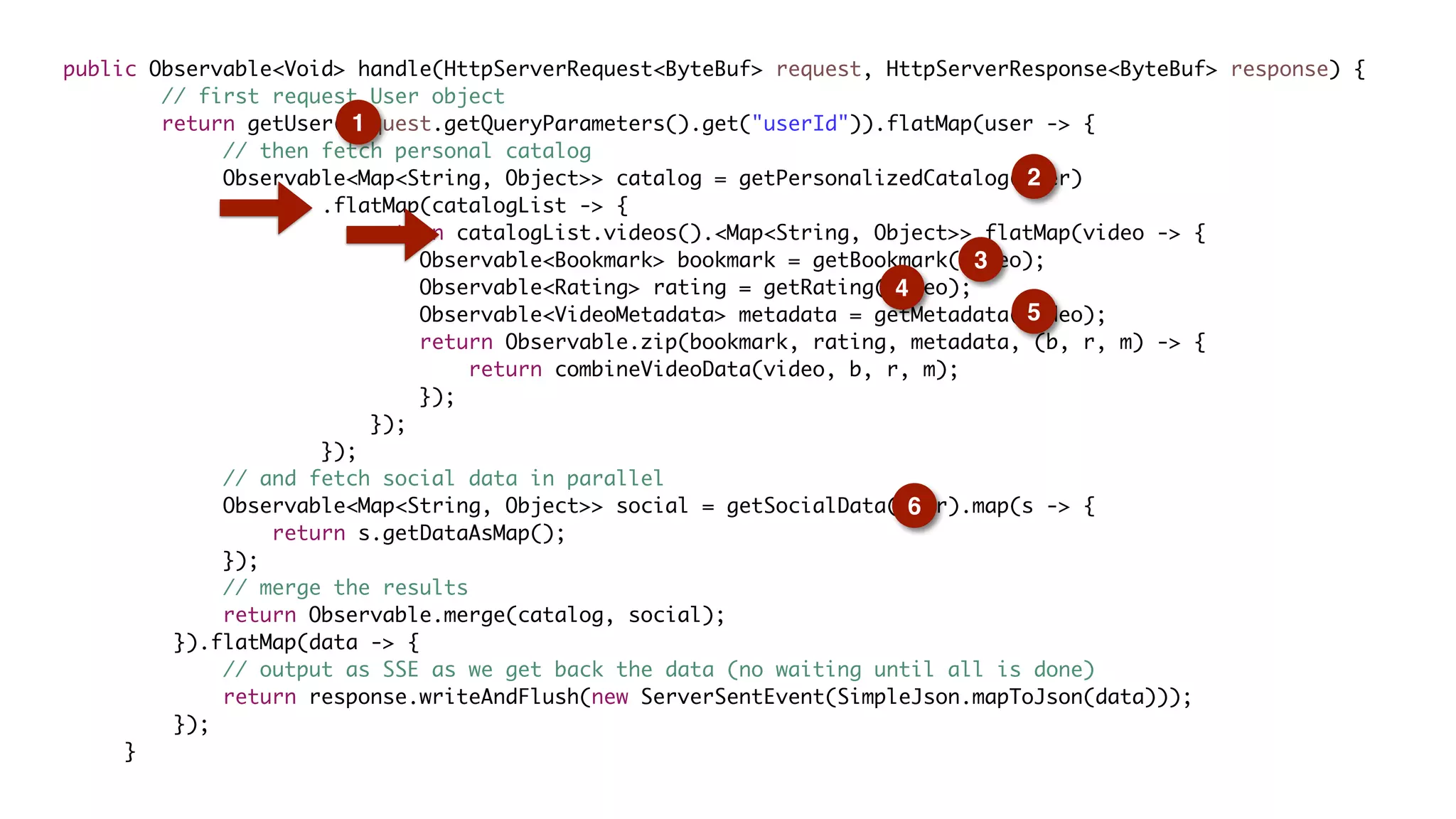

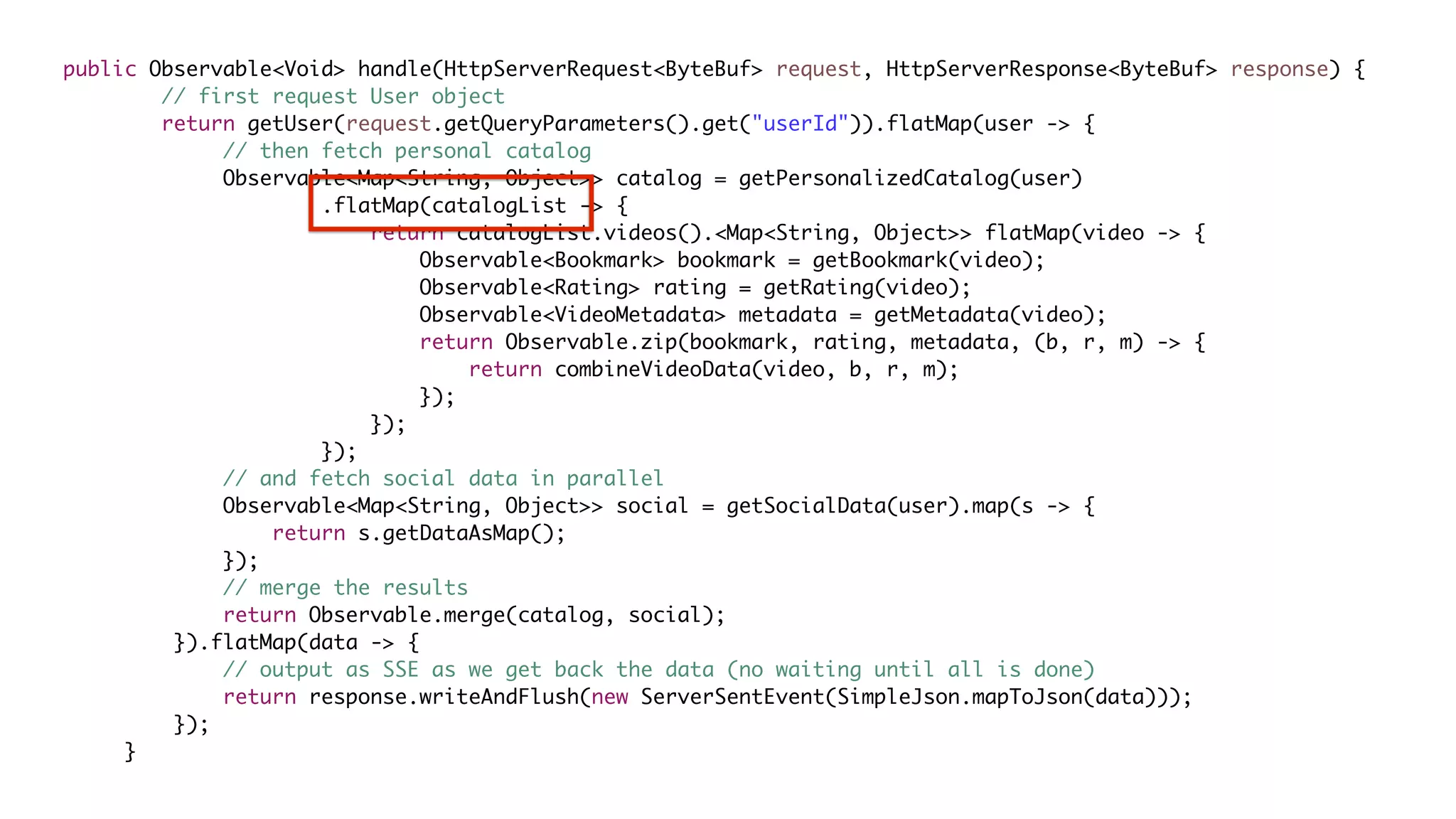

public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }

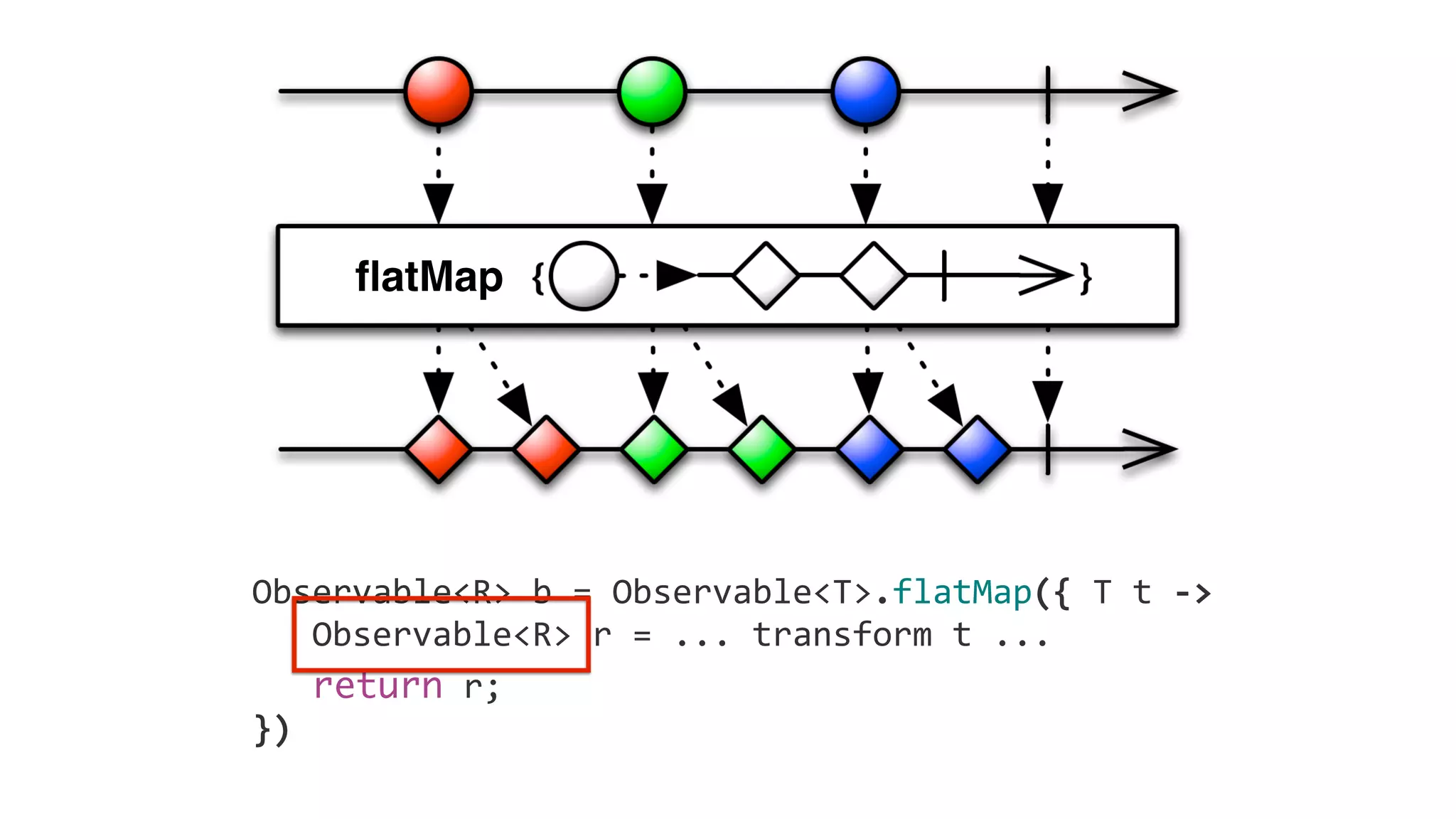

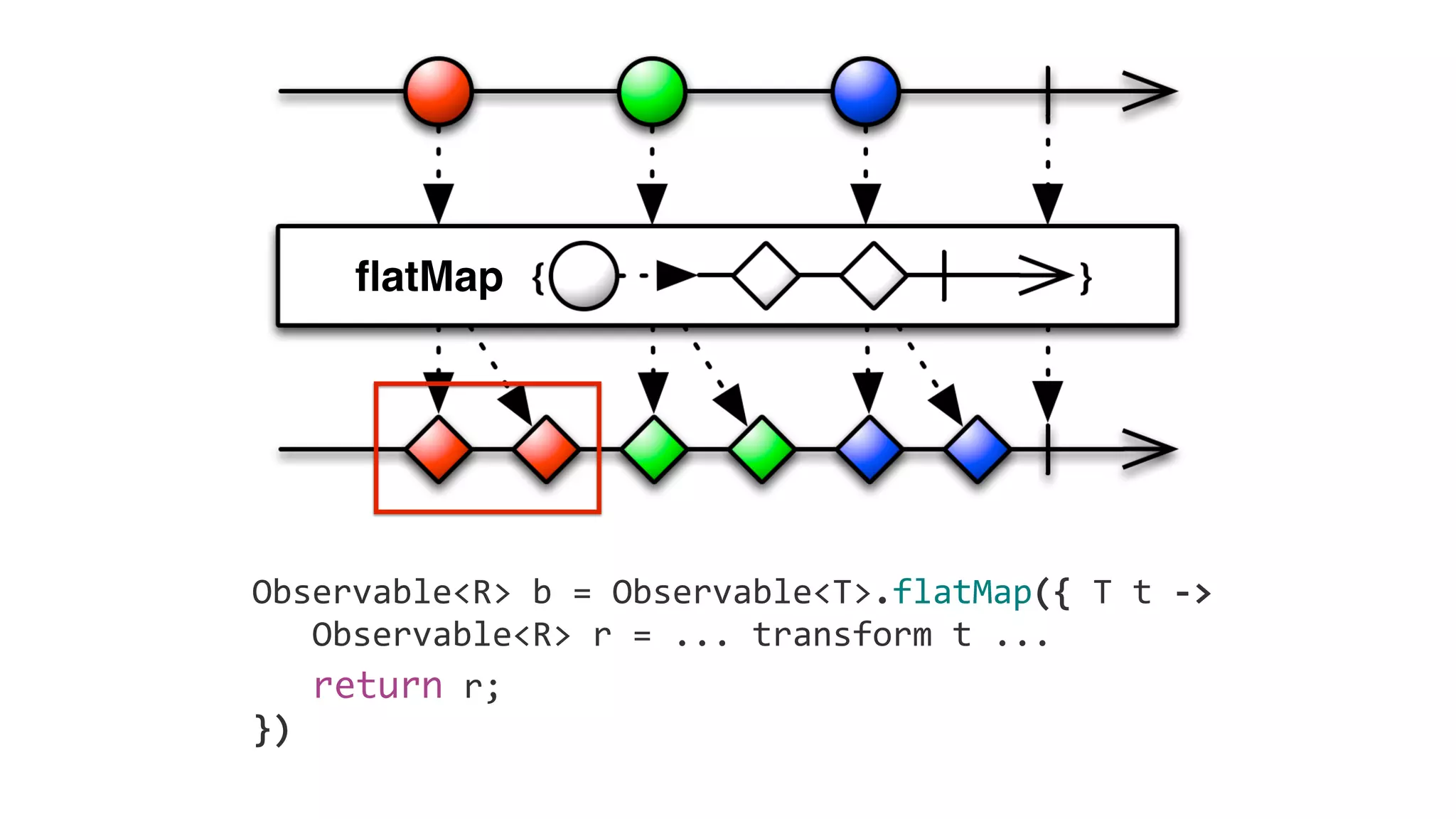

 Observable<R>  b  =  Observable<T>.flatMap({  T  t  -­‐>            Observable<R>  r  =  ...  transform  t  ...          return  r;    }) flatMap
 Observable<R>  b  =  Observable<T>.flatMap({  T  t  -­‐>            Observable<R>  r  =  ...  transform  t  ...          return  r;    }) flatMap

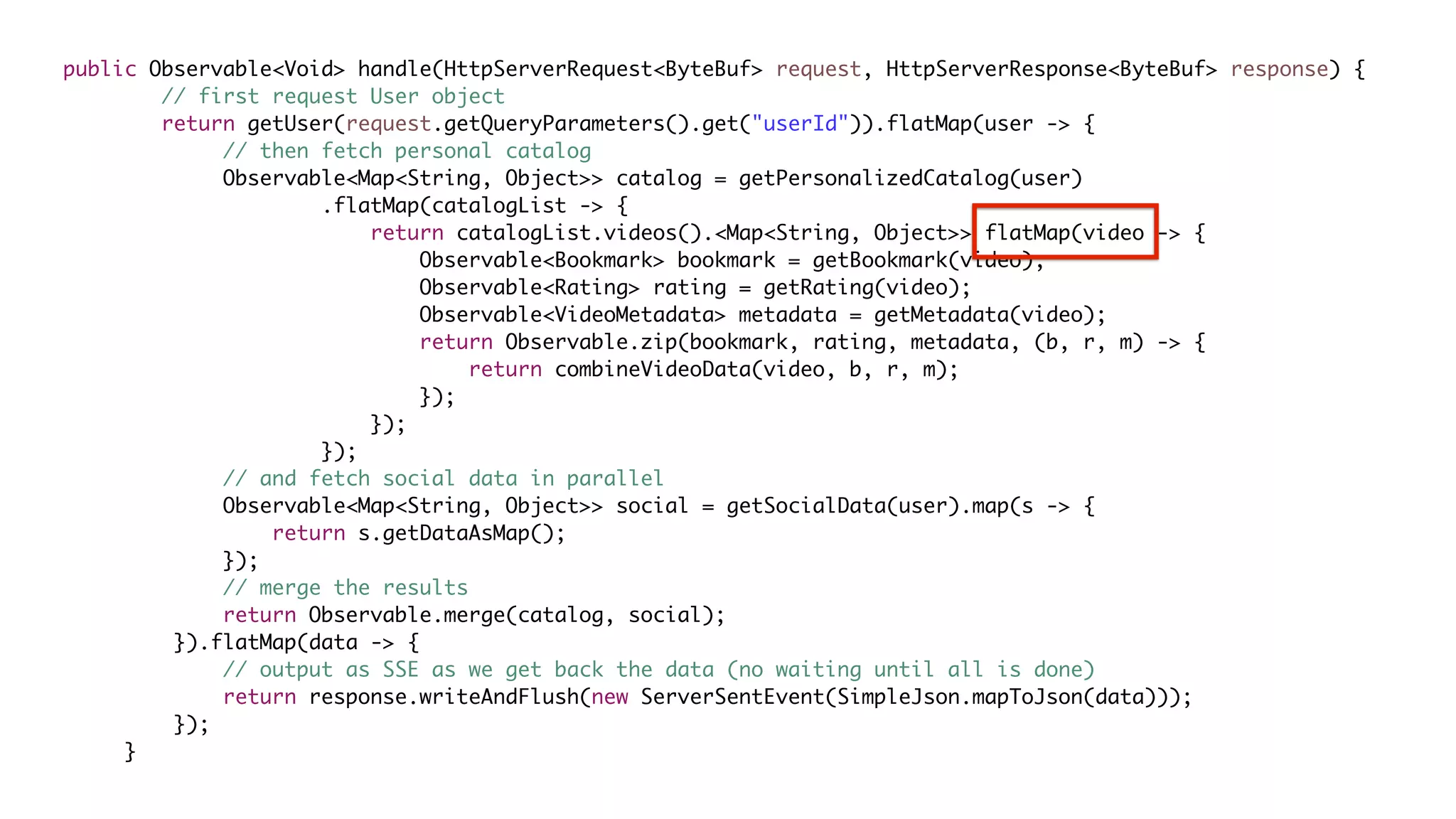

public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }

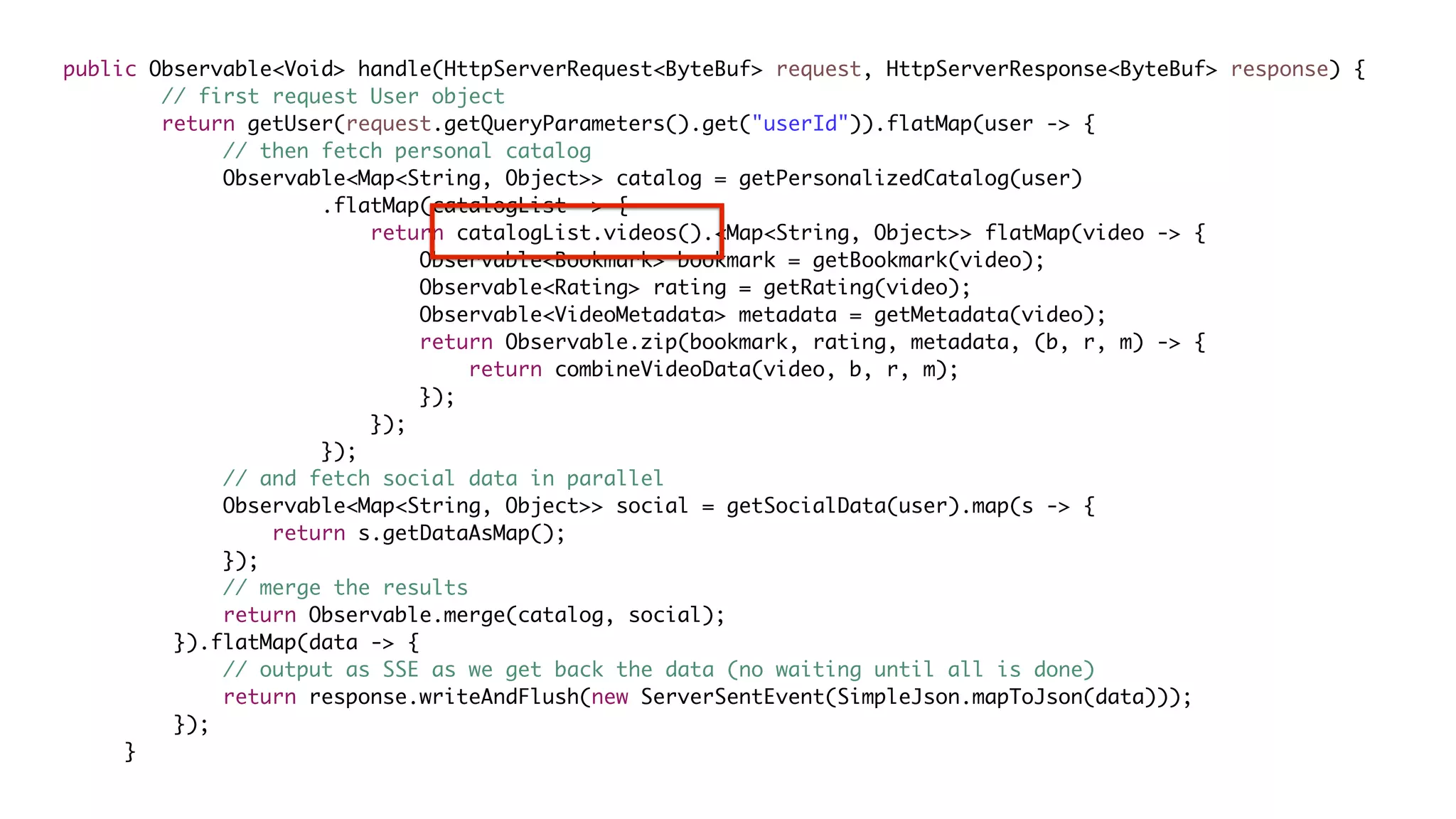

public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }

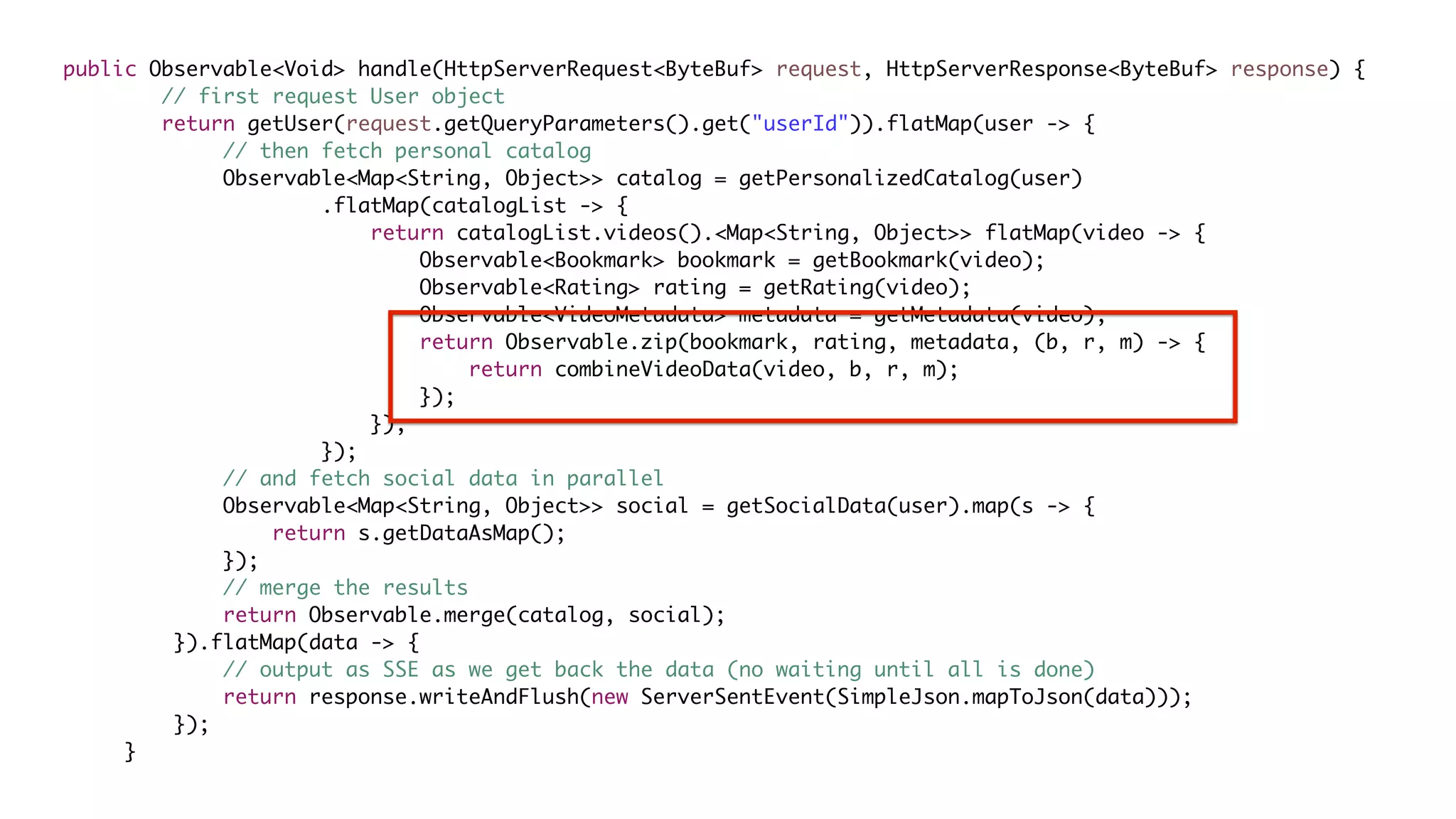

public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }

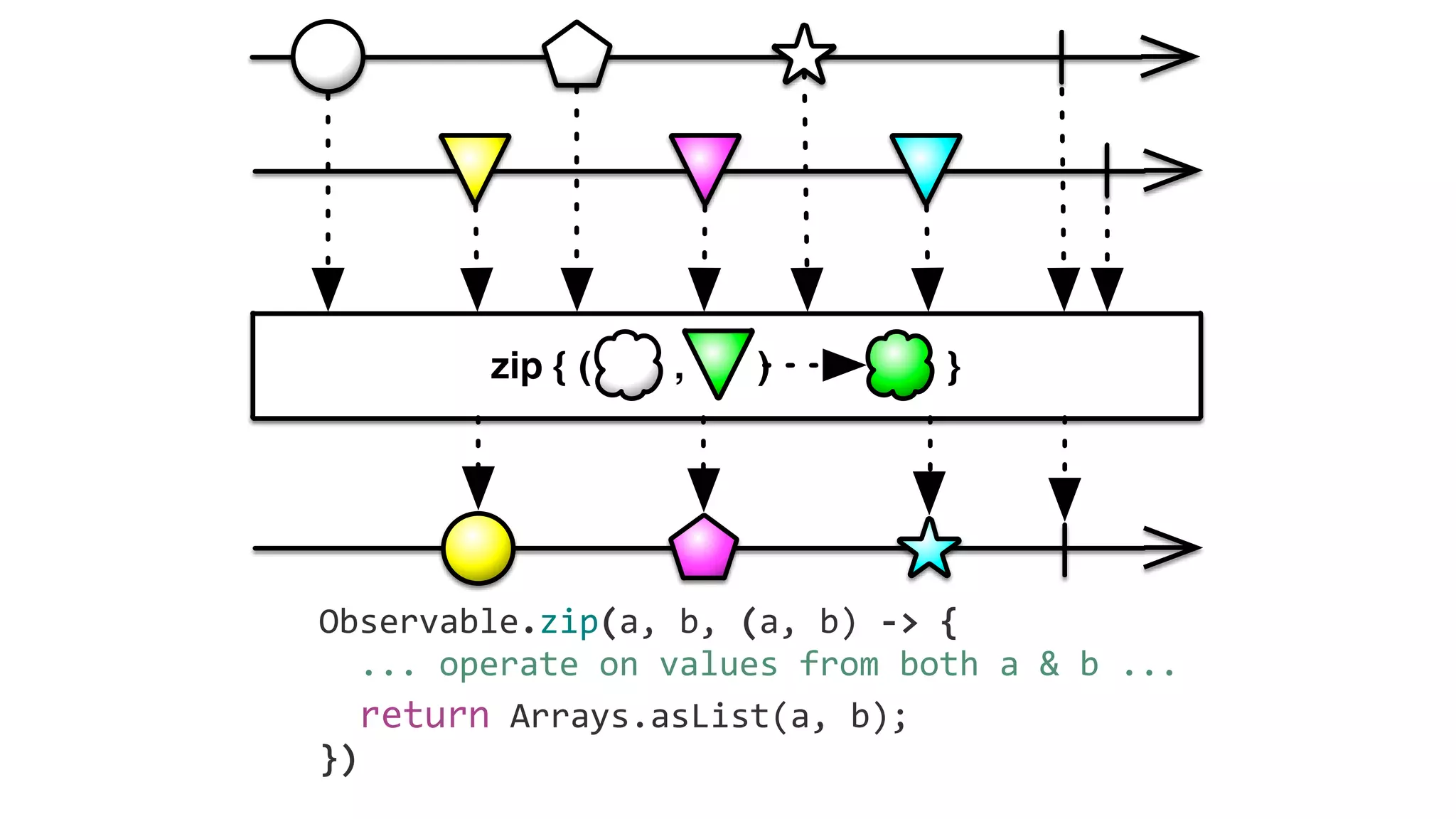

       Observable.zip(a,  b,  (a,  b)  -­‐>  {                ...  operate  on  values  from  both  a  &  b  ...              return  Arrays.asList(a,  b);          }) zip { ( , ) }

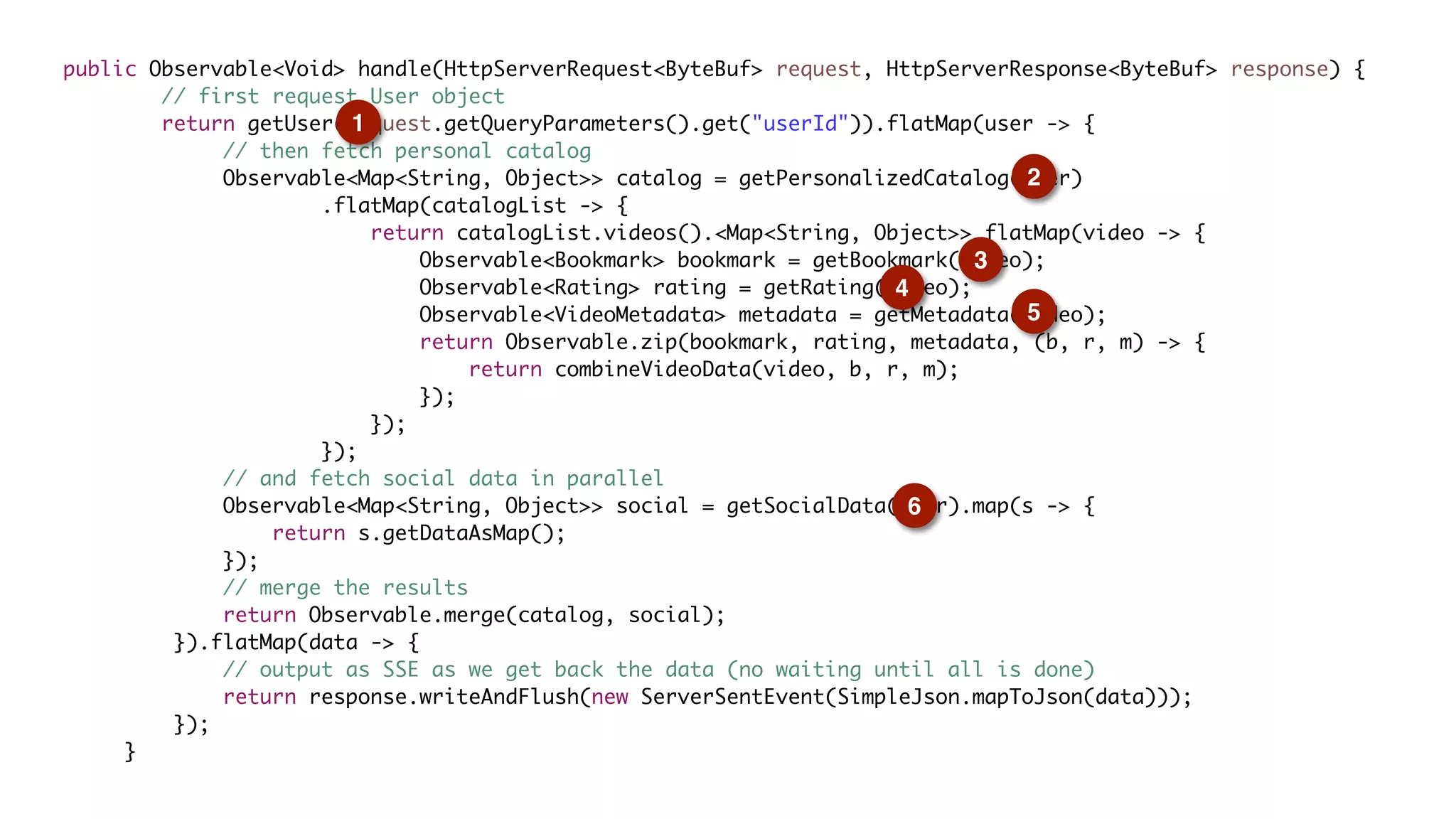

public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
class  VideoService  {        def  VideoList  getPersonalizedListOfMovies(userId);        def  VideoBookmark  getBookmark(userId,  videoId);        def  VideoRating  getRating(userId,  videoId);        def  VideoMetadata  getMetadata(videoId);   } class  VideoService  {        def  Observable<VideoList>  getPersonalizedListOfMovies(userId);        def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   } ...createanobservableapi: insteadofablockingapi...

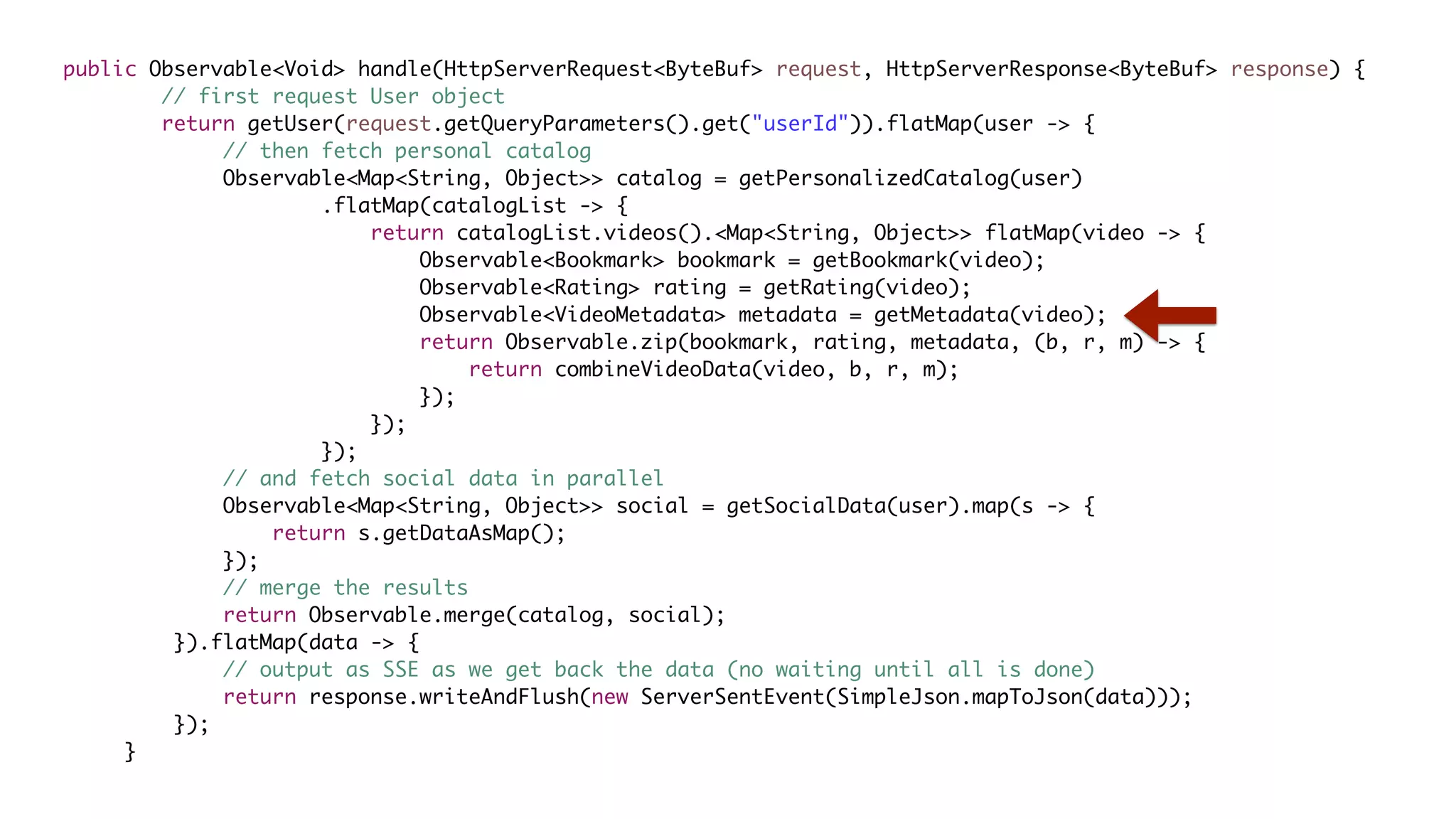

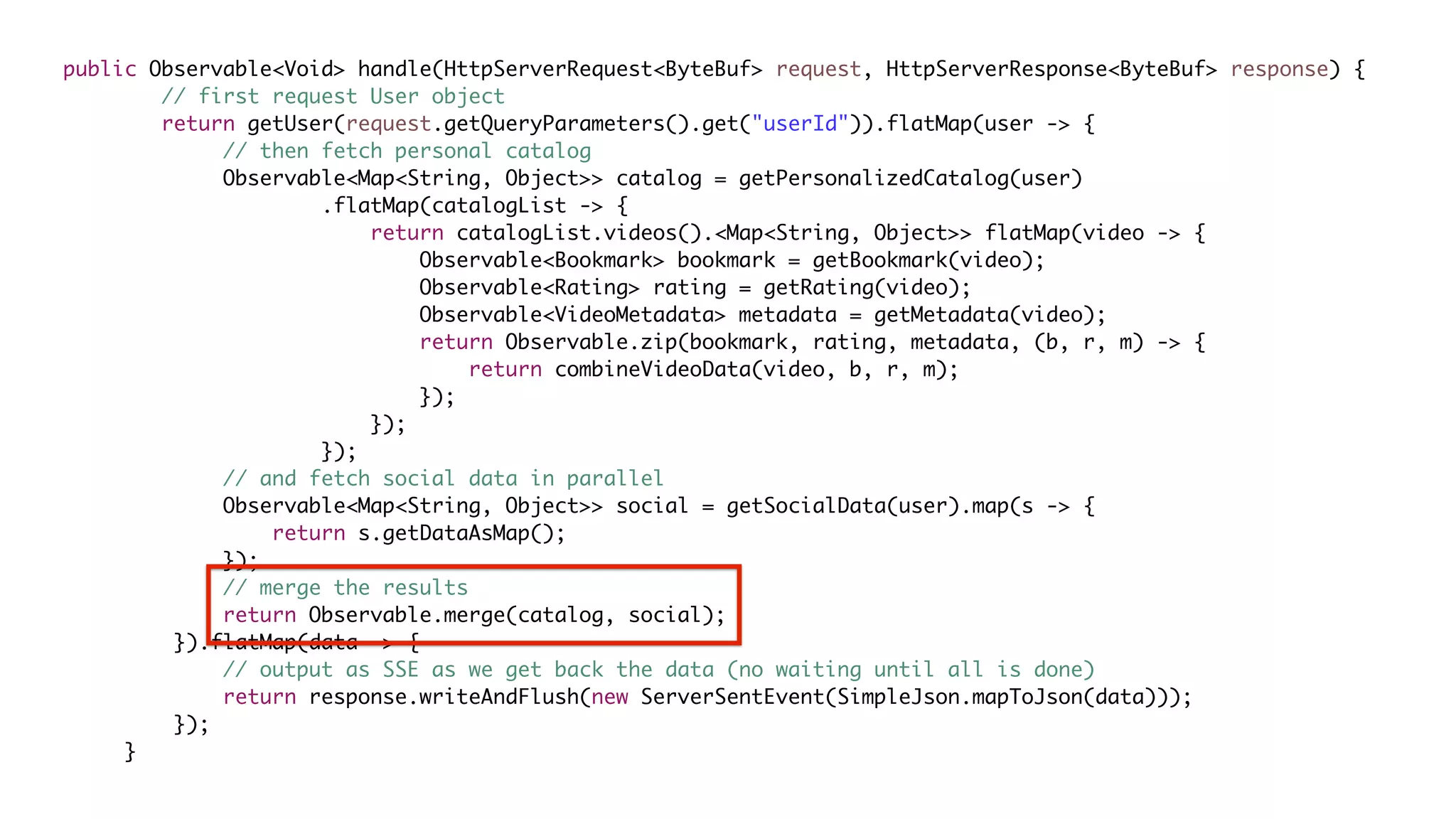

public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); } 1 2 3 4 5 6
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); } 1 2 3 4 5 6

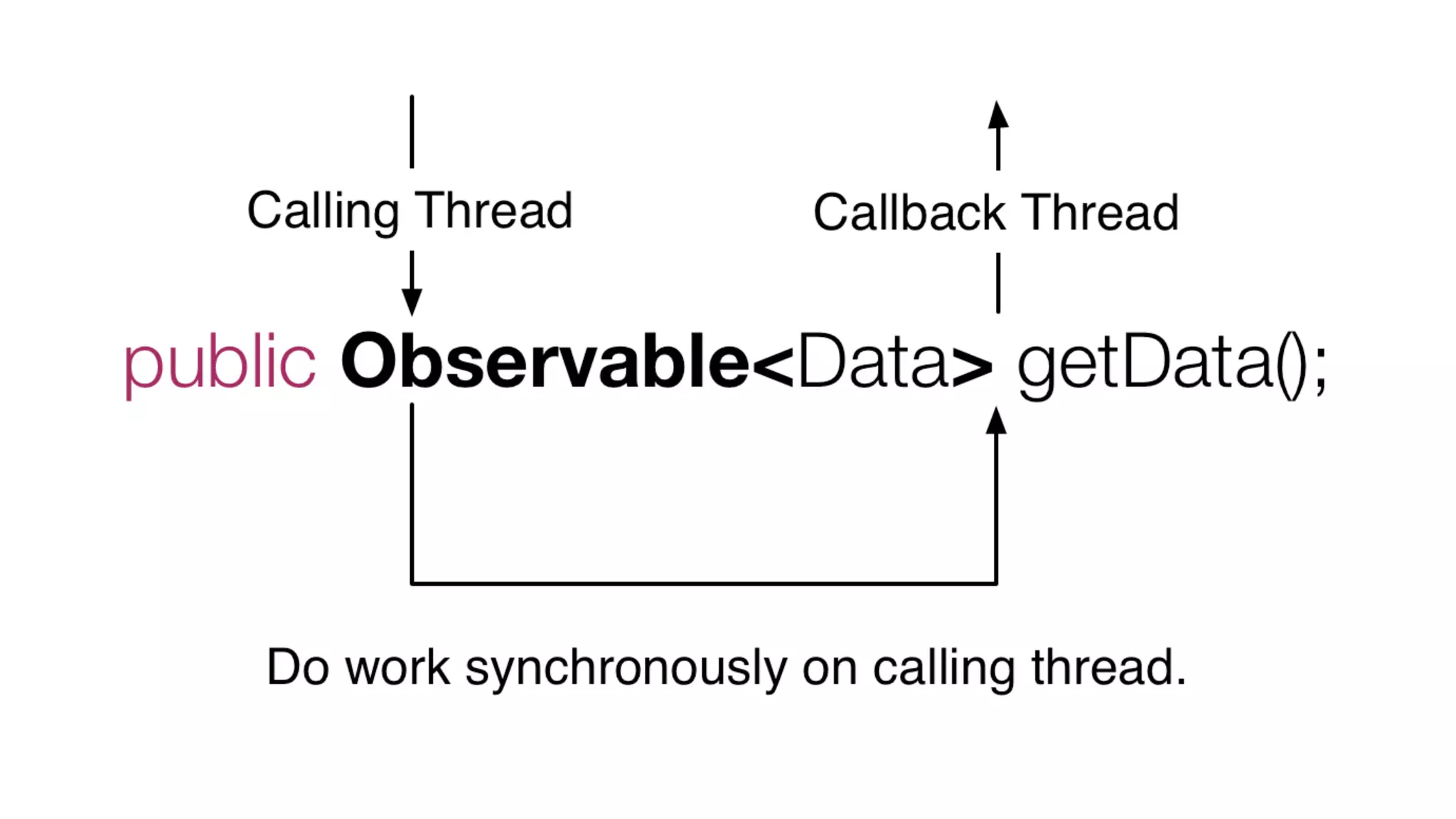

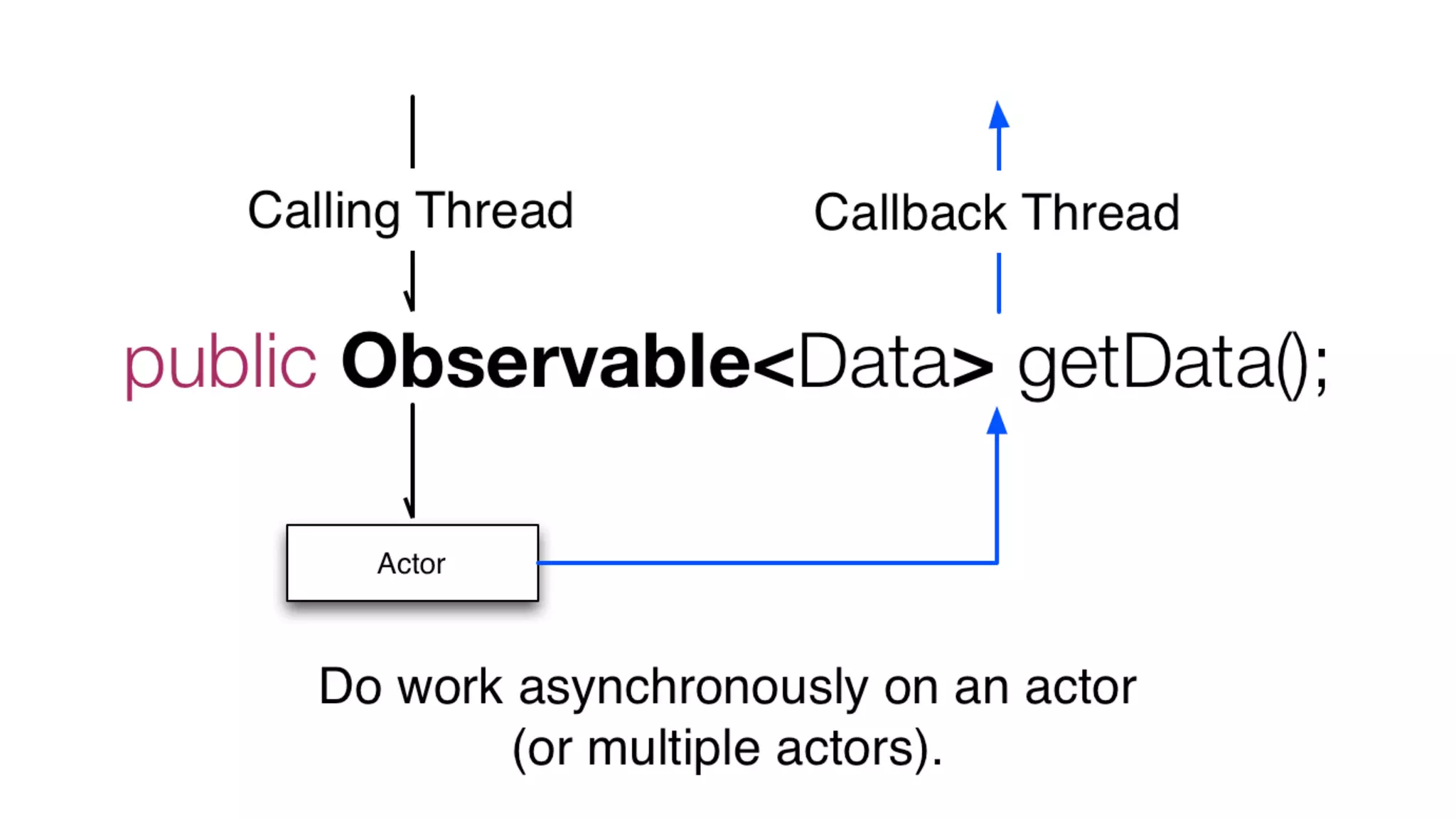

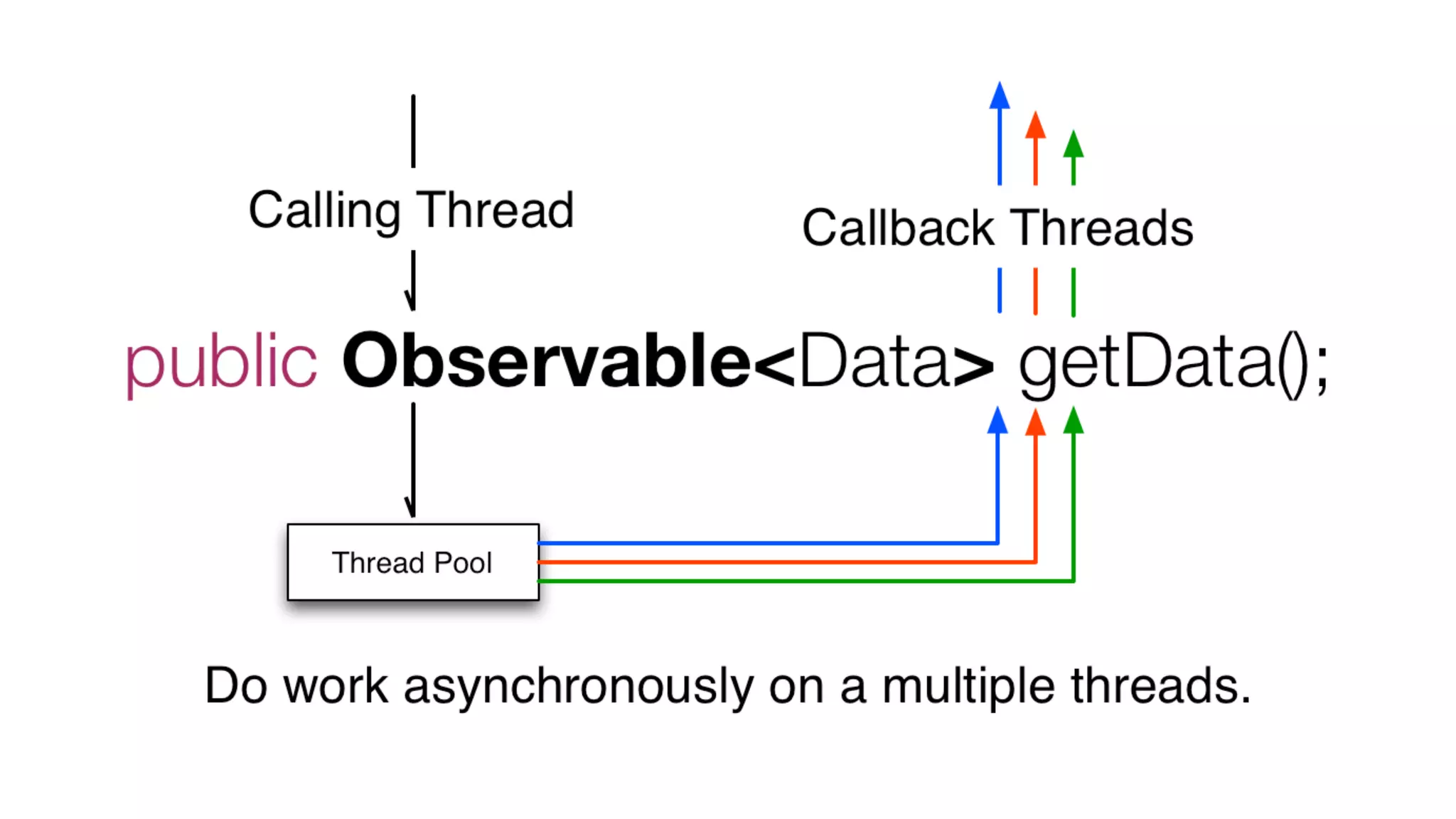

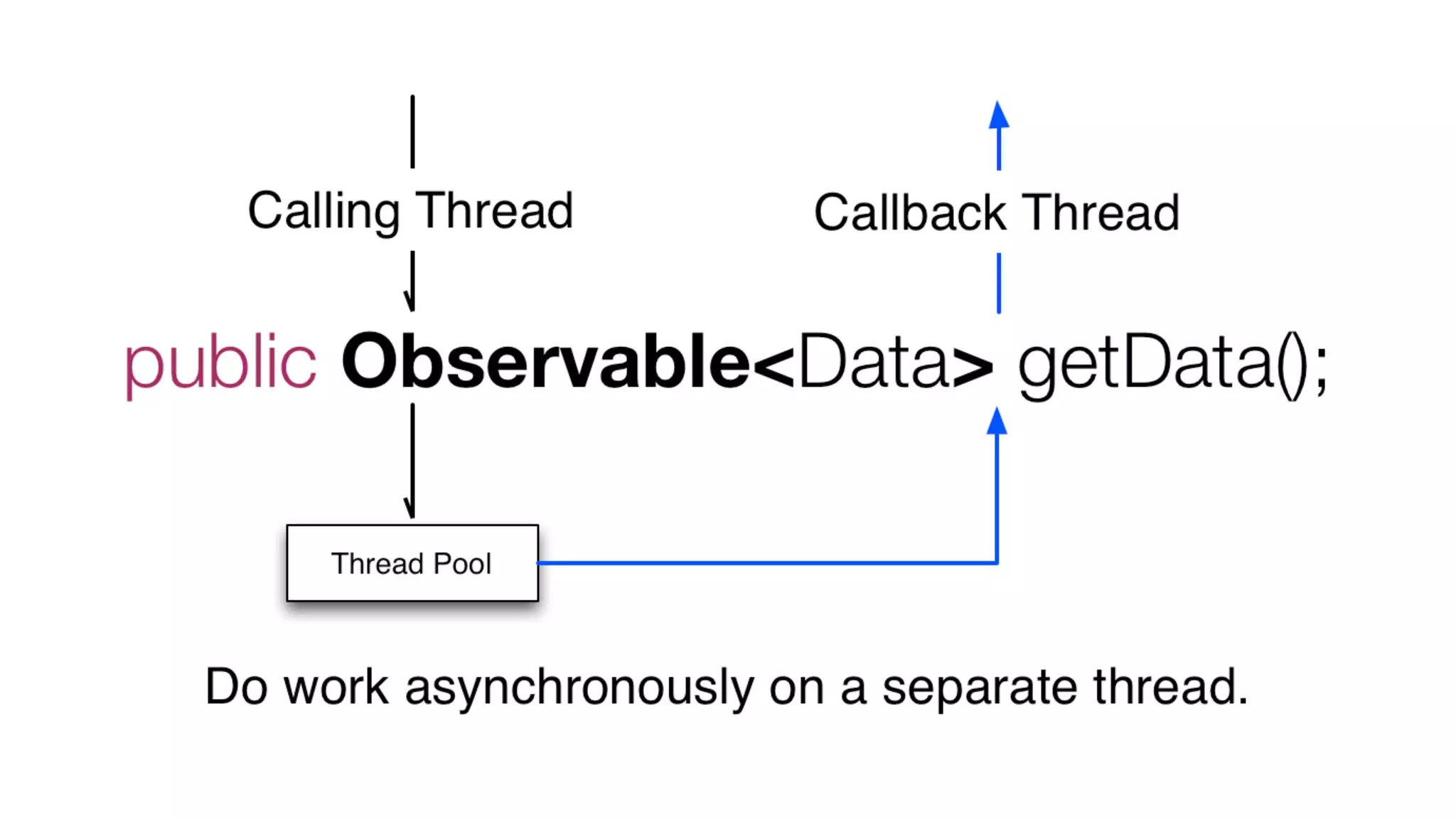

Non-Opinionated Concurrency

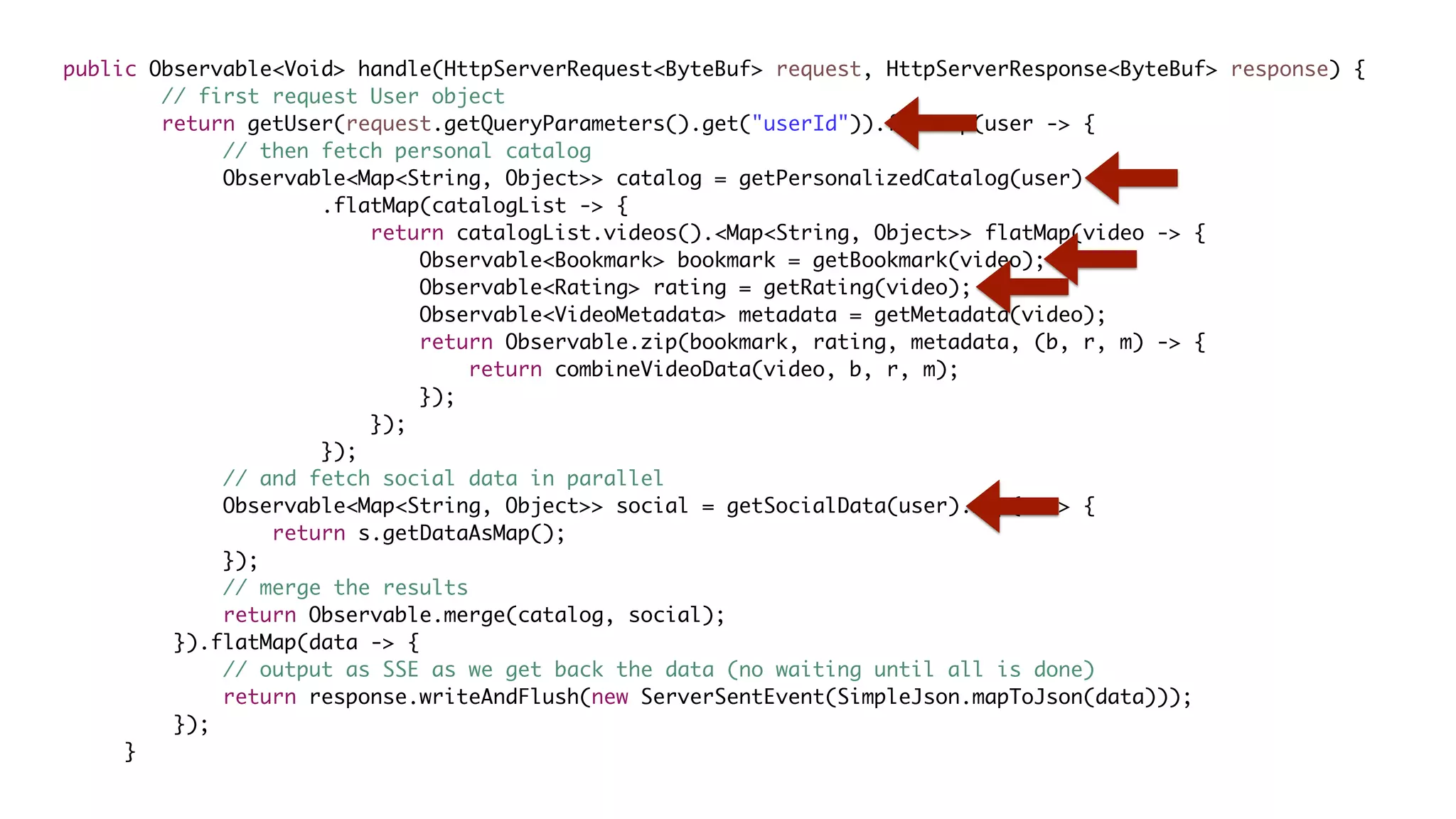

public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }

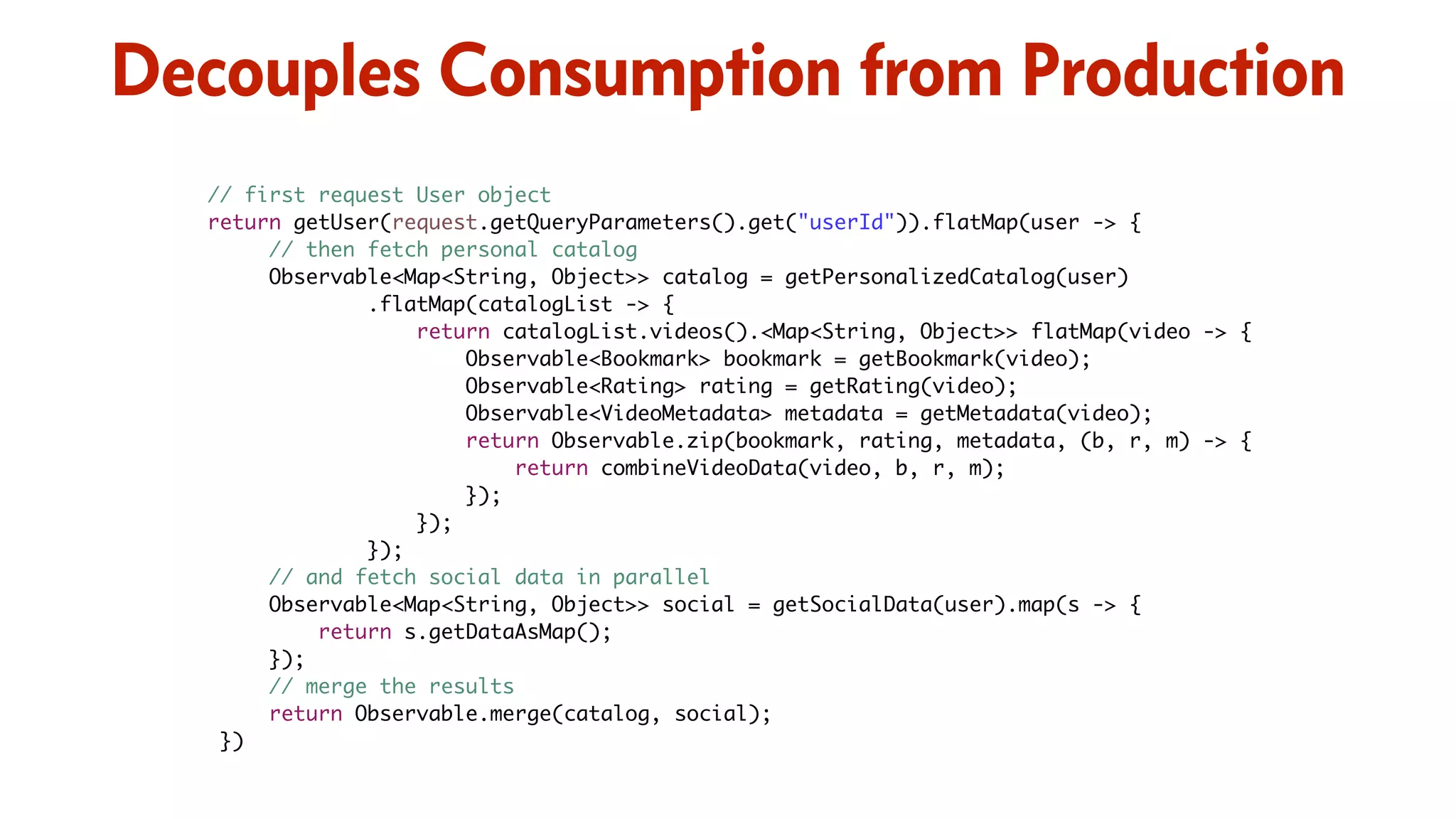

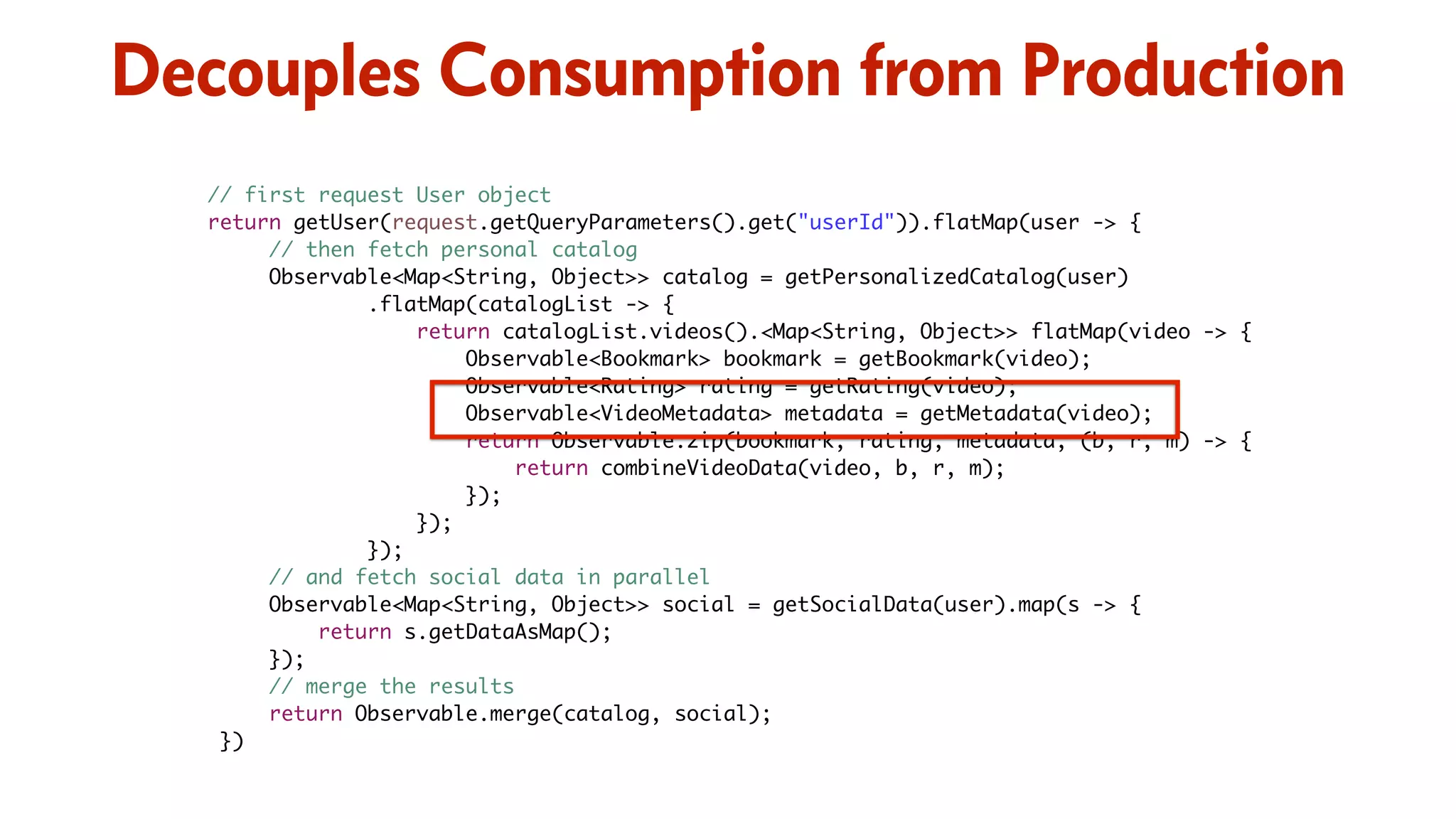

Decouples Consumption from Production // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); })

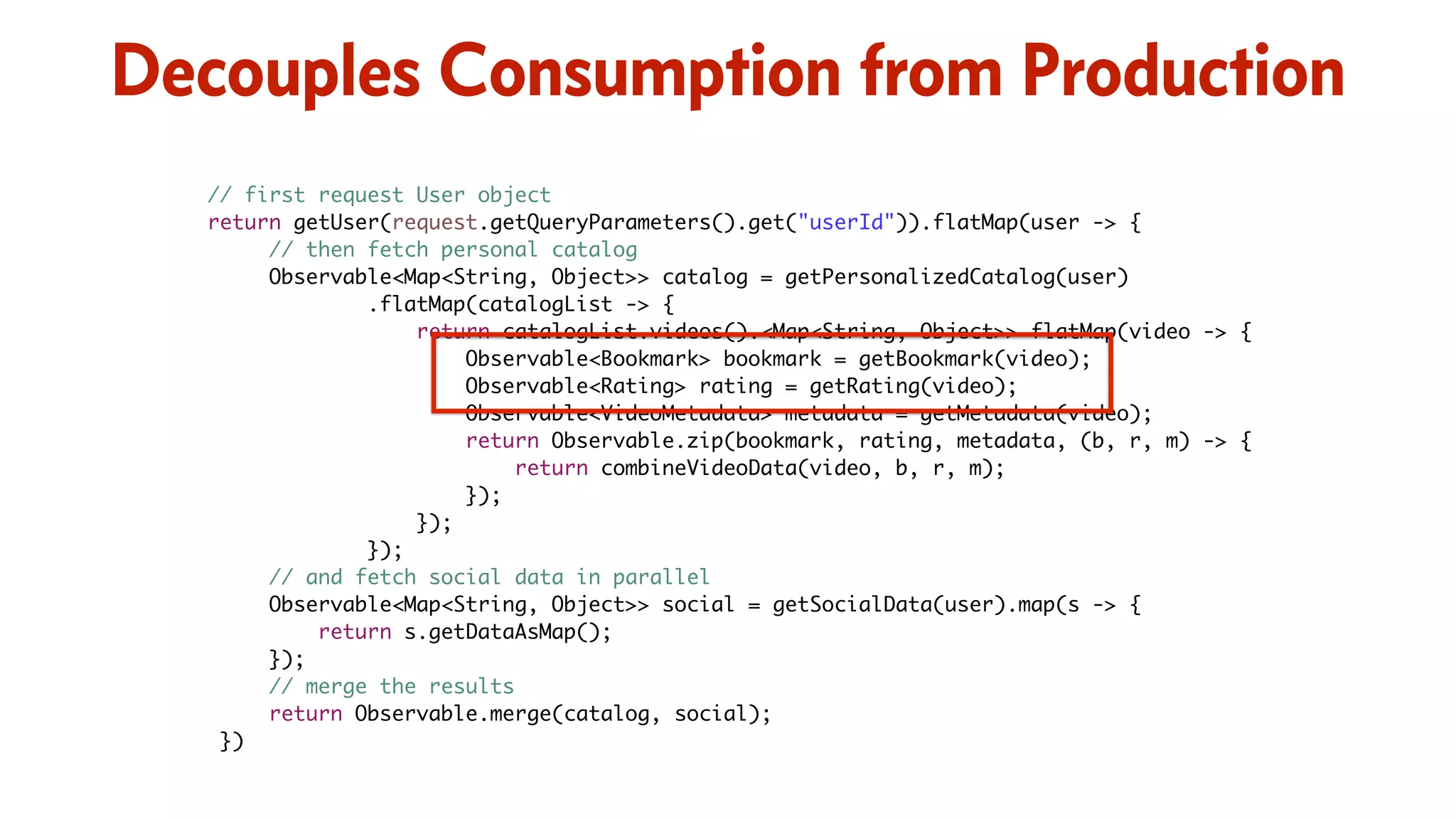

// first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }) Decouples Consumption from Production
// first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }) Decouples Consumption from Production

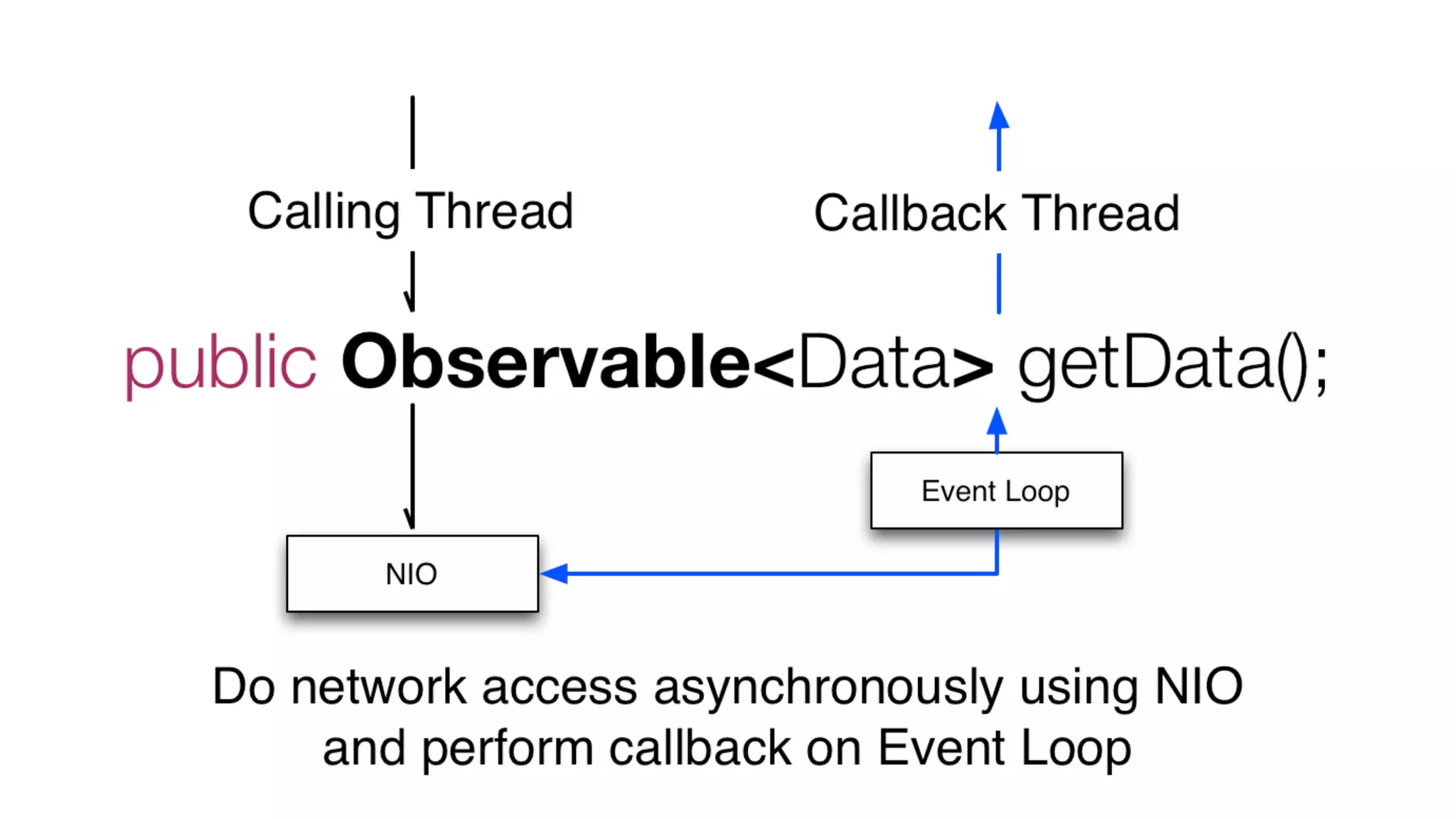

Decouples Consumption from Production Event Loop API Request API Request API Request API Request API Request Dependency REST API new Command().observe() new Command(). observe() new Command(). observe() new Command(). observe() new Command(). observe() Collapser

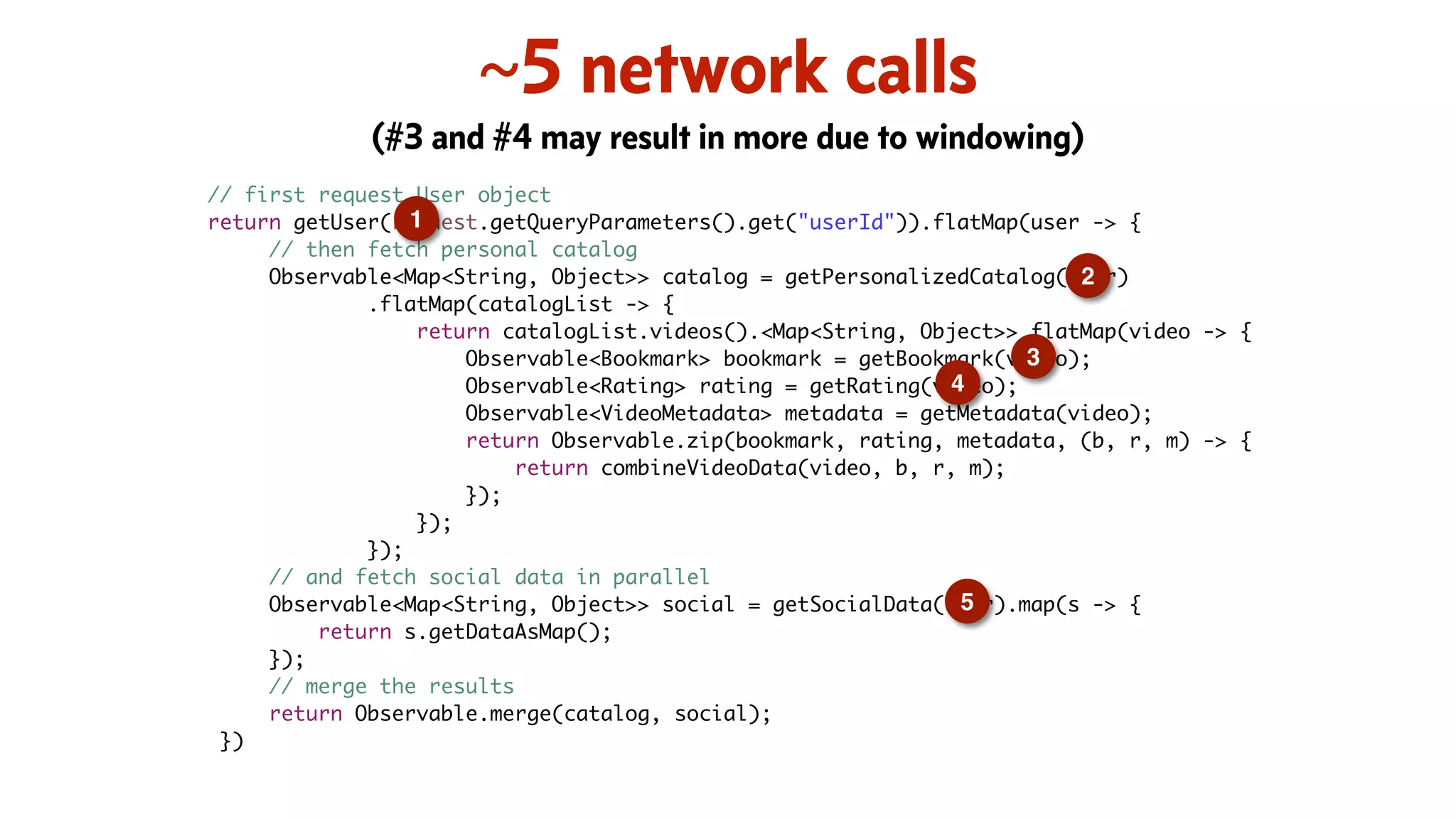

// first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }) ~5 network calls (#3 and #4 may result in more due to windowing) 1 2 3 4 5

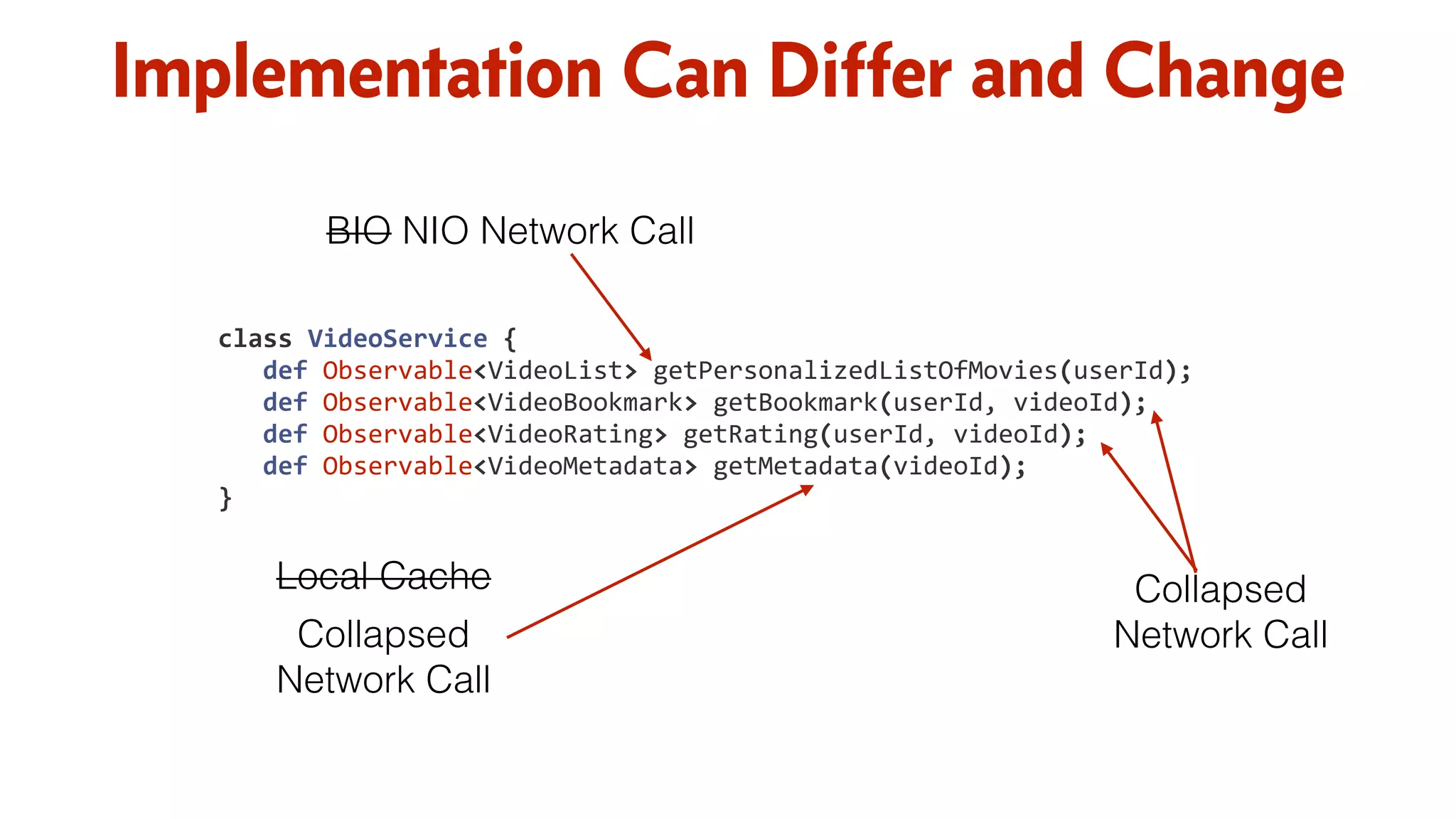

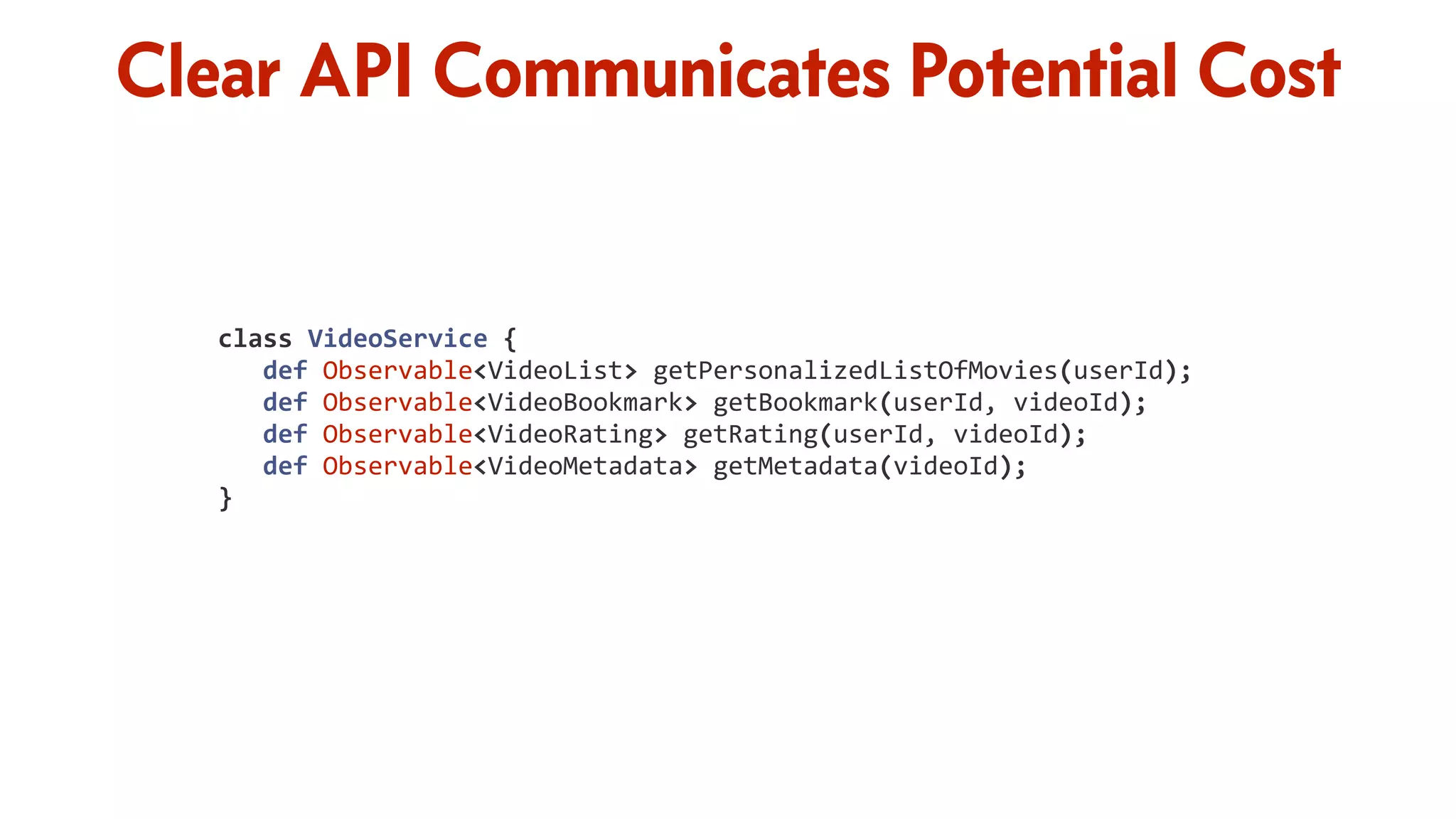

Clear API Communicates Potential Cost class  VideoService  {        def  Observable<VideoList>  getPersonalizedListOfMovies(userId);        def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   }

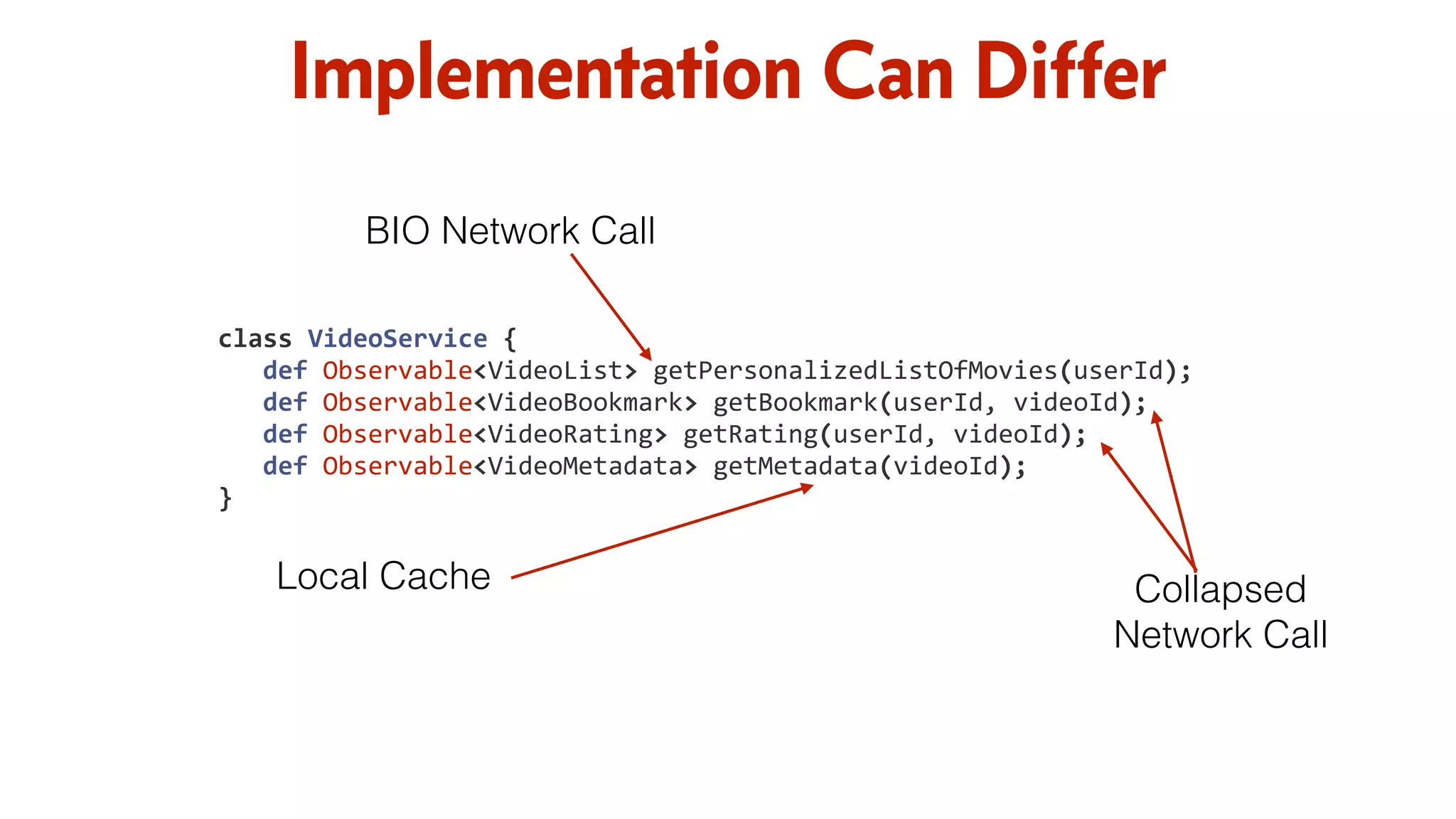

class  VideoService  {        def  Observable<VideoList>  getPersonalizedListOfMovies(userId);        def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   } Implementation Can Differ BIO Network Call Local Cache Collapsed Network Call
class  VideoService  {        def  Observable<VideoList>  getPersonalizedListOfMovies(userId);        def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   } Implementation Can Differ and Change Local Cache Collapsed Network CallCollapsed Network Call BIO NIO Network Call
Retrieval, Transformation, Combination all done in same declarative manner
What about … ?
Error Handling

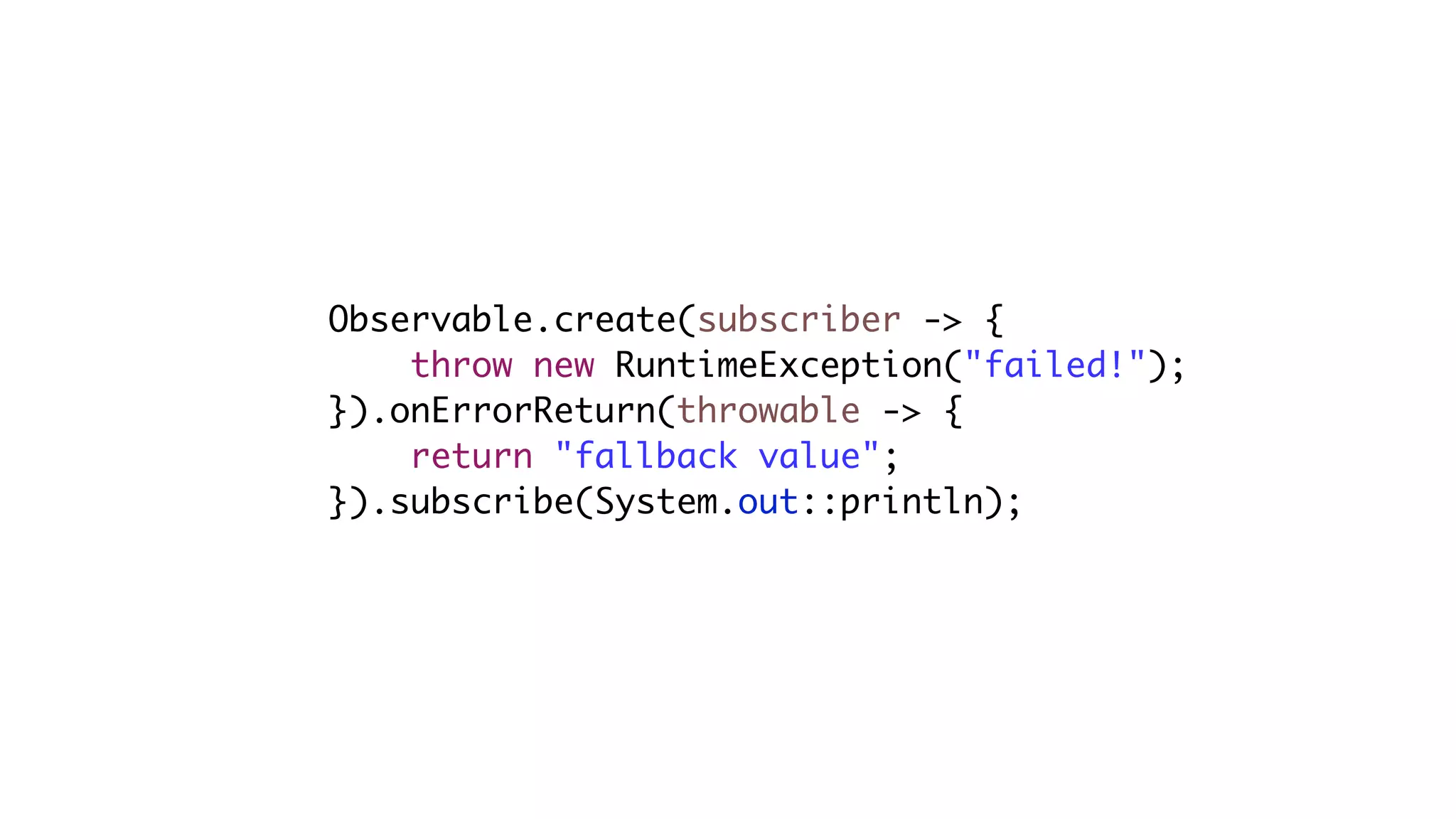

Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).onErrorResumeNext(throwable -> { return Observable.just("fallback value"); }).subscribe(System.out::println);
Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).onErrorReturn(throwable -> { return "fallback value"; }).subscribe(System.out::println);

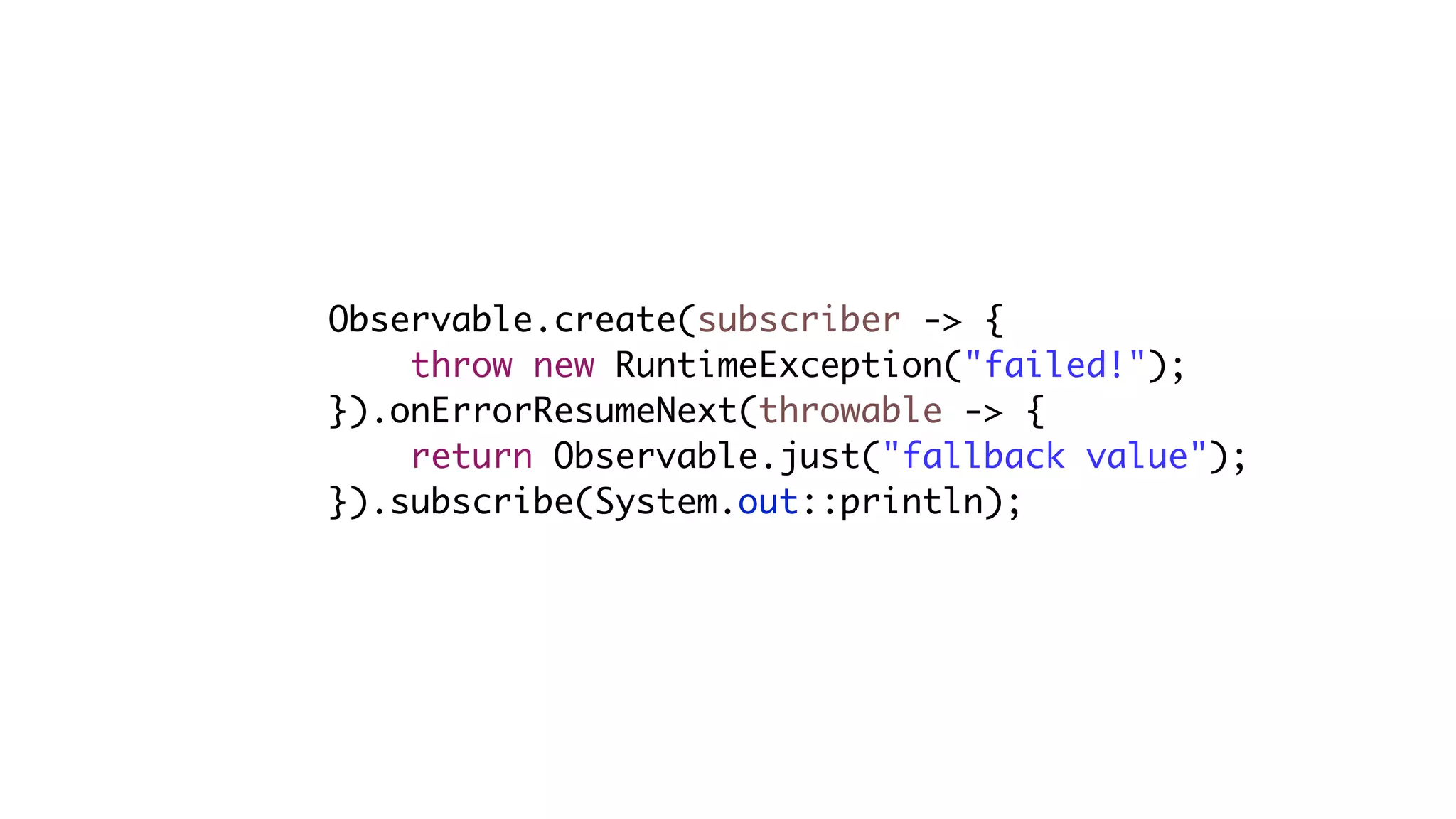

Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).retryWhen(attempts -> { return attempts.zipWith(Observable.range(1, 3), (throwable, i) -> i) .flatMap(i -> { System.out.println("delay retry by " + i + " second(s)"); return Observable.timer(i, TimeUnit.SECONDS); }).concatWith(Observable.error(new RuntimeException("Exceeded 3 retries"))); }) .subscribe(System.out::println, t -> t.printStackTrace());
Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).retryWhen(attempts -> { return attempts.zipWith(Observable.range(1, 3), (throwable, i) -> i) .flatMap(i -> { System.out.println("delay retry by " + i + " second(s)"); return Observable.timer(i, TimeUnit.SECONDS); }).concatWith(Observable.error(new RuntimeException("Exceeded 3 retries"))); }) .subscribe(System.out::println, t -> t.printStackTrace());
Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).retryWhen(attempts -> { return attempts.zipWith(Observable.range(1, 3), (throwable, i) -> i) .flatMap(i -> { System.out.println("delay retry by " + i + " second(s)"); return Observable.timer(i, TimeUnit.SECONDS); }).concatWith(Observable.error(new RuntimeException("Exceeded 3 retries"))); }) .subscribe(System.out::println, t -> t.printStackTrace());

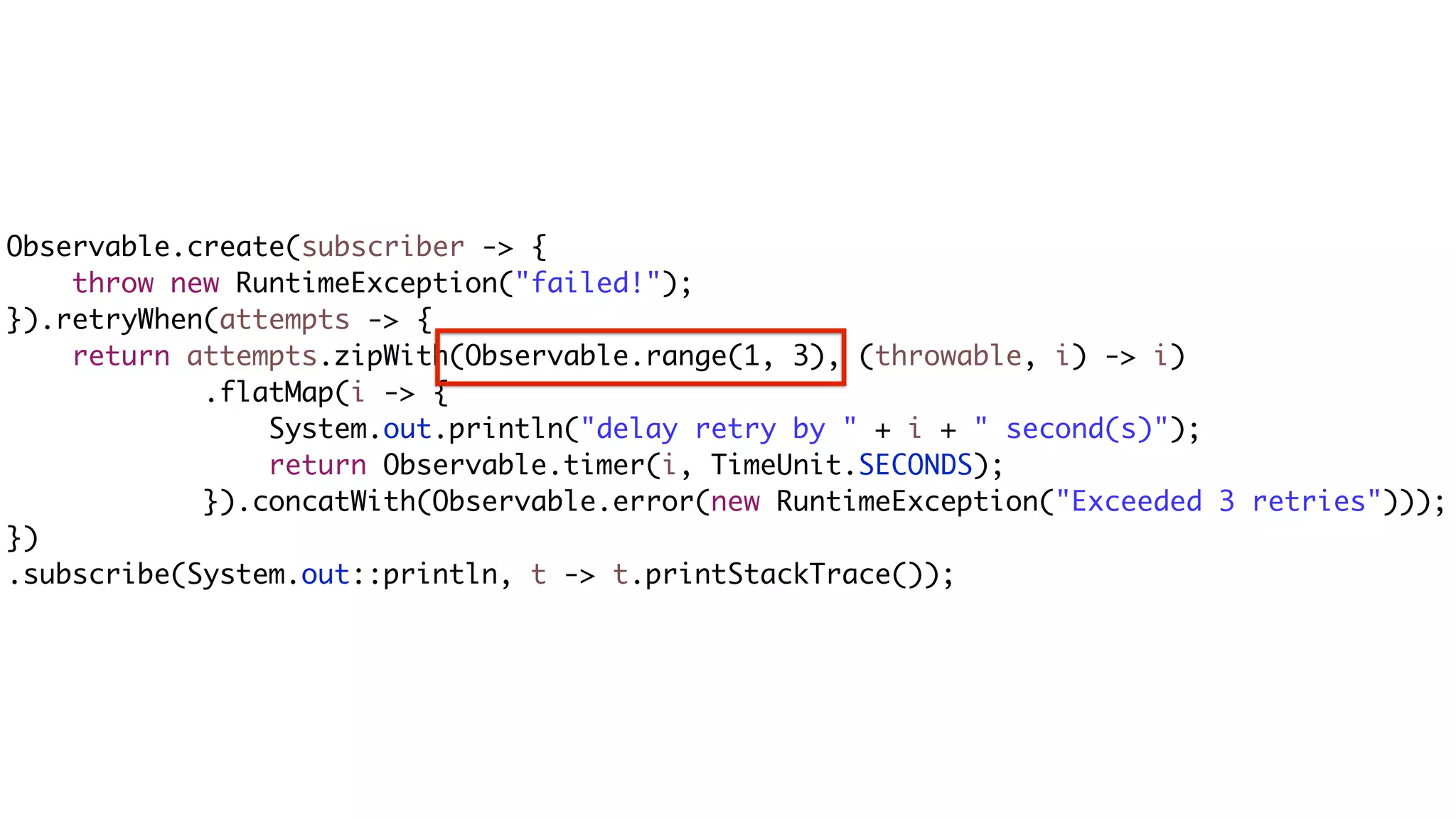

Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).retryWhen(attempts -> { return attempts.zipWith(Observable.range(1, 3), (throwable, i) -> i) .flatMap(i -> { System.out.println("delay retry by " + i + " second(s)"); return Observable.timer(i, TimeUnit.SECONDS); }).concatWith(Observable.error(new RuntimeException("Exceeded 3 retries"))); }) .subscribe(System.out::println, t -> t.printStackTrace());
Concurrency

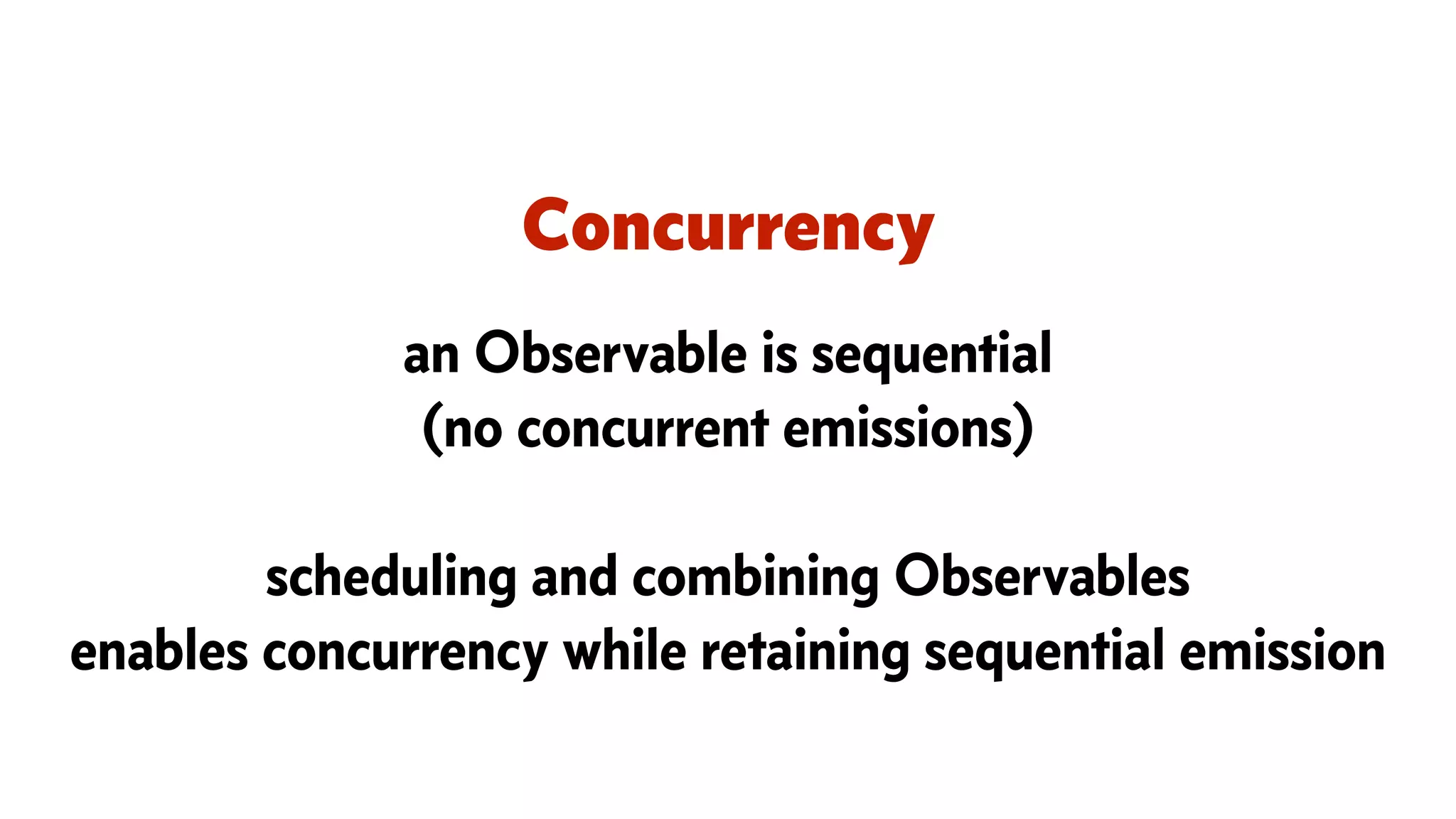

Concurrency an Observable is sequential (no concurrent emissions) scheduling and combining Observables enables concurrency while retaining sequential emission

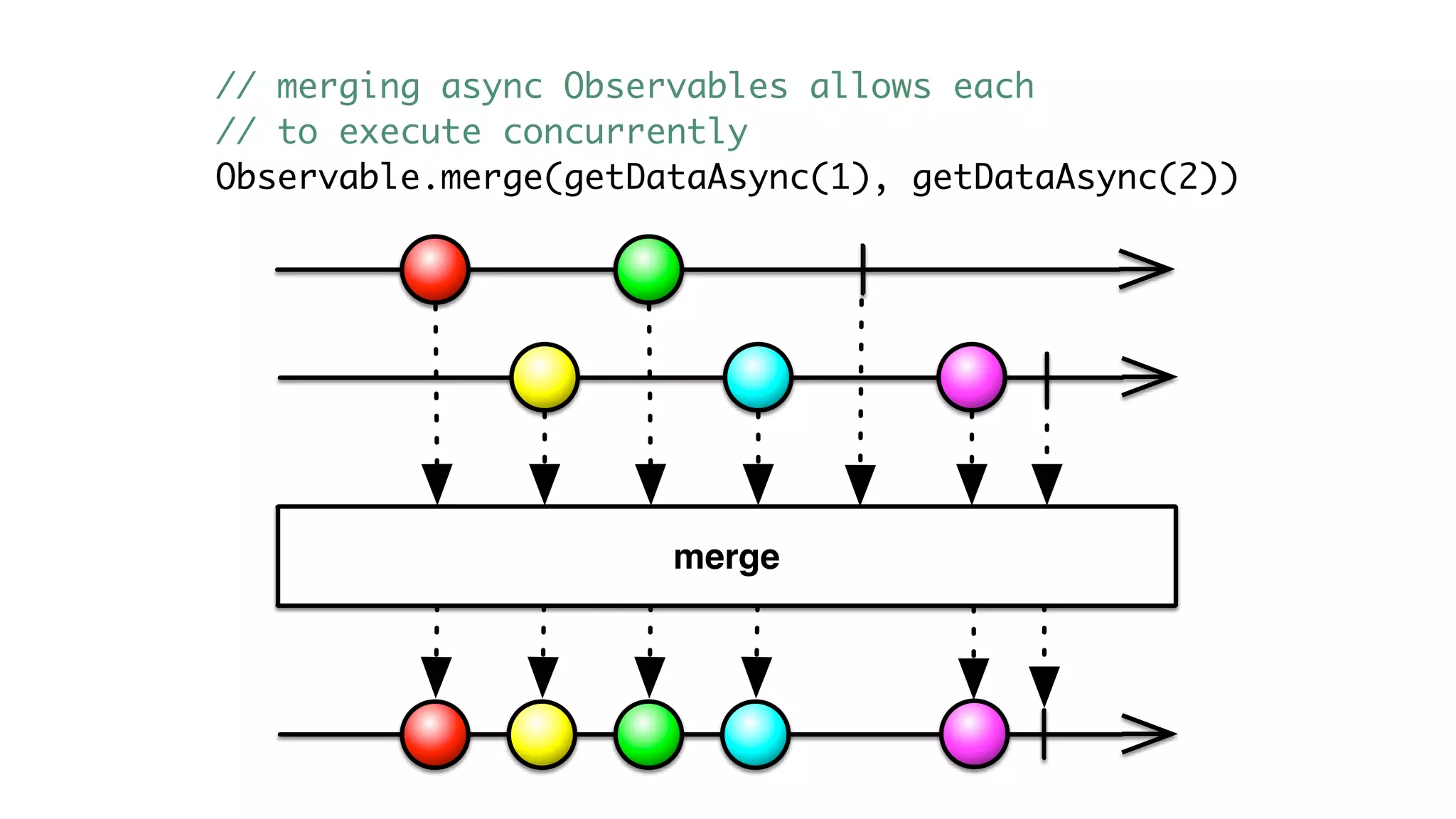

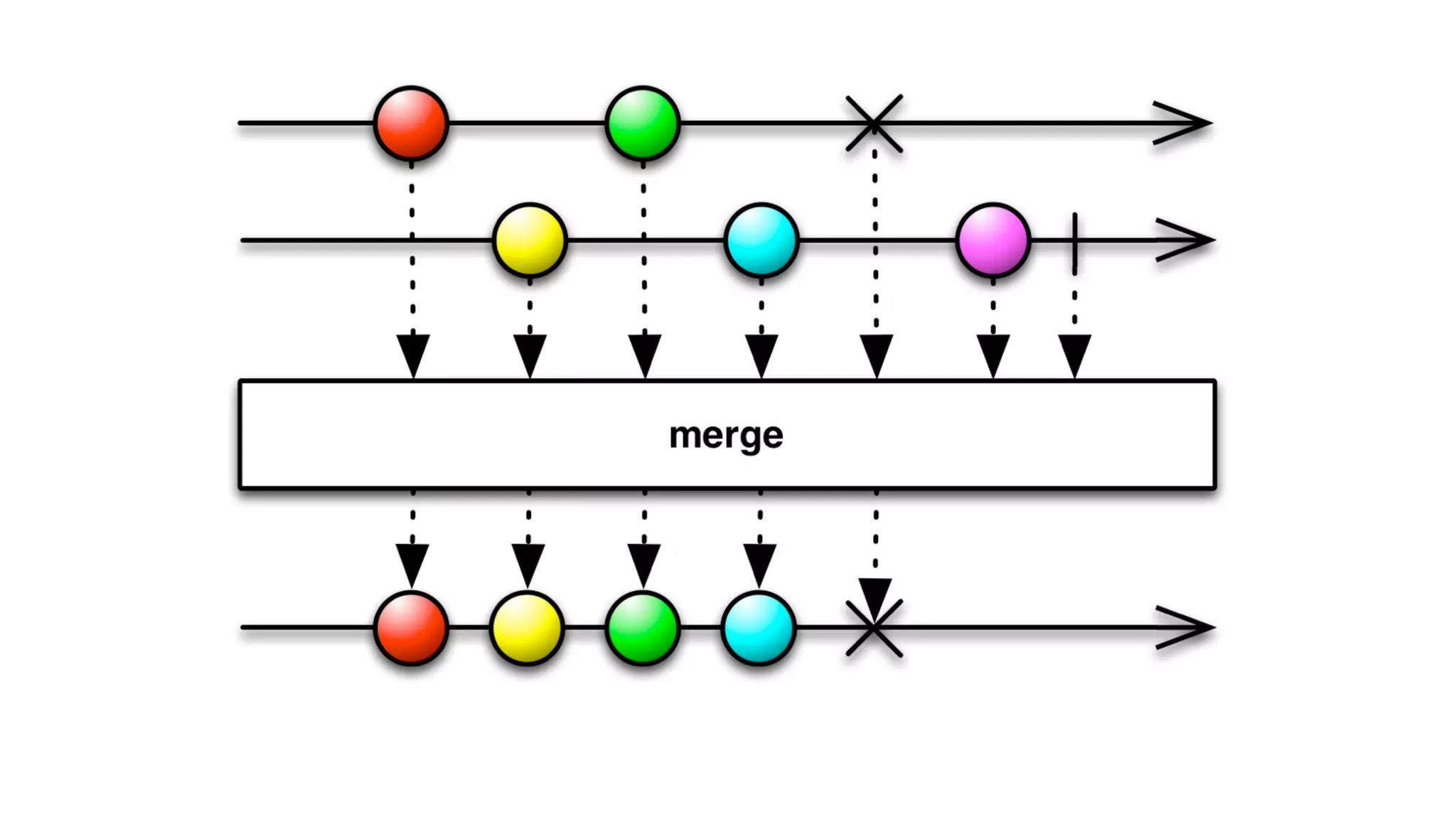

// merging async Observables allows each // to execute concurrently Observable.merge(getDataAsync(1), getDataAsync(2)) merge

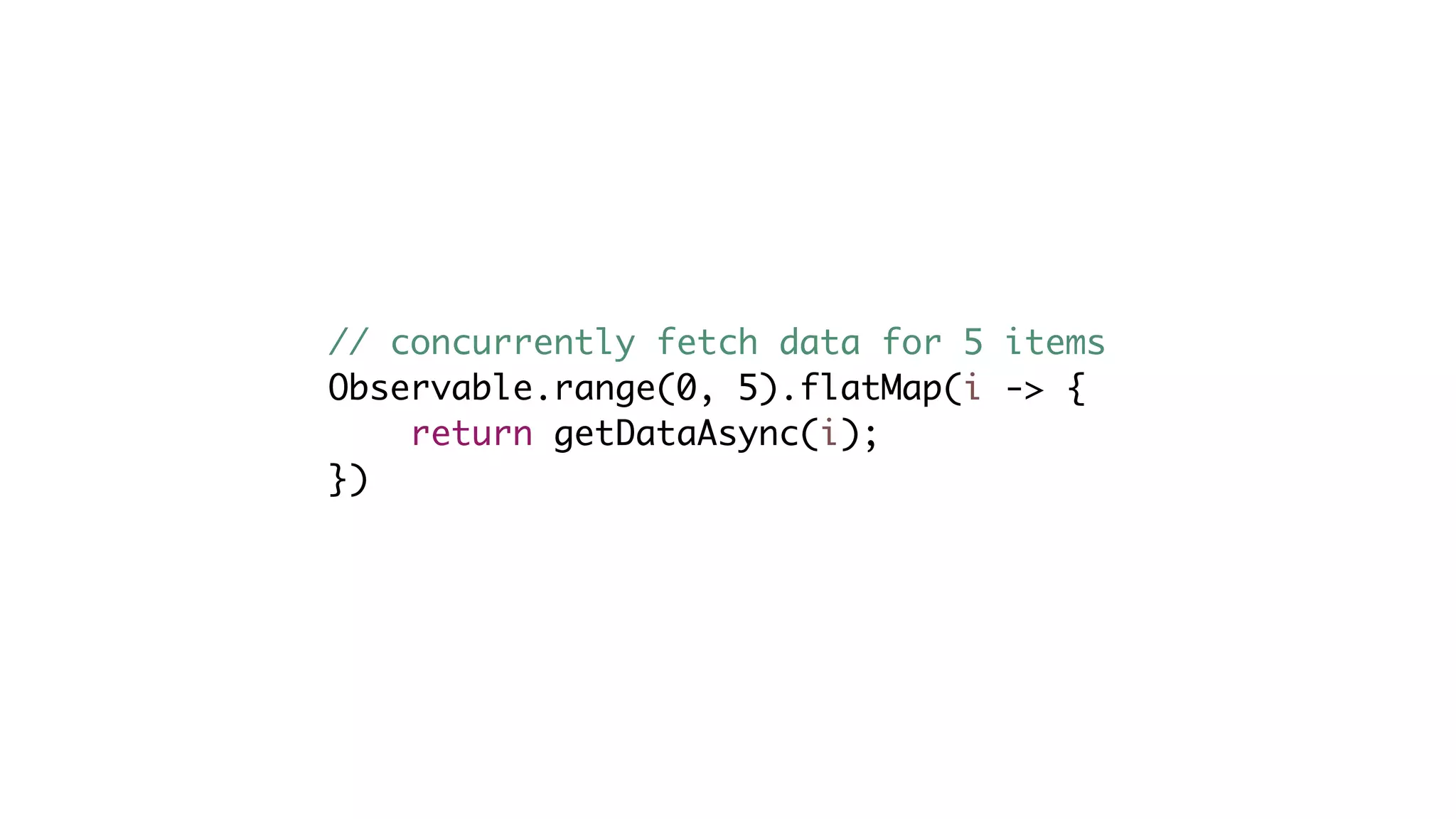

// concurrently fetch data for 5 items Observable.range(0, 5).flatMap(i -> { return getDataAsync(i); })

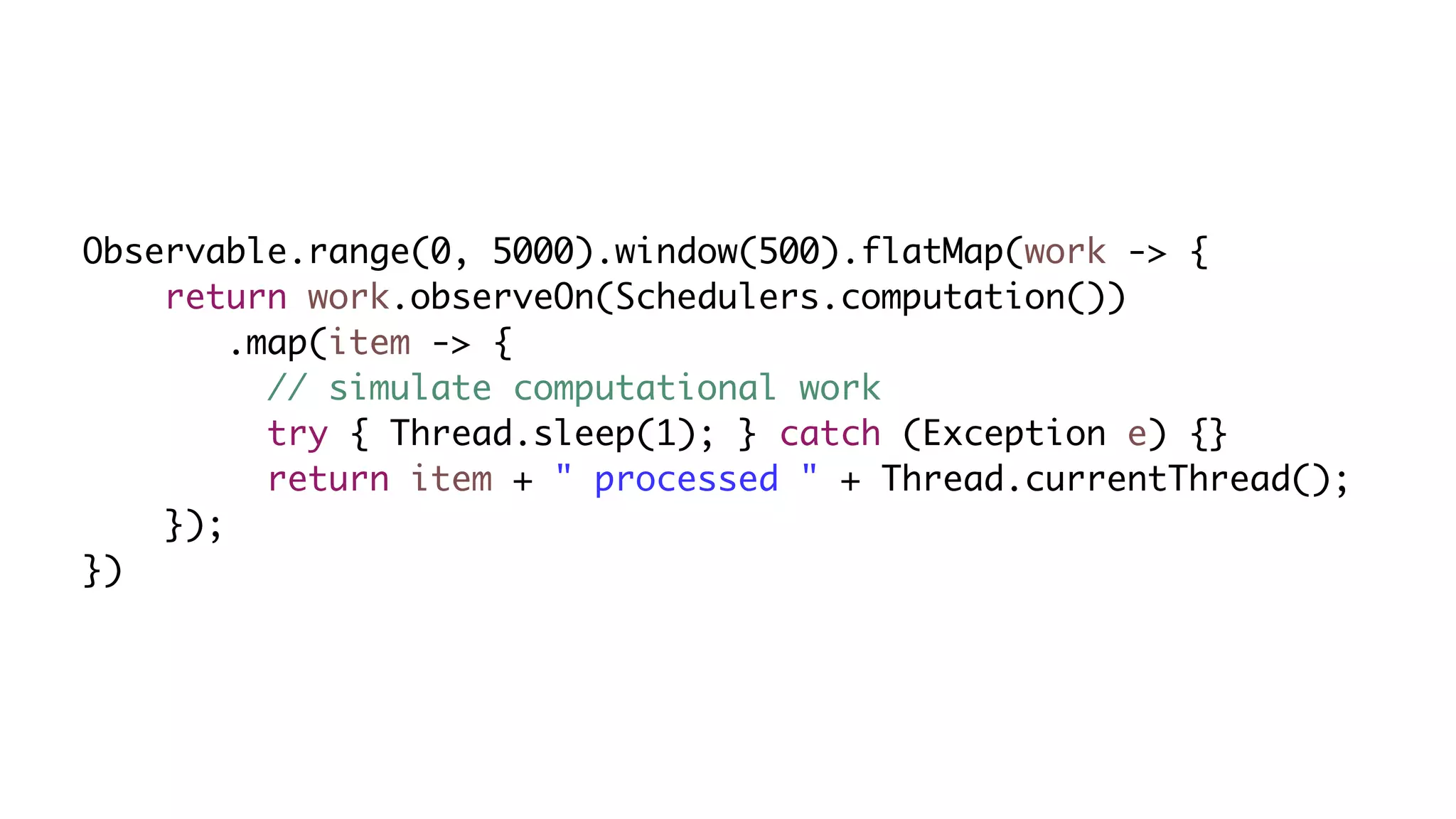

Observable.range(0, 5000).window(500).flatMap(work -> { return work.observeOn(Schedulers.computation()) .map(item -> { // simulate computational work try { Thread.sleep(1); } catch (Exception e) {} return item + " processed " + Thread.currentThread(); }); })

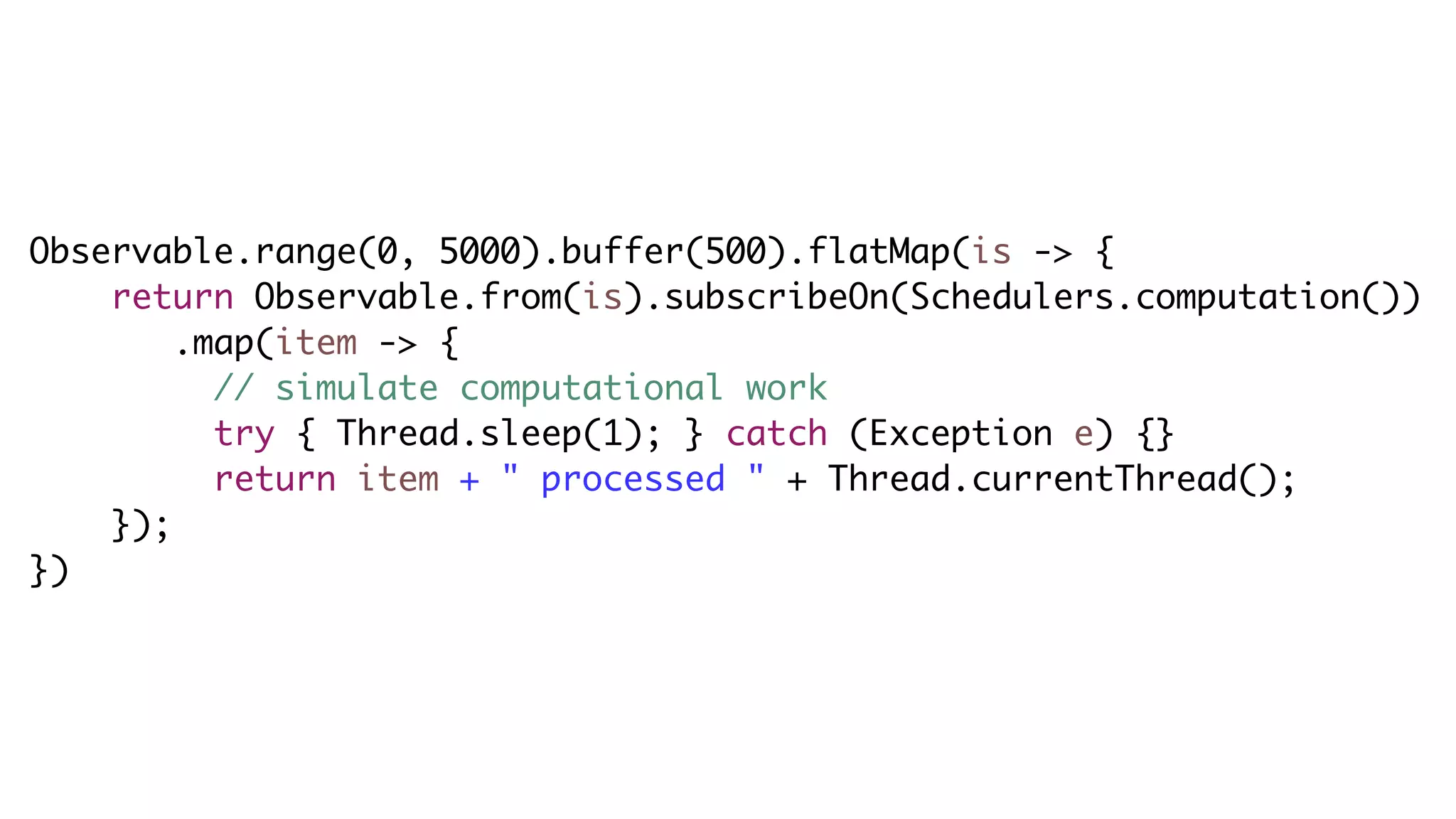

Observable.range(0, 5000).buffer(500).flatMap(is -> { return Observable.from(is).subscribeOn(Schedulers.computation()) .map(item -> { // simulate computational work try { Thread.sleep(1); } catch (Exception e) {} return item + " processed " + Thread.currentThread(); }); })
Flow Control
Flow Control (backpressure)

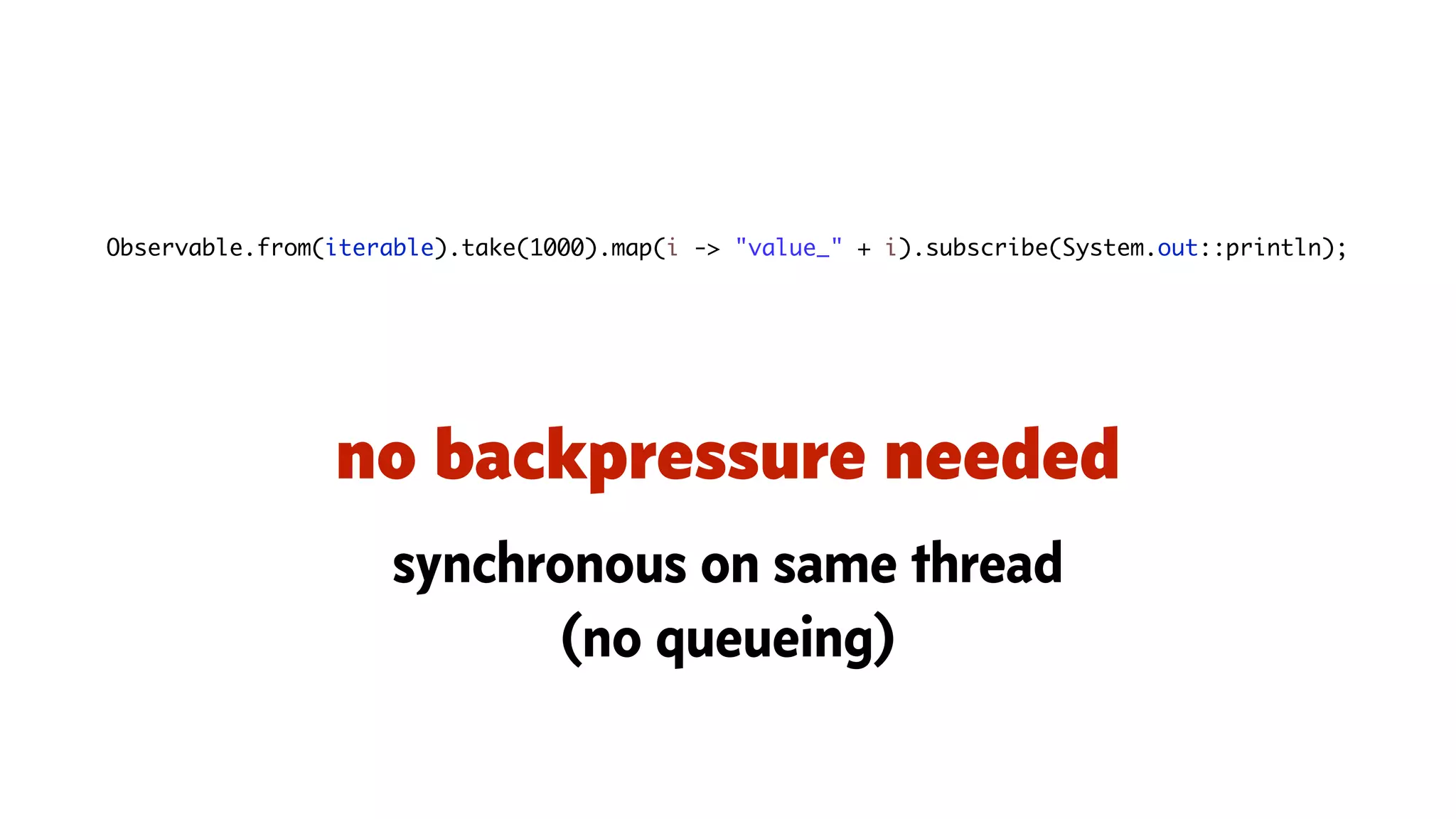

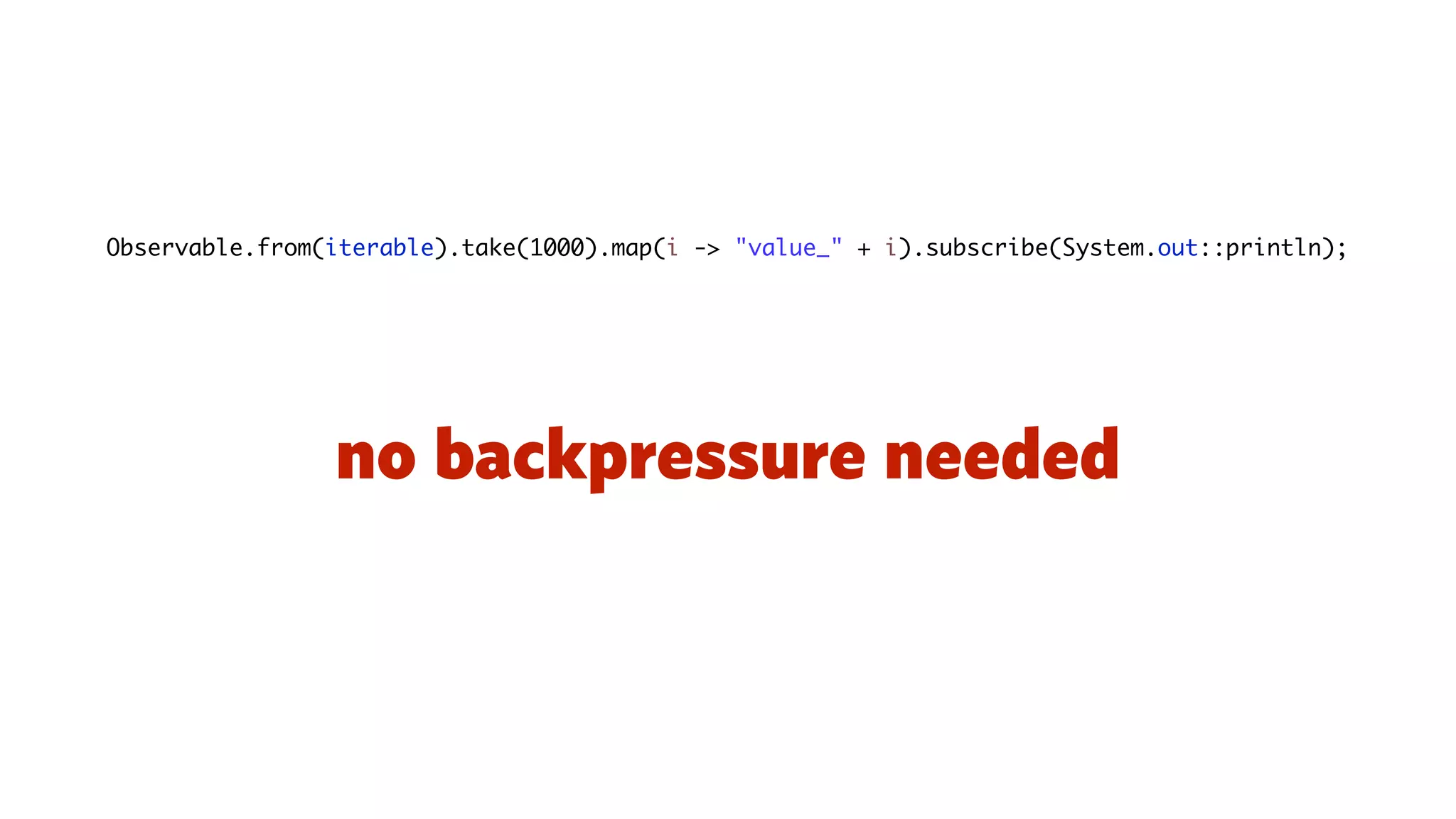

no backpressure needed Observable.from(iterable).take(1000).map(i -> "value_" + i).subscribe(System.out::println);
Observable.from(iterable).take(1000).map(i -> "value_" + i).subscribe(System.out::println); no backpressure needed synchronous on same thread (no queueing)

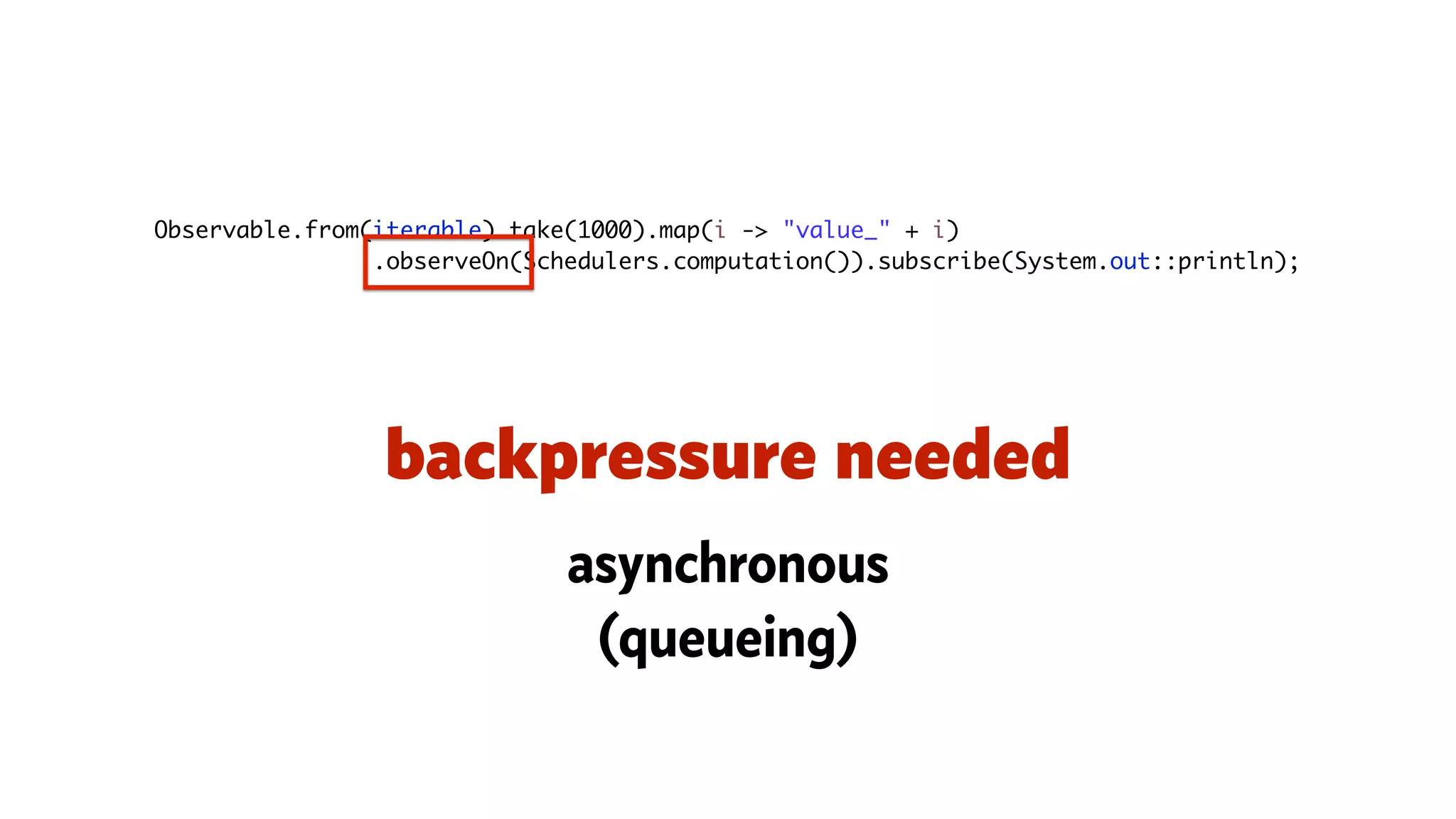

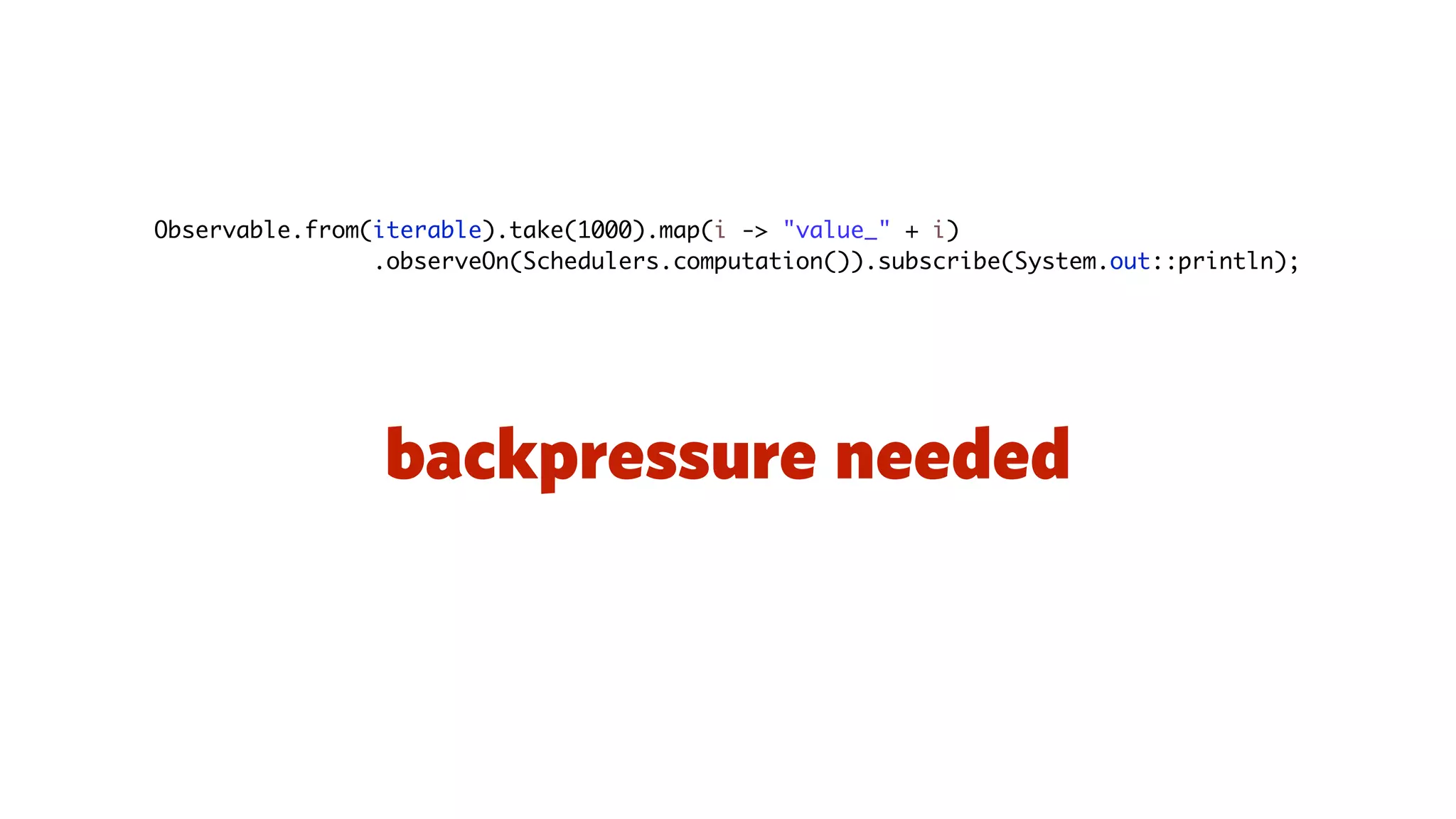

Observable.from(iterable).take(1000).map(i -> "value_" + i) .observeOn(Schedulers.computation()).subscribe(System.out::println); backpressure needed
Observable.from(iterable).take(1000).map(i -> "value_" + i) .observeOn(Schedulers.computation()).subscribe(System.out::println); backpressure needed asynchronous (queueing)
Flow Control Options
Hot Cold emits whether you’re ready or not examples mouse and keyboard events system events stock prices emits when requested (generally at controlled rate) examples database query web service request reading file Observable.create(subscriber -> { // register with data source }) Observable.create(subscriber -> { // fetch data }) flow control flow control & backpressure

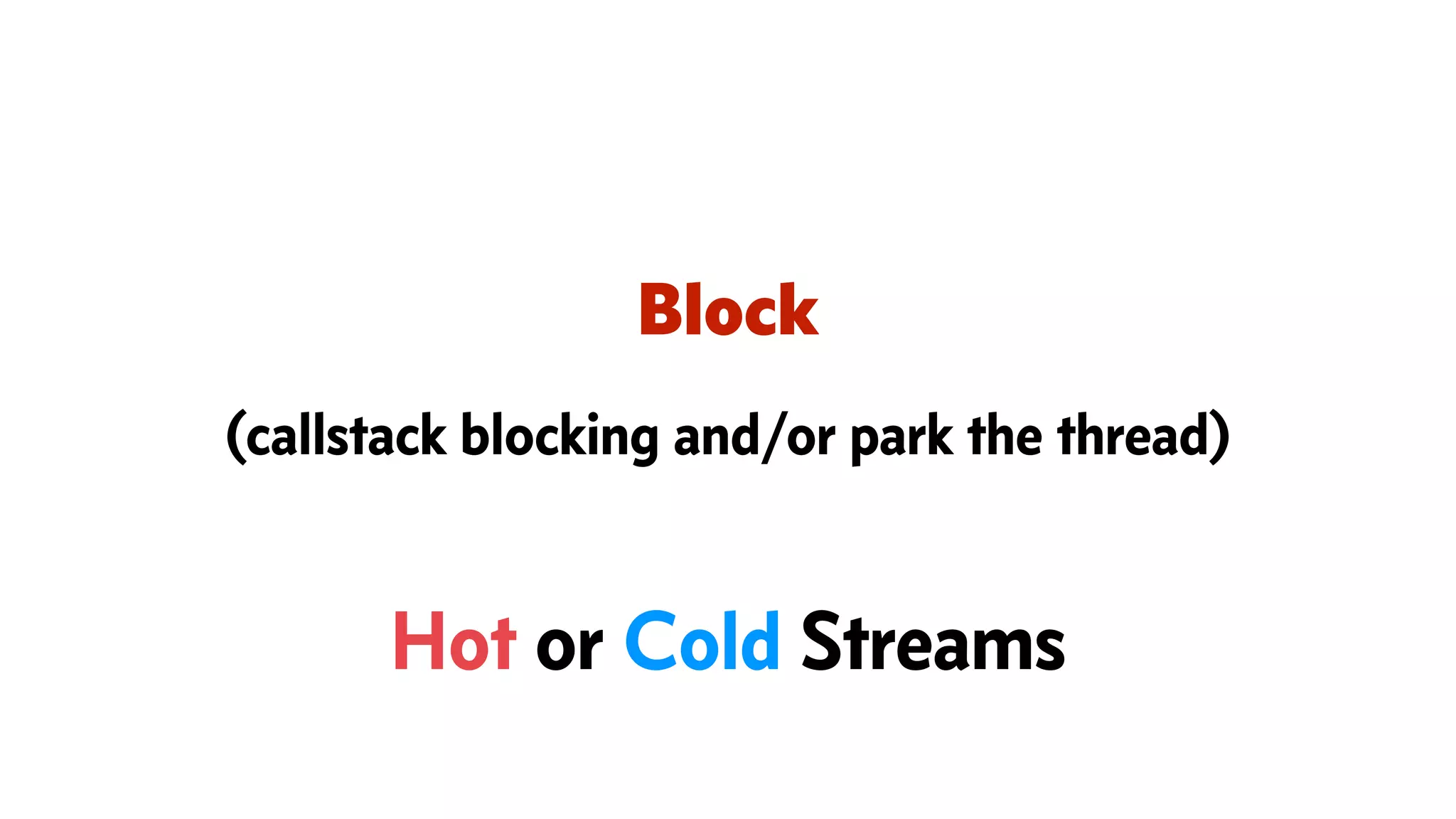

Block (callstack blocking and/or park the thread) Hot or Cold Streams

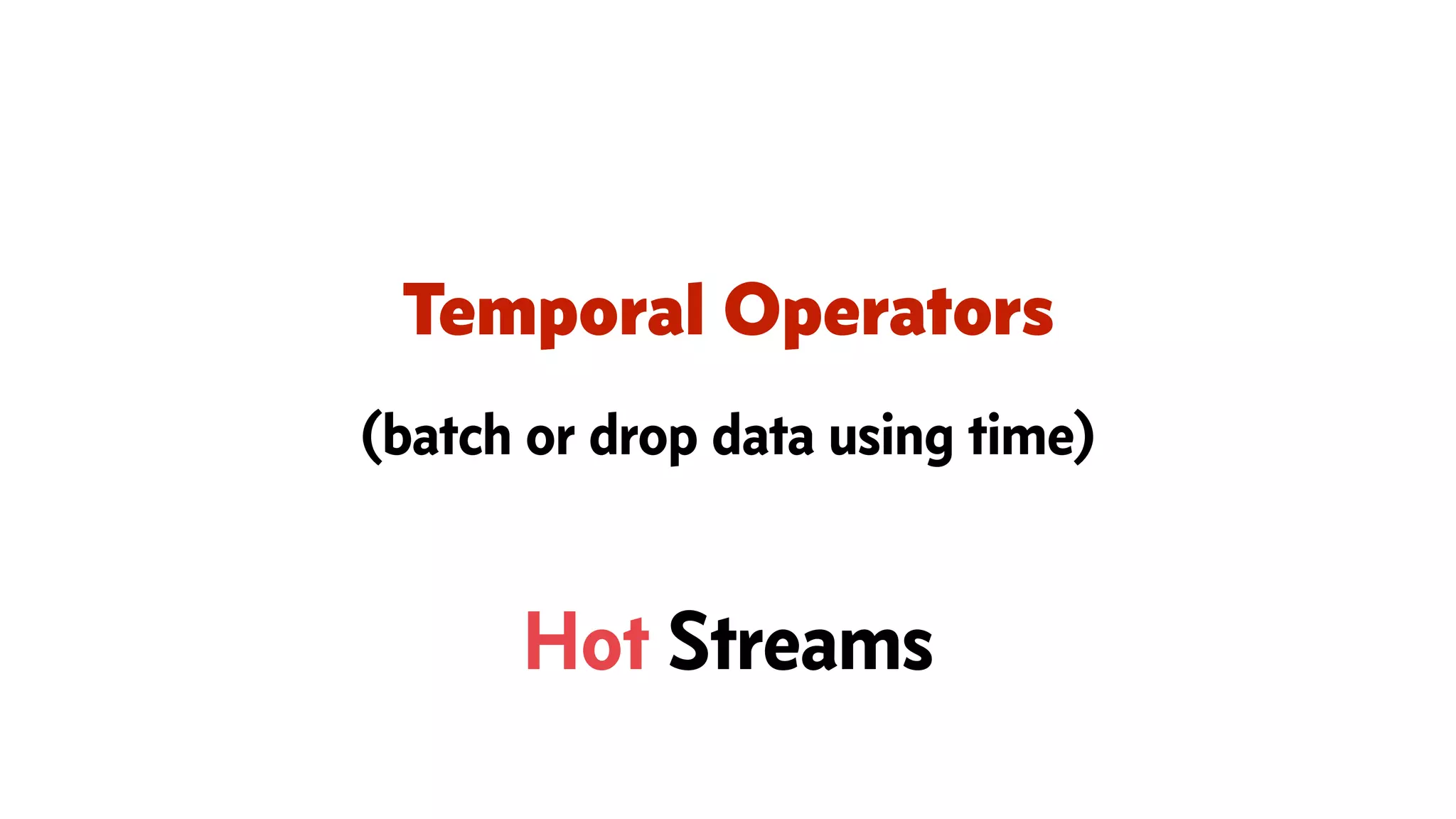

Temporal Operators (batch or drop data using time) Hot Streams

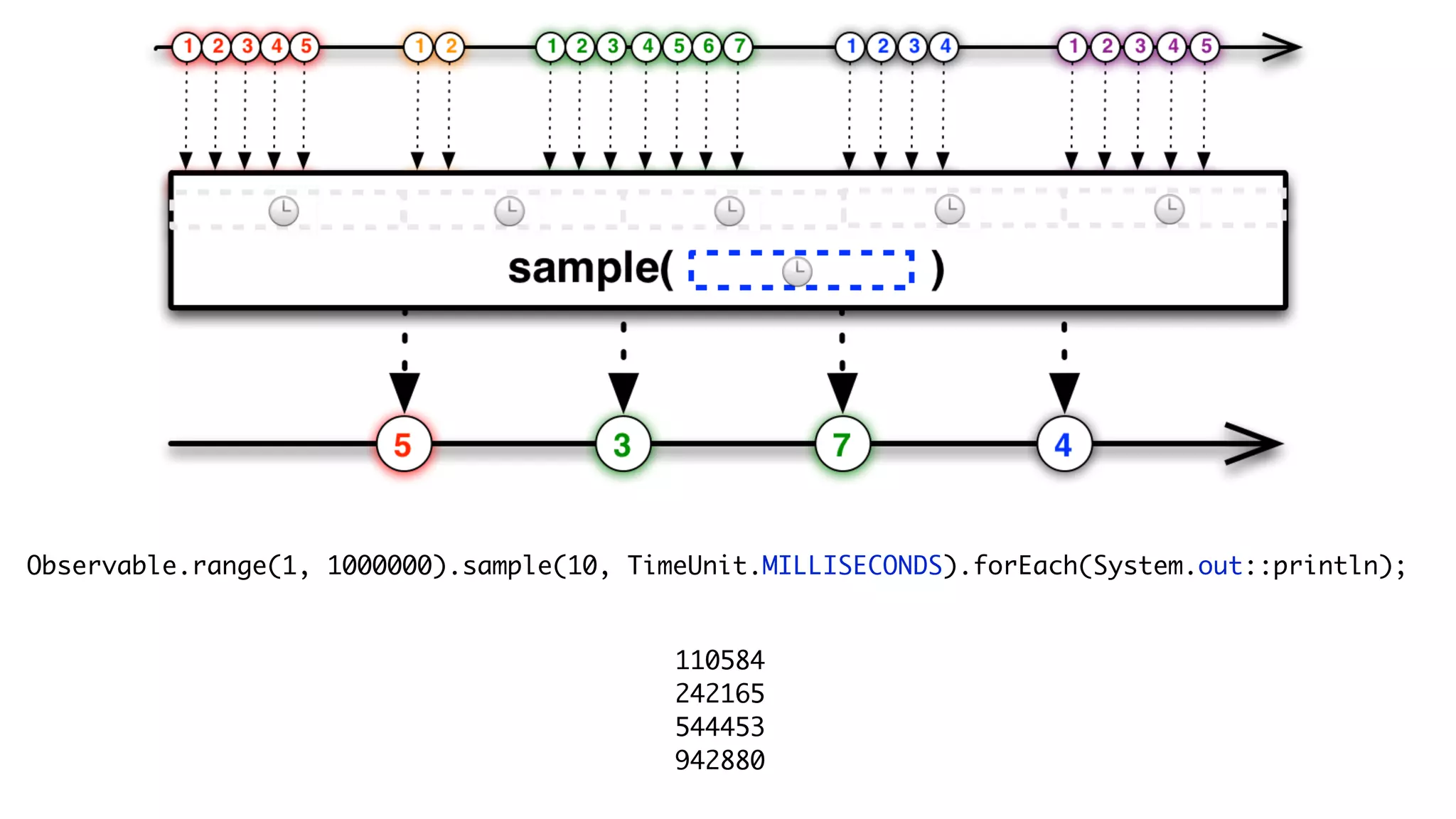

Observable.range(1, 1000000).sample(10, TimeUnit.MILLISECONDS).forEach(System.out::println); 110584 242165 544453 942880

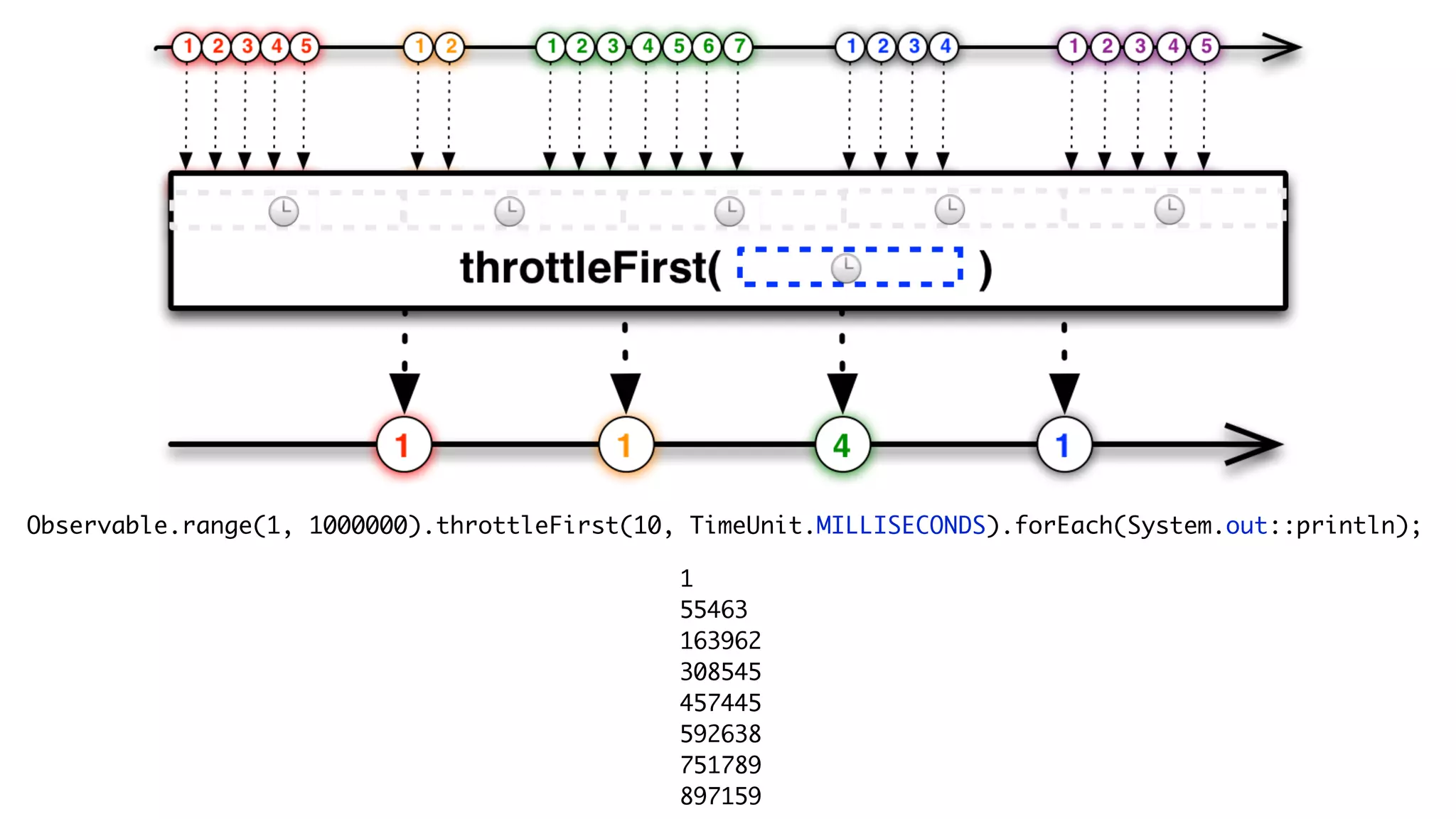

Observable.range(1, 1000000).throttleFirst(10, TimeUnit.MILLISECONDS).forEach(System.out::println); 1 55463 163962 308545 457445 592638 751789 897159

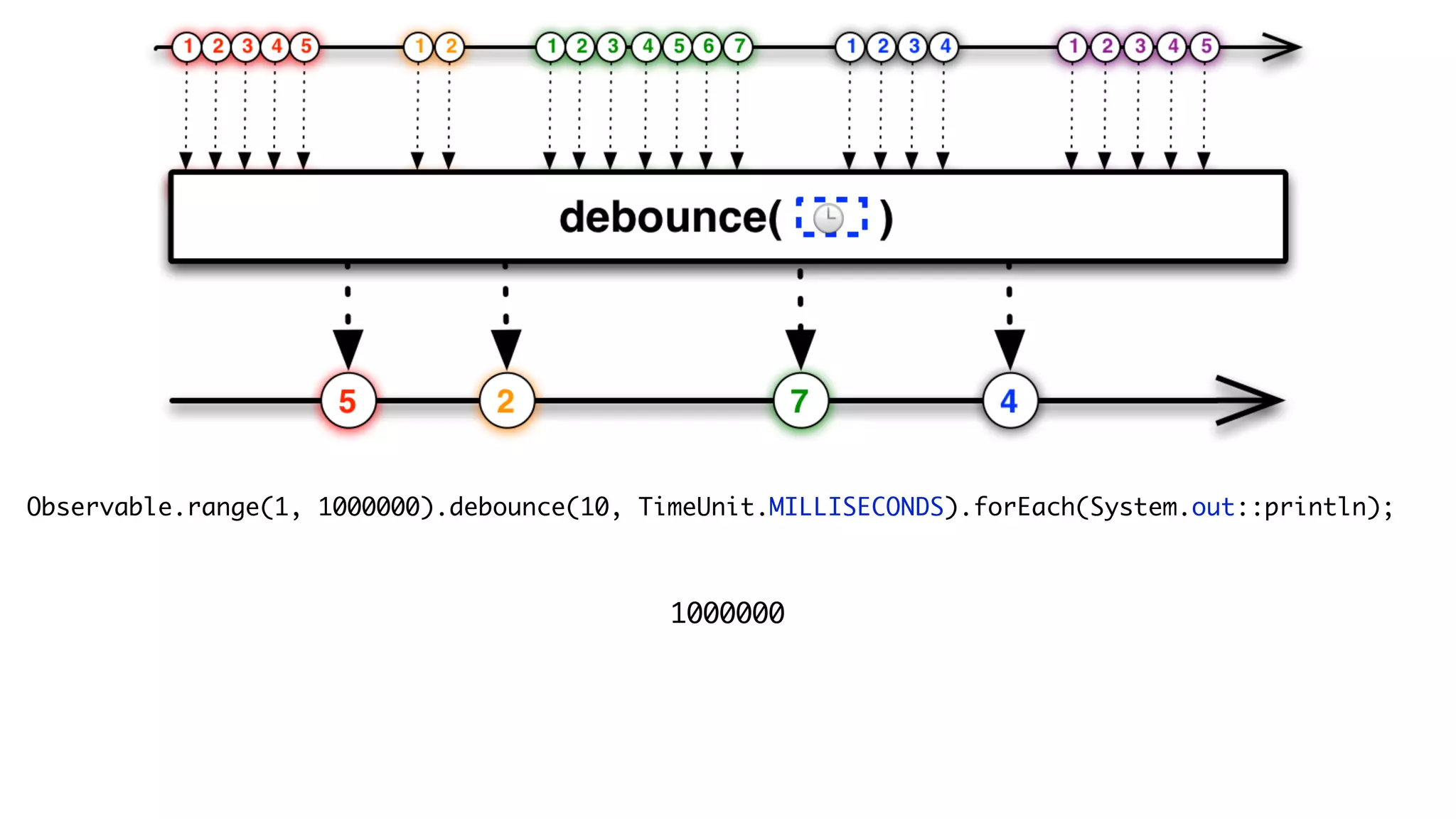

Observable.range(1, 1000000).debounce(10, TimeUnit.MILLISECONDS).forEach(System.out::println); 1000000

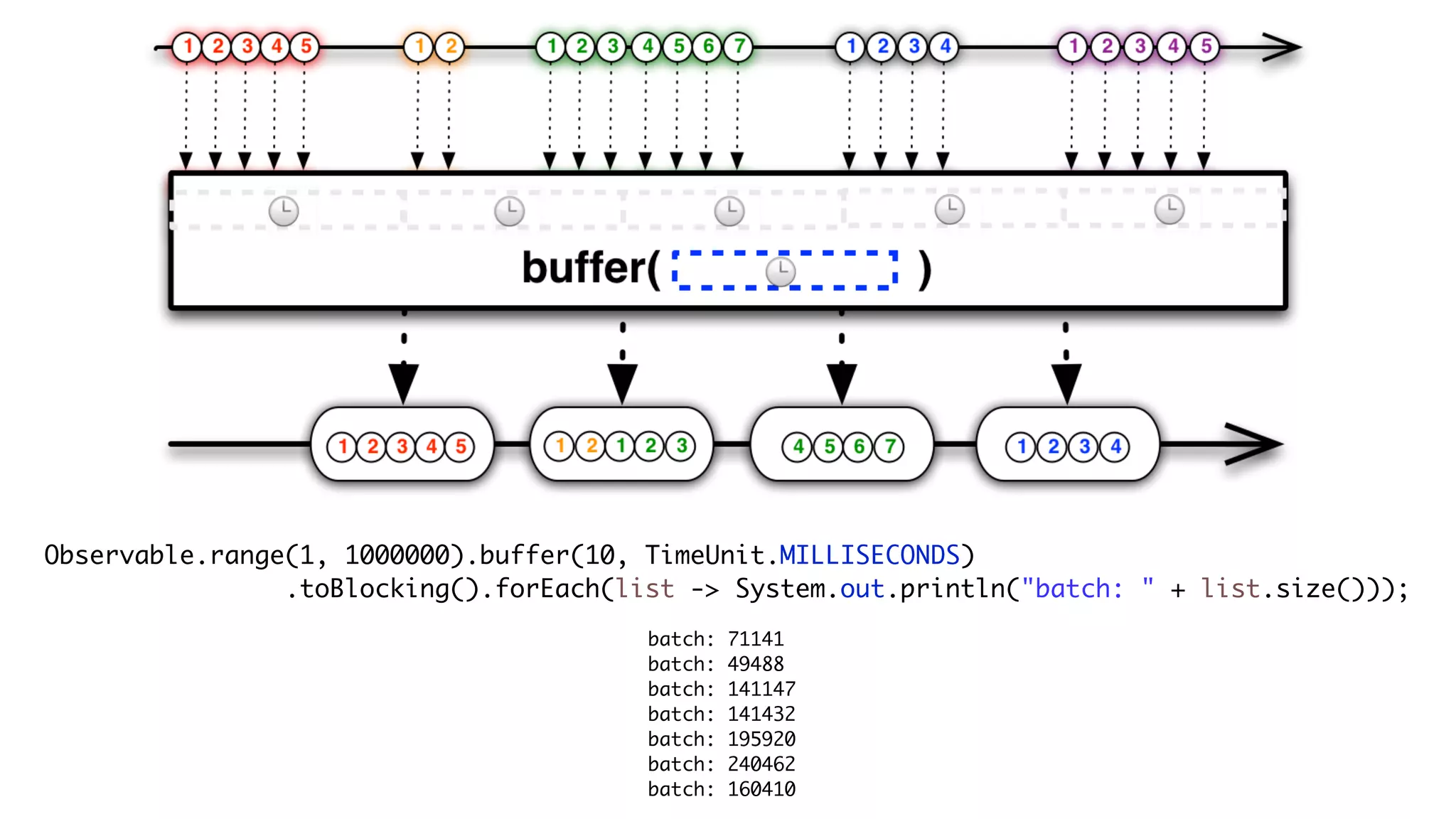

Observable.range(1, 1000000).buffer(10, TimeUnit.MILLISECONDS) .toBlocking().forEach(list -> System.out.println("batch: " + list.size())); batch: 71141 batch: 49488 batch: 141147 batch: 141432 batch: 195920 batch: 240462 batch: 160410

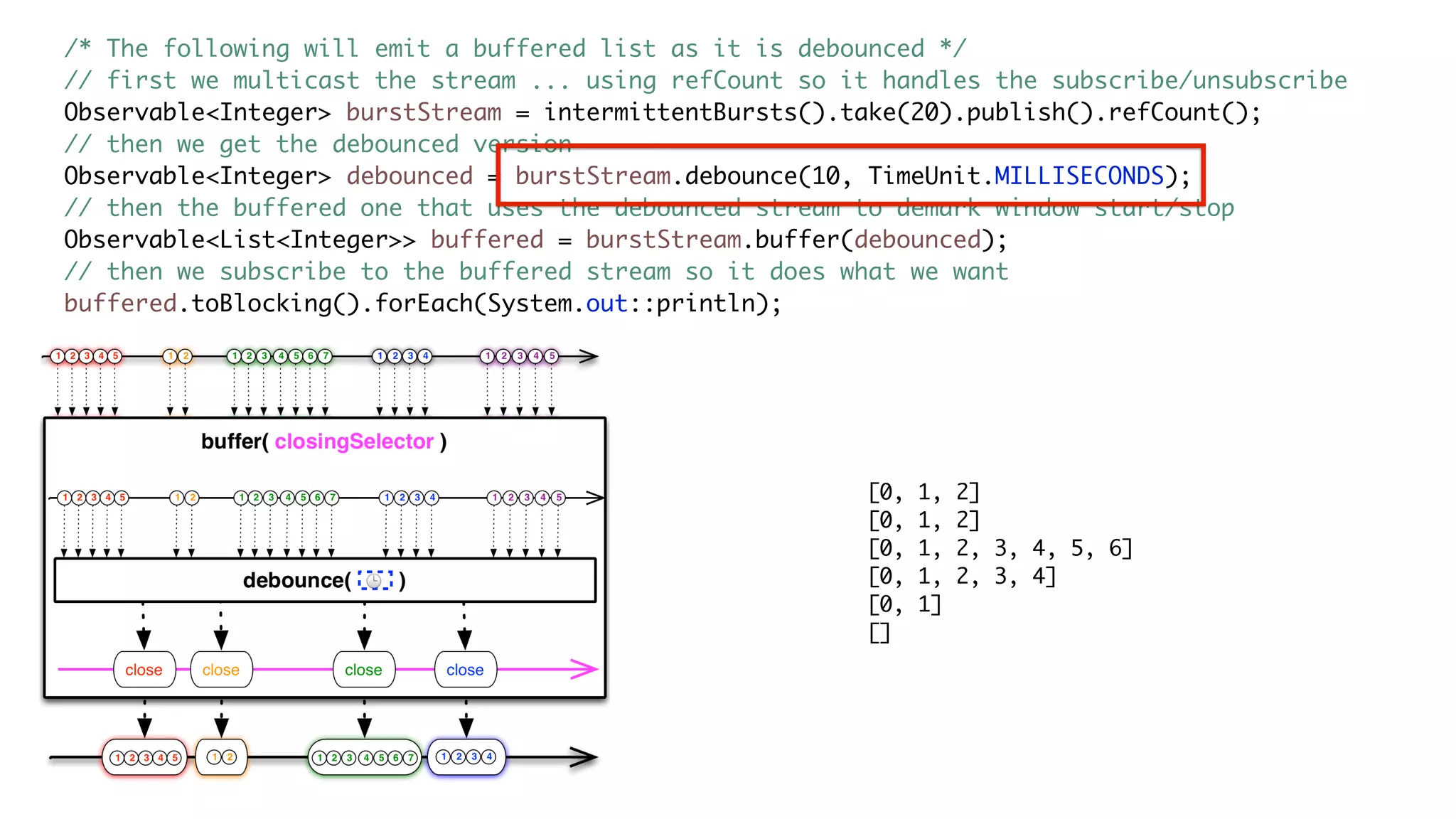

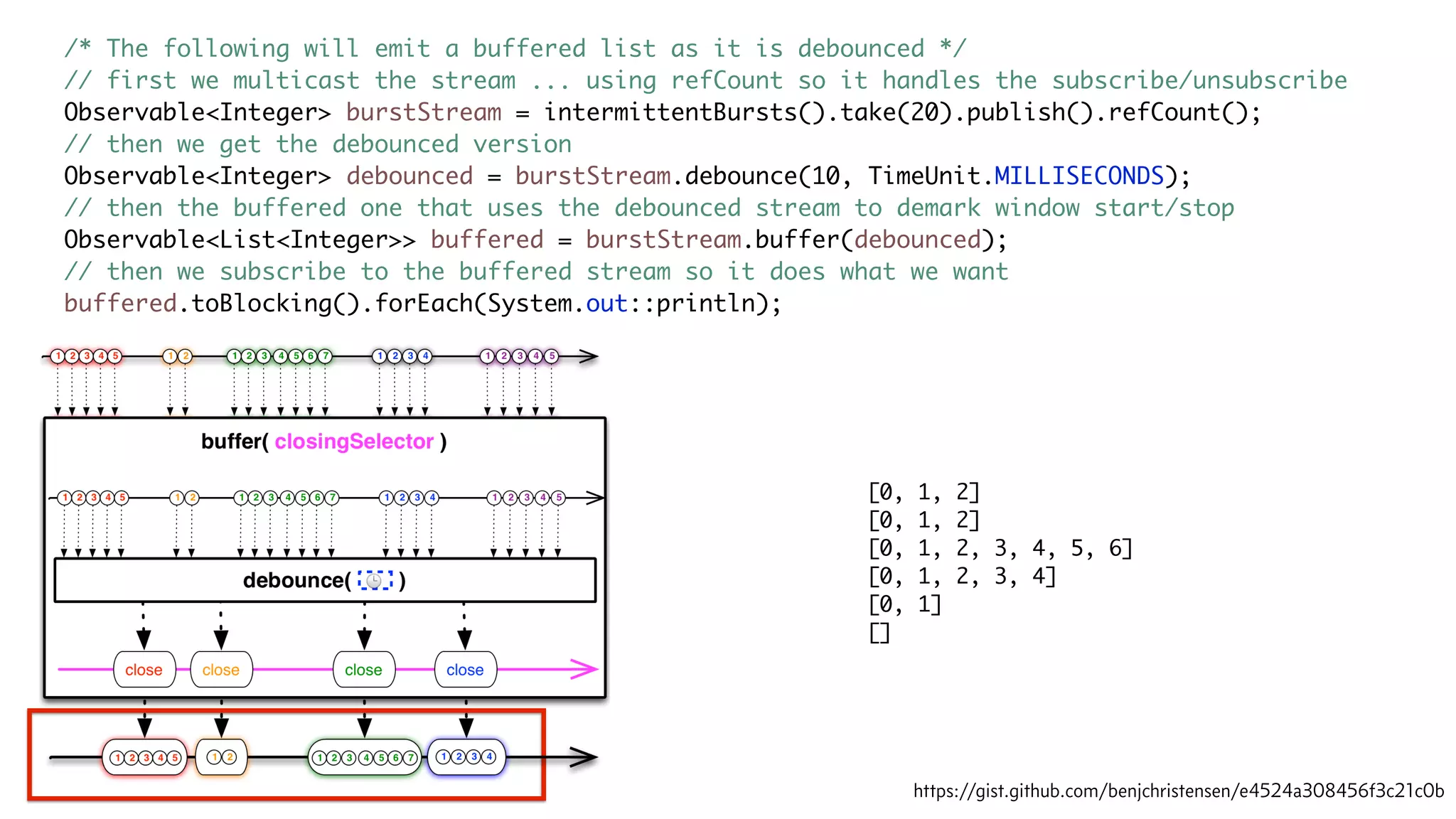

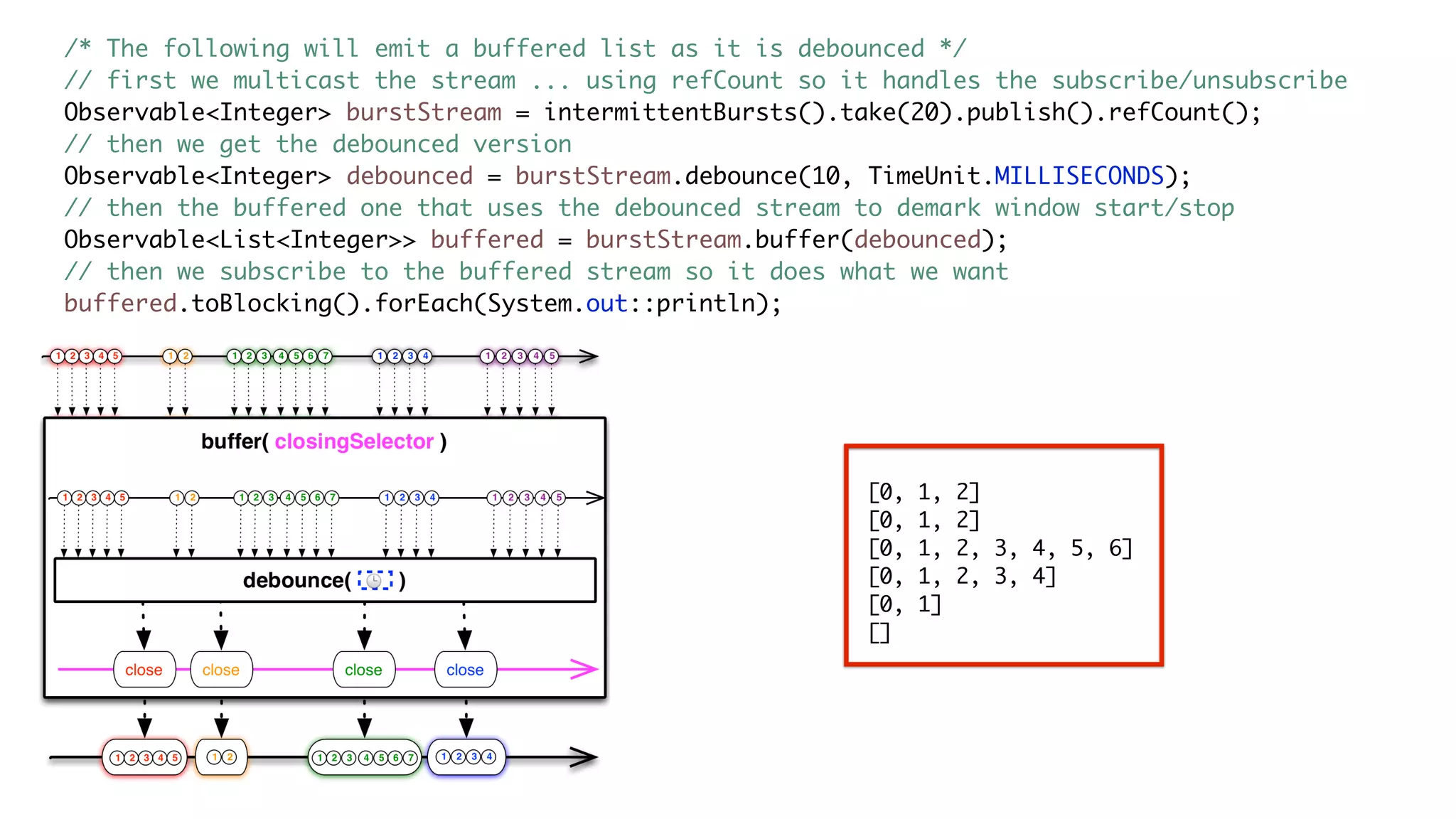

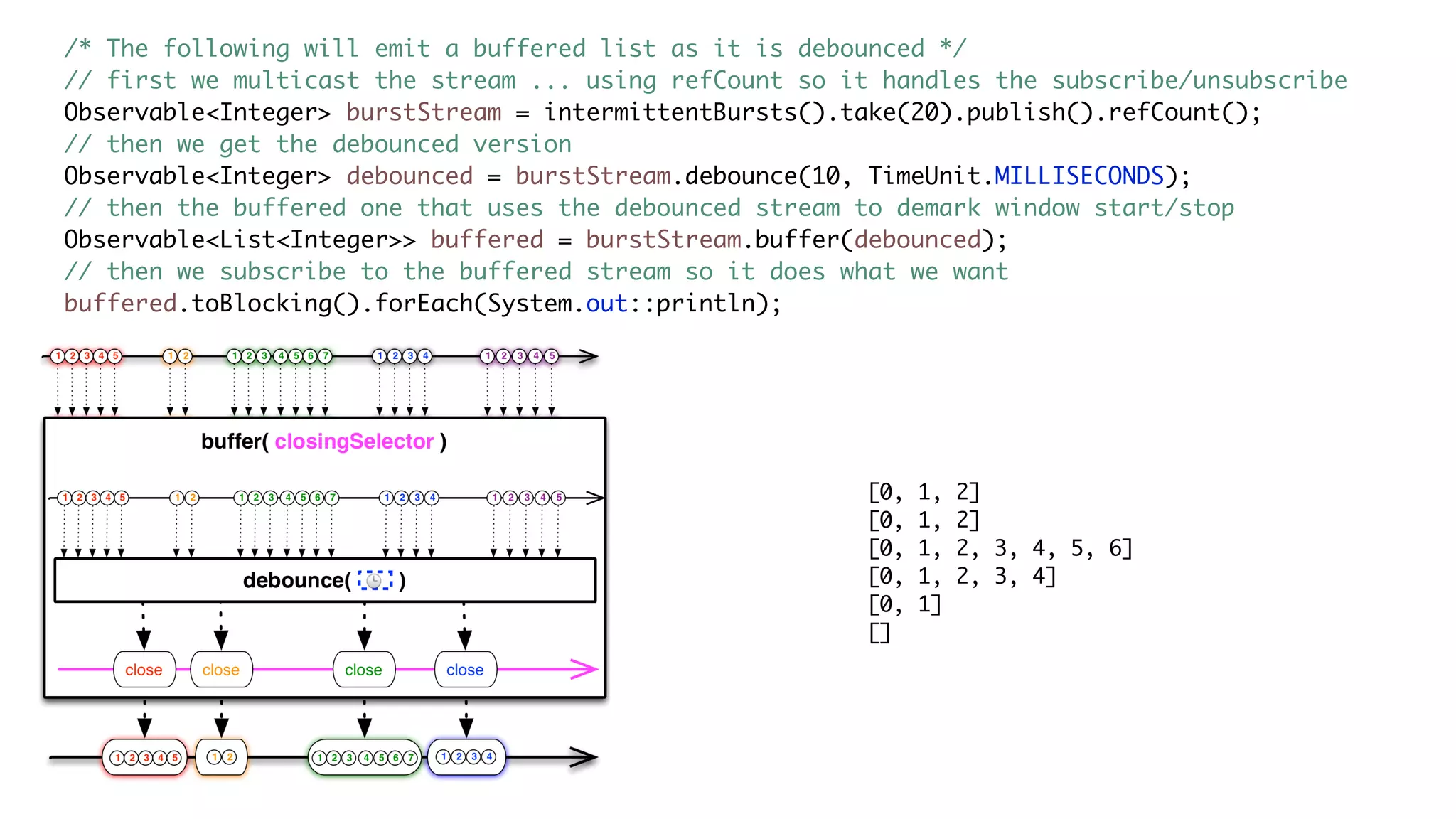

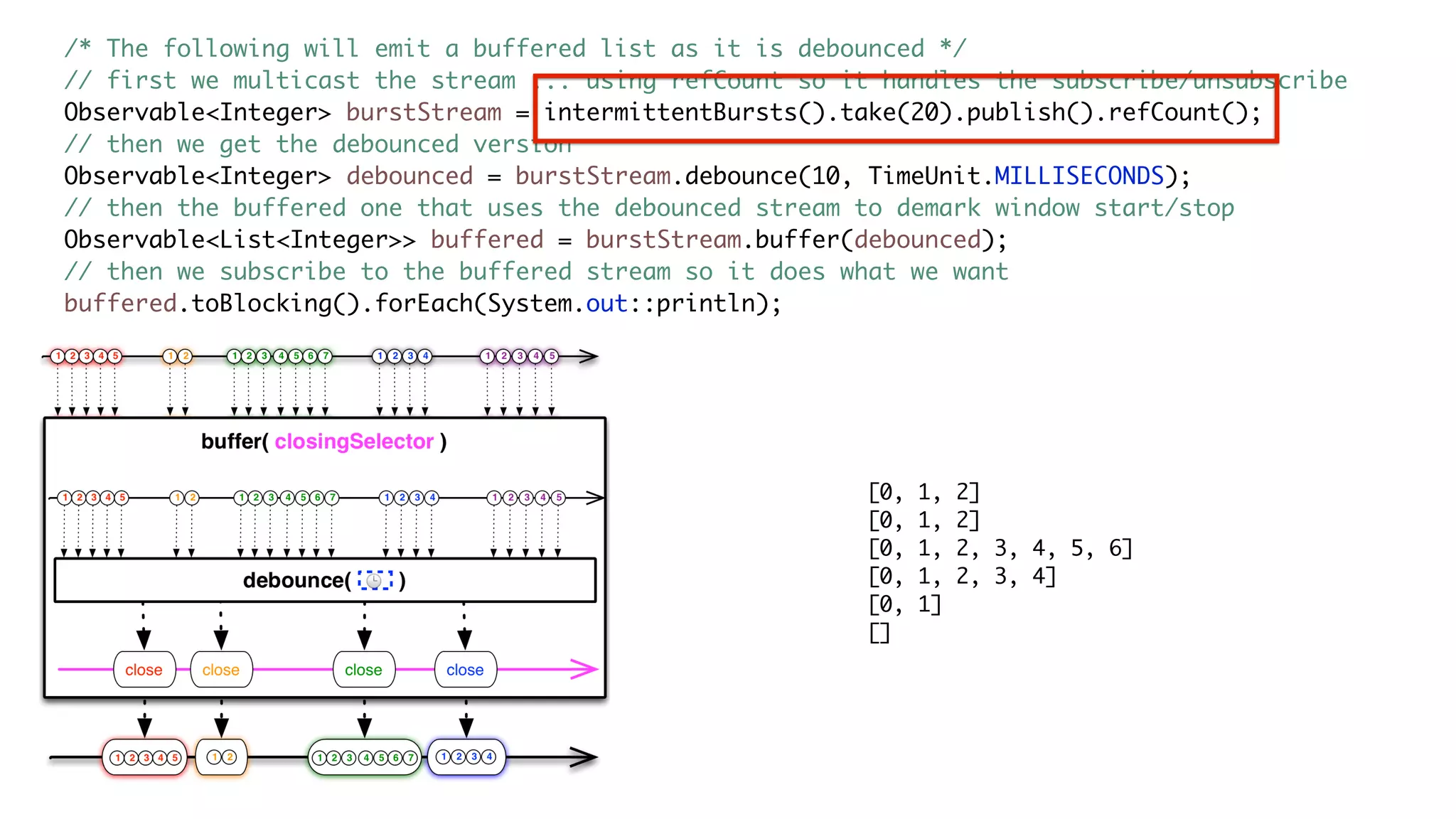

/* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] []
/* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] []
/* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] []
/* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] []
/* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] []
/* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] [] https://gist.github.com/benjchristensen/e4524a308456f3c21c0b

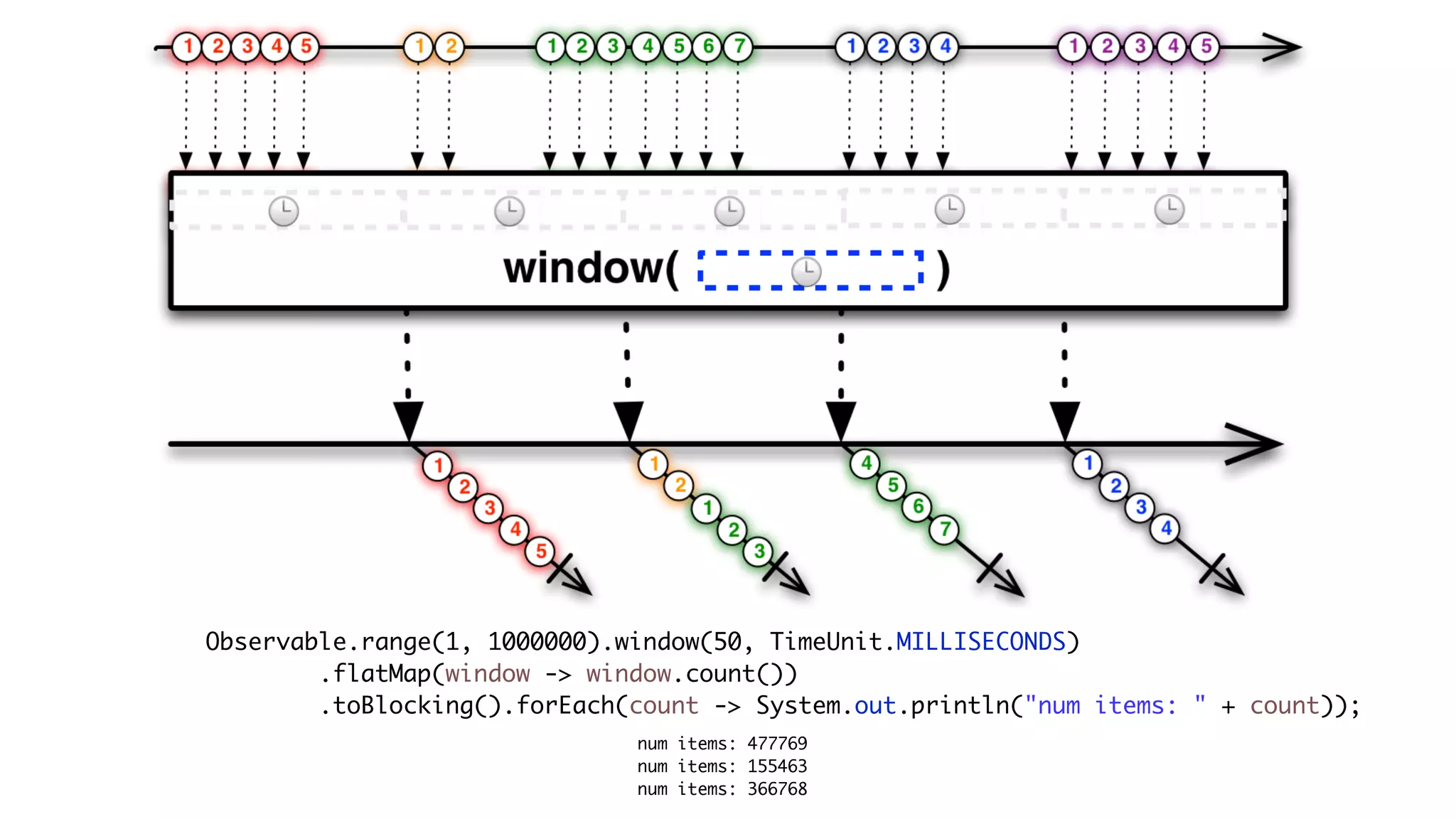

Observable.range(1, 1000000).window(50, TimeUnit.MILLISECONDS) .flatMap(window -> window.count()) .toBlocking().forEach(count -> System.out.println("num items: " + count)); num items: 477769 num items: 155463 num items: 366768

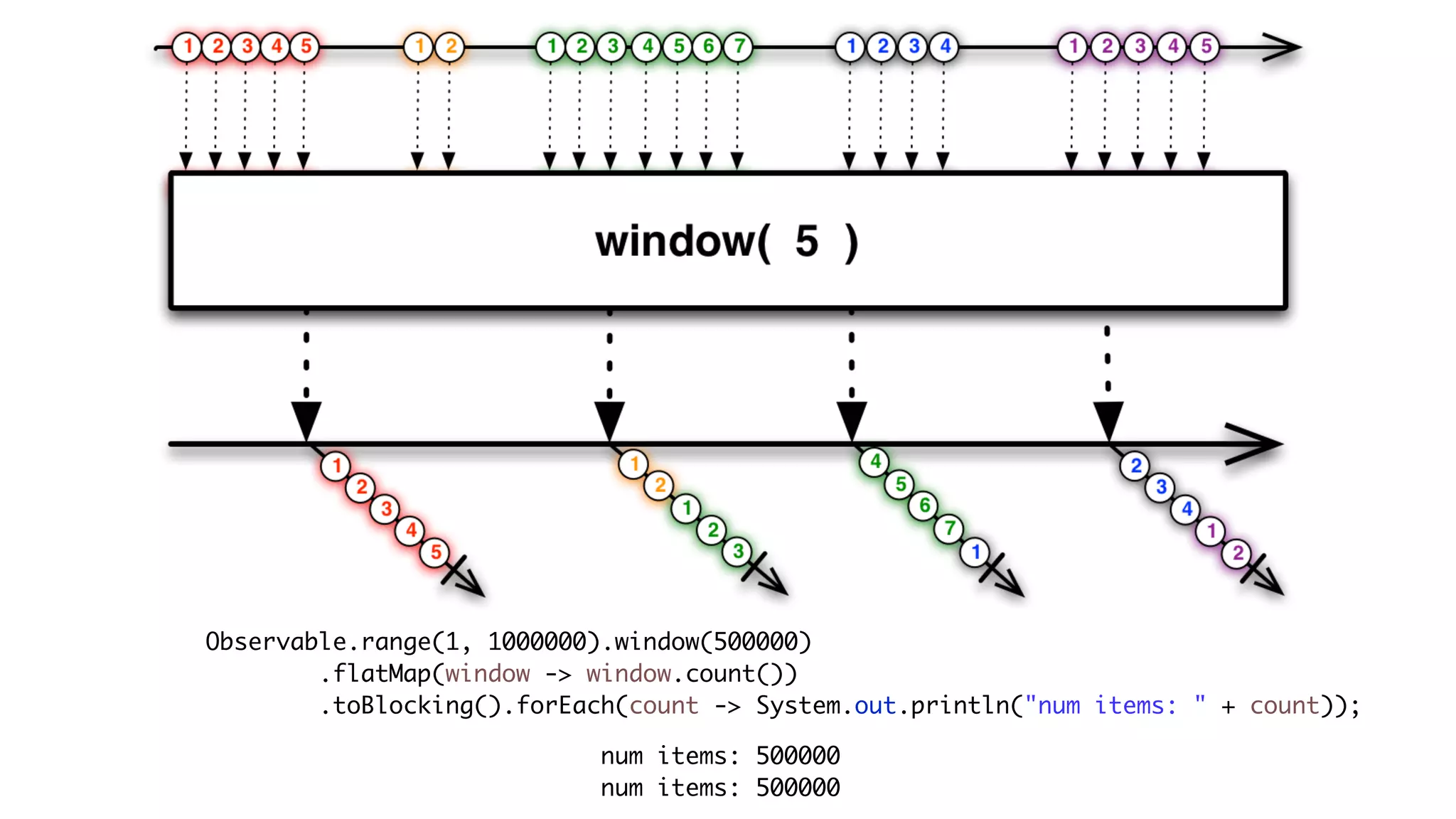

Observable.range(1, 1000000).window(500000) .flatMap(window -> window.count()) .toBlocking().forEach(count -> System.out.println("num items: " + count)); num items: 500000 num items: 500000
Reactive Pull (dynamic push-pull)
Push (reactive) when consumer keeps up with producer. Switch to Pull (interactive) when consumer is slow. Bound all* queues.

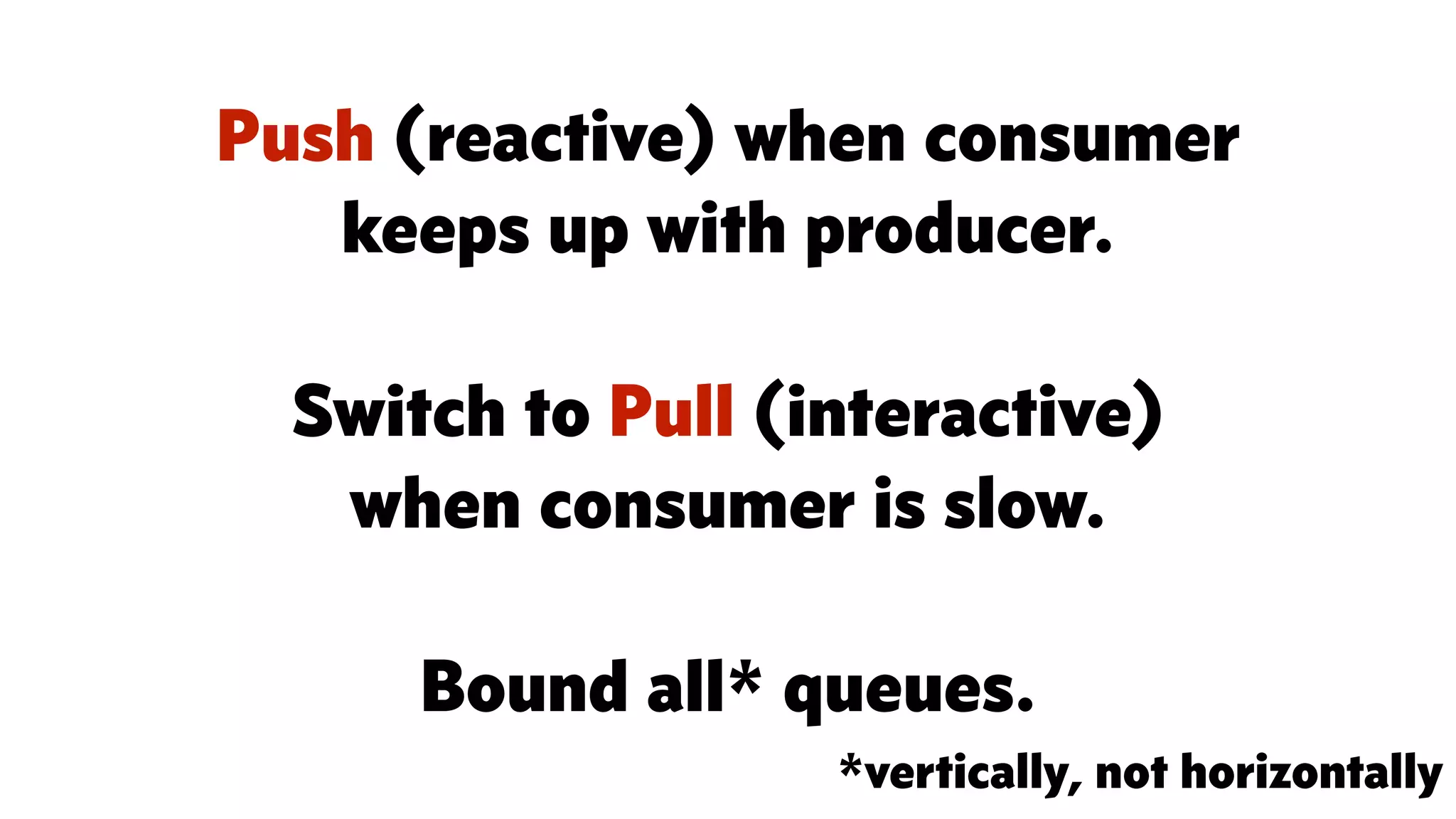

*vertically, not horizontally Push (reactive) when consumer keeps up with producer. Switch to Pull (interactive) when consumer is slow. Bound all* queues.
Reactive Pull hot vs cold
Reactive Pull cold supports pull

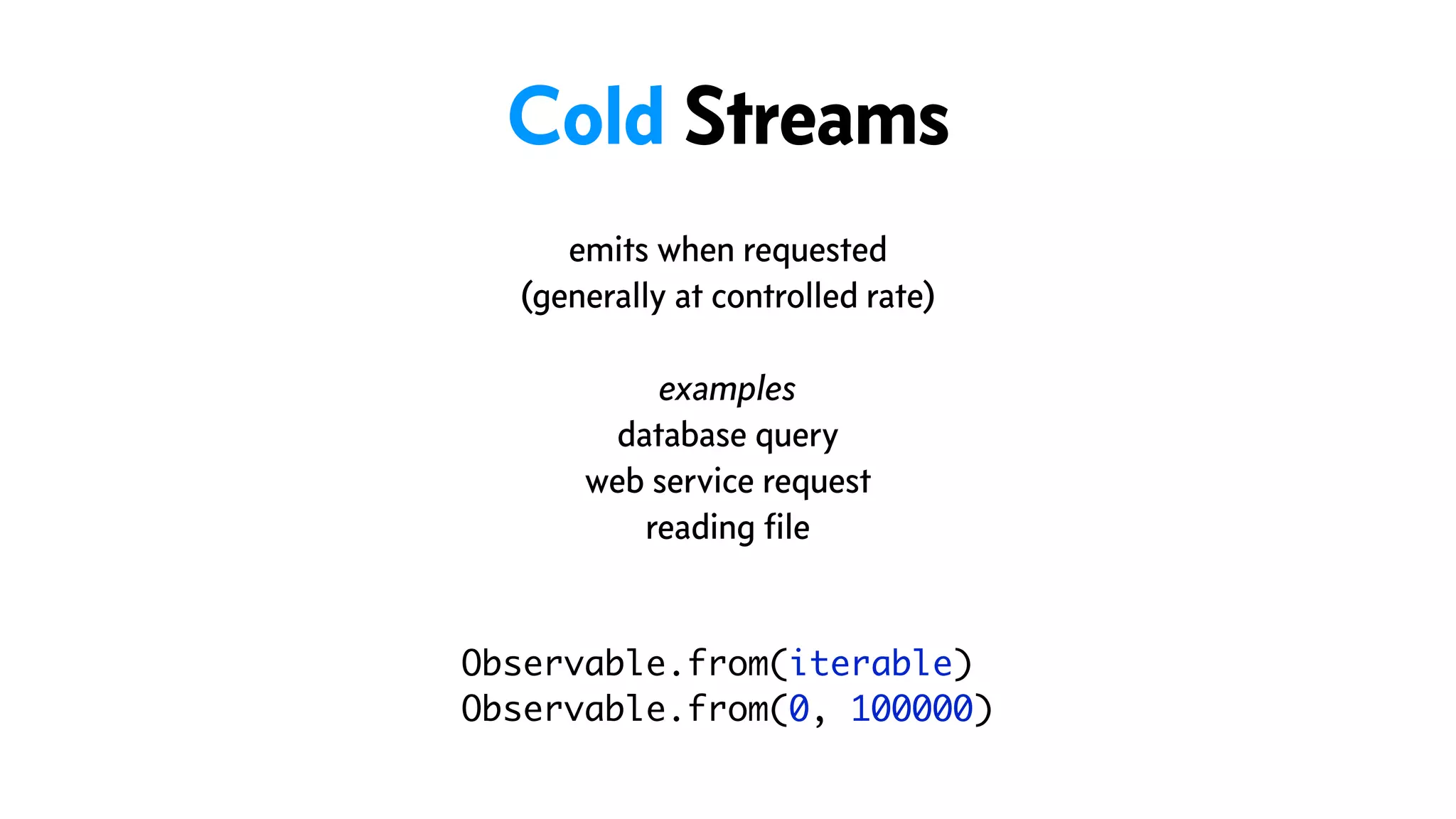

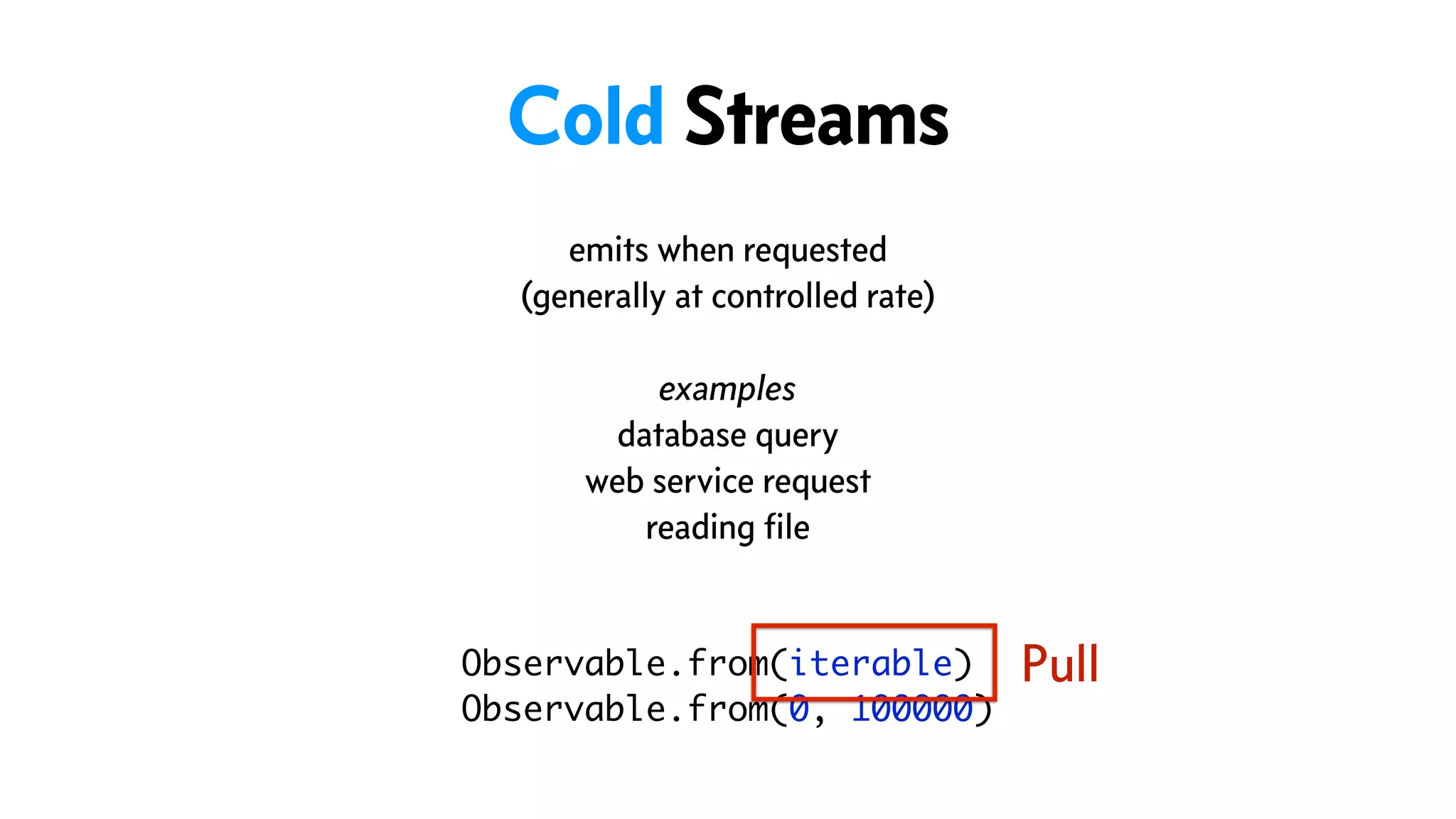

Observable.from(iterable) Observable.from(0, 100000) Cold Streams emits when requested (generally at controlled rate) examples database query web service request reading file
Observable.from(iterable) Observable.from(0, 100000) Cold Streams emits when requested (generally at controlled rate) examples database query web service request reading file Pull
Reactive Pull hot receives signal

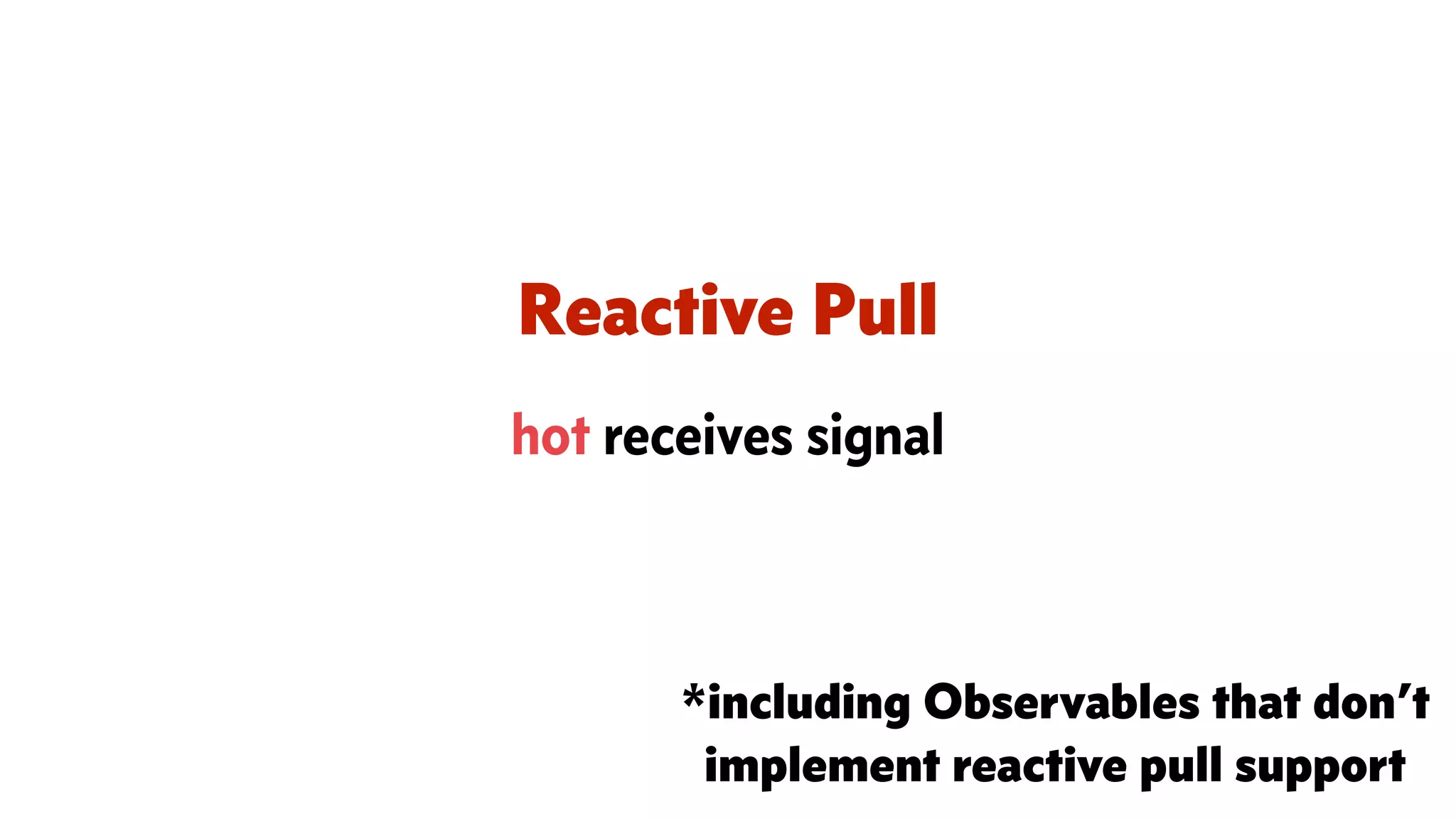

Reactive Pull hot receives signal *including Observables that don’t implement reactive pull support

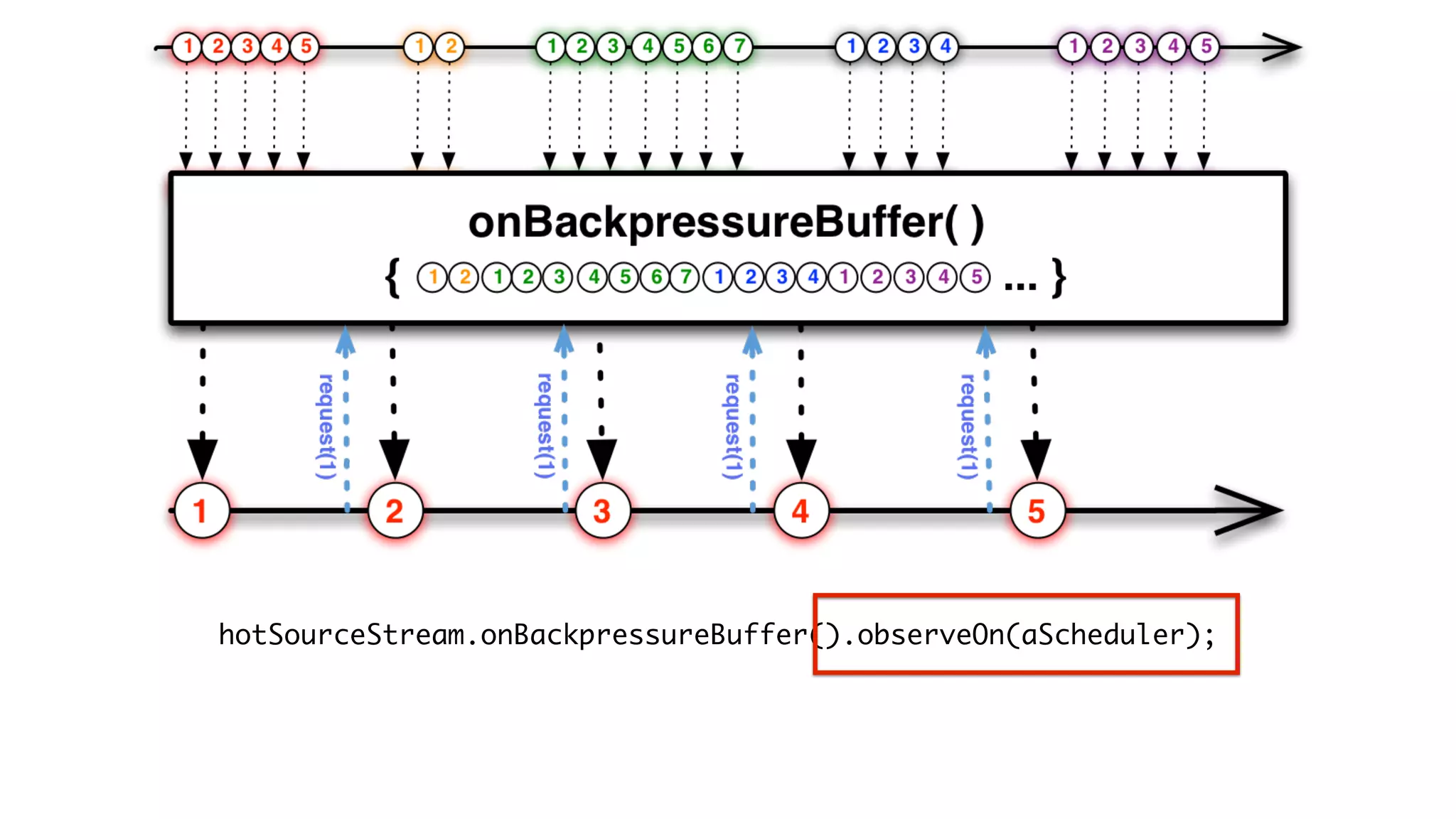

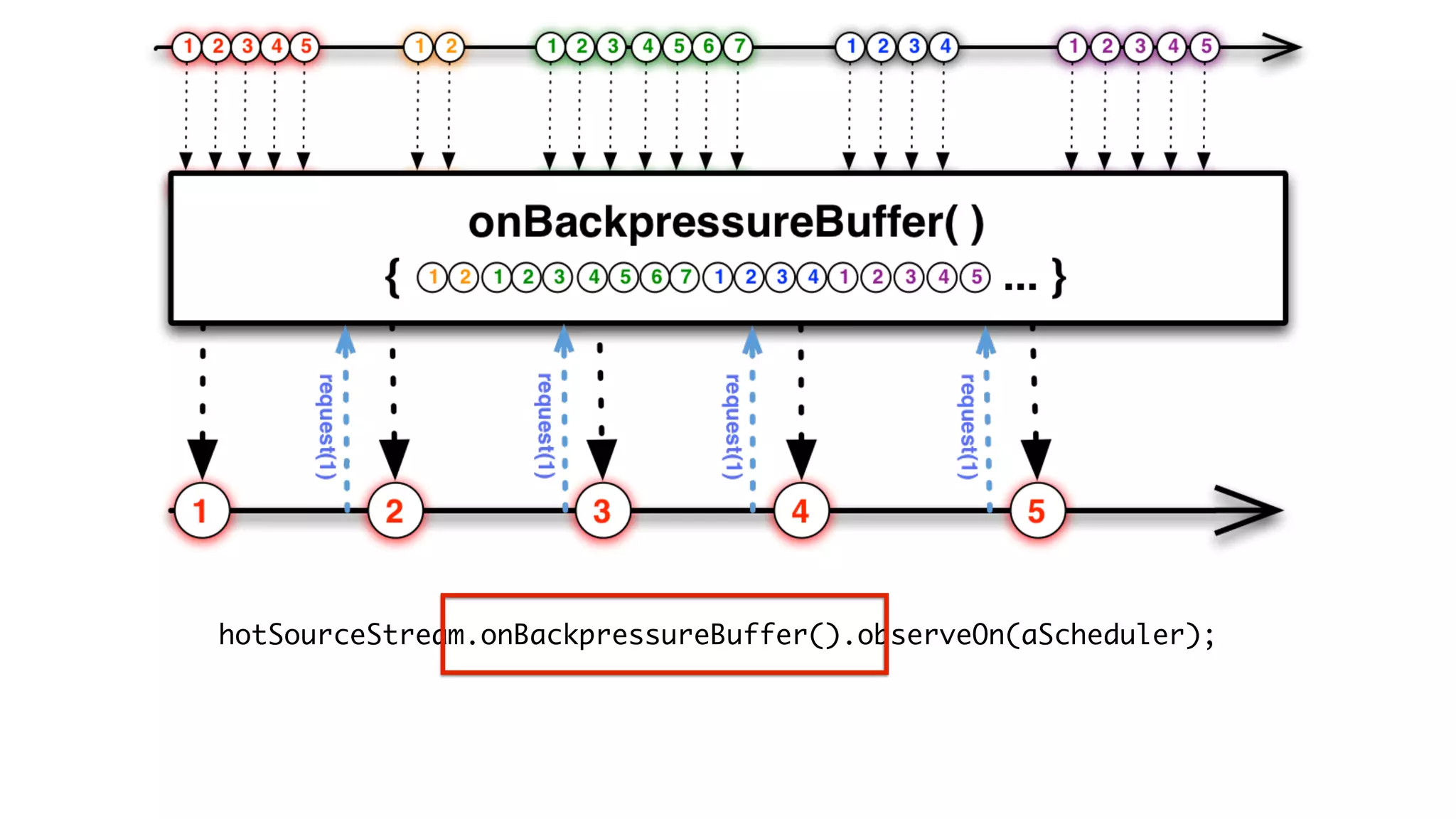

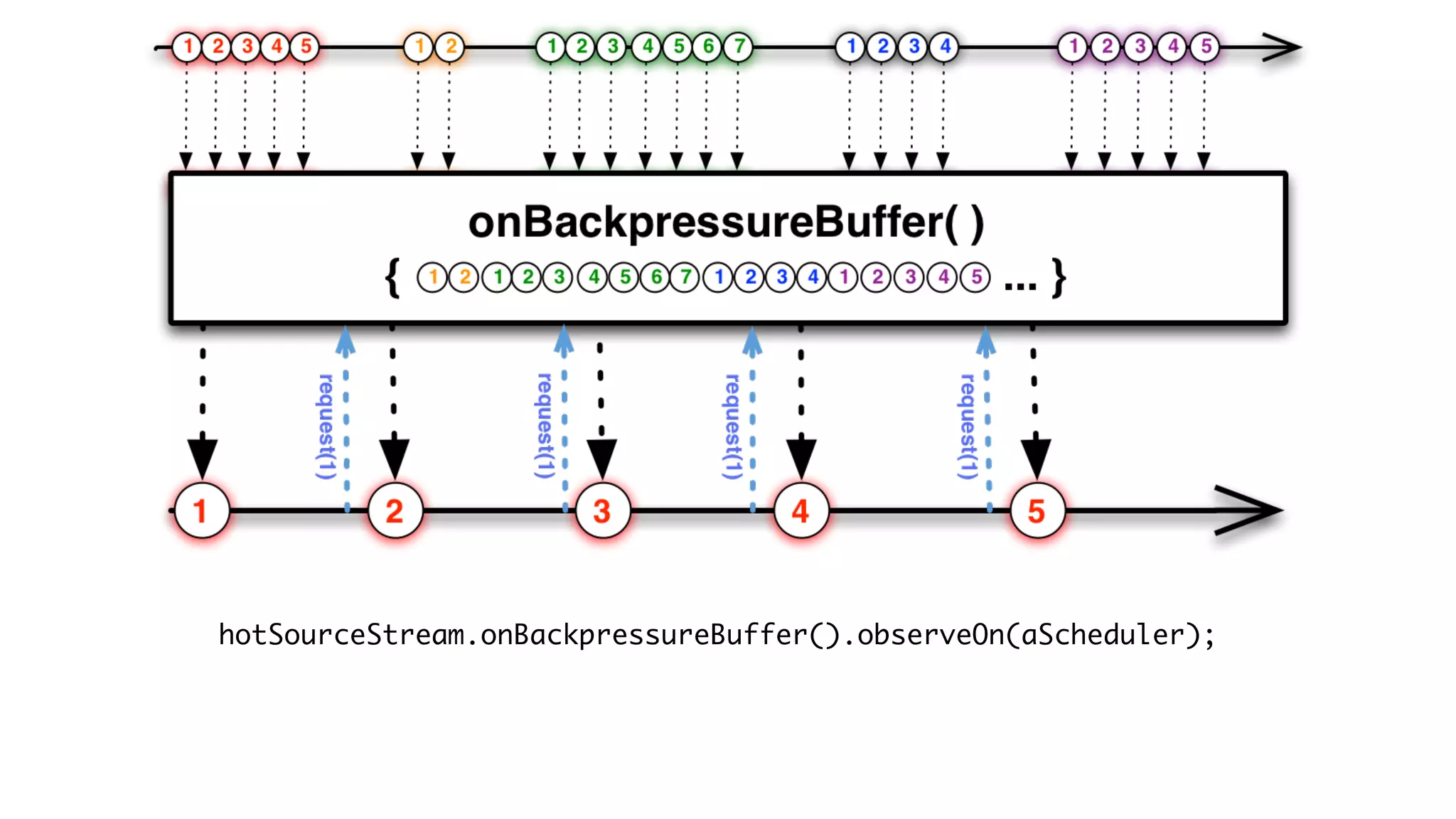

hotSourceStream.onBackpressureBuffer().observeOn(aScheduler);
hotSourceStream.onBackpressureBuffer().observeOn(aScheduler);
hotSourceStream.onBackpressureBuffer().observeOn(aScheduler);
hotSourceStream.onBackpressureBuffer().observeOn(aScheduler);

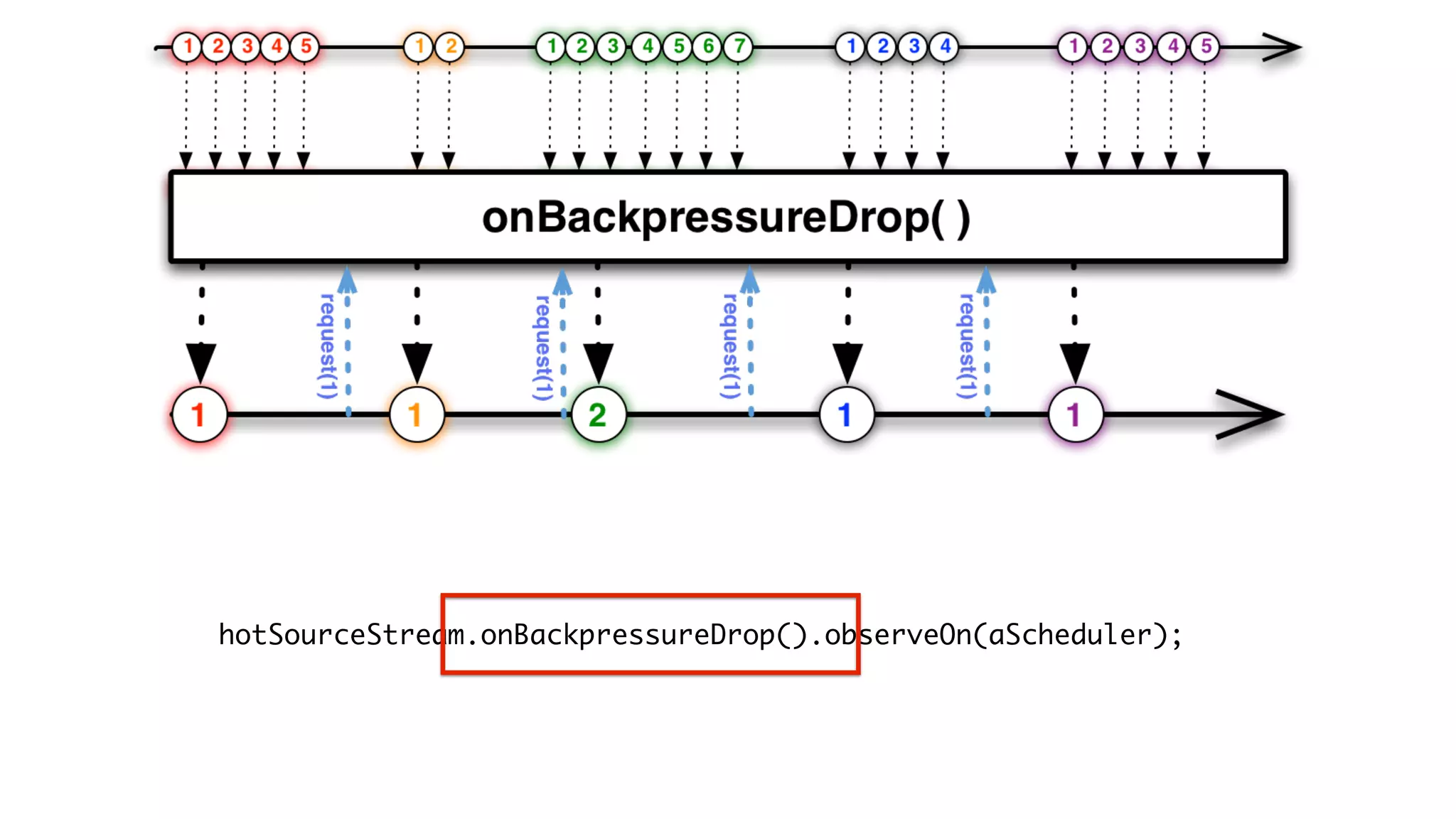

hotSourceStream.onBackpressureDrop().observeOn(aScheduler);

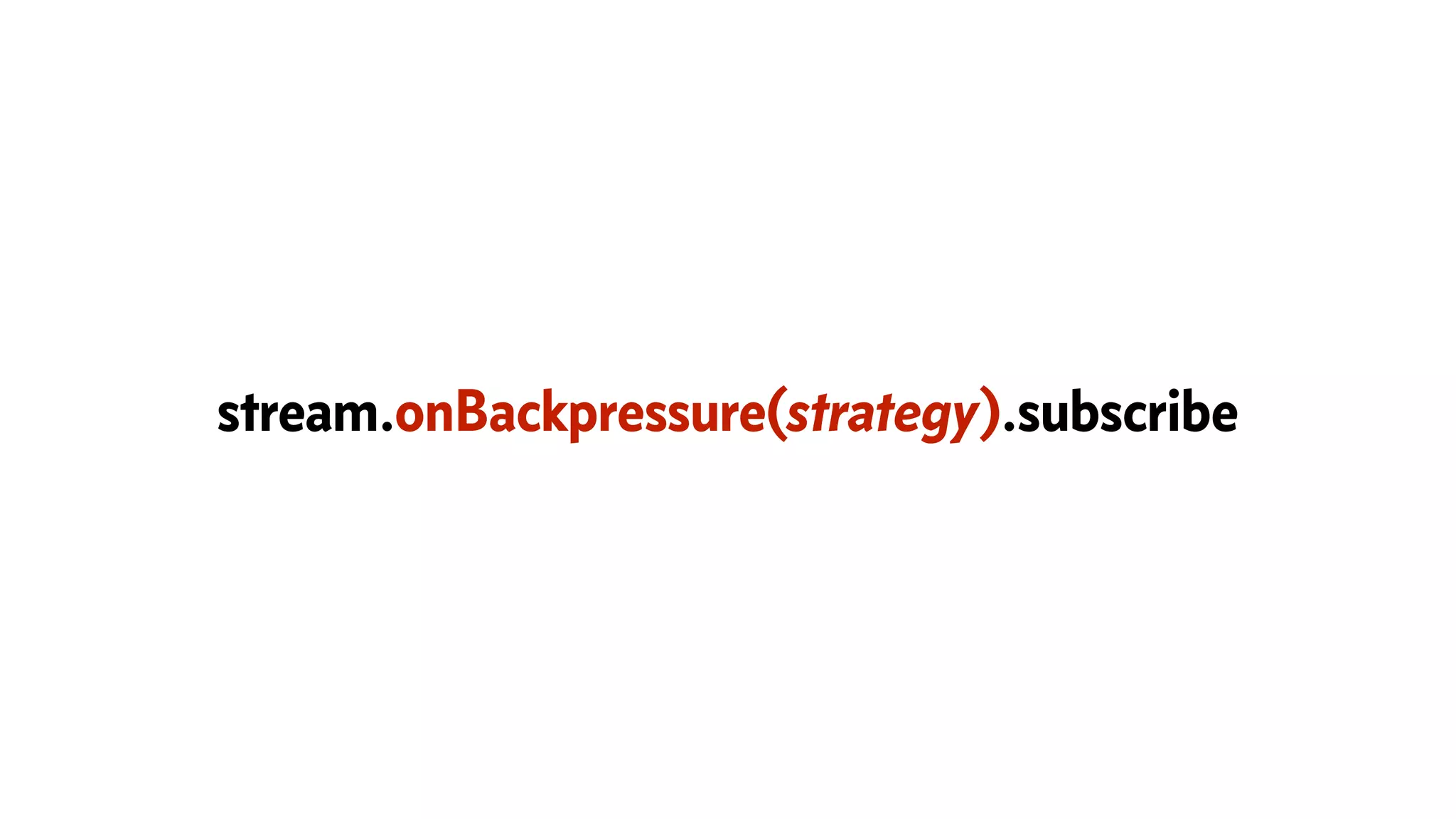

stream.onBackpressure(strategy).subscribe

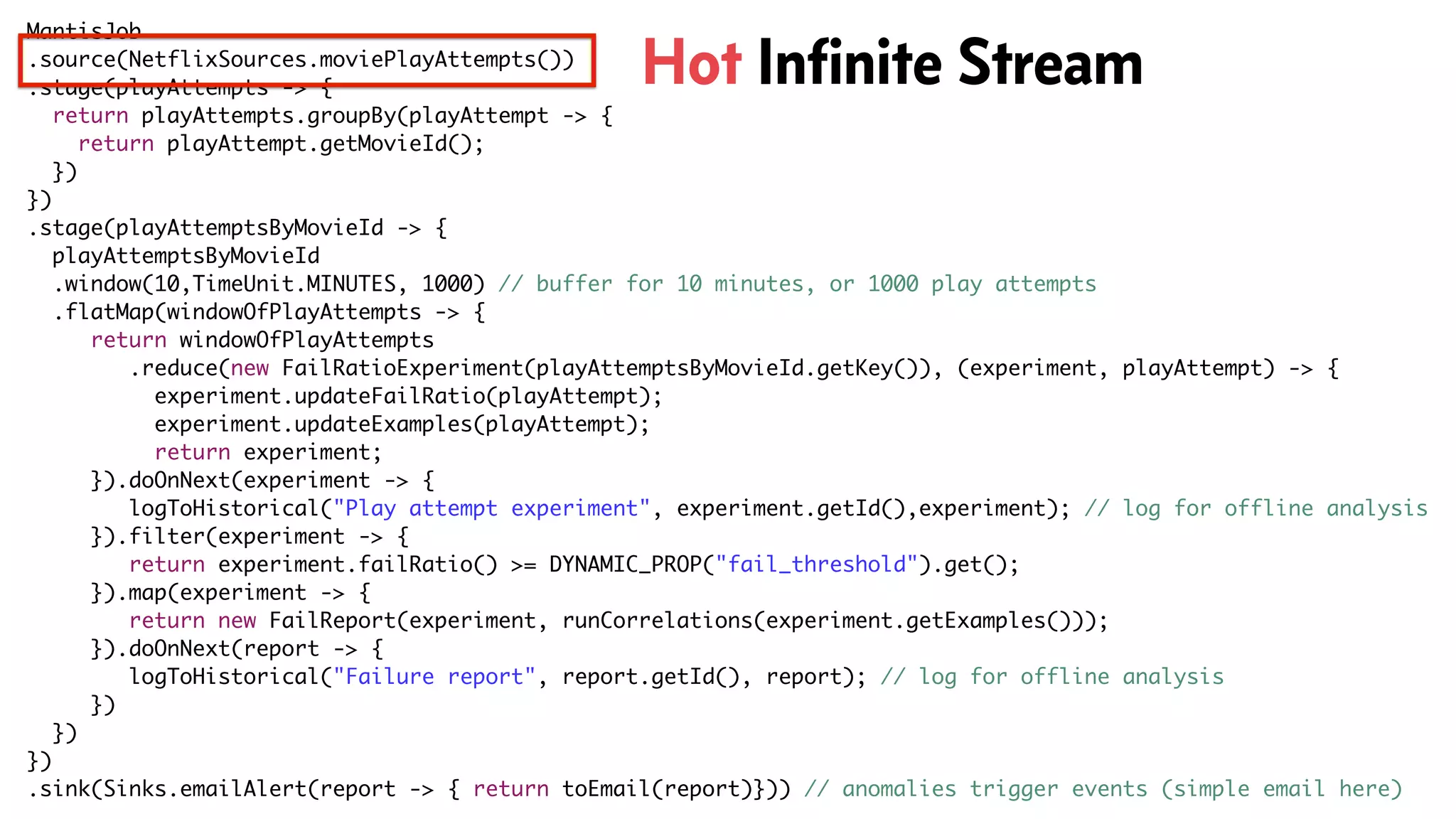

Hot Infinite Streams

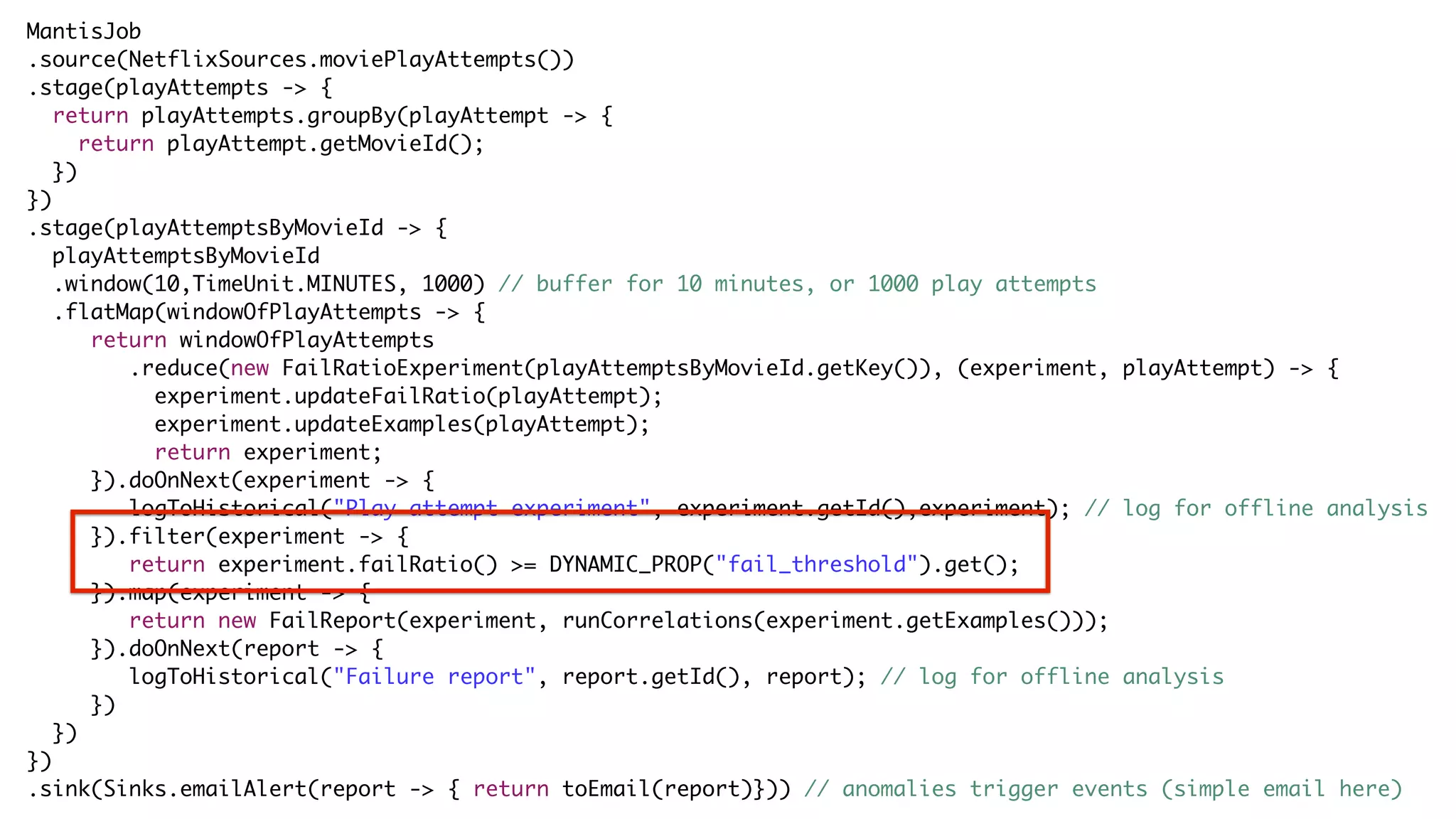

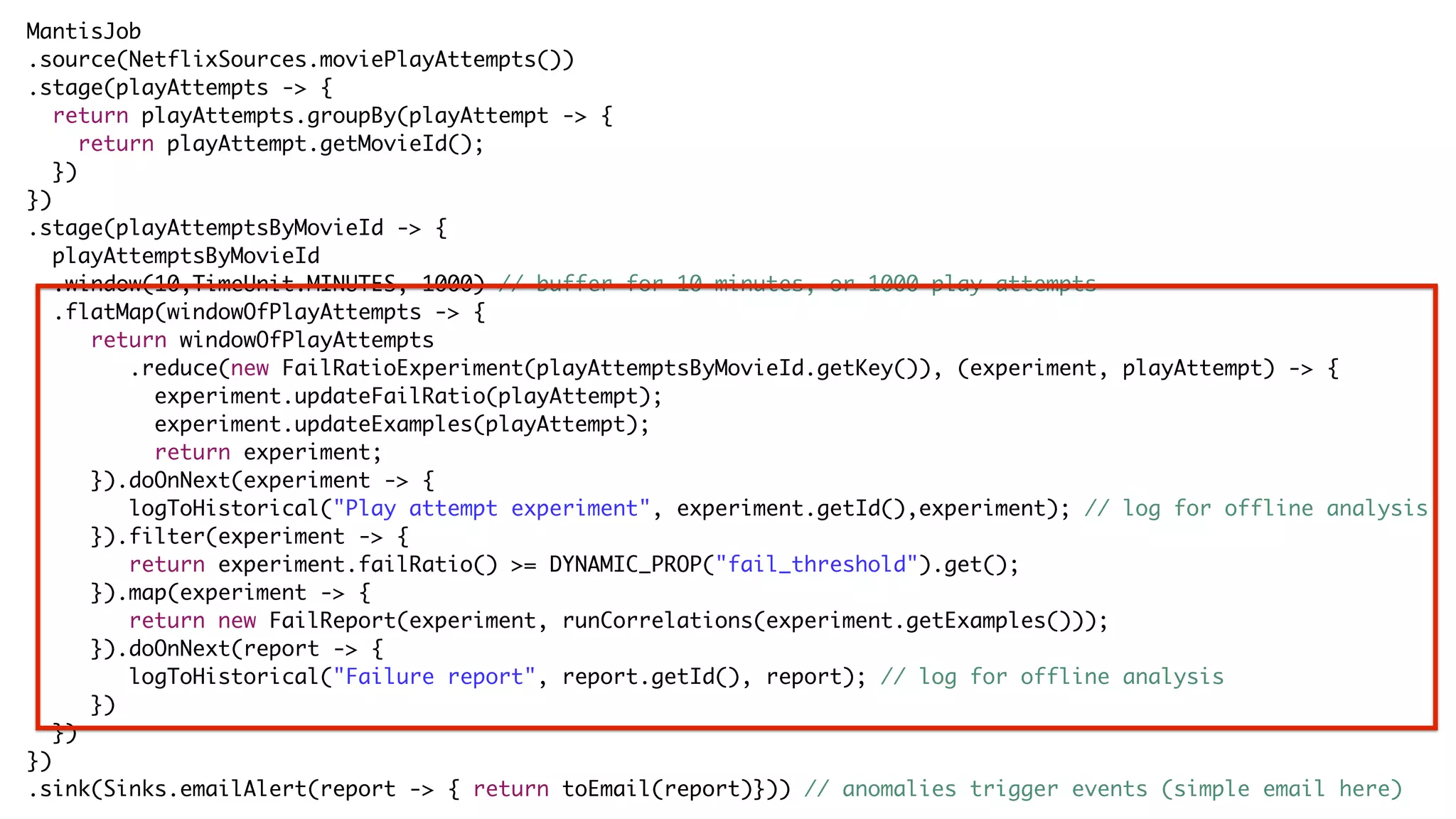

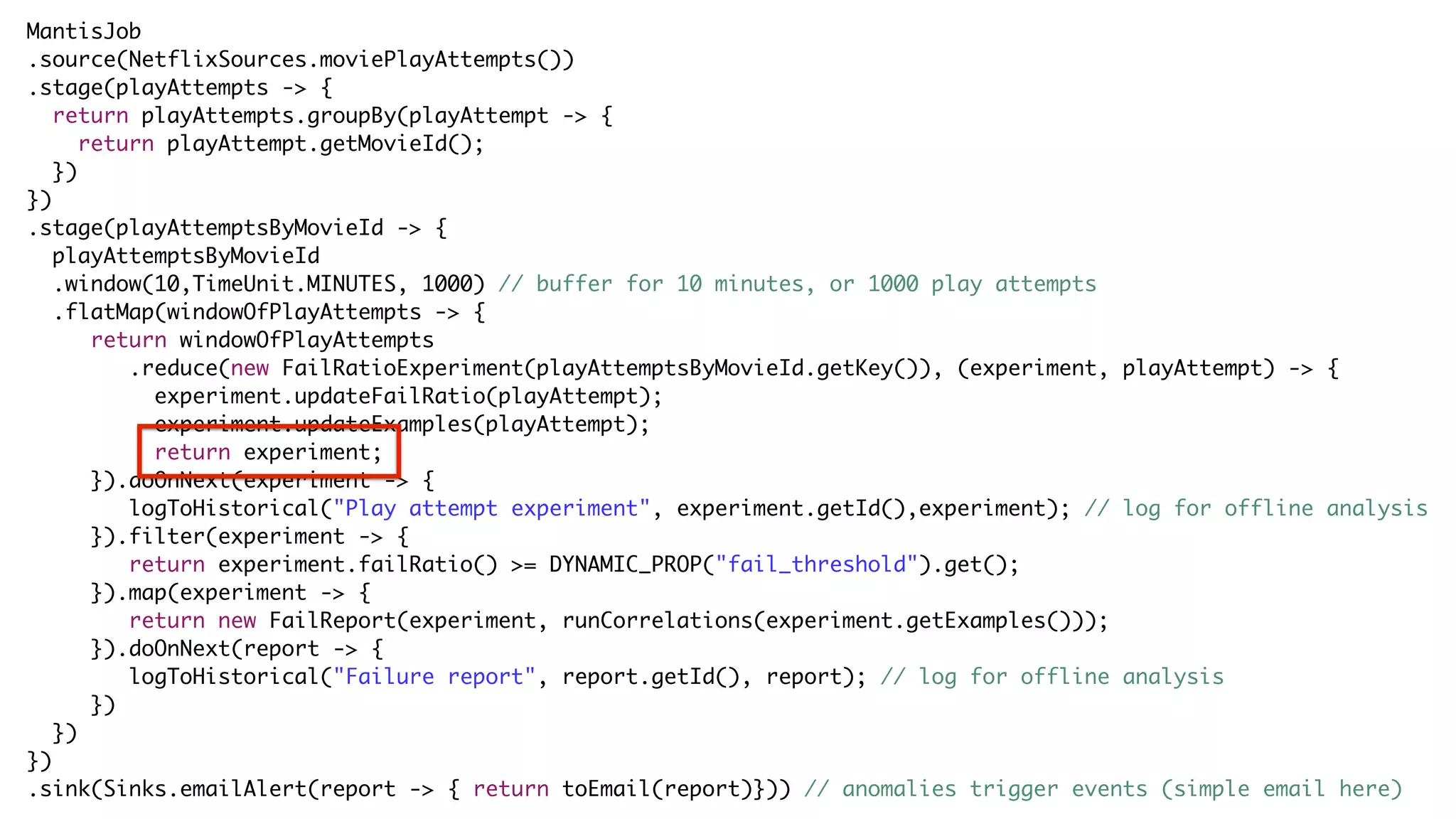

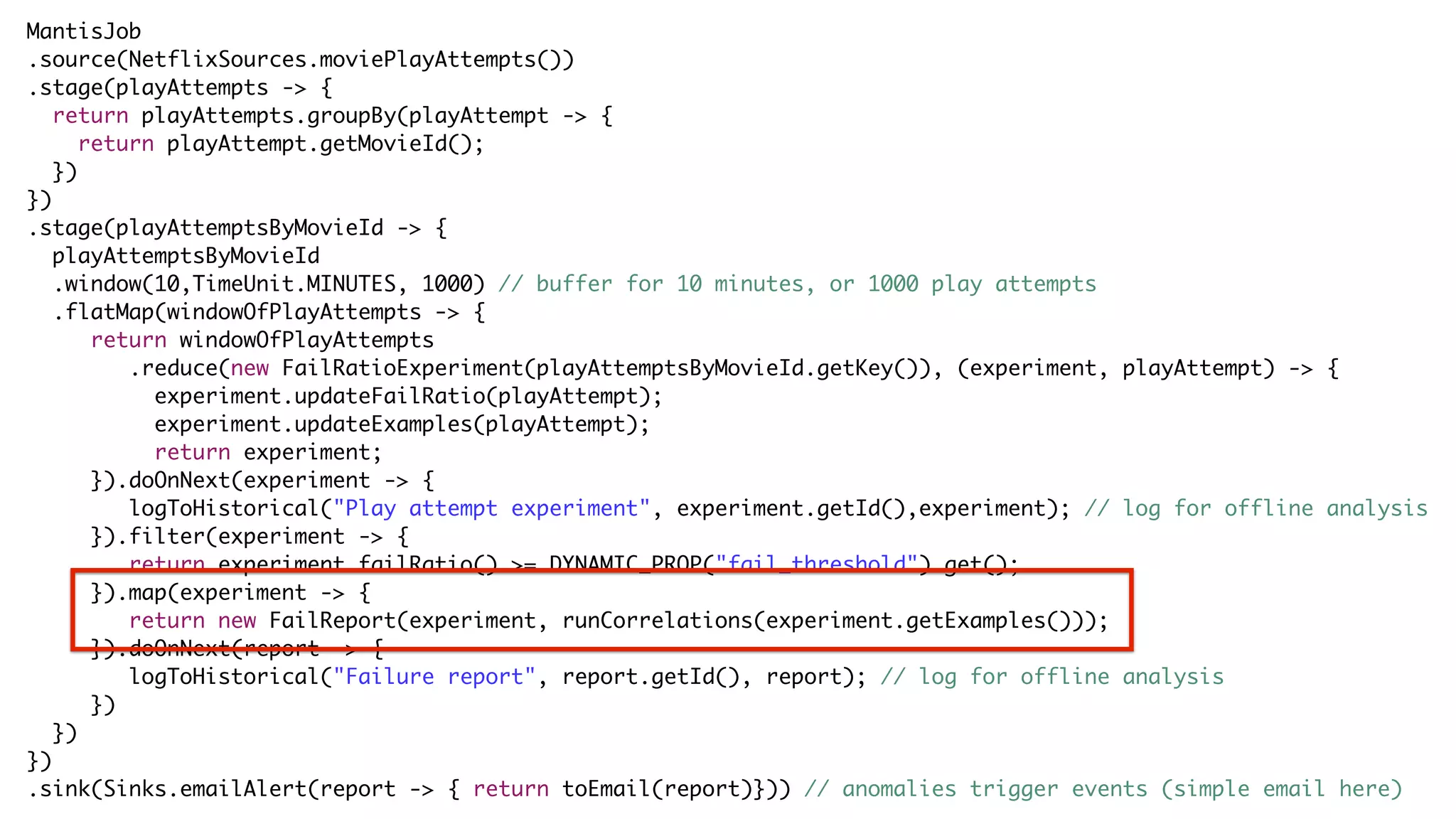

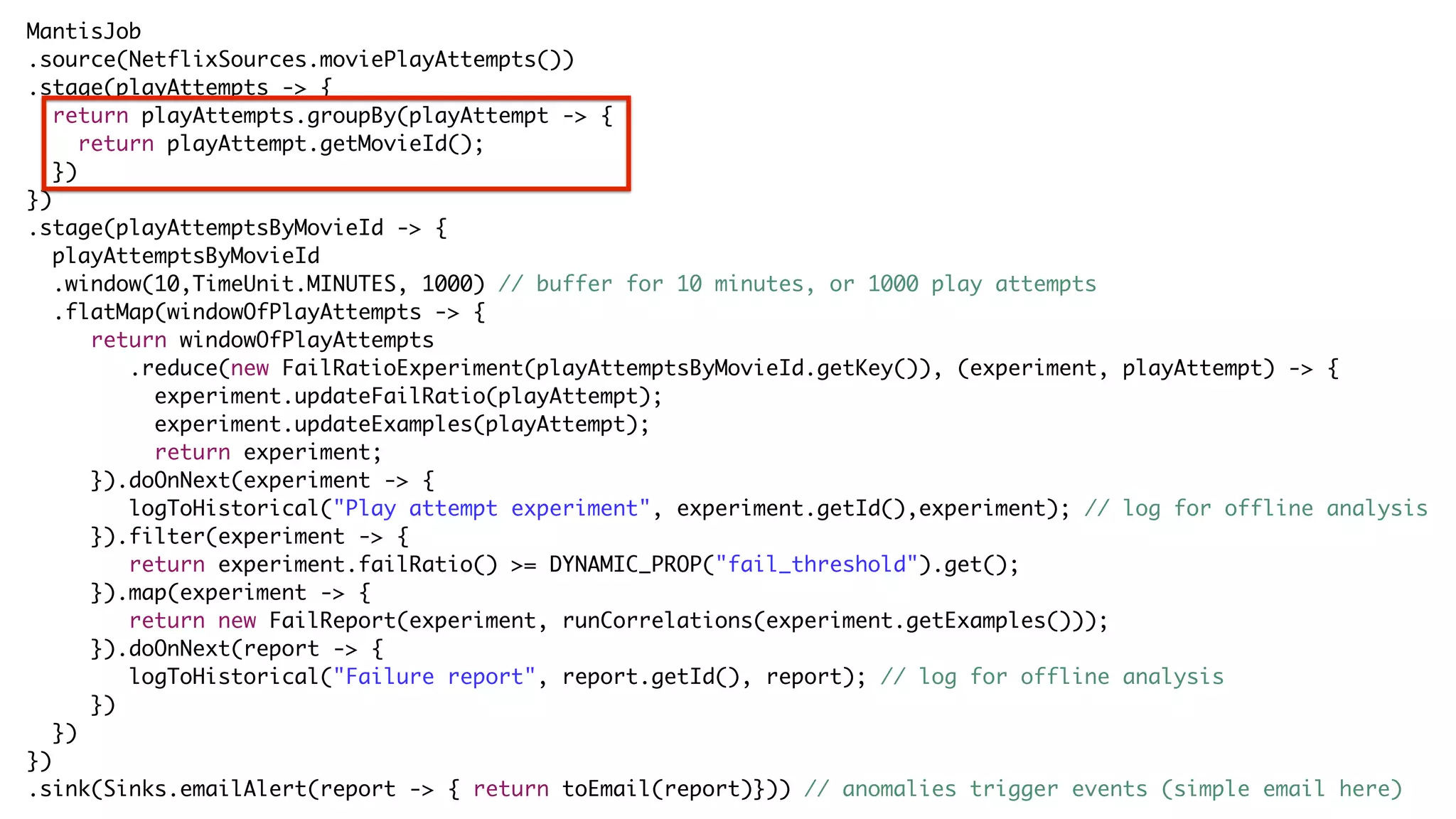

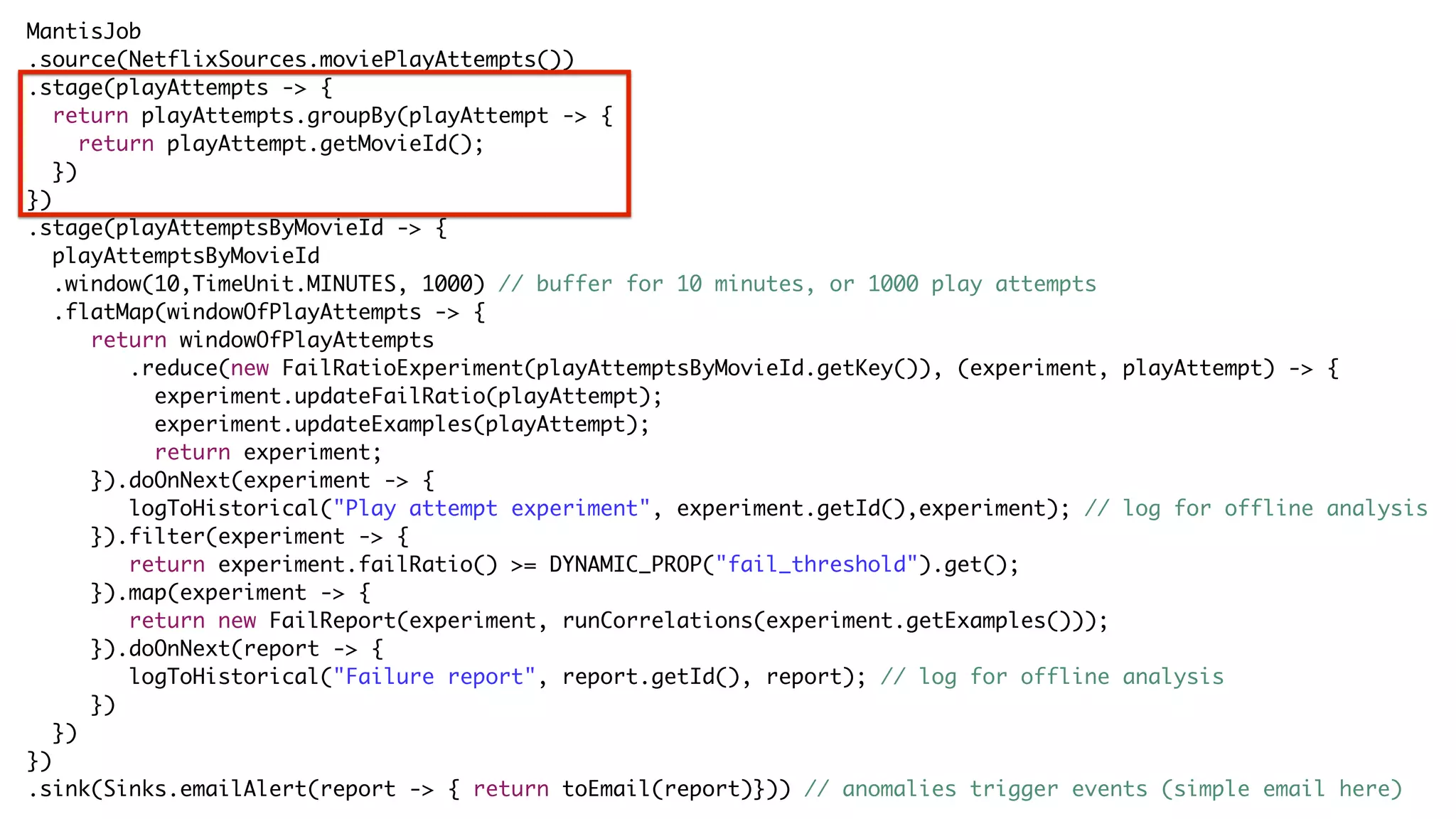

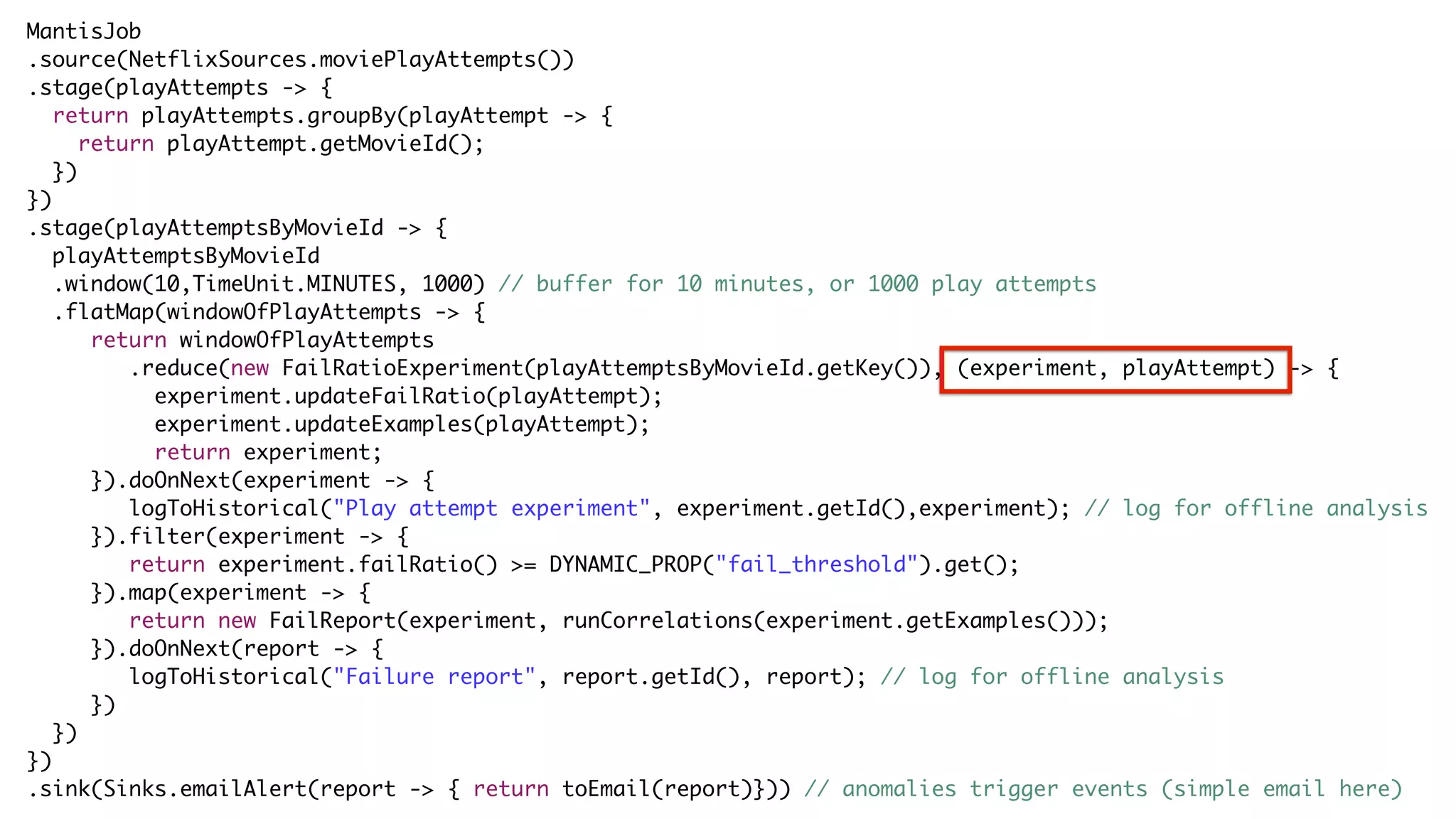

MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here) Hot Infinite Stream
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)

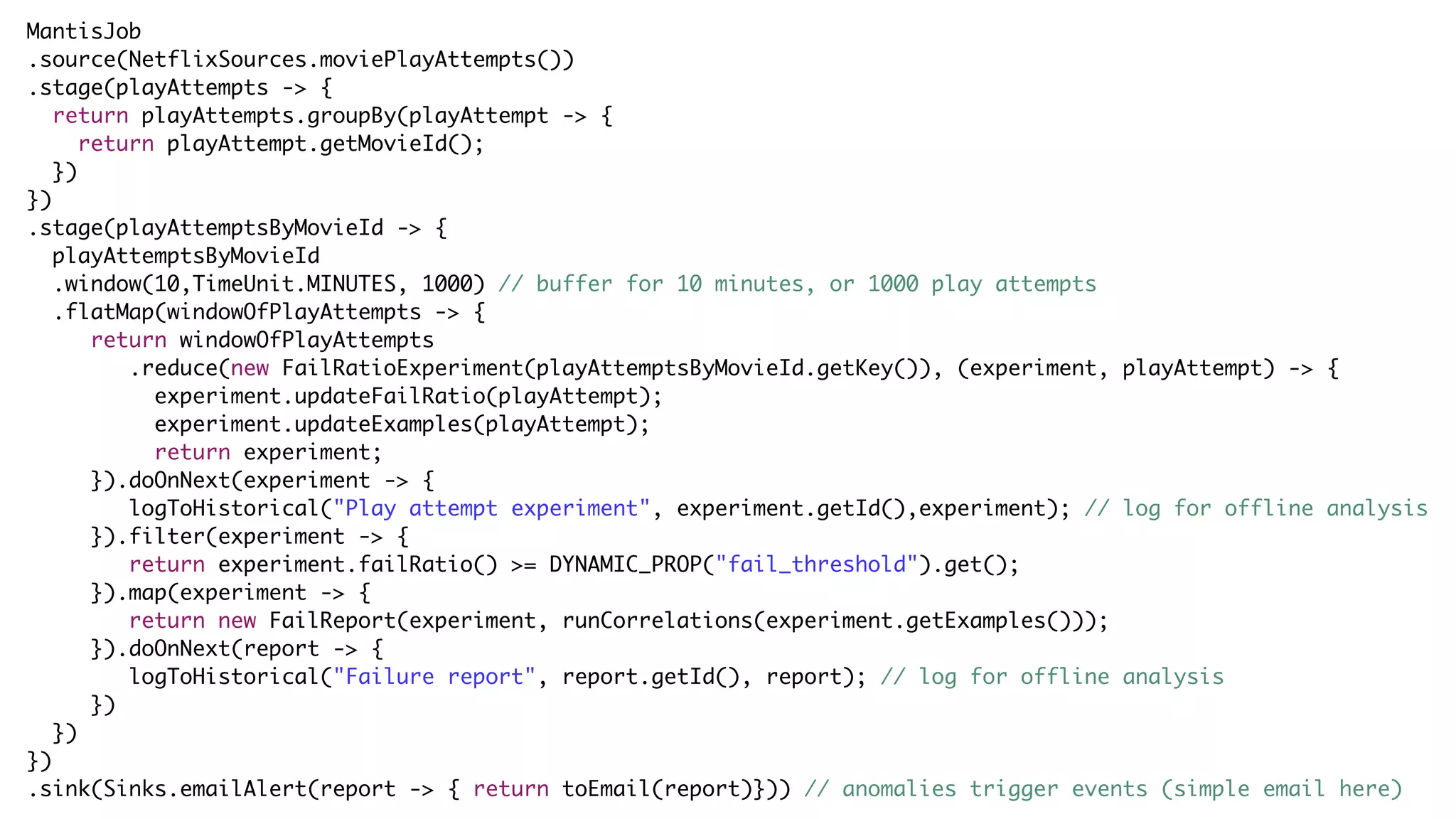

MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)

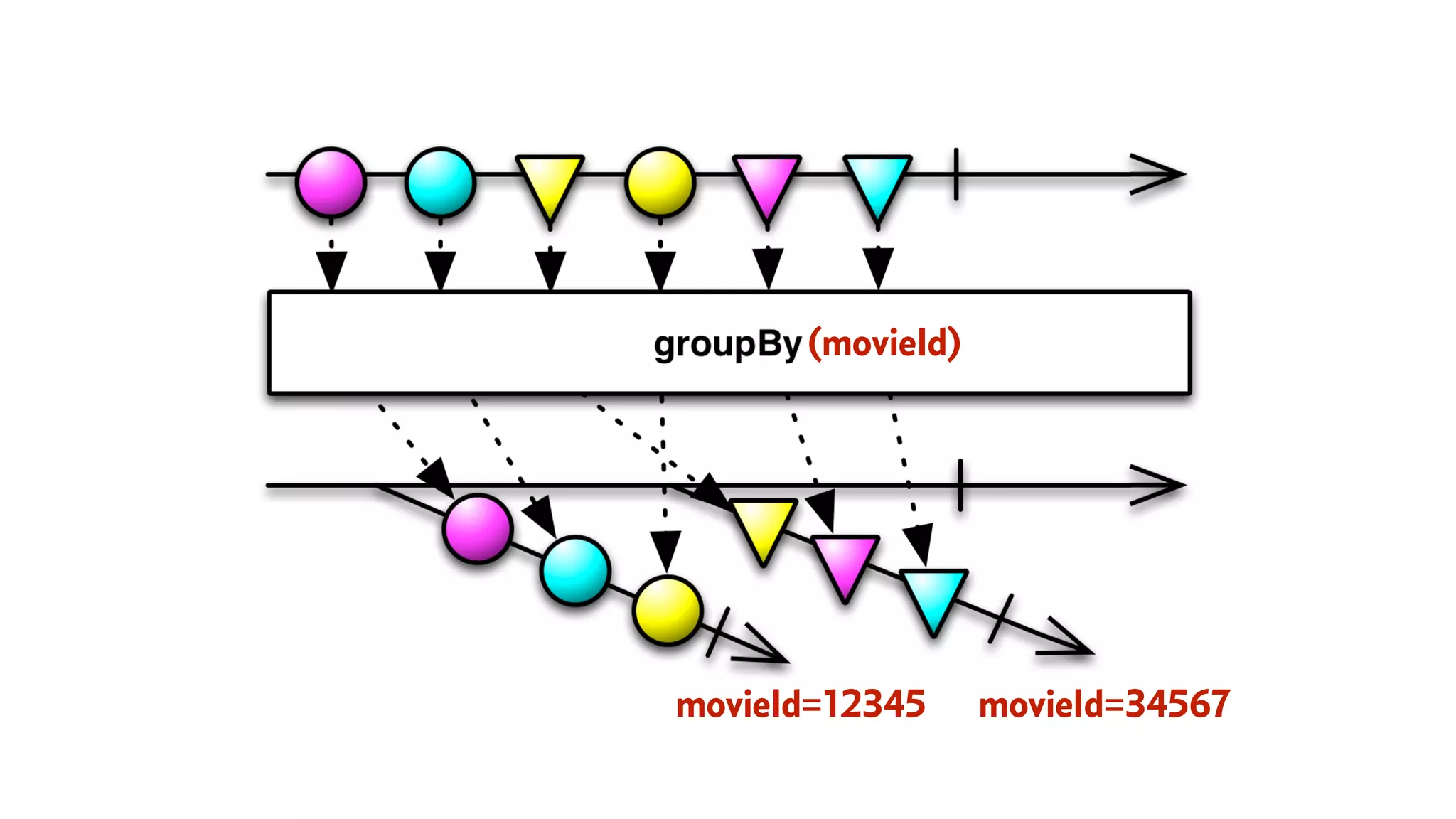

(movieId) movieId=12345 movieId=34567
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)

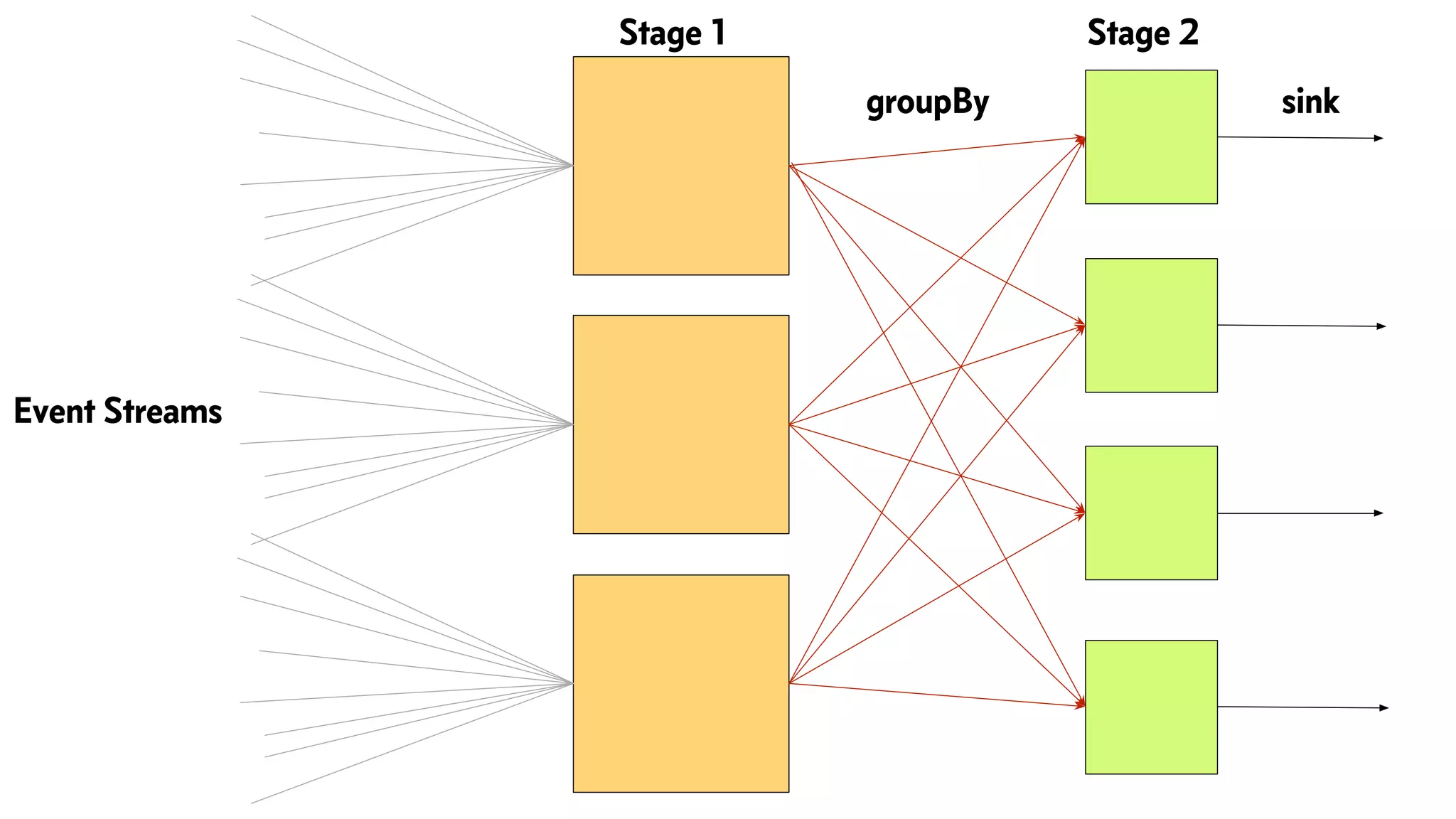

Stage 1 Stage 2 groupBy Event Streams sink

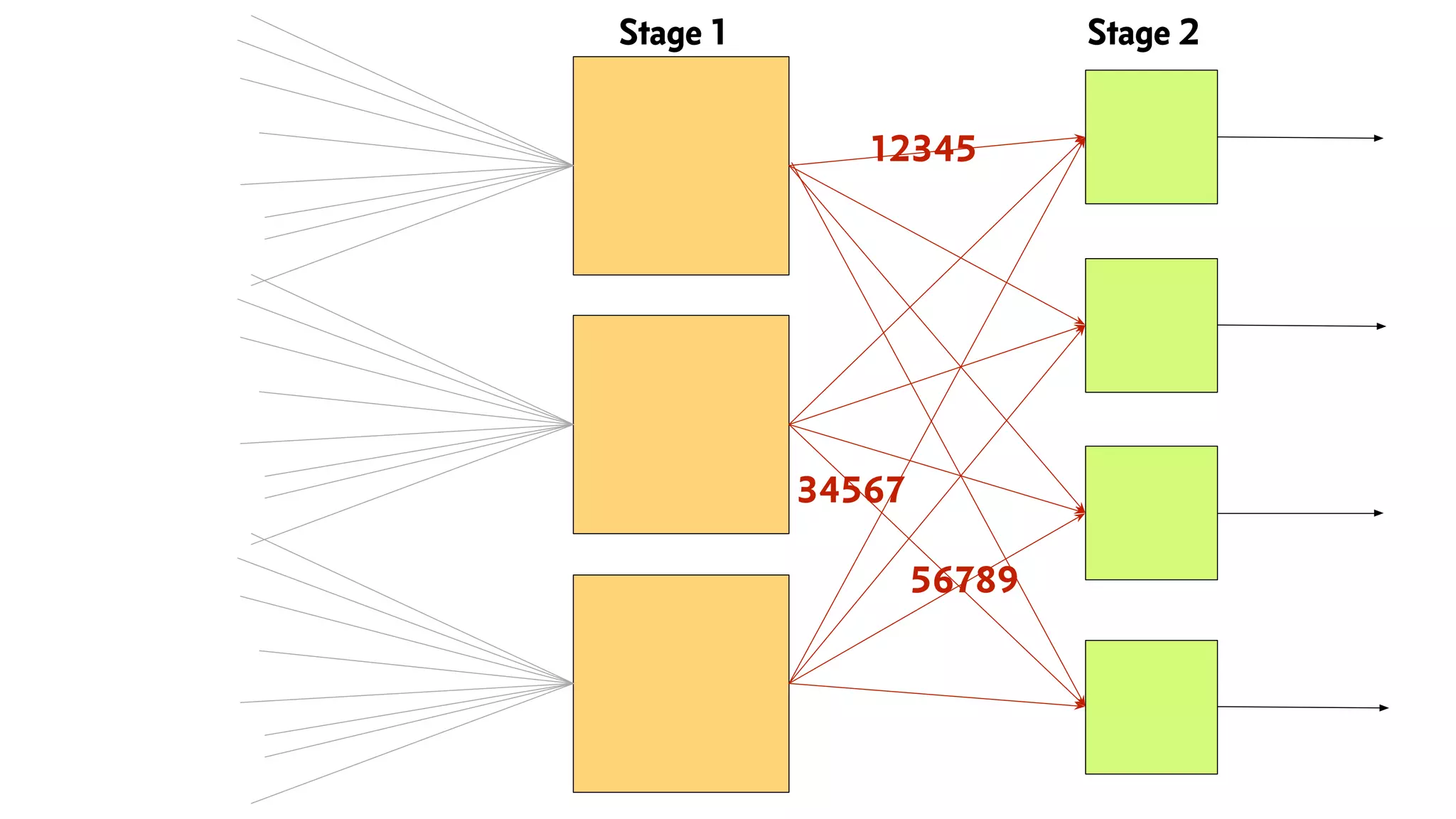

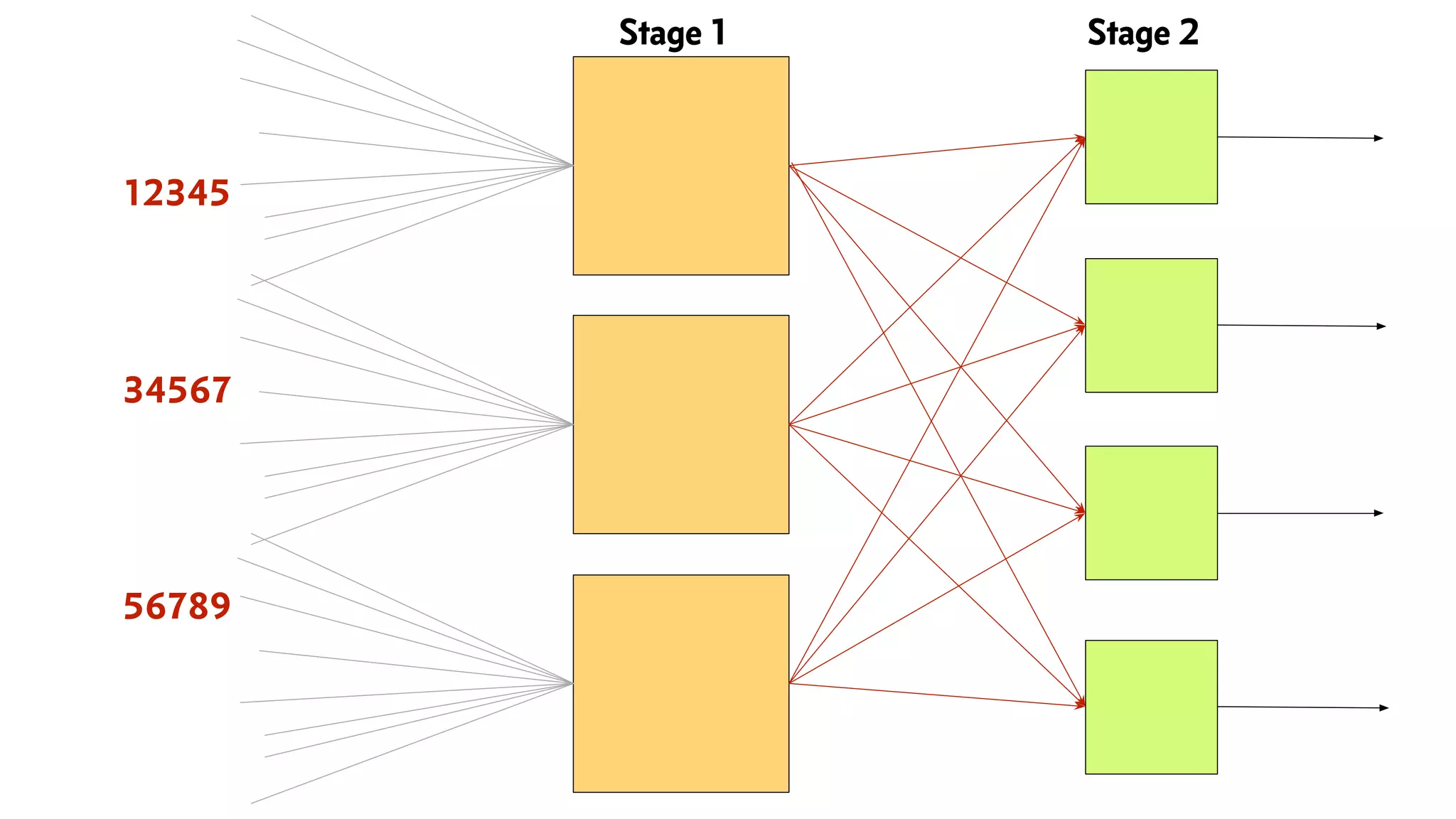

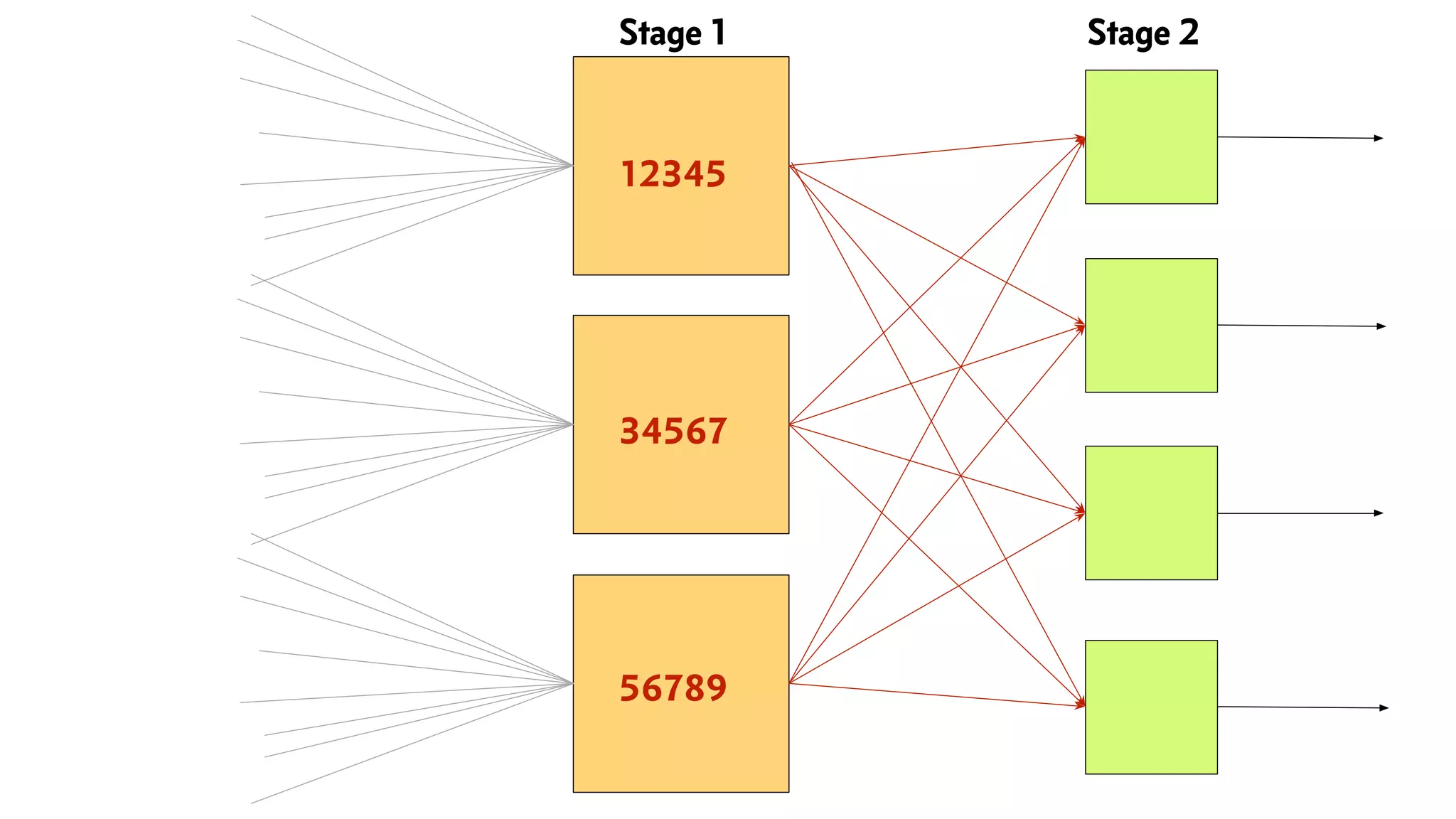

Stage 1 Stage 2 12345 56789 34567
Stage 1 Stage 2 12345 56789 34567
Stage 1 Stage 2 12345 56789 34567
Stage 1 Stage 2 12345 56789 34567

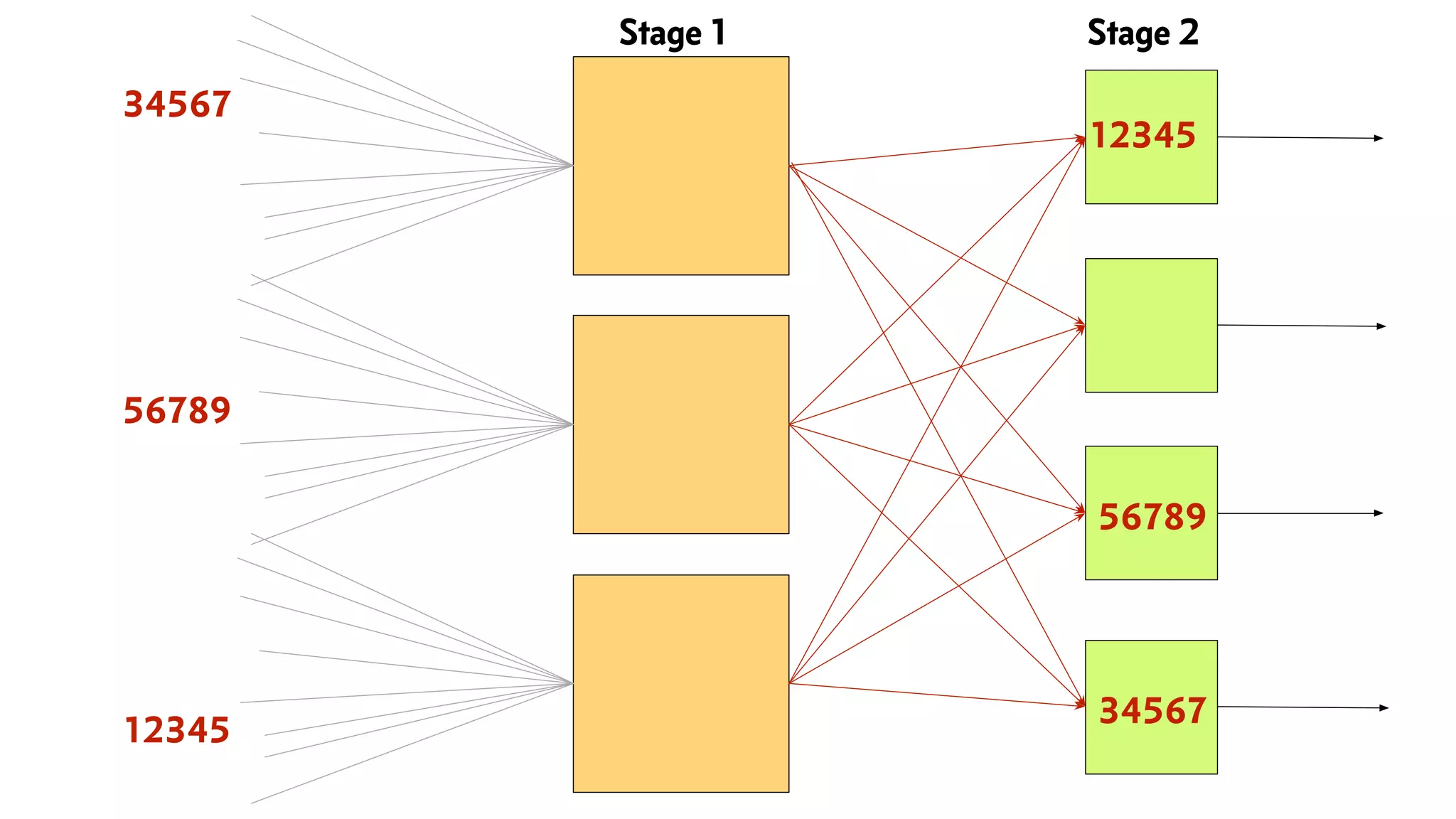

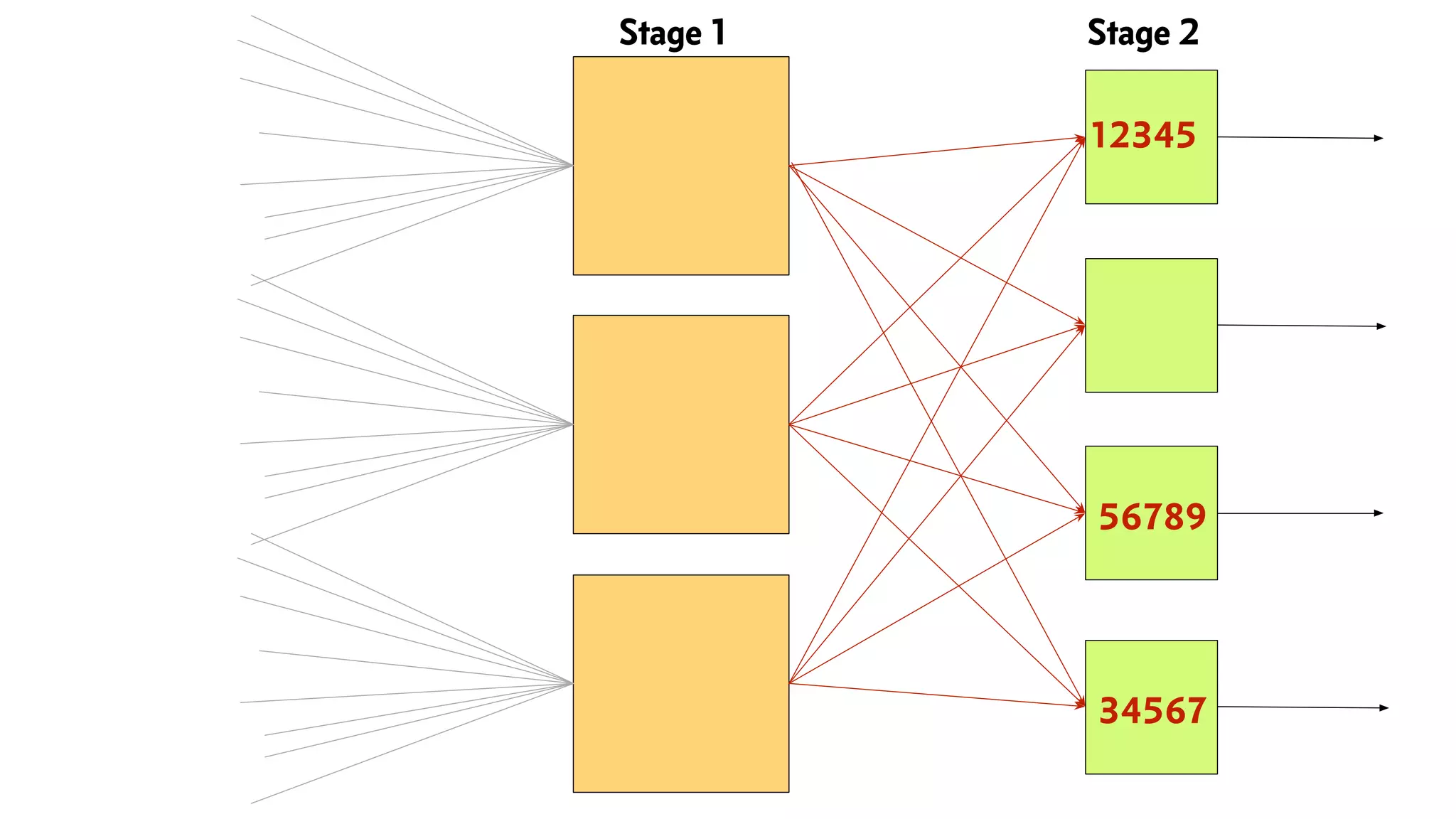

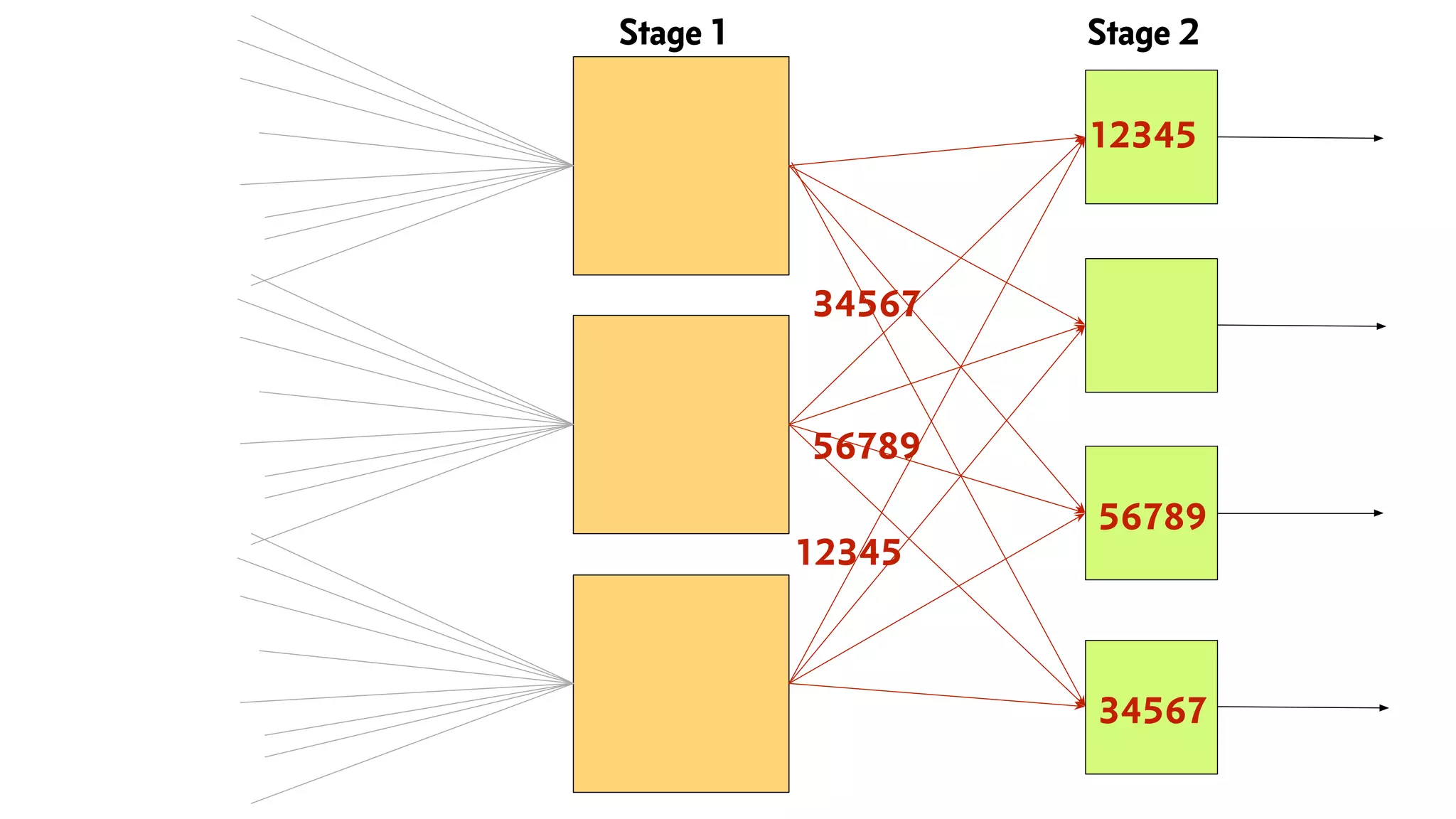

Stage 1 Stage 2 12345 56789 34567 12345 56789 34567
Stage 1 Stage 2 12345 56789 34567 12345 56789 34567
Stage 1 Stage 2 12345 56789 34567 12345 56789 34567
Stage 1 Stage 2 12345 56789 34567 12345 56789 34567

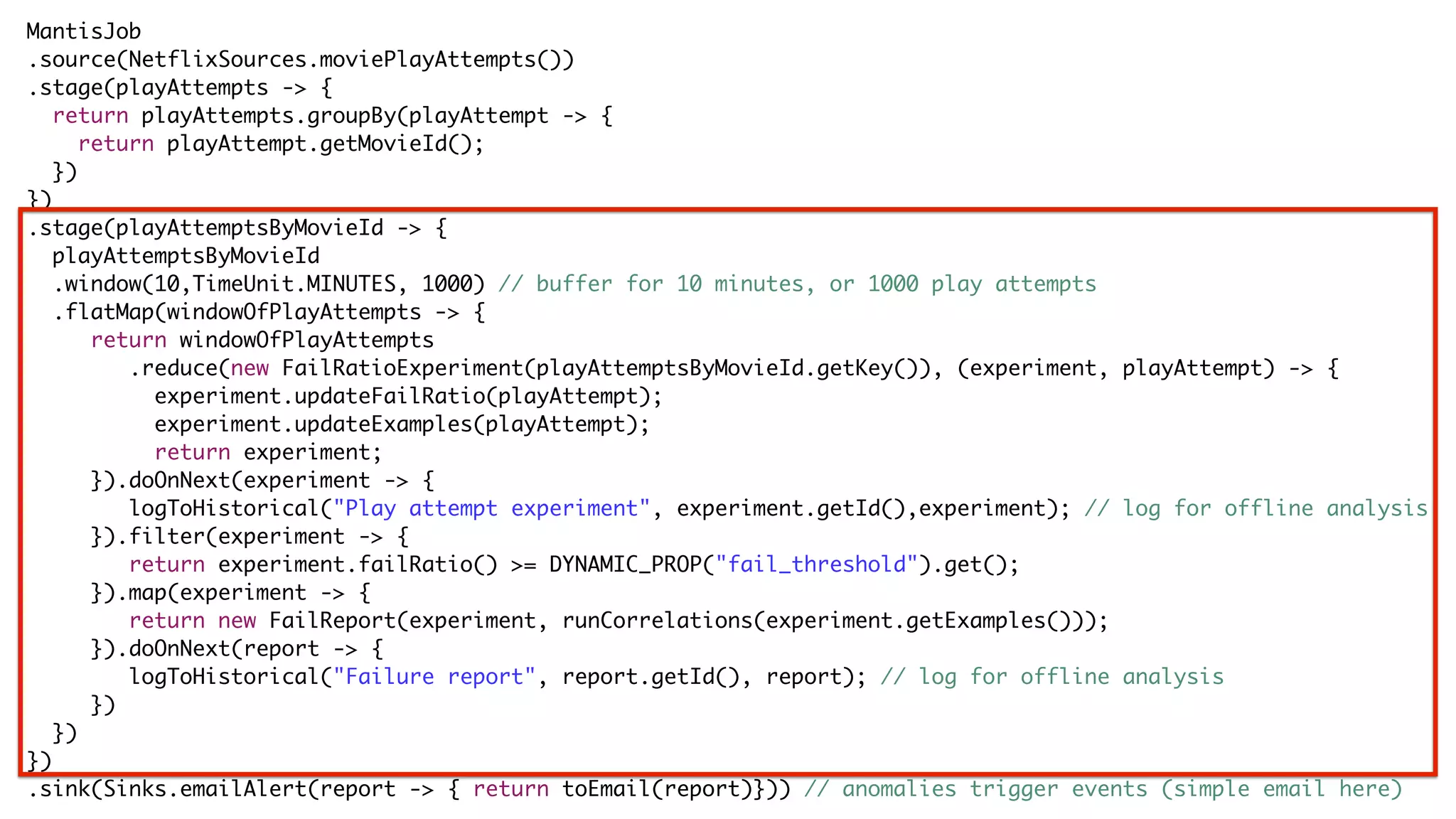

MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)

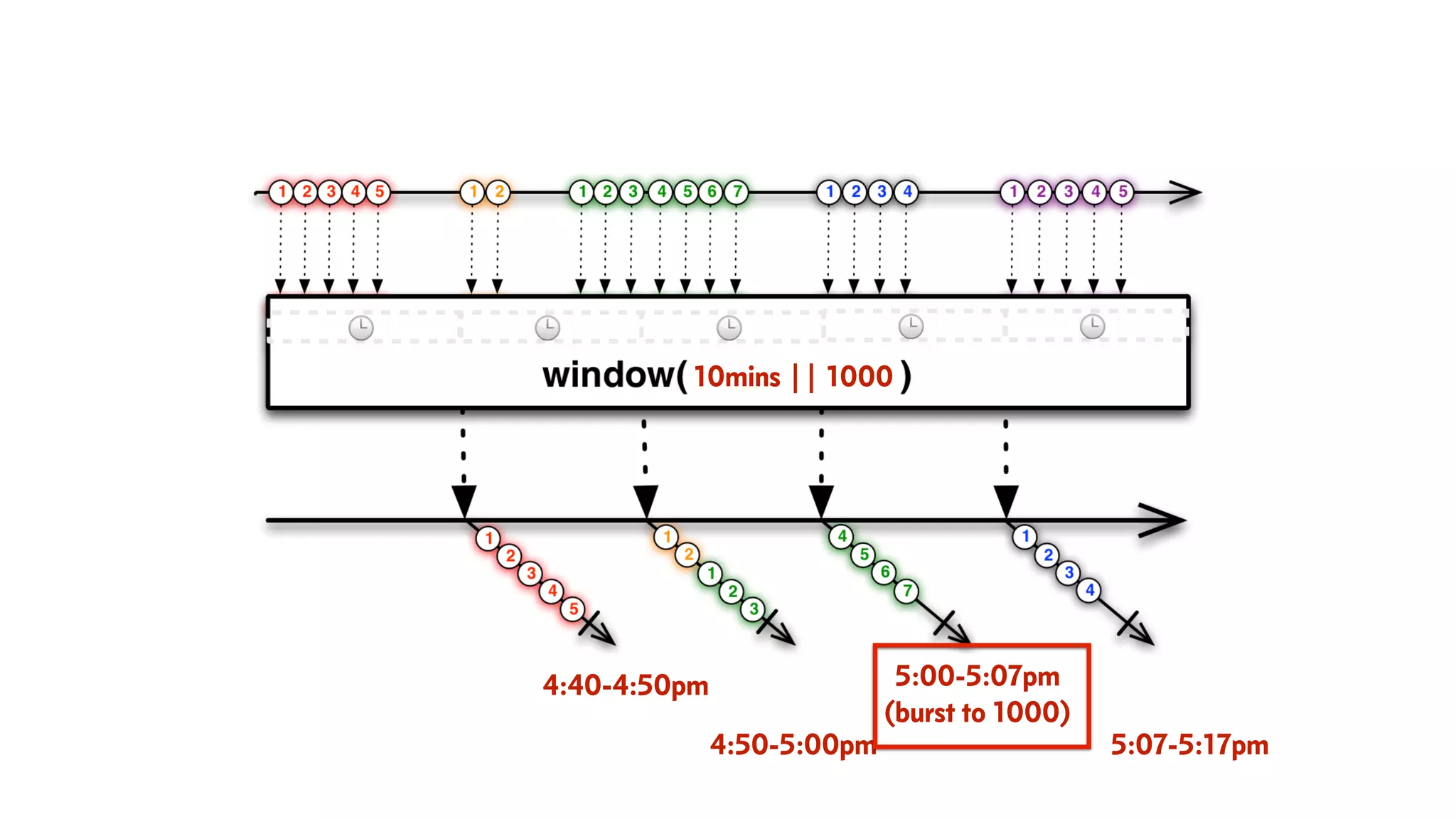

10mins || 1000 4:40-4:50pm 4:50-5:00pm 5:00-5:07pm (burst to 1000) 5:07-5:17pm
10mins || 1000 4:40-4:50pm 4:50-5:00pm 5:00-5:07pm (burst to 1000) 5:07-5:17pm

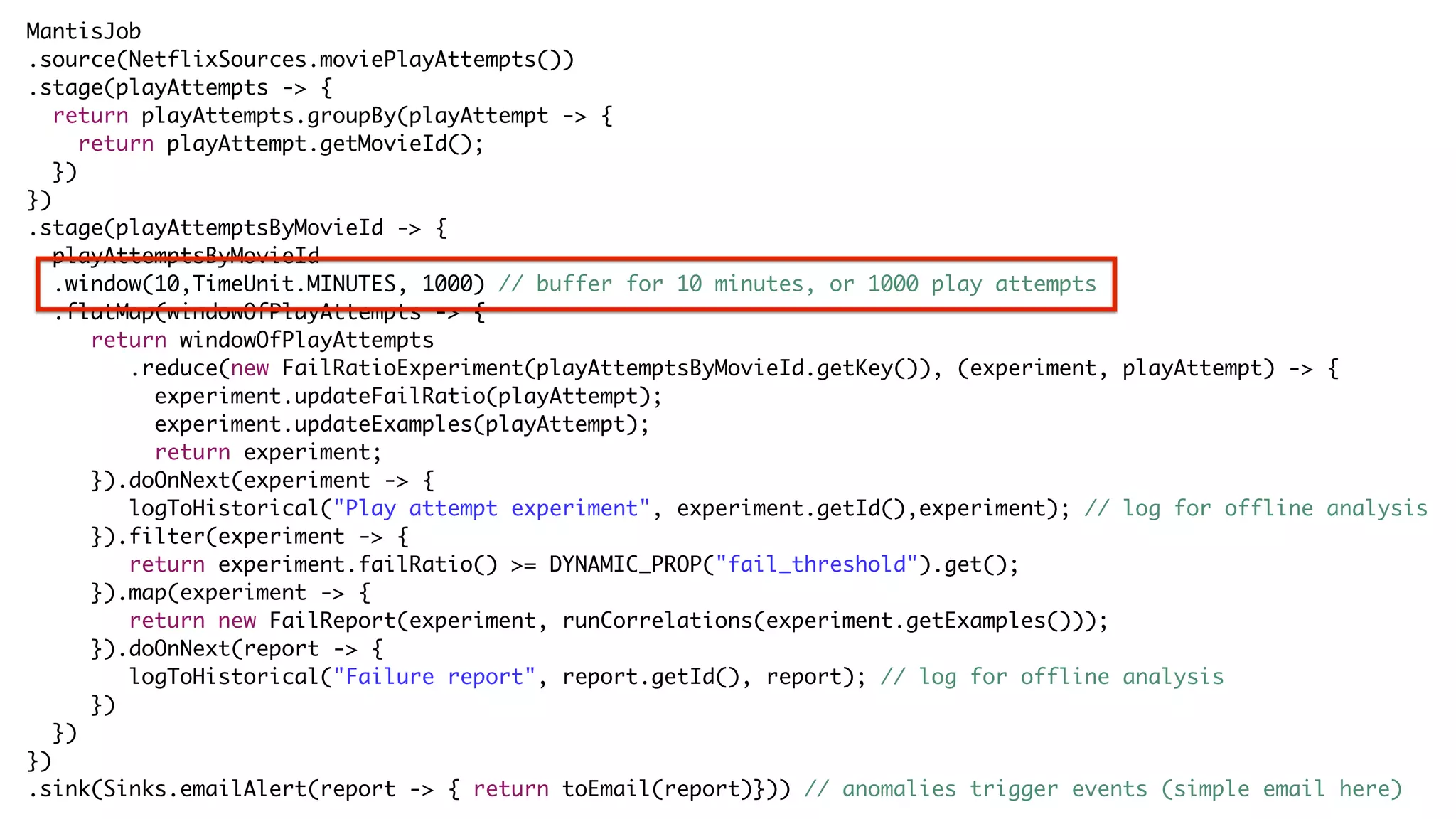

MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
stream.onBackpressure(strategy?).subscribe

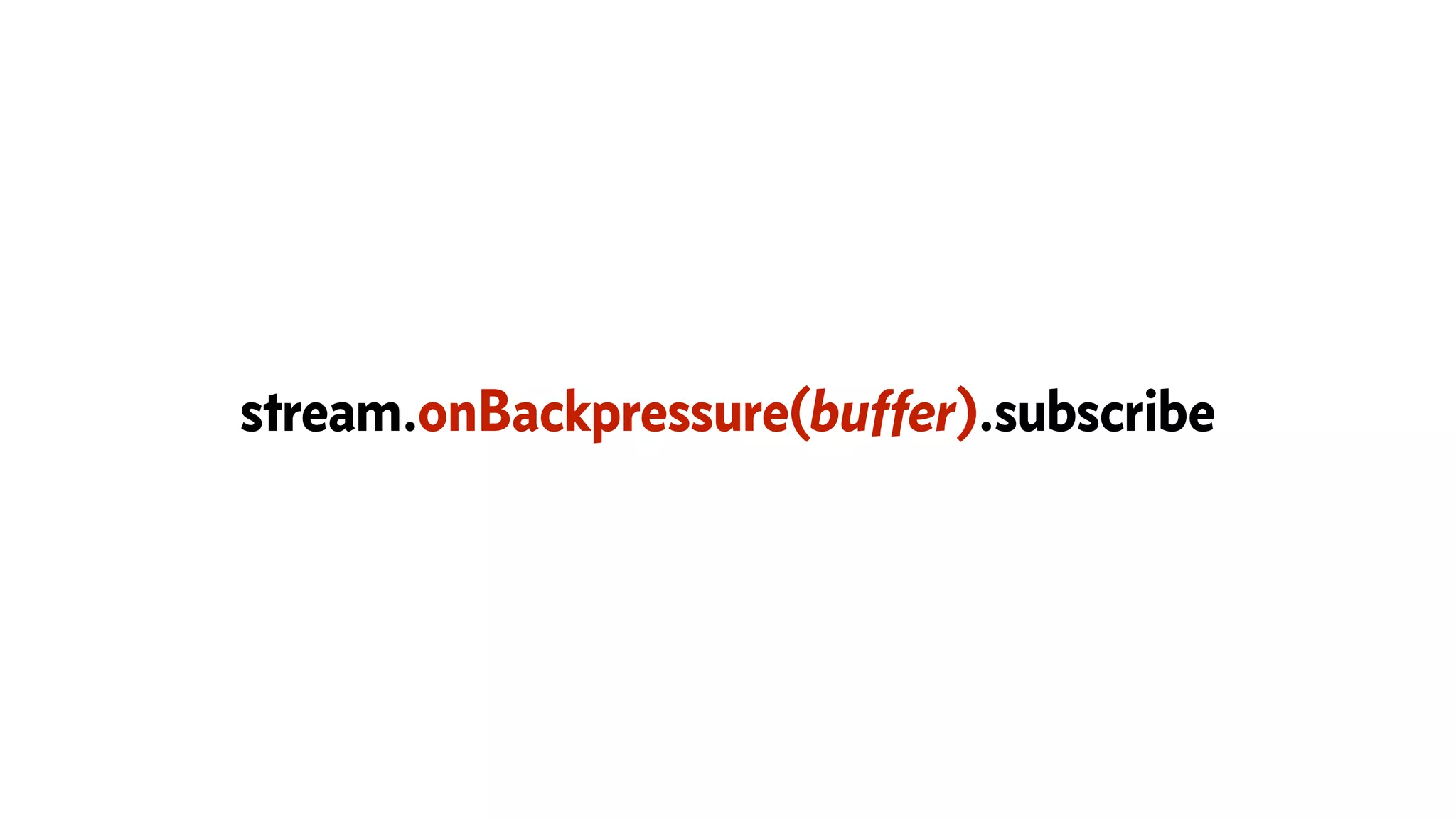

stream.onBackpressure(buffer).subscribe
stream.onBackpressure(drop).subscribe
stream.onBackpressure(sample).subscribe

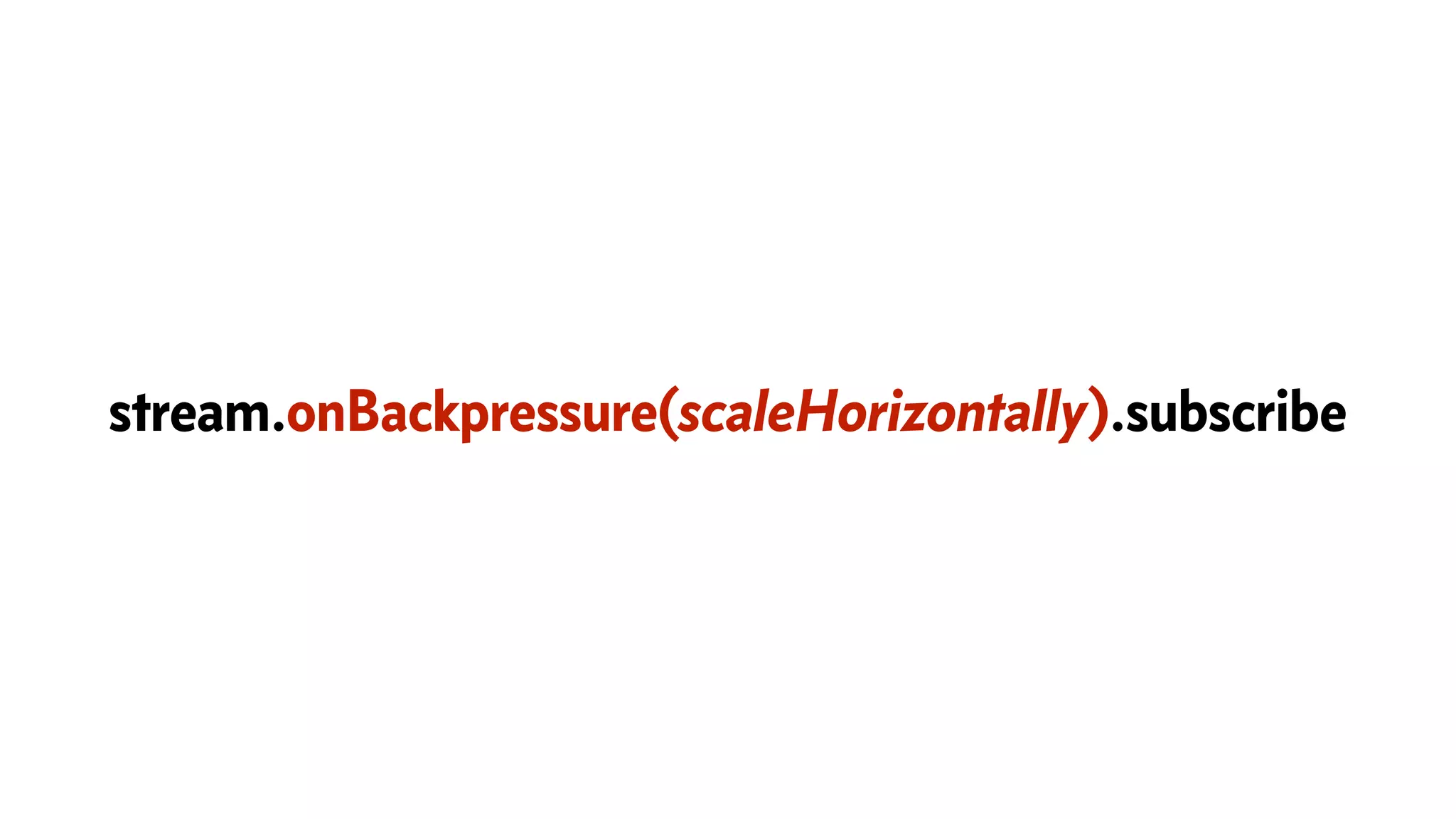

stream.onBackpressure(scaleHorizontally).subscribe
Reactive-Streams https://github.com/reactive-streams/reactive-streams
Reactive-Streams https://github.com/reactive-streams/reactive-streams https://github.com/ReactiveX/RxJavaReactiveStreams

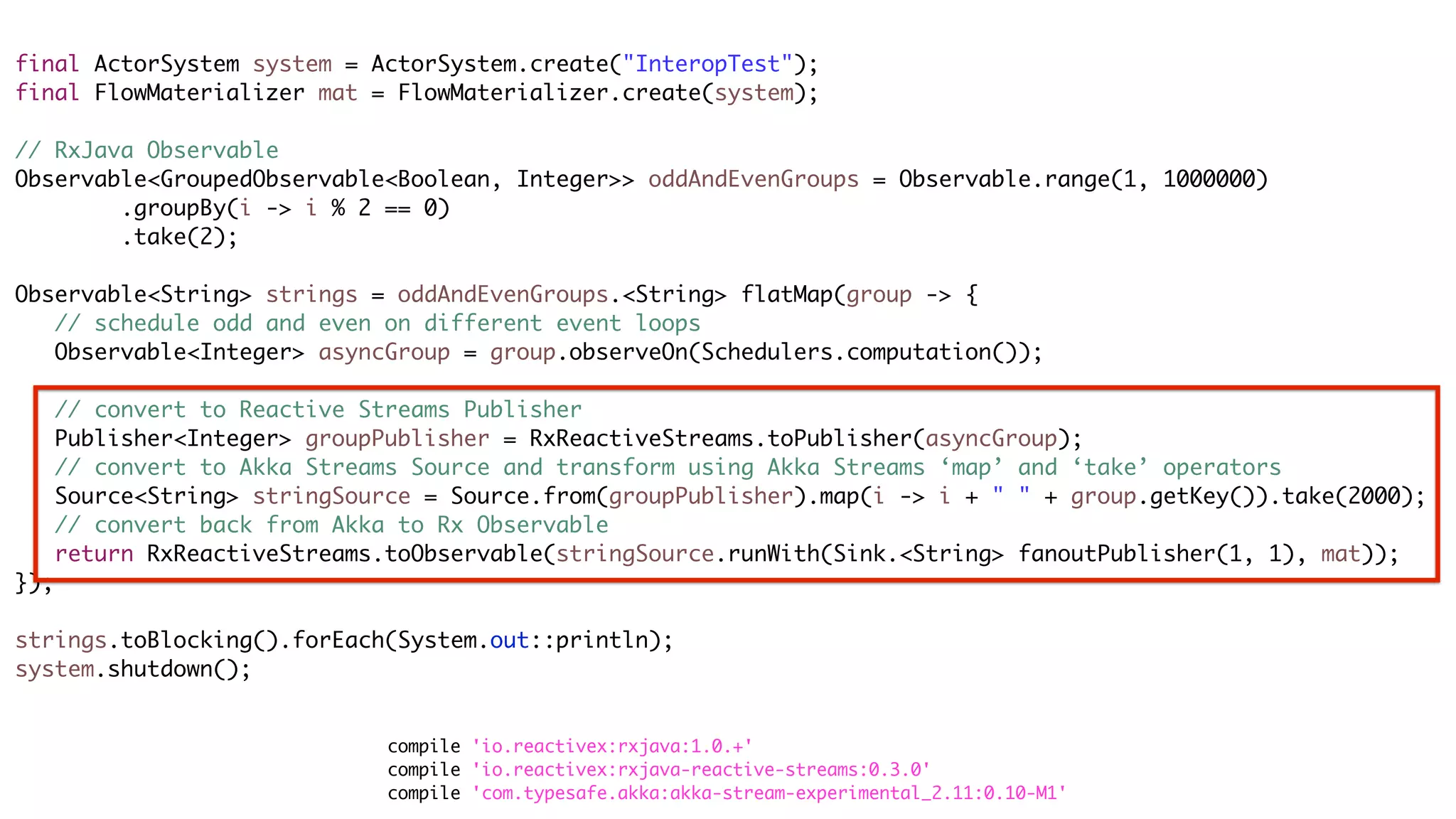

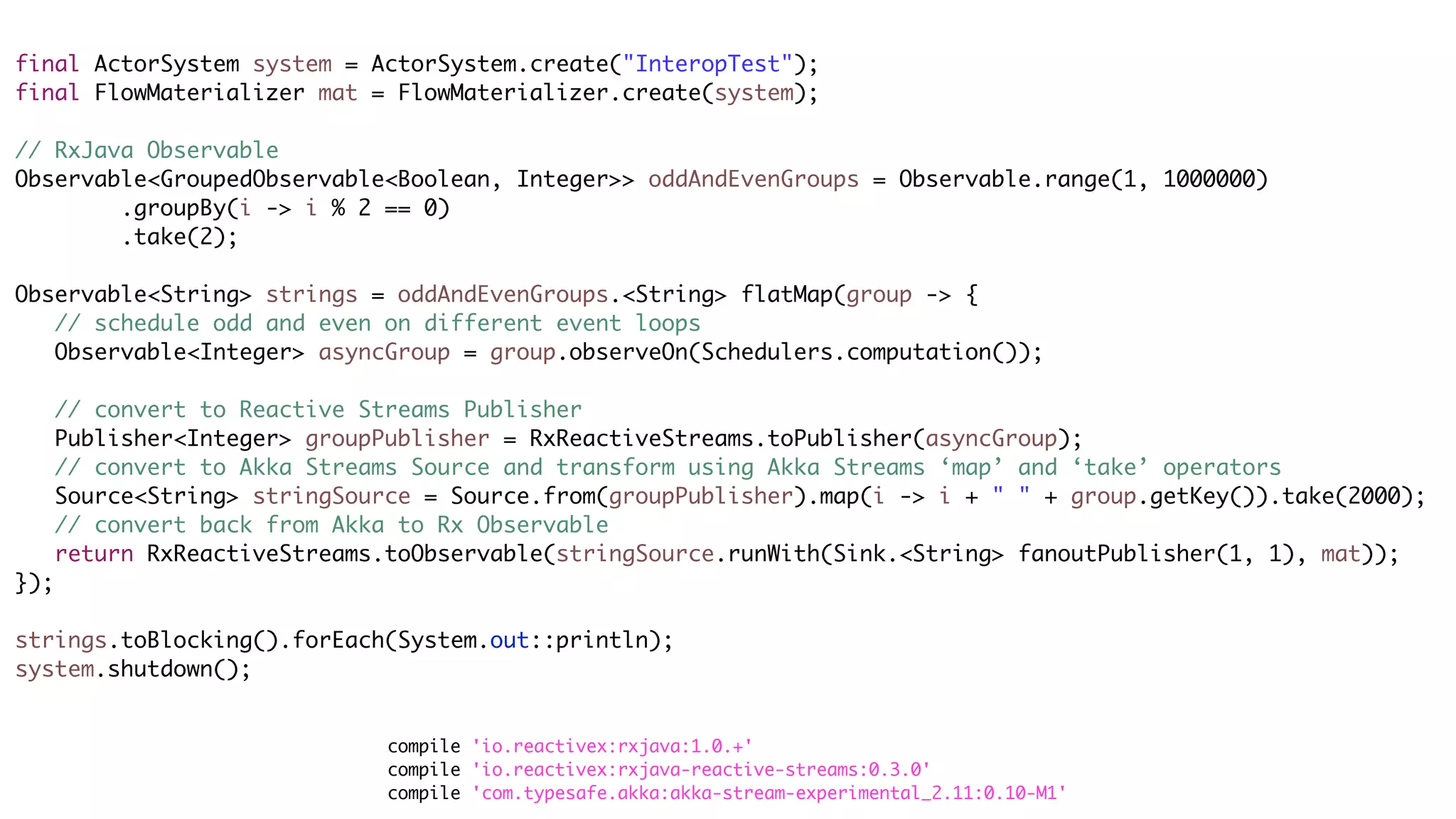

final ActorSystem system = ActorSystem.create("InteropTest"); final FlowMaterializer mat = FlowMaterializer.create(system); // RxJava Observable Observable<GroupedObservable<Boolean, Integer>> oddAndEvenGroups = Observable.range(1, 1000000) .groupBy(i -> i % 2 == 0) .take(2); Observable<String> strings = oddAndEvenGroups.<String> flatMap(group -> { // schedule odd and even on different event loops Observable<Integer> asyncGroup = group.observeOn(Schedulers.computation()); // convert to Reactive Streams Publisher Publisher<Integer> groupPublisher = RxReactiveStreams.toPublisher(asyncGroup); // convert to Akka Streams Source and transform using Akka Streams ‘map’ and ‘take’ operators Source<String> stringSource = Source.from(groupPublisher).map(i -> i + " " + group.getKey()).take(2000); // convert back from Akka to Rx Observable return RxReactiveStreams.toObservable(stringSource.runWith(Sink.<String> fanoutPublisher(1, 1), mat)); }); strings.toBlocking().forEach(System.out::println); system.shutdown(); compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'com.typesafe.akka:akka-stream-experimental_2.11:0.10-M1'
final ActorSystem system = ActorSystem.create("InteropTest"); final FlowMaterializer mat = FlowMaterializer.create(system); // RxJava Observable Observable<GroupedObservable<Boolean, Integer>> oddAndEvenGroups = Observable.range(1, 1000000) .groupBy(i -> i % 2 == 0) .take(2); Observable<String> strings = oddAndEvenGroups.<String> flatMap(group -> { // schedule odd and even on different event loops Observable<Integer> asyncGroup = group.observeOn(Schedulers.computation()); // convert to Reactive Streams Publisher Publisher<Integer> groupPublisher = RxReactiveStreams.toPublisher(asyncGroup); // convert to Akka Streams Source and transform using Akka Streams ‘map’ and ‘take’ operators Source<String> stringSource = Source.from(groupPublisher).map(i -> i + " " + group.getKey()).take(2000); // convert back from Akka to Rx Observable return RxReactiveStreams.toObservable(stringSource.runWith(Sink.<String> fanoutPublisher(1, 1), mat)); }); strings.toBlocking().forEach(System.out::println); system.shutdown(); compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'com.typesafe.akka:akka-stream-experimental_2.11:0.10-M1'

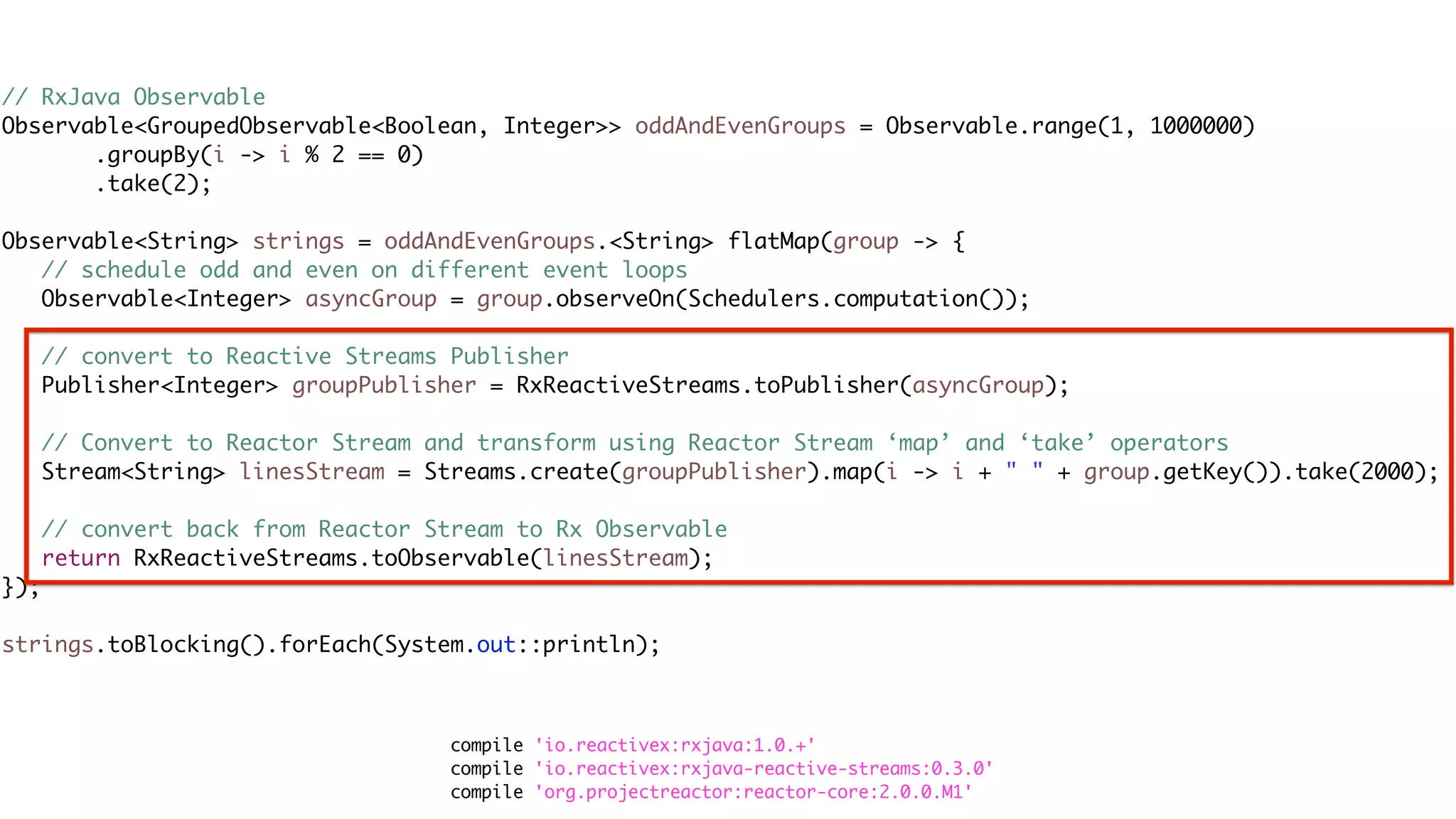

// RxJava Observable Observable<GroupedObservable<Boolean, Integer>> oddAndEvenGroups = Observable.range(1, 1000000) .groupBy(i -> i % 2 == 0) .take(2); Observable<String> strings = oddAndEvenGroups.<String> flatMap(group -> { // schedule odd and even on different event loops Observable<Integer> asyncGroup = group.observeOn(Schedulers.computation()); // convert to Reactive Streams Publisher Publisher<Integer> groupPublisher = RxReactiveStreams.toPublisher(asyncGroup); // Convert to Reactor Stream and transform using Reactor Stream ‘map’ and ‘take’ operators Stream<String> linesStream = Streams.create(groupPublisher).map(i -> i + " " + group.getKey()).take(2000); // convert back from Reactor Stream to Rx Observable return RxReactiveStreams.toObservable(linesStream); }); strings.toBlocking().forEach(System.out::println); compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'org.projectreactor:reactor-core:2.0.0.M1'
// RxJava Observable Observable<GroupedObservable<Boolean, Integer>> oddAndEvenGroups = Observable.range(1, 1000000) .groupBy(i -> i % 2 == 0) .take(2); Observable<String> strings = oddAndEvenGroups.<String> flatMap(group -> { // schedule odd and even on different event loops Observable<Integer> asyncGroup = group.observeOn(Schedulers.computation()); // convert to Reactive Streams Publisher Publisher<Integer> groupPublisher = RxReactiveStreams.toPublisher(asyncGroup); // Convert to Reactor Stream and transform using Reactor Stream ‘map’ and ‘take’ operators Stream<String> linesStream = Streams.create(groupPublisher).map(i -> i + " " + group.getKey()).take(2000); // convert back from Reactor Stream to Rx Observable return RxReactiveStreams.toObservable(linesStream); }); strings.toBlocking().forEach(System.out::println); compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'org.projectreactor:reactor-core:2.0.0.M1'

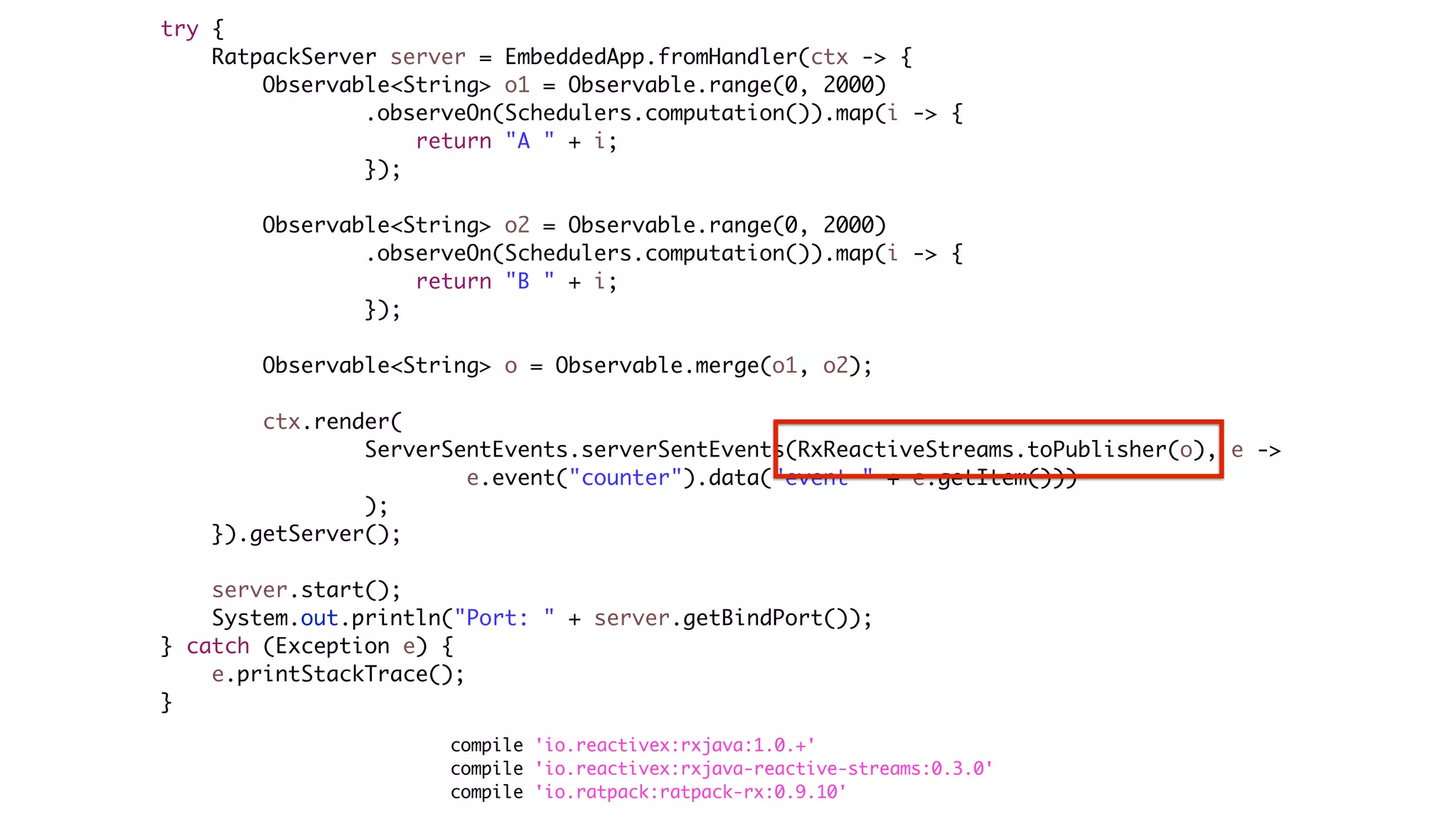

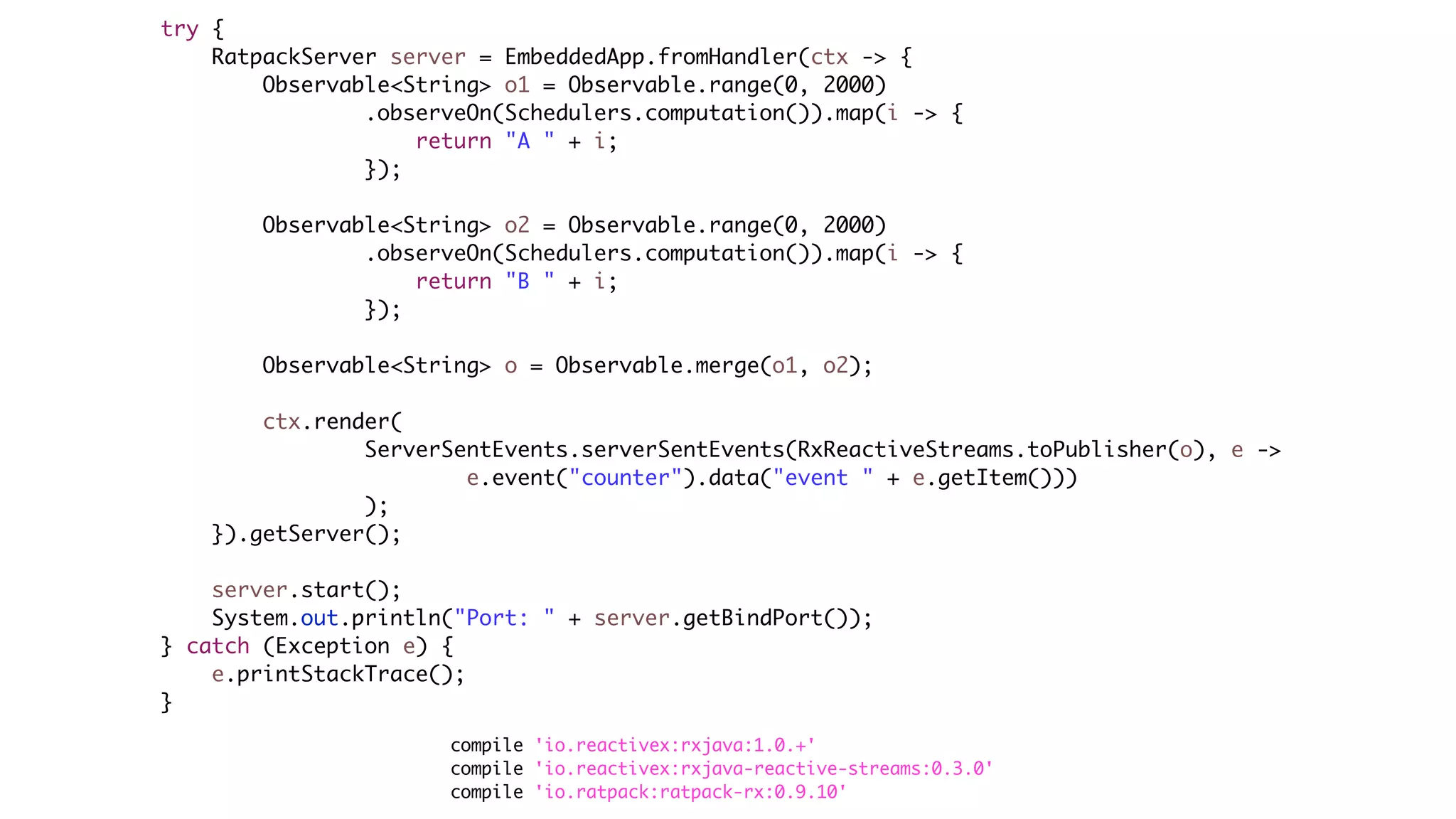

compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'io.ratpack:ratpack-rx:0.9.10' try { RatpackServer server = EmbeddedApp.fromHandler(ctx -> { Observable<String> o1 = Observable.range(0, 2000) .observeOn(Schedulers.computation()).map(i -> { return "A " + i; }); Observable<String> o2 = Observable.range(0, 2000) .observeOn(Schedulers.computation()).map(i -> { return "B " + i; }); Observable<String> o = Observable.merge(o1, o2); ctx.render( ServerSentEvents.serverSentEvents(RxReactiveStreams.toPublisher(o), e -> e.event("counter").data("event " + e.getItem())) ); }).getServer(); server.start(); System.out.println("Port: " + server.getBindPort()); } catch (Exception e) { e.printStackTrace(); }
compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'io.ratpack:ratpack-rx:0.9.10' try { RatpackServer server = EmbeddedApp.fromHandler(ctx -> { Observable<String> o1 = Observable.range(0, 2000) .observeOn(Schedulers.computation()).map(i -> { return "A " + i; }); Observable<String> o2 = Observable.range(0, 2000) .observeOn(Schedulers.computation()).map(i -> { return "B " + i; }); Observable<String> o = Observable.merge(o1, o2); ctx.render( ServerSentEvents.serverSentEvents(RxReactiveStreams.toPublisher(o), e -> e.event("counter").data("event " + e.getItem())) ); }).getServer(); server.start(); System.out.println("Port: " + server.getBindPort()); } catch (Exception e) { e.printStackTrace(); }

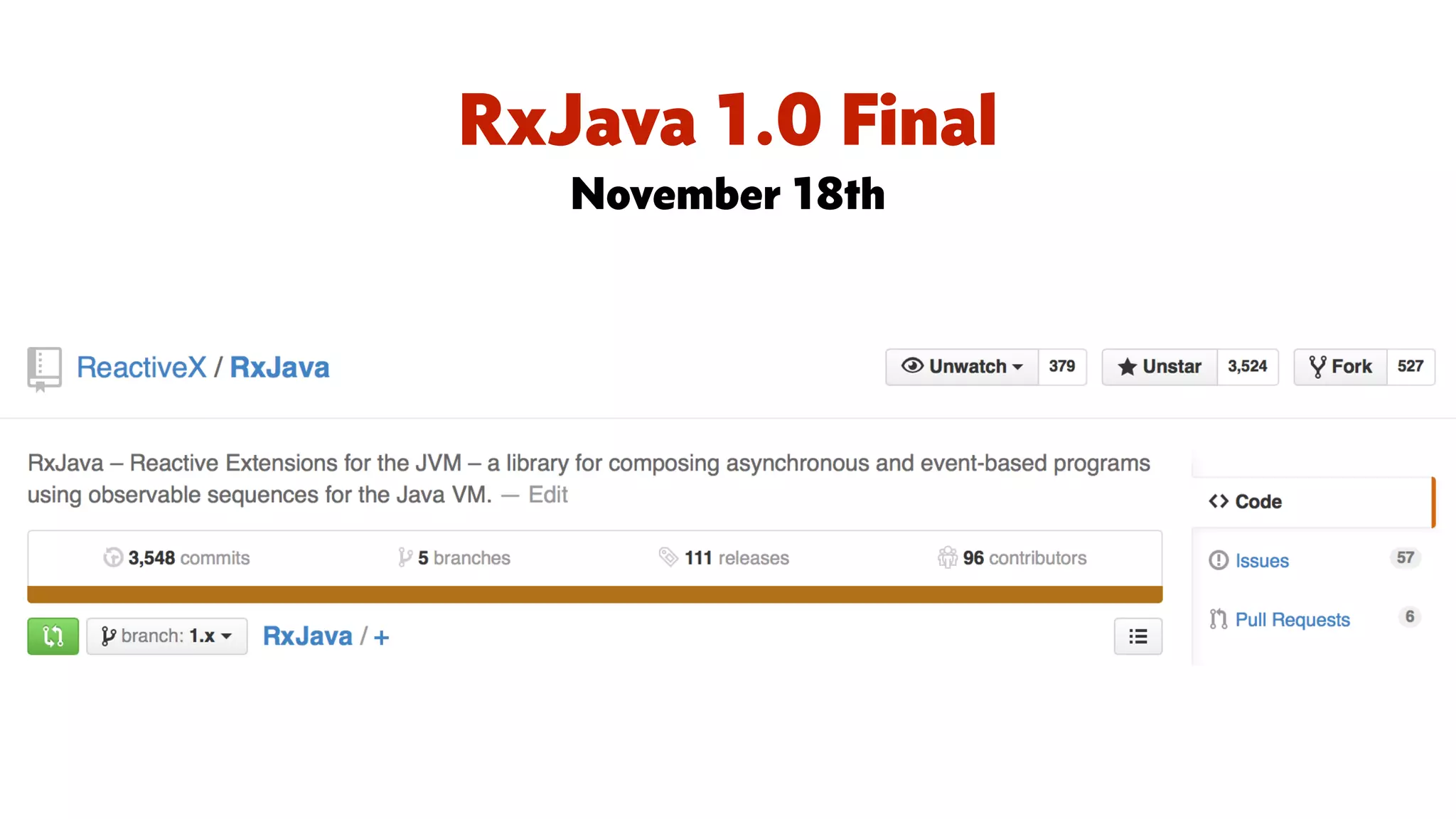

RxJava 1.0 Final November 18th

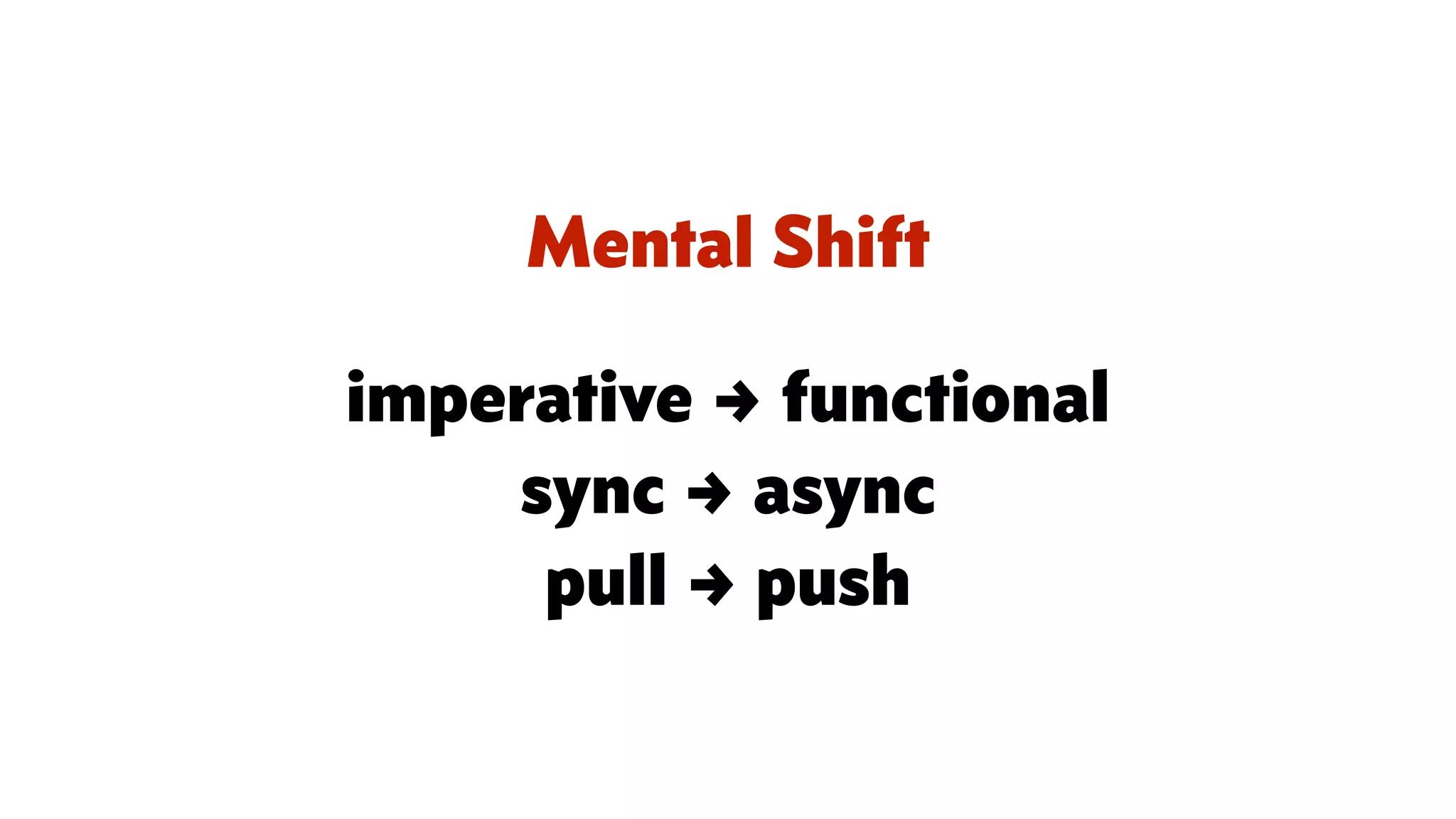

Mental Shift imperative → functional sync → async pull → push
Concurrency and async are non-trivial. Rx doesn’t trivialize it. Rx is powerful and rewards those who go through the learning curve.
Single Multiple Sync T getData() Iterable<T> getData() Stream<T> getData() Async Future<T> getData() Observable<T> getData()
Abstract Concurrency
Non-Opinionated Concurrency
Decouple Production from Consumption
Powerful Composition of Nested, Conditional Flows
First-class Support of Error Handling, Scheduling & Flow Control
RxJava http://github.com/ReactiveX/RxJava http://reactivex.io
Reactive Programming in the Netflix API with RxJava http://techblog.netflix.com/2013/02/rxjava-netflix-api.html Optimizing the Netflix API http://techblog.netflix.com/2013/01/optimizing-netflix-api.html Reactive Extensions (Rx) http://www.reactivex.io Reactive Streams https://github.com/reactive-streams/reactive-streams Ben Christensen @benjchristensen RxJava https://github.com/ReactiveX/RxJava @RxJava RxJS http://reactive-extensions.github.io/RxJS/ @ReactiveX jobs.netflix.com
Watch the video with slide synchronization on InfoQ.com! http://www.infoq.com/presentations/rx- service-architecture

Recommended

Everything you wanted to know about writing async, concurrent http apps in java
Everything you wanted to know about writing async, concurrent http apps in java Everything you wanted to know about writing async, concurrent http apps in java
Everything you wanted to know about writing async, concurrent http apps in java
Baruch Sadogursky

Presentation: Everything you wanted to know about writing async, high-concurr...
Presentation: Everything you wanted to know about writing async, high-concurr...Presentation: Everything you wanted to know about writing async, high-concurr...
Presentation: Everything you wanted to know about writing async, high-concurr...
Baruch Sadogursky

Reactive Streams: Handling Data-Flow the Reactive Way
Reactive Streams: Handling Data-Flow the Reactive WayReactive Streams: Handling Data-Flow the Reactive Way
Reactive Streams: Handling Data-Flow the Reactive Way
Roland Kuhn

Need for Async: Hot pursuit for scalable applications
Need for Async: Hot pursuit for scalable applicationsNeed for Async: Hot pursuit for scalable applications
Need for Async: Hot pursuit for scalable applications
Konrad Malawski

The Need for Async @ ScalaWorld
The Need for Async @ ScalaWorldThe Need for Async @ ScalaWorld
The Need for Async @ ScalaWorld
Konrad Malawski

Streams, Streams Everywhere! An Introduction to Rx
Streams, Streams Everywhere! An Introduction to RxStreams, Streams Everywhere! An Introduction to Rx
Streams, Streams Everywhere! An Introduction to Rx
Andrzej Sitek

Reactive programming with Rxjava
Reactive programming with RxjavaReactive programming with Rxjava
Reactive programming with Rxjava
Christophe Marchal

Reactive integrations with Akka Streams
Reactive integrations with Akka StreamsReactive integrations with Akka Streams
Reactive integrations with Akka Streams
Konrad Malawski


Recommended

Everything you wanted to know about writing async, concurrent http apps in java
Everything you wanted to know about writing async, concurrent http apps in java Everything you wanted to know about writing async, concurrent http apps in java
Everything you wanted to know about writing async, concurrent http apps in java
Baruch Sadogursky

Presentation: Everything you wanted to know about writing async, high-concurr...
Presentation: Everything you wanted to know about writing async, high-concurr...Presentation: Everything you wanted to know about writing async, high-concurr...
Presentation: Everything you wanted to know about writing async, high-concurr...
Baruch Sadogursky

Reactive Streams: Handling Data-Flow the Reactive Way
Reactive Streams: Handling Data-Flow the Reactive WayReactive Streams: Handling Data-Flow the Reactive Way
Reactive Streams: Handling Data-Flow the Reactive Way
Roland Kuhn

Need for Async: Hot pursuit for scalable applications
Need for Async: Hot pursuit for scalable applicationsNeed for Async: Hot pursuit for scalable applications
Need for Async: Hot pursuit for scalable applications
Konrad Malawski

The Need for Async @ ScalaWorld
The Need for Async @ ScalaWorldThe Need for Async @ ScalaWorld
The Need for Async @ ScalaWorld
Konrad Malawski

Streams, Streams Everywhere! An Introduction to Rx
Streams, Streams Everywhere! An Introduction to RxStreams, Streams Everywhere! An Introduction to Rx
Streams, Streams Everywhere! An Introduction to Rx
Andrzej Sitek

Reactive programming with Rxjava
Reactive programming with RxjavaReactive programming with Rxjava
Reactive programming with Rxjava
Christophe Marchal

Reactive integrations with Akka Streams
Reactive integrations with Akka StreamsReactive integrations with Akka Streams
Reactive integrations with Akka Streams
Konrad Malawski

Building Scalable Stateless Applications with RxJava
Building Scalable Stateless Applications with RxJavaBuilding Scalable Stateless Applications with RxJava
Building Scalable Stateless Applications with RxJava
Rick Warren

End to End Akka Streams / Reactive Streams - from Business to Socket
End to End Akka Streams / Reactive Streams - from Business to SocketEnd to End Akka Streams / Reactive Streams - from Business to Socket
End to End Akka Streams / Reactive Streams - from Business to Socket
Konrad Malawski

elk_stack_alexander_szalonnas
elk_stack_alexander_szalonnaselk_stack_alexander_szalonnas
elk_stack_alexander_szalonnasAlexander Szalonnas

RxJava Applied
RxJava AppliedRxJava Applied
RxJava Applied
Igor Lozynskyi

Bulding a reactive game engine with Spring 5 & Couchbase
Bulding a reactive game engine with Spring 5 & CouchbaseBulding a reactive game engine with Spring 5 & Couchbase
Bulding a reactive game engine with Spring 5 & Couchbase
Alex Derkach

Fresh from the Oven (04.2015): Experimental Akka Typed and Akka Streams
Fresh from the Oven (04.2015): Experimental Akka Typed and Akka StreamsFresh from the Oven (04.2015): Experimental Akka Typed and Akka Streams
Fresh from the Oven (04.2015): Experimental Akka Typed and Akka StreamsKonrad Malawski

Developing distributed applications with Akka and Akka Cluster
Developing distributed applications with Akka and Akka ClusterDeveloping distributed applications with Akka and Akka Cluster
Developing distributed applications with Akka and Akka Cluster
Konstantin Tsykulenko

Async await
Async awaitAsync await
Async await
Jeff Hart

Reactive Streams, j.u.concurrent & Beyond!
Reactive Streams, j.u.concurrent & Beyond!Reactive Streams, j.u.concurrent & Beyond!
Reactive Streams, j.u.concurrent & Beyond!
Konrad Malawski

libAttachSQL, The Next-Generation C Connector For MySQL
libAttachSQL, The Next-Generation C Connector For MySQLlibAttachSQL, The Next-Generation C Connector For MySQL
libAttachSQL, The Next-Generation C Connector For MySQL
Andrew Hutchings

The Cloud-natives are RESTless @ JavaOne
The Cloud-natives are RESTless @ JavaOneThe Cloud-natives are RESTless @ JavaOne
The Cloud-natives are RESTless @ JavaOne
Konrad Malawski

How Reactive Streams & Akka Streams change the JVM Ecosystem
How Reactive Streams & Akka Streams change the JVM EcosystemHow Reactive Streams & Akka Streams change the JVM Ecosystem
How Reactive Streams & Akka Streams change the JVM Ecosystem
Konrad Malawski

Async and Await on the Server
Async and Await on the ServerAsync and Await on the Server
Async and Await on the Server
Doug Jones

The Newest in Session Types
The Newest in Session TypesThe Newest in Session Types
The Newest in Session Types
Roland Kuhn

Reactive Streams / Akka Streams - GeeCON Prague 2014
Reactive Streams / Akka Streams - GeeCON Prague 2014Reactive Streams / Akka Streams - GeeCON Prague 2014
Reactive Streams / Akka Streams - GeeCON Prague 2014
Konrad Malawski

rx-java-presentation
rx-java-presentationrx-java-presentation
rx-java-presentationMateusz Bukowicz

Leveraging Open Source for Database Development: Database Version Control wit...
Leveraging Open Source for Database Development: Database Version Control wit...Leveraging Open Source for Database Development: Database Version Control wit...
Leveraging Open Source for Database Development: Database Version Control wit...
All Things Open

CTU June 2011 - C# 5.0 - ASYNC & Await
CTU June 2011 - C# 5.0 - ASYNC & AwaitCTU June 2011 - C# 5.0 - ASYNC & Await
CTU June 2011 - C# 5.0 - ASYNC & AwaitSpiffy

Practical RxJava for Android
Practical RxJava for AndroidPractical RxJava for Android
Practical RxJava for Android
Tomáš Kypta

PyCon AU 2012 - Debugging Live Python Web Applications
PyCon AU 2012 - Debugging Live Python Web ApplicationsPyCon AU 2012 - Debugging Live Python Web Applications
PyCon AU 2012 - Debugging Live Python Web Applications
Graham Dumpleton

Asynchronous Programming at Netflix
Asynchronous Programming at NetflixAsynchronous Programming at Netflix
Asynchronous Programming at Netflix
C4Media

.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
NETFest


More Related Content

What's hot

Building Scalable Stateless Applications with RxJava
Building Scalable Stateless Applications with RxJavaBuilding Scalable Stateless Applications with RxJava
Building Scalable Stateless Applications with RxJava
Rick Warren

End to End Akka Streams / Reactive Streams - from Business to Socket
End to End Akka Streams / Reactive Streams - from Business to SocketEnd to End Akka Streams / Reactive Streams - from Business to Socket
End to End Akka Streams / Reactive Streams - from Business to Socket
Konrad Malawski

RxJava Applied
RxJava AppliedRxJava Applied
RxJava Applied
Igor Lozynskyi

Bulding a reactive game engine with Spring 5 & Couchbase
Bulding a reactive game engine with Spring 5 & CouchbaseBulding a reactive game engine with Spring 5 & Couchbase
Bulding a reactive game engine with Spring 5 & Couchbase
Alex Derkach

Fresh from the Oven (04.2015): Experimental Akka Typed and Akka Streams
Fresh from the Oven (04.2015): Experimental Akka Typed and Akka StreamsFresh from the Oven (04.2015): Experimental Akka Typed and Akka Streams
Fresh from the Oven (04.2015): Experimental Akka Typed and Akka StreamsKonrad Malawski

Developing distributed applications with Akka and Akka Cluster
Developing distributed applications with Akka and Akka ClusterDeveloping distributed applications with Akka and Akka Cluster
Developing distributed applications with Akka and Akka Cluster
Konstantin Tsykulenko

Async await
Async awaitAsync await
Async await
Jeff Hart

Reactive Streams, j.u.concurrent & Beyond!
Reactive Streams, j.u.concurrent & Beyond!Reactive Streams, j.u.concurrent & Beyond!
Reactive Streams, j.u.concurrent & Beyond!
Konrad Malawski

libAttachSQL, The Next-Generation C Connector For MySQL
libAttachSQL, The Next-Generation C Connector For MySQLlibAttachSQL, The Next-Generation C Connector For MySQL
libAttachSQL, The Next-Generation C Connector For MySQL
Andrew Hutchings

The Cloud-natives are RESTless @ JavaOne
The Cloud-natives are RESTless @ JavaOneThe Cloud-natives are RESTless @ JavaOne
The Cloud-natives are RESTless @ JavaOne
Konrad Malawski

How Reactive Streams & Akka Streams change the JVM Ecosystem
How Reactive Streams & Akka Streams change the JVM EcosystemHow Reactive Streams & Akka Streams change the JVM Ecosystem
How Reactive Streams & Akka Streams change the JVM Ecosystem
Konrad Malawski

Async and Await on the Server
Async and Await on the ServerAsync and Await on the Server
Async and Await on the Server
Doug Jones

The Newest in Session Types
The Newest in Session TypesThe Newest in Session Types
The Newest in Session Types
Roland Kuhn

Reactive Streams / Akka Streams - GeeCON Prague 2014
Reactive Streams / Akka Streams - GeeCON Prague 2014Reactive Streams / Akka Streams - GeeCON Prague 2014
Reactive Streams / Akka Streams - GeeCON Prague 2014
Konrad Malawski

Leveraging Open Source for Database Development: Database Version Control wit...
Leveraging Open Source for Database Development: Database Version Control wit...Leveraging Open Source for Database Development: Database Version Control wit...
Leveraging Open Source for Database Development: Database Version Control wit...
All Things Open

CTU June 2011 - C# 5.0 - ASYNC & Await
CTU June 2011 - C# 5.0 - ASYNC & AwaitCTU June 2011 - C# 5.0 - ASYNC & Await
CTU June 2011 - C# 5.0 - ASYNC & AwaitSpiffy

Practical RxJava for Android
Practical RxJava for AndroidPractical RxJava for Android
Practical RxJava for Android
Tomáš Kypta

PyCon AU 2012 - Debugging Live Python Web Applications
PyCon AU 2012 - Debugging Live Python Web ApplicationsPyCon AU 2012 - Debugging Live Python Web Applications
PyCon AU 2012 - Debugging Live Python Web Applications
Graham Dumpleton


What's hot (20)

Building Scalable Stateless Applications with RxJava
Building Scalable Stateless Applications with RxJavaBuilding Scalable Stateless Applications with RxJava
Building Scalable Stateless Applications with RxJava

End to End Akka Streams / Reactive Streams - from Business to Socket
End to End Akka Streams / Reactive Streams - from Business to SocketEnd to End Akka Streams / Reactive Streams - from Business to Socket
End to End Akka Streams / Reactive Streams - from Business to Socket

elk_stack_alexander_szalonnas
elk_stack_alexander_szalonnaselk_stack_alexander_szalonnas
elk_stack_alexander_szalonnas

RxJava Applied
RxJava AppliedRxJava Applied
RxJava Applied

Bulding a reactive game engine with Spring 5 & Couchbase
Bulding a reactive game engine with Spring 5 & CouchbaseBulding a reactive game engine with Spring 5 & Couchbase
Bulding a reactive game engine with Spring 5 & Couchbase

Fresh from the Oven (04.2015): Experimental Akka Typed and Akka Streams
Fresh from the Oven (04.2015): Experimental Akka Typed and Akka StreamsFresh from the Oven (04.2015): Experimental Akka Typed and Akka Streams
Fresh from the Oven (04.2015): Experimental Akka Typed and Akka Streams

Developing distributed applications with Akka and Akka Cluster
Developing distributed applications with Akka and Akka ClusterDeveloping distributed applications with Akka and Akka Cluster
Developing distributed applications with Akka and Akka Cluster

Async await
Async awaitAsync await
Async await

Reactive Streams, j.u.concurrent & Beyond!
Reactive Streams, j.u.concurrent & Beyond!Reactive Streams, j.u.concurrent & Beyond!
Reactive Streams, j.u.concurrent & Beyond!

libAttachSQL, The Next-Generation C Connector For MySQL
libAttachSQL, The Next-Generation C Connector For MySQLlibAttachSQL, The Next-Generation C Connector For MySQL
libAttachSQL, The Next-Generation C Connector For MySQL

The Cloud-natives are RESTless @ JavaOne
The Cloud-natives are RESTless @ JavaOneThe Cloud-natives are RESTless @ JavaOne
The Cloud-natives are RESTless @ JavaOne

How Reactive Streams & Akka Streams change the JVM Ecosystem
How Reactive Streams & Akka Streams change the JVM EcosystemHow Reactive Streams & Akka Streams change the JVM Ecosystem
How Reactive Streams & Akka Streams change the JVM Ecosystem

Async and Await on the Server
Async and Await on the ServerAsync and Await on the Server
Async and Await on the Server

The Newest in Session Types
The Newest in Session TypesThe Newest in Session Types
The Newest in Session Types

Reactive Streams / Akka Streams - GeeCON Prague 2014
Reactive Streams / Akka Streams - GeeCON Prague 2014Reactive Streams / Akka Streams - GeeCON Prague 2014
Reactive Streams / Akka Streams - GeeCON Prague 2014

rx-java-presentation
rx-java-presentationrx-java-presentation
rx-java-presentation

Leveraging Open Source for Database Development: Database Version Control wit...
Leveraging Open Source for Database Development: Database Version Control wit...Leveraging Open Source for Database Development: Database Version Control wit...
Leveraging Open Source for Database Development: Database Version Control wit...

CTU June 2011 - C# 5.0 - ASYNC & Await
CTU June 2011 - C# 5.0 - ASYNC & AwaitCTU June 2011 - C# 5.0 - ASYNC & Await
CTU June 2011 - C# 5.0 - ASYNC & Await

Practical RxJava for Android
Practical RxJava for AndroidPractical RxJava for Android
Practical RxJava for Android

PyCon AU 2012 - Debugging Live Python Web Applications
PyCon AU 2012 - Debugging Live Python Web ApplicationsPyCon AU 2012 - Debugging Live Python Web Applications
PyCon AU 2012 - Debugging Live Python Web Applications


Similar to Reactive Programming with Rx

Asynchronous Programming at Netflix
Asynchronous Programming at NetflixAsynchronous Programming at Netflix
Asynchronous Programming at Netflix
C4Media

.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
NETFest

WebRTC Standards & Implementation Q&A - All about browser interoperability
WebRTC Standards & Implementation Q&A - All about browser interoperabilityWebRTC Standards & Implementation Q&A - All about browser interoperability
WebRTC Standards & Implementation Q&A - All about browser interoperability
Amir Zmora

The JSON Architecture - BucharestJS / July
The JSON Architecture - BucharestJS / JulyThe JSON Architecture - BucharestJS / July
The JSON Architecture - BucharestJS / July
Constantin Dumitrescu

The unconventional devices for the video streaming in Android
The unconventional devices for the video streaming in AndroidThe unconventional devices for the video streaming in Android
The unconventional devices for the video streaming in Android
Alessandro Martellucci

Firebase & SwiftUI Workshop
Firebase & SwiftUI WorkshopFirebase & SwiftUI Workshop
Firebase & SwiftUI Workshop
Peter Friese

Eddystone beacons demo
Eddystone beacons demoEddystone beacons demo
Eddystone beacons demo
Angelo Rüggeberg

CP3108B (Mozilla) Sharing Session on Add-on SDK
CP3108B (Mozilla) Sharing Session on Add-on SDKCP3108B (Mozilla) Sharing Session on Add-on SDK
CP3108B (Mozilla) Sharing Session on Add-on SDK
Mifeng

The unconventional devices for the Android video streaming
The unconventional devices for the Android video streamingThe unconventional devices for the Android video streaming
The unconventional devices for the Android video streaming
Matteo Bonifazi

Reactive Programming at Cloud-Scale and Beyond
Reactive Programming at Cloud-Scale and BeyondReactive Programming at Cloud-Scale and Beyond
Reactive Programming at Cloud-Scale and Beyond
C4Media

Server Side Swift with Swag
Server Side Swift with SwagServer Side Swift with Swag
Server Side Swift with Swag
Jens Ravens

RichFaces: rich:* component library
RichFaces: rich:* component libraryRichFaces: rich:* component library
RichFaces: rich:* component libraryMax Katz

Cloudbase.io MoSync Reload Course
Cloudbase.io MoSync Reload CourseCloudbase.io MoSync Reload Course
Cloudbase.io MoSync Reload Course
cloudbase.io

Bringing JAMStack to the Enterprise
Bringing JAMStack to the EnterpriseBringing JAMStack to the Enterprise
Bringing JAMStack to the Enterprise
C4Media

WSO2 Product Release Webinar: WSO2 Complex Event Processor 4.0
WSO2 Product Release Webinar: WSO2 Complex Event Processor 4.0WSO2 Product Release Webinar: WSO2 Complex Event Processor 4.0
WSO2 Product Release Webinar: WSO2 Complex Event Processor 4.0
WSO2

Digital Publishing for Scale: The Economist and Go
Digital Publishing for Scale: The Economist and GoDigital Publishing for Scale: The Economist and Go
Digital Publishing for Scale: The Economist and Go
C4Media

Netty from the trenches
Netty from the trenchesNetty from the trenches
Netty from the trenches
Jordi Gerona

A Practical Road to SaaS in Python
A Practical Road to SaaS in PythonA Practical Road to SaaS in Python
A Practical Road to SaaS in Python
C4Media

Advanced redux
Advanced reduxAdvanced redux
Advanced redux
Boris Dinkevich

Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング
Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディングXitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング
Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング
scalaconfjp


Similar to Reactive Programming with Rx (20)

Asynchronous Programming at Netflix
Asynchronous Programming at NetflixAsynchronous Programming at Netflix
Asynchronous Programming at Netflix

.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech

WebRTC Standards & Implementation Q&A - All about browser interoperability
WebRTC Standards & Implementation Q&A - All about browser interoperabilityWebRTC Standards & Implementation Q&A - All about browser interoperability
WebRTC Standards & Implementation Q&A - All about browser interoperability

The JSON Architecture - BucharestJS / July
The JSON Architecture - BucharestJS / JulyThe JSON Architecture - BucharestJS / July
The JSON Architecture - BucharestJS / July

The unconventional devices for the video streaming in Android
The unconventional devices for the video streaming in AndroidThe unconventional devices for the video streaming in Android
The unconventional devices for the video streaming in Android

Firebase & SwiftUI Workshop
Firebase & SwiftUI WorkshopFirebase & SwiftUI Workshop
Firebase & SwiftUI Workshop

Eddystone beacons demo
Eddystone beacons demoEddystone beacons demo
Eddystone beacons demo

CP3108B (Mozilla) Sharing Session on Add-on SDK
CP3108B (Mozilla) Sharing Session on Add-on SDKCP3108B (Mozilla) Sharing Session on Add-on SDK
CP3108B (Mozilla) Sharing Session on Add-on SDK

The unconventional devices for the Android video streaming
The unconventional devices for the Android video streamingThe unconventional devices for the Android video streaming
The unconventional devices for the Android video streaming

Reactive Programming at Cloud-Scale and Beyond
Reactive Programming at Cloud-Scale and BeyondReactive Programming at Cloud-Scale and Beyond
Reactive Programming at Cloud-Scale and Beyond

Server Side Swift with Swag
Server Side Swift with SwagServer Side Swift with Swag
Server Side Swift with Swag

RichFaces: rich:* component library
RichFaces: rich:* component libraryRichFaces: rich:* component library
RichFaces: rich:* component library

Cloudbase.io MoSync Reload Course
Cloudbase.io MoSync Reload CourseCloudbase.io MoSync Reload Course
Cloudbase.io MoSync Reload Course

Bringing JAMStack to the Enterprise
Bringing JAMStack to the EnterpriseBringing JAMStack to the Enterprise
Bringing JAMStack to the Enterprise

WSO2 Product Release Webinar: WSO2 Complex Event Processor 4.0
WSO2 Product Release Webinar: WSO2 Complex Event Processor 4.0WSO2 Product Release Webinar: WSO2 Complex Event Processor 4.0
WSO2 Product Release Webinar: WSO2 Complex Event Processor 4.0

Digital Publishing for Scale: The Economist and Go
Digital Publishing for Scale: The Economist and GoDigital Publishing for Scale: The Economist and Go
Digital Publishing for Scale: The Economist and Go

Netty from the trenches
Netty from the trenchesNetty from the trenches
Netty from the trenches

A Practical Road to SaaS in Python
A Practical Road to SaaS in PythonA Practical Road to SaaS in Python
A Practical Road to SaaS in Python

Advanced redux
Advanced reduxAdvanced redux
Advanced redux

Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング
Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディングXitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング
Xitrum Web Framework Live Coding Demos / Xitrum Web Framework ライブコーディング


More from C4Media

Streaming a Million Likes/Second: Real-Time Interactions on Live Video
Streaming a Million Likes/Second: Real-Time Interactions on Live VideoStreaming a Million Likes/Second: Real-Time Interactions on Live Video
Streaming a Million Likes/Second: Real-Time Interactions on Live Video
C4Media

Next Generation Client APIs in Envoy Mobile
Next Generation Client APIs in Envoy MobileNext Generation Client APIs in Envoy Mobile
Next Generation Client APIs in Envoy Mobile
C4Media

Software Teams and Teamwork Trends Report Q1 2020
Software Teams and Teamwork Trends Report Q1 2020Software Teams and Teamwork Trends Report Q1 2020
Software Teams and Teamwork Trends Report Q1 2020
C4Media

Understand the Trade-offs Using Compilers for Java Applications
Understand the Trade-offs Using Compilers for Java ApplicationsUnderstand the Trade-offs Using Compilers for Java Applications
Understand the Trade-offs Using Compilers for Java Applications
C4Media

Kafka Needs No Keeper
Kafka Needs No KeeperKafka Needs No Keeper
Kafka Needs No Keeper
C4Media

High Performing Teams Act Like Owners
High Performing Teams Act Like OwnersHigh Performing Teams Act Like Owners
High Performing Teams Act Like Owners
C4Media

Does Java Need Inline Types? What Project Valhalla Can Bring to Java
Does Java Need Inline Types? What Project Valhalla Can Bring to JavaDoes Java Need Inline Types? What Project Valhalla Can Bring to Java
Does Java Need Inline Types? What Project Valhalla Can Bring to Java
C4Media

Service Meshes- The Ultimate Guide
Service Meshes- The Ultimate GuideService Meshes- The Ultimate Guide
Service Meshes- The Ultimate Guide
C4Media

Shifting Left with Cloud Native CI/CD
Shifting Left with Cloud Native CI/CDShifting Left with Cloud Native CI/CD
Shifting Left with Cloud Native CI/CD
C4Media

CI/CD for Machine Learning
CI/CD for Machine LearningCI/CD for Machine Learning
CI/CD for Machine Learning
C4Media

Fault Tolerance at Speed
Fault Tolerance at SpeedFault Tolerance at Speed
Fault Tolerance at Speed
C4Media

Architectures That Scale Deep - Regaining Control in Deep Systems
Architectures That Scale Deep - Regaining Control in Deep SystemsArchitectures That Scale Deep - Regaining Control in Deep Systems
Architectures That Scale Deep - Regaining Control in Deep Systems
C4Media

ML in the Browser: Interactive Experiences with Tensorflow.js
ML in the Browser: Interactive Experiences with Tensorflow.jsML in the Browser: Interactive Experiences with Tensorflow.js
ML in the Browser: Interactive Experiences with Tensorflow.js
C4Media

Build Your Own WebAssembly Compiler
Build Your Own WebAssembly CompilerBuild Your Own WebAssembly Compiler
Build Your Own WebAssembly Compiler
C4Media

User & Device Identity for Microservices @ Netflix Scale
User & Device Identity for Microservices @ Netflix ScaleUser & Device Identity for Microservices @ Netflix Scale
User & Device Identity for Microservices @ Netflix Scale
C4Media

Scaling Patterns for Netflix's Edge
Scaling Patterns for Netflix's EdgeScaling Patterns for Netflix's Edge
Scaling Patterns for Netflix's Edge
C4Media

Make Your Electron App Feel at Home Everywhere
Make Your Electron App Feel at Home EverywhereMake Your Electron App Feel at Home Everywhere
Make Your Electron App Feel at Home Everywhere
C4Media

The Talk You've Been Await-ing For
The Talk You've Been Await-ing ForThe Talk You've Been Await-ing For
The Talk You've Been Await-ing For
C4Media

Future of Data Engineering
Future of Data EngineeringFuture of Data Engineering
Future of Data Engineering
C4Media

Automated Testing for Terraform, Docker, Packer, Kubernetes, and More
Automated Testing for Terraform, Docker, Packer, Kubernetes, and MoreAutomated Testing for Terraform, Docker, Packer, Kubernetes, and More
Automated Testing for Terraform, Docker, Packer, Kubernetes, and More
C4Media


More from C4Media (20)

Streaming a Million Likes/Second: Real-Time Interactions on Live Video
Streaming a Million Likes/Second: Real-Time Interactions on Live VideoStreaming a Million Likes/Second: Real-Time Interactions on Live Video
Streaming a Million Likes/Second: Real-Time Interactions on Live Video

Next Generation Client APIs in Envoy Mobile
Next Generation Client APIs in Envoy MobileNext Generation Client APIs in Envoy Mobile
Next Generation Client APIs in Envoy Mobile

Software Teams and Teamwork Trends Report Q1 2020
Software Teams and Teamwork Trends Report Q1 2020Software Teams and Teamwork Trends Report Q1 2020
Software Teams and Teamwork Trends Report Q1 2020

Understand the Trade-offs Using Compilers for Java Applications
Understand the Trade-offs Using Compilers for Java ApplicationsUnderstand the Trade-offs Using Compilers for Java Applications
Understand the Trade-offs Using Compilers for Java Applications

Kafka Needs No Keeper
Kafka Needs No KeeperKafka Needs No Keeper
Kafka Needs No Keeper

High Performing Teams Act Like Owners
High Performing Teams Act Like OwnersHigh Performing Teams Act Like Owners
High Performing Teams Act Like Owners

Does Java Need Inline Types? What Project Valhalla Can Bring to Java
Does Java Need Inline Types? What Project Valhalla Can Bring to JavaDoes Java Need Inline Types? What Project Valhalla Can Bring to Java
Does Java Need Inline Types? What Project Valhalla Can Bring to Java

Service Meshes- The Ultimate Guide
Service Meshes- The Ultimate GuideService Meshes- The Ultimate Guide
Service Meshes- The Ultimate Guide

Shifting Left with Cloud Native CI/CD
Shifting Left with Cloud Native CI/CDShifting Left with Cloud Native CI/CD
Shifting Left with Cloud Native CI/CD

CI/CD for Machine Learning
CI/CD for Machine LearningCI/CD for Machine Learning
CI/CD for Machine Learning

Fault Tolerance at Speed
Fault Tolerance at SpeedFault Tolerance at Speed
Fault Tolerance at Speed

Architectures That Scale Deep - Regaining Control in Deep Systems
Architectures That Scale Deep - Regaining Control in Deep SystemsArchitectures That Scale Deep - Regaining Control in Deep Systems
Architectures That Scale Deep - Regaining Control in Deep Systems

ML in the Browser: Interactive Experiences with Tensorflow.js
ML in the Browser: Interactive Experiences with Tensorflow.jsML in the Browser: Interactive Experiences with Tensorflow.js
ML in the Browser: Interactive Experiences with Tensorflow.js

Build Your Own WebAssembly Compiler
Build Your Own WebAssembly CompilerBuild Your Own WebAssembly Compiler
Build Your Own WebAssembly Compiler

User & Device Identity for Microservices @ Netflix Scale
User & Device Identity for Microservices @ Netflix ScaleUser & Device Identity for Microservices @ Netflix Scale
User & Device Identity for Microservices @ Netflix Scale

Scaling Patterns for Netflix's Edge
Scaling Patterns for Netflix's EdgeScaling Patterns for Netflix's Edge
Scaling Patterns for Netflix's Edge

Make Your Electron App Feel at Home Everywhere
Make Your Electron App Feel at Home EverywhereMake Your Electron App Feel at Home Everywhere
Make Your Electron App Feel at Home Everywhere

The Talk You've Been Await-ing For
The Talk You've Been Await-ing ForThe Talk You've Been Await-ing For
The Talk You've Been Await-ing For

Future of Data Engineering
Future of Data EngineeringFuture of Data Engineering
Future of Data Engineering

Automated Testing for Terraform, Docker, Packer, Kubernetes, and More
Automated Testing for Terraform, Docker, Packer, Kubernetes, and MoreAutomated Testing for Terraform, Docker, Packer, Kubernetes, and More
Automated Testing for Terraform, Docker, Packer, Kubernetes, and More


Recently uploaded

Pushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 daysPushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 days
Adtran

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5
DianaGray10

FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdfFIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance

By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024
Pierluigi Pugliese

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity
mikeeftimakis1

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future
Alpen-Adria-Universität

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview
Prayukth K V

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
Neo4j

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
Neo4j

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024
Matthew Sinclair

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
SOFTTECHHUB

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024
Matthew Sinclair

Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
James Anderson

Generative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to ProductionGenerative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to Production
Aggregage

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
Neo4j

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
Neo4j

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdfSmart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
91mobiles

FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdfFIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance

Monitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR EventsMonitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR Events
Ana-Maria Mihalceanu


Recently uploaded (20)

Pushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 daysPushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 days

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5

FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdfFIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf

By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024

Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...

Generative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to ProductionGenerative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to Production

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdfSmart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf

FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdfFIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf

Monitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR EventsMonitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR Events


Reactive Programming with Rx

  • 1. Ben Christensen Developer – Edge Engineering at Netflix @benjchristensen http://techblog.netflix.com/ QConSF - November 2014 ReactiveProgrammingwithRx
  • 2. InfoQ.com: News & Community Site • 750,000 unique visitors/month • Published in 4 languages (English, Chinese, Japanese and Brazilian Portuguese) • Post content from our QCon conferences • News 15-20 / week • Articles 3-4 / week • Presentations (videos) 12-15 / week • Interviews 2-3 / week • Books 1 / month Watch the video with slide synchronization on InfoQ.com! http://www.infoq.com/presentations /rx-service-architecture
  • 3. Purpose of QCon - to empower software development by facilitating the spread of knowledge and innovation Strategy - practitioner-driven conference designed for YOU: influencers of change and innovation in your teams - speakers and topics driving the evolution and innovation - connecting and catalyzing the influencers and innovators Highlights - attended by more than 12,000 delegates since 2007 - held in 9 cities worldwide Presented at QCon San Francisco www.qconsf.com
  • 6. Iterable<T> pull Observable<T> push T next() throws Exception returns; onNext(T) onError(Exception) onCompleted()  //  Iterable<String>  or  Stream<String>      //  that  contains  75  Strings    getDataFromLocalMemory()      .skip(10)      .limit(5)      .map(s  -­‐>  s  +  "_transformed")      .forEach(t  -­‐>  System.out.println("onNext  =>  "  +  t))    //  Observable<String>      //  that  emits  75  Strings    getDataFromNetwork()      .skip(10)      .take(5)      .map(s  -­‐>  s  +  "_transformed")      .forEach(t  -­‐>  System.out.println("onNext  =>  "  +  t))
  • 7. Iterable<T> pull Observable<T> push T next() throws Exception returns; onNext(T) onError(Exception) onCompleted()  //  Observable<String>      //  that  emits  75  Strings    getDataFromNetwork()      .skip(10)      .take(5)      .map(s  -­‐>  s  +  "_transformed")      .forEach(t  -­‐>  System.out.println("onNext  =>  "  +  t))    //  Iterable<String>  or  Stream<String>      //  that  contains  75  Strings    getDataFromLocalMemory()      .skip(10)      .limit(5)      .map(s  -­‐>  s  +  "_transformed")      .forEach(t  -­‐>  System.out.println("onNext  =>  "  +  t))
  • 8. Single Multiple Sync T getData() Iterable<T> getData() Stream<T> getData() Async Future<T> getData() Observable<T> getData()
  • 9. Observable.create(subscriber -> { subscriber.onNext("Hello World!"); subscriber.onCompleted(); }).subscribe(System.out::println);
  • 11. // shorten by using helper method Observable.just(“Hello”, “World!”) .subscribe(System.out::println);
  • 12. // add onError and onComplete listeners Observable.just(“Hello”, “World!”) .subscribe(System.out::println, Throwable::printStackTrace, () -> System.out.println("Done"));
  • 13. // expand to show full classes Observable.create(new OnSubscribe<String>() { @Override public void call(Subscriber<? super String> subscriber) { subscriber.onNext("Hello World!"); subscriber.onCompleted(); } }).subscribe(new Subscriber<String>() { @Override public void onCompleted() { System.out.println("Done"); } @Override public void onError(Throwable e) { e.printStackTrace(); } @Override public void onNext(String t) { System.out.println(t); } });
  • 14. // add error propagation Observable.create(subscriber -> { try { subscriber.onNext("Hello World!"); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribe(System.out::println);
  • 15. // add error propagation Observable.create(subscriber -> { try { subscriber.onNext(throwException()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribe(System.out::println);
  • 16. // add error propagation Observable.create(subscriber -> { try { subscriber.onNext("Hello World!"); subscriber.onNext(throwException()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribe(System.out::println);
  • 17. // add concurrency (manually) Observable.create(subscriber -> { new Thread(() -> { try { subscriber.onNext(getData()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).start(); }).subscribe(System.out::println); ?
  • 18. // add concurrency (using a Scheduler) Observable.create(subscriber -> { try { subscriber.onNext(getData()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribeOn(Schedulers.io()) .subscribe(System.out::println); ? Learn more about parameterized concurrency and virtual time with Rx Schedulers at https://github.com/ReactiveX/RxJava/wiki/Scheduler
  • 19. // add operator Observable.create(subscriber -> { try { subscriber.onNext(getData()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribeOn(Schedulers.io()) .map(data -> data + " --> at " + System.currentTimeMillis()) .subscribe(System.out::println); ?
  • 20. // add error handling Observable.create(subscriber -> { try { subscriber.onNext(getData()); subscriber.onCompleted(); } catch (Exception e) { subscriber.onError(e); } }).subscribeOn(Schedulers.io()) .map(data -> data + " --> at " + System.currentTimeMillis()) .onErrorResumeNext(e -> Observable.just("Fallback Data")) .subscribe(System.out::println);
  • 21. // infinite Observable.create(subscriber -> { int i=0; while(!subscriber.isUnsubscribed()) { subscriber.onNext(i++); } }).subscribe(System.out::println); Note: No backpressure support here. See Observable.from(Iterable) or Observable.range() for actual implementations
  • 22. Hot Cold emits whether you’re ready or not examples mouse and keyboard events system events stock prices emits when requested (generally at controlled rate) examples database query web service request reading file Observable.create(subscriber -> { // register with data source }) Observable.create(subscriber -> { // fetch data })
  • 23. Hot Cold emits whether you’re ready or not examples mouse and keyboard events system events stock prices emits when requested (generally at controlled rate) examples database query web service request reading file Observable.create(subscriber -> { // register with data source }) Observable.create(subscriber -> { // fetch data }) flow control flow control & backpressure
  • 24.
  • 25.
  • 26.
  • 29. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 30. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 31. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 32.  Observable<R>  b  =  Observable<T>.flatMap({  T  t  -­‐>            Observable<R>  r  =  ...  transform  t  ...          return  r;    }) flatMap
  • 33.  Observable<R>  b  =  Observable<T>.flatMap({  T  t  -­‐>            Observable<R>  r  =  ...  transform  t  ...          return  r;    }) flatMap
  • 34. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 35. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 36. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 37. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 38. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 39. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 40. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 41. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 42. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 43. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 44.        Observable.zip(a,  b,  (a,  b)  -­‐>  {                ...  operate  on  values  from  both  a  &  b  ...              return  Arrays.asList(a,  b);          }) zip { ( , ) }
  • 45. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 46. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 47.
  • 48. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 49. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 50. class  VideoService  {        def  VideoList  getPersonalizedListOfMovies(userId);        def  VideoBookmark  getBookmark(userId,  videoId);        def  VideoRating  getRating(userId,  videoId);        def  VideoMetadata  getMetadata(videoId);   } class  VideoService  {        def  Observable<VideoList>  getPersonalizedListOfMovies(userId);        def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   } ...createanobservableapi: insteadofablockingapi...
  • 51. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); } 1 2 3 4 5 6
  • 52. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); } 1 2 3 4 5 6
  • 54.
  • 55. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 56.
  • 57.
  • 58.
  • 59.
  • 60. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  • 61.
  • 62. Decouples Consumption from Production // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); })
  • 63. // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }) Decouples Consumption from Production
  • 64. // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }) Decouples Consumption from Production
  • 65. Decouples Consumption from Production Event Loop API Request API Request API Request API Request API Request Dependency REST API new Command().observe() new Command(). observe() new Command(). observe() new Command(). observe() new Command(). observe() Collapser
  • 66. // first request User object return getUser(request.getQueryParameters().get("userId")).flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = getPersonalizedCatalog(user) .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = getBookmark(video); Observable<Rating> rating = getRating(video); Observable<VideoMetadata> metadata = getMetadata(video); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = getSocialData(user).map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }) ~5 network calls (#3 and #4 may result in more due to windowing) 1 2 3 4 5
  • 67. Clear API Communicates Potential Cost class  VideoService  {        def  Observable<VideoList>  getPersonalizedListOfMovies(userId);        def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   }
  • 68. class  VideoService  {        def  Observable<VideoList>  getPersonalizedListOfMovies(userId);        def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   } Implementation Can Differ BIO Network Call Local Cache Collapsed Network Call
  • 69. class  VideoService  {        def  Observable<VideoList>  getPersonalizedListOfMovies(userId);        def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   } Implementation Can Differ and Change Local Cache Collapsed Network CallCollapsed Network Call BIO NIO Network Call
  • 70. Retrieval, Transformation, Combination all done in same declarative manner
  • 73. Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).onErrorResumeNext(throwable -> { return Observable.just("fallback value"); }).subscribe(System.out::println);
  • 74. Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).onErrorReturn(throwable -> { return "fallback value"; }).subscribe(System.out::println);
  • 75. Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).retryWhen(attempts -> { return attempts.zipWith(Observable.range(1, 3), (throwable, i) -> i) .flatMap(i -> { System.out.println("delay retry by " + i + " second(s)"); return Observable.timer(i, TimeUnit.SECONDS); }).concatWith(Observable.error(new RuntimeException("Exceeded 3 retries"))); }) .subscribe(System.out::println, t -> t.printStackTrace());
  • 76. Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).retryWhen(attempts -> { return attempts.zipWith(Observable.range(1, 3), (throwable, i) -> i) .flatMap(i -> { System.out.println("delay retry by " + i + " second(s)"); return Observable.timer(i, TimeUnit.SECONDS); }).concatWith(Observable.error(new RuntimeException("Exceeded 3 retries"))); }) .subscribe(System.out::println, t -> t.printStackTrace());
  • 77. Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).retryWhen(attempts -> { return attempts.zipWith(Observable.range(1, 3), (throwable, i) -> i) .flatMap(i -> { System.out.println("delay retry by " + i + " second(s)"); return Observable.timer(i, TimeUnit.SECONDS); }).concatWith(Observable.error(new RuntimeException("Exceeded 3 retries"))); }) .subscribe(System.out::println, t -> t.printStackTrace());
  • 78. Observable.create(subscriber -> { throw new RuntimeException("failed!"); }).retryWhen(attempts -> { return attempts.zipWith(Observable.range(1, 3), (throwable, i) -> i) .flatMap(i -> { System.out.println("delay retry by " + i + " second(s)"); return Observable.timer(i, TimeUnit.SECONDS); }).concatWith(Observable.error(new RuntimeException("Exceeded 3 retries"))); }) .subscribe(System.out::println, t -> t.printStackTrace());
  • 80. Concurrency an Observable is sequential (no concurrent emissions) scheduling and combining Observables enables concurrency while retaining sequential emission
  • 81. // merging async Observables allows each // to execute concurrently Observable.merge(getDataAsync(1), getDataAsync(2)) merge
  • 82. // concurrently fetch data for 5 items Observable.range(0, 5).flatMap(i -> { return getDataAsync(i); })
  • 83. Observable.range(0, 5000).window(500).flatMap(work -> { return work.observeOn(Schedulers.computation()) .map(item -> { // simulate computational work try { Thread.sleep(1); } catch (Exception e) {} return item + " processed " + Thread.currentThread(); }); })
  • 84. Observable.range(0, 5000).buffer(500).flatMap(is -> { return Observable.from(is).subscribeOn(Schedulers.computation()) .map(item -> { // simulate computational work try { Thread.sleep(1); } catch (Exception e) {} return item + " processed " + Thread.currentThread(); }); })
  • 87. no backpressure needed Observable.from(iterable).take(1000).map(i -> "value_" + i).subscribe(System.out::println);
  • 88. Observable.from(iterable).take(1000).map(i -> "value_" + i).subscribe(System.out::println); no backpressure needed synchronous on same thread (no queueing)
  • 89. Observable.from(iterable).take(1000).map(i -> "value_" + i) .observeOn(Schedulers.computation()).subscribe(System.out::println); backpressure needed
  • 90. Observable.from(iterable).take(1000).map(i -> "value_" + i) .observeOn(Schedulers.computation()).subscribe(System.out::println); backpressure needed asynchronous (queueing)
  • 92. Hot Cold emits whether you’re ready or not examples mouse and keyboard events system events stock prices emits when requested (generally at controlled rate) examples database query web service request reading file Observable.create(subscriber -> { // register with data source }) Observable.create(subscriber -> { // fetch data }) flow control flow control & backpressure
  • 93. Block (callstack blocking and/or park the thread) Hot or Cold Streams
  • 94. Temporal Operators (batch or drop data using time) Hot Streams
  • 98. Observable.range(1, 1000000).buffer(10, TimeUnit.MILLISECONDS) .toBlocking().forEach(list -> System.out.println("batch: " + list.size())); batch: 71141 batch: 49488 batch: 141147 batch: 141432 batch: 195920 batch: 240462 batch: 160410
  • 99.
  • 100. /* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] []
  • 101. /* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] []
  • 102. /* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] []
  • 103. /* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] []
  • 104. /* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] []
  • 105. /* The following will emit a buffered list as it is debounced */ // first we multicast the stream ... using refCount so it handles the subscribe/unsubscribe Observable<Integer> burstStream = intermittentBursts().take(20).publish().refCount(); // then we get the debounced version Observable<Integer> debounced = burstStream.debounce(10, TimeUnit.MILLISECONDS); // then the buffered one that uses the debounced stream to demark window start/stop Observable<List<Integer>> buffered = burstStream.buffer(debounced); // then we subscribe to the buffered stream so it does what we want buffered.toBlocking().forEach(System.out::println); [0, 1, 2] [0, 1, 2] [0, 1, 2, 3, 4, 5, 6] [0, 1, 2, 3, 4] [0, 1] [] https://gist.github.com/benjchristensen/e4524a308456f3c21c0b
  • 106. Observable.range(1, 1000000).window(50, TimeUnit.MILLISECONDS) .flatMap(window -> window.count()) .toBlocking().forEach(count -> System.out.println("num items: " + count)); num items: 477769 num items: 155463 num items: 366768
  • 107. Observable.range(1, 1000000).window(500000) .flatMap(window -> window.count()) .toBlocking().forEach(count -> System.out.println("num items: " + count)); num items: 500000 num items: 500000
  • 109. Push (reactive) when consumer keeps up with producer. Switch to Pull (interactive) when consumer is slow. Bound all* queues.
  • 110. *vertically, not horizontally Push (reactive) when consumer keeps up with producer. Switch to Pull (interactive) when consumer is slow. Bound all* queues.
  • 113. Observable.from(iterable) Observable.from(0, 100000) Cold Streams emits when requested (generally at controlled rate) examples database query web service request reading file
  • 114. Observable.from(iterable) Observable.from(0, 100000) Cold Streams emits when requested (generally at controlled rate) examples database query web service request reading file Pull
  • 116. Reactive Pull hot receives signal *including Observables that don’t implement reactive pull support
  • 124. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 125. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 126. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here) Hot Infinite Stream
  • 127. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 128. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 129. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 131. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 132. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 133. Stage 1 Stage 2 groupBy Event Streams sink
  • 134. Stage 1 Stage 2 12345 56789 34567
  • 135. Stage 1 Stage 2 12345 56789 34567
  • 136. Stage 1 Stage 2 12345 56789 34567
  • 137. Stage 1 Stage 2 12345 56789 34567
  • 138. Stage 1 Stage 2 12345 56789 34567 12345 56789 34567
  • 139. Stage 1 Stage 2 12345 56789 34567 12345 56789 34567
  • 140. Stage 1 Stage 2 12345 56789 34567 12345 56789 34567
  • 141. Stage 1 Stage 2 12345 56789 34567 12345 56789 34567
  • 142. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 145. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 146. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 147.
  • 148. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 149. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 150. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 151. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 152. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 153. MantisJob .source(NetflixSources.moviePlayAttempts()) .stage(playAttempts -> { return playAttempts.groupBy(playAttempt -> { return playAttempt.getMovieId(); }) }) .stage(playAttemptsByMovieId -> { playAttemptsByMovieId .window(10,TimeUnit.MINUTES, 1000) // buffer for 10 minutes, or 1000 play attempts .flatMap(windowOfPlayAttempts -> { return windowOfPlayAttempts .reduce(new FailRatioExperiment(playAttemptsByMovieId.getKey()), (experiment, playAttempt) -> { experiment.updateFailRatio(playAttempt); experiment.updateExamples(playAttempt); return experiment; }).doOnNext(experiment -> { logToHistorical("Play attempt experiment", experiment.getId(),experiment); // log for offline analysis }).filter(experiment -> { return experiment.failRatio() >= DYNAMIC_PROP("fail_threshold").get(); }).map(experiment -> { return new FailReport(experiment, runCorrelations(experiment.getExamples())); }).doOnNext(report -> { logToHistorical("Failure report", report.getId(), report); // log for offline analysis }) }) }) .sink(Sinks.emailAlert(report -> { return toEmail(report)})) // anomalies trigger events (simple email here)
  • 161. final ActorSystem system = ActorSystem.create("InteropTest"); final FlowMaterializer mat = FlowMaterializer.create(system); // RxJava Observable Observable<GroupedObservable<Boolean, Integer>> oddAndEvenGroups = Observable.range(1, 1000000) .groupBy(i -> i % 2 == 0) .take(2); Observable<String> strings = oddAndEvenGroups.<String> flatMap(group -> { // schedule odd and even on different event loops Observable<Integer> asyncGroup = group.observeOn(Schedulers.computation()); // convert to Reactive Streams Publisher Publisher<Integer> groupPublisher = RxReactiveStreams.toPublisher(asyncGroup); // convert to Akka Streams Source and transform using Akka Streams ‘map’ and ‘take’ operators Source<String> stringSource = Source.from(groupPublisher).map(i -> i + " " + group.getKey()).take(2000); // convert back from Akka to Rx Observable return RxReactiveStreams.toObservable(stringSource.runWith(Sink.<String> fanoutPublisher(1, 1), mat)); }); strings.toBlocking().forEach(System.out::println); system.shutdown(); compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'com.typesafe.akka:akka-stream-experimental_2.11:0.10-M1'
  • 162. final ActorSystem system = ActorSystem.create("InteropTest"); final FlowMaterializer mat = FlowMaterializer.create(system); // RxJava Observable Observable<GroupedObservable<Boolean, Integer>> oddAndEvenGroups = Observable.range(1, 1000000) .groupBy(i -> i % 2 == 0) .take(2); Observable<String> strings = oddAndEvenGroups.<String> flatMap(group -> { // schedule odd and even on different event loops Observable<Integer> asyncGroup = group.observeOn(Schedulers.computation()); // convert to Reactive Streams Publisher Publisher<Integer> groupPublisher = RxReactiveStreams.toPublisher(asyncGroup); // convert to Akka Streams Source and transform using Akka Streams ‘map’ and ‘take’ operators Source<String> stringSource = Source.from(groupPublisher).map(i -> i + " " + group.getKey()).take(2000); // convert back from Akka to Rx Observable return RxReactiveStreams.toObservable(stringSource.runWith(Sink.<String> fanoutPublisher(1, 1), mat)); }); strings.toBlocking().forEach(System.out::println); system.shutdown(); compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'com.typesafe.akka:akka-stream-experimental_2.11:0.10-M1'
  • 163. // RxJava Observable Observable<GroupedObservable<Boolean, Integer>> oddAndEvenGroups = Observable.range(1, 1000000) .groupBy(i -> i % 2 == 0) .take(2); Observable<String> strings = oddAndEvenGroups.<String> flatMap(group -> { // schedule odd and even on different event loops Observable<Integer> asyncGroup = group.observeOn(Schedulers.computation()); // convert to Reactive Streams Publisher Publisher<Integer> groupPublisher = RxReactiveStreams.toPublisher(asyncGroup); // Convert to Reactor Stream and transform using Reactor Stream ‘map’ and ‘take’ operators Stream<String> linesStream = Streams.create(groupPublisher).map(i -> i + " " + group.getKey()).take(2000); // convert back from Reactor Stream to Rx Observable return RxReactiveStreams.toObservable(linesStream); }); strings.toBlocking().forEach(System.out::println); compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'org.projectreactor:reactor-core:2.0.0.M1'
  • 164. // RxJava Observable Observable<GroupedObservable<Boolean, Integer>> oddAndEvenGroups = Observable.range(1, 1000000) .groupBy(i -> i % 2 == 0) .take(2); Observable<String> strings = oddAndEvenGroups.<String> flatMap(group -> { // schedule odd and even on different event loops Observable<Integer> asyncGroup = group.observeOn(Schedulers.computation()); // convert to Reactive Streams Publisher Publisher<Integer> groupPublisher = RxReactiveStreams.toPublisher(asyncGroup); // Convert to Reactor Stream and transform using Reactor Stream ‘map’ and ‘take’ operators Stream<String> linesStream = Streams.create(groupPublisher).map(i -> i + " " + group.getKey()).take(2000); // convert back from Reactor Stream to Rx Observable return RxReactiveStreams.toObservable(linesStream); }); strings.toBlocking().forEach(System.out::println); compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'org.projectreactor:reactor-core:2.0.0.M1'
  • 165. compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'io.ratpack:ratpack-rx:0.9.10' try { RatpackServer server = EmbeddedApp.fromHandler(ctx -> { Observable<String> o1 = Observable.range(0, 2000) .observeOn(Schedulers.computation()).map(i -> { return "A " + i; }); Observable<String> o2 = Observable.range(0, 2000) .observeOn(Schedulers.computation()).map(i -> { return "B " + i; }); Observable<String> o = Observable.merge(o1, o2); ctx.render( ServerSentEvents.serverSentEvents(RxReactiveStreams.toPublisher(o), e -> e.event("counter").data("event " + e.getItem())) ); }).getServer(); server.start(); System.out.println("Port: " + server.getBindPort()); } catch (Exception e) { e.printStackTrace(); }
  • 166. compile 'io.reactivex:rxjava:1.0.+' compile 'io.reactivex:rxjava-reactive-streams:0.3.0' compile 'io.ratpack:ratpack-rx:0.9.10' try { RatpackServer server = EmbeddedApp.fromHandler(ctx -> { Observable<String> o1 = Observable.range(0, 2000) .observeOn(Schedulers.computation()).map(i -> { return "A " + i; }); Observable<String> o2 = Observable.range(0, 2000) .observeOn(Schedulers.computation()).map(i -> { return "B " + i; }); Observable<String> o = Observable.merge(o1, o2); ctx.render( ServerSentEvents.serverSentEvents(RxReactiveStreams.toPublisher(o), e -> e.event("counter").data("event " + e.getItem())) ); }).getServer(); server.start(); System.out.println("Port: " + server.getBindPort()); } catch (Exception e) { e.printStackTrace(); }
  • 168. Mental Shift imperative → functional sync → async pull → push
  • 169. Concurrency and async are non-trivial. Rx doesn’t trivialize it. Rx is powerful and rewards those who go through the learning curve.
  • 170. Single Multiple Sync T getData() Iterable<T> getData() Stream<T> getData() Async Future<T> getData() Observable<T> getData()
  • 173. Decouple Production from Consumption
  • 174. Powerful Composition of Nested, Conditional Flows
  • 175. First-class Support of Error Handling, Scheduling & Flow Control
  • 177. Reactive Programming in the Netflix API with RxJava http://techblog.netflix.com/2013/02/rxjava-netflix-api.html Optimizing the Netflix API http://techblog.netflix.com/2013/01/optimizing-netflix-api.html Reactive Extensions (Rx) http://www.reactivex.io Reactive Streams https://github.com/reactive-streams/reactive-streams Ben Christensen @benjchristensen RxJava https://github.com/ReactiveX/RxJava @RxJava RxJS http://reactive-extensions.github.io/RxJS/ @ReactiveX jobs.netflix.com
  • 178. Watch the video with slide synchronization on InfoQ.com! http://www.infoq.com/presentations/rx- service-architecture
