The document discusses how to secure and manage Windows Mobile devices within an enterprise environment using System Center Mobile Device Manager. It provides an overview of key capabilities like deploying devices through Active Directory, enforcing over 130 security policies, remotely wiping devices, and distributing software updates through Windows Server Update Services. The solution addresses concerns around preventing unauthorized use, disabling device features, controlling access to services, and encrypting stored data. It also describes the process for initially enrolling and configuring devices through an activation wizard and one-time PIN.

2. Jason Langridge Enterprise Mobility Solution Specialist Microsoft Email: [email_address] Blog : http://blogs.msdn.com/jasonlan

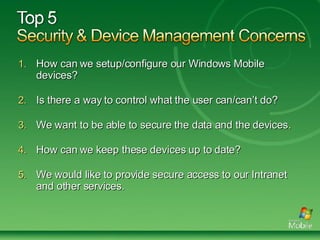

3. How can we setup/configure our Windows Mobile devices? Is there a way to control what the user can/can’t do? We want to be able to secure the data and the devices. How can we keep these devices up to date? We would like to provide secure access to our Intranet and other services.

4. Lets you deploy and manage Windows Mobile devices like you do PCs/laptops in your IT infrastructure and provides security-enhanced access to corporate data Management Workload Deployment: Inside Firewall Network Access Workload Deployment: in DMZ Security Management Active Directory Domain join Policy enforcement using Active Directory/Group Policy targeting (>130 policies) Communications and camera disablement* File encryption Application allow and deny Remote wipe OMA-DM compliant Device Management Single point of management for mobile devices in enterprise Full OTA provisioning and bootstrapping OTA Software distribution based on WSUS 3.0 Inventory SQL Server 2005 based reporting capabilities Role based administration MMC snap-ins and Powershell cmndlets WMU On/Off controlcompliant Mobile Optimized VPN Machine authentication and “double envelope security” Session Persistence Fast Reconnect Internetwork roaming Standards based (IKEv2, MobIKE, IPSEC tunnel mode)

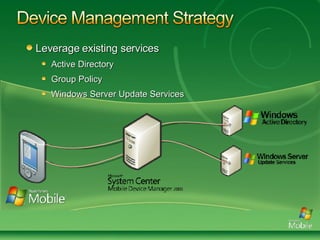

5. Leverage existing services Active Directory Group Policy Windows Server Update Services

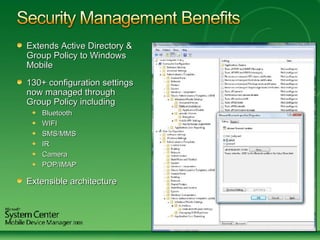

6. Extends Active Directory & Group Policy to Windows Mobile 130+ configuration settings now managed through Group Policy including Bluetooth WIFI SMS/MMS IR Camera POP/IMAP Extensible architecture

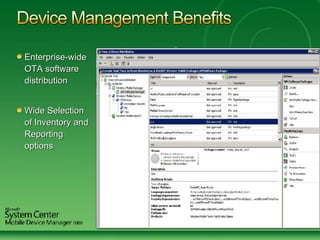

7. Enterprise-wide OTA software distribution Wide Selection of Inventory and Reporting options

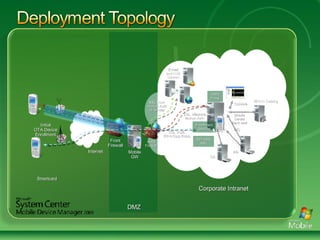

8. Smartcard Internet DMZ Corporate Intranet Front Firewall Initial OTA Device Enrollment Mobile GW Back Firewall SSL Auth (PIN+Corp Root) SSL Machine Mutual Auth E-mail and LOB Servers SSL User- mutual Auth or Similar Console Mobile Server Back-end R/O AD WSUS Catalog Self Help Site Enrollment Service OMA Proxy CA Mobile VPN

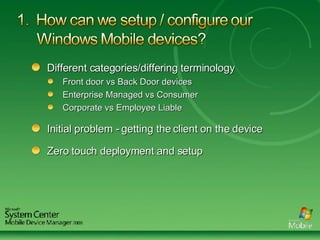

9. Different categories/differing terminology Front door vs Back Door devices Enterprise Managed vs Consumer Corporate vs Employee Liable Initial problem - getting the client on the device Zero touch deployment and setup

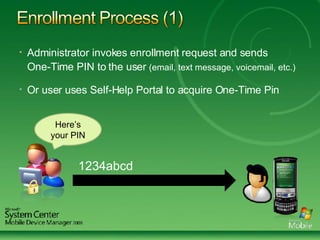

10. Administrator invokes enrollment request and sends One-Time PIN to the user (email, text message, voicemail, etc.) Or user uses Self-Help Portal to acquire One-Time Pin Here’s your PIN 1234abcd

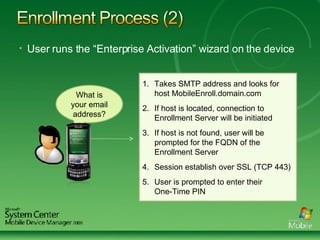

11. User runs the “Enterprise Activation” wizard on the device What is your email address? Takes SMTP address and looks for host MobileEnroll.domain.com If host is located, connection to Enrollment Server will be initiated If host is not found, user will be prompted for the FQDN of the Enrollment Server Session establish over SSL (TCP 443) User is prompted to enter their One-Time PIN

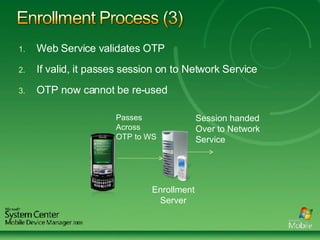

12. Web Service validates OTP If valid, it passes session on to Network Service OTP now cannot be re-used Enrollment Server Passes Across OTP to WS Session handed Over to Network Service

13. Device is then “Domain Joined” SC MDM Client is configured to use Mobile Gateway for all future connectivity Enrollment is complete Device is then setup/configured using Group Policy

14. Key concerns Preventing unauthorized applications from being run/installed Disabling some of the devices capabilities (eg. Camera/Wifi) Access to consumer services (eg. POP3/IMAP) Mobile Device Manager empowers you through Active Directory Integration Group Policies

15. Data stored on both the physical device and storage card Windows Mobile 6 provides ability to encrypt storage card System Center Mobile Device Manager provides Enable Device Perimeter PIN password Ability to enforce encryption on storage card Allow/Disallow the use of removable storage Remotely Wipe devices

16. Important to separate update needs: Device OS Applications, Configuration and Settings System Center Mobile Device Manager allows you to: Distribute software and applications through Windows Server Update Services (WSUS) Setup/configure/manage devices through Active Directory and Group Policy

17. WWAN Internet WIFI https://EAS http://www.microsoft.com

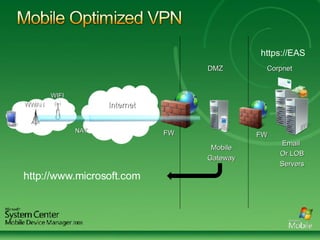

18. DMZ WWAN Corpnet Internet FW FW Email Or LOB Servers Mobile Gateway WIFI NAT https://EAS http://www.microsoft.com

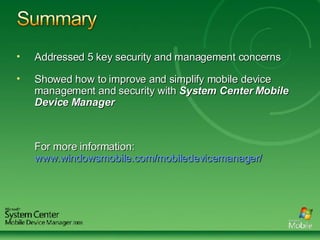

19. Addressed 5 key security and management concerns Showed how to improve and simplify mobile device management and security with System Center Mobile Device Manager For more information: www.windowsmobile.com/mobiledevicemanager/

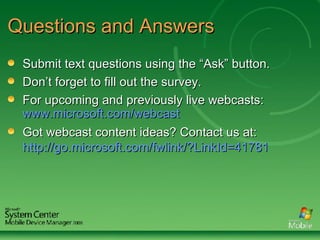

20. Questions and Answers Submit text questions using the “Ask” button. Don’t forget to fill out the survey. For upcoming and previously live webcasts: www.microsoft.com/webcast Got webcast content ideas? Contact us at: http://go.microsoft.com/fwlink/?LinkId=41781
