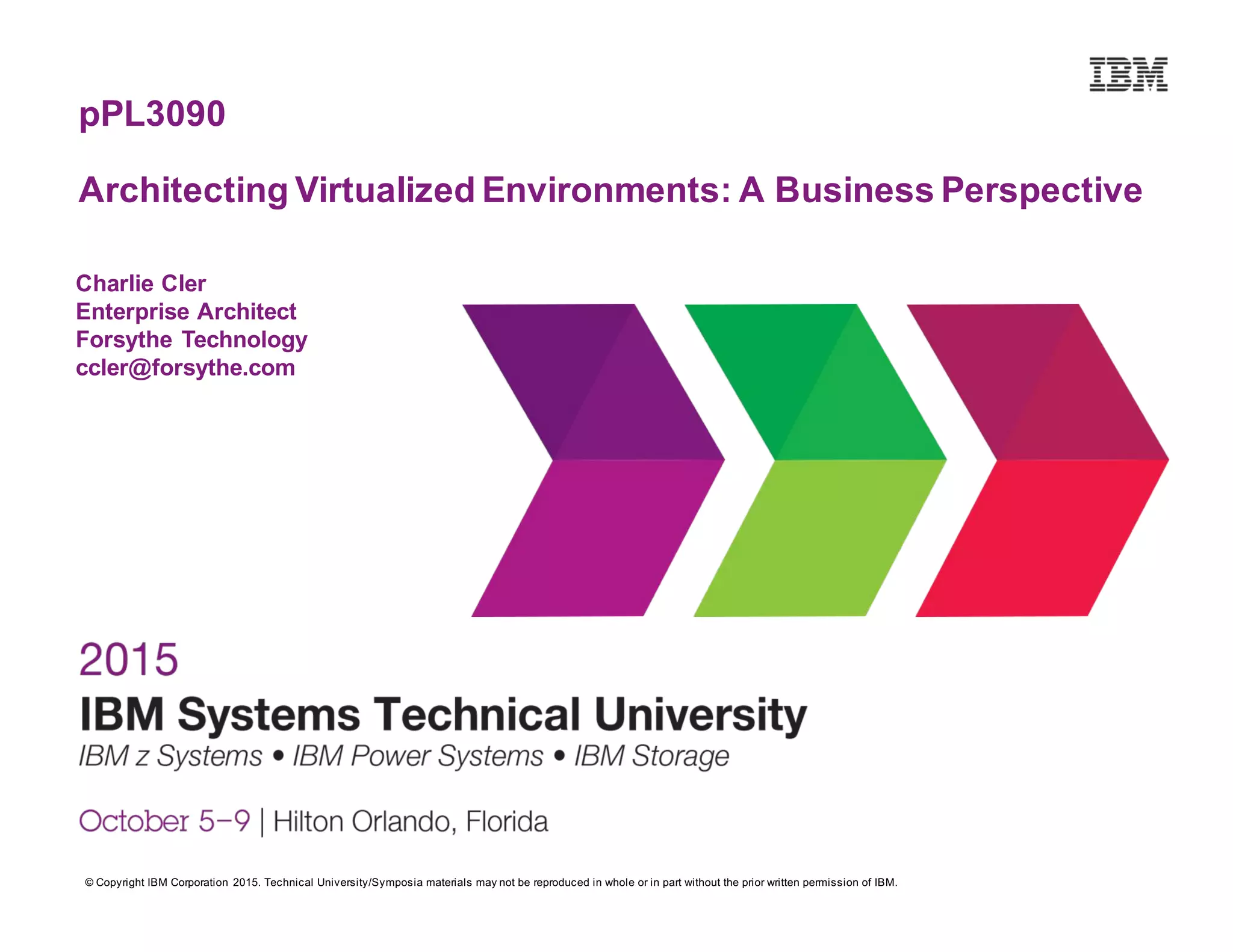

Presentation from 2015 IBM Systems Technical University, Orlando Florida. Author/presenter Charlie Cler

1. © Copyright IBM Corporation 2015. Technical University/Symposia materials may not be reproduced in whole or in part without the prior written permission of IBM.
pPL3090
Architecting Virtualized Environments: A Business Perspective
Charlie Cler
Enterprise Architect
Forsythe Technology
ccler@forsythe.com

2. 2

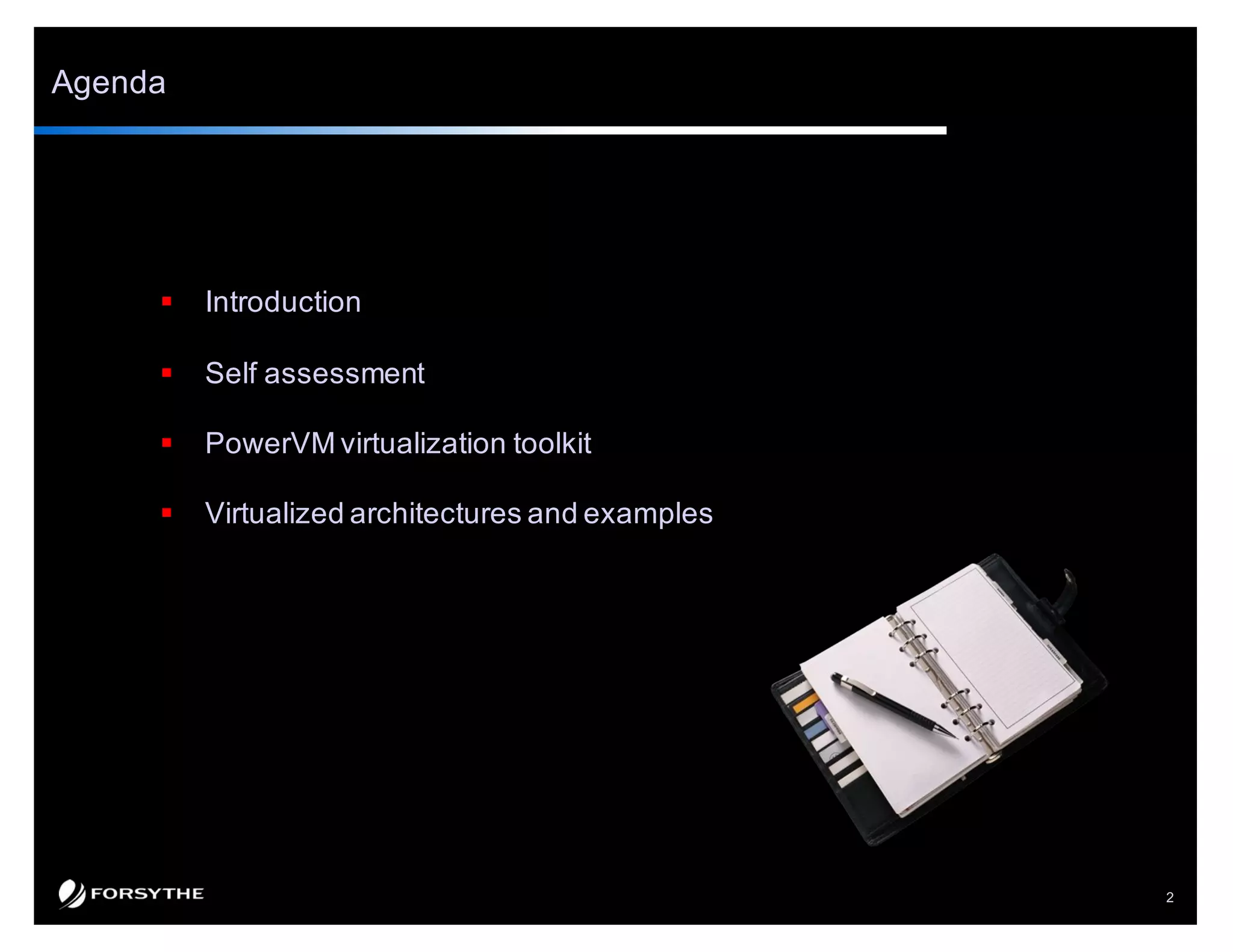

Agenda
§ Introduction
§ Self assessment
§ PowerVM virtualization toolkit
§ Virtualized architectures and examples

3. 3
Hardware
Operating System
Middleware
Applications
PowerVM – Hardware Virtualization
AIX V6.1 Workload Partitions
WebSphere Application Server
Application specific instances
Server Examples
Virtualization can occur in many places

4. 4
Things to consider when implementing virtualization
Simplification Need to figure out how to do more with reduced staff … AUTOMATION!!!
Reduce Cost Improved utilization, fewer servers
Facilitates consolidation
Reduce energy costs
Improved data center management
Reduce software licensing
Reduce hardware & software maintenance
Improve Service Agility, Faster
Reduce/eliminate outages: Scheduled Maintenance / Resource Balancing
Improve productivity of staff, properly deployed with structure, non-structured can lead to
worse service Use of standards simplify the training/skills required
Improve service levels
Focus is on providing service to end-user, not just installing their server
Easier to EOL of assets, re-host via Live Partition Mobility
Manage Risk Install once, reduce physical activity in the data center
Reduce weekend/late night work
Reduce/eliminate scheduled outages
Potentially faster DR recovery when using VIO Server
System Planning Tool to rebuild system
In-house DR between sites
Reduce Complexity - Avoid one of everything purchasing
Business Challenges Operational integration: SAN, network, server, dc management
Purchasing model/budgeting: Dedicated has simpler chargeback model
Lots of LPARS per server ... More difficult to plan a scheduled outage
Software licensing mechanisms can be complex
Need to invoke SLAs - New concept, must deal with very good to average performance
Chart source: Unknown author (IBM)

5. 5
How much does it really cost to run a server?
• Software and support costs dominate TCO
• Improving utilization can help to reduce all of these
costs, not just hardware
5 yearTCO distribution
Chart source: Brad McCredie (IBM)
Cost Relative Cost
Hardware 1x
Power & Facilities 0.25x
Network & Storage 0.8x
Software 2-8x
Support 5-10x

6. 6
Availability
• High availability
• Hours of operation
Backup / Restore / Site Recovery
• Backup / Restore
• Disaster Scenario
• Restore
• Effort for Complete Site Recovery
• SAN effort
Infrastructure Cost
• Space
• Power
• Network Infrastructure
• Storage Infrastructure
• Initial Hardware Costs
• Software Costs
• Maintenance Costs
Additional development and
implementation
• Investment for one platform –
reproduction for others
Controlling and Accounting
• Analyzing the systems
• Cost
Operations Effort
• Monitoring, Operating
• Problem Determination
• Server Management Tools
• Integrated Server Management –
Enterprise Wide
A Range of IT Cost Factors - Frequently Not Considered
Integration
– Integrated Functionality vs. Functionality to
be implemented (possibly with 3rd party
tools)
– Balanced System
– Integration of / into Standards
Further Availability Aspects
– Planned outages
– Unplanned outages
– Automated Take Over
– Uninterrupted Take Over (especially for DB)
– Workload Management across physical
borders
– Business continuity
– Availability effects for other applications /
projects
– End User Service
– End User Productivity
– Virtualization
Skills and Resources
– Personnel Education
– Availability of Resources
Security
– Authentication / Authorization
– User Administration
– Data Security
– Server and OS Security
– RACF vs. other solutions
Deployment and Support
– System Programming
• Keeping consistent OS and SW Level
• Database Effort
– Middleware
• SW Maintenance
• SW Distribution (across firewall)
– Application
• Technology Upgrade
• System Release change without
interrupts
Operating Concept
– Development of an operating procedure
– Feasibility of the developed procedure
– Automation
Resource Utilization and Performance
– Mixed Workload / Batch
– Resource Sharing
• shared nothing vs. shared everything
– Parallel Sysplex vs. Other Concepts
– Response Time
– Performance Management
– Peak handling / scalability
Chart source: IBM RACE Conference

7. 7
Virtualization Assessment
From an enterprise infrastructure perspective, many customers
grapple with the same questions, growing pains, business
process challenges, etc related to embracing virtualization.
The pace at which a customer adopts virtualization varies by
customer. Some elements that affect this pace are customer
internal organizations, politics, business drivers, business
conditions and other contributors.
The pace of a customer’s virtualization adoption at a specific
“snapshot” in time can be viewed as the customer’s unique
“Virtualization Adoption Maturity” at that time.
Adoption = 10% technology + 90% customer processes
Text source: Unknown author (IBM)

8. 8
Rack ‘n
Stack
Dedicated
LPARs
Virtual
Processors
Virtual I/O
Server
Live
Partition
Mobility
PowerVC
Cloud
Centralized
Pooled
Individual
Acquisition and Virtualization Spectrum
ServerPurchaseModel
Level of Virtualization Deployed
Individual Servers are purchased for specific projects. Typically results in low
utilization.
Pooled Server purchases for multiple projects are grouped together. Still allows
businesses to directly associate server purchase with project dollars.
Centralized Cloud-like purchasing model. Potential for highest utilization and flexibility.
Most are here

9. 9
Capacity on Demand (CoD) & Related Options
*Trials are also available for Active Memory Expansion (AME) and Live Partition Mobility (LPM)
Model
Core
Deconfiguration
Capacity on Demand (CoD)
Permanent
Activation Trial*
Elastic
(On/Off) Utility
Power
Enterprise
Pools
Power 710 n
Power 720 n
Power 730 n
Power 740 n
Power 750 n
Power 760 n
Power 770 n n n n n
Power 780 n n n n n
Power 795 n n n n n

10. 10
Shared Production and Development Server
Concept:Intermix development,test, staging and
production LPARs on the same servers
Why?
• Improve overall utilization of resources
• Ability to shift development resources to production to satisfy peak workloads
• Improve software license utilization
Common Objections
• Development systems (LPARS) might bring production down
• Re-cabling of development systems may affect production

11. 11
Separate Production and Development Servers
DB Appl Server
Virtual
Processors
4 + 2 = 6 2 + 2 + 2 = 6
License Count 6 6
LPAR
1
DB
Prod
LPAR 3
Appl
Server
Prod
LPAR 4
Appl
Server
Prod
LPAR 5
Appl
Server
Dev
Processor Pool
V V V V V V
LPAR
2
DB
Dev
V V
Processor Pool
Hypervisor Hypervisor
Core CoreCoreCoreCoreCore
V VV V
CoreCore Core Core
Production Dev

12. 12
Shared Production and Development Server
DB Appl Server
Virtual
Processors
4 + 2 = 6
2 + 2 + 2 =
6
License
Count
4* 4*
Run Dev and Prod on the same server to improve processor utilization
• Development servers typically have lower levels of utilization
• Shared server => Fewer processor cores required
• Improve processor utilization => Reduced hardware costs
• Reduced software licensing cost
LPAR
1
DB
Prod
LPAR
2
DB
Dev
LPAR 3
Appl
Server
Prod
LPAR 4
Appl
Server
Prod
LPAR 5
Appl
Server
Dev
Hypervisor
Core Core Core CoreCoreCoreCoreCore
Sub Pool Max=4
V V V V V V V V
DB Appl Server
Virtual
Processors
4 + 2 = 6 2 + 2 + 2 = 6
License Count 6 6
LPAR
1
DB
Prod
LPAR 3
Appl
Server
Prod
LPAR 4
Appl
Server
Prod
LPAR 5
Appl
Server
Dev
Processor Pool
V V V V V V
LPAR
2
DB
Dev
V V
Processor Pool
Hypervisor Hypervisor
Core CoreCoreCoreCoreCore
V VV V
CoreCore Core Core
V VV V
Sub Pool Max=4
*Using license count based on the smaller of total
virtual processors and pool size
Production Dev Production and Dev LPARs intermixed

13. 13
Staging and Production Role Swap
Prod
DB
Prod
Appl
Server
n
Prod
Appl
Server
n
Prod
Appl
Server
n
Stage
Appl
Server
n+1
Stage
Appl
Server
n+1
Stage
Appl
Server
n+1
Design based on dedicated CPU LPARs
4 4 4 4 4 4 16
Implementation: New applications released to production based on swapping roles of
staging and production servers.
Time=n
Environment running
code release level “n”

14. 14
Staging and Production Role Swap
Prod
DB
Prod
Appl
Server
n
Prod
Appl
Server
n
Prod
Appl
Server
n
Stage
Appl
Server
n+1
Stage
Appl
Server
n+1
Stage
Appl
Server
n+1
Prod
DB
Prod
Appl
Server
n+1
Prod
Appl
Server
n+1
Prod
Appl
Server
n+1
Stage
Appl
Server
n+2
Stage
Appl
Server
n+2
Stage
Appl
Server
n+2
Design based on dedicated CPU LPARs
4 4 4 4 4 4 16
4 4 4 4 4 4 16
24 Licensed Appl Server Cores
Implementation: New applications released to production based on swapping roles of
staging and production servers.
Staging servers and productions roles are reversed with each new application
release. This environment requires that all staging and application servers be
the same size for both CPUs and memory.
Time=nTime=n+1
Environment running
code release level “n+1”
Environment running
code release level “n”

15. 15
Staging and Production Swap
Shared Processor Pool
Prod
DB
Prod
Appl
Server
n
Prod
Appl
Server
n
Prod
Appl
Server
n
StageAppl
StageAppl
StageAppl
.2 .2 .2 4 4 4 12
Prod
DB
Prod
Appl
Server
n
Prod
Appl
Server
n
Prod
Appl
Server
n
Stage
Appl
Server
n+1
Stage
Appl
Server
n+1
Stage
Appl
Server
n+1
Prod
DB
Prod
Appl
Server
n+1
Prod
Appl
Server
n+1
Prod
Appl
Server
n+1
Stage
Appl
Server
n+2
Stage
Appl
Server
n+2
Stage
Appl
Server
n+2
Design based on dedicated CPU LPARs Using Shared Processor Pool
4 4 4 4 4 4 16
4 4 4 4 4 4 16
24 Licensed Appl Server Cores
Implementation: New applications released to production based on swapping roles of
staging and production servers.
Use of the shared processor pool allows the
Staging and Prod appl servers to have their core
allocations match their requirements.
Time=nTime=n+1
Time=n
Staging servers and productions roles are reversed with each
new application release. This environment requires that all
staging and application servers be the same size for both
CPUs and memory.

16. 16
Staging and Production Swap
Shared Processor Pool
Prod
DB
Prod
Appl
Server
n
Prod
Appl
Server
n
Prod
Appl
Server
n
StageAppl
StageAppl
StageAppl
.2 .2 .2 4 4 4 12
Shared Processor Pool
Prod
DB
Prod
Appl
Server
n+1
Prod
Appl
Server
n+1
Prod
Appl
Server
n+1
StageAppl
StageAppl
StageAppl
4 4 4 .2 .2 .2 12
Prod
DB
Prod
Appl
Server
n
Prod
Appl
Server
n
Prod
Appl
Server
n
Stage
Appl
Server
n+1
Stage
Appl
Server
n+1
Stage
Appl
Server
n+1
Prod
DB
Prod
Appl
Server
n+1
Prod
Appl
Server
n+1
Prod
Appl
Server
n+1
Stage
Appl
Server
n+2
Stage
Appl
Server
n+2
Stage
Appl
Server
n+2
Design based on dedicated CPU LPARs Using Shared Processor Pool
4 4 4 4 4 4 16
4 4 4 4 4 4 16
24 Licensed Appl Server Cores
Implementation: New applications released to production based on swapping roles of
staging and production servers.
Use of the shared processor pool allows the
Staging and Prod appl servers to change size
when a new release is deployed. Use of DLPAR
or AMS can reduce memory requirements, too.
13 Licensed Appl Server Cores (46% reduction)
Time=nTime=n+1
Time=nTime=n+1
Staging servers and productions roles are reversed with each
new application release. This environment requires that all
staging and application servers be the same size for both
CPUs and memory.

17. 17
Live Partition Mobility – Potential Uses
1. Scheduledmaintenance
Evacuate a server so that you can perform scheduled maintenance activities like firmware
upgrades, non hot-plug service activities, etc.
2. Workload rebalancing
Move an LPAR to another server that has more CPU or memory resources required to
satisfy application demands.
3. End of service life migration
Migrate all running LPARs from an older system to a new system so that the older system
can be retired.

18. 18
Live Partition Mobility: Architecture Examples
1 2 3 4
Perform
Service
1
2
3 4
2 2
N + 1
Partial Capacity
Mixed Environments
Transition to space
made available by
suspending
development work
Transition to
multiple servers
Transition to
spare server
Prod
Prod
Dev Dev
ProdProd
Perform
Service
Spare1 2 3 1 23
Perform
Service
Note: Implementation of VMControl Enterprise Edition (VMControl Systems Pools) can simplify all of this.

19. 19
Live Partition Mobility: N+1
Entire server’s LPARs are moved as a group
• Provides level of comfort that CPU/memory resources will be adequate for the mix of
running LPARs
How big can “N” be?
• Depends on frequency of scheduled maintenance x number of servers.
Spare server
• Can be used for sandbox work
• Must be configured with CPUs and memory to match the largest active server. If all
servers are identical, software licensing issues are minimized.
• Spare capacity can’t be used to satisfy peak workloads
Typicalservers
• 720, 740, S822, S824
Spare1 2 3 1 23
Perform
Service

20. 20
Live Partition Mobility: Partial Capacity
Server’s LPARs are distributed among the other servers in the group
• Resources (white space) are reserved on each server to support the evacuation of
the largest server in the group.
• As more servers are added, no addition reserve will be required (see server #5).
• Requires planning to figure out where to migrate LPARs to. Future automation might
simplify this task
Benefits
• Under normal conditions, excess CPU/memory capacity on servers can be used to
handle peak workloads
• White space can be CoD that is activated via On/Off during an active migration
Typicalservers
• 750, 770, 780, S824, E850, E870, E880
1 2 3 4
Perform
Service
1
2
3 4
2 2
5 5

21. 21
Live Partition Mobility: Mixed Environment
Mixing developmentand production
• No spare/reserved resources are required
• Drive higher levels of server and software utilization
Server Sizing
• Distribute production between the two servers. Make sure that each server
is sized so that it can handle all of production by itself.
• Development will be down during migration/service period. Requires
migration event to be coordinated with development teams.
Typicalservers
• 770, 780, 795, E870, E880
Prod
Prod
Dev Dev
ProdProd
Perform
Service

22. 22
Live Partition Mobility: Power Enterprise Pools
Normal Operation
• Active workload on both servers
• Adequate COD resources on both servers to permit all workload to run on
either server.
Schedule LPM Operation
• Schedule planned event with IBM
• Use Power Systems Pools to temporarily transfer processor and memory
activations. Requires interaction with IBM for every LPM event
• Use of Power Enterprise Pools and new mobile activations allows you to
reassign cores and memory within servers in a pool. No interaction with
IBM required for reassignment – user controlled.
Servers Supported
• Power Systems Pools: 780, 795
• Power Enterprise Pools: 770, 780, 795
COD COD
Prod
Prod ProdProd
Perform
Service

23. 23
Live Partition Mobility Trial is Available
How do I activate Trial Live Partition Mobility feature?
1) New order - You can order feature code "ELPM" in
your new Power server configuration.
2) MES upgrade existing configuration by adding ELPM
as a No Charge MES upgrade.
The trial period is 60 days. If an MES upgrade to
PowerVM Enterprise Edition is not done at the end of
the trial period, your system automatically returns to
PowerVM Standard Edition.
All pre-requisites for Live Partition Mobility still applies
for the Trial to work.

24. 24
Active Memory Sharing – PowerHA 5-to-1 Cluster
Design considerations
• PowerHA cluster with many-to-1 cluster backup
• Shared Memory Pool reduces memory requirement on backup server
PowerHA
Hot
Standby
PowerHA
Hot
Standby
PowerHA
Hot
Standby
PowerHA
Hot
Standby
PowerHA
Hot
Standby
Hypervisor
Shared Memory Pool (80 GB)
4 GB4 GB4 GB 4 GB 4 GB
VIO #2VIO #1
2 GB 2 GB
PowerHA
Production
Server
64 GB
PowerHA
Production
Server
64 GB
PowerHA
Production
Server
64 GB
PowerHA
Production
Server
64 GB
PowerHA
Production
Server
64 GB
824 Production Servers 824 Stand-by Server
Dedicated Memory

25. 25
Active Memory Sharing – PowerHA 5-to-1 Cluster
Design considerations
• Production server fails
• Workload is shifted to hot-standby server
• Required memory automatically acquired from shared memory pool
• Similar story applies for shared processor pool
PowerHA
Hot
Standby
PowerHA
Hot
Standby
PowerHA
Hot
Standby
PowerHA
Hot
Standby
PowerHA
Hot
Standby
Hypervisor
Shared Memory Pool (80 GB)
4 GB4 GB4 GB 64 GB 4 GB
VIO #2VIO #1
2 GB 2 GB
PowerHA
Production
Server
64 GB
PowerHA
Production
Server
64 GB
PowerHA
Production
Server
64 GB
PowerHA
Production
Server
64 GB
PowerHA
Production
Server
64 GB
824 Production Servers 824 Stand-by Server
Dedicated Memory

26. 26
Traditional DR Options
Primary
Data Center
3rd
Party Disaster
Recovery Service
Hot Standby
Data Center
Dual Purpose
Data Center
• High potential for quick
recovery
• Expensive resources
mostly idle
• May not cover all required
applications due to cost
• Generalized recovery
servers provided by 3rd party
may not match your specific
server models
• Testing typically limited to a
one or two per year
• Recovery hardware used for Dev/Test under normal conditions
• Improved utilization of resources
• Becoming more common as company mergers make
additional data centers available
1
2
3

27. 27
• Recovery at a remote location
• Recovery hardware likely to be different from your production
environment
• 1 or 2 tests per year, typically negotiated into contract, provides
limited ability to verify full recovery of production systems
• Improve recovery procedure using the System Planning tool
§ Works best for fully virtualized environment (VIO based)
§ Periodically create System Plan from the HMC
§ During DR event, deploy System Plan at recovery center to
configure all LPARs and virtual adapters.
§ Final recovery customization for physical disk / network
interfaces on the VIO servers.
3rd Party Disaster Recovery Service
System Planning Tool http://www-947.ibm.com/systems/support/tools/systemplanningtool/
URLs
http://www.ibmsystemsmag.com/aix/enewsletterexclusive/24624p1.aspxUsing the System Planning tool for disaster recovery, by Jaqui Lynch
System Planning Tool on IBM Developerworks http://www.ibm.com/developerworks/aix/library/au-spt/index.html

28. 28
Hot-Standby Data Center – DR Recovery LPARS in Standby Mode
Dallas–LPAR1
Dallas–LPAR2
Dallas–LPAR3
Dallas–LPAR…
Dallas–LPARn
Denver–LPAR1
Denver–LPAR2
Denver–LPAR3
Denver–LPAR…
STL–LPARnPhoenix–LPAR1
Phoenix–LPAR2
Phoenix–LPAR3
Phoenix–LPAR…
Phoenix–LPARn
Denver–LPARn
Spare Capacity
Shared CPU, Memory, SAN, and Network Resources
DR server runs with thin recovery LPARs, always
ready for a DR event from one of the production
locations.
Dallas
Denver
Phoenix
Production
Data Centers
(Prod & Dev/Test)
Hot-Standby Data Center
(DR Recovery LPARs)
SANNetwork

29. 29
Hot-Standby Data Center – Active DR
Dallas
Denver
Phoenix
Dallas–LPAR1
Dallas–LPAR2
Dallas–LPAR3
Dallas–LPAR…
STL–LPARnPhoenix–LPAR1
Phoenix–LPAR2
Phoenix–LPAR3
Phoenix–LPAR…
Phoenix–LPARn
Dallas–LPARn
Denver–LPAR1
Denver–LPAR2
Denver–LPAR3
Denver–LPAR…
Denver–LPARn
SpareCapacity
Shared CPU, Memory, SAN, and Network Resources
In the event of a disaster, LPARs automatically have access to CPU, Memory, SAN, and
network resources required to support the recovered workload. No manual re-configuration
is required.
SANNetwork
Production
Data Centers
(Prod & Dev/Test)
Hot-Standby Data Center
(DR Recovery LPARs)
Active DR for
Denver

30. 30
Denver–1
Denver–2
Denver–…
Denver–n
Denver–Dev
Denver–Dev
Denver–Dev
Denver–Dev
Denver–Test
Denver–3
Denver–1
Denver–2
Denver–…
Denver–n
Denver–Dev
Denver–Dev
Denver–Dev
Denver–Dev
Denver–Test
Denver–3
Dual Purpose Data Center – Normal Operation
Production data center servers can be smaller since they are no longer running Dev / Test.
At Dual Purpose data center, under normal operation, spare capacity is used to run Dev
and Test LPARs. Thin, Live recovery LPARs continue to run.
SANNetwork
Shared CPU, Memory, SAN, and Network Resources
Phoenix–LPAR1
Phoenix–LPAR2
Phoenix–LPAR…
Phoenix–LPARn
Phoenix–Dev
Phoenix–Dev
Phoenix–Dev
Phoenix–Dev
Phoenix–Test
Phoenix–LPAR3
Server primarily used
for Dev/test workloads
DR Recovery LPARs
in standby mode
Dallas
Denver
Phoenix
Production
Data Center
(Prod & Dev)
Dallas
Denver
Phoenix

31. 31
Denver–1
Denver–2
Denver–…
Denver–n
Denver–Dev
Denver–Dev
Denver–Dev
Denver–Dev
Denver–Test
Denver–3
Denver–1
Denver–2
Denver–…
Denver–n
Denver–Dev
Denver–Dev
Denver–Dev
Denver–Dev
Denver–Test
Denver–3
Dual Purpose Data Center – Active DR
Dallas
Denver
Phoenix
SANNetwork
Production
Data Center
(Prod & Dev)
Shared CPU, Memory, SAN, and Network Resources
Dallas
Denver
Phoenix
Dev/Test resources
are reduced
Phoenix–Dev
Phoenix–Dev
Phoenix–Dev
Phoenix–Dev
Phoenix–test
Phoenix production data center has experienced a disaster.
Phoenix workload is transferred to the Dual Purpose data center where the Phoenix recovery
LPARs automatically have access to required CPU, Memory, SAN, and network resources.
Phoenix development LPAR resources are reduced.
Phoenix–LPAR1
Phoenix–LPAR2
Phoenix–LPAR3
Phoenix–LPAR…
Phoenix–LPARn
LPARs automatically expand
to handle DR workload

32. 32
Next steps…

33. 33
Where is your business headed?
Is your company bringing
together the application
development, enterprise
architecture, procurement, and
facilities departments?
Which layer(s) of virtualization is your
company currently using or planning to
investigate?

34. 34
Additional Information
www.ibm.com/redbooks
• PowerVM Virtualization on IBM System p Introduction and Configuration (SG24-7940)
• PowerVM Virtualization on IBM System p Managing and Monitoring (SG24-7590)
• IBM PowerVM Live Partition Mobility (SG24-7460)
• PowerVM Virtualization Active Memory Sharing (REDP-4470)

35. 35
Trademarks
The following are trademarks of the International Business Machines Corporation in the United States, other countries, or both.
The following are trademarks or registered trademarks of other companies.
* All other products may be trademarks or registered trademarks of their respective companies.
Notes:
Performance is in Internal Throughput Rate (ITR) ratio based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput that any user
will experience will vary depending upon considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the workload
processed. Therefore, no assurance can be given that an individual user will achieve throughput improvements equivalent to the performance ratios stated here.
IBM hardware products are manufactured from new parts, or new and serviceable used parts. Regardless, our warranty terms apply.
All customer examples cited or described in this presentation are presented as illustrations of the manner in which some customers have used IBM products and the results they may have
achieved. Actual environmental costs and performance characteristics will vary depending on individual customer configurations and conditions.
This publication was produced in the United States. IBM may not offer the products, services or features discussed in this document in other countries, and the information may be subject to
change without notice. Consult your local IBM business contact for information on the product or services available in your area.
All statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.
Information about non-IBM products is obtained from the manufacturers of those products or their published announcements. IBM has not tested those products and cannot confirm the
performance, compatibility, or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products.
Prices subject to change without notice. Contact your IBM representative or Business Partner for the most current pricing in your geography.
Adobe, the Adobe logo, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries.
Cell Broadband Engine is a trademark of Sony Computer Entertainment, Inc. in the United States, other countries, or both and is used under license therefrom.
Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both.
Microsoft, Windows, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the United States, other countries, or both.
Intel, Intel logo, Intel Inside, Intel Inside logo, Intel Centrino, Intel Centrino logo, Celeron, Intel Xeon, Intel SpeedStep, Itanium, and Pentium are trademarks or registered trademarks of Intel
Corporation or its subsidiaries in the United States and other countries.
UNIX is a registered trademark of The Open Group in the United States and other countries.
Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both.
ITIL is a registered trademark, and a registered community trademark of the Office of Government Commerce, and is registered in the U.S. Patent and Trademark Office.
IT Infrastructure Library is a registered trademark of the Central Computer and Telecommunications Agency, which is now part of the Office of Government Commerce.
For a complete list of IBM Trademarks, see www.ibm.com/legal/copytrade.shtml:
*, AS/400®, e business(logo)®, DBE, ESCO, eServer, FICON, IBM®, IBM (logo)®, iSeries®, MVS, OS/390®, pSeries®, RS/6000®, S/30, VM/ESA®, VSE/ESA,
WebSphere®, xSeries®, z/OS®, zSeries®, z/VM®, System i, System i5, System p, System p5, System x, System z, System z9®, BladeCenter®
Not all common law marks used by IBM are listed on this page. Failure of a mark to appear does not mean that IBM does not use the mark nor does it mean that the product is not
actively marketed or is not significant within its relevant market.
Those trademarks followed by ® are registered trademarks of IBM in the United States; all others are trademarks or common law marks of IBM in the United States.
