This document summarizes silicone rubber membrane sheets for use in wooden veneer vacuum membrane press laminating machines. It describes the key properties of the sheets including thickness from 1-3mm, hardness from 40-50 Shore A, tensile strength of 11.5MPa, and temperature resistance up to 250°C. Example product models and applications are provided for laminating wood veneer and other materials using vacuum presses.

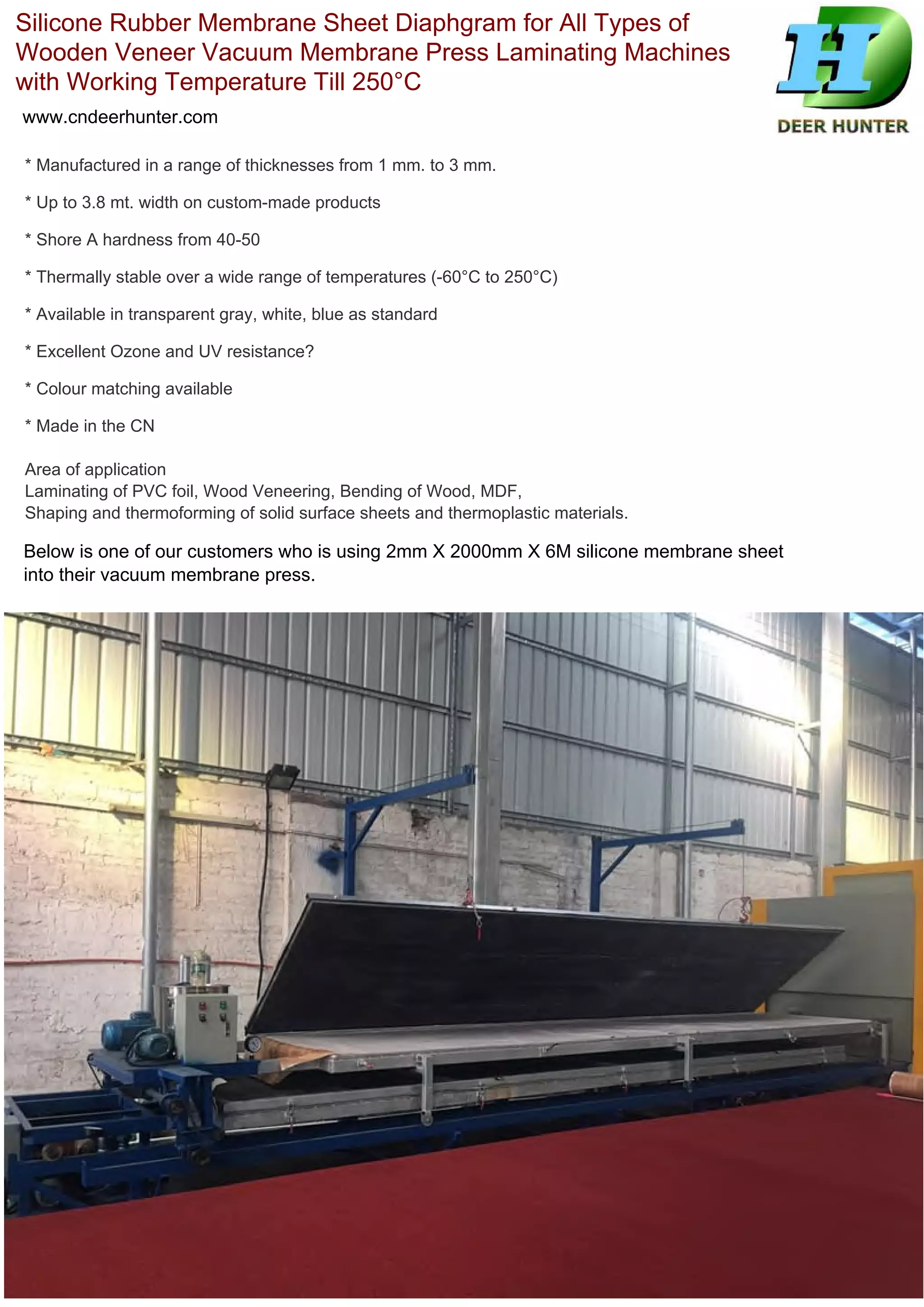

1. Silicone Rubber Membrane Sheet Diaphgram for All Types of
Wooden Veneer Vacuum Membrane Press Laminating Machines
with Working Temperature Till 250°C
www.cndeerhunter.com
* Manufactured in a range of thicknesses from 1 mm. to 3 mm.
* Up to 3.8 mt. width on custom-made products
* Shore A hardness from 40-50
* Thermally stable over a wide range of temperatures (-60°C to 250°C)
* Available in transparent gray, white, blue as standard
* Excellent Ozone and UV resistance?
* Colour matching available
* Made in the CN
Area of application
Laminating of PVC foil, Wood Veneering, Bending of Wood, MDF,
Shaping and thermoforming of solid surface sheets and thermoplastic materials.
Below is one of our customers who is using 2mm X 2000mm X 6M silicone membrane sheet
into their vacuum membrane press.

2. Model No. Sample Photos Properties Value
DH2211
(high grade)
Color Grey transparent
Surface Both sides smooth
Thickness 1mm, 2mm, 3mm
Hardness 40 ± 5 Shore A
Tensile Strength 11.5MPa
Tear Strength 45N/mm
Elongaton 860%
Max Temperature 250°C
DH2111
(standard grade)
Color White transparent
Surface Both sides smooth
Thickness 1mm, 2mm
Hardness 50 ± 5 Shore A
Tensile Strength 9.0MPa
Tear Strength 30N/mm
Elongaton 480%
Max Temperature 250°C
1: Width x Length, depending on customers' requests
2: Although also called diaphragms, sheets, or membranes, the woodworking industry tends to use the term
membrane.
3: Area of application - Laminating of PVC foil, Wood Veneering, Bending of Wood, MDF, Shaping and thermoforming
of solid surface sheets and thermoplastic materials.
WOOD WORKING 3D COATING THERMOFORMING
Membrane Vacuum Presses for
Veneering,Laminating & Coating
Thermofoil Vacuum Presses for Coating
of PVC Foil on the Flat Surfaces
Vacuum Presses for Preheating and
Shaping of Solid Surface Materials
Shenzhen Deer Hunter New Technology CO.,Limited
Superior Dormitory, Yingtai Industrial Zone, Dalang Street,
Longhua District,Shenzhen,China
Postcode: 518109
Mail: sales@cndeerhunter.com
Whatsapp: +86-13823789007
Skype: fullchance100
Web: www.cndeerhunter.com
Deer Hunter - Silicone Rubber Sheet
Providing Solutions for Woodworking Vacuum Presses
