1. January 10, 2012 1
Cryptography and Network Security
Lecture 2: Classical encryption
Ion Petre
Department of IT, Åbo Akademi University
Spring 2012
http://users.abo.fi/ipetre/crypto/
http://users.abo.fi/ipetre/crypto/

2. January 10, 2012 2
Overview of the course
 I. CRYPTOGRAPHY
 Secret-key cryptography
 Classical encryption techniques
 DES, AES, RC5, RC4
 Public-key cryptography
 RSA
 Key management
 II. AUTHENTICATION
 MAC
 Hashes and message digests
 Digital signatures
 Kerberos
 III. NETWORK SECURITY
 Email security
 IP security
 Web security (SSL, secure
electronic transactions)
 Firewalls
 Wireless security
 IV. OTHER ISSUES
 Viruses
 Digital cash
 Secret sharing schemes
 Zero-knowledge techniques
http://users.abo.fi/ipetre/crypto/

3. January 10, 2012 3
Part I. Cryptography
 Will cover more than half of this course
 I.1 Secret-key cryptography
 Also called symmetric or conventional cryptography
 Five ingredients
 Plaintext
 Encryption algorithm: runs on the plaintext and the encryption key to yield the ciphertext
 Secret key: an input to the encryption algorithm, value independent of the plaintext;
different keys will yield different outputs
 Ciphertext: the scrambled text produced as an output by the encryption algorithm
 Decryption algorithm: runs on the ciphertext and the key to produce the plaintext
 Requirements for secure conventional encryption
 Strong encryption algorithm
 An opponent who knows one or more ciphertexts would not be able to find the plaintexts or the key
 Ideally, even if he knows one or more pairs plaintext-ciphertext, he would not be able to find the key
 Sender and receiver must share the same key. Once the key is compromised, all
communications using that key are readable
 It is impractical to decrypt the message on the basis of the ciphertext plus the knowledge
of the encryption algorithm  encryption algorithm is not a secret
http://users.abo.fi/ipetre/crypto/

4. January 10, 2012 4

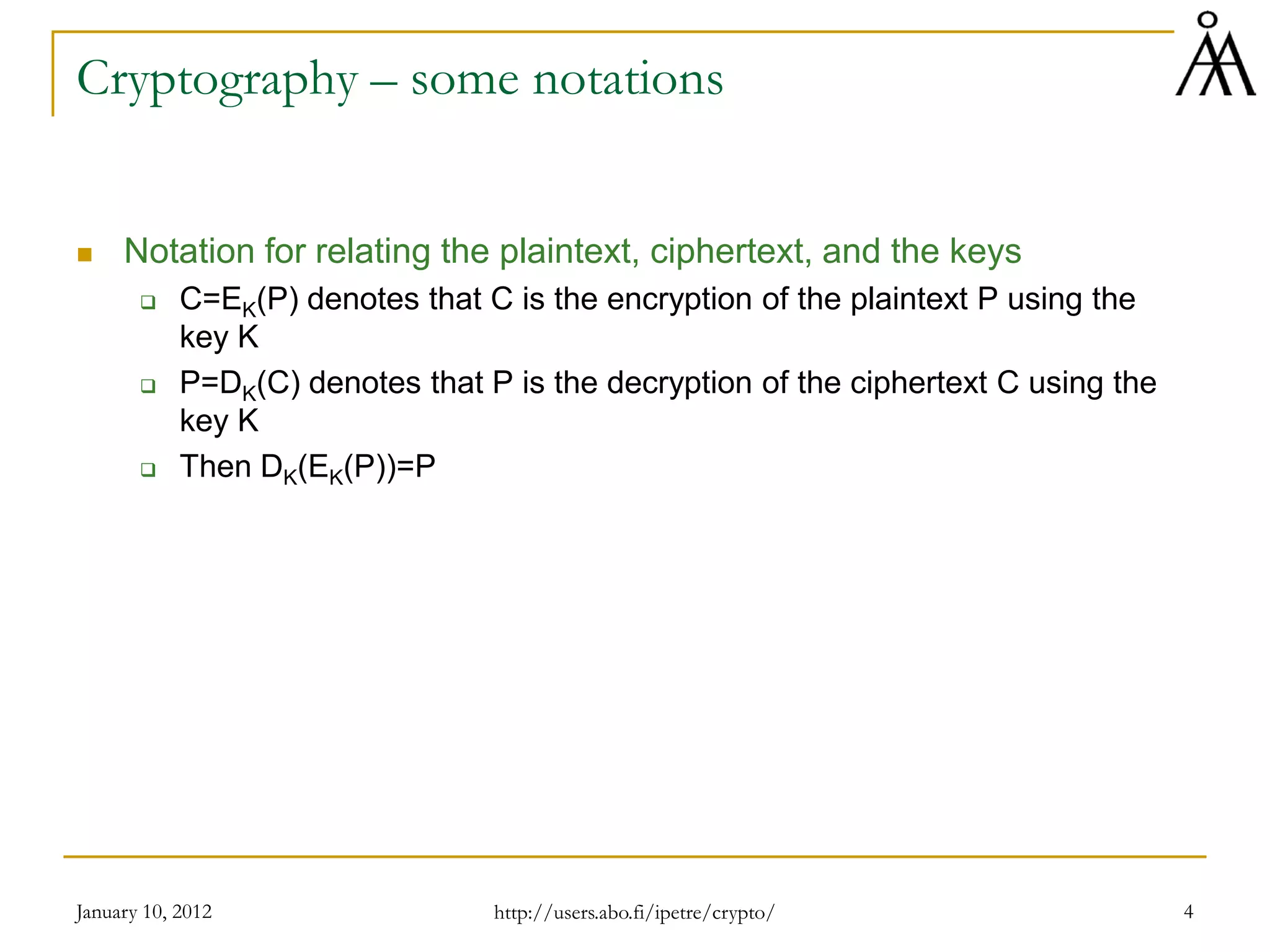

Cryptography – some notations
 Notation for relating the plaintext, ciphertext, and the keys
 C=EK(P) denotes that C is the encryption of the plaintext P using the
key K
 P=DK(C) denotes that P is the decryption of the ciphertext C using the
key K
 Then DK(EK(P))=P
http://users.abo.fi/ipetre/crypto/

5. January 10, 2012 5
Caesar Cipher
 It is a typical substitution cipher and the oldest known – attributed to Julius
Caesar
 Simple rule: replace each letter of the alphabet with the letter standing 3
places further down the alphabet
 Example:
MEET ME AFTER THE TOGA PARTY
PHHW PH DIWHU WKH WRJD SDUWB
 Here the key is 3 – choose another key to get a different substitution
 The alphabet is wrapped around so that after Z follows A:
a b c d e f g h i j k l m n o p q r s t u v w x y z
D E F G H I J K L M N O P Q R S T U V W X Y Z A B C
http://users.abo.fi/ipetre/crypto/

6. January 10, 2012 6
Caesar cipher
 Mathematically, give each letter a number
a b c d e f g h i j k l m n o p q r s t u v w x y z
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
 The key is a number from to 25
 Caesar cipher can now be given as
 E(p) = (p + k) mod (26)
 D(C) = (C – k) mod (26)
http://users.abo.fi/ipetre/crypto/

7. January 10, 2012 7

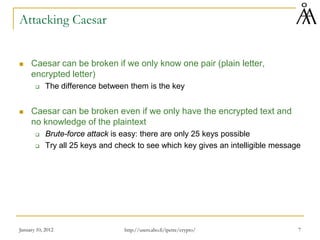

Attacking Caesar
 Caesar can be broken if we only know one pair (plain letter,
encrypted letter)
 The difference between them is the key
 Caesar can be broken even if we only have the encrypted text and
no knowledge of the plaintext
 Brute-force attack is easy: there are only 25 keys possible
 Try all 25 keys and check to see which key gives an intelligible message
http://users.abo.fi/ipetre/crypto/

8. January 10, 2012 8
From Stallings – “Cryptography and
Network Security”

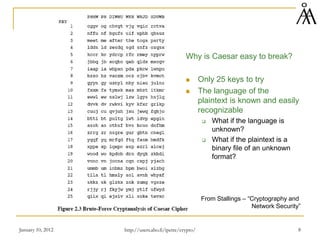

Why is Caesar easy to break?
 Only 25 keys to try
 The language of the
plaintext is known and easily
recognizable
 What if the language is
unknown?
 What if the plaintext is a
binary file of an unknown
format?
http://users.abo.fi/ipetre/crypto/

9. January 10, 2012 9

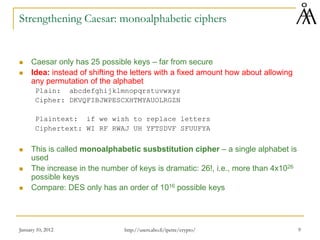

Strengthening Caesar: monoalphabetic ciphers
 Caesar only has 25 possible keys – far from secure
 Idea: instead of shifting the letters with a fixed amount how about allowing
any permutation of the alphabet
Plain: abcdefghijklmnopqrstuvwxyz
Cipher: DKVQFIBJWPESCXHTMYAUOLRGZN
Plaintext: if we wish to replace letters
Ciphertext: WI RF RWAJ UH YFTSDVF SFUUFYA
 This is called monoalphabetic susbstitution cipher – a single alphabet is
used
 The increase in the number of keys is dramatic: 26!, i.e., more than 4x1026
possible keys
 Compare: DES only has an order of 1016 possible keys
http://users.abo.fi/ipetre/crypto/

10. January 10, 2012 10

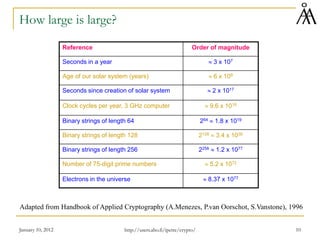

How large is large?
Adapted from Handbook of Applied Cryptography (A.Menezes, P.van Oorschot, S.Vanstone), 1996
Reference Order of magnitude
Seconds in a year ≈ 3 x 107
Age of our solar system (years) ≈ 6 x 109
Seconds since creation of solar system ≈ 2 x 1017
Clock cycles per year, 3 GHz computer ≈ 9.6 x 1016
Binary strings of length 64 264 ≈ 1.8 x 1019
Binary strings of length 128 2128 ≈ 3.4 x 1038
Binary strings of length 256 2256 ≈ 1.2 x 1077
Number of 75-digit prime numbers ≈ 5.2 x 1072
Electrons in the universe ≈ 8.37 x 1077
http://users.abo.fi/ipetre/crypto/

11. January 10, 2012 11

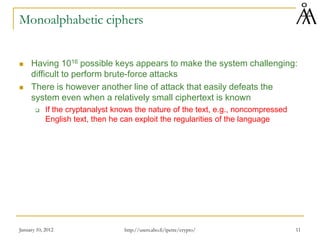

Monoalphabetic ciphers
 Having 1016 possible keys appears to make the system challenging:
difficult to perform brute-force attacks
 There is however another line of attack that easily defeats the
system even when a relatively small ciphertext is known
 If the cryptanalyst knows the nature of the text, e.g., noncompressed
English text, then he can exploit the regularities of the language
http://users.abo.fi/ipetre/crypto/

12. January 10, 2012 12

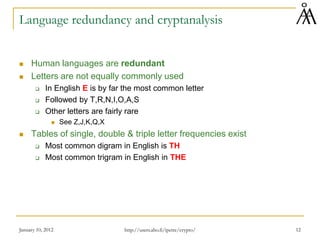

Language redundancy and cryptanalysis
 Human languages are redundant
 Letters are not equally commonly used
 In English E is by far the most common letter
 Followed by T,R,N,I,O,A,S
 Other letters are fairly rare
 See Z,J,K,Q,X
 Tables of single, double & triple letter frequencies exist
 Most common digram in English is TH
 Most common trigram in English in THE
http://users.abo.fi/ipetre/crypto/

13. January 10, 2012 13

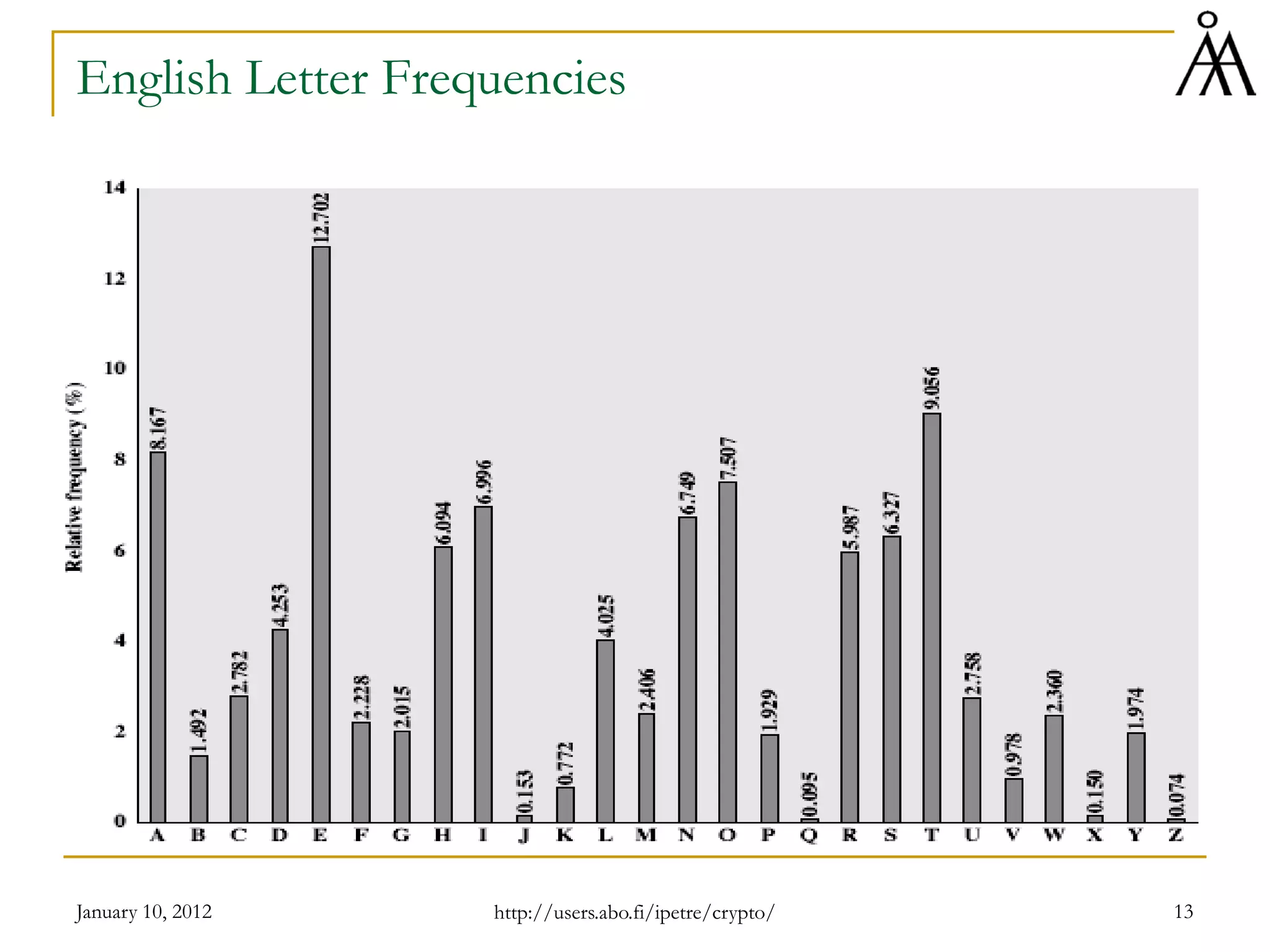

English Letter Frequencies
http://users.abo.fi/ipetre/crypto/

14. January 10, 2012 14
Cryptanalysis of monoalphabetic ciphers
 Key concept - monoalphabetic substitution ciphers do not change relative
letter frequencies
 Discovered by Arabs in the 9th century
 Calculate letter frequencies for ciphertext
 Compare counts/plots against known values
 Most frequent letter in the ciphertext may well encrypt E
 The next one could encrypt T or A
 After relatively few tries the system is broken
 If the ciphertext is relatively short (and so, the frequencies are not fully relevant)
then more guesses may be needed
 Powerful tool: look at the frequency of two-letter combinations (digrams)
http://users.abo.fi/ipetre/crypto/

15. January 10, 2012 15

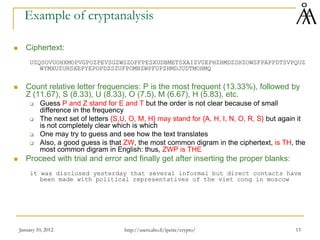

Example of cryptanalysis
 Ciphertext:
UZQSOVUOHXMOPVGPOZPEVSGZWSZOPFPESXUDBMETSXAIZVUEPHZHMDZSHZOWSFPAPPDTSVPQUZ
WYMXUZUHSXEPYEPOPDZSZUFPOMBZWPFUPZHMDJUDTMOHMQ
 Count relative letter frequencies: P is the most frequent (13.33%), followed by
Z (11.67), S (8.33), U (8.33), O (7.5), M (6.67), H (5.83), etc.
 Guess P and Z stand for E and T but the order is not clear because of small
difference in the frequency
 The next set of letters {S,U, O, M, H} may stand for {A, H, I, N, O, R, S} but again it
is not completely clear which is which
 One may try to guess and see how the text translates
 Also, a good guess is that ZW, the most common digram in the ciphertext, is TH, the
most common digram in English: thus, ZWP is THE
 Proceed with trial and error and finally get after inserting the proper blanks:
it was disclosed yesterday that several informal but direct contacts have
been made with political representatives of the viet cong in moscow
http://users.abo.fi/ipetre/crypto/

16. January 10, 2012 16

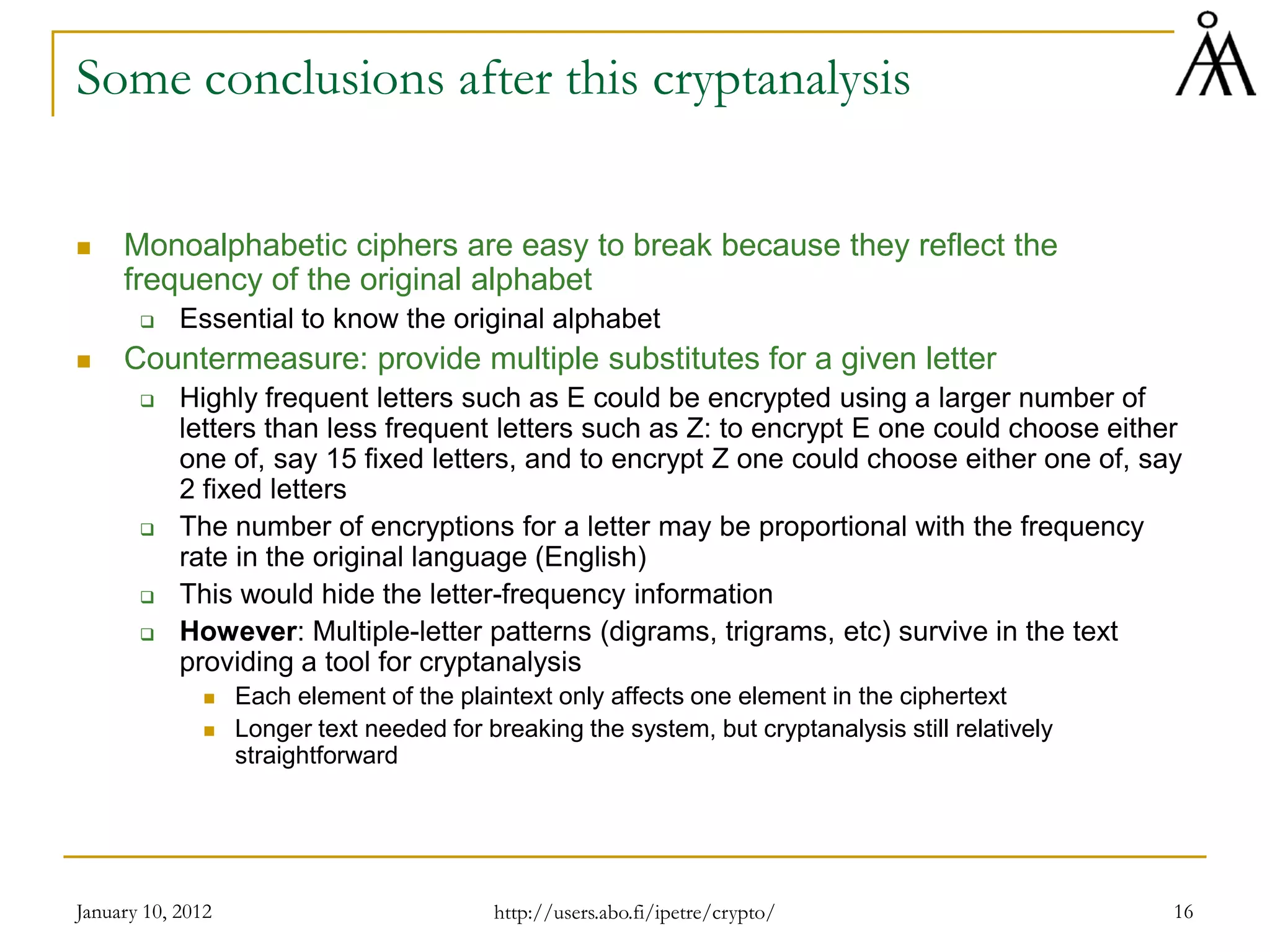

Some conclusions after this cryptanalysis
 Monoalphabetic ciphers are easy to break because they reflect the
frequency of the original alphabet
 Essential to know the original alphabet
 Countermeasure: provide multiple substitutes for a given letter
 Highly frequent letters such as E could be encrypted using a larger number of
letters than less frequent letters such as Z: to encrypt E one could choose either
one of, say 15 fixed letters, and to encrypt Z one could choose either one of, say
2 fixed letters
 The number of encryptions for a letter may be proportional with the frequency
rate in the original language (English)
 This would hide the letter-frequency information
 However: Multiple-letter patterns (digrams, trigrams, etc) survive in the text
providing a tool for cryptanalysis
 Each element of the plaintext only affects one element in the ciphertext
 Longer text needed for breaking the system, but cryptanalysis still relatively
straightforward
http://users.abo.fi/ipetre/crypto/

17. January 10, 2012 17

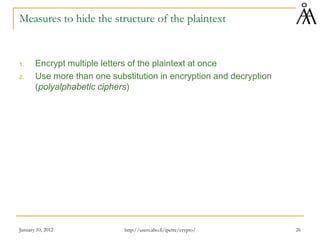

Measures to hide the structure of the plaintext
1. Encrypt multiple letters of the plaintext at once
2. Use more than one substitution in encryption and decryption
(polyalphabetic ciphers)
 Consider both these approaches in the following
http://users.abo.fi/ipetre/crypto/

18. January 10, 2012 18

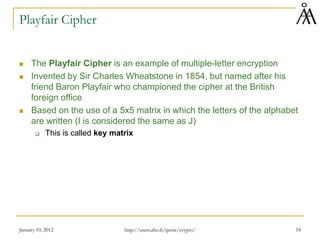

Playfair Cipher
 The Playfair Cipher is an example of multiple-letter encryption
 Invented by Sir Charles Wheatstone in 1854, but named after his
friend Baron Playfair who championed the cipher at the British
foreign office
 Based on the use of a 5x5 matrix in which the letters of the alphabet
are written (I is considered the same as J)
 This is called key matrix
http://users.abo.fi/ipetre/crypto/

19. January 10, 2012 19

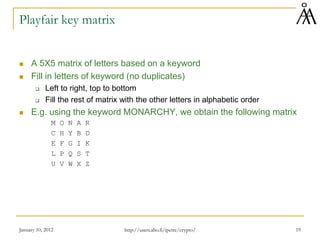

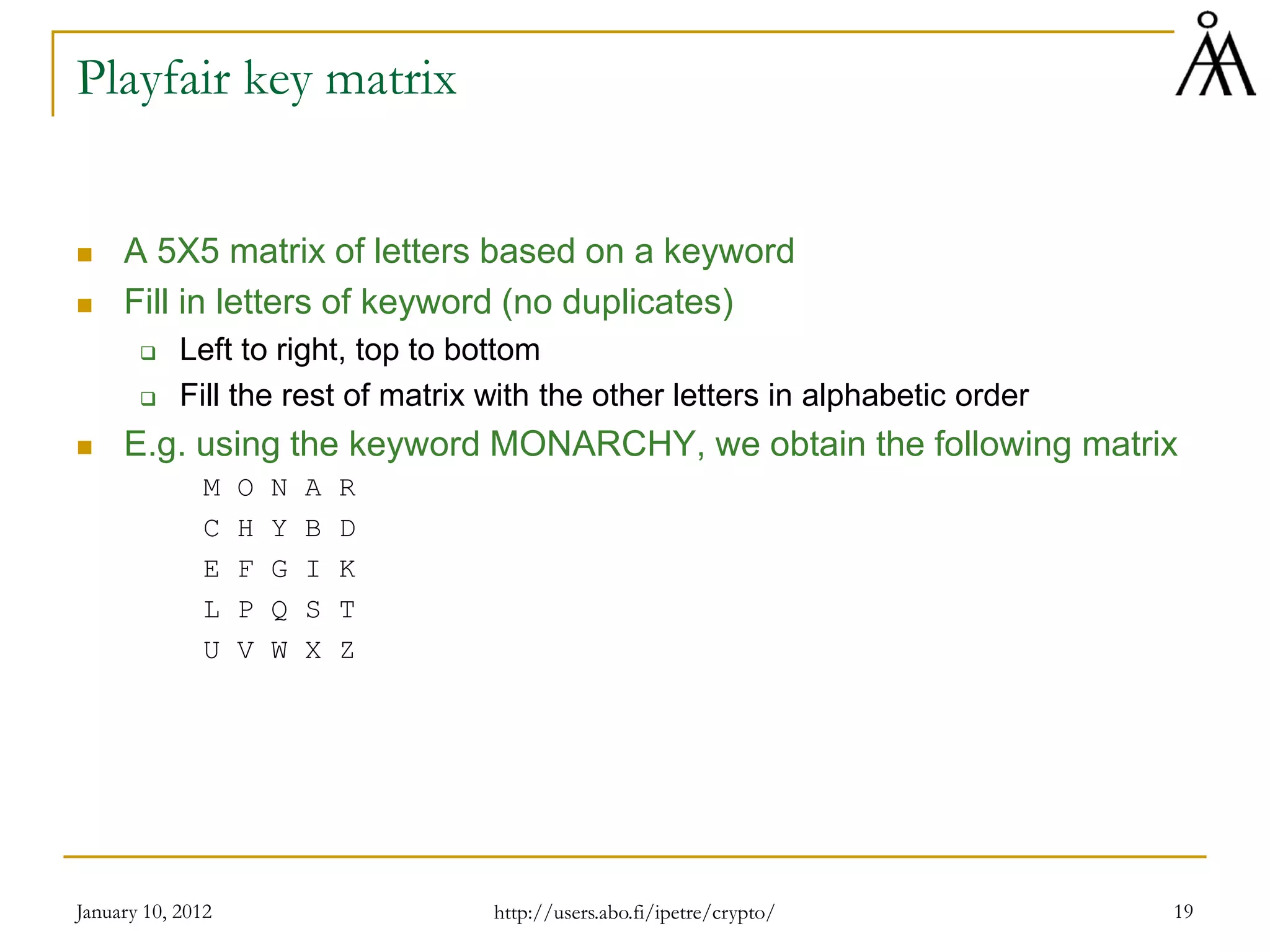

Playfair key matrix
 A 5X5 matrix of letters based on a keyword
 Fill in letters of keyword (no duplicates)
 Left to right, top to bottom
 Fill the rest of matrix with the other letters in alphabetic order
 E.g. using the keyword MONARCHY, we obtain the following matrix
M O N A R
C H Y B D
E F G I K
L P Q S T
U V W X Z
http://users.abo.fi/ipetre/crypto/

20. January 10, 2012 20

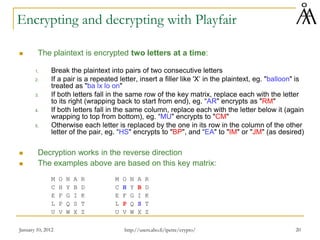

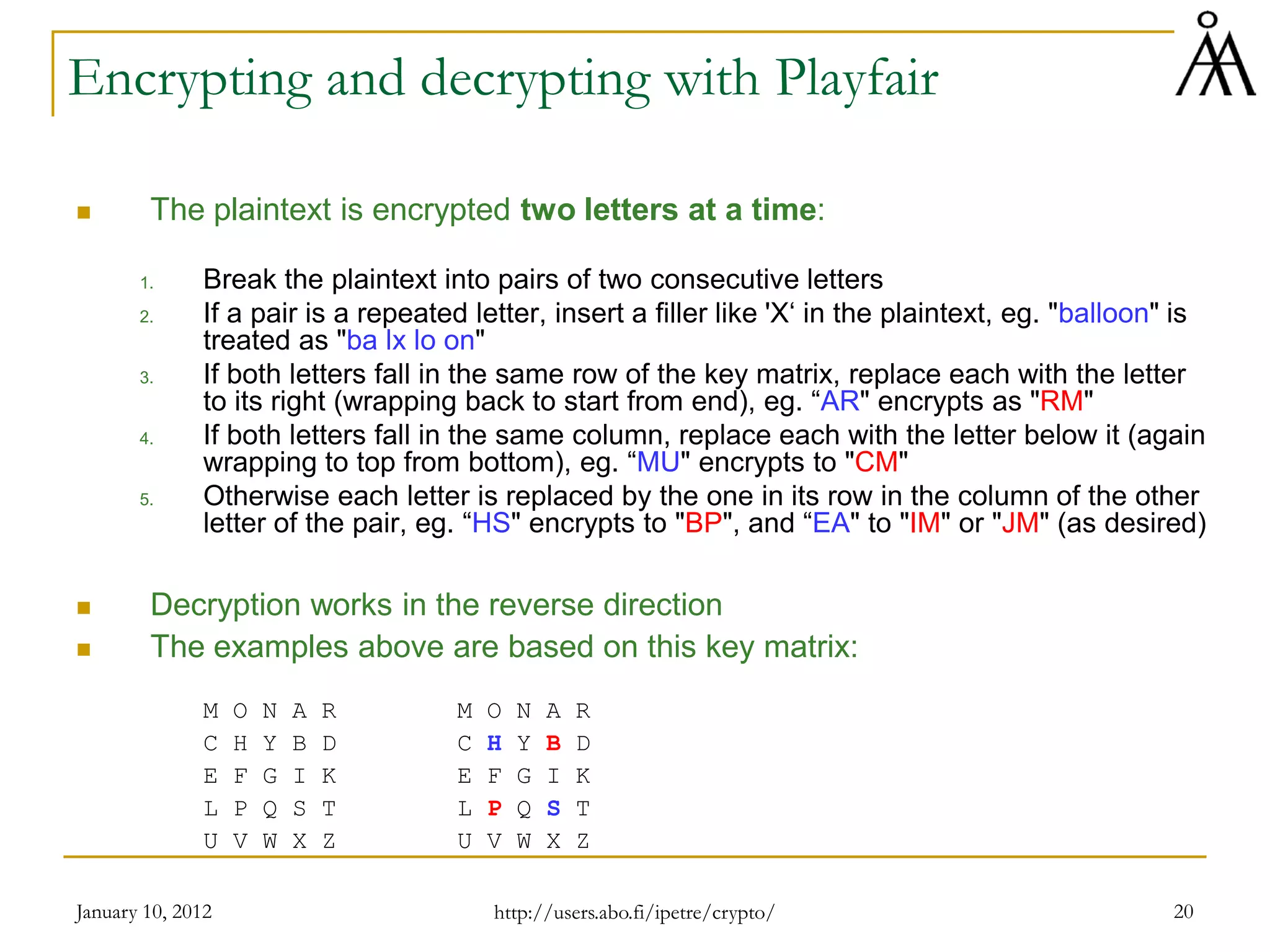

Encrypting and decrypting with Playfair
 The plaintext is encrypted two letters at a time:
1. Break the plaintext into pairs of two consecutive letters
2. If a pair is a repeated letter, insert a filler like 'X‘ in the plaintext, eg. "balloon" is
treated as "ba lx lo on"
3. If both letters fall in the same row of the key matrix, replace each with the letter
to its right (wrapping back to start from end), eg. “AR" encrypts as "RM"
4. If both letters fall in the same column, replace each with the letter below it (again
wrapping to top from bottom), eg. “MU" encrypts to "CM"
5. Otherwise each letter is replaced by the one in its row in the column of the other
letter of the pair, eg. “HS" encrypts to "BP", and “EA" to "IM" or "JM" (as desired)
 Decryption works in the reverse direction
 The examples above are based on this key matrix:
M O N A R M O N A R
C H Y B D C H Y B D
E F G I K E F G I K
L P Q S T L P Q S T
U V W X Z U V W X Z
http://users.abo.fi/ipetre/crypto/

21. January 10, 2012 21

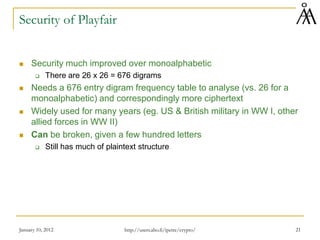

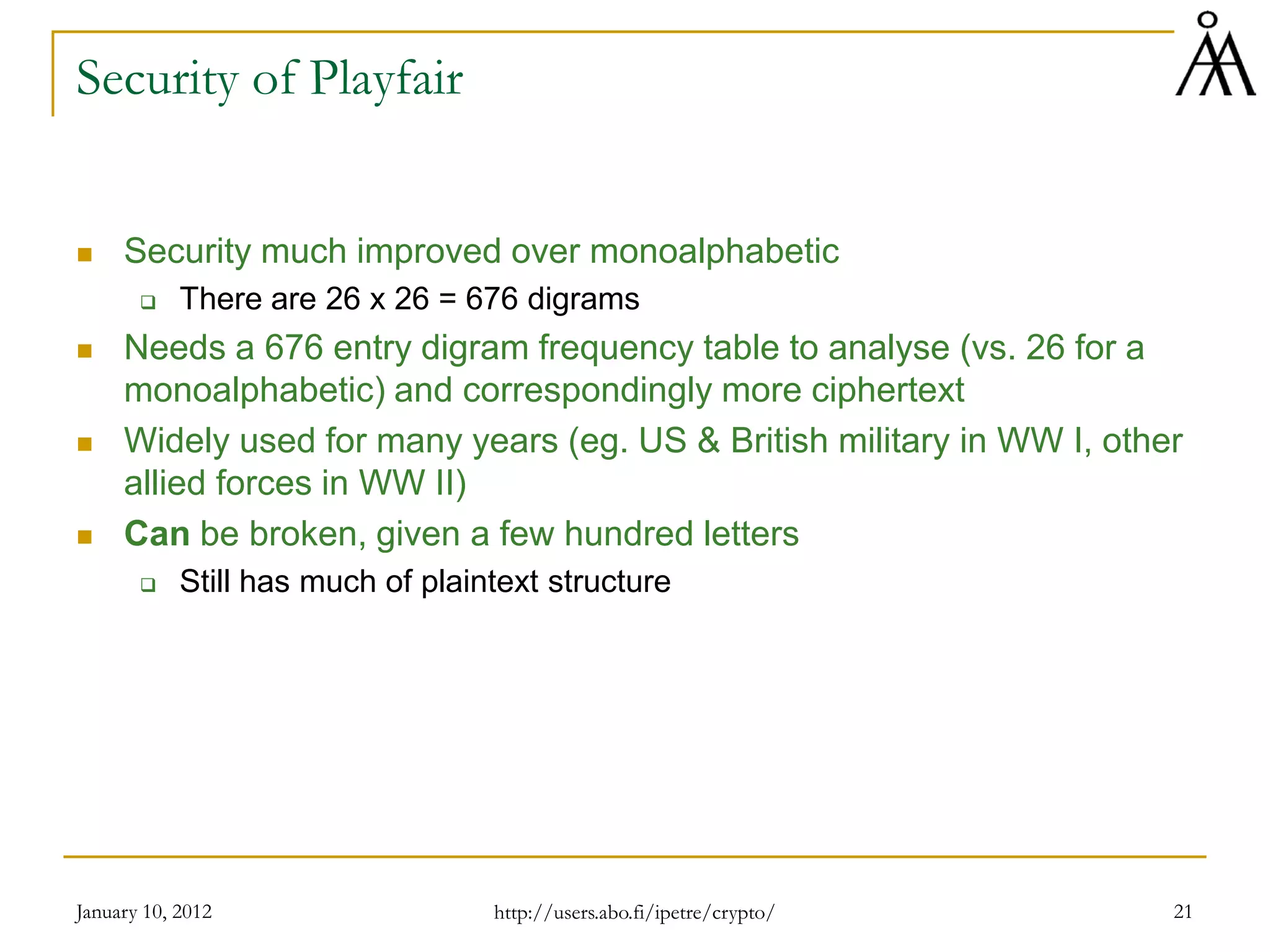

Security of Playfair
 Security much improved over monoalphabetic
 There are 26 x 26 = 676 digrams
 Needs a 676 entry digram frequency table to analyse (vs. 26 for a
monoalphabetic) and correspondingly more ciphertext
 Widely used for many years (eg. US & British military in WW I, other
allied forces in WW II)
 Can be broken, given a few hundred letters
 Still has much of plaintext structure
http://users.abo.fi/ipetre/crypto/

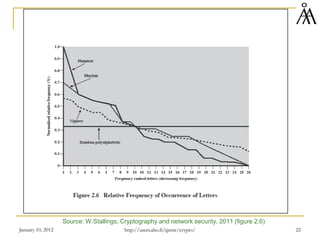

22. Source: W.Stallings, Cryptography and network security, 2011 (figure 2.6)
January 10, 2012 22
http://users.abo.fi/ipetre/crypto/

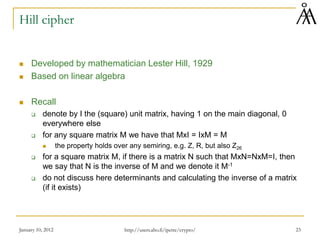

23. Hill cipher
 Developed by mathematician Lester Hill, 1929
 Based on linear algebra
 Recall
 denote by I the (square) unit matrix, having 1 on the main diagonal, 0
everywhere else
 for any square matrix M we have that MxI = IxM = M
 the property holds over any semiring, e.g. Z, R, but also Z26
 for a square matrix M, if there is a matrix N such that MxN=NxM=I, then
we say that N is the inverse of M and we denote it M-1
 do not discuss here determinants and calculating the inverse of a matrix
(if it exists)
January 10, 2012 23
http://users.abo.fi/ipetre/crypto/

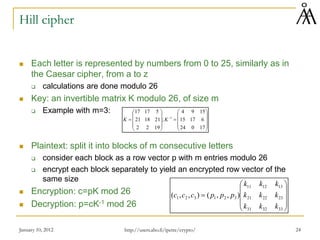

24. Hill cipher
 Each letter is represented by numbers from 0 to 25, similarly as in
the Caesar cipher, from a to z
 calculations are done modulo 26
 Key: an invertible matrix K modulo 26, of size m
 Example with m=3:
 Plaintext: split it into blocks of m consecutive letters
 consider each block as a row vector p with m entries modulo 26
 encrypt each block separately to yield an encrypted row vector of the
same size
 Encryption: c=pK mod 26
 Decryption: p=cK-1 mod 26
January 10, 2012 24










=










= −
17
0
24
6
17
15
15
9
4
;
19
2
2
21
18
21
5
17
17
1
K
K










=
33
32
31
23
22
21
13
12
11
3
2
1
3
2
1 )
,
,
(
)
,
,
(
k
k
k
k
k
k
k
k
k
p
p
p
c
c
c
http://users.abo.fi/ipetre/crypto/

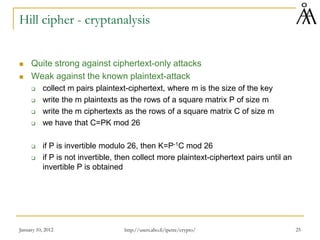

25. Hill cipher - cryptanalysis
 Quite strong against ciphertext-only attacks
 Weak against the known plaintext-attack
 collect m pairs plaintext-ciphertext, where m is the size of the key
 write the m plaintexts as the rows of a square matrix P of size m
 write the m ciphertexts as the rows of a square matrix C of size m
 we have that C=PK mod 26
 if P is invertible modulo 26, then K=P-1C mod 26
 if P is not invertible, then collect more plaintext-ciphertext pairs until an
invertible P is obtained
January 10, 2012 25
http://users.abo.fi/ipetre/crypto/

26. January 10, 2012 26
Measures to hide the structure of the plaintext
1. Encrypt multiple letters of the plaintext at once
2. Use more than one substitution in encryption and decryption
(polyalphabetic ciphers)
http://users.abo.fi/ipetre/crypto/

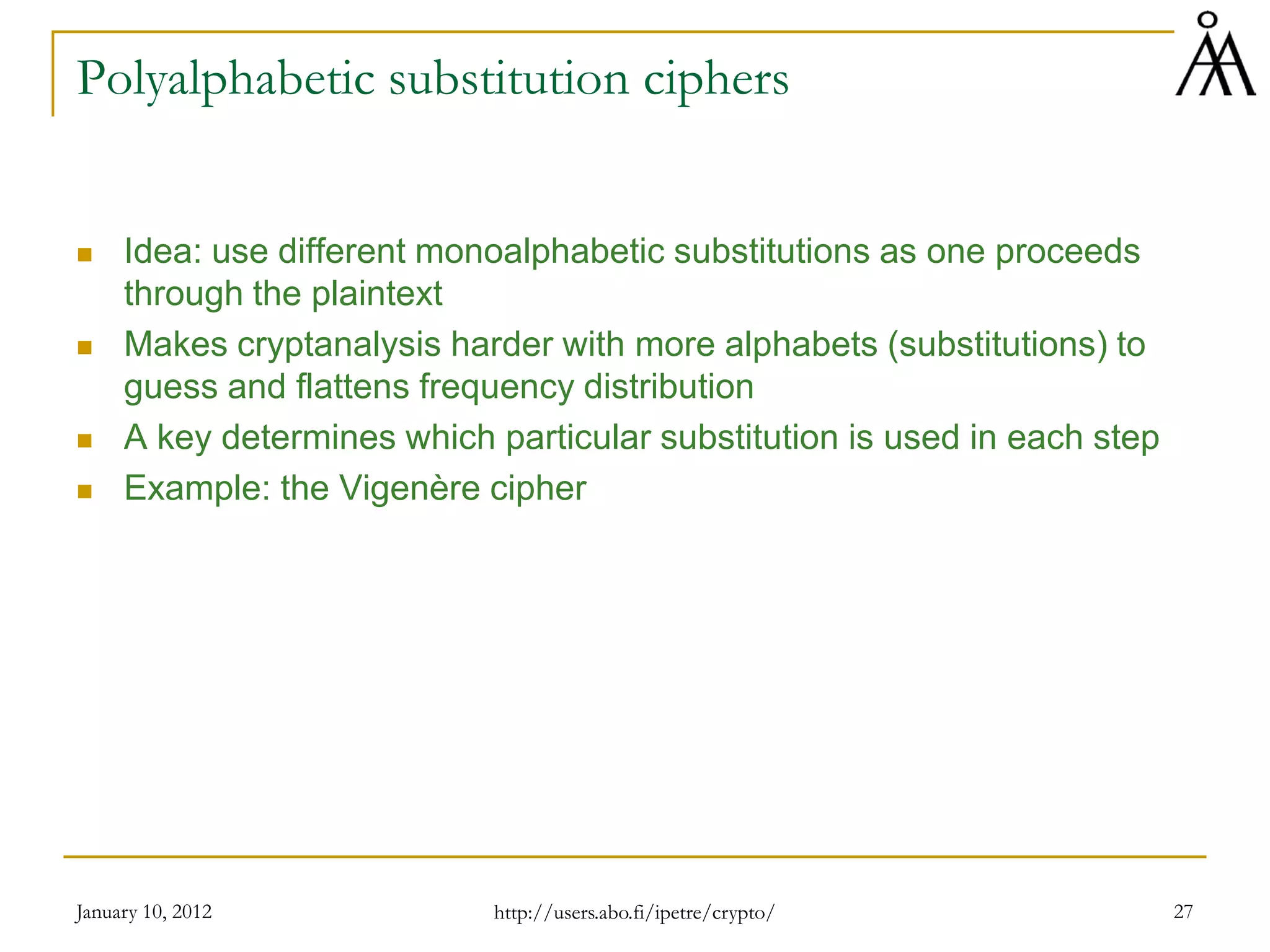

27. January 10, 2012 27

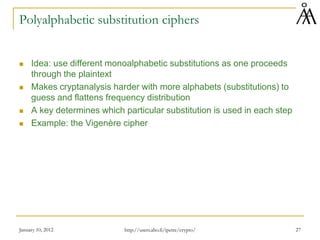

Polyalphabetic substitution ciphers
 Idea: use different monoalphabetic substitutions as one proceeds
through the plaintext
 Makes cryptanalysis harder with more alphabets (substitutions) to
guess and flattens frequency distribution
 A key determines which particular substitution is used in each step
 Example: the Vigenère cipher
http://users.abo.fi/ipetre/crypto/

28. January 10, 2012 28
Vigenère Cipher
 Proposed by Giovan Batista Belaso (1553) and reinvented by Blaise de
Vigenère (1586), called “le chiffre indéchiffrable” for 300 years
 Effectively multiple Caesar ciphers
 Key is a word K = k1 k2 ... kd
 Encryption
 Read one letter t from the plaintext and one letter k from the key-word
 t is encrypted according to the Caesar cipher with key k
 for the next plain-letter, use the next letter from the key-word
 When the key word is finished, start the reading of the key from the beginning
 In other words: ci=(pi+ki mod m) mod 26
 Decryption works in reverse
 Example: key is “bcde”; “testing” is encrypted as “ugvxjpj”
 Note that the two ‘t’ are encrypted by different letters: ‘u’ and ‘x’
 The two ‘j’ in the cryptotext come from different plain letters: ‘i’ and ‘j’
http://users.abo.fi/ipetre/crypto/

29. January 10, 2012 29

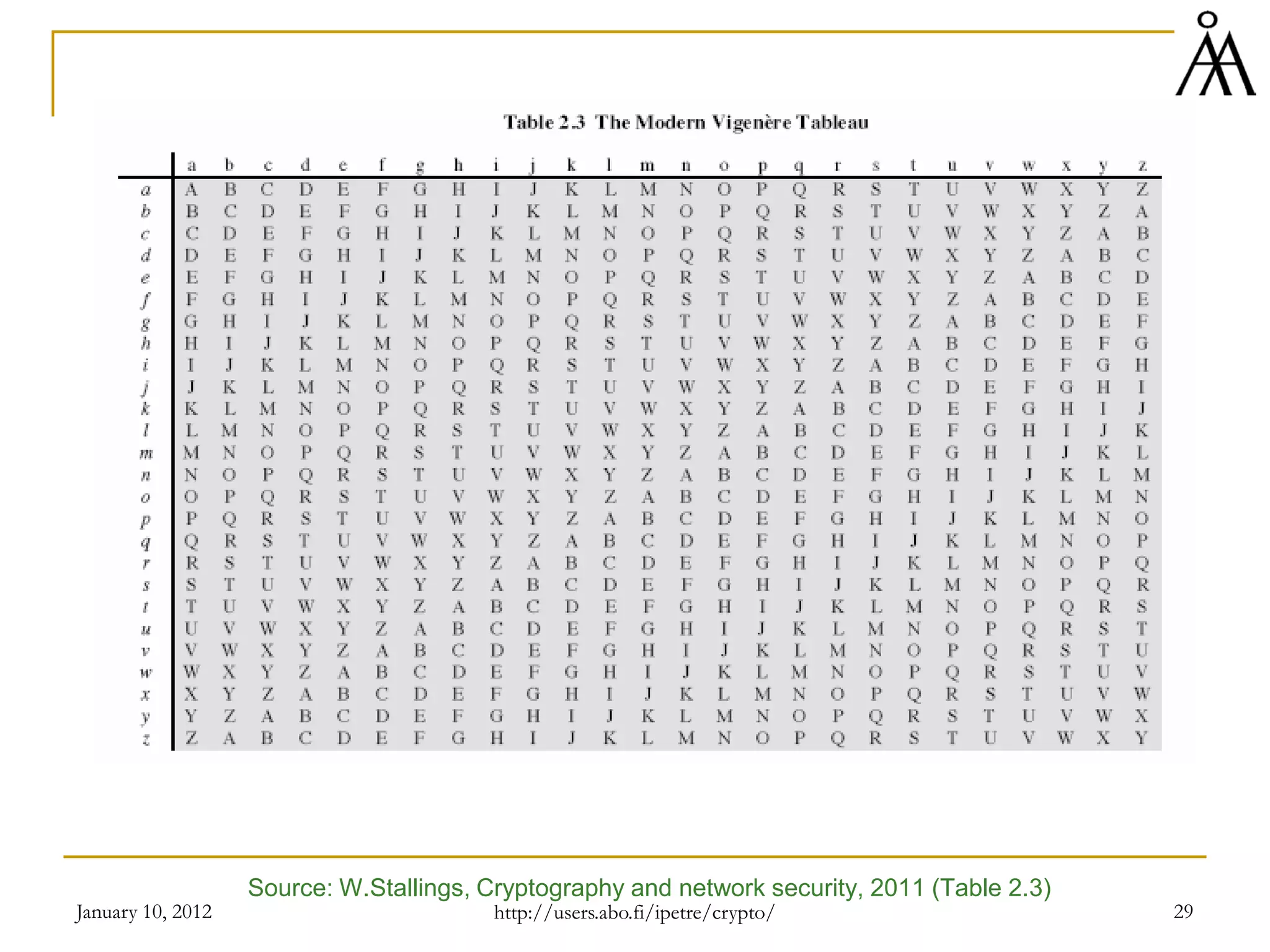

Source: W.Stallings, Cryptography and network security, 2011 (Table 2.3)
http://users.abo.fi/ipetre/crypto/

30. January 10, 2012 30

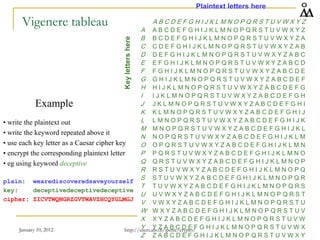

Vigenere tableau A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
A A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
B B C D E F G H I J K L M N O P Q R S T U V W X Y Z A
C C D E F G H I J K L M N O P Q R S T U V W X Y Z A B
D D E F G H I J K L M N O P Q R S T U V W X Y Z A B C
E E F G H I J K L M N O P Q R S T U V W X Y Z A B C D
F F G H I J K L M N O P Q R S T U V W X Y Z A B C D E
G G H I J K L M N O P Q R S T U V W X Y Z A B C D E F
H H I J K L M N O P Q R S T U V W X Y Z A B C D E F G
I I J K L M N O P Q R S T U V W X Y Z A B C D E F G H
J J K L M N O P Q R S T U V W X Y Z A B C D E F G H I
K K L M N O P Q R S T U V W X Y Z A B C D E F G H I J
L L M N O P Q R S T U V W X Y Z A B C D E F G H I J K
M M N O P Q R S T U V W X Y Z A B C D E F G H I J K L
N N O P Q R S T U V W X Y Z A B C D E F G H I J K L M
O O P Q R S T U V W X Y Z A B C D E F G H I J K L M N
P P Q R S T U V W X Y Z A B C D E F G H I J K L M N O
Q Q R S T U V W X Y Z A B C D E F G H I J K L M N O P
R R S T U V W X Y Z A B C D E F G H I J K L M N O P Q
S S T U V W X Y Z A B C D E F G H I J K L M N O P Q R
T T U V W X Y Z A B C D E F G H I J K L M N O P Q R S
U U V W X Y Z A B C D E F G H I J K L M N O P Q R S T
V V W X Y Z A B C D E F G H I J K L M N O P Q R S T U
W W X Y Z A B C D E F G H I J K L M N O P Q R S T U V
X X Y Z A B C D E F G H I J K L M N O P Q R S T U V W
Y Y Z A B C D E F G H I J K L M N O P Q R S T U V W X
Z Z A B C D E F G H I J K L M N O P Q R S T U V W X Y
Example
• write the plaintext out
• write the keyword repeated above it
• use each key letter as a Caesar cipher key
• encrypt the corresponding plaintext letter
• eg using keyword deceptive
plain: wearediscoveredsaveyourself
key: deceptivedeceptivedeceptive
cipher: ZICVTWQNGRZGVTWAVZHCQYGLMGJ
Plaintext letters here
Key
letters
here
http://users.abo.fi/ipetre/crypto/

31. January 10, 2012 31

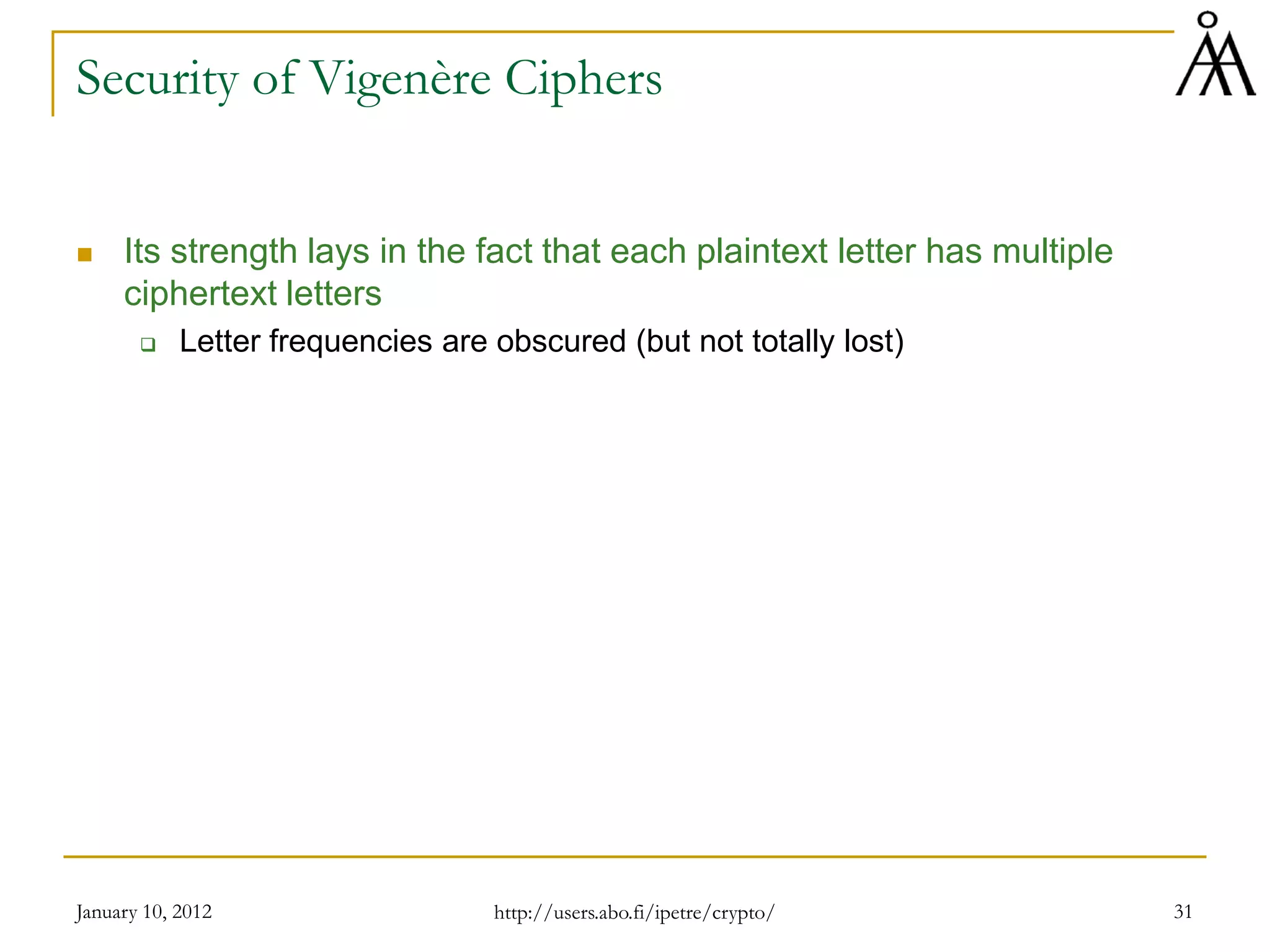

Security of Vigenère Ciphers
 Its strength lays in the fact that each plaintext letter has multiple
ciphertext letters
 Letter frequencies are obscured (but not totally lost)
http://users.abo.fi/ipetre/crypto/

32. January 10, 2012 32

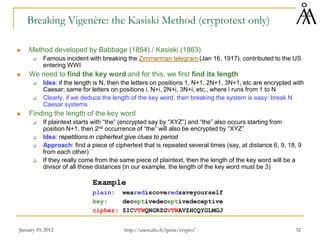

Breaking Vigenère: the Kasiski Method (cryptotext only)
 Method developed by Babbage (1854) / Kasiski (1863)
 Famous incident with breaking the Zimmerman telegram (Jan 16, 1917), contributed to the US
entering WWI
 We need to find the key word and for this, we first find its length
 Idea: if the length is N, then the letters on positions 1, N+1, 2N+1, 3N+1, etc are encrypted with
Caesar; same for letters on positions i, N+i, 2N+i, 3N+i, etc., where i runs from 1 to N
 Clearly, if we deduce the length of the key word, then breaking the system is easy: break N
Caesar systems
 Finding the length of the key word
 If plaintext starts with “the” (encrypted say by “XYZ”) and “the” also occurs starting from
position N+1, then 2nd occurrence of “the” will also be encrypted by “XYZ”
 Idea: repetitions in ciphertext give clues to period
 Approach: find a piece of ciphertext that is repeated several times (say, at distance 6, 9, 18, 9
from each other)
 If they really come from the same piece of plaintext, then the length of the key word will be a
divisor of all those distances (in our example, the length of the key word must be 3)
Example
plain: wearediscoveredsaveyourself
key: deceptivedeceptivedeceptive
cipher: ZICVTWQNGRZGVTWAVZHCQYGLMGJ
http://users.abo.fi/ipetre/crypto/

33. January 10, 2012 33
Improvement on Vigenère: autokey system
 If the key were as long as the message, then the system would be
defended against the previous attack
 Vigenère proposed the autokey cipher
 the keyword is followed by the message itself (see example bellow)
 Decryption
 Knowing the keyword can recover the first few letters
 Use these in turn on the rest of the message
 Note: the system still has frequency characteristics to attack and can be
rather easily defeated
 Example: the key is deceptive
 Weakness: plaintext and key share the same statistical distribution of
letters
plaintext: wearediscoveredsaveyourself
key: deceptivewearediscoveredsav
ciphertext: ZICVTWQNGKZEIIGASXSTSLVVWLA
http://users.abo.fi/ipetre/crypto/

34. Vernam cipher
 Proposed as a reaction to the Kasinksi method and to the statistical
attack on the auto-key method
 Proposed by Gilbert Vernam (1918), an AT&T engineer
 Key: a (very) long sequence of bits written on a self-looped tape
 Plaintext: binary sequence (rather than sequence of letters)
 Encryption: ci=pi⊕ki
 Decryption: pi=ci⊕ki
 Weakness: the repeating key
 possible attack with (very long) ciphertext or with known plaintext
January 10, 2012 34
http://users.abo.fi/ipetre/crypto/

35. January 10, 2012 35
One-Time pad
 Proposed by Army Signal Corp office Joseph Mauborgne (1918) as
an improvement over the Vernam cipher
 Idea: use a (truly) random key as long as the plaintext
 It is unbreakable since the ciphertext bears no statistical
relationship to the plaintext
 Moreover, for any plaintext & any ciphertext there exists a key
mapping one to the other
 Thus, a ciphertext can be decrypted to any plaintext of the same length
 The cryptanalyst is in an impossible situation
 Example: the ciphertext RPAY may have come from “dead”, “live”,
“book” or any other 4-letter combination
 nothing to learn about the key by listening on the channel because the
key is never repeated
http://users.abo.fi/ipetre/crypto/

36. January 10, 2012 36

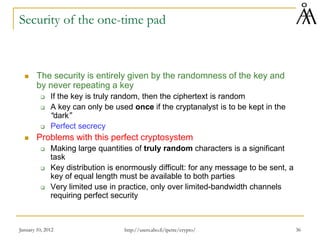

Security of the one-time pad
 The security is entirely given by the randomness of the key and
by never repeating a key
 If the key is truly random, then the ciphertext is random
 A key can only be used once if the cryptanalyst is to be kept in the
“dark”
 Perfect secrecy
 Problems with this perfect cryptosystem
 Making large quantities of truly random characters is a significant
task
 Key distribution is enormously difficult: for any message to be sent, a
key of equal length must be available to both parties
 Very limited use in practice, only over limited-bandwidth channels
requiring perfect security
http://users.abo.fi/ipetre/crypto/

37. January 10, 2012 37

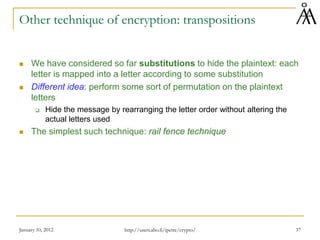

Other technique of encryption: transpositions
 We have considered so far substitutions to hide the plaintext: each
letter is mapped into a letter according to some substitution
 Different idea: perform some sort of permutation on the plaintext
letters
 Hide the message by rearranging the letter order without altering the
actual letters used
 The simplest such technique: rail fence technique
http://users.abo.fi/ipetre/crypto/

38. January 10, 2012 38
Rail Fence cipher
 Idea: write plaintext letters diagonally over a number of rows, then
read off cipher row by row
 E.g., with a rail fence of depth 2, to encrypt the text “meet me after
the toga party”, write message out as:
m e m a t r h t g p r y
e t e f e t e o a a t
 Ciphertext is read from the above row-by-row:
MEMATRHTGPRYETEFETEOAAT
 Attack: trivial (no key involved)
http://users.abo.fi/ipetre/crypto/

39. January 10, 2012 39

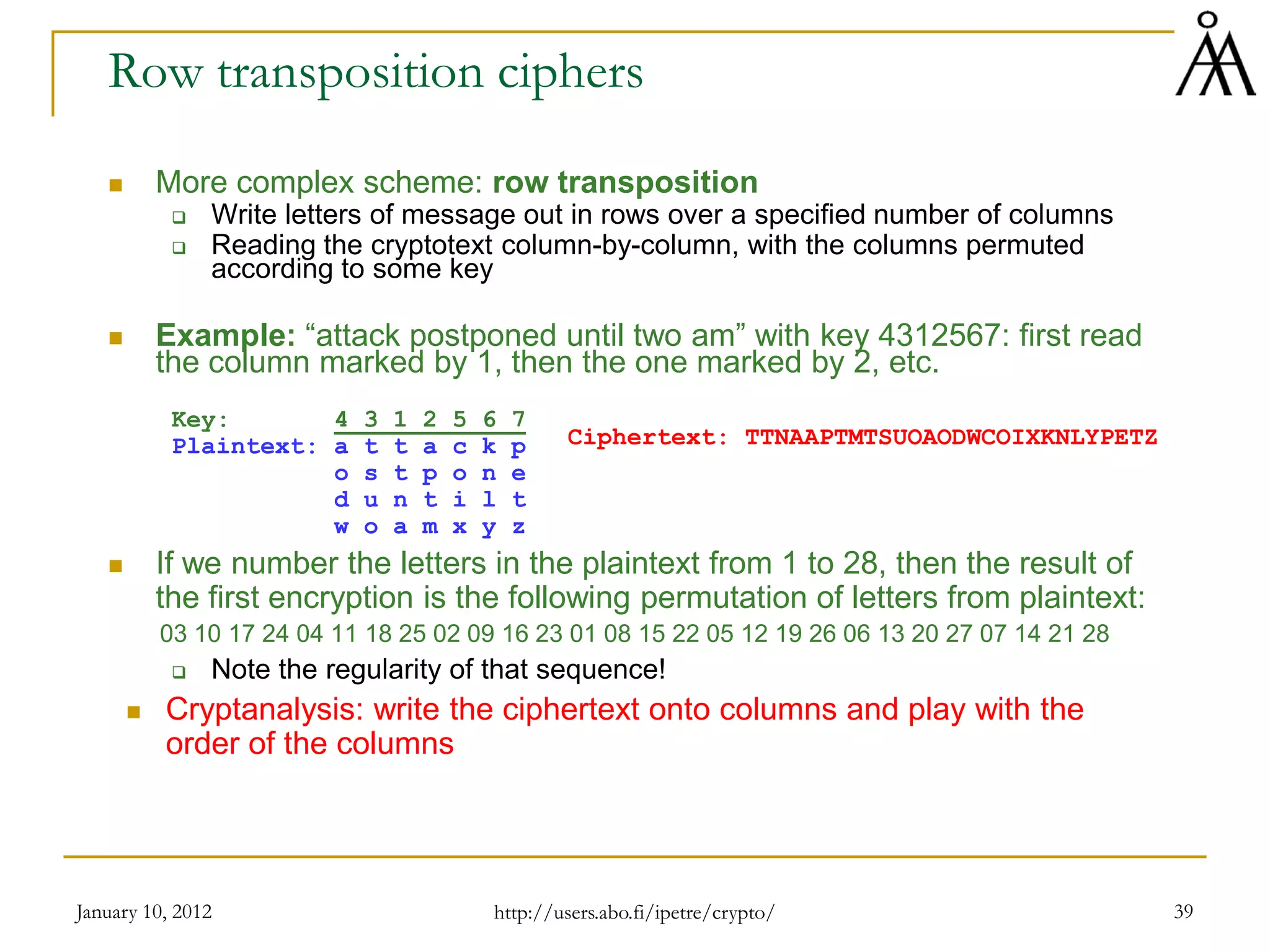

Row transposition ciphers
 More complex scheme: row transposition
 Write letters of message out in rows over a specified number of columns
 Reading the cryptotext column-by-column, with the columns permuted
according to some key
 Example: “attack postponed until two am” with key 4312567: first read
the column marked by 1, then the one marked by 2, etc.
Key: 4 3 1 2 5 6 7
Plaintext: a t t a c k p
o s t p o n e
d u n t i l t
w o a m x y z
 If we number the letters in the plaintext from 1 to 28, then the result of
the first encryption is the following permutation of letters from plaintext:
03 10 17 24 04 11 18 25 02 09 16 23 01 08 15 22 05 12 19 26 06 13 20 27 07 14 21 28
 Note the regularity of that sequence!
 Cryptanalysis: write the ciphertext onto columns and play with the
order of the columns
Ciphertext: TTNAAPTMTSUOAODWCOIXKNLYPETZ
http://users.abo.fi/ipetre/crypto/

40. January 10, 2012 40

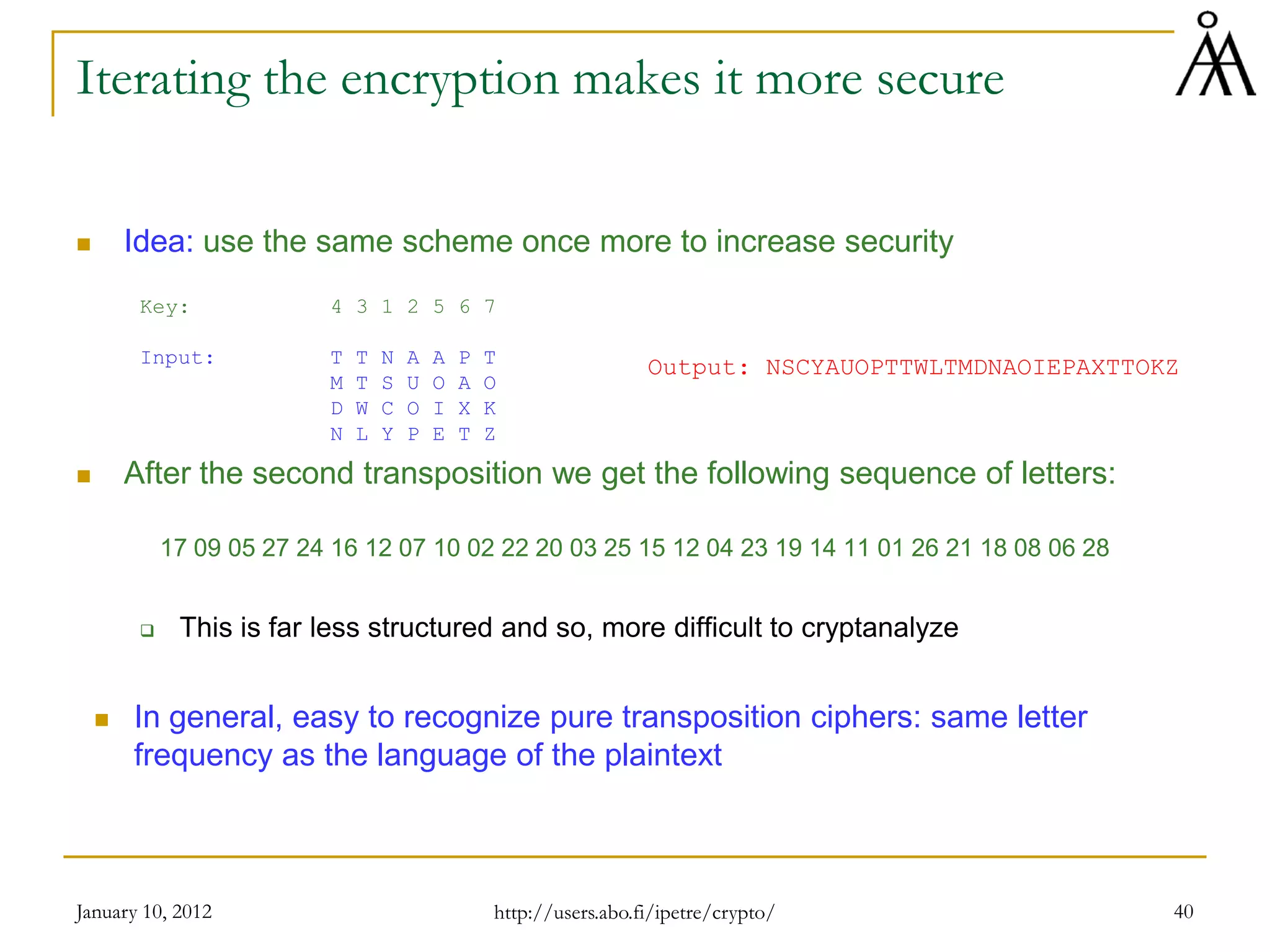

Iterating the encryption makes it more secure
 Idea: use the same scheme once more to increase security
Key: 4 3 1 2 5 6 7
Input: T T N A A P T
M T S U O A O
D W C O I X K
N L Y P E T Z
 After the second transposition we get the following sequence of letters:
17 09 05 27 24 16 12 07 10 02 22 20 03 25 15 12 04 23 19 14 11 01 26 21 18 08 06 28
 This is far less structured and so, more difficult to cryptanalyze
 In general, easy to recognize pure transposition ciphers: same letter
frequency as the language of the plaintext
Output: NSCYAUOPTTWLTMDNAOIEPAXTTOKZ
http://users.abo.fi/ipetre/crypto/

41. January 10, 2012 41

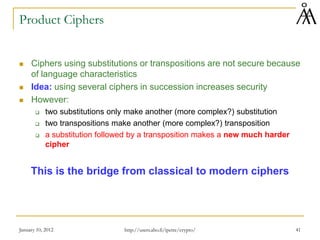

Product Ciphers
 Ciphers using substitutions or transpositions are not secure because
of language characteristics
 Idea: using several ciphers in succession increases security
 However:
 two substitutions only make another (more complex?) substitution
 two transpositions make another (more complex?) transposition
 a substitution followed by a transposition makes a new much harder
cipher
This is the bridge from classical to modern ciphers
http://users.abo.fi/ipetre/crypto/

42. January 10, 2012 42

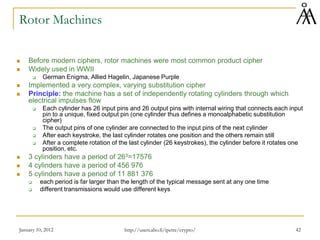

Rotor Machines
 Before modern ciphers, rotor machines were most common product cipher
 Widely used in WWII
 German Enigma, Allied Hagelin, Japanese Purple
 Implemented a very complex, varying substitution cipher
 Principle: the machine has a set of independently rotating cylinders through which
electrical impulses flow
 Each cylinder has 26 input pins and 26 output pins with internal wiring that connects each input
pin to a unique, fixed output pin (one cylinder thus defines a monoalphabetic substitution
cipher)
 The output pins of one cylinder are connected to the input pins of the next cylinder
 After each keystroke, the last cylinder rotates one position and the others remain still
 After a complete rotation of the last cylinder (26 keystrokes), the cylinder before it rotates one
position, etc.
 3 cylinders have a period of 263=17576
 4 cylinders have a period of 456 976
 5 cylinders have a period of 11 881 376
 each period is far larger than the length of the typical message sent at any one time
 different transmissions would use different keys
http://users.abo.fi/ipetre/crypto/

43. January 10, 2012 43

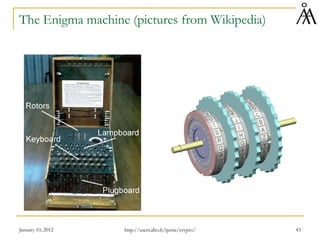

The Enigma machine (pictures from Wikipedia)
http://users.abo.fi/ipetre/crypto/

44. January 10, 2012 44

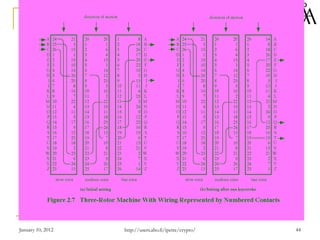

http://users.abo.fi/ipetre/crypto/
