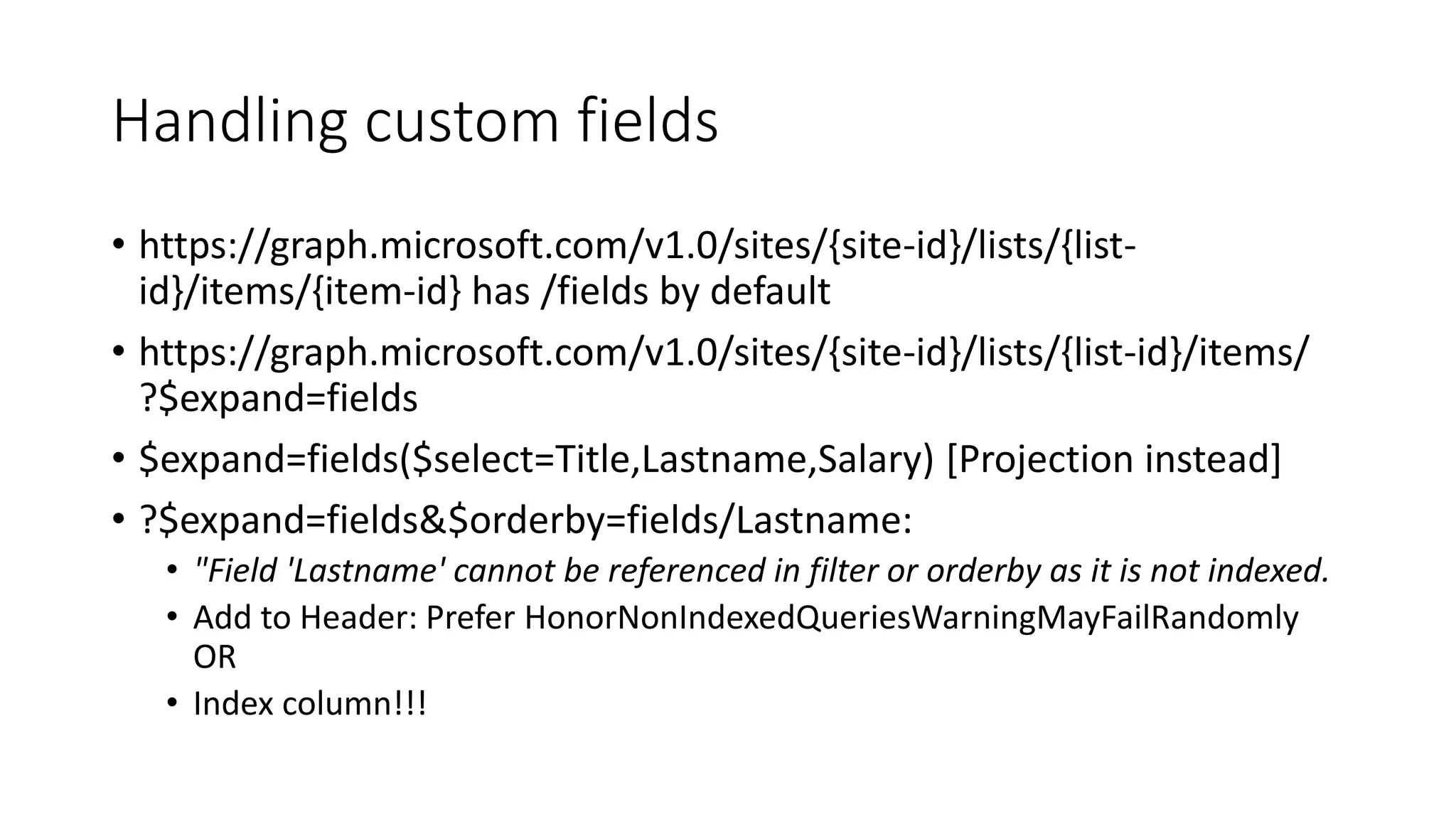

![Handling custom fields
• https://graph.microsoft.com/v1.0/sites/{site-id}/lists/{list-
id}/items/{item-id} has /fields by default
• https://graph.microsoft.com/v1.0/sites/{site-id}/lists/{list-id}/items/
?$expand=fields
• $expand=fields($select=Title,Lastname,Salary) [Projection instead]
• ?$expand=fields&$orderby=fields/Lastname:
• "Field 'Lastname' cannot be referenced in filter or orderby as it is not indexed.
• Add to Header: Prefer HonorNonIndexedQueriesWarningMayFailRandomly
OR
• Index column!!!](https://image.slidesharecdn.com/20221013sharepointgoesmicrosoftgraph-221013171153-c85486a6/75/SharePoint-goes-Microsoft-Graph-28-2048.jpg)
![Search
• POST https://graph.microsoft.com/v1.0/search/query
{ "requests": [
{
"entityTypes": [ "listItem" ],
"query": { "queryString": "*" } ,
"sortProperties": [ { "name": "createdDateTime", "isDescending": "true" } ],
"size": 10,
"from": 10,
"fields": [
"title",
"Author",
"RefinableDecimal09",
"KeyEmployeeOWSBOOL",
"LastModifiedTime"
]
}
]}](https://image.slidesharecdn.com/20221013sharepointgoesmicrosoftgraph-221013171153-c85486a6/75/SharePoint-goes-Microsoft-Graph-33-2048.jpg)

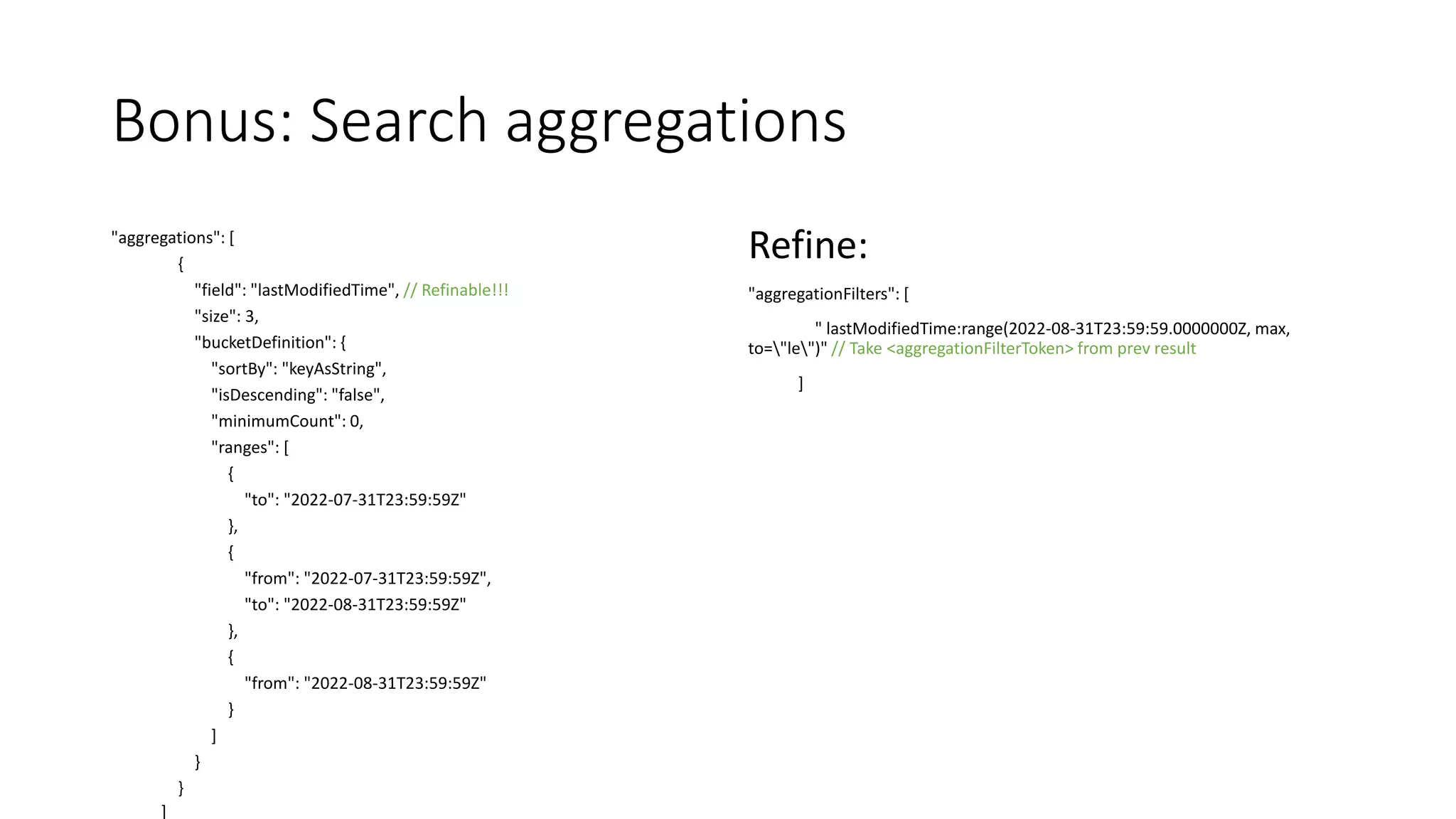

![Bonus: Search aggregations
"aggregations": [
{
"field": "lastModifiedTime", // Refinable!!!
"size": 3,
"bucketDefinition": {
"sortBy": "keyAsString",
"isDescending": "false",
"minimumCount": 0,
"ranges": [
{
"to": "2022-07-31T23:59:59Z"
},
{
"from": "2022-07-31T23:59:59Z",
"to": "2022-08-31T23:59:59Z"
},
{
"from": "2022-08-31T23:59:59Z"
}
]
}
}
]
Refine:
"aggregationFilters": [
" lastModifiedTime:range(2022-08-31T23:59:59.0000000Z, max,
to="le")" // Take <aggregationFilterToken> from prev result
]](https://image.slidesharecdn.com/20221013sharepointgoesmicrosoftgraph-221013171153-c85486a6/75/SharePoint-goes-Microsoft-Graph-34-2048.jpg)
More Related Content
Similar to SharePoint goes Microsoft Graph
SharePoint goes Microsoft Graph
- 1. SharePoint goes Microsoft Graph How touse Microsoft Graph Api to deal with SharePoint items / files
- 2. DIAMOND LEVEL PLATINUM LEVEL GOLDLEVEL THANK YOU TO OUR SPONSORS

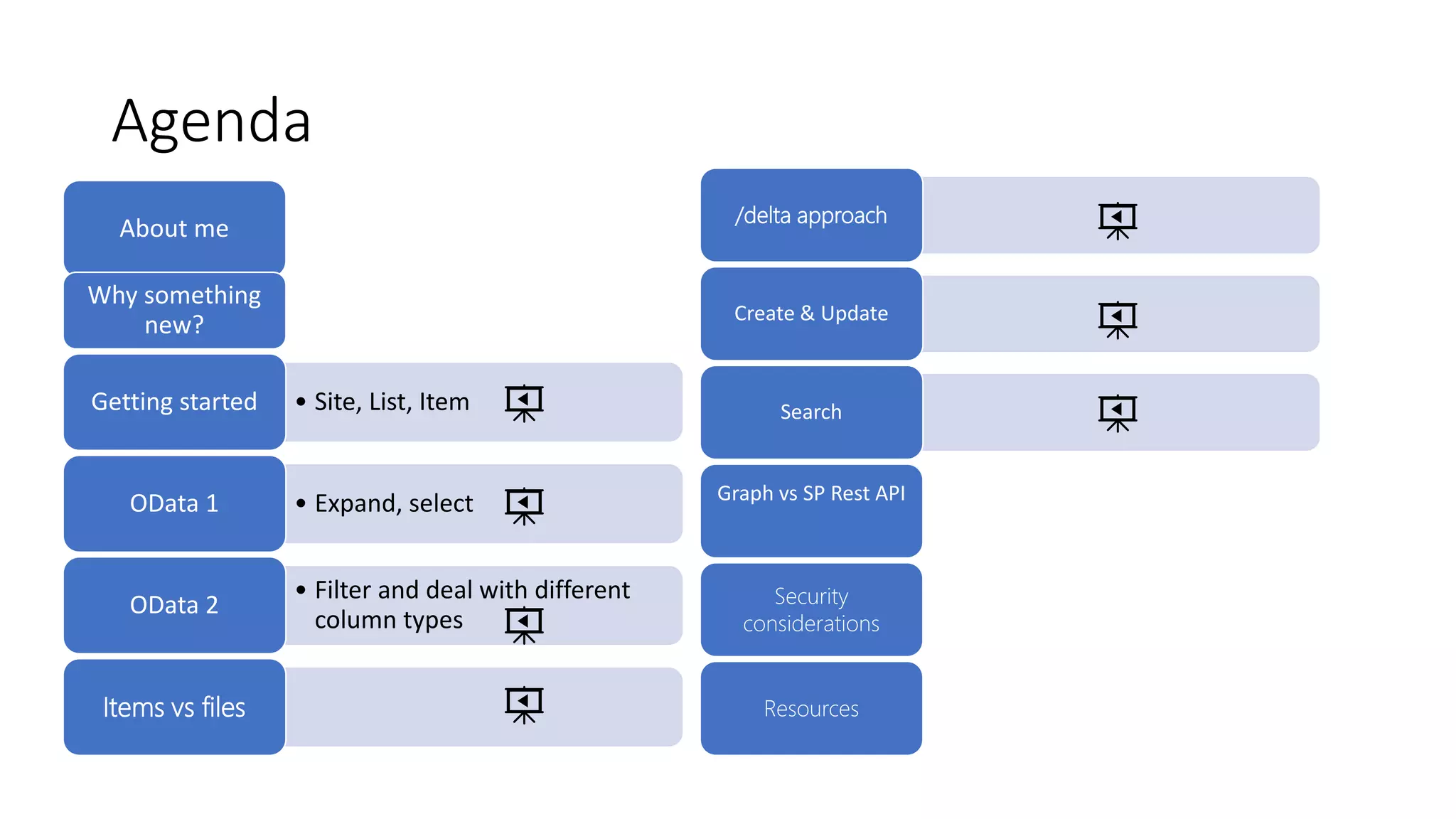

- 3. /delta approach Create &Update Search Graph vs SP Rest API Security considerations Resources Agenda About me Why something new? • Site, List, Item Getting started • Expand, select OData 1 • Filter and deal with different column types OData 2 Items vs files
- 4. • Markus Moeller •Microsoft 365 Developer Expert • Microsoft MVP • PnP community contributor • Avanade Germany • @moeller2_0 • https://mmsharepoint.wordpress.com • Proud dad of 1 (2yrs) About me

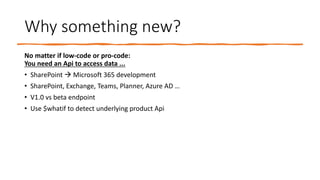

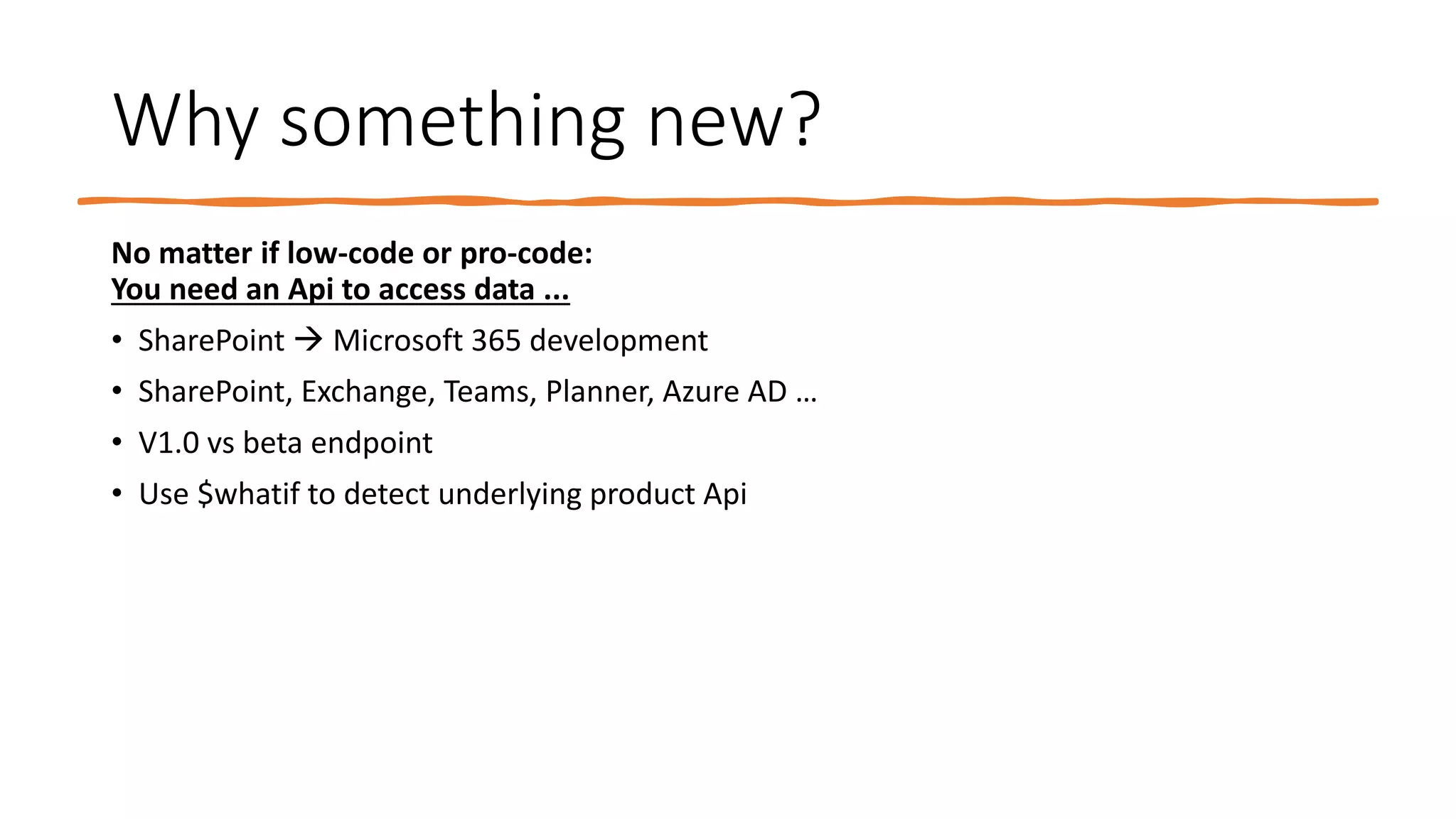

- 5. Why something new? Nomatter if low-code or pro-code: You need an Api to access data ... • SharePoint → Microsoft 365 development • SharePoint, Exchange, Teams, Planner, Azure AD … • V1.0 vs beta endpoint • Use $whatif to detect underlying product Api

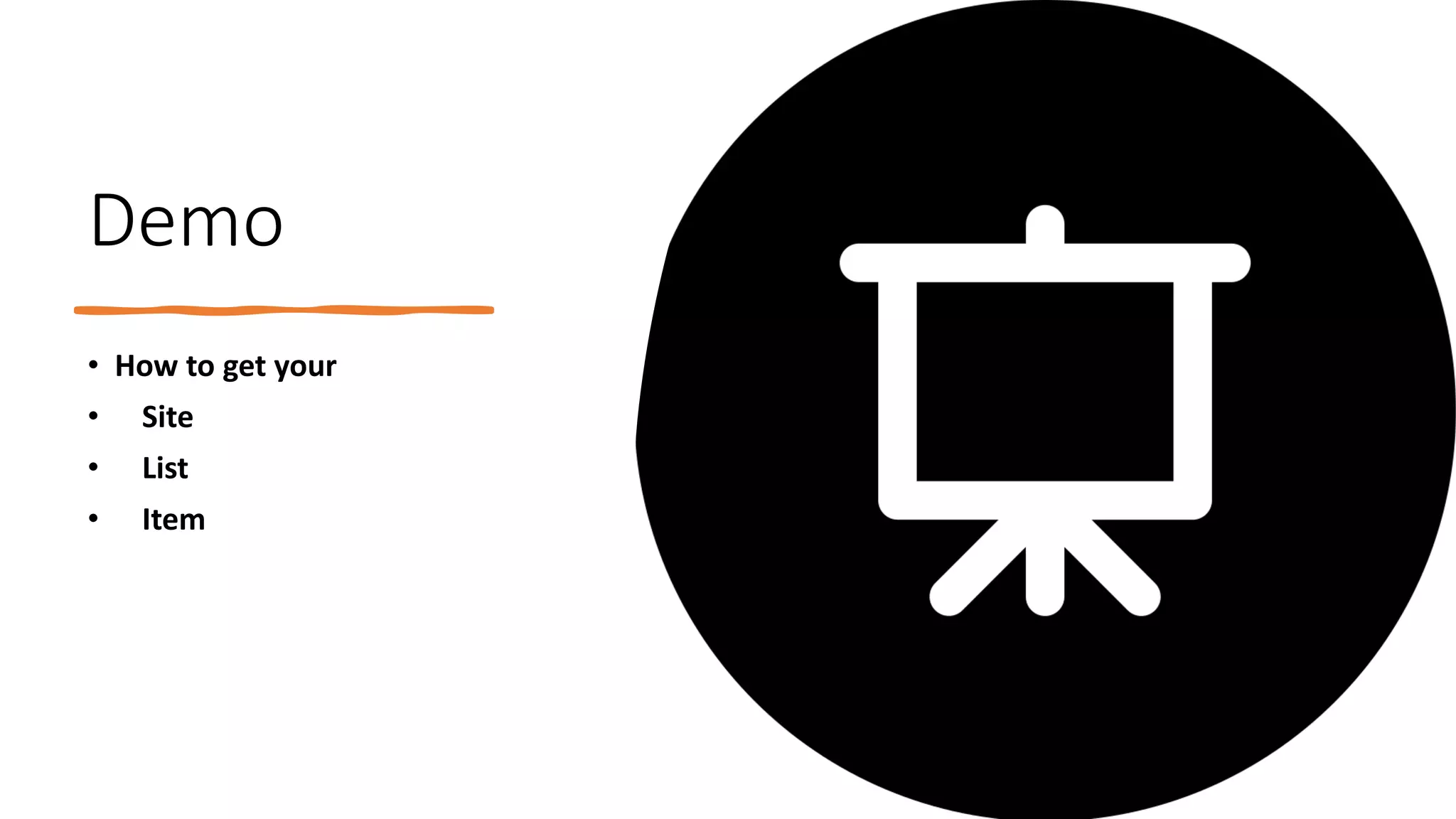

- 6. Demo • How toget your • Site • List • Item

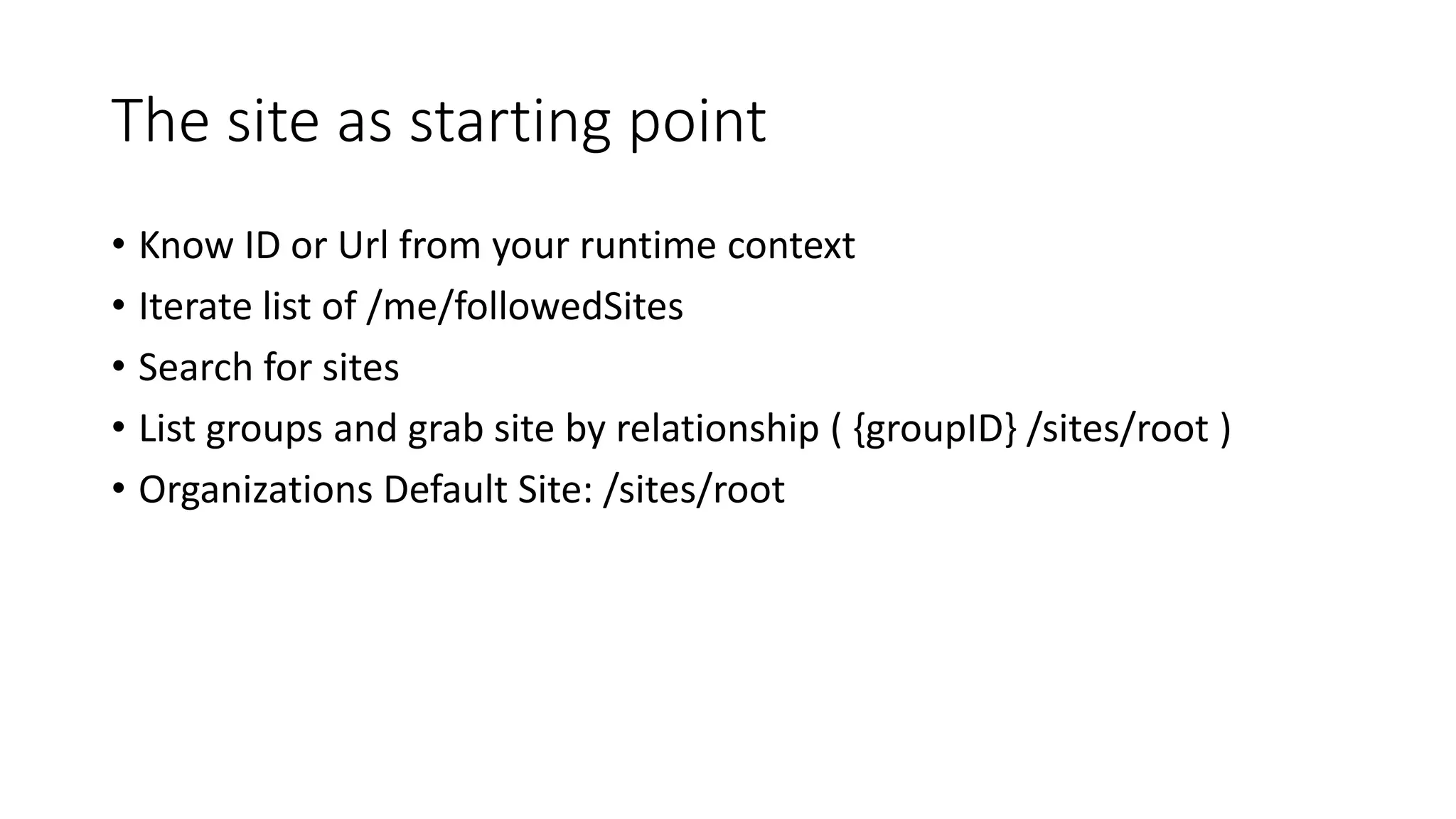

- 7. The site asstarting point • Know ID or Url from your runtime context • Iterate list of /me/followedSites • Search for sites • List groups and grab site by relationship ( {groupID} /sites/root ) • Organizations Default Site: /sites/root

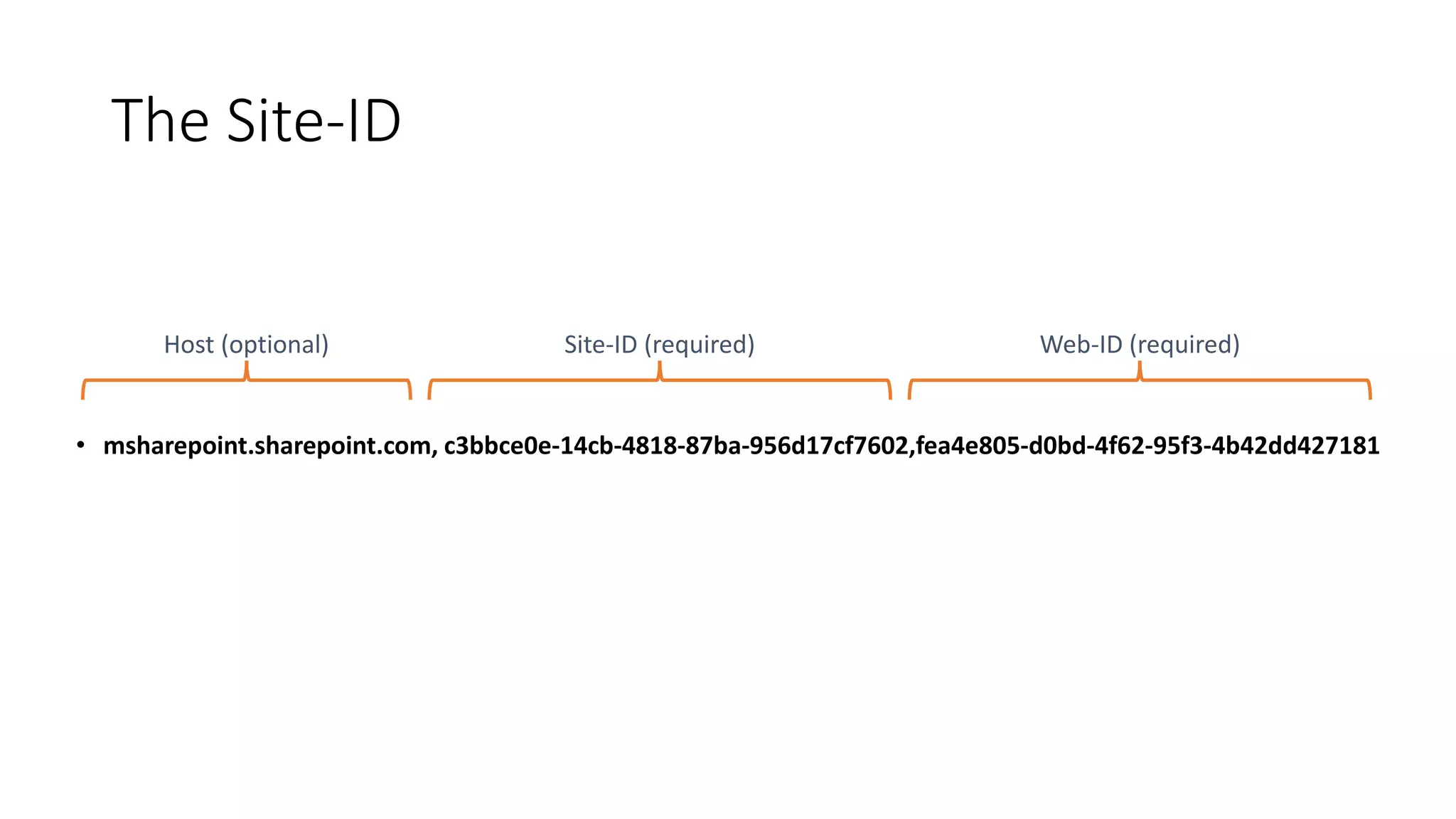

- 8. The Site-ID • msharepoint.sharepoint.com,c3bbce0e-14cb-4818-87ba-956d17cf7602,fea4e805-d0bd-4f62-95f3-4b42dd427181 Host (optional) Web-ID (required) Site-ID (required)

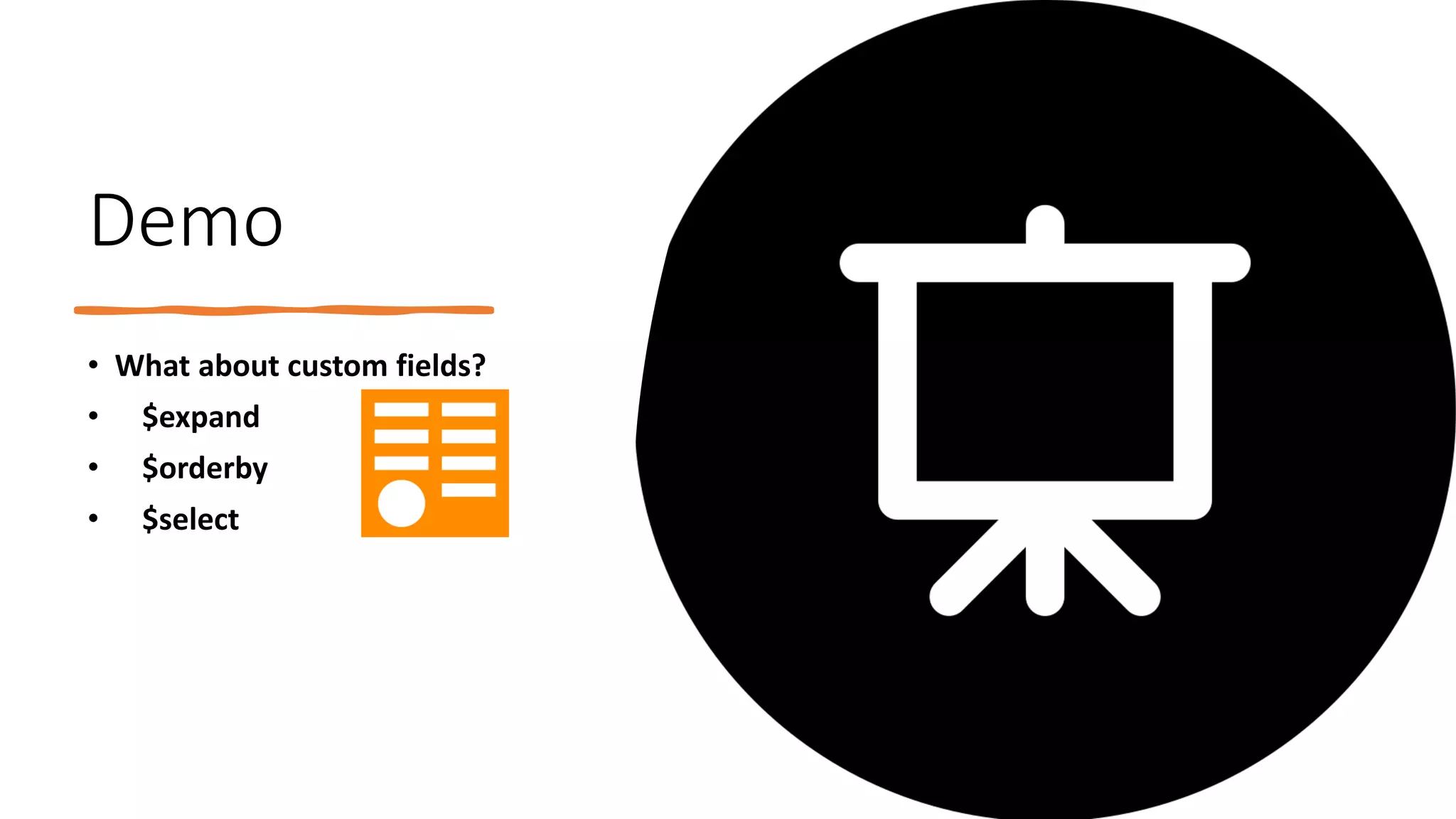

- 9. Demo • What aboutcustom fields? • $expand • $orderby • $select

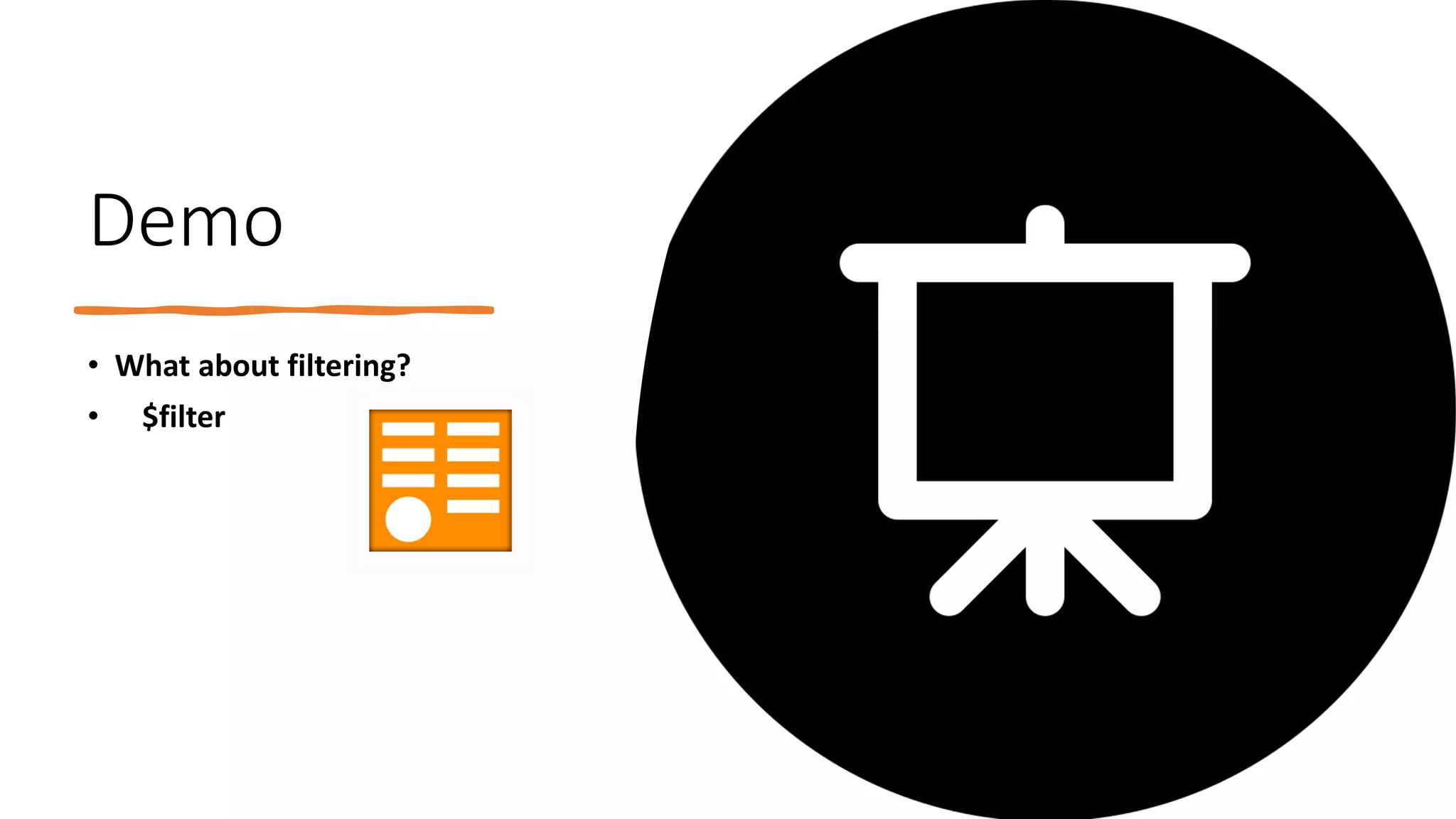

- 10. Demo • What aboutfiltering? • $filter

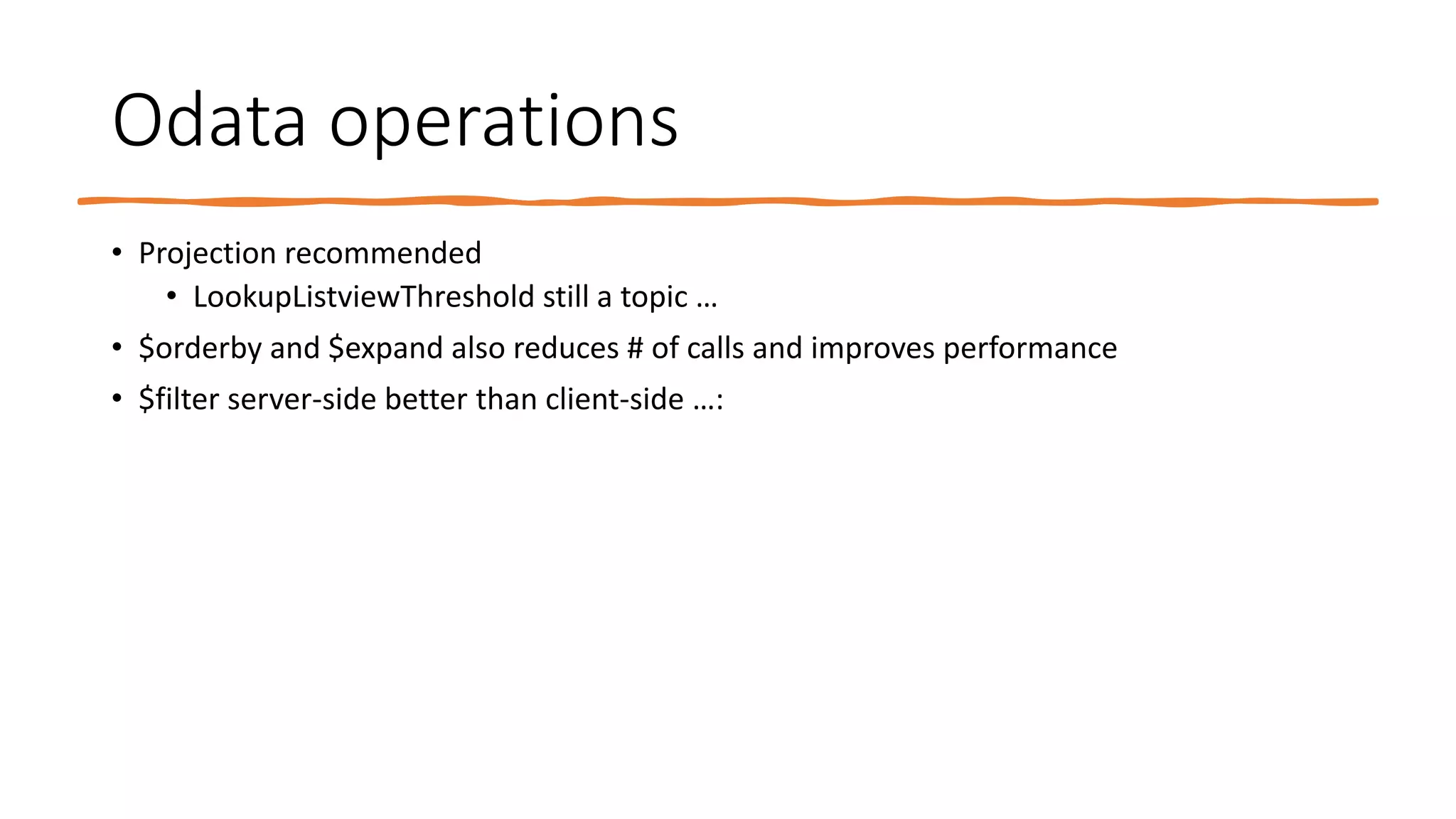

- 11. Odata operations • Projectionrecommended • LookupListviewThreshold still a topic … • $orderby and $expand also reduces # of calls and improves performance • $filter server-side better than client-side …:
- 12. Demo • Items vsfiles

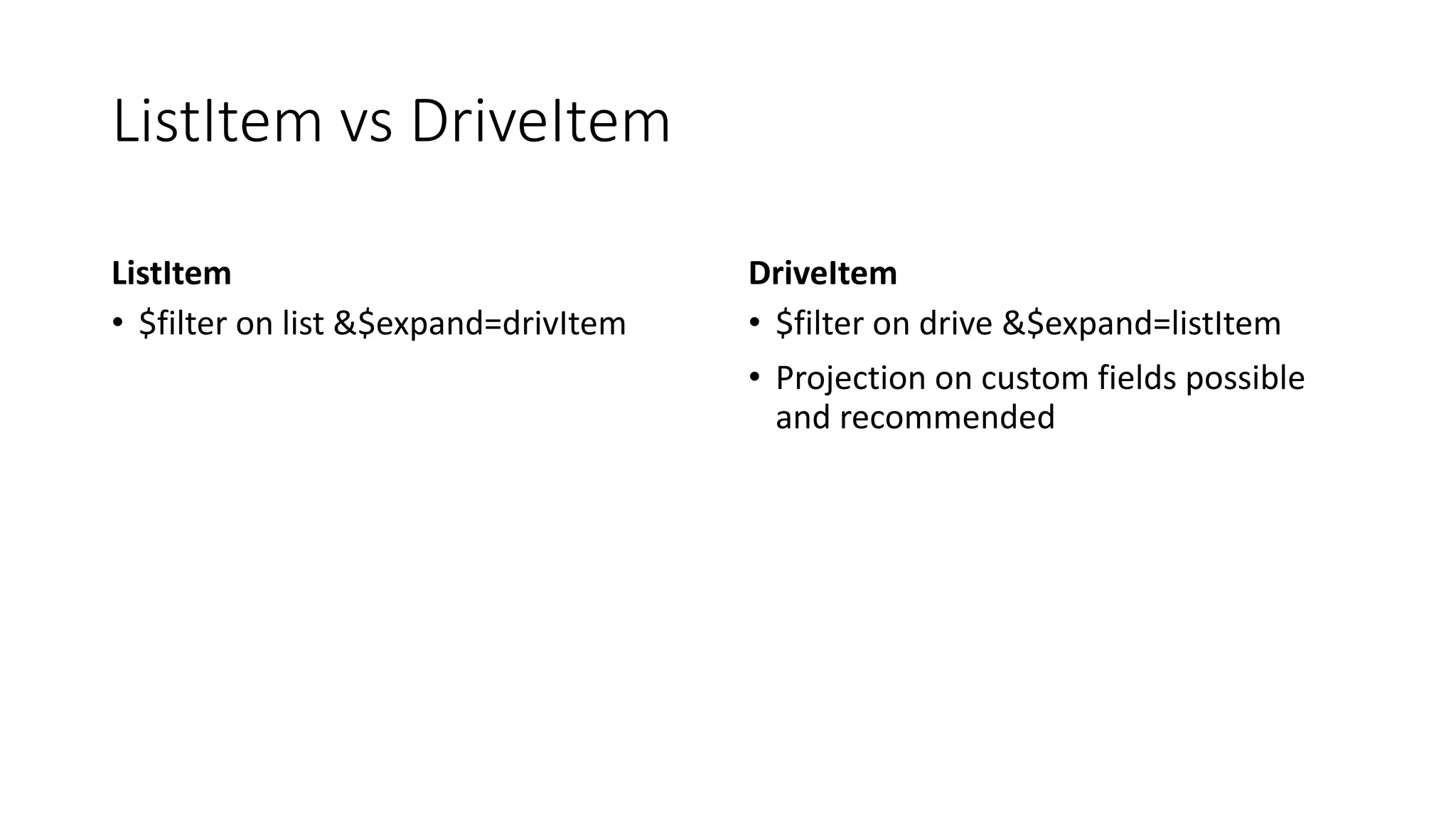

- 13. ListItem vs DriveItem ListItem •$filter on list &$expand=drivItem DriveItem • $filter on drive &$expand=listItem • Projection on custom fields possible and recommended

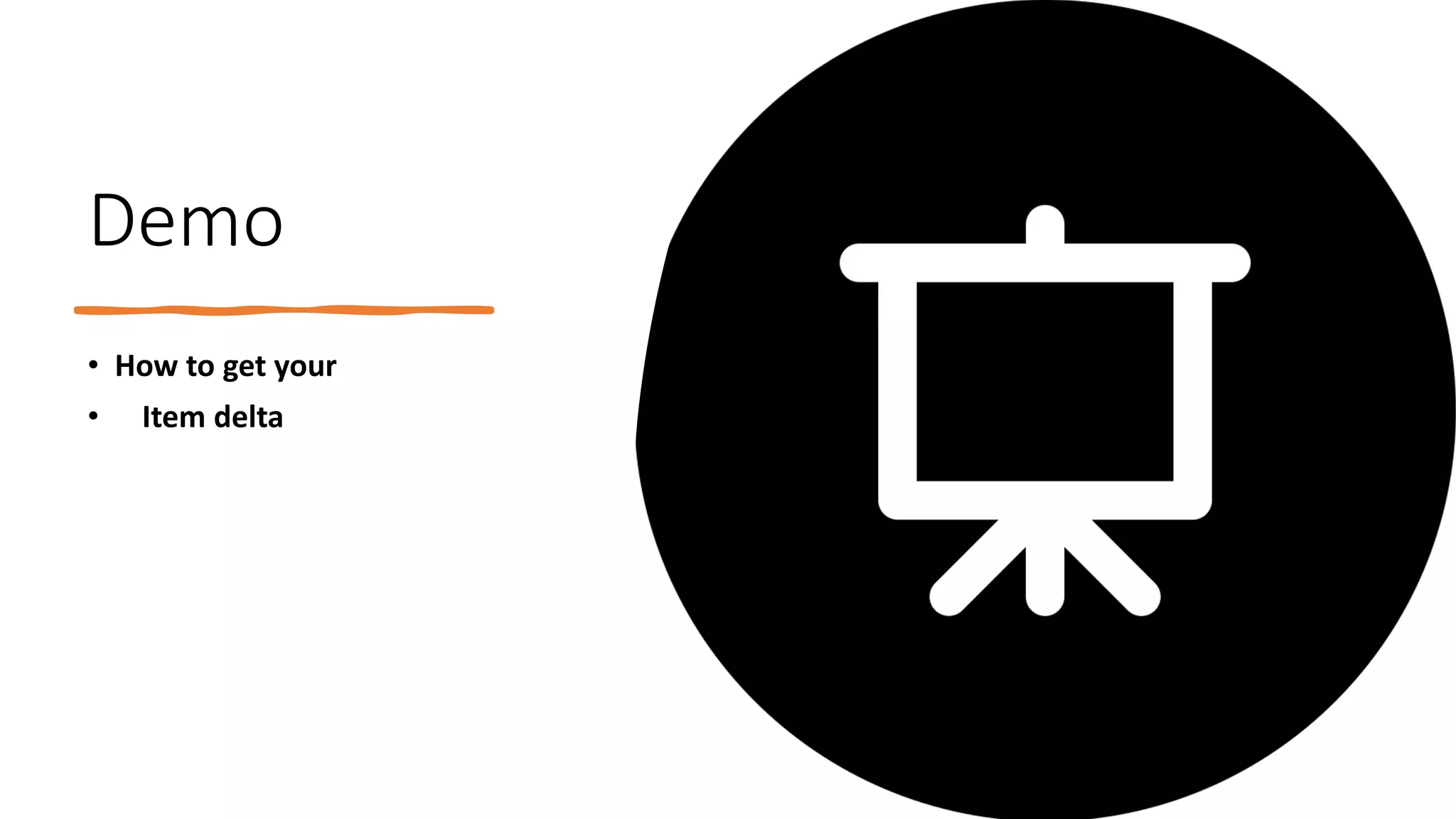

- 14. Demo • How toget your • Item delta

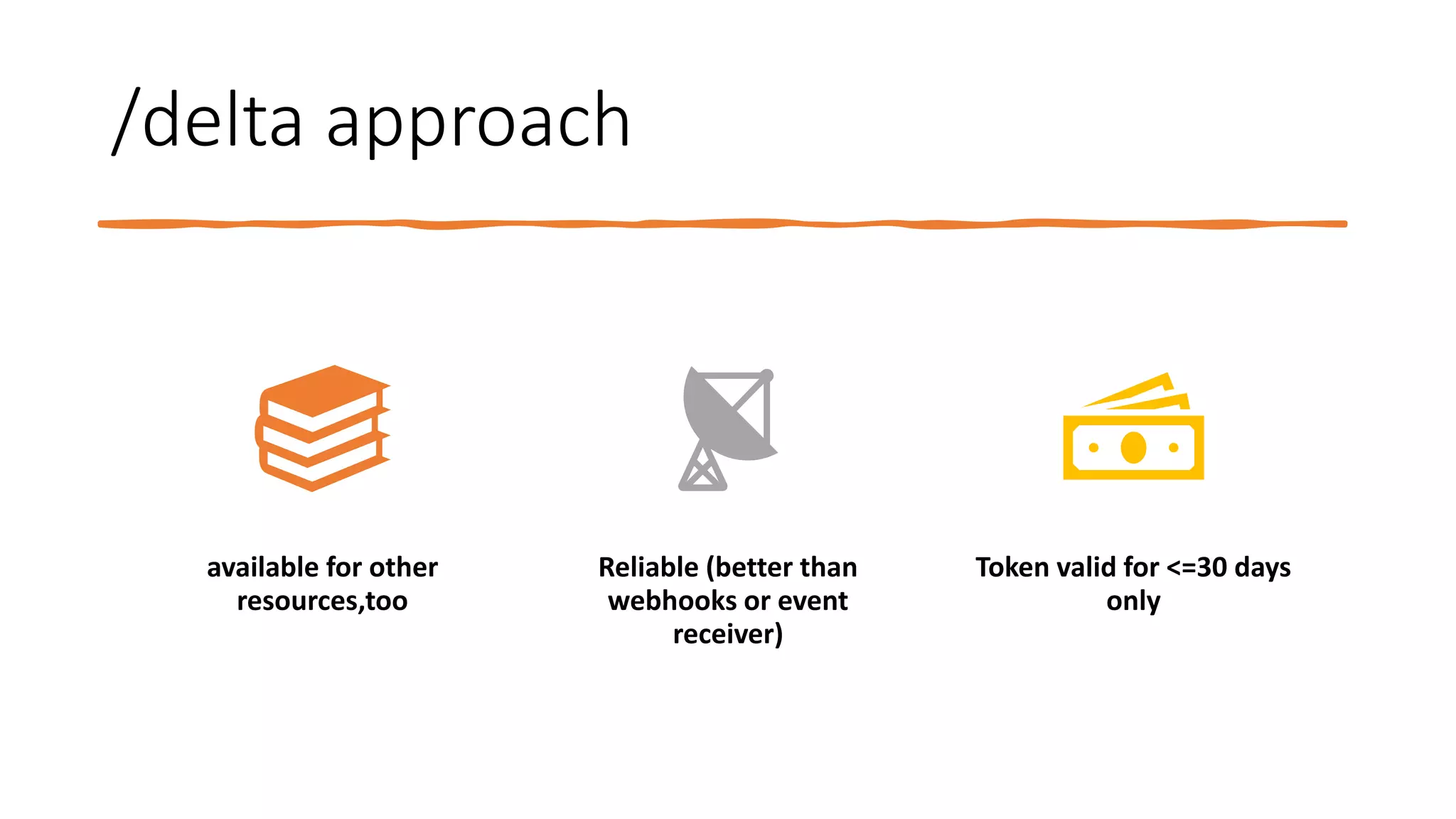

- 15. /delta approach available forother resources,too Reliable (better than webhooks or event receiver) Token valid for <=30 days only
- 16. Demo Create and update •List items • Field values

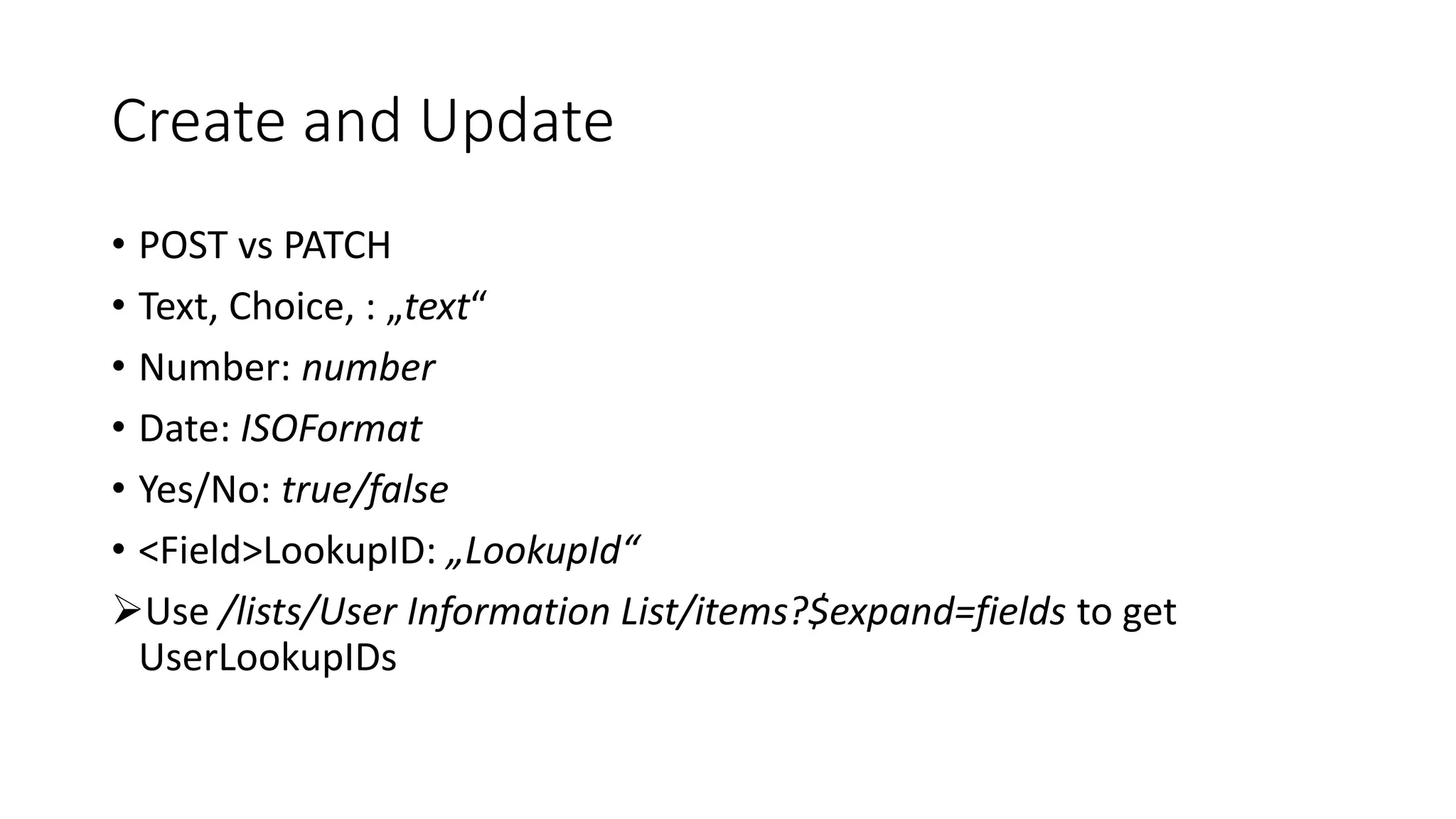

- 17. Create and Update •POST vs PATCH • Text, Choice, : „text“ • Number: number • Date: ISOFormat • Yes/No: true/false • <Field>LookupID: „LookupId“ ➢Use /lists/User Information List/items?$expand=fields to get UserLookupIDs
- 18. Demo Search • List items •Drive items

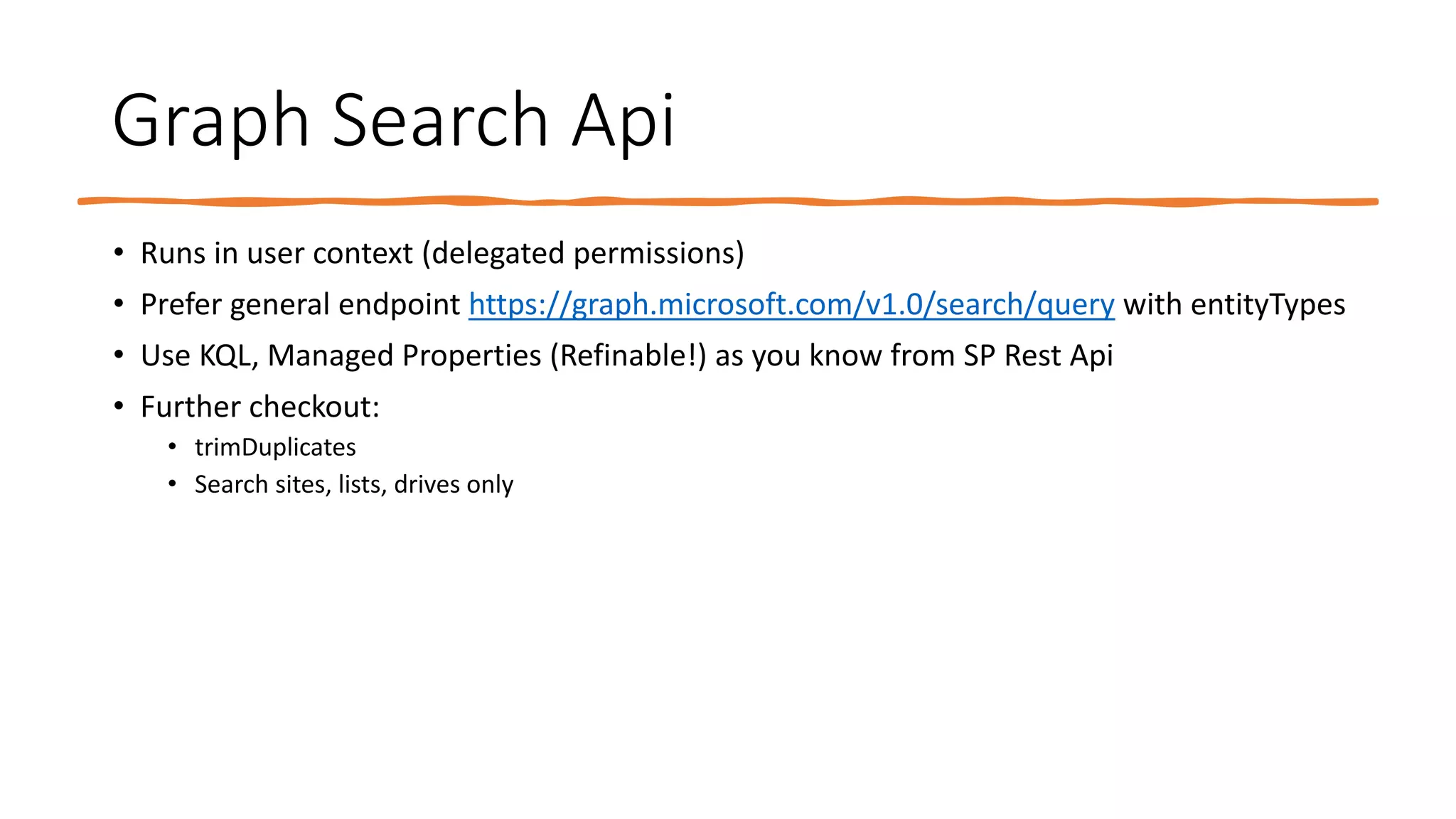

- 19. Graph Search Api •Runs in user context (delegated permissions) • Prefer general endpoint https://graph.microsoft.com/v1.0/search/query with entityTypes • Use KQL, Managed Properties (Refinable!) as you know from SP Rest Api • Further checkout: • trimDuplicates • Search sites, lists, drives only

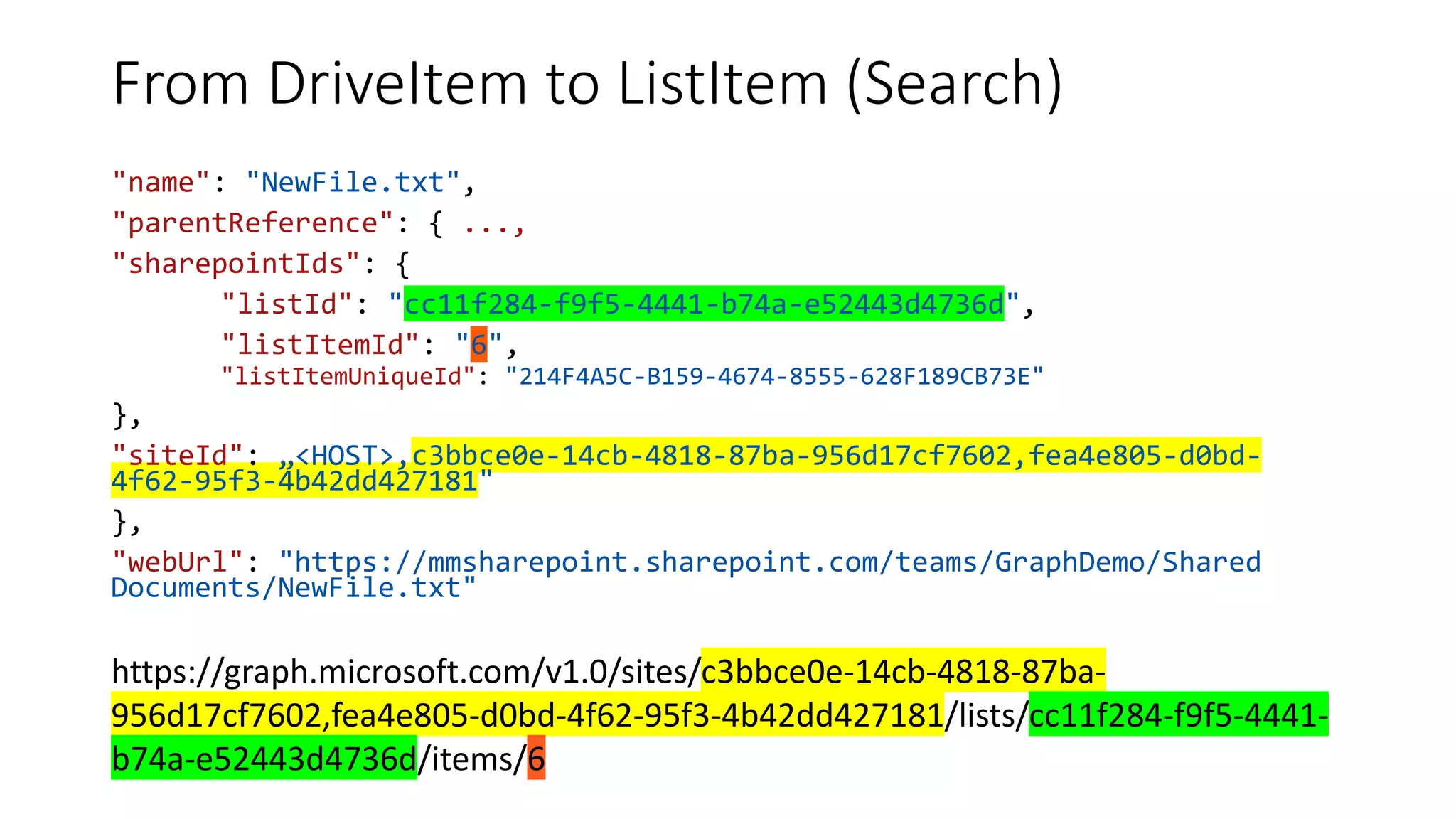

- 20. From DriveItem toListItem (Search) "name": "NewFile.txt", "parentReference": { ..., "sharepointIds": { "listId": "cc11f284-f9f5-4441-b74a-e52443d4736d", "listItemId": "6", "listItemUniqueId": "214F4A5C-B159-4674-8555-628F189CB73E" }, "siteId": „<HOST>,c3bbce0e-14cb-4818-87ba-956d17cf7602,fea4e805-d0bd- 4f62-95f3-4b42dd427181" }, "webUrl": "https://mmsharepoint.sharepoint.com/teams/GraphDemo/Shared Documents/NewFile.txt" https://graph.microsoft.com/v1.0/sites/c3bbce0e-14cb-4818-87ba- 956d17cf7602,fea4e805-d0bd-4f62-95f3-4b42dd427181/lists/cc11f284-f9f5-4441- b74a-e52443d4736d/items/6

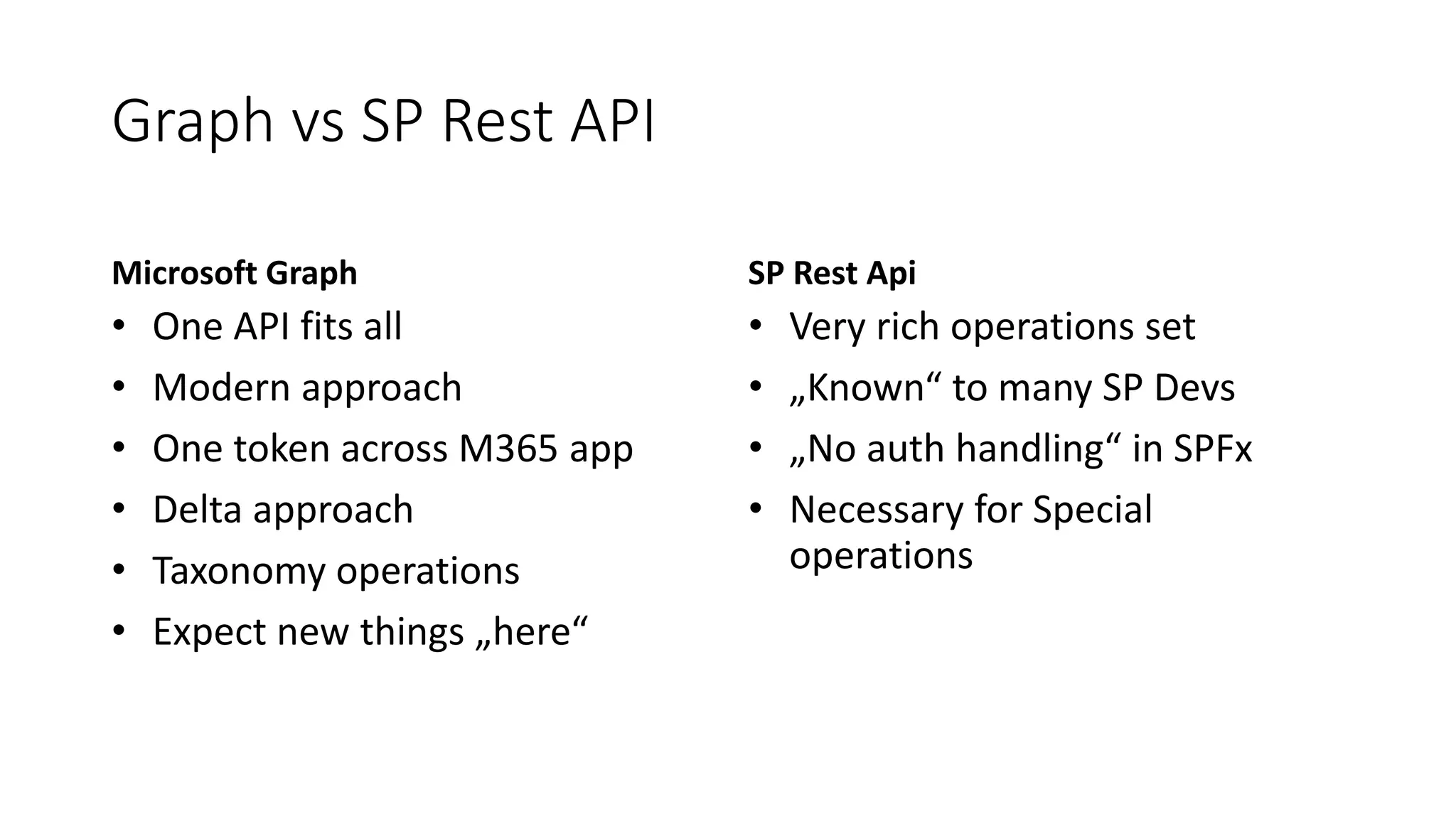

- 21. Graph vs SPRest API Microsoft Graph • One API fits all • Modern approach • One token across M365 app • Delta approach • Taxonomy operations • Expect new things „here“ SP Rest Api • Very rich operations set • „Known“ to many SP Devs • „No auth handling“ in SPFx • Necessary for Special operations

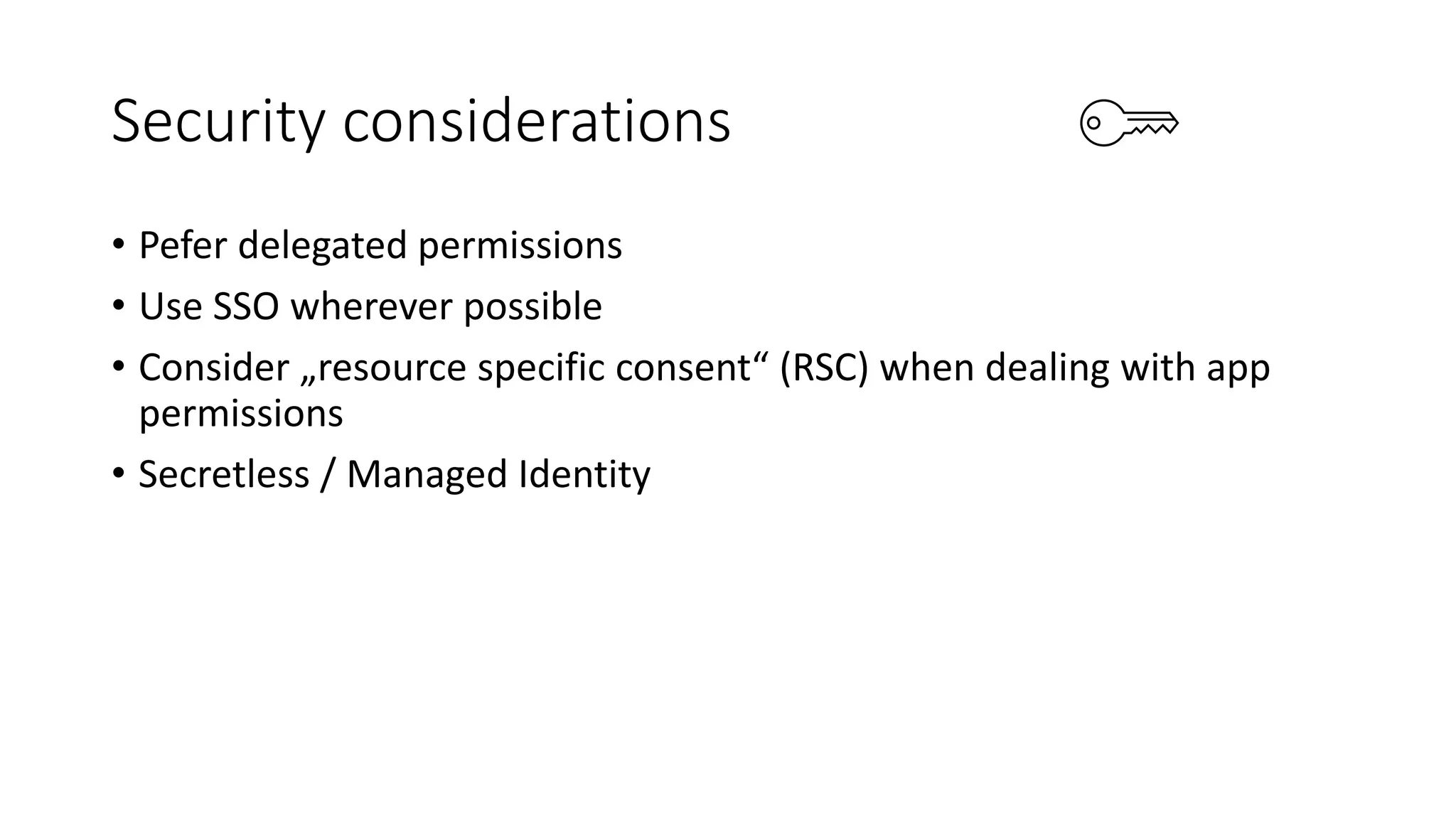

- 22. Security considerations • Peferdelegated permissions • Use SSO wherever possible • Consider „resource specific consent“ (RSC) when dealing with app permissions • Secretless / Managed Identity

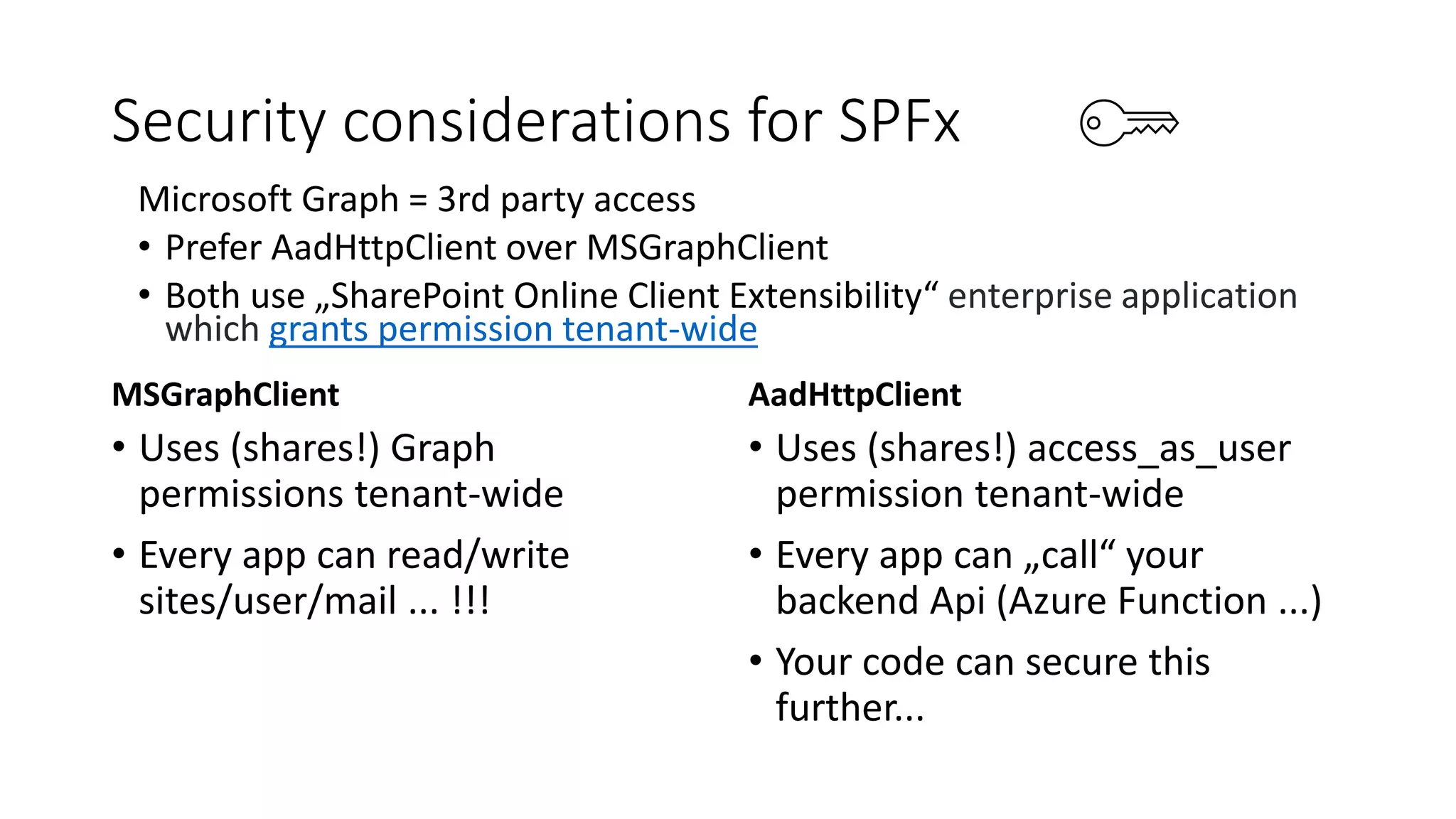

- 23. Security considerations forSPFx MSGraphClient • Uses (shares!) Graph permissions tenant-wide • Every app can read/write sites/user/mail ... !!! AadHttpClient • Uses (shares!) access_as_user permission tenant-wide • Every app can „call“ your backend Api (Azure Function ...) • Your code can secure this further... Microsoft Graph = 3rd party access • Prefer AadHttpClient over MSGraphClient • Both use „SharePoint Online Client Extensibility“ enterprise application which grants permission tenant-wide

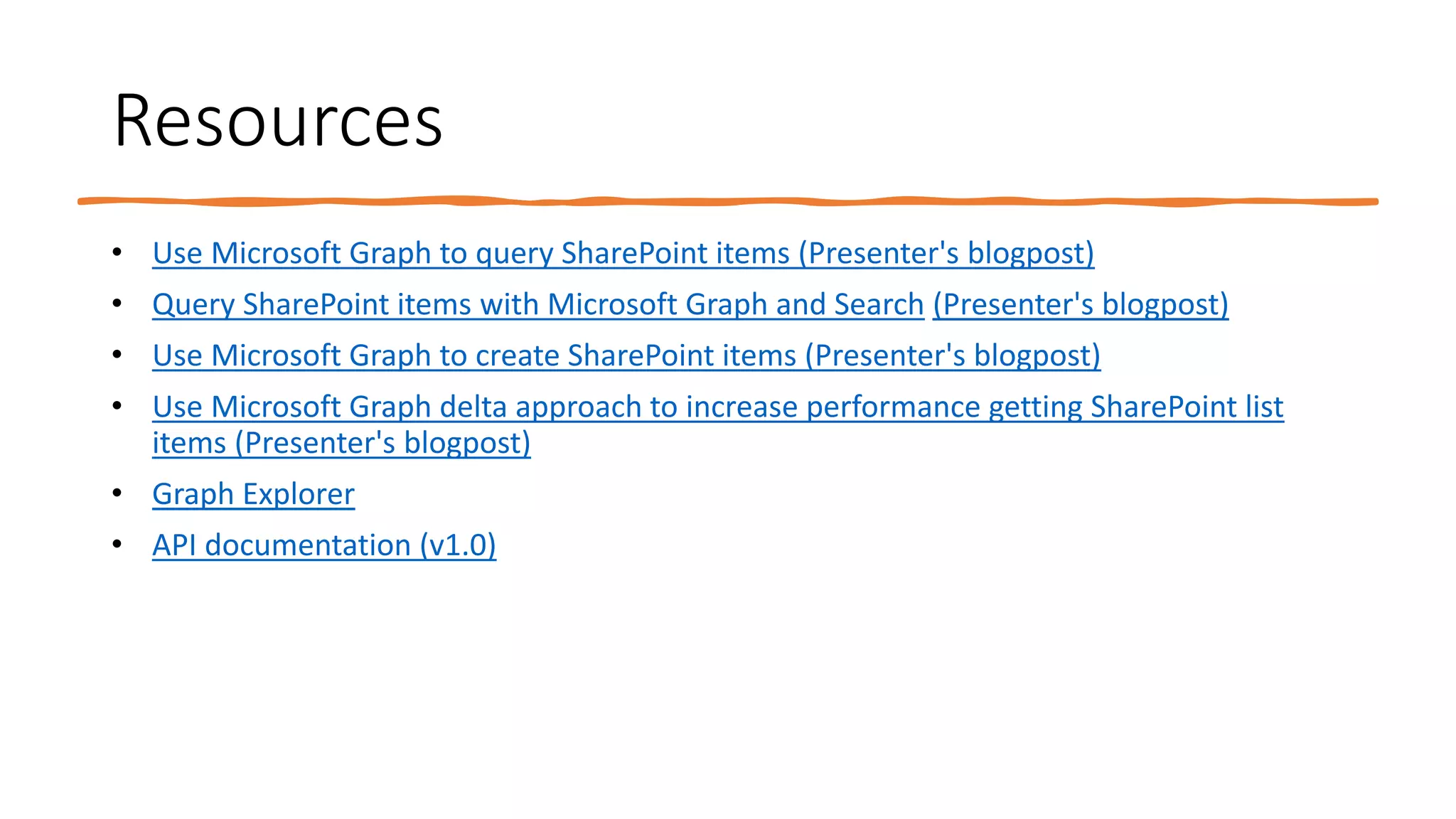

- 24. Resources • Use MicrosoftGraph to query SharePoint items (Presenter's blogpost) • Query SharePoint items with Microsoft Graph and Search (Presenter's blogpost) • Use Microsoft Graph to create SharePoint items (Presenter's blogpost) • Use Microsoft Graph delta approach to increase performance getting SharePoint list items (Presenter's blogpost) • Graph Explorer • API documentation (v1.0)
- 25.
- 26.

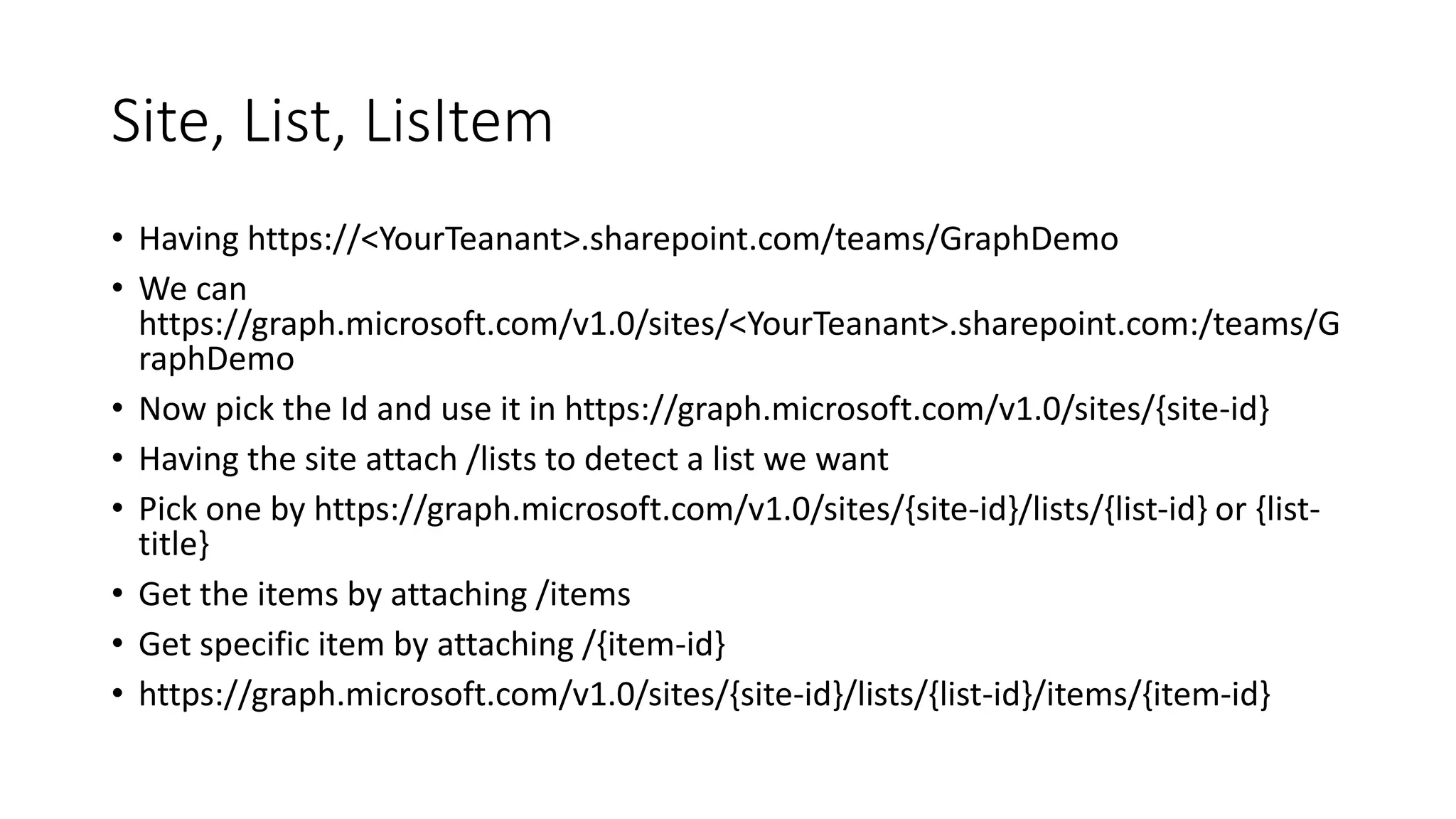

- 27. Site, List, LisItem •Having https://<YourTeanant>.sharepoint.com/teams/GraphDemo • We can https://graph.microsoft.com/v1.0/sites/<YourTeanant>.sharepoint.com:/teams/G raphDemo • Now pick the Id and use it in https://graph.microsoft.com/v1.0/sites/{site-id} • Having the site attach /lists to detect a list we want • Pick one by https://graph.microsoft.com/v1.0/sites/{site-id}/lists/{list-id} or {list- title} • Get the items by attaching /items • Get specific item by attaching /{item-id} • https://graph.microsoft.com/v1.0/sites/{site-id}/lists/{list-id}/items/{item-id}
- 28. Handling custom fields •https://graph.microsoft.com/v1.0/sites/{site-id}/lists/{list- id}/items/{item-id} has /fields by default • https://graph.microsoft.com/v1.0/sites/{site-id}/lists/{list-id}/items/ ?$expand=fields • $expand=fields($select=Title,Lastname,Salary) [Projection instead] • ?$expand=fields&$orderby=fields/Lastname: • "Field 'Lastname' cannot be referenced in filter or orderby as it is not indexed. • Add to Header: Prefer HonorNonIndexedQueriesWarningMayFailRandomly OR • Index column!!!
- 29. $filter items • Filtertext based /items?$expand=fields&$filter=startswith(fields/Title, 'H') • Filter DateTime /items?$expand=fields&$filter=fields/HireDate lt '2019-01-02’ • Filter Boolean • $filter=fields/KeyEmployee eq 1 • $filter=fields/KeyEmployee eq 0 • Better: $filter=fields/KeyEmployee ne 1 (Will also show “empty” fields) • Filter Lookup, Person /items?$expand=fields&$filter=fields/ManagerLookupId eq 11

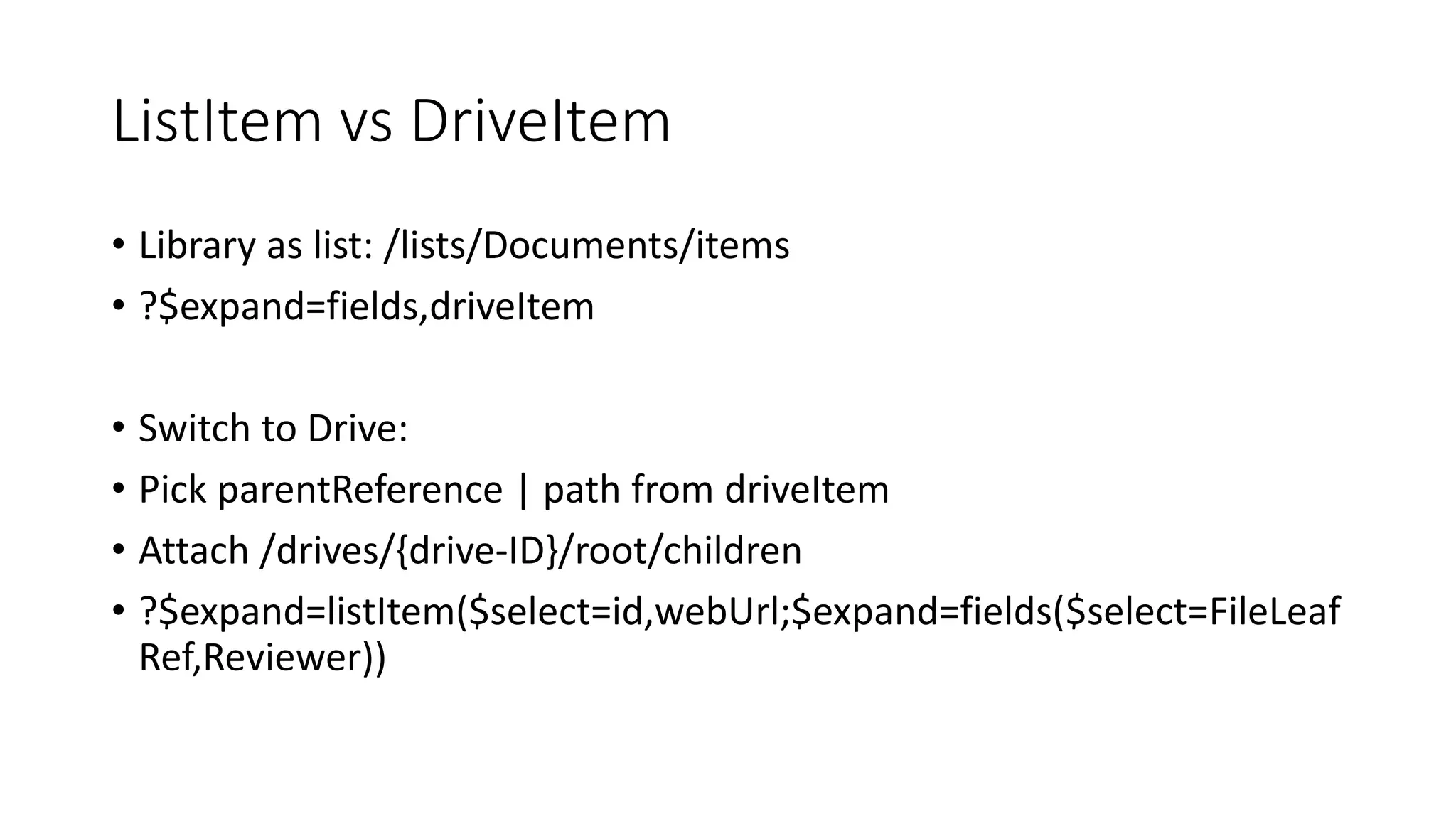

- 30. ListItem vs DriveItem •Library as list: /lists/Documents/items • ?$expand=fields,driveItem • Switch to Drive: • Pick parentReference | path from driveItem • Attach /drives/{drive-ID}/root/children • ?$expand=listItem($select=id,webUrl;$expand=fields($select=FileLeaf Ref,Reviewer))

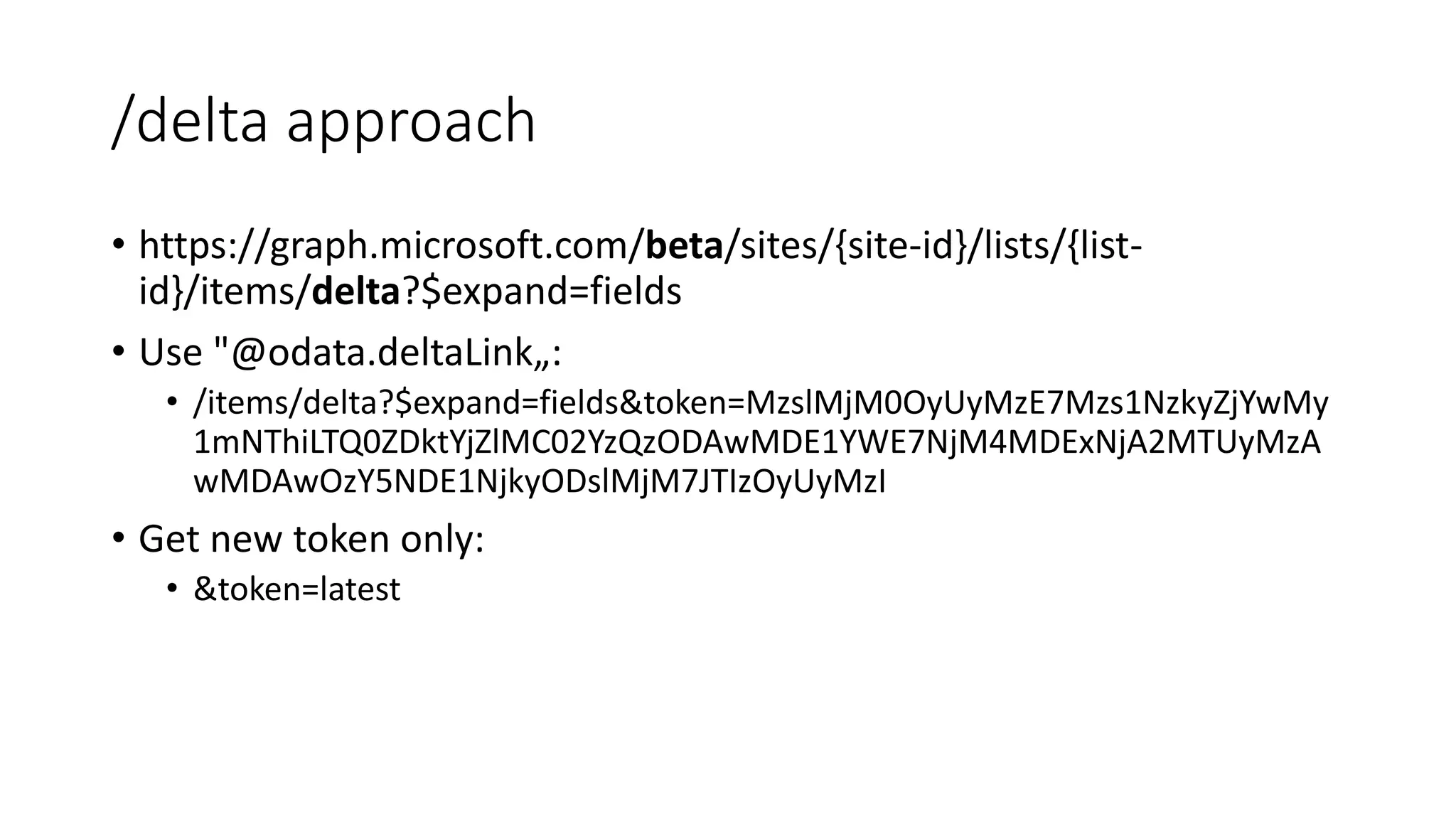

- 31. /delta approach • https://graph.microsoft.com/beta/sites/{site-id}/lists/{list- id}/items/delta?$expand=fields •Use "@odata.deltaLink„: • /items/delta?$expand=fields&token=MzslMjM0OyUyMzE7Mzs1NzkyZjYwMy 1mNThiLTQ0ZDktYjZlMC02YzQzODAwMDE1YWE7NjM4MDExNjA2MTUyMzA wMDAwOzY5NDE1NjkyODslMjM7JTIzOyUyMzI • Get new token only: • &token=latest

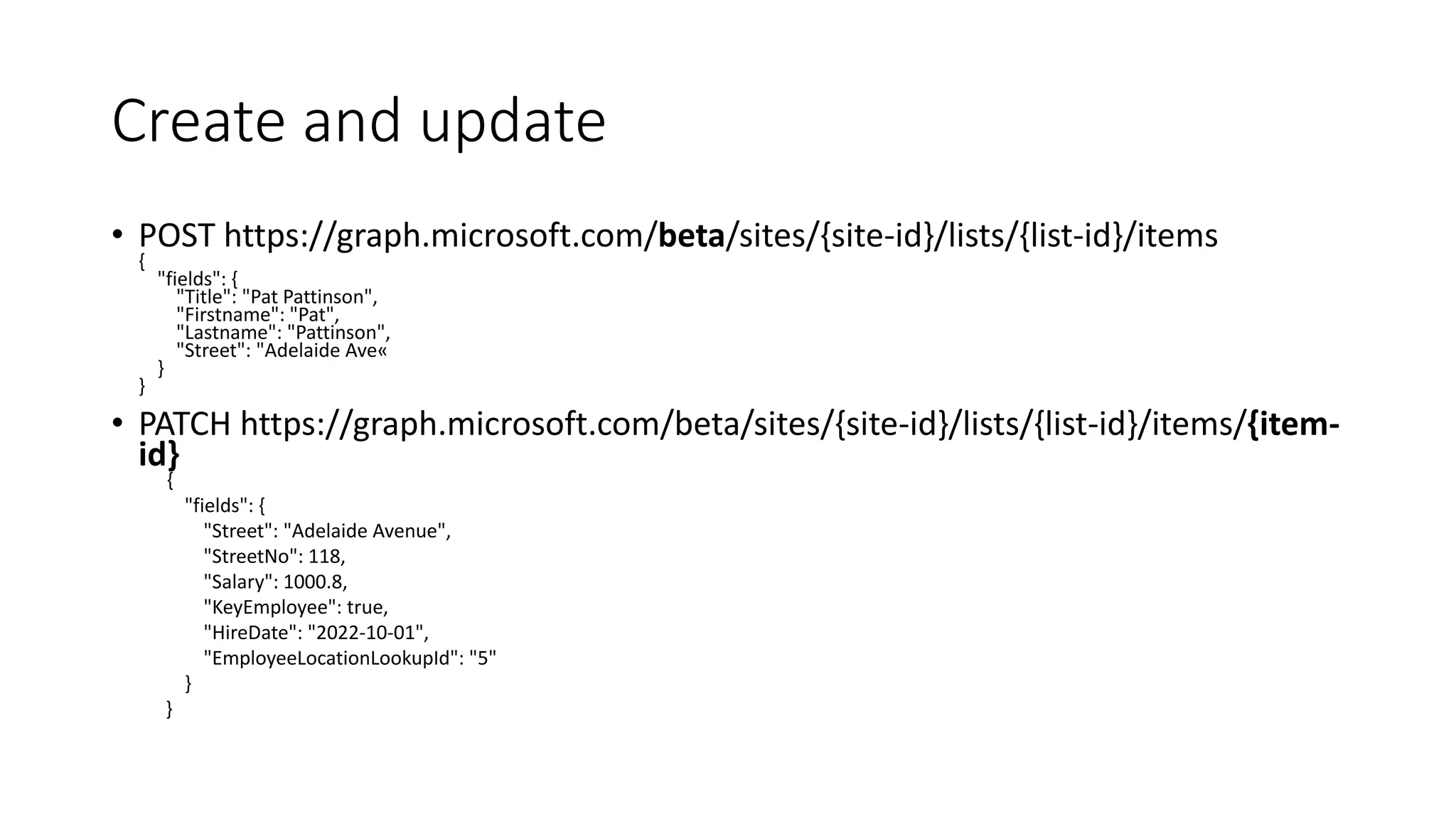

- 32. Create and update •POST https://graph.microsoft.com/beta/sites/{site-id}/lists/{list-id}/items { "fields": { "Title": "Pat Pattinson", "Firstname": "Pat", "Lastname": "Pattinson", "Street": "Adelaide Ave« } } • PATCH https://graph.microsoft.com/beta/sites/{site-id}/lists/{list-id}/items/{item- id} { "fields": { "Street": "Adelaide Avenue", "StreetNo": 118, "Salary": 1000.8, "KeyEmployee": true, "HireDate": "2022-10-01", "EmployeeLocationLookupId": "5" } }

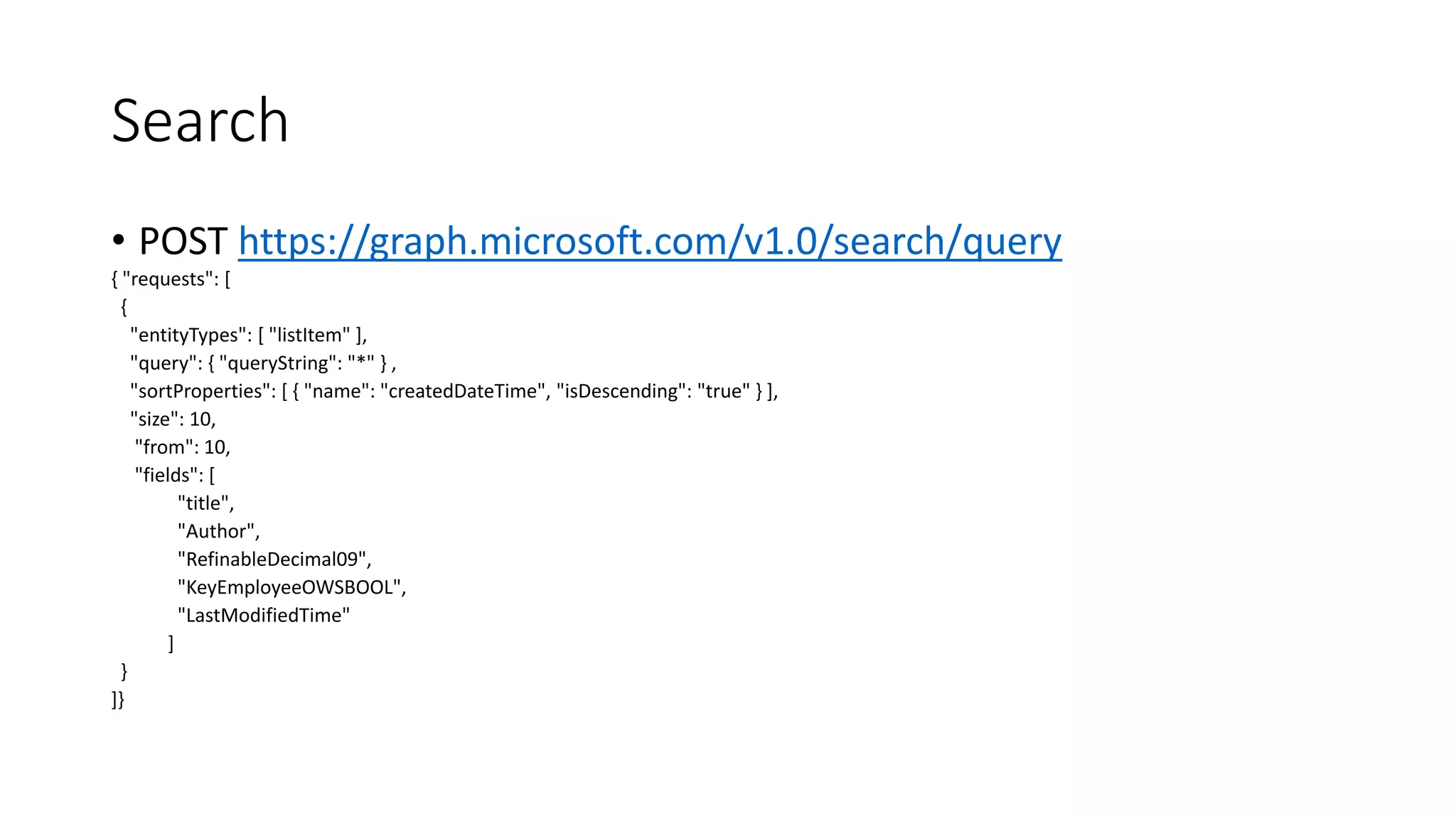

- 33. Search • POST https://graph.microsoft.com/v1.0/search/query {"requests": [ { "entityTypes": [ "listItem" ], "query": { "queryString": "*" } , "sortProperties": [ { "name": "createdDateTime", "isDescending": "true" } ], "size": 10, "from": 10, "fields": [ "title", "Author", "RefinableDecimal09", "KeyEmployeeOWSBOOL", "LastModifiedTime" ] } ]}
- 34. Bonus: Search aggregations "aggregations":[ { "field": "lastModifiedTime", // Refinable!!! "size": 3, "bucketDefinition": { "sortBy": "keyAsString", "isDescending": "false", "minimumCount": 0, "ranges": [ { "to": "2022-07-31T23:59:59Z" }, { "from": "2022-07-31T23:59:59Z", "to": "2022-08-31T23:59:59Z" }, { "from": "2022-08-31T23:59:59Z" } ] } } ] Refine: "aggregationFilters": [ " lastModifiedTime:range(2022-08-31T23:59:59.0000000Z, max, to="le")" // Take <aggregationFilterToken> from prev result ]
