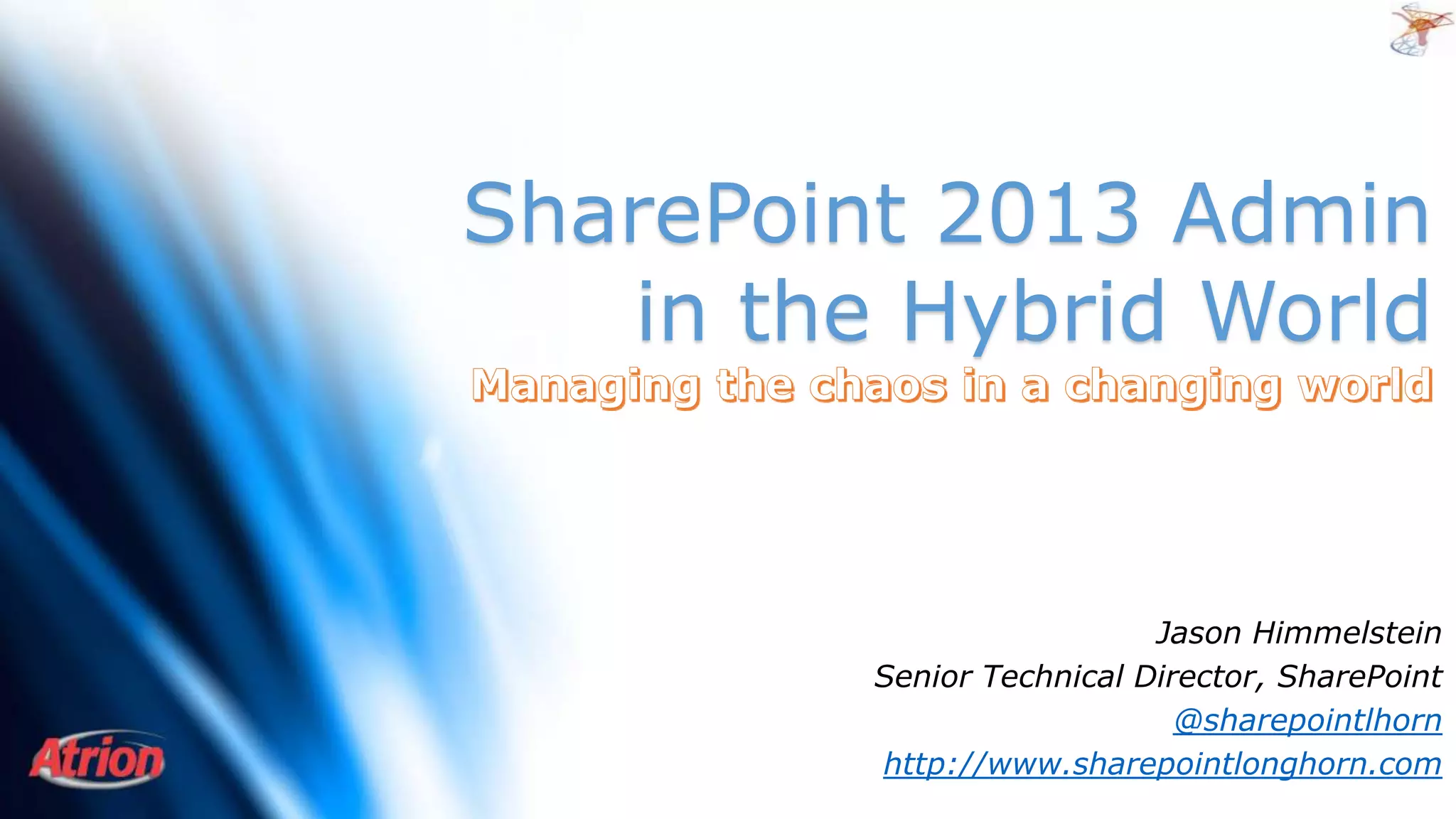

1. SharePoint 2013 Admin
in the Hybrid World
Jason Himmelstein
Senior Technical Director, SharePoint
@sharepointlhorn
http://www.sharepointlonghorn.com

2. • Senior Technical Director, SharePoint at Atrion
• Microsoft vTSP
– virtual Technology Solutions Professional
• SharePoint Foundation Logger
– http://spflogger.codeplex.com
•
•
•
•
•
Blog: www.sharepointlonghorn.com
Twitter: @sharepointlhorn
LinkedIn: www.linkedin.com/in/jasonhimmelstein
SlideShare: http://www.slideshare.net/jasonhimmelstein
Email: jase@sharepointlonghorn.com
• Author of Developing Business Intelligence Apps for SharePoint
– http://bit.ly/SharePointBI
2009 Atrion Networking Corporation

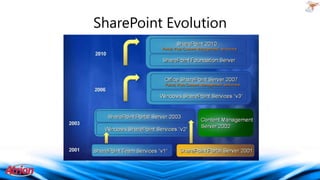

3. SharePoint Evolution

4. Physical Architecture - Small Farm
Intranet User
Web Front Ends
Application Servers
SQL Server

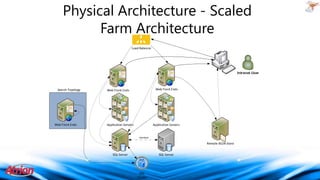

5. Physical Architecture - Scaled
Farm Architecture
Load Balancer
Intranet User
Search Topology
Web Front Ends
Web Front Ends
Web Front Ends
Application Servers
Application Servers
Heartbeat
Remote BLOB Store
SQL Server
SQL Server
SQL
Cluster

6. Physical Architecture - Large
Farm Architecture
Server configuration – Large Farm
SQL Servers
App Server - OWA/XLS
Central Admin
2 App Servers
Query Server
Query Server
Index Server
Index Server
SQL Servers
Web Servers
SharePoint Search
MySites
Web Servers
Cross Farm Services
Farm 1
Farm 1 Cluster
Farm 3 Cluster 1
SQL DataMart
SSRS Cluster
SSAS Query Cluster
SSAS Processing
Farm 3 Cluster 2
SQL Cluster
SQL Cluster
Search SQL Cluster 2
Farm 2 Cluster 1
TFS
Search SQL Cluster 1
MySites SQL Cluster
TFS Proxy Server
TFS Proxy Server
TFS App Server
OLTP SQL Cluster
App Server - OWA/XLS
App Server - OWA/XLS
App Server - OWA/XLS
Farm 2 Cluster 1
Farm 3
Web Servers
App Server - PP/PPS
Patch Web Server/
Central Admin/Crawl
Target
App Server - PP/PPS
Farm 2 Cluster 2
App Server - PP/PPS
Full Trust Solution Farm
No-Code Solution Farm
Farm 2
Web Servers
Search SQL Cluster 2
TFS App Server
Farm 2 Cluster 2
Web Servers
Search SQL Cluster 1
Web Servers
Web Servers
App Server - OWA/XLS App Server - OWA/XLS
Web Servers
App Server - OWA/XLS
Farm 3 Cluster 1
Web Servers
App Server - PP/PPS
Farm 3 Cluster 2
Patch Web Server/
Central Admin/Crawl
Target
App Server - PP/PPS
App Server - PP/PPS

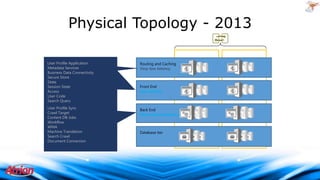

7. Physical Topology - 2013
Request Management
User Profile Application
Distributed Cache
Metadata Services
Business Data Connectivity
Secure Store
State
Session State
Access
User Code
Search Query
PerformancePoint
User Profile Sync
Visio
Crawl Target
Excel Services
Content DB Jobs
PowerPivot
Workflow
Project
WMA
Machine Translation
Search Crawl
Document Conversion
Routing and Caching
Very low latency
Front End
Low latency
Back End
More tolerant latency
Database tier

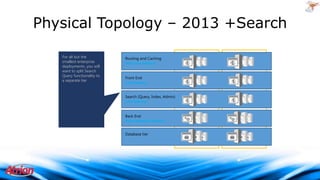

8. Physical Topology – 2013 +Search
For all but the
smallest enterprise
deployments, you will
want to split Search
Query functionality to
a separate tier
Routing and Caching
Very low latency
Front End
Low latency
Search (Query, Index, Admin)
Low latency
Back End
More tolerant latency
Database tier

9. Begin with a single “Primary” Content
and Services Farm
• Add additional farms based on DOCUMENTED business
or governance requirements
• Simplifies operations, maintenance and patching for all
but the most complex environments
• Predictability in sizing and capacity
• Reduced complexity for vast majority of implementations

10. Logical Architecture
IIS Web Site—“SharePoint Web Services”
Application pool
Application pool
Excel
Calculation
Services
Managed
Metadata
User Profile
Business Data
Connectivity
Access
Services
Secure Store
Service
Search
Application pool
Web application—Published Intranet Content
Http://woodgrove/
Web application—Team Sites
Web application—My Sites
http://team
http://my
http://my/personal/<user>
HR
Facilities
Purchasing
Team 1
Team 2
Team 3

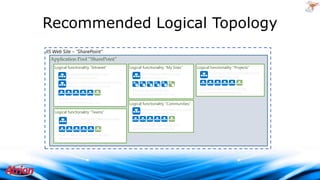

11. Recommended Logical Topology
IIS Web Site – ”SharePoint”
Application Pool ”SharePoint”
Logical functionality ”Intranet”
Logical functionality ”My Sites”
Logical functionality ”Communities”
Logical functionality ”Teams”
Logical functionality ”Projects”

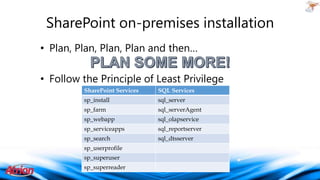

12. SharePoint on-premises installation
• Plan, Plan, Plan, Plan and then…
• Follow the Principle of Least Privilege
SharePoint Services
SQL Services
sp_install
sql_server
sp_farm
sql_serverAgent
sp_webapp
sql_olapservice
sp_serviceapps
sql_reportserver
sp_search
sql_dtsserver
sp_userprofile
sp_superuser
sp_superreader

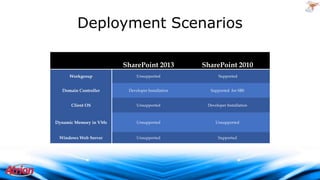

13. Deployment Scenarios
SharePoint 2013
SharePoint 2010
Workgroup
Unsupported
Supported
Domain Controller
Developer Installation
Supported for SBS
Client OS
Unsupported
Developer Installation
Dynamic Memory in VMs
Unsupported
Unsupported
Windows Web Server
Unsupported
Supported

14. SharePoint Farm Configuration (for real)
• SharePoint Farm builds using:
– Home grown PowerShell scripts
– Jason’s handy scripts repository
• http://www.sharepointlonghorn.com/scripts
– AutoSPInstaller for SharePoint 2010 + 2013
• http://autospinstaller.codeplex.com/releases/view/3
8568?ProjectName=autospinstaller
– …or many other sources of PowerShell scripts
available via TechNet or other interweb sources
2009 Atrion Networking Corporation

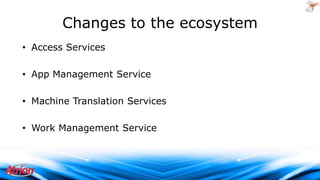

15. Changes to the ecosystem
• Access Services
• App Management Service
• Machine Translation Services
• Work Management Service
2009 Atrion Networking Corporation

16. What is the Cloud?

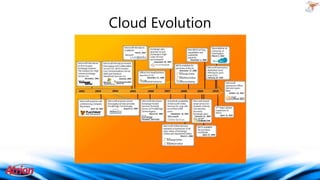

17. Cloud Evolution

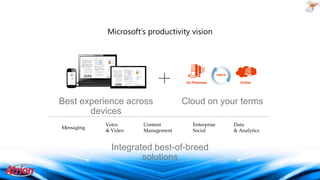

18. Microsoft’s productivity vision
Hybrid
On Premises
Best experience across
devices
Messaging
Voice
& Video
Content
Management
Online
Cloud on your terms
Enterprise
Social
Integrated best-of-breed
solutions
Data
& Analytics

19. Introducing | Your Modern Office
Fast and fluid experience with
touch, pen, mouse & keyboard
Office - on demand,
roaming & up-to-date
Newsfeeds & microblogging,
extend with Yammer
DLP, data retention & unified
eDiscovery
Immersive touch-optimized
Windows 8 apps
New cloud app
development model
Pervasive social capabilities
across Office
Reimagined deployment
model for Office apps
Support for Windows phone,
iOS & Android phones
Enterprise-grade reliability
and standards
Multiparty HD video & Skype
federation
Common management
experience across Office 365

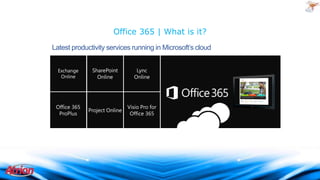

20. Office 365 | What is it?
Latest productivity services running in Microsoft’s cloud

21. Office 365 | Benefits

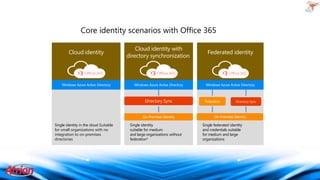

22. Core identity scenarios with Office 365
Cloud identity
Single identity in the cloud Suitable
for small organizations with no
integration to on-premises
directories
Cloud identity with
directory synchronization
Single identity
suitable for medium
and large organizations without
federation*
Federated identity
Single federated identity
and credentials suitable
for medium and large
organizations

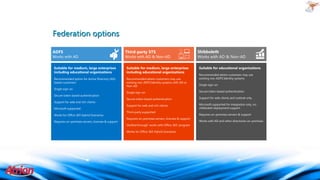

23. Federation options
Works with AD
Works with AD & Non-AD
Suitable for medium, large enterprises
including educational organizations
Suitable for medium, large enterprises
including educational organizations
Recommended option for Active Directory (AD)
based customers
Recommended where customers may use
existing non-ADFS Identity systems with AD or
Non-AD
Single sign-on
Secure token based authentication
Support for web and rich clients
Microsoft supported
Works for Office 365 Hybrid Scenarios
Requires on-premises servers, licenses & support
Shibboleth
Works with AD & Non-AD
Suitable for educational organizations j
Recommended where customers may use
existing non-ADFS Identity systems
Single sign-on
Single sign-on
Secure token based authentication
Secure token based authentication
Support for web clients and outlook only
Support for web and rich clients
Microsoft supported for integration only, no
shibboleth deployment support
Third-party supported
Requires on-premises servers, licenses & support
Verified through ‘works with Office 365’ program
Works for Office 365 Hybrid Scenarios
Requires on-premises servers & support
Works with AD and other directories on-premises

24. What is Hybrid
2009 Atrion Networking Corporation

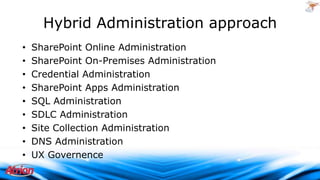

25. Hybrid Administration approach
•
•
•
•
•
•
•
•
•
SharePoint Online Administration
SharePoint On-Premises Administration
Credential Administration
SharePoint Apps Administration
SQL Administration
SDLC Administration
Site Collection Administration
DNS Administration
UX Governence
2009 Atrion Networking Corporation

26. The Cloud Admin
Microsoft’s story

29. On-premises admin
Server Administration
Manages servers, capacity,
deployment, updates,
troubleshooting, recovering from
failures
SharePoint Administration
Customize SharePoint for
business needs. Governance,
compliance, apps.

30. SharePoint
Administration
Customize SharePoint
for business needs.
Governance,
compliance, apps.

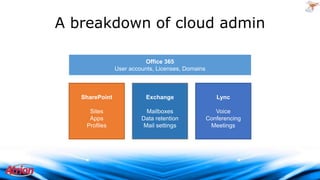

31. A breakdown of cloud admin

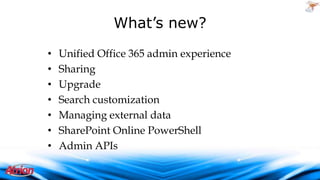

32. What’s new?
•
•
•
•
•
•
•
Unified Office 365 admin experience
Sharing
Upgrade
Search customization
Managing external data
SharePoint Online PowerShell
Admin APIs
2009 Atrion Networking Corporation

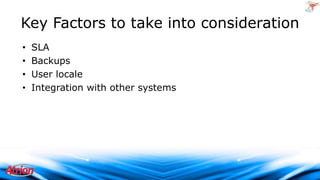

33. Key Factors to take into consideration
•
•
•
•
SLA
Backups
User locale
Integration with other systems
2009 Atrion Networking Corporation

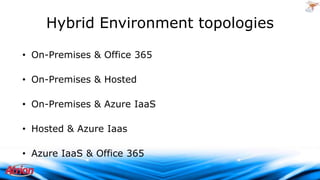

34. Hybrid Environment topologies
• On-Premises & Office 365
• On-Premises & Hosted
• On-Premises & Azure IaaS
• Hosted & Azure Iaas
• Azure IaaS & Office 365
2009 Atrion Networking Corporation

35. Application Lifecycle
Management
• Code reviews
• Team Foundation Server
• Governance plans
• Written policy based controls
• Achievable & agreed uponSLAs
2009 Atrion Networking Corporation

36. Understanding the Authentication
Scheme
• On-Premises
– Corporate Active Directory
– SAML Claims
• Online
– Organization account
• Azure Active Directory: O365 accounts, Windows
Live, Microsoft Accounts, etc
– Corporate Active Directory
• ADFS 2.0
2009 Atrion Networking Corporation

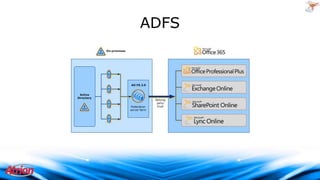

37. ADFS
2009 Atrion Networking Corporation

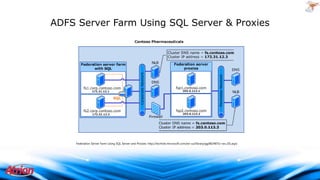

38. ADFS Server Farm Using SQL Server & Proxies
Federation Server Farm Using SQL Server and Proxies: http://technet.microsoft.com/en-us/library/gg982487(v=ws.10).aspx
2009 Atrion Networking Corporation

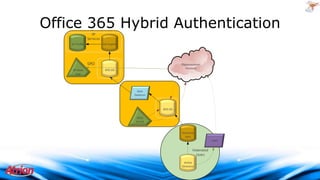

39. Office 365 Hybrid Authentication
SP
Services
SP Profile
AD Import
SPO
SP Web
App
Organizational
Account
SPO-DS
Sync
Daemon
SPO-DS
MSO
Portal
Directory
Sync
ADFS
Federated
Users
Active
Directory

40. Other Factors
• Backup Scenarios
• Disaster Recovery Planning
• Third Party Tools – Governance
2009 Atrion Networking Corporation

41. • Senior Technical Director, SharePoint at Atrion
• Microsoft vTSP
– virtual Technology Solutions Professional
• SharePoint Foundation Logger
– http://spflogger.codeplex.com
•
•
•
•
•
Blog: www.sharepointlonghorn.com
Twitter: @sharepointlhorn
LinkedIn: www.linkedin.com/in/jasonhimmelstein
SlideShare: http://www.slideshare.net/jasonhimmelstein
Email: jase@sharepointlonghorn.com
• Author of Developing Business Intelligence Apps for SharePoint
– http://bit.ly/SharePointBI
2009 Atrion Networking Corporation
