CORE SHAREPOINT CONCEPTS
Course: SharePoint 2013 for Administrators and IT Pro's | Akrura Technologies
By : Isha Kapoor
SharePoint MVP, Author, Trainer and Founder
http://www.akruratechnologies.com/
http://www.learningsharepoint.com/ |
@LearningSP
SharePoint

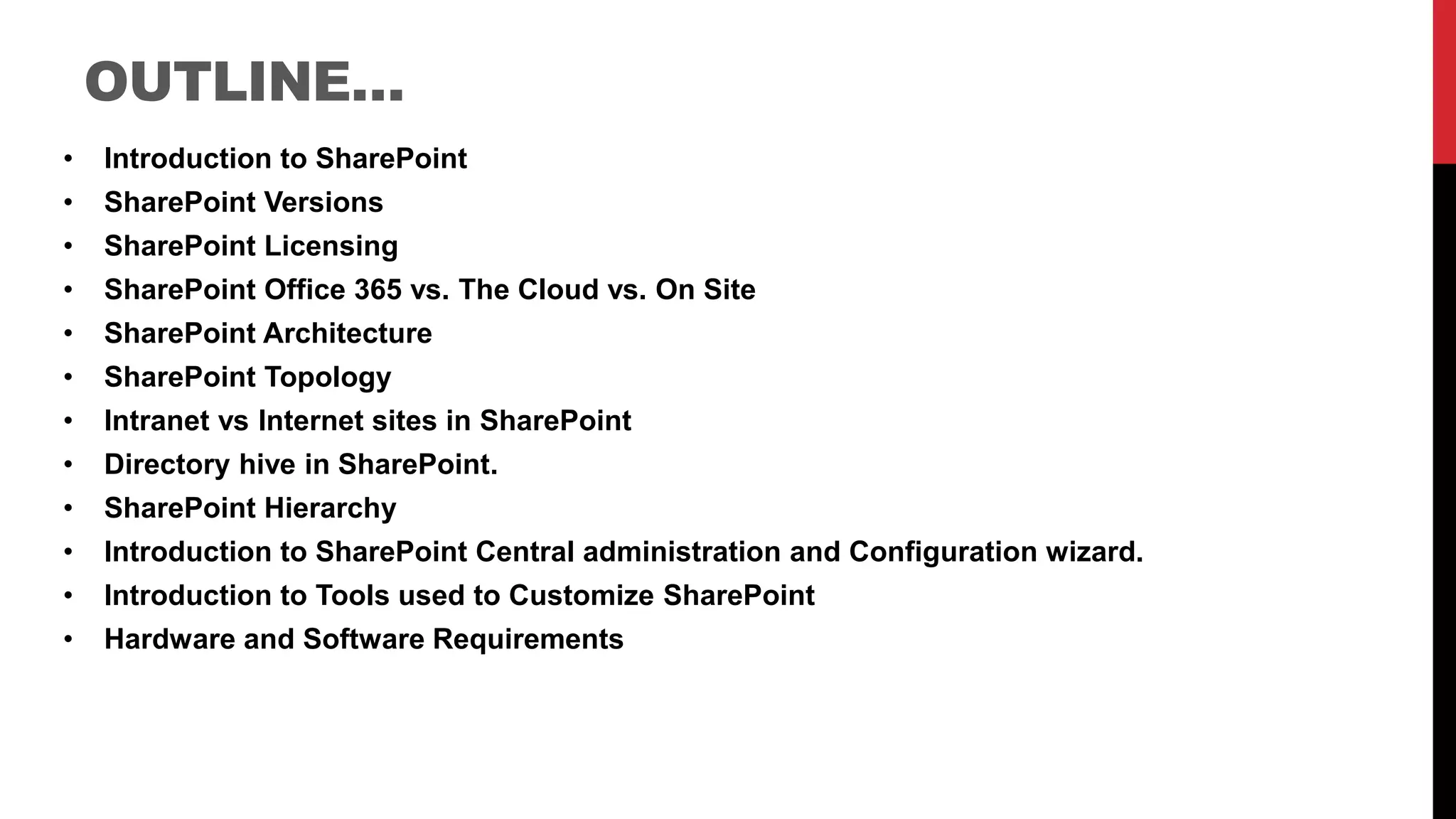

OUTLINE…
• Introduction to SharePoint
• SharePoint Versions
• SharePoint Licensing
• SharePoint Office 365 vs. The Cloud vs. On Site
• SharePoint Architecture
• SharePoint Topology
• Intranet vs Internet sites in SharePoint
• Directory hive in SharePoint.
• SharePoint Hierarchy
• Introduction to SharePoint Central administration and Configuration wizard.
• Introduction to Tools used to Customize SharePoint
• Hardware and Software Requirements

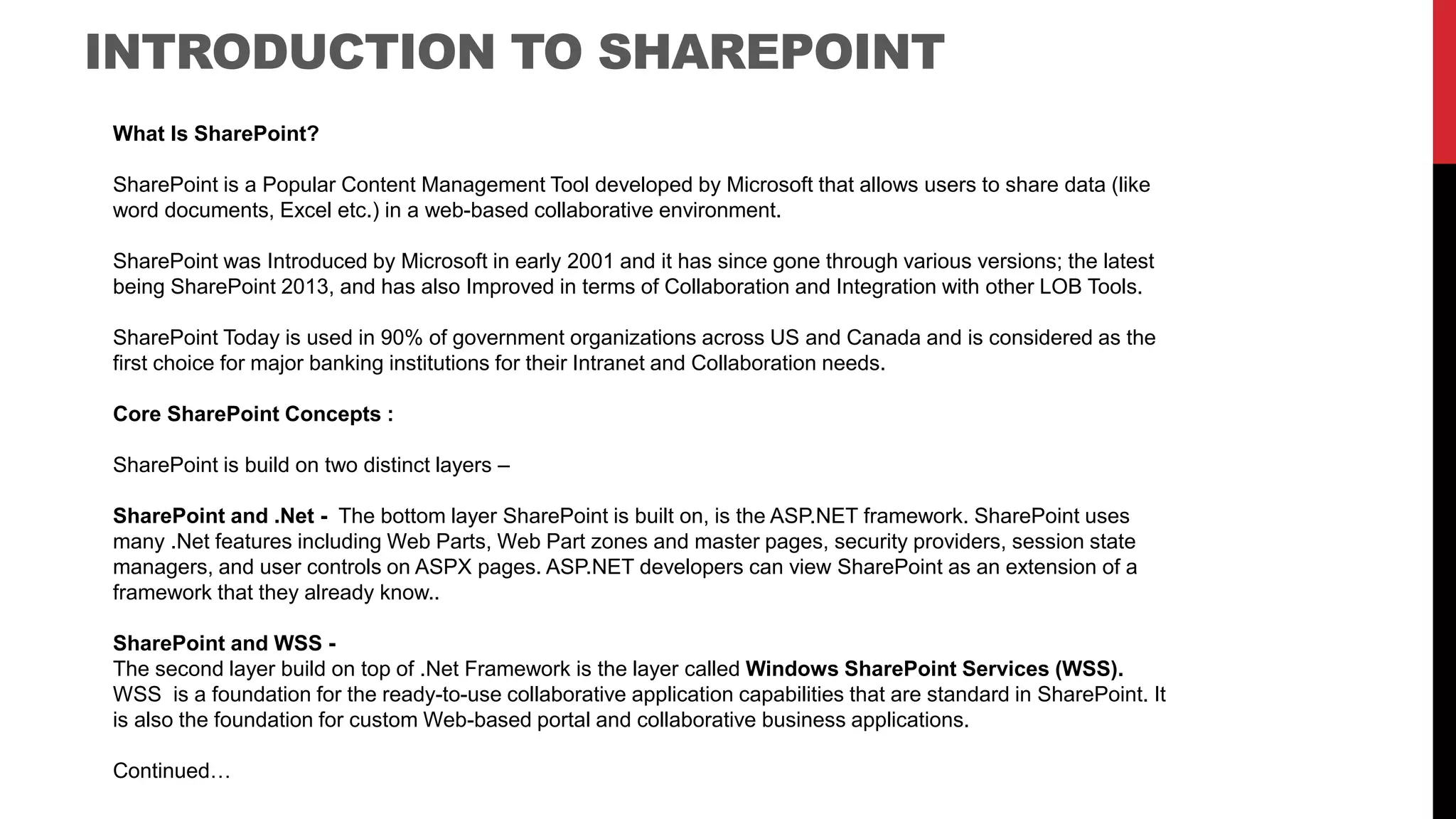

INTRODUCTION TO SHAREPOINT
What Is SharePoint?
SharePoint is a Popular Content Management Tool developed by Microsoft that allows users to share data (like
word documents, Excel etc.) in a web-based collaborative environment.
SharePoint was Introduced by Microsoft in early 2001 and it has since gone through various versions; the latest
being SharePoint 2013, and has also Improved in terms of Collaboration and Integration with other LOB Tools.
SharePoint Today is used in 90% of government organizations across US and Canada and is considered as the
first choice for major banking institutions for their Intranet and Collaboration needs.
Core SharePoint Concepts :
SharePoint is build on two distinct layers –
SharePoint and .Net - The bottom layer SharePoint is built on, is the ASP.NET framework. SharePoint uses
many .Net features including Web Parts, Web Part zones and master pages, security providers, session state
managers, and user controls on ASPX pages. ASP.NET developers can view SharePoint as an extension of a
framework that they already know..
SharePoint and WSS -
The second layer build on top of .Net Framework is the layer called Windows SharePoint Services (WSS).
WSS is a foundation for the ready-to-use collaborative application capabilities that are standard in SharePoint. It
is also the foundation for custom Web-based portal and collaborative business applications.
Continued…

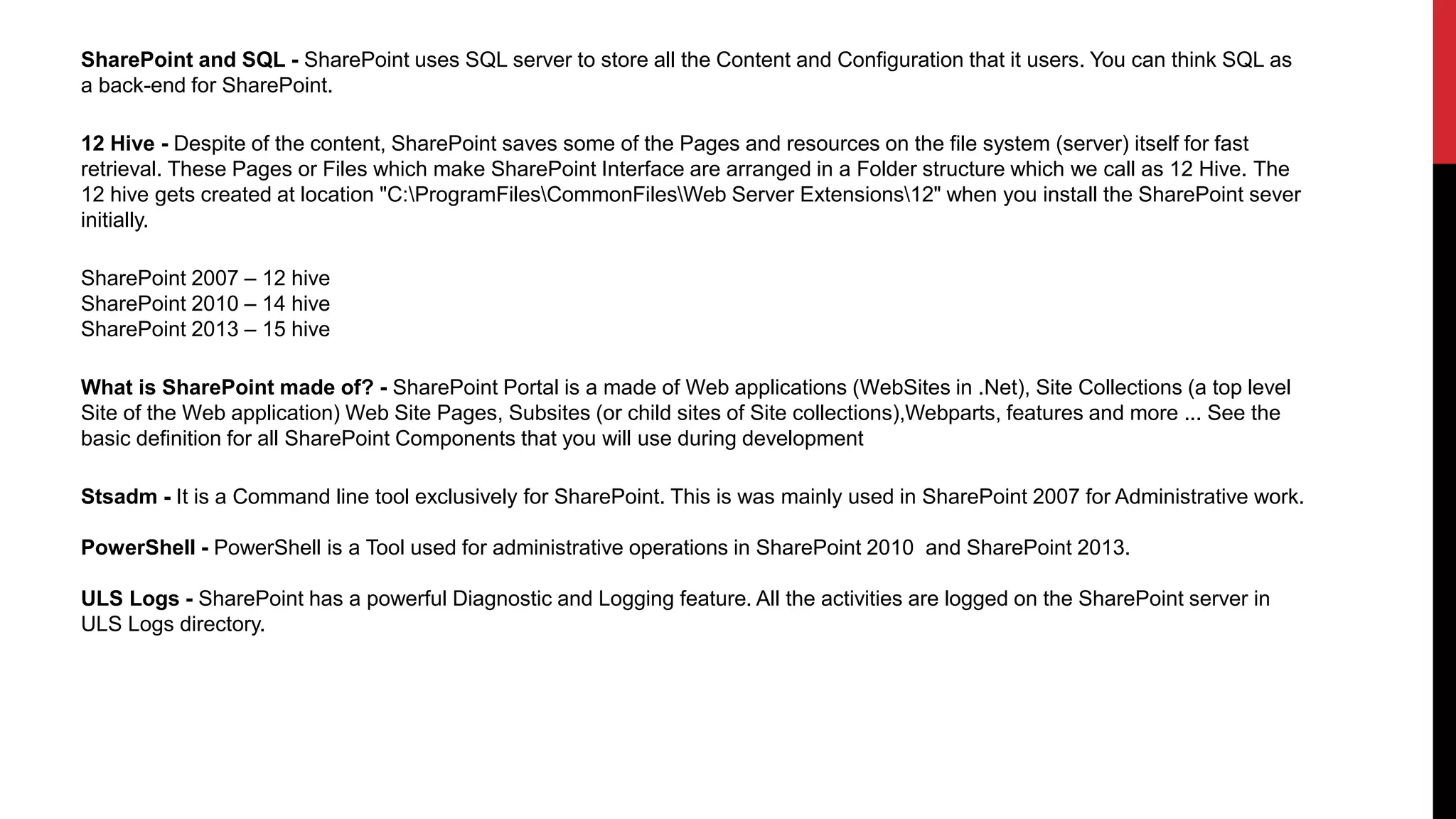

SharePoint and SQL - SharePoint uses SQL server to store all the Content and Configuration that it users. You can think SQL as
a back-end for SharePoint.
12 Hive - Despite of the content, SharePoint saves some of the Pages and resources on the file system (server) itself for fast
retrieval. These Pages or Files which make SharePoint Interface are arranged in a Folder structure which we call as 12 Hive. The
12 hive gets created at location "C:ProgramFilesCommonFilesWeb Server Extensions12" when you install the SharePoint sever
initially.
SharePoint 2007 – 12 hive
SharePoint 2010 – 14 hive
SharePoint 2013 – 15 hive
What is SharePoint made of? - SharePoint Portal is a made of Web applications (WebSites in .Net), Site Collections (a top level
Site of the Web application) Web Site Pages, Subsites (or child sites of Site collections),Webparts, features and more ... See the
basic definition for all SharePoint Components that you will use during development
Stsadm - It is a Command line tool exclusively for SharePoint. This is was mainly used in SharePoint 2007 for Administrative work.
PowerShell - PowerShell is a Tool used for administrative operations in SharePoint 2010 and SharePoint 2013.
ULS Logs - SharePoint has a powerful Diagnostic and Logging feature. All the activities are logged on the SharePoint server in
ULS Logs directory.

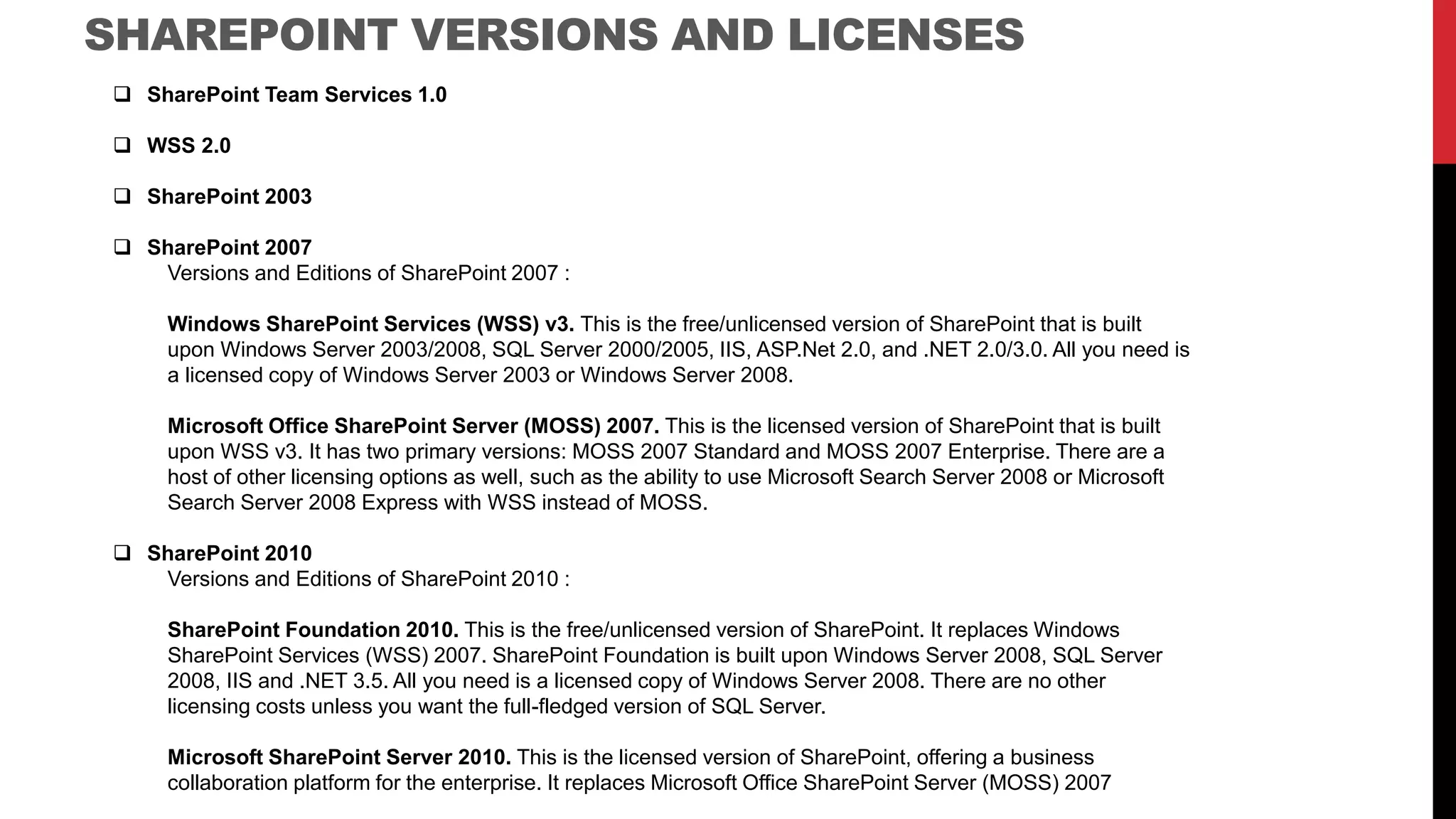

SHAREPOINT VERSIONS AND LICENSES
 SharePoint Team Services 1.0
 WSS 2.0
 SharePoint 2003
 SharePoint 2007
Versions and Editions of SharePoint 2007 :
Windows SharePoint Services (WSS) v3. This is the free/unlicensed version of SharePoint that is built
upon Windows Server 2003/2008, SQL Server 2000/2005, IIS, ASP.Net 2.0, and .NET 2.0/3.0. All you need is
a licensed copy of Windows Server 2003 or Windows Server 2008.
Microsoft Office SharePoint Server (MOSS) 2007. This is the licensed version of SharePoint that is built
upon WSS v3. It has two primary versions: MOSS 2007 Standard and MOSS 2007 Enterprise. There are a
host of other licensing options as well, such as the ability to use Microsoft Search Server 2008 or Microsoft
Search Server 2008 Express with WSS instead of MOSS.
 SharePoint 2010
Versions and Editions of SharePoint 2010 :
SharePoint Foundation 2010. This is the free/unlicensed version of SharePoint. It replaces Windows
SharePoint Services (WSS) 2007. SharePoint Foundation is built upon Windows Server 2008, SQL Server
2008, IIS and .NET 3.5. All you need is a licensed copy of Windows Server 2008. There are no other
licensing costs unless you want the full-fledged version of SQL Server.
Microsoft SharePoint Server 2010. This is the licensed version of SharePoint, offering a business
collaboration platform for the enterprise. It replaces Microsoft Office SharePoint Server (MOSS) 2007

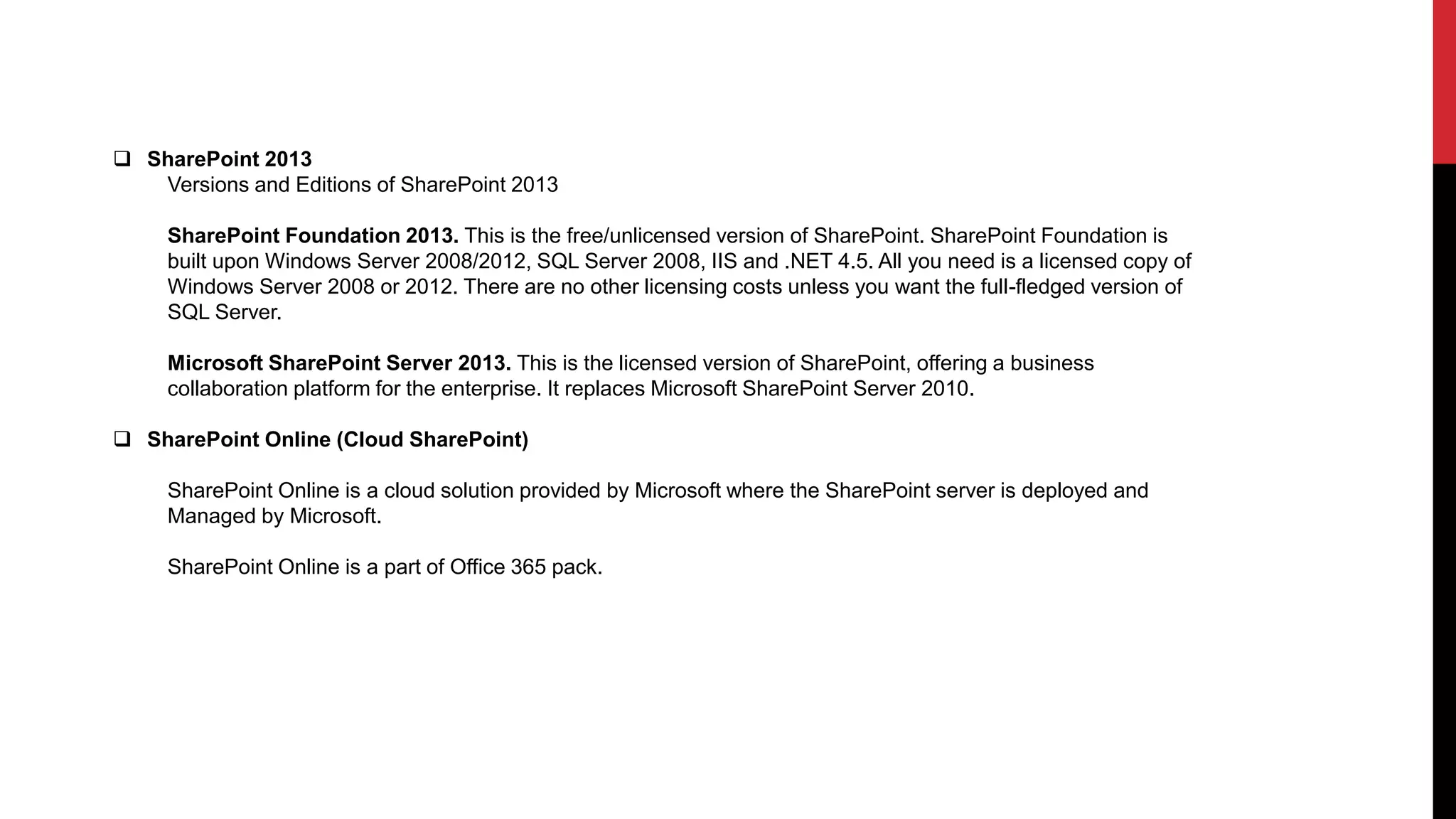

 SharePoint 2013
Versions and Editions of SharePoint 2013
SharePoint Foundation 2013. This is the free/unlicensed version of SharePoint. SharePoint Foundation is
built upon Windows Server 2008/2012, SQL Server 2008, IIS and .NET 4.5. All you need is a licensed copy of
Windows Server 2008 or 2012. There are no other licensing costs unless you want the full-fledged version of
SQL Server.
Microsoft SharePoint Server 2013. This is the licensed version of SharePoint, offering a business
collaboration platform for the enterprise. It replaces Microsoft SharePoint Server 2010.
 SharePoint Online (Cloud SharePoint)
SharePoint Online is a cloud solution provided by Microsoft where the SharePoint server is deployed and
Managed by Microsoft.
SharePoint Online is a part of Office 365 pack.

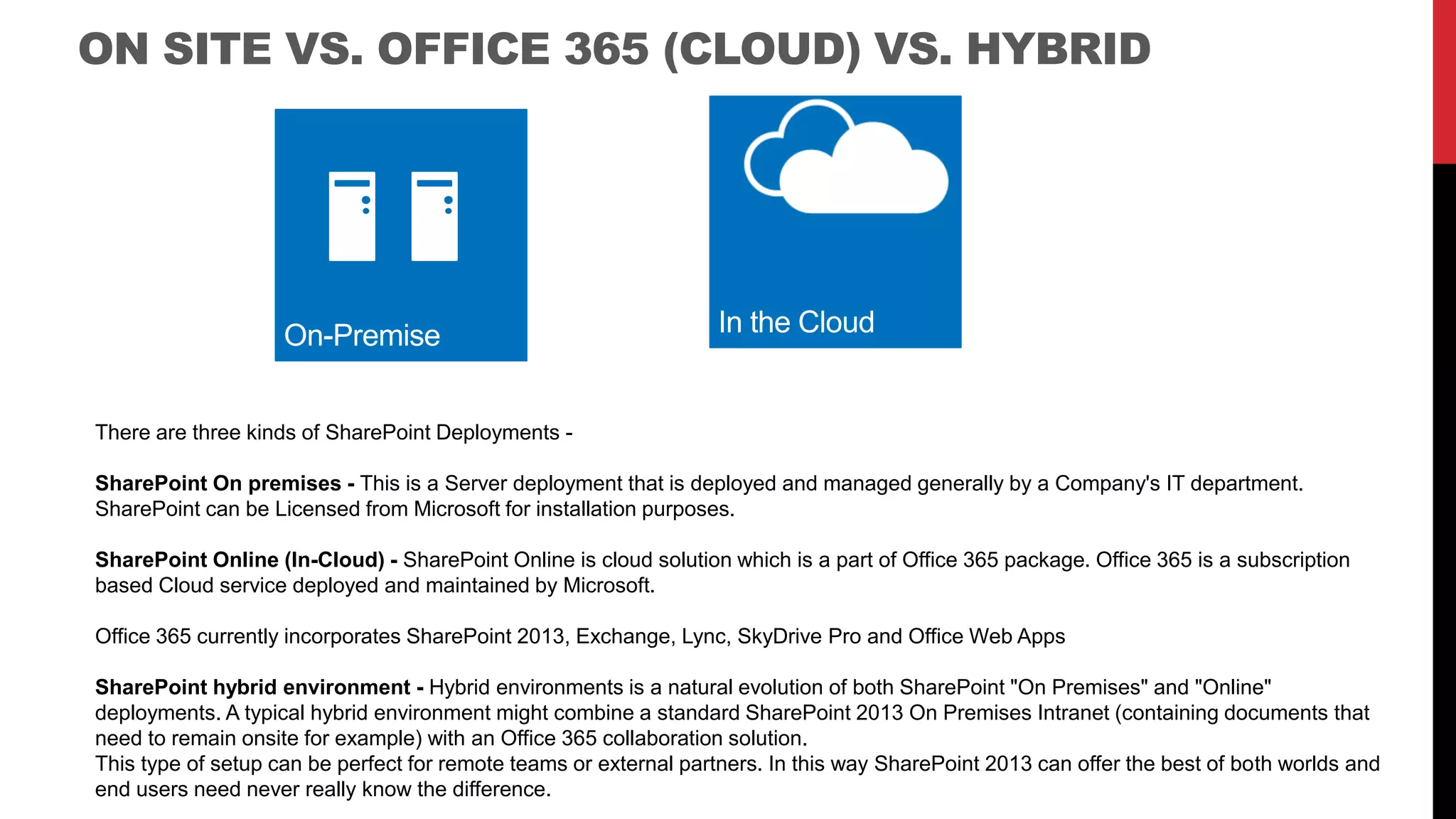

ON SITE VS. OFFICE 365 (CLOUD) VS. HYBRID
There are three kinds of SharePoint Deployments -
SharePoint On premises - This is a Server deployment that is deployed and managed generally by a Company's IT department.
SharePoint can be Licensed from Microsoft for installation purposes.
SharePoint Online (In-Cloud) - SharePoint Online is cloud solution which is a part of Office 365 package. Office 365 is a subscription
based Cloud service deployed and maintained by Microsoft.
Office 365 currently incorporates SharePoint 2013, Exchange, Lync, SkyDrive Pro and Office Web Apps
SharePoint hybrid environment - Hybrid environments is a natural evolution of both SharePoint "On Premises" and "Online"
deployments. A typical hybrid environment might combine a standard SharePoint 2013 On Premises Intranet (containing documents that
need to remain onsite for example) with an Office 365 collaboration solution.
This type of setup can be perfect for remote teams or external partners. In this way SharePoint 2013 can offer the best of both worlds and
end users need never really know the difference.

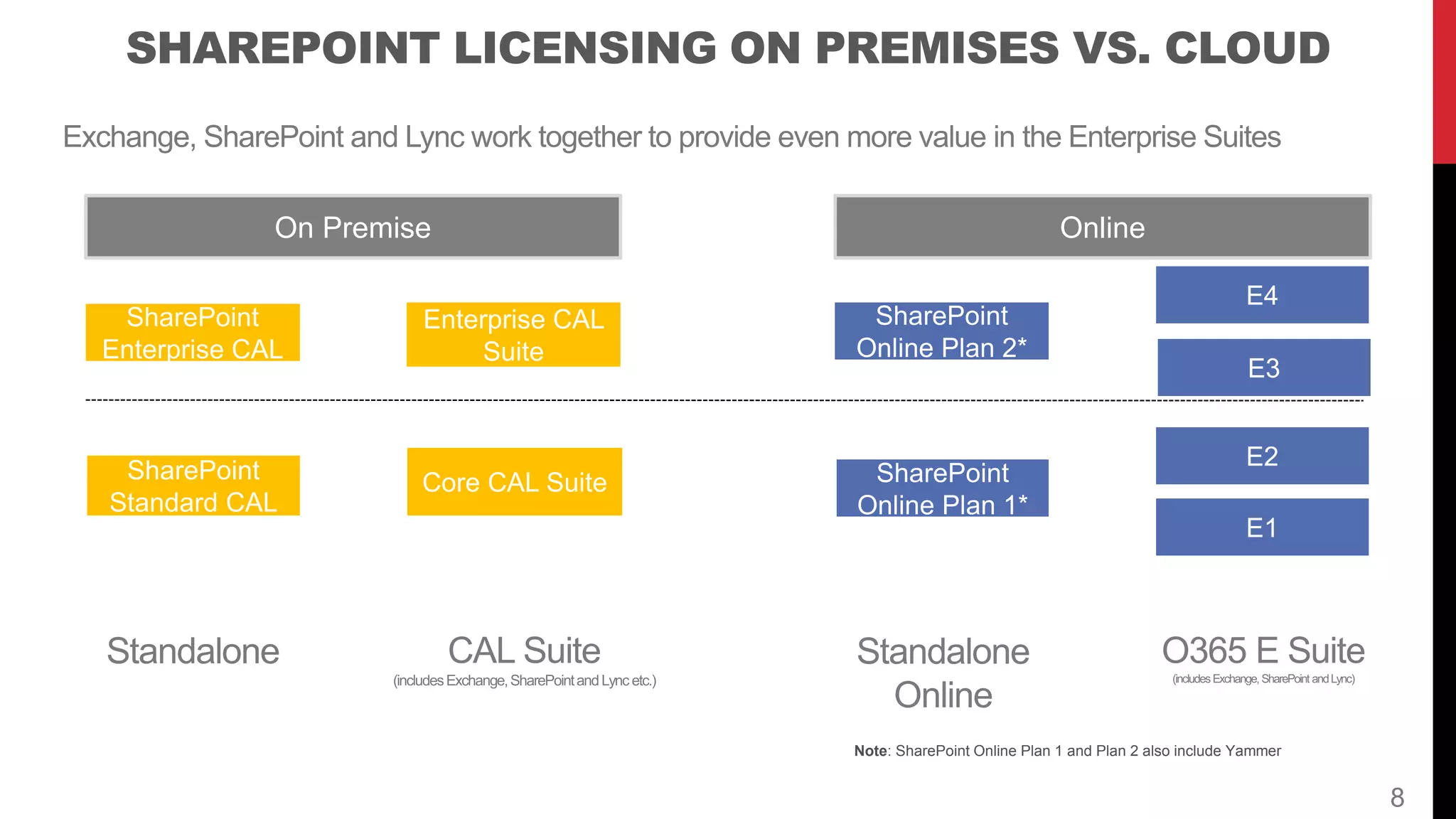

SHAREPOINT LICENSING ON PREMISES VS. CLOUD
Note: SharePoint Online Plan 1 and Plan 2 also include Yammer
On Premise Online

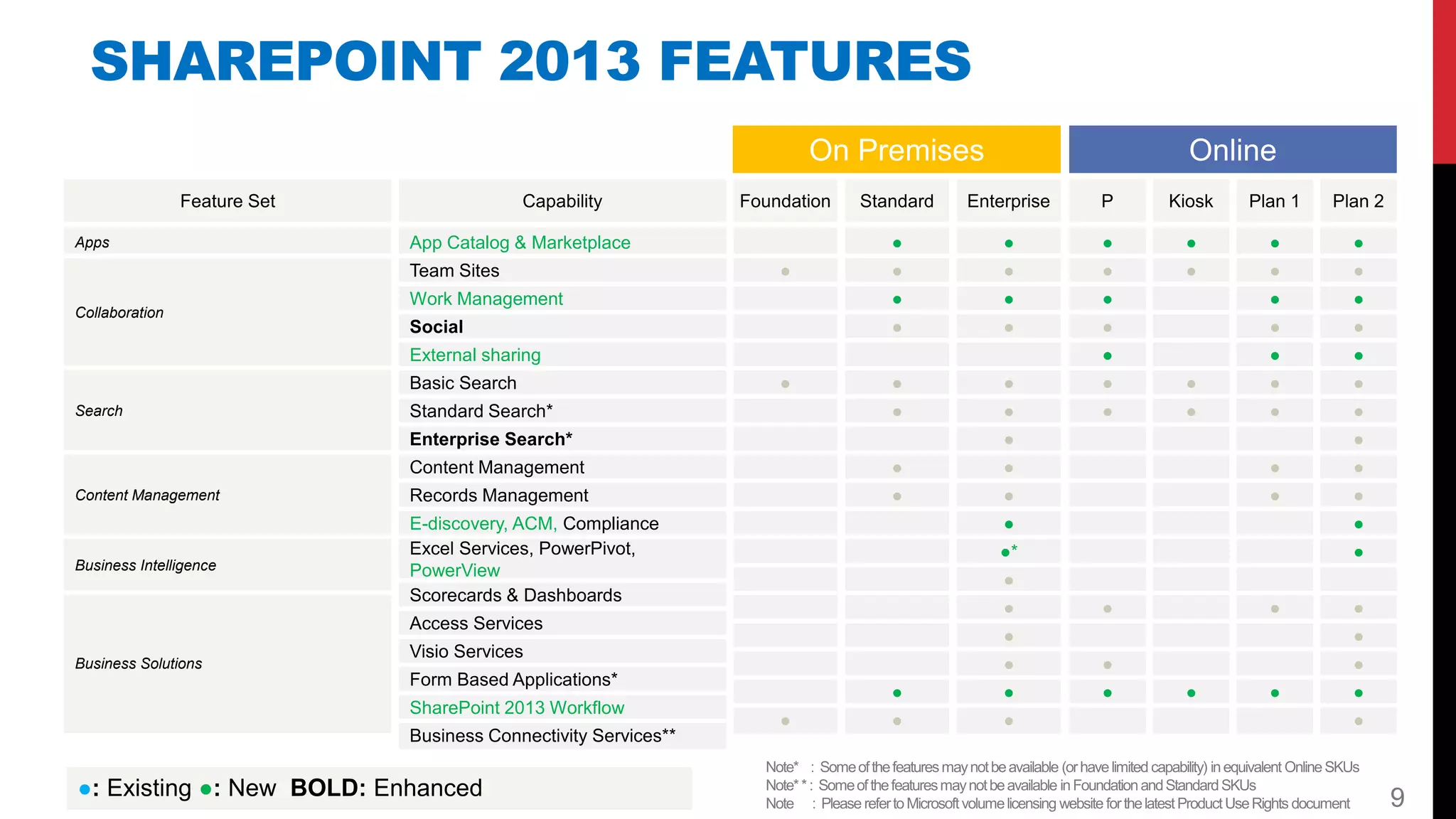

SHAREPOINT 2013 FEATURES
Apps
Collaboration
Search
Content Management
Business Intelligence
Business Solutions
App Catalog & Marketplace
Work Management
External sharing
E-discovery, ACM, Compliance
PowerView
SharePoint 2013 Workflow
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●*
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
● ●

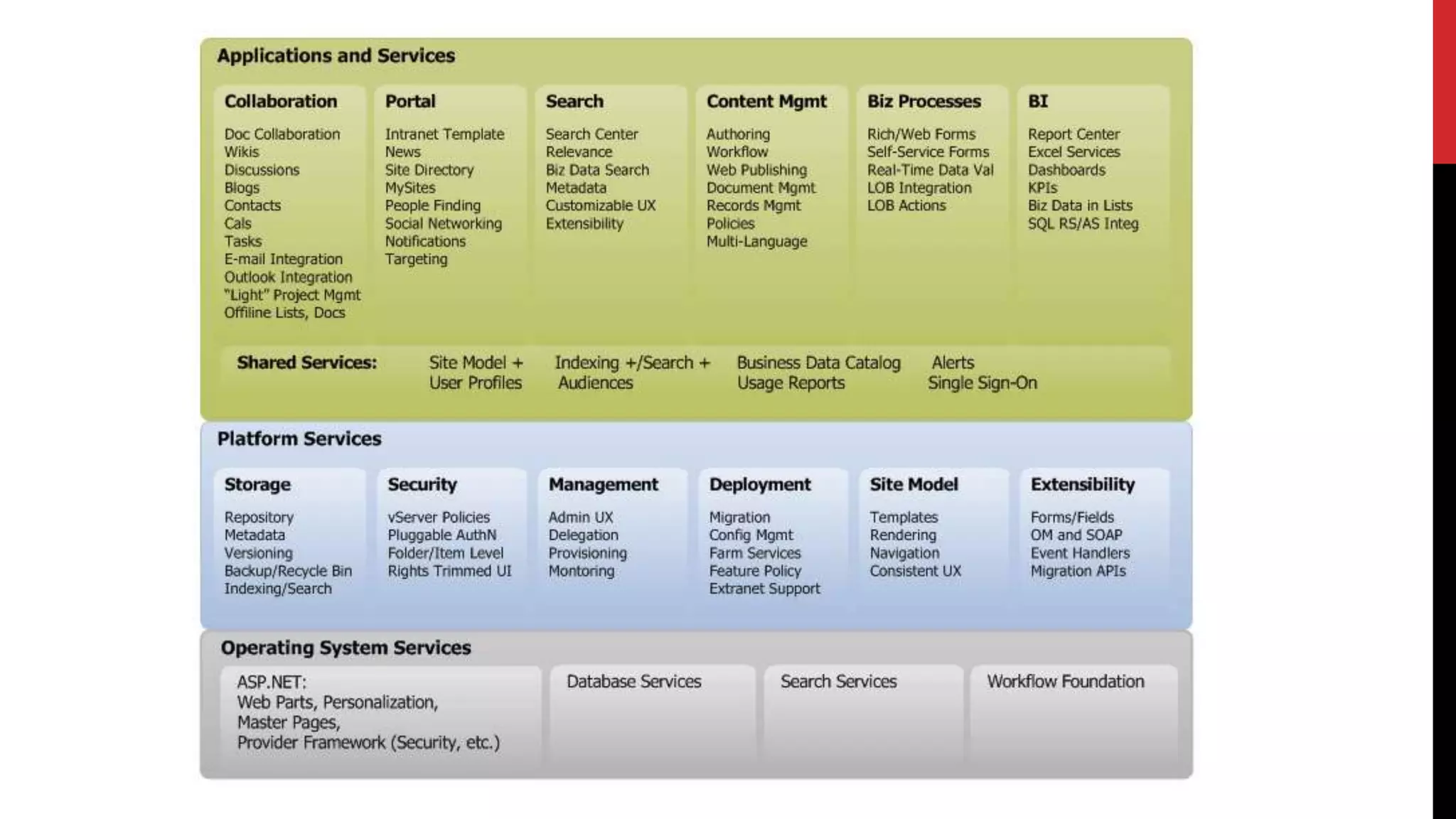

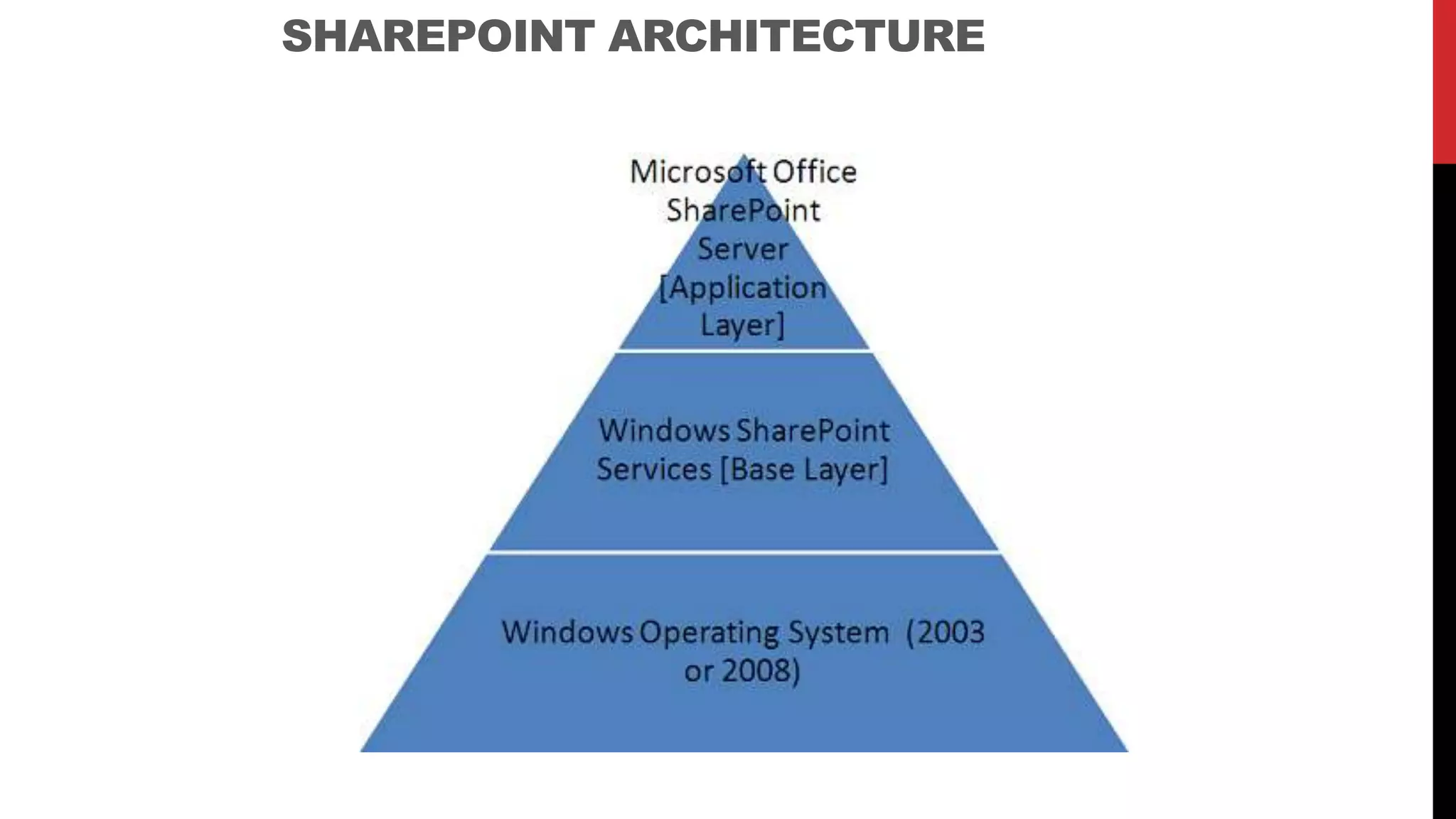

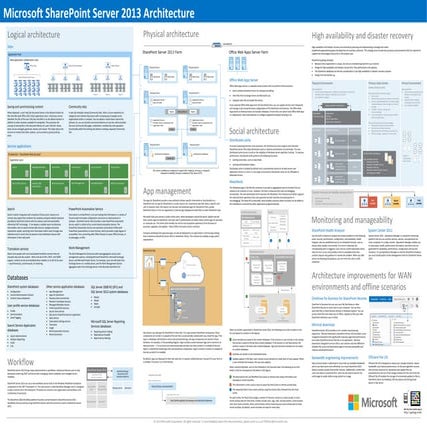

SHAREPOINT ARCHITECTURE

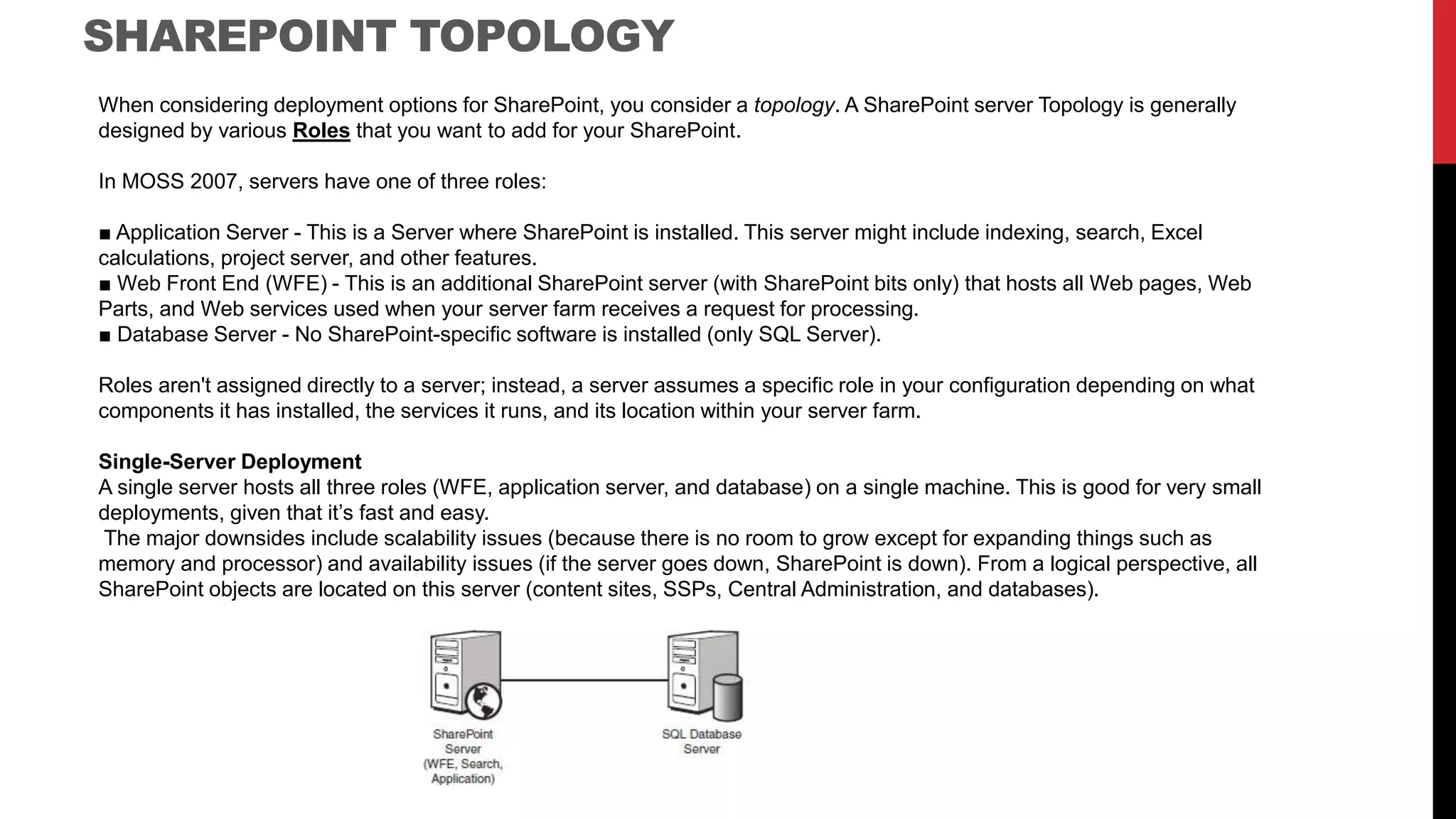

SHAREPOINT TOPOLOGY
When considering deployment options for SharePoint, you consider a topology. A SharePoint server Topology is generally
designed by various Roles that you want to add for your SharePoint.
In MOSS 2007, servers have one of three roles:
■ Application Server - This is a Server where SharePoint is installed. This server might include indexing, search, Excel
calculations, project server, and other features.
■ Web Front End (WFE) - This is an additional SharePoint server (with SharePoint bits only) that hosts all Web pages, Web
Parts, and Web services used when your server farm receives a request for processing.
■ Database Server - No SharePoint-specific software is installed (only SQL Server).
Roles aren't assigned directly to a server; instead, a server assumes a specific role in your configuration depending on what
components it has installed, the services it runs, and its location within your server farm.
Single-Server Deployment
A single server hosts all three roles (WFE, application server, and database) on a single machine. This is good for very small
deployments, given that it’s fast and easy.
The major downsides include scalability issues (because there is no room to grow except for expanding things such as
memory and processor) and availability issues (if the server goes down, SharePoint is down). From a logical perspective, all
SharePoint objects are located on this server (content sites, SSPs, Central Administration, and databases).

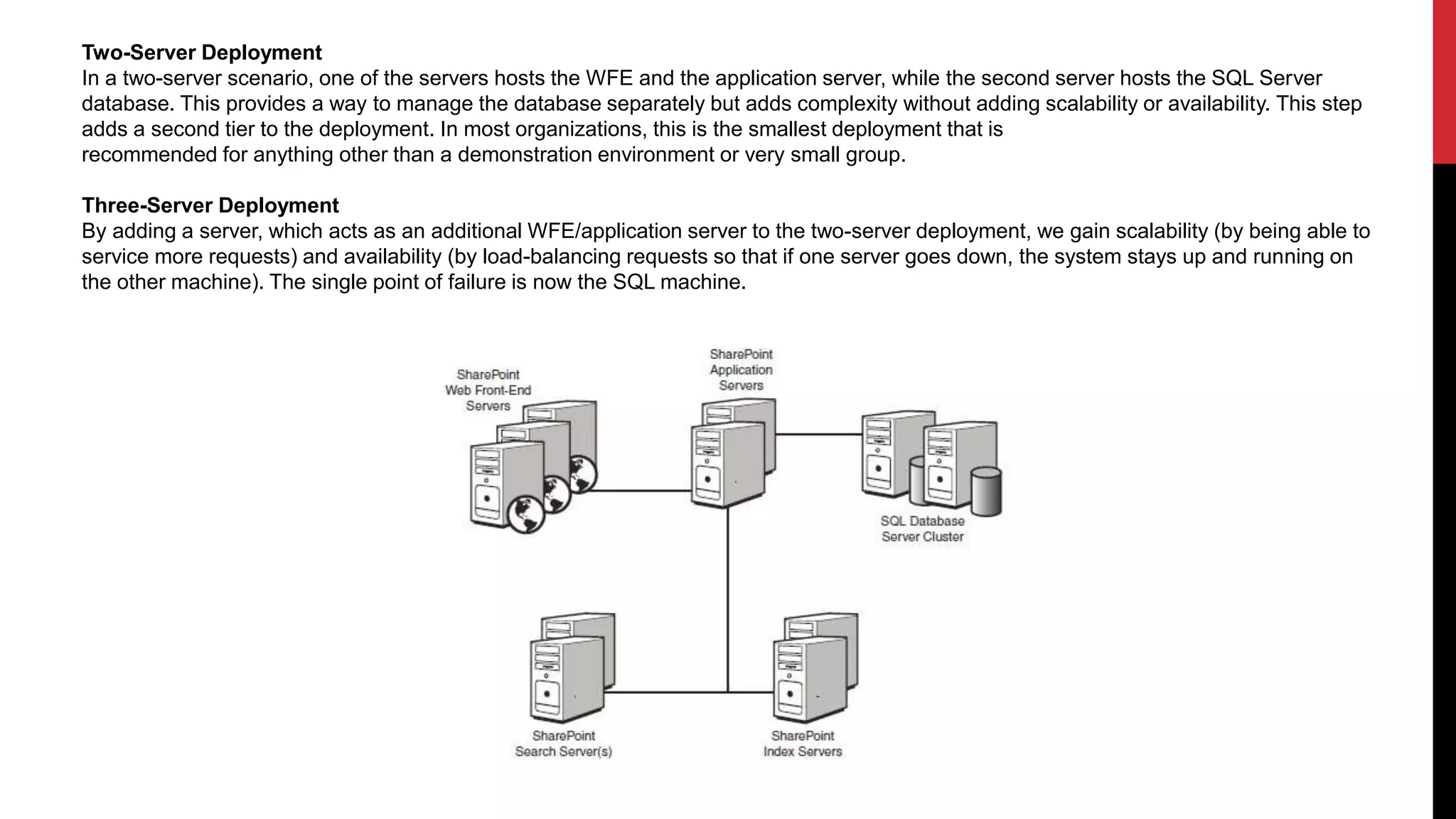

Two-Server Deployment
In a two-server scenario, one of the servers hosts the WFE and the application server, while the second server hosts the SQL Server
database. This provides a way to manage the database separately but adds complexity without adding scalability or availability. This step
adds a second tier to the deployment. In most organizations, this is the smallest deployment that is
recommended for anything other than a demonstration environment or very small group.
Three-Server Deployment
By adding a server, which acts as an additional WFE/application server to the two-server deployment, we gain scalability (by being able to
service more requests) and availability (by load-balancing requests so that if one server goes down, the system stays up and running on
the other machine). The single point of failure is now the SQL machine.
INTRANET VS INTERNET SITES IN SHAREPOINT
SharePoint Intranet sites
One of the main purposes of On-Premise SharePoint deployment is to create an Intranet portal site for a company. A typical company
would add Company Announcements, upload informational documents and create a company structure in an Intranet portal.
Several Team sites can be provisioned under the main SharePoint Intranet portal. Authentication and administration of an Intranet portal is
overseen by a SharePoint Administrator in a Company.
Internet or Extranet SharePoint sites
An Extranet is a web site accessible to users outside of the corporate network, allowing organizations to share information and collaborate
with external vendors, partners, suppliers and other strategic organizations in a secure and easy to use environment. The Extranet may
be a module added to the Intranet site to allow external users into only specific sub-sites of the Intranet..

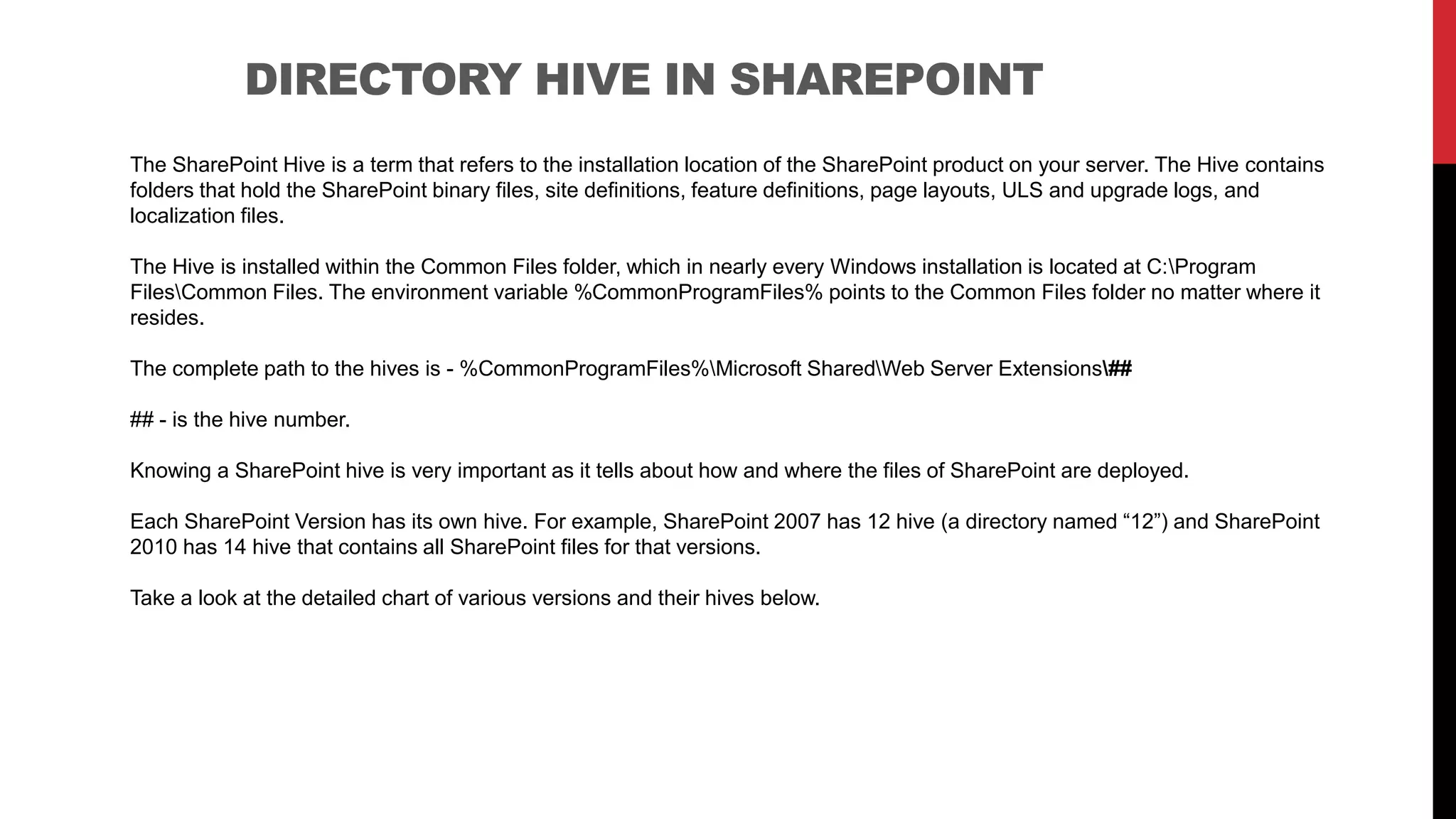

DIRECTORY HIVE IN SHAREPOINT
The SharePoint Hive is a term that refers to the installation location of the SharePoint product on your server. The Hive contains
folders that hold the SharePoint binary files, site definitions, feature definitions, page layouts, ULS and upgrade logs, and
localization files.
The Hive is installed within the Common Files folder, which in nearly every Windows installation is located at C:Program
FilesCommon Files. The environment variable %CommonProgramFiles% points to the Common Files folder no matter where it
resides.
The complete path to the hives is - %CommonProgramFiles%Microsoft SharedWeb Server Extensions##
## - is the hive number.
Knowing a SharePoint hive is very important as it tells about how and where the files of SharePoint are deployed.
Each SharePoint Version has its own hive. For example, SharePoint 2007 has 12 hive (a directory named “12”) and SharePoint
2010 has 14 hive that contains all SharePoint files for that versions.

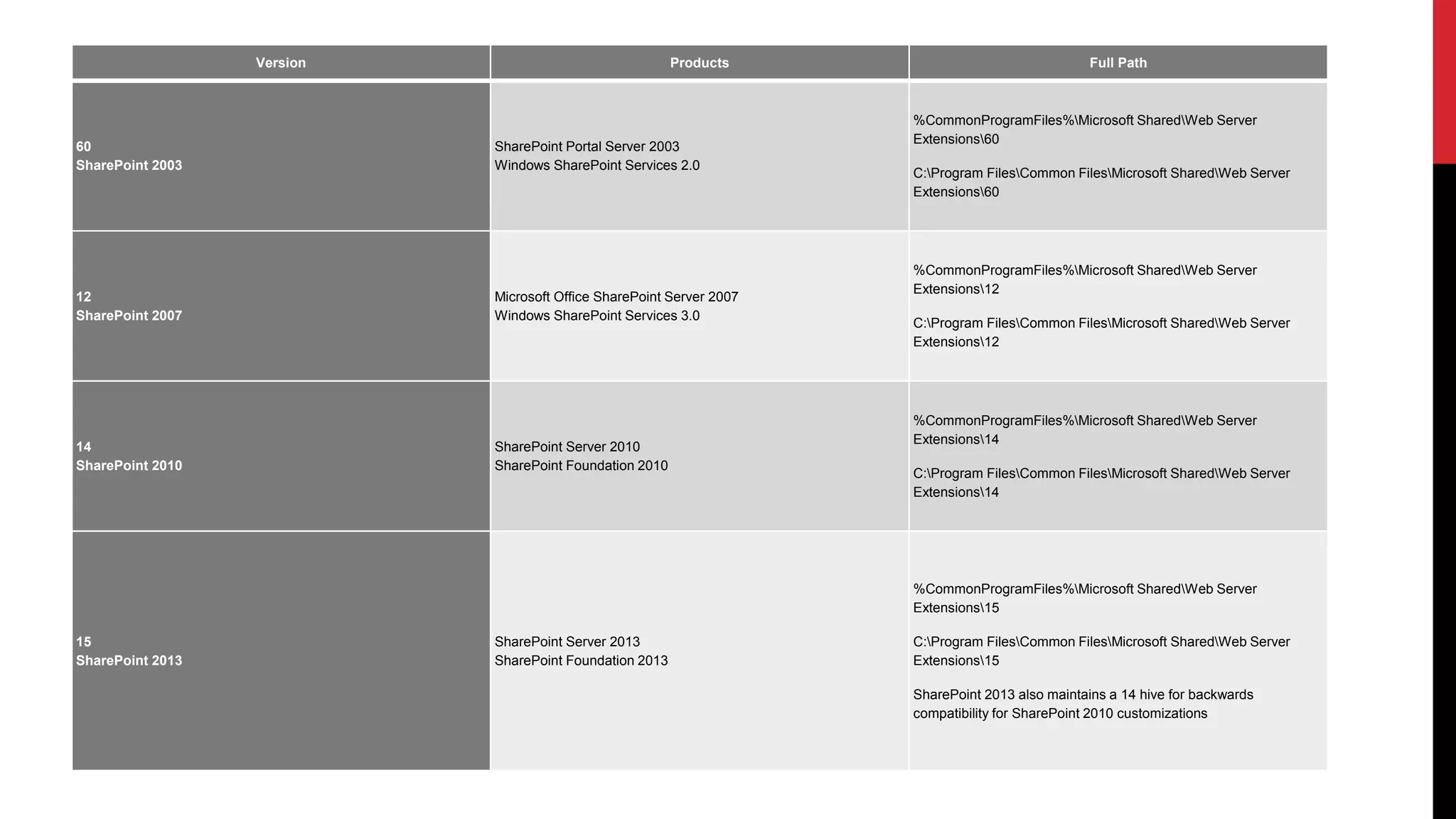

Take a look at the detailed chart of various versions and their hives below.
Version Products Full Path
60
SharePoint 2003
SharePoint Portal Server 2003
Windows SharePoint Services 2.0
%CommonProgramFiles%Microsoft SharedWeb Server
Extensions60
C:Program FilesCommon FilesMicrosoft SharedWeb Server
Extensions60
12
SharePoint 2007
Microsoft Office SharePoint Server 2007
Windows SharePoint Services 3.0
%CommonProgramFiles%Microsoft SharedWeb Server
Extensions12
C:Program FilesCommon FilesMicrosoft SharedWeb Server
Extensions12
14
SharePoint 2010
SharePoint Server 2010
SharePoint Foundation 2010
%CommonProgramFiles%Microsoft SharedWeb Server
Extensions14
C:Program FilesCommon FilesMicrosoft SharedWeb Server
Extensions14
15
SharePoint 2013
SharePoint Server 2013
SharePoint Foundation 2013
%CommonProgramFiles%Microsoft SharedWeb Server
Extensions15
C:Program FilesCommon FilesMicrosoft SharedWeb Server
Extensions15
SharePoint 2013 also maintains a 14 hive for backwards
compatibility for SharePoint 2010 customizations

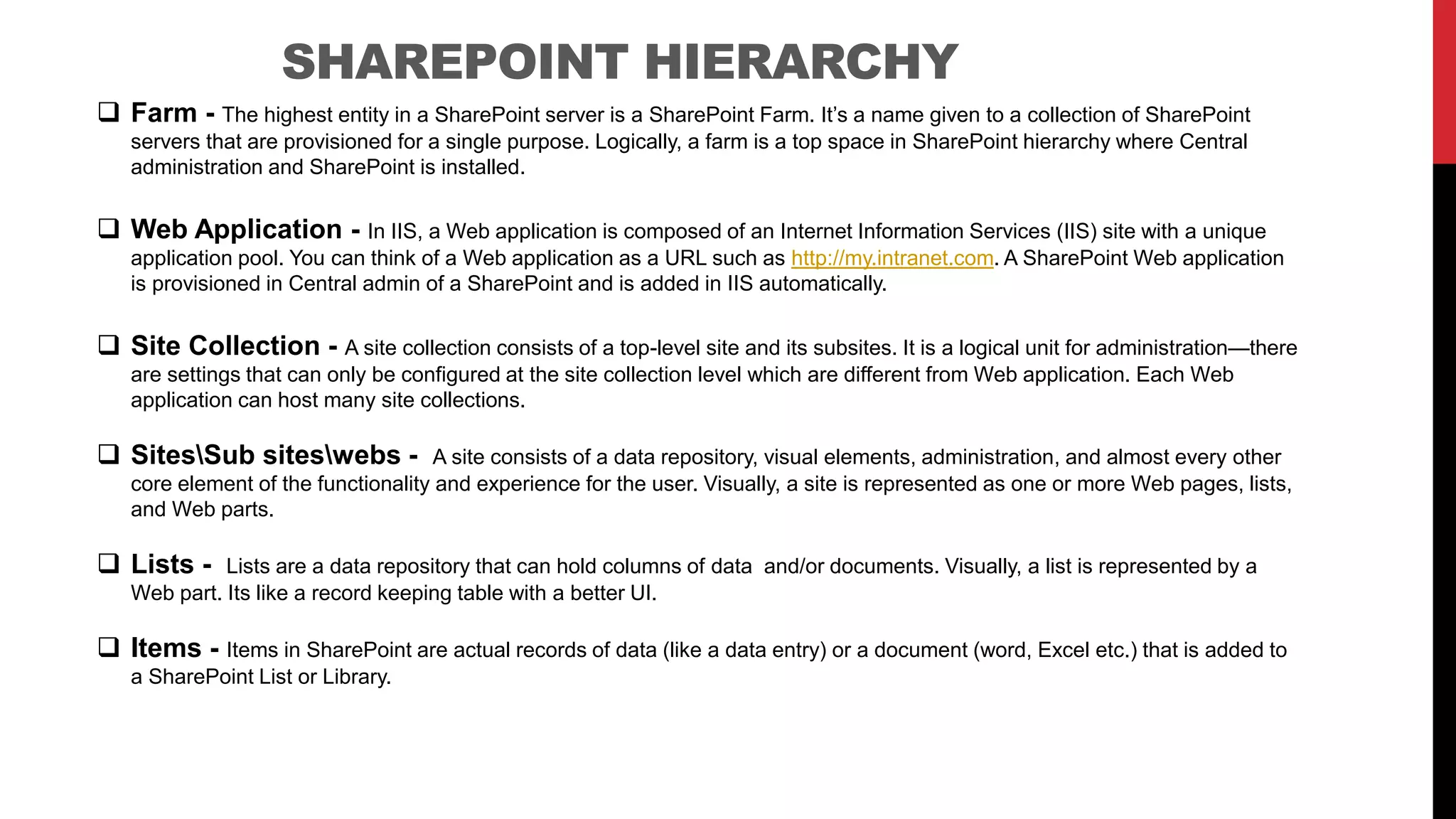

SHAREPOINT HIERARCHY
 Farm - The highest entity in a SharePoint server is a SharePoint Farm. It’s a name given to a collection of SharePoint
servers that are provisioned for a single purpose. Logically, a farm is a top space in SharePoint hierarchy where Central
administration and SharePoint is installed.
 Web Application - In IIS, a Web application is composed of an Internet Information Services (IIS) site with a unique
application pool. You can think of a Web application as a URL such as http://my.intranet.com. A SharePoint Web application
is provisioned in Central admin of a SharePoint and is added in IIS automatically.
 Site Collection - A site collection consists of a top-level site and its subsites. It is a logical unit for administration—there
are settings that can only be configured at the site collection level which are different from Web application. Each Web
application can host many site collections.
 SitesSub siteswebs - A site consists of a data repository, visual elements, administration, and almost every other
core element of the functionality and experience for the user. Visually, a site is represented as one or more Web pages, lists,
and Web parts.
 Lists - Lists are a data repository that can hold columns of data and/or documents. Visually, a list is represented by a
Web part. Its like a record keeping table with a better UI.
 Items - Items in SharePoint are actual records of data (like a data entry) or a document (word, Excel etc.) that is added to
a SharePoint List or Library.

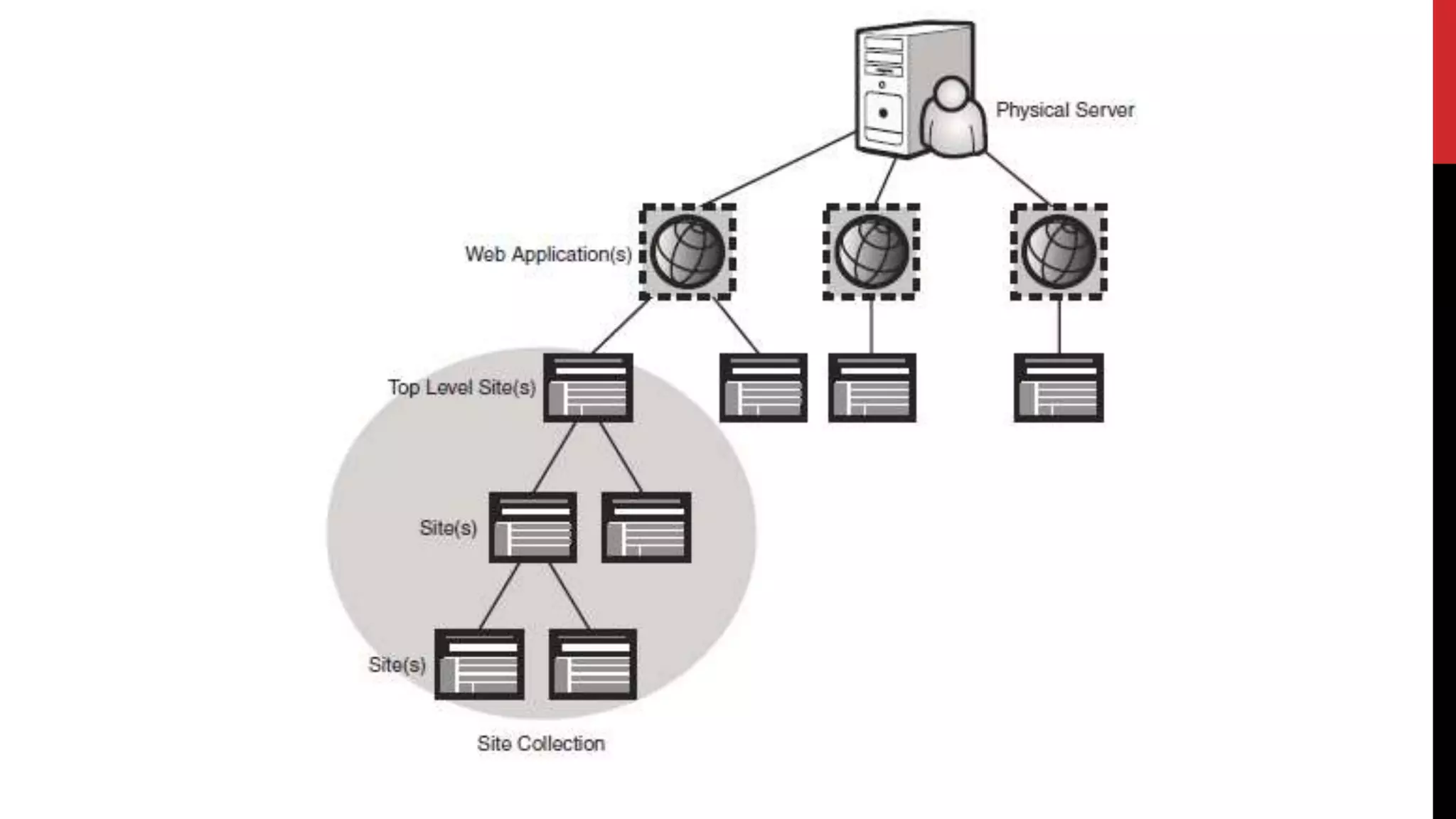

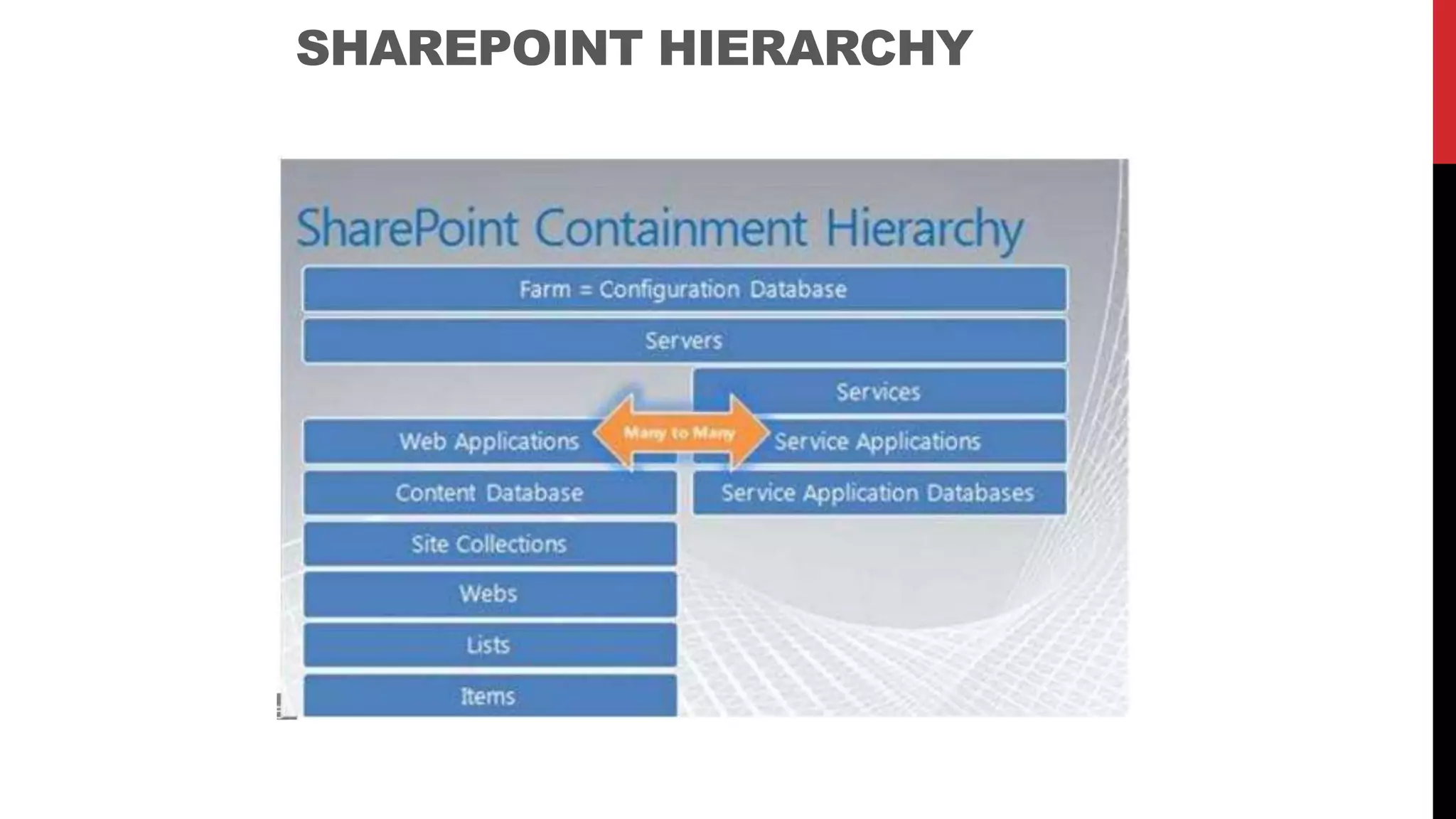

SHAREPOINT HIERARCHY
SHAREPOINT HIERARCHY

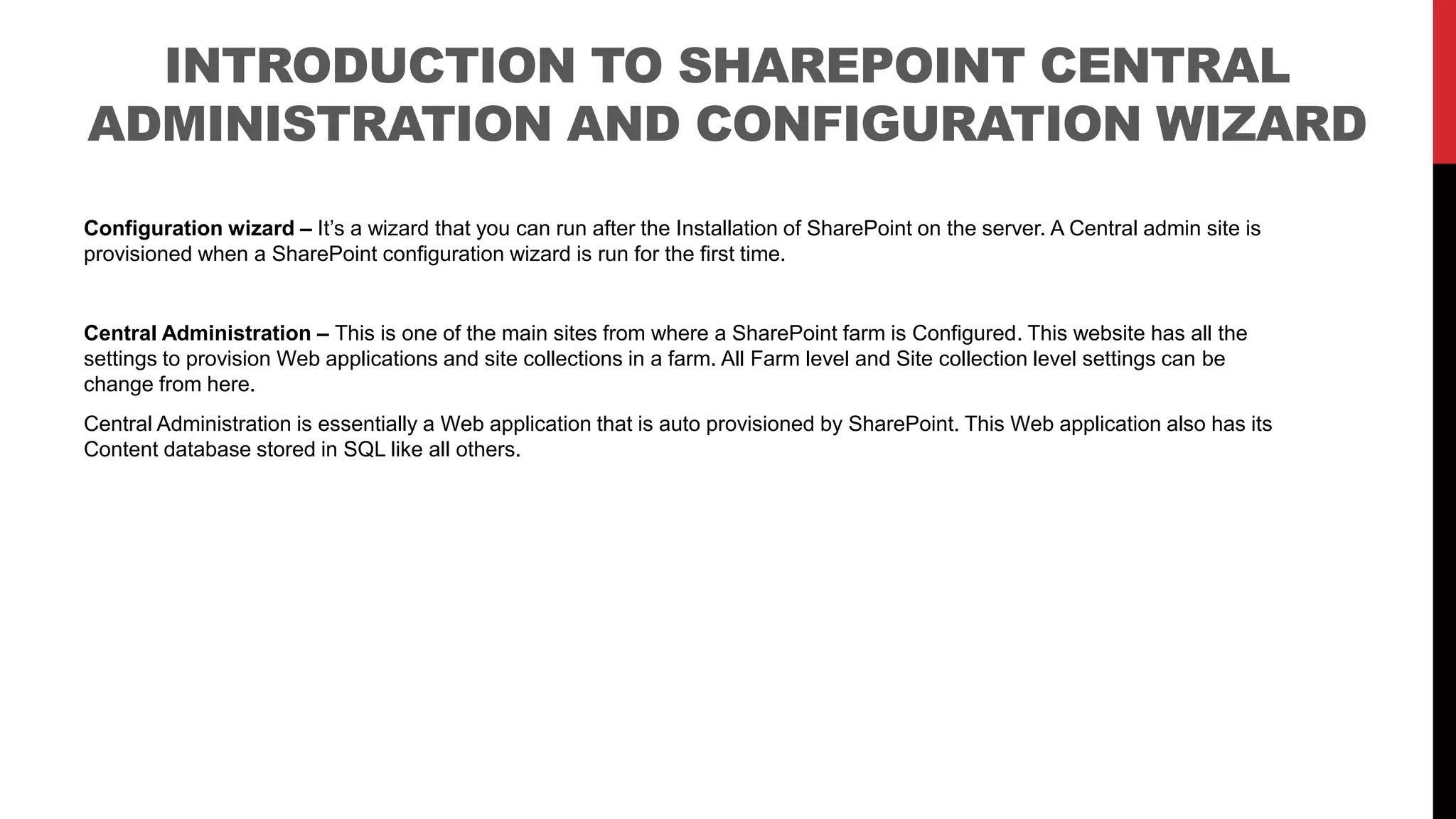

INTRODUCTION TO SHAREPOINT CENTRAL
ADMINISTRATION AND CONFIGURATION WIZARD
Configuration wizard – It’s a wizard that you can run after the Installation of SharePoint on the server. A Central admin site is
provisioned when a SharePoint configuration wizard is run for the first time.
Central Administration – This is one of the main sites from where a SharePoint farm is Configured. This website has all the
settings to provision Web applications and site collections in a farm. All Farm level and Site collection level settings can be
change from here.
Central Administration is essentially a Web application that is auto provisioned by SharePoint. This Web application also has its
Content database stored in SQL like all others.

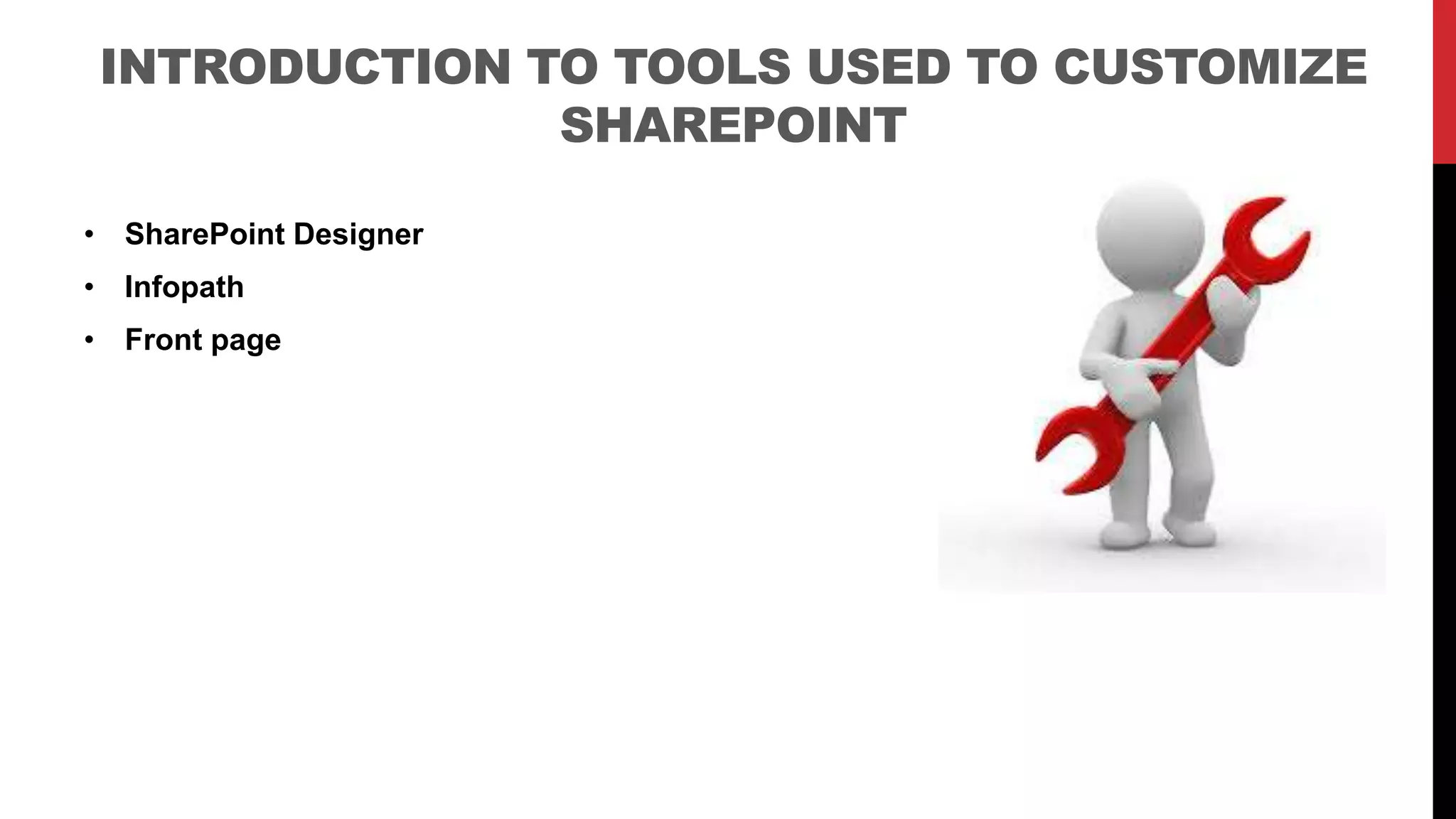

INTRODUCTION TO TOOLS USED TO CUSTOMIZE
SHAREPOINT
• SharePoint Designer
• Infopath
• Front page
HARDWARE
REQUIREMENTS

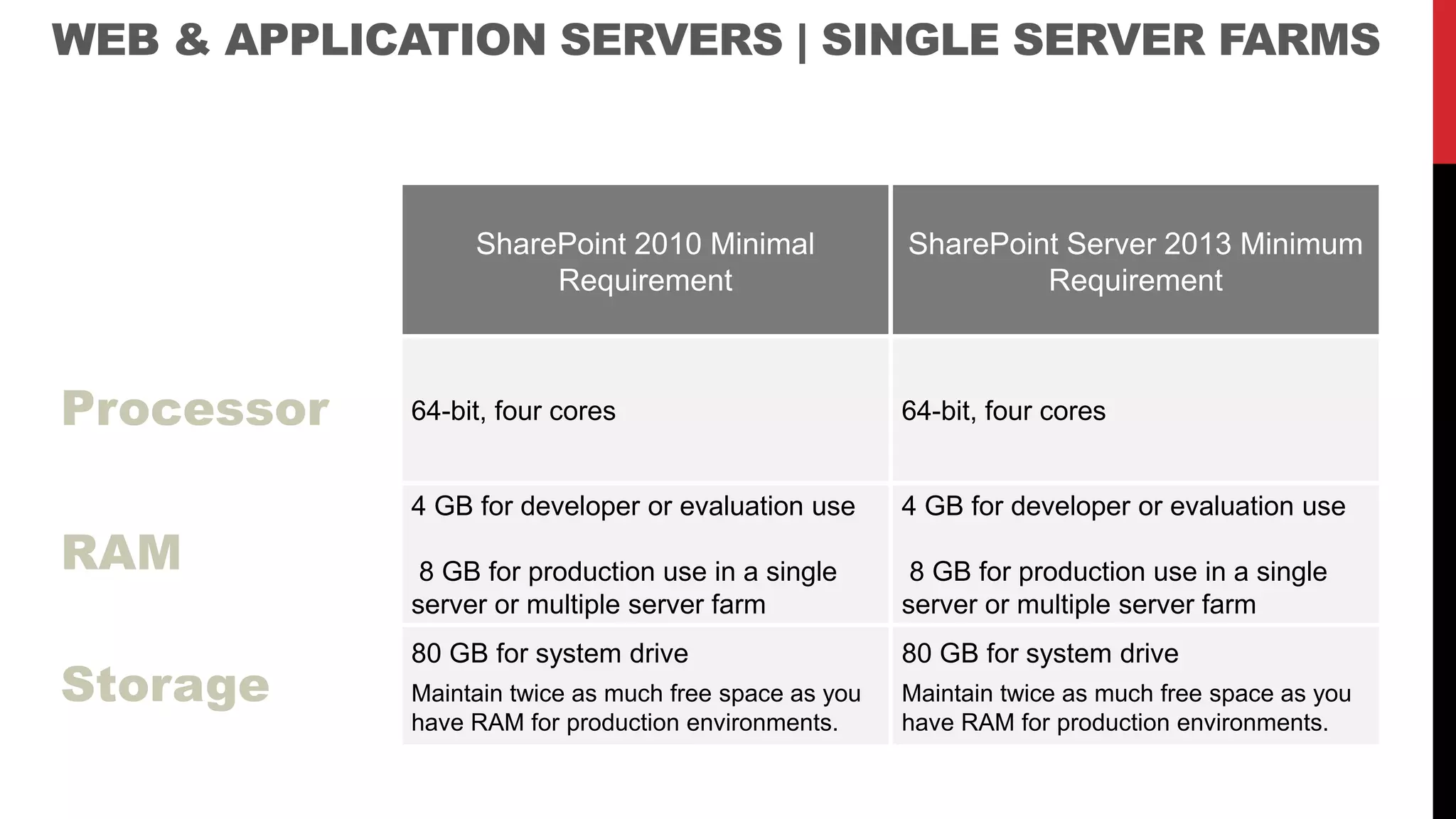

WEB & APPLICATION SERVERS | SINGLE SERVER FARMS
64-bit, four cores 64-bit, four cores
4 GB for developer or evaluation use
8 GB for production use in a single
server or multiple server farm
4 GB for developer or evaluation use
8 GB for production use in a single
server or multiple server farm
80 GB for system drive
Maintain twice as much free space as you
have RAM for production environments.
80 GB for system drive
Maintain twice as much free space as you
have RAM for production environments.
DATABASE SERVERS | MINIMUM HARDWARE
REQUIREMENTS
64-bit, four cores for small
deployments
64-bit, eight cores for medium
Deployments
64-bit, four cores for small
deployments
64-bit, eight cores for medium
Deployments
8 GB for small deployments
16 GB for medium deployments
8 GB for small deployments
16 GB for medium deployments
80 GB for system drive
Hard disk space is dependent on the size
of your SharePoint content
80 GB for system drive
Hard disk space is dependent on the size
of your SharePoint content

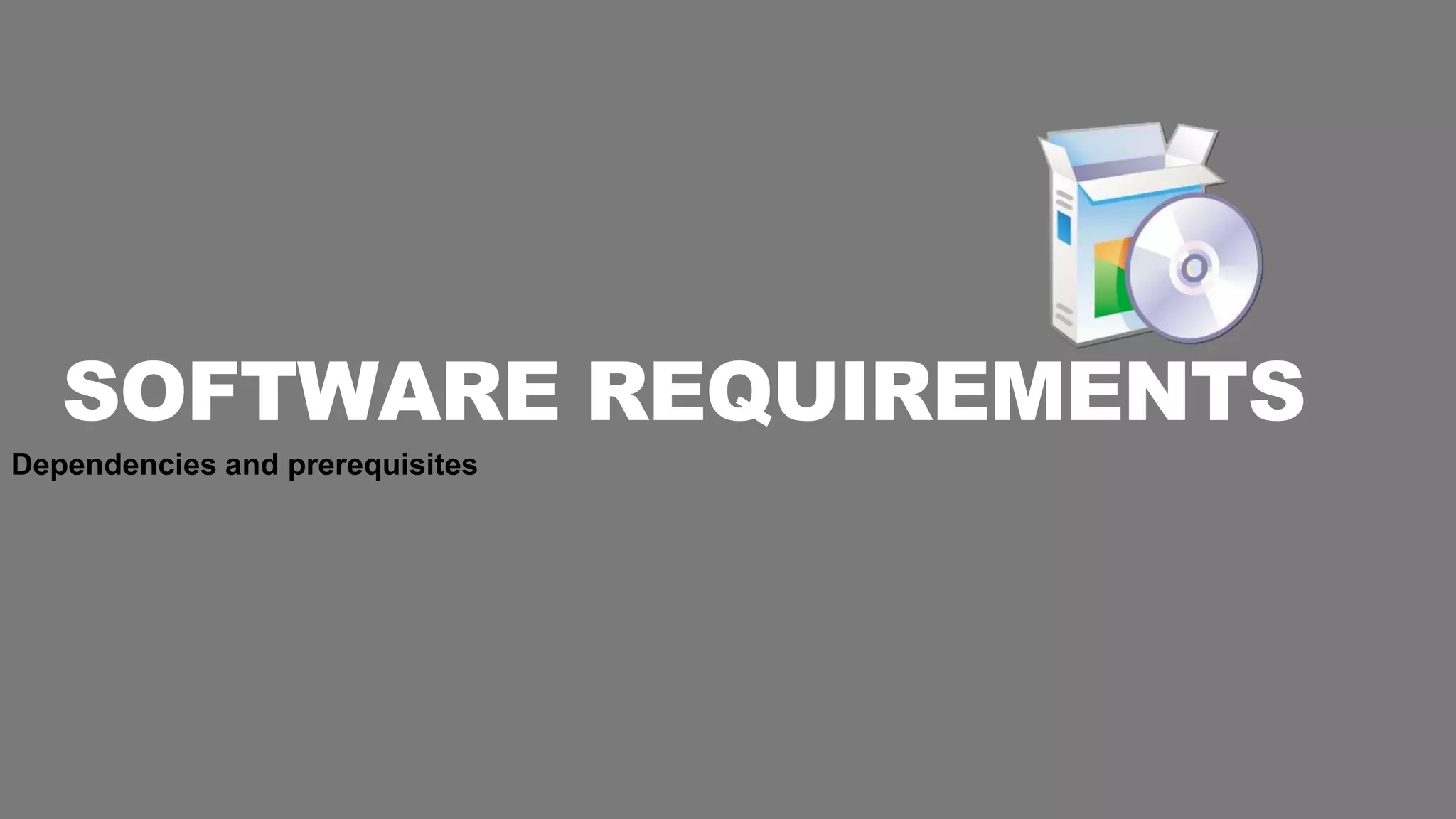

SOFTWARE REQUIREMENTS
Dependencies and prerequisites
SOFTWARE REQUIREMENTS
HardwareandsoftwarerequirementsforSharePointServer2013 http://technet.microsoft.com/en-us/library/cc262485(v=office.15).aspx)

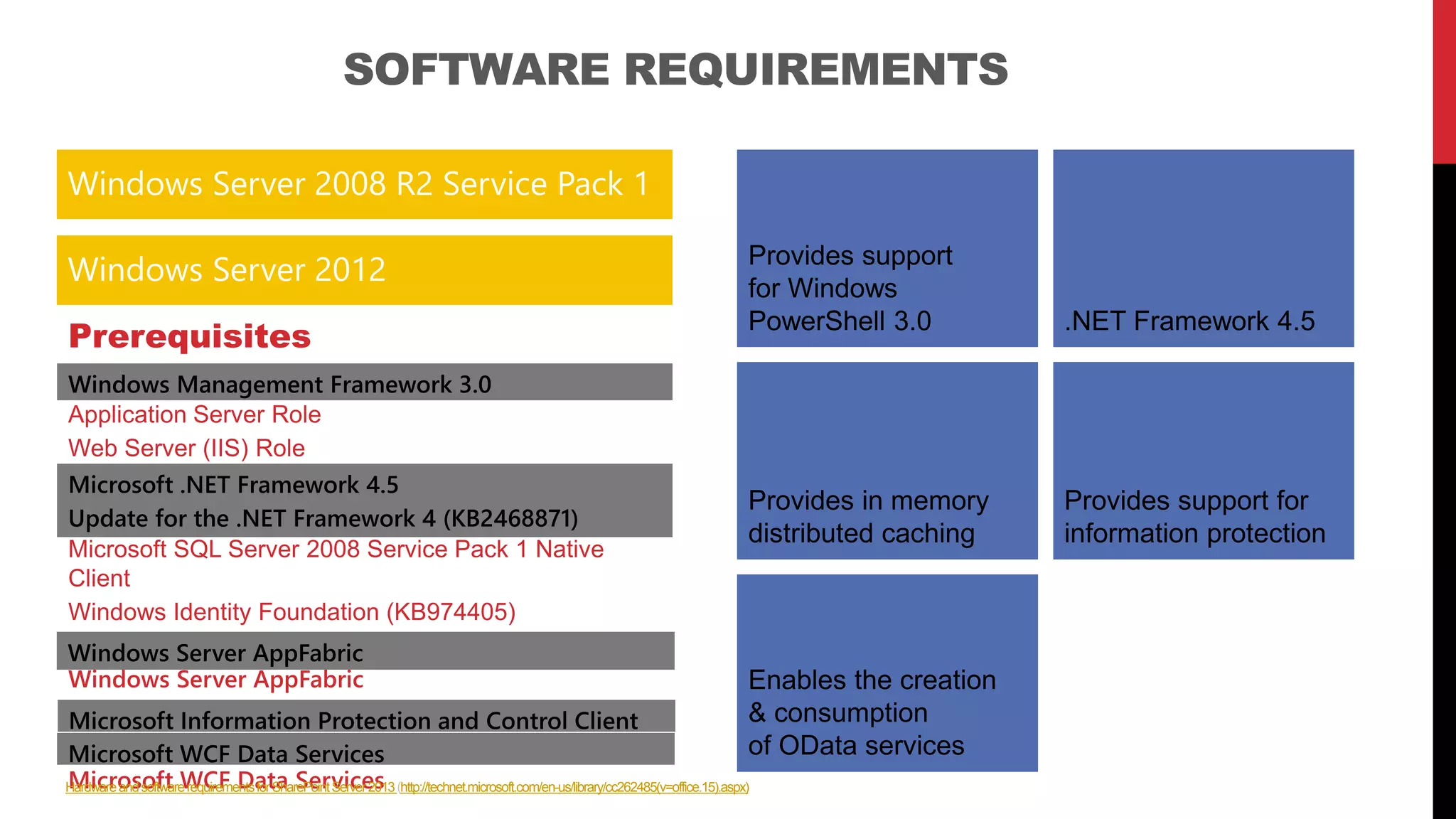

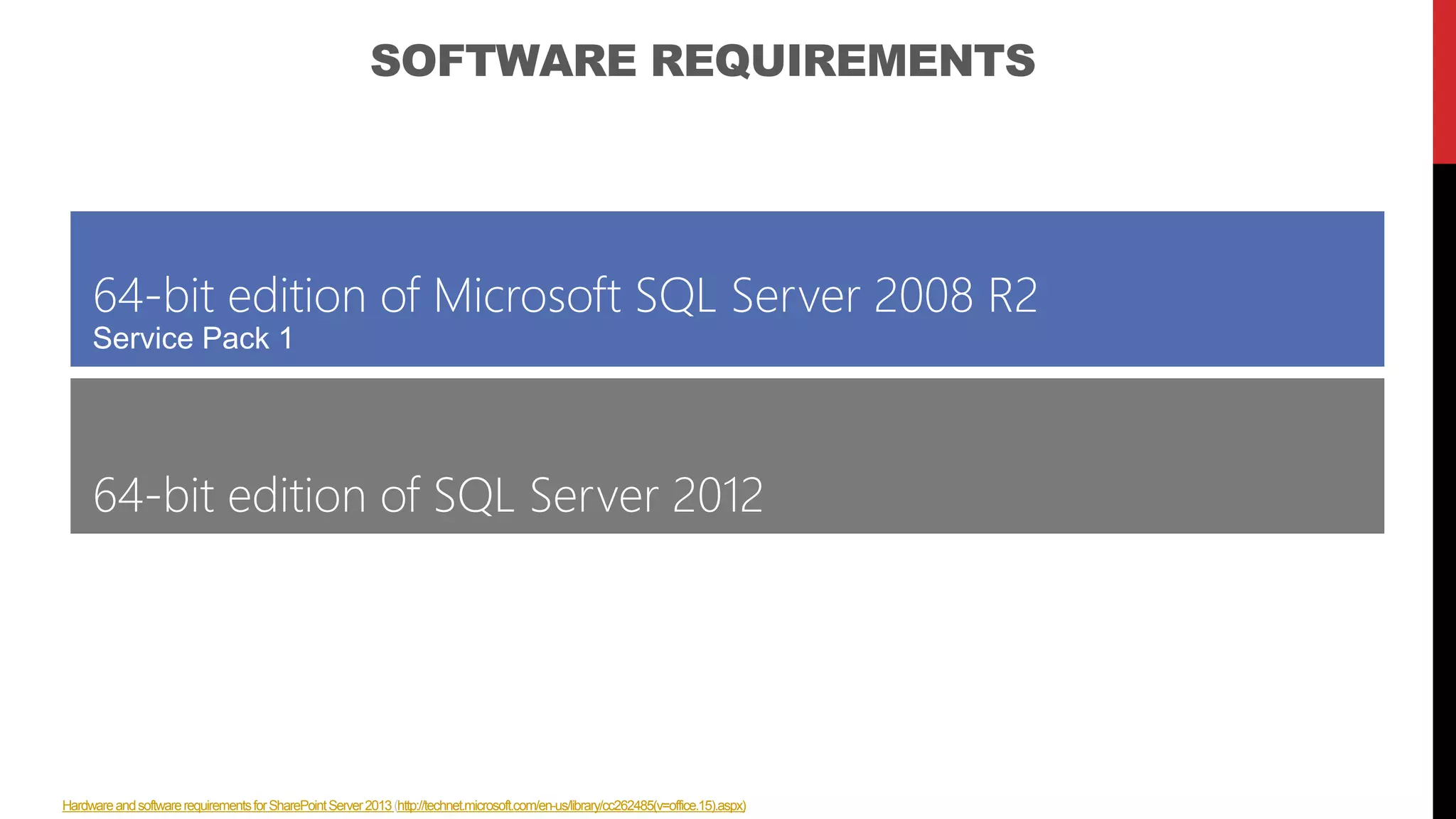

SOFTWARE REQUIREMENTS
HardwareandsoftwarerequirementsforSharePointServer2013 http://technet.microsoft.com/en-us/library/cc262485(v=office.15).aspx)
WE ARE HERE TO
HELP.
Questions?

More Related Content

What's hot

Introduction and What’s new in SharePoint 2013
Introduction and What’s new in SharePoint 2013Introduction and What’s new in SharePoint 2013
Introduction and What’s new in SharePoint 2013
MJ Ferdous

Introduction To SharePoint 2010
Introduction To SharePoint 2010Introduction To SharePoint 2010
Introduction To SharePoint 2010
Rishu Mehra

SharePoint Programming Basic
SharePoint Programming BasicSharePoint Programming Basic
SharePoint Programming Basic
Quang Nguyễn Bá

SharePoint 2013 features overview
SharePoint 2013 features overviewSharePoint 2013 features overview
SharePoint 2013 features overview
Qasim Mehmood MBA-PM

SharePoint 101
SharePoint 101SharePoint 101
SharePoint 101
Dux Raymond Sy

SharePoint 2013 Site Administration
SharePoint 2013 Site AdministrationSharePoint 2013 Site Administration
SharePoint 2013 Site Administration
Learning SharePoint

Microsoft SharePoint 2010 Overview Session 1
Microsoft SharePoint 2010 Overview Session 1Microsoft SharePoint 2010 Overview Session 1
Microsoft SharePoint 2010 Overview Session 1
Sourav Nayyar

Beginners SharePoint introduction
Beginners SharePoint introductionBeginners SharePoint introduction
Beginners SharePoint introduction
Melick Baranasooriya

SharePoint 2013 for Administrators and IT Pro's
SharePoint 2013 for Administrators and IT Pro'sSharePoint 2013 for Administrators and IT Pro's
SharePoint 2013 for Administrators and IT Pro's
Learning SharePoint

Introduction to SharePoint 2013
Introduction to SharePoint 2013Introduction to SharePoint 2013
Introduction to SharePoint 2013
Shahbaz Ahmer

Share point 2013
Share point 2013Share point 2013
Share point 2013
LiquidHub

Share point 2010 Fundamentals
Share point 2010 FundamentalsShare point 2010 Fundamentals
Share point 2010 Fundamentals
balraj_s

Introduction and What is New: Microsoft SharePoint 2013
Introduction and What is New: Microsoft SharePoint 2013Introduction and What is New: Microsoft SharePoint 2013
Introduction and What is New: Microsoft SharePoint 2013
David J Rosenthal

Introduction to SharePoint 2013 WCM-DM-ECM for Business Users and Developers
Introduction to SharePoint 2013 WCM-DM-ECM for Business Users and DevelopersIntroduction to SharePoint 2013 WCM-DM-ECM for Business Users and Developers
Introduction to SharePoint 2013 WCM-DM-ECM for Business Users and Developers
Netwoven Inc.

SharePoint Benefits
SharePoint BenefitsSharePoint Benefits
SharePoint Benefits
Sameh Senosi

Share point 2010-uiimprovements
Share point 2010-uiimprovementsShare point 2010-uiimprovements
Share point 2010-uiimprovements
LiquidHub

A Business Users Guide to Getting the Most Out of SharePoint 2013
A Business Users Guide to Getting the Most Out of SharePoint 2013A Business Users Guide to Getting the Most Out of SharePoint 2013
A Business Users Guide to Getting the Most Out of SharePoint 2013
Christian Buckley

Microsoft SharePoint 2013 Overview from Atidan
Microsoft SharePoint 2013 Overview from AtidanMicrosoft SharePoint 2013 Overview from Atidan
Microsoft SharePoint 2013 Overview from Atidan
David J Rosenthal

SharePoint 2010 Basics for newbies
SharePoint 2010 Basics for newbiesSharePoint 2010 Basics for newbies
SharePoint 2010 Basics for newbies
Sachchin Annam

Introduction to SharePoint 2013 by Michael Blumenthal
Introduction to SharePoint 2013 by Michael BlumenthalIntroduction to SharePoint 2013 by Michael Blumenthal
Introduction to SharePoint 2013 by Michael Blumenthal
Michael Blumenthal (Microsoft MVP)


What's hot (20)

Introduction and What’s new in SharePoint 2013
Introduction and What’s new in SharePoint 2013Introduction and What’s new in SharePoint 2013
Introduction and What’s new in SharePoint 2013

Introduction To SharePoint 2010
Introduction To SharePoint 2010Introduction To SharePoint 2010
Introduction To SharePoint 2010

SharePoint Programming Basic
SharePoint Programming BasicSharePoint Programming Basic
SharePoint Programming Basic

SharePoint 2013 features overview
SharePoint 2013 features overviewSharePoint 2013 features overview
SharePoint 2013 features overview

SharePoint 101
SharePoint 101SharePoint 101
SharePoint 101

SharePoint 2013 Site Administration
SharePoint 2013 Site AdministrationSharePoint 2013 Site Administration
SharePoint 2013 Site Administration

Microsoft SharePoint 2010 Overview Session 1
Microsoft SharePoint 2010 Overview Session 1Microsoft SharePoint 2010 Overview Session 1
Microsoft SharePoint 2010 Overview Session 1

Beginners SharePoint introduction
Beginners SharePoint introductionBeginners SharePoint introduction
Beginners SharePoint introduction

SharePoint 2013 for Administrators and IT Pro's
SharePoint 2013 for Administrators and IT Pro'sSharePoint 2013 for Administrators and IT Pro's
SharePoint 2013 for Administrators and IT Pro's

Introduction to SharePoint 2013
Introduction to SharePoint 2013Introduction to SharePoint 2013
Introduction to SharePoint 2013

Share point 2013
Share point 2013Share point 2013
Share point 2013

Share point 2010 Fundamentals
Share point 2010 FundamentalsShare point 2010 Fundamentals
Share point 2010 Fundamentals

Introduction and What is New: Microsoft SharePoint 2013
Introduction and What is New: Microsoft SharePoint 2013Introduction and What is New: Microsoft SharePoint 2013
Introduction and What is New: Microsoft SharePoint 2013

Introduction to SharePoint 2013 WCM-DM-ECM for Business Users and Developers
Introduction to SharePoint 2013 WCM-DM-ECM for Business Users and DevelopersIntroduction to SharePoint 2013 WCM-DM-ECM for Business Users and Developers
Introduction to SharePoint 2013 WCM-DM-ECM for Business Users and Developers

SharePoint Benefits
SharePoint BenefitsSharePoint Benefits
SharePoint Benefits

Share point 2010-uiimprovements
Share point 2010-uiimprovementsShare point 2010-uiimprovements
Share point 2010-uiimprovements

A Business Users Guide to Getting the Most Out of SharePoint 2013
A Business Users Guide to Getting the Most Out of SharePoint 2013A Business Users Guide to Getting the Most Out of SharePoint 2013
A Business Users Guide to Getting the Most Out of SharePoint 2013

Microsoft SharePoint 2013 Overview from Atidan
Microsoft SharePoint 2013 Overview from AtidanMicrosoft SharePoint 2013 Overview from Atidan
Microsoft SharePoint 2013 Overview from Atidan

SharePoint 2010 Basics for newbies
SharePoint 2010 Basics for newbiesSharePoint 2010 Basics for newbies
SharePoint 2010 Basics for newbies

Introduction to SharePoint 2013 by Michael Blumenthal
Introduction to SharePoint 2013 by Michael BlumenthalIntroduction to SharePoint 2013 by Michael Blumenthal
Introduction to SharePoint 2013 by Michael Blumenthal


Similar to Core SharePoint 2013 Concepts

SharePoint 2013 Sneak Peek
SharePoint 2013 Sneak PeekSharePoint 2013 Sneak Peek
SharePoint 2013 Sneak Peek
Shailen Sukul

sps-2013-architecture-overview.pdf
sps-2013-architecture-overview.pdfsps-2013-architecture-overview.pdf
sps-2013-architecture-overview.pdf
andinieldananty

Webinar on Different types of SharePoint architectural models
Webinar on Different types of SharePoint architectural modelsWebinar on Different types of SharePoint architectural models
Webinar on Different types of SharePoint architectural models
Vignesh Ganesan I Microsoft MVP

CVNUG - Share Point Development
CVNUG - Share Point DevelopmentCVNUG - Share Point Development
CVNUG - Share Point Development
ryanaoliveira

Practical Business Intelligence in SharePoint 2013 - Honolulu
Practical Business Intelligence in SharePoint 2013 - HonoluluPractical Business Intelligence in SharePoint 2013 - Honolulu
Practical Business Intelligence in SharePoint 2013 - Honolulu
Ivan Sanders

Practical Business Intelligence in SharePoint 2013 - Helsinki Finalnd
Practical Business Intelligence in SharePoint 2013 - Helsinki FinalndPractical Business Intelligence in SharePoint 2013 - Helsinki Finalnd
Practical Business Intelligence in SharePoint 2013 - Helsinki Finalnd
Ivan Sanders

SPCSEA 2013 - Setting up SharePoint 2013: Tips and Tricks and PowerShell Scripts
SPCSEA 2013 - Setting up SharePoint 2013: Tips and Tricks and PowerShell ScriptsSPCSEA 2013 - Setting up SharePoint 2013: Tips and Tricks and PowerShell Scripts
SPCSEA 2013 - Setting up SharePoint 2013: Tips and Tricks and PowerShell Scripts
Michael Noel

SHAREPOINT - BUSINESS COLLABORATION TOOL FOR ENTERPRISE AND WEB
SHAREPOINT - BUSINESS COLLABORATION TOOL FOR ENTERPRISE AND WEB SHAREPOINT - BUSINESS COLLABORATION TOOL FOR ENTERPRISE AND WEB
SHAREPOINT - BUSINESS COLLABORATION TOOL FOR ENTERPRISE AND WEB
VAIBHAV DUBEY

SPSHOU - Upgrading and Migrating to SharePoint 2016 like a Pro
SPSHOU - Upgrading and Migrating to SharePoint 2016 like a ProSPSHOU - Upgrading and Migrating to SharePoint 2016 like a Pro
SPSHOU - Upgrading and Migrating to SharePoint 2016 like a Pro
Brian Culver

SPEDUC: SharePoint on Premises vs Online for Education
SPEDUC: SharePoint on Premises vs Online for EducationSPEDUC: SharePoint on Premises vs Online for Education
SPEDUC: SharePoint on Premises vs Online for Education
Jethro Seghers

Share point 2010 administration & development
Share point 2010 administration & developmentShare point 2010 administration & development
Share point 2010 administration & development
MJ Ferdous

Chris givens building custom service applications
Chris givens building custom service applicationsChris givens building custom service applications
Chris givens building custom service applications
Chris Givens

Sharepointarchitecturereal worldscenariofundamentals-150419043032-conversion-...
Sharepointarchitecturereal worldscenariofundamentals-150419043032-conversion-...Sharepointarchitecturereal worldscenariofundamentals-150419043032-conversion-...
Sharepointarchitecturereal worldscenariofundamentals-150419043032-conversion-...
BIWUG

Jump Start: Share Point Development
Jump Start: Share Point DevelopmentJump Start: Share Point Development
Jump Start: Share Point Development
mattbremer

Intro to SharePoint for Developers
Intro to SharePoint for DevelopersIntro to SharePoint for Developers
Intro to SharePoint for Developers
Rob Wilson

Seminar On Share Point By Maroof Ahmad
Seminar On Share Point By Maroof AhmadSeminar On Share Point By Maroof Ahmad
Seminar On Share Point By Maroof Ahmad
MaroofAhmad

Collab365: What's new in SharePoint 2016 for IT Pros
Collab365: What's new in SharePoint 2016 for IT ProsCollab365: What's new in SharePoint 2016 for IT Pros
Collab365: What's new in SharePoint 2016 for IT Pros
Vlad Catrinescu

SharePoint 2010 - IT Platform upgrade and Management
SharePoint 2010 - IT Platform upgrade and ManagementSharePoint 2010 - IT Platform upgrade and Management
SharePoint 2010 - IT Platform upgrade and Management
Chris McNulty

Webinar: Microsoft SharePoint-The Ultimate Enterprise Collaboration Platform
Webinar: Microsoft SharePoint-The Ultimate Enterprise Collaboration PlatformWebinar: Microsoft SharePoint-The Ultimate Enterprise Collaboration Platform
Webinar: Microsoft SharePoint-The Ultimate Enterprise Collaboration Platform
Edureka!

Share point 2010 overview
Share point 2010 overviewShare point 2010 overview
Share point 2010 overview
Cognizant Technology Solutions


Similar to Core SharePoint 2013 Concepts (20)

SharePoint 2013 Sneak Peek
SharePoint 2013 Sneak PeekSharePoint 2013 Sneak Peek
SharePoint 2013 Sneak Peek

sps-2013-architecture-overview.pdf
sps-2013-architecture-overview.pdfsps-2013-architecture-overview.pdf
sps-2013-architecture-overview.pdf

Webinar on Different types of SharePoint architectural models
Webinar on Different types of SharePoint architectural modelsWebinar on Different types of SharePoint architectural models
Webinar on Different types of SharePoint architectural models

CVNUG - Share Point Development
CVNUG - Share Point DevelopmentCVNUG - Share Point Development
CVNUG - Share Point Development

Practical Business Intelligence in SharePoint 2013 - Honolulu
Practical Business Intelligence in SharePoint 2013 - HonoluluPractical Business Intelligence in SharePoint 2013 - Honolulu
Practical Business Intelligence in SharePoint 2013 - Honolulu

Practical Business Intelligence in SharePoint 2013 - Helsinki Finalnd
Practical Business Intelligence in SharePoint 2013 - Helsinki FinalndPractical Business Intelligence in SharePoint 2013 - Helsinki Finalnd
Practical Business Intelligence in SharePoint 2013 - Helsinki Finalnd

SPCSEA 2013 - Setting up SharePoint 2013: Tips and Tricks and PowerShell Scripts
SPCSEA 2013 - Setting up SharePoint 2013: Tips and Tricks and PowerShell ScriptsSPCSEA 2013 - Setting up SharePoint 2013: Tips and Tricks and PowerShell Scripts
SPCSEA 2013 - Setting up SharePoint 2013: Tips and Tricks and PowerShell Scripts

SHAREPOINT - BUSINESS COLLABORATION TOOL FOR ENTERPRISE AND WEB
SHAREPOINT - BUSINESS COLLABORATION TOOL FOR ENTERPRISE AND WEB SHAREPOINT - BUSINESS COLLABORATION TOOL FOR ENTERPRISE AND WEB
SHAREPOINT - BUSINESS COLLABORATION TOOL FOR ENTERPRISE AND WEB

SPSHOU - Upgrading and Migrating to SharePoint 2016 like a Pro
SPSHOU - Upgrading and Migrating to SharePoint 2016 like a ProSPSHOU - Upgrading and Migrating to SharePoint 2016 like a Pro
SPSHOU - Upgrading and Migrating to SharePoint 2016 like a Pro

SPEDUC: SharePoint on Premises vs Online for Education
SPEDUC: SharePoint on Premises vs Online for EducationSPEDUC: SharePoint on Premises vs Online for Education
SPEDUC: SharePoint on Premises vs Online for Education

Share point 2010 administration & development
Share point 2010 administration & developmentShare point 2010 administration & development
Share point 2010 administration & development

Chris givens building custom service applications
Chris givens building custom service applicationsChris givens building custom service applications
Chris givens building custom service applications

Sharepointarchitecturereal worldscenariofundamentals-150419043032-conversion-...
Sharepointarchitecturereal worldscenariofundamentals-150419043032-conversion-...Sharepointarchitecturereal worldscenariofundamentals-150419043032-conversion-...
Sharepointarchitecturereal worldscenariofundamentals-150419043032-conversion-...

Jump Start: Share Point Development
Jump Start: Share Point DevelopmentJump Start: Share Point Development
Jump Start: Share Point Development

Intro to SharePoint for Developers
Intro to SharePoint for DevelopersIntro to SharePoint for Developers
Intro to SharePoint for Developers

Seminar On Share Point By Maroof Ahmad
Seminar On Share Point By Maroof AhmadSeminar On Share Point By Maroof Ahmad
Seminar On Share Point By Maroof Ahmad

Collab365: What's new in SharePoint 2016 for IT Pros
Collab365: What's new in SharePoint 2016 for IT ProsCollab365: What's new in SharePoint 2016 for IT Pros
Collab365: What's new in SharePoint 2016 for IT Pros

SharePoint 2010 - IT Platform upgrade and Management
SharePoint 2010 - IT Platform upgrade and ManagementSharePoint 2010 - IT Platform upgrade and Management
SharePoint 2010 - IT Platform upgrade and Management

Webinar: Microsoft SharePoint-The Ultimate Enterprise Collaboration Platform
Webinar: Microsoft SharePoint-The Ultimate Enterprise Collaboration PlatformWebinar: Microsoft SharePoint-The Ultimate Enterprise Collaboration Platform
Webinar: Microsoft SharePoint-The Ultimate Enterprise Collaboration Platform

Share point 2010 overview
Share point 2010 overviewShare point 2010 overview
Share point 2010 overview


More from Learning SharePoint

Manage security in Model-app Power App with Common data service
Manage security in Model-app Power App with Common data serviceManage security in Model-app Power App with Common data service
Manage security in Model-app Power App with Common data service
Learning SharePoint

Microsoft 365 Audit Log Reports - M365 Learning Document
Microsoft 365 Audit Log Reports - M365 Learning DocumentMicrosoft 365 Audit Log Reports - M365 Learning Document
Microsoft 365 Audit Log Reports - M365 Learning Document
Learning SharePoint

Power Apps - Data governance, compliance and security
Power Apps  - Data governance, compliance and securityPower Apps  - Data governance, compliance and security
Power Apps - Data governance, compliance and security
Learning SharePoint

Power BI Governance - Access Management, Recommendations and Best Practices
Power BI Governance - Access Management, Recommendations and Best PracticesPower BI Governance - Access Management, Recommendations and Best Practices
Power BI Governance - Access Management, Recommendations and Best Practices
Learning SharePoint

Power Automate (MS Flow) basics, Behind the Scenes, Errors and Troubleshooting
Power Automate (MS Flow) basics, Behind the Scenes, Errors and TroubleshootingPower Automate (MS Flow) basics, Behind the Scenes, Errors and Troubleshooting
Power Automate (MS Flow) basics, Behind the Scenes, Errors and Troubleshooting
Learning SharePoint

Office 365 Q & A about Microsoft Teams Access,OneDrive, O365 Groups, Shared C...
Office 365 Q & A about Microsoft Teams Access,OneDrive, O365 Groups, Shared C...Office 365 Q & A about Microsoft Teams Access,OneDrive, O365 Groups, Shared C...
Office 365 Q & A about Microsoft Teams Access,OneDrive, O365 Groups, Shared C...
Learning SharePoint

Ms flow basics, troubleshooting and operational errors
Ms flow basics, troubleshooting and operational errorsMs flow basics, troubleshooting and operational errors
Ms flow basics, troubleshooting and operational errors
Learning SharePoint

Onedrive for Business Implementation and Rollout
Onedrive for Business Implementation and RolloutOnedrive for Business Implementation and Rollout
Onedrive for Business Implementation and Rollout
Learning SharePoint

Share point 2013 deployment document
Share point 2013 deployment documentShare point 2013 deployment document
Share point 2013 deployment document
Learning SharePoint

SharePoint 2013 Site Administration Guide
SharePoint 2013 Site Administration GuideSharePoint 2013 Site Administration Guide
SharePoint 2013 Site Administration Guide
Learning SharePoint

OneDrive For Business - What's new for IT Administrators and End-users
OneDrive For Business - What's new for IT Administrators and End-usersOneDrive For Business - What's new for IT Administrators and End-users
OneDrive For Business - What's new for IT Administrators and End-users
Learning SharePoint

Hosting SharePoint 2016 farm in azure
Hosting SharePoint 2016 farm in azureHosting SharePoint 2016 farm in azure
Hosting SharePoint 2016 farm in azure
Learning SharePoint

Cloud holiday shopping guide
Cloud holiday shopping guideCloud holiday shopping guide
Cloud holiday shopping guide
Learning SharePoint

SharePoint Tools Concepts
SharePoint Tools ConceptsSharePoint Tools Concepts
SharePoint Tools Concepts
Learning SharePoint

Advanced SharePoint Server Concepts
Advanced SharePoint Server ConceptsAdvanced SharePoint Server Concepts
Advanced SharePoint Server Concepts
Learning SharePoint

Monitoring and Maintaining SharePoint 2013 Server
Monitoring and Maintaining SharePoint 2013 ServerMonitoring and Maintaining SharePoint 2013 Server
Monitoring and Maintaining SharePoint 2013 Server
Learning SharePoint

Office 365
Office 365Office 365

More from Learning SharePoint (17)

Manage security in Model-app Power App with Common data service
Manage security in Model-app Power App with Common data serviceManage security in Model-app Power App with Common data service
Manage security in Model-app Power App with Common data service

Microsoft 365 Audit Log Reports - M365 Learning Document
Microsoft 365 Audit Log Reports - M365 Learning DocumentMicrosoft 365 Audit Log Reports - M365 Learning Document
Microsoft 365 Audit Log Reports - M365 Learning Document

Power Apps - Data governance, compliance and security
Power Apps  - Data governance, compliance and securityPower Apps  - Data governance, compliance and security
Power Apps - Data governance, compliance and security

Power BI Governance - Access Management, Recommendations and Best Practices
Power BI Governance - Access Management, Recommendations and Best PracticesPower BI Governance - Access Management, Recommendations and Best Practices
Power BI Governance - Access Management, Recommendations and Best Practices

Power Automate (MS Flow) basics, Behind the Scenes, Errors and Troubleshooting
Power Automate (MS Flow) basics, Behind the Scenes, Errors and TroubleshootingPower Automate (MS Flow) basics, Behind the Scenes, Errors and Troubleshooting
Power Automate (MS Flow) basics, Behind the Scenes, Errors and Troubleshooting

Office 365 Q & A about Microsoft Teams Access,OneDrive, O365 Groups, Shared C...
Office 365 Q & A about Microsoft Teams Access,OneDrive, O365 Groups, Shared C...Office 365 Q & A about Microsoft Teams Access,OneDrive, O365 Groups, Shared C...
Office 365 Q & A about Microsoft Teams Access,OneDrive, O365 Groups, Shared C...

Ms flow basics, troubleshooting and operational errors
Ms flow basics, troubleshooting and operational errorsMs flow basics, troubleshooting and operational errors
Ms flow basics, troubleshooting and operational errors

Onedrive for Business Implementation and Rollout
Onedrive for Business Implementation and RolloutOnedrive for Business Implementation and Rollout
Onedrive for Business Implementation and Rollout

Share point 2013 deployment document
Share point 2013 deployment documentShare point 2013 deployment document
Share point 2013 deployment document

SharePoint 2013 Site Administration Guide
SharePoint 2013 Site Administration GuideSharePoint 2013 Site Administration Guide
SharePoint 2013 Site Administration Guide

OneDrive For Business - What's new for IT Administrators and End-users
OneDrive For Business - What's new for IT Administrators and End-usersOneDrive For Business - What's new for IT Administrators and End-users
OneDrive For Business - What's new for IT Administrators and End-users

Hosting SharePoint 2016 farm in azure
Hosting SharePoint 2016 farm in azureHosting SharePoint 2016 farm in azure
Hosting SharePoint 2016 farm in azure

Cloud holiday shopping guide
Cloud holiday shopping guideCloud holiday shopping guide
Cloud holiday shopping guide

SharePoint Tools Concepts
SharePoint Tools ConceptsSharePoint Tools Concepts
SharePoint Tools Concepts

Advanced SharePoint Server Concepts
Advanced SharePoint Server ConceptsAdvanced SharePoint Server Concepts
Advanced SharePoint Server Concepts

Monitoring and Maintaining SharePoint 2013 Server
Monitoring and Maintaining SharePoint 2013 ServerMonitoring and Maintaining SharePoint 2013 Server
Monitoring and Maintaining SharePoint 2013 Server

Office 365
Office 365Office 365
Office 365


Recently uploaded

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday
Ivanti

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead
Wask

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations
kumardaparthi1024

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Jeffrey Haguewood

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy
Tomaz Bratanic

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption
Tatiana Kojar

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques
Postman

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides
DanBrown980551

Trusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process MiningTrusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process Mining
LucaBarbaro3

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

Letter and Document Automation for Bonterra Impact Management (fka Social Sol...
Letter and Document Automation for Bonterra Impact Management (fka Social Sol...Letter and Document Automation for Bonterra Impact Management (fka Social Sol...
Letter and Document Automation for Bonterra Impact Management (fka Social Sol...
Jeffrey Haguewood

Recommendation System using RAG Architecture
Recommendation System using RAG ArchitectureRecommendation System using RAG Architecture
Recommendation System using RAG Architecture
fredae14

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

Operating System Used by Users in day-to-day life.pptx
Operating System Used by Users in day-to-day life.pptxOperating System Used by Users in day-to-day life.pptx
Operating System Used by Users in day-to-day life.pptx
Pravash Chandra Das

leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
alexjohnson7307

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

Finale of the Year: Apply for Next One!
Finale of the Year: Apply for Next One!Finale of the Year: Apply for Next One!
Finale of the Year: Apply for Next One!
GDSC PJATK

Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr
Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStrDeep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr
Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr
saastr


Recently uploaded (20)

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides

Trusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process MiningTrusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process Mining

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

Letter and Document Automation for Bonterra Impact Management (fka Social Sol...
Letter and Document Automation for Bonterra Impact Management (fka Social Sol...Letter and Document Automation for Bonterra Impact Management (fka Social Sol...
Letter and Document Automation for Bonterra Impact Management (fka Social Sol...

Recommendation System using RAG Architecture
Recommendation System using RAG ArchitectureRecommendation System using RAG Architecture
Recommendation System using RAG Architecture

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

Operating System Used by Users in day-to-day life.pptx
Operating System Used by Users in day-to-day life.pptxOperating System Used by Users in day-to-day life.pptx
Operating System Used by Users in day-to-day life.pptx

leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

Finale of the Year: Apply for Next One!
Finale of the Year: Apply for Next One!Finale of the Year: Apply for Next One!
Finale of the Year: Apply for Next One!

Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr
Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStrDeep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr
Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr


Core SharePoint 2013 Concepts

  • 1. CORE SHAREPOINT CONCEPTS Course: SharePoint 2013 for Administrators and IT Pro's | Akrura Technologies By : Isha Kapoor SharePoint MVP, Author, Trainer and Founder http://www.akruratechnologies.com/ http://www.learningsharepoint.com/ | @LearningSP SharePoint
  • 2. OUTLINE… • Introduction to SharePoint • SharePoint Versions • SharePoint Licensing • SharePoint Office 365 vs. The Cloud vs. On Site • SharePoint Architecture • SharePoint Topology • Intranet vs Internet sites in SharePoint • Directory hive in SharePoint. • SharePoint Hierarchy • Introduction to SharePoint Central administration and Configuration wizard. • Introduction to Tools used to Customize SharePoint • Hardware and Software Requirements
  • 3. INTRODUCTION TO SHAREPOINT What Is SharePoint? SharePoint is a Popular Content Management Tool developed by Microsoft that allows users to share data (like word documents, Excel etc.) in a web-based collaborative environment. SharePoint was Introduced by Microsoft in early 2001 and it has since gone through various versions; the latest being SharePoint 2013, and has also Improved in terms of Collaboration and Integration with other LOB Tools. SharePoint Today is used in 90% of government organizations across US and Canada and is considered as the first choice for major banking institutions for their Intranet and Collaboration needs. Core SharePoint Concepts : SharePoint is build on two distinct layers – SharePoint and .Net - The bottom layer SharePoint is built on, is the ASP.NET framework. SharePoint uses many .Net features including Web Parts, Web Part zones and master pages, security providers, session state managers, and user controls on ASPX pages. ASP.NET developers can view SharePoint as an extension of a framework that they already know.. SharePoint and WSS - The second layer build on top of .Net Framework is the layer called Windows SharePoint Services (WSS). WSS is a foundation for the ready-to-use collaborative application capabilities that are standard in SharePoint. It is also the foundation for custom Web-based portal and collaborative business applications. Continued…
  • 4. SharePoint and SQL - SharePoint uses SQL server to store all the Content and Configuration that it users. You can think SQL as a back-end for SharePoint. 12 Hive - Despite of the content, SharePoint saves some of the Pages and resources on the file system (server) itself for fast retrieval. These Pages or Files which make SharePoint Interface are arranged in a Folder structure which we call as 12 Hive. The 12 hive gets created at location "C:ProgramFilesCommonFilesWeb Server Extensions12" when you install the SharePoint sever initially. SharePoint 2007 – 12 hive SharePoint 2010 – 14 hive SharePoint 2013 – 15 hive What is SharePoint made of? - SharePoint Portal is a made of Web applications (WebSites in .Net), Site Collections (a top level Site of the Web application) Web Site Pages, Subsites (or child sites of Site collections),Webparts, features and more ... See the basic definition for all SharePoint Components that you will use during development Stsadm - It is a Command line tool exclusively for SharePoint. This is was mainly used in SharePoint 2007 for Administrative work. PowerShell - PowerShell is a Tool used for administrative operations in SharePoint 2010 and SharePoint 2013. ULS Logs - SharePoint has a powerful Diagnostic and Logging feature. All the activities are logged on the SharePoint server in ULS Logs directory.
  • 5. SHAREPOINT VERSIONS AND LICENSES  SharePoint Team Services 1.0  WSS 2.0  SharePoint 2003  SharePoint 2007 Versions and Editions of SharePoint 2007 : Windows SharePoint Services (WSS) v3. This is the free/unlicensed version of SharePoint that is built upon Windows Server 2003/2008, SQL Server 2000/2005, IIS, ASP.Net 2.0, and .NET 2.0/3.0. All you need is a licensed copy of Windows Server 2003 or Windows Server 2008. Microsoft Office SharePoint Server (MOSS) 2007. This is the licensed version of SharePoint that is built upon WSS v3. It has two primary versions: MOSS 2007 Standard and MOSS 2007 Enterprise. There are a host of other licensing options as well, such as the ability to use Microsoft Search Server 2008 or Microsoft Search Server 2008 Express with WSS instead of MOSS.  SharePoint 2010 Versions and Editions of SharePoint 2010 : SharePoint Foundation 2010. This is the free/unlicensed version of SharePoint. It replaces Windows SharePoint Services (WSS) 2007. SharePoint Foundation is built upon Windows Server 2008, SQL Server 2008, IIS and .NET 3.5. All you need is a licensed copy of Windows Server 2008. There are no other licensing costs unless you want the full-fledged version of SQL Server. Microsoft SharePoint Server 2010. This is the licensed version of SharePoint, offering a business collaboration platform for the enterprise. It replaces Microsoft Office SharePoint Server (MOSS) 2007
  • 6.  SharePoint 2013 Versions and Editions of SharePoint 2013 SharePoint Foundation 2013. This is the free/unlicensed version of SharePoint. SharePoint Foundation is built upon Windows Server 2008/2012, SQL Server 2008, IIS and .NET 4.5. All you need is a licensed copy of Windows Server 2008 or 2012. There are no other licensing costs unless you want the full-fledged version of SQL Server. Microsoft SharePoint Server 2013. This is the licensed version of SharePoint, offering a business collaboration platform for the enterprise. It replaces Microsoft SharePoint Server 2010.  SharePoint Online (Cloud SharePoint) SharePoint Online is a cloud solution provided by Microsoft where the SharePoint server is deployed and Managed by Microsoft. SharePoint Online is a part of Office 365 pack.
  • 7. ON SITE VS. OFFICE 365 (CLOUD) VS. HYBRID There are three kinds of SharePoint Deployments - SharePoint On premises - This is a Server deployment that is deployed and managed generally by a Company's IT department. SharePoint can be Licensed from Microsoft for installation purposes. SharePoint Online (In-Cloud) - SharePoint Online is cloud solution which is a part of Office 365 package. Office 365 is a subscription based Cloud service deployed and maintained by Microsoft. Office 365 currently incorporates SharePoint 2013, Exchange, Lync, SkyDrive Pro and Office Web Apps SharePoint hybrid environment - Hybrid environments is a natural evolution of both SharePoint "On Premises" and "Online" deployments. A typical hybrid environment might combine a standard SharePoint 2013 On Premises Intranet (containing documents that need to remain onsite for example) with an Office 365 collaboration solution. This type of setup can be perfect for remote teams or external partners. In this way SharePoint 2013 can offer the best of both worlds and end users need never really know the difference.
  • 8. SHAREPOINT LICENSING ON PREMISES VS. CLOUD Note: SharePoint Online Plan 1 and Plan 2 also include Yammer On Premise Online
  • 9. SHAREPOINT 2013 FEATURES Apps Collaboration Search Content Management Business Intelligence Business Solutions App Catalog & Marketplace Work Management External sharing E-discovery, ACM, Compliance PowerView SharePoint 2013 Workflow ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●* ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
  • 11.
  • 12. SHAREPOINT TOPOLOGY When considering deployment options for SharePoint, you consider a topology. A SharePoint server Topology is generally designed by various Roles that you want to add for your SharePoint. In MOSS 2007, servers have one of three roles: ■ Application Server - This is a Server where SharePoint is installed. This server might include indexing, search, Excel calculations, project server, and other features. ■ Web Front End (WFE) - This is an additional SharePoint server (with SharePoint bits only) that hosts all Web pages, Web Parts, and Web services used when your server farm receives a request for processing. ■ Database Server - No SharePoint-specific software is installed (only SQL Server). Roles aren't assigned directly to a server; instead, a server assumes a specific role in your configuration depending on what components it has installed, the services it runs, and its location within your server farm. Single-Server Deployment A single server hosts all three roles (WFE, application server, and database) on a single machine. This is good for very small deployments, given that it’s fast and easy. The major downsides include scalability issues (because there is no room to grow except for expanding things such as memory and processor) and availability issues (if the server goes down, SharePoint is down). From a logical perspective, all SharePoint objects are located on this server (content sites, SSPs, Central Administration, and databases).
  • 13. Two-Server Deployment In a two-server scenario, one of the servers hosts the WFE and the application server, while the second server hosts the SQL Server database. This provides a way to manage the database separately but adds complexity without adding scalability or availability. This step adds a second tier to the deployment. In most organizations, this is the smallest deployment that is recommended for anything other than a demonstration environment or very small group. Three-Server Deployment By adding a server, which acts as an additional WFE/application server to the two-server deployment, we gain scalability (by being able to service more requests) and availability (by load-balancing requests so that if one server goes down, the system stays up and running on the other machine). The single point of failure is now the SQL machine.
  • 14. INTRANET VS INTERNET SITES IN SHAREPOINT SharePoint Intranet sites One of the main purposes of On-Premise SharePoint deployment is to create an Intranet portal site for a company. A typical company would add Company Announcements, upload informational documents and create a company structure in an Intranet portal. Several Team sites can be provisioned under the main SharePoint Intranet portal. Authentication and administration of an Intranet portal is overseen by a SharePoint Administrator in a Company. Internet or Extranet SharePoint sites An Extranet is a web site accessible to users outside of the corporate network, allowing organizations to share information and collaborate with external vendors, partners, suppliers and other strategic organizations in a secure and easy to use environment. The Extranet may be a module added to the Intranet site to allow external users into only specific sub-sites of the Intranet..
  • 15. DIRECTORY HIVE IN SHAREPOINT The SharePoint Hive is a term that refers to the installation location of the SharePoint product on your server. The Hive contains folders that hold the SharePoint binary files, site definitions, feature definitions, page layouts, ULS and upgrade logs, and localization files. The Hive is installed within the Common Files folder, which in nearly every Windows installation is located at C:Program FilesCommon Files. The environment variable %CommonProgramFiles% points to the Common Files folder no matter where it resides. The complete path to the hives is - %CommonProgramFiles%Microsoft SharedWeb Server Extensions## ## - is the hive number. Knowing a SharePoint hive is very important as it tells about how and where the files of SharePoint are deployed. Each SharePoint Version has its own hive. For example, SharePoint 2007 has 12 hive (a directory named “12”) and SharePoint 2010 has 14 hive that contains all SharePoint files for that versions. Take a look at the detailed chart of various versions and their hives below.
  • 16. Version Products Full Path 60 SharePoint 2003 SharePoint Portal Server 2003 Windows SharePoint Services 2.0 %CommonProgramFiles%Microsoft SharedWeb Server Extensions60 C:Program FilesCommon FilesMicrosoft SharedWeb Server Extensions60 12 SharePoint 2007 Microsoft Office SharePoint Server 2007 Windows SharePoint Services 3.0 %CommonProgramFiles%Microsoft SharedWeb Server Extensions12 C:Program FilesCommon FilesMicrosoft SharedWeb Server Extensions12 14 SharePoint 2010 SharePoint Server 2010 SharePoint Foundation 2010 %CommonProgramFiles%Microsoft SharedWeb Server Extensions14 C:Program FilesCommon FilesMicrosoft SharedWeb Server Extensions14 15 SharePoint 2013 SharePoint Server 2013 SharePoint Foundation 2013 %CommonProgramFiles%Microsoft SharedWeb Server Extensions15 C:Program FilesCommon FilesMicrosoft SharedWeb Server Extensions15 SharePoint 2013 also maintains a 14 hive for backwards compatibility for SharePoint 2010 customizations
  • 17. SHAREPOINT HIERARCHY  Farm - The highest entity in a SharePoint server is a SharePoint Farm. It’s a name given to a collection of SharePoint servers that are provisioned for a single purpose. Logically, a farm is a top space in SharePoint hierarchy where Central administration and SharePoint is installed.  Web Application - In IIS, a Web application is composed of an Internet Information Services (IIS) site with a unique application pool. You can think of a Web application as a URL such as http://my.intranet.com. A SharePoint Web application is provisioned in Central admin of a SharePoint and is added in IIS automatically.  Site Collection - A site collection consists of a top-level site and its subsites. It is a logical unit for administration—there are settings that can only be configured at the site collection level which are different from Web application. Each Web application can host many site collections.  SitesSub siteswebs - A site consists of a data repository, visual elements, administration, and almost every other core element of the functionality and experience for the user. Visually, a site is represented as one or more Web pages, lists, and Web parts.  Lists - Lists are a data repository that can hold columns of data and/or documents. Visually, a list is represented by a Web part. Its like a record keeping table with a better UI.  Items - Items in SharePoint are actual records of data (like a data entry) or a document (word, Excel etc.) that is added to a SharePoint List or Library.
  • 20. INTRODUCTION TO SHAREPOINT CENTRAL ADMINISTRATION AND CONFIGURATION WIZARD Configuration wizard – It’s a wizard that you can run after the Installation of SharePoint on the server. A Central admin site is provisioned when a SharePoint configuration wizard is run for the first time. Central Administration – This is one of the main sites from where a SharePoint farm is Configured. This website has all the settings to provision Web applications and site collections in a farm. All Farm level and Site collection level settings can be change from here. Central Administration is essentially a Web application that is auto provisioned by SharePoint. This Web application also has its Content database stored in SQL like all others.
  • 21. INTRODUCTION TO TOOLS USED TO CUSTOMIZE SHAREPOINT • SharePoint Designer • Infopath • Front page
  • 23. WEB & APPLICATION SERVERS | SINGLE SERVER FARMS 64-bit, four cores 64-bit, four cores 4 GB for developer or evaluation use 8 GB for production use in a single server or multiple server farm 4 GB for developer or evaluation use 8 GB for production use in a single server or multiple server farm 80 GB for system drive Maintain twice as much free space as you have RAM for production environments. 80 GB for system drive Maintain twice as much free space as you have RAM for production environments.
  • 24. DATABASE SERVERS | MINIMUM HARDWARE REQUIREMENTS 64-bit, four cores for small deployments 64-bit, eight cores for medium Deployments 64-bit, four cores for small deployments 64-bit, eight cores for medium Deployments 8 GB for small deployments 16 GB for medium deployments 8 GB for small deployments 16 GB for medium deployments 80 GB for system drive Hard disk space is dependent on the size of your SharePoint content 80 GB for system drive Hard disk space is dependent on the size of your SharePoint content
  • 28. WE ARE HERE TO HELP. Questions?
