The document provides an overview of Salesforce data models, focusing on object relationship types such as master-detail, lookup, and polymorphic relationships. It discusses querying techniques using SOQL, including nested queries and techniques to retrieve history records and metadata. Additionally, it covers security and permissions associated with objects and fields within the Salesforce platform.

1. SFDC Data Models for Pros -
Simplifying The Complexities
Baruch Oxman
R&D Manager, Implisit
@implisithq, @baruchoxman

2. Baruch Oxman
R&D Manager

3. Implisit – Intro & Motivation

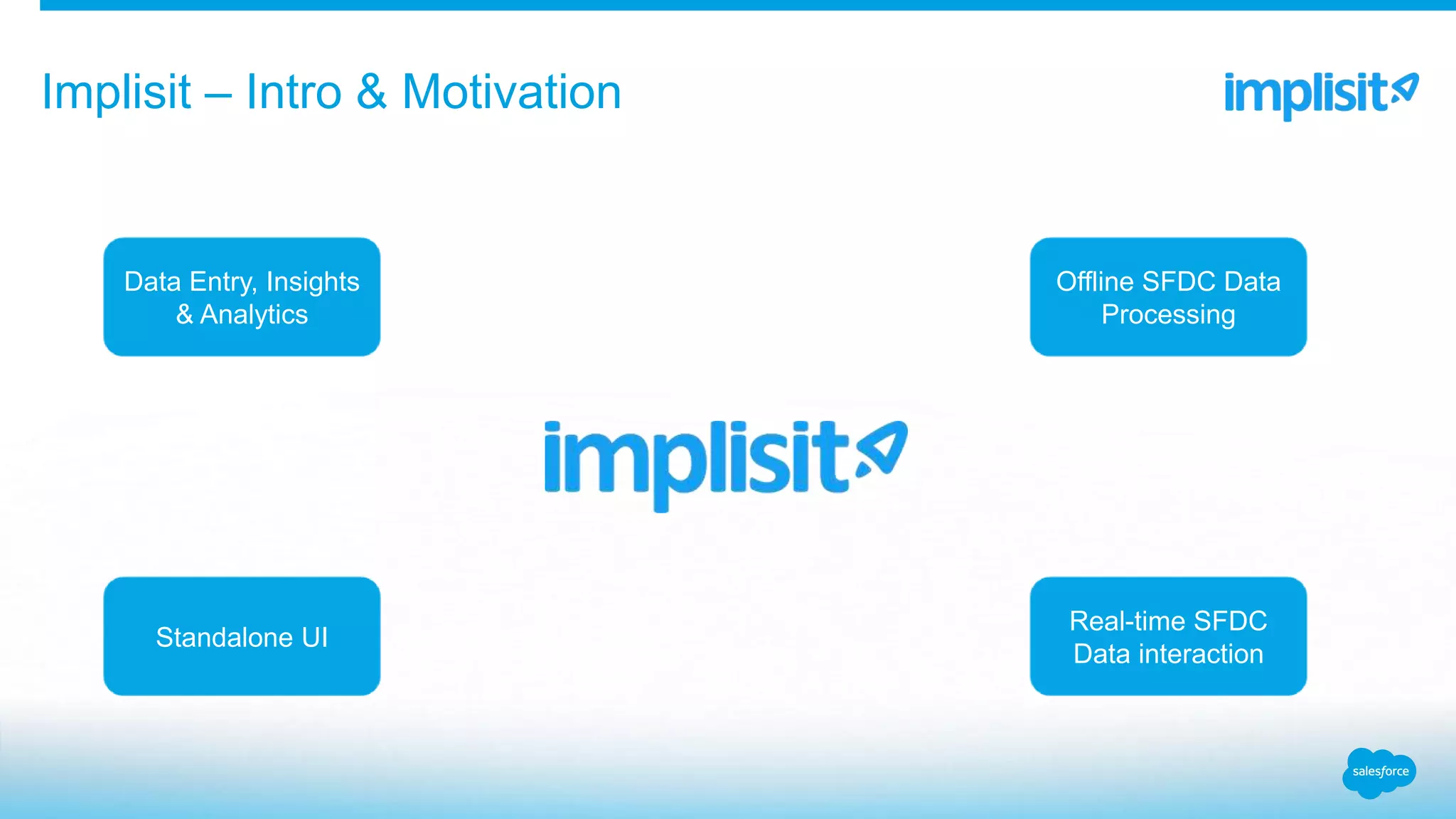

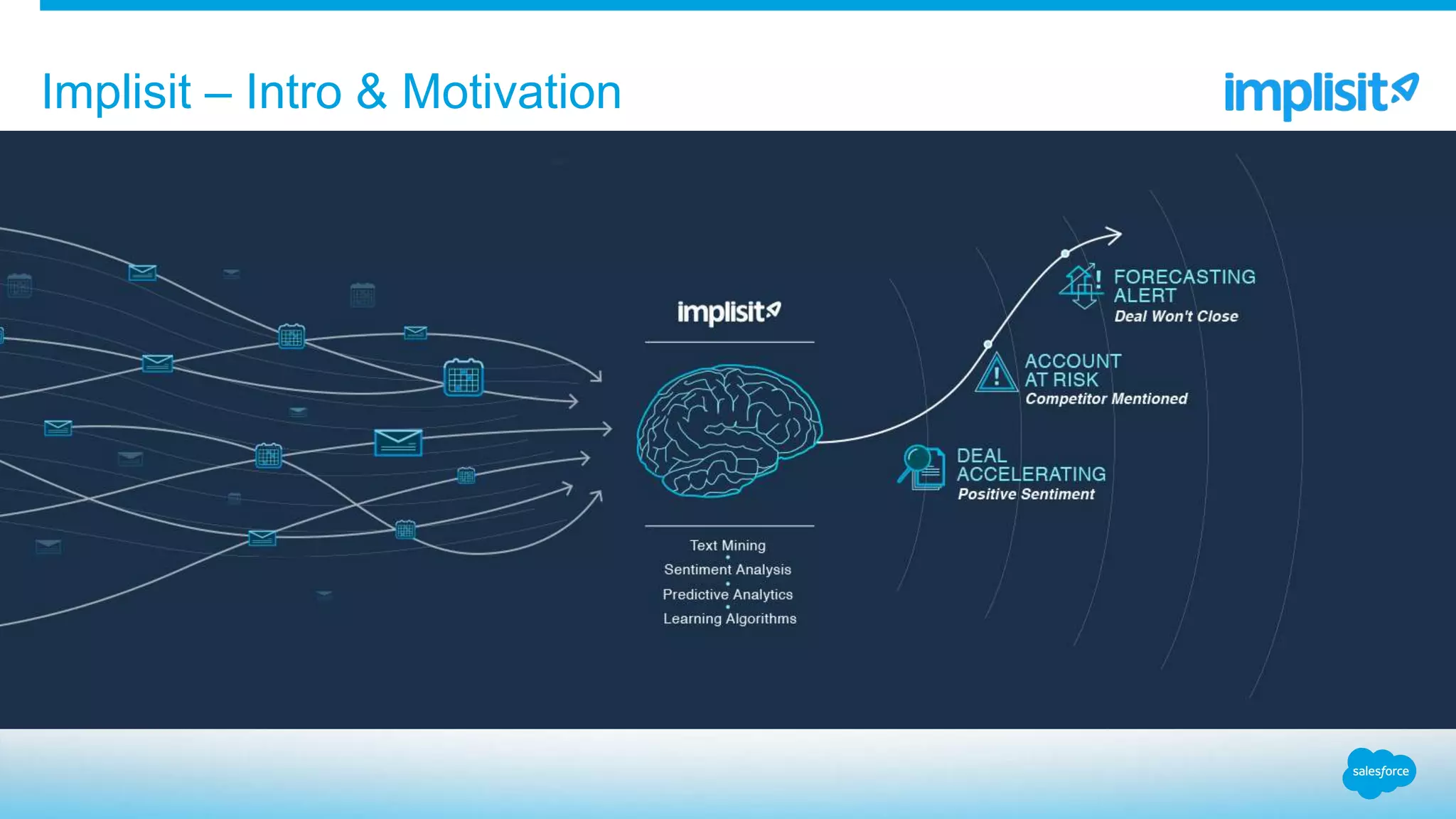

4. Implisit – Intro & Motivation
Data Entry, Insights
& Analytics
Standalone UI
Real-time SFDC
Data interaction
Offline SFDC Data
Processing

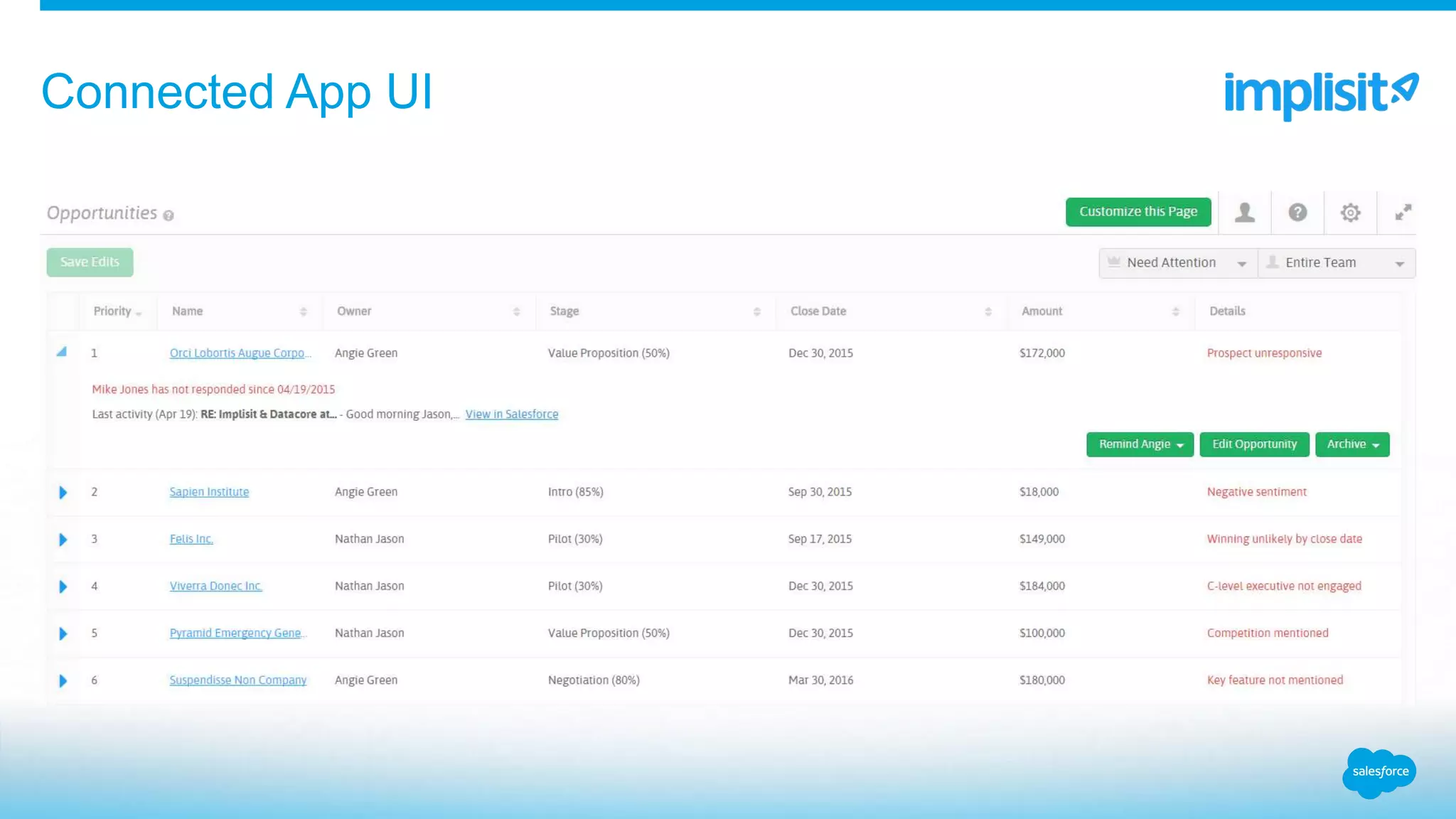

5. Connected App UI

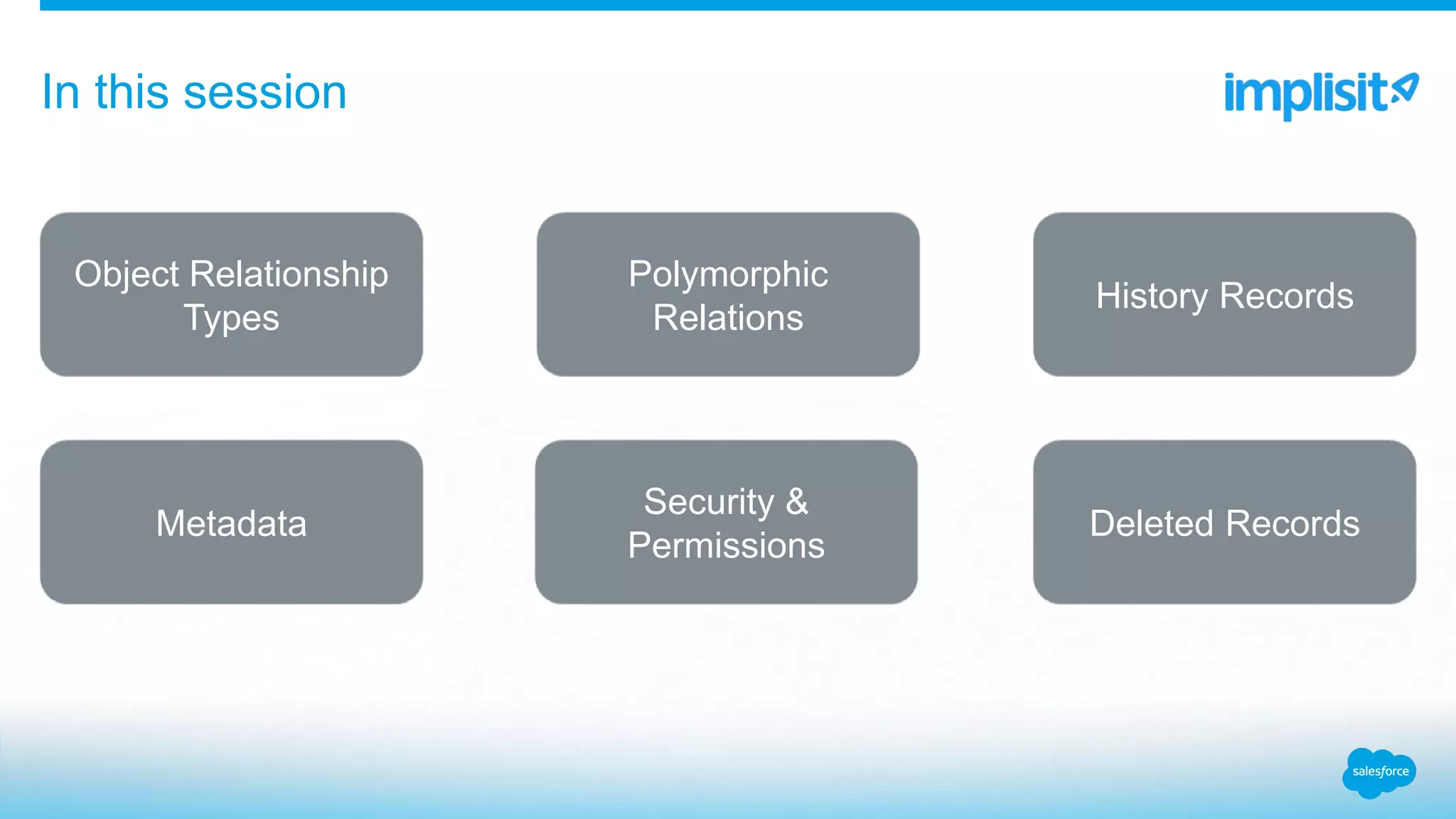

6. In this session
Object Relationship
Types
Polymorphic
Relations
Security &
Permissions
Deleted RecordsMetadata
History Records

7. Objects Relationships

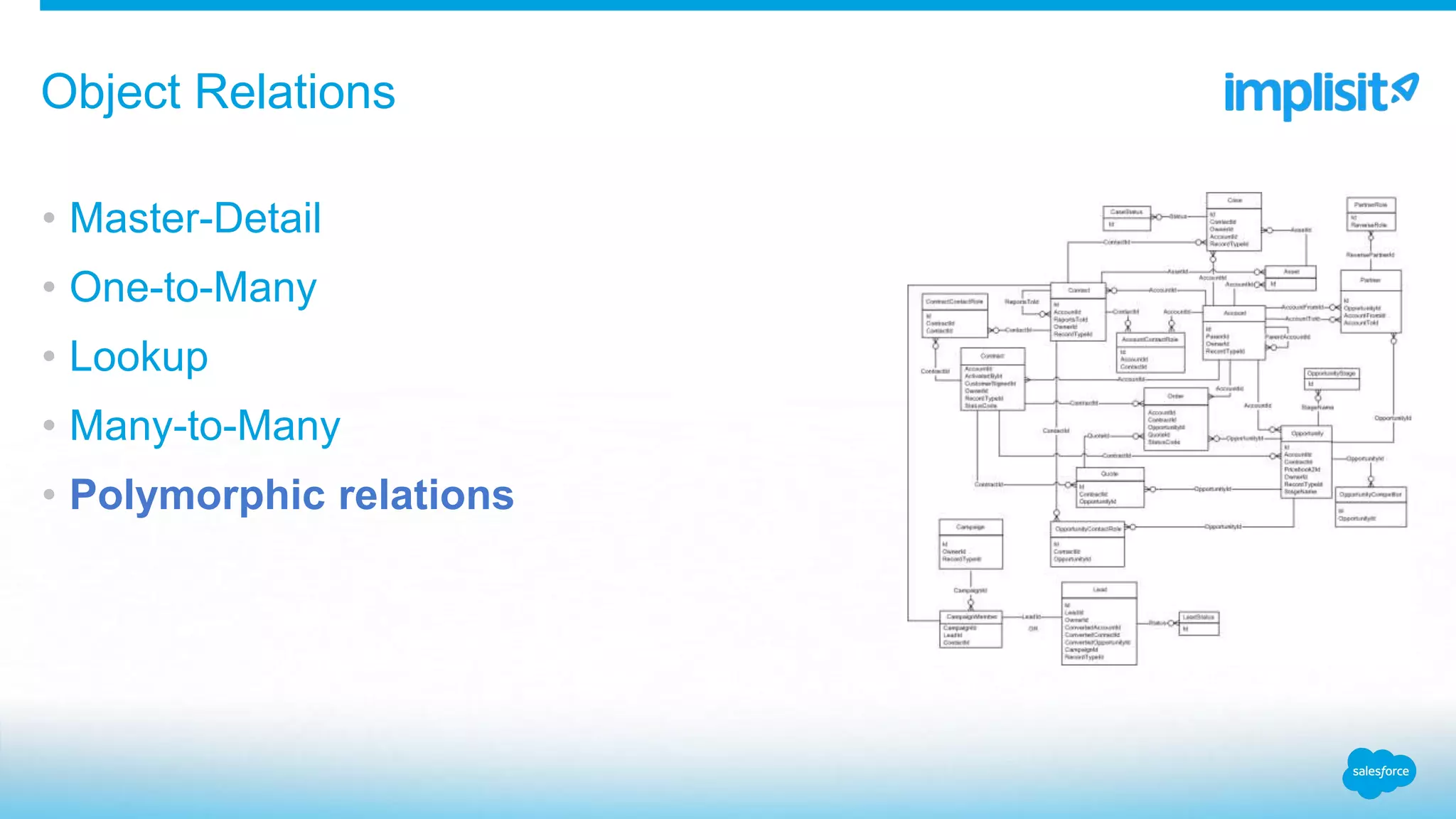

8. • Master-Detail
• One-to-Many
• Lookup
• Many-to-Many
• Polymorphic relations
Object Relations

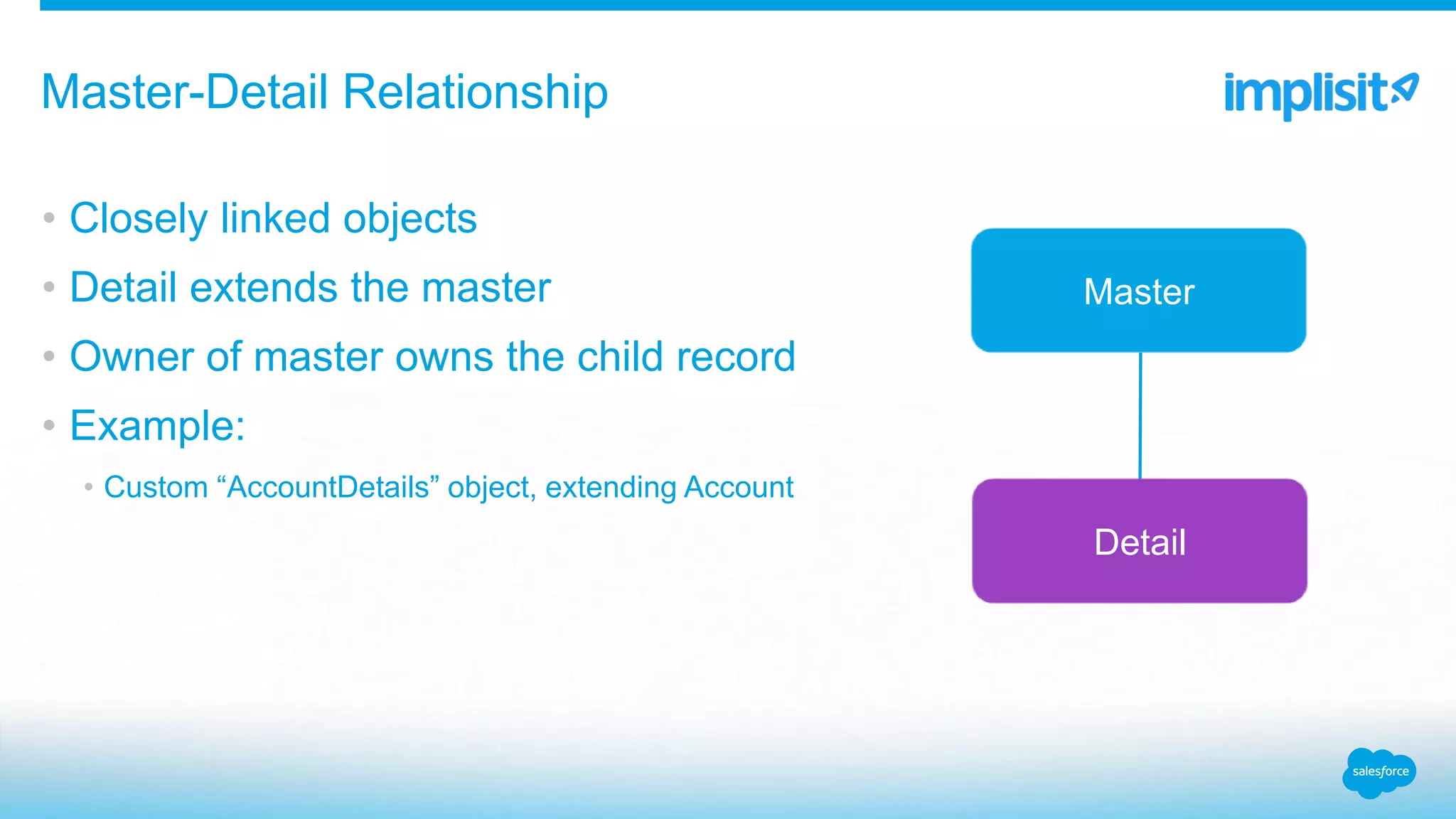

9. • Closely linked objects
• Detail extends the master
• Owner of master owns the child record
• Example:
• Custom “AccountDetails” object, extending Account
Master-Detail Relationship
Master
Detail

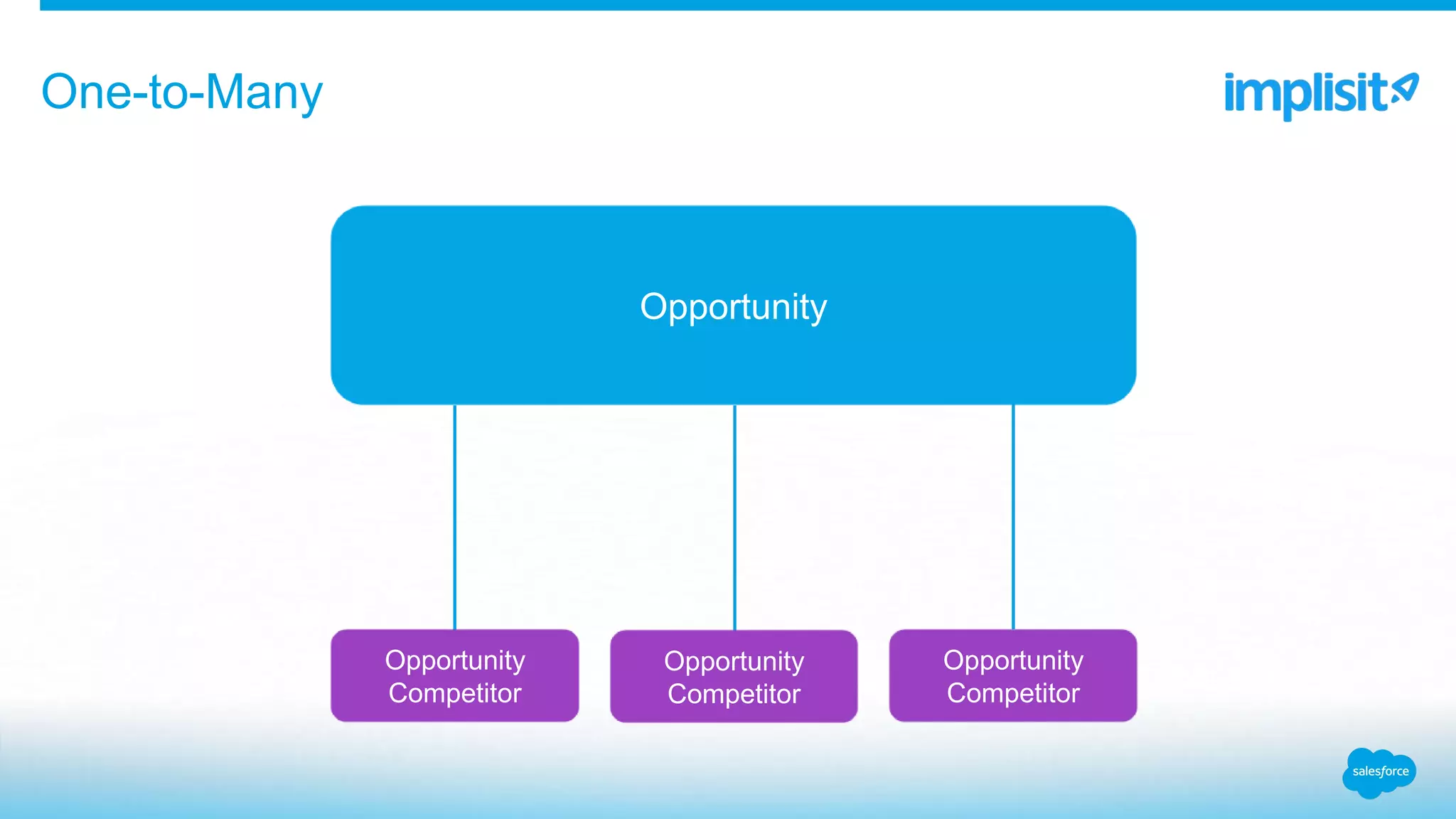

10. One-to-Many
Opportunity
Opportunity
Competitor
Opportunity
Competitor
Opportunity
Competitor

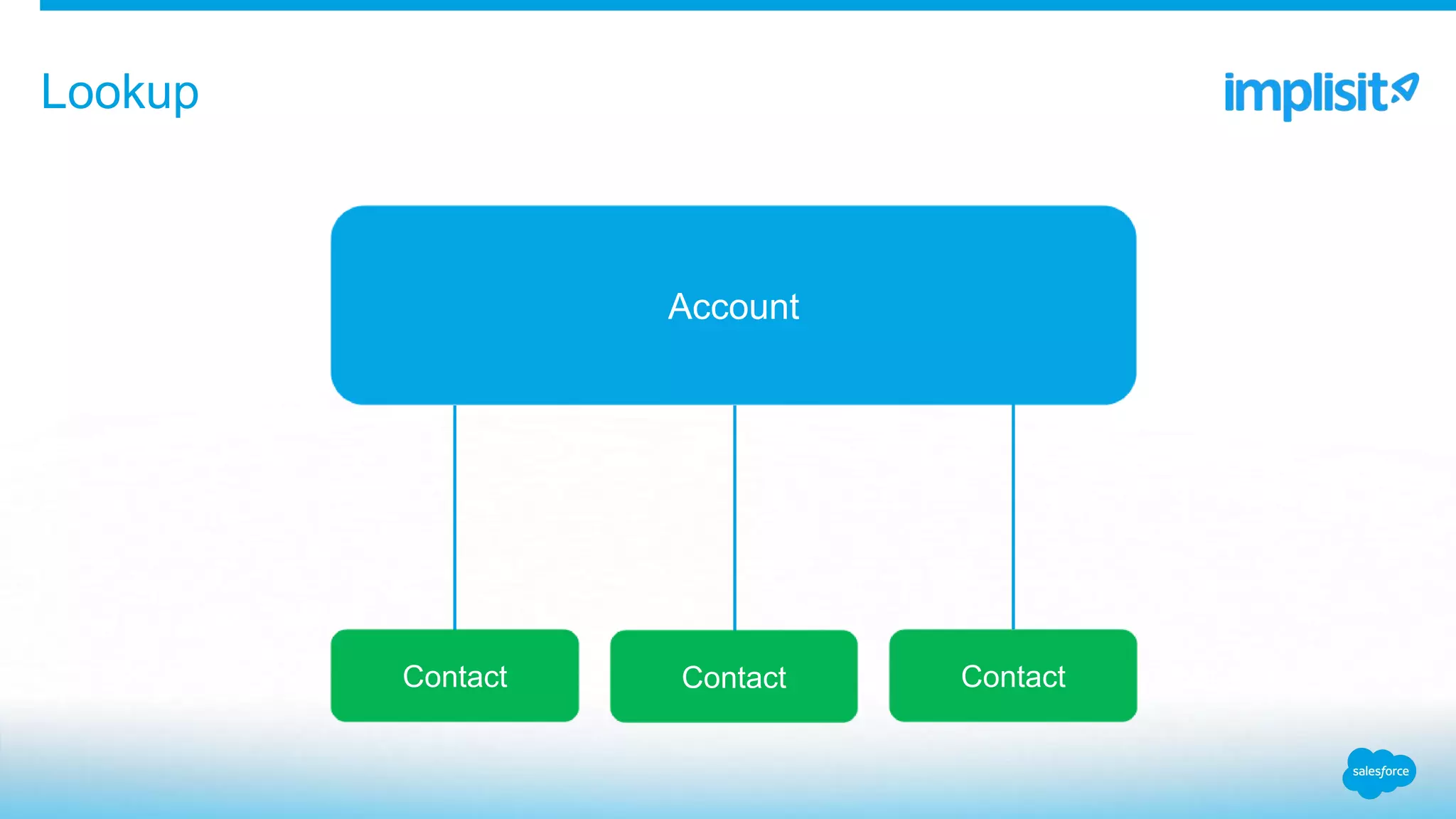

11. Lookup
Account
Contact Contact Contact

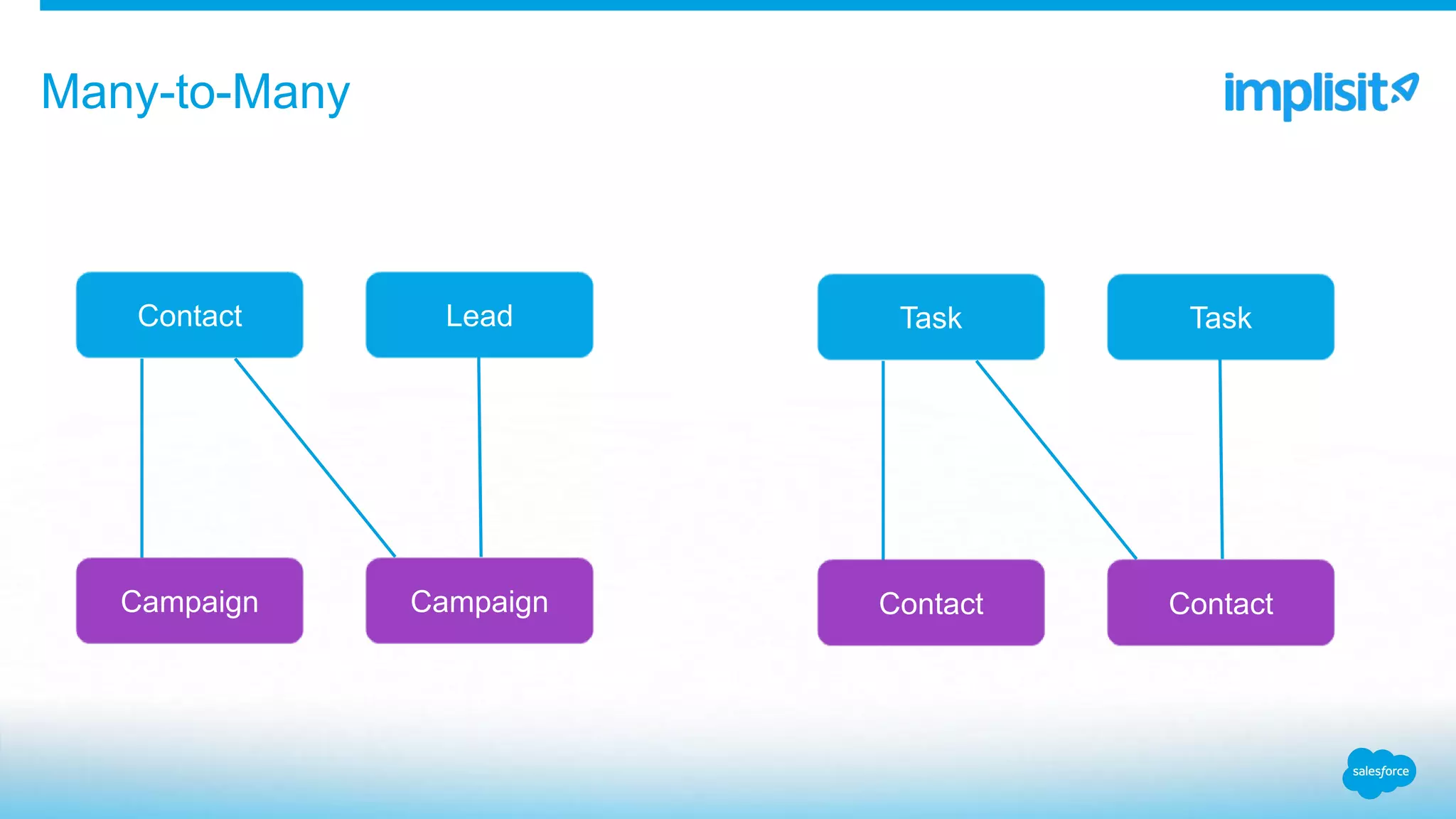

12. Many-to-Many
Contact Lead
Campaign Campaign
Task Task
Contact Contact

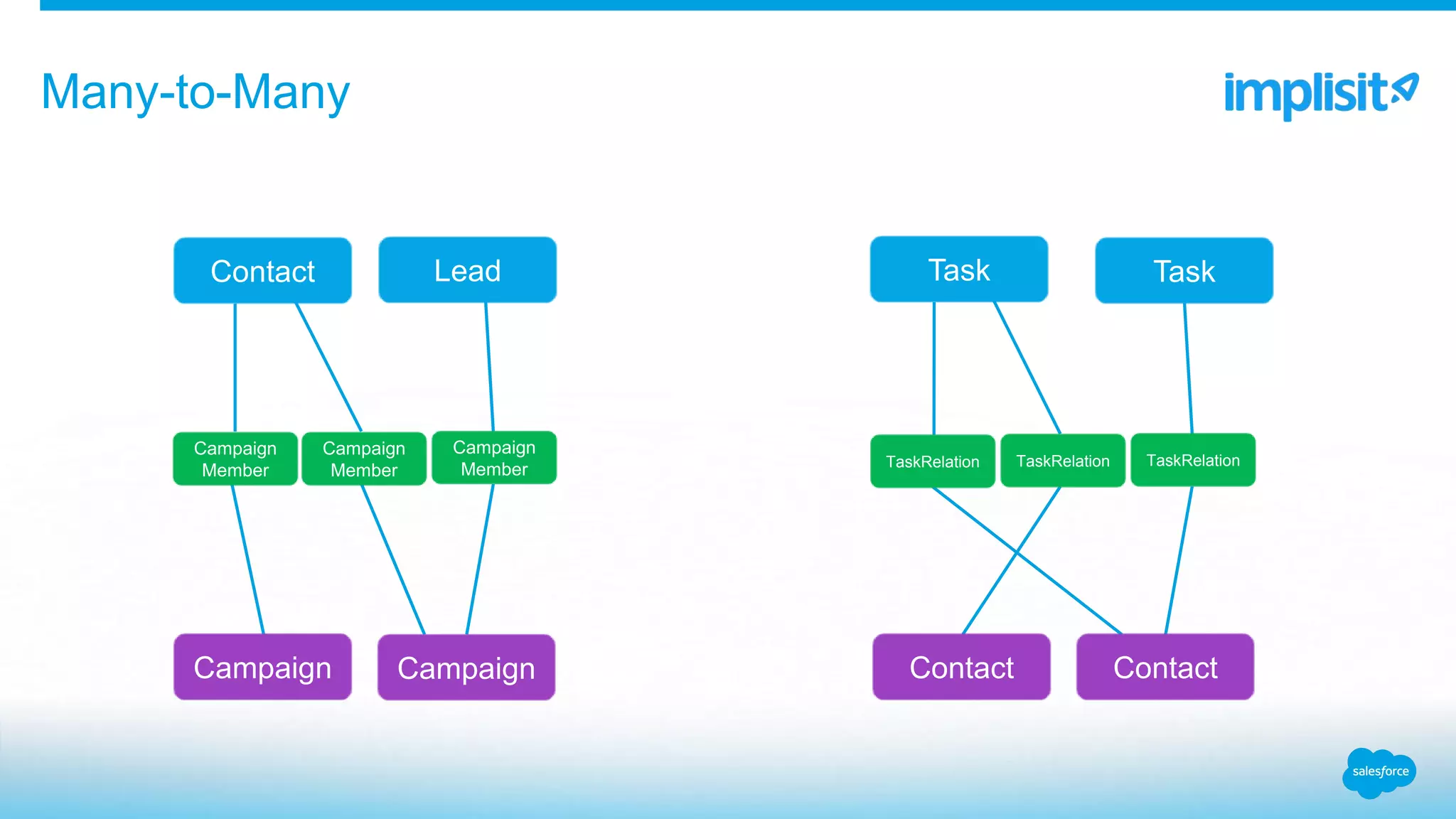

13. Many-to-Many
CampaignCampaign Contact Contact
Campaign
Member
Campaign
Member
Campaign
Member TaskRelation TaskRelation TaskRelation
Task TaskLeadContact

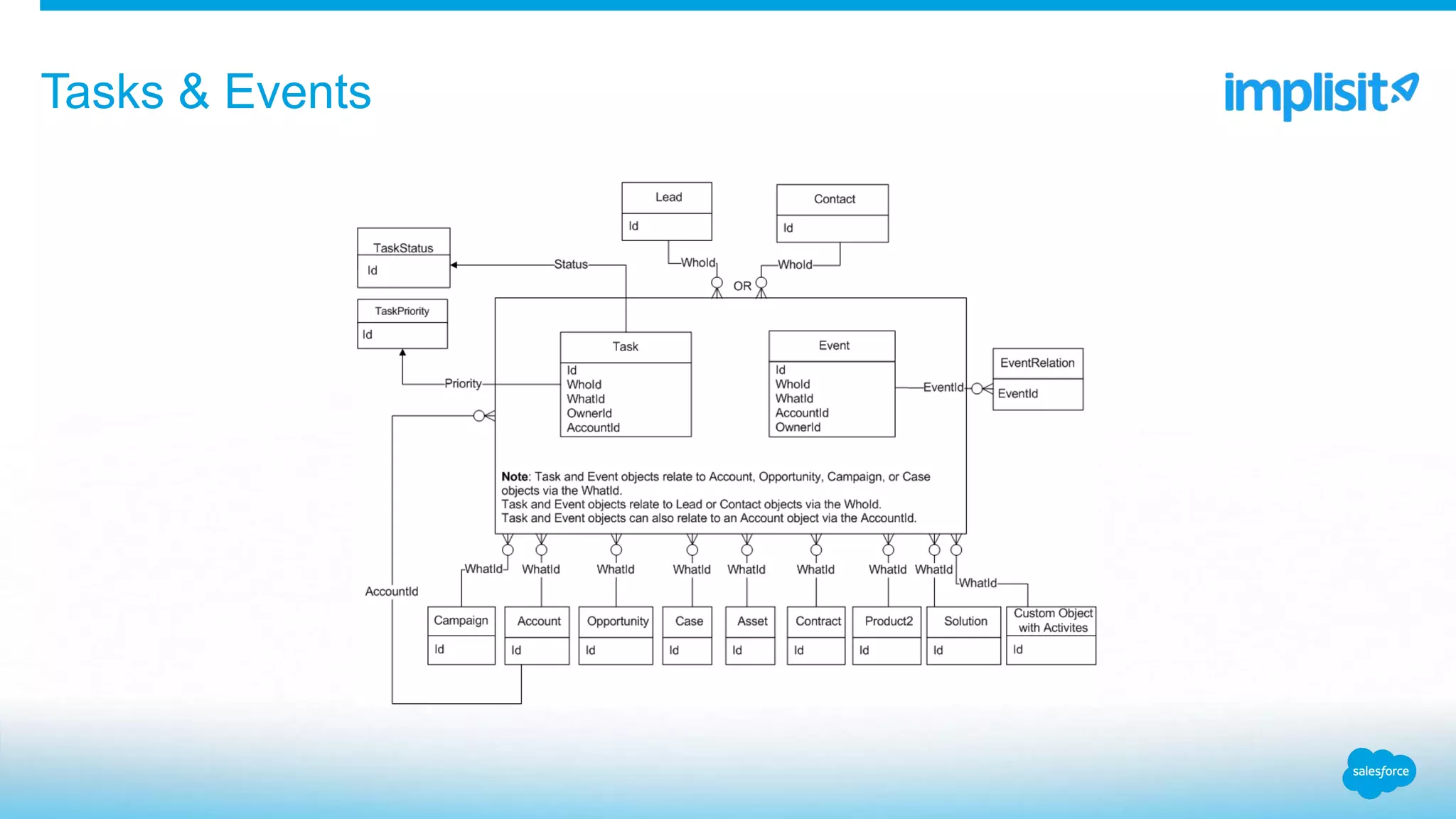

14. Tasks & Events

15. Polymorphic Relations

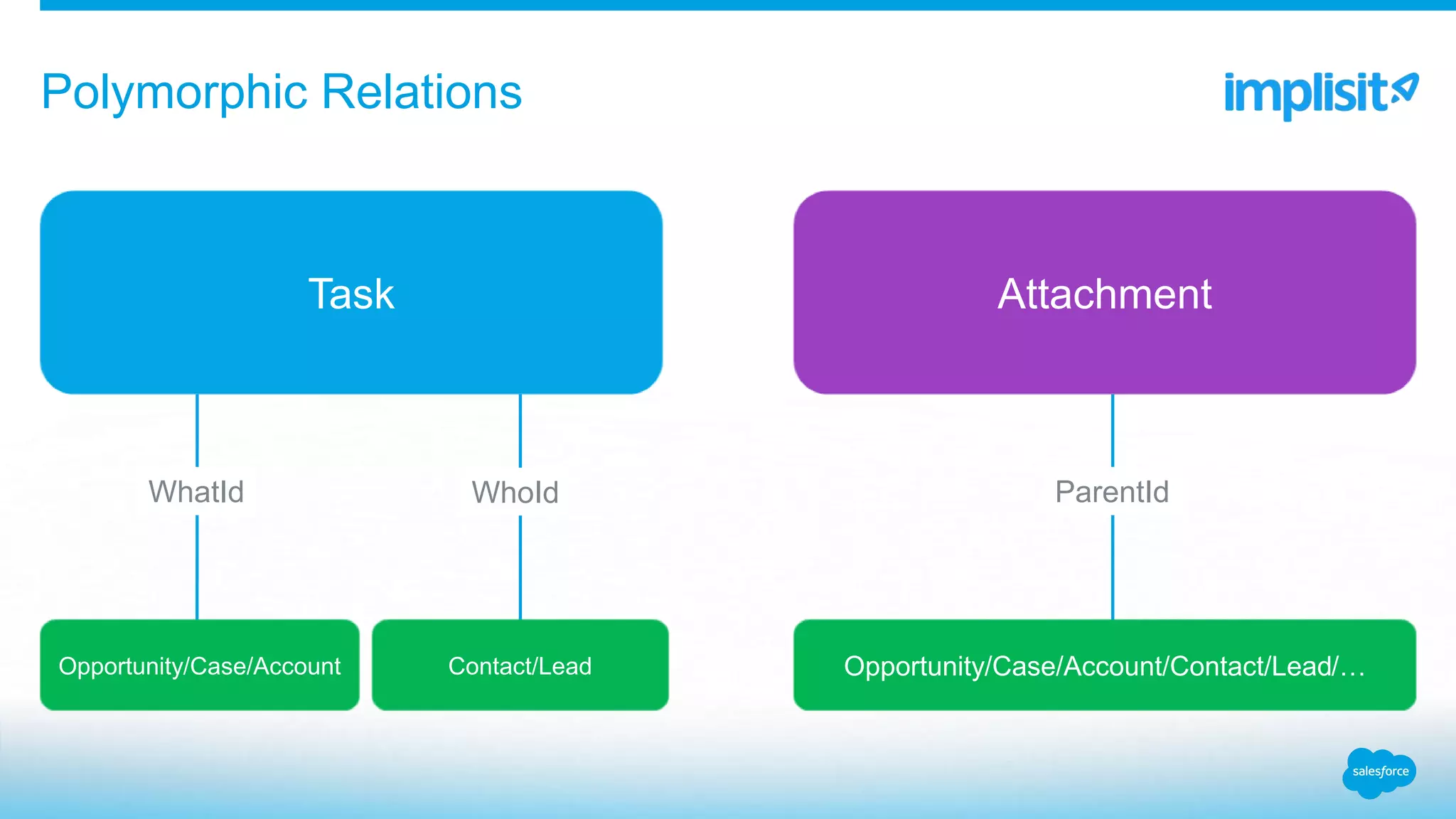

16. Polymorphic Relations
Task Attachment
Contact/LeadOpportunity/Case/Account Opportunity/Case/Account/Contact/Lead/…
WhatId WhoId ParentId

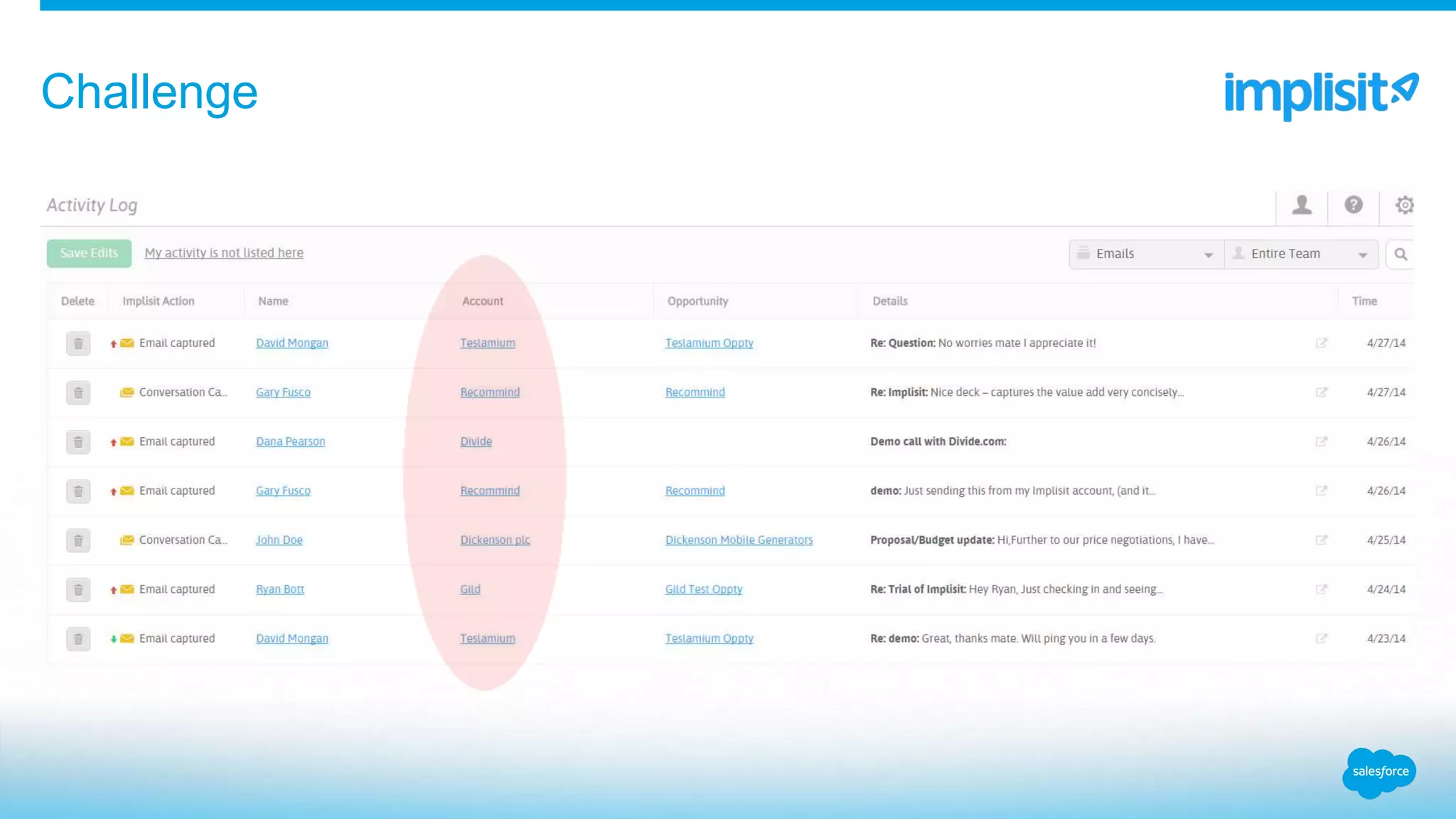

17. Challenge

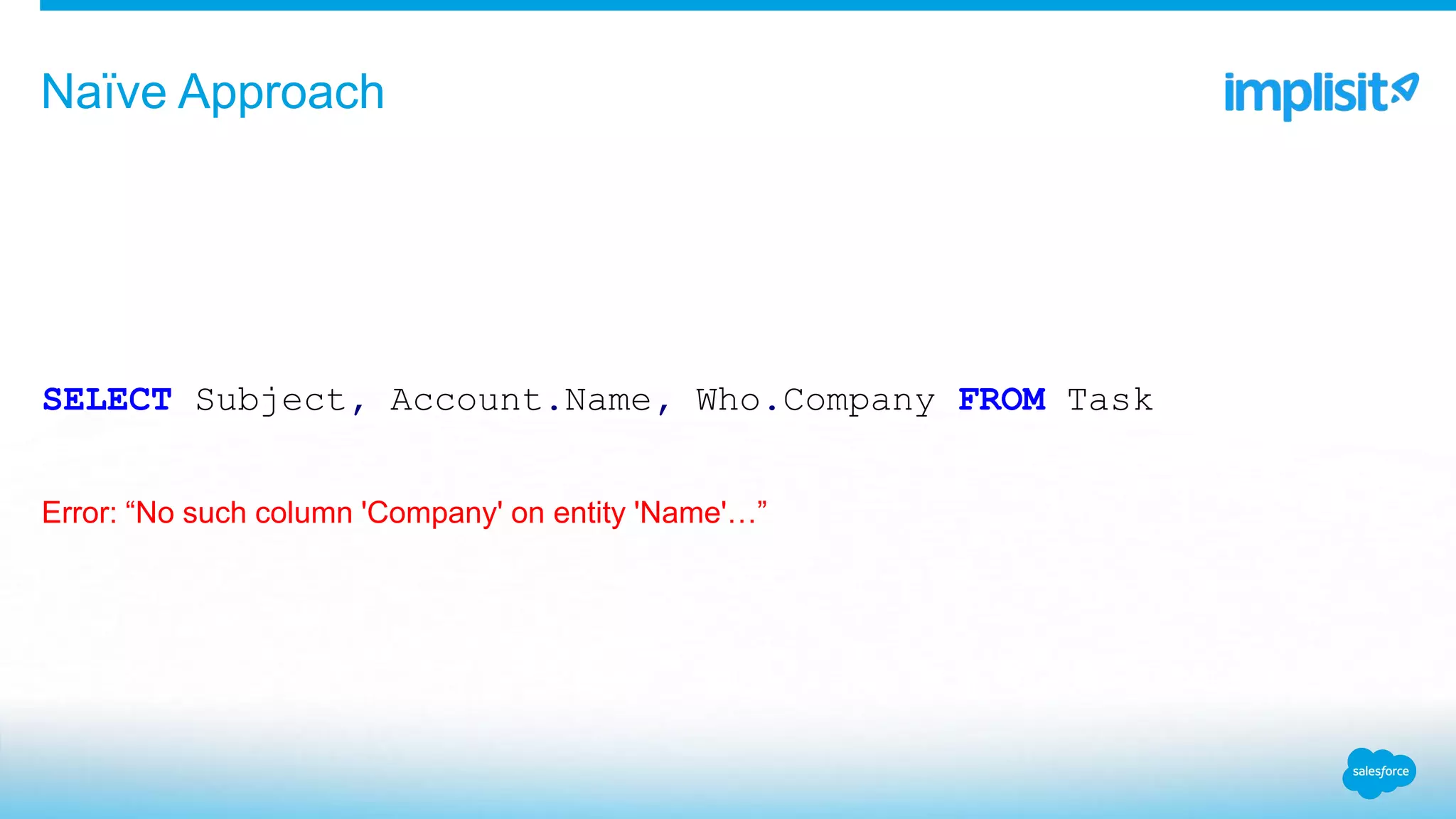

18. SELECT Subject, Account.Name, Who.Company FROM Task
Error: “No such column 'Company' on entity 'Name'…”
Naïve Approach

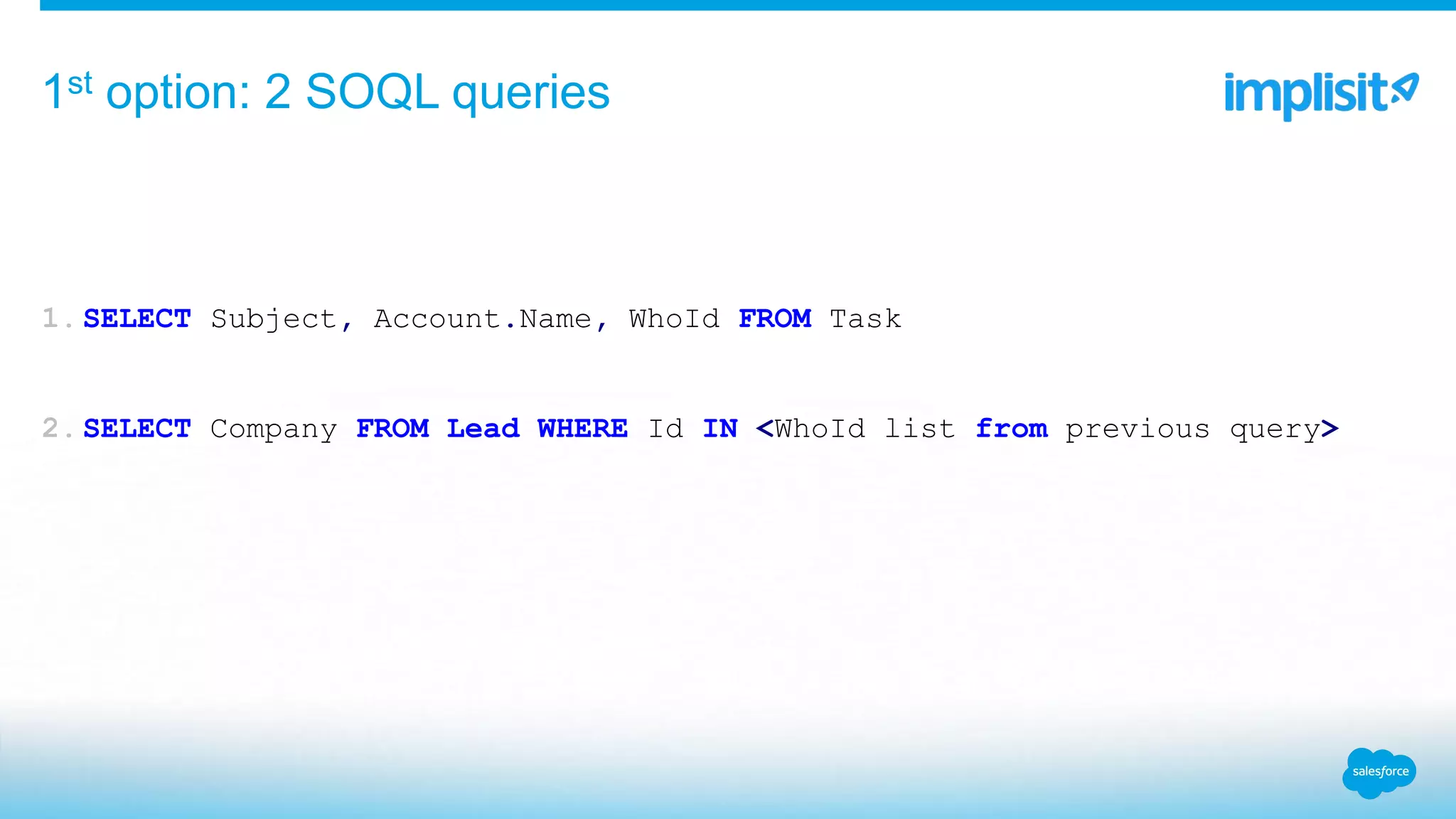

19. 1.SELECT Subject, Account.Name, WhoId FROM Task
2.SELECT Company FROM Lead WHERE Id IN <WhoId list from previous query>
1st option: 2 SOQL queries

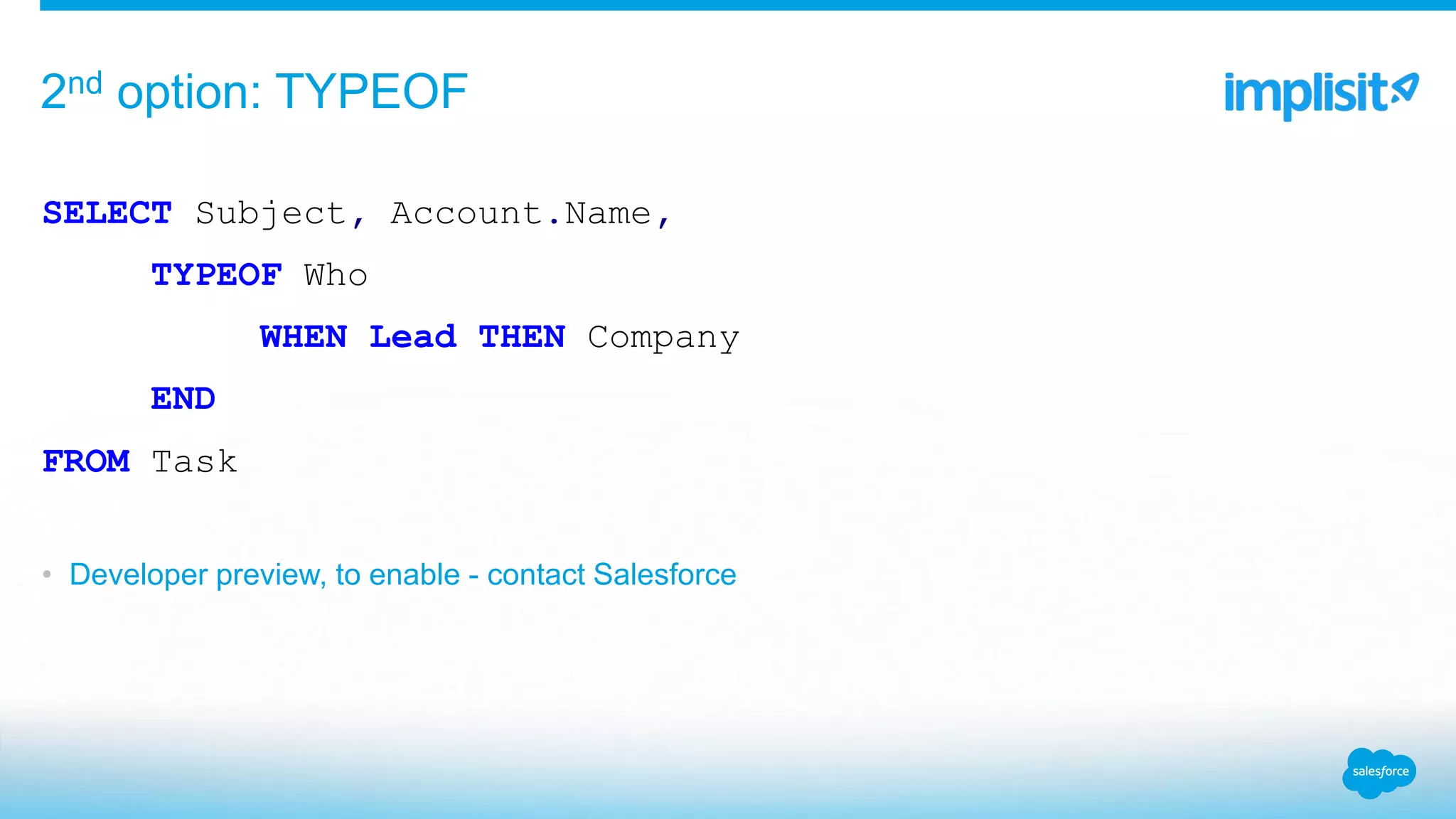

20. SELECT Subject, Account.Name,
TYPEOF Who
WHEN Lead THEN Company
END
FROM Task
• Developer preview, to enable - contact Salesforce
2nd option: TYPEOF

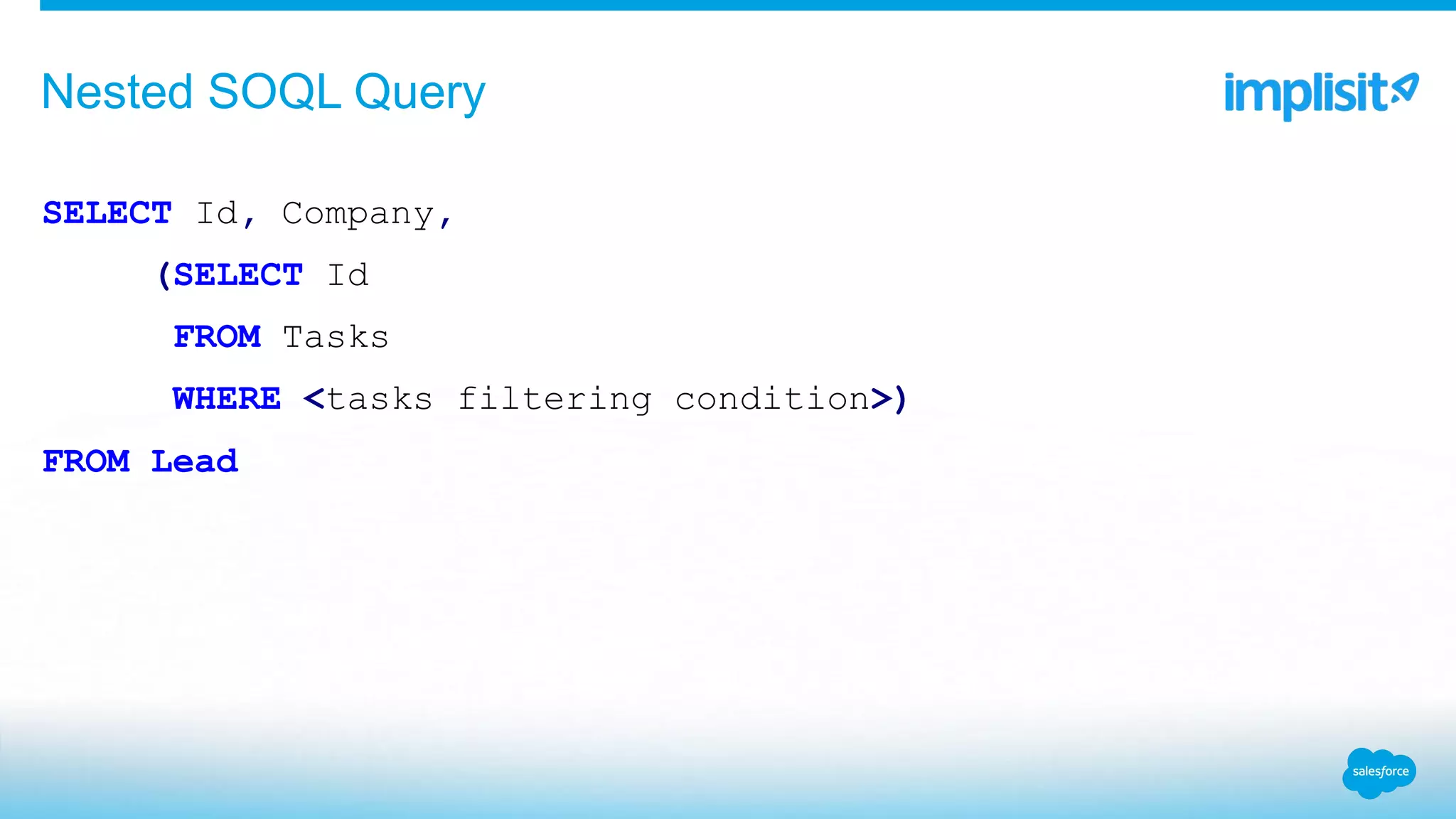

21. SELECT Id, Company,
(SELECT Id
FROM Tasks
WHERE <tasks filtering condition>)
FROM Lead
Nested SOQL Query

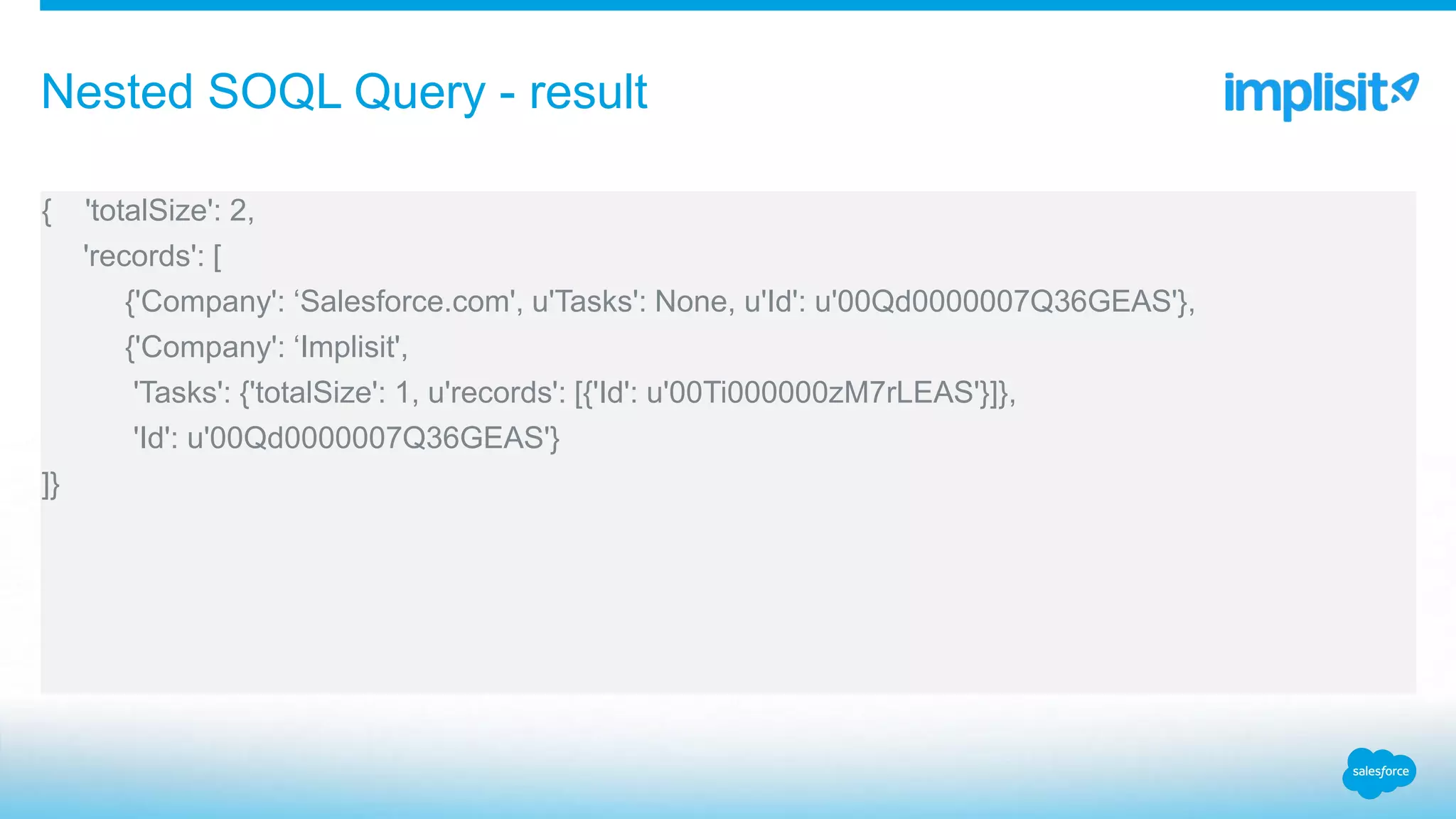

22. { 'totalSize': 2,
'records': [
{'Company': ‘Salesforce.com', u'Tasks': None, u'Id': u'00Qd0000007Q36GEAS'},
{'Company': ‘Implisit',
'Tasks': {'totalSize': 1, u'records': [{'Id': u'00Ti000000zM7rLEAS'}]},
'Id': u'00Qd0000007Q36GEAS'}
]}
Nested SOQL Query - result

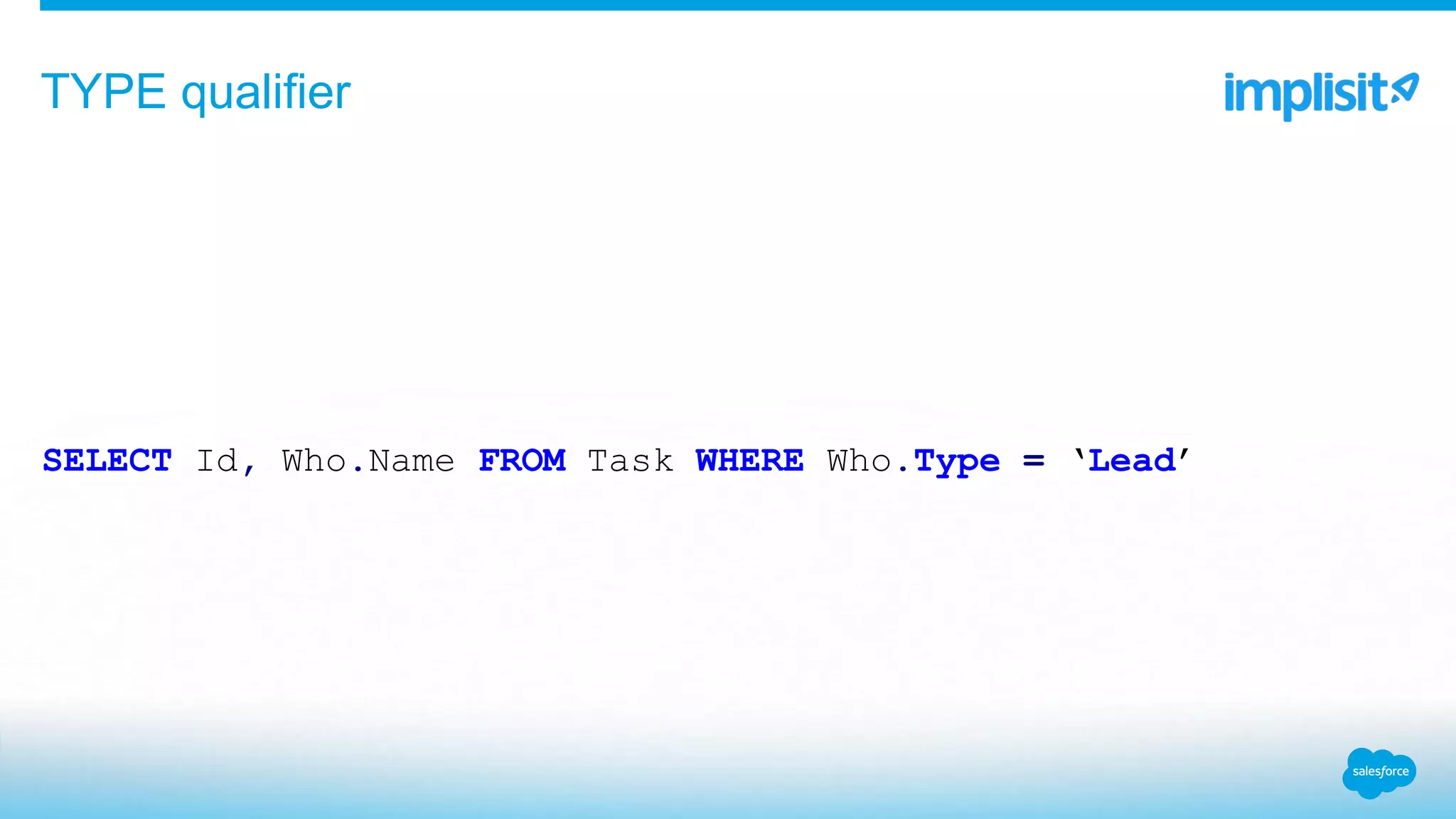

23. SELECT Id, Who.Name FROM Task WHERE Who.Type = ‘Lead’
TYPE qualifier

24. History records

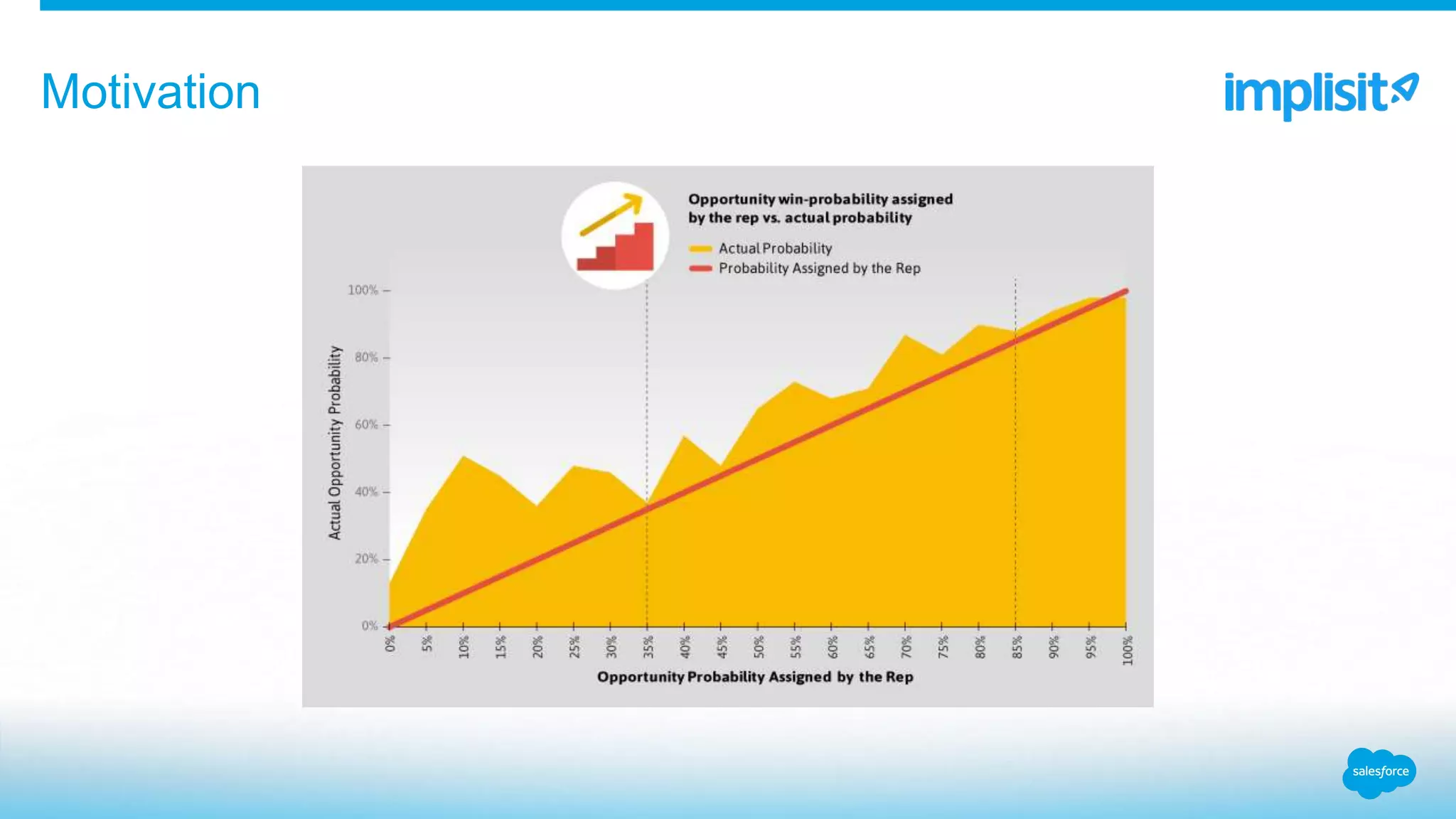

25. Motivation

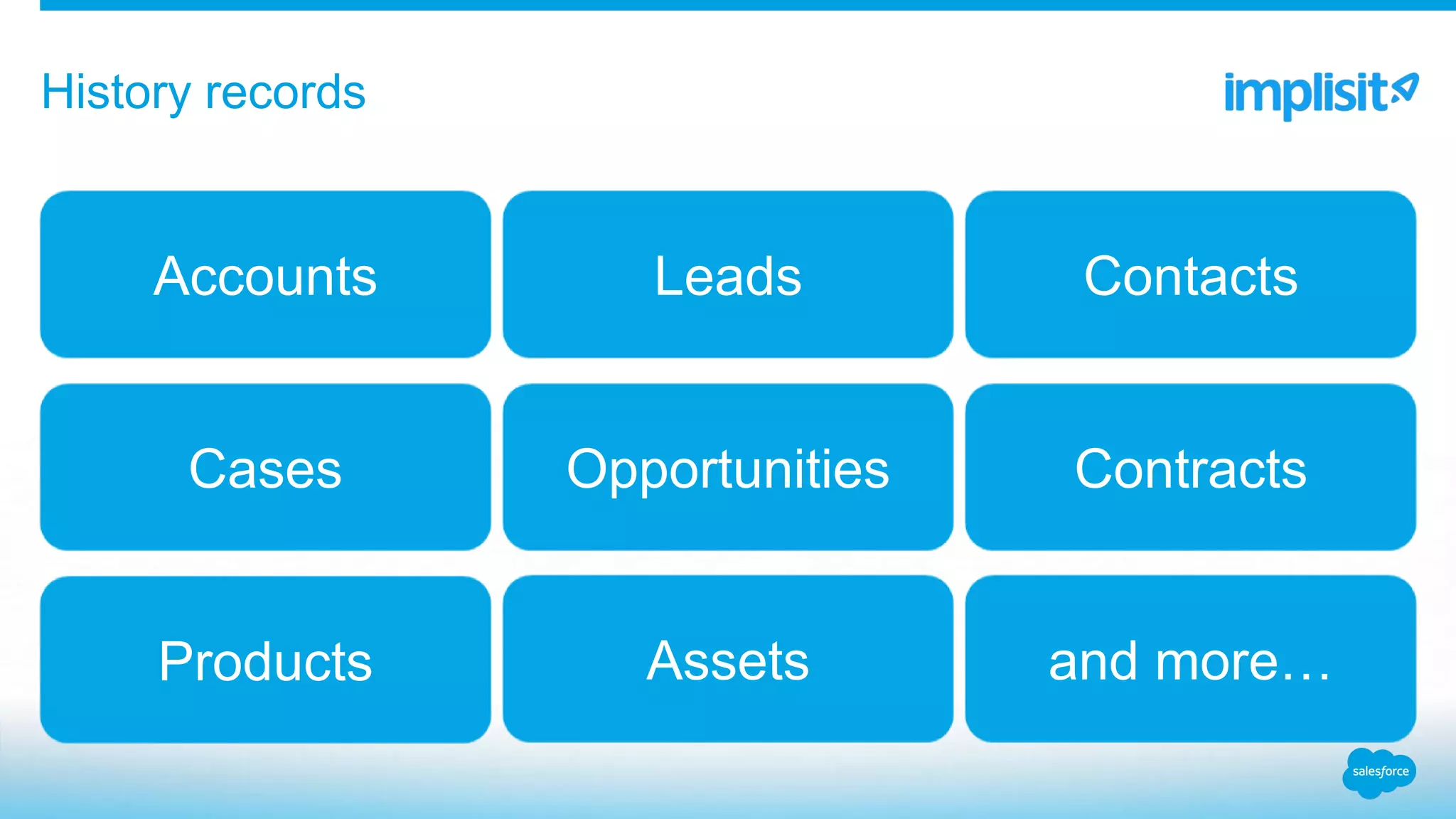

26. History records
Accounts
Cases
Products
Leads Contacts
Opportunities Contracts
Assets and more…

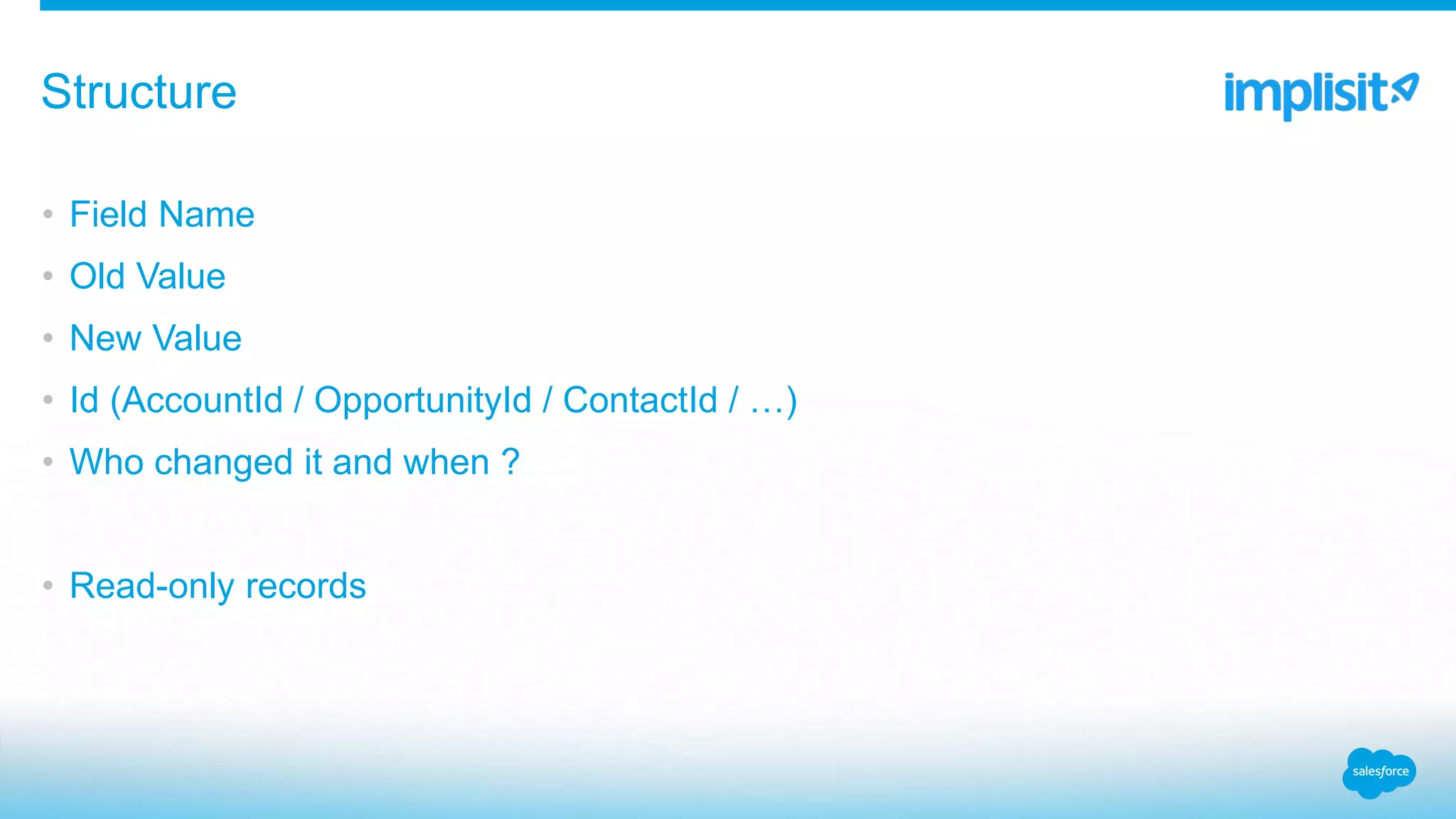

27. • Field Name
• Old Value
• New Value
• Id (AccountId / OpportunityId / ContactId / …)
• Who changed it and when ?
• Read-only records
Structure

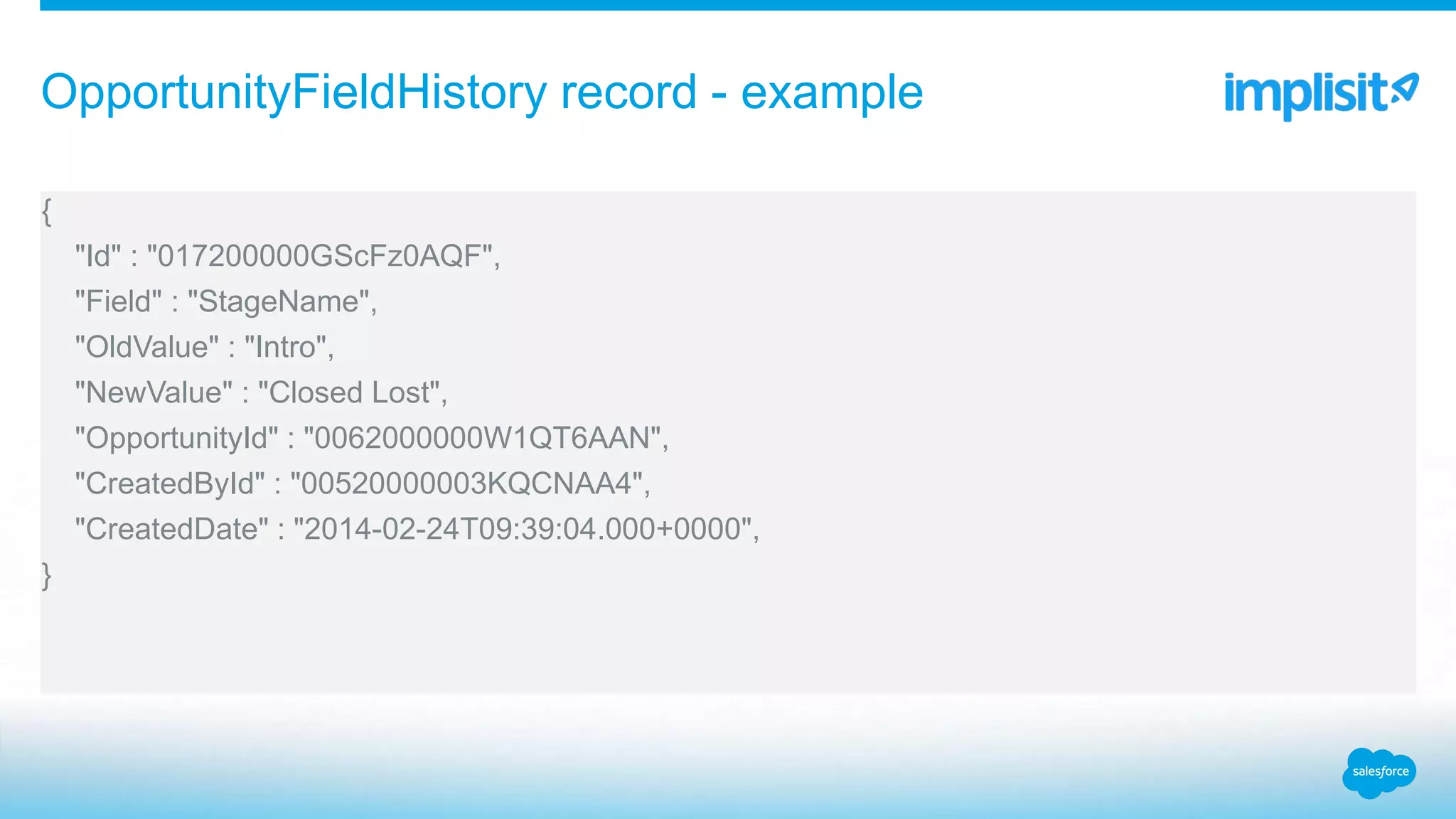

28. {
"Id" : "017200000GScFz0AQF",
"Field" : "StageName",
"OldValue" : "Intro",
"NewValue" : "Closed Lost",
"OpportunityId" : "0062000000W1QT6AAN",
"CreatedById" : "00520000003KQCNAA4",
"CreatedDate" : "2014-02-24T09:39:04.000+0000",
}
OpportunityFieldHistory record - example

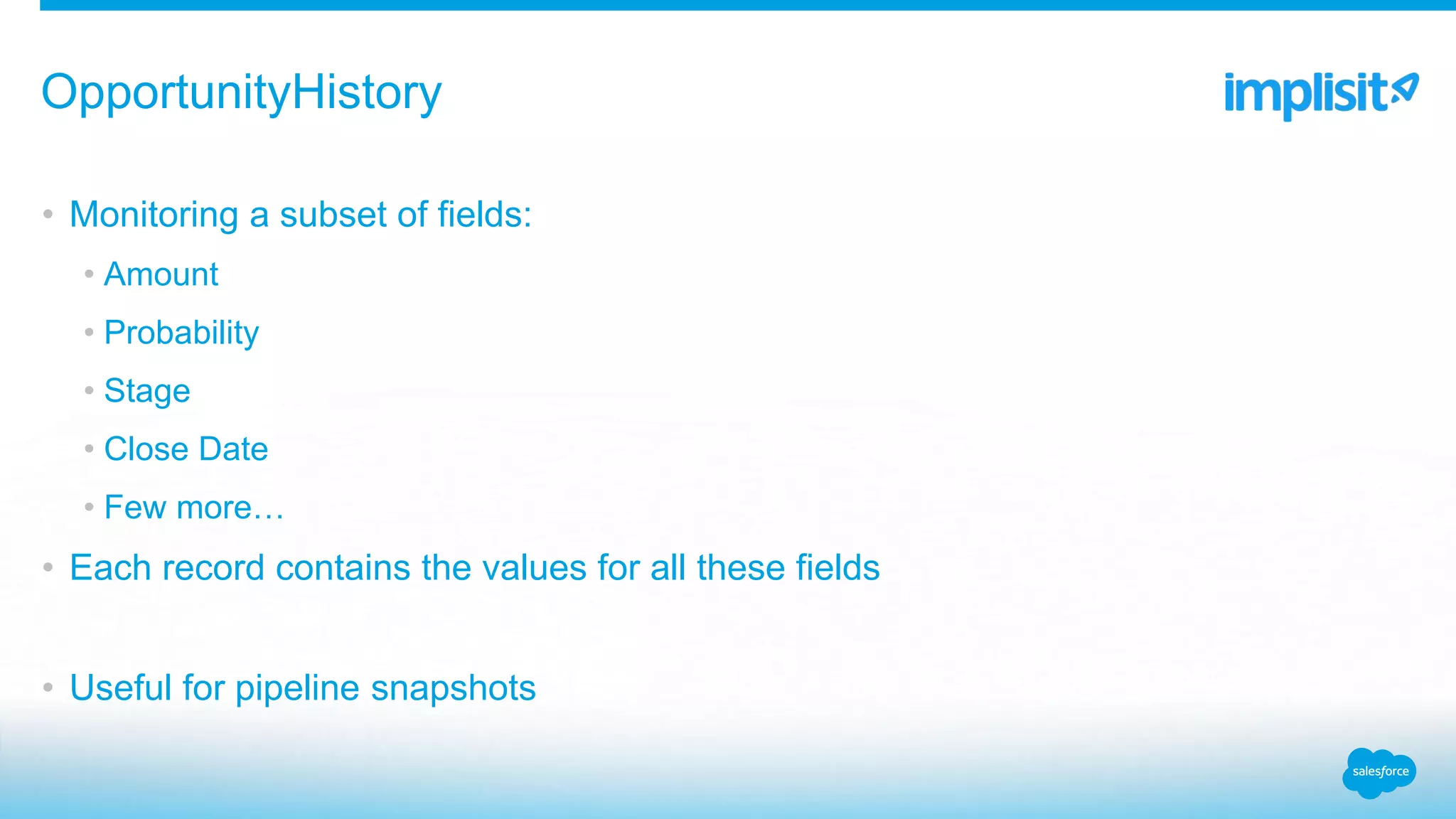

29. • Monitoring a subset of fields:
• Amount
• Probability
• Stage
• Close Date
• Few more…
• Each record contains the values for all these fields
• Useful for pipeline snapshots
OpportunityHistory

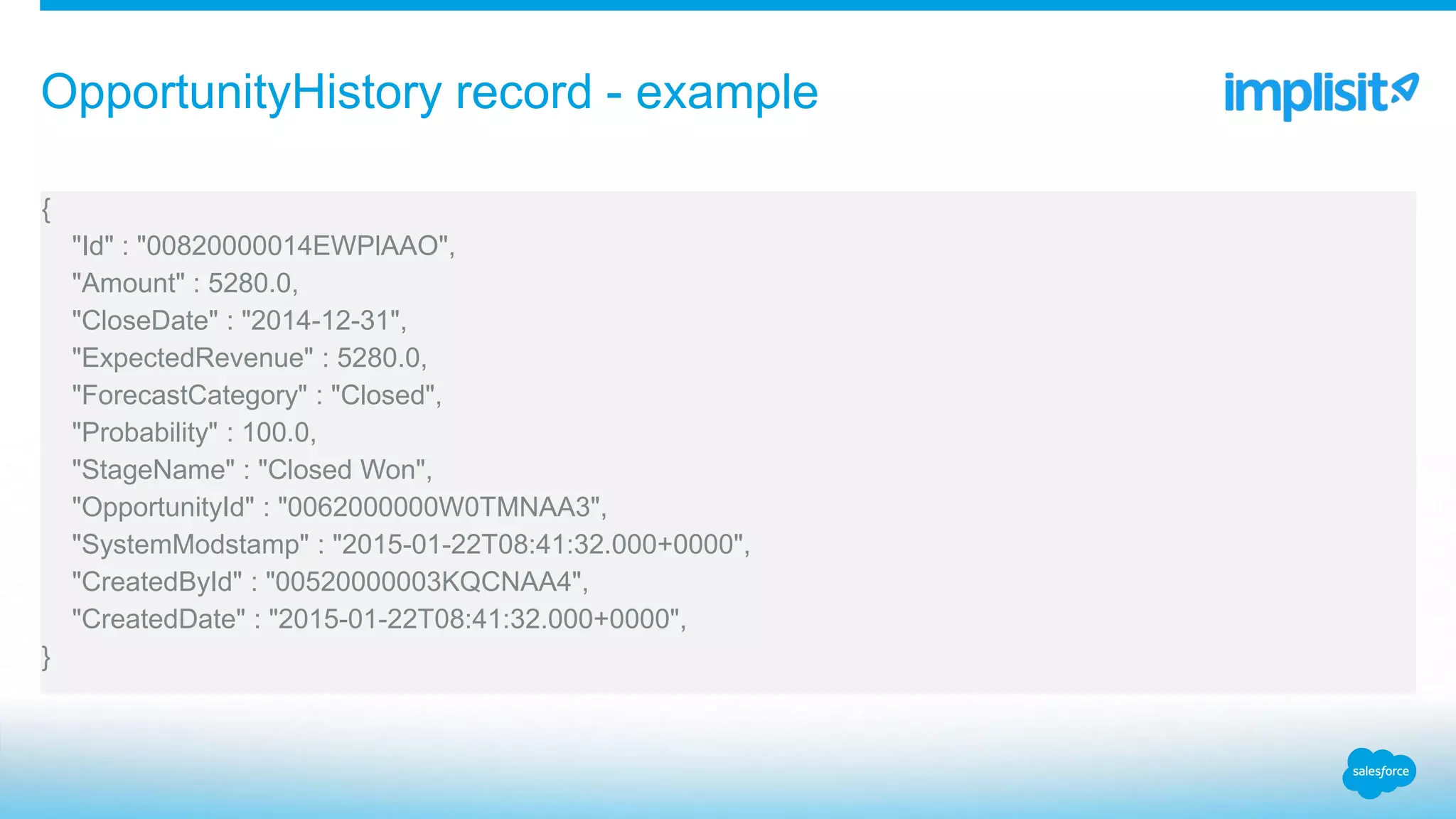

30. {
"Id" : "00820000014EWPlAAO",
"Amount" : 5280.0,
"CloseDate" : "2014-12-31",
"ExpectedRevenue" : 5280.0,
"ForecastCategory" : "Closed",
"Probability" : 100.0,
"StageName" : "Closed Won",
"OpportunityId" : "0062000000W0TMNAA3",
"SystemModstamp" : "2015-01-22T08:41:32.000+0000",
"CreatedById" : "00520000003KQCNAA4",
"CreatedDate" : "2015-01-22T08:41:32.000+0000",
}
OpportunityHistory record - example

31. Security & Permissions

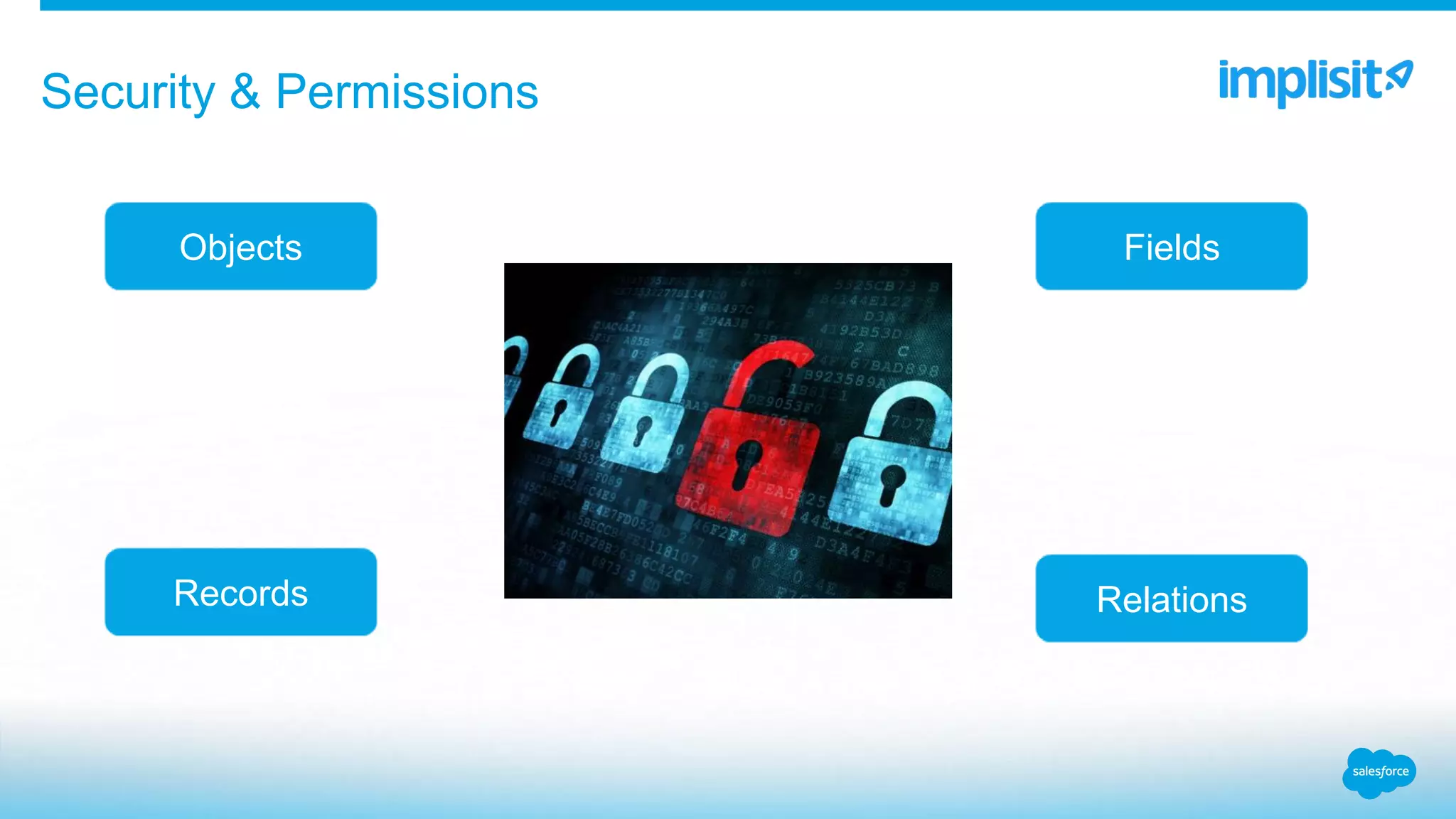

32. Security & Permissions
Objects Fields
Records Relations

33. Objects Metadata

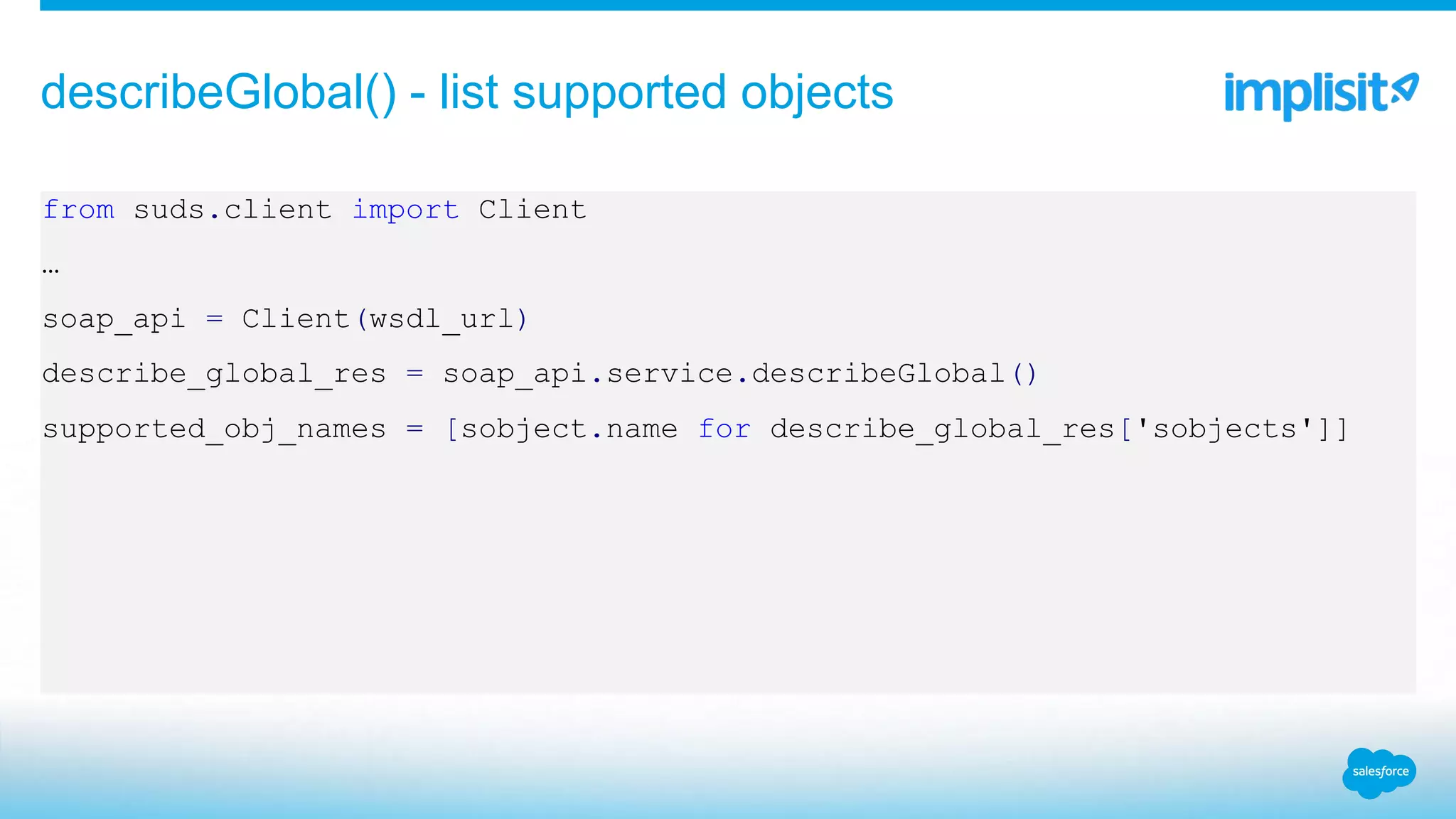

34. from suds.client import Client
…
soap_api = Client(wsdl_url)
describe_global_res = soap_api.service.describeGlobal()
supported_obj_names = [sobject.name for describe_global_res['sobjects']]
describeGlobal() - list supported objects

35. (DescribeGlobalSObjectResult){
activateable = False
createable = True
custom = False
customSetting = False
deletable = True
deprecatedAndHidden = False
feedEnabled = True
keyPrefix = "001"
label = "Account"
labelPlural = "Accounts"
layoutable = True
mergeable = True
name = "Account"
queryable = True
replicateable = True
retrieveable = True
searchable = True
triggerable = True
undeletable = True
updateable = True
},
describeGlobal() – output example

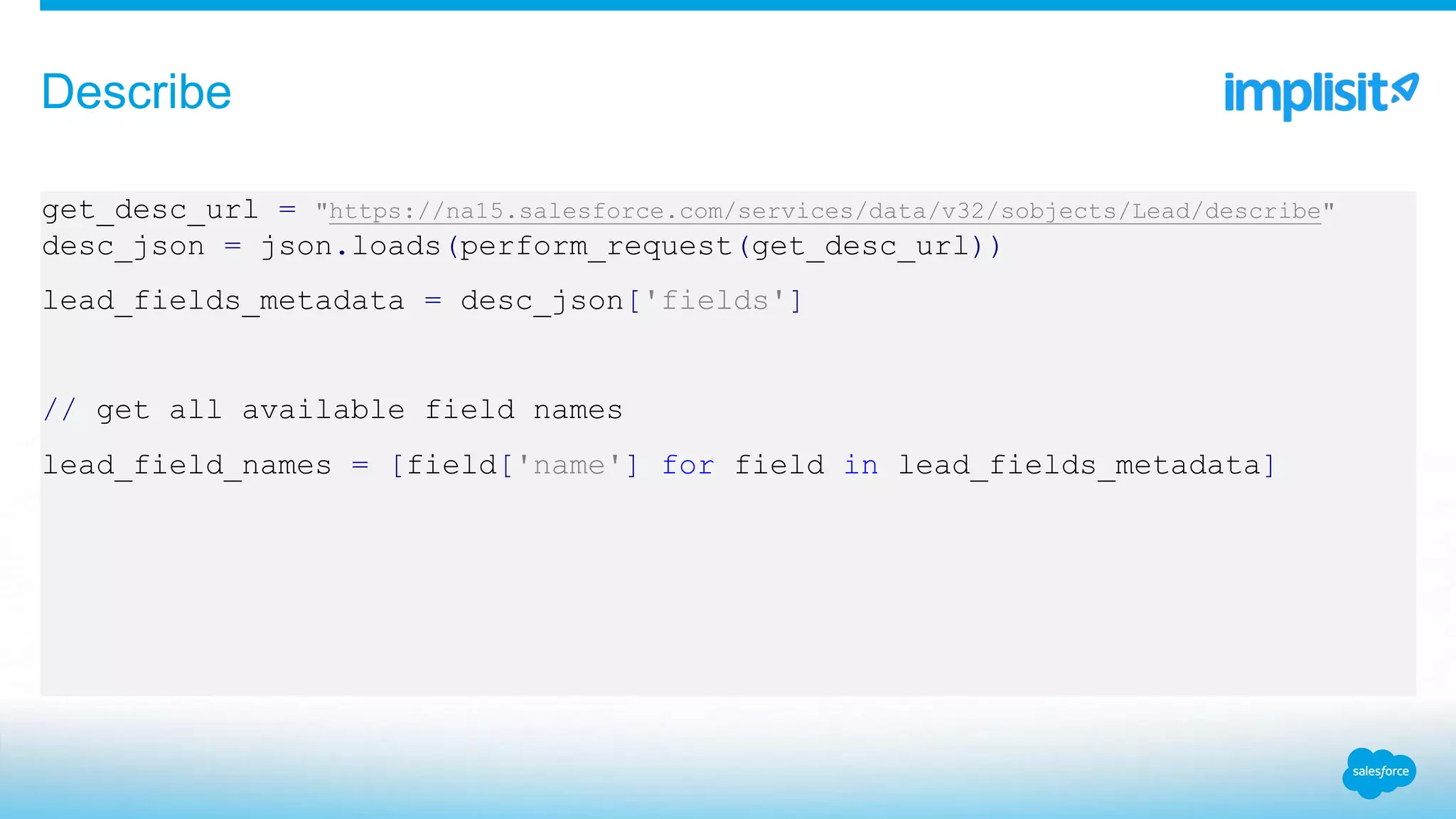

36. get_desc_url = "https://na15.salesforce.com/services/data/v32/sobjects/Lead/describe"
desc_json = json.loads(perform_request(get_desc_url))
lead_fields_metadata = desc_json['fields']
// get all available field names
lead_field_names = [field['name'] for field in lead_fields_metadata]
Describe

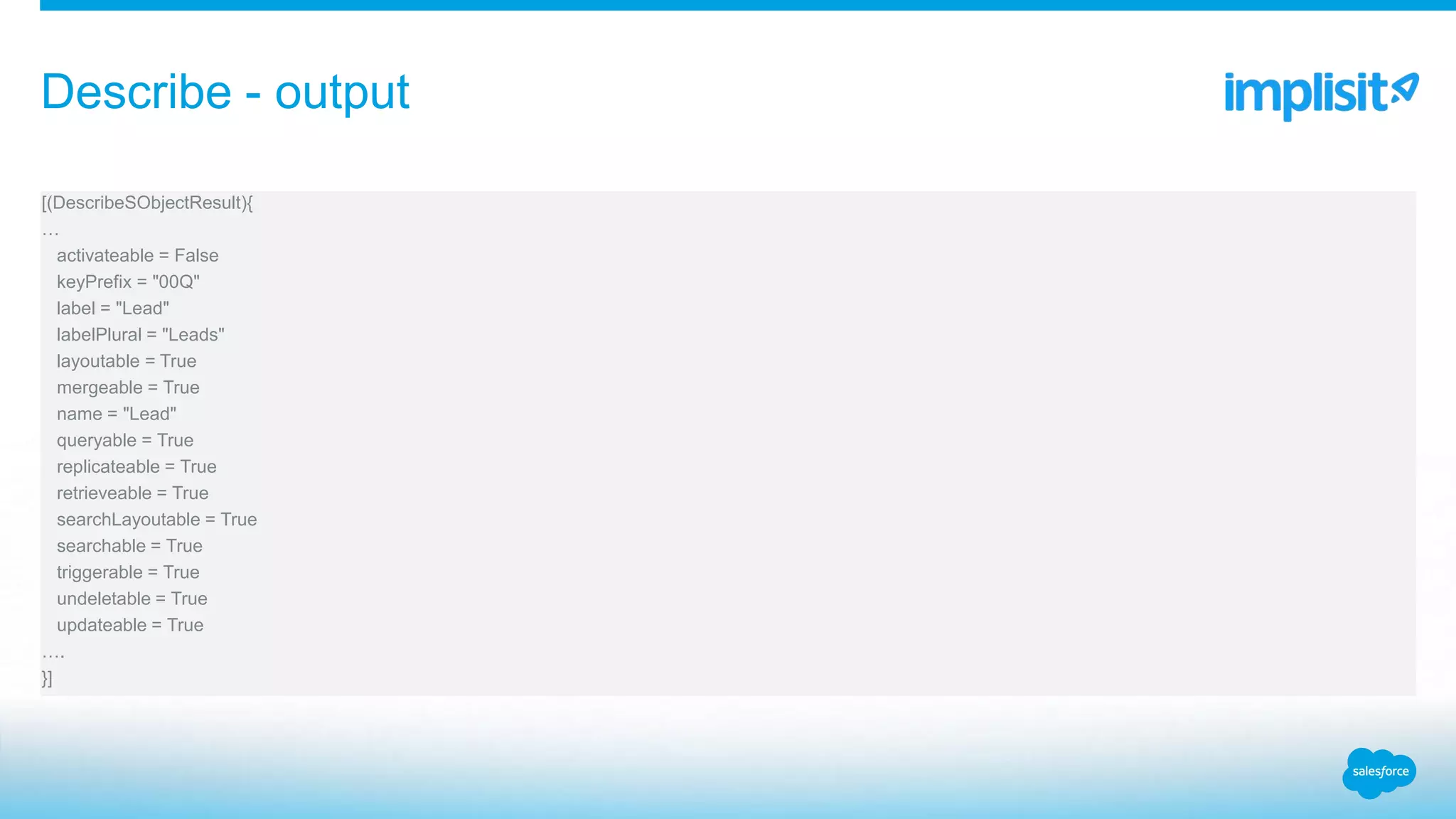

37. [(DescribeSObjectResult){
…
activateable = False
keyPrefix = "00Q"
label = "Lead"
labelPlural = "Leads"
layoutable = True
mergeable = True
name = "Lead"
queryable = True
replicateable = True
retrieveable = True
searchLayoutable = True
searchable = True
triggerable = True
undeletable = True
updateable = True
….
}]
Describe - output

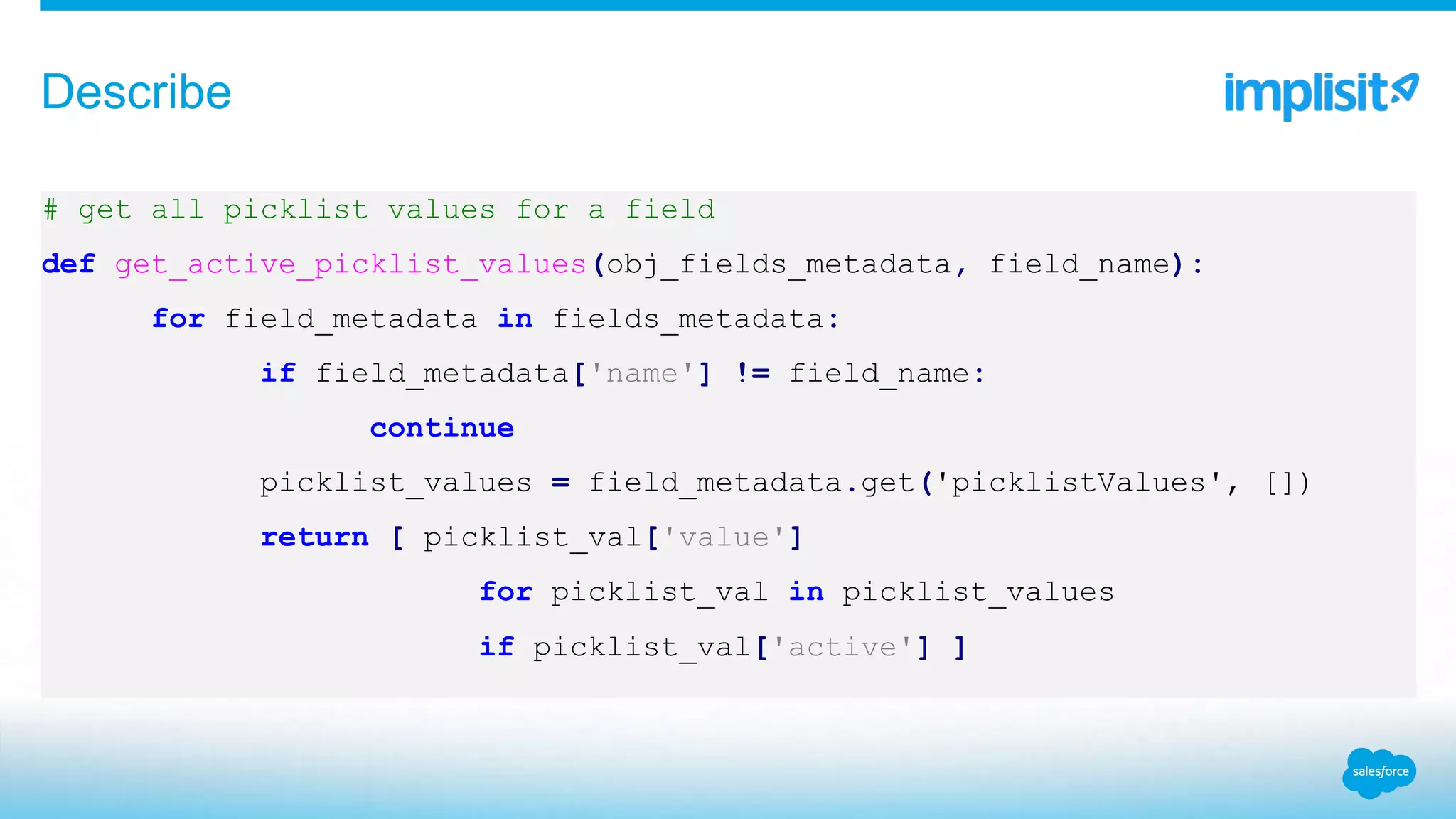

38. # get all picklist values for a field
def get_active_picklist_values(obj_fields_metadata, field_name):
for field_metadata in fields_metadata:
if field_metadata['name'] != field_name:
continue
picklist_values = field_metadata.get('picklistValues', [])
return [ picklist_val['value']
for picklist_val in picklist_values
if picklist_val['active'] ]
Describe

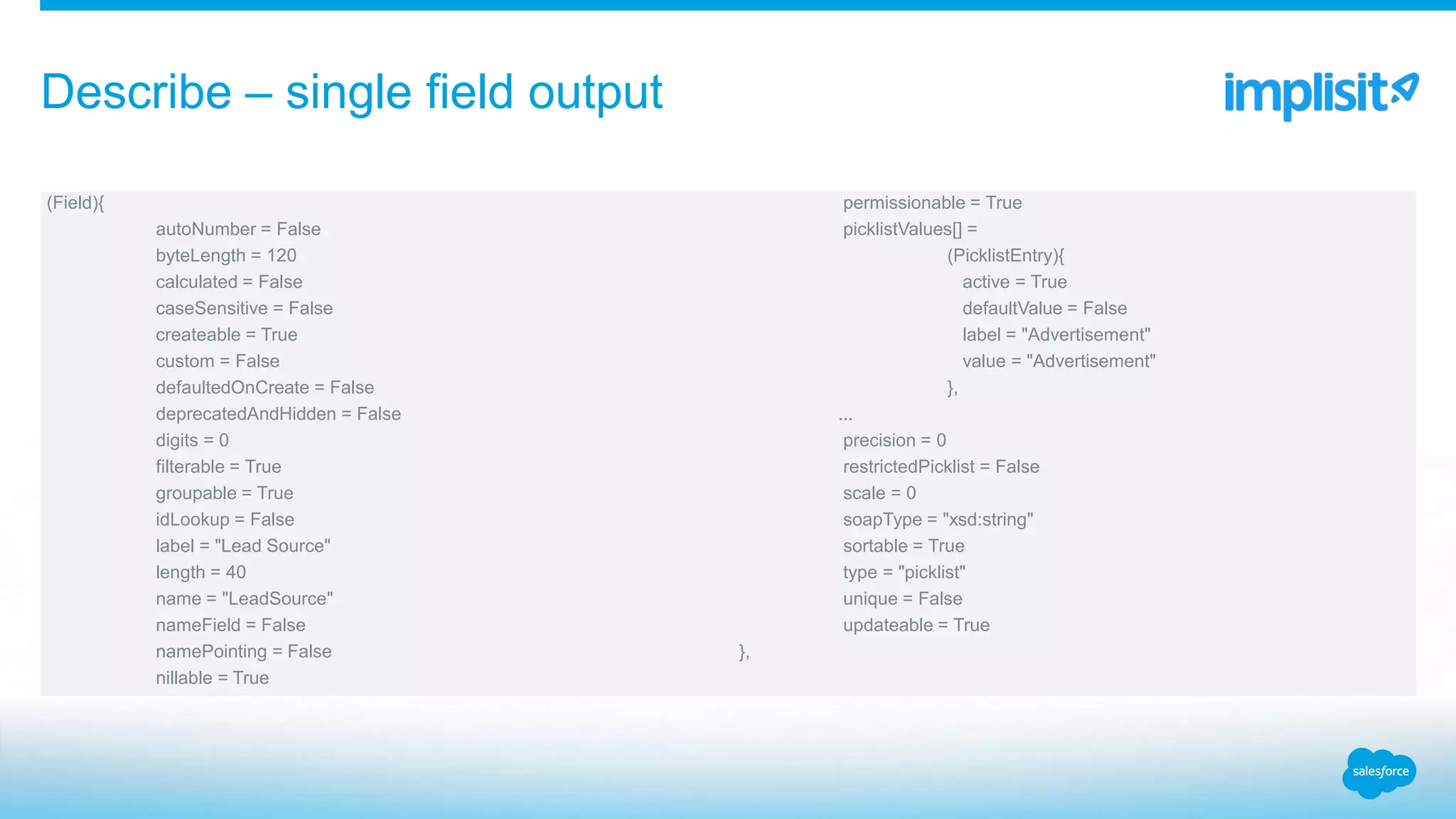

39. (Field){
autoNumber = False
byteLength = 120
calculated = False
caseSensitive = False
createable = True
custom = False
defaultedOnCreate = False
deprecatedAndHidden = False
digits = 0
filterable = True
groupable = True
idLookup = False
label = "Lead Source"
length = 40
name = "LeadSource"
nameField = False
namePointing = False
nillable = True
permissionable = True
picklistValues[] =
(PicklistEntry){
active = True
defaultValue = False
label = "Advertisement"
value = "Advertisement"
},
...
precision = 0
restrictedPicklist = False
scale = 0
soapType = "xsd:string"
sortable = True
type = "picklist"
unique = False
updateable = True
},
Describe – single field output

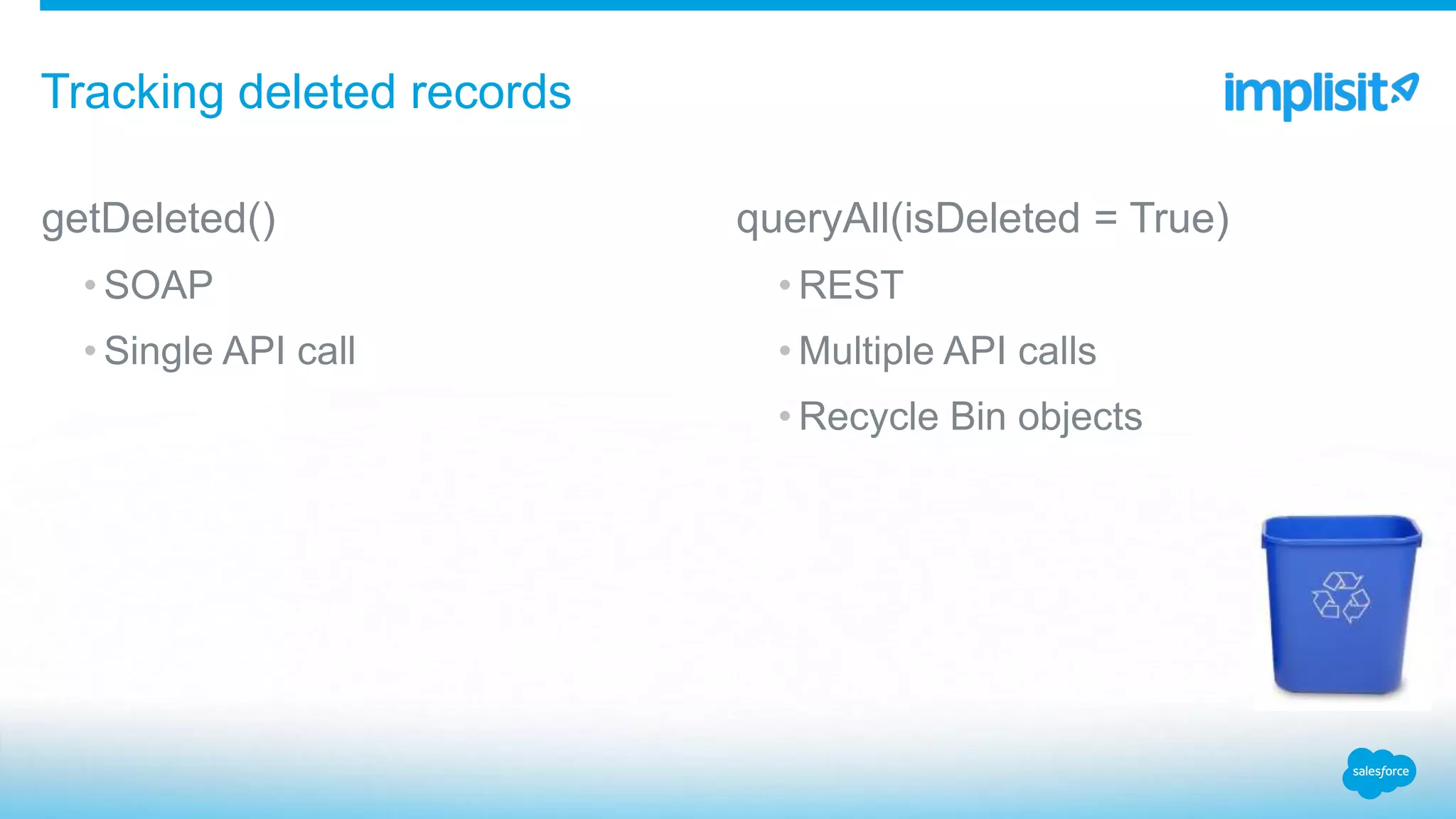

40. Tracking deleted records

41. getDeleted()
• SOAP
• Single API call
queryAll(isDeleted = True)
• REST
• Multiple API calls
• Recycle Bin objects
Tracking deleted records

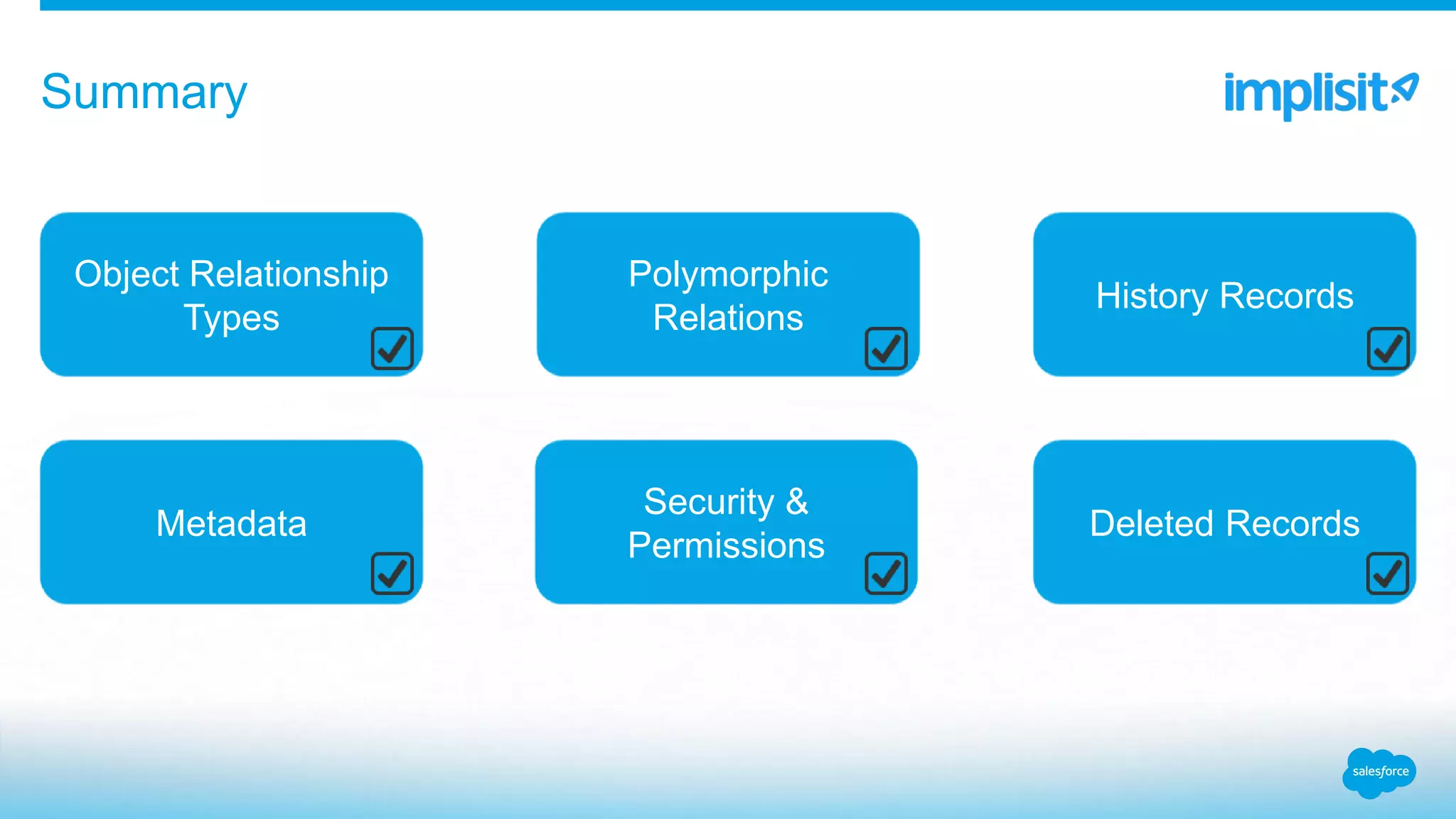

42. Summary
Object Relationship
Types
Polymorphic
Relations
Security &
Permissions
Deleted RecordsMetadata
History Records

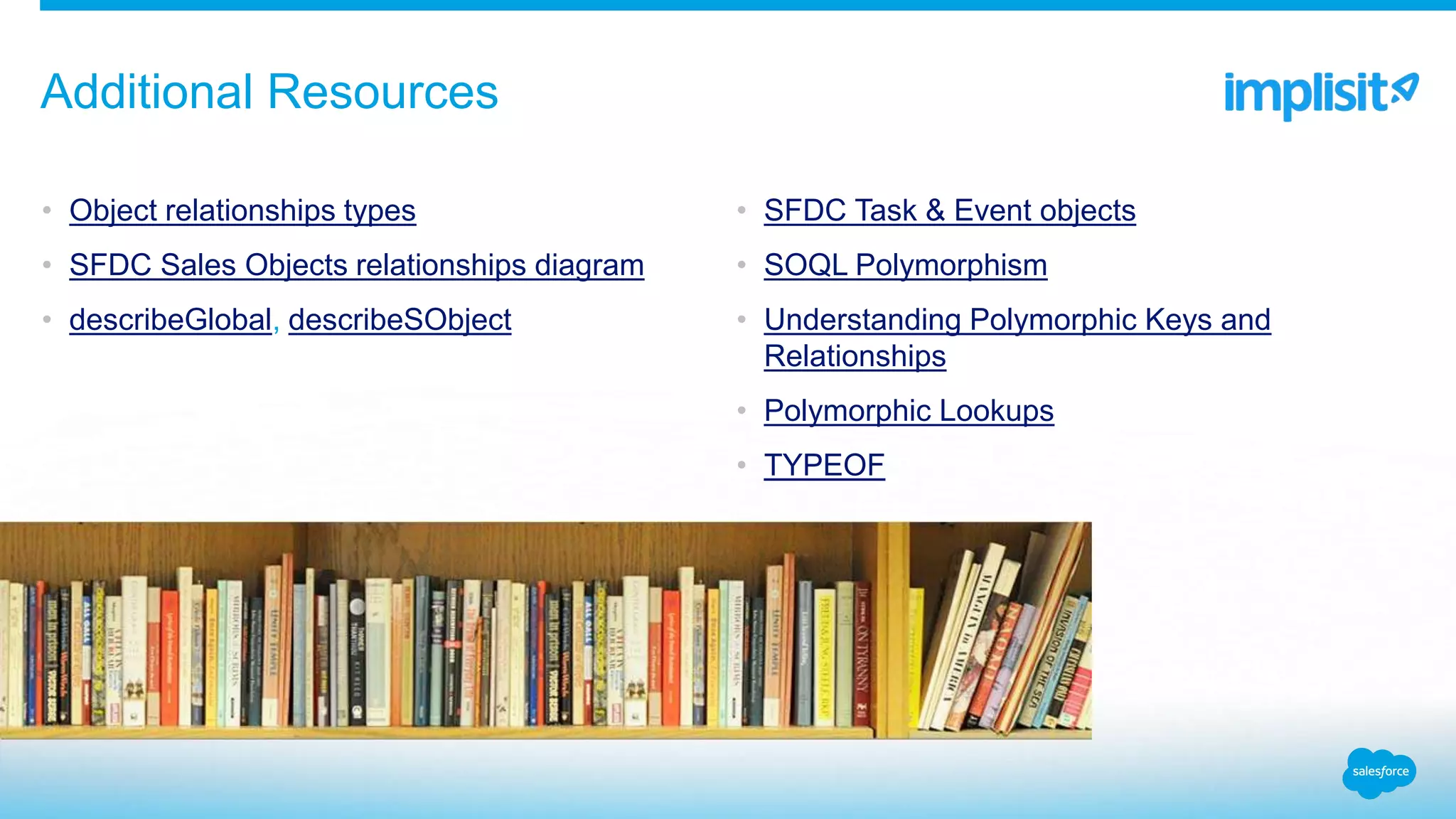

43. • Object relationships types
• SFDC Sales Objects relationships diagram
• describeGlobal, describeSObject
• SFDC Task & Event objects
• SOQL Polymorphism
• Understanding Polymorphic Keys and
Relationships
• Polymorphic Lookups
• TYPEOF
Additional Resources
