JavaOne Shanghai 2013 - Servlet 3.1 (JSR 340)

Servlet 3.1 (JSR 340) 有什麼新
功能？
Shing Wai Chan (陳成威)
Servlet 3.1 Specification Lead
java.net/blog/swchan2
Session ID: CON1387

以下内容旨在概述产品的总体发展方向。该内容仅供参考，不可纳入任何合同。其
内容不构成提供任何材料、代码或功能的承诺，并且不应该作为制定购买决策的依
据。此处所述有关 Oracle 产品的任何特性或功能的开发、发布以及相应的日程安
排均由 Oracle 自行决定。

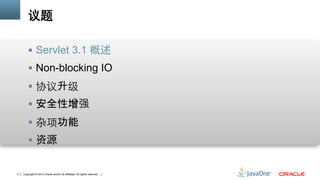

议题
§  Servlet 3.1 概述
§  Non-blocking IO
§  协议升级
§  安全性增强
§  杂项功能
§  资源

Servlet 3.1 概述
§  Java EE 7 的特性
§  Servlet 3.0的升级
§  可扩展性
–  添加 Non-blocking IO API
§  支持新技术，利用HTTP协议的初始握手
–  支持一般的协议升级机制，例如 WebSocket

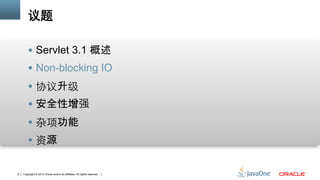

议题
§  资源

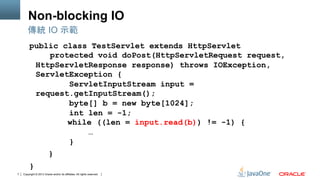

Non-blocking IO
public class TestServlet extends HttpServlet
protected void doPost(HttpServletRequest request,
HttpServletResponse response) throws IOException,
ServletException {
ServletInputStream input =
request.getInputStream();
byte[] b = new byte[1024];
int len = -1;
while ((len = input.read(b)) != -1) {
…
}
}
}
傳統 IO 示範

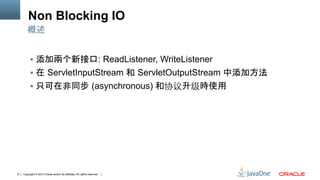

Non Blocking IO
§  添加兩个新接口: ReadListener, WriteListener
§  在 ServletInputStream 和 ServletOutputStream 中添加方法
§  只可在非同步 (asynchronous) 和协议升级時使用
概述

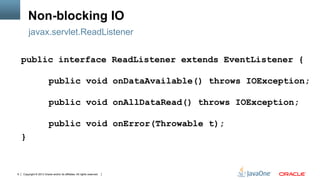

Non-blocking IO
public interface ReadListener extends EventListener {
public void onDataAvailable() throws IOException;
public void onAllDataRead() throws IOException;
public void onError(Throwable t);
}
javax.servlet.ReadListener

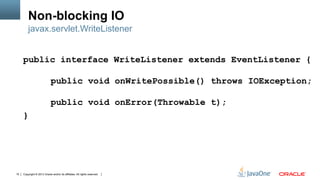

Non-blocking IO
public interface WriteListener extends EventListener {
public void onWritePossible() throws IOException;
public void onError(Throwable t);
}
javax.servlet.WriteListener

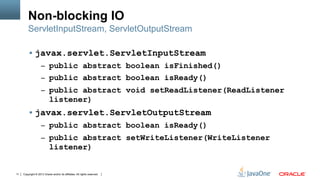

Non-blocking IO
§  javax.servlet.ServletInputStream
–  public abstract boolean isFinished()
–  public abstract boolean isReady()
–  public abstract void setReadListener(ReadListener
listener)
§  javax.servlet.ServletOutputStream
–  public abstract boolean isReady()
–  public abstract setWriteListener(WriteListener
listener)
ServletInputStream, ServletOutputStream

Non-blocking IO
public class TestServlet extends HttpServlet {
protected void doPost(HttpServletRequest req, HttpServletResponse
res) throws IOException, ServletException {
AsyncContext ac = req.startAsync();
…
ServletInputStream input = req.getInputStream();
ReadListener readListener = new ReadListenerImpl(input, output,
ac);
input.setReadListener(readListener);
}
}
示範

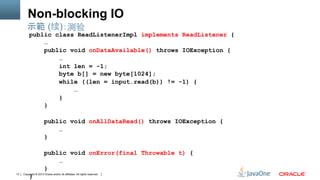

Non-blocking IO
public class ReadListenerImpl implements ReadListener {
…
public void onDataAvailable() throws IOException {
…
int len = -1;
byte b[] = new byte[1024];
while ((len = input.read(b)) != -1) {
…
}
}
public void onAllDataRead() throws IOException {
…
}
public void onError(final Throwable t) {
…
}
}
示範 (续)：测验

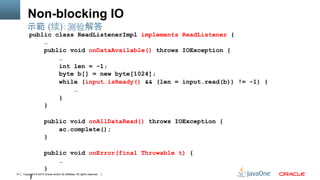

Non-blocking IO
public class ReadListenerImpl implements ReadListener {
…
public void onDataAvailable() throws IOException {
…
int len = -1;
while (input.isReady() && (len = input.read(b)) != -1) {
…
}
}
public void onAllDataRead() throws IOException {
ac.complete();
}
…
}
}
示範 (续)：测验解答

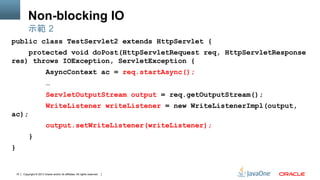

Non-blocking IO
public class TestServlet2 extends HttpServlet {
protected void doPost(HttpServletRequest req, HttpServletResponse
res) throws IOException, ServletException {
AsyncContext ac = req.startAsync();
…
ServletOutputStream output = req.getOutputStream();
WriteListener writeListener = new WriteListenerImpl(output,
ac);
output.setWriteListener(writeListener);
}
}
示範 2

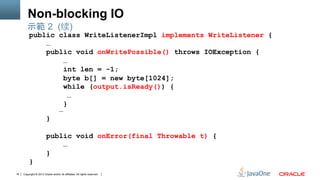

Non-blocking IO
public class WriteListenerImpl implements WriteListener {
…
public void onWritePossible() throws IOException {
…
int len = -1;
while (output.isReady()) {
…
}
…
}
…
}
}
示範 2 (续)

议题
§  资源

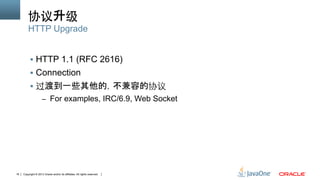

协议升级
§  HTTP 1.1 (RFC 2616)
§  Connection
§  过渡到一些其他的，不兼容的协议
–  For examples, IRC/6.9, Web Socket
HTTP Upgrade

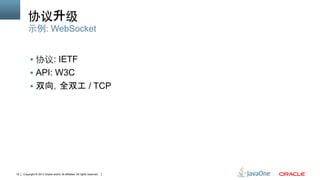

协议升级
§  协议: IETF
§  API: W3C
§  双向，全双工 / TCP
示例: WebSocket

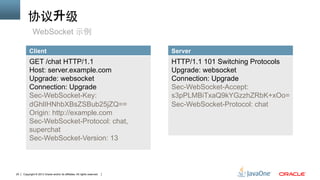

Client
GET /chat HTTP/1.1
Host: server.example.com
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Key:
dGhlIHNhbXBsZSBub25jZQ==
Origin: http://example.com
Sec-WebSocket-Protocol: chat,
superchat
Sec-WebSocket-Version: 13
协议升级
Server
HTTP/1.1 101 Switching Protocols
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Accept:
s3pPLMBiTxaQ9kYGzzhZRbK+xOo=
Sec-WebSocket-Protocol: chat
WebSocket 示例

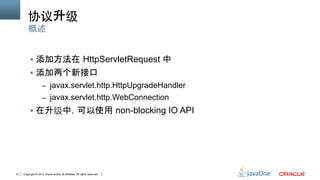

协议升级
§  添加方法在 HttpServletRequest 中
§  添加两个新接口
–  javax.servlet.http.HttpUpgradeHandler
–  javax.servlet.http.WebConnection
§  在升级中，可以使用 non-blocking IO API
概述

协议升级

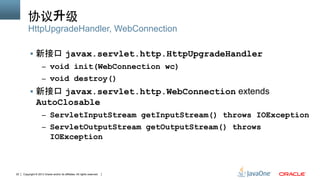

§  新接口 javax.servlet.http.HttpUpgradeHandler
–  void init(WebConnection wc)
–  void destroy()
§  新接口 javax.servlet.http.WebConnection extends
AutoClosable
–  ServletInputStream getInputStream() throws IOException
–  ServletOutputStream getOutputStream() throws
IOException
HttpUpgradeHandler, WebConnection

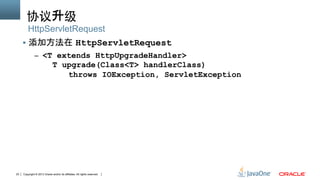

协议升级
§  添加方法在 HttpServletRequest
–  <T extends HttpUpgradeHandler>
T upgrade(Class<T> handlerClass)
throws IOException, ServletException
HttpServletRequest

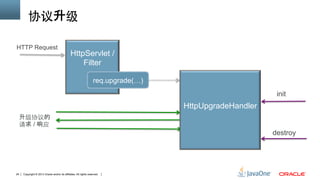

协议升级
HttpServlet /
Filter
req.upgrade(…)
init
destroy
HTTP Request
升级协议的
请求 / 响应
HttpUpgradeHandler

协议升级

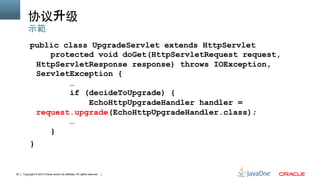

public class UpgradeServlet extends HttpServlet
protected void doGet(HttpServletRequest request,
HttpServletResponse response) throws IOException,
ServletException {
…
if (decideToUpgrade) {
EchoHttpUpgradeHandler handler =
request.upgrade(EchoHttpUpgradeHandler.class);
…
}
}
示範

协议升级

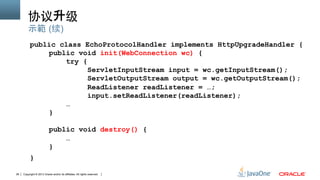

public class EchoProtocolHandler implements HttpUpgradeHandler {
public void init(WebConnection wc) {
try {
ServletInputStream input = wc.getInputStream();
ServletOutputStream output = wc.getOutputStream();
ReadListener readListener = …;
input.setReadListener(readListener);
…
}
public void destroy() {
…
}
}
示範 (续)

协议升级
TyrusServletFilter
req.upgrade(…)
init
destroy
HTTP Request
WebSocket
的请求 / 响
应
TyrusHttpUpgradeHandler
示範 2: JSR356，Java API for WebSocket 的参考实现

示範

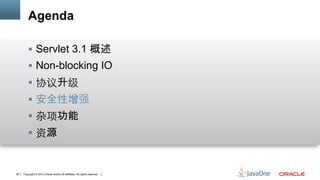

Agenda
§  资源

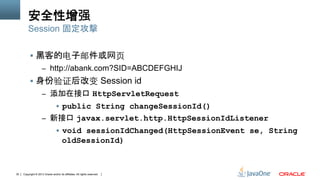

安全性增强
§  黑客的电子邮件或网⻚页
–  http://abank.com?SID=ABCDEFGHIJ
§  身份验证后改变 Session id
–  添加在接口 HttpServletRequest
§  public String changeSessionId()
–  新接口 javax.servlet.http.HttpSessionIdListener
§  void sessionIdChanged(HttpSessionEvent se, String
oldSessionId)
Session 固定攻擊

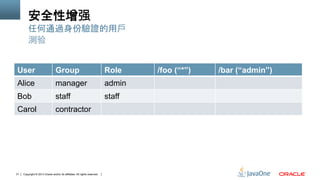

安全性增强
User Group Role /foo (“*”) /bar (“admin”)
Alice manager admin
Bob staff staff
Carol contractor
任何通過身份驗證的用戶
测验

安全性增强
§  角色 “*” 是指任何定义的角色
测验解答
User Group Role /foo (“*”) /bar (“admin”)
Alice manager admin ok ok
Bob staff staff ok deny
Carol contractor deny deny

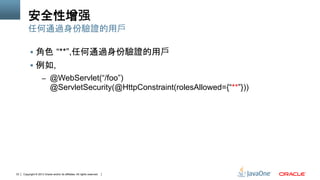

安全性增强
§  角色 “**”,任何通過身份驗證的用戶
§  例如,
–  @WebServlet(“/foo”)
@ServletSecurity(@HttpConstraint(rolesAllowed={“**”}))

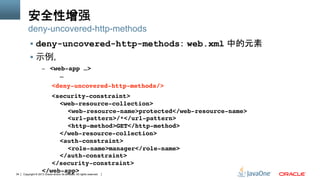

安全性增强
§  deny-uncovered-http-methods： web.xml 中的元素
§  示例,
–  <web-app …> 
" "…" " " ""
" "<deny-uncovered-http-methods/> " ""
" "<security-constraint> 
" " "<web-resource-collection> 
" " " "<web-resource-name>protected</web-resource-name> 
" " " "<url-pattern>/*</url-pattern> 
" " " "<http-method>GET</http-method> 
" " "</web-resource-collection> 
" " "<auth-constraint> 
" " " "<role-name>manager</role-name> 
" " "</auth-constraint> 
" "</security-constraint> 
</web-app>"
deny-uncovered-http-methods

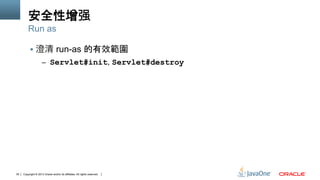

安全性增强
§  澄清 run-as 的有效範圍
–  Servlet#init, Servlet#destroy
Run as

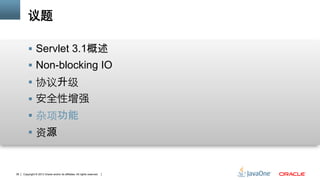

议题
§  Servlet 3.1概述
§  资源

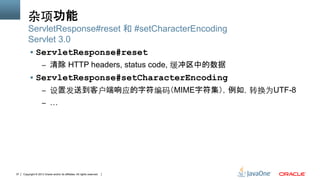

杂项功能
§  ServletResponse#reset
–  清除 HTTP headers, status code, 缓冲区中的数据
§  ServletResponse#setCharacterEncoding
–  设置发送到客户端响应的字符编码（MIME字符集），例如，转换为UTF-8
–  …
ServletResponse#reset 和 #setCharacterEncoding

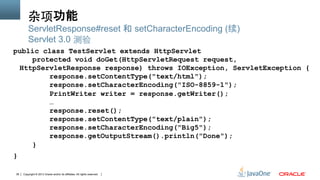

Servlet 3.0

杂项功能
HttpServletResponse response) throws IOException, ServletException {
response.setContentType("text/html");
response.setCharacterEncoding("ISO-8859-1");
PrintWriter writer = response.getWriter();
…
response.reset();
response.setContentType("text/plain");
response.setCharacterEncoding("Big5");
response.getOutputStream().println("Done");
}
}
ServletResponse#reset 和 setCharacterEncoding (续)
Servlet 3.0 测验

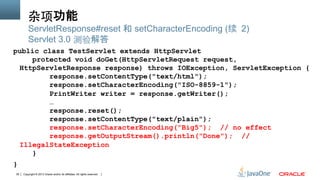

杂项功能
…
response.reset();
response.setCharacterEncoding("Big5"); // no effect
response.getOutputStream().println("Done"); //
IllegalStateException
}
}
ServletResponse#reset 和 setCharacterEncoding (续 2)
Servlet 3.0 测验解答

杂项功能

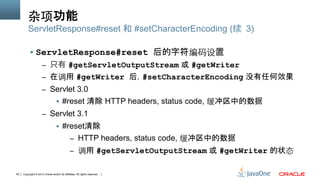

§  ServletResponse#reset 后的字符编码设置
–  只有 #getServletOutputStream 或 #getWriter
–  在调用 #getWriter 后，#setCharacterEncoding 没有任何效果
–  Servlet 3.0
§  #reset 清除 HTTP headers, status code, 缓冲区中的数据
–  Servlet 3.1
§  #reset清除
–  HTTP headers, status code, 缓冲区中的数据
–  调用 #getServletOutputStream 或 #getWriter 的状态
ServletResponse#reset 和 #setCharacterEncoding (续 3)

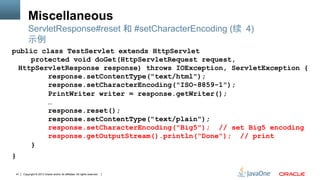

Miscellaneous
…
response.reset();
response.setCharacterEncoding("Big5"); // set Big5 encoding
response.getOutputStream().println("Done"); // print
}
}
ServletResponse#reset 和 #setCharacterEncoding (续 4)
示例

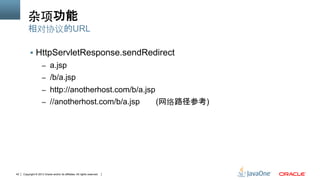

杂项功能
§  HttpServletResponse.sendRedirect
–  a.jsp
–  /b/a.jsp
–  http://anotherhost.com/b/a.jsp
–  //anotherhost.com/b/a.jsp (网络路径参考)
相对协议的URL

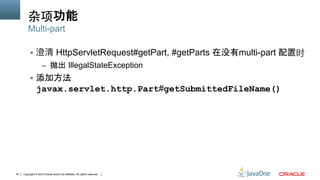

杂项功能
§  澄清 HttpServletRequest#getPart, #getParts 在没有multi-part 配置时
–  抛出 IllegalStateException
§  添加方法
javax.servlet.http.Part#getSubmittedFileName()
Multi-part

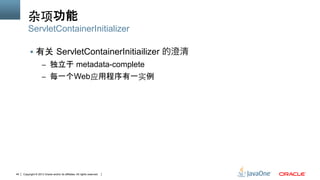

杂项功能
§  有关 ServletContainerInitiailizer 的澄清
–  独立于 metadata-complete
–  每一个Web应用程序有一实例
ServletContainerInitializer

杂项功能

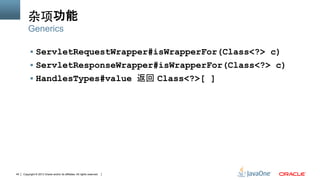

§  ServletRequestWrapper#isWrapperFor(Class<?> c)
§  ServletResponseWrapper#isWrapperFor(Class<?> c)
§  HandlesTypes#value 返回 Class<?>[ ]
Generics

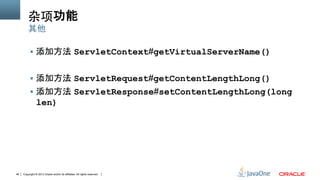

杂项功能
§  添加方法 ServletContext#getVirtualServerName()
§  添加方法 ServletRequest#getContentLengthLong()
§  添加方法 ServletResponse#setContentLengthLong(long
len)
其他

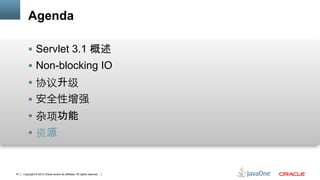

Agenda
§  资源

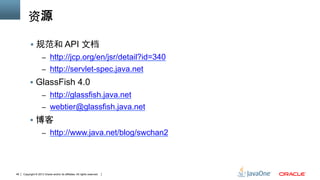

资源
§  规范和 API 文档
–  http://jcp.org/en/jsr/detail?id=340
–  http://servlet-spec.java.net
§  GlassFish 4.0
–  http://glassfish.java.net
–  webtier@glassfish.java.net
§  博客
–  http://www.java.net/blog/swchan2

Graphic Section Divider
