Batch Applications for the
Java Platform
Arun Gupta
Java EE & GlassFish Guy
arun.p.gupta@oracle.com

The following is intended to outline our general product direction. It is intended
for information purposes only, and may not be incorporated into any contract.
It is not a commitment to deliver any material, code, or functionality, and should
not be relied upon in making purchasing decisions. The development, release,
and timing of any features or functionality described for Oracle’s products
remains at the sole discretion of Oracle.

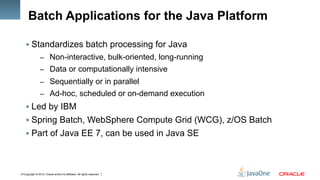

Batch Applications for the Java Platform
§ Standardizes batch processing for Java
–  Non-interactive, bulk-oriented, long-running
–  Data or computationally intensive
–  Sequentially or in parallel
–  Ad-hoc, scheduled or on-demand execution
§ Led by IBM
§ Spring Batch, WebSphere Compute Grid (WCG), z/OS Batch
§ Part of Java EE 7, can be used in Java SE

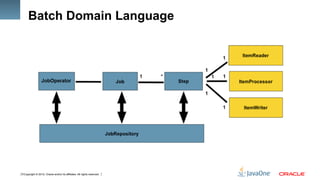

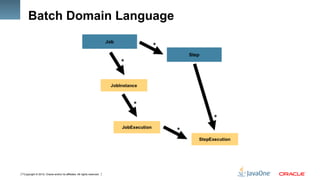

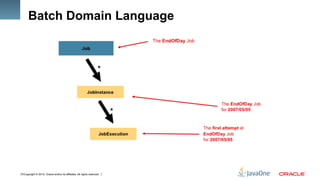

Batch Domain Language

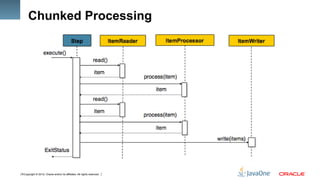

Chunked Processing

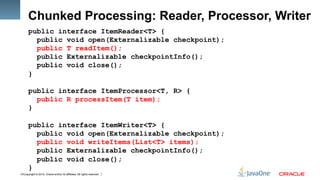

Chunked Processing: Reader, Processor, Writer
public interface ItemReader<T> {
public void open(Externalizable checkpoint);
public T readItem();
public Externalizable checkpointInfo();
public void close();
}
public interface ItemProcessor<T, R> {
public R processItem(T item);
}
public interface ItemWriter<T> {
public void writeItems(List<T> items);
}

//For a job
<step id=”sendStatements”>
<chunk reader=”accountReader”
processor=”accountProcessor”
writer=”emailWriter”
item-count=”10” />
</step>

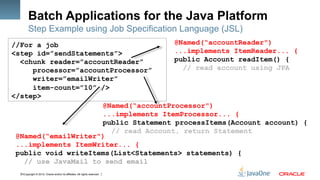

Batch Applications for the Java Platform
Step Example using Job Specification Language (JSL)
@Named(“accountReader")
...implements ItemReader... {
public Account readItem() {
// read account using JPA
@Named(“accountProcessor")
...implements ItemProcessor... {
public Statement processItems(Account account) {
// read Account, return Statement
@Named(“emailWriter")
...implements ItemWriter... {
public void writeItems(List<Statements> statements) {
// use JavaMail to send email

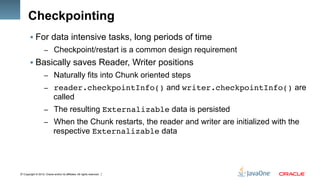

Checkpointing
§ For data intensive tasks, long periods of time
–  Checkpoint/restart is a common design requirement
§ Basically saves Reader, Writer positions
–  Naturally fits into Chunk oriented steps
–  reader.checkpointInfo() and writer.checkpointInfo() are
called
–  The resulting Externalizable data is persisted
–  When the Chunk restarts, the reader and writer are initialized with the
respective Externalizable data

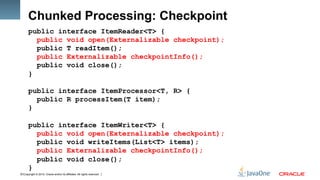

Chunked Processing: Checkpoint
public interface ItemReader<T> {
public T readItem();
}
public interface ItemProcessor<T, R> {
public R processItem(T item);
}
public interface ItemWriter<T> {
public void writeItems(List<T> items);
}

Handling Exceptions
<job id=...>
...
<chunk skip-limit=”5” retry-limit=”5”>
<skippable-exception-classes>
<include class="java.lang.Exception"/>
<exclude class="java.io.FileNotFoundException"/>
</skippable-exception-classes>
<retryable-exception-classes>
...
</retryable-exception-classes>
<no-rollback-exception-classes>
...
</no-rollback-exception-classes>
</chunk>
...
</job>

Partitioned Step
§ A batch step may run as a partitioned step
–  A partitioned step runs as multiple instances of the same step definition
across multiple threads, one partition per thread
<step id="step1" >
<chunk ...>
<partition>
<plan partitions=“10" threads="2"/>
<reducer .../>
</partition>
</chunk>
</step>

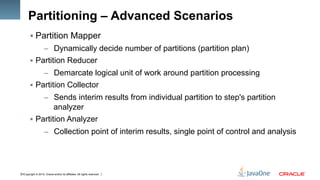

Partitioning – Advanced Scenarios
§ Partition Mapper
–  Dynamically decide number of partitions (partition plan)
§  Partition Reducer
–  Demarcate logical unit of work around partition processing
§  Partition Collector
–  Sends interim results from individual partition to step's partition
analyzer
§  Partition Analyzer
–  Collection point of interim results, single point of control and analysis

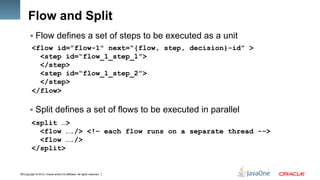

Flow and Split
§ Flow defines a set of steps to be executed as a unit
<flow id=”flow-1" next=“{flow, step, decision}-id” >
<step id=“flow_1_step_1”>
</step>
<step id=“flow_1_step_2”>
</step>
</flow>
§ Split defines a set of flows to be executed in parallel
<split …>
<flow …./> <!– each flow runs on a separate thread -->
<flow …./>
</split>

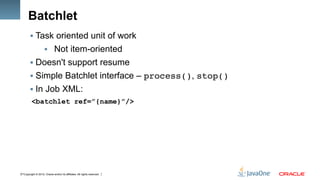

Batchlet
§ Task oriented unit of work
§  Not item-oriented
§ Doesn't support resume
§ Simple Batchlet interface – process(), stop()!
§ In Job XML:
<batchlet ref=”{name}”/>

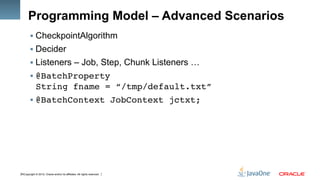

Programming Model – Advanced Scenarios
§ CheckpointAlgorithm
§ Decider
§ Listeners – Job, Step, Chunk Listeners …
§ @BatchProperty 
String fname = “/tmp/default.txt”!
§ @BatchContext JobContext jctxt;!

Batch Runtime Specification
§ JobOperator interface – for programmatic lifecycle control of jobs
§ Step level Metrics through the StepExecution object
§ Batch Artifact loading through CDI
§ Job XML loading through META-INF/batch-jobs/myJob.xml
§ Packaging – jar, war, ejb-jar

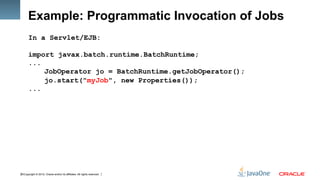

Example: Programmatic Invocation of Jobs
In a Servlet/EJB:
import javax.batch.runtime.BatchRuntime;
...
JobOperator jo = BatchRuntime.getJobOperator();
jo.start("myJob", new Properties());
...

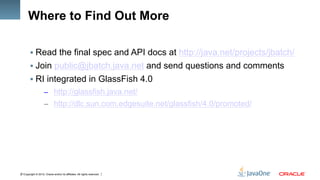

Where to Find Out More
§ Read the final spec and API docs at http://java.net/projects/jbatch/
§ Join public@jbatch.java.net and send questions and comments
§ RI integrated in GlassFish 4.0
–  http://glassfish.java.net/
–  http://dlc.sun.com.edgesuite.net/glassfish/4.0/promoted/
