1. CMR ENGINEERING COLLEGE
(UGC Autonomous)
Kandlakoya (V), Medchal (M & Dist). T. S-501401
Department of Electronics and Communication Engineering
Technical Seminar Presentation
On
HOLOGRAPHY TECHNOLOGY

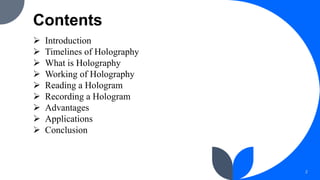

2. Contents
 Introduction
 Timelines of Holography
 What is Holography
 Working of Holography
 Reading a Hologram
 Recording a Hologram
 Advantages
 Applications
 Conclusion
2

3. Introduction
• A holography originated from the Greek word “HOLO”
means COMPLETE and “GRAPHY” means WRITING
.Thus it is a technique to record the complete picture of
an object.
• Technical term for holography is wave front
reconstruction.
• Image changes as the position and orientation of the
viewing system changes.
• Records phase of the object.
• Record our three dimensional
world on a two dimensional
recording medium. 3

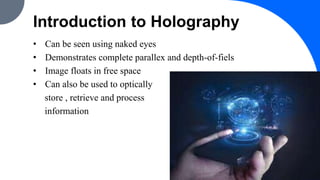

4. Introduction to Holography
• Can be seen using naked eyes
• Demonstrates complete parallex and depth-of-fiels
• Image floats in free space
• Can also be used to optically
store , retrieve and process
information
4

5. Timeline of
Holography
1947:Dennis Gabar developed the theory of holography
1960:Pulsed ruby laser was developed
1962:White light reflection hologram
1983:Mastercard first credit card to use hologram
2009:Interactive holographic displays developed
2010:Development of moving 3D holography
PRESENTATION TITLE 5

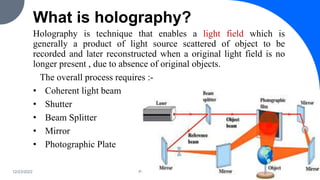

6. What is holography?
Holography is technique that enables a light field which is
generally a product of light source scattered of object to be
recorded and later reconstructed when a original light field is no
longer present , due to absence of original objects.
The overall process requires :-
• Coherent light beam
• Shutter
• Beam Splitter
• Mirror
• Photographic Plate
12/23/2022 PRESENTATION TITLE 6

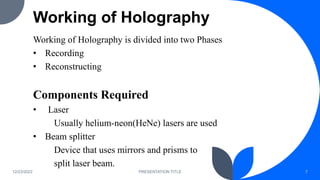

7. Working of Holography
Working of Holography is divided into two Phases
• Recording
• Reconstructing
Components Required
• Laser
Usually helium-neon(HeNe) lasers are used
• Beam splitter
Device that uses mirrors and prisms to
split laser beam.
12/23/2022 PRESENTATION TITLE 7

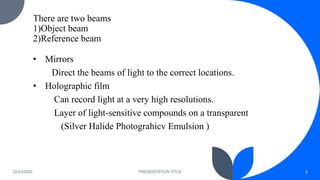

8. There are two beams
1)Object beam
2)Reference beam
• Mirrors
Direct the beams of light to the correct locations.
• Holographic film
Can record light at a very high resolutions.
Layer of light-sensitive compounds on a transparent
(Silver Halide Photograhicv Emulsion )
12/23/2022 PRESENTATION TITLE 8

9. Reading a Hologram
12/23/2022 PRESENTATION TITLE 9

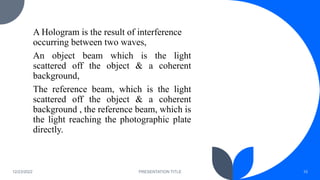

10. A Hologram is the result of interference
occurring between two waves,
An object beam which is the light
scattered off the object & a coherent
background,
The reference beam, which is the light
scattered off the object & a coherent
background , the reference beam, which is
the light reaching the photographic plate
directly.
12/23/2022 PRESENTATION TITLE 10

11. Recording a Hologram
12/23/2022 PRESENTATION TITLE 11

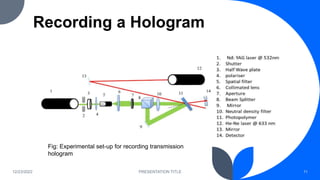

Fig: Experimental set-up for recording transmission
hologram

12. 12/23/2022 PRESENTATION TITLE 12
Fig:2D interference pattern cased by two point source of waves of constant frequency . Each
of the waves is moving away from its source at the same constant speed

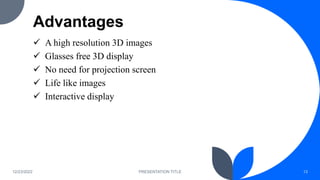

13. Advantages
 A high resolution 3D images
 Glasses free 3D display
 No need for projection screen
 Life like images
 Interactive display
12/23/2022 PRESENTATION TITLE 13

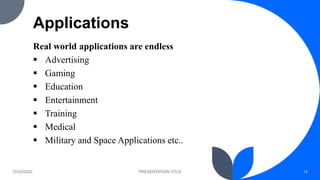

14. Applications
Real world applications are endless
 Advertising
 Gaming
 Education
 Entertainment
 Training
 Medical
 Military and Space Applications etc..
12/23/2022 PRESENTATION TITLE 14

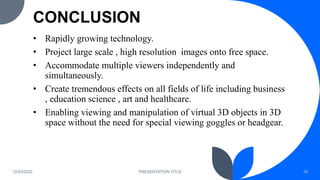

15. CONCLUSION
• Rapidly growing technology.
• Project large scale , high resolution images onto free space.
• Accommodate multiple viewers independently and
simultaneously.
• Create tremendous effects on all fields of life including business
, education science , art and healthcare.
• Enabling viewing and manipulation of virtual 3D objects in 3D
space without the need for special viewing goggles or headgear.
12/23/2022 PRESENTATION TITLE 15
