IEEE ISSRE 2015 presentation

1. .lusoftware verification & validation
VVS

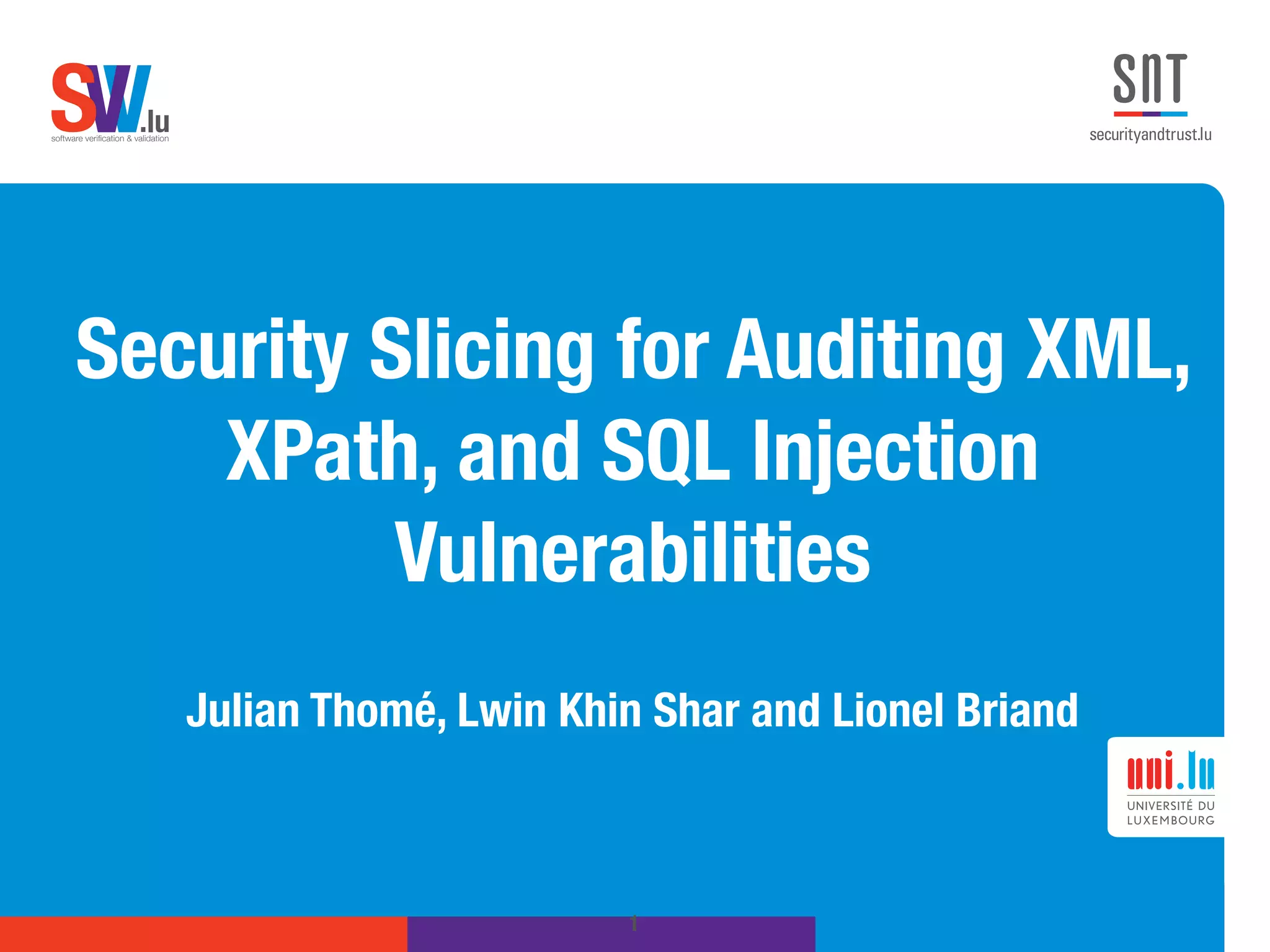

Security Slicing for Auditing XML,
XPath, and SQL Injection
Vulnerabilities
Julian Thomé, Lwin Khin Shar and Lionel Briand
1

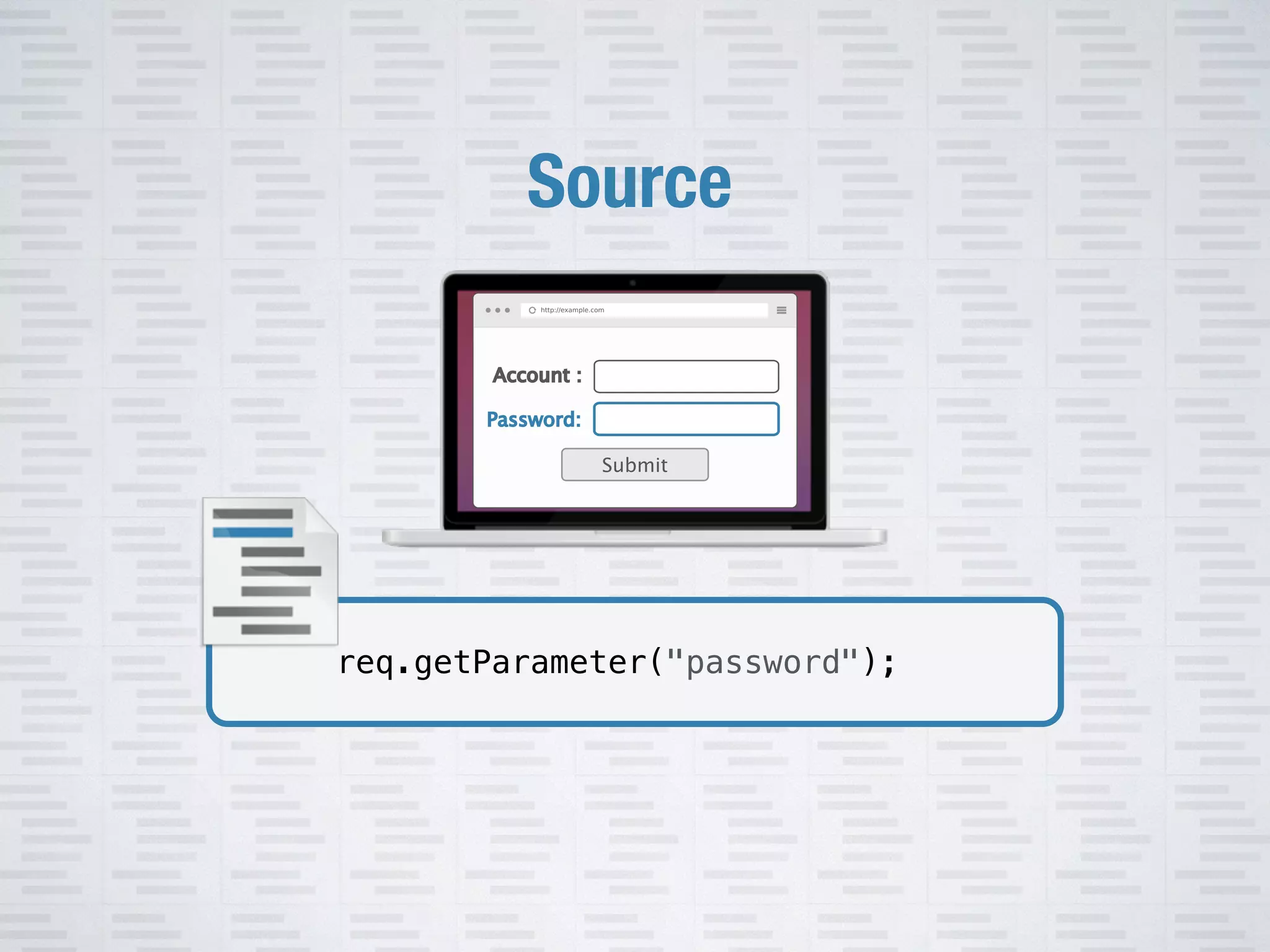

9. Source

10. req.getParameter("password");
Account :
Password:
Submit
Source

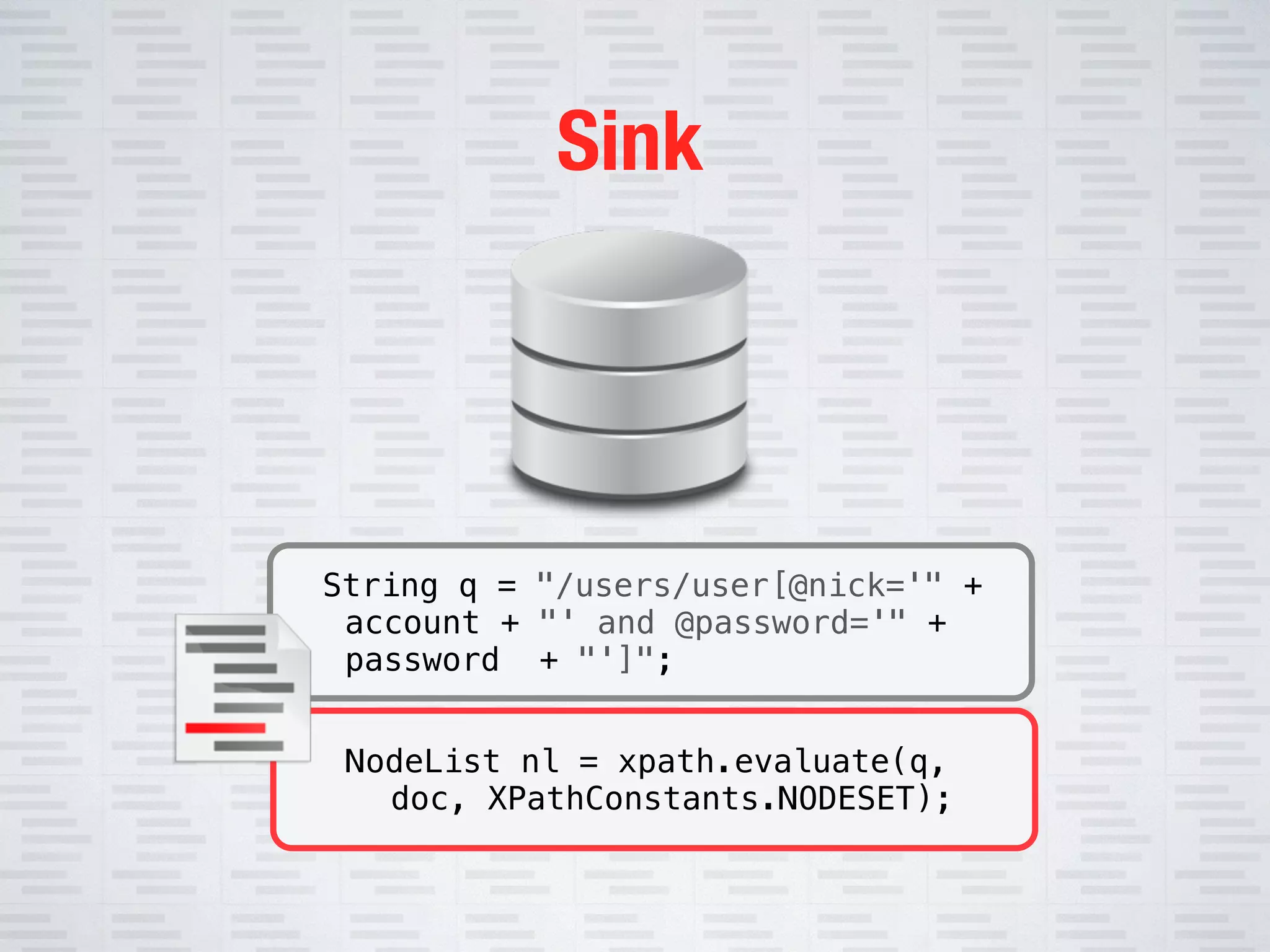

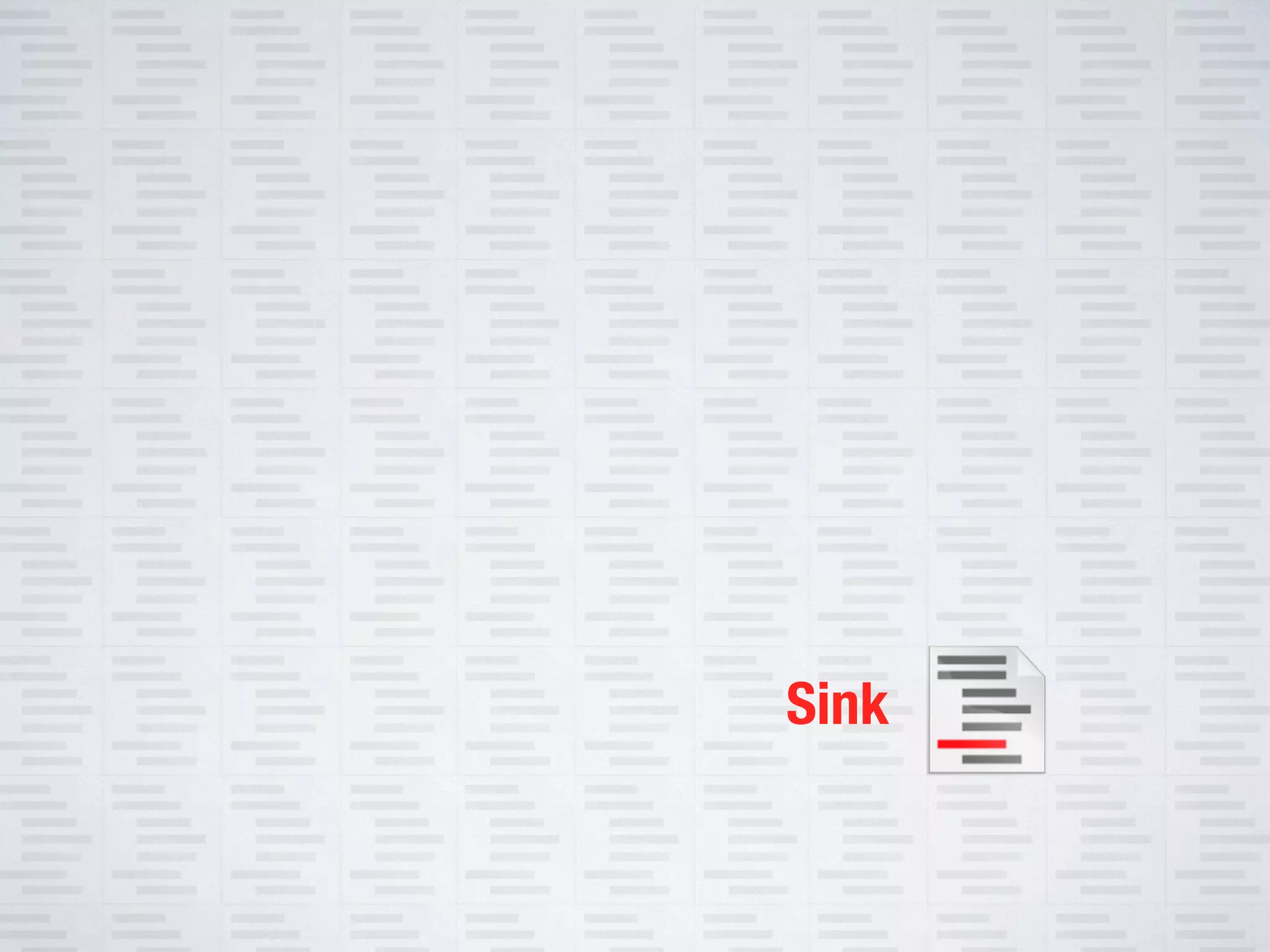

11. Sink

12. NodeList nl = xpath.evaluate(q,
doc, XPathConstants.NODESET);
String q = "/users/user[@nick='" +
account + "' and @password='" +
password + "']";
Sink

13. password = req.getParameter("password");
Account :
Password:
Submit

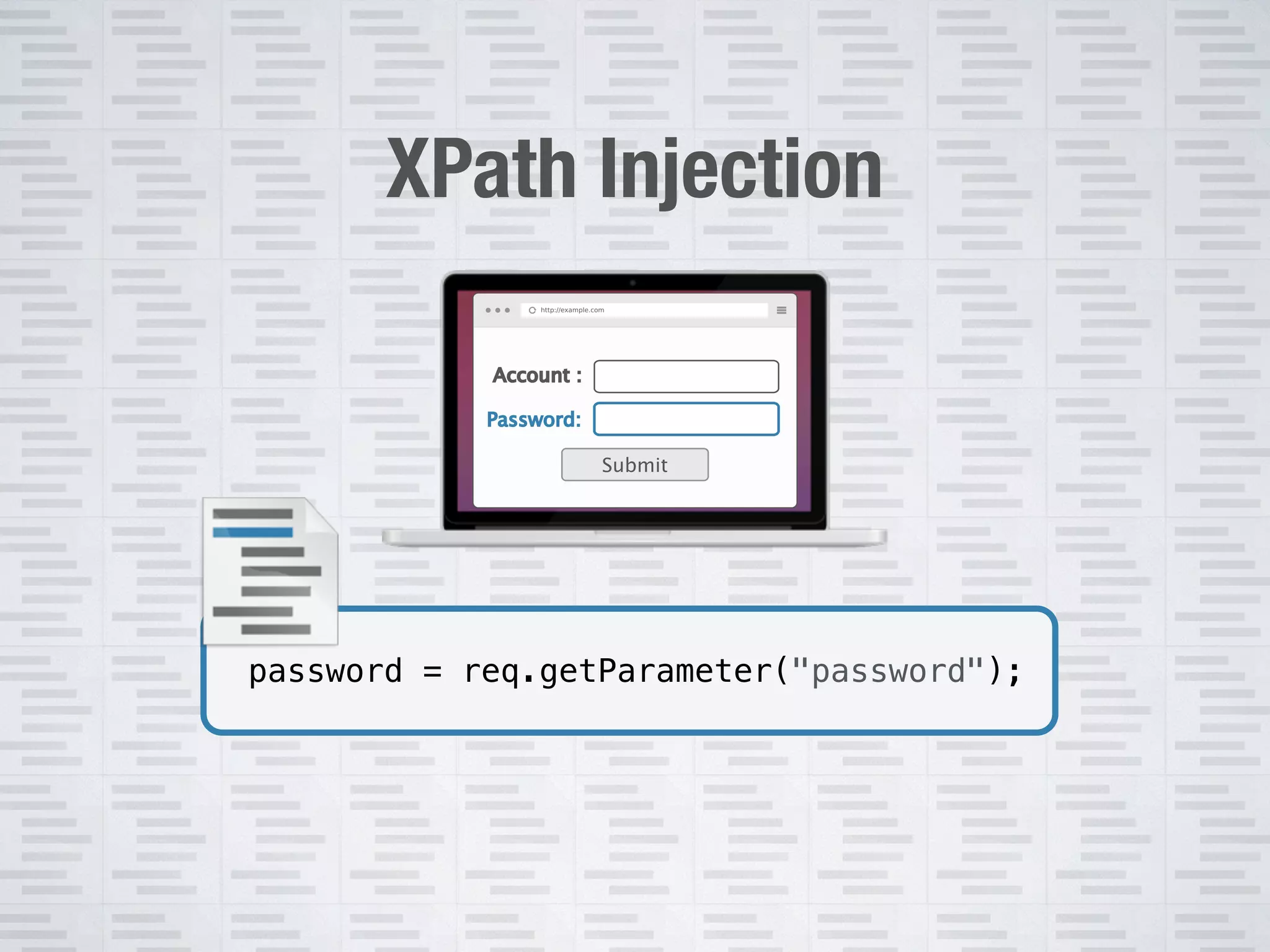

XPath Injection

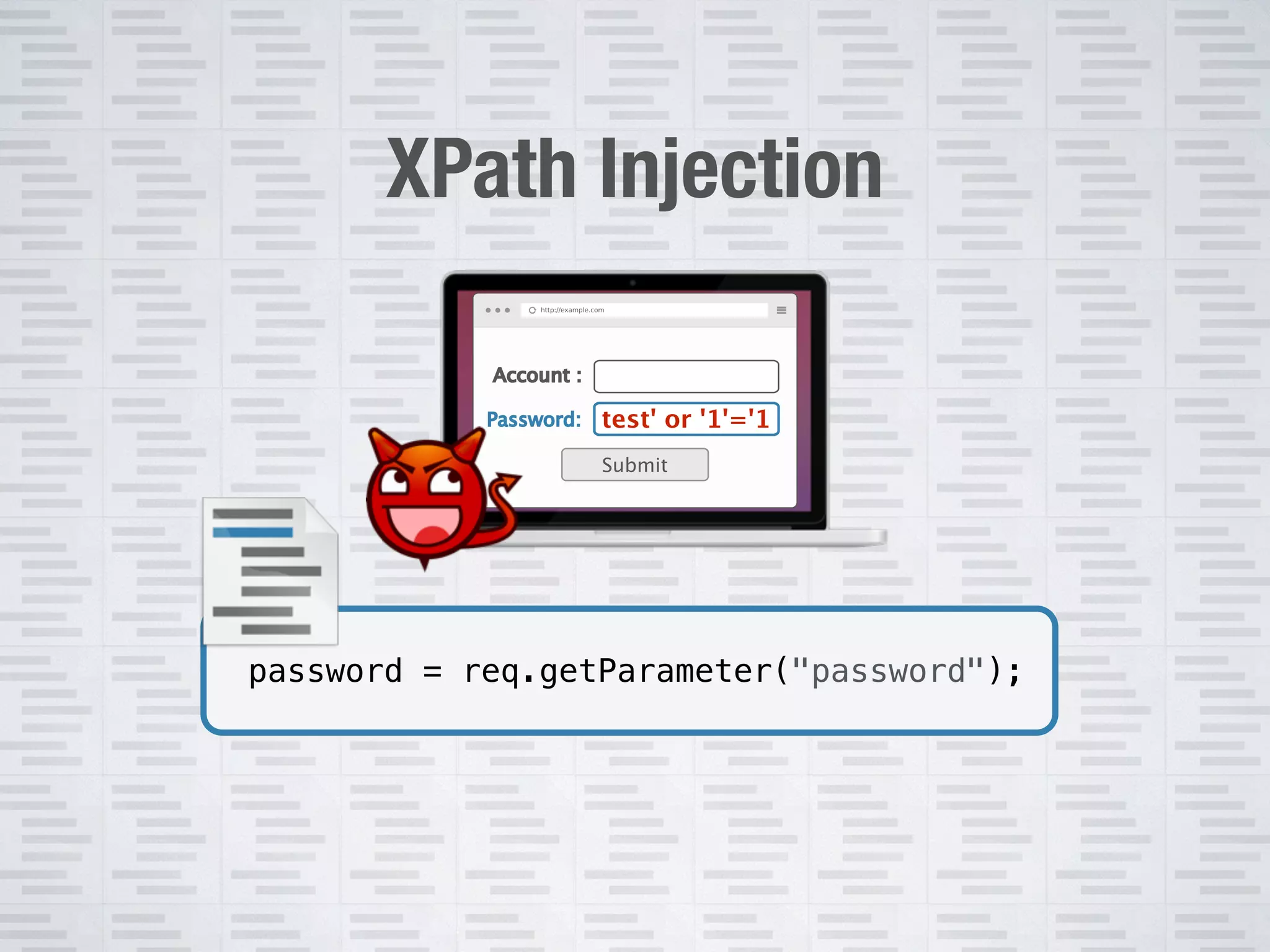

14. password = req.getParameter("password");
Account :
Password:
Submit
test' or '1'='1
XPath Injection

15. Account :
Password:
Submit
test' or '1'='1
password = "test' or '1'='1";
XPath Injection

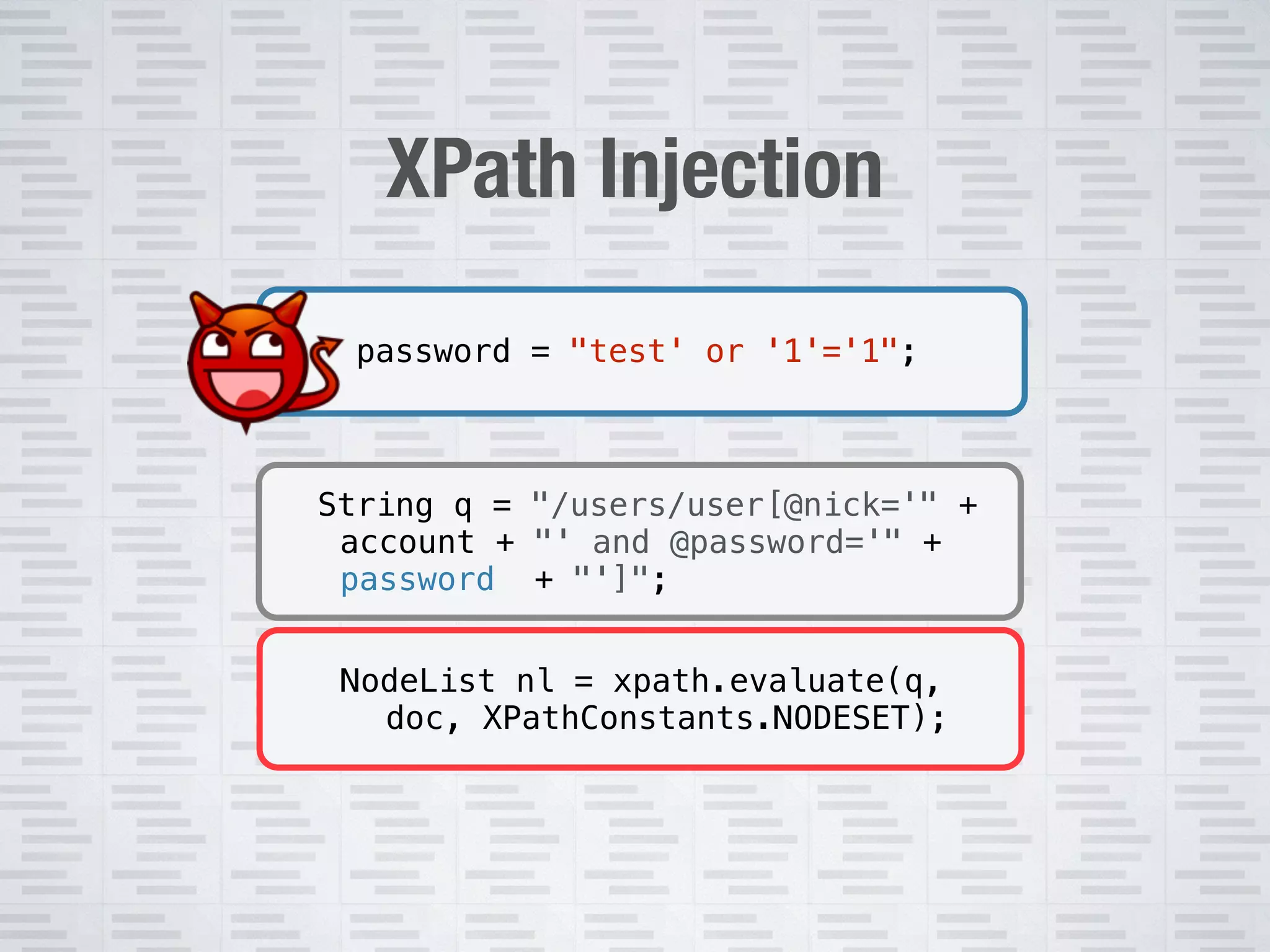

16. password = "test' or '1'='1";
NodeList nl = xpath.evaluate(q,
doc, XPathConstants.NODESET);
String q = "/users/user[@nick='" +
account + "' and @password='" +
password + "']";
XPath Injection

17. NodeList nl = xpath.evaluate(q,
doc, XPathConstants.NODESET);
String q = "/users/user[@nick='" +
account + "' and @password='" +
password + "']";
password = "test' or '1'='1";
XPath Injection

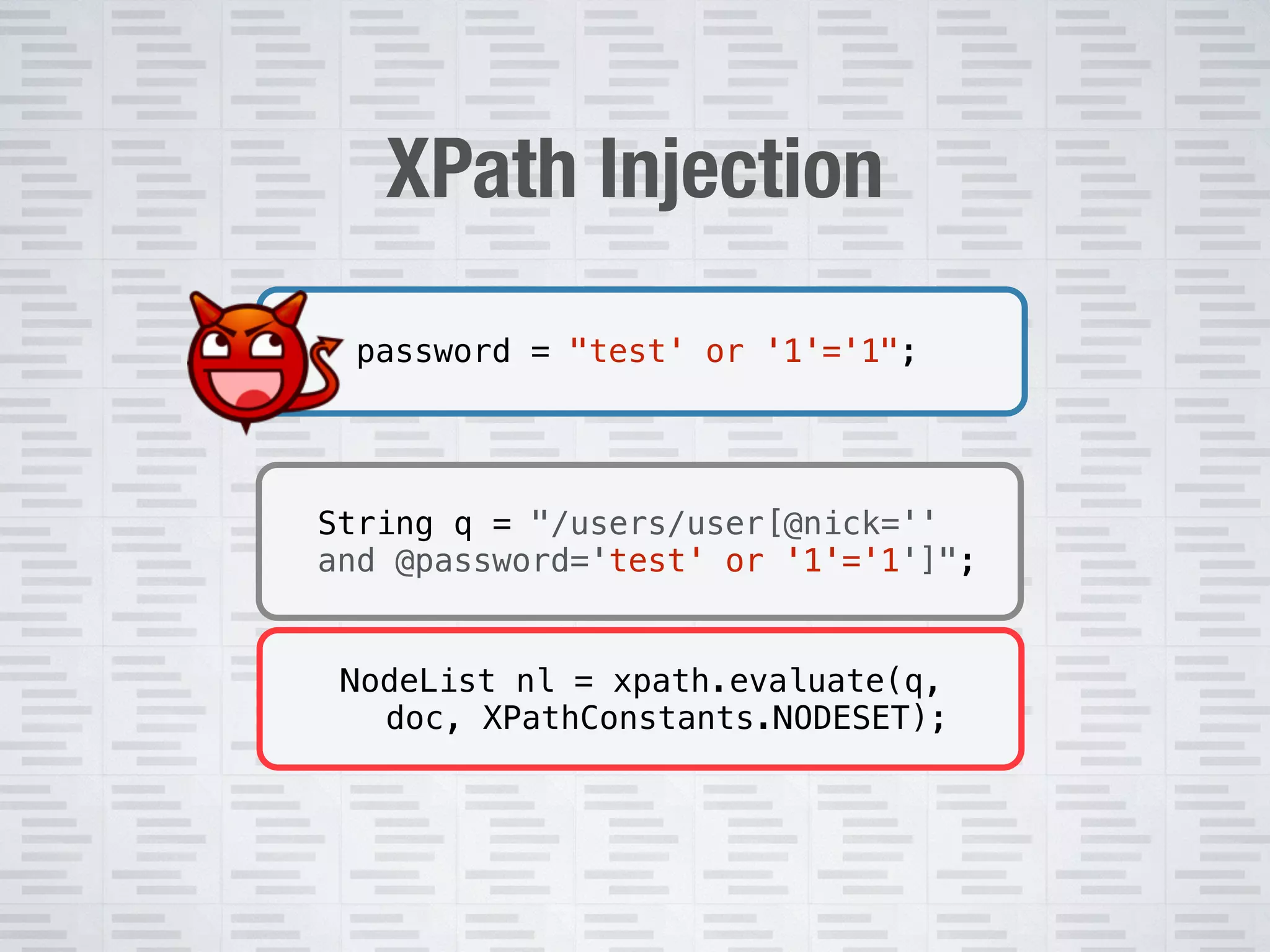

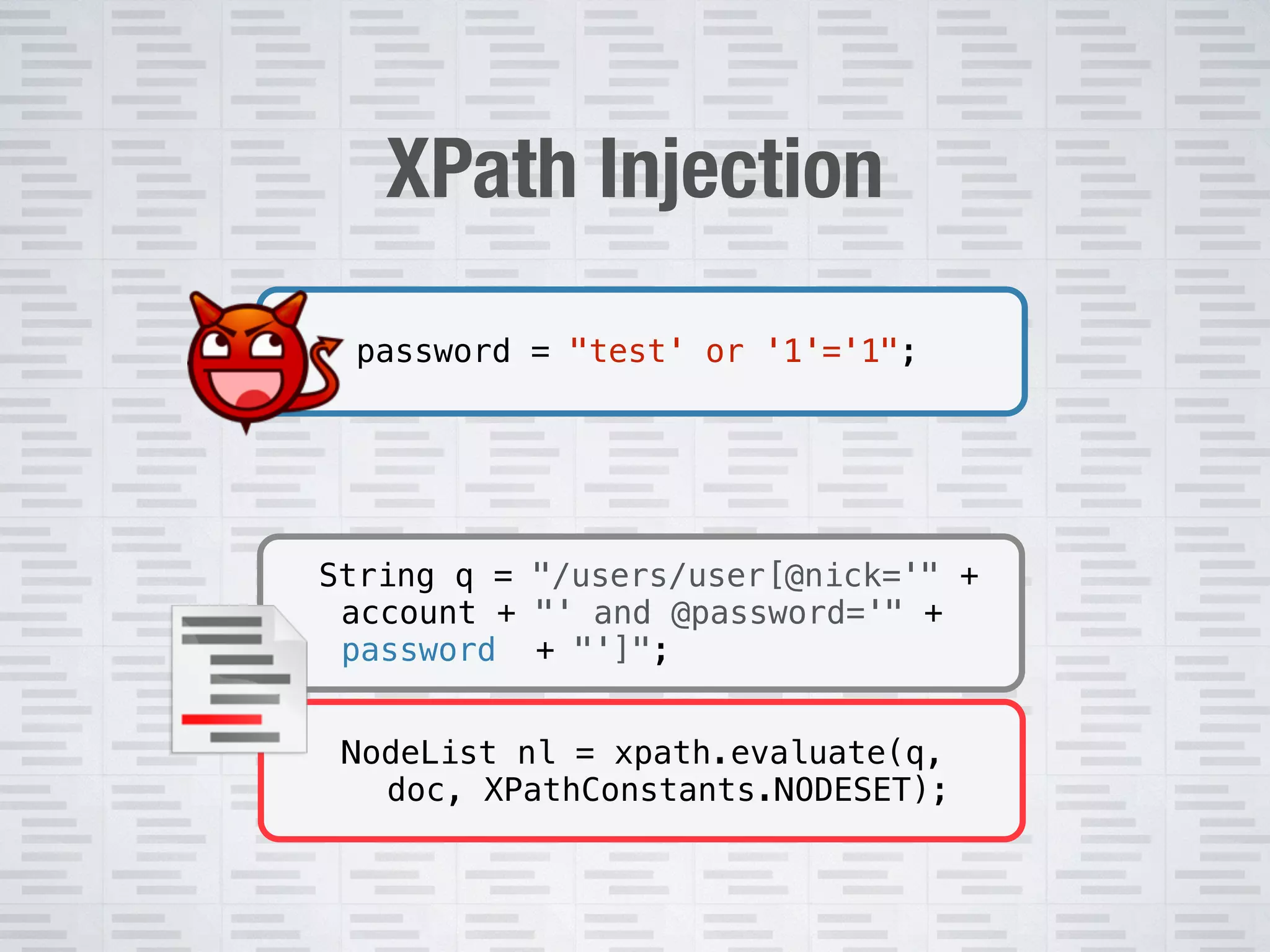

18. NodeList nl = xpath.evaluate(q,
doc, XPathConstants.NODESET);
String q = "/users/user[@nick=''
and @password='test' or '1'='1']";
password = "test' or '1'='1";
XPath Injection

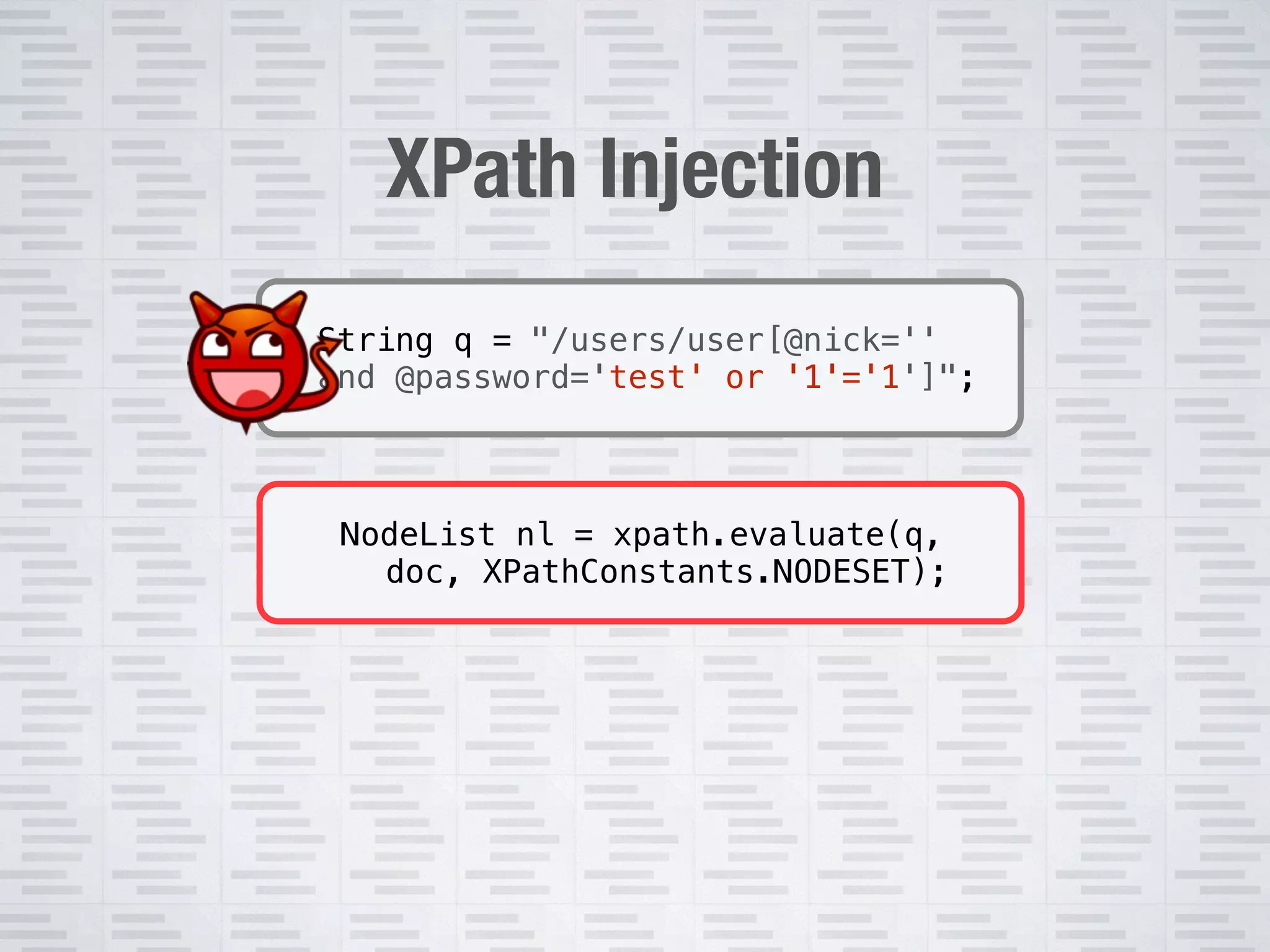

19. NodeList nl = xpath.evaluate(q,
doc, XPathConstants.NODESET);
String q = "/users/user[@nick=''
and @password='test' or '1'='1']";
XPath Injection

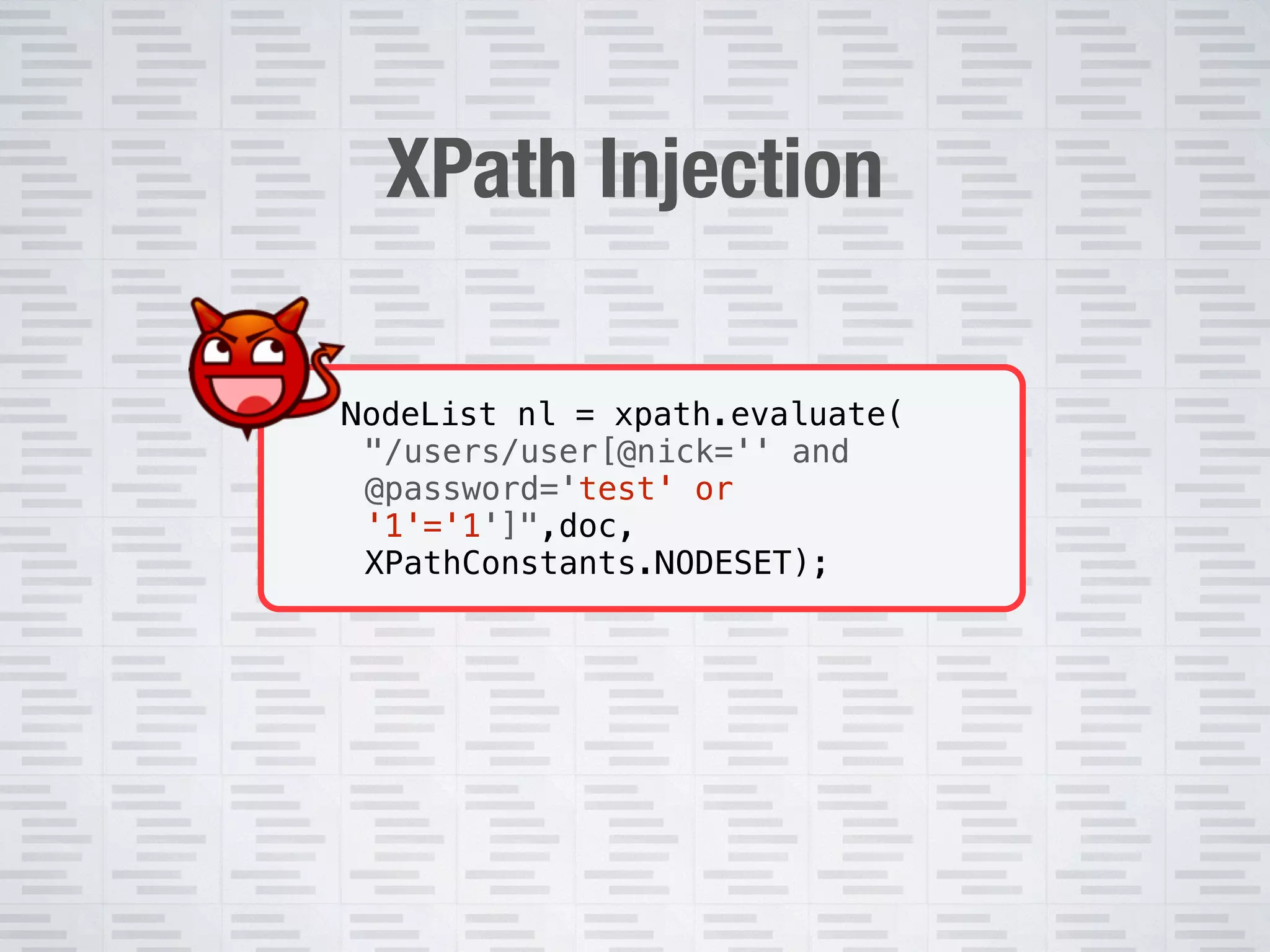

20. NodeList nl = xpath.evaluate(
"/users/user[@nick='' and
@password='test' or
'1'='1']",doc,
XPathConstants.NODESET);
XPath Injection

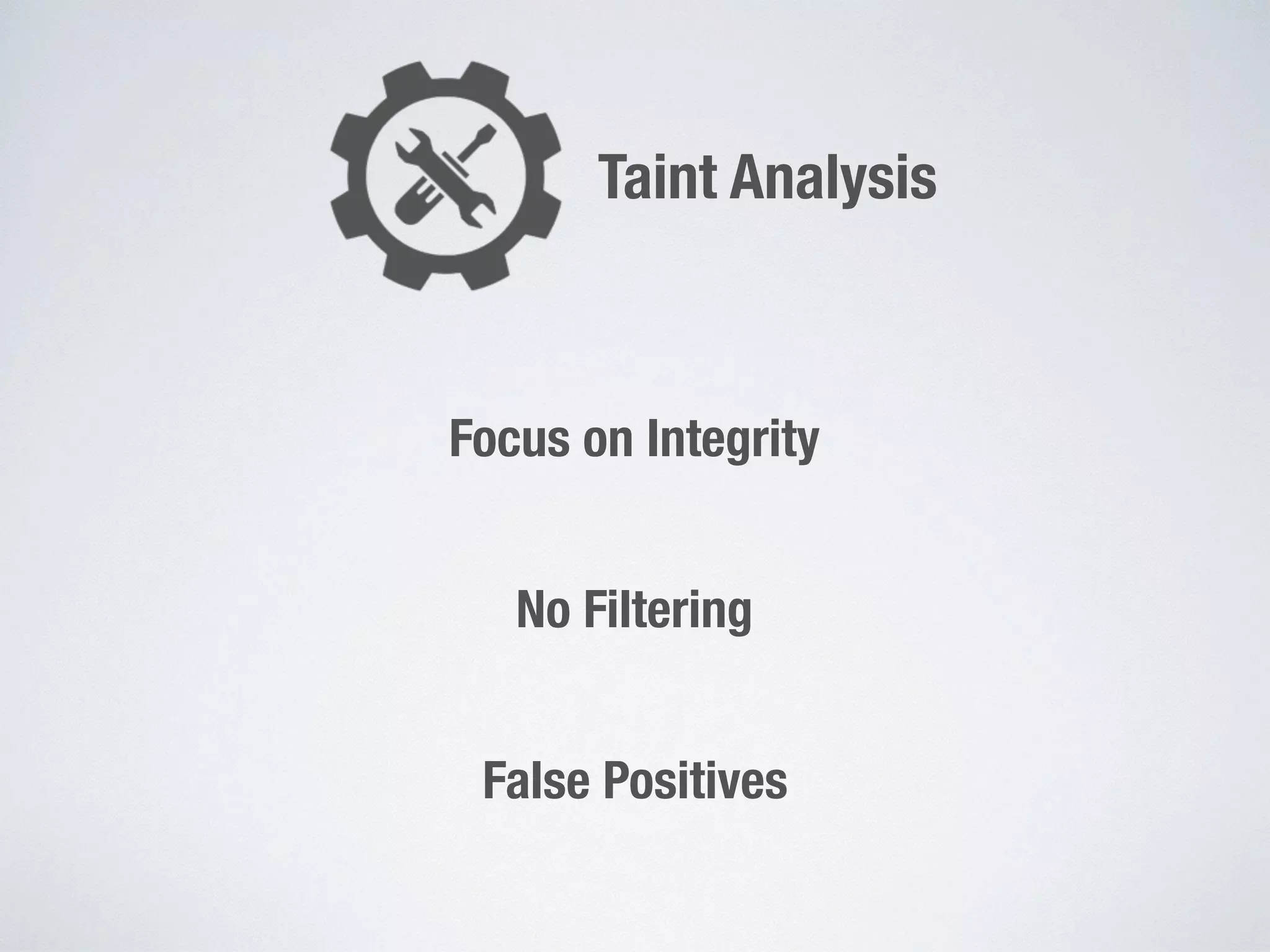

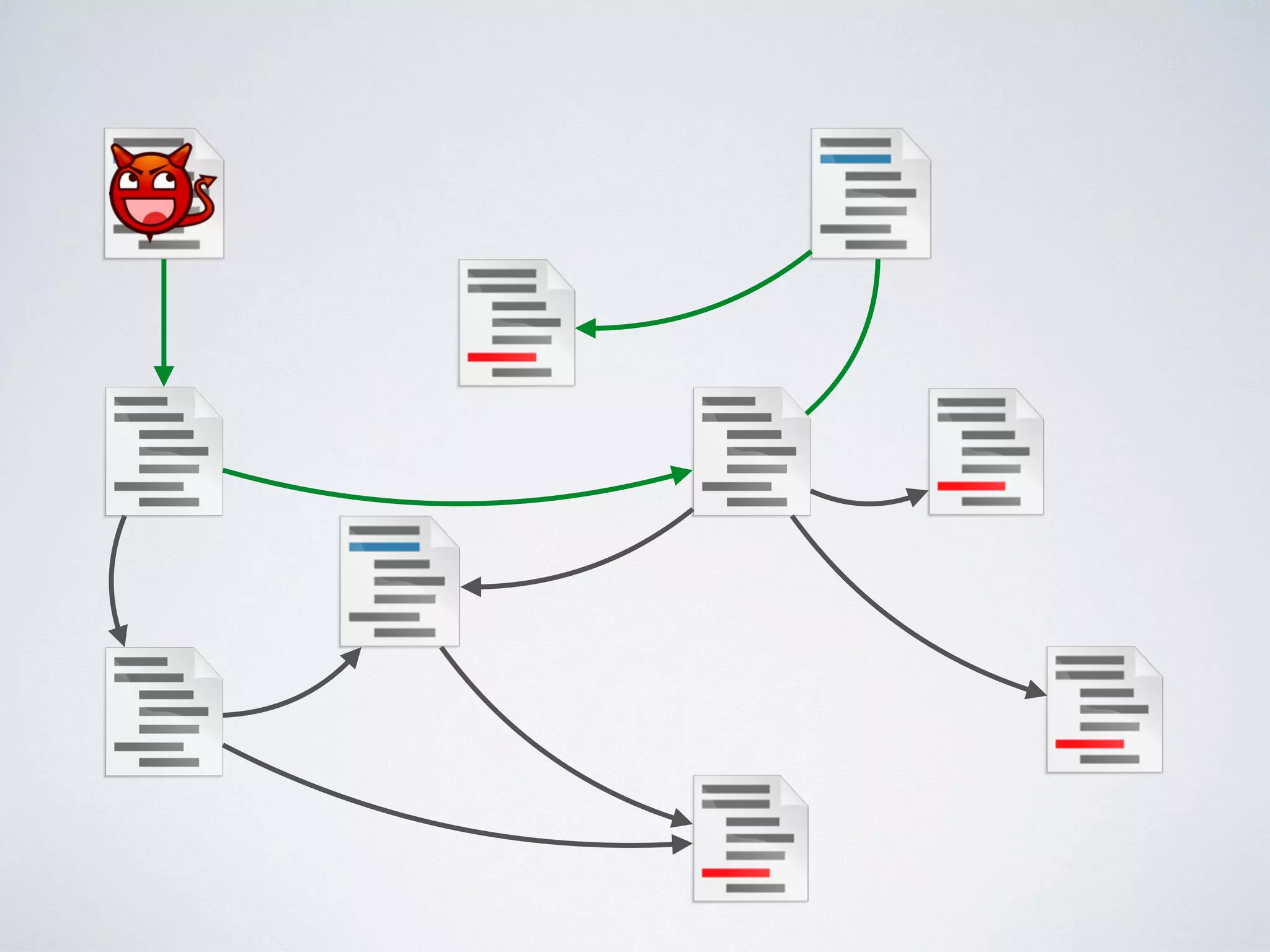

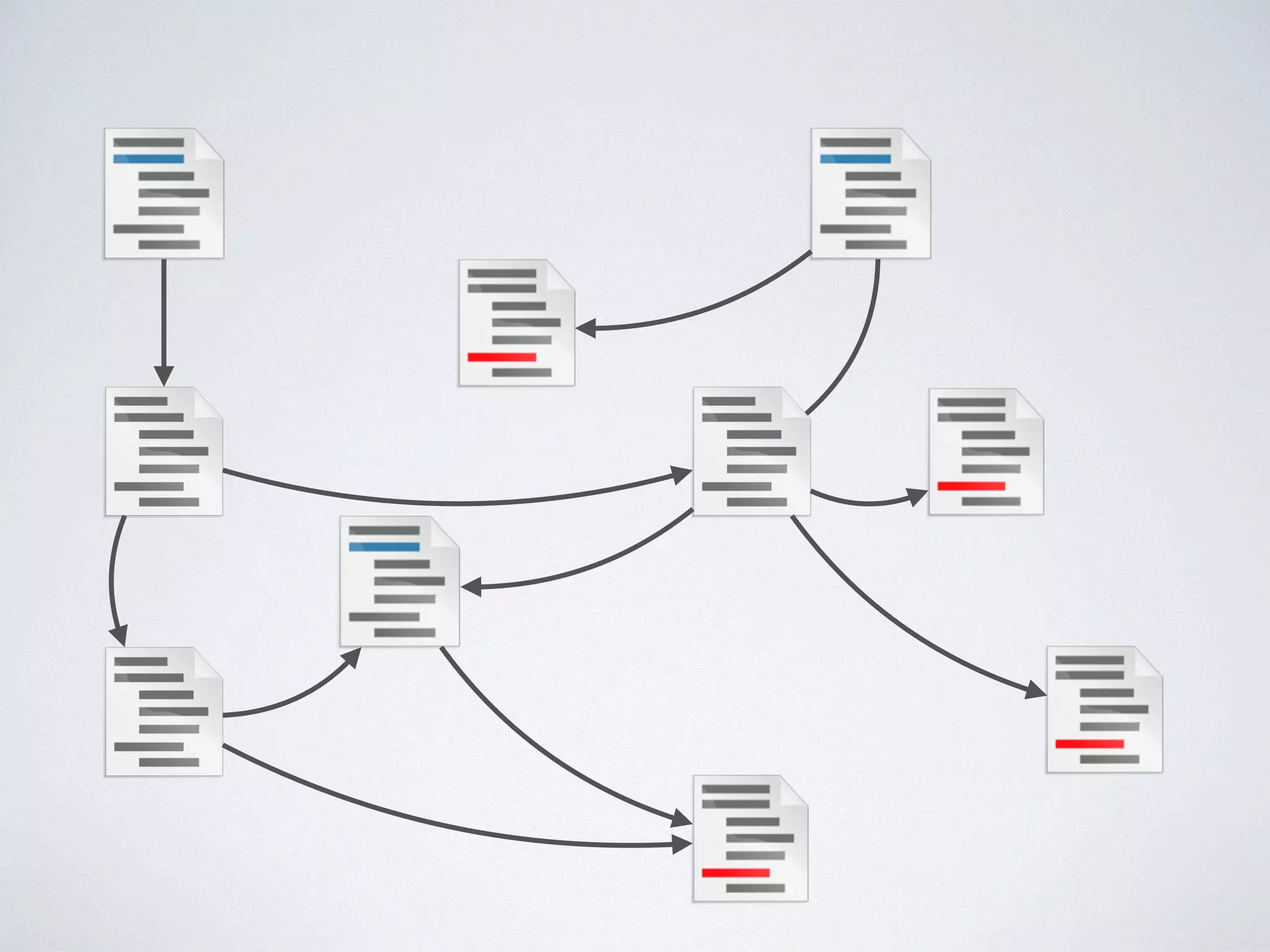

30. Taint Analysis

31. Taint Analysis
Focus on Integrity
No Filtering
False Positives

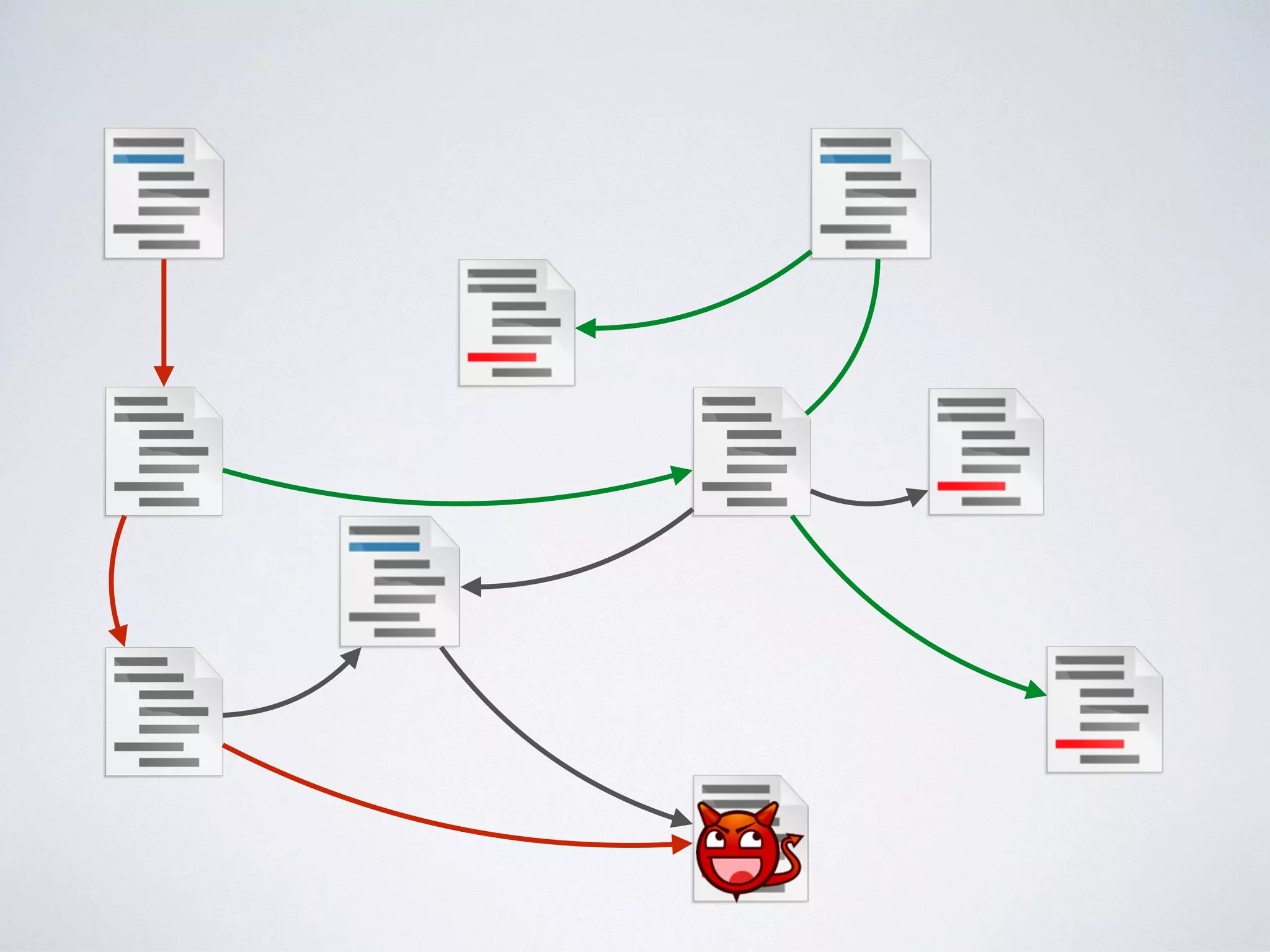

32. Security Slicing

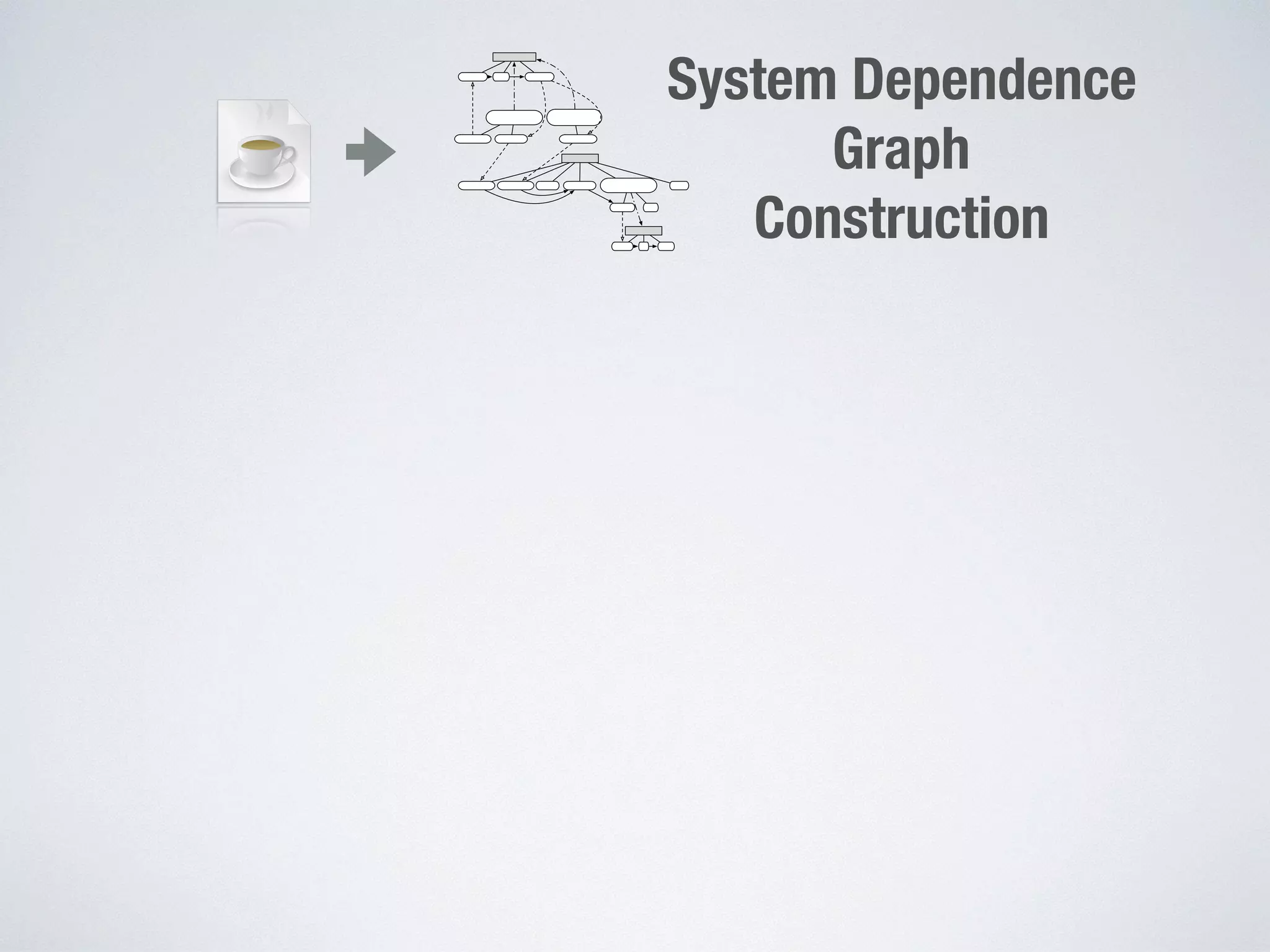

34. System Dependence
Graph
Construction

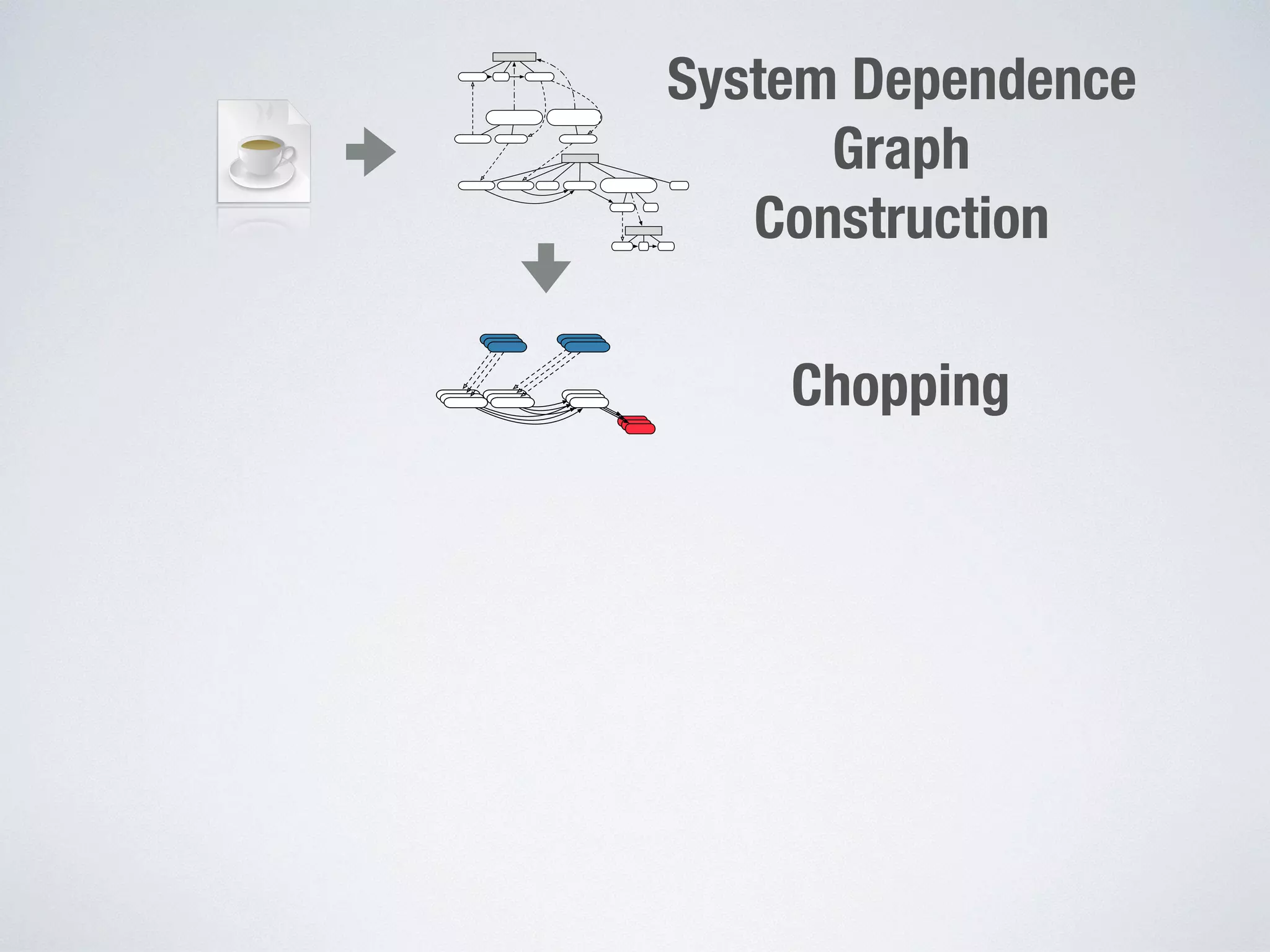

35. Chopping
System Dependence
Graph
Construction

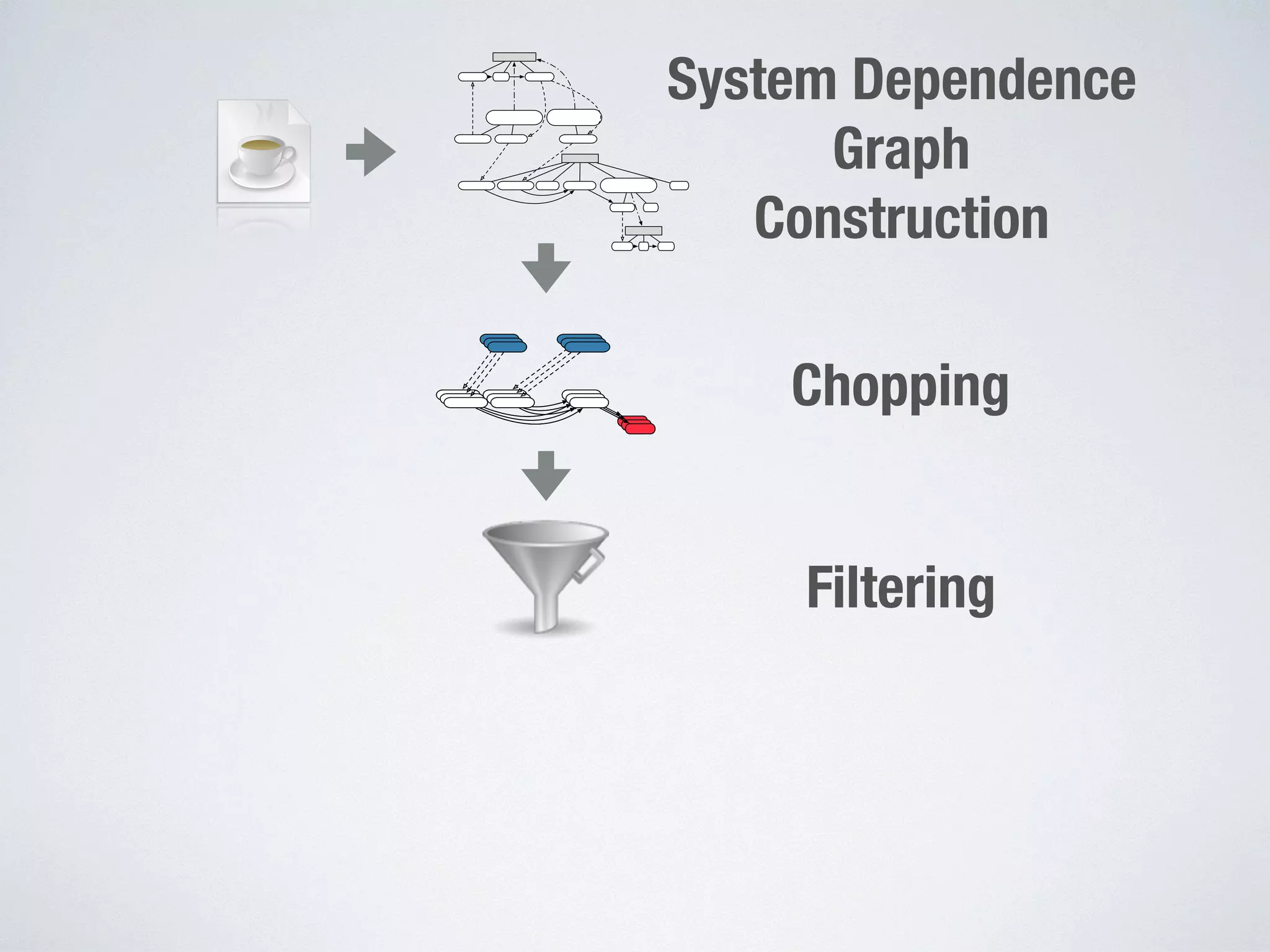

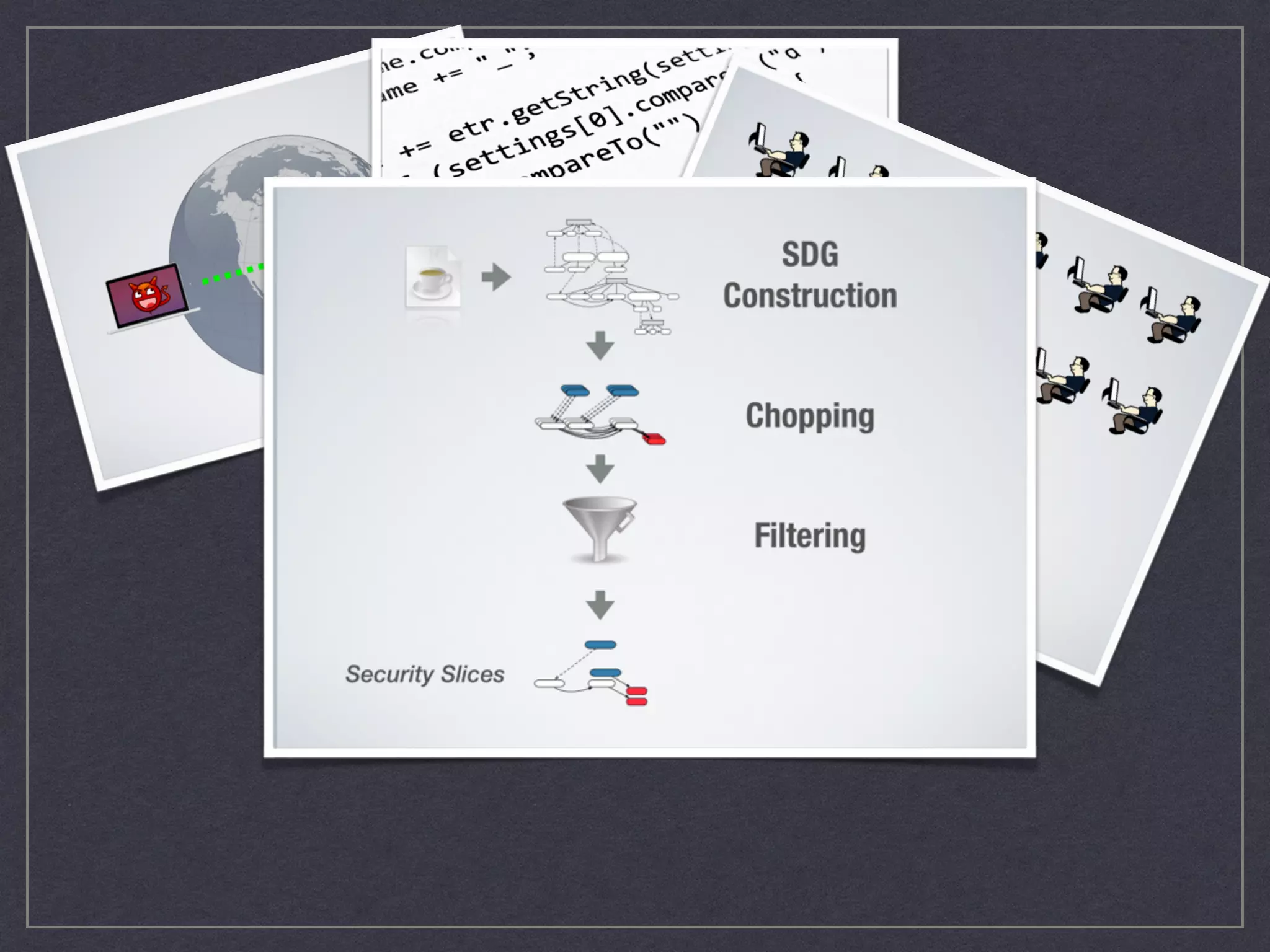

36. Filtering
Chopping
Security Slices
System Dependence
Graph
Construction

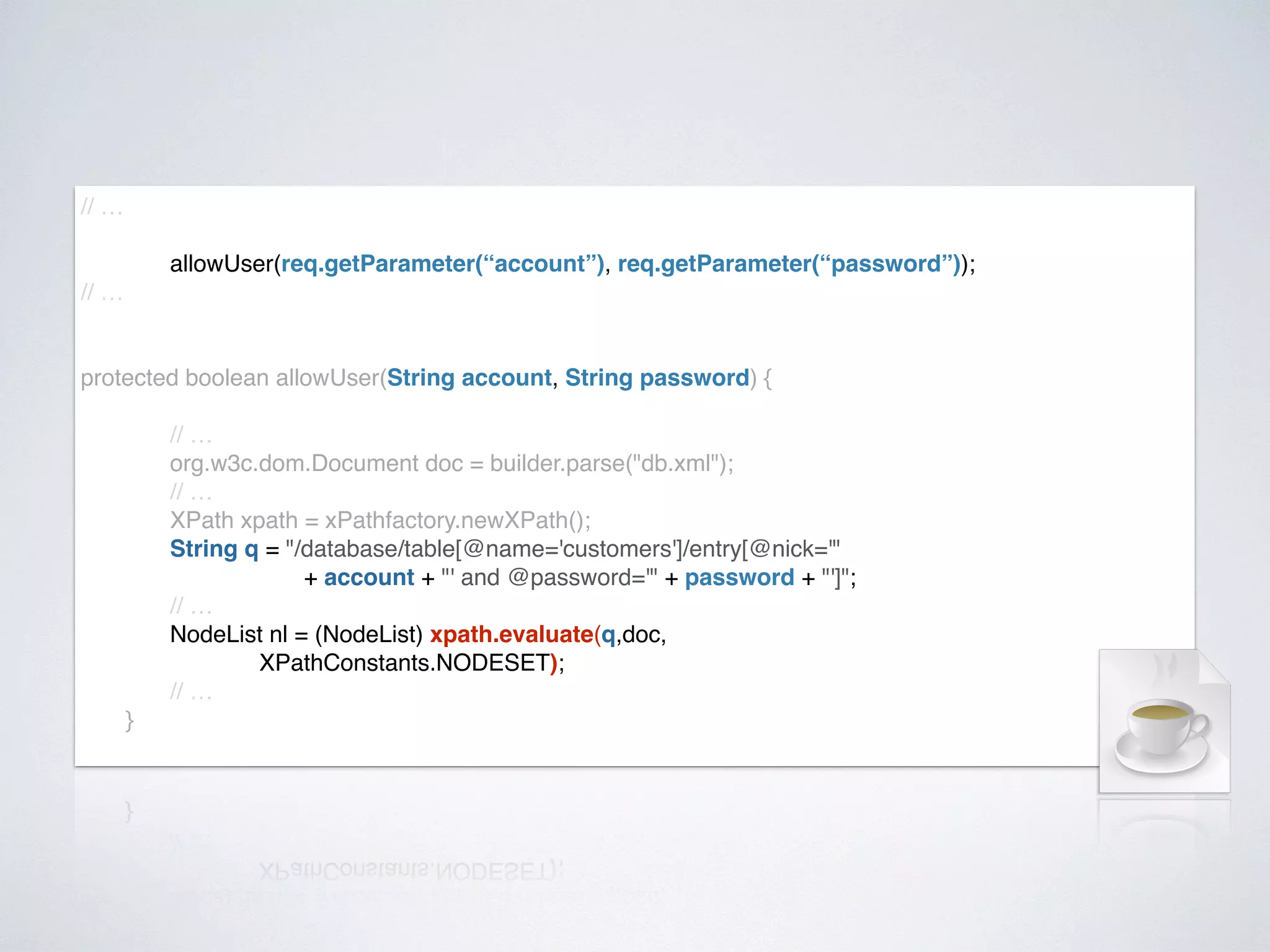

38. // …
allowUser(req.getParameter(“account”), req.getParameter(“password”));
// …
protected boolean allowUser(String account, String password) {
// …
org.w3c.dom.Document doc = builder.parse("db.xml");
// …
XPath xpath = xPathfactory.newXPath();
String q = "/database/table[@name='customers']/entry[@nick='"
+ account + "' and @password='" + password + "']";
// …
NodeList nl = (NodeList) xpath.evaluate(q,doc,
XPathConstants.NODESET);
// …
}

39. Filtering
Chopping
SDG
Construction
Security Slices

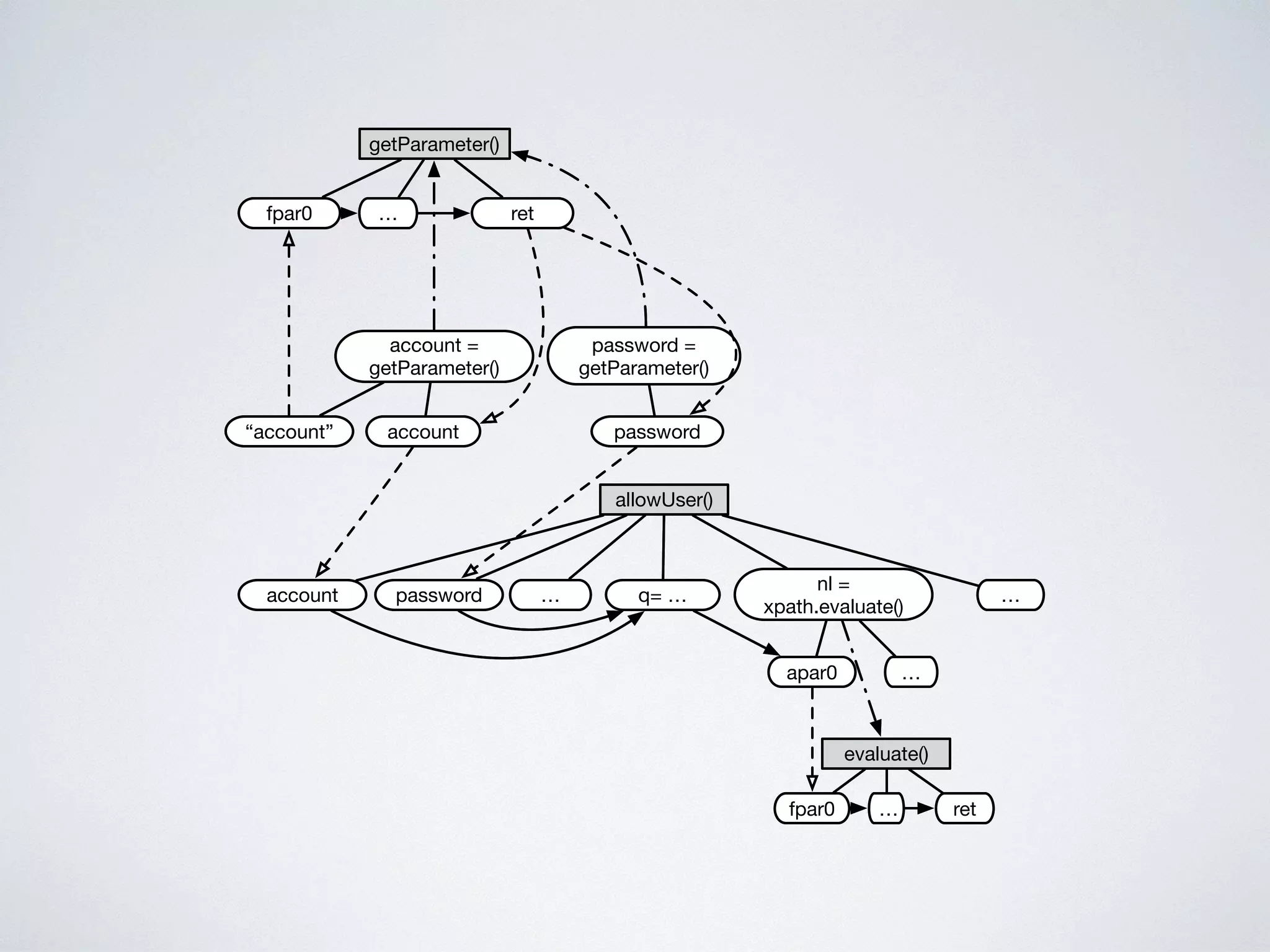

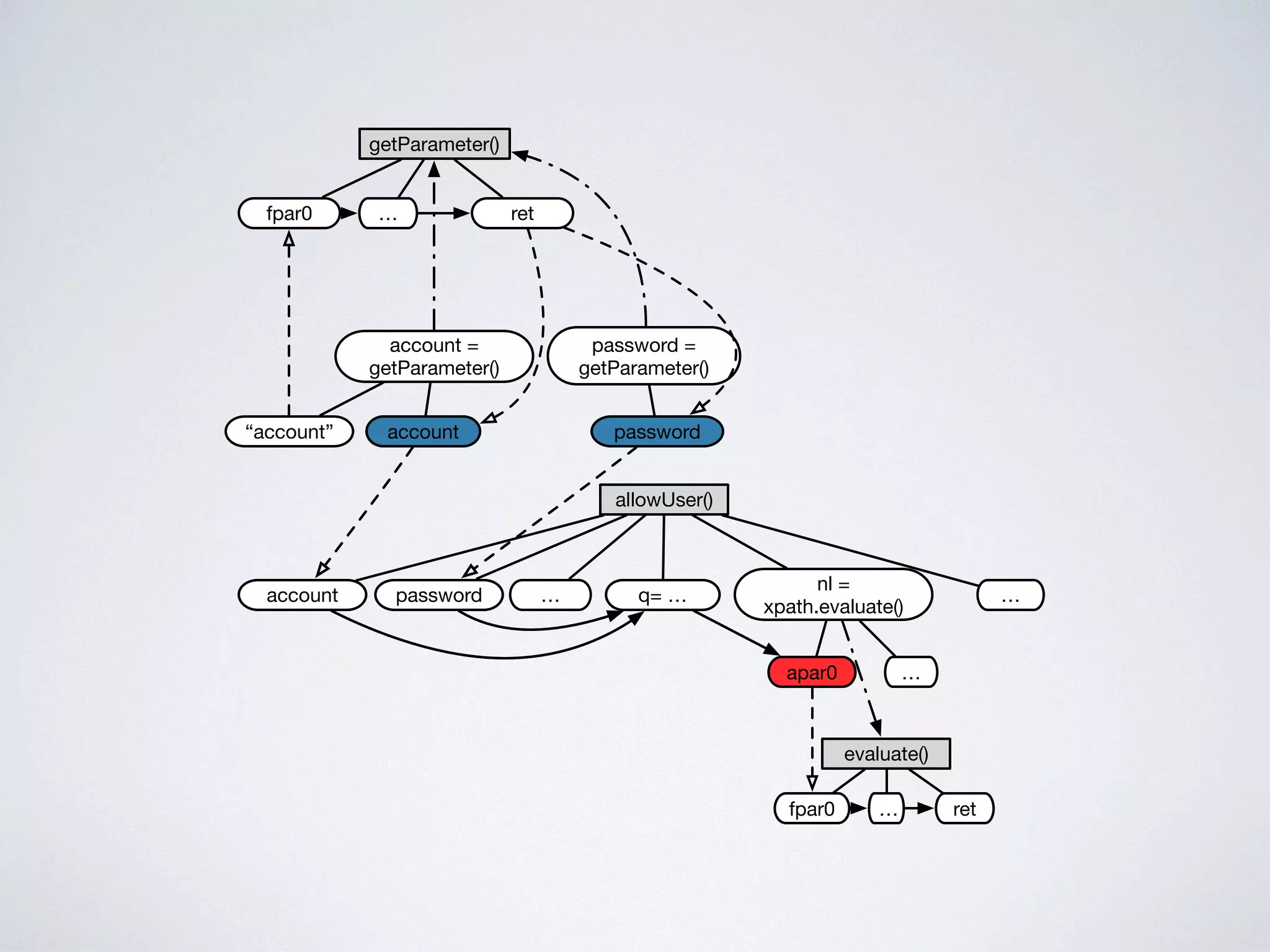

40. “account”
getParameter()
account =
getParameter()
fpar0 … ret
account
password =
getParameter()
allowUser()
account password
password
… q= …
nl =
xpath.evaluate()
…
evaluate()
apar0 …
fpar0 … ret

41. “account”
getParameter()
account =
getParameter()
fpar0 … ret
account
password =
getParameter()
allowUser()
account password
password
… q= …
nl =
xpath.evaluate()
…
evaluate()
apar0 …
fpar0 … ret
account
account password
password
q= …
apar0

42. account
account password
password
q= …
apar0

43. account
account password
password
q= …
apar0

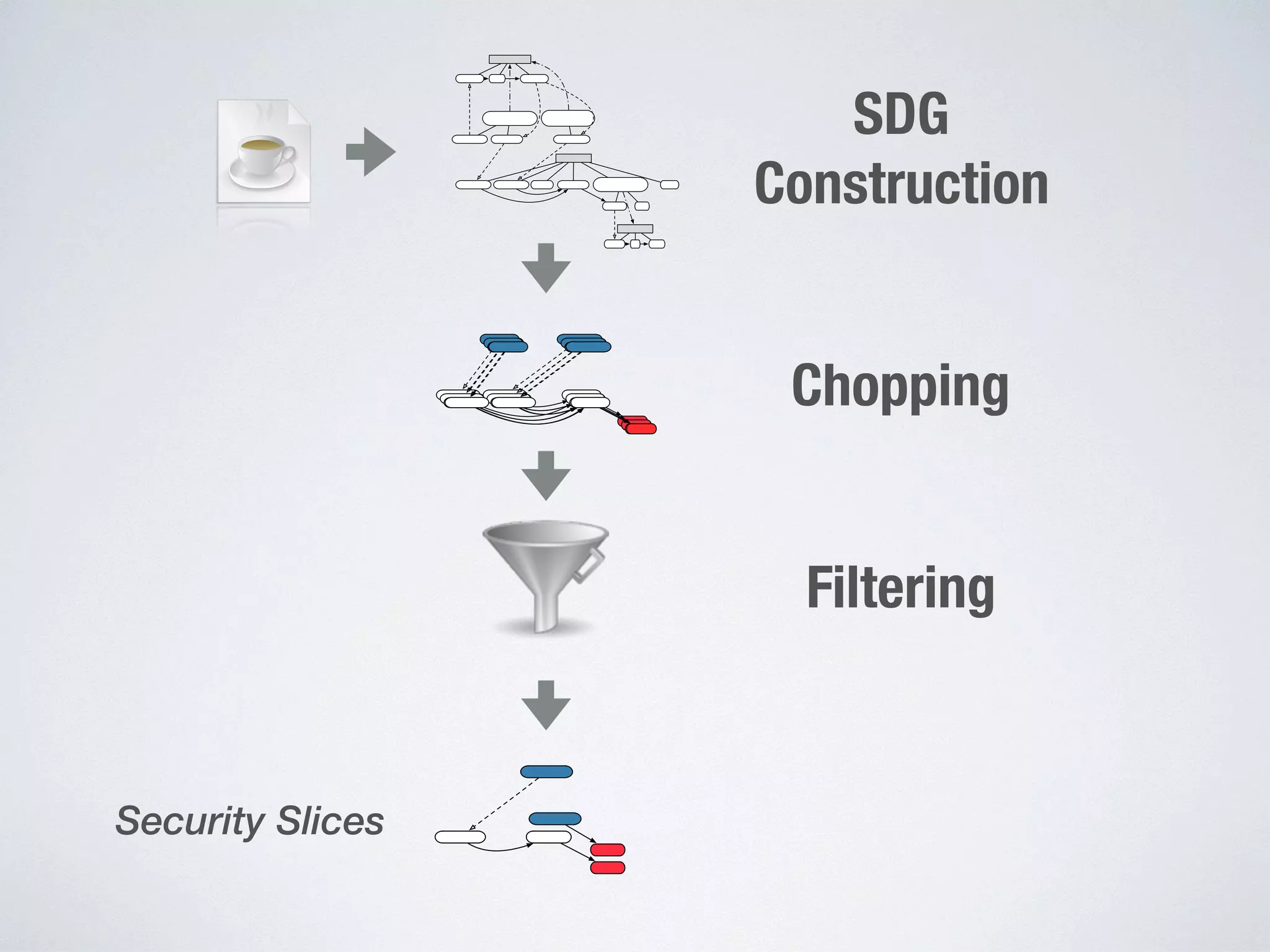

Filtering
Chopping
SDG
Construction
Security Slices

45. Declassification

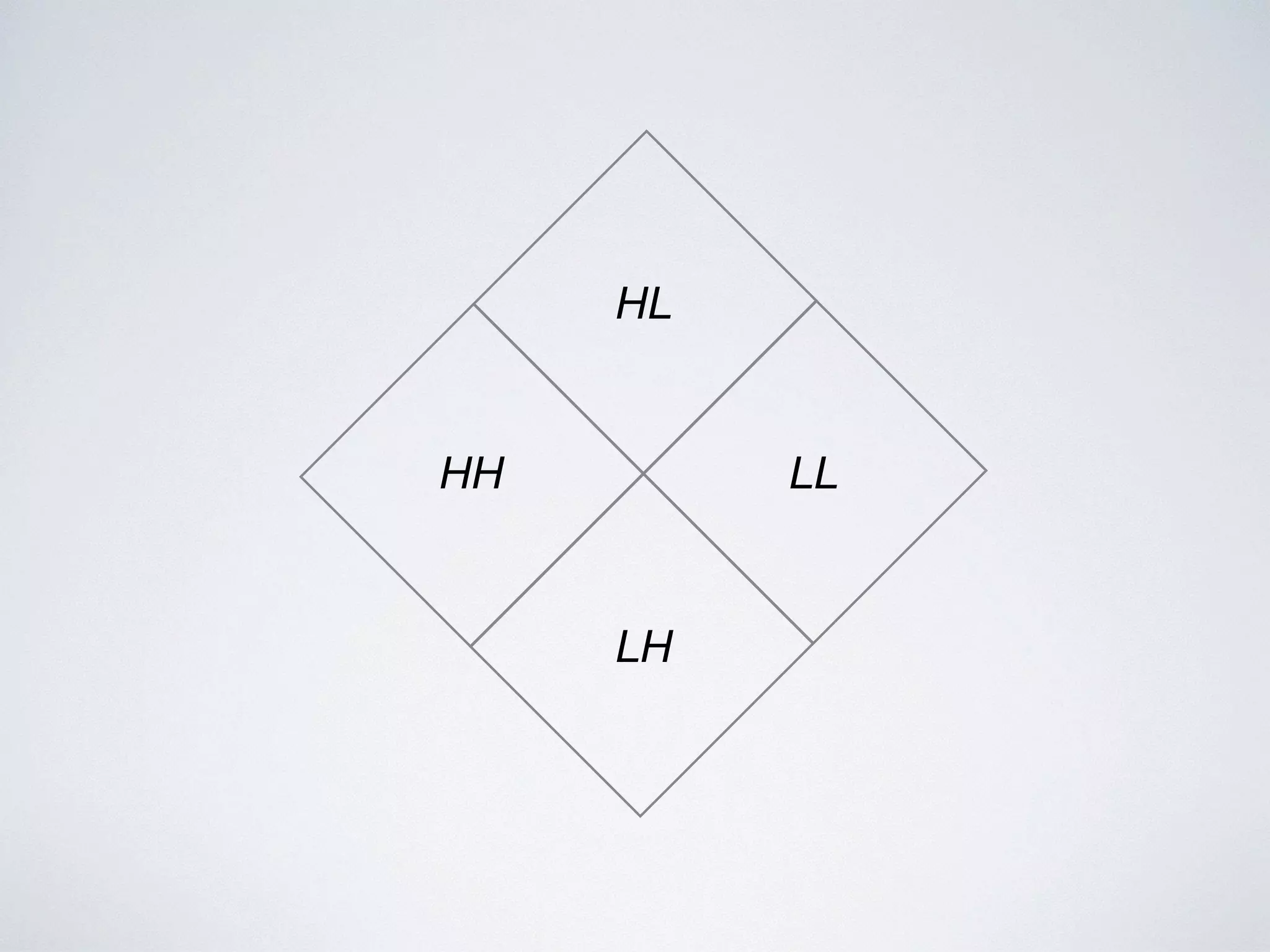

46. HH LL
HL
LH

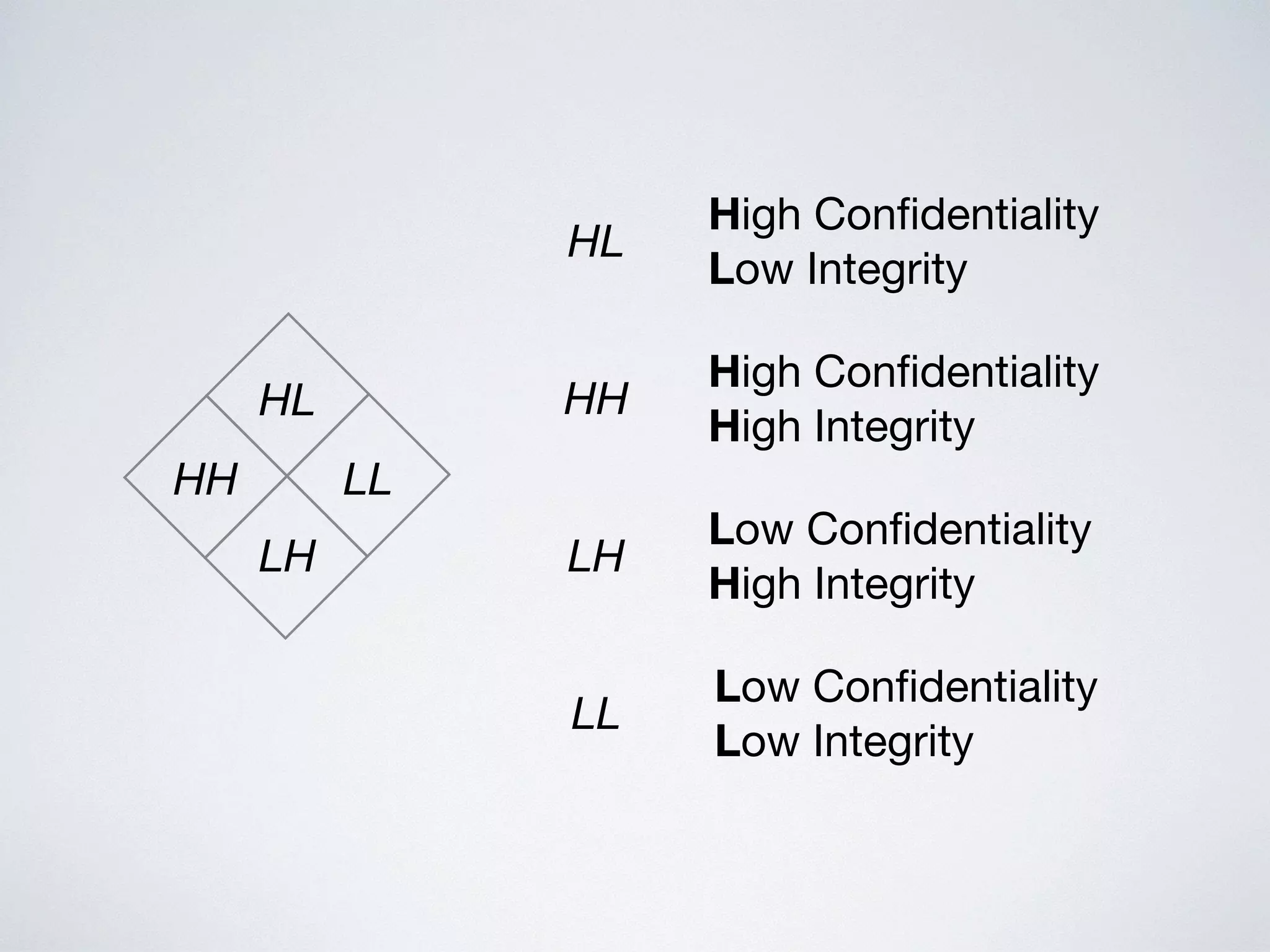

47. HH
LL
HL
LH
High Confidentiality
High Integrity
Low Confidentiality
High Integrity
Low Confidentiality
Low Integrity
High Confidentiality
Low Integrity
HH LL
HL
LH

48. HH LL
HL
LH

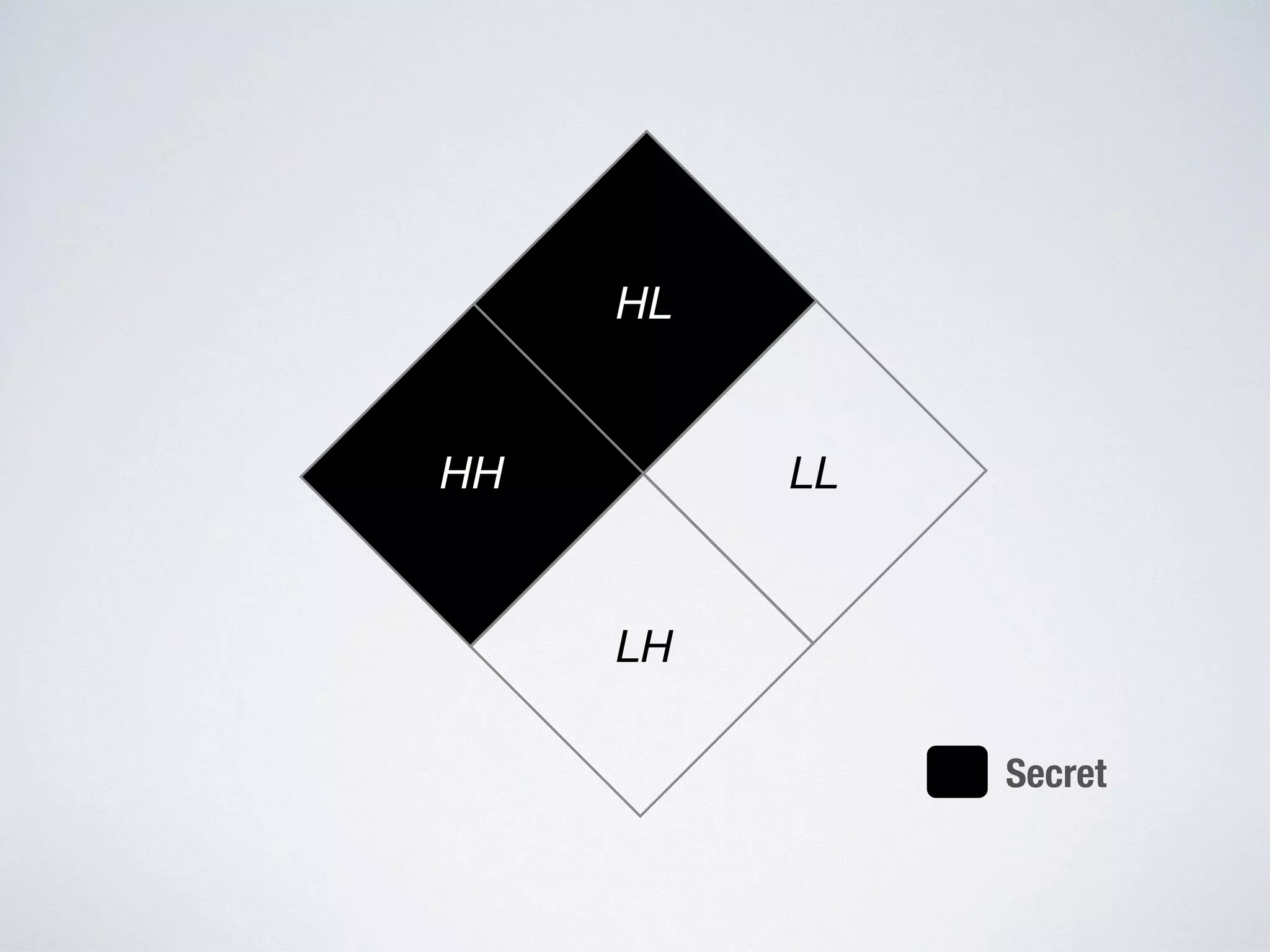

Secret

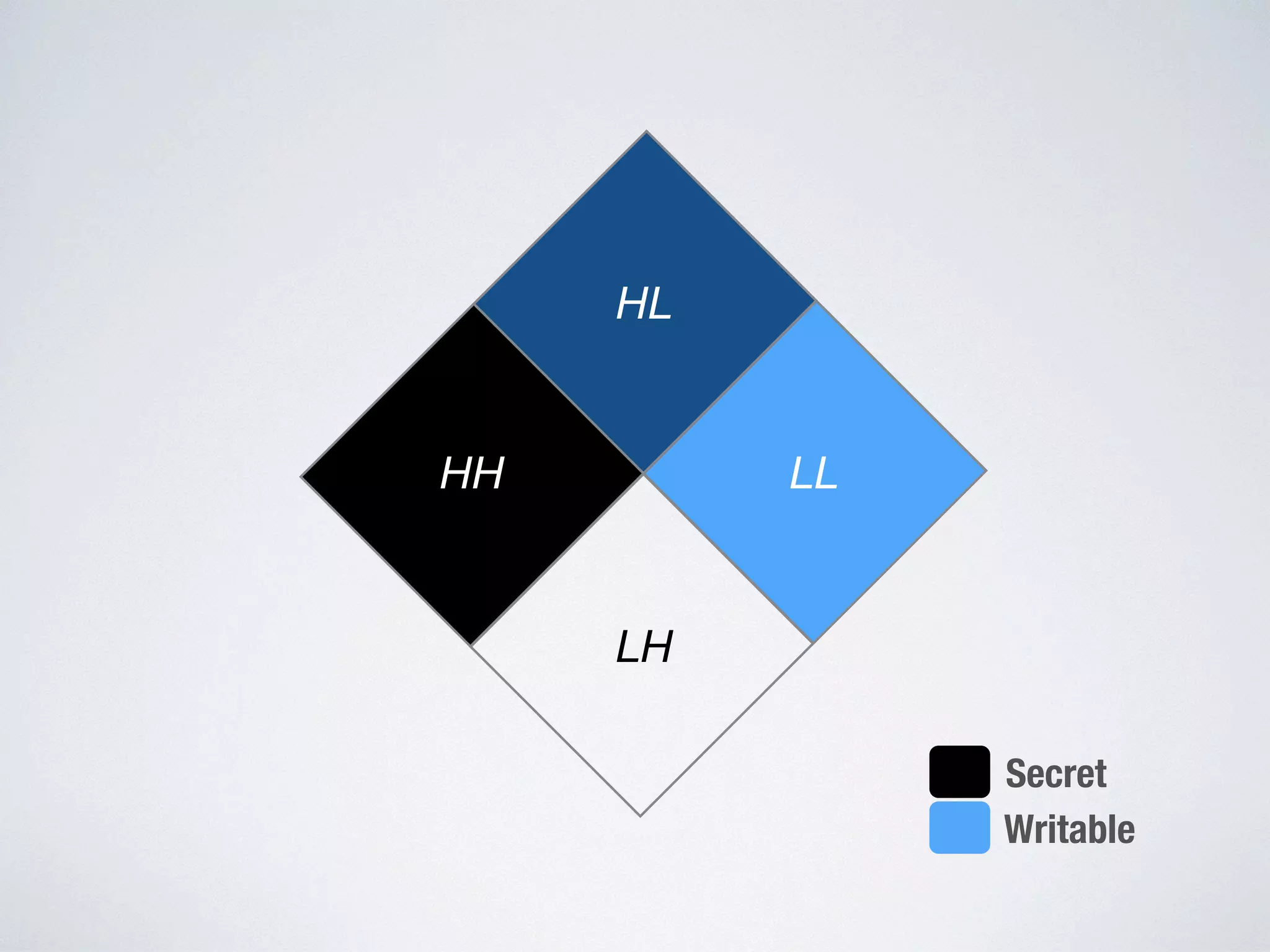

49. HH LL
HL
LH
Writable
Secret

50. HH LL
HL
LH
Writable
Secret

51. HH LL
HL
LH
Writable
Secret

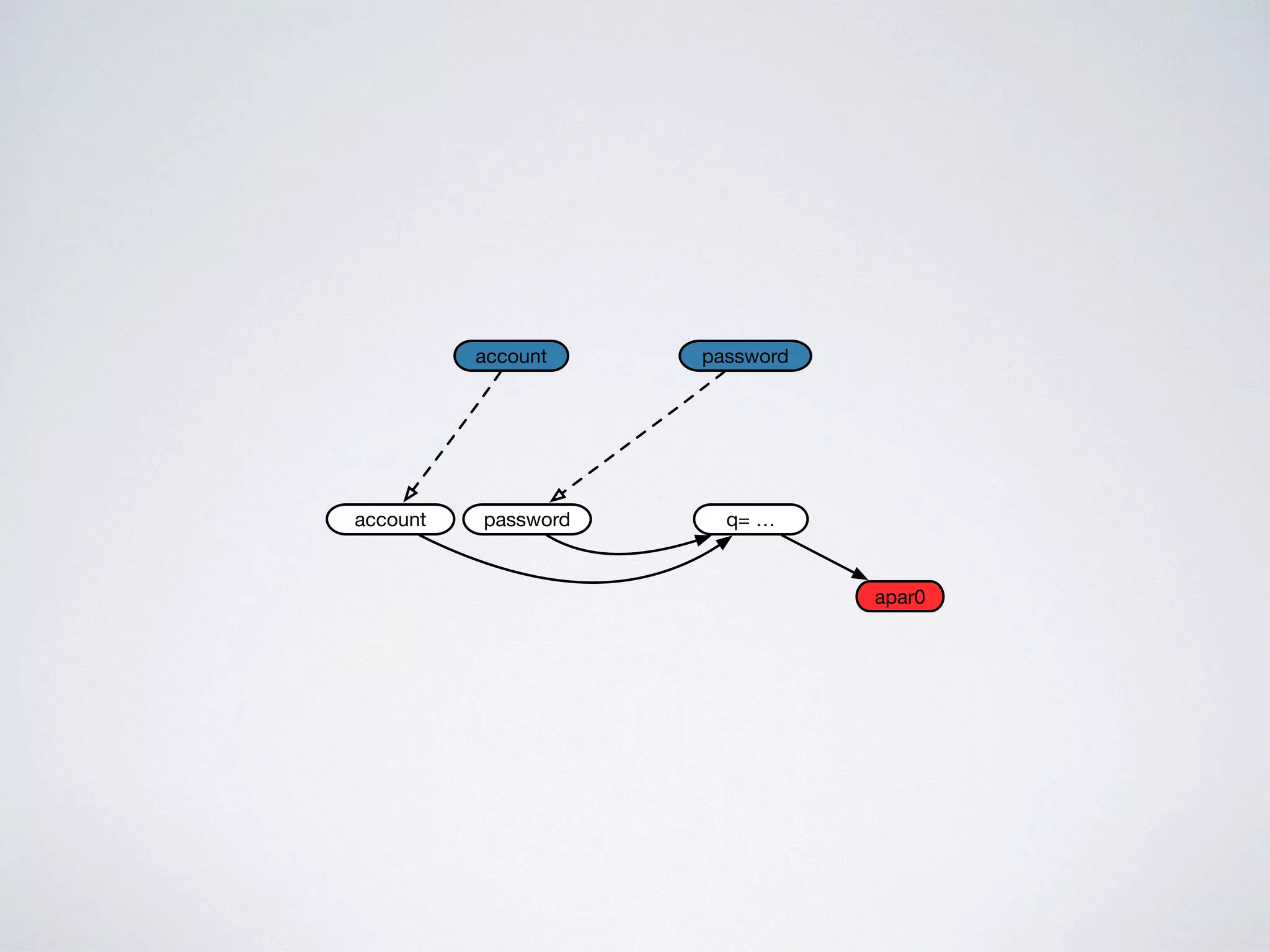

52. account
account password
password
q= …
apar0

53. account
account password
password
q= …
apar0

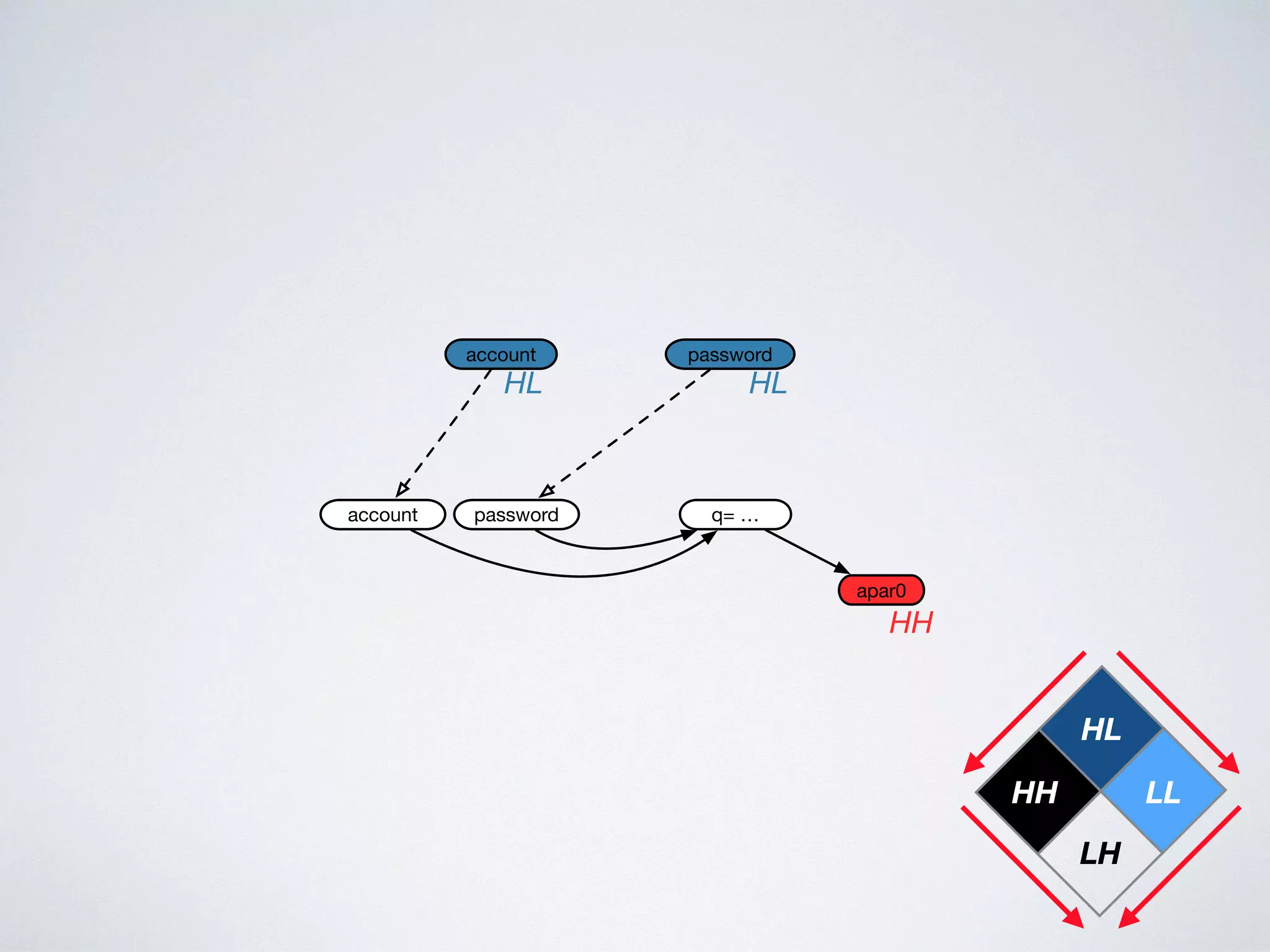

HL HL
HH
HH LL
HL
LH

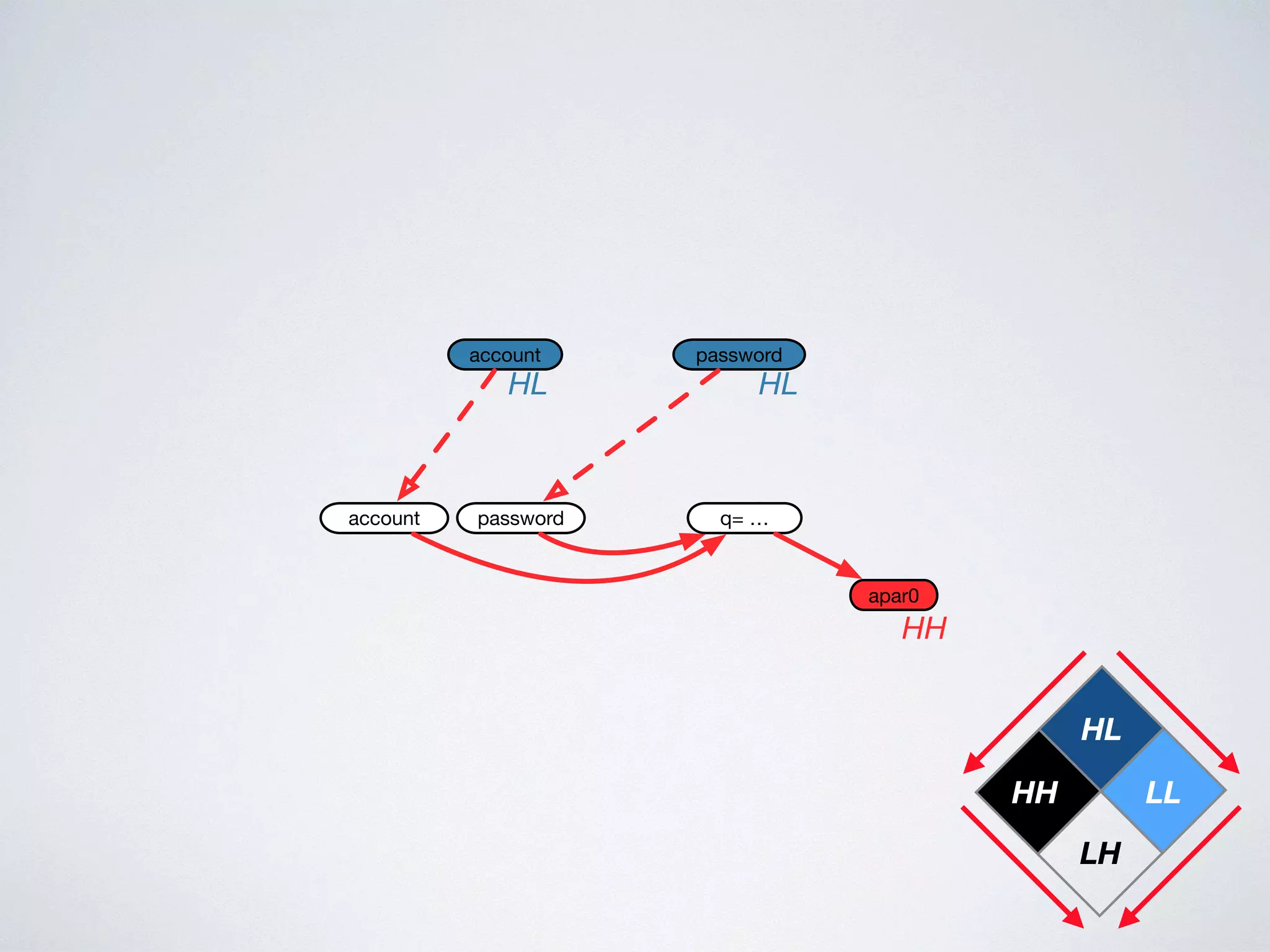

54. account
account password
password
q= …
apar0
HL HL
HH
HH LL
HL
LH

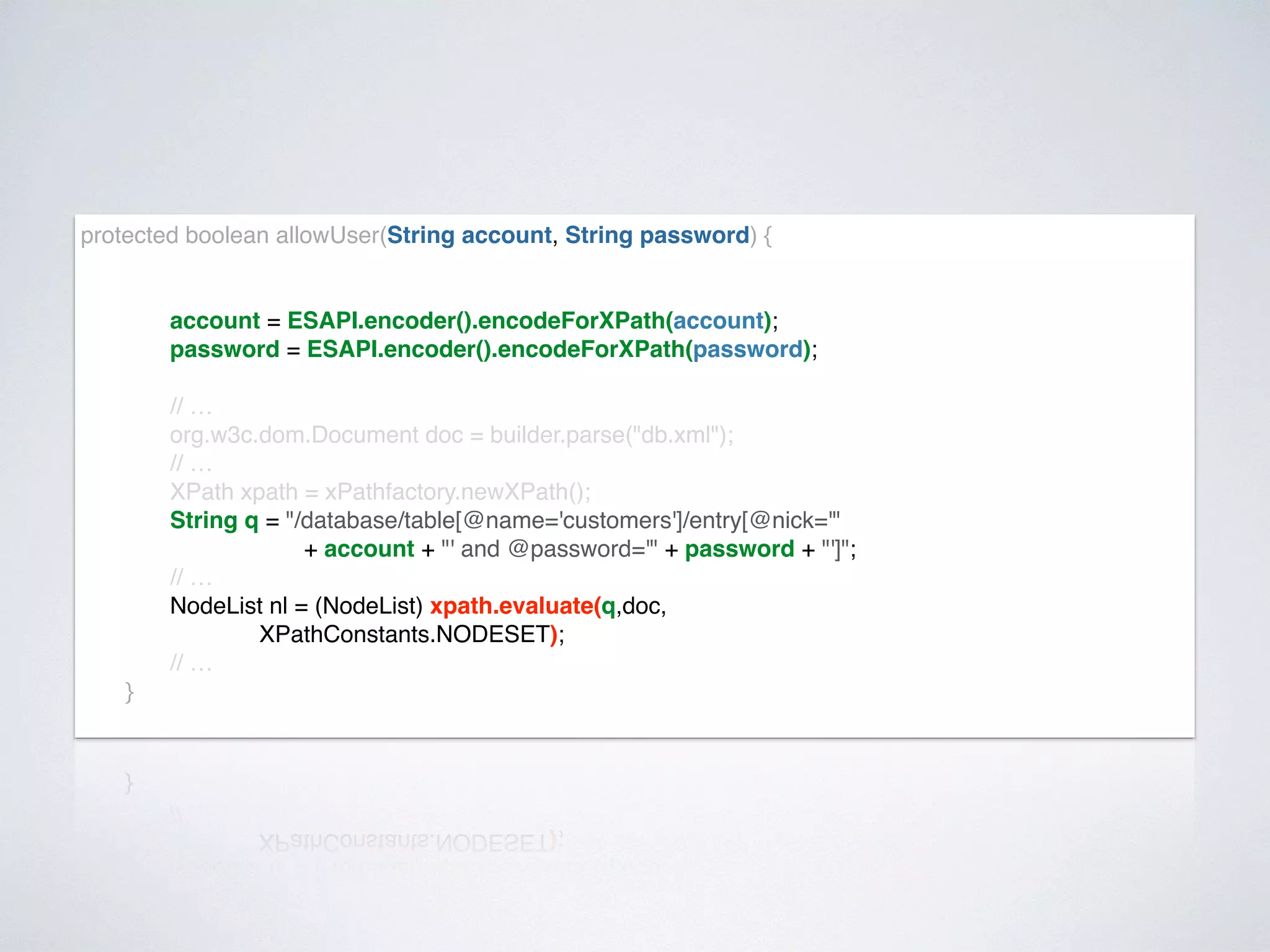

56. protected boolean allowUser(String account, String password) {
account = ESAPI.encoder().encodeForXPath(account);
password = ESAPI.encoder().encodeForXPath(password);
// …
org.w3c.dom.Document doc = builder.parse("db.xml");
// …
XPath xpath = xPathfactory.newXPath();
String q = "/database/table[@name='customers']/entry[@nick='"
+ account + "' and @password='" + password + "']";
// …
NodeList nl = (NodeList) xpath.evaluate(q,doc,
XPathConstants.NODESET);
// …
}

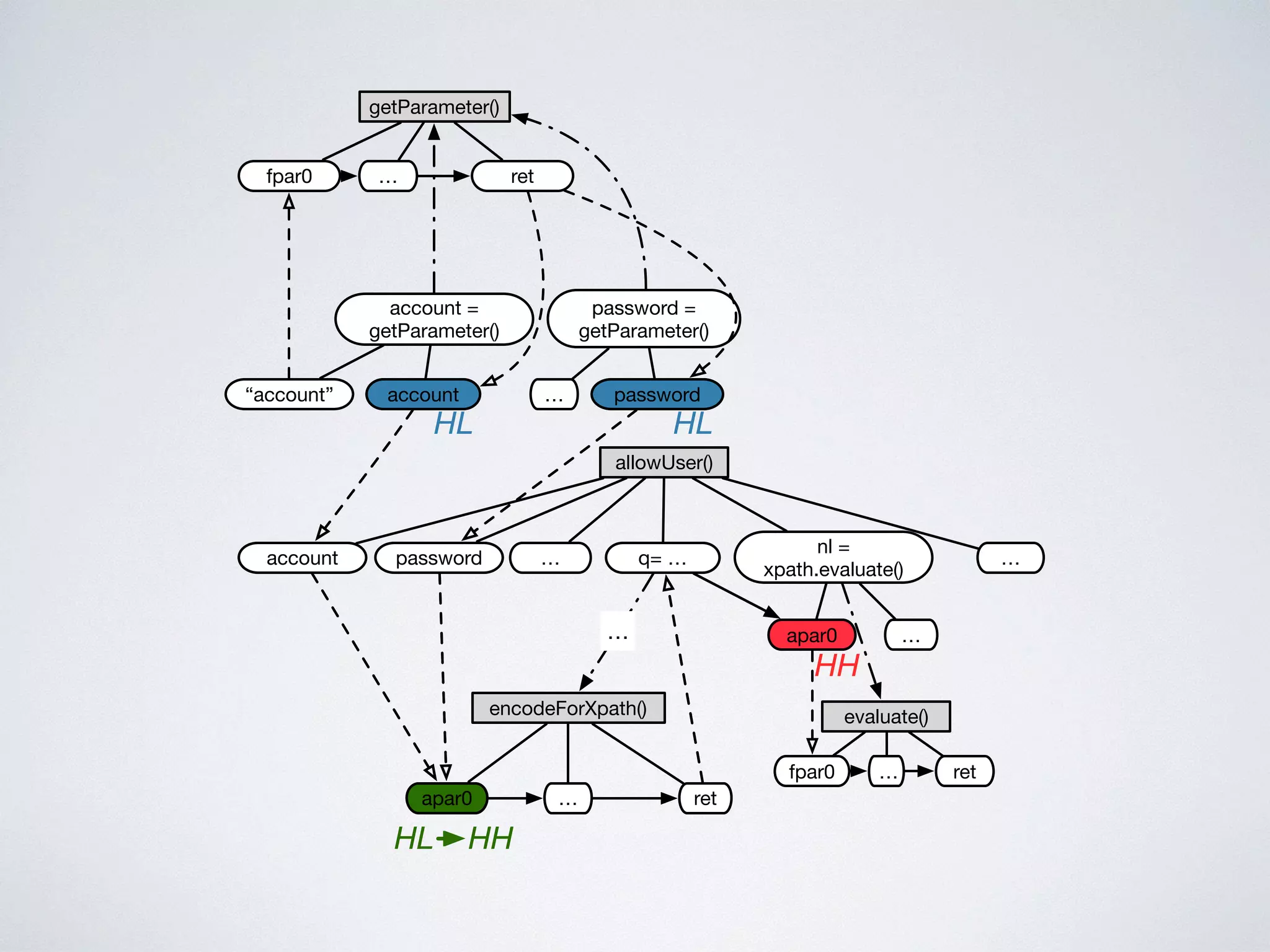

57. “account”
getParameter()
account =
getParameter()
fpar0 … ret
account
password =
getParameter()
allowUser()
account password
password
… q= …
nl =
xpath.evaluate()
…
encodeForXpath()
apar0 … ret
evaluate()
apar0 …
fpar0 … ret
…
…
HL HL
HH
HL HH
account
account password
password
q= …
apar0 … ret
apar0
HL HL
HH
HL HH

58. HH LL
HL
LH
account
account password
password
q= …
apar0 … ret
apar0
HL HL
HH
HL HH

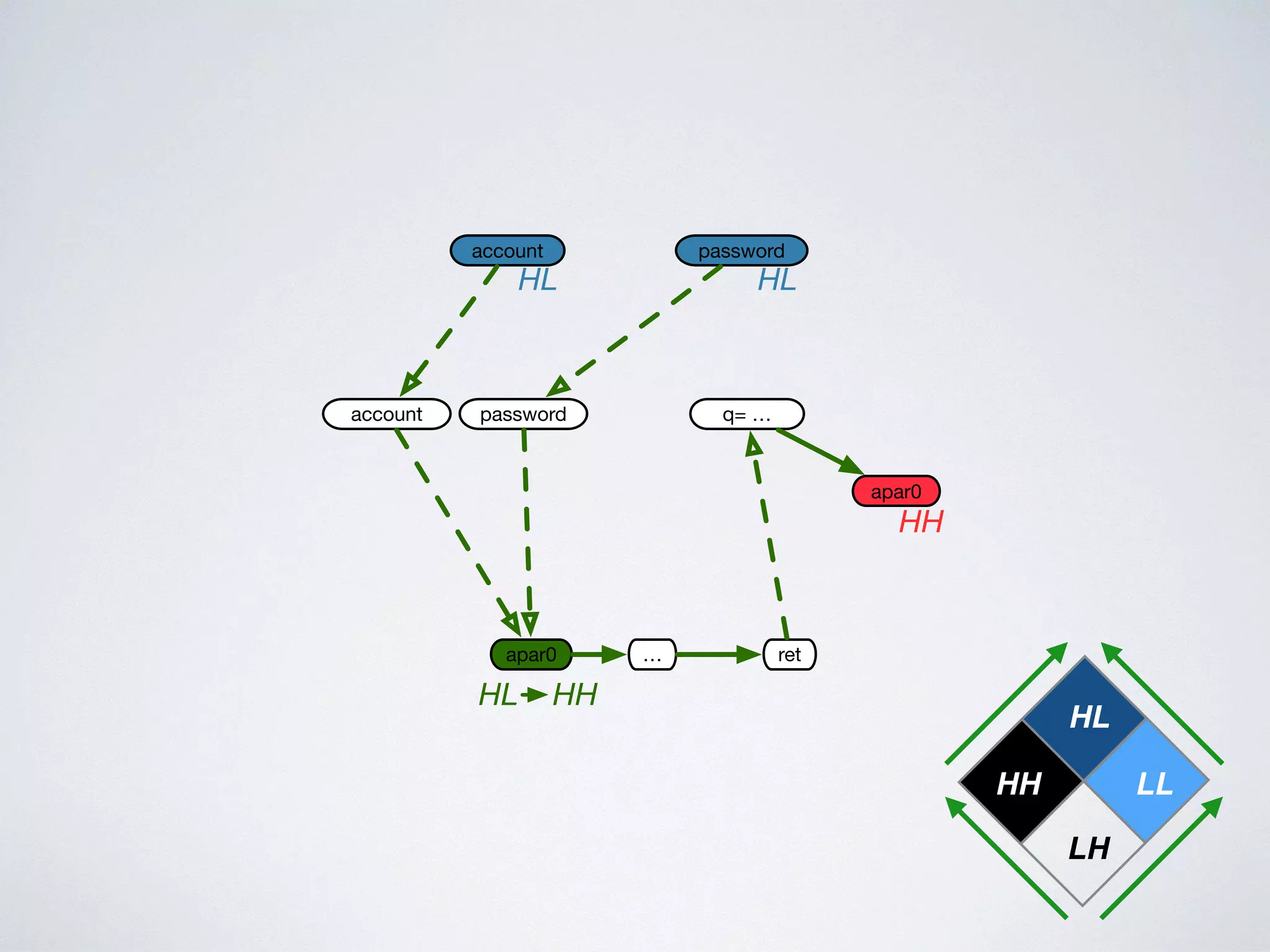

59. account
account password
password
q= …
apar0 … ret
apar0
HL HL
HH
HL HH
HH LL
HL
LH

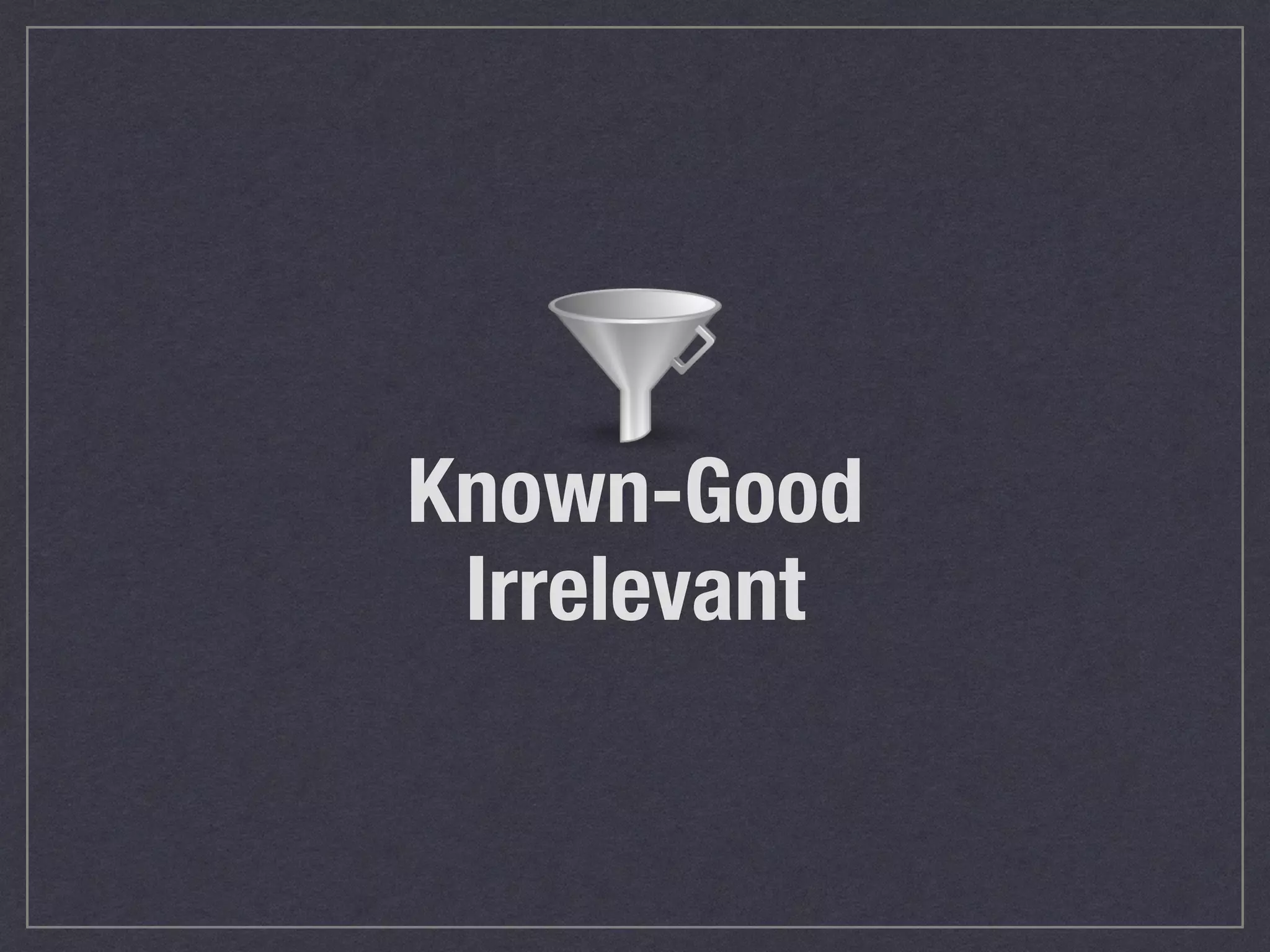

60. Known-Good
Irrelevant

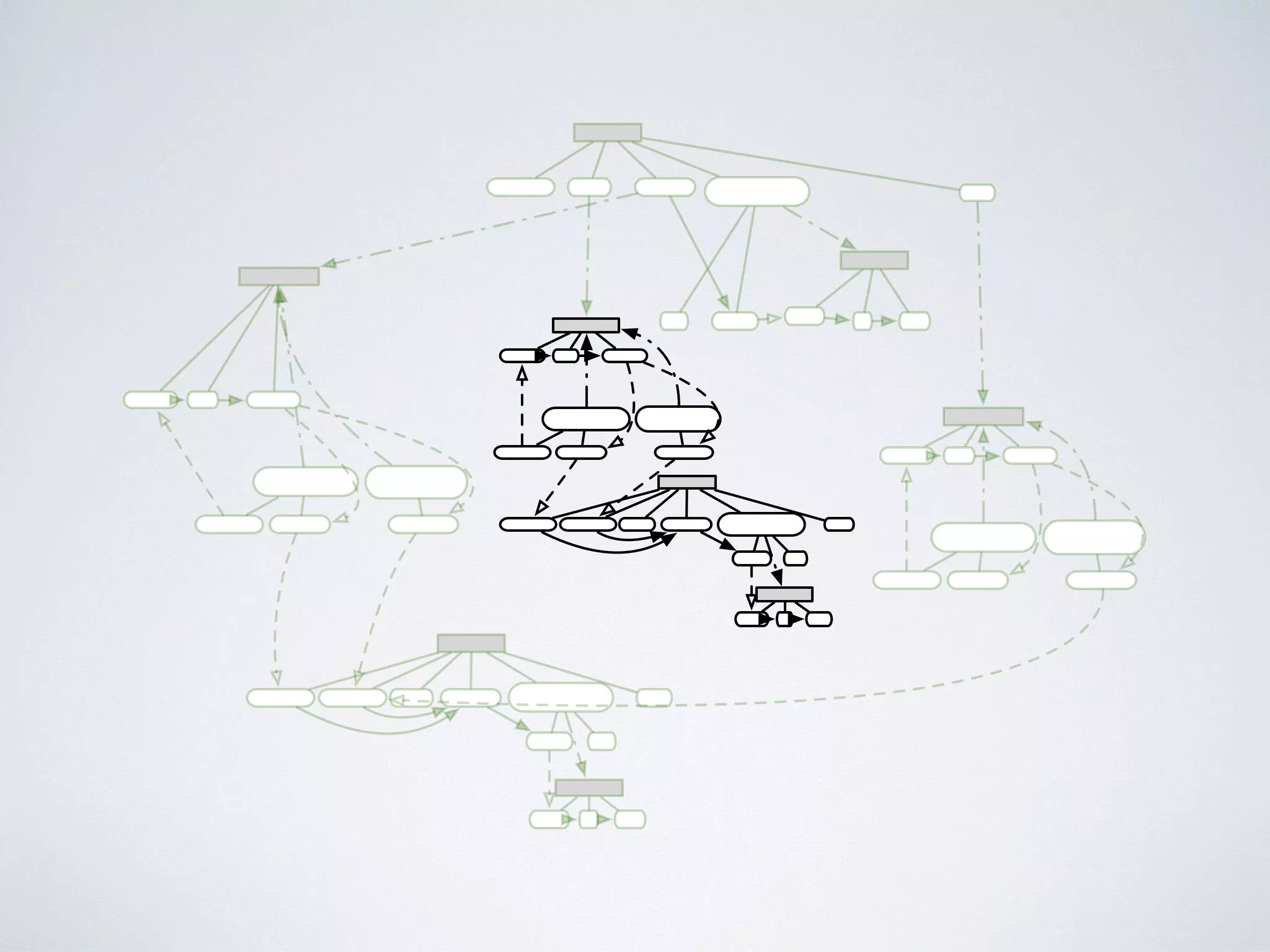

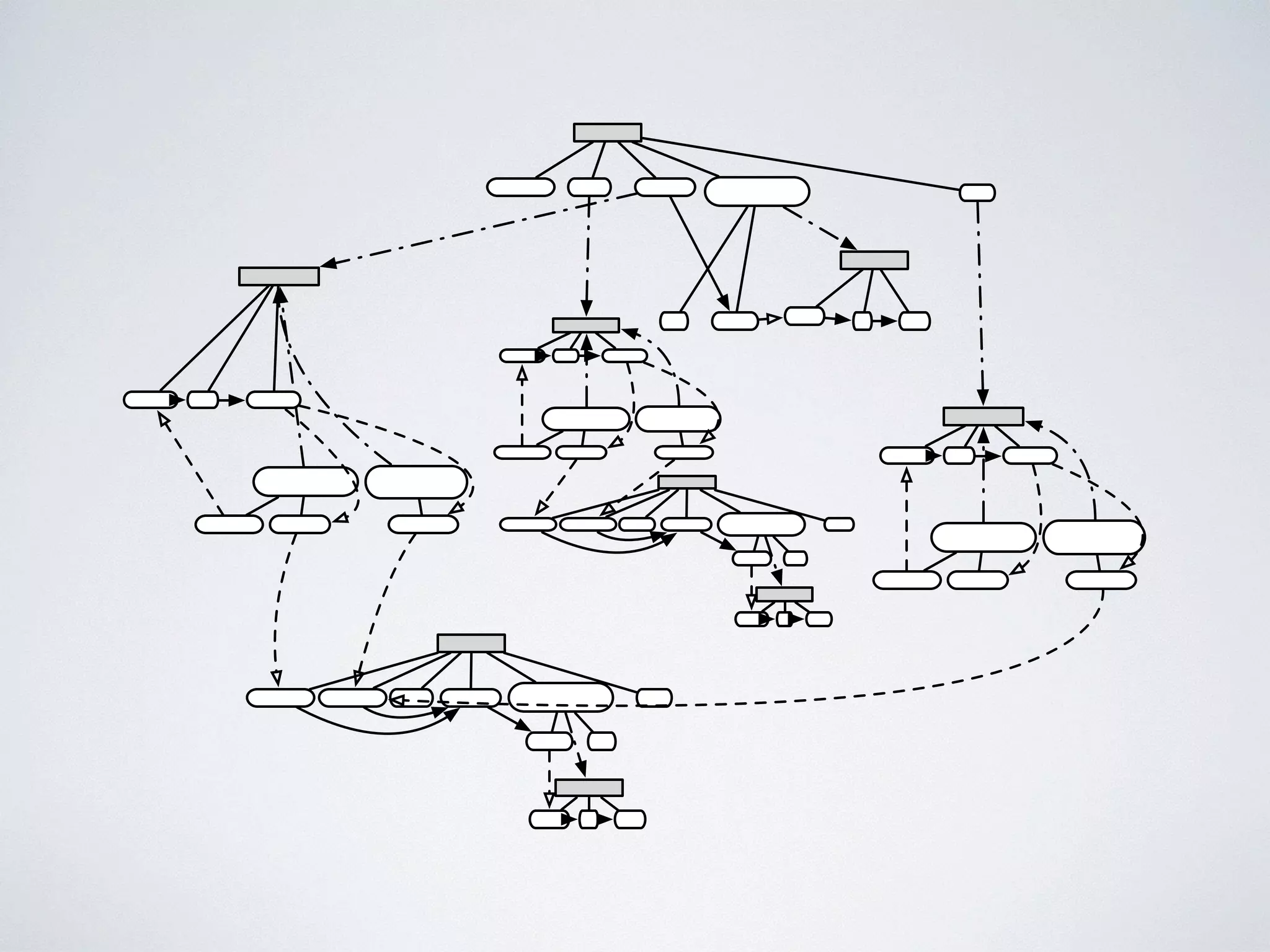

65. Automated Fixing

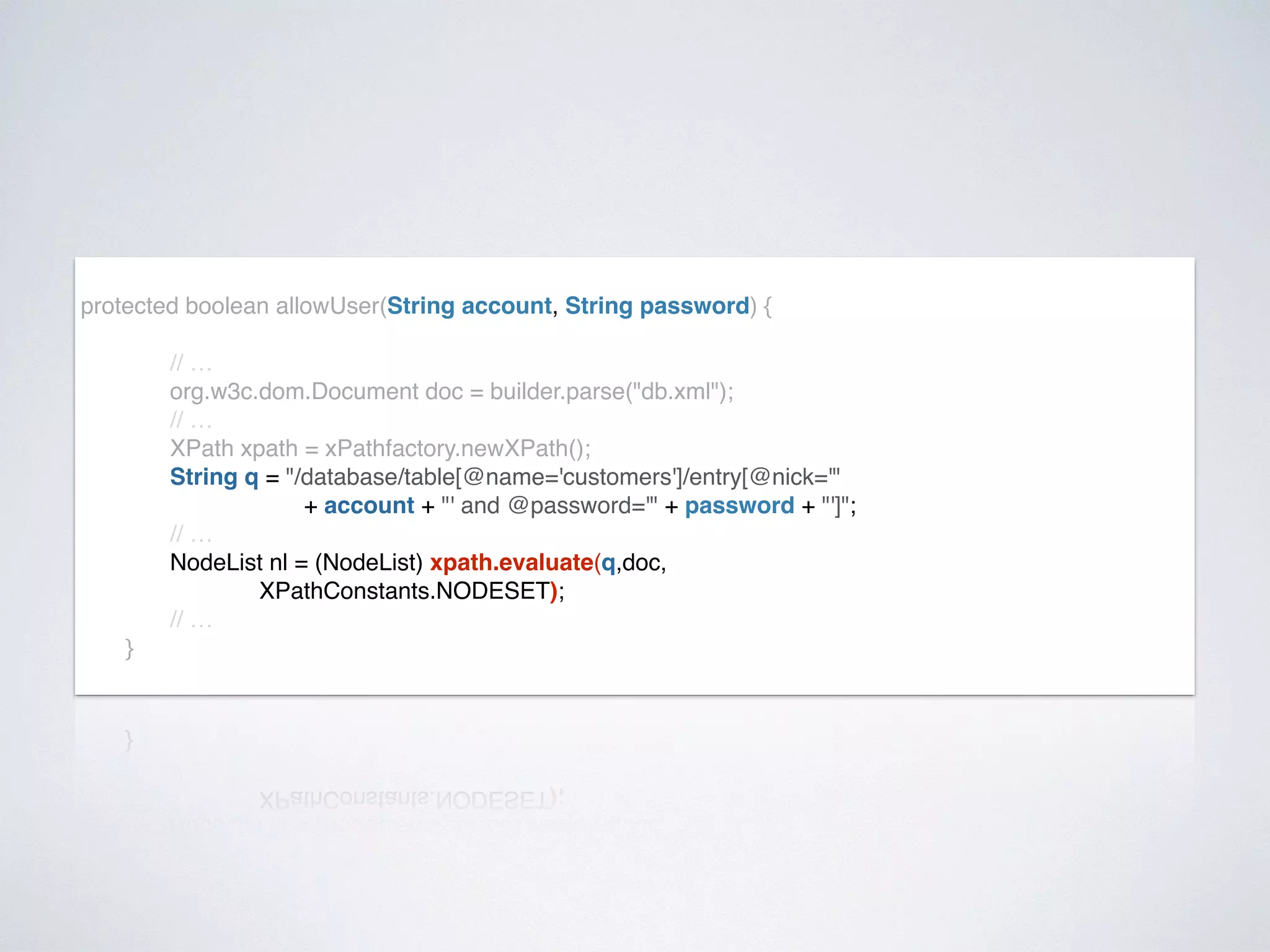

66. protected boolean allowUser(String account, String password) {
// …
org.w3c.dom.Document doc = builder.parse("db.xml");
// …
XPath xpath = xPathfactory.newXPath();
String q = "/database/table[@name='customers']/entry[@nick='"
+ account + "' and @password='" + password + "']";
// …
NodeList nl = (NodeList) xpath.evaluate(q,doc,
XPathConstants.NODESET);
// …
}

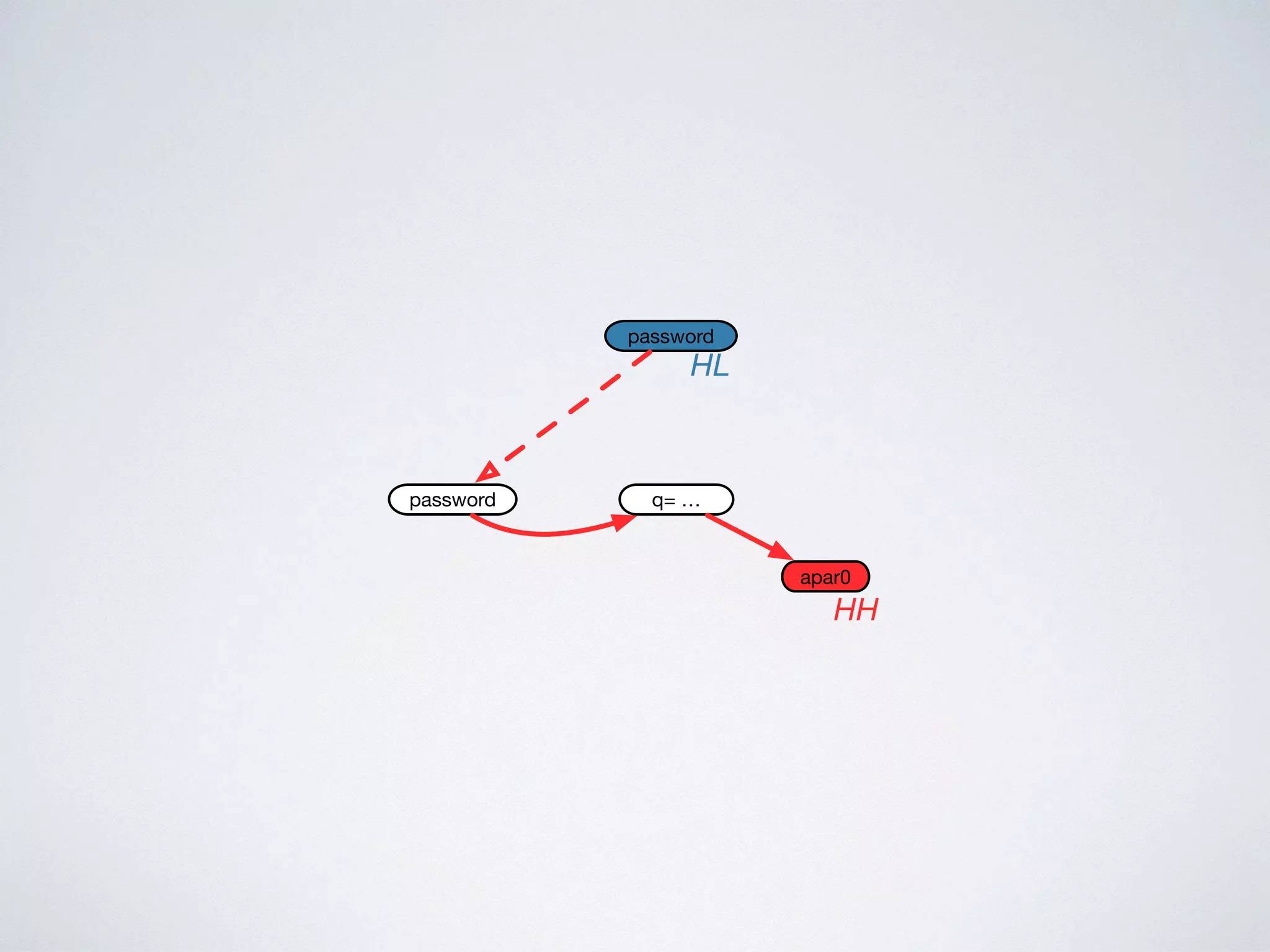

67. password
password
q= …
apar0
HL
HH

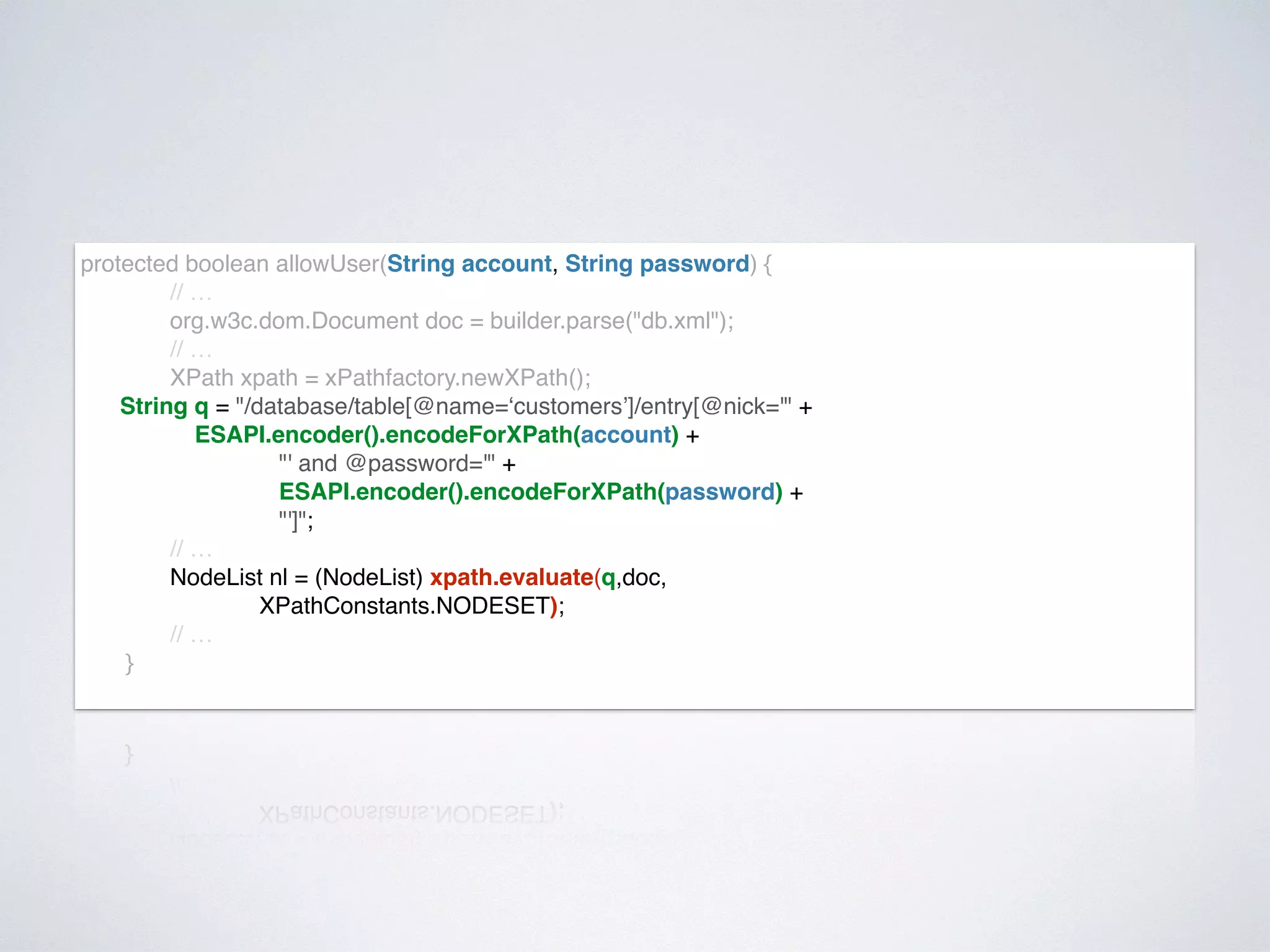

68. protected boolean allowUser(String account, String password) {
// …
org.w3c.dom.Document doc = builder.parse("db.xml");
// …
XPath xpath = xPathfactory.newXPath();
String q = "/database/table[@name=‘customers’]/entry[@nick='" +
ESAPI.encoder().encodeForXPath(account) +
"' and @password='" +
ESAPI.encoder().encodeForXPath(password) +
"']";
// …
NodeList nl = (NodeList) xpath.evaluate(q,doc,
XPathConstants.NODESET);
// …
}

70. Filtering
Chopping
SDG
Construction
Security Slices

71. Contributions

72. Filtering
Chopping
SDG
Construction
Security Slices

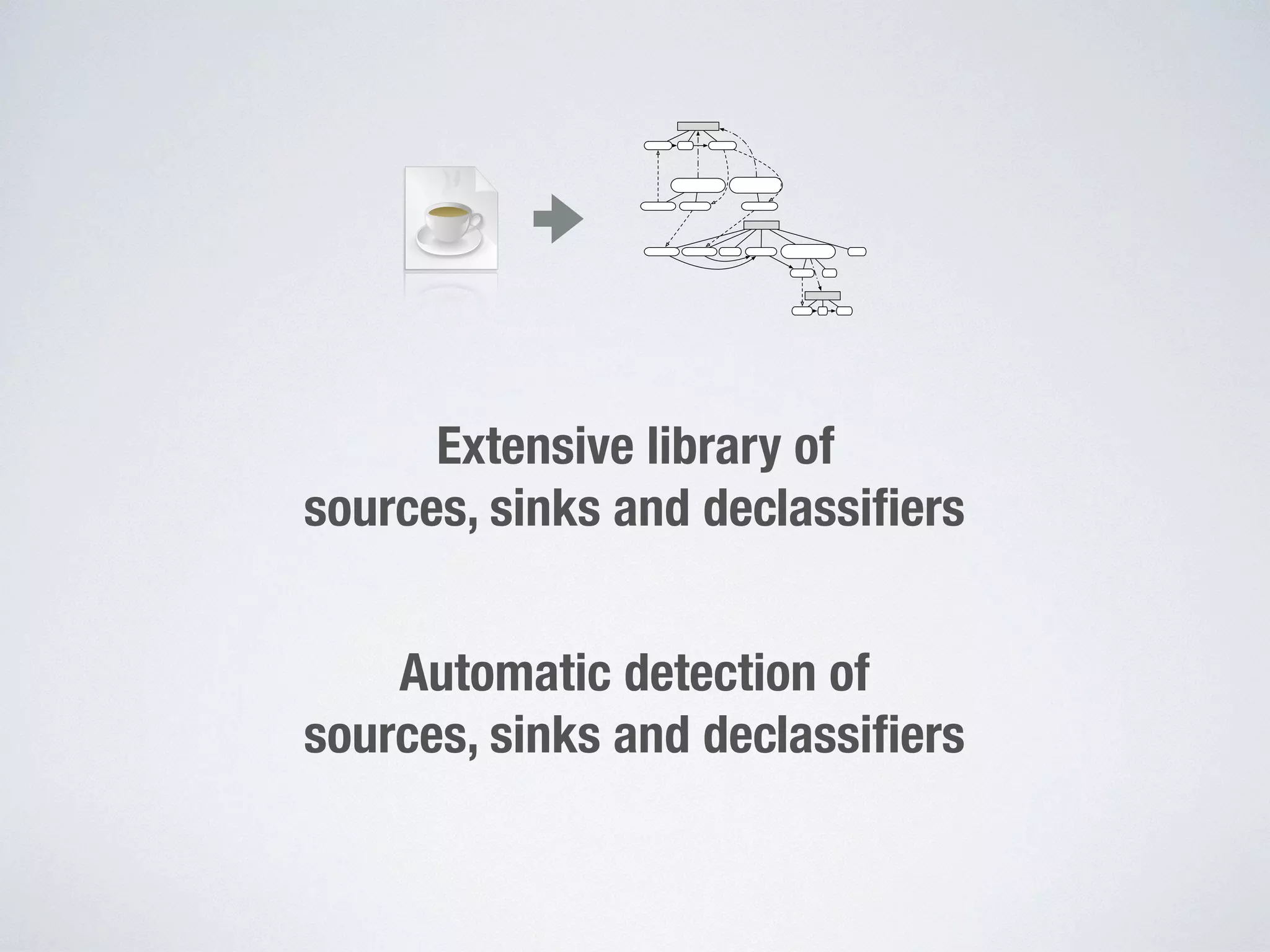

73. Automatic detection of
sources, sinks and declassifiers
Extensive library of
sources, sinks and declassifiers

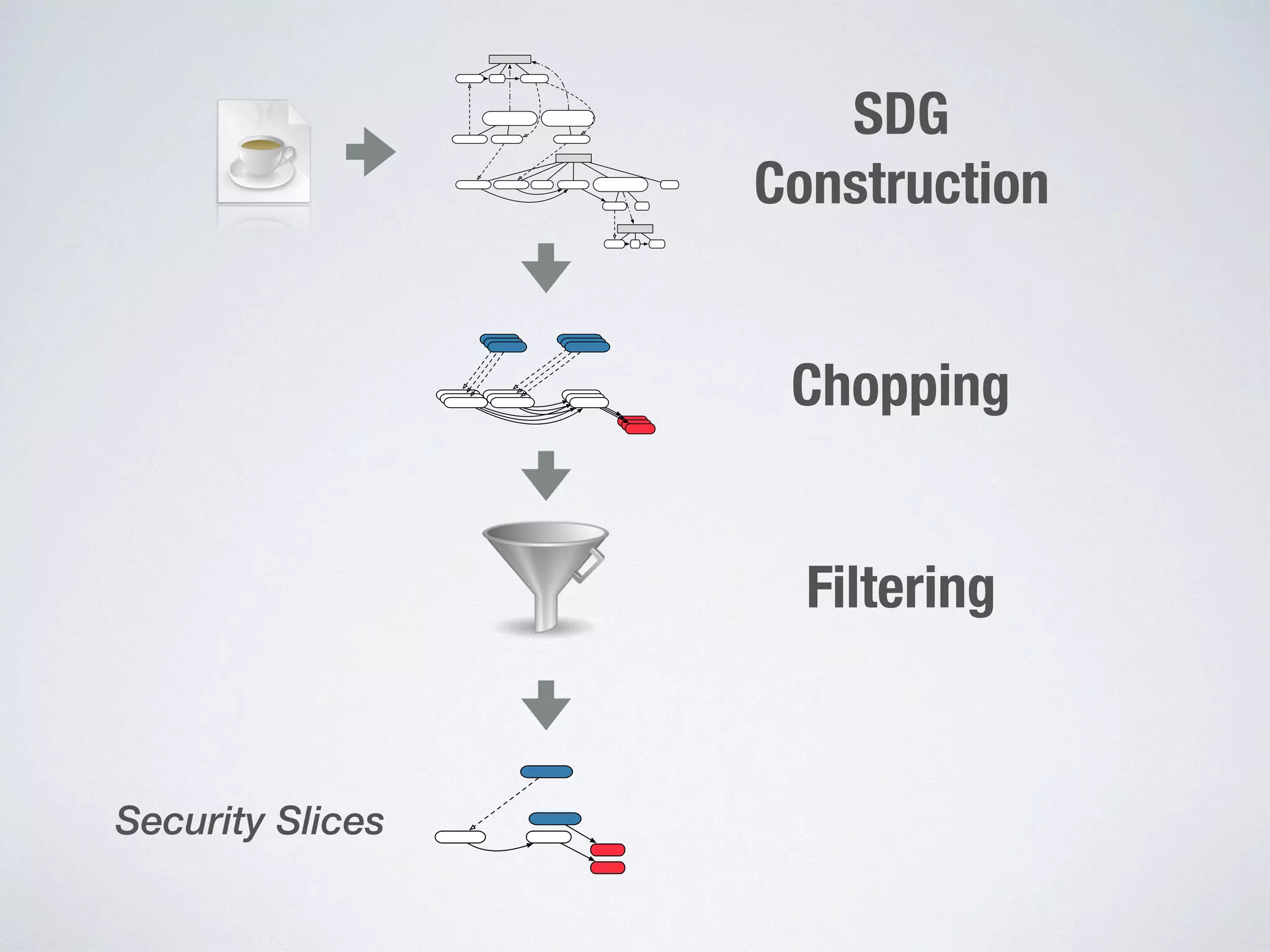

74. Filtering
Chopping
SDG
Construction
Security Slices

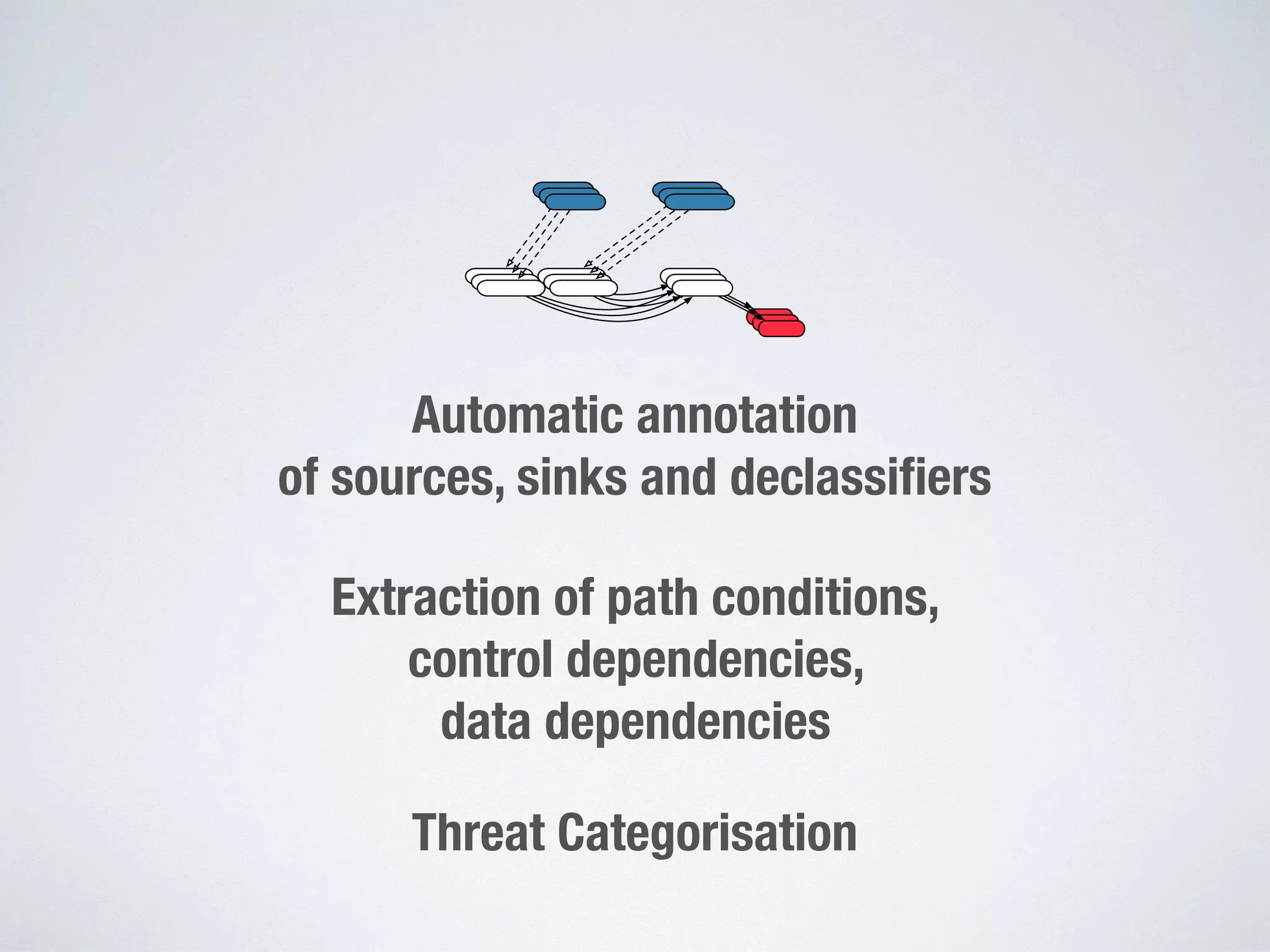

75. Extraction of path conditions,
control dependencies,
data dependencies
Threat Categorisation
Automatic annotation
of sources, sinks and declassifiers

76. Filtering
Chopping
SDG
Construction
Security Slices

77. Information Flow Control/
Declassification
Known-Good/Irrelevant
Automated Fixing

78. Filtering
Chopping
SDG
Construction
Security Slices

79. Evaluation

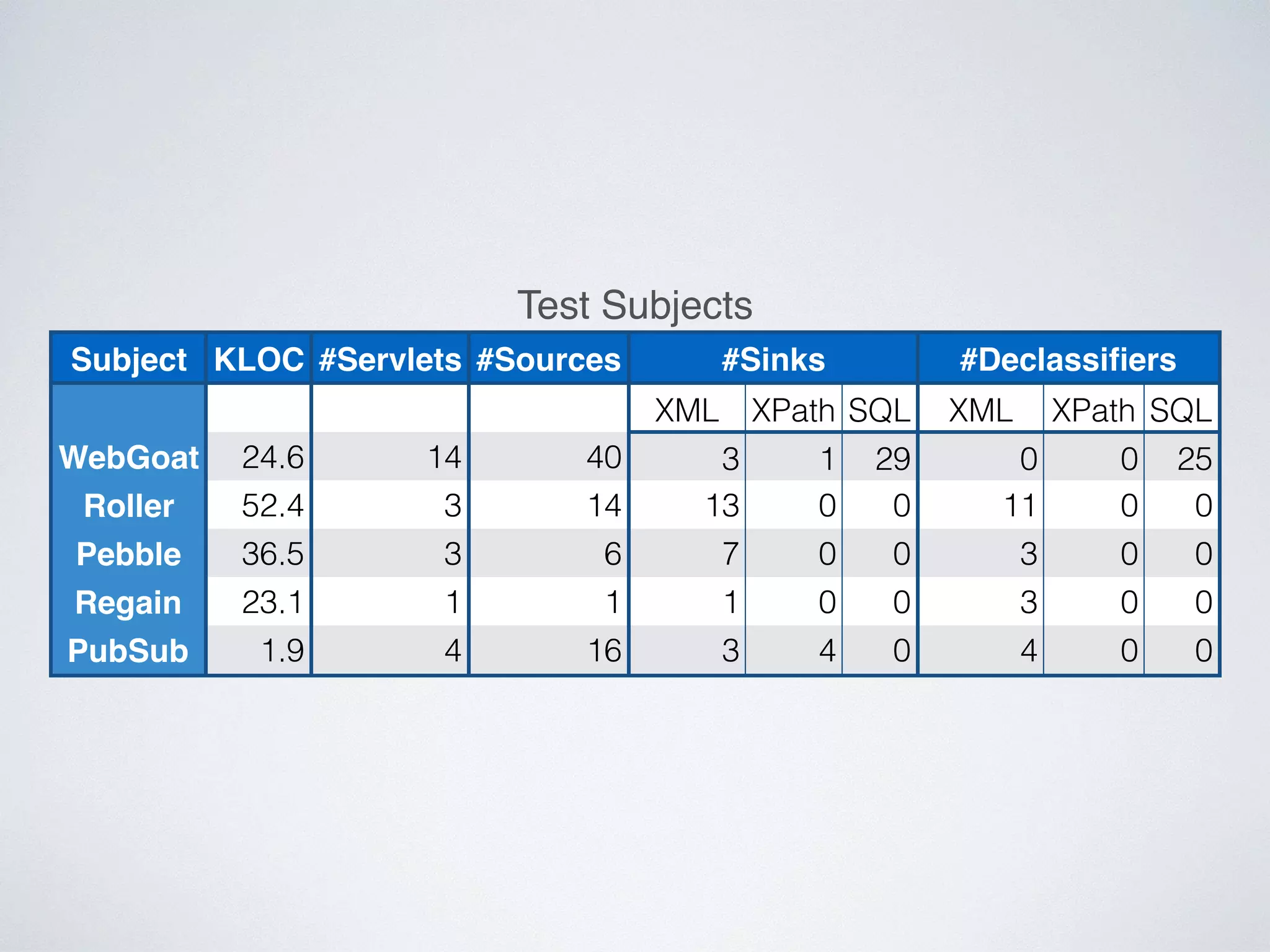

80. Test Subjects
Subject KLOC #Servlets #Sources #Sinks #Declassifiers
XML XPath SQL XML XPath SQL
WebGoat 24.6 14 40 3 1 29 0 0 25
Roller 52.4 3 14 13 0 0 11 0 0
Pebble 36.5 3 6 7 0 0 3 0 0
Regain 23.1 1 1 1 0 0 3 0 0
PubSub 1.9 4 16 3 4 0 4 0 0

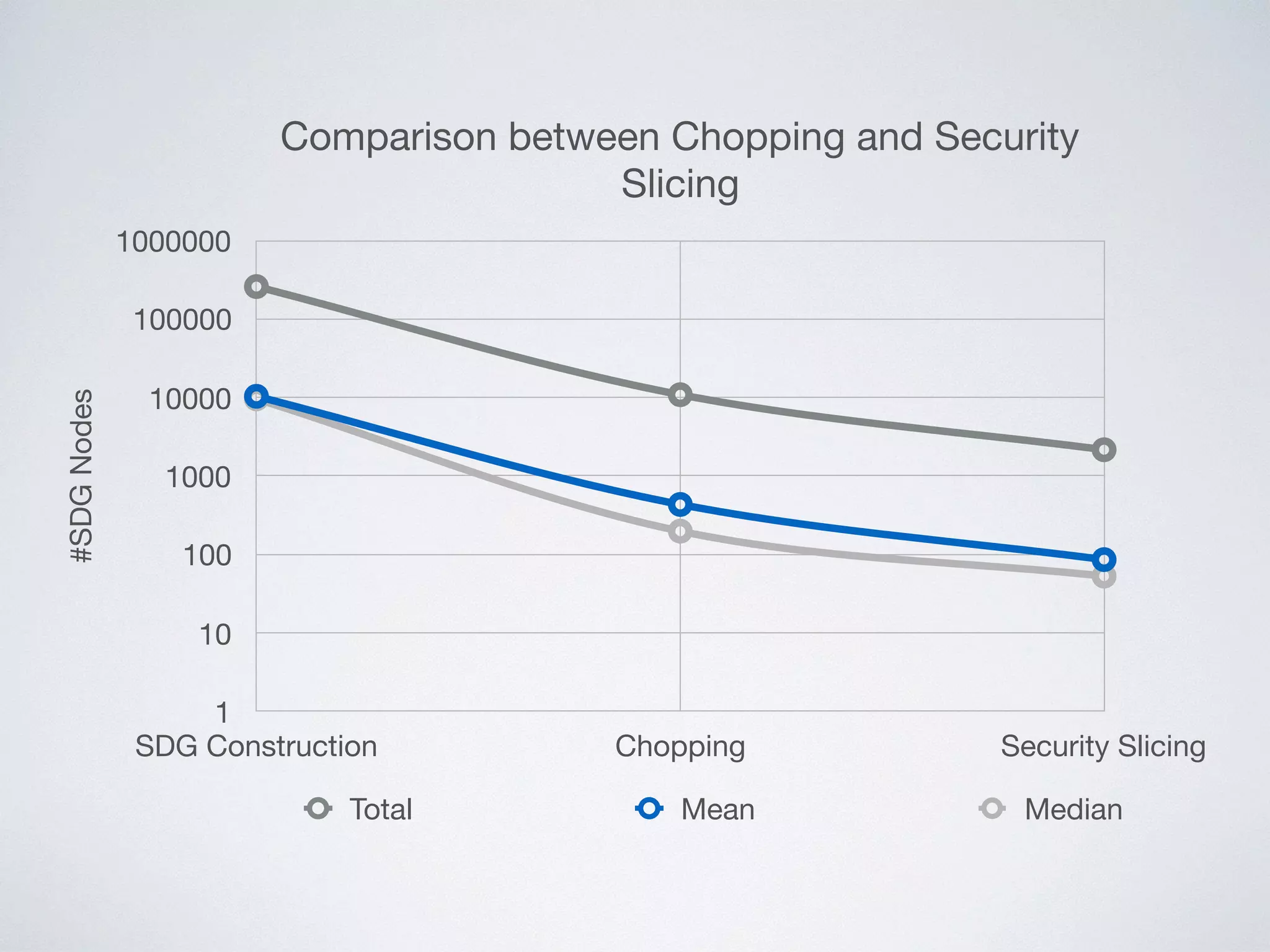

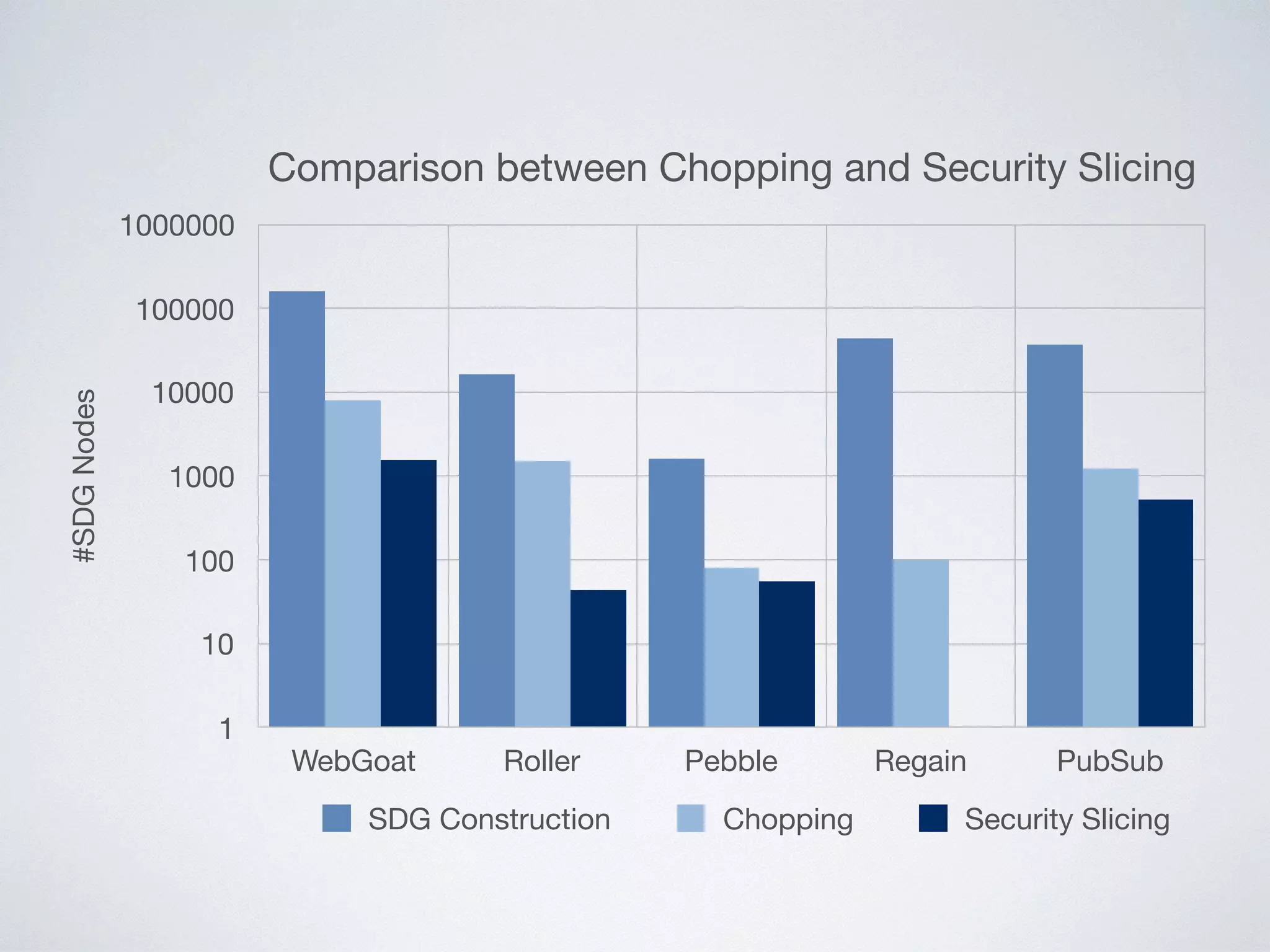

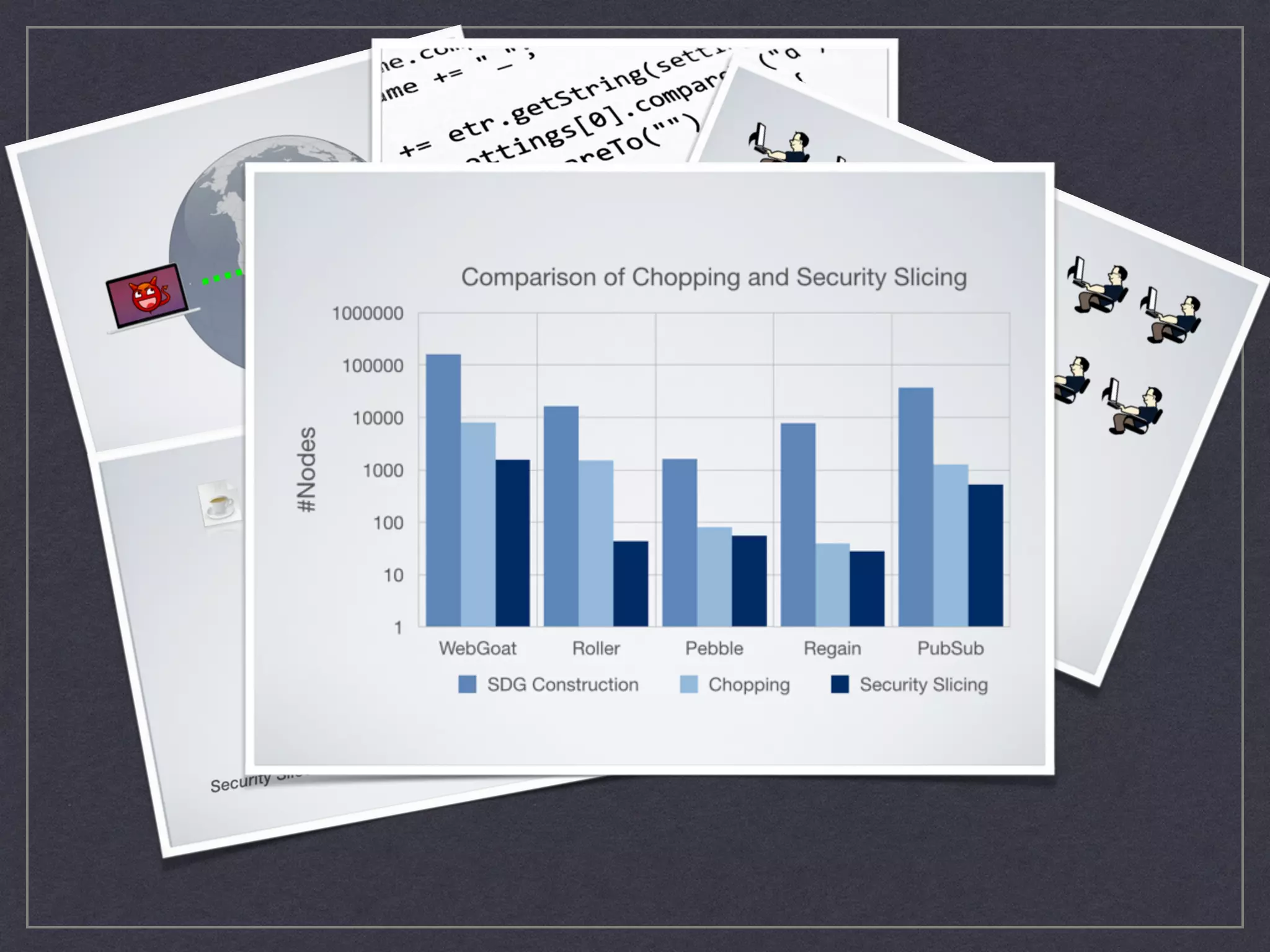

81. Comparison between Chopping and Security Slicing
#SDGNodes
1
10
100
1000
10000
100000
1000000
WebGoat Roller Pebble Regain PubSub
SDG Construction Chopping Security Slicing

82. Comparison between Chopping and Security
Slicing
#SDGNodes
1
10
100
1000
10000
100000
1000000
SDG Construction Chopping Security Slicing
Total Mean Median

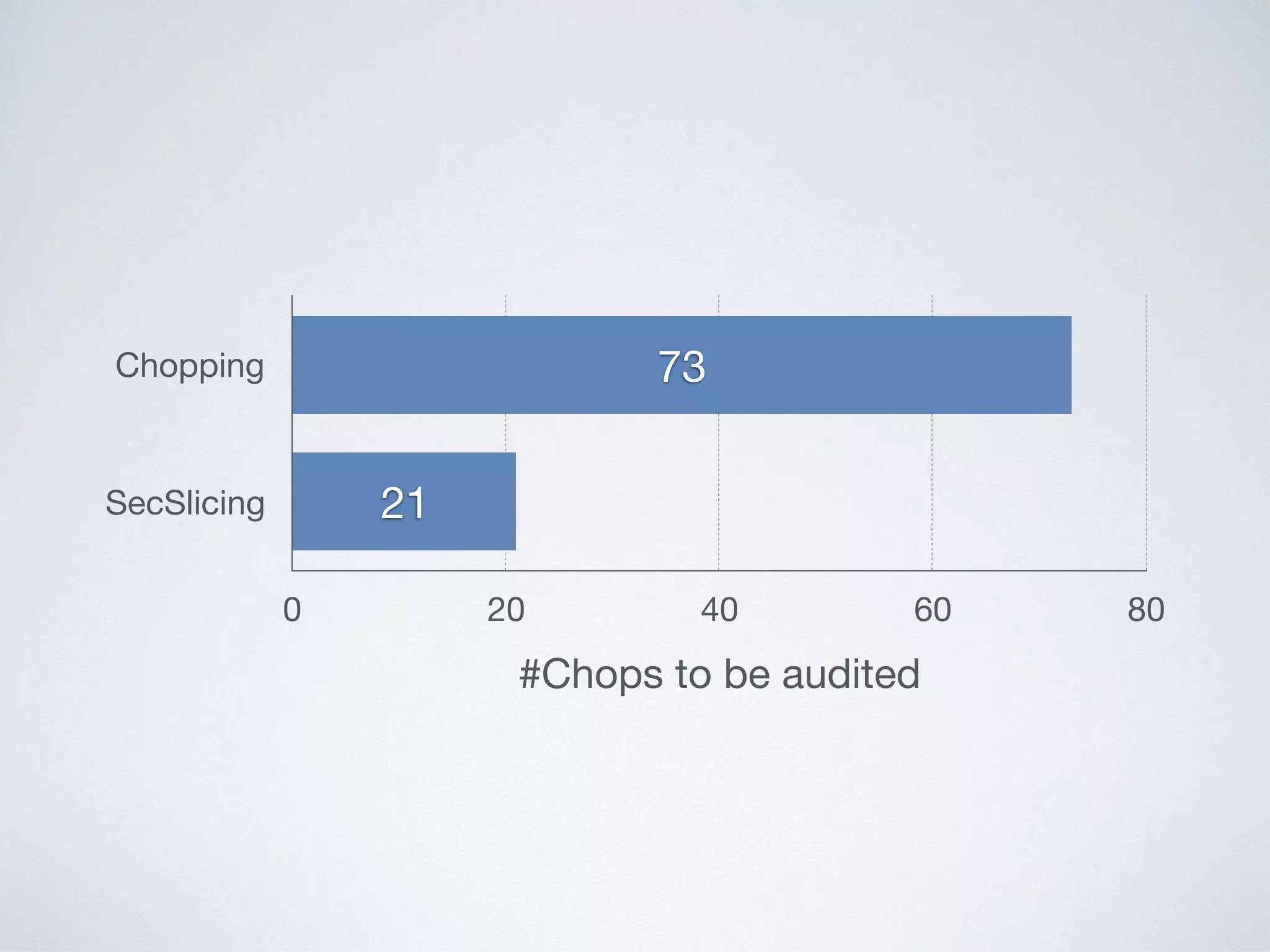

83. Chopping
SecSlicing
#Chops to be audited
0 20 40 60 80
21
73

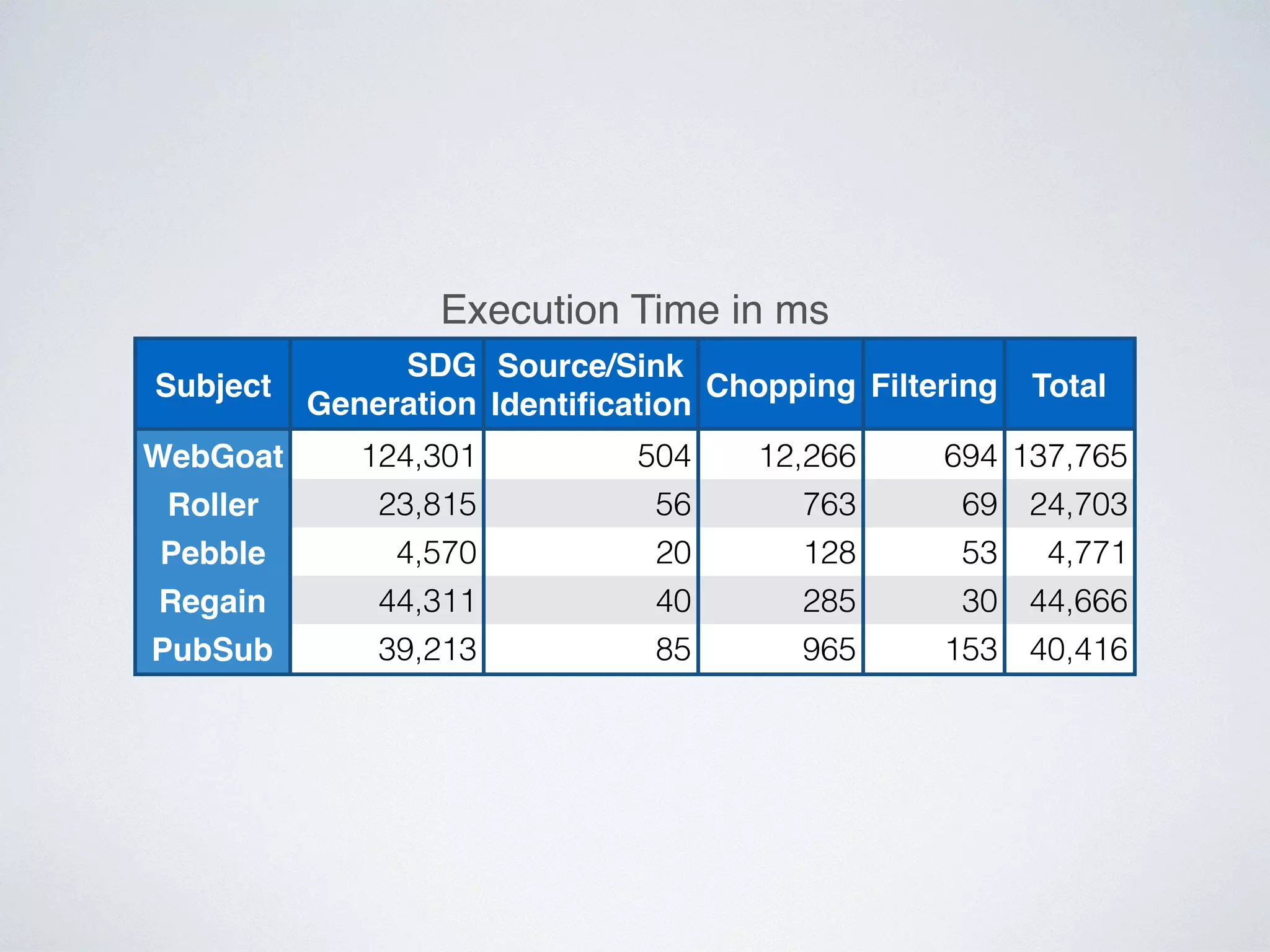

84. Execution Time in ms
Subject
SDG
Generation
Source/Sink
Identification
Chopping Filtering Total
WebGoat 124,301 504 12,266 694 137,765
Roller 23,815 56 763 69 24,703
Pebble 4,570 20 128 53 4,771
Regain 44,311 40 285 30 44,666
PubSub 39,213 85 965 153 40,416

85. Future Work

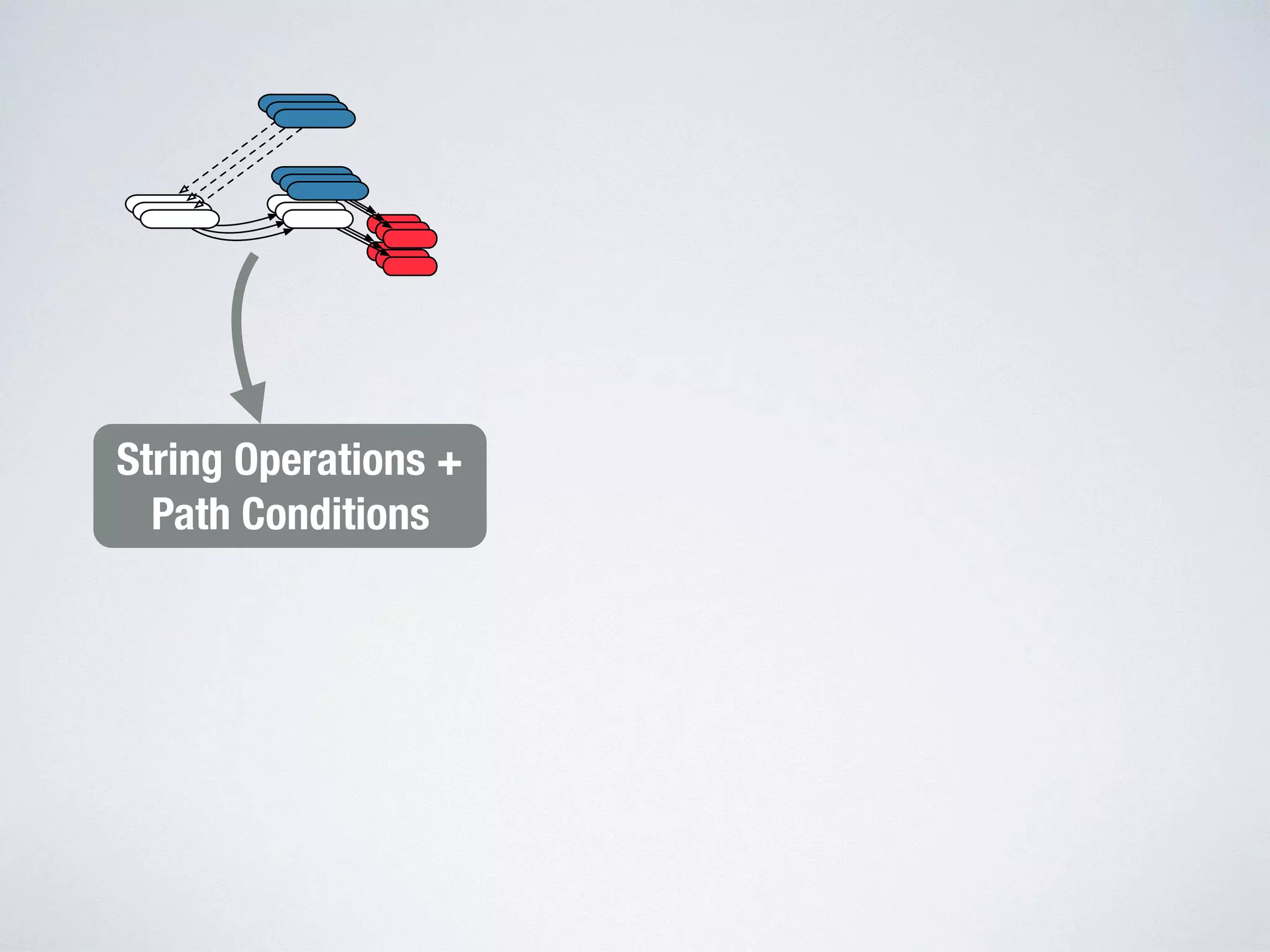

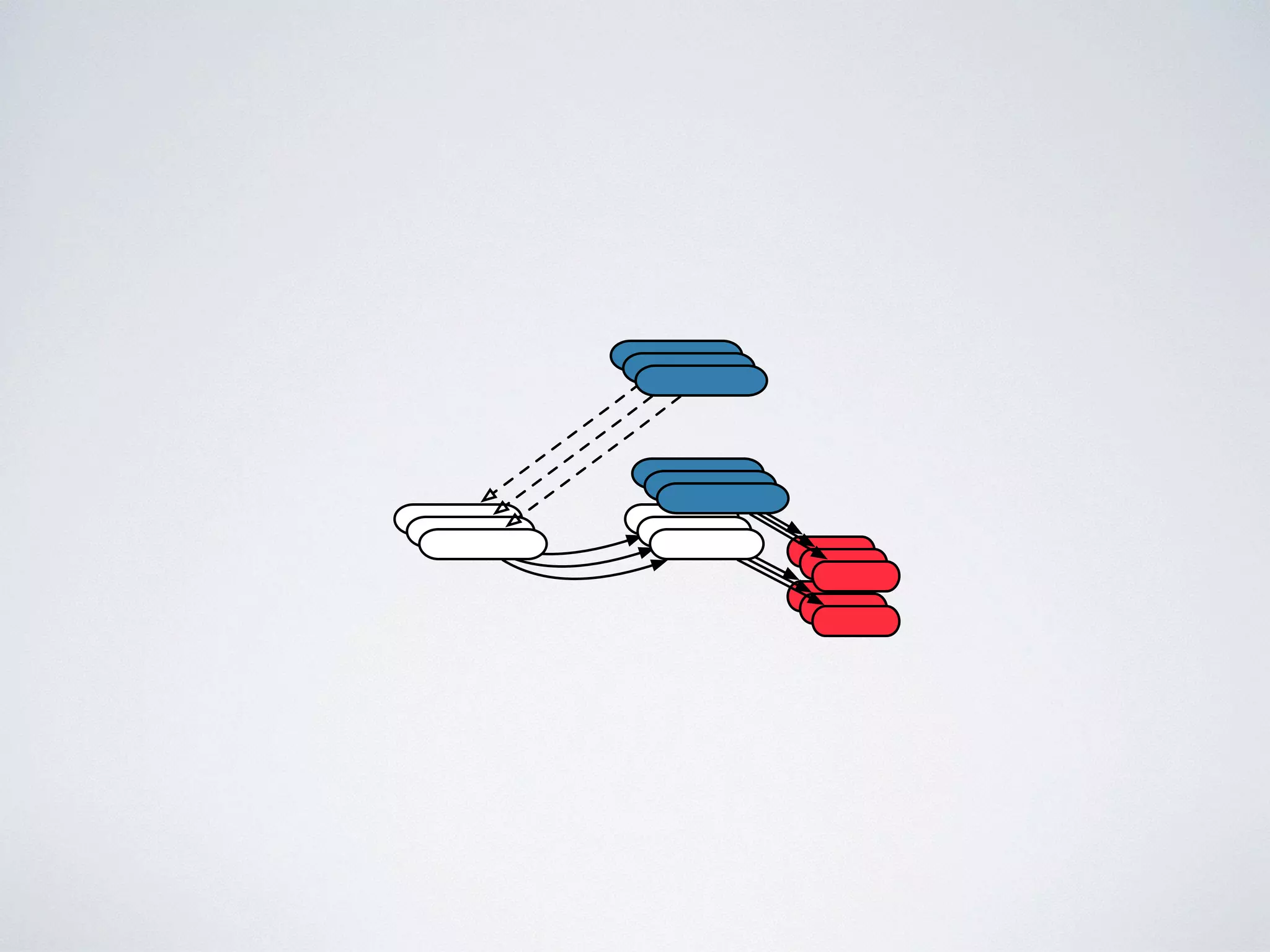

87. String Operations +
Path Conditions

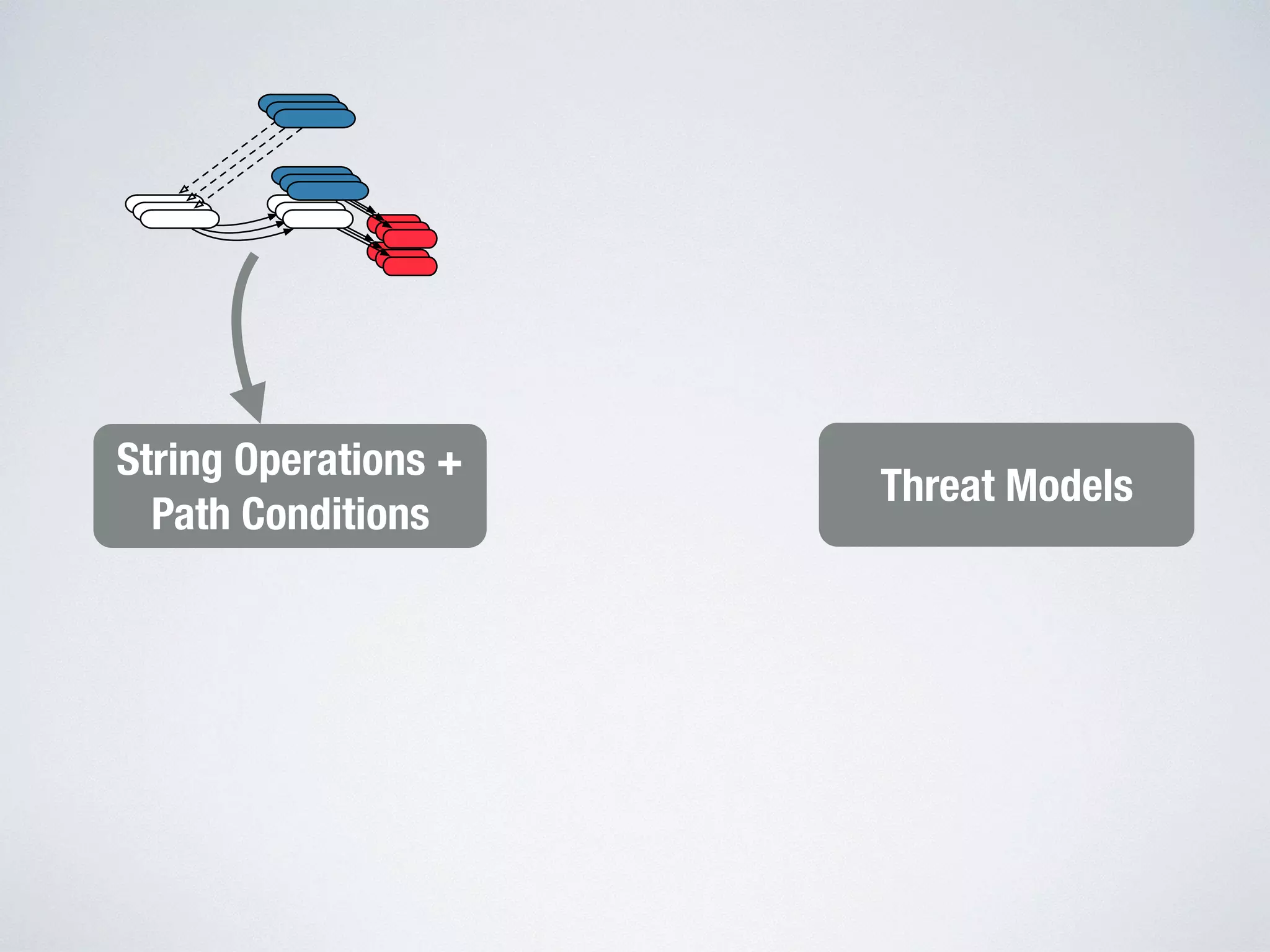

88. Threat Models
String Operations +
Path Conditions

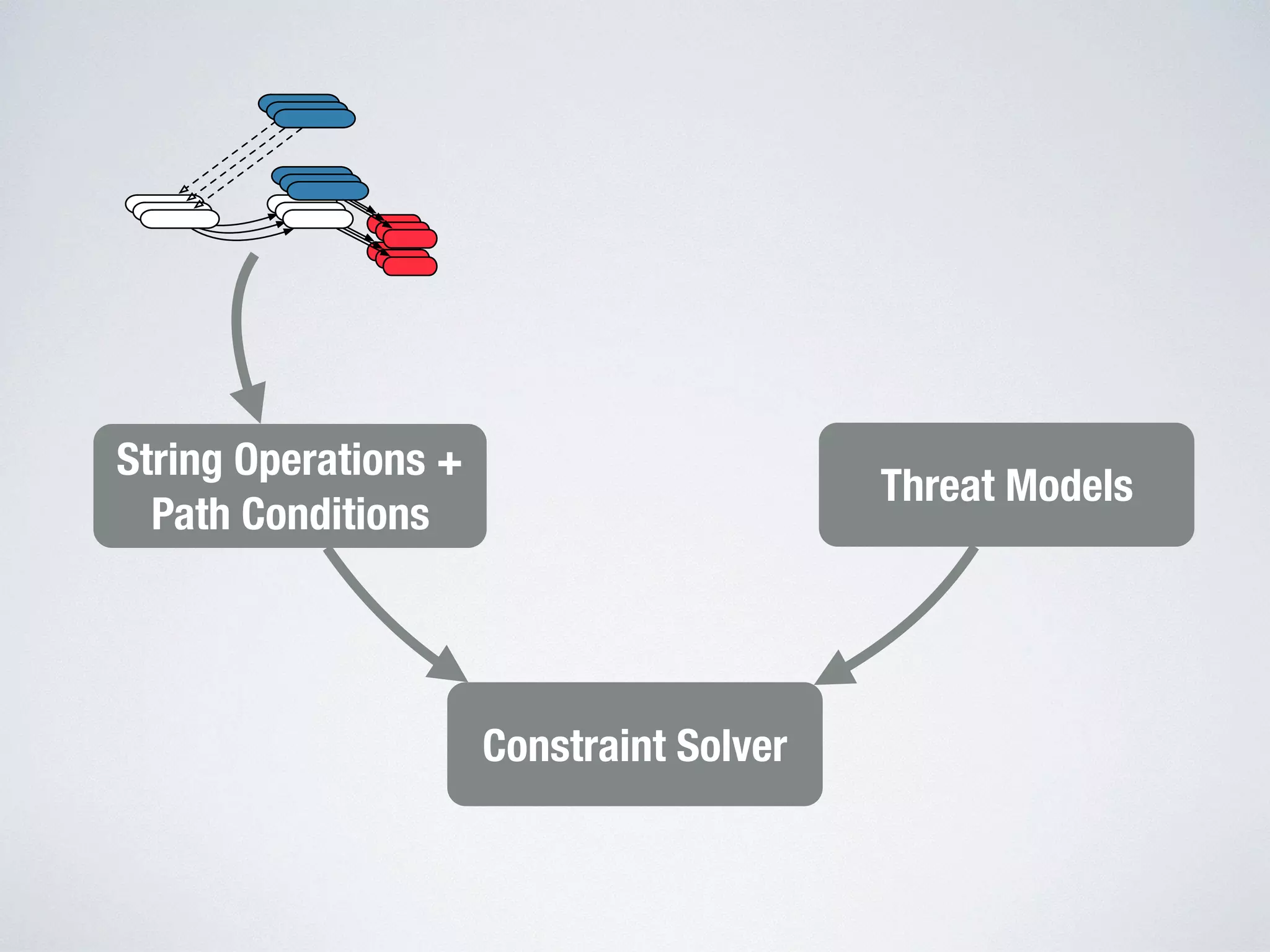

89. Threat Models
Constraint Solver
String Operations +
Path Conditions
