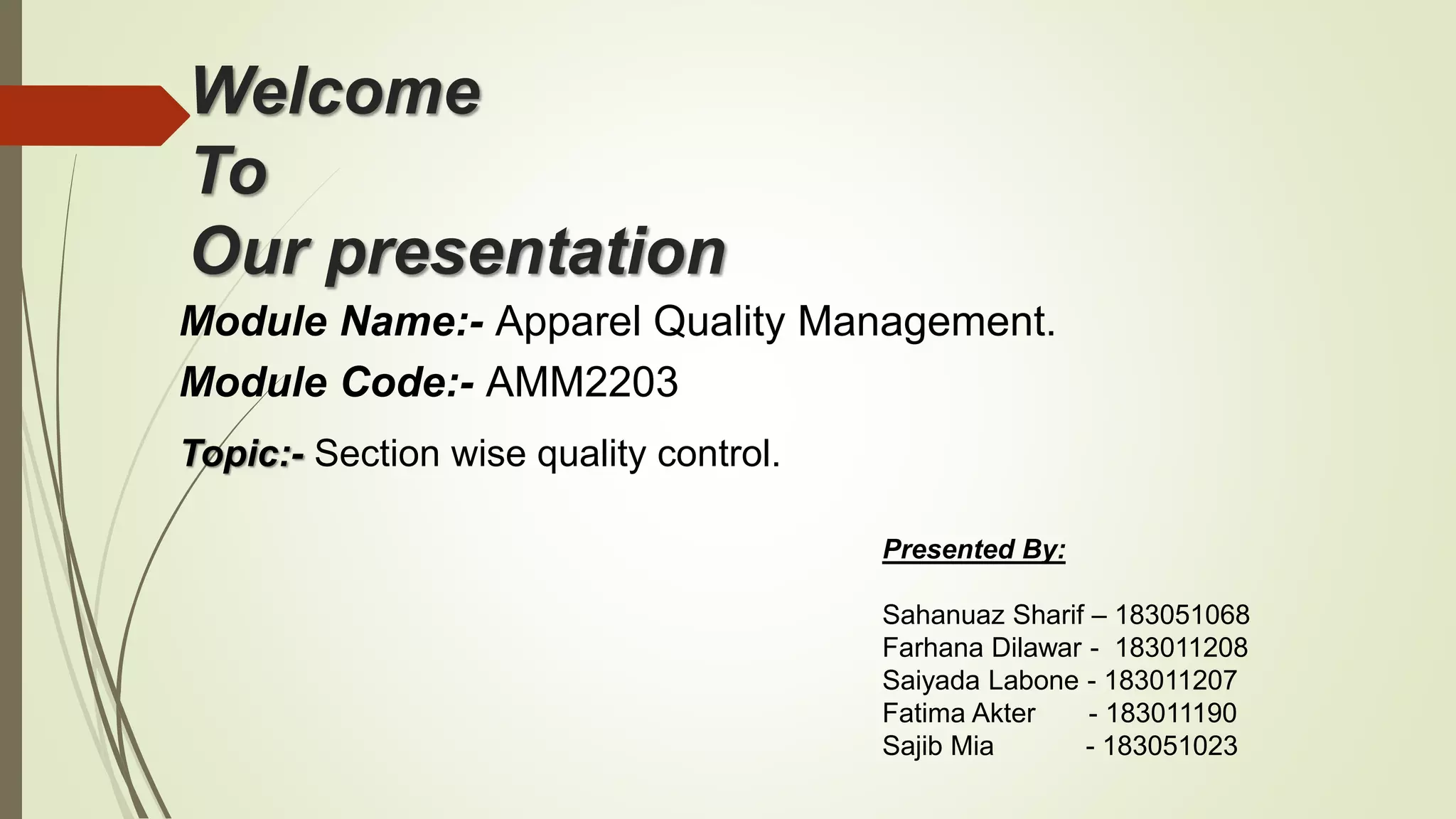

1. Welcome
To
Our presentation
Module Name:- Apparel Quality Management.
Module Code:- AMM2203
Topic:- Section wise quality control.
Presented By:
Sahanuaz Sharif – 183051068
Farhana Dilawar - 183011208
Saiyada Labone - 183011207
Fatima Akter - 183011190
Sajib Mia - 183051023

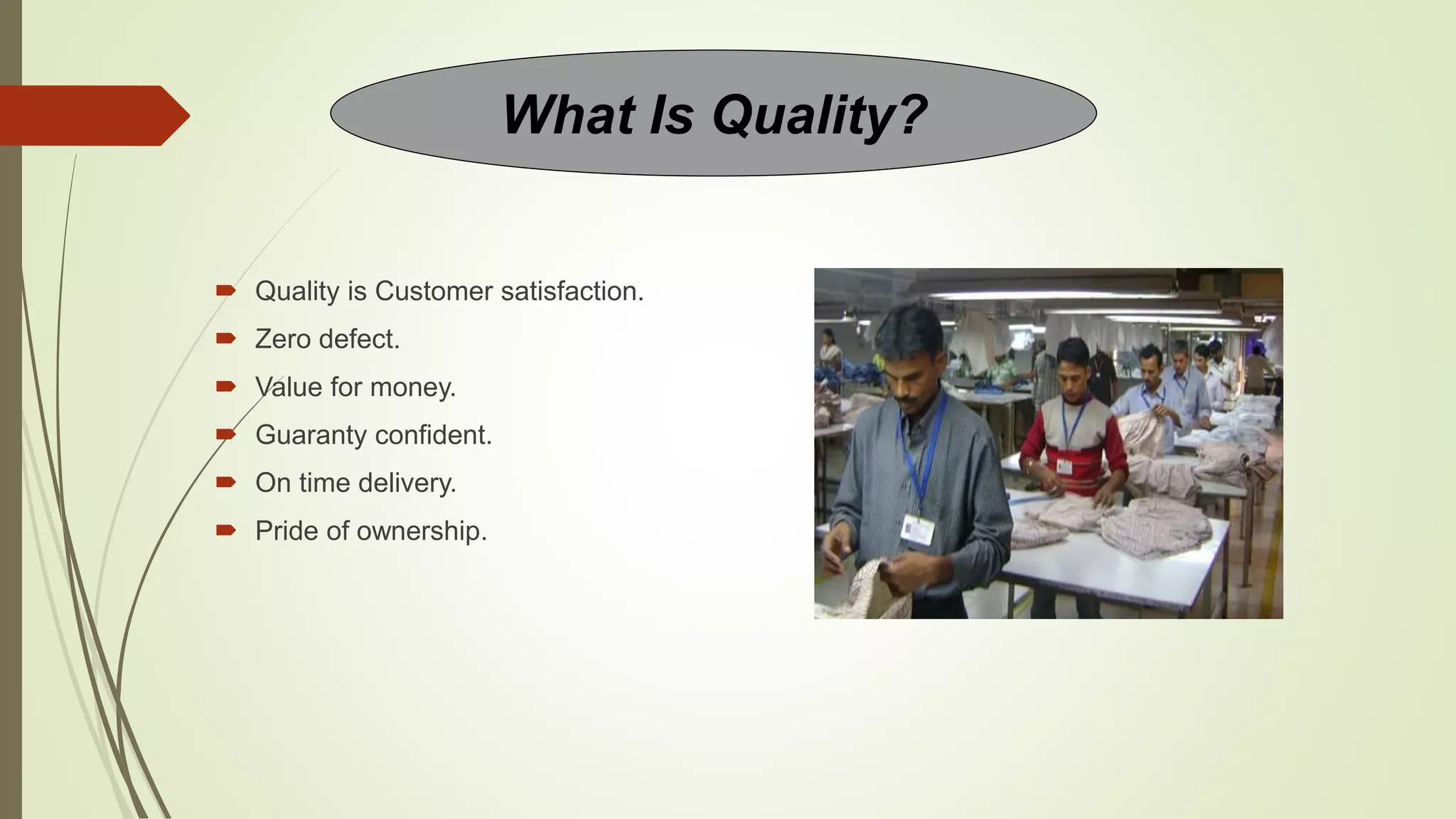

2.  Quality is Customer satisfaction.
 Zero defect.
 Value for money.
 Guaranty confident.
 On time delivery.
 Pride of ownership.
What Is Quality?

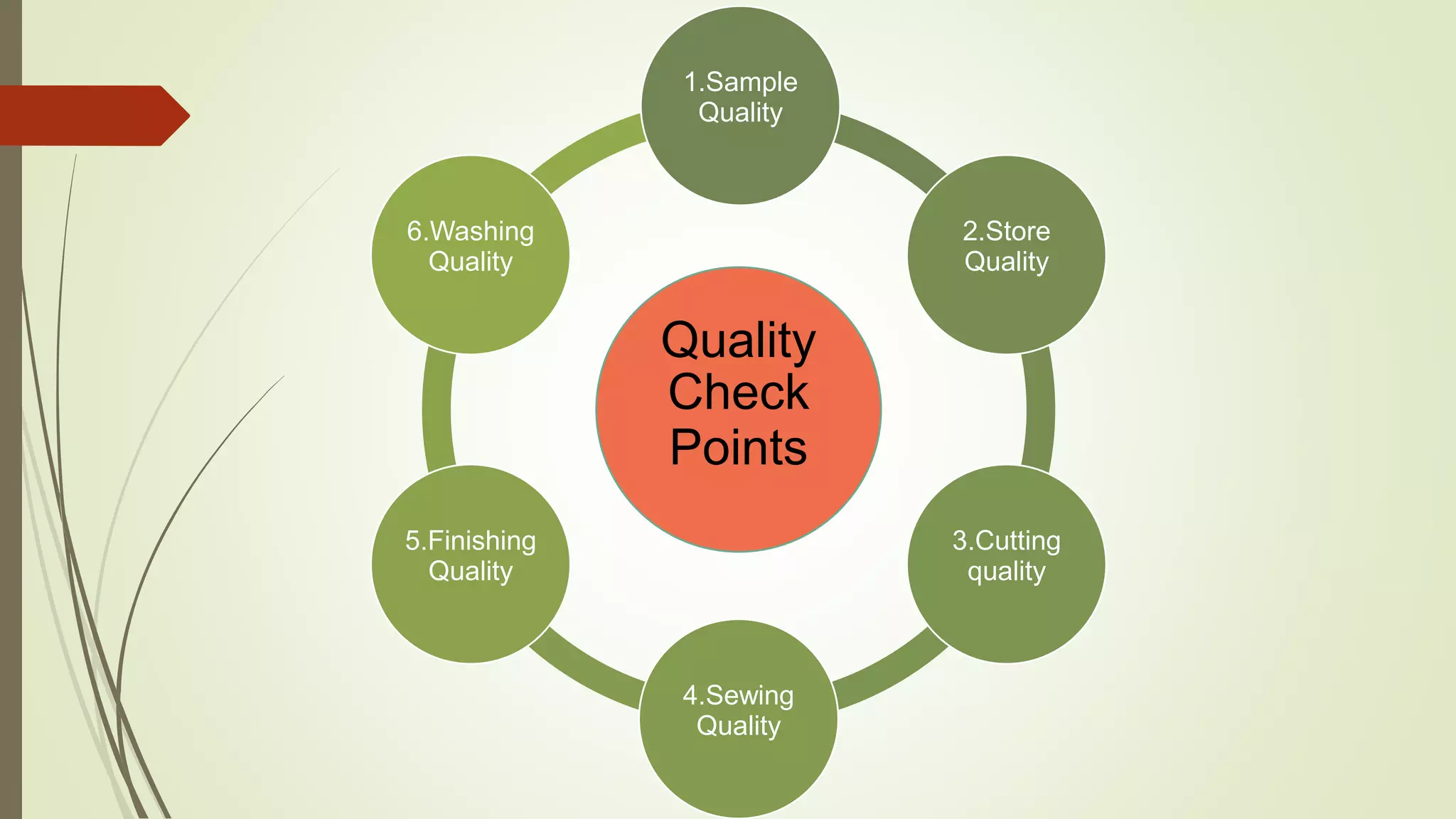

3. Quality
Check
Points
1.Sample
Quality
2.Store
Quality
3.Cutting
quality
4.Sewing
Quality
5.Finishing
Quality
6.Washing
Quality

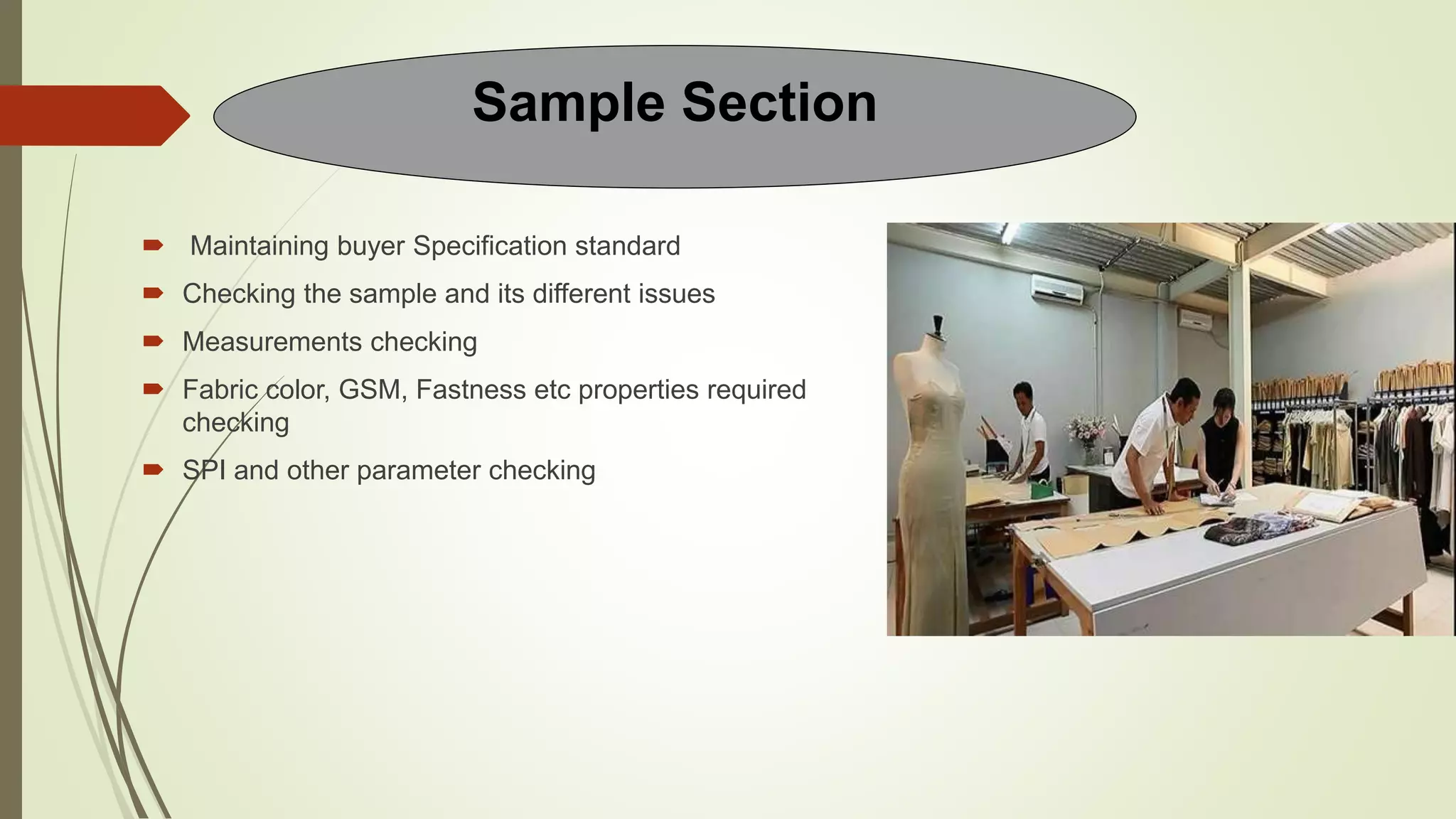

4.  Maintaining buyer Specification standard
 Checking the sample and its different issues
 Measurements checking
 Fabric color, GSM, Fastness etc properties required
checking
 SPI and other parameter checking
Sample Section

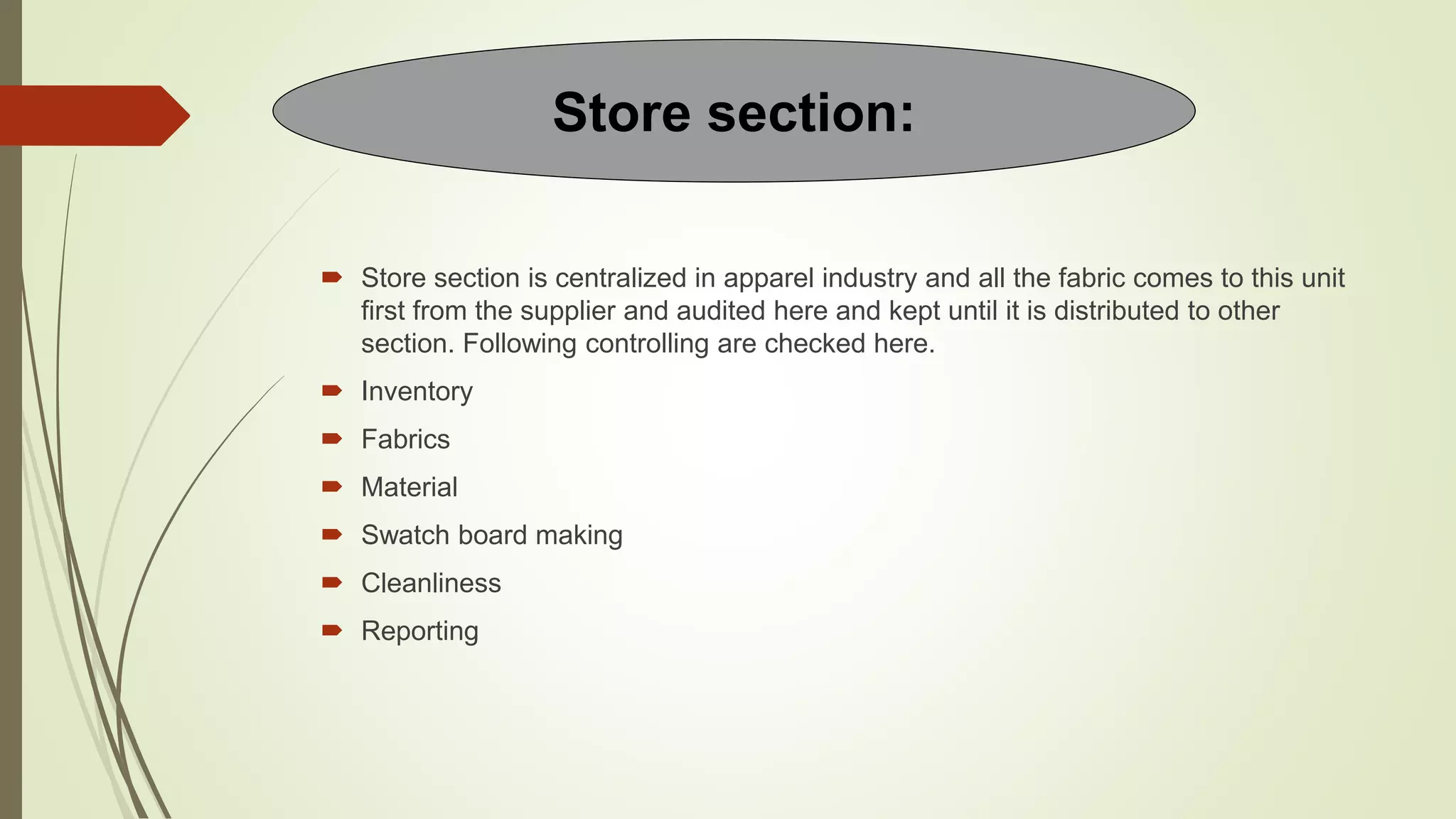

5.  Store section is centralized in apparel industry and all the fabric comes to this unit
first from the supplier and audited here and kept until it is distributed to other
section. Following controlling are checked here.
 Inventory
 Fabrics
 Material
 Swatch board making
 Cleanliness
 Reporting
Store section:

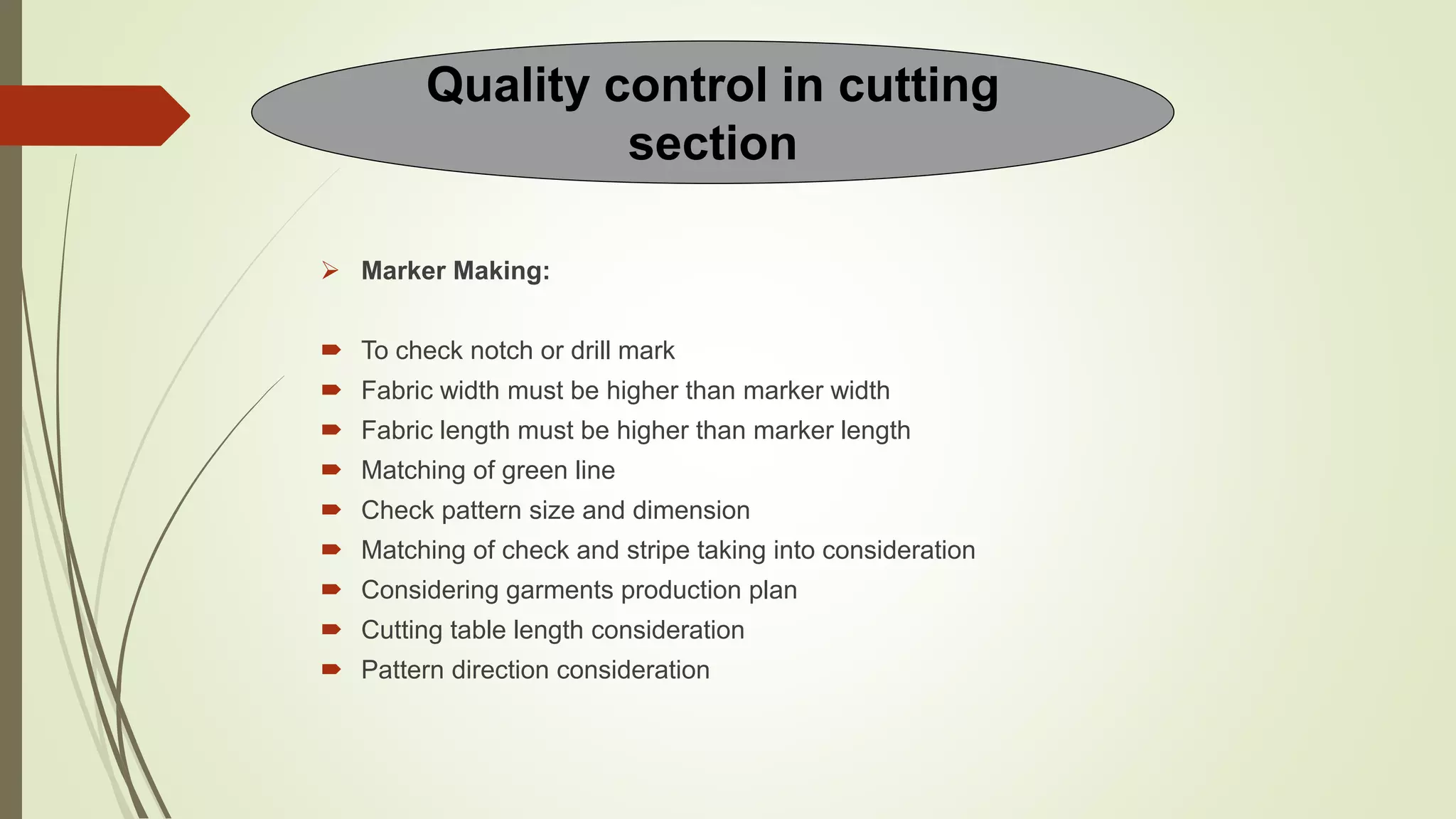

6.  Marker Making:
 To check notch or drill mark
 Fabric width must be higher than marker width
 Fabric length must be higher than marker length
 Matching of green line
 Check pattern size and dimension
 Matching of check and stripe taking into consideration
 Considering garments production plan
 Cutting table length consideration
 Pattern direction consideration
Quality control in cutting
section

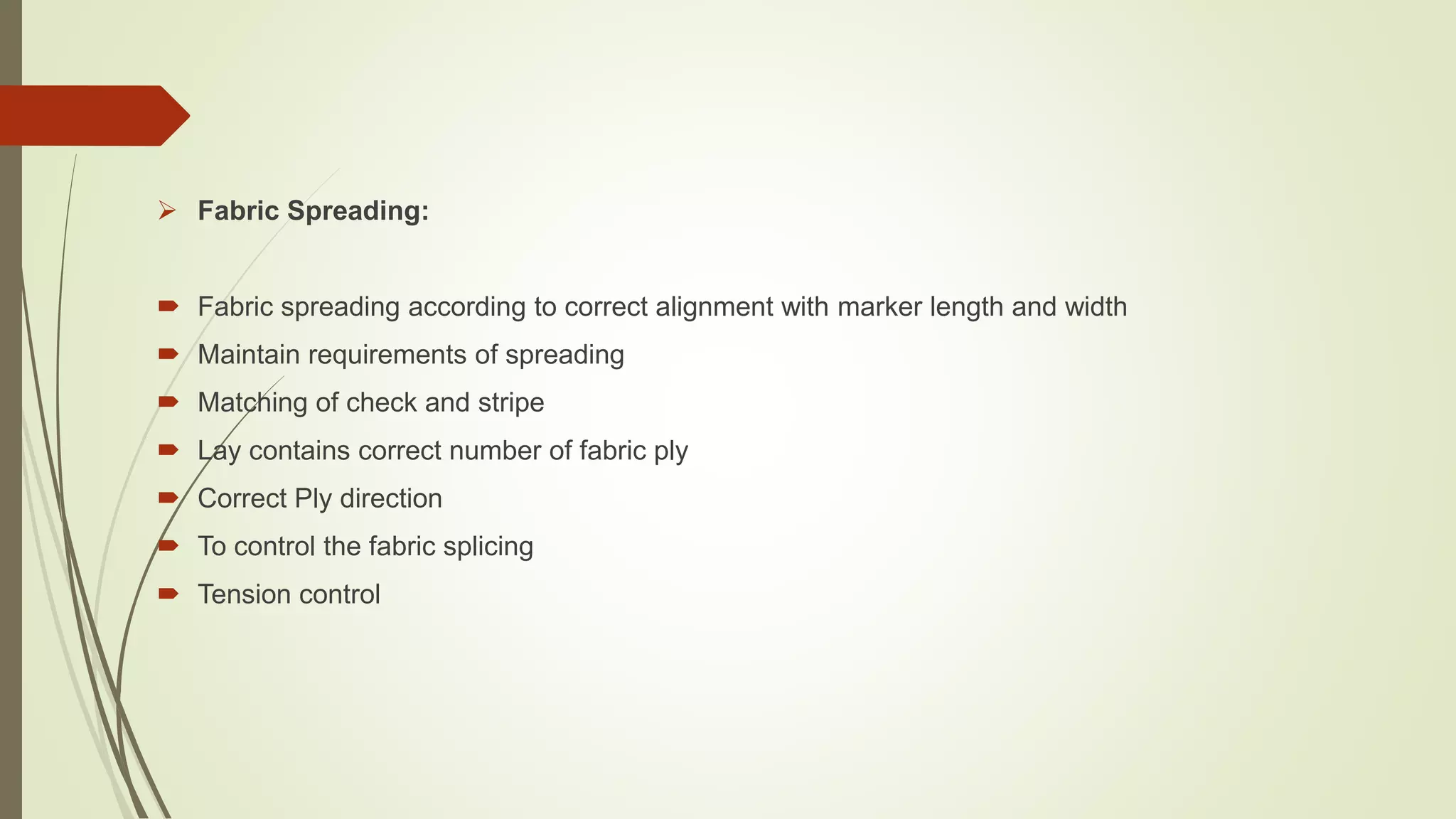

7.  Fabric Spreading:
 Fabric spreading according to correct alignment with marker length and width
 Maintain requirements of spreading
 Matching of check and stripe
 Lay contains correct number of fabric ply
 Correct Ply direction
 To control the fabric splicing
 Tension control

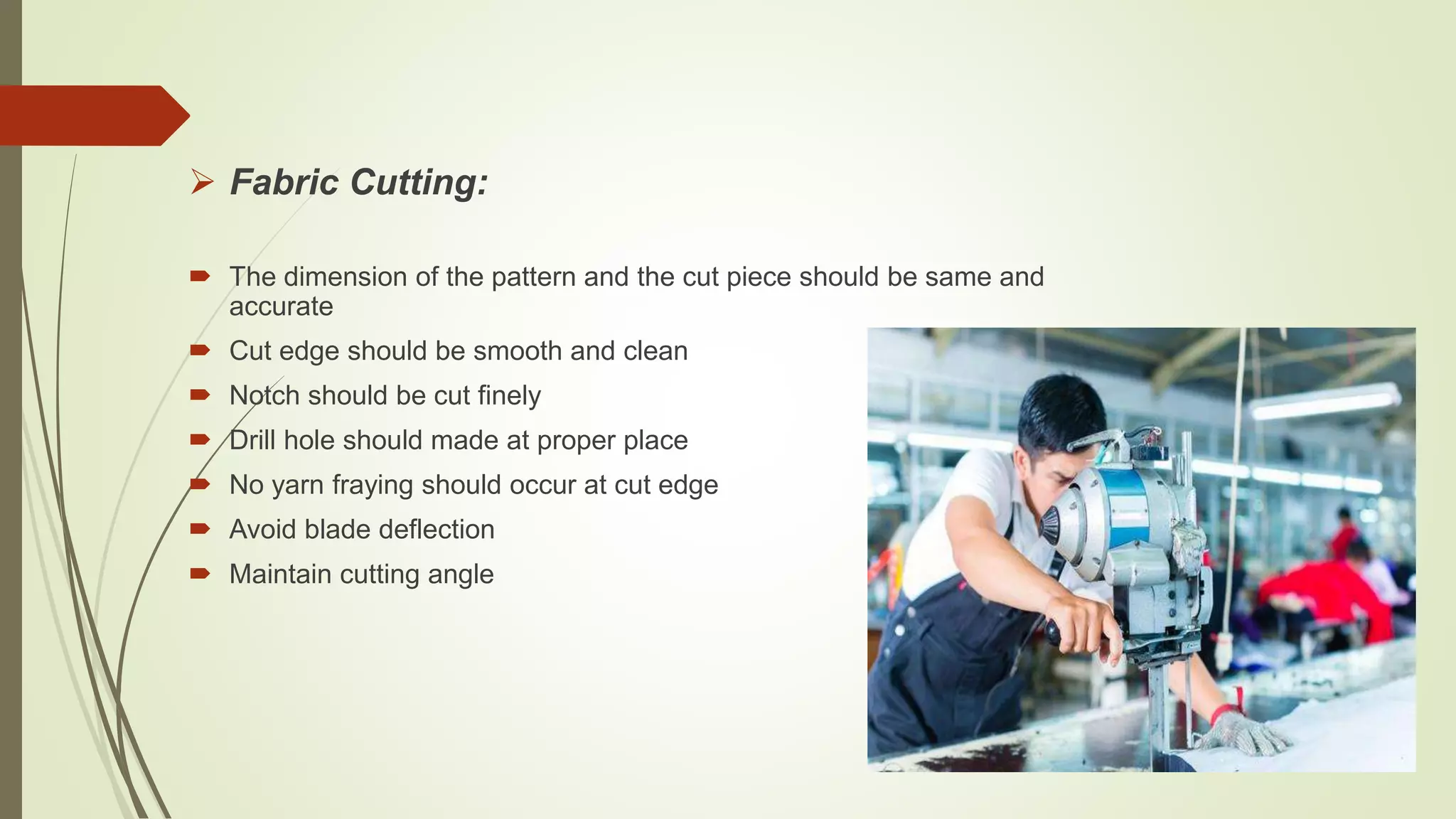

8.  Fabric Cutting:
 The dimension of the pattern and the cut piece should be same and
accurate
 Cut edge should be smooth and clean
 Notch should be cut finely
 Drill hole should made at proper place
 No yarn fraying should occur at cut edge
 Avoid blade deflection
 Maintain cutting angle

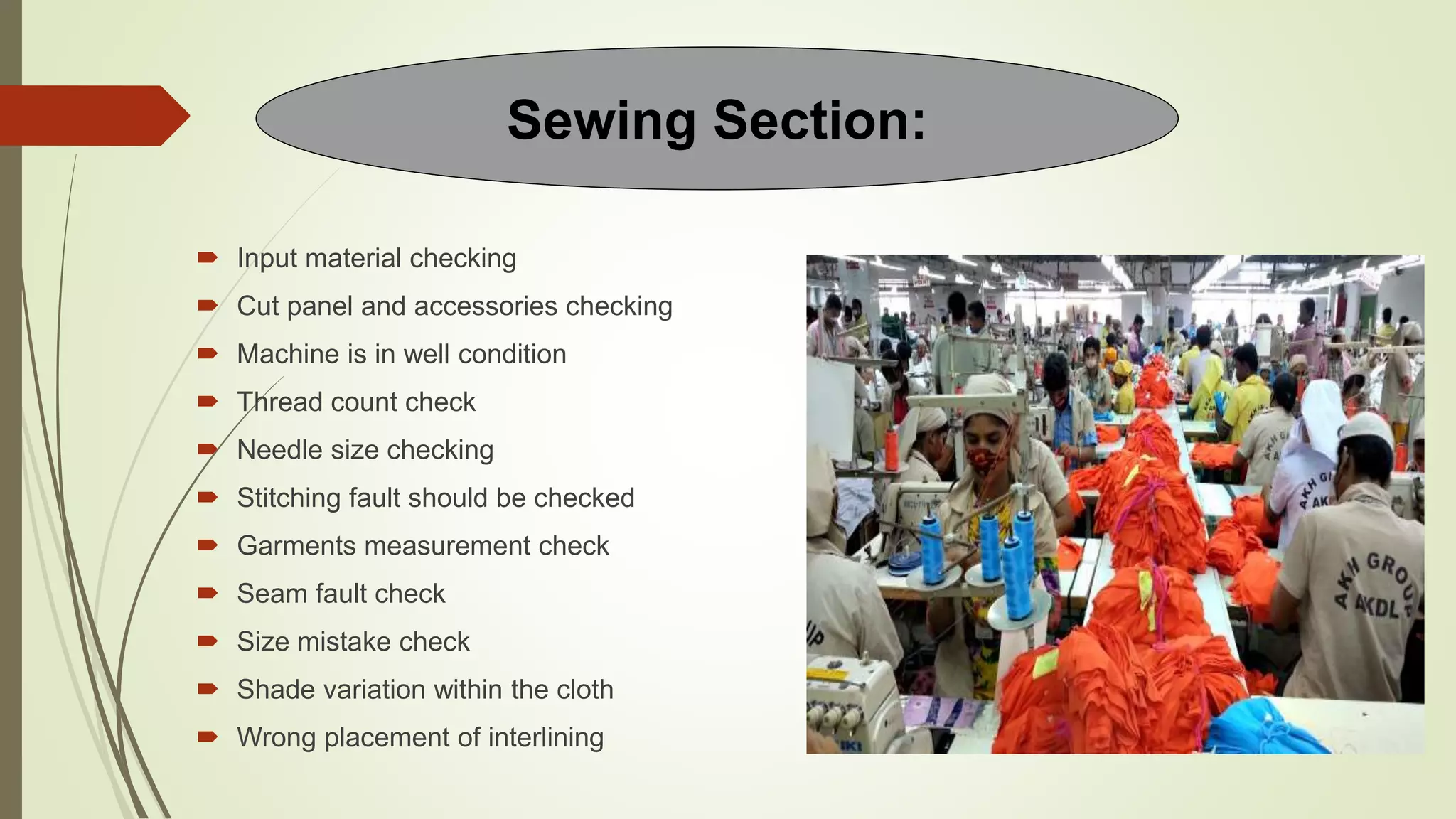

9.  Input material checking
 Cut panel and accessories checking
 Machine is in well condition
 Thread count check
 Needle size checking
 Stitching fault should be checked
 Garments measurement check
 Seam fault check
 Size mistake check
 Shade variation within the cloth
 Wrong placement of interlining
Sewing Section:

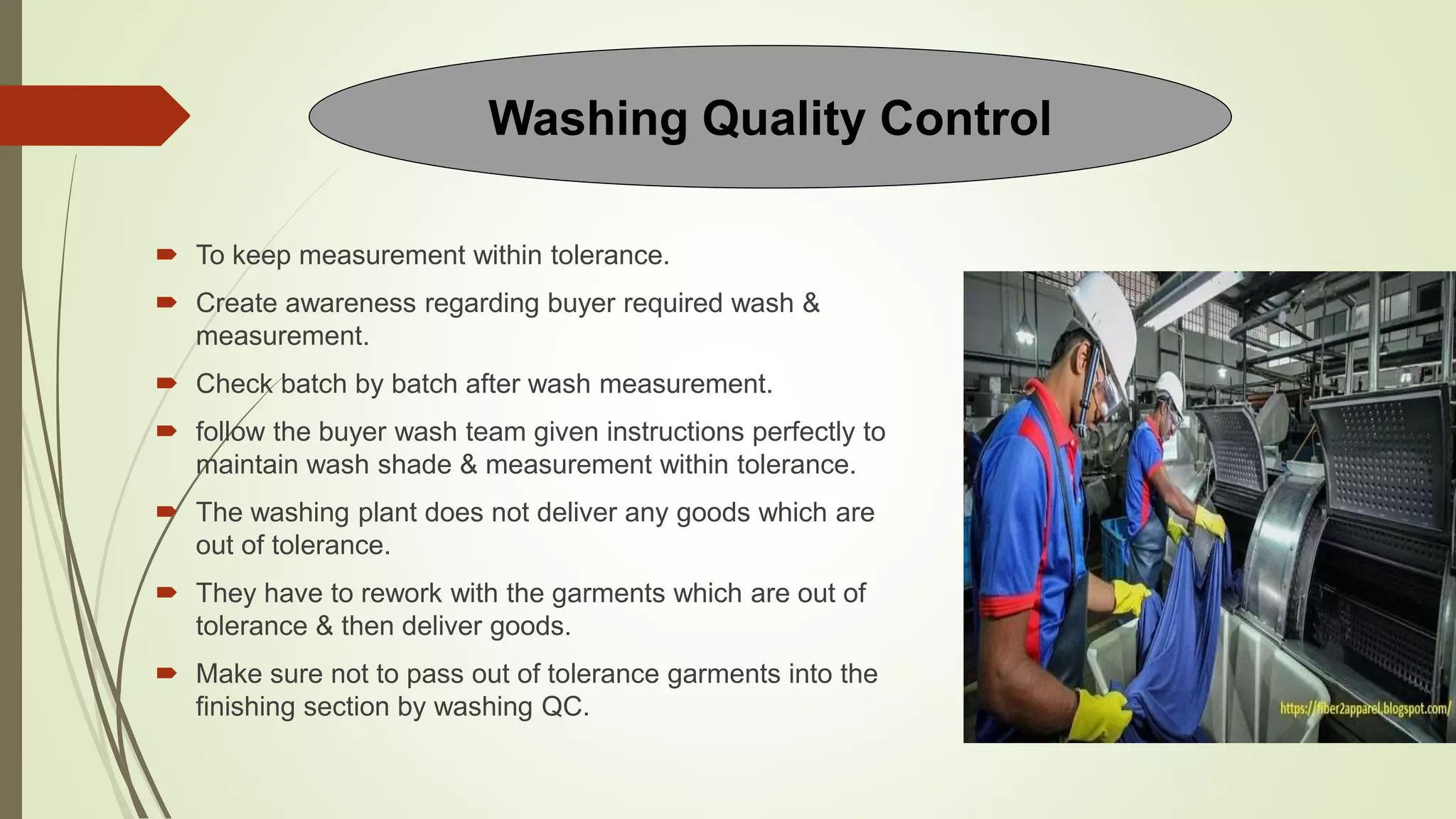

10.  To keep measurement within tolerance.
 Create awareness regarding buyer required wash &
measurement.
 Check batch by batch after wash measurement.
 follow the buyer wash team given instructions perfectly to
maintain wash shade & measurement within tolerance.
 The washing plant does not deliver any goods which are
out of tolerance.
 They have to rework with the garments which are out of
tolerance & then deliver goods.
 Make sure not to pass out of tolerance garments into the
finishing section by washing QC.
Washing Quality Control

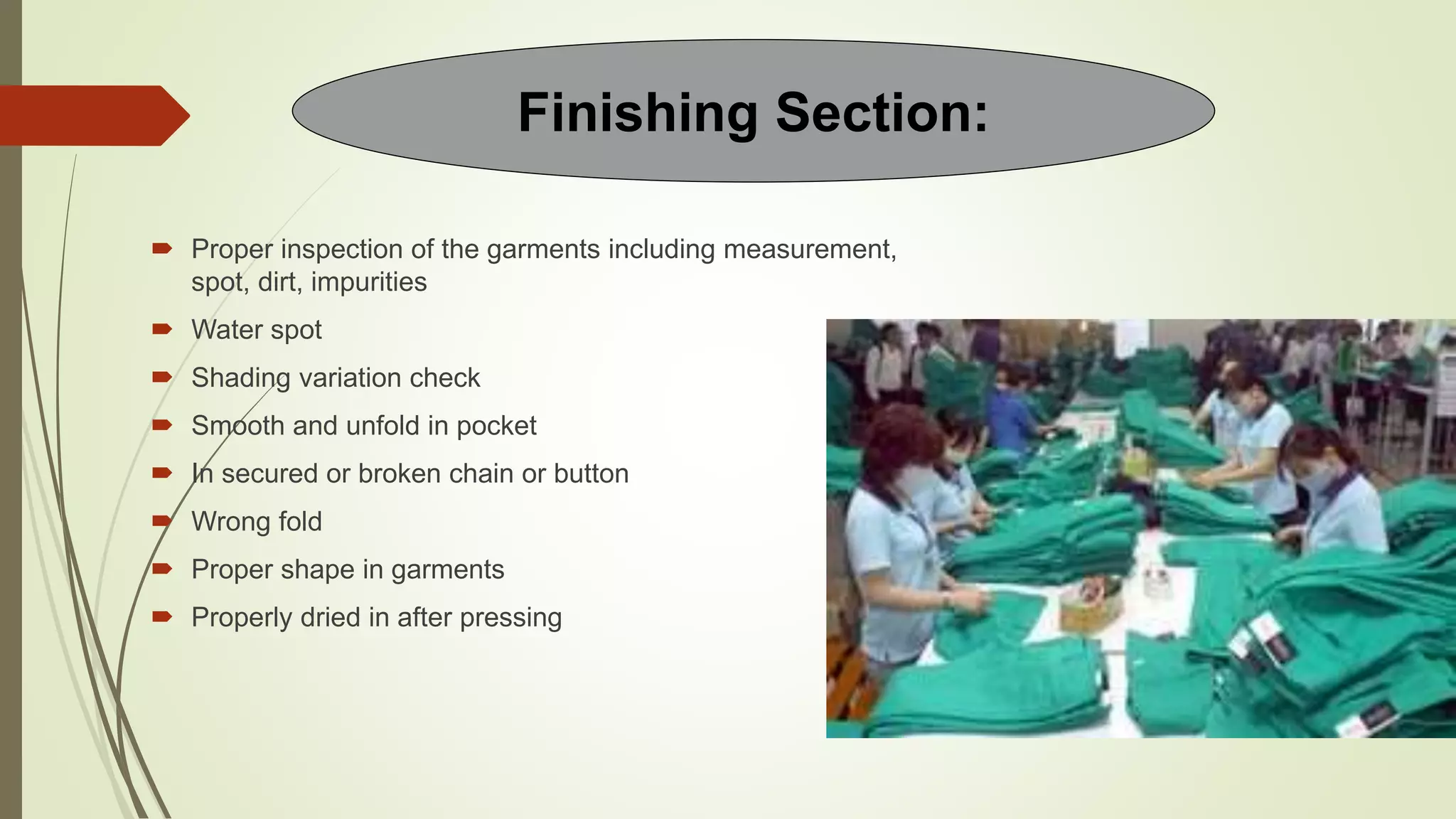

11.  Proper inspection of the garments including measurement,
spot, dirt, impurities
 Water spot
 Shading variation check
 Smooth and unfold in pocket
 In secured or broken chain or button
 Wrong fold
 Proper shape in garments
 Properly dried in after pressing
Finishing Section:

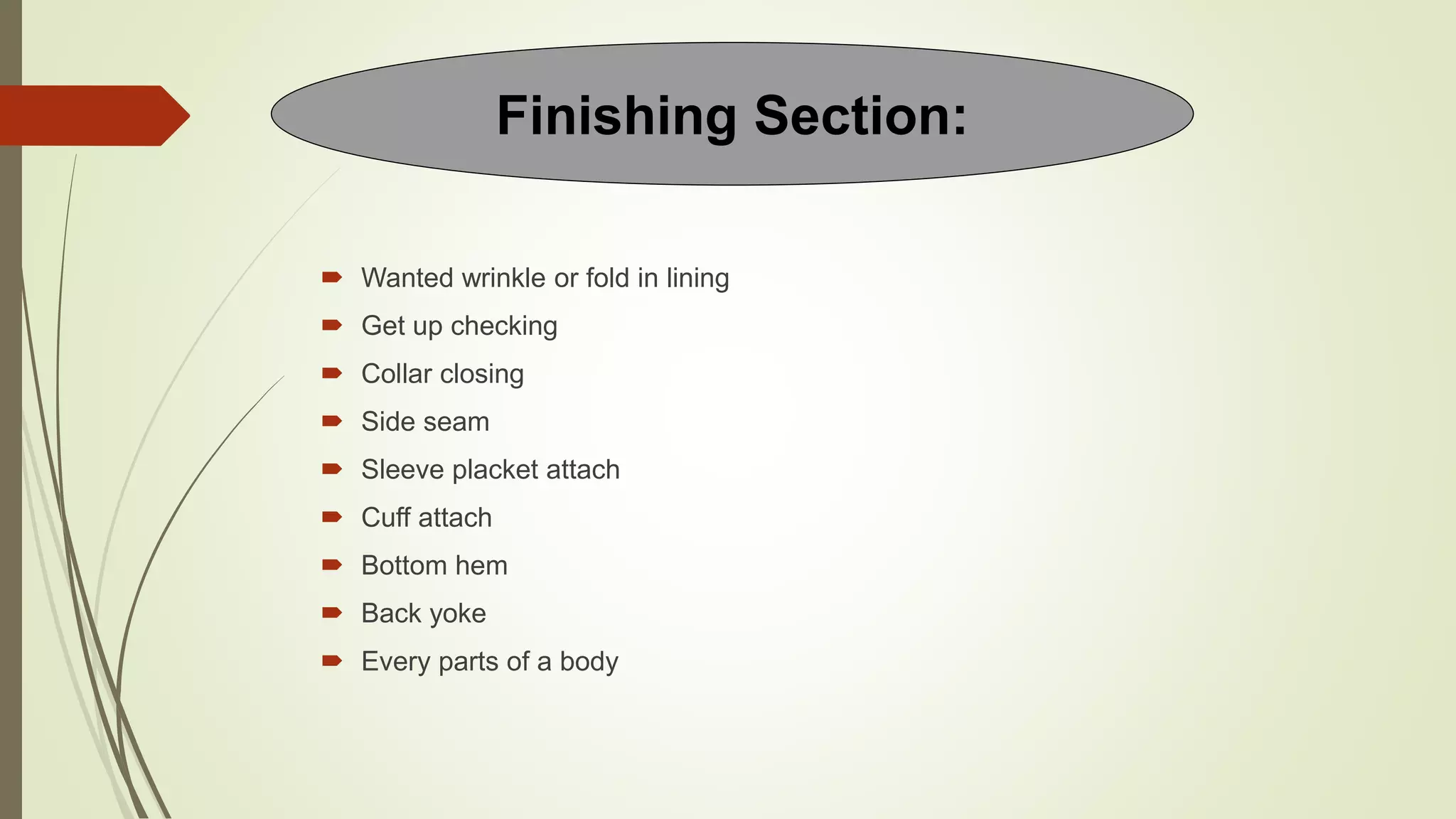

12.  Wanted wrinkle or fold in lining
 Get up checking
 Collar closing
 Side seam
 Sleeve placket attach
 Cuff attach
 Bottom hem
 Back yoke
 Every parts of a body
Finishing Section:

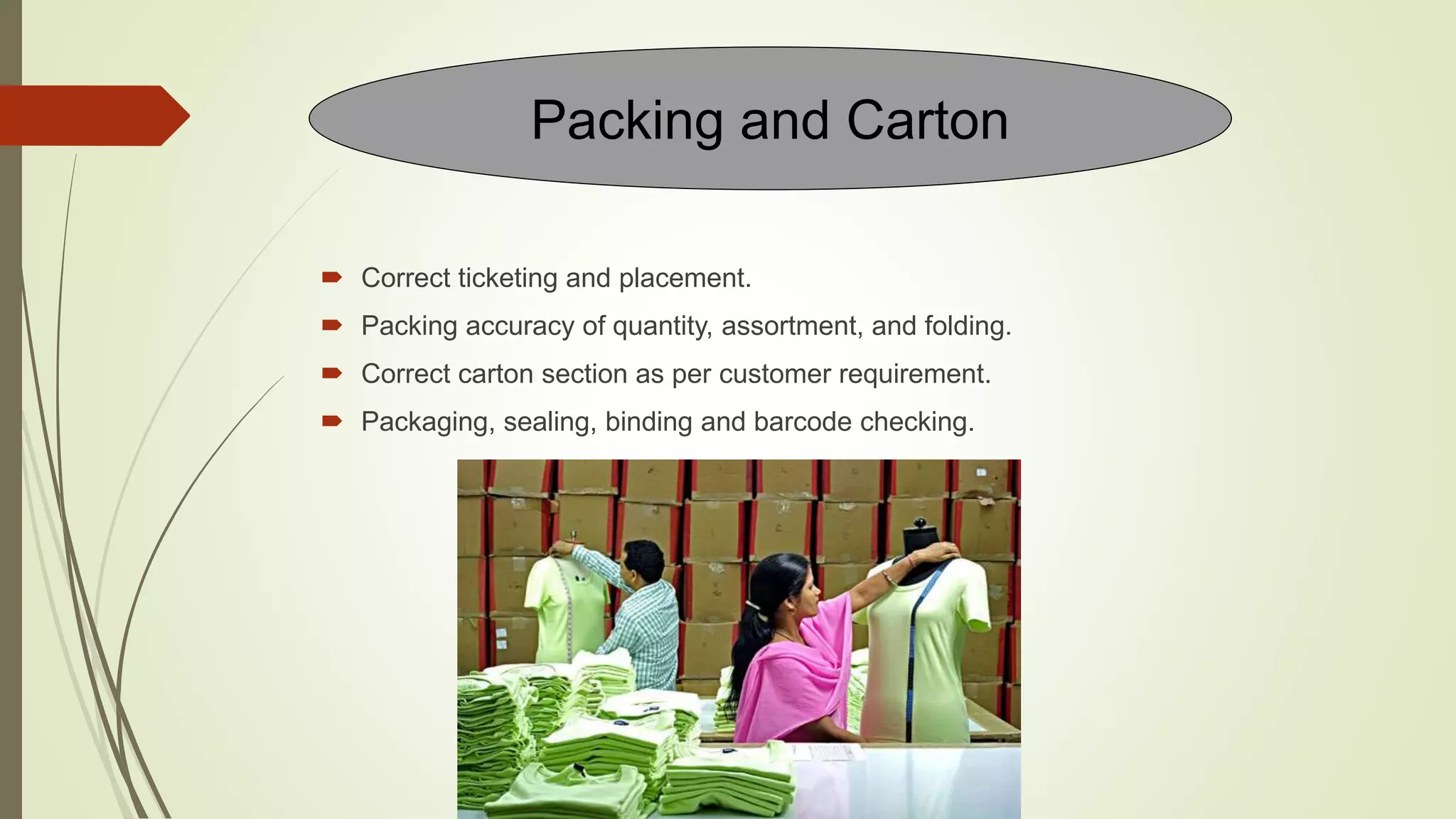

13.  Correct ticketing and placement.
 Packing accuracy of quantity, assortment, and folding.
 Correct carton section as per customer requirement.
 Packaging, sealing, binding and barcode checking.
Packing and Carton

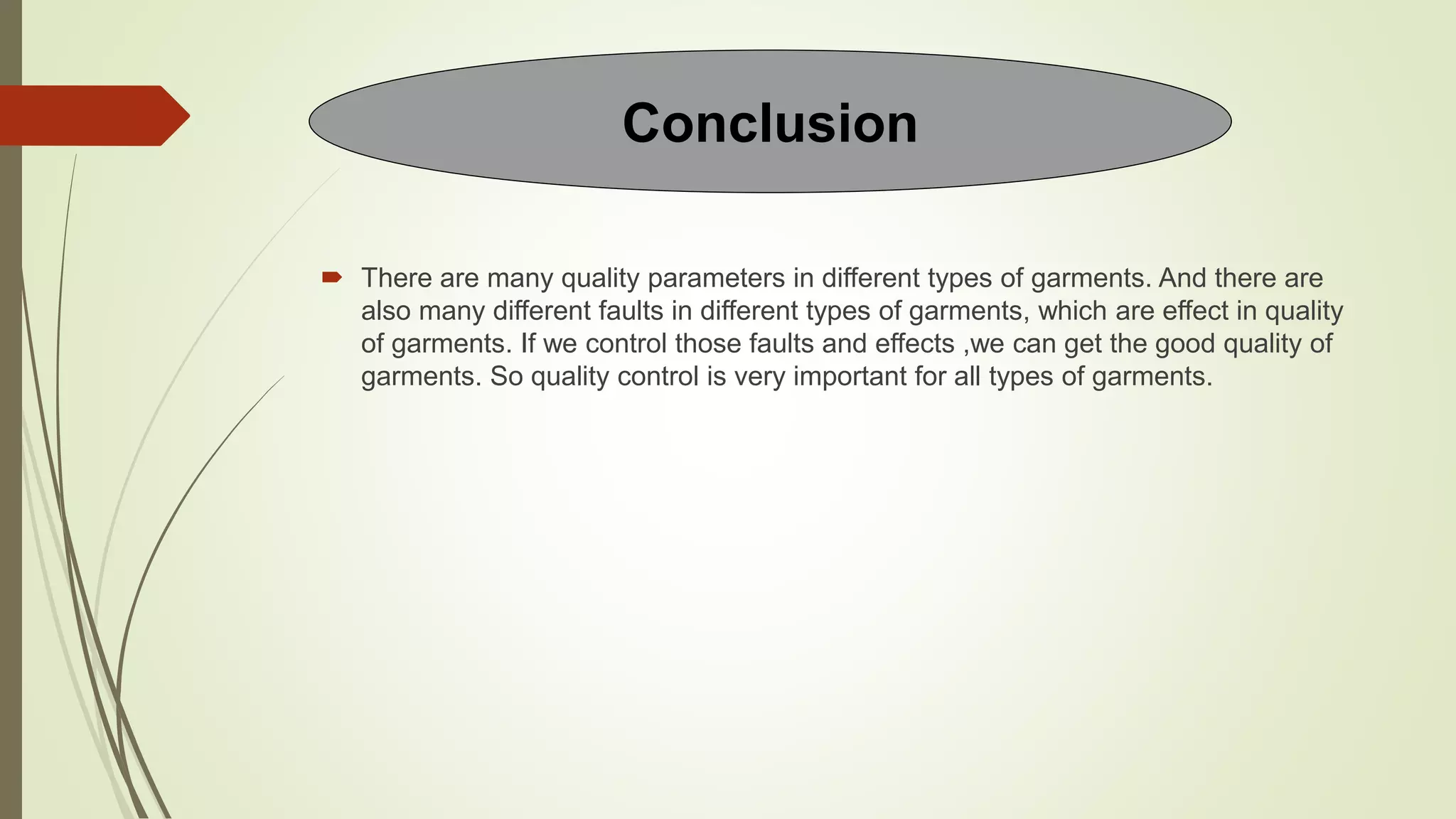

14.  There are many quality parameters in different types of garments. And there are
also many different faults in different types of garments, which are effect in quality
of garments. If we control those faults and effects ,we can get the good quality of
garments. So quality control is very important for all types of garments.
Conclusion
