Agenda
 What is Object Storage
 StorageGRID Webscale Introduction
 Technical Overview
 Key Concepts
 Data flow

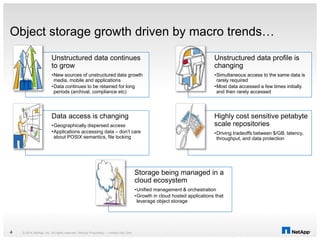

Object storage growth driven by macro trends…
Unstructured data continues
to grow
•New sources of unstructured data growth
media, mobile and applications
•Data continues to be retained for long
periods (archival, compliance etc)
Unstructured data profile is
changing
•Simultaneous access to the same data is
rarely required
•Most data accessed a few times initially
and then rarely accessed
Data access is changing
•Geographically dispersed access
•Applications accessing data – don’t care
about POSIX semantics, file locking
Highly cost sensitive petabyte
scale repositories
•Driving tradeoffs between $/GB, latency,
throughput, and data protection
Storage being managed in a
cloud ecosystem
•Unified management & orchestration
•Growth in cloud hosted applications that
leverage object storage

Introducing StorageGRID Webscale
 A new variant of StorageGRID
 Target object store (cloud, archive, media) use cases at massive scale
 New Features
 Protocols – native support for S3 API
 Scalability – 100 billion objects, 70 PB
 Simplicity – modular scalable resilient architecture, simplified deployment
 Proven track record for reliability and innovation

Block File Object

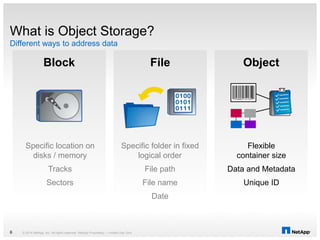

What is Object Storage?
Different ways to address data
Specific location on
disks / memory
Tracks
Sectors
Specific folder in fixed
logical order
File path
File name
Date
Flexible
container size
Data and Metadata
Unique ID

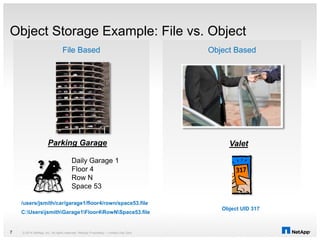

Object Storage Example: File vs. Object
Object BasedFile Based
ValetParking Garage
Daily Garage 1
Floor 4
Row N
Space 53
/users/jsmith/car/garage1/floor4/rown/space53.file
C:UsersjsmithGarage1Floor4RowNSpace53.file
Object UID 317

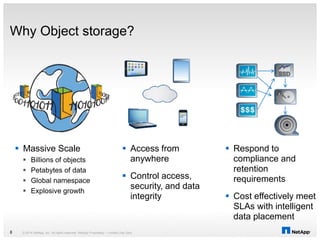

Why Object storage?
 Massive Scale
 Billions of objects
 Petabytes of data
 Global namespace
 Explosive growth
 Respond to
compliance and
retention
requirements
 Cost effectively meet
SLAs with intelligent
data placement
 Access from
anywhere
 Control access,
security, and data
integrity

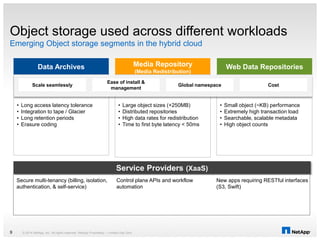

Object storage used across different workloads
Emerging Object storage segments in the hybrid cloud
Service Providers (XaaS)
Media Repository
(Media Redistribution)
• Large object sizes (+250MB)
• Distributed repositories
• High data rates for redistribution
• Time to first byte latency < 50ms
Secure multi-tenancy (billing, isolation,
authentication, & self-service)
Control plane APIs and workflow
automation
New apps requiring RESTful interfaces
(S3, Swift)
Web Data Repositories
• Small object (~KB) performance
• Extremely high transaction load
• Searchable, scalable metadata
• High object counts
Data Archives
• Long access latency tolerance
• Integration to tape / Glacier
• Long retention periods
• Erasure coding
Scale seamlessly
Ease of install &
management
Global namespace Cost

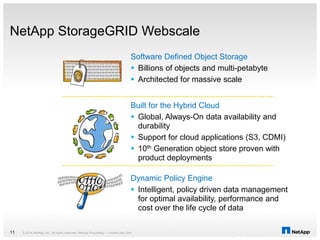

Object-Enabled Data Management

NetApp StorageGRID Webscale
Software Defined Object Storage
 Billions of objects and multi-petabyte
 Architected for massive scale
Built for the Hybrid Cloud
 Global, Always-On data availability and
durability
 Support for cloud applications (S3, CDMI)
 10th Generation object store proven with
product deployments
Dynamic Policy Engine
 Intelligent, policy driven data management
for optimal availability, performance and
cost over the life cycle of data

StorageGRID

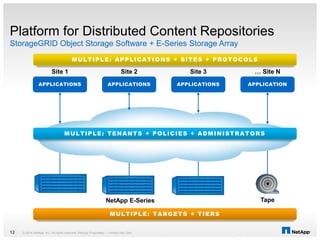

Platform for Distributed Content Repositories
StorageGRID Object Storage Software + E-Series Storage Array
MULTIPLE: APPLICATIONS + SITES + PROTOCOLS
MULTIPLE: TARGETS + TIERS
MULTIPLE: TENANTS + POLICIES + ADMINISTRATORS
Site 1 Site 2 … Site NSite 3
APPLICATIONS APPLICATIONS APPLICATIONS APPLICATION
NetApp E-Series Tape

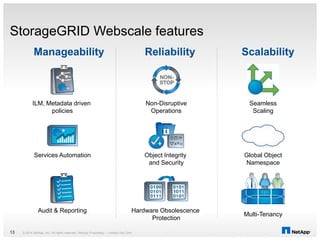

StorageGRID Webscale features
Hardware Obsolescence
Protection
Non-Disruptive
Operations
Object Integrity
and Security
Multi-Tenancy
Global Object
Namespace
Services Automation
Manageability Reliability Scalability
ILM, Metadata driven
policies
Seamless
Scaling
Audit & Reporting

Technical Overview

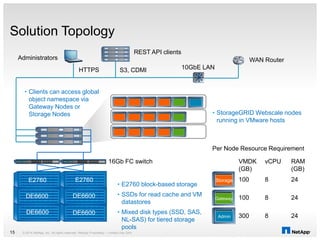

Solution Topology
• Clients can access global
object namespace via
Gateway Nodes or
Storage Nodes
E2760
DE6600
Administrators
REST API clients
10GbE LAN
Per Node Resource Requirement
VMDK
(GB)
vCPU RAM
(GB)
100 8 24
100 8 24
300 8 24
Storage
Gateway
Admin
DE6600
E2760
DE6600
DE6600
• StorageGRID Webscale nodes
running in VMware hosts
S3, CDMIHTTPS
16Gb FC switch
WAN Router
• E2760 block-based storage
• SSDs for read cache and VM
datastores
• Mixed disk types (SSD, SAS,
NL-SAS) for tiered storage
pools

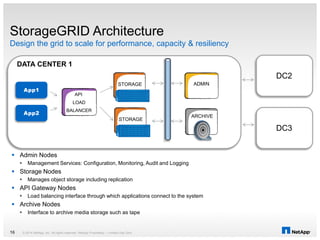

StorageGRID Architecture
App1
App2
 Admin Nodes
 Management Services: Configuration, Monitoring, Audit and Logging
 Storage Nodes
 Manages object storage including replication
 API Gateway Nodes
 Load balancing interface through which applications connect to the system
 Archive Nodes
 Interface to archive media storage such as tape
DATA CENTER 1
DC2
DC3
Design the grid to scale for performance, capacity & resiliency
STORAGE
STORAGE
ADMIN
ARCHIVE
API
LOAD
BALANCER

 Use NetApp
Designer to architect
the grid to your
requirements
 Quickly deploy the grid
via NetApp
Installer
 Adapt your grid to
changing requirements
 Add sites
 Add nodes and capacity
 Support rolling upgrades

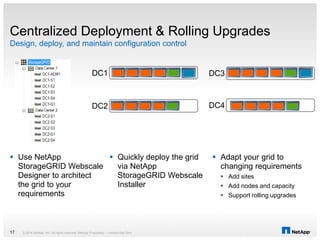

Centralized Deployment & Rolling Upgrades
Design, deploy, and maintain configuration control
DC1
DC2 DC4
DC3

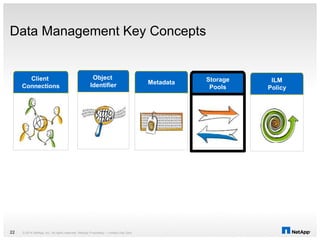

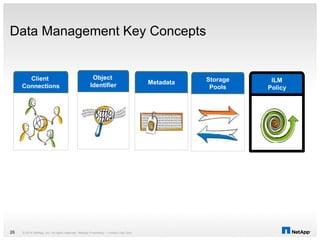

Data Management Key Concepts
Client
Connections
Storage
Pools
Metadata
Object
Identifier
ILM
Policy

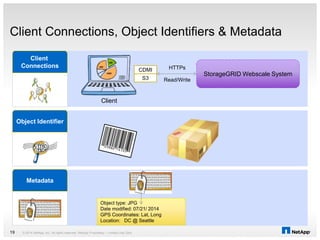

Client Connections, Object Identifiers & Metadata
Client
CDMI
S3 Read/Write
StorageGRID Webscale System
HTTPs
Client
Connections
Object Identifier
Object type: JPG
Date modified: 07/21/ 2014
GPS Coordinates: Lat, Long
Location: DC @ Seattle
Metadata

 Scale beyond traditional
application metadata to enable
new capabilities
 Flexibility:
 Metadata is application defined
 Up to 4096 fields can be created as
requirements change (CDMI)
 No lock-in to predefined schema
 ILM engine evaluates the
metadata and applies policies
 S3 metadata available to the policy
engine
Extensive metadata management

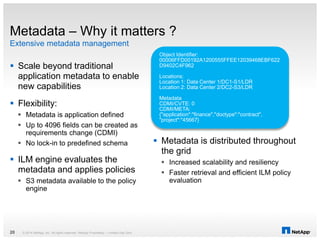

Metadata – Why it matters ?
 Metadata is distributed throughout
the grid
 Increased scalability and resiliency
 Faster retrieval and efficient ILM policy
evaluation
Object Identifier:
00006FFD00192A1200555FFEE12039468EBF622
D9402C4F962
Locations:
Location 1: Data Center 1/DC1-S1/LDR
Location 2: Data Center 2/DC2-S3/LDR
Metadata
CDMI/CVTE: 0
CDMI/META:
{"application":"finance","doctype":"contract",
"project":"45667}

Extensive metadata management

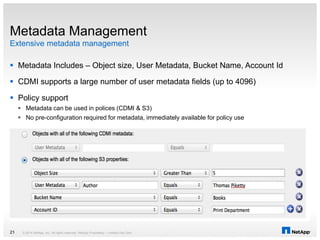

Metadata Management
 Metadata Includes – Object size, User Metadata, Bucket Name, Account Id
 CDMI supports a large number of user metadata fields (up to 4096)
 Policy support
 Metadata can be used in polices (CDMI & S3)
 No pre-configuration required for metadata, immediately available for policy use

Client
Connections
Storage
Pools
Metadata
Object
Identifier
ILM
Policy

Sites
(Link Cost Groups)

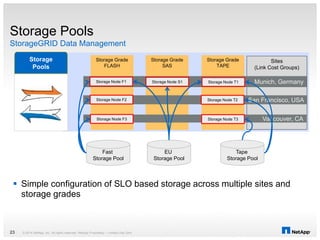

Storage Pools
StorageGRID Data Management
Storage
Pools
Storage Grade
TAPE
Storage Grade
SAS
Storage Grade
FLASH
Munich, Germany
San Francisco, USA
Storage Node T1
Storage Node T2
Tape
Storage Pool
EU
Storage Pool
Storage Node S1Storage Node F1
Storage Node F2
Fast
Storage Pool
Vancouver, CAStorage Node T3Storage Node F3
 Simple configuration of SLO based storage across multiple sites and
storage grades

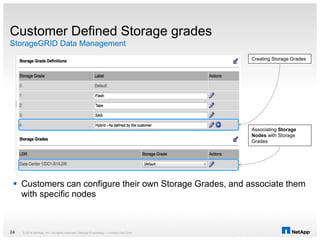

Customer Defined Storage grades
Associating Storage
Nodes with Storage
Grades
Creating Storage Grades
 Customers can configure their own Storage Grades, and associate them
with specific nodes

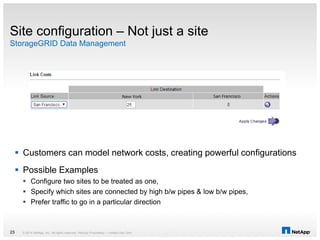

Site configuration – Not just a site
 Customers can model network costs, creating powerful configurations
 Possible Examples
 Configure two sites to be treated as one,
 Specify which sites are connected by high b/w pipes & low b/w pipes,
 Prefer traffic to go in a particular direction

Client
Connections
Storage
Pools
Metadata
Object
Identifier
ILM
Policy

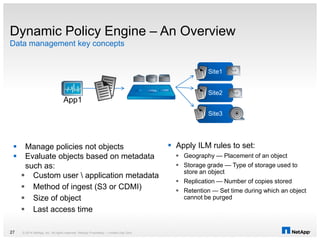

Dynamic Policy Engine – An Overview
Data management key concepts
 Manage policies not objects
 Evaluate objects based on metadata
such as:
 Custom user application metadata
 Method of ingest (S3 or CDMI)
 Size of object
 Last access time
 Apply ILM rules to set:
 Geography — Placement of an object
 Storage grade — Type of storage used to
store an object
 Replication — Number of copies stored
 Retention — Set time during which an object
cannot be purged
App1
Site1
Site2
Site3

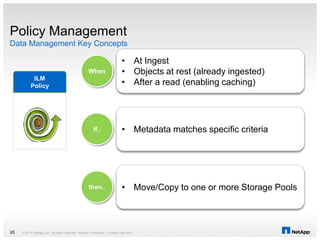

Policy Management
ILM
Policy
When
If..
then..
• At Ingest
• Objects at rest (already ingested)
• After a read (enabling caching)
• Metadata matches specific criteria
• Move/Copy to one or more Storage Pools

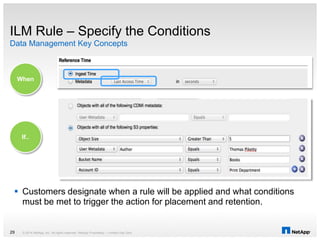

ILM Rule – Specify the Conditions
When
If..
 Customers designate when a rule will be applied and what conditions
must be met to trigger the action for placement and retention.

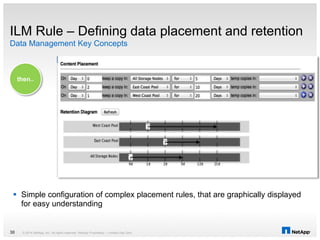

ILM Rule – Defining data placement and retention
then..
 Simple configuration of complex placement rules, that are graphically displayed
for easy understanding

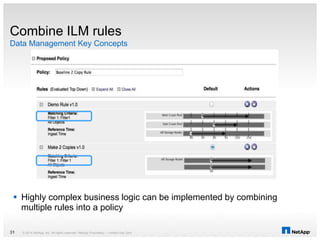

Combine ILM rules
 Highly complex business logic can be implemented by combining
multiple rules into a policy

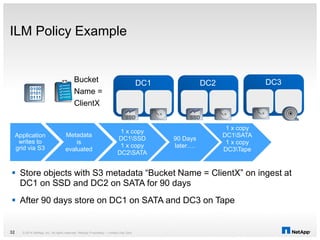

ILM Policy Example
Application
writes to
grid via S3
Metadata
is
evaluated
DC1 DC2 DC3
 Store objects with S3 metadata “Bucket Name = ClientX” on ingest at
DC1 on SSD and DC2 on SATA for 90 days
 After 90 days store on DC1 on SATA and DC3 on Tape
1 x copy
DC1SSD
1 x copy
DC2SATA
90 Days
later….
1 x copy
DC1SATA
1 x copy
DC3Tape
Bucket
Name =
ClientX

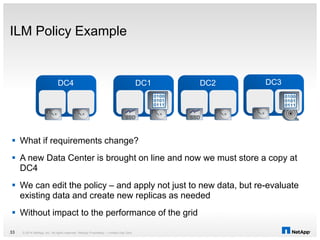

ILM Policy Example
DC1 DC2 DC3
 What if requirements change?
 A new Data Center is brought on line and now we must store a copy at
DC4
 We can edit the policy – and apply not just to new data, but re-evaluate
existing data and create new replicas as needed
 Without impact to the performance of the grid
DC4

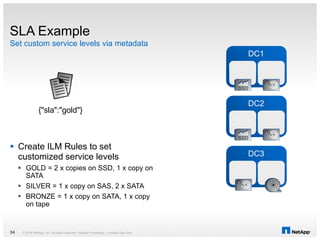

 Create ILM Rules to set
customized service levels
 GOLD = 2 x copies on SSD, 1 x copy on
SATA
 SILVER = 1 x copy on SAS, 2 x SATA
 BRONZE = 1 x copy on SATA, 1 x copy
on tape
Set custom service levels via metadata
SLA Example
{"sla":"gold"}
DC1
DC2
DC3

Built-in Object Integrity Verification and Self Healing
Durability at the object level

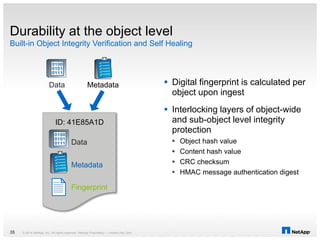

 Digital fingerprint is calculated per
object upon ingest
 Interlocking layers of object-wide
and sub-object level integrity
protection
 Object hash value
 Content hash value
 CRC checksum
 HMAC message authentication digest
ID: 41E85A1D
Data Metadata
Data
Metadata
Fingerprint

Built-in Object Integrity Verification and Self Healing
Durability at the object level

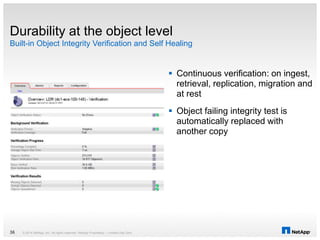

 Continuous verification: on ingest,
retrieval, replication, migration and
at rest
 Object failing integrity test is
automatically replaced with
another copy

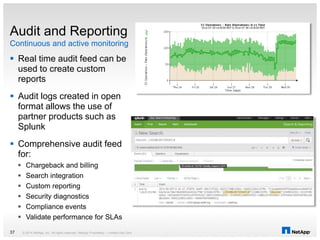

 Real time audit feed can be
used to create custom
reports
 Audit logs created in open
format allows the use of
partner products such as
Splunk
 Comprehensive audit feed
for:
 Chargeback and billing
 Search integration
 Custom reporting
 Security diagnostics
 Compliance events
 Validate performance for SLAs
Continuous and active monitoring
Audit and Reporting

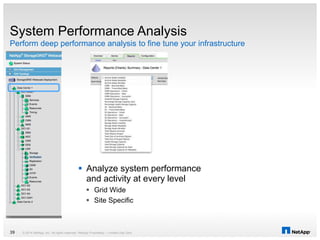

System Performance Analysis
Perform deep performance analysis to fine tune your infrastructure

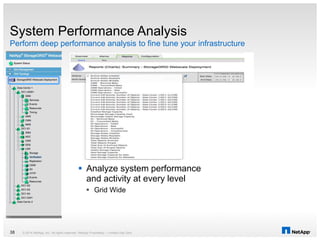

 Analyze system performance
and activity at every level
 Grid Wide

 Grid Wide
 Site Specific

 Grid Wide
 Site Specific
 Service Level

Data Flow
Understanding how data flows through a StorageGRID Webscale
system for different operations

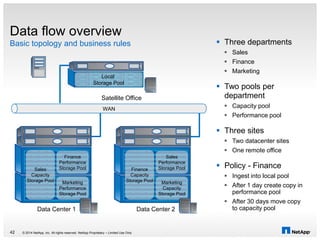

Data flow overview
Basic topology and business rules
© 2014 NetApp, Inc. All rights reserved. NetApp Proprietary – Limited Use Only
Sales
Capacity
Storage Pool
Finance
Performance
Storage Pool
Marketing
Performance
Storage Pool
Finance
Capacity
Storage Pool
Sales
Performance
Storage Pool
Marketing
Capacity
Storage Pool
Local
Storage Pool
WAN
Satellite Office
42
 Three departments
 Sales
 Finance
 Marketing
 Two pools per
department
 Capacity pool
 Performance pool
 Three sites
 Two datacenter sites
 One remote office
 Policy - Finance
 Ingest into local pool
 After 1 day create copy in
performance pool
 After 30 days move copy
to capacity poolData Center 1 Data Center 2

Sales
Capacity
Storage Pool
Finance
Performance
Storage Pool
Marketing
Performance
Storage Pool
Finance
Capacity
Storage Pool
Sales
Performance
Storage Pool
Marketing
Capacity
Storage Pool
Local
Storage Pool
WAN
Satellite Office
Data Center 1 Data Center 2

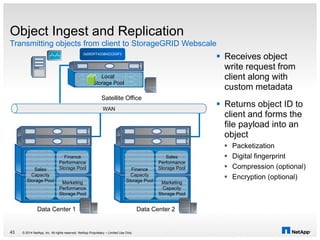

Object Ingest and Replication
Transmitting objects from client to StorageGRID Webscale
 Receives object
write request from
client along with
custom metadata
 Returns object ID to
client and forms the
file payload into an
object
 Packetization
 Digital fingerprint
 Compression (optional)
 Encryption (optional)
43
0x05DFF4338ADCE6F5

Object Ingest and Replication
Transmitting objects from client to StorageGRID Webscale
Sales
Capacity
Storage Pool
Finance
Performance
Storage Pool
Marketing
Performance
Storage Pool
Finance
Capacity
Storage Pool
Sales
Performance
Storage Pool
Marketing
Capacity
Storage Pool
Local
Storage Pool
WAN
Satellite Office
44

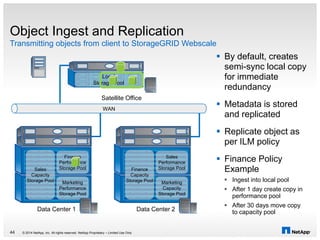

 By default, creates
semi-sync local copy
for immediate
redundancy
 Metadata is stored
and replicated
 Replicate object as
per ILM policy
 Finance Policy
Example
 Ingest into local pool
 After 1 day create copy in
performance pool
 After 30 days move copy
to capacity poolData Center 1 Data Center 2

Sales
Capacity
Storage Pool
Finance
Performance
Storage Pool
Marketing
Performance
Storage Pool
Finance
Capacity
Storage Pool
Sales
Performance
Storage Pool
Marketing
Capacity
Storage Pool
Local
Storage Pool
WAN
Satellite Office
Object Replication

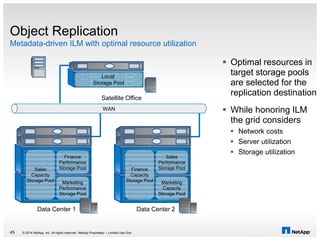

Metadata-driven ILM with optimal resource utilization
 Optimal resources in
target storage pools
are selected for the
replication destination
 While honoring ILM
the grid considers
 Network costs
 Server utilization
 Storage utilization
45

Sales
Capacity
Storage Pool
Finance
Performance
Storage Pool
Marketing
Performance
Storage Pool
Finance
Capacity
Storage Pool
Sales
Performance
Storage Pool
Marketing
Capacity
Storage Pool
Local
Storage Pool
WAN
Satellite Office

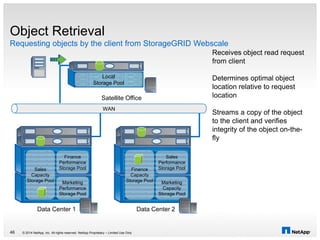

Object Retrieval
Requesting objects by the client from StorageGRID Webscale
Receives object read request
from client
Determines optimal object
location relative to request
location
Streams a copy of the object
to the client and verifies
integrity of the object on-the-
fly
46

Thank You

Management Services
Admin Node

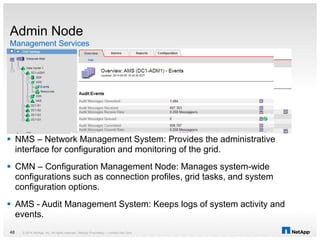

 NMS – Network Management System: Provides the administrative
interface for configuration and monitoring of the grid.
 CMN – Configuration Management Node: Manages system-wide
configurations such as connection profiles, grid tasks, and system
configuration options.
 AMS - Audit Management System: Keeps logs of system activity and
events.

Object, Metadata Storage and Replication
Storage Nodes

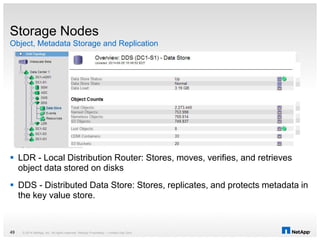

 LDR - Local Distribution Router: Stores, moves, verifies, and retrieves
object data stored on disks
 DDS - Distributed Data Store: Stores, replicates, and protects metadata in
the key value store.

Object, Metadata Storage and Replication
Storage Nodes - Continued

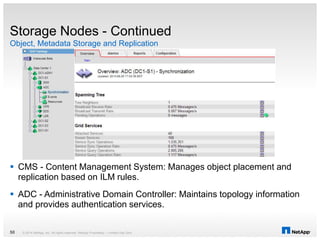

 CMS - Content Management System: Manages object placement and
replication based on ILM rules.
 ADC - Administrative Domain Controller: Maintains topology information
and provides authentication services.

Load Balancing and Client Connectivity
API Gateway Nodes

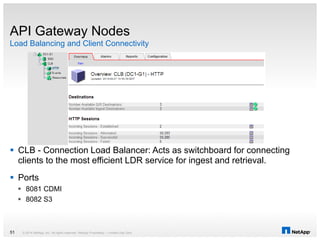

 CLB - Connection Load Balancer: Acts as switchboard for connecting
clients to the most efficient LDR service for ingest and retrieval.
 Ports
 8081 CDMI
 8082 S3

Data storage on archive media
Archive Nodes
 ARC – Archive: Communicates with archiving middleware to store and
retrieve data to and from archive media such as tape.

Se training storage grid webscale technical overview

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (16)

Similar to Se training storage grid webscale technical overview

Similar to Se training storage grid webscale technical overview (20)

More from solarisyougood

More from solarisyougood (20)

Recently uploaded

Recently uploaded (20)

Se training storage grid webscale technical overview

Editor's Notes
