Research data management 1.5

Transcending the Desktop
Metaphor :
Building an object store, based on hybrid cloud collaboration
and analysis infrastructure in less than one hour.
John Martin
© 2017 NetApp, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---1
THETA Deep Dive Session @ 3:45pm

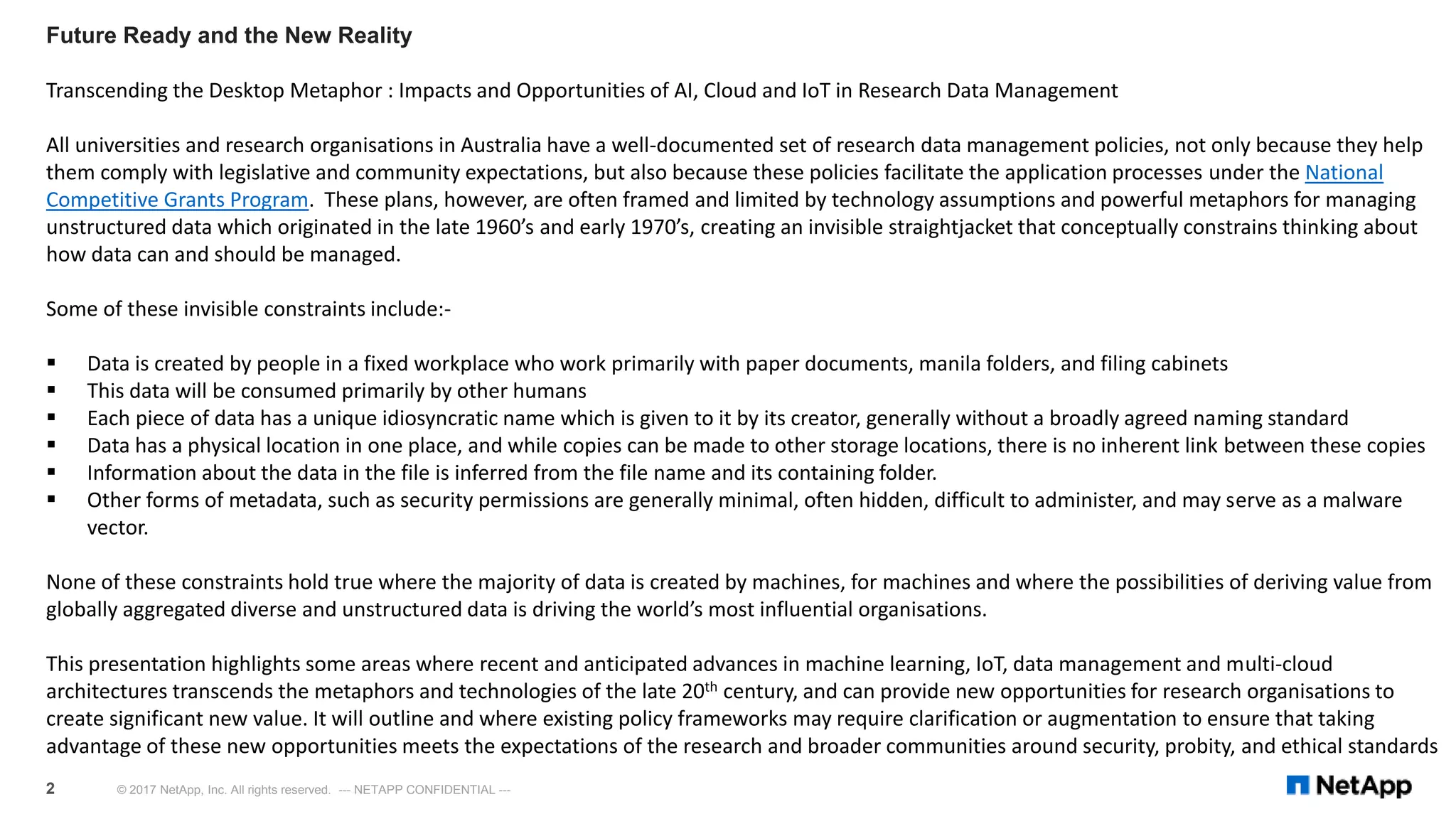

Plenary 2

Future Ready and the New Reality
Transcending the Desktop Metaphor : Impacts and Opportunities of AI, Cloud and IoT in Research Data Management
All universities and research organisations in Australia have a well-documented set of research data management policies, not only because they help
them comply with legislative and community expectations, but also because these policies facilitate the application processes under the National
Competitive Grants Program. These plans, however, are often framed and limited by technology assumptions and powerful metaphors for managing
unstructured data which originated in the late 1960’s and early 1970’s, creating an invisible straightjacket that conceptually constrains thinking about
how data can and should be managed.
Some of these invisible constraints include:-
 Data is created by people in a fixed workplace who work primarily with paper documents, manila folders, and filing cabinets
 This data will be consumed primarily by other humans
 Each piece of data has a unique idiosyncratic name which is given to it by its creator, generally without a broadly agreed naming standard
 Data has a physical location in one place, and while copies can be made to other storage locations, there is no inherent link between these copies
 Information about the data in the file is inferred from the file name and its containing folder.
 Other forms of metadata, such as security permissions are generally minimal, often hidden, difficult to administer, and may serve as a malware
vector.
None of these constraints hold true where the majority of data is created by machines, for machines and where the possibilities of deriving value from
globally aggregated diverse and unstructured data is driving the world’s most influential organisations.
This presentation highlights some areas where recent and anticipated advances in machine learning, IoT, data management and multi-cloud
architectures transcends the metaphors and technologies of the late 20th century, and can provide new opportunities for research organisations to
create significant new value. It will outline and where existing policy frameworks may require clarification or augmentation to ensure that taking
advantage of these new opportunities meets the expectations of the research and broader communities around security, probity, and ethical standards

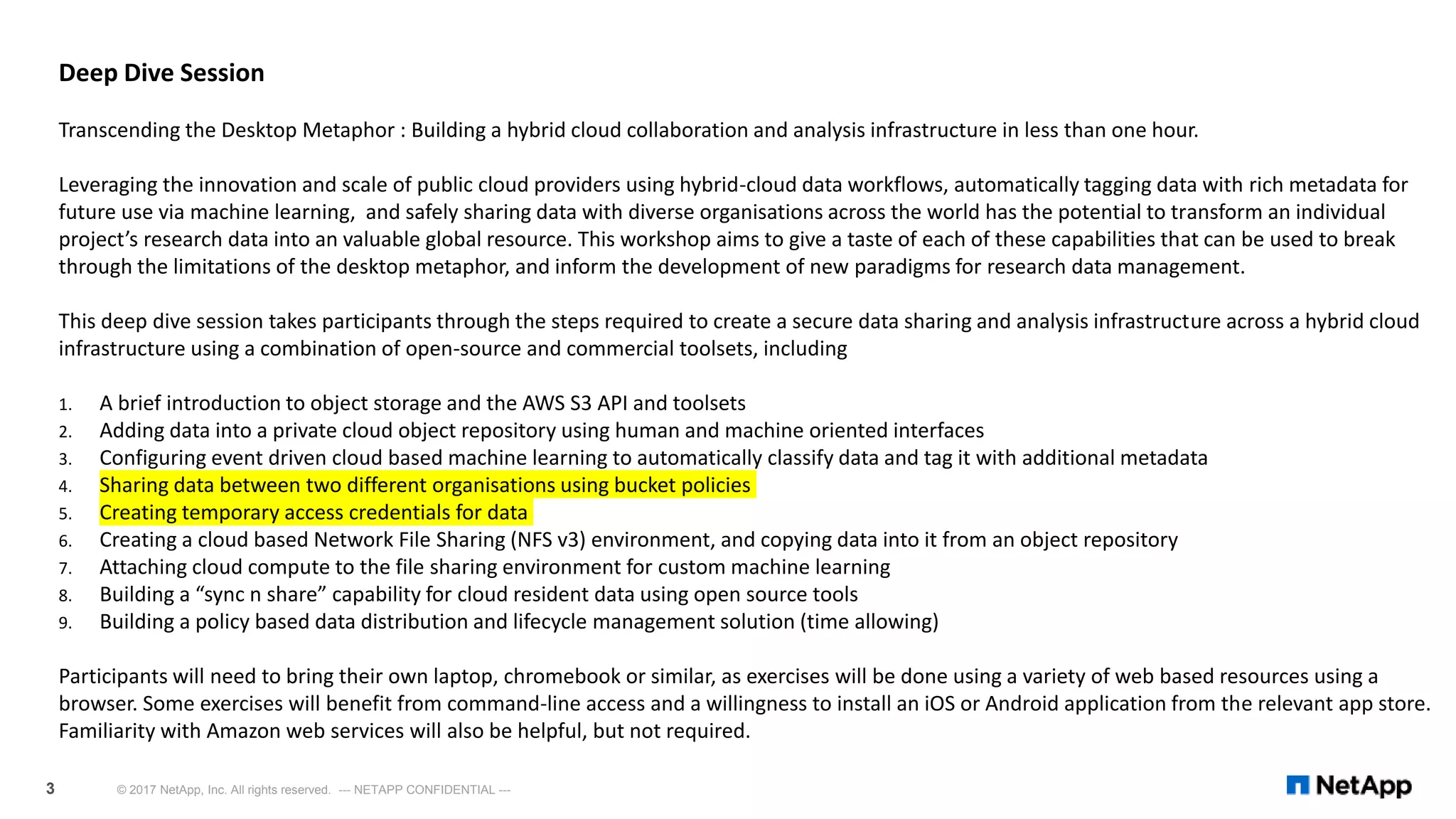

Deep Dive Session
Transcending the Desktop Metaphor : Building a hybrid cloud collaboration and analysis infrastructure in less than one hour.
Leveraging the innovation and scale of public cloud providers using hybrid-cloud data workflows, automatically tagging data with rich metadata for
future use via machine learning, and safely sharing data with diverse organisations across the world has the potential to transform an individual
project’s research data into an valuable global resource. This workshop aims to give a taste of each of these capabilities that can be used to break
through the limitations of the desktop metaphor, and inform the development of new paradigms for research data management.
This deep dive session takes participants through the steps required to create a secure data sharing and analysis infrastructure across a hybrid cloud
infrastructure using a combination of open-source and commercial toolsets, including
1. A brief introduction to object storage and the AWS S3 API and toolsets
2. Adding data into a private cloud object repository using human and machine oriented interfaces
3. Configuring event driven cloud based machine learning to automatically classify data and tag it with additional metadata
4. Sharing data between two different organisations using bucket policies
5. Creating temporary access credentials for data
6. Creating a cloud based Network File Sharing (NFS v3) environment, and copying data into it from an object repository
7. Attaching cloud compute to the file sharing environment for custom machine learning
8. Building a “sync n share” capability for cloud resident data using open source tools
9. Building a policy based data distribution and lifecycle management solution (time allowing)
Participants will need to bring their own laptop, chromebook or similar, as exercises will be done using a variety of web based resources using a
browser. Some exercises will benefit from command-line access and a willingness to install an iOS or Android application from the relevant app store.
Familiarity with Amazon web services will also be helpful, but not required.

 What’s Driving My Information Growth?
 Decision Support / Analytics
 Machine Generated Data
 Systems of Record
 Systems of Engagement
Why Object Stores are the answer to research data management
 What drives the negative Inflection Point?
 Focus on Costs rather than Outcomes
 Fragmented Data Silo’s
 Lack of Standardisation & Automation
 No support for Lean or Agile methods
© 2018 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only5
Business
Velocity
Inflection
Point
Information Becomes
a Propellant to Research
Data Becomes a
Burden to IT Infrastructure
2010 2020

 Extremely large data sets
 Automotive, Manufacturing, Media/Entertainment,
Research, Service Providers, etc.
 Mostly unstructured data
 Images, Video, Audio, large amounts of text
 Data is seldomly deleted
 Backup & Archive keep growing
 Balancing between performance and cost
Object Storage
What is it?
© 2019 NetApp, Inc. All Rights Reserverd. Limited Use.6
Object
Storage
Massive
Scalability
Large
Archives Media
Repositories
Web
Datastores

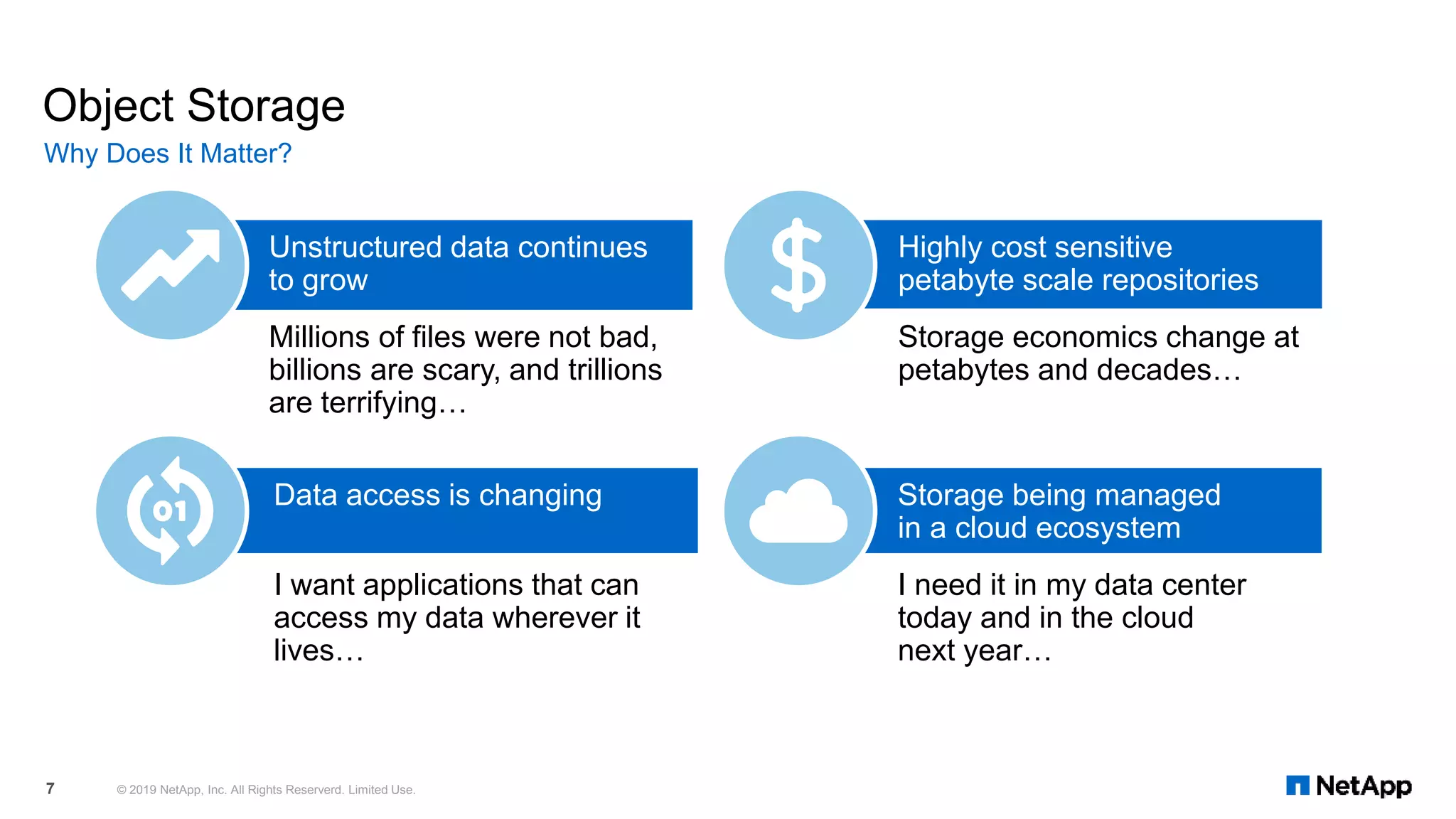

Object Storage
Why Does It Matter?
Unstructured data continues
to grow
Millions of files were not bad,
billions are scary, and trillions
are terrifying…
Data access is changing
I want applications that can
access my data wherever it
lives…
Highly cost sensitive
petabyte scale repositories
Storage economics change at
petabytes and decades…
Storage being managed
in a cloud ecosystem
I need it in my data center
today and in the cloud
next year…

File vs. Object: Abstracting Massive Scale (No. of Files)
Scenario: You drive to the airport for your cross-country trip and want to park in long-term parking.
Parking Garage 1
Where did I
park?
Garage 1
Level 3
Row 3
Space 2
C:UsersOttoParkingGarage1Level3Row3Space2.file Object UID 317
Valet
Parking
Ticket Nr.
317
File based = Parking Garage Object based = Valet Parking

File vs. Object: Abstracting Data Locality from Access
© 2019 NetApp, Inc. All Rights Reserverd. Limited Use.
You Travel to where you
are going.
And at the door the Valet
has your car waiting on
you.
9

File vs. Object: Abstracting Storage Changes from Access
Say, you are gone for an extended amount of time…maybe 5 years
Tape: Object:
You hope your car is still in the
garage, that you remember where
it’s at, and that it will start .
The Valet has made sure that your
car is in good working order and
delivers it to you.
10

Let’s Start with the Object…
Object is the atomically referenced unit of data storage and transmission
Client
S3 API
PUT / GET / DELETE
HTTPS
Client
Connections
Object Key / Name
Object type: JPG
Date modified: 07/21/ 2014
GPS Coordinates: Lat, Long
Location: DC @ Seattle
Metadata
Swift API

Object, Bucket, Tenant, and Grid
A bucket belongs in a
tenant or account.
12 © 2019 NetApp, Inc. All Rights Reserverd. Limited Use.
A StorageGRID Webscale
system manages data of the
tenants across multiple sites
Tenant N
Tenant 1
…
Site 1 Site 2 Site N
An object belongs in a bucket.

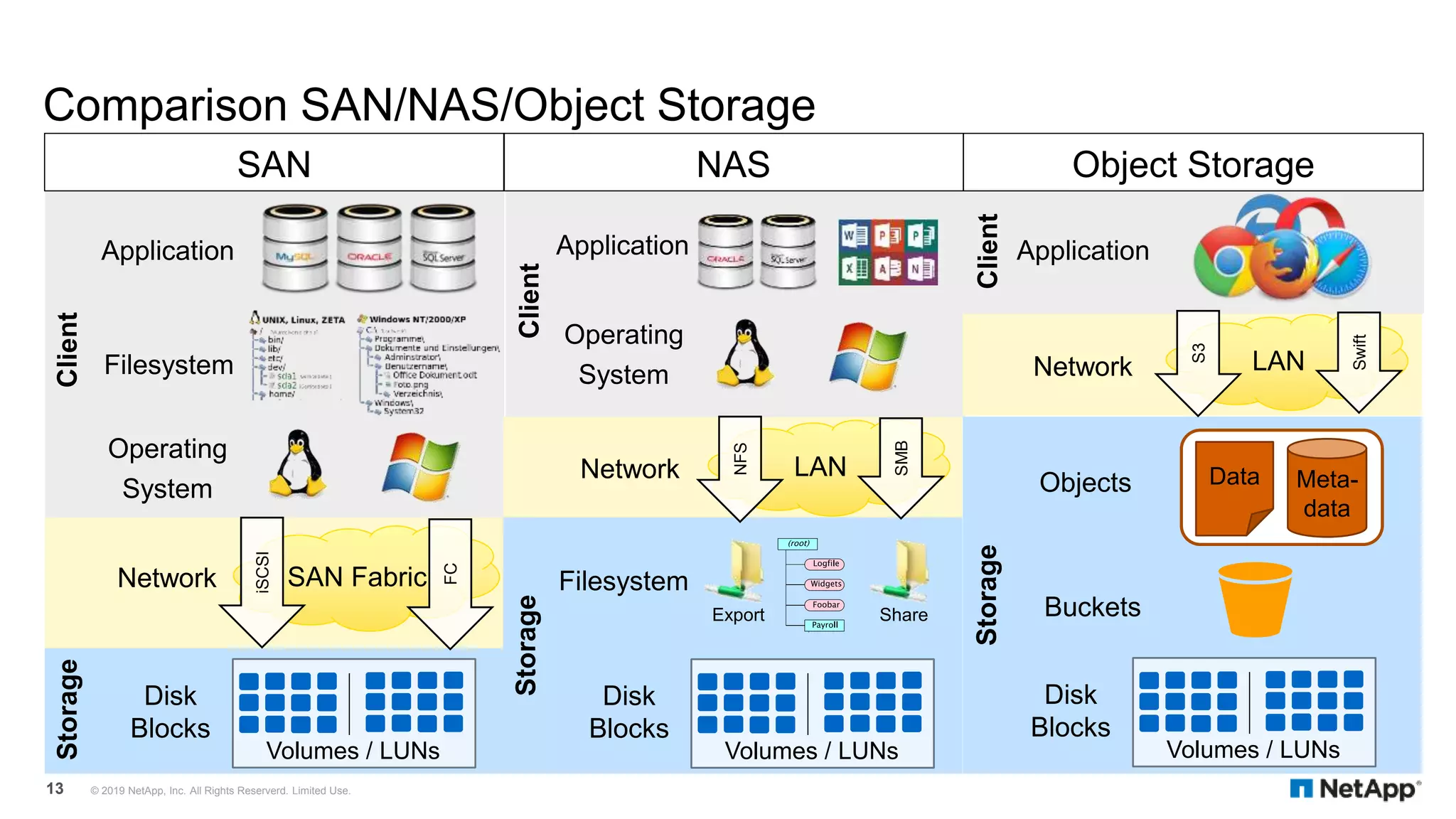

Comparison SAN/NAS/Object Storage
13
Application
Operating
System
Filesystem
SAN FabricNetwork
Client
Disk
Blocks
Storage
Volumes / LUNs
iSCSI
FC
Client
Application
Operating
System
LANNetwork
Disk
Blocks
Storage
Volumes / LUNs
Filesystem
NFS
SMB
Export Share
Client
Application
Network LAN
S3
Swift
Storage
Disk
Blocks
Volumes / LUNs
Data Meta-
data
Objects
Buckets
SAN NAS Object Storage

Object Storage Versus File System
© 2019 NetApp, Inc. All Rights Reserverd. Limited Use. 14
File Object
Protocols NFS and CIFS (file protocols) S3 and Swift (RESTful APIs)
Portability Often OS-specific Independent of OS
Locking
Portable Operating System Interface (POSIX)
standard
Application needs to coordinate locks
Last write wins
Editing Data Inline edits possible Overwrite full object
Access Latency <1 ms ~10 ms
Custom Metadata No Yes
Namespace Usually within one data center Multiple data centers
Protection Snapshot copies, clones, and so on Versioning and bucket policies

NetApp SaaS Backup
StorageGRID Use Cases
Content repository for Media
and new Cloud Applications
Backup and Archive to Cloud
to reduce cost, improve RTO
Data Analytics with
unstructured data and
machine learning
S3
Performance Tier with
Hot Data
Capacity Tier with
Cold Data, snapshots
and DR volumes
Tier cold data, snapshots and
DR volumes to cloud with
FabricPool
IoT / Industry 4.0 direct
interaction between sensors,
machines and storage
Collaboration
Roaming User Sync & Share Gateways
S3
Web Applications built on
object storage
Backup & restore Office 365
and Salesforce data
Exchange
SharePoint
OneDrive

Industry Collaboration via iRODS for Enhanced Research Data
Management
 Open Source Data Management Software
 Used in both university and commercial spaces
for research data
 e.g. Bayer uses this for genomics data
 Includes support for multiple back-ends
 S3
 NFS
 POSIX is the default
 Can act as an S3 gateway
 Initial deployments are often SAN based using
traditional virtualization techniques
 In 2016 Bayer found challenges at petabyte
scale without Object Stores
 Costs, D/R Capability, Recovery+Backup
https://irods.org

Why use Object Storage for Research Data Management ?
 Highly scalable (from TB to PB)
 Low price tag
 Fully automated
 Low administrative effort
 Backup included by design
 DR included by design (replication)
 Data security features (fast rebuilt, check summing,
self healing, access control, encryption)
 Appliance with vendor support
 S3 interface support (de facto standard with iRODS
plugin available)
 Performs Well
Based on Bayer’s Findings - https://irods.org/uploads/2016/06/Bayer_iRODS-and-Objectstorage_UGM2016.pdf

 StorageGRID has the potential to
become a single easy to use
repository covering the majority of
use cases for research data
management
 Current use cases don’t highlight:-
 Need for wide area collaboration on large
datasets
 Data lifecycle and fine grained data
placement
 Opportunity for exploratory analytics and
cross project data mining
 Opportunities to commercialize or publish
access to refined datasets
Current Data Management / Storage Options at UoW

Hands on Exercise
How to make object
stores friendly

Workshop exercise 1 – Build your own OneDrive Equivalent
1) Navigate to test.crankbird.com/nextcloud
2) Download the demo-1-xx-setup.txt file (it has the security and login info etc you’ll need)
3) Install NextCloud onto a webserver using instructions from that file
4) Enable the external storage plugin
5) Create your own S3 bucket using the external storage plugin
6) Copy a file into that bucket
7) Log into the aws console using instructions from demo-1-xx-setup.txt file, head to s3 and
look at the bucket, select the file (not the checkbox) and inspect Properties->Metadata
8) EXTRA CREDIT – Try to access a pre-existing datastore (aka fun with s3fs)
10 minutes

AKA .. How to be nice without losing all your stuff
How to secure and share
data

Versioning — Basics
 Allows multiple objects with same key in same bucket
 Cannot be disabled once enabled (only suspended)
 Object version needs to be explicitly deleted
Key = object1
VersionId = 123
Key = object1
VersionId = 456
Key = object1
VersionId = 123
Key = object1
VersionId = 456
Delete Marker
Id = 789
Key = object1
VersionId = 123
Key = object1
VersionId = 123
Key = object1
VersionId = 456
Key = object1
VersionId = 123
Object visible
in Bucket Listing
Object invisible
in Bucket Listing
Object visible
in Bucket Listing

Enabling Versioning
From the shell you can use the
aws command line
https://docs.aws.amazon.com/cli/l
atest/reference/s3api/put-bucket-
versioning.html
aws s3api put-bucket-versioning --bucket my-bucket --versioning-configuration Status=Enabled

Enabling Versioning – For Pro-gamers
Remember GenXers … don‘t try this without help from your millenials
# Bucket versioning should be disabled (returns 'None')
s3.Bucket(bucket_name).Versioning().status
# Enable versioning
s3.Bucket(bucket_name).Versioning().enable()
# Versioning should now be enabled (returns 'Enabled')
s3.Bucket(bucket_name).Versioning().status
Python
# Bucket versioning should be disabled (returns nothing)
Get-S3BucketVersioning -BucketName $BucketName
# Enable versioning
Enable-S3BucketVersioning -BucketName $BucketName
# Versioning should now be enabled (returns 'Enabled')
Get-S3BucketVersioning -BucketName $BucketName
PowerShell

Workshop exercise 2
1) Using ssh from your computer,
log into the server running the
nextcloud websites
2) Enable bucket versioning
3) Delete one of the files in the
bucket
4) Delete the “delete marker”
5) List the files again
6) See the file magically reappear
5 minutes
ssh –i thetademo.pem user-1-xx@demo-1.crankbird.com
aws s3api put-bucket-versioning --bucket my-bucket --
versioning-configuration Status=Enabled
aws s3api delete-object --bucket my-bucket --key test.txt
aws s3api list-object-versions --bucket my-bucket
aws s3api delete-object --bucket my-bucket –version-id
<version> --key test.txt

Sharing Data with Pre-Signed URLs
 All objects by default are private. Only the object owner has permission to access these
objects. However, the object owner can optionally share objects with others by creating a
presigned URL, using their own security credentials, to grant time-limited permission to
download the objects.
 A pre-signed URL can be accessed without credentials for a pre-determined period of time
with a set of pre-determined actions. (for example, object GET or PUT)
 Generating Pre-Signed URLs does NOT require a connection to the Object Storage
aws s3 presign s3://awsexamplebucket/test2.txt --expires-in 604800
https://examplebucket.s3.amazonaws.com/test2.txt?AWSAccessKeyId=AKIAEXAMPLEACC
ESSKEY&Signature=EXHCcBe%EXAMPLEKnz3r8O0AgEXAMPLE&Expires=1556132848

Workshop exercise 3
1) Using the aws command line utility create a pre-signed URL for an object in
your bucket (preferably a picture of a cat)
2) Copy that URL and paste it into a web browser, (or email it to a colleague
and get them to try it)
3) See your cat picture
5 minutes

This is some kind of next level …
Multi-organization data
sharing

 Unix (NFS) and Windows (SMB) based
authentication mechanisms which remain simple
because they work within a single security
domain, typically defined by LDAP / Active
Directory
 Access to data from multiple security contexts
usually requires enabling anonymous access or
opening up inter-forest trust relationships.
Security teams rarely allow this level of trust
between institutions
 S3 compatible object stores have richer and
more flexible data authentication and access
permissioning schemes defined by JSON
formatted rules that allow for completely different
security contexts to safely share objects/buckets
 Pre-signed URL’s which provide temporary
access to anyone are an inherent capability
Multi-Organisational Data Sharing

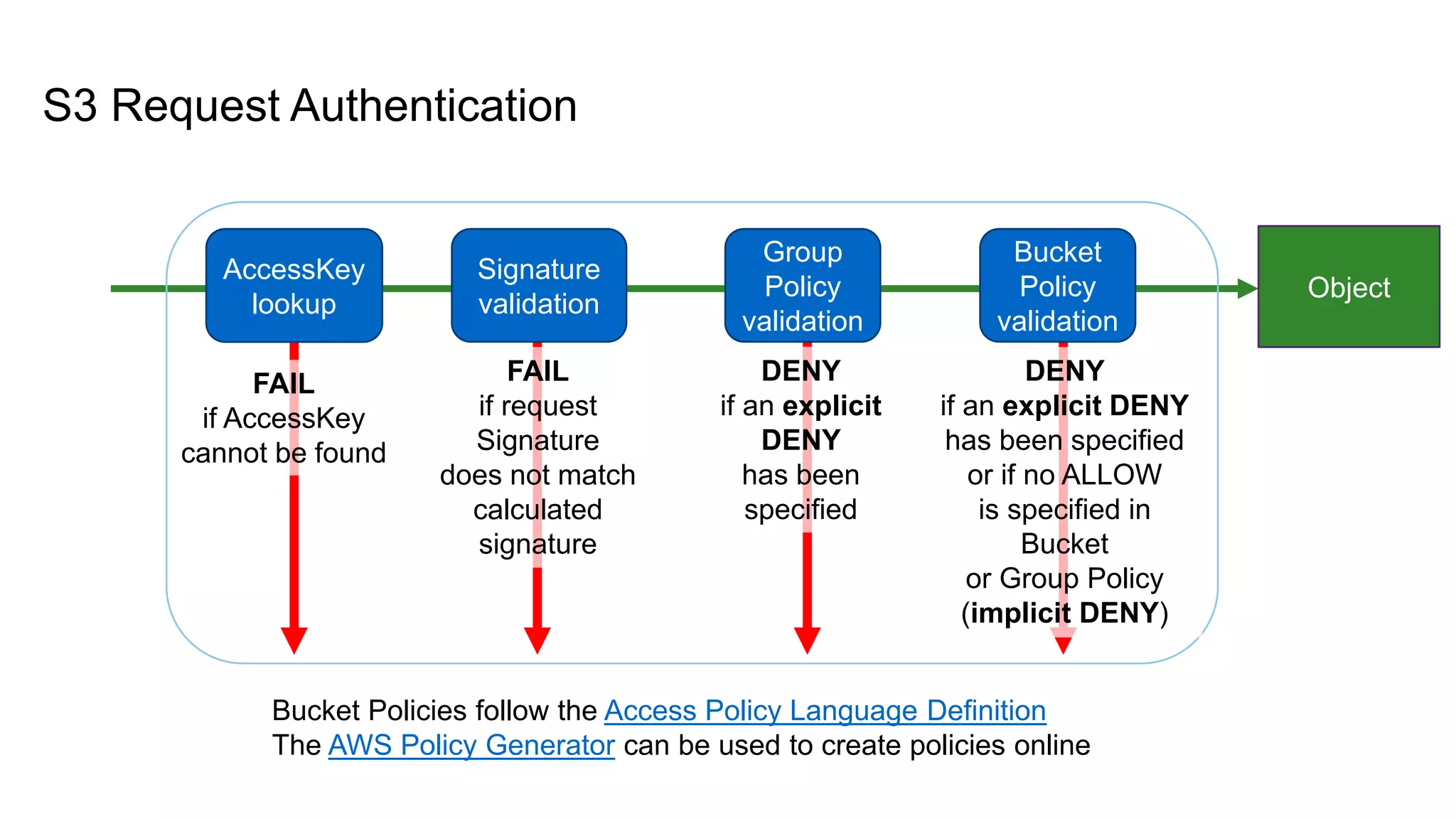

S3 Request Authentication
AccessKey
lookup
FAIL
if AccessKey
cannot be found
Signature
validation
FAIL
if request
Signature
does not match
calculated
signature
Group
Policy
validation
DENY
if an explicit
DENY
has been
specified
Bucket
Policy
validation
DENY
if an explicit DENY
has been specified
or if no ALLOW
is specified in
Bucket
or Group Policy
(implicit DENY)
Object
S3 request
Bucket Policies follow the Access Policy Language Definition
The AWS Policy Generator can be used to create policies online

Workshop exercise 4
1) Open up
https://awspolicygen.s3.amaz
onaws.com/policygen.html in
a web browser
2) Try to create a policy
template that looks a bit like
this
5 minutes
$ cat data_sharing_policy.json
{
"Statement": [
{
"Effect": "Allow",
"Principal": { "SGWS":
"17468297853691494465" },
"Action": [
"s3:GetObject",
"s3:ListBucket"
],
"Resource": [
"urn:aws:s3:::shared-bucket",
"urn:aws:s3:::shared-bucket/*"
]
}
]
}
Tenant we want to
delegate access to
Allowed actions
“Shared” bucket

How to enrich data
for analysis

1956 1974 19931987 2018
AI Winter AI Winter
1980
Artificial Intelligence Timeline
Deep Learning
Deep Reinforcement Learning
DATA
Statistical
Performance
Machine Learning
Deep Learning

 Exploratory Analytics is probably the
highest value thing you can do with your
data lake
 You do feature extraction / assignment
when the data is new for real time
analytics
 Features are Metadata
 You cant easily do feature extraction
across Petabytes of cold data
 Its pretty much impossible to do it on tape
Why Metadata Becomes More Important Over Time
© 2018 NetApp, Inc. All rights reserved. NetApp Confidential – Limited Use Only34

StorageGRID
Site 1
San Francisco
StorageGRID
Site 2
New York
StorageGRID
Site 3
Munich
StorageGRID
Site 4
Tokyo
International Co-Operation and Hybrid Cloud Data Pipelines
© 2017 NetApp, Inc. All rights reserved.35
With StorageGRID Webscale Platform Services
Mirror my bucket
from Webscale to
S3 and run Hive
script on Elastic
MapReduce
Amazon EMR
Amazon S3 Amazon SNS
Notify my Lambda
function to run
facial recognition
on images in my
SG bucket
Search object
metadata in my
SG bucket as
they are updated
Amazon Lambda
Amazon Elasticsearch
Amazon Rekognition

Metadata can trigger ILM Policy
Metadata
 Objects can have up to 2 KB of metadata in form of key-value pairs
 Case insensitive and HTTP header compatible ASCII characters allowed
 Metadata is an integral part of the object
 Metadata can only be changed by copying the object to itself
Write-S3Object -BucketName $BucketName -Key 'my-object' -Content 'Hello World!'
-Metadata @{company='NetApp';location='Germany'}
Get-S3ObjectMetadata -BucketName $BucketName -Key 'my-object'
PowerShell
Metadata
Data
metadata ={'company': 'NetApp',
'location': 'Germany'}
obj = s3.Object(bucket_name, 'my-object')
obj.put(Body='Hello World!’, Metadata=metadata)
s3.Object(bucket_name, 'my-object').get().get('Metadata')
Python

Object Tagging
 Similar to metadata, but more flexible
 Can be added or updated independently of object data
 Up to 10 unique tags per object
 128 characters for key and 256 for value, case sensitive!
Can trigger ILM Policy
Set-S3ObjectTagging -BucketName $BucketName -Key 'my-object' -Tags
@{Name='projectId';Value='12345'},@{Name='company';Value='NetApp'}
Get-S3ObjectTagging -BucketName $BucketName -Key 'my-object'
Remove-S3ObjectTagging -BucketName $BucketName -Key 'my-object'
PowerShell
obj = s3.Object(bucket_name, 'my-object')
tags = 'projectId=12345&company=NetApp'
obj.put(Body='Hello World!', Tagging=tags)
client.get_object_tagging(bucket_name,'my-object')
Python
Metadata
Data
Ta
g
Ta
g
Ta
g

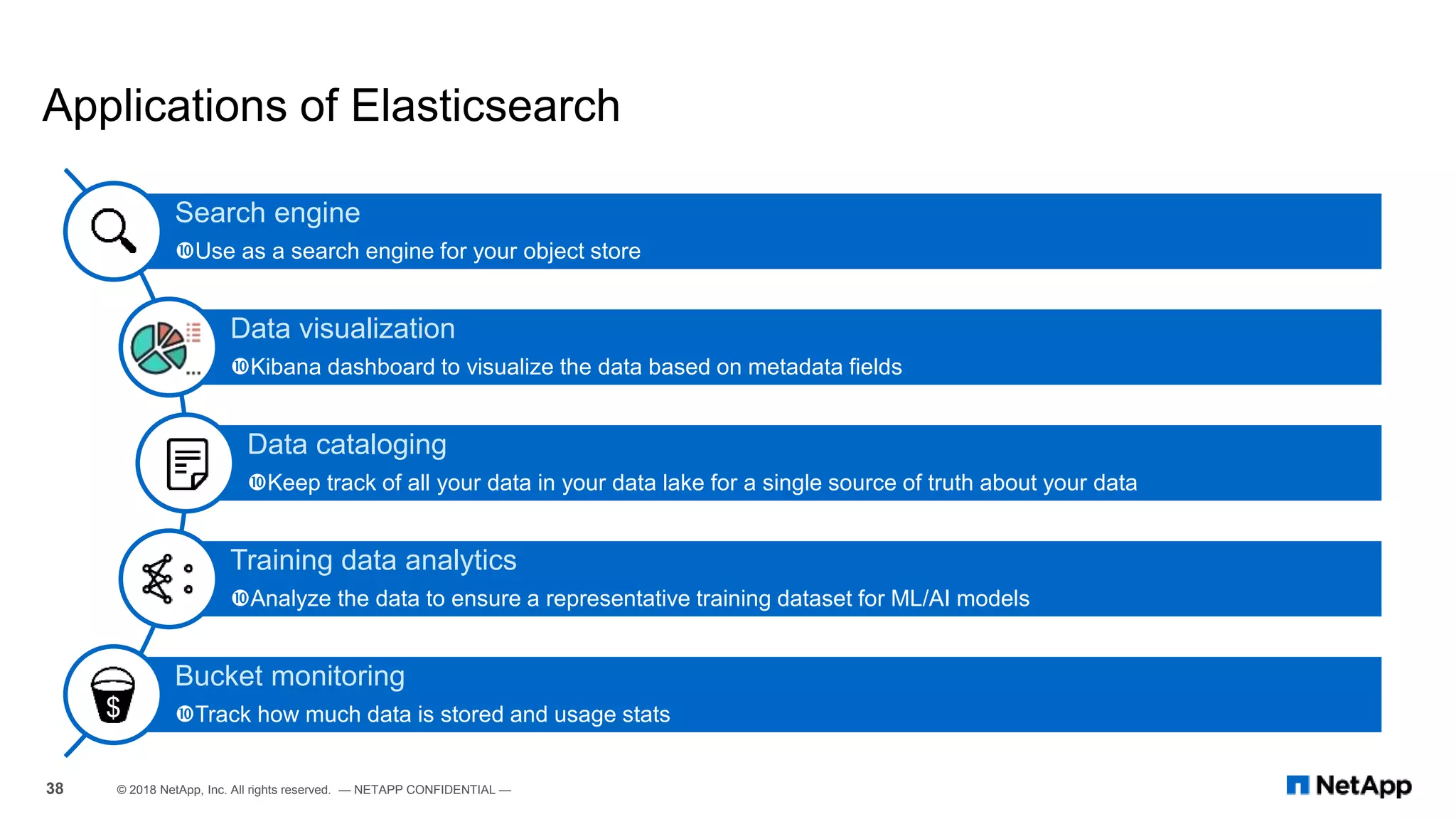

Applications of Elasticsearch
38 © 2018 NetApp, Inc. All rights reserved. — NETAPP CONFIDENTIAL —
Search engine
Use as a search engine for your object store
Data visualization
Kibana dashboard to visualize the data based on metadata fields
Data cataloging
Keep track of all your data in your data lake for a single source of truth about your data
Training data analytics
Analyze the data to ensure a representative training dataset for ML/AI models
Bucket monitoring
Track how much data is stored and usage stats$

Use Case: High Performance Data Lake for Data Analytics
Docker based
StorageGRID running on
bare metal ruggedized
server with local SSDs
- Single Copy -
Edge Core
Automatic replication using
S3 based CloudMirror with
guaranteed data delivery
>100PB Data Lake build on
StorageGRID Appliances
- Erasure Coding for increased availability and durability -
Windows Client (HiL/SiL) Linux Client (HiL/SiL)
Mount Data Lake as
Windows Drive using
CloudBerry Drive
Mount Data Lake
as local Mountpoint
using s3fs-fuse
Cloud
Automatic replication using
S3 based CloudMirror with
guaranteed data delivery
S3-enabled Application (HiL/SiL)
Multiple PB ingest/day
Usage of Cloud Services
Cloud Bursting
>100GByte/s retrieval

Data Improvement / Refinement at Australian Universities

Monetising your data
Requestor Pays Buckets

Workshop exercise 5
1) Log into the AWS console
2) Select Lambda (under compute)
3) Create Function -> Use BluePrint -> recognition-python -> configure
4) Name -> Use existing role -> UberLambda
5) Choose your bucket from the dropdown
6) Enable trigger -> create function
7) Open Designer -> Add events for your bucket (PUT and POST)
8) Copy in the code from S3Recog.py
9) Add new picture into the bucket from nextcloud
10) Inspect the new metadata from the s3 interface
15 minutes

Building hybrid cloud data
analytics worklows using NetApp
DataFabric Technologies
Extra Credit

A Vision for an Australian Research Data Network
 A single multi-tenant StorageGRID
for secure collaborative data
resource between Government,
Defense, and leading Research
Universities
 Data stays under full custodianship
of Australian Citizens with policy
based placement, control and role
based access
 Local access to hot data with
throughput measured in
Gigabytes/sec
 Cold data distributed at lowest cost
 Leverages HPC, Hadoop analytics
ecosystem in Private, Public and
Hybrid Cloud deployments
120
PB
Capacity
100B
Objects
16 Sites

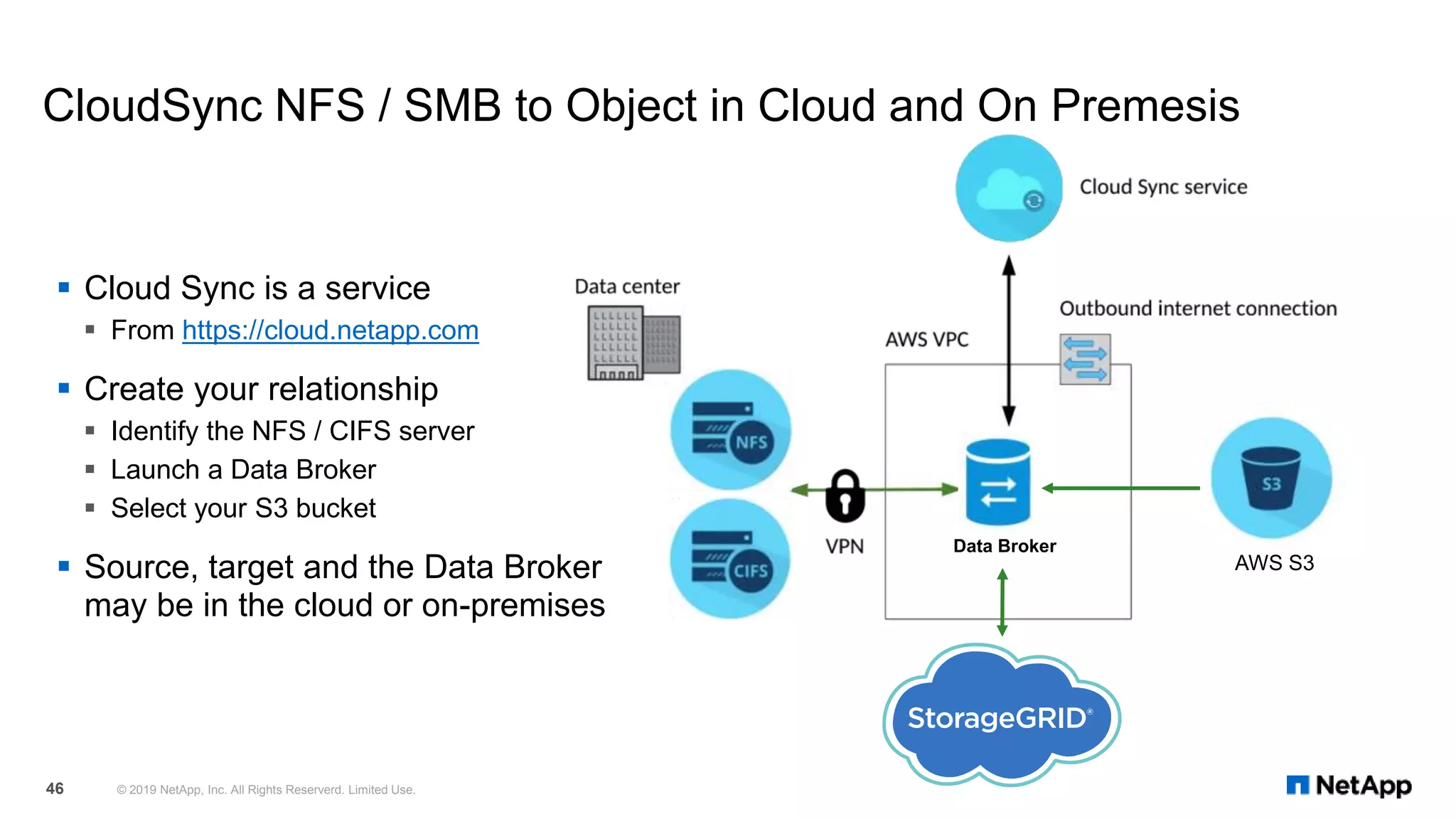

CloudSync NFS / SMB to Object in Cloud and On Premesis
 Cloud Sync is a service
 From https://cloud.netapp.com
 Create your relationship
 Identify the NFS / CIFS server
 Launch a Data Broker
 Select your S3 bucket
 Source, target and the Data Broker
may be in the cloud or on-premises
Data Broker
AWS S3

Cloud Mirroring
Replicate log objects with prefix
sgws://bucket_name/logs/2017-08* to
s3://us-east-1.bucket_name to be
analyzed in Elastic MapReduce
Bucket Event Notifications
When new objects with prefix
sgws://bucket_name/images/* are
created, notify my Lambda function to
copy the image into AWS S3 and
detect features in the scene
Search Integration
Update my Elasticsearch index when
new object metadata is written or
updated for objects matching prefix
sgws://bucket_name/images/*
StorageGrid User Driven Platform Services
Empower Users to Implement Hybrid Cloud Data Pipelines with Amazon Web Services
SG
Amazon EMR
Amazon S3
SG
Amazon SNS
Amazon Lambda
1
2
3
Amazon S3
2 3
4
5
6
1
SG
1 2
Amazon
Rekognition

Thank You.

Pre-Signed URLs
url = client.generate_presigned_url(
'get_object', {'Bucket': bucket_name, 'Key': 'my-key'},
ExpiresIn=3600)
Python
https://webscaledemo.netapp.com/mybucket/my-key?Action=GET
&X-Amz-Algorithm=AWS4-HMAC-SHA256
&X-Amz-Credential=IZUDAQ5NQ39AUJ6HR3Q4%2F20181220%2Fus-east-1%2Fs3%2Faws4_request
&X-Amz-Date=20181220T162225Z
&X-Amz-Expires=3600
&X-Amz-SignedHeaders=host
&X-Amz-Signature=4a5981c70bb69e8d103cd37f1f5985784979fe95b5d17e202860d778dcb22b7c
Get-S3PresignedUrl -Method 'GET' -BucketName $BucketName -Key 'my-key’
-Expires (Get-Date).AddHours(1)
PowerShell

Persisting S3 Credentials
 Credentials need to be stored locally in ~/.aws/credentials (Linux) or
$HOME/.aws/credentials (Windows) or in a properties file, but never in code
 Config parameters can be stored in ~/.aws/config (Linux) or $HOME/.aws/config
(Windows) or in a properties file
 Create an AWS Profile
 via PowerShell
 New-AwsProfile -ProfileName 'default' -AccessKey 'FAHKA1WXDM5E7N4L1JP3' -
SecretKey
'1iqbkq+yECyIFXbSnpzdeF8zVcWDm/u6DOgxNzHW' -EndpointUrl
'https://webscaledemo.netapp.com'
 manual by editing $HOME/.aws/credentials or ~/.aws/credentials
 [default]
aws_access_key_id = FAHKA1WXDM5E7N4L1JP3
aws_secret_access_key = 1iqbkq+yECyIFXbSnpzdeF8zVcWDm/u6DOgxNzHW

How to handle custom metadata
 As Object Metadata is an integral part of the object and is limited to 2KB it should be used
to describe how and where the object should be stored, e.g. for
 Service Level Agreements
 Locality or Geo-Fencing
 Importance
 Confidentiality
 As object tags can be added and removed, but are limited to 10 tags, they should be used
to group objects by e.g.
 cost center
 project

Bucket Policies
# Reference Bucket Policy
bucket_policy = s3.BucketPolicy(bucket_name)
# Load Policy from local file and attach it to bucket
open('/path/to/policy.json','r') as f:
bucket_policy.put(Policy=f.read())
# Detach current Bucket Policy from bucket
bucket_policy.delete()
Python
# create Bucket Policy
$BucketPolicy = New-AwsPolicy -Principal @{SGWS='17468297853691494465’}
-Action "s3:GetObject","s3:ListBucket"
-Resource "urn:sgws:s3:::shared-bucket","urn:sgws:s3:::shared-
bucket/*”
Set-S3BucketPolicy -BucketName $BucketName -Policy $BucketPolicy
Remove-S3BucketPolicy -BucketName $BucketName
PowerShell

Pre-Signed URLs
 A pre-signed URL can be accessed without credentials for a pre-determined period of time
with a set of pre-determined actions. (for example, object GET or PUT)
 Generating Pre-Signed URLs does NOT require a connection to the Object Storage
url = client.generate_presigned_url(
'get_object', {'Bucket': bucket_name, 'Key': 'my-key'},
ExpiresIn=3600)
Python
https://webscaledemo.netapp.com/mybucket/my-key?Action=GET
&X-Amz-Algorithm=AWS4-HMAC-SHA256
&X-Amz-Credential=IZUDAQ5NQ39AUJ6HR3Q4%2F20181220%2Fus-east-1%2Fs3%2Faws4_request
&X-Amz-Date=20181220T162225Z
&X-Amz-Expires=3600
&X-Amz-SignedHeaders=host
&X-Amz-Signature=4a5981c70bb69e8d103cd37f1f5985784979fe95b5d17e202860d778dcb22b7c
Get-S3PresignedUrl -Method 'GET' -BucketName $BucketName -Key 'my-key’
-Expires (Get-Date).AddHours(1)
PowerShell

Pre-Signed URLs — Example
 Use case: Photo-sharing app on
mobile phone
 Bad design: Put S3 credentials in
phone app to upload photos to S3
 Better design: Use pre-signed URLs
 S3 credentials will only be required on
the (secured) server side, but not
inside the phone app
 Traffic does not need to be routed
through backend servers
Servers
Backend App
Phone
Frontend
App
1. Request
upload
3. Return pre-
signed URL for
photo upload 4. Upload photo
via pre-signed
URL
2. Generate pre-
signed URL
(in backend)

S3 Best Practices: Bucket Listing
 Listing objects of a bucket with millions of objects
is a very expensive operation
 Metadata needs to be fetched from all storage nodes
 Can result in high CPU utilization due to high load
on metadata database
 Bucket event notifications
 SNS notifications can be a much better approach in many cases
 Available since NetApp® StorageGRID® 11.0
 Example: When a new object is ingested with prefix
sgws://bucket_name/images/* notify my application
to analyze the object and update its metadata
 Try it out with localstack SNS
https://github.com/localstack/localstack
SG
Amazon SNS
SNS Receiver
Application
2 3
5
1
4

Research data management 1.5

More Related Content

What's hot

Similar to Research data management 1.5

Recently uploaded

Research data management 1.5
