The document discusses various guides published by the American Wood Council for constructing housing in disaster-prone areas. It summarizes the Caribbean Basin Builder's Guide, which provides simplified construction approaches for 150 mph winds and seismic category D2 areas. The guide focuses on panelized construction of small modular structures that can be joined, have prefabricated walls, and emphasizes foundations and roof systems suitable for high winds. The guide is available in English, Spanish and French from the AWC website.

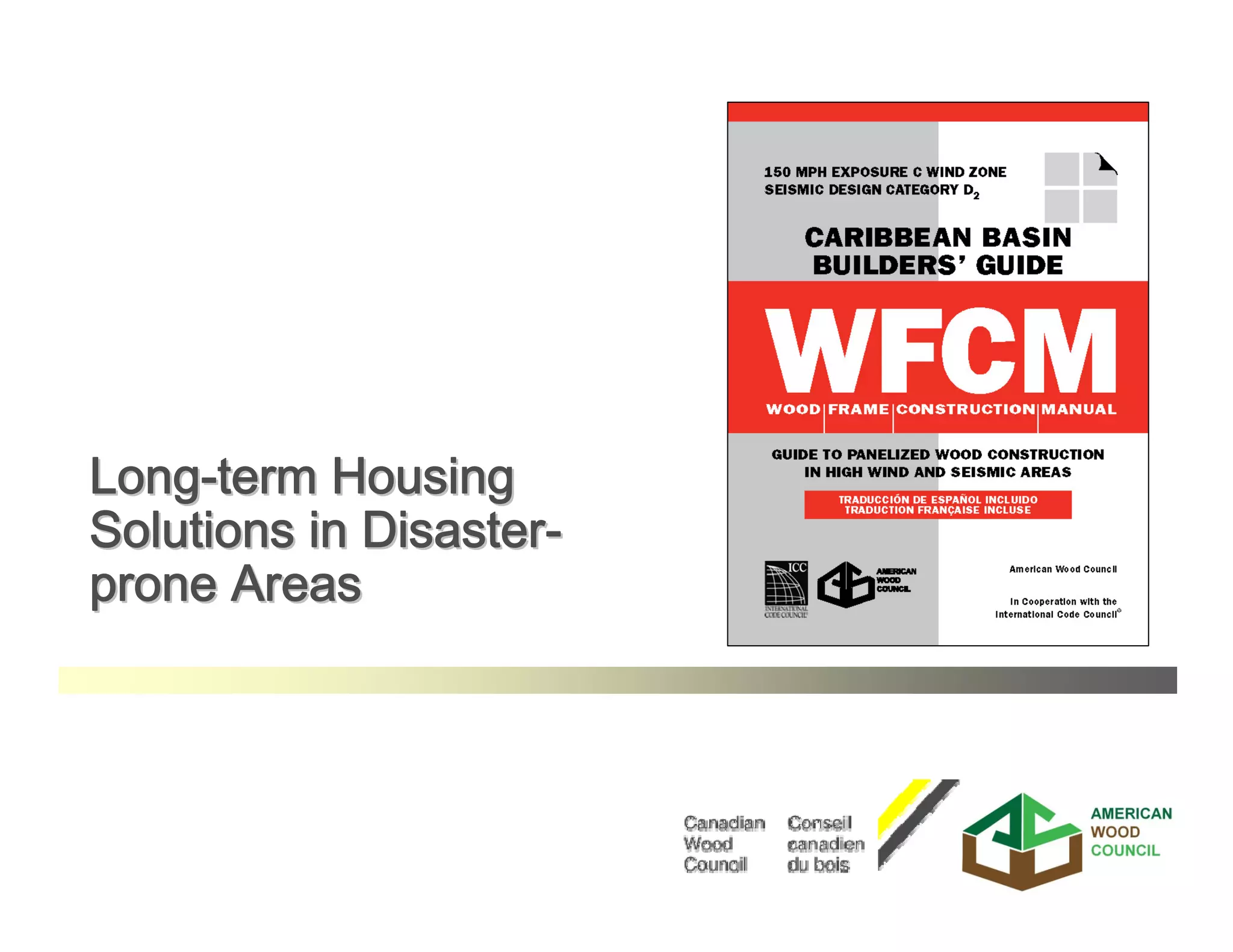

1. Long-term Housing
Solutions in Disaster-
prone Areas

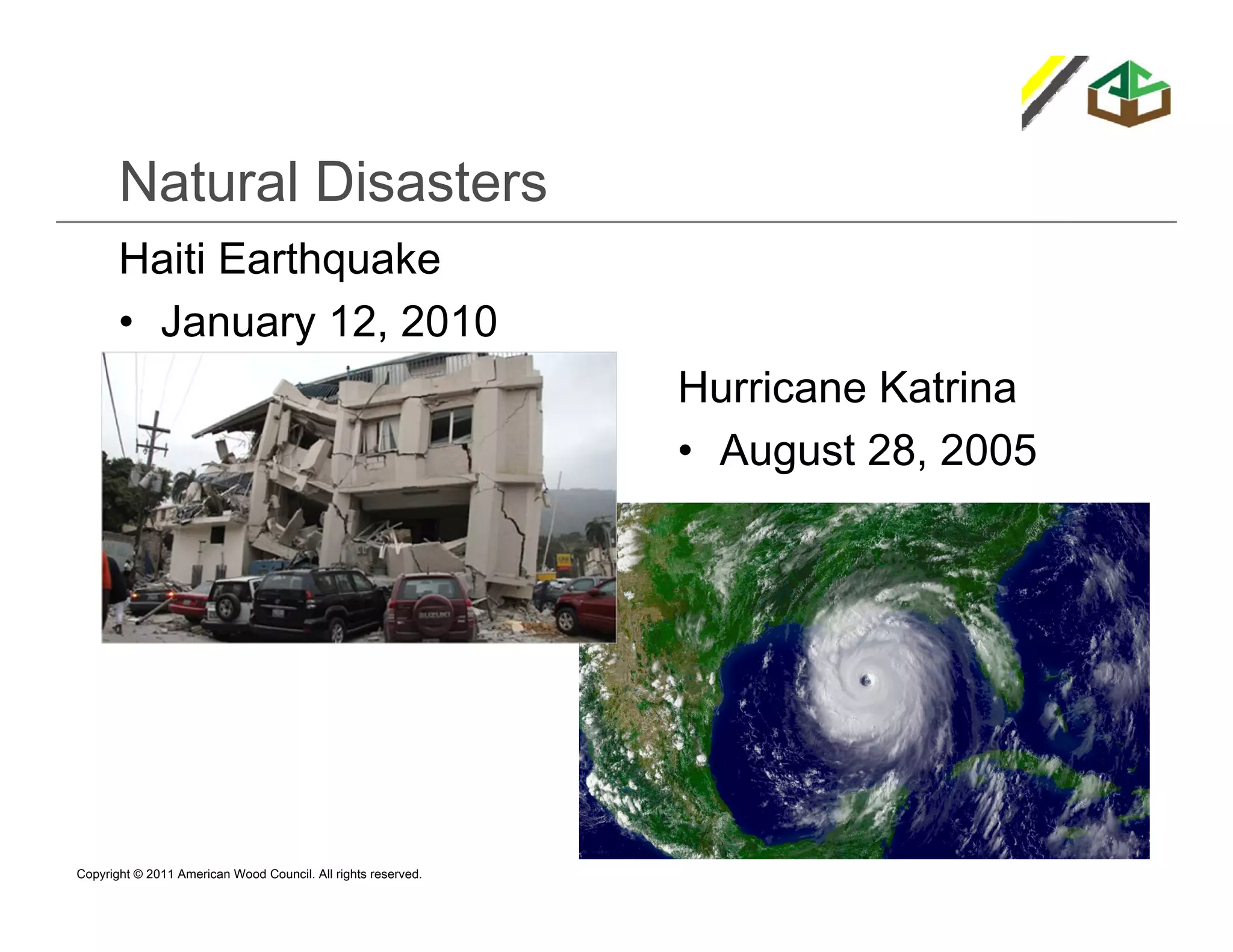

2. Natural Disasters
Haiti Earthquake
• January 12, 2010
Hurricane Katrina
• August 28, 2005
Copyright © 2011 American Wood Council. All rights reserved.

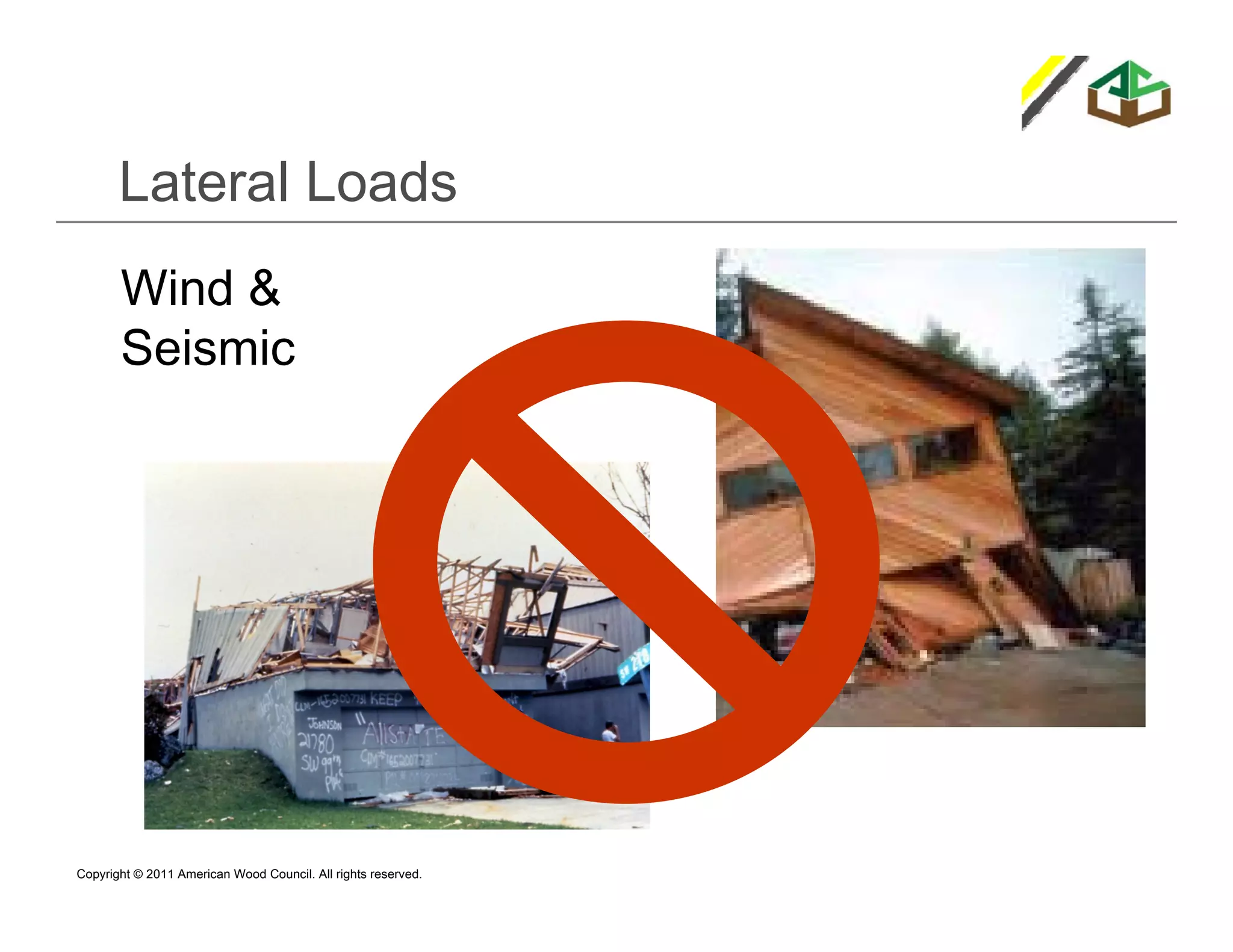

3. Lateral Loads
Wind &
Seismic
Copyright © 2011 American Wood Council. All rights reserved.

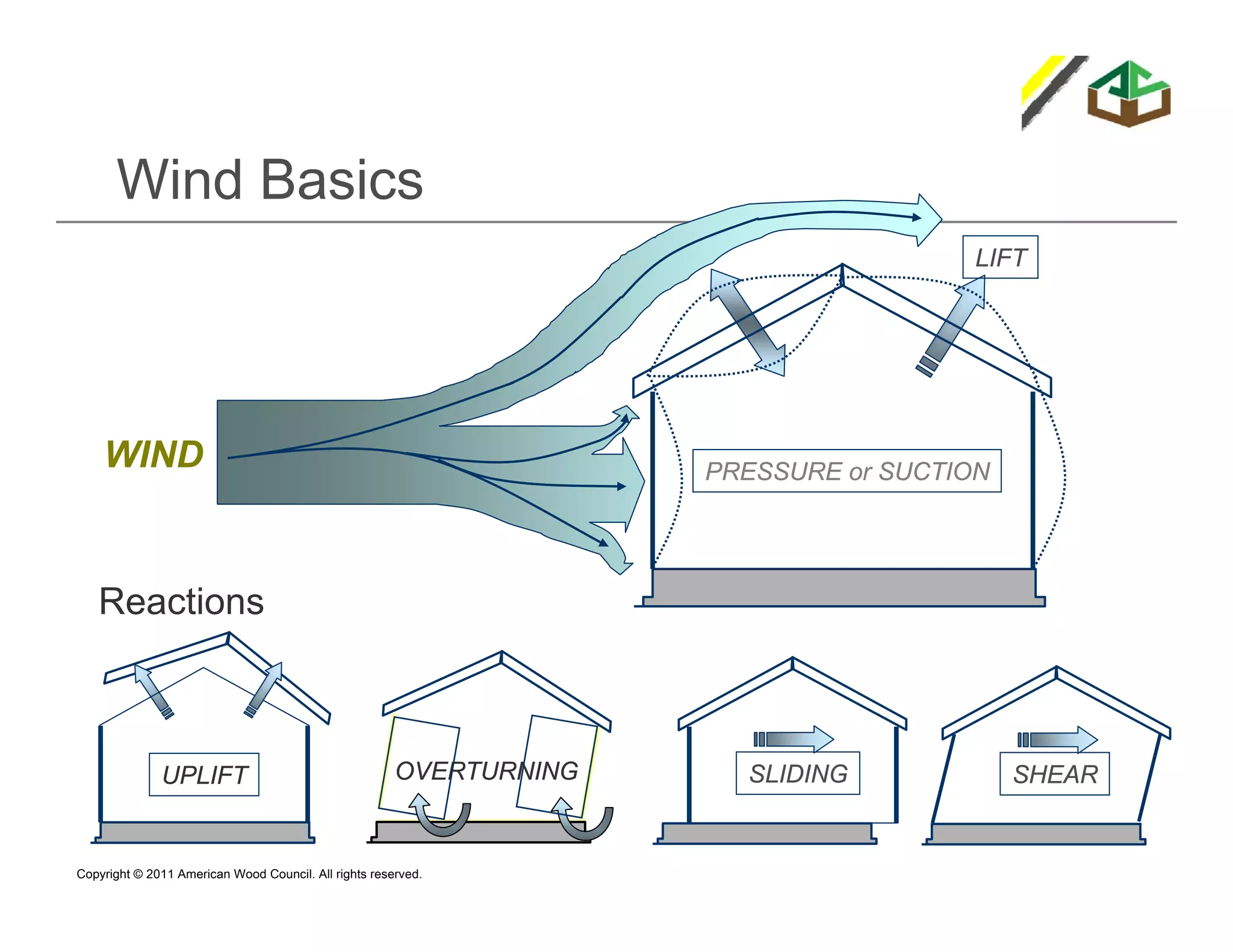

4. Wind Basics
LIFT
WIND PRESSURE or SUCTION
Reactions
UPLIFT OVERTURNING SLIDING SHEAR
Copyright © 2011 American Wood Council. All rights reserved.

5. Lateral Loads - Wind
Copyright © 2011 American Wood Council. All rights reserved.

6. Lateral Loads - Seismic
Copyright © 2011 American Wood Council. All rights reserved.

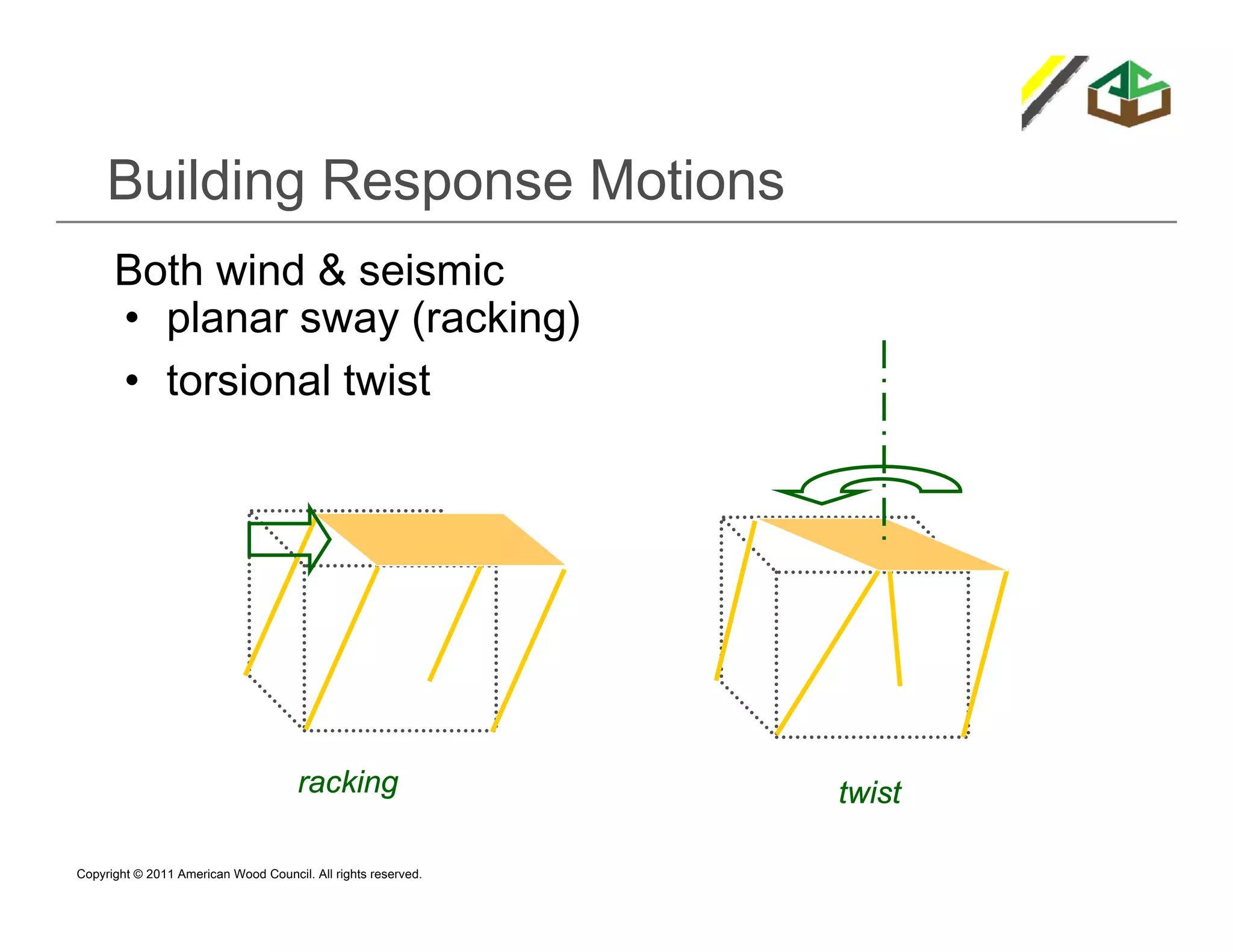

7. Building Response Motions
Both wind & seismic
• planar sway (racking) center of stiffness
• torsional twist
racking twist
Copyright © 2011 American Wood Council. All rights reserved.

8. Building Response Motions
Both wind & seismic
• horizontal force transfer
– in-plane shear
Vmax at edges
Load
Copyright © 2011 American Wood Council. All rights reserved.

9. WFCM Standard
Basis for the Guides
•Consensus Standard
•Referenced in U.S. Building Codes
•Very technical
•Audience
•Designers
•Building Officials
Copyright © 2011 American Wood Council. All rights reserved.

10. High Wind Guides
Developed after Hurricane Katrina
•90-130 mph Exposure B
•Simplified approach
•Specific to wind zones
Copyright © 2011 American Wood Council. All rights reserved.

11. Caribbean Basin Builders’ Guide
Developed after Haiti Earthquake
•150 mph Exposure C
•Seismic Category D2
•Simplified approach
•Panelized construction
Copyright © 2011 American Wood Council. All rights reserved.

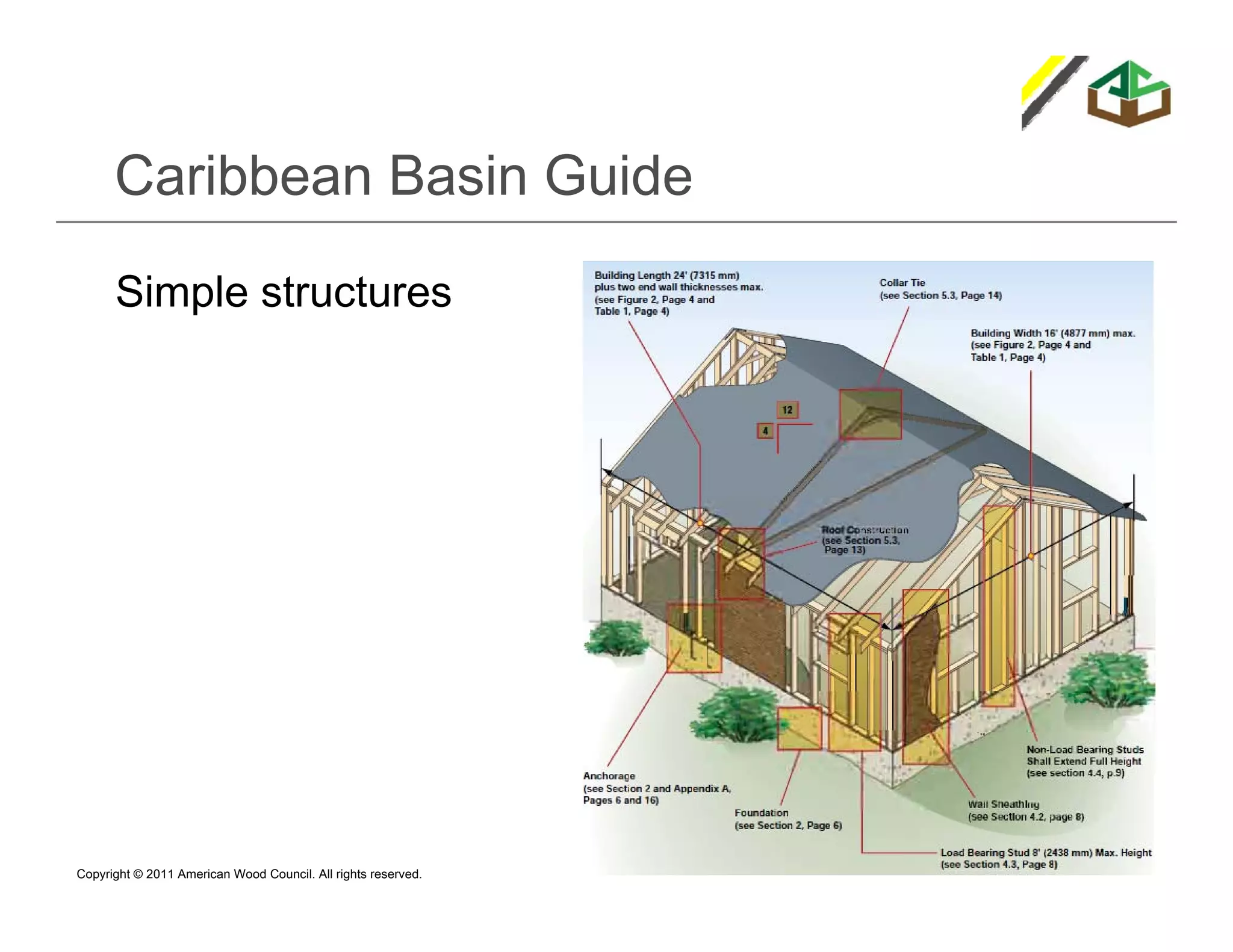

12. Caribbean Basin Guide
Simple structures
Copyright © 2011 American Wood Council. All rights reserved.

13. Caribbean Basin Guide
Limited Size
• 16’x24’
• Can be joined to form
larger structures
Copyright © 2011 American Wood Council. All rights reserved.

14. Caribbean Basin Guide
Foundations
• Needed especially in high
wind areas
• Slabs predominant
Copyright © 2011 American Wood Council. All rights reserved.

15. Caribbean Basin Guide
Modular walls
• Can be prefabricated and
shipped
Copyright © 2011 American Wood Council. All rights reserved.

16. Caribbean Basin Guide
Modular walls
Copyright © 2011 American Wood Council. All rights reserved.

17. Caribbean Basin Guide
Roof Systems
Copyright © 2011 American Wood Council. All rights reserved.

18. Caribbean Basin Guide
Trilingual
•English
•Spanish
•French
• CWC assisted with French
translation
Copyright © 2011 American Wood Council. All rights reserved.

19. Availability of Caribbean Guide
www.awc.org
• Download
– no charge
• Hard copies
– Limited quantities
– Contact AWC
Copyright © 2011 American Wood Council. All rights reserved.

20. QUESTIONS?
