The document discusses developing a SCADA system based on the open-source scientific computing software Scilab. It introduces SCADA systems and their typical architecture. To address the limited computing abilities of traditional SCADA, the document proposes using Scilab which provides toolboxes for control and optimization. It describes designing a SCADA system based on Scilab and realizing data acquisition with Scilab through interfaces like OPC, Modbus, and industrial Ethernet. Applications of the Scilab-based SCADA system in a water enterprise are presented as a case study.

1. Brought to you by http://youthknowledge.blogspot.com SciSCADA Toolbox

2. Contents Introduction to SCADA 1 The Design of SCADA System Based on Scilab 2 The Realization of Data Acquisition with Scilab 3 Applications and a Example in Water Enterprise 4 Conclusion and prospect 5

3. Contents Introduction to SCADA 1 The Design of SCADA System Based on Scilab 2 The Realization of Data Acquisition with Scilab 3 Applications and a Example in Water Enterprise 4 Conclusion and prospect 5

4. Introduction to SCADA W idely used in industrial area because of its convenience. SCADA Supervisory Control and Data Acquisition

5. Introduction to SCADA Typical Hardware Architecture

6. Introduction to SCADA Typical Software Architecture

7. Introduction to SCADA - Shortage and Solving Methods O nly implement the functions of data acquisition and data monitor, having no enough scientific computation ability to do complicated control and optimization. Shortage C ompute module should be imported in the SCADA system . D eveloping the SCADA system based on scientific computation software . Solving

8. Contents Introduction to SCADA 1 The Design of SCADA System Based on Scilab 2 The Realization of Data Acquisition with Scilab 3 Applications and a Example in Water Enterprise 4 OSSS-EA’2006 Conclusion and prospect 5

9. The Design of SCADA System Based on Scilab Developing SCADA System based on Scientific Computation Software Scilab To Solve the Shortage of Traditional SCADA We propose a method

10. The Design of SCADA System Based on Scilab 1. Costs, Scilab is free . Why choose Scilab ? Not Matlab, etc. 2. Source, Scilab open its Code source, which allow us modify the software according to our opinion, or integrate Scilab to our own software . 3.Toolbox, Scilab provides much toolbox in control and optimization area . 4. OS, Scilab support Linux operating system.

11. The Design of SCADA System Based on Scilab

12. The Design of SCADA System Based on Scilab Discrete Off-line Continuous On-line Laboratory Factory Can’t Exchange Data Laboratory Factory Convenience Exchange Data

14. The Design of SCADA System Based on Scilab We want to do… Realizing control and optimization on-line , not off-line

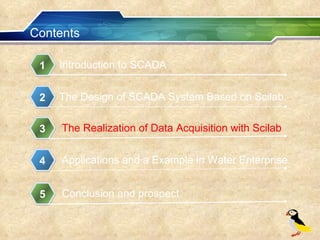

15. Contents Introduction to SCADA 1 The Design of SCADA System Based on Scilab 2 The Realization of Data Acquisition with Scilab 3 Applications and a Example in Water Enterprise 4 Conclusion and prospect 5

16. The Realization of Data Acquisition with Scilab The Key Technology Realizing exchange data between factory and Scilab What Should Do? Developing Scilab Interface with Factory Device According to Some Industrial Protocol, Such as OPC, Field Bus, Industrial Ethernet, etc.

17. The Realization of Data Acquisition with Scilab OPC interface Modbus-ASCII interface Industrial Ethernet (Modbus-TCP) What we have done?

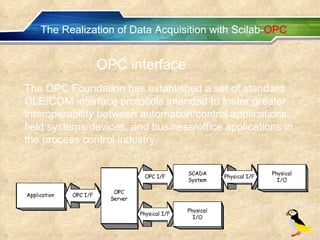

18. The Realization of Data Acquisition with Scilab- OPC The OPC Foundation has established a set of standard OLE/COM interface protocols intended to foster greater interoperability between automation/control applications, field systems/devices, and business/office applications in the process control industry. OPC interface

19. The Realization of Data Acquisition with Scilab- OPC With OPC technology, we can acquisition data from different device easily. And not need to know physical structure. What can OPC give us?

20. The Realization of Data Acquisition with Scilab- OPC Through writing OPC DLL to extend Scilab’ OPC function. Developing OPC Interface

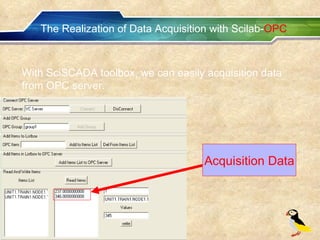

21. The Realization of Data Acquisition with Scilab- OPC With SciSCADA toolbox, we can easily acquisition data from OPC server. Acquisition Data

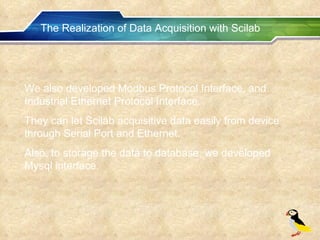

22. The Realization of Data Acquisition with Scilab We also developed Modbus Protocol Interface, and Industrial Ethernet Protocol Interface. They can let Scilab acquisitive data easily from device through Serial Port and Ethernet. Also, to storage the data to database, we developed Mysql interface.

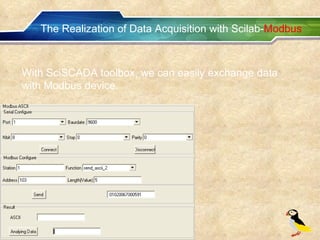

23. The Realization of Data Acquisition with Scilab- Modbus With SciSCADA toolbox, we can easily exchange data with Modbus device.

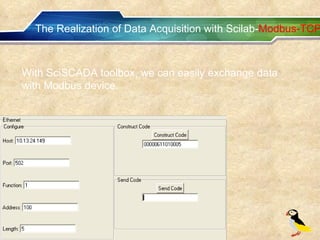

24. The Realization of Data Acquisition with Scilab- Modbus-TCP With SciSCADA toolbox, we can easily exchange data with Modbus device.

25. Contents Introduction to SCADA 1 The Design of SCADA System Based on Scilab 2 The Realization of Data Acquisition with Scilab 3 Applications and a Example in Water Enterprise 4 Conclusion and prospect 5

26. Applications- OPC Simatic. Net Rslinx OPC Factory Server Other OPC Server GE OPC Server Scilab SciSCADA Toolbox Rockwell Vendor Product Siemens Vendor Product Schneider Vendor Product GE Vendor Product Other Vendor Product

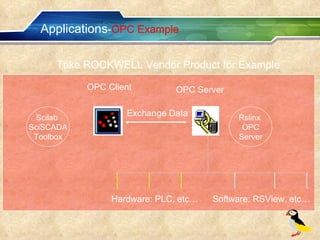

27. Applications - OPC Example OPC Client OPC Server Exchange Data Software: RSView, etc… Hardware: PLC, etc… Take ROCKWELL Vendor Product for Example Scilab SciSCADA Toolbox Rslinx OPC Server

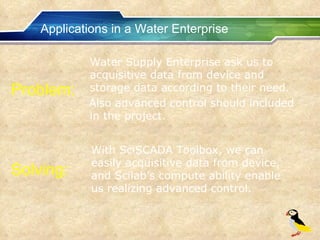

28. Applications in a Water Enterprise Water Supply Enterprise ask us to acquisitive data from device and storage data according to their need. Also advanced control should included in the project. Problem: With SciSCADA Toolbox, we can easily acquisitive data from device, and Scilab’s compute ability enable us realizing advanced control. Solving:

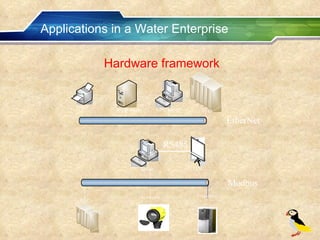

29. Applications in a Water Enterprise Hardware framework

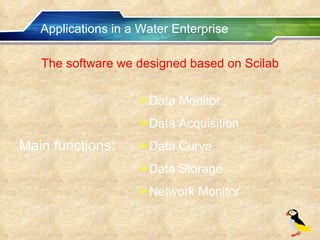

30. Applications in a Water Enterprise The software we designed based on Scilab Data Monitor Data Acquisition Data Curve Data Storage Network Monitor Main functions:

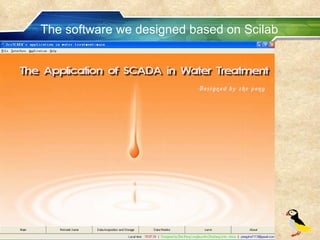

31. The software we designed based on Scilab

32. The software we designed based on Scilab

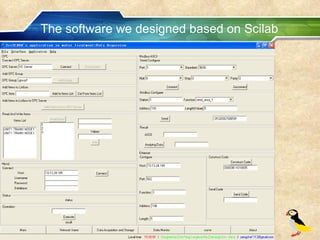

33. The software we designed based on Scilab

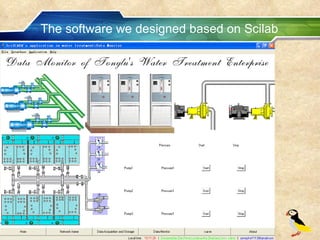

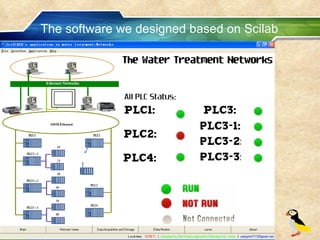

34. The software we designed based on Scilab

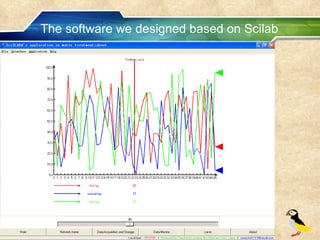

35. The software we designed based on Scilab

36. Contents Introduction to SCADA 1 The Design of SCADA System Based on Scilab 2 The Realization of Data Acquisition with Scilab 3 Applications and a Example in Water Enterprise 4 Conclusion and prospect 5

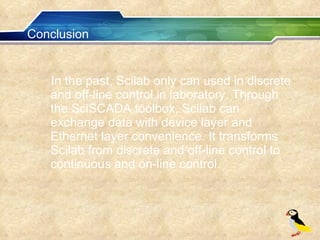

37. Conclusion In the past, Scilab only can used in discrete and off-line control in laboratory. Through the SciSCADA toolbox, Scilab can exchange data with device layer and Ethernet layer convenience. It transforms Scilab from discrete and off-line control to continuous and on-line control.

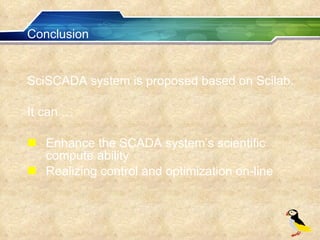

38. Conclusion SciSCADA system is proposed based on Scilab. It can … Enhance the SCADA system’s scientific compute ability Realizing control and optimization on-line
